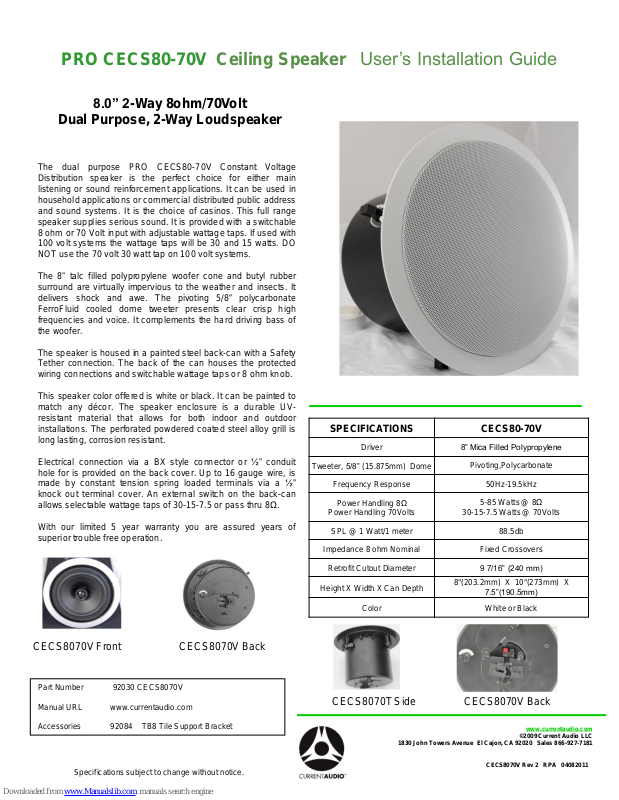

PRO CECS80-70V Ceiling Speaker User’s Installation Guide
SPECIFICATIONS
CECS80-70V
Driver
8” Mica Filled Polypropylene
Tweeter, 5/8” (15.875mm) Dome
Pivoting,Polycarbonate
Frequency Response
50Hz-19.5kHz
Power Handling 8Ω
Power Handling 70Volts
5-85 Watts @ 8Ω
30-15-7.5 Watts @ 70Volts
SPL @ 1 Watt/1 meter
88.5db
Impedance 8 ohm Nominal
Fixed Crossovers
Retrofit Cutout Diameter
9 7/16” (240 mm)
Height X Width X Can Depth
8"(203.2mm) X 10"(273mm) X
7.5”(190.5mm)
Color
White or Black
8.0” 2-Way 8ohm/70Volt
Dual Purpose, 2-Way Loudspeaker
The dual purpose PRO CECS80-70V Constant Voltage
Distribution speaker is the perfect choice for either main
listening or sound reinforcement applications. It can be used in
household applications or commercial distributed public address
and sound systems. It is the choice of casinos. This full range
speaker supplies serious sound. It is provided with a switchable
8 ohm or 70 Volt input with adjustable wattage taps. If used with
100 volt systems the wattage taps will be 30 and 15 watts. DO
NOT use the 70 volt 30 watt tap on 100 volt systems.
The 8” talc filled polypropylene woofer cone and butyl rubber
surround are virtually impervious to the weather and insects. It
delivers shock and awe. The pivoting 5/8” polycarbonate
FerroFluid cooled dome tweeter presents clear crisp high
frequencies and voice. It complements the hard driving bass of
the woofer.
The speaker is housed in a painted steel back-can with a Safety
Tether connection. The back of the can houses the protected
wiring connections and switchable wattage taps or 8 ohm knob.
This speaker color offered is white or black. It can be painted to
match any décor. The speaker enclosure is a durable UVresistant material that allows for both indoor and outdoor
installations. The perforated powdered coated steel alloy grill is
long lasting, corrosion resistant.
Electrical connection via a BX style connector or ½” conduit
hole for is provided on the back cover. Up to 16 gauge wire, is
made by constant tension spring loaded terminals via a ½”
knock out terminal cover. An external switch on the back-can
allows selectable wattage taps of 30-15-7.5 or pass thru 8Ω.
With our limited 5 year warranty you are assured years of
superior trouble free operation.

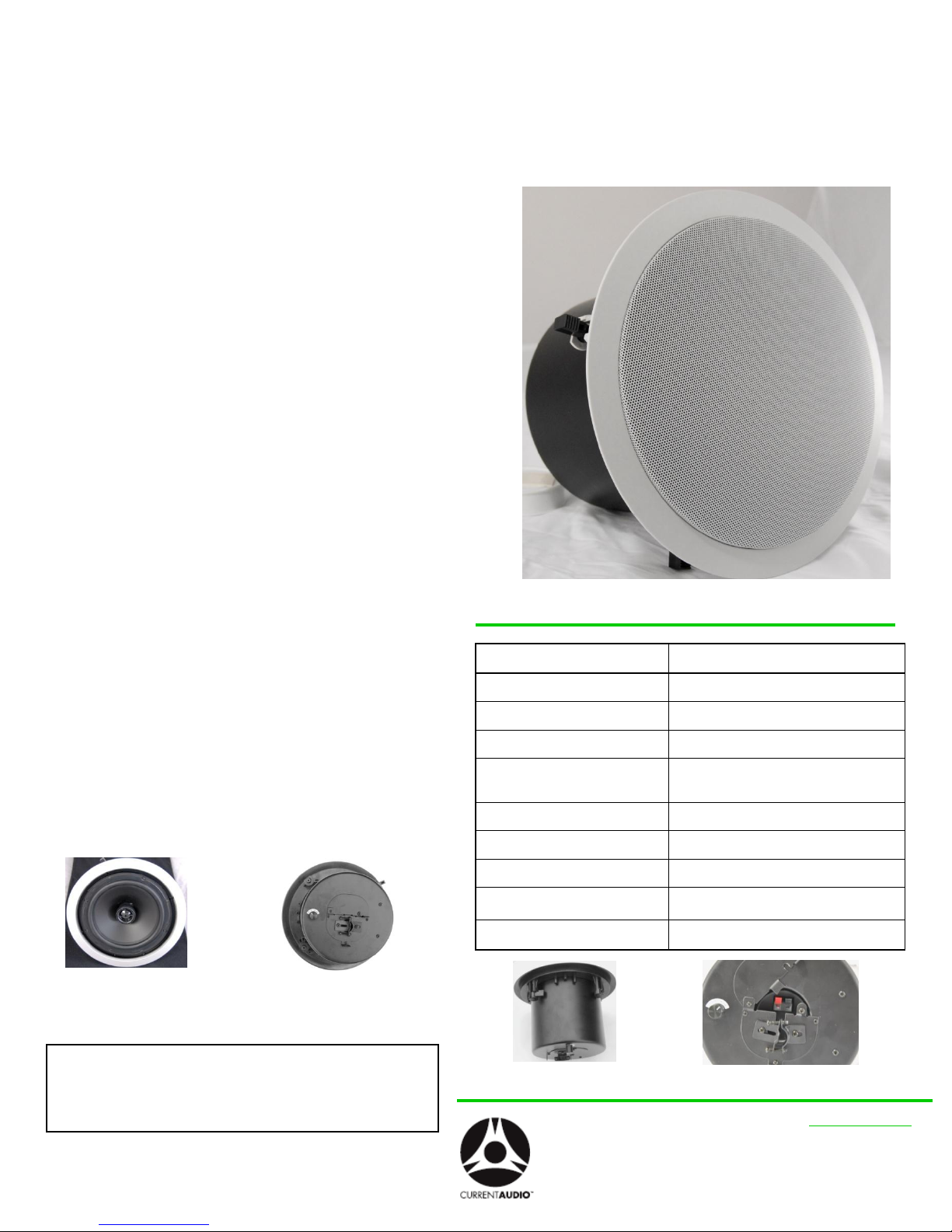

CECS8070V Back CECS8070V Front
Part Number 92030 CECS8070V
Manual URL www.currentaudio.com
Accessories 92084 TB8 Tile Support Bracket
Specifications subject to change without notice.
CECS8070T Side CECS8070V Back
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
CECS8070V Rev 2 RPA 04082011
www.currentaudio.com
©2009 Current Audio LLC
Page 2
PRO CECS80-70V Ceiling Speaker User’s Installation Guide
Packaging and Enclosed Parts
Please inspect your pack for damaged or missing parts. Notify your supplier if any discrepancies occur.
The CECS8070V Speakers are packaged one to a box and sold as each.
Each box includes (1) Speaker, (1) Grille(1) ½” knockout cover plate and (1) Hardwood Tree planted in the National Forest.
Install
1. Decide if you want standard 8 ohm two speaker stereo sound, or distributed 70/100volt speaker sound. Then chose 8 ohm or 70Volt. The PRO CECS8070V can
do either.. This speaker may also be used on 100 volt systems.
2. Chose locations for your speakers. If using two separate speakers, keep in mind your “sweet stop” the area where you will spend most of your time.
3. Choose your wiring method: Home Run or Daisy chain. Suggest a pigtail if daisy chain from one speaker to the next
4. Bury your conduit or wire 18” below grade to prevent damage by tillers or shovels when planting. Prewire before hardscape concrete.
5. Insure there is enough room above to place the CECS8070V in the ceiling or Tile.
6. Use a one piece TB8 Tile Support Bracket to prevent sag. See YouTube for install instructions. Cut on inside of TB8 diameter
7. If using for stereo, carefully identify Left and Right cables at both ends . For proper phasing identify the (+) and (-) on each cable.
8. If using as 70 volt the speakers can be Daisy Chained from one speaker to the next.
9. How do I know what size 70 volt amp to use? Rule of thumb- add up all the wattage taps of the speakers then divide by .75 for safety factor. Example, suppose you
have 10 speakers with the wattage tap of 15, the total wattage would be 150 watts. Divide 150W/.75 = 200W. Now select an amp of 200W or higher.
10. For 8ohm hook-up proceed to step #11.
11. Connect the amplifier Left wire to the to the White and Green wire Only on the designated LEFT PRO CECS8070V speaker. Observe polarity.
12. Connect the amplifier Right wire to the to the White and Green wire Only on the designated RIGHT PRO CECS8070V speaker. Observe polarity.
13. Before connecting the wires to the amplifier check the impedance with a multi-meter on the resistance scale. It should read about 6.5 ohms in the 8 ohm position.
14. If multi-meter reading is OK then connect to amplifier.
15. If using a volume control I suggest placing it inside the house for easy control and to protect it from the elements.
¼-20

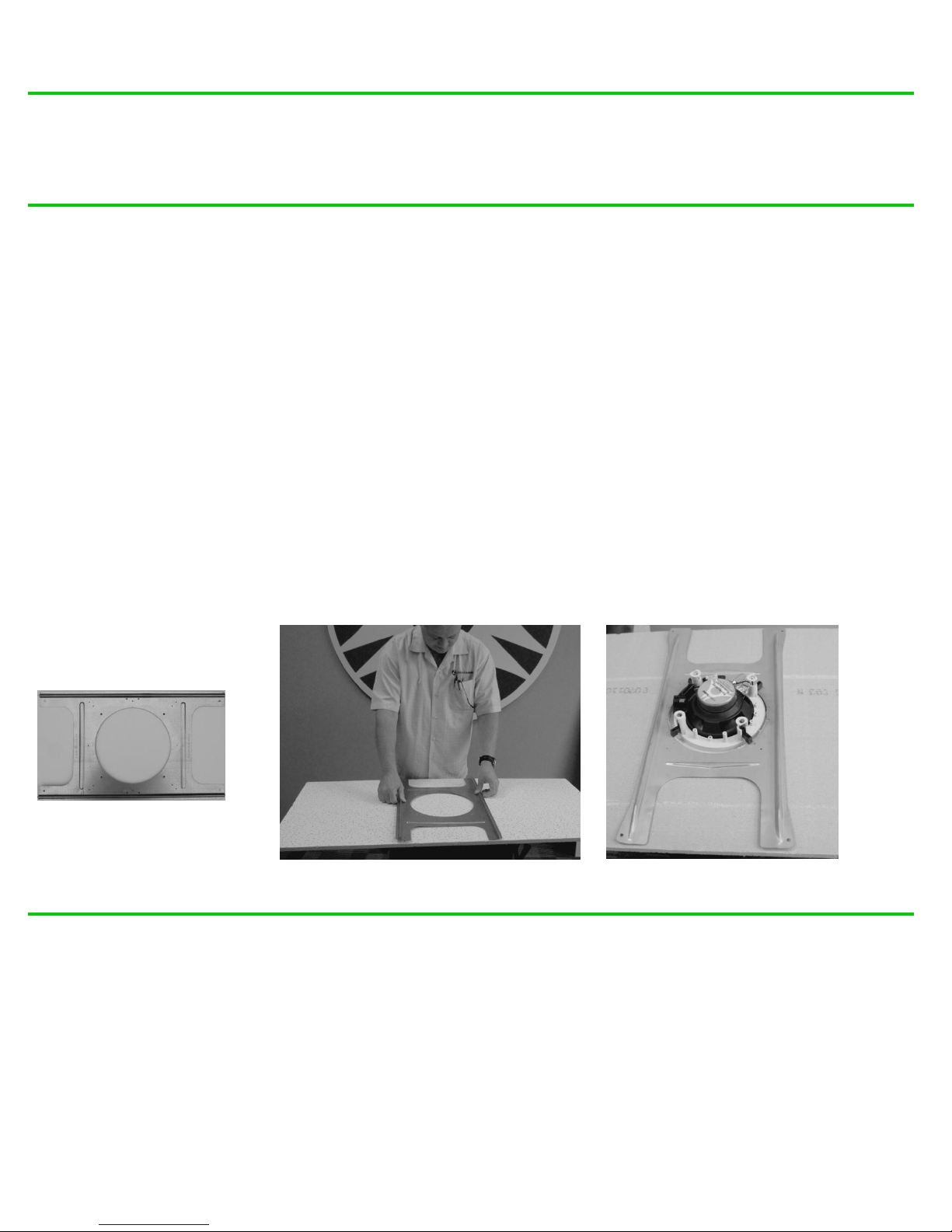

TB8 Tile Support Bracket
TB8 Tile Support Bracket used as a template Tile-Bracket-Speaker
Current Audio, LLC speakers and accessories are warranted to be free from defects in materials and or workmanship to the original retail purchaser for a
period of 5 years provided the equipment was purchased and installed from a Current Audio, LLC Authorized Dealer.
In the event of defective materials and or workmanship, Current Audio, LLC will, without charge, repair or replace, at its option, the defective product. In
order to make claim under this Warranty and to obtain performance of any obligation under warranty, please contact Current Audio. Instructions will be given
on how to return the defective product to Current Audio. Returned products must be shipped prepaid. Proof of purchase must be provided with the product.
The Warranty does not apply to damage not resulting from defective materials and or workmanship while in the possession of the original consumer or due to
unreasonable use by the original consumer, which includes but not limited to improper installation, negligence, unauthorized repair or modification, aesthetic
deterioration from the environment. Products purchased by unauthorized sources will void the warranty and not be honored.
Current Audio, LLC is not liable for any incidental or consequential damages, so the above limitations or inclusion may not apply to you. This warranty gives
you specific legal rights, and you may have other rights, which vary from state to state within the United States.
Specifications subject to change without notice.
Limited 5 Year Warranty
CECS8070V Rev2 RPA 04092011
