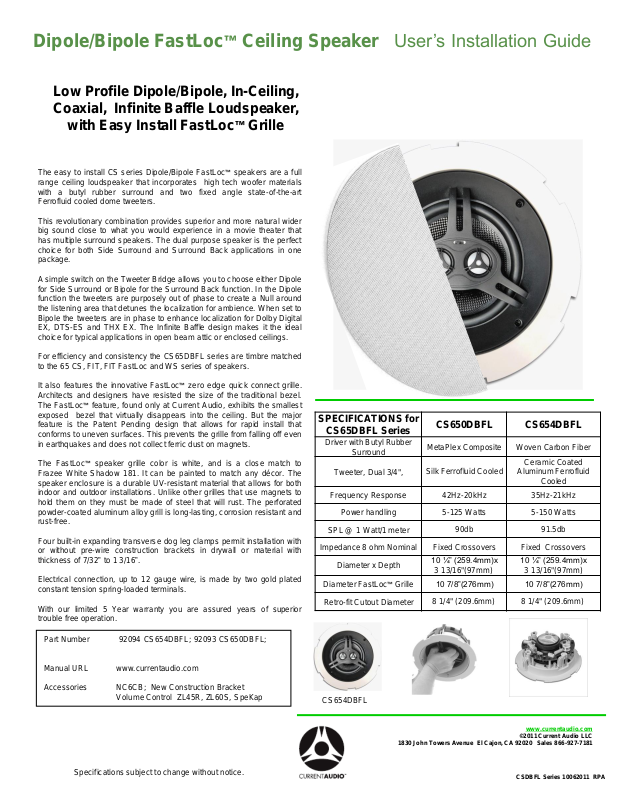

Dipole/Bipole FastLoc™ Ceiling Speaker User’s Installation Guide
SPECIFICATIONS for
CS65DBFL Series
CS650DBFL
CS654DBFL
Driver with Butyl Rubber
Surround
MetaPlex Composite
Woven Carbon Fiber
Tweeter, Dual 3/4",
Silk Ferrofluid Cooled
Ceramic Coated
Aluminum Ferrofluid
Cooled
Frequency Response
42Hz-20kHz
35Hz-21kHz
Power handling
5-125 Watts
5-150 Watts
SPL @ 1 Watt/1 meter
90db
91.5db
Impedance 8 ohm Nominal
Fixed Crossovers
Fixed Crossovers
Diameter x Depth
10 ¼” (259.4mm)x
3 13/16"(97mm)
10 ¼” (259.4mm)x
3 13/16"(97mm)
Diameter FastLoc™ Grille
10 7/8”(276mm)
10 7/8”(276mm)
Retro-fit Cutout Diameter
8 1/4" (209.6mm)
8 1/4" (209.6mm)

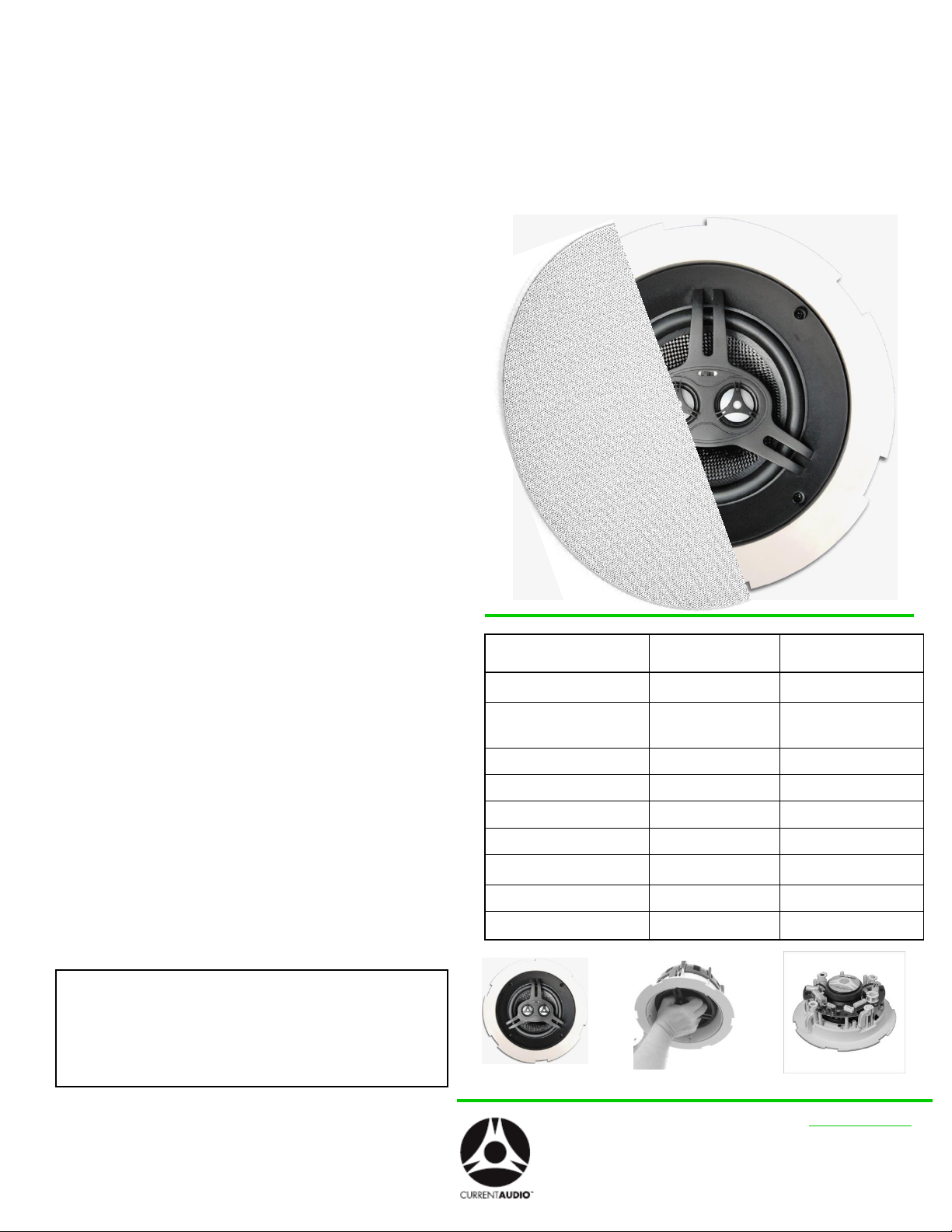

Low Profile Dipole/Bipole, In-Ceiling,
Coaxial, Infinite Baffle Loudspeaker,
with Easy Install FastLoc™ Grille
The easy to install CS series Dipole/Bipole FastLoc™ speakers are a full
range ceiling loudspeaker that incorporates high tech woofer materials
with a butyl rubber surround and two fixed angle state-of-the-art
Ferrofluid cooled dome tweeters.
This revolutionary combination provides superior and more natural wider
big sound close to what you would experience in a movie theater that
has multiple surround speakers. The dual purpose speaker is the perfect
choice for both Side Surround and Surround Back applications in one
package.
A simple switch on the Tweeter Bridge allows you to choose either Dipole
for Side Surround or Bipole for the Surround Back function. In the Dipole
function the tweeters are purposely out of phase to create a Null around
the listening area that detunes the localization for ambience. When set to
Bipole the tweeters are in phase to enhance localization for Dolby Digital
EX, DTS-ES and THX EX. The Infinite Baffle design makes it the ideal
choice for typical applications in open beam attic or enclosed ceilings.
For efficiency and consistency the CS65DBFL series are timbre matched
to the 65 CS, FIT, FIT FastLoc and WS series of speakers.
It also features the innovative FastLoc™ zero edge quick connect grille.
Architects and designers have resisted the size of the traditional bezel.
The FastLoc™ feature, found only at Current Audio, exhibits the smallest
exposed bezel that virtually disappears into the ceiling. But the major
feature is the Patent Pending design that allows for rapid install that
conforms to uneven surfaces. This prevents the grille from falling off even
in earthquakes and does not collect ferric dust on magnets.
The FastLoc™ speaker grille color is white, and is a close match to
Frazee White Shadow 181. It can be painted to match any décor. The
speaker enclosure is a durable UV-resistant material that allows for both
indoor and outdoor installations. Unlike other grilles that use magnets to
hold them on they must be made of steel that will rust. The perforated
powder-coated aluminum alloy grill is long-lasting, corrosion resistant and
rust-free.
Four built-in expanding transverse dog leg clamps permit installation with
or without pre-wire construction brackets in drywall or material with
thickness of 7/32” to 1 3/16”.
Electrical connection, up to 12 gauge wire, is made by two gold plated
constant tension spring-loaded terminals.
With our limited 5 Year warranty you are assured years of superior
trouble free operation.
Part Number 92094 CS654DBFL; 92093 CS650DBFL;
Manual URL www.currentaudio.com
Accessories NC6CB; New Construction Bracket
Volume Control ZL45R, ZL60S, SpeKap
Specifications subject to change without notice.
CS654DBFL
www.currentaudio.com
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
©2011 Current Audio LLC
CSDBFL Series 10062011 RPA
Dipole/Bipole FastLoc™ Ceiling Speaker User’s Installation Guide
Packaging and Enclosed Parts
Please inspect your pack for damaged or missing parts. Notify your supplier if any discrepancies occur.
There are four (4) parts in the package: Two (2) main speaker housings and two (2) grilles.
Only simple hand tool s are required for assembly and installation.
Required tools: If you have new construction brackets previously installed only a #2 Phillips screwdriver .
Drywall Hand saw if no New Construction Brackets were installed. A saber saw may be required if you are cutting into plywood.

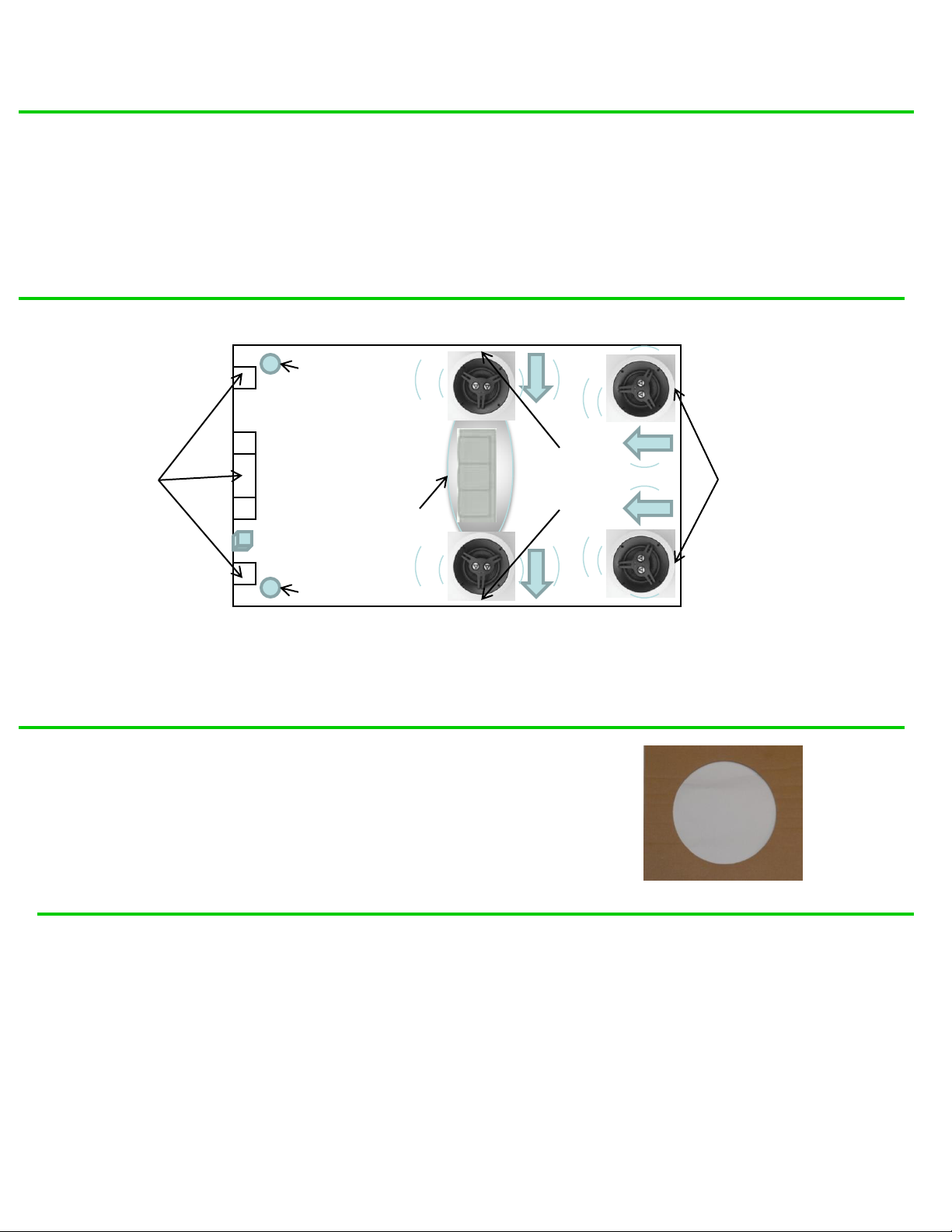

Layout and Tweeter Orientation
Front High
3-D Audio
LCR
This speaker is a combo Dipole/Bipole. The function is selected by a switch on the Tweeter Bridge and must be aimed according to the task. See
Section 4 for the description of the Dipole/Bipole functions.
When used as surround Dipole speakers place them equal distance left and right from the listening area and from equal to or slightly behind the listening
area. The tweeters in this application should be aligned parallel to the wall with the arrow facing to the Left for correct null ambience.
When used as surround back Bipole speakers place them behind the listening area with the tweeters aimed forward for sound localization.
TV
Null Area
Sub
Front High
Dipole
Ambience
Surrounds
Bipole
Back Surrounds
1 Cut Hole for FastLoc™ Speaker
Using the supplied Trace Template, place the cutout template against the ceiling and trace along
the inside circle. After using a stud finder to locate beams, it is suggested to cut a small pilot hole
to verify no obstructions, such as pipes or beams, that could hinder the install.
Carefully cut out the ceiling material along the circle. A drywall saw is perfect for this step. Hold a
box or trash can under your cutting to catch the debris.
NOTE: A stud finder may be helpful to locate the ceiling beams. You want to layout the hole to the
side of any beams.
Trace Template
2 Connect Wires to FastLoc™ Crossover
After you have cut your desired hole from the template, locate the speaker wire for that speaker.
Pull enough wire slack down to attach the 2 conductor wire to the gold plated constant tension spring-loaded terminals.
Remove about 2” of the outer jacket then strip about ½” insulation from each wire and slightly twist the strands to ensure all strands can be inserted into
the hole. Refer to next picture for location of the gold plated constant tension spring-loaded terminals. (See Figure on next page)
Push down on the RED (+) colored Terminal and insert the Red or copper colored conductor all the way up to the insulation into the hole at the bottom of
the terminal. Now release your finger from the terminal . Next do the same to the Black or silver colored conductor and insert into the BLACK (-) colored
Terminal. Make sure there are NO whiskers from the strands that could cause a short. The other end of these wires will be connected to your amplifier or
volume control. (See Figure on next page)
Note: Sometimes your wire color may be White (+) and Green (-).
You now have a connection with the proper tension for continued operation that will not wiggle out or cause poor connection.
Specifications subject to change without notice.
CSDBFL Series 10062011 RPA
Dipole/Bipole FastLoc™ Ceiling Speaker User’s Installation Guide

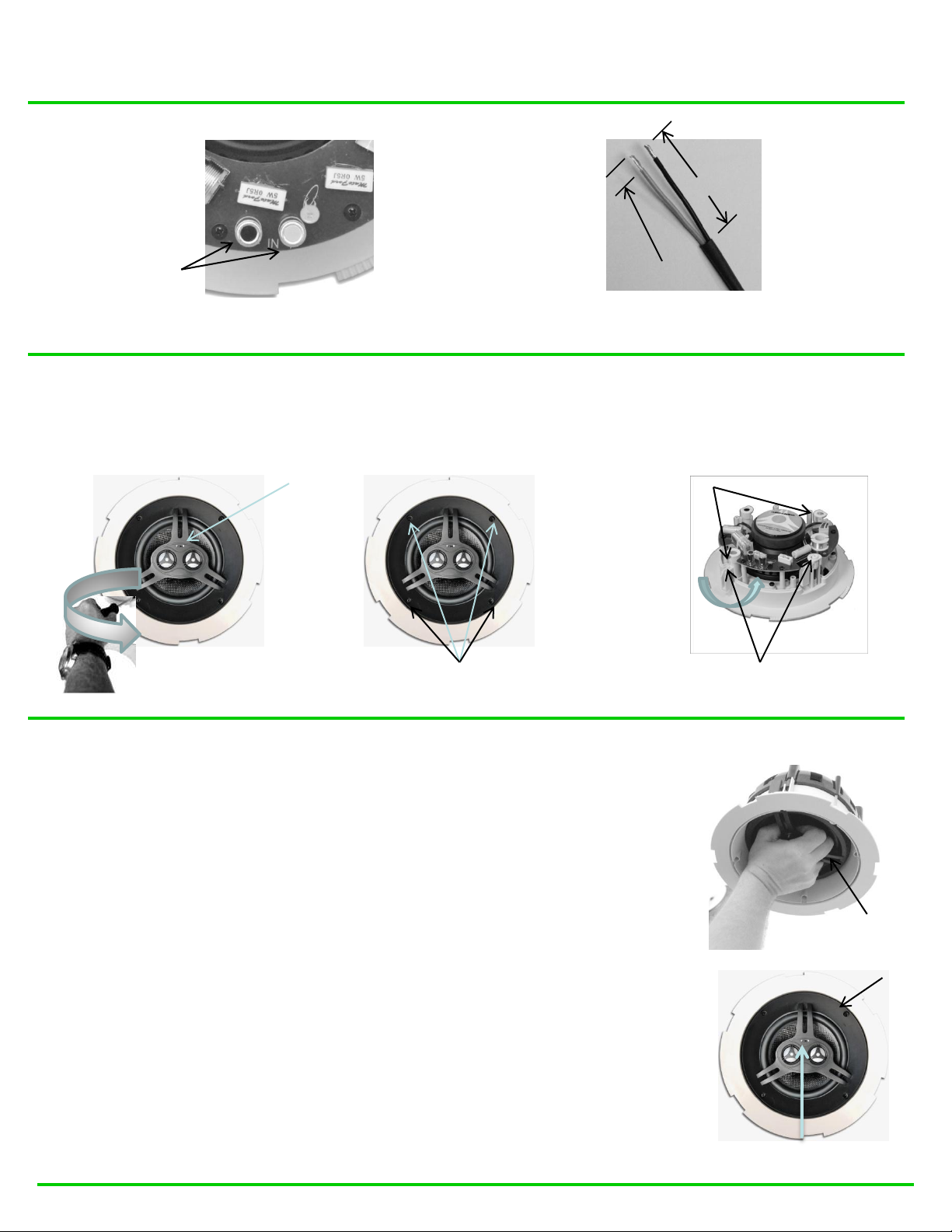

Remove
Outer
Jacket
2”
Gold Plated
Constant Tension
Spring-loaded
Terminals
BLACK
RED
Strip to ½”
Insert Wires as Shown
Proper Wire Stripping
3 Prepare Speaker for Install
With the grille removed, loosen the four (4) Dog-Leg screws a ½ turn counterclockwise with a #2 Philips screwdriver.
Turn Screws CCW to Loosen
Dog Legs
Tweeter Bridge
Dog-Leg Screws
Dog Legs (4)
Turn Front Screws CW to Expand and Tighten
4 Install FastLoc™ Speaker
Grab and hold the speaker by the built-in Tweeter Bridge Handle as shown. Do Not put fingers into
the tweeter material in the center of the speaker.
WARNING! Denting or deforming the tweeter domes will change the acoustics of the speaker.
Insert the connected speaker into the ceiling hole and with a #2 Phillips screwdriver tighten the four
(4) Dog-leg screws (clockwise) until the Dog-legs open and clamp the speaker to the ceiling. If
using a power drill or electric screw gun use the lowest torque setting. Over tightening may cause
improper fit of the grille, damage to drywall and or damage to speaker.
Before tightening down the Dog-legs position the tweeter orientation (See Figure “Layout and Tweeter
Orientation”) If not properly set the Surrounds will not function optimally.
On a Dipole installation, aim the speaker on the left side of the room to point to the center Tweeter
Bridge Leg to the Left side of the Room. On the right side of the room point the center Tweeter
Bridge Leg also to the Left side of the Room.
On the Rear bipole speakers aim both of the speaker center Tweeter Bridge Legs to the Front of the
room toward the TV. See Diagram on Page 2, Speaker Layout and Tweeter Orientation.
Set Dipole/Bipole Switch before installing FastLoc™ grille.
The switch on the Tweeter Bridge is to set the desired function of the speaker. In the Dipole setting
each tweeter is purposely out of phase to create a null to reduce localization at the listening area.
These side positioned speakers provide for accurate sound and ambience. In the Bipole position the
tweeters are in phase to create a diffuse 360º soundfield with greater localization to the listening area.
Specifications subject to change without notice.
Tweeter Bridge
Baffle Housing
Dipole/Bipole Switch
CSDBFL Series 10062011 RPA
Dipole/Bipole FastLoc™ Ceiling Speaker User’s Installation Guide

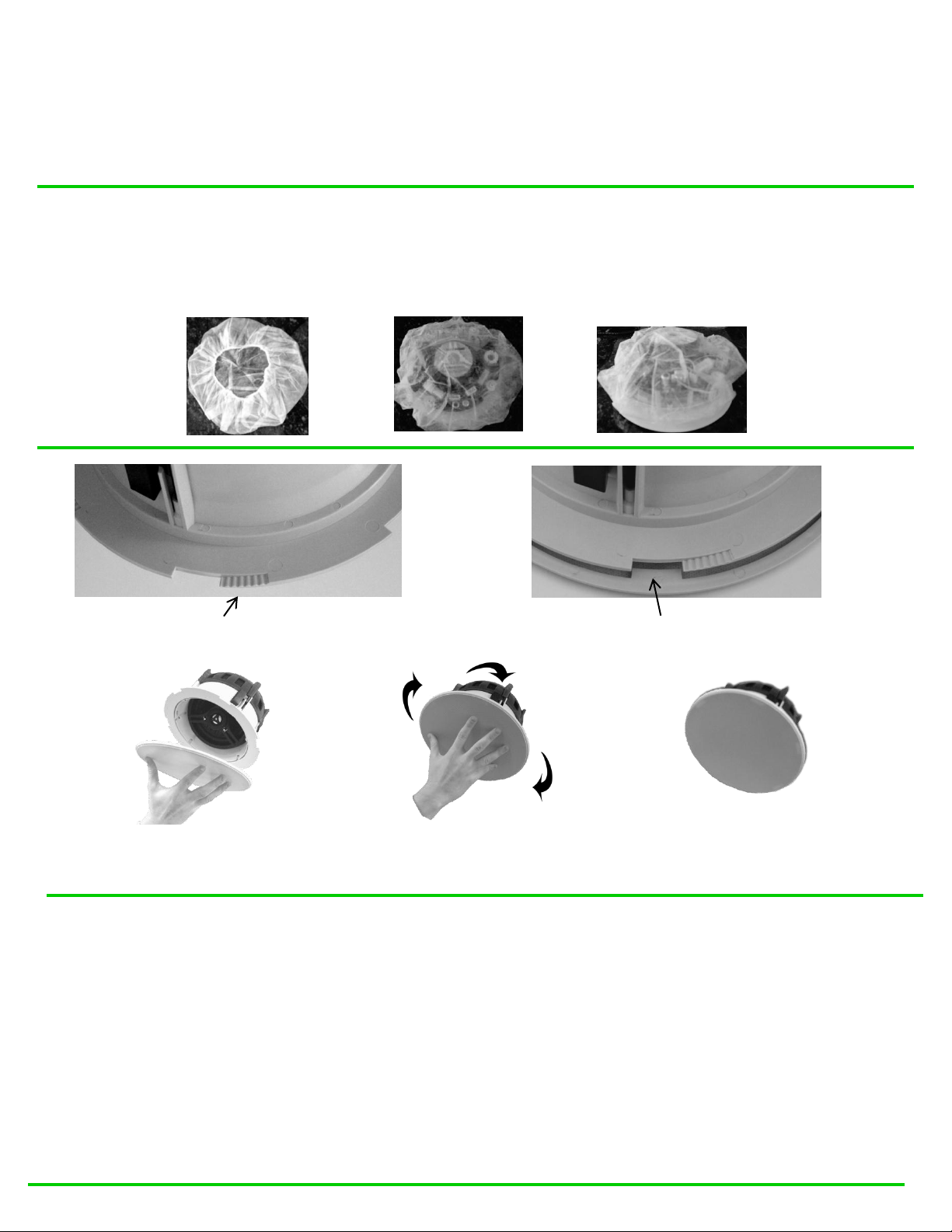

Painting the FastLoc™ Speaker Grille
If grille requires painting , carefully remove the white scrim cloth on the inside of the FastLoc Grille and save for reinstallation. This cloth is provided for
aesthetic purpose only. Either spray paint the grille or use a stiff stipple paint brush. Do Not clog the perforated holes as this will impede the acoustics of
the speaker. No masking is required on the wall or speaker baffle like on conventional speakers. With this system the grille can be easily color updated
anytime.
NOTE: If you have blown-in insulation and/or a potential rodent problem we suggest you install the SpeKap.
It is a breathable membrane that will keep rodent droppings, debris, and insulation from entering the back of the speaker that
could change the performance of the speaker. See figures
SpeKap
Breathable Membrane- Keeps Debris, Rodent Droppings and Insulation out of the Speaker
8” In-Wall 8” In-Ceiling
Grille Tab Speaker Detents
Step 1, Align Tabs to Notches Step 2, Twist CW Step 3, Rotate and Lock
Limited 5 Year Warranty
Current Audio, LLC speakers and accessories are warranted to be free from defects in materials and or workmanship to the original retail
purchaser for a period of 5 years provided the equipment was purchased and installed from a Current Audio, LLC Authorized Dealer.
In the event of defective materials and or workmanship, Current Audio, LLC will, without charge, repair or replace, at its option, the defective
product. In order to make claim under this Warranty and to obtain performance of any obligation under warranty, please contact Current
Audio. Instructions will be given on how to return the defective product to Current Audio. Returned products must be shipped prepaid. Proof of
purchase must be provided with the product.
The Warranty does not apply to damage not resulting from defective materials and or workmanship while in the possession of the original
consumer or due to unreasonable use by the original consumer, which includes but not limited to improper installation, negligence,
unauthorized repair or modification, aesthetic deterioration from the environment. Products purchased by unauthorized sources will void the
warranty and not be honored.
Current Audio, LLC is not liable for any incidental or consequential damages, so the above limitations or inclusion may not apply to you. This
warranty gives you specific legal rights, and you may have other rights, which vary from state to state within the United States.
Specifications subject to change without notice.
