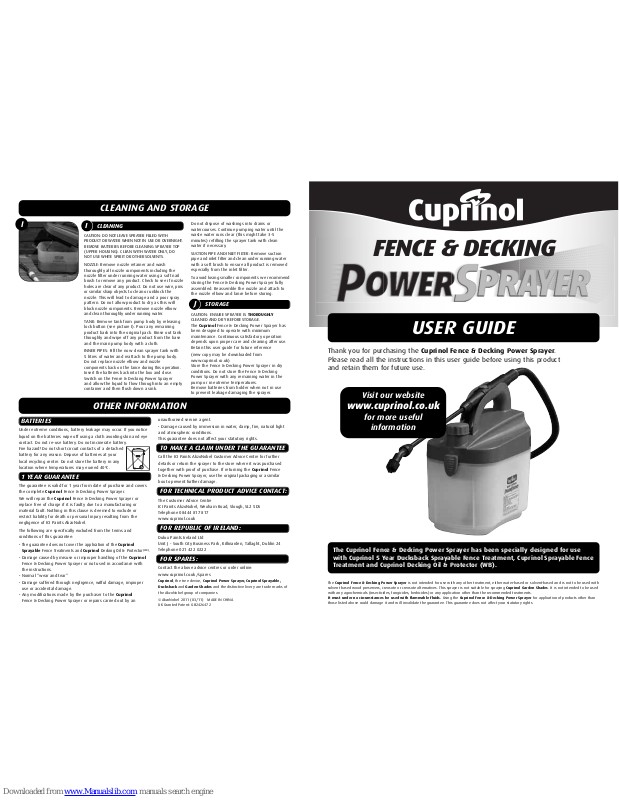

Page 1
FENCE & DECKING
OTHER INFORMATION
USER GUIDE
The Cuprinol Fence & Decking Power Sprayer is not intended for use with any other treatment, either water-based or solvent-based and is not to be used with
solvent based wood preservers, creosote or creosote alternatives. This sprayer is not suitable for spraying Cuprinol Garden Shades. It is not intended to be used
with any agrochemicals (insecticides, fungicides, herbicides) or any application other than the recommended treatments.
It must under no circumstances be used with flammable fluids. Using the Cuprinol Fence & Decking Power Sprayer for application of products other than
those listed above could damage it and will invalidate the guarantee. This guarantee does not affect your statutory rights.
Thank you for purchasing the Cuprinol Fence & Decking Power Sprayer.
Please read all the instructions in this user guide before using this product
and retain them for future use.
CAUTION: DO NOT LEAVE SPRAYER FILLED WITH
PRODUCT OR WATER WHEN NOT IN USE OR OVERNIGHT.
REMOVE BATTERIES BEFORE CLEANING SPRAYER TOP
(UPPER HOUSING). CLEAN WITH WATER ONLY, DO
NOT USE WHITE SPIRIT OR OTHER SOLVENTS.
NOZZLE: Remove nozzle retainer and wash
thoroughly all nozzle components including the
nozzle filter under running water using a soft nail
brush to remove any product. Check to see if nozzle
holes are clear of any product. Do not use wire, pins
or similar sharp objects to clean or unblockthe
nozzle. This will lead to damage and a poor spray
pattern. Do not allow product to dry as this will
block nozzle components. Remove nozzle elbow
and clean thoroughly under running water.
TANK: Remove tank from pump body by releasing
lock button (see picture I). Pour any remaining
product back into the original pack. Rinse out tank
throughly and wipe off any product from the base
and the main pump body with a cloth.
INNER PIPES: Fill the now clean sprayer tank with
5 litres of water and reattach to the pump body.
Do not replace nozzle elbow and nozzle
components back on the lance during this operation.
Insert the batteries back into the box and close.
Switch on the Fence & Decking Power Sprayer
and allow the liquid to flow through into an empty
container and then flush down a sink .
Do not dispose of washings into drains or
watercourses. Continue pumping water until the
waste water runs clear (this might take 3-5
minutes) refilling the sprayer tank with clean
water if necessary.
SUCTION PIPE AND INLET FILTER: Remove suction
pipe and inlet filter and clean under running water
with a soft brush to ensure all product is removed
especially from the inlet filter.
To avoid losing smaller components we recommend
storing the Fence & Decking Power Sprayer fully
assembled. Reassemble the nozzle and attach to
the nozzle elbow and lance before storing.
J STORAGE
CAUTION: ENSURE SPRAYER IS THOROUGHLY
CLEANED AND DRY BEFORE STORAGE.
The Cuprinol Fence & Decking Power Sprayer has
been designed to operate with minimum
maintenance. Continuous satisfactory operation
depends upon proper care and cleaning after use.
Retain this user guide for future reference
(new copy may be downloaded from
www.cuprinol.co.uk)
Store the Fence & Decking Power Sprayer in dry
conditions. Do not store the Fence & Decking
Power Sprayer with any remaining water in the
pump or in extreme temperatures.
Remove batteries from holder when not in use
to prevent leakage damaging the sprayer.
CLEANING AND STORAGE
I
I CLEANING
J STORAGE
The Cuprinol Fence & Decking Power Sprayer has been specially designed for use
with Cuprinol 5 Year Ducksback Sprayable Fence Treatment, Cuprinol Sprayable Fence
Treatment and Cuprinol Decking Oil & Protector (WB).
Visit our website
www.cuprinol.co.uk
for more useful
information
BATTERIES
Under extreme conditions, battery leakage may occur. If you notice
liquid on the batteries wipe off using a cloth avoiding skin and eye
contact. Do not re-use battery. Do not incinerate battery.
Fire hazard! Do not short circuit contacts of a detached
battery for any reason. Dispose of batteries at your
local recycling centre. Do not store the battery in any
location where temperatures may exceed 40ºC.
1 YEAR GUARANTEE
The guarantee is valid for 1 year from date of purchase and covers
the complete Cuprinol Fence & Decking Power Sprayer.
We will repair the Cuprinol Fence & Decking Power Sprayer or
replace free of charge if it is faulty due to a manufacturing or
material fault. Nothing in this clause is deemed to exclude or
restrict liability for death or personal injury resulting from the
negligence of ICI Paints AkzoNobel.
The following are specifically excluded from the terms and
conditions of this guarantee:
• The guarantee does not cover the application of the Cuprinol
Sprayable Fence Treatments and Cuprinol Decking Oil & Protector
(WB)
.
• Damage caused by misuse or improper handling of the Cuprinol
Fence & Decking Power Sprayer or not used in accordance with
the instructions.
• Normal “wear and tear”
• Damage suffered through negligence, wilful damage, improper
use or accidental damage.
• Any modifications made by the purchaser to the Cuprinol
Fence & Decking Power Sprayer or repairs carried out by an
unauthorised service agent.
• Damage caused by immersion in water, damp, fire, natural light
and atmospheric conditions.
This guarantee does not affect your statutory rights.
TO MAKE A CLAIM UNDER THE GUARANTEE
Call the ICI Paints AkzoNobel Customer Advice Centre for further
details or return the sprayer to the store where it was purchased
together with proof of purchase. If returning the Cuprinol Fence
& Decking Power Sprayer, use the original packaging or a similar
box to prevent further damage.
FOR TECHNICAL PRODUCT ADVICE CONTACT:
The Customer Advice Centre
ICI Paints AkzoNobel, Wexham Road, Slough, SL2 5DS
Telephone 08444 817 817
www.cuprinol.co.uk
FOR REPUBLIC OF IRELAND:
Dulux Paints Ireland Ltd
Unit J - South City Business Park , Killinarden, Tallaght, Dublin 24
Telephone 021 422 0222
FOR SPARES:
Contact the above advice centres or order online:
www.cuprinol.co.uk/spares
Cuprinol, the tree device, Cuprinol Power Sprayer, Cuprinol Sprayable,
Ducksback and Garden Shades and the distinctive livery are trade marks of
the AkzoNobel group of companies.
©AkzoNobel 2011 (03/11) MADE IN CHINA
UK Granted Patent: GB2426472
Page 2

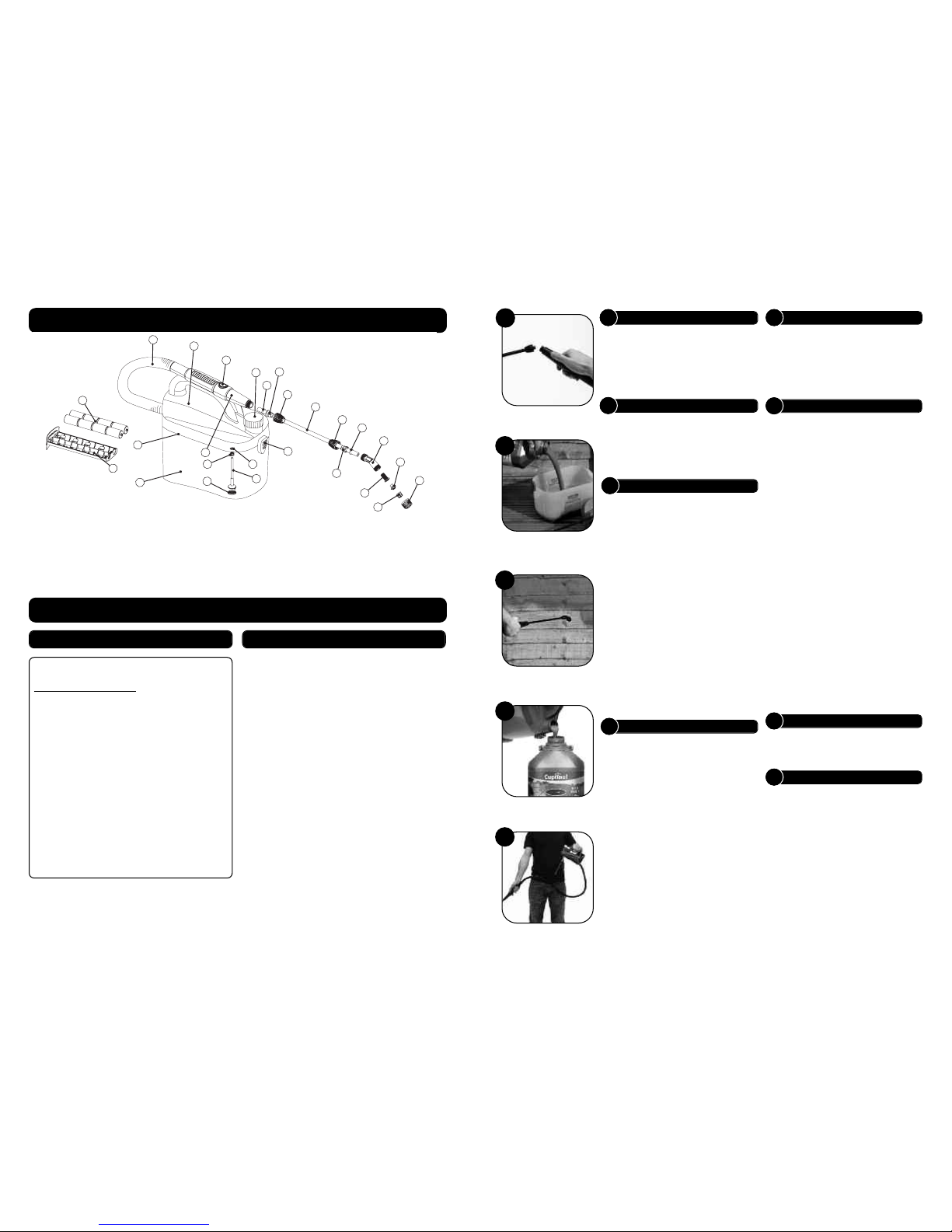

Remove the battery box from the sprayer by pushing
down the tab on upper housing and pulling the
battery box out. Insert eight 1.5V C sized batteries
into the battery box so that they are lined up to the
positive and negative symbols shown in the battery
box. Push the tab on the upper housing down and
slide the battery box back into the sprayer. The
batteries are now inserted and ready for use.
CAUTION: DO NOT RUN THE SPRAYER DRY (I.E. WITHOUT
PRODUCT OR WATER). The majority of components
are assembled, however you will need to attach
the lance SECURELY to the handle to avoid leaks
during use (see picture B). Ensure all fittings are
tight prior to use but do not use a spanner or
similar tool to tighten.
Test for proper assembly and tightness of hose
by filling with water and doing a test spray.
This is also important to prepare the pump for the
treatment fluid. The amount of water in the tank
must be at least 3 litres (to ensure that the suction
pipe is fully immersed guarding against air locks).
Fill by removing the tank cap from the pump body
and fill. The Fence & Decking Power Sprayer is
switched on by depressing the switch on the
handle. Continuous pressure must be applied
for the Fence & Decking Power Sprayer to work releasing the switch will stop the sprayer.
It is important to note that the spray may not
emerge immediately as it takes up to a minute
for the fluid to reach the nozzle.
DO NOT LOOK DOWN THE NOZZLE WHILST THE SPRAYER
IS SWITCHED ON.
Once water is released from the nozzle, you only
need to test spray for a few seconds.
ON REUSE AND AFTER STORAGE: Check all component
parts are free of excessive wear and tear; worn
parts must not be used. Check for damage to unit
and attachments. If damaged do not use.
When re-assembled check the system by spraying
water before using Cuprinol fluid, to ensure there
are no leaks.
Ensure you have tested the Fence & Decking Power
Sprayer with water prior to filling the product (see
step C above). SHAKE OR STIR BOTTLE/TIN OF YOUR
SELECTED CUPRINOL FLUID THOROUGHLY BEFORE
OPENING. Unclip the tank from the Fence &
Decking Power Sprayer and, pour contents into
the tank (see picture D). When filling the Fence
& Decking Power Sprayer for the first time a
minimum of 3 litres of fluid is needed to allow
the pump to prime effectively. Please note that
the Fence & Decking Power Sprayer is designed to
hold one 5 litre bottle/tin of fluid. When refilling
take care not to overfill, as not all product in the
tank will have been sprayed.
When first using the Fence & Decking Power
Sprayer with Cuprinol products, the pump may
take up to a minute to release the fluid from
the nozzle. Do not look down the nozzle whilst
the Fence & Decking Power Sprayer is switched
on. For best results keep the sprayer nozzle
approximately 15 to 30cm (6 to 12”) from the
surface to be coated.
Using a slow, sweeping motion, spray horizontally
across the area to be coated by turning at the end
and overlapping approximately half of the previous
pass each time (see picture E). This should ensure
that you achieve an even finish. An alternative
technique for spraying large areas such as sheds
or summerhouses, is to adopt a small circular
motion, rather than spraying in a horizontal line.
As with any sprayer it may take a couple of minutes
to perfect your technique. Vary the distance of the
nozzle from the surface of the wood until you get
the best finish. Begin slowly and increase the pace
as you get used to spraying. Take care not to spray
too quickly as this may result in an uneven finish.
Similarly, spraying too slowly will result in excess
product being applied causing runs. Should this
happen, simply even out with a brush.
The Cuprinol Fence & Decking Power Sprayer has
a very controlled spray pattern, however, as with
any spray product a limited amount of overspray
will be created. This can be minimised by avoiding
spraying in windy conditions and by using
cardboard or plastic as a shield. Masking off
windows, doors, patios, brickwork, gutters,
downpipes, fascias, drains, plants etc., is
recommended when spraying outdoor buildings
such as sheds and summerhouses. Any overspray
should be cleaned up immediately, whilst still
wet, with water and household detergent if
necessary. Excessive spillage on plants should be
rinsed off immediately before drying.
If the Fence & Decking Power Sprayer stops
spraying, check if the batteries need changing,
if the nozzle has become blocked (see cleaning)
or if an airlock has occured (see troubleshooting).
Switch off sprayer and refill using procedure in
step D. Take care not to overfill.
CAUTION: DO NOT TAMPER WITH THE SPRAYER
WHEN IT IS SWITCHED ON AT ANY STAGE.
Any unused fluid can be removed from the
Cuprinol Fence & Decking Power Sprayer and
retained for future use. Simply unscrew the tank
cap from the pump body and pour the remaining
product back into the original fluid container
(see picture H).
D
B
E
H
HOW TO USE
It may take up to one minute to release the fluid from the nozzle on first use
Do not look down the nozzle whilst the sprayer is switched on
NEVER use with solvent based products
Wear eye protection when spraying
Do not switch on unless filled with product or water
Do not point at self or others whilst in use
Keep children, bystanders and pets away during use
Always check and test with water before each use
Read and comply with all instructions and precautions on product labels
Use only with Cuprinol products recommended
Do not overfill
Do not immerse pump component fully in water
Store clean and empty
Do not modify this unit
Do not connect to an external pressure source
Do not use if components are excessively worn
Use only with batteries supplied or recommended, do not connect to
external power source
For further advice contact the ICI Paints AkzoNobel Customer Advice Centre
on 08444 817 817
PARTS LIST
• If the Fence & Decking Power Sprayer stops operating, then it is
possible that the batteries have run down. This will occur after
about 45 to 50 minutes. Please replace the batteries with fresh
ones.
• If the Fence & Decking Power Sprayer produces a poor quality
spray, then either the nozzle or suction pipe and inlet filter/valve
may be blocked. Turn off the Fence & Decking Power Sprayer,
remove the nozzle, clean in water (see cleaning) and carefully
reassemble. Repeat for the suction pipe and inlet filter.
• If the Fence & Decking Power Sprayer is still pumping but there
is no spray from the nozzle, it is possible that either:
a) The nozzle is blocked (see cleaning)
b) An air lock has occurred in the pump. This may occur if the
suction pipe is exposed above the level of the fluid in the tank.
Under these circumstances, turn off the Fence & Decking Power
Sprayer, unscrew the nozzle and drain the contents of the lance
back into the Fence & Decking Power Sprayer tank. Hold the
main pump unit in one hand and at the same time hold the lance
with the other hand below the level of the pump unit.
Switch on and keep running until no fluid is sprayed from the
lance (see Fig 1). Carefully reassemble the nozzle, ensuring all the
fittings are tight prior to use but do not use a spanner or similar
tool to tighten. Reattach to the tank then restart the Fence &
Decking Power Sprayer. Please note, it may take 2-3 minutes
for fluid to be released from the nozzle.
• If the Fence & Decking Power Sprayer does not operate for any
other reason, or components of the product have become
damaged, then please contact the ICI Paints AkzoNobel Customer
Advice Centre.
TROUBLESHOOTINGKEY PRECAUTIONS
A BATTERIES
B ASSEMBLY OF COMPONENTS
C WATER TESTING
D FILLING WITH FLUID
E SPRAYING
F SPRAYING TECHNIQUE
G REFILLING
H FINISHING
Fig 1
1
2
3
4
5
6
7
8
9
0
1
1
1
2
1
31
41
51
6
1
71
8191
02
12
2
2
3
2
42
5
2
6
2
reni
ater elzzoN .
1
elzzoN .
2
ecifiro-er
P .
3
retlif elzzoN .4
woble elzzoN .5
)A( t
eksag dn
uoR .
6
)A( eno
C .7
)A(
tu
n enoC .8
ecnaL .
9
)B( t
un e
noC .0
1
)B( enoC .11
)B(
teksa
g dnuoR
.21
eldnaH .31
hctiws FFO/NO .41
esoH .5
1
p
ac knaT .61
nott
ub kcoL .71
rehsaw rebbuR
.81
tuN .91
epiP noitcuS .02
retlif telnI .12
knaT .
22
revoc k
naT
.32
gnisuoh reppU .42
xob yrettaB .52
yrettaB .62
Loading...
