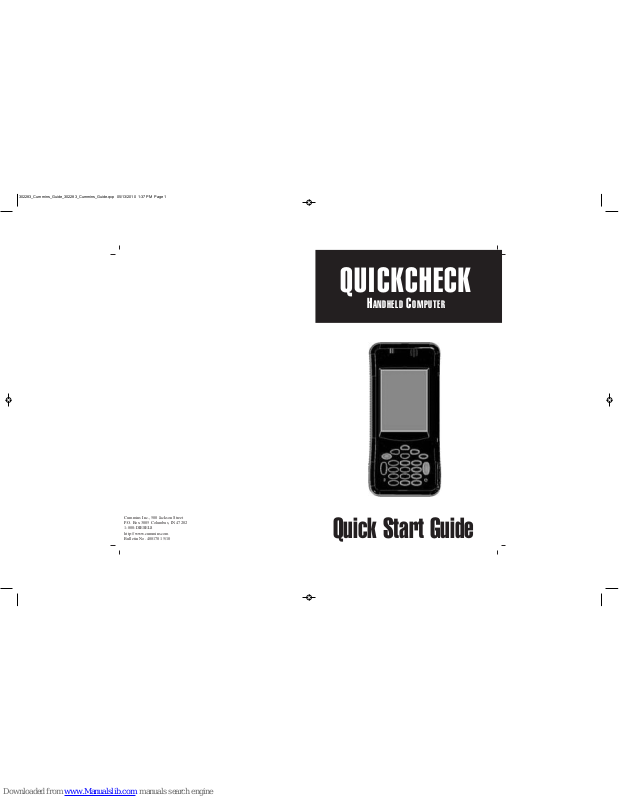

Page 1
QUICKCHECK
HANDHEL D COMPUTE R
Quick Start Guide
Cummins Inc., 500 Jackson Street
P.O. Box 3005 Columbus, IN 47202
1-800-DIESELS
http://www.cummins.com
Bulletin No. 4081701 5/10
302283_Cummins_Guide_302283_Cummins_Guide.qxp 05/13/2010 1:37 PM Page 1
Page 2
Introduction
Congratulations on your purchase of the Cummins QUICKCHECK Handheld
Computer for diesel-powered Automotive and Industrial vehicle applications. It is
our hope that this device will add value to your already valuable Cummins engine
by giving you the ability to read engine and vehicle subsystem information quickly
and conveniently.
The QUICKCHECK CE application communicates with the engine ECM (electronic
control module) component, as well as other vehicle subsystem components that
broadcast on the SAE J1939 or J1587 datalink(s).
The POWERSPEC CE application communicates with an engine ECM on the SAE
J1939 or J1587 datalink(s). The POWERSPEC CE application is designed to work
with late-model Cummins automotive engines (ISB, ISC, ISL, ISM, and ISX).
QC5100 Handheld Computer Kit, Part Number 4918718
4918715 QC5100 Handheld Computer
QC5200 Handheld Computer Kit, Part Number 4919189
4919190 QC5200 Handheld Computer
Part Number Description
3165159 Datalink Cable (DB25F 9-pin Deutsch connector)
3165160 Datalink Cable (DB25F 6-pin Deutsch connector)
4918713 Storage Case
4919536 Custom QuickCheck USB cable
4919535 AC Power Supply
4919193 QuickCheck Software CD
Install the QuickCheck PC Software
1. Insert the QuickCheck Software CD into your CD ROM drive.
2. The installation software should start up automatically. If it does not, this means the
auto-run functionality is not working properly. Find and run the installation file called:
QuickCheck.exe. To manually run the installation process, click the “Start” button on
the Windows task bar, and then click “Run…”, before clicking “Browse…”. Using the
dropdown box labeled “Look in:”, click on the item that represents your PC’s CD-ROM
drive. This should bring up the contents of the QuickCheck CD. Double-click the entry
“QuickCheck.exe” and then click “OK”. This will start the installation process.
3. Follow the instructions on the screen
4. When the installation program is ready, please start the application called SyncReports
by clicking:
StartAll ProgramsCumminsCummins QuickCheckLaunch SyncReports
5. This will launch the installation program for Microsoft® Active Sync or Mobile Device
Center, unless it was already installed; please follow the instructions on the screen.
When the installation is complete, please connect your QuickCheck device to your PC
using the USB connector.
6. The PC will now automatically recognize the device as a USB serial device, but it still
needs to install some drivers. Please follow the instructions on the screen and opt to
automatically find and install drivers for the device.
7. After the drivers are installed, you are ready to synchronize the QuickCheck device with
the PC. Do this by simply disconnecting and then reconnecting the USB cable between
the QuickCheck device and the PC. This will automatically start the SyncReports
application, which will handle the synchronization and possible updates of the
QuickCheck software.
If you encounter a problem, review the QuickCheck USER’S MANUAL located on the
QuickCheck Software CD. If you still have a problem with the device, the Technical
Support Center telephone number is located at the end of the Troubleshooting and Technical
Support section of our USER’S MANUAL.
Battery Charging
The QuickCheck Handheld Computer contains a non-removable Lithium Ion
soft-pack cell with built-in protection circuitry. It has a battery life of approximately
10 hours (depending on usage). When connected to a PC via the USB cable, the
battery will recharge in eight hours. If the AC power supply or vehicle power is
used, the battery will recharge in four hours. The orange LED on the front of the
unit will indicate when the unit is charging. The first time the device is connected
to power, it will turn on immediately, then automatically initialize the software.
Register Today
Ensure that you receive the latest software upgrades for the QuickCheck Handheld
Computer. Register by mailing the registration card provided in your kit. Provide
the unit’s serial number, your name, street address, phone number, and date of purchase. Be sure to visit http://quickcheck.cummins.com
for product information and
updates.
