Page 1

Operator Manual

Generator Set

DFLB (Spec E−T)

DFLC (Spec E−W)

DFLE (Spec A−F)

with PowerCommandR 2100 Controller

English 12−2009 960−0170 (Issue 4)

Page 2

Table of Contents

SECTION TITLE PAGE

IMPORTANT SAFETY INSTRUCTIONS iii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 INTRODUCTION

General 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Obtain Service 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 SPECIFICATIONS 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 CONTROL OPERATION

General 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Prestart Checks 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control Panel Power On/Off Modes 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battle Short Mode (Optional) 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

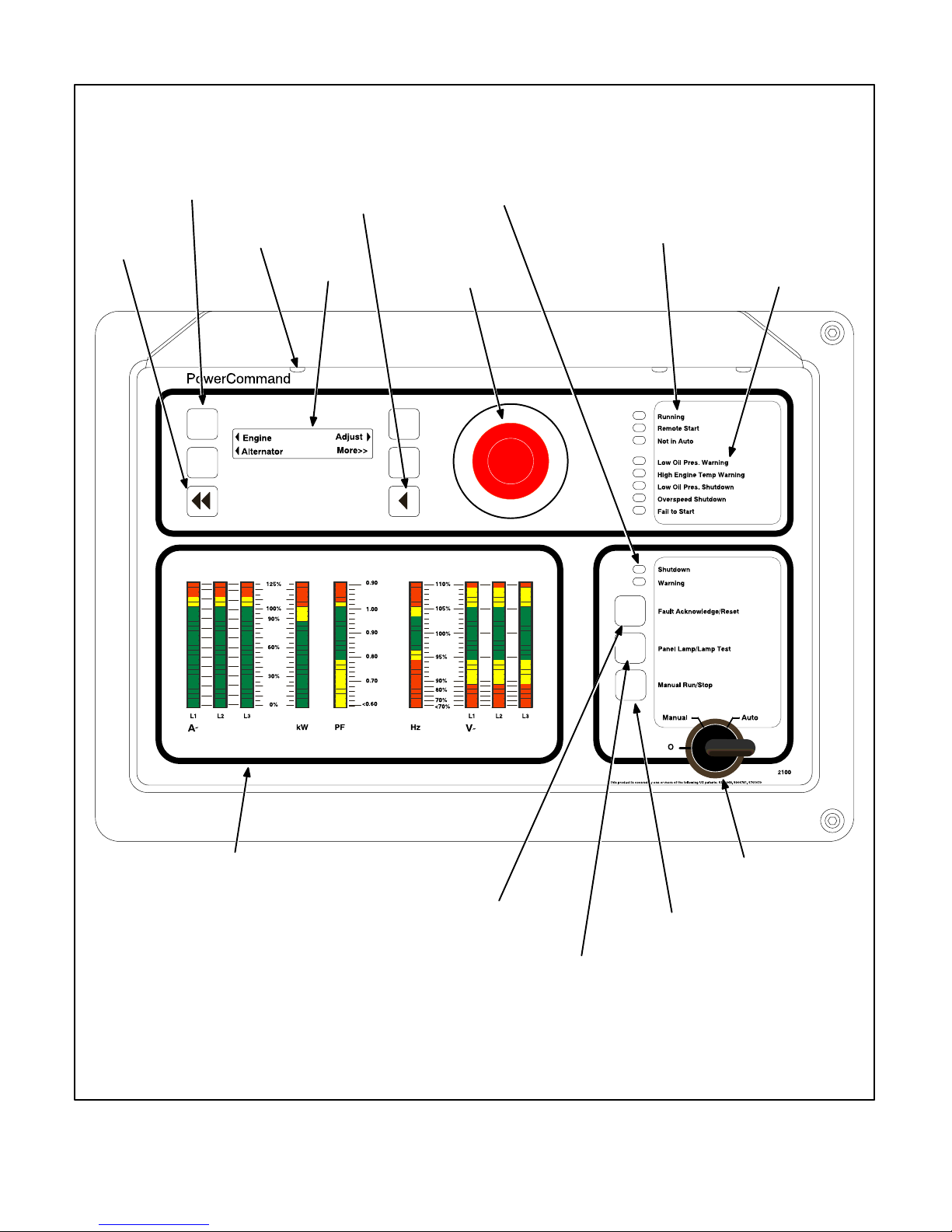

Front Panel 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stopping 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

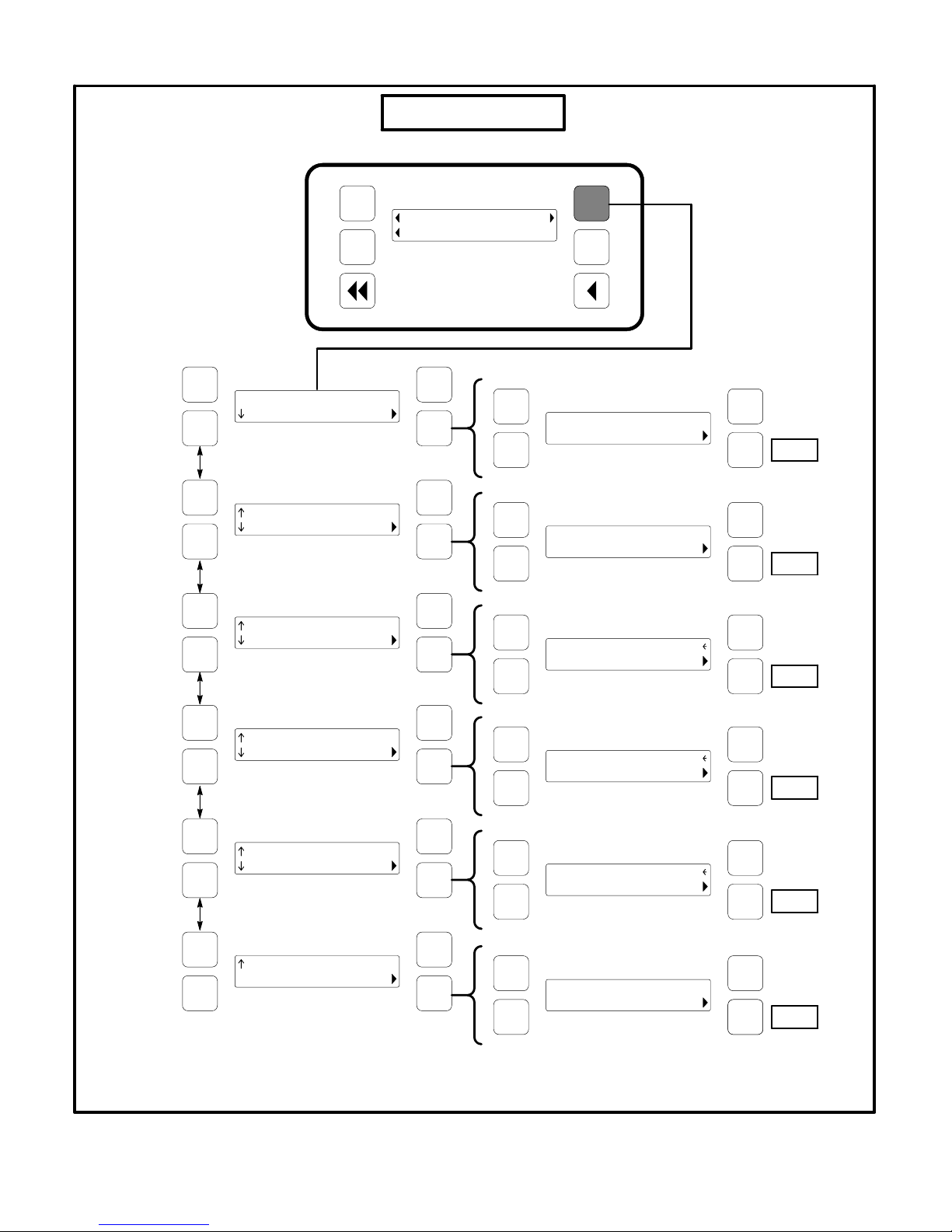

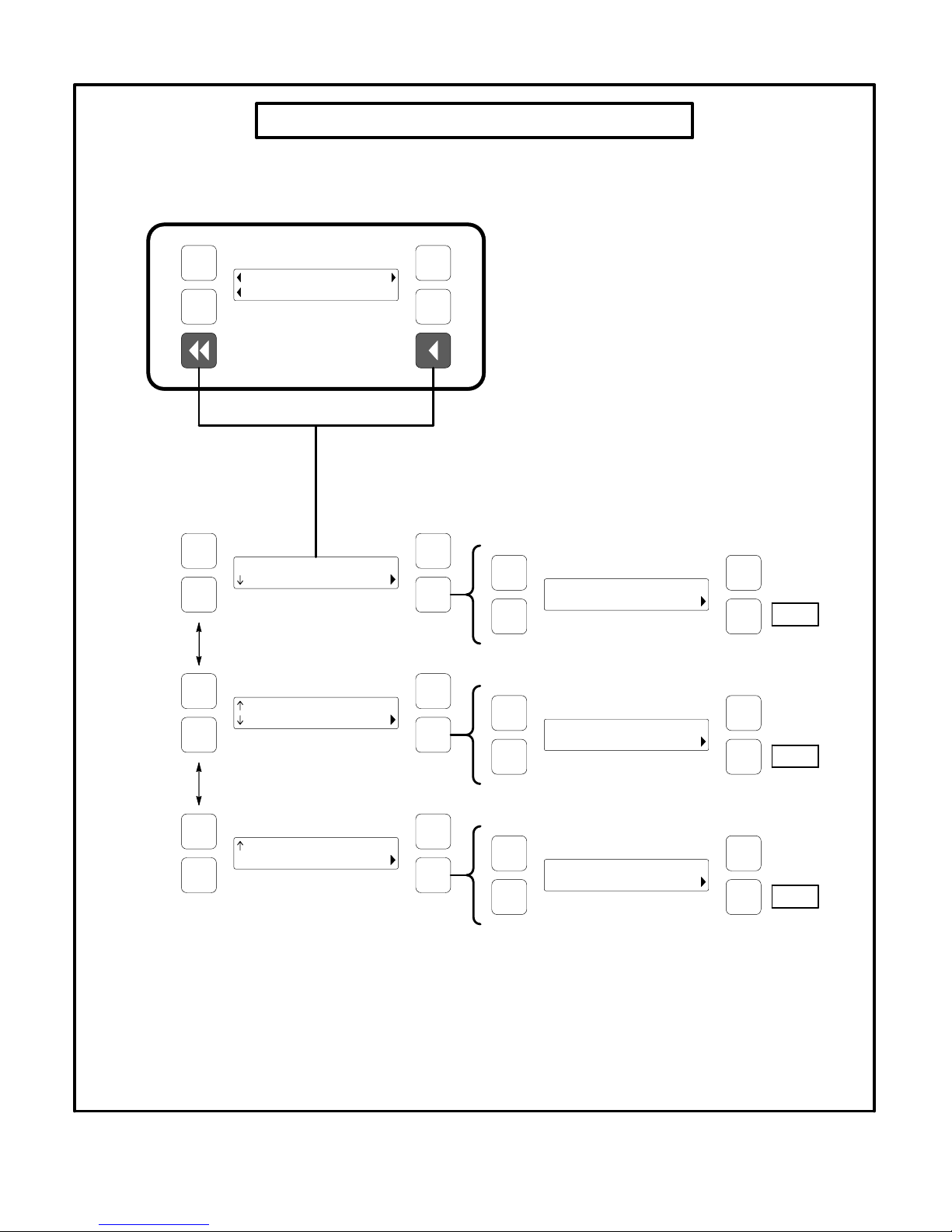

Menu Display and Buttons 3-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

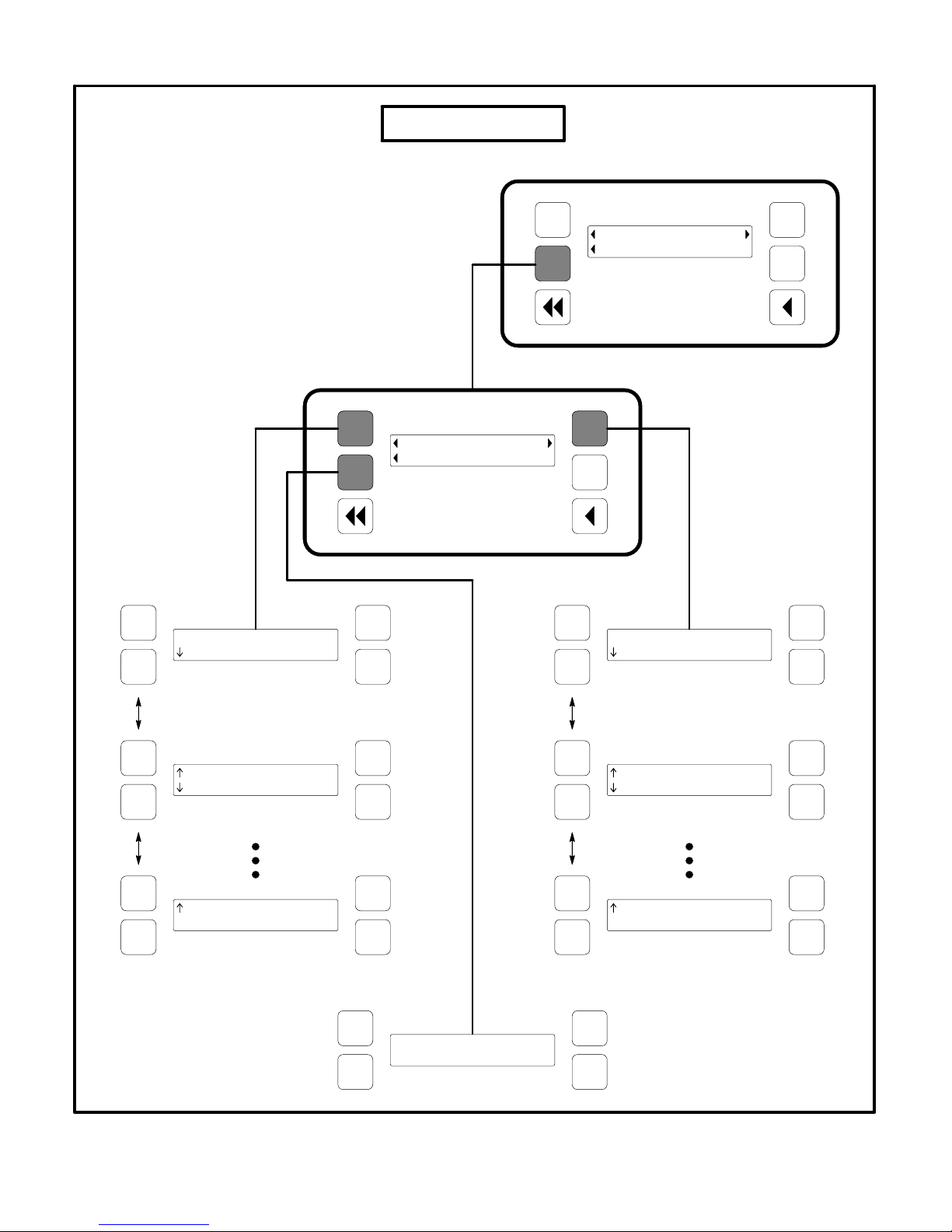

Main Menus 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjusting Default Settings 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Messages 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Controller Configuration Menu 3-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Menu 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alternator Menu 3-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjust Menu 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Faults Menu 3-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Menu 3-28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

History Menu 3-30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About Menu 3-32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Transfer Menu 3-34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

California

Proposition 65 Warning

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

Page 3

SECTION TITLE PAGE

4 TROUBLESHOOTING

General 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety Considerations 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Status Indicators 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Line Circuit Breaker (Optional) 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control and Diagnostics VIA Network or PC (Laptop) 4-2. . . . . . . . . . . . . . . . .

Fault Codes 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fault Code Table 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting Table 4-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 MAINTENANCE

General 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Maintenance Schedule 5-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Generator Set Inspection 5-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Generator Set Maintenance (Battery Disconnected) 5-4. . . . . . . . . . . . . . . . . .

Lubrication System 5-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cooling System 5-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Air Cleaner 5-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Batteries 5-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

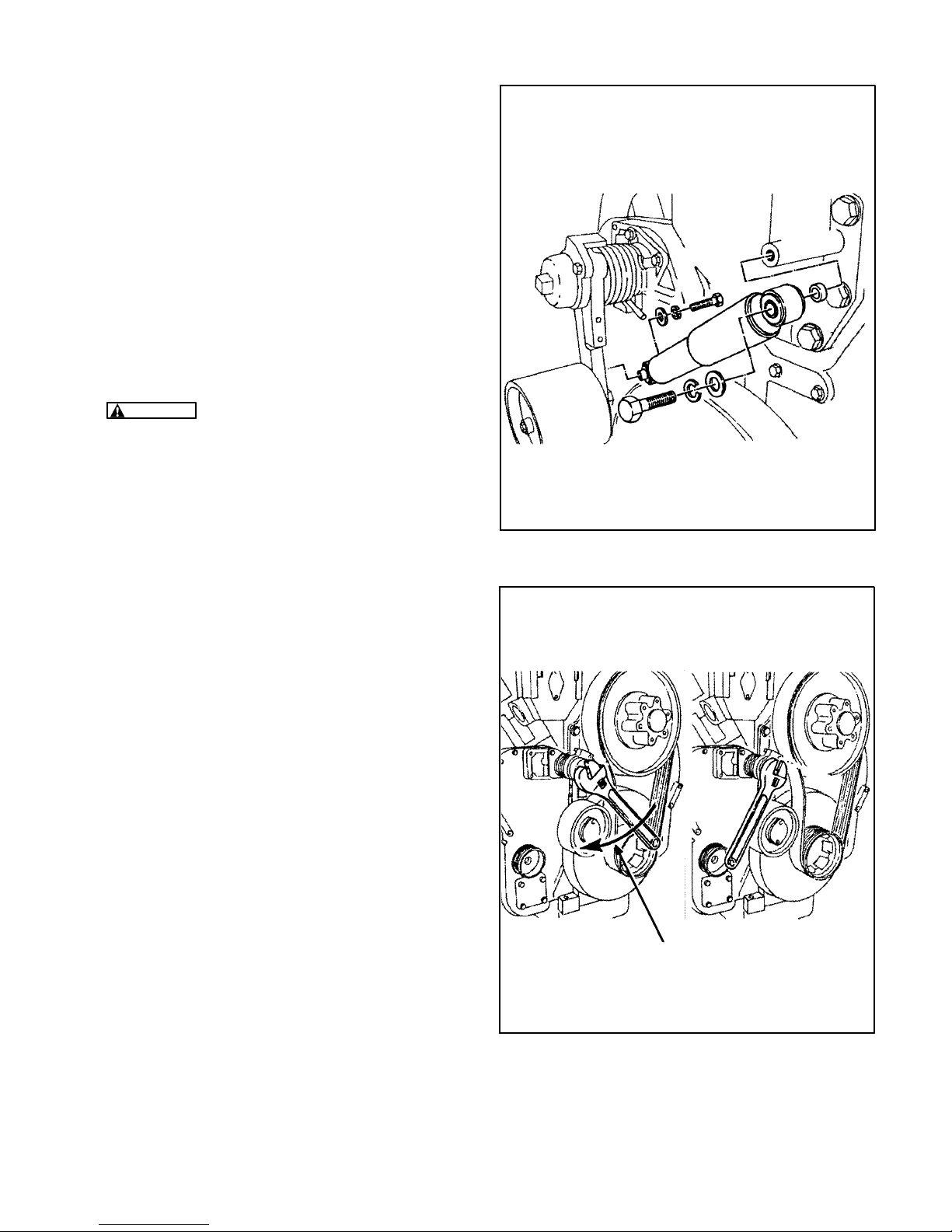

Fan Belt Replacement (Model DFLC) 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P7 Generator Bearing Re-Lubrication 5-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 OPERATING RECOMMENDATIONS

No-Load Operation 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Exercise Period 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Low Operating Temperature 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

High Operating Temperature 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 4

LS-14L

iii

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS − This manual contains important instructions that should be followed during installation and maintenance of the generator and batteries.

Before operating the generator set (genset), read the Operator’s Manual and become familiar with it and the equipment. Safe and efficient operation can be

achieved only if the equipment is properly operated and maintained. Many accidents are caused by failure

to follow fundamental rules and precautions.

The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator, service personnel, or the equipment.

This symbol warns of immediate hazards which will result in severe personal injury or death.

WARNING

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

FUEL AND FUMES ARE FLAMMABLE

Fire, explosion, and personal injury or death can result from improper practices.

• DO NOT fill fuel tanks while engine is running, un-

less tanks are outside the engine compartment. Fuel contact with hot engine or exhaust is a potential fire hazard.

• DO NOT permit any flame, cigarette, pilot light,

spark, arcing equipment, or other ignition source near the generator set or fuel tank.

• Fuel lines must be adequately secured and free of

leaks. Fuel connection at the engine should be made with an approved flexible line. Do not use zinc coated or copper fuel lines with diesel fuel.

• Be sure all fuel supplies have a positive shutoff

valve.

• Be sure battery area has been well-ventilated prior

to servicing near it. Lead-acid batteries emit a highly explosive hydrogen gas that can be ignited by arcing, sparking, smoking, etc.

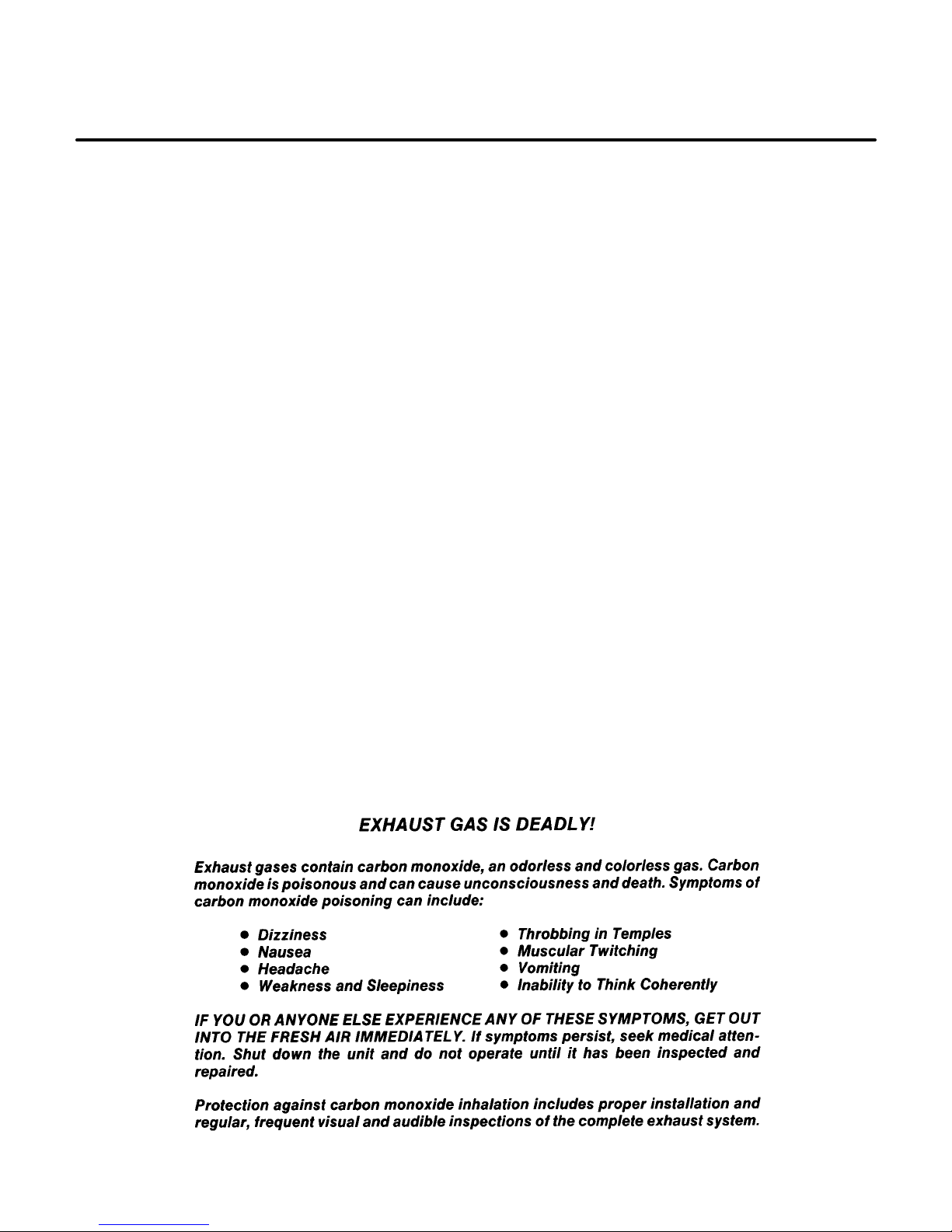

EXHAUST GASES ARE DEADLY

•

Provide an adequate exhaust system to properly expel discharged gases away from enclosed or sheltered areas and areas where individuals are likely to congregate. Visually and audibly inspect the exhaust daily for leaks per the maintenance schedule. Make sure that exhaust manifolds are secured and not warped. Do not use exhaust gases to heat a compartment.

• Be sure the unit is well ventilated.

• Engine exhaust and some of its constituents are

known to the state of California to cause cancer, birth defects, and other reproductive harm.

MOVING PARTS CAN CAUSE SEVERE PERSONAL INJURY OR DEATH

•

Keep your hands, clothing, and jewelry away from moving parts.

• Before starting work on the generator set, discon-

nect battery charger from its AC source, then disconnect starting batteries, negative (−) cable first. This will prevent accidental starting.

• Make sure that fasteners on the generator set are

secure. Tighten supports and clamps, keep guards in position over fans, drive belts, etc.

• Do not wear loose clothing or jewelry in the vicinity of

moving parts, or while working on electrical equipment. Loose clothing and jewelry can become caught in moving parts.

• If adjustment must be made while the unit is run-

ning, use extreme caution around hot manifolds, moving parts, etc.

DO NOT OPERATE IN FLAMMABLE AND EXPLOSIVE ENVIRONMENTS

Flammable vapor can cause an engine to overspeed and become difficult to stop, resulting in possible fire, explosion, severe personal injury and death. Do not operate a genset where a flammable vapor environment can be created by fuel spill, leak, etc., unless the genset is equipped with an automatic safety device to block the air intake and stop the engine. The owners and operators of the genset are solely responsible for operating the genset safely. Contact your authorized Cummins Power Generation distributor for more information.

Page 5

ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR DEATH

• Remove electric power before removing protective

shields or touching electrical equipment. Use rubber insulative mats placed on dry wood platforms over floors that are metal or concrete when around electrical equipment. Do not wear damp clothing (particularly wet shoes) or allow skin surface to be damp when handling electrical equipment. Do not wear jewelry. Jewelry can short out electrical contacts and cause shock or burning.

• Use extreme caution when working on electrical

components. High voltages can cause injury or death. DO NOT tamper with interlocks.

• Follow all applicable state and local electrical

codes. Have all electrical installations performed by a qualified licensed electrician. Tag and lock open switches to avoid accidental closure.

• DO NOT CONNECT GENERATOR SET DI-

RECTLY TO ANY BUILDING ELECTRICAL SYSTEM. Hazardous voltages can flow from the generator set into the utility line. This creates a potential for electrocution or property damage. Connect only through an approved isolation switch or an approved paralleling device.

GENERAL SAFETY PRECAUTIONS

•

Coolants under pressure have a higher boiling point than water. DO NOT open a radiator or heat exchanger pressure cap while the engine is running. Allow the generator set to cool and bleed the system pressure first.

• Used engine oils have been identified by some state

or federal agencies as causing cancer or reproductive toxicity. When checking or changing engine oil, take care not to ingest, breathe the fumes, or contact used oil.

• Keep multi-class ABC fire extinguishers handy.

Class A fires involve ordinary combustible materials such as wood and cloth; Class B fires, combustible and flammable liquid fuels and gaseous fuels; Class C fires, live electrical equipment. (ref. NFPA No. 10).

• Make sure that rags are not left on or near the en-

gine.

• Make sure generator set is mounted in a manner to

prevent combustible materials from accumulating under the unit.

• Remove all unnecessary grease and oil from the

unit. Accumulated grease and oil can cause overheating and engine damage which present a potential fire hazard.

• Keep the generator set and the surrounding area

clean and free from obstructions. Remove any debris from the set and keep the floor clean and dry.

• Do not work on this equipment when mentally or

physically fatigued, or after consuming any alcohol or drug that makes the operation of equipment unsafe.

• Substances in exhaust gases have been identified

by some state or federal agencies as causing cancer or reproductive toxicity. Take care not to breath or ingest or come into contact with exhaust gases.

• Do not store any flammable liquids, such as fuel,

cleaners, oil, etc., near the generator set. A fire or explosion could result.

• Wear hearing protection when going near an oper-

ating generator set.

• To prevent serious burns, avoid contact with hot

metal parts such as radiator, turbo charger and exhaust system.

Page 6

LS-14L

iii

CONTAINERIZED RENTAL UNITS

POTENTIAL TIPPING PROBLEM

On all containerized rental equipment, there is a potential problem of having the container tip forward over the landing legs, pulling the axles off the ground when the con-

tainer is fully fueled without a semi-tractor under the king pin. Jack stands for the front of the container are required to mitigate this potential problem.

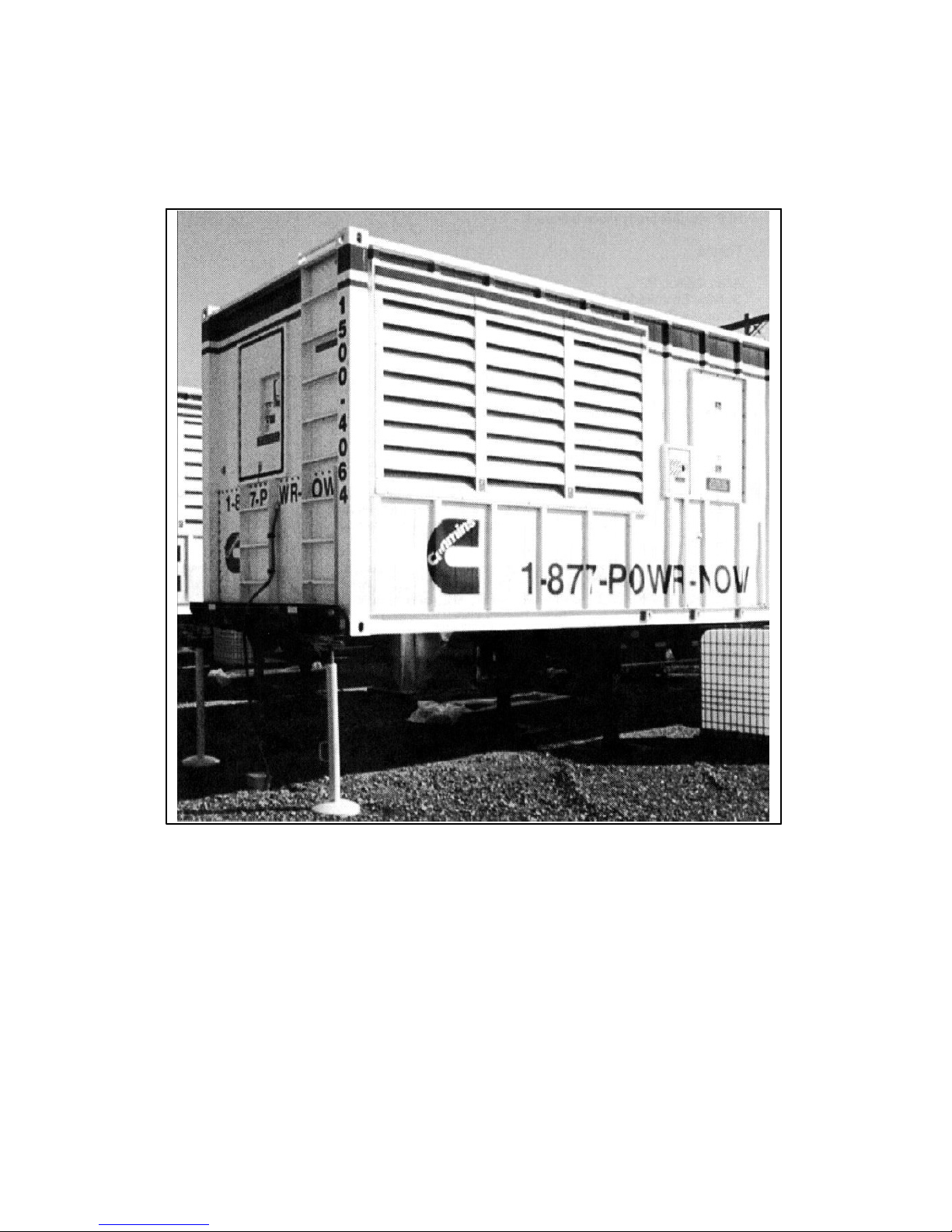

Note: The figure below shows the jack stands and their placement at the nose of the container.

Jack Stands at Nose of Container

KEEP THIS MANUAL NEAR THE GENSET FOR EASY REFERENCE

Page 7

1-1

1. Introduction

GENERAL

Each operator should read this manual before operating the generator set (genset) for the first time. A genset must be operated and maintained properly if you are to expect safe and reliable operation. This manual includes a troubleshooting guide and a maintenance schedule.

The engine manual is included with the set. Where there is conflicting information, this manual takes precedence over the engine manual.

WARNING

Improper operation and maintenance can lead to severe personal injury or loss of life and property by fire, electrocution, mechanical breakdown or exhaust gas asphyxiation. Read Important Safety Instructions and precautions in this manual.

HOW TO OBTAIN SERVICE

When the generator set requires servicing, contact your nearest Cummins Power Generation distributor. Factory-trained Parts and Service representatives are ready to handle all your service needs.

To contact your local Cummins Power Generation distributor in the United States or Canada, call 1-800-888-6626 (this automated service utilizes touch-tone phones only). By selecting Option 1 (press 1), you will be automatically connected to the distributor nearest you.

If you are unable to contact a distributor using the automated service, consult the Yellow Pages. Typically, our distributors are listed under:

GENERATORS-ELECTRIC or ELECTRICAL PRODUCTS

For outside North America, call Cummins Power Generation, 1-763-574-5000, 7:30 AM to 4:00 PM, Central Standard Time, Monday through Friday. Or, send a fax to Cummins Power Generation using the fax number 1-763-528-7229.

When contacting your distributor, always supply the complete Model, Specification, and Serial Number as shown on the generator set nameplate.

WARNING

INCORRECT SERVICE OR PARTS REPLACEMENT CAN RESULT IN SEVERE PERSONAL INJURY, DEATH, AND/OR EQUIPMENT DAMAGE. SERVICE PERSONNEL MUST BE TRAINED AND EXPERIENCED TO PERFORM ELECTRICAL AND/OR MECHANICAL SERVICE.

Cummins and PowerCommand are registered trademarks of Cummins Inc.

Page 8

1-2

THIS PAGE LEFT INTENTIONALLY BLANK

Page 9

2-1

2. Specifications

MODEL DFLB DFLC, DFLE

Engine

Cummins Diesel Series

KTA50

Generator kW Rating See Genset Nameplate for rating information.

Electrical System

Starting Voltage Battery Charging Current Battery

Group Number CCA (minimum)

Cold Soak @ 0°F (-18° C)

24 Volts DC

45 Amps

Four, 12 Volt

1400

Cooling System

Capacity with Standard Radiator

92.0 Gal (348 L) 102.0 Gal (386 L)

Lubricating System

Oil Capacity with Filters

Standby Prime

Oil Type*

44.7 Gal (169 L)

58.7 Gal (222 L)

* Refer to Cummins engine Operation and Maintenance Manual for lubricating oil recommendations/specifications.

FUEL CONSUMPTION (STANDBY/FULL LOAD/60HZ)

MODEL

DFLB DFLC DFLE

US gph (L/hr) 77.2 (292.6) 87.3 (330.9) 103.6 (392.6)

OIL PRESSURE WARNING AND

SHUTDOWN LIMITS

Normal Oil Pressure

Warning Limit Shutdown Limit

50-70 psi (345-482 kPa)

40 psi (276 kPa) 35 psi (241 kPa)

Idle Oil Pressure

Warning Limit Shutdown Limit

20 psi (138 kPa)

15 psi (103 kPa) 10 psi (69 kPa)

Page 10

2-2

THIS PAGE LEFT INTENTIONALLY BLANK

Page 11

3-1

3. Control Operation

GENERAL

The following describes the function and operation of the PowerCommand

2100 Control (PCC). All indicators, control switches/buttons and digital display are located on the face of the control panel as illustrated in Figure 3-1.

This section covers prestart checks, starting and stopping and operating the generator set (genset). Each operator should read through this entire section before they attempt to start the generator set. It is essential that the operator be completely familiar with the generator set and the PCC control. Refer to Section 6 for operating recommendations.

Before starting, be sure the following checks have been made and the unit is ready for operation.

PRESTART CHECKS

Lubrication

Check the engine oil level. Keep the oil level as near as possible to the dipstick high mark without overfilling.

Coolant

Check the engine coolant level. Refer to “Cooling Systems” in the Maintenance section of this manuals for proper procedure.

Fuel

Make sure the fuel tanks have sufficient fuel and that fuel system is primed. Check to make sure there are no leaks and that all fittings are tight.

Ventilation

Make sure the generator set cooling inlet/outlet and exhaust ventilation openings are clear (not blocked) and operational.

Remove all loose debris from surrounding area of generator set. Air flow from the radiator fan can blow loose items around and into ventilation openings.

Exhaust

Check to make sure entire exhaust system is tight, that no combustible materials are near system, and gases are discharged away from building openings.

Page 12

3-2

CONTROL PANEL POWER ON/OFF

MODES

The power on/off modes of the control panel and operating software are Power On, Screen Saver and Sleep/Awake.

Power On Mode: In this mode, power is continuously supplied to the control panel. The control’s operating software and control panel LEDs/digital display will remain active until the Screen Saver mode is activated.

Screen Saver Mode: Power to the digital display is removed after 30 minutes (generator set not running or running). The 30 minute timer resets and begins after each control panel action (any button or switch selection) or signal received by the operating software. All LEDs on the control panel operate normally during Screen Saver mode, indicating that the operating software is active (Awake mode).

When a “Warning” signal is sensed by the PCC (for example, low coolant temp), the control displays the warning message.

Sleep/Awake Mode: In the Sleep mode, the control’s operating software is inactive and the LEDs and the digital display on the control panel are all off. Sleep mode is a feature used to reduce battery power consumption when the control is not being

used and the O/Manual/Auto switch is in the O position.

When all conditions are met (i.e., no unacknowledged faults and O/Manual/Auto switch is in the O position) the Sleep mode is activated.

The operating software is initialized and the digital display and control panel LEDs are turned on in response to moving/pressing the following control panel switch/buttons:

• Off/Manual/Auto switch

• Emergency Stop button

• Fault Acknowledge/Reset button

• Panel Lamp/Lamp Test button

To activate the control and view the menu display without starting the generator set, press Fault Acknowledge or Panel Lamp button or move mode switch from O to Manual.

The InPower service tool is required to enable or disable the Sleep mode. When shipped from the factory, Sleep mode is disabled. When disabled, the operating software will always remain active (Awake mode). If network and/or power transfer control (PTC) feature is installed, the sleep mode is not available.

The InPower service tool is required to select the desired mode. Contact an authorized service center for assistance.

Page 13

3-3

BATTLE SHORT MODE (OPTIONAL)

The purpose of Battle Short mode is to satisfy local code requirements where necessary.

The Battle Short mode prevents the genset from being shutdown by all but a select few critical shutdown faults. All shutdown faults, including those over-

ridden by Battle Short, must be acted upon immediately to ensure the safety and well being of the operator and the genset.

WARNING

Use of the Battle Short mode can cause a fire or electrical hazard, resulting in severe personal injury or death and/or property and equipment damage. Operation of the genset must be supervised during Battle Short mode operation.

This feature must only be used during supervised, temporary operation of the genset. The faults that are overridden during Battle Short mode consist of faults that can affect genset performance or cause permanent engine, alternator, or connected

equipment damage. Operation may void generator set warranty if damage occurs that relates to fault condition.

When Battle Short mode is enabled, the Warning status indicator is lit, along with displayed fault code 1131 − Battle Short Active.

With Battle Short mode enabled and an overridden shutdown fault occurs, the shutdown fault is announced but the genset does not shut down, and fault code 1416 − Fail To Shut Down is displayed. The Fault Acknowledgement/Reset button will clear the fault message, but will remain in the Fault/History file with an asterisk sign (* equals active fault) as long as Battle Short mode is enabled.

Battle Short is suspended and a shutdown occurs immediately if:

• Any of the following critical shutdown faults occurs:

− Overspeed − Fault code 234

− Emergency Stop − Fault code 1433

− Remote Emergency Stop − Fault code

1434

− Speed Signal Lost − Fault code 121

− Excitation Fault − Fault code 2335

• Moving the customer installed Battle Short switch to OFF with an active but overridden shutdown fault or a shutdown fault that was overridden at any time. (Fault code 1123 − Shutdown After Battle Short will be displayed for this type of shutdown.)

The software for the Battle Short feature must be installed at the factory or ordered and installed by an authorized service representative. When installed, the InPower service tool is required to enable the Battle Short mode feature and to configure a Customer Input for an external switch input. This switch (customer supplied) allows the operator to enable/disable the Battle Short mode. Contact an authorized service center for assistance.

Page 14

3-4

PANEL

LAMP

(1 of 3)

CONFIGURABLE

INDICATORS

MANUAL

RUN/STOP

BUTTON

OFF/MANUAL/

AUTO SWITCH

SHUTDOWN

AND WARNING

STATUS

INDICATORS

EMERGENCY

STOP PUSH

BUTTON

(Pull to reset)

HOME

BUTTON

ANALOG AC

METERING

PANEL

(OPTIONAL)

DIGITAL

DISPLAY

SELECTION

BUTTON

(1 of 4)

MAIN MENU

BUTTON

FAULT

ACKNOWLEDGEMENT/

RESET BUTTON

RUNNING/REMOTE

START/NOT IN AUTO

INDICATORS

PANEL LAMP

AND LAMP

TEST

BUTTON

FIGURE 3-1. FRONT PANEL

Page 15

3-5

FRONT PANEL

Figure 3-1 shows the features of the front panel.

Digital Display: This two-line, 20-characters per line alphanumeric display is used to view menus of the menu-driven operating system. Refer to the menu trees later in this section. The display is also used to show warning and shutdown messages.

Display Menu Selection Buttons: Four momentary buttons—two on each side of the digital display window—are used to step through the various menu options and to adjust generator set parame-

ters. A green triangle (

or ), arrow ( , , , or ), >>, or plus/minus sign (+ or −) in the digital display adjacent to the button is shown when the button can be used (button is “active”). Refer to Menu Display And Buttons later in this section.

Home Button: Press this button (

) to view the Home Menu. Refer to the menu trees later in this section.

Previous Main Menu Button: Press this button (

)

to view the previous Main Menu. All main menus include both types of green triangles ( and ). Refer

to the menu trees later in this section.

NOTE: The up and down arrows (

and ) are used

to navigate between submenus.

Emergency Stop Button: Push this button in for emergency shutdown of the generator set. This will stop the generator set immediately and prevent starting of the generator set from any location (local and remote).

To reset:

1. Pull the button and allow it to pop out.

2. Turn the O/Manual/Auto switch to O (Off).

3. Press the front panel Fault Acknowledge/Reset button.

4. Return O/Manual/Auto switch to desired position.

Emergency Stop shutdown can be reset only at the PCC front panel.

Running Indicator: This green lamp is lit whenever the generator set is running.

Remote Start Indicator: This green lamp is lit whenever the control is receiving a remote start signal.

Not in Auto Indicator: This red lamp flashes continuously when the O/Manual/Auto switch is not in the Auto position.

Analog AC Metering Panel (Optional): This panel simultaneously displays (in percent of genset rated output):

• 3-phase line-to-line AC current (A~) (L1, L2 and L3); Single phase line-to-line (L1 and L2)

• Kilowatts (kW)

• Generator output frequency in hertz (Hz)

• 3-phase line-to-line AC volts (V~) (L1, L2 and

L3); Single phase line-to-neutral (L1)

• Power Factor (PF) (shown in 0.2 increments)

Shutdown Status Indicator: This red lamp is lit whenever the control detects a shutdown condition. The generator set cannot be started when this lamp is on. After the condition is corrected, shutdown indicators can be reset by turning the O/Manual/Auto switch to the O position and pressing the Fault Acknowledge/Reset button.

Warning Status Indicator: This yellow lamp is lit whenever the control detects a warning condition. After the condition is corrected, the warning indicators can be reset by pressing the Fault Acknowledge/Reset button. (The majority of faults can be reset without stopping the generator set.) In auto mode, the warning indicators can also be reset by cycling the remote reset input after the condition is corrected.

This lamp is also lit when Battle Short mode is enabled and an overridden shutdown fault occurs.

Some warnings remain active after the condition is corrected and the control reset button is pressed. This will require the genset to be shutdown to reset the warning indicator.

Fault Acknowledge/Reset Button: Press this button to acknowledge warning and shutdown messages after the fault has been corrected. Pressing this button clears the fault from the current fault list.

To acknowledge a Warning message, the O/Manual/Auto switch can be in any position. (It is not necessary to stop the generator set to acknowledge an inactive Warning condition.) To acknowledge a shutdown message with this button, the O/Manual/ Auto switch must be in the O position.

Page 16

3-6

Panel Lamp and Lamp Test Button: Press this button to turn the control panel lamps on or off. The lights will shut off after about ten minutes. Press and hold this button to test all front panel LEDs and meters. The meters will light one bar at a time. (Test can be enabled during genset operation.)

Manual Run/Stop Button: This button starts and stops the generator set locally and will bypass Time Delay to Start and Stop sequences. The O/Manual/ Auto switch must be in the Manual position to enable this button.

O/Manual/Auto Switch: The Manual position enables the use of the Manual Run/Stop button.

The Auto position enables start/stop control of the engine from a remote location. (It disables the use of the Manual Run/Stop button.)

The O (Off) position prevents the starting of the generator set (local or remote). If the switch is set to O during generator set operation, the engine will immediately shut down (cool-down timers are bypassed). If possible, hot shutdown under load should be avoidedto help prolong the life of the generator set.

Configurable Indicators

The following configurable indicators (default values shown) can be changed with the InPower service tool. The configurable items are: change generator event and LED color (green, yellow or red), and enable/disable indicator.

The InPower service tool is required to select the desired settings. Contact an authorized service center for assistance.

Low Oil Pressure Warning Indicator: This yellow lamp indicates the oil pressure is lower than the normal range of operation.

High Engine Temperature Warning Indicator:

This yellow lamp indicates the engine temperature is higher than the normal range of operation.

Low Oil Pressure Shutdown Indicator: This red lamp indicates the engine has shut down because of low oil pressure.

Overspeed Shutdown Indicator: This red lamp indicates the engine has shut down because of excessive speed.

Fail to Start Indicator: This red lamp indicates the engine failed to start.

Page 17

3-7

STARTING

The following headings cover the systems used to start the generator set. Figures 3-2, 3-3 and 3-4 provide a flow chart for all start/run/stop sequences.

Before starting the generator set, make sure that exhaust and fuel fittings are tight and properly positioned and that proper maintenance has been performed. See Prestart Checks in this section.

With the optional Power Transfer Control (PTC) module installed, the function and sequence of operation of the Start command can differ and is noted as “PTC” in the following paragraphs. Refer to the Pow- er Transfer Menu in this section, which describes the operation of the PTC feature.

Starting at the Control Panel (Manual Mode)

Turn the O/Manual/Auto switch to the Manual position and press the Manual Run/Stop button. This will activate the engine control system and the starting system. The starter will begin cranking and, after a few seconds, the engine will start and the starter will disconnect.

The InPower service tool is required to enable/disable the warm-up at idle feature and to adjust the time-out. When shipped from the factory, this feature is disabled.

When the switch is in the Manual position, the control will complete the warm-up at idle feature if enabled. When the coolant reaches operating temperature or the warm-up time at idle time delay (0−300 seconds) is reached, whichever occurs first, the generator set will ramp to the rated speed and voltage.

When the switch is in the Manual position, the generator set can be operated in the idle mode (used for maintenance, troubleshooting, etc.). Refer to Adjust menu (Figure 3-11) to enable/disable the idle feature.

If the engine does not start, the starter will disengage after a specified period of time and the control will indicate an overcrank shutdown.

The generator can be configured for a number of starting cycles (1 to 7 cycles) with set times for crank and rest periods for all starting modes (manual/remote). The default setting is for 3 start cycles, composed of 15 seconds of cranking and 15 seconds of rest.

To change the cycle number, and the crank and rest times, contact an authorized service center for assistance.

To clear a Fail to Start shutdown, place the O/Manual/Auto switch in the O position and press the Fault Acknowledge/Reset button. Before attempting to restart, wait two minutes for the starter motor to cool and then repeat the starting procedure. If the engine does not run after a second attempt, refer to the Troubleshooting section.

Starting from a Remote Location (PTC or Remote Start Signal) (Auto Mode)

Place the O/Manual/Auto switch in the Auto position. This allows the generator set to be started from a remote switch or device (e.g., transfer switch or optional PTC module).

PTC − If a switch is connected to the remote start input of the control and the PTC module is installed, this switch will function as a Test switch. The PTC Test sequence is shown in Figure 3-4.

In response to the Remote Start or the control detects the loss of S1 voltage (PTC option installed), the control lights the Remote Start indicator and initiates the starting sequence as shown in Figure 3-3.

When the switch is in the Auto position, the control will complete the Time Delay To Start function.

Refer to the Adjust submenu in this section to enable and change the time delay start/stop settings.

Page 18

3-8

Cold Starting with Loads

In accordance with NFPA 110, Cummins Power Generation recommends installing diesel standby generator sets (life safety systems) equipped with engine jacket water coolant heaters in locations where the minimum ambient temperature is above 40°F (4°C). NFPA also requires that the engine be heated as necessary to maintain the water jacket temperature determined by the manufacturer for cold start and load acceptance for the type of system. Although most Cummins Power Generation generator sets will start in temperatures down to

−25

°F (−32°C) when equipped with engine jacket

water coolant heaters, it might take more than 10 seconds to warm the engine before a load can be

applied when ambient temperatures are below 40

°F (4°C).

The Engine Cold (Code 1435) message, is pro- vided to meet the requirements of NFPA 110. The engine cold sensing logic initiates a warning when the engine jacket water coolant temperature falls below 70

°F (21°C). In applications where the ambi-

ent temperature falls below 40

°F (4°C), a cold en-

gine may be indicated even though the coolant heaters are connected and operating correctly. Under these conditions, although the generator set may start, it may not be able to accept load within 10 seconds. When this condition occurs, check the coolant heaters for proper operation. If the coolant heaters are operating properly, other precautions may be necessary to warm the engine before applying a load.

Page 19

3-9

STOPPING

Before Stopping

Run the generator set at no load for three to five minutes before stopping. This allows the lubricating oil and engine coolant to carry heat away from the combustion chamber and bearings.

Emergency Stop

The emergency stop button is located near the center of the upper part of the control panel (Figure 3-1). Push the button in for an emergency stop. The red Shutdown status LED is lit and the emergency stop message is displayed.

To reset:

1. Pull the emergency stop button out.

2. Turn the O/Manual/Auto switch to O.

3. Press the front panel Fault Acknowledge/ Reset button.

4. Return O/Manual/Auto switch to desired position.

Emergency Stop shutdown status can be reset only at the operator control panel.

Stopping at Control Panel (Manual Mode)

If the generator set was started at the control panel (O/Manual/Auto switch in the Manual position), pressing the Manual Run/Stop button causes the

generator set to complete its normal (Local Start) shutdown sequence (Figure 3-2).

The generator set stops after the cool-down at idle timer (0 to 30 minutes) has timed out.

The InPower service tool is required to enable/disable the Cool-down At Idle feature. Contact an authorized service center for assistance.

Turning the O/Manual/Auto switch to the O position causes an immediate engine shutdown (bypasses Cool-down At Idle). If possible, hot shutdown under load should be avoided to help prolong the reliability of the generator set.

Stopping from Remote Location (PTC or Remote Stop Signal) (Auto Mode)

If the control receives a remote stop signal or the control detects the return of S1 voltage (PTC option installed), the generator set completes its normal shutdown sequence (Figure 3-3). (The remote stop signal is actually the removal of the remote start signal to the control.)

The generator set stops after completing the Time Delay To Stop (0 to 600 seconds) and the cooldown at idle (0 to 30 minutes).

Refer to the Adjust submenu in this section to enable and change the Time Delay To Stop setting. The InPower service tool is required to enable/disable the Cool-down At Idle feature. Contact an authorized service center for assistance.

Page 20

3-10

CONTROL RUN

BUTTON

LOCAL START (Manual Mode)

RATED SPEED

&VOLTAGE

STOP

NOTES:

1. Warm-up/cool-down idle adjusted time-out with InPower.

2. Timer expires. 3, Beginning Version 2.303

CONTROL STOP

BUTTON

COOL-DOWN

@ IDLE

(0−30 min) 1

EMERGENCY

STOP BUTTON

WARM-UP @ IDLE

(0-300 sec) 1

Engine Temperature

greater than 100° F go

to Rated

3 RATED TO IDLE

DELAY (0−10 sec)

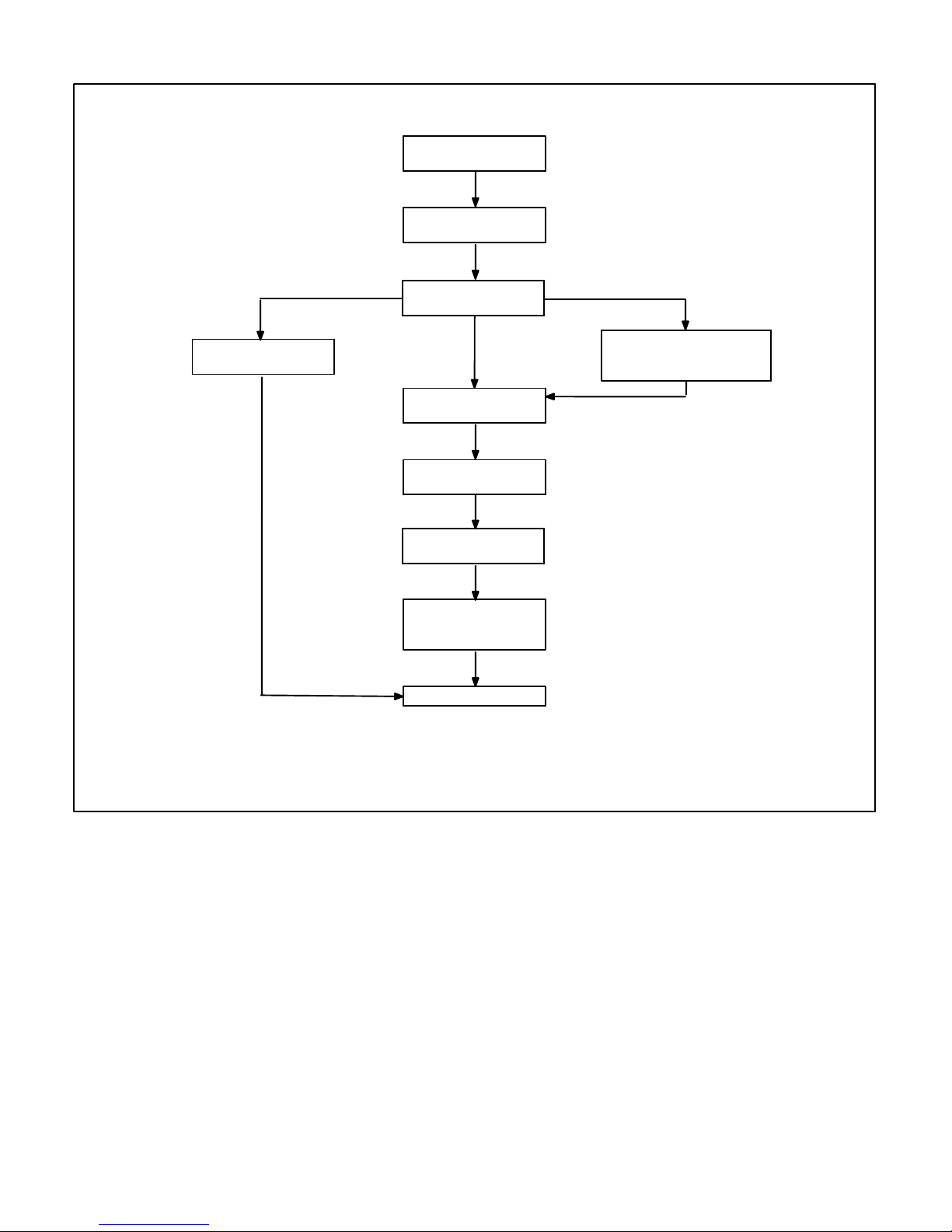

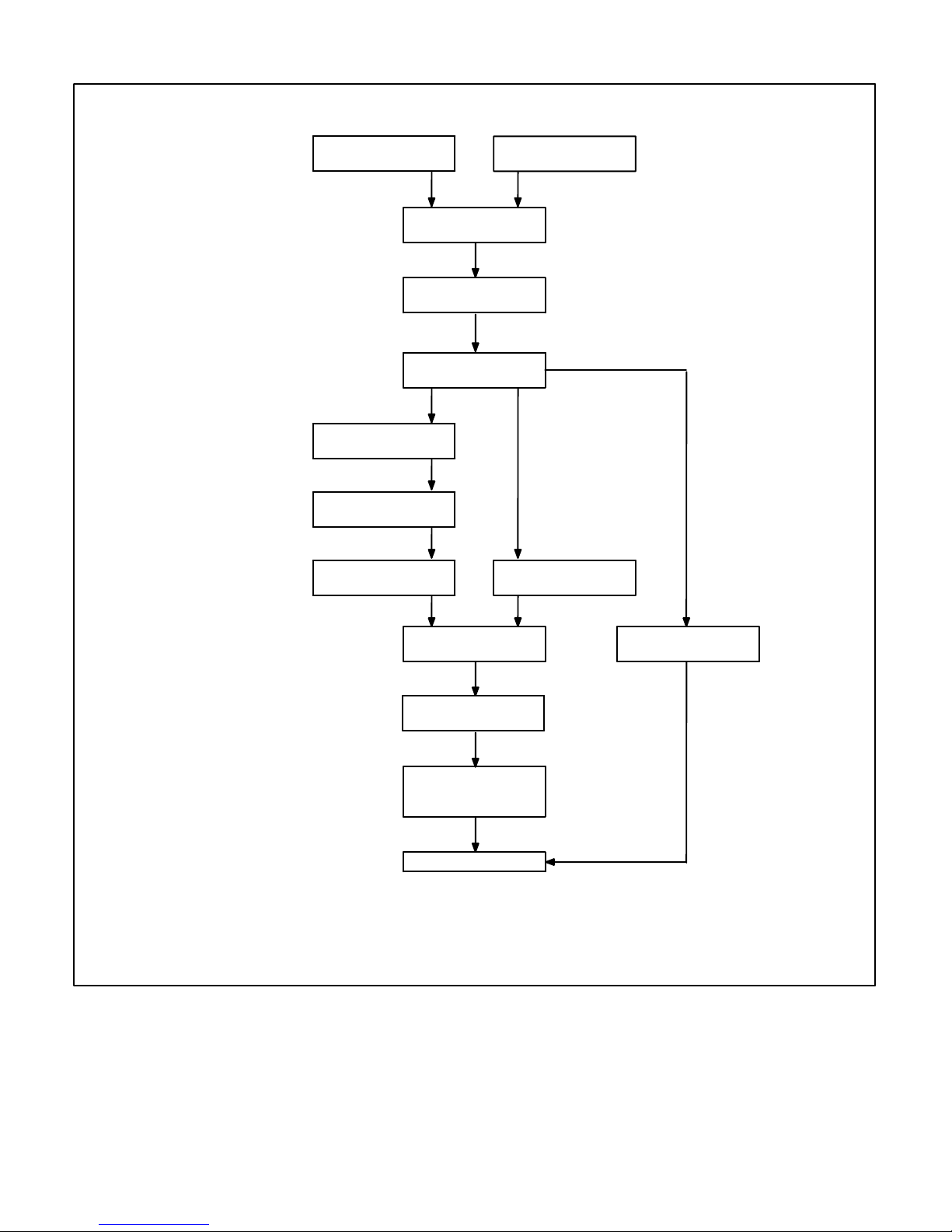

FIGURE 3-2. STARTING AT THE CONTROL PANEL (MANUAL MODE)

Page 21

3-11

EMERGENCY

START

PTC DETECTS

S1 FAILURE 1

RATED SPEED

&VOLTAGE

STOP

NOTES:

1. PTC feature installed.

2. PTC feature not installed (input from transfer switch, remote start switch, etc).

3. Timer expires.

4. Cool-down adjusted time-out with InPower.

5. Beginning Version 2.303

TIME DELAY TO

STOP (0−600 sec)

COOL-DOWN

@ IDLE

(0−30 min) 4

EMERGENCY

STOP BUTTON

REMOTE START

CUST. CONNECT 2

TIME DELAY TO

START (0−300 sec)

CLOSE S1

OPEN S2

REMOTE START

Removed

OPEN S1

CLOSE S2

PTC Module sees

S1 Voltage OK

5 RATED TO IDLE DELAY (0−10 sec)

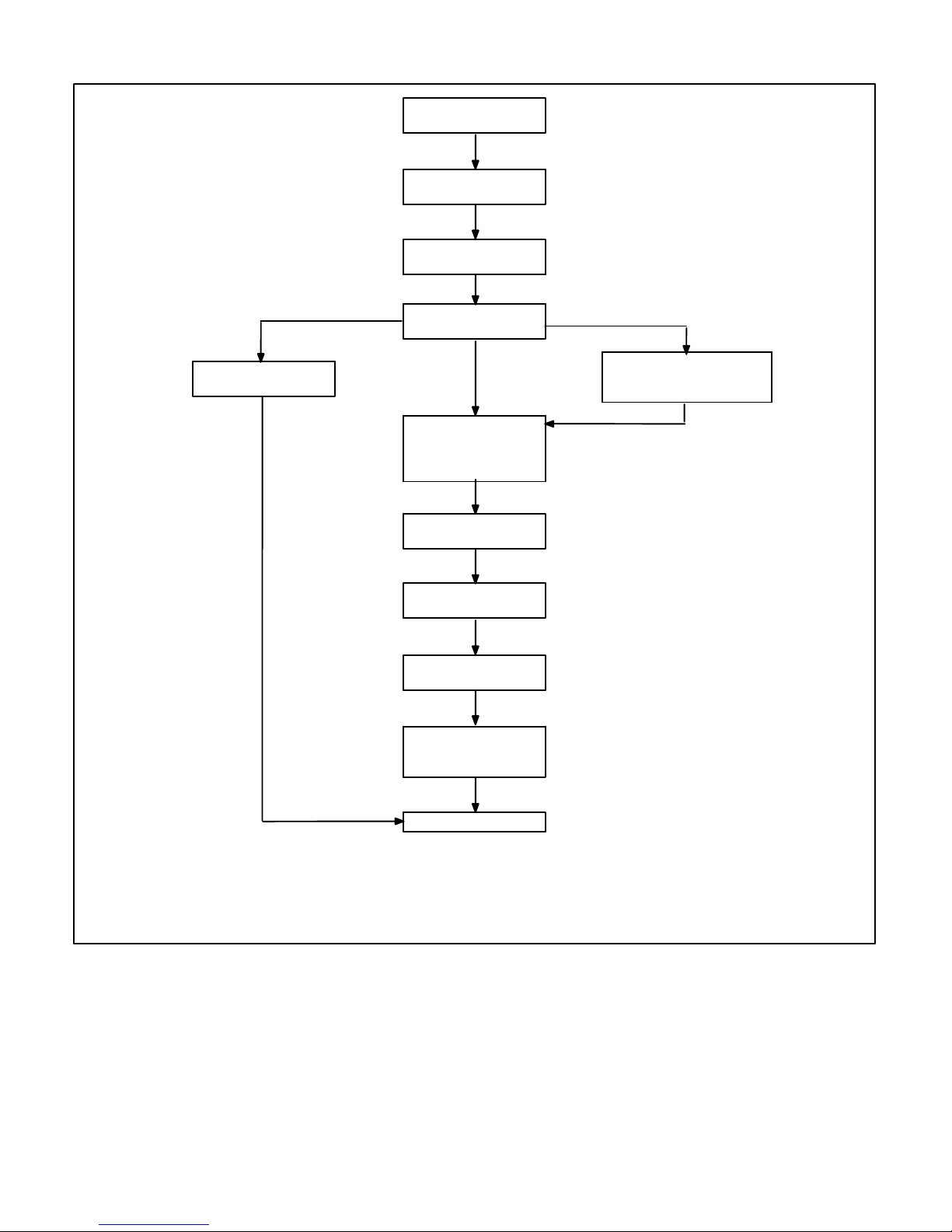

FIGURE 3-3. STARTING WITH CONTROL IN AUTO MODE (PTC OR REMOTE START SIGNAL)

Page 22

3-12

PTC Module sees

S1 Voltage OK

RATED SPEED

& VOLTAGE

(Selectable − with/

without load)

STOP

NOTES:

1. Remote (exercise) start sequence with PTC feature installed.

2. Timer expires.

3. Warm-up/cool-down idle adjusted time-out with InPower.

4. Beginning Version 2.303

TIME DELAY TO

STOP (0−600 sec)

COOL-DOWN

@ IDLE

(0−30 min) 3

REMOTE START

(TEST) 1

TIME DELAY TO

START (0−300 sec)

REMOTE START (TEST) Removed

WARM-UP @ IDLE

(0-300 sec) 3

Engine Temperature

greater than 100° F go

to Rated

4 RATED TO IDLE

DELAY (0−10 sec)

EMERGENCY

STOP BUTTON

FIGURE 3-4. PTC FEATURE REMOTE START TEST/EXERCISE SWITCH (IN AUTO MODE)

Page 23

3-13

MENU DISPLAY AND BUTTONS

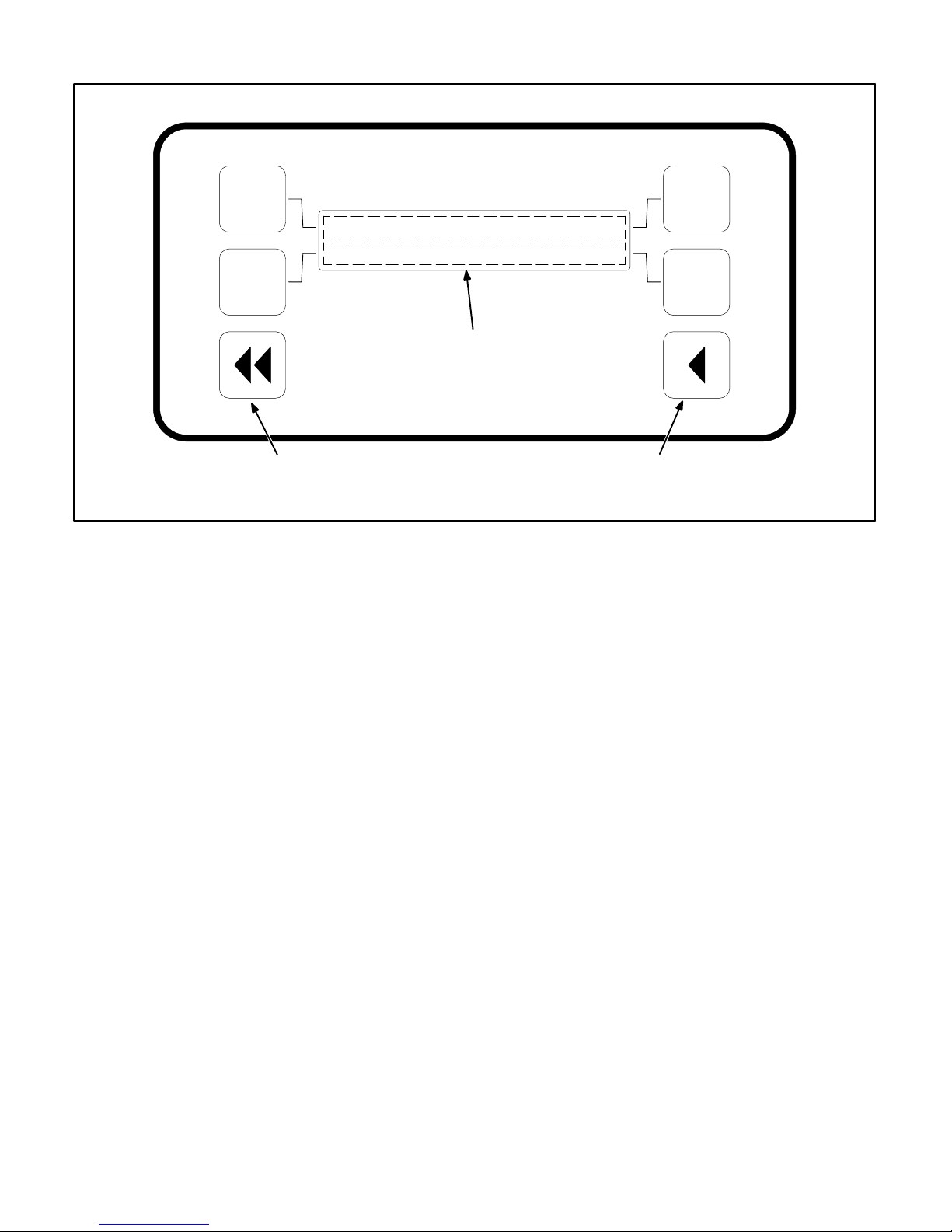

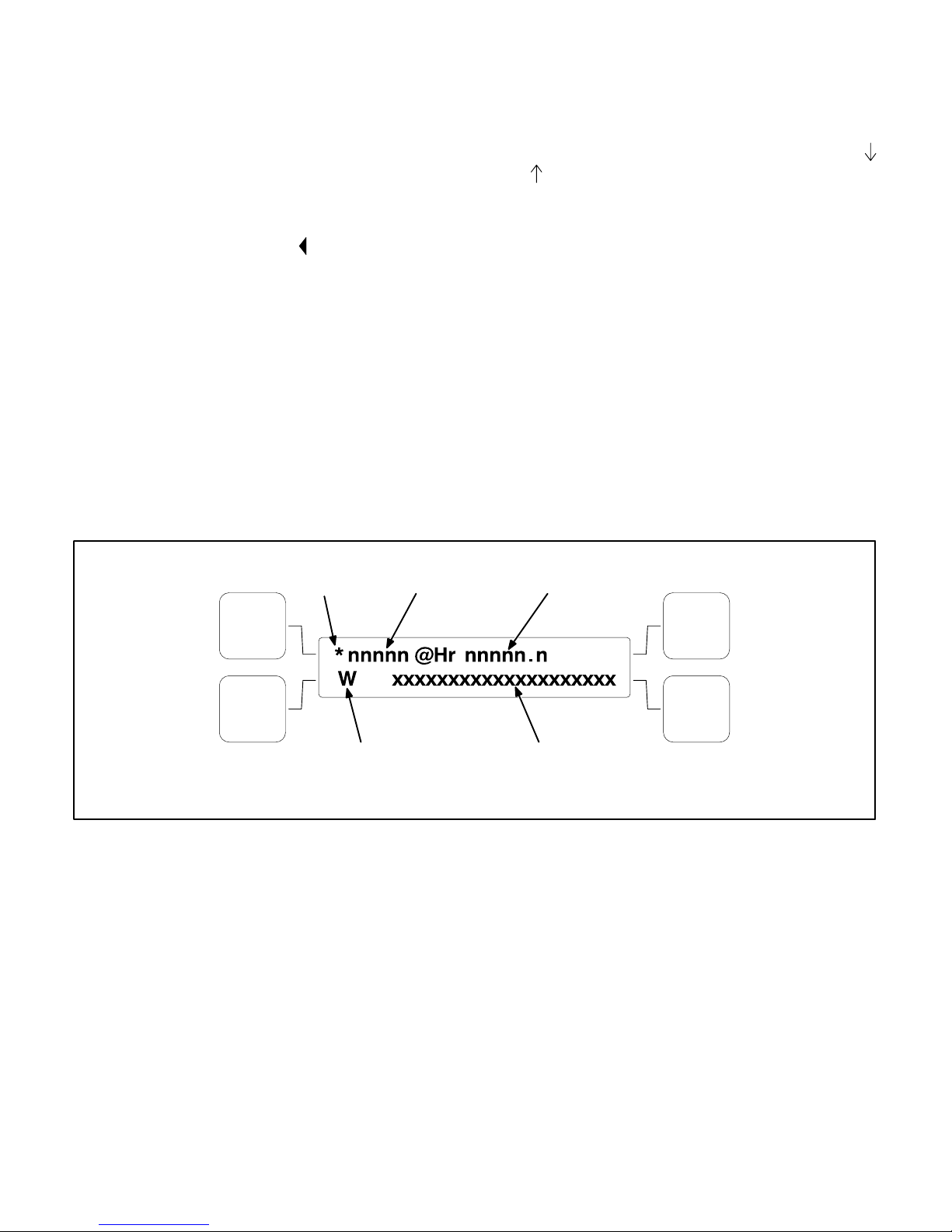

Figure 3-5 shows the digital display and the menu selection buttons.

Digital Display: The two-line, 20 characters per line, digital display is used to view the menus of the menu-driven operating system. Refer to the menu trees later in this section. The display is also used to show fault messages.

Display Menu Selection Buttons: Four momentary buttons—two on each side of the digital display window—are used to step through the various menu options and to adjust generator set parameters. The button is active when a symbol adjacent to the button is displayed. The displayed symbol indicates the function of the button.

• In the digital display for main menus (Figure 3-6), the

and symbols indicate that pressing the adjacent button causes the operating program to go to the selected submenu (e.g., Engine Menu in Figure 3-9).

• In the digital display, the More>> symbol indicates that pressing the adjacent button causes the operating program to go to the next main menu, as shown in Figure 3-6.

• In the digital display, the

or symbols indicate that pressing the adjacent button causes the operating program to go to the next or previous submenu, as shown in the menu dia-

grams. Only the

symbol is displayed in the

first submenu. Only the

is displayed in the last submenu. Both symbols are displayed in the rest of the submenus.

• In the digital display, the plus or minus symbols (+ or −) indicate that pressing the adjacent button can be used to change a parameter or value shown on the display.

When there is a choice of two parameters, one parameter is associated with the + symbol and the other is associated with the − symbol.

When changing values, pressing the button adjacent to the + symbol increase the value and pressing the button adjacent to the − symbol decreases the value. Only one numeric character of a field can be changed at a time.

• In the digital display, the

or symbol indicates that pressing the adjacent button causes the operating program to move the cursor to the next numeric character. The selected numeric character can then be changed by pressing the buttons adjacent to the + and − symbols. Only the

symbol is displayed when the cursor is on the first character of a field that can be changed. Only the

is displayed when the cursor is on the last character. Both symbols are displayed when the cursor is on any other character.

• After adjusting values/parameters, pressing the

symbol results in the changes being

saved. If the Home button or Previous Main

Menu button is pressed before pressing the

symbol, the changes are not saved.

Home Button: Pressing this button causes the operating system to show Main Menu 1 (Figure 3-6) in the digital display.

Previous Main Menu Button: Pressing this button causes the operating system to show the previous Main Menu in the digital display. All main menus in-

clude both types of green triangles (

and ).

Page 24

3-14

HOME

BUTTON

PREVIOUS MAIN

MENU BUTTON

2 LINE, 20 CHARACTERS PER LINE

MENU DISPLAY

DIGITAL DISPLAY

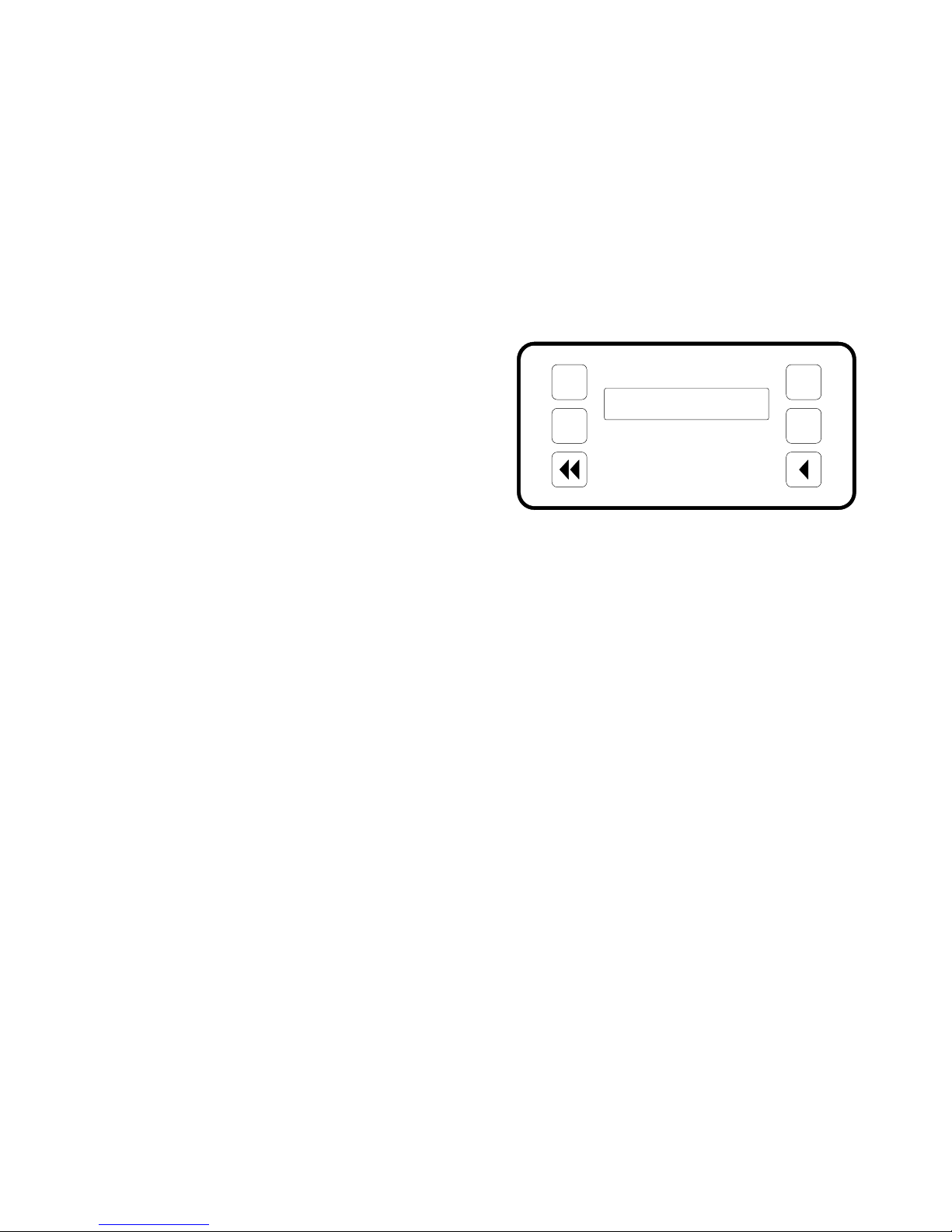

FIGURE 3-5. DIGITAL DISPLAY AND MENU SELECTION BUTTONS

Page 25

3-15

MAIN MENUS

Figure 3-6 shows the three major main menus available to the user. Figure 3-6 also includes references to pages in this section where you can find additional information on submenus. When viewing a submenu, you can press the previous main menu button at any time to view its main menu.

As shown in the illustration, each main menu can branch into one of four directions. Press the button next to “More>>” in the display to view the next Main menu. Main Menu 1 is redisplayed when you press the button next to “More>>” in the Main Menu 3 display.

About Pwr Tran

Setup More>>

Faults System

History More>>

Engine Alternator

Adjust More>>

Main Menu 1

Main Menu 2

Main Menu 3

PAGE

3-21

PAGE

3-23

PAGE

3-25

PAGE

3-27

PAGE

3-29

PAGE

3-31

SERVICE

REP

PAGE

3-33

PAGE

3-35

FIGURE 3-6. MAIN MENUS

Page 26

3-16

Main Menu 1

Main Menu 1 is also the Home menu. When viewing any of the other main menus or any submenu, you can press the home button to view this menu.

To display engine parameters, such as coolant temperature, oil pressure, oil temperature, etc., press the button next to the word “Engine” in the display. Turn to the Engine menu diagram on page 3-21.

To display alternator parameters, such as line-toline voltage, line-to-neutral voltage, amperage, frequency, etc., press the button next to the word “Alternator” in the display. Turn to the Alternator menu diagram on page 3-23.

To adjust generator parameters, such as idle start, voltage, frequency, start delay, and stop delay, press the button next to the word “Adjust” in the display. Turn to the Adjust menu diagram on page 3-25.

To view one of the other main menus, press the button next to “More>>” in the display.

Main Menu 2

To display system faults, press the button next to the word “Faults” in the display. Up to 20 of the most recent/current faults can be displayed. Turn to the Faults menu diagram on page 3-27.

To view network system parameters, such as on the automatic transfer switch (ATS), Master, or Genset

system, press the button next to the word “System” in the display. Turn to the System menu diagram on page 3-29.

To display historical engine parameters such as number of starts, engine hours, control hours, kilowatt hours, and genset duty cycle, press the button next to the word “History” in the display. Turn to the History menu diagram on page 3-31.

To view one of the other main menus, press the button next to “More>>” in the display.

Main Menu 3

To view parameters on the generator, such as model, standby rating, and software version, press the button next to the word “About” in the display. Turn to the About menu diagram on page 3-33.

To view power transfer parameters, such as source power, frequency, generator, utility, and active transfer timer, press the button next to the word “Pwr Tran” in the display. Turn to the Power Transfer Menu on page 3-35.

Main Menu 3 also includes a link to the Setup menus. These menus can be viewed but changes to these menus are restricted to service personnel with the appropriate access code.

To view one of the other main menus, press the button next to “More>>” in the display.

Page 27

3-17

ADJUSTING DEFAULT SETTINGS

The Controller Configuration Menu can be used to adjust the following default settings:

• Language − Select from available loaded lan- guages

• Temperature Units − Fahrenheit or Centigrade

• Fluid Pressure Units − kPA or PSI

For more information on adjusting these settings, turn to the Controller Configuration menu diagram on page 3-19.

SYSTEM MESSAGES

A system message pop-up screen is displayed when the event it is displaying becomes active. These pop-up screens remain displayed until preempted by another pop-up screen or until any display button is pressed. Once a button is pressed, the previous menu is redisplayed. To return to an active pop-up screen from the previous menu, select the following menu:

• Engine to redisplay Time Delay Idle

• Faults to redisplay Faults

• Power Transfer to redisplay PTC Timer

Pop-up screens are displayed for the following:

• Faults

• Power Transfer Control timer

• Time Delay − Start, Stop, and Idle

An example of a Time Delay Idle pop-up screen is shown in Figure 3-7. A countdown, in seconds, is included in the display.

TD Idle nnn Sec

FIGURE 3-7. TIME DELAY IDLE POP-UP SCREEN

Page 28

3-18

CONTROLLER CONFIGURATION MENU

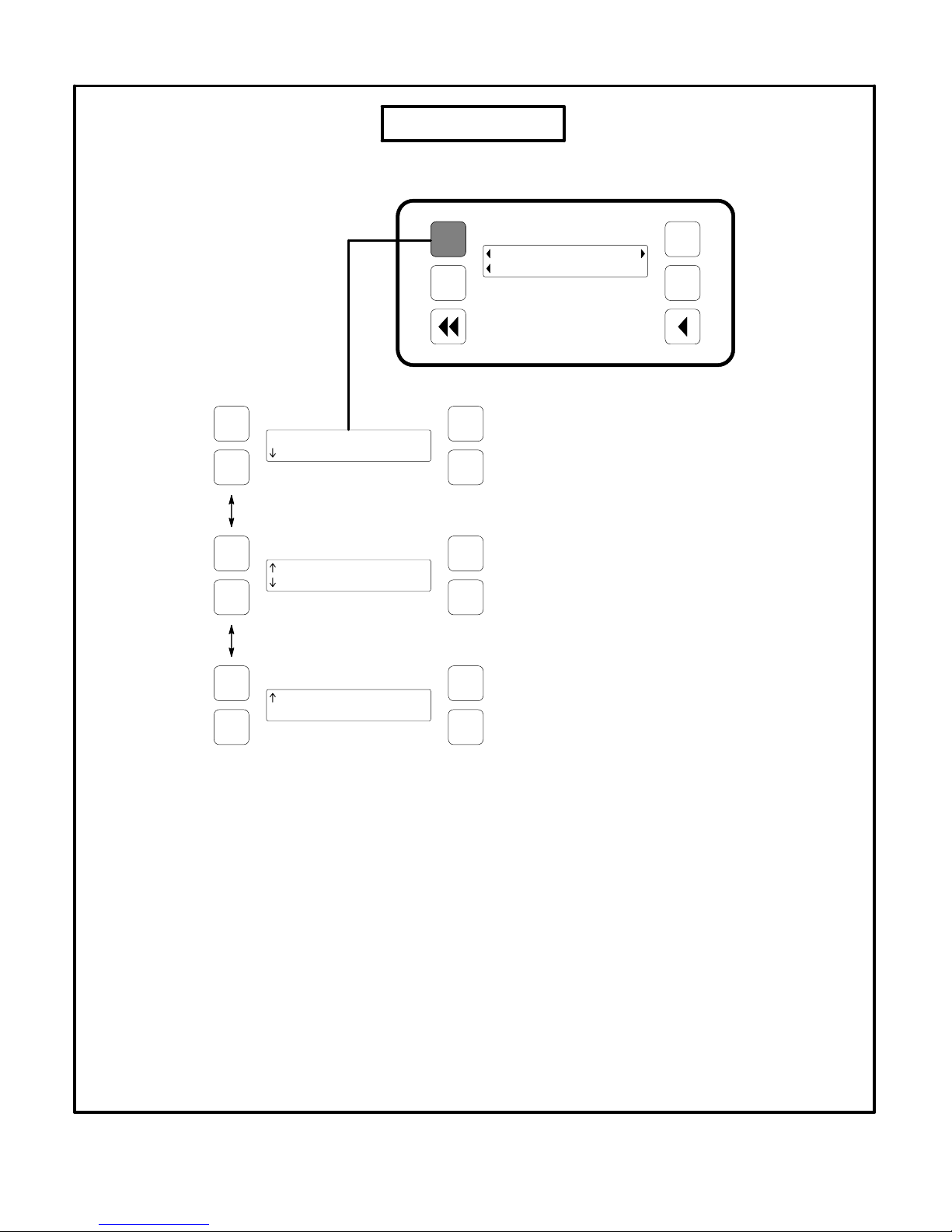

Figure 3-8 shows a block representation of the Controller Configuration menus. These menus are used to change the default language, temperature units, and pressure units to be displayed in menus.

To view the first Controller Configuration menu, make sure Main Menu 1 is displayed and simultaneously press the Home Menu and Previous Main Menu buttons.

As shown in the diagram, the Controller Configuration menu has three submenus.

Press the buttons next to the

and symbols in the

digital display to navigate between the menus.

Press the button next to the

symbol in the display

until the + and − symbols are displayed.

Press the button next to the + or − symbol to select the desired option.

After selecting option, pressing the

symbol results in the changes being saved. If the Home button or Previous Main Menu button is pressed before

pressing the

symbol, the changes are not saved.

Language Selected submenu: Used to select desired language (default = English).

Temperature Units submenu: Used to select Fahrenheit or Centigrade for temperature readings.

Fluid Pressure Units submenu: Used to select PSI or kPA for pressure readings.

Page 29

3-19

CONTROLLER CONFIGURATION MENU

Engine Alternator

Adjust More>>

+Language Selected

− English

Language Selected

English

Temperature Units

Deg F

+Temperature Units

− Deg C

Fluid Pressure Units

PSI

+Fluid Pressure Units

− kPa

Back

Main Menu 1

FIGURE 3-8. CONTROLLER CONFIGURATION MENU

Page 30

3-20

ENGINE MENU

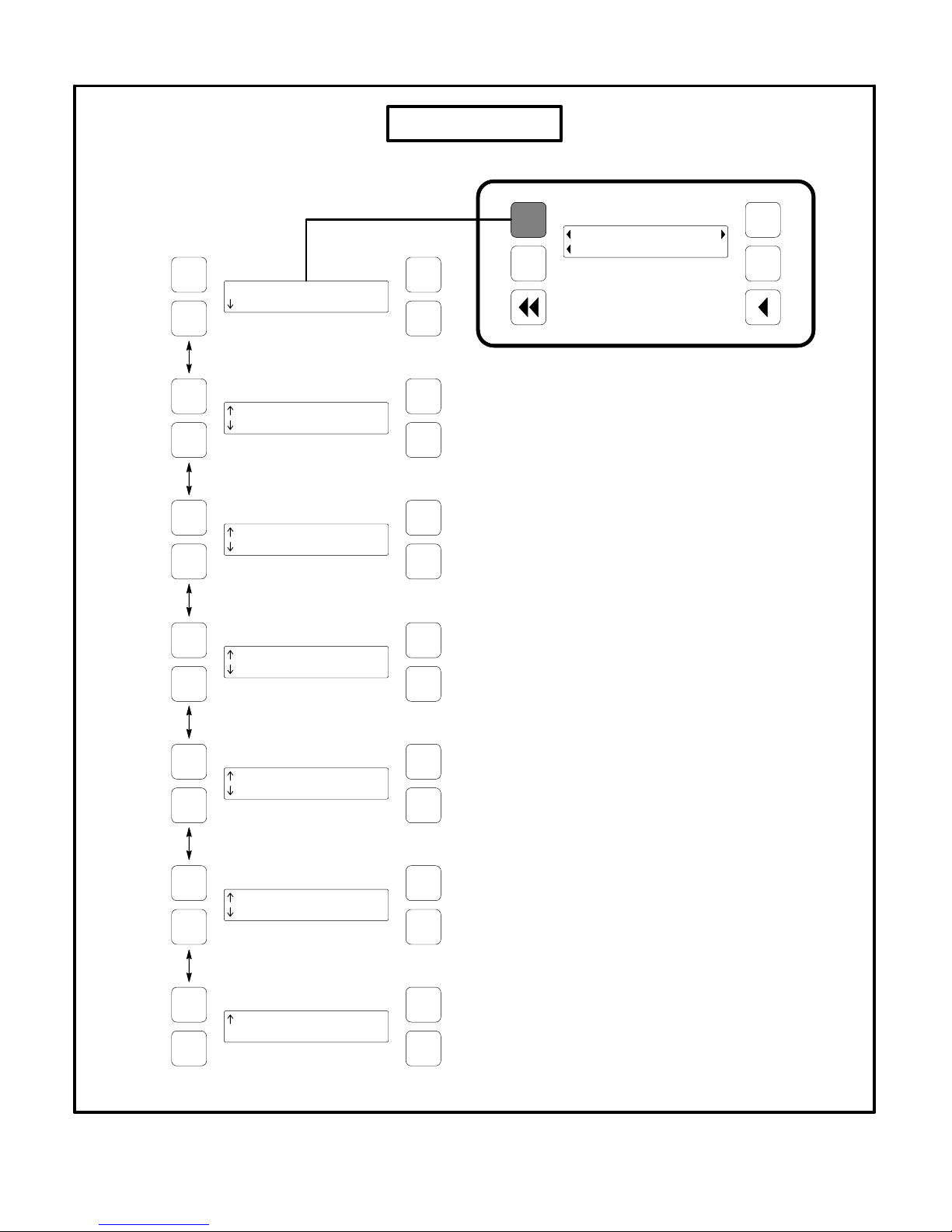

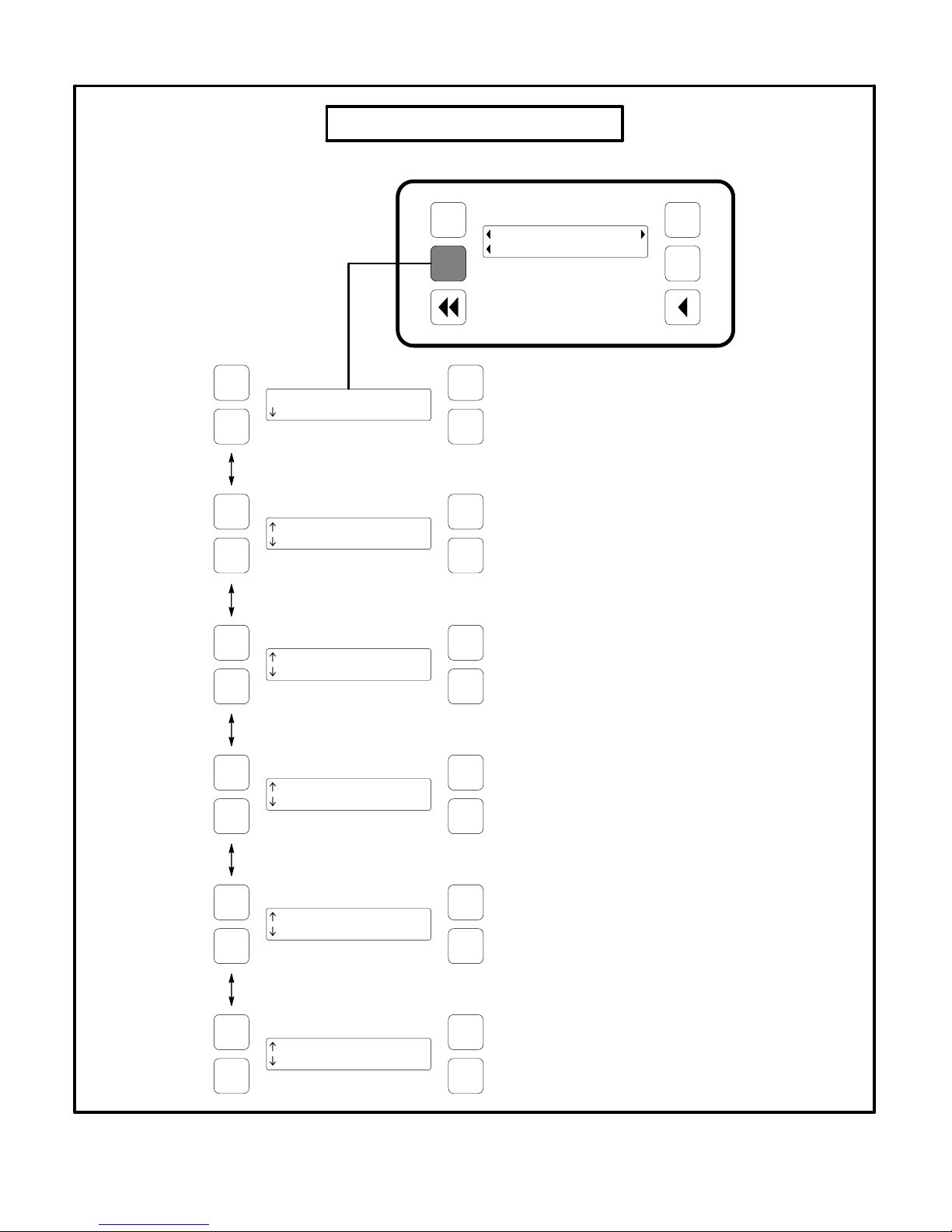

Figure 3-9 shows a block representation of the Engine menu. If you press the button next to the word “Engine” in the display, the first Engine submenu is displayed.

As shown in the diagram, the Engine menu has seven submenus. The data in the submenus will vary according to the type and number of sensors provided with the engine.

Press the buttons next to the

and symbols in the digital display to navigate between the menus. Press the Home button or the Previous Main Menu button to return to Main Menu 1.

Coolant Temperature submenu: This submenu displays the engine coolant temperature which can be viewed in degrees Fahrenheit or Centigrade (see Controller Configuration Menu in this section).

Oil Pressure submenu: This submenu displays the engine oil pressure which can be viewed in PSI or kPA (see Controller Configuration Menu in this section).

Oil Temperature submenu (Only available on some models): This submenu displays the engine

oil temperature which can be viewed in degrees Fahrenheit or Centigrade (see Controller Configu- ration Menu in this section).

Engine Speed submenu: This submenu displays the engine RPM.

Battery Voltage submenu: This submenu displays the engine battery voltage.

Governor Duty Cycle submenu: This submenu displays the governor duty cycle (drive) levels in percentage of maximum.

Active Time Delay submenu: This submenu displays the time delay that is currently active: warm− up, cool down, start or stop delays.

Page 31

3-21

ENGINE MENU

Engine Alternator

Adjust More>>

Coolant Temperature

nnn Deg F

Oil Pressure

nnn PSI

Engine Speed

nnnn RPM

Battery Voltage

nn.n VDC

Governor Duty Cycle

nnn %

Active Time Delay None nnnn Sec

Main Menu 1

Oil Temperature

nnn Deg F

FIGURE 3-9. ENGINE MENU

Page 32

3-22

ALTERNATOR MENU

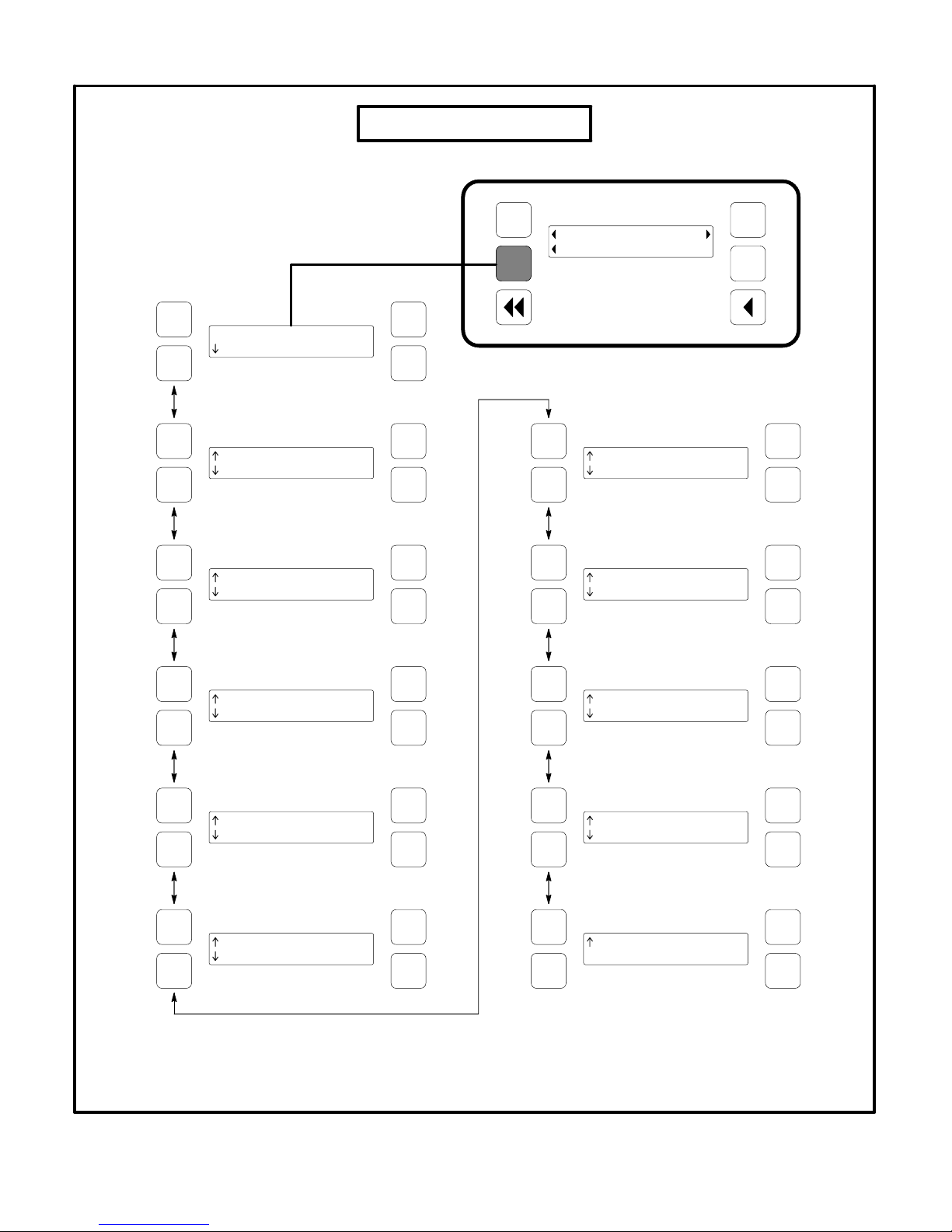

Figure 3-10 shows a block representation of the Alternator menu. If you press the button next to the word “Alternator” in the display, the first Alternator submenu is displayed.

As shown in the diagram, the Alternator menu has eleven submenus.

Press the buttons next to the and symbols in the digital display to navigate between the menus. Press the Home button or the Previous Main Menu button to return to Main Menu 1.

Line-to-Line Voltage submenu: The voltages Line-to-Line (L1, L2 and L3) are measured between L1 to L2, L2 to L3 and L3 to L1, respectively. (Single phase − L1 to L2 only.)

Line-to-Neutral Voltage submenu: Note that the Line-to -Neutral menu will not be displayed for a 3 phase/3 wire system. Single phase − L1 to N and L2 to N.

Amps submenu: All phases. (Single phase − L1 and L2 only.)

Frequency submenu: Generator set output frequency.

Total Real Power submenu: This submenu displays the total amount of real power output, in kilowatts (kW).

Real Power submenu: This submenu displays the amount of real power output for L1, L2, and L3, in kilowatts (kW). (Single phase − L1 and L2 only.)

Total Apparent Power submenu: This submenu displays the total amount of apparent power output, in kilovolt amps (kVA).

Apparent Power submenu: This submenu displays the amount of apparent power output for L1, L2, and L3, in kilovolt amps (kVA). (Single phase − L1 and L2 only.)

Total Power Factor submenu: This submenu displays the power factor with leading/lagging indication.

The PF reading will contain an asterisk if the power factor is leading (for example, Total PF 0.9 * ).

Power Factor submenu: This submenu displays a power factor value for L1, L2, and L3. (Single phase − L1 and L2 only.)

The PF reading will contain an asterisk if the power factor is leading (for example, PF L1 0.9*).

AVR Duty Cycle submenu: This submenu displays the voltage regulator (drive) level in percentage of maximum. (Where maximum is 100% Duty Cycle, software clamps Duty Cycle maximum to 60% for PMG and 90% for shunt.)

Page 33

3-23

ALTERNATOR MENU

Engine Alternator

Adjust More>>

Volts L12 L23 L31

V nnn nnn nnn

Volts L1N L2N

V nnn nnn

Amps L1 L2 L3

nnn nnn nnn

Frequency

nn.n Hz

Power L1 L2 L3

kW nn.n nn.n nn.n

Total Power

nnn kW

Total Power

nn.n kVA

Power L1 L2 L3

kVA nn.n nn.n nn.n

Total PF

n.nn*

PF L1 L2 L3

*n.nn *n.nn *n.nn

AVR Duty Cycle

nnn %

Main Menu 1

FIGURE 3-10. ALTERNATOR MENU

Page 34

3-24

ADJUST MENU

Figure 3-11 shows a block representation of the Adjust menu. If you press the button next to the word “Adjust” in the display, the first Adjust submenu is displayed.

As shown in the diagram, the Adjust menu has five submenus. Each submenu includes a parameter or value that can be changed.

Press the buttons next to the

and symbols in the digital display to navigate between the menus. Press the Home button or the Previous Main Menu button to return to Main Menu 1.

Adjusting Values/Parameters:

1. Press the button next to the

symbol in the dis-

play until the + and − symbols are displayed.

2. If necessary, press the button next to the

or symbols to move to the numeric character you wish to change.

3. Press the button next to the + symbol to increase the value or select parameter; press the button next to the − symbol to decrease the value or select parameter.

4. After adjusting values/selecting parameters, pressing the

symbol results in the changes being saved. (When adjusting values, make sure the cursor is on the last numeric character

before pressing the

symbol).

If the Home button or Previous Main Menu button is pressed before pressing the

symbol,

the changes are not saved.

Voltage Adjust submenu: Voltage can be adjusted to 5 percent of the nominal voltage. For ex- ample, if genset output voltage is 208 volts, the voltage can be adjusted from 198 to 218 volts.

If the displayed value is greater or less than the allowed (5%) range, the control will not accept the entry and will return to the previous setting. Retry by entering a smaller change in one volt increments.

Frequency Adjust submenu: Frequency can be adjusted to 5 percent of the nominal frequency. For example, if the genset frequency is 60.0 Hz, the frequency can be adjusted from 57.0 to 63.0 Hz.

Start Delay submenu: Start Delay can be set from 0 to 300 seconds (default = 0). (Enter 1 or more to enable.) This function is bypassed during a manual start/stop sequence.

Stop Delay submenu: Stop Delay can be set from 0 to 600 seconds (default = 0). (Enter 1 or more to enable.) This function is bypassed during a manual start/stop sequence and engine shutdown faults.

Rated To Idle (Beginning Version 2.303): Rated To Idle delay can be set from 0 to 10 seconds (default = 0). (Enter 1 or more to enable.) Entering a non-zero delay will cause the genset to delay the transition to Cooldown At Idle.

Idle Start submenu (Only available on some models): Idle Start can be enabled or disabled (de-

fault = Disable). This function is only enabled when the genset is started in manual mode. Idle Start can also be enabled while the generator set is running in manual mode. (Auto/remote start is not affected by this setting.)

Enabling Idle Start will cause the genset to run in idle mode until Idle Start is disabled. A warning is displayed if genset is left in idle more than 10 minutes. Long periods of engine idling can eventually affect engine performance and may void engine warranty.

Page 35

3-25

Voltage Adjust

nnn V

Frequency Adjust

nn.n Hz

Start Delay

nnn Sec

+Voltage Adjust

− nnn V

+Frequency Adjust

− nn.n Hz

+Start Delay

− nnn Sec

Back

ADJUST MENU

Engine Alternator

Adjust More>>

Main Menu 1

Idle Start

Disable

+Idle Start

− Enable

Back

Stop Delay

nnn Sec

+Stop Delay

− nnn Sec

Back

Rated To Idle Delay

nn Sec

+Rated To Idle Delay

− nn Sec

Back

FIGURE 3-11. ADJUST MENU

Page 36

3-26

FAULTS MENU

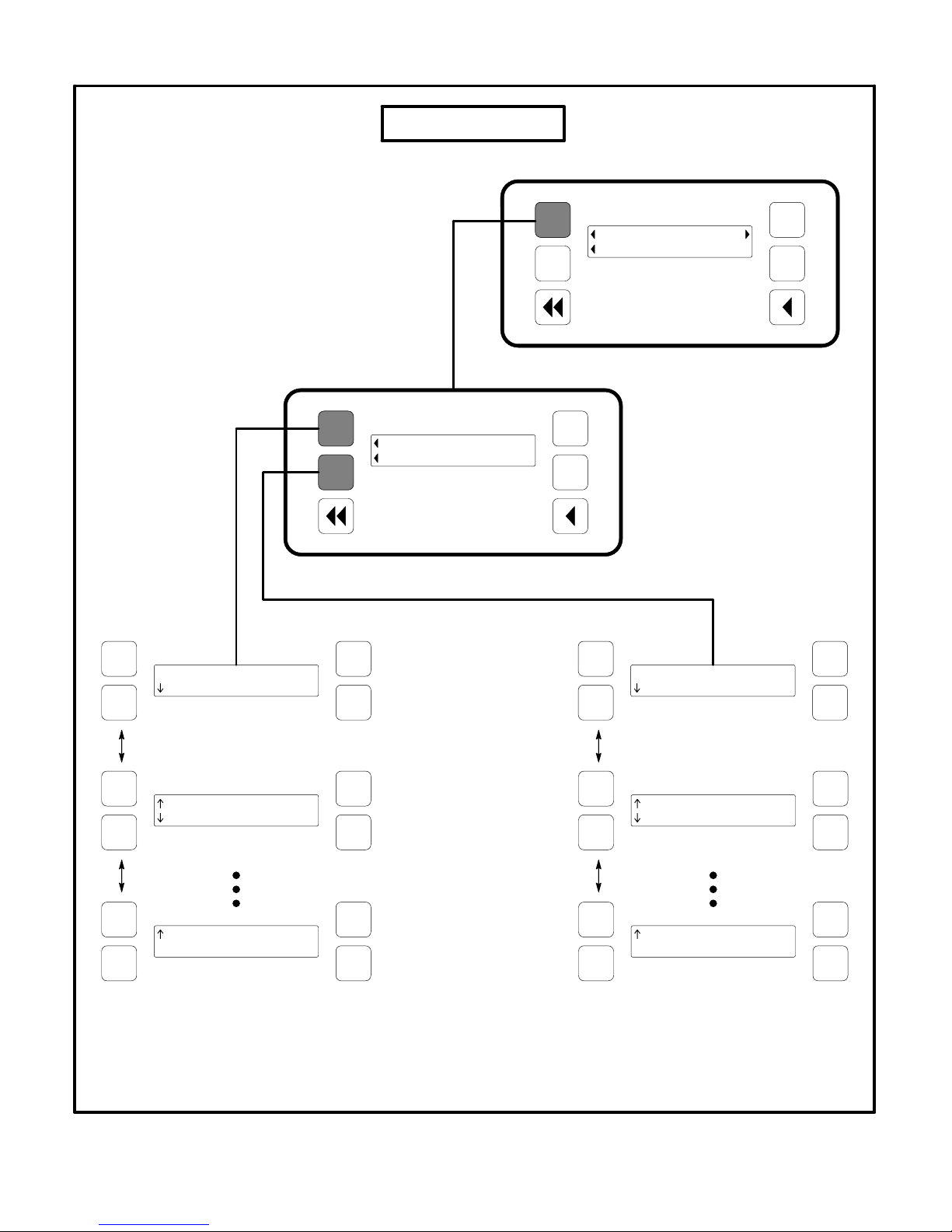

Figure 3-13 shows a block representation of the Faults menu. Up to 20 of the most recent faults can be viewed. An example of how a fault code is displayed is shown in Figure 3-12.

The available menus are dependent on the number of faults that have occurred.

• If there are no faults, the

symbol next to the word “Faults” is not displayed and no Fault menus are available.

• If more than one fault has occurred, press the button next to the word “Fault” in the screen display to view the Faults Main Menu. As shown in the diagram, the Faults Main Menu has two submenus. Press the Previous Main Menu button to return to the Faults Main Menu. Press the Previous Main Menu button a second time to return to Main Menu 2.

Press the Home button at any time to return to Main Menu 1.

History submenu: From the Faults Main Menu, press the button next to the word “History” in the display to view up to twenty of the most recent ac-

knowledged faults. Press the buttons next to the and symbols in the digital display to navigate be-

tween the menus. Press the Previous Main Menu button to return to the Faults Main Menu.

Current Fault submenu: From the Faults Main Menu, press the button next to the word “Current” in the display to view up to twenty of the most recent unacknowledged faults. Press the Previous Main Menu button to return to the Faults Main Menu.

FAULT

DESCRIPTION

W = WARNING S = SHUTDOWN

ASTERISK =

ACTIVE FAULT

HOUR FAULT

OCCURRED

FAULT

CODE

FIGURE 3-12. HISTORY/CURRENT FAULT SUBMENU

Page 37

3-27

Faults System

History More>>

FAULTS MENU

Main Menu 2

History

nnnnn @Hr nnnnn.n W xxxxxxxxxxxxxxxxxxxx

nnnnn @Hr nnnnn.n S xxxxxxxxxxxxxxxxxxxx

Fault 1

Fault 2

Fault 20

Faults Main Menu

Current

nnnnn @Hr nnnnn.n W xxxxxxxxxxxxxxxxxxxx

Fault 2

Fault 20

nnnnn @Hr nnnnn.n S xxxxxxxxxxxxxxxxxxxx

Fault 1

FIGURE 3-13. FAULTS MENU

Page 38

3-28

SYSTEM MENU

Figure 3-14 shows a block representation of the System menu. If you press the button next to the word “System” in the display, the System Main Menu is displayed. This menu is displayed only if the network communications module (NCM) feature is installed. The System Main Menu allows you to view the status and load of other PCC equipment connected on a common network with the PCC 2100 control.

As shown in the diagram, the System Main Menu has three submenus.

When viewing ATS and Genset System submenus, press the buttons next to the

and symbols in the digital display to navigate between the menus. Press the Previous Main Menu button to return to the System Main Menu. Press the Previous Main Menu button a second time to return to Main Menu 2. Press the Home button to return to Main Menu 1.

ATS System submenus: From the System Main Menu, press the button next to the word “ATS” in the display to view the first of up to 16 ATS System submenus. An ATS system must be available in the network to display this submenu.

The ATS submenu allows viewing of the transfer switch name (configured with InPower), kW load (if monitored by the ATS system), status (e.g., not in auto), and source connected and availability (ON = source connected, OK = source available, or NA = source not available).

Master System submenu: From the System Main Menu, press the button next to the word “Master” in the display to view the Master System submenu. A master controller must be available in the network to display this submenu.

The master submenu allows viewing of the master controller name (configured with InPower), kW load and operational state.

Genset System submenus: From the System Main Menu, press the button next to the word “Genset” in the display to view the first of up to 16 Genset System submenus. One genset must be available in the network to display this submenu.

The genset submenu allows viewing of the genset name (configured with InPower), kW load and operational state.

If a PCC 2100 control genset, in the network, contains the Power Transfer Control (PTC) feature, a genset system submenu will be displayed for the genset and the ATS System submenu will be displayed for the PTC feature.

Page 39

3-29

ATS Master

Genset

Faults System

History More>>

SYSTEM MENU

Main Menu 2

System Main Menu

ATSnameTag01>nnnnkW Non Auto S1=On, S2=On

ATSnameTag02>nnnnkW NonAut o S1=Ok, S2=NA

GensetName01>nnnnkW Warning Fail2Start

GensetName02>nnnnkW NonAuto Alarm

ATSnameTag16>nnnnkW NonAuto S1=Ok, S2=NA

ATS Menu 1

ATS Menu 2

ATS Menu 16

GensetName16>nnnnkW NonAuto Alarm

Genset Menu 1

Genset Menu 2

Genset Menu 16

Master>nnnn kW Shutdwn N=On,E=NA

FIGURE 3-14. SYSTEM MENU

Page 40

3-30

HISTORY MENU

Figure 3-15 shows a block representation of the History menu. If you press the button next to the word “History” in the display, the first History submenu is displayed.

As shown in the diagram, the History menu has five submenus. This information is stored in non-volatile memory and will not be deleted due to loss of battery power.

Press the buttons next to the

and symbols in the digital display to navigate between the menus. Press the the Previous Main Menu button to return to Main Menu 2. Press the Home button to return to Main Menu 1.

Number of Starts submenu: This submenu shows the number of engine starts.

Engine Hours submenu: This submenu shows the number of operating hours for the engine.

Control Hours submenu: This submenu shows the number of operating hours for the control.

Kilowatt Hours submenu: This submenu shows the number of kilowatt (kW) or megawatt (MW) hours.

Genset Duty Cycle submenu: This submenu shows the percent of genset operating hours that are less than 30 percent of rated load and percent of hours that are greater than 90 percent.

Page 41

3-31

Faults System

History More>>

HISTORY MENU

Main Menu 2

Number Starts

nnnnn

Engine Hours nnnnn Hours

Control Hours nnnnn Hours

kW Hours nnnnn kW Hrs

Genset Duty Cycle Hr <30:nn% >90:nn%

FIGURE 3-15. HISTORY MENU

Page 42

3-32

ABOUT MENU

Figure 3-16 shows a block representation of the About menu. If you press the button next to the word “About” in the display, the first About submenu is displayed.

As shown in the diagram, the About menu has three submenus.

Press the buttons next to the and symbols in the digital display to navigate between the menus. Press the the Previous Main Menu button to return to Main Menu 3. Press the Home button to return to Main Menu 1.

Model submenu: This submenu shows the genset model.

Rating submenu: This submenu shows the rating (Standby or Prime and number of kilowatts (kW)).

Software Version submenu: This submenu shows the software version level. This information is required to service the generator set.

Page 43

3-33

About Pwr Tran

Setup More>>

ABOUT MENU

Main Menu 3

Model

xxxxxxxxxxxxxxx

Rating

Standby nn.n kW

Software Version

nn.nnn

FIGURE 3-16. ABOUT MENU

Page 44

3-34

POWER TRANSFER MENU

Figure 3-17 shows a block representation of the Power Transfer menu. If you press the button next to the word “Pwr Tran” in the display, the first Power Transfer submenu is displayed. The Power Transfer Control (PTC) feature must be installed to display this submenu.

The PTC module enables the PCC to monitor the utility voltage (mains) and frequency for failure and control the opening and closing of the contacts (circuit breakers) for Source 1 (S1 utility) and Source 2 (S2 genset).

If S1 power fails, the control will initiate the starting sequence (Figure 3-3), open S1 and close S2 to the load. When S1 returns, the load is retransferred to S1 and the control initiates the genset shutdown sequence.

As shown in the diagram, the Power Transfer menu has five submenus.

Press the buttons next to the

and symbols in the digital display to navigate between the menus. Press the the Previous Main Menu button to return to Main Menu 3. Press the Home button to return to Main Menu 1.

S1 (Source 1) submenu: This submenu shows power transfer source voltage. The voltages Lineto-Line (L1, L2 and L3) are measured between L1 to L2, L2 to L3 and L3 to L1, respectively. (Single phase − L1 to L2 only.)

S1 (L-N Source) submenu: This submenu is displayed only if the control system is configured for line−to−neutral voltage sensing of source 1. Single phase only − L1 to N and L2 to N.

Frequency submenu: This menu shows power transfer source frequency.

Source 1 submenu: This submenu shows utility status (On, Ok, or NA). “On” means Source 1 is connected and available. “Ok” means Source 1 is available but not connected. “NA” means Source 1 is not available.

Genset submenu: This submenu shows generator status (On, Ok, or NA). “On” means the genset is connected and available. “Ok” means the genset is available but not connected. “NA” means the genset is not available.

Active Transfer Timer submenu: This submenu shows the time delay, in seconds.

Page 45

3-35

About Pwr Tran

Setup More>>

POWER TRANSFER MENU

Main Menu 3

S1 L12 L23 L31

V nnn nnn nnn

Frequency

nn.n Hz

Genset

Active Tran Timer

TD Re-Trans nnn Sec

S1 L1N L2N

V nnn nnn

FIGURE 3-17. POWER TRANSFER MENU

Page 46

3-36

THIS PAGE LEFT INTENTIONALLY BLANK

Page 47

4-1

4. Troubleshooting

GENERAL

The genset control continuously monitors engine sensors for abnormal conditions, such as low oil pressure and high coolant temperature. If any of these conditions occur, the control will light a yellow Warning lamp or a red Shutdown lamp and display a message on the digital display.

This section lists the warning and shutdown codes/ messages (Table 4-1), and suggests troubleshooting procedures (Table 4-2).

Displayed error codes that are not listed in Table 4-2 will require an authorized service representative to correct the fault. Contact an authorized service center for assistance.

SAFETY CONSIDERATIONS

WARNING

Contacting high voltage components can result in severe personal injury or death. Keep the output box covers in place during troubleshooting.

High voltages are present when the set is running. Do not open the generator output box while the set is running.

WARNING

Ignition of explosive battery gases can cause severe personal injury or death. Arcing at battery terminals, light switch or other equipment, flame, pilot lights and sparks can ignite battery gas. Do not smoke, or switch trouble light ON or OFF near battery. Discharge static electricity from body before touching batteries by first touching a grounded metal surface.

Ventilate battery area before working on or near battery—Wear goggles—Stop genset and disconnect charger before disconnecting battery cables—Disconnect negative (−) cable first and reconnect last.

CAUTION

Disconnect battery charger from AC source before disconnecting battery cables. Otherwise, disconnecting cables can result in voltage spikes damaging to DC control circuits of the generator set.

WARNING

Accidental starting of the generator set can cause severe personal injury or death. Prevent accidental starting by disconnecting the negative (−) cable from the battery terminal.

When troubleshooting a set that is shut down, make certain the generator set cannot be accidentally restarted as follows:

1. Move the O/Manual/Auto switch on the control panel to the O (off) position.

2. Turn off or remove AC power from the battery charger.

3. Remove the negative (−) battery cable from the generator set starting battery.

Page 48

4-2

STATUS INDICATORS

Running Indicator: This green lamp is lit whenever the generator set is running (Figure 4-1).

Remote Start Indicator: This green lamp is lit whenever the control is receiving a remote run signal.

Not in Auto Indicator: This red lamp flashes continuously when the O/Manual/Auto switch is not in the Auto position. (if in Auto position and the lamp is flashing, service is required.)

Configurable Indicators: Defaults for the configurable indicators shown in Figure 4-1 can be changed with the InPower service tool.

Warning Status Indicator: This yellow lamp is lit whenever the control detects a warning condition. After the condition is corrected, warning indicators can be reset by pressing the Fault Acknowledge/ Reset button. (It may not be necessary to stop the generator set.) In auto mode, warning indicators

can also be reset by cycling the remote reset input after the condition is corrected.

Some warnings remain active after the condition is corrected and the control reset button is pressed. This will require the genset to be shutdown to reset the warning indicator.

Digital Display: This two-line, 20-characters per line alphanumeric display is used to view menus of the menu-driven operating system and to show warning and shutdown messages.

LINE CIRCUIT BREAKER (OPTIONAL)

Optional line circuit breakers mount in the generator output box. If the load exceeds the circuit breaker current rating, the line circuit breaker will open, preventing the generator from being overloaded. If the circuit breaker trips, locate the source of the overload and correct as necessary. Manually reset the breaker to reconnect the load to the generator.

CONTROL AND DIAGNOSTICS VIA

NETWORK OR PERSONAL COMPUTER

(LAPTOP)

See your authorized Cummins Power Generation dealer regarding software, hardware and network requirements for control and diagnostics via network or personal computer.

Page 49

4-3

PANEL

LAMP

(1 of 3)

CONFIGURABLE

INDICATORS

MANUAL

RUN/STOP

BUTTON

OFF/MANUAL/ AUTO SWITCH

SHUTDOWN

AND WARNING

STATUS

INDICATORS

EMERGENCY

STOP PUSH

BUTTON

(Pull to reset)

HOME

BUTTON

ANALOG AC

METERING

PANEL

DIGITAL

DISPLAY

SELECTION

BUTTON

(1 of 4)

MAIN MENU

BUTTON

FAULT

ACKNOWLEDGEMENT/

RESET BUTTON

RUNNING/REMOTE

START/NOT IN AUTO

INDICATORS

PANEL LAMP

AND LAMP

TEST BUTTON

FIGURE 4-1. FRONT PANEL (FULL FEATURED)

Page 50

4-4

FAULT CODES

The fault codes have been divided into five categories to help you determine what corrective action to take for safe operation of the generator set. Use Table 4-1 to find the category (CTG) and fault description for all codes. Gaps in the code numbers

are for codes that do not apply to this genset model. Also, some of the codes listed are dependent on installed options, and will not be displayed by this genset control.

Category A Fault Codes: Pertain to engine or al-

ternator shutdown faults that require immediate repair by qualified service personnel (generator set non-operational). The control prevents the generator set from being restarted if the shutdown fault is not corrected.

Category B Fault Codes: Consist of faults that can affect genset performance or can cause engine, al- ternator, or connected equipment damage. Operate genset only when it is powering critical loads and cannot be shut down. Requires repair by qualified service personnel.

Category C Fault Codes: Consist of faults that do not affect generator set performance but require

qualified service personnel to repair. These codes indicate a defective harness or wiring problem.

These codes can also indicate a defective engine sensor, leaving no engine protection. (Engine damage can occur without detection.) Continued op-

eration may void generator set warranty if damage occurs that relates to fault condition.

Category D Fault Codes: Consist of faults that are

repairable by site personnel. Service will be required by qualified service personnel if site personnel cannot resolve the problem after taking the corrective actions suggested in Table 4-2.

Category E Fault Codes: Indicates non-critical operational status of generator set, external faults, or customer fault inputs. May require repair by qualified service personnel.

are for codes that do not apply to this genset.

TABLE 4-1. FAULT CODES

CTG

CODE LAMP DISPLAYED MESSAGE

A 121 Shtdn Speed Signal Lost

C 135 Wrng Oil Pressure Sensor H

C 141 Wrng Oil Pressure Sensor L

D 143 Wrng Pre-Low Oil Pres

C 144 Wrng Coolant Sensor High

C 145 Wrng Coolant Sensor Low

D 146 Wrng Pre-High Coolant Temp

D 151 Shtdn High Coolant Temp

D 197 Wrng Low Coolant Level

C 212 Wrng Oil Temp Sensor H

C 213 Wrng Oil Temp Sensor L

CTG CODE LAMP DISPLAYED MESSAGE

A 234 Shtdn Overspeed

D 235 Shtdn Low Coolant Level

D 359 Shtdn Fail To Start

D 415 Shtdn Low Oil Pressure

D 421 Wrng Oil Temp

D 441 Wrng Low Bat Voltage

D 442 Wrng High Bat Voltage

E 1122 None Rated/Idle Trans

1123 *

Shtdn Shutdown After Battle Short

E 1124 Wrng Delayed Shutdown

1131 *

Wrng Battle Sh Active

* Refer to Battle Short Mode description in Section 3.

Page 51

4-5

TABLE 4-1. FAULT CODES (CONT.)

CTG

CODE LAMP DISPLAYED MESSAGE

E 1311 Shtdn/

Wrng/

None

Customer Input #1

E 1312 Shtdn/

Wrng/

None

Customer Input #2

E 1313−

1316

Shtdn/

Wrng/

None

Network Fault 1 thru 4

E 1317 Shtdn/

Wrng/

None

Customer Input #3

E 1318 Shtdn/

Wrng/

None

Customer Input #4

A 1334 Shtdn Crit Scaler Out Of Range

B 1335 Wrng Noncrit Scaler Out Of Range

E 1337 None No Message

1416 *

Wrng Fail To Shutdown

D 1417 Wrng Powr Down Error

D 1433 Shtdn Emergency Stop

D 1434 Shtdn Remote E-Stop

D 1435 Wrng Low Coolant Temp

D 1438 Shtdn Fail To Crank

D 1442 Wrng Weak Battery

D 1443 Shtdn Battery Failed

B 1444 Wrng KW Overload

A 1445 Shtdn Short Circuit

A 1446 Shtdn High AC Voltage

A 1447 Shtdn Low AC Voltage

A 1448 Shtdn Under Frequency

A 1449 Wrng Over Frequency

CTG CODE LAMP DISPLAYED MESSAGE

A 1452 Wrng Gen CB Not Close

A 1453 Wrng Gen CB Not Open

A 1459 Shtdn Reverse Power

A 1461 Shtdn Loss Of Field

C 1466 Wrng Modem Failure

C 1468 Wrng Network Error

A 1469 Shtdn Speed/Hz Match

B 1471 Wrng Over Current

A 1472 Shtdn Over Current

E 2323−

2326

Shtdn/

Wrng/

None

Network Fault 5 thru 8

B 2327 Wrng PTC Fault

E 2329 Wrng Low S1 Frequency

E 2331 Wrng Low S1 Voltage

A 2335 Shtdn Excitation Fault

A 2336 Shtdn Memory Error

C 2337 Wrng Pwr Tran Disabled

C 2338 Wrng Pwr Tran Failure

E 2339 Wrng Pwr Down Enabled

B 2341 Wrng High Control Temp

E 2342 Wrng Too Long In Idle (10 min.)

E 2358 Wrng High S1 Voltage

E 2396 Wrng S1 CB Not Close

E 2397 Wrng S1 CB Not Open

C 2966 Wrng PTC Timeout

C 2967 Wrng Governor Fault

C 2968 Wrng AVR Fault

C 2969 Wrng LON Failure

A 2972 Shtdn Field Overload

* Refer to Battle Short Mode description in Section 3.

Page 52

4-6

Hazards present in troubleshooting can cause equipment damage, severe personal injury or death. Only trained and experienced service personnel with knowledge of fuels, electricity, and machinery hazards should perform service procedures. Read Safety Precautions page and observe all instructions and precautions in this manual.

WARNING

TABLE 4-2. WARNING AND SHUTDOWN CODES

FAULT CODE CORRECTIVE ACTION

143 PRE-LOW OIL PRES

Lamp: Warning

Indicates engine oil pressure has dropped below the warning trip point.. If generator is powering critical loads and cannot be shut down, wait until next shutdown period and then follow code 415 procedure.

146 PRE-HIGH COOL TMP

Lamp: Warning

Indicates engine is operating near cooling system capacity. Increase in load or higher ambient temperature may cause High Coolant Temp (151) shutdown. Re- view 151 correction list for other possible causes.

151 HIGH COOLANT TEMP

Lamp: Shutdown

Indicates engine has overheated (coolant temperature has risen above the shutdown trip point). Allow engine to cool down completely before proceeding with the following checks:

a. Check coolant level and replenish if low. Look for coolant leaks and repair if nec-

essary.

b. Check for obstructions to cooling airflow and correct as necessary.

c. Check fan belt and repair or tighten if necessary.

d. Check blower fan and circulation pumps on remote radiator installations.

e. Reset control and restart after locating and correcting problem.

197 LOW COOLANT LEVEL

Lamp: Warning (Optional)

Indicates engine coolant level has fallen below the warning trip point. If generator is powering critical loads and cannot be shut down, wait until next shutdown period, then follow code 235 procedure. If engine can be stopped, follow code 235 procedure.

235 LOW COOLANT LEVEL

Lamp: Shutdown (Optional)

Indicates engine coolant level has fallen below the shutdown trip point. Allow engine to cool down completely before proceeding.

a. Check coolant level and replenish if low. Look for possible coolant leakage

points and repair if necessary.

b. Reset control and restart after locating and correcting problem.

359 FAIL TO START

Lamp: Shutdown

Indicates possible fuel system or air induction problem. (Engine cranks but fails to start)

a. Check for empty fuel tank, fuel leaks, or plugged fuel lines and correct as re-

quired. b. Check for dirty fuel filter and replace if necessary. c. Check for dirty or plugged air filter and replace if necessary. d. Reset the control and restart after correcting the problem.

415 LOW OIL PRESSURE

Lamp: Shutdown

Indicates engine oil pressure has dropped below the shutdown trip point. Check oil level. If oil level is low, replenish. Reset control and restart.

Page 53

4-7

WARNING

TABLE 4-2. WARNING AND SHUTDOWN CODES (CONT.)

FAULT CODE CORRECTIVE ACTION

421 OIL TEMP

Lamp; Warning (Optional)

Indicates engine has begun to overheat (oil temperature has risen to an unacceptable level). If generator is powering non-critical and critical loads and cannot be shut down, use the following:

a. Reduce load if possible by turning off non-critical loads.

b. Check air inlets and outlets and remove any obstructions to airflow.

If engine can be stopped, follow code 151 procedure and also check engine oil level.

441 LOW BAT VOLTAGE

Lamp: Warning

Indicates battery voltage supply to the control is approaching a low level at which unpredictable operation will occur.

a. Discharged or defective battery.

Check the battery charger fuse. Recharge or replace the battery.

b. Poor battery cable connections. Clean the battery cable terminals and tighten all

connections.

c. Check battery charge voltage float level if applicable (raise float level).

442 HIGH BAT VOLTAGE

Lamp: Warning

Indicates battery voltage supply to the control is approaching a high level at which damage to the control can occur. Check float level on battery charger if applicable (lower float level).

1311, 1312, 1317, 1318 CUSTOMER INPUT #1 − #4

Lamp: Warning/Shutdown or none for status message.

The nature of the fault is an optional customer selection. Example inputs: Low Fuel Day Tank, Water In Fuel, Ground Fault, Low Starting Hydraulic Pressure, Low Starting Air Pressure, etc.

Each of the fault functions can be programmed (using service tool), as follows:

• Enable/disable input (Default: enable)

• Status, Warning or Shutdown (Default: #1−None, #2 thru #4−Warning)

• Active closed or open (Default: closed [ground])

• Change display name using up to 19 characters (Default: #1− Customer Fault 1,

#2−Ground Fault, #3−Low Fuel, #4−Rupture Basin Fault)

1417 POWER DOWN ERROR

Lamp: Warning

Indicates that the controller can not power down because of some unknown condition. Possible drain on battery. Contact an authorized service center for service.

1433 EMERGENCY STOP

Lamp: Shutdown

Indicates local Emergency Stop. To reset the local/remote Emergency Stop button:

4. Pull the button out.

5. Move the O/Manual/Auto switch to O.

6. Press the front panel Fault Acknowledge/Reset button.

7. Return O/Manual/Auto switch to desired position.

Page 54

4-8

WARNING

TABLE 4-2. WARNING AND SHUTDOWN CODES (CONT.)

FAULT CODE CORRECTIVE ACTION

1434 REMOTE E-STOP

Lamp: Shutdown

Indicates remote Emergency Stop. See code 1433 to reset.

1435 LOW COOLANT TEMP

Lamp: Warning

Set is not operating. Warning occurs when engine coolant temperature is 70° F (21° C) or lower. NOTE: In applica-

tions where the ambient temperature falls below 405 F (45 C), Low Coolant Temp may be indicated even though the coolant heaters are operating.

Indicates engine coolant heater is not operating or is not circulating coolant. Check for the following conditions:

a. Coolant heater not connected to power supply. Check for blown fuse or discon-

nected heater cord and correct as required.

b. Check for low coolant level and replenish if required. Look for possible coolant

leaks and repair as required.

1438 FAIL TO CRANK

Lamp: Shutdown

Indicates possible fault with control, speed sensing or starting system. See code

441 for corrective action.

1442 WEAK BATTERY

Lamp: Warning

Indicates that during cranking, the battery voltage is at or below the weak battery warning trip point for a time greater than or equal to the weak battery set time. See code 441 for corrective action.

1443 BATTERY FAILED

Lamp: Shutdown

Dead battery − engine will not start. See code 441 for corrective action.

2342 TOO LONG IN IDLE

Lamp: Warning

Indicates genset has been in Idle mode too long (10 minutes maximum).

Page 55

5-1

5. Maintenance

GENERAL

Establish and adhere to a definite schedule for maintenance and service based on the application and severity of the environment. Table 5-1 covers the recommended service intervals for a generator set on STANDBY service. If the set will be subjected to extreme operating conditions, the service intervals should be reduced accordingly. Some of the factors that can affect the maintenance schedule are the following:

• Use for continuous duty (prime power)

• Extremes in ambient temperature

• Exposure to weather

• Exposure to salt water

• Exposure to dust, sand or other airborne con-

taminates

Consult with your local Cummins Power Generation distributor if the generator set will be subjected to any extreme operating conditions and determine a suitable schedule of maintenance. Use the running time meter to keep an accurate log of all service performed for warranty support. Perform all service at the time period indicated or after the number of operating hours indicated, whichever comes first. Use Table 5-1 to determine the maintenance required and then refer to the sections that follow for the correct service procedures.

Page 56

5-2

TABLE 5-1. MAINTENANCE SCHEDULE

MAINTENANCE ITEMS

SERVICE TIME

See

Engine

Schdl.

Daily

or after

Hours

Weekly or after

Hours

Month-

or after

100

Hours

6 Months or af-

ter 250

Hours

Yearly

or after

500

Hours

4000 −

4500

Hours

General Genset Inspection X

Check Coolant Heater X

Check Oil Level X

Check Coolant Level X

Check Fuel Level X

Check Charge Air Piping X

Check Air Cleaner (Clean if required) X

Check Battery Charging System X

Drain Water and Sediment from Fuel Tank X

Drain Exhaust Condensate Trap X

Check Starting Batteries X

Change Air Cleaner Element X

Check Radiator Hoses for Wear & Cracks X

Test Generator Insulation Resistance X

Grease generator bearing (P7) X

Drain Fuel Filter(s) X

Check Anti-freeze and DCA Concentration X

Change Crankcase Oil and Filter X

1, 6

Check Drive Belt Tension X

Change Coolant Filter X

Clean Crankcase Breather X

Change Fuel Filters X

Clean Cooling System X

X1Refer to Cummins Engine Operation and Maintenance Manual for maintenance interval and/or procedure. X

Check for oil, fuel, cooling and exhaust system leaks. Check exhaust system audibly and visually with set running and repair any leaks immediately.

Perform more often in dusty conditions.

Visually check belt for evidence of wear or slippage. Replace if hard or brittle.

Drain 1 cup or more of fuel to remove water and sediment.

If genset is used for standby applications, change oil every 12 months or 250 hours, whichever comes first.

This procedure should be followed periodically throughout the life of the generator set, or if the generator has set idle for a period of time with no generator heaters used. Contact your authorized service center.

Page 57

5-3

GENERATOR SET INSPECTION

During operation, be alert for mechanical problems that could create unsafe or hazardous conditions. The following sections cover several areas that should be frequently inspected for continued safe operation.

Exhaust System

With the generator set operating, inspect the entire exhaust system visually and audibly including the exhaust manifold, muffler and exhaust pipe. Check for leaks at all connections, welds, gaskets and joints and also make sure that exhaust pipes are not heating surrounding areas excessively. If any leaks are detected, shut down the genset and have leaks corrected immediately.

WARNING

Inhalation of exhaust gases can result in severe personal injury or death. Be sure deadly exhaust gas is piped outside and away from any windows, doors, vents or other inlets to building and not allowed to accumulate in inhabitable areas.

Fuel System

With the generator set operating, inspect the fuel supply lines, return lines, filters and fittings for cracks and abrasions and make sure they are not rubbing against anything that could cause breakage. If any leaks are detected, have them corrected immediately.

WARNING

Ignition of fuel can cause severe personal injury or death by fire or explosion. Do not permit any flame, cigarette, arcing switch or equipment, pilot light, or other igniter near the fuel system or in areas sharing ventilation.

AC Electric System

Check the following while the genset is operating.

Frequency/RPM (Alternator/Engine Menu): The generator frequency should be stable and the read-

ing should be the same as the genset nameplate rating (50 or 60 Hz/1500 or 1800 RPM).

AC Voltmeter (Alternator Menu): At no load, the line-to-line or line-to-neutral voltage(s) should be the same as the genset nameplate rating.

AC Ammeter (Alternator Menu): At no load the current ratings should be zero. With a load applied, each line current should be about the same.

Panel Lamp/Lamp Test Button: Press and hold this button to test all front panel LEDs and meters. The meters will light one bar at a time. Make sure that all LEDs and meters are OK and then release the button.

DC Electrical System

Check the terminals on the batteries for clean and tight connections. Loose or corroded connections create resistance which can hinder starting. Refer to BATTERIES later in this section for cleaning and safety precautions.

Engine

Monitor fluid levels and oil pressure and coolant temperatures frequently. Most engine problems give an early warning. Look and listen for changes in engine performance, sound, or appearance that can indicate service or repair is needed. Some engine changes to look for are as follows:

• Misfire

• Vibration

• Unusual noises

• Sudden changes in engine operating tempera-

tures or pressures

• Excessive exhaust smoke

• Loss of power

• An increase in oil consumption

• An increase in fuel consumption

• Fuel, oil, or coolant leaks.

Page 58

5-4

GENERATOR SET MAINTENANCE

(Battery Disconnected)

WARNING

CAUTION

Disconnect battery charger from AC source before disconnecting battery cables. Otherwise, disconnecting cables can result in voltage spikes damaging to DC control circuits of the set.

WARNING

Accidental starting of the generator set can cause severe personal injury or death. Prevent accidental starting by disconnecting the negative (−) cable from the battery terminal before beginning maintenance procedures.

When performing the following maintenance procedures, make certain the generator set cannot be accidentally restarted as follows:

1. Move the O/Manual/Auto switch on the control panel to the O (off) position.

2. Turn off or remove AC power from the battery charger.

3. Remove the negative (−) battery cable from the generator set starting battery.

Mechanical Inspection

With the generator set stopped, check for loose belts and fittings, leaking gaskets and hoses, or any signs of mechanical damage. If any problems are found, have them corrected immediately.

Page 59

5-5

LUBRICATION SYSTEM

Gensets are shipped with oil added. Be sure to check oil level before initial start.

Oil API Classification

Refer to the Cummins engine Operation and Maintenance Manual for lubricating oil classification.

Oil Viscosity

Refer to the Cummins engine Operation and Maintenance Manual for lubricating oil recommenda-

tions/specifications.

Engine Oil Level

Check the engine oil level during engine shutdown periods at the intervals specified in Table 5-1. The oil filter location is shown in Figure 5-1. The dipstick is stamped with high and low marks to indicate the level of oil in the crankcase. For accurate readings, shut off the engine and wait approximately 15 minutes before checking the oil level. This allows oil in the upper portion of the engine to drain back into the crankcase.

WARNING

Crankcase pressure can blow out hot oil and cause severe burns. Do NOT check oil while the generator set is operating.

Keep the oil level as near as possible to the high mark on the dipstick. Remove the oil fill cap (see Figure 5-1) and add oil of the same API viscosity and brand when necessary. Install the oil fill cap after adding oil.

CAUTION

Do not operate the engine with the oil level below the low mark or above the high mark. Overfilling can cause foaming or aeration of the oil while operation below the low mark may cause loss of oil pressure.

OIL FILTERS (5)

OIL FILL

DIPSTICK

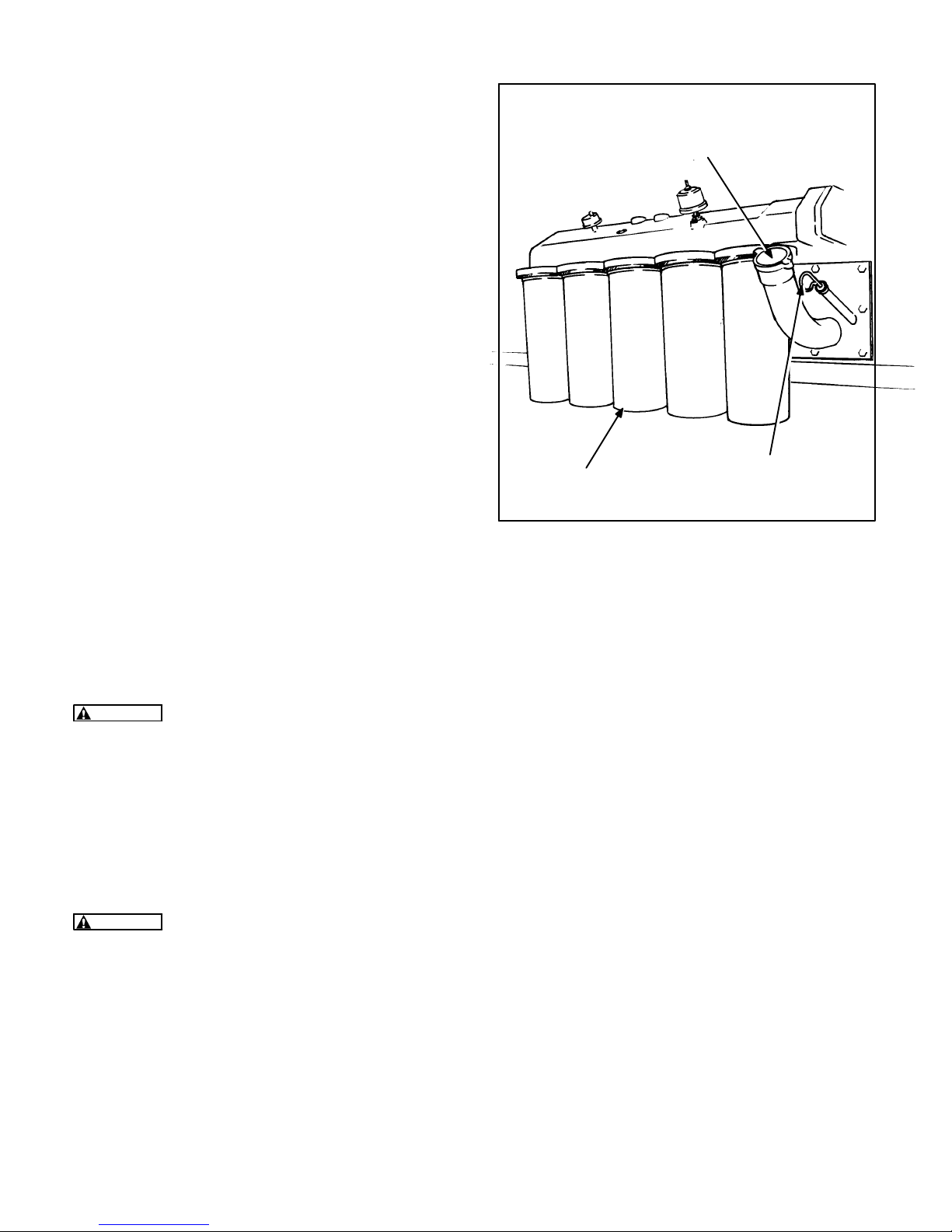

FIGURE 5-1. OIL FILTER AND DIPSTICK

Page 60

5-6

COOLING SYSTEM

Gensets are shipped with coolant added. Be sure to check coolant level before initial start.

CAUTION

The optional coolant heater must not be operated while the cooling system is empty or when the engine is running or damage to the heater will occur.

CAUTION

Remove AC power to the heater before disconnecting battery cables. Heater will run continuously without DC power and can overheat and damage heater.

CAUTION

Do not add cold coolant to a hot engine. Engine castings can be damaged. Allow the engine to cool to below 120

5 F (505 C) before

adding coolant.

Coolant Level

Check the coolant level during shutdown periods at the intervals specified in Table 5-1. Remove the radiator cap after allowing the engine to cool and if necessary, add coolant until the level is near the top of the radiator. Refer to the Cummins engine Opera- tion and Maintenance Manual for coolant recommendations/specifications.

WARNING

To prevent severe scalding, let engine cool down before removing coolant pressure cap. Turn cap slowly, and do not open it fully until the pressure has been relieved.

CAUTION

Loss of coolant can allow engine to overheat without protection of shutdown device and cause severe damage to the engine. Maintain coolant level for proper operation of the high engine temperature shutdown system.

Cooling System Maintenance

Heavy duty diesel engines require a balanced coolant mixture of water, antifreeze and coolant additives.

Refer to the Cummins engine Operation and Main- tenance Manual for all cooling system maintenance, such as, coolant requirements, filling of cooling system, coolant filter replacement and flushing and cleaning.

Radiator

Inspect the exterior of the radiator for obstructions. Remove all dirt or foreign material with a soft brush or cloth. Use care to avoid damaging the fins. If available, use low pressure compressed air or stream of water (maximum of 35 psi/242 kPa), in opposite direction of normal air flow to clean radiator. If using water, protect the engine and the generator from over spray.

Flushing and Cleaning

The cooling system must be clean and free of rust and scale if it is to perform properly. Refer to the Cummins engine Operation and Maintenance Manual to flush and clean the cooling system.

Heat Exchanger Plugs

Check the zinc plugs in the heat exchanger and replace if they are eroded to less than half their original length. The frequency of replacement is dependent on the chemical reaction that occurs when the plugs are in contact with the raw water.

Coolant Heater

Check the operation of the coolant heater by verifying that hot coolant is being discharged from the outlet hose. Do not touch outlet hose − if heater is operational, radiant heat should be felt with hand held close to outlet hose.

WARNING

Contact with cooling system or engine can result in serious burns. Do not touch cooling system or engine during genset maintenance until they are cool.

CHARGE-AIR PIPING

Inspect the charge air piping and hoses, daily, for leaks, holes, cracks, or loose connections. Tighten the hose clamps if necessary.

Inspect the charge air cooler for dirt and debris blocking the fins. Check for cracks, holes, or other damage.

FUEL SYSTEM

Refer to the Cummins engine Operation and Maintenance Manual for fuel system maintenance.

Page 61

5-7

AIR CLEANER

The engine air intake components should be checked at the interval indicated in Table 5-1. The frequency of cleaning or replacing air cleaner filter elements is primarily determined by the conditions that the generator set operates in. The standard air cleaner and optional heavy duty air cleaner contain a paper cartridge filter element which can be cleaned and reused if not damaged, or discarded and replaced.

To Service the Air Cleaner:

1, Loosen fastener(s) and remove air cleaner

housing end cap.

2. Remove the air filter element from the filter housing.

3. To clean, blow low pressure compressed air (30 psi/207 kPa) through the element from the clean side. Hold the nozzle at least 1 inch (25 mm) away to avoid damaging the element.

4. Soak the filter for at least 15 minutes in water and Donaldsons D1400 solvent (or equivalent other cleaning solvent) to remove soot and carbon as well as dirt.

5. Rinse with clean water (low pressure) and allow to air dry. Do not blow dry with compressed air. Reinstall when the filter element is dry. Replace the filter after two cleanings to avoid restricting the airflow.

CAUTION

Filters should be handled with care to prevent damage. If the filter does become damaged, install recommended replacement part.

Page 62

5-8

BATTERIES

WARNING

CAUTION

Disconnect battery charger from AC source before disconnecting battery cables. Otherwise, disconnecting cables can result in voltage spikes damaging to DC control circuits of the set.

Check the condition of the starting batteries at the interval specified in the Maintenance Table. To prevent dangerous arcing, always disconnect the negative ground cable from the battery before working on any part of the electrical system or the engine. Disregard the sections On Checking Specific Gravity and Checking Electrolyte Level if using a “maintenance-free” battery.

Cleaning Batteries

WARNING

Electrolyte is a dilute sulfuric acid that is harmful to the skin and eyes. Do not get the substance in your eyes or contact with skin. Wear goggles and protective, rubber gloves and apron when servicing batteries.

In case of contact, immediately wash skin with soap and water. In case of contact, immediately flood eyes with large amounts of water for a minimum of 15 minutes. IMMEDIATELY CALL A PHYSICIAN.

Keep the batteries clean by wiping them with a damp cloth whenever dirt appears excessive.

If corrosion is present around the terminal connections, remove battery cables and wash the terminals with a solution consisting of 1/4 pound of baking soda added to 1 quart of water. (This solution is also used for washing down spilled electrolyte.)

Be sure the vent plugs are tight to prevent cleaning solution from entering the cells.

After cleaning, flush the outside of the battery and surrounding areas with clean water.

Keep the battery terminals clean and tight. After making connections, coat the terminals with a light application of petroleum jelly or non-conductive grease to retard corrosion.

Checking Specific Gravity

Use a battery hydrometer to check the specific gravity of the electrolyte in each battery cell.

Hold the hydrometer vertical and take the reading. Correct the reading by adding four gravity points (0.004) for every ten degrees the electrolyte temperature is above 80° F (27° C). A fully charged battery will have a corrected specific gravity of 1.260. Charge the battery if the reading is below 1.215.

Checking Electrolyte Level

CAUTION

Do not add water in freezing weather unless the engine will run long enough (two to three hours) to assure a thorough mixing of water and electrolyte.

Check the level of the electrolyte (acid and water solution) in the batteries at least every 200 hours of operation.

Fill the battery cells to the bottom of the filler neck. If cells are low on water, add distilled water and recharge. If one cell is low, check case for leaks. Keep the battery case clean and dry. An accumulation of moisture will lead to a more rapid discharge and battery failure.

Page 63

5-9

Battery Replacement

Always replace the starting battery with the same number and type (vented, lead acid). Properly dispose of battery in accordance with local environmental agency requirements.

WARNING

Electrolyte or explosion of battery can cause severe personal injury or death. Do not mutilate or burn the battery in a fire for disposal.

Damage to case will release electrolyte which is harmful to the skin and eyes and is also toxic. Burning of battery may cause an explosion.

NiCad Batteries

NiCad (nickel-cadmium) battery systems are often specified where extreme high or low ambient temperature is expected because their performance is less affected by temperature extremes than that of lead-acid batteries.

NiCad batteries require special battery chargers in order to bring them to the full-charge level. These chargers must be provided with filter to reduce “charge ripple” which can disrupt engine and generator control systems.

Page 64

5-10

FAN BELT REPLACEMENT

(Model DFLC)

Belt Removal

1. Remove safety cage (two halves) and fan belt guard (between engine and radiator) to gain access to fan belt.

2. Loosen the two capscrews on both ends of shock absorber and remove all disconnected hardware (Figure 5-2).

3. Use an 8-point socket and breaker bar or a large wrench to hold the idler in position against the spring tension. Slowly turn the wrench until the spring tension is relieved (Figure 5-3). Remove the fan belt.

WARNING

The fan belt idler is under tension. Do not allow your hands to get between the idler and the belt or the fan hub. Personal injury will result.

4. Using an overhead hoist and sling assembly, position sling around spacer (between hub and fan). Take up slack on sling just enough to support fan assembly (Figure 5-4).

5. Remove six capscrews from fan support bracket. This allows sling to support complete fan assembly. Move fan assembly toward radiator and remove fan belt by slipping behind disconnected bracket.

FIGURE 5-2. REMOVING SHOCK ABSORBER

TURN WRENCH IN DIRECTION OF ARROW UNTIL SPRING TENSION IS RELIEVED

FIGURE 5-3. IDLER SPRING

Page 65

5-11

Belt Replacement

1. Slip new fan belt behind disconnected fan support bracket and onto the crankshaft and fan hub pulley.

2. Reinstall fan support bracket using the six capscrews previously removed. Torque capscrews to 165 - 175 lb. ft. (186 - 197 N

•m).

3. After securing bracket, relieve tension on sling and remove sling from fan spacer.

4. Align the grooves of the belt on the ribs of the pulley and shaft.

WARNING

The fan belt idler is under tension. Do not allow your hands to get between the idler and the belt or the fan hub. Personal injury will result.

5. Reinstall shock absorber using capscrews, washers and spacers.

6. Recheck belt for proper alignment.

The spring-loaded idler used on this design maintains the correct belt tension.

7. Install fan belt guard and safety cage.

8. Reconnect starting batteries (negative cable last). Start genset and visually check belt again with engine running.

SLING

FAN SUPPORT

BRACKET

REMOVE SIX

CAPSCREWS

(3 EA SIDE)

ATTACH WRENCH HERE AND TURN IN

DIRECTION OF ARROW TO RELIEVE IDLER SPRING PRESSURE

SHOCK ABSORBER

FAN BELT

REMOVE AND INSTALL FAN BELT BY

SLIPPING BEHIND DISCONNECTED FAN

SUPPORT BRACKET HERE

FIGURE 5-4. FAN BELT REPLACEMENT

Page 66

5-12

P7 GENERATOR BEARING

RE-LUBRICATION

A generator set with the P7 generator and terminal box is shown in Figure 5-5.

Re-lubricate the generator bearing at the interval specified in the Maintenance Table. A grease fitting is provided to allow the use of a grease gun to re-lubricate the bearing.

The bearing must be filled with the same type of grease used when the generator was manufactured. This grease was chosen to provide the bearing with optimum lubricating characteristics, and MUST NOT be mixed with any other type.

The grease that must be used is Kluber, type ASONIC GHY72.

To locate the nearest Kluber grease distributor, see Kluber Web site at:

www.klueber.com

Lubrication

It is important that the correct quantity of grease is used for periodic re-lubrication with a grease gun during planned maintenance. Refer to label located at bearing end of generator (if provided) or Table 5-2, which specifies the grease fill quantity.

To determine how much grease is supplied with each pump (stroke) of the device, weigh the quantity required (e.g., 75 grams or 2.7 ounces ÷ 1/4 = 19

grams or 0.68 ounces), against the number of pump strokes taken to inject that amount onto a small weighing scale. Also, note in practice:

• If the pump hits an airlock, (i.e., no pressure

when pumping) these strokes can not be counted.

• For greater accuracy, the grease fitting can be

unscrewed, and a flexible grease-pipe screwed directly to the fitting adapter. This will make sure that no grease is expelled outside of the fitting.

• If too much grease is applied, any excess will

be exhausted out of the bearing cartridge via the grease escape. (Any exhausted grease should be cleaned out of the PMG cover.

• Always extend the grease gun pump arm out to

its full extent with each pump, failure to do this could mean little or no grease is going into the bearing.

Re-Lubrication Procedure

1. Make sure grease gun nozzle and re-lubricating fitting are free from contaminants or abrasive material.

2. With the generator running, apply the specified re-lubrication grease fill quantity through the grease fitting.

3. Run the generator for at a minimum of 10 minutes to allow excess grease to exhaust.

4. Check inside the PMG cover for expelled grease. Clean out as necessary.

TABLE 5-2. MAINTENANCE CHART FOR RE-GREASE

FRAME

BEARING P/N *

GREASE QTY

RE-LUBRICATION

PERIOD

CM GRAMS

P7 −− 85 75 4000 − 4500

* Refer to label located at bearing end of generator for bearing P/N.

Page 67

5-13

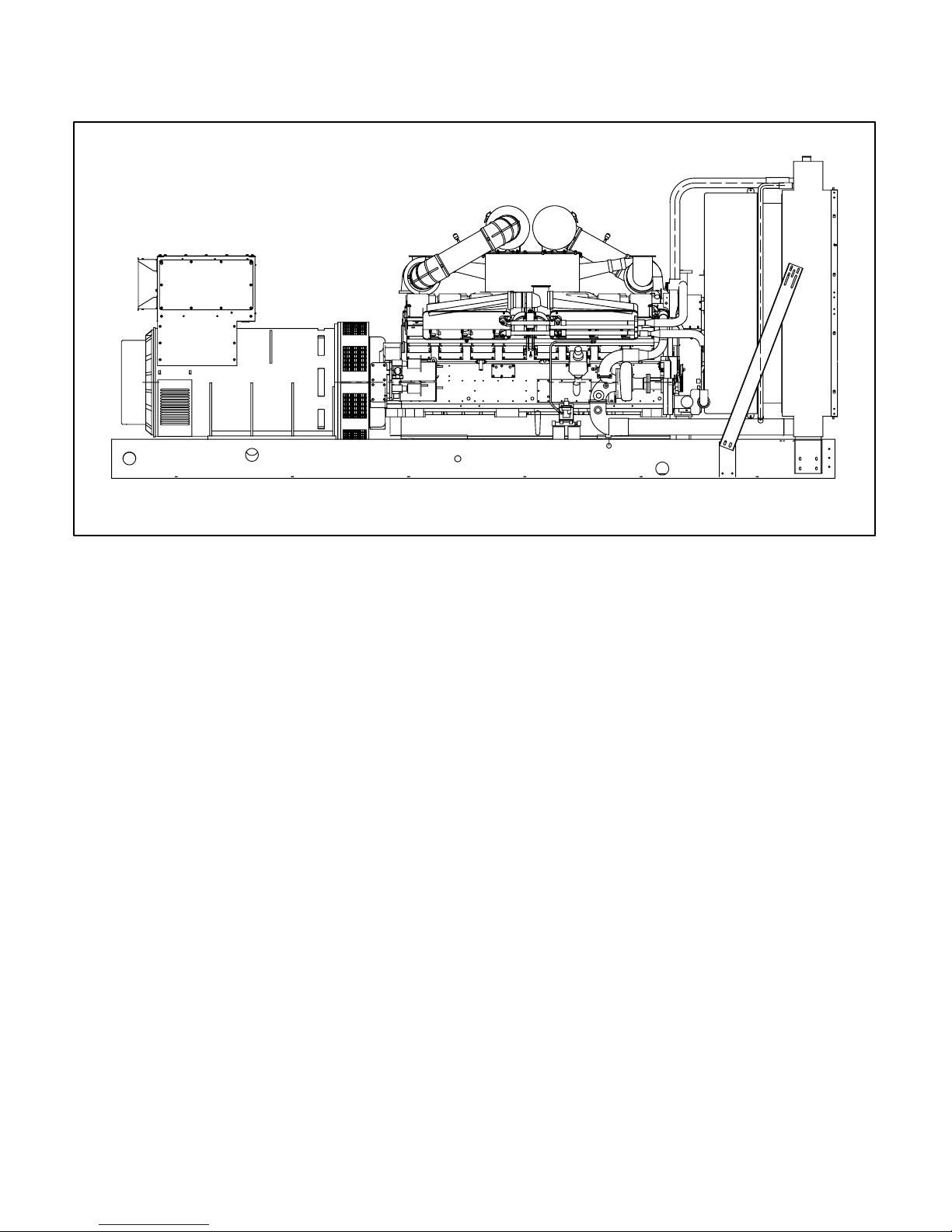

FIGURE 5-5. GENERATOR SET WITH P7 GENERATOR AND TERMINAL BOX

Page 68

5-14

THIS PAGE LEFT INTENTIONALLY BLANK

Page 69

6-1

6. Operating Recommendations

NO-LOAD OPERATION

Periods of no load operation should be held to a minimum. If it is necessary to keep the engine running for long periods of time when no electric output is required, best engine performance will be obtained by connecting a load bank of at least 30 percent of nameplate rating.

EXERCISE PERIOD

Generator sets on continuous standby must be able to go from a cold start to being fully operational in a matter of seconds. This can impose a severe burden on engine parts.

Regular exercising keeps engine parts lubricated, prevents oxidation of electrical contacts and in general helps provide reliable engine starting.

Exercise the generator set at least once a month for a minimum of 30 minutes, under not less than 30 percent of the nameplate rating.

LOW OPERATING TEMPERATURE

Use a coolant heater if a separate source of power is available. The optional heater will help provide reliable starting under adverse weather conditions. Be sure the voltage of the separate power source is correct for the heater element rating.

HIGH OPERATING TEMPERATURE

Refer to the genset nameplate for the maximum ambient operating temperature, if applicable.

Page 70

6-2

THIS PAGE LEFT INTENTIONALLY BLANK

Page 71

Cummins Power Generation

1400 73rd Ave. NE Minneapolis, MN 55432 USA

Phone 1 763 574 5000 Toll-free 1 800 888 6626 Fax 1 763 574 5298 Email ask.powergen@cummins.com www.cumminspower.com

CumminsR, the “C” logo, and “Our energy working for you.” are trademarks of Cummins Inc.
