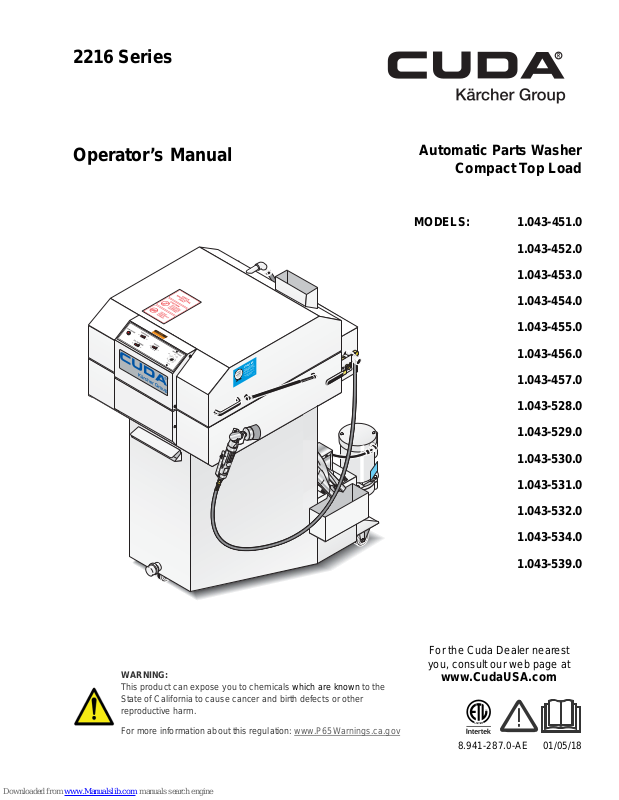

Operator’ s Manual

Automatic Parts Washer

Compact Top Load

MODELS: 1.043-451.0

1.043-452.0

1.043-453.0

1.043-454.0

1.043-455.0

1.043-456.0

1.043-457.0

1.043-528.0

1.043-529.0

WARNING:

This product can expose you to chemicals which are known to the
State of California to cause cancer and birth defects or other
reproductive harm.

For more information about this regulation: www.P65Warnings.ca.gov

1.043-530.0

1.043-531.0

1.043-532.0

1.043-534.0

1.043-539.0

For the Cuda Dealer nearest
you, consult our web page at

www.CudaUSA.com

8.941-287.0-AE 01/05/18

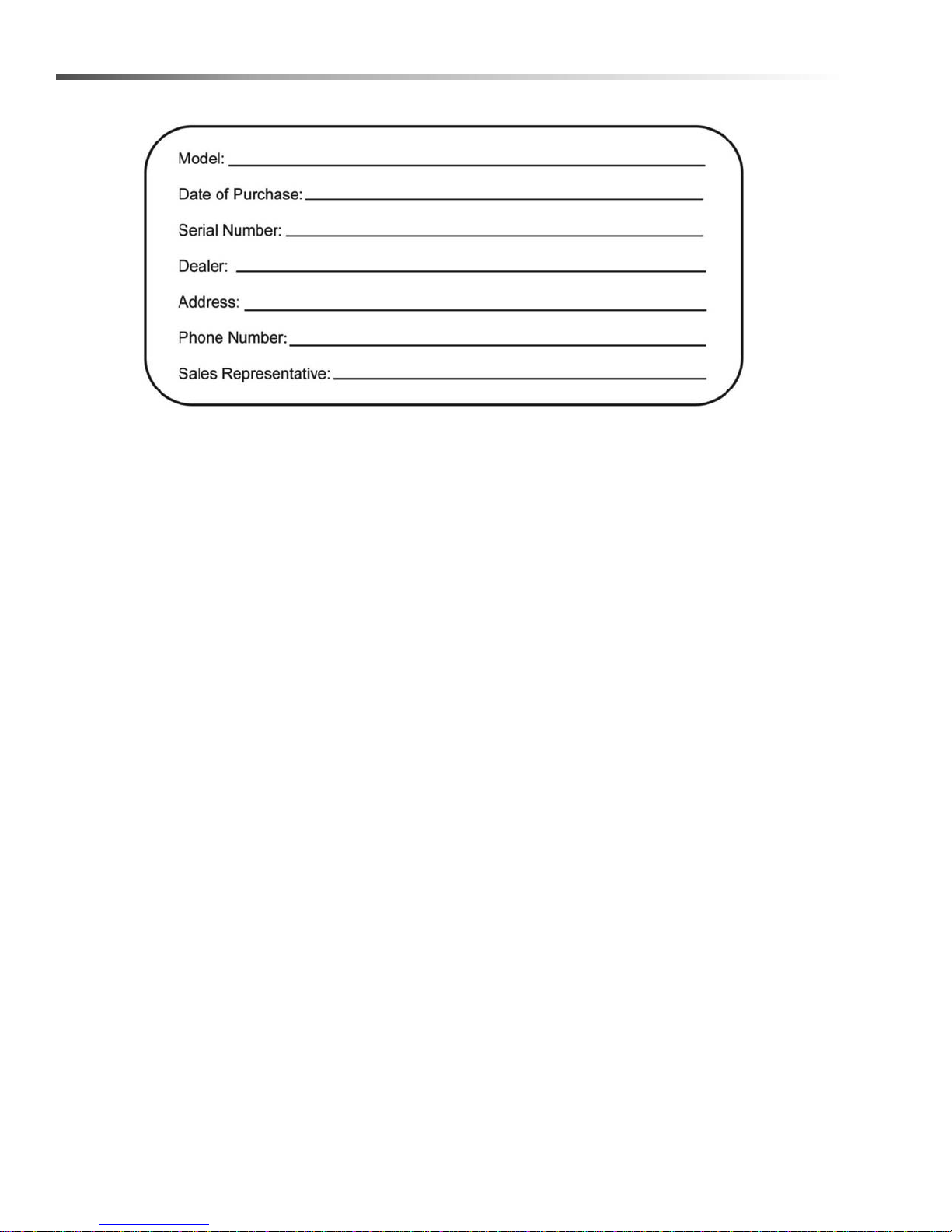

Machine Data Label

2 Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Table of Contents

Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4

Safety

Introduction & Safety Information . . . . . . . . . . . . . . .5

Owner/User Responsibility:. . . . . . . . . . . . . . . . . . . .5

General Safety Information. . . . . . . . . . . . . . . . . . . .6

Operations

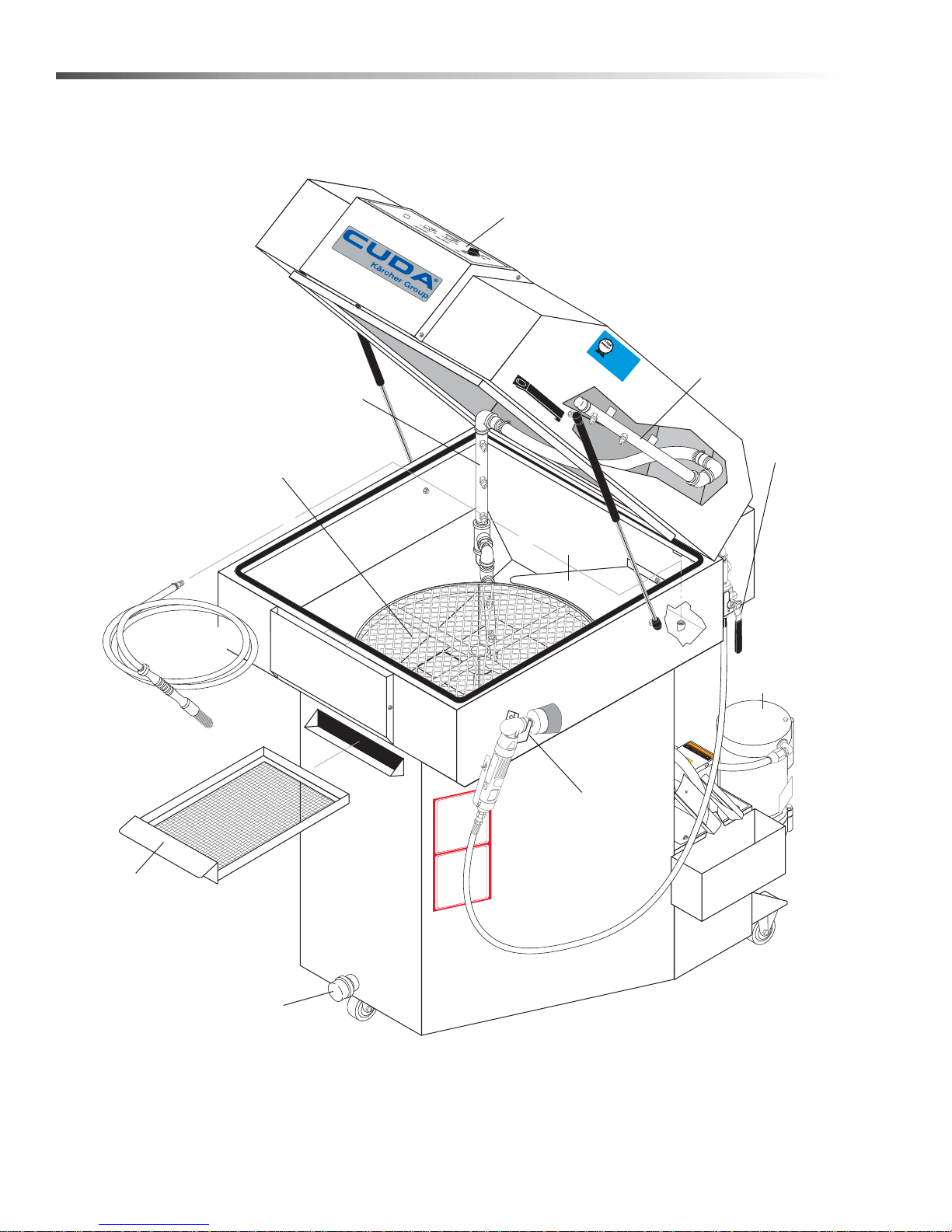

Component Identification - Front. . . . . . . . . . . . . . . .8

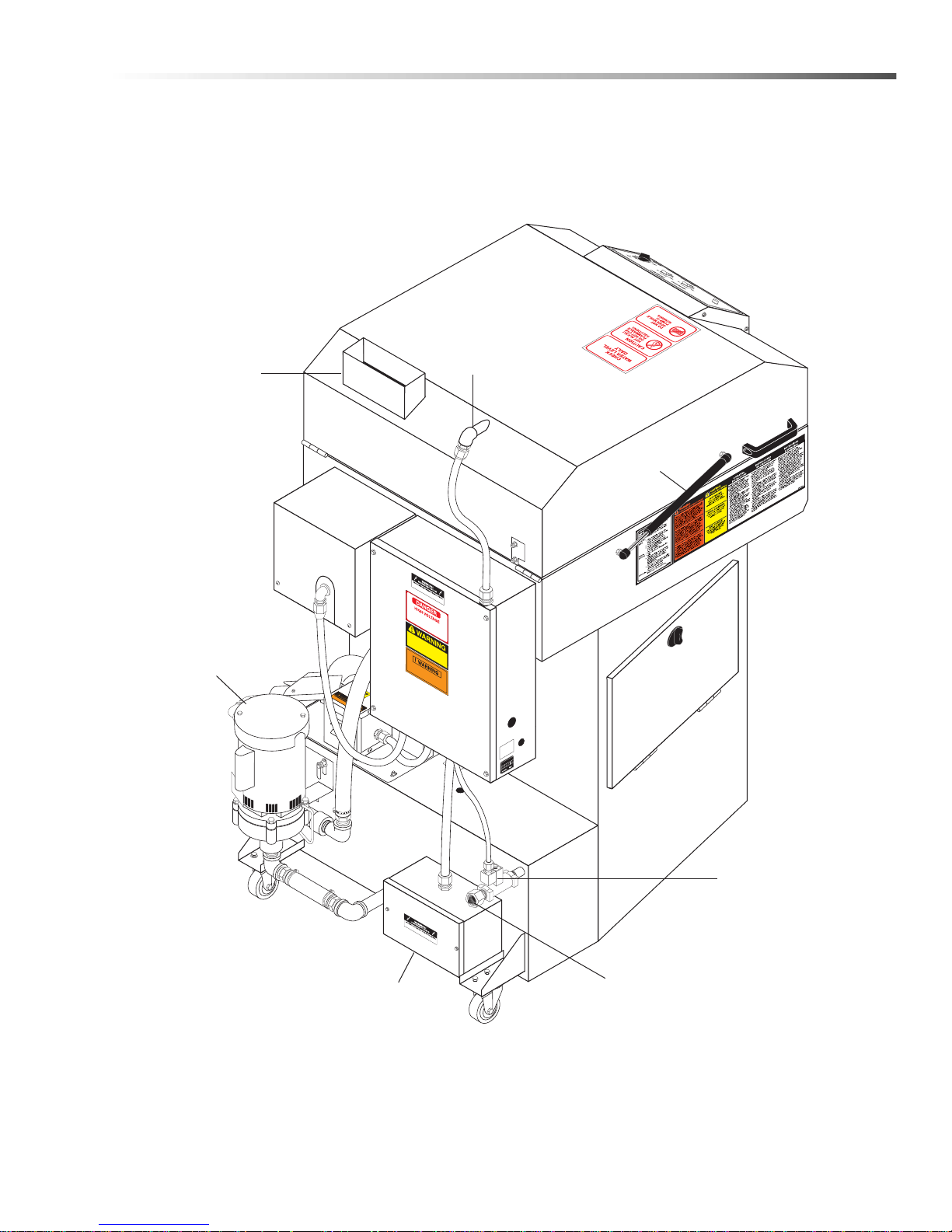

Component Identification - Rear . . . . . . . . . . . . . . . .9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . .10

Main Operating Components . . . . . . . . . . . . . . . . .11

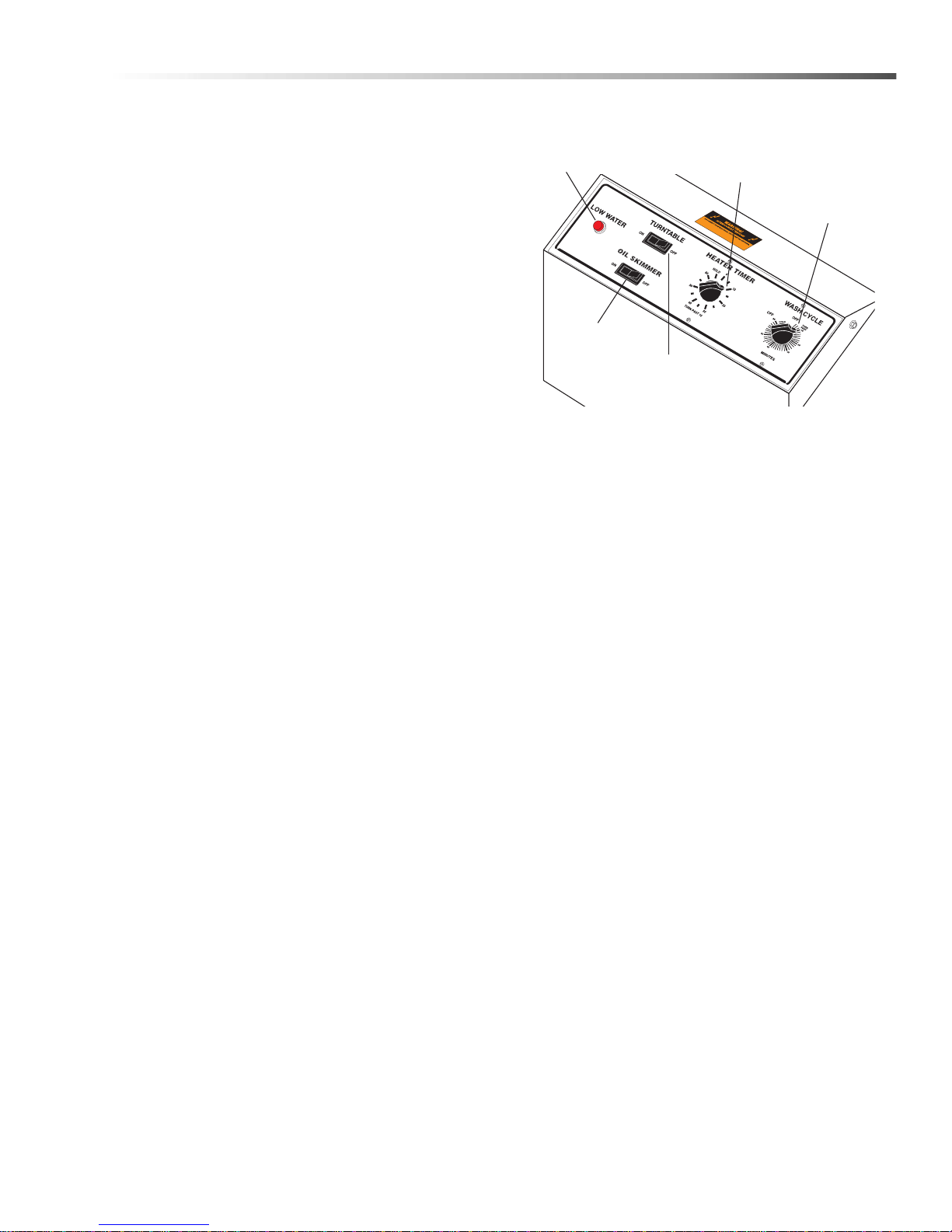

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Heater Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Lid Safety Switch . . . . . . . . . . . . . . . . . . . . . . . . . .12

Water Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

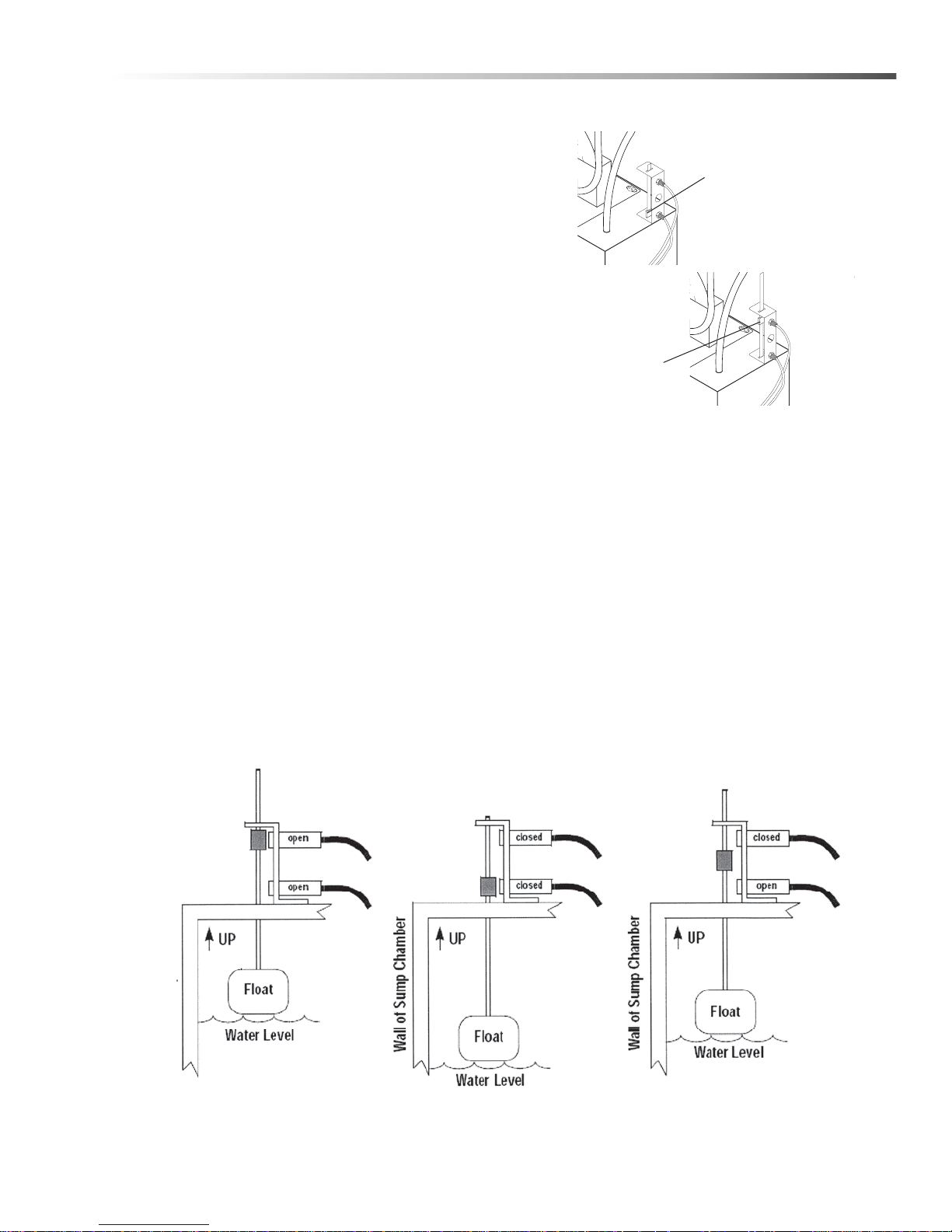

Low Water Shut-off System . . . . . . . . . . . . . . . . . .13

Air Flow Valve (Optional) . . . . . . . . . . . . . . . . . . . .14

Power Brush (Optional). . . . . . . . . . . . . . . . . . . . . .14

Using the Power Brush . . . . . . . . . . . . . . . . . . . . . .14

Adjusting the Flow of Cleaning Solution . . . . . . . . .15

Detergents And Additives . . . . . . . . . . . . . . . . . . . .16

Preparing The Machine For Use. . . . . . . . . . . . . . .16

Washing Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Shutting Down The Machine. . . . . . . . . . . . . . . . . .17

Lid Safety Switch . . . . . . . . . . . . . . . . . . . . . . . . . .26

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Start Capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Parts

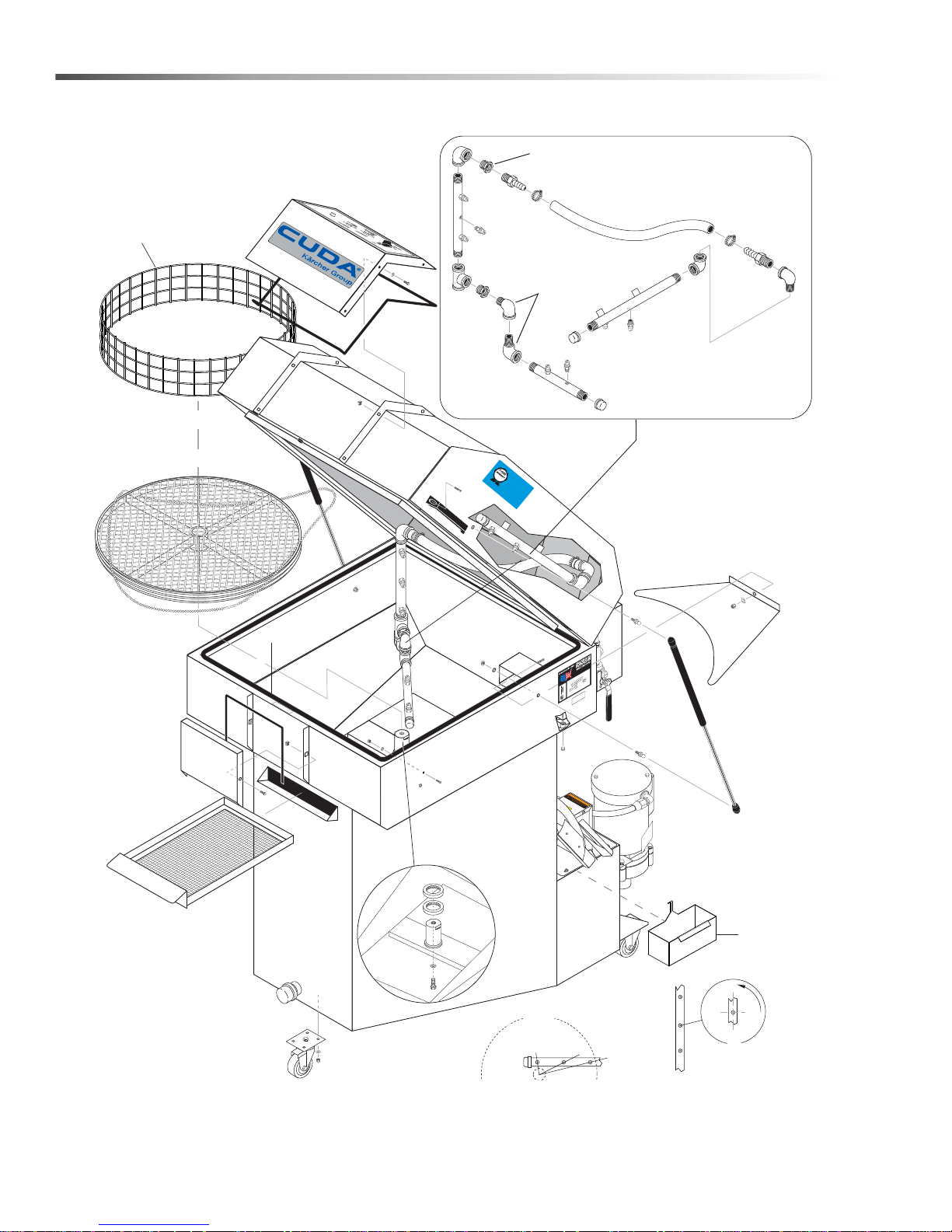

Cuda 2216 Front. . . . . . . . . . . . . . . . . . . . . . . . . . 32

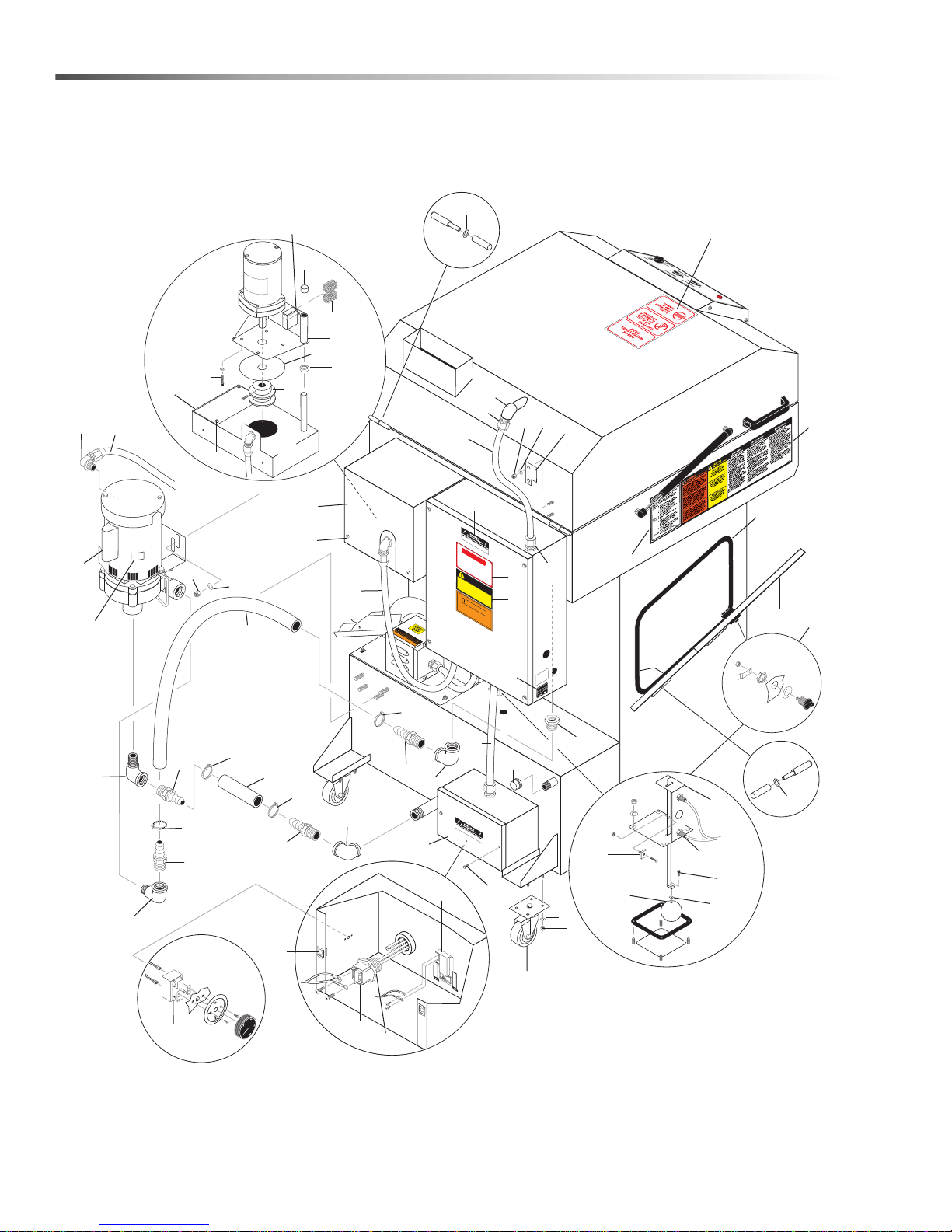

Cuda 2216 Rear . . . . . . . . . . . . . . . . . . . . . . . . . . 36

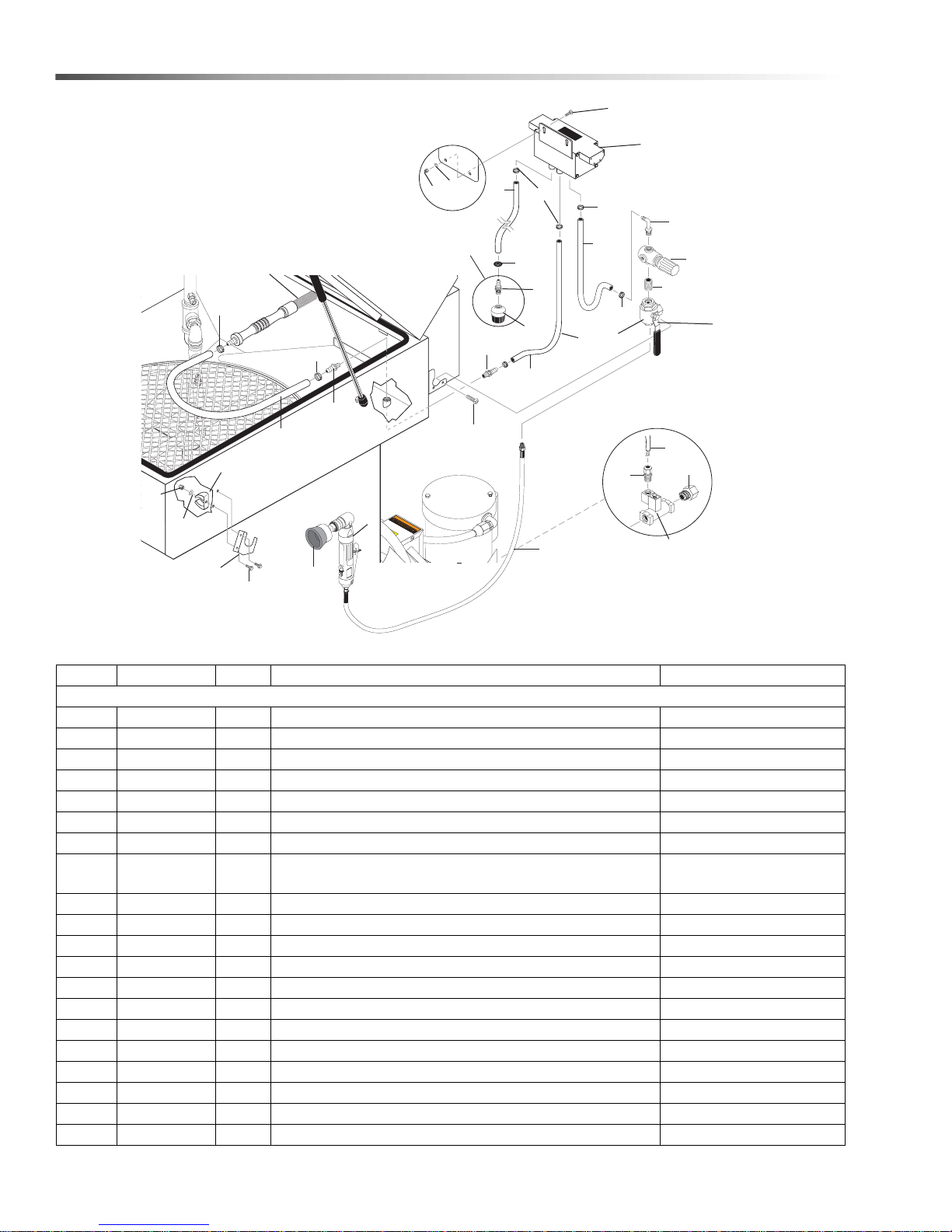

Auto Fill, Detail Brush & Power Brush . . . . . . . . . 40

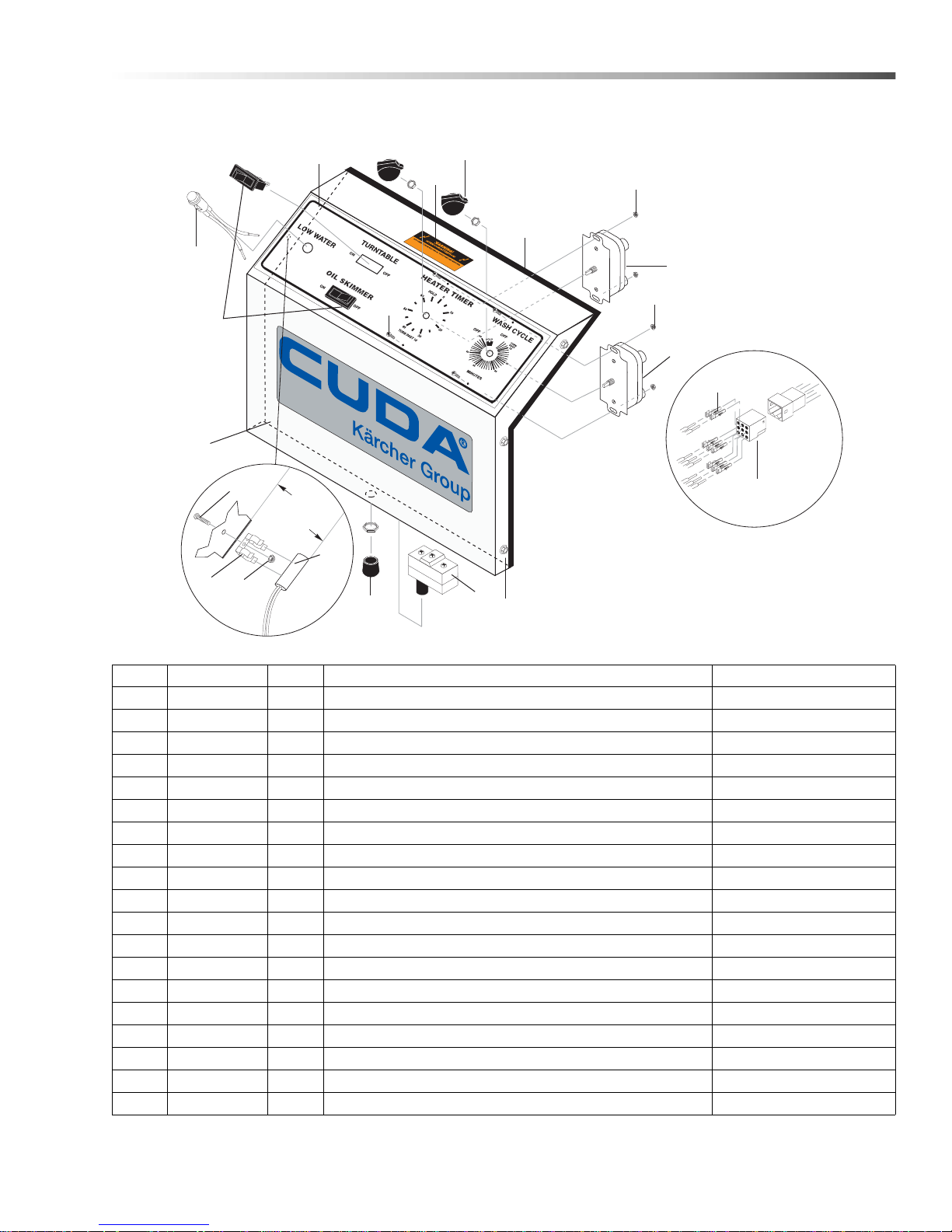

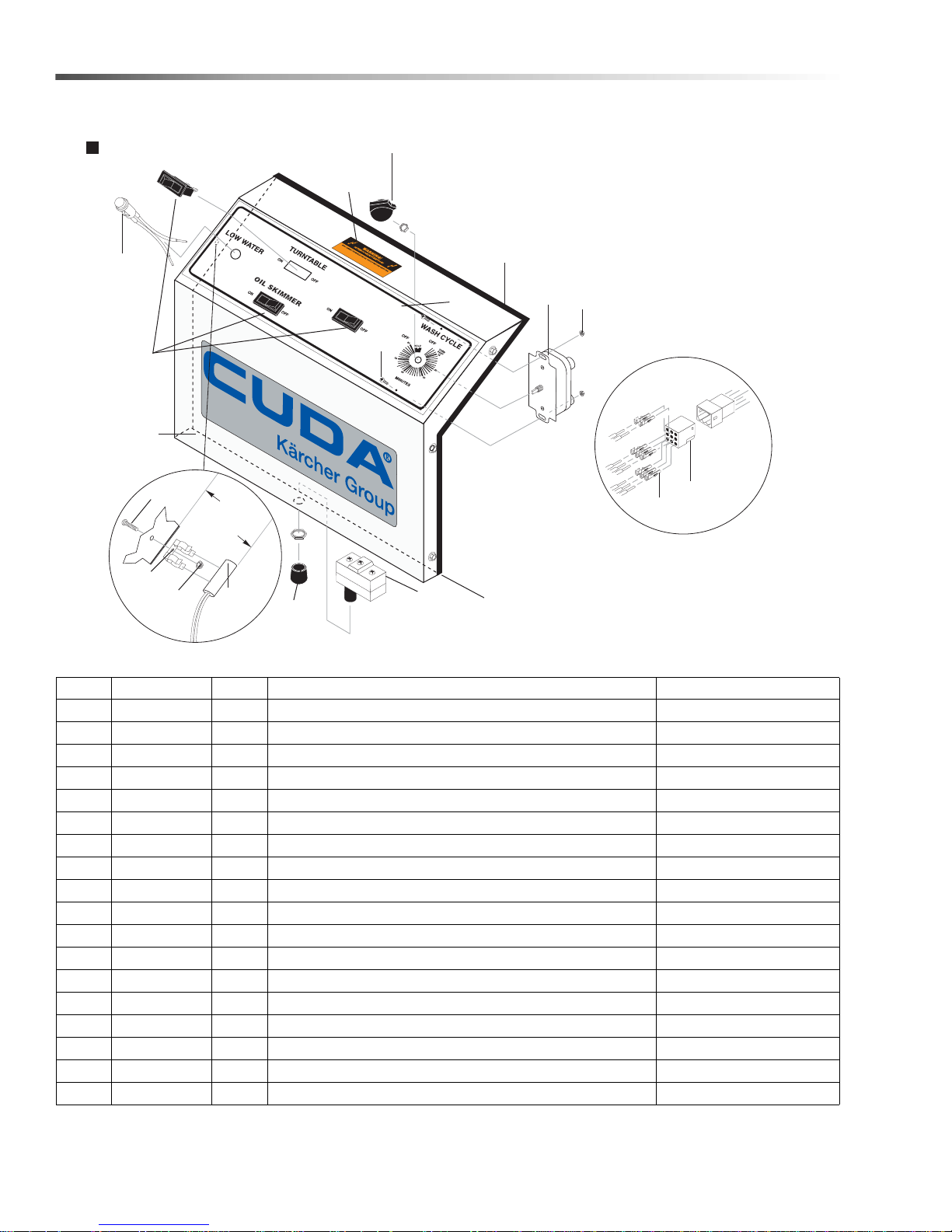

120 V Control Panel . . . . . . . . . . . . . . . . . . . . . . . 42

208V, 230V, 460V, 575V, Control Panel. . . . . . . . 43

120V Electrical Panel . . . . . . . . . . . . . . . . . . . . . . 44

208V, 1 PH Electrical Panel . . . . . . . . . . . . . . . . . 46

230V, 1 PH Electrical Panel . . . . . . . . . . . . . . . . . 48

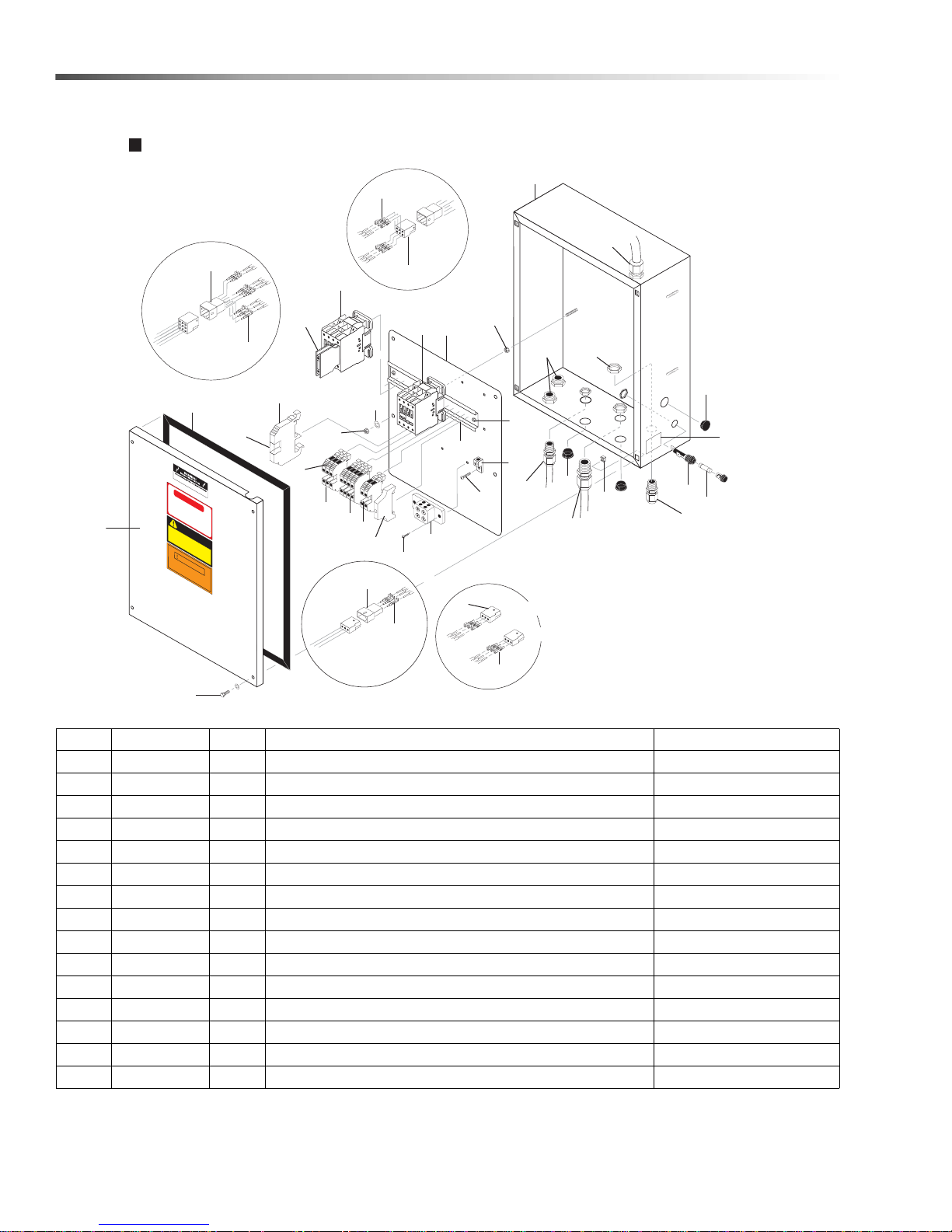

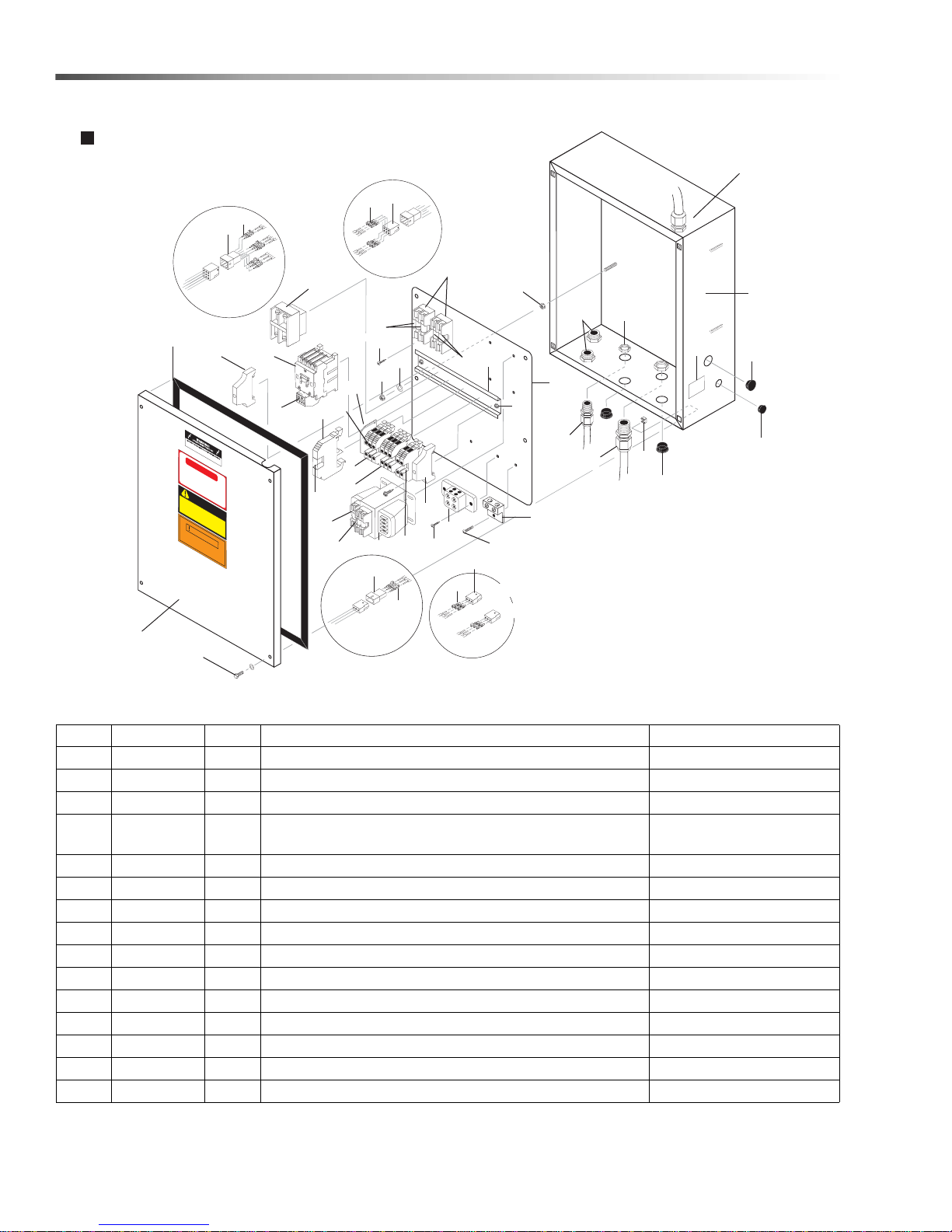

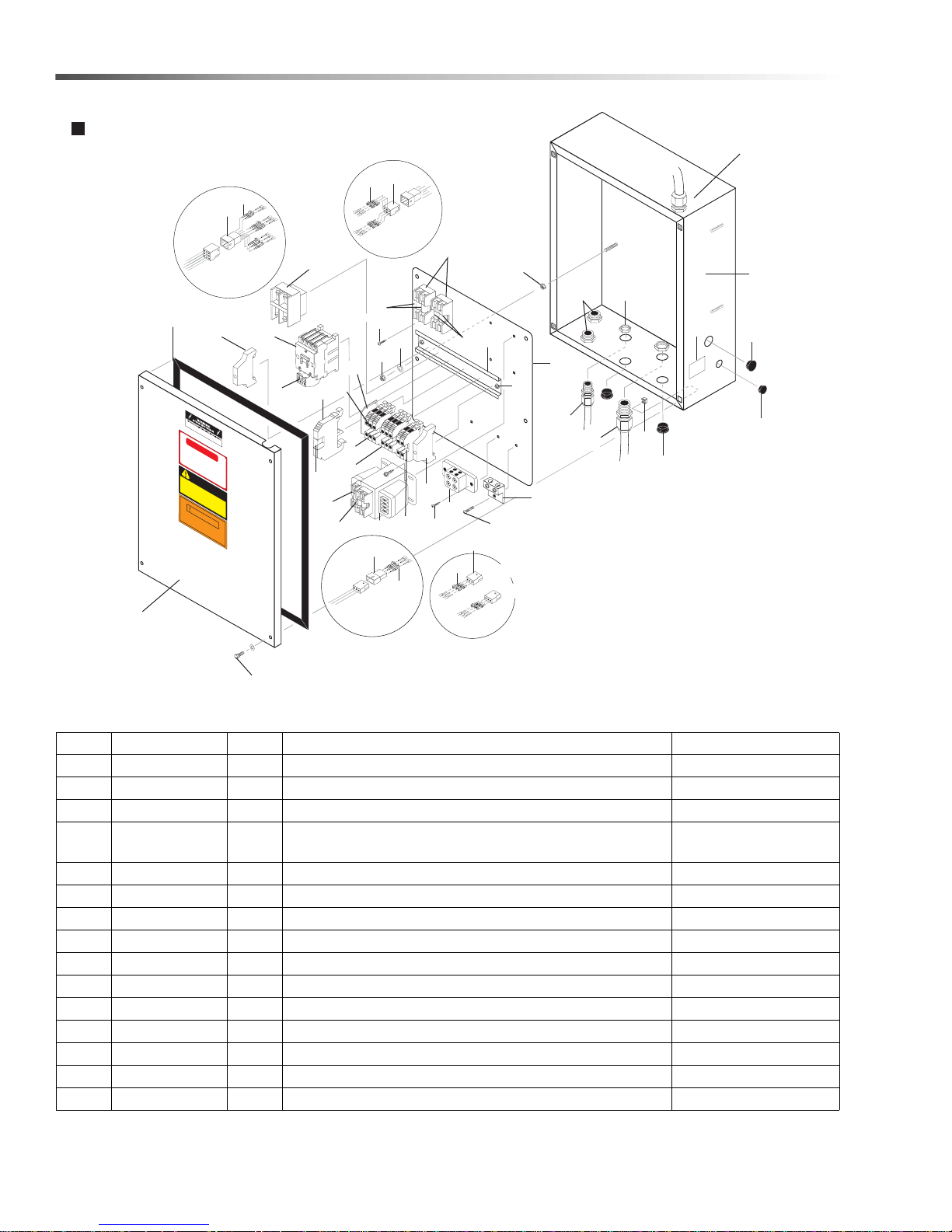

208V, 230V, 460V, 575V 3 PH Electrical Panel . . 50

Oil Skimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Maintenance

Maintaining The Machine . . . . . . . . . . . . . . . . . . . .18

Daily Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .18

Weekly Maintenance. . . . . . . . . . . . . . . . . . . . . . . .18

Monthly Maintenance . . . . . . . . . . . . . . . . . . . . . . .18

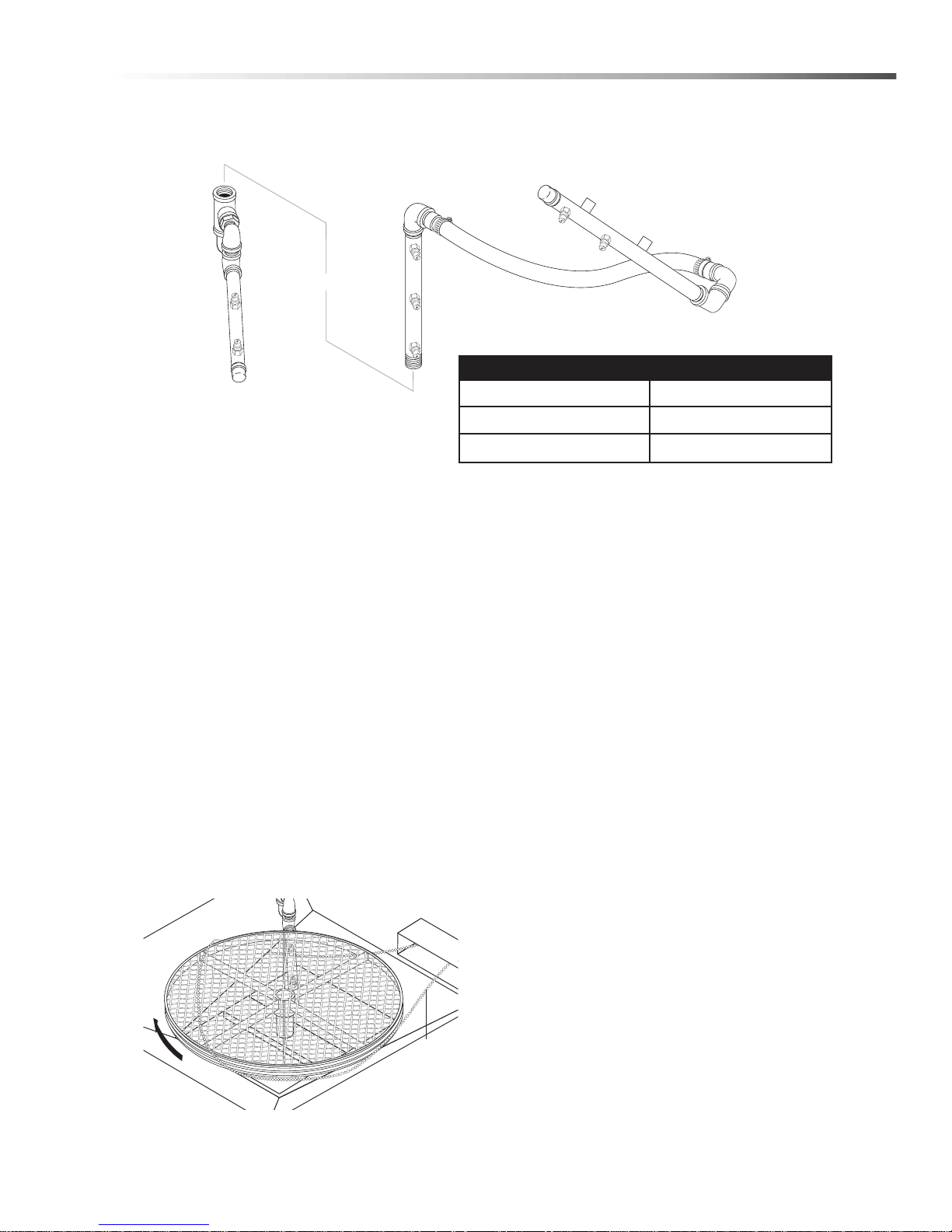

Cleaning and Aligning the Spray Nozzles. . . . . . . .18

Cleaning out the Sump . . . . . . . . . . . . . . . . . . . . . .18

Using the Oil Skimmer System . . . . . . . . . . . . . . . .19

Repairing The Machine. . . . . . . . . . . . . . . . . . . . . .20

Single Phase Heating Element. . . . . . . . . . . . . . . .20

Three Phase Heating Element . . . . . . . . . . . . . . . .20

Single Phase Thermostat:. . . . . . . . . . . . . . . . . . . .20

Three Phase Thermostat . . . . . . . . . . . . . . . . . . . .21

Turntable Motor. . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Replacement Procedure. . . . . . . . . . . . . . . . . . . . .21

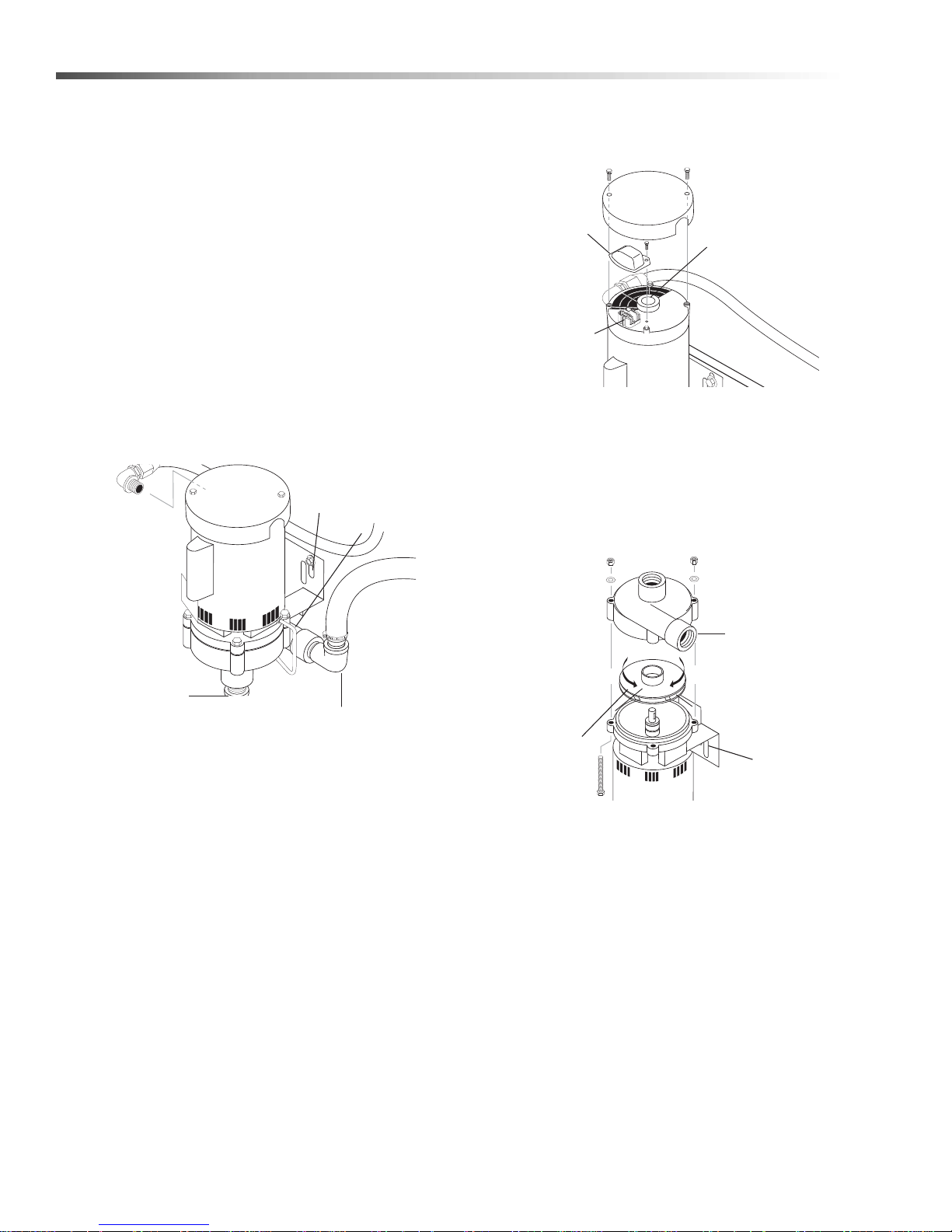

Pump Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

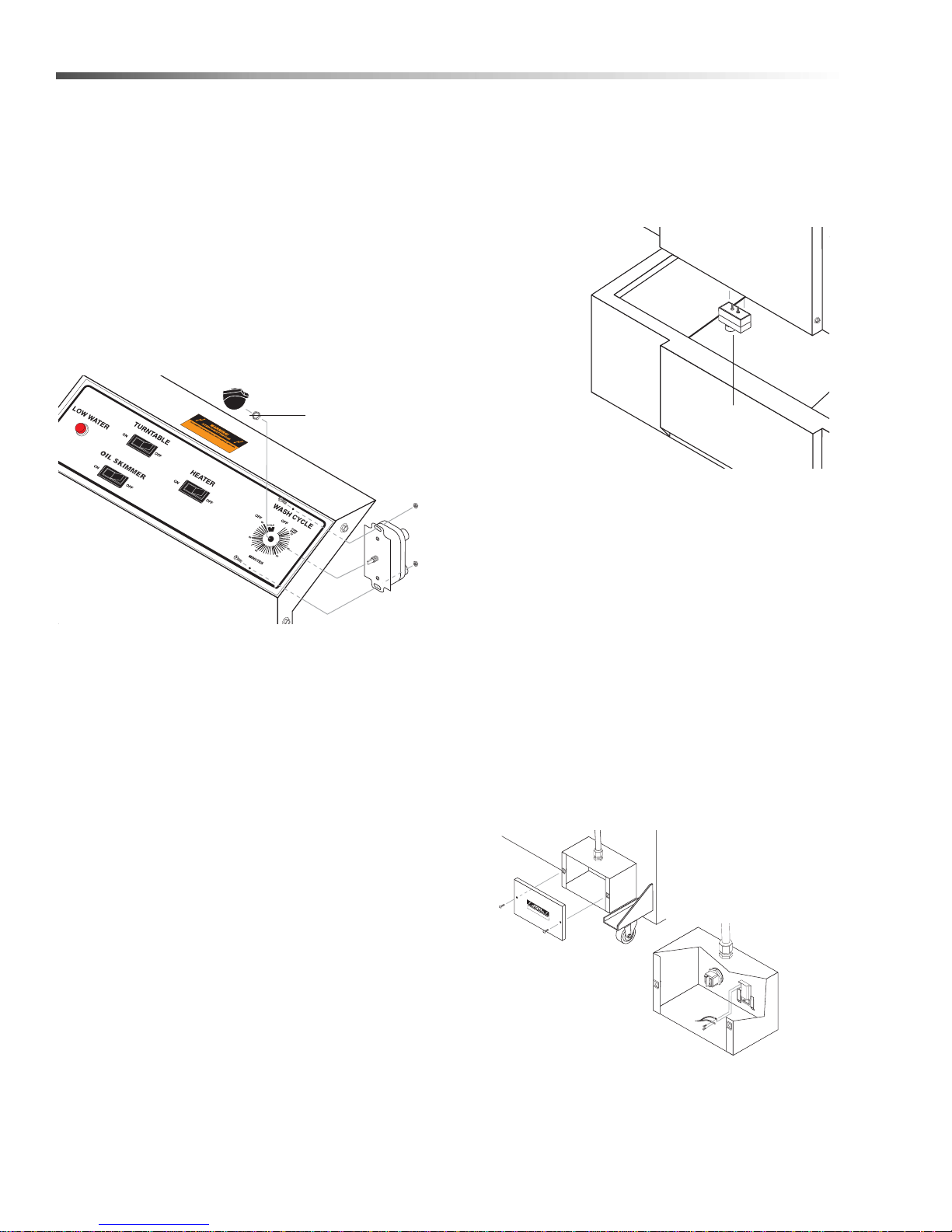

Timers and Switches on the Control Panel. . . . . . .23

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Troubleshooting the Electrical System . . . . . . . . . .24

Testing Individual Components. . . . . . . . . . . . . . . .26

Wash Cycle and Heater Timers . . . . . . . . . . . . . . .26

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

3

How To Use This Manual

Model:

Date of Purchase:

Serial Number:

Dealer:

Address:

Phone Number:

Sales Representative:

This manual contains the following sections:

• How to Use This Manual

•Safety

• Operations

• Maintenance

• Parts List

The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.

Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

The model and serial numbers will be found on a decal
attached to the machine.

SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.

The OPERAT IONS section is to familiarize the operator
with the operation and function of the machine.

The MAINTENANCE section contains preventive main­tenance to keep the machine and its components in
good working condition. They are listed in this general
order:

• Maintaining The Machine

• Daily Maintenance

• Using the Oil Skimmer System

• Single Phase Heating Element

• Three Phase Heating Element

• Single Phase Thermostat

• Three Phase Thermostat

• Turntable Motor

• Replacement Procedure

• Pump Seal

• Timers and Switches on the Control Panel

• Troubleshooting the Electrical System

• Testing Individual Components

• Wash Cycle and Heater Timers

•Thermostat

• Troubleshooting

4

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:

• REF – column refers to the reference number
on the parts illustration.

• PART NO. – column lists the part number for
the part.

• QTY – column lists the quantity of the part used
in that area of the machine.

• DESCRIPTION – column is a brief description
of the part.

• NOTES – column for information not noted by
the other columns.

NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.

NOTE: The manual part number is located on the
lower right corner of the front cover.

Introduction & Safety Information

This manual is intended as a guide for safely installing,
operating and maintaining your automatic parts washer.

We reserve the right to make changes at any time
without incurring any obligation.

Owner/User Responsibility:

The owner and/or user must have an understanding of
the manufacturer’s operating instructions and
warnings before using this machine. Warning informa­tion should be emphasized and understo o d. If the
operator is not fluent in English, the manufacturer’s
instructions and warnings shall be read to and
discussed with the operator in the operator’s native
language by the purchaser/owner , ma king sure that the
operator comprehends its contents.

Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.

Save these Instructions

Safety

This manual should be considered a permanent par t of
the machine and should remain with it if machine is
resold.

When ordering parts, please specify model and serial
number . Use only identical replacement parts.

This machine is to be used only by trained
operators.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

5

Safety

WARNING

READ OPERATOR’S
MANUAL THOROUGHLY
PRIOR TO USE.

OPERATIONS

SAFETY

MAINTENANCE

WARNING

RISK OF EXPLOSION:

AVOID FLAMMABLE

LIQUIDS.

DANGER

KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.

WARNING

EXTREMELY HOT:

USE CAUTION WHEN

OPENING LID

General Safety Information

WARNING: T o reduce the risk of
injury, read operating instruc­tions carefully before using.

AVERTISSEMENT: Pour réduire
le risque de blessures, lire
attentivement les instructions
de fonctionnement avant
l'utilisation.

1.Read the owner’s manual thor-

oughly. Failure to follow instruc­tions could cause a malfunction of the parts washer
and result in death, serious bodily injury and/or
property damage.

WARNING: This is a heated
parts cleaner. Use only
nonflammable, noncombus­tible, water-based cleaning
compounds in this machine. Do
not fill or contaminate with any
flammable or combustible
material such as gasoline,
alcohol, mineral spirits, etc.
Drain parts to be cleaned of any

combustible or flammable
material before placing inside cabinet. Failure to
observe this warning will create an extremely
hazardous condition.

AVERTISSEMENT: Ceci est un nettoyant pour les
pièces chauffées. Utiliser uniquement des produits
de nettoyage à base d'eau, ininflammable et non
combustible dans cette. Ne pas remplir ou
contaminer avec une substance inflammable ou
combustible comme de l'essence, de l'alcool, de
l'essence minérale, etc. Drainer les pièces à
nettoyer de toute substance combustible ou
inflammable avant de les placer à l'intérieur de
l'armoire.Le non-respect de cet avertissement
créera une condition extrêmement dangereuse.

DANGER: Keep water away

from electric wiring or fatal

electric shock may result.

DANGER:

l'écart de tout câblage électrique

ou des chocs électriques mortels

pourraient survenir.

2.All installations must comply

with local codes. Contact your

Garder le jet d'eau à

electrician, plumber, utility company or the selling
dealer for specific details.

Install the machine in compliance with the National
Electric Code. Connect to a properly sized lockable
disconnect and ground machine using the
grounding stud inside the main electrical panel.

3. Do not locate this machine in the vicinity of any
flammable vapor, liquids or solids.

4. To protect the operator from electrical shock, the
machine must be electrically grounded. It is the
responsibility of the owner to connect this machine
to a grounded receptacle of proper voltage and
amperage ratings. Do not touch machine with wet
hands or while standing in water. Always discon­nect the power before servicing.

5. Do not touch machine with wet hands or while
standing in water. Always disconnect the power
before servicing.

6. Never make adjustments on machine while it is in
operation except those prescribed in this manual.

WARNING: Us e extreme caution
when opening the door of this
parts washer. Hot water/
detergent vapors will be
emitted. Stand Back! Hot
cleaning solution could cause
serious injury.

AVERTISSEMENT:

Faire preuve
d'extrême prudence au moment
d'ouvrir le volet de cette partie de
la laveuse. De l'eau chaude/des

vapeurs de détergent seront émises. Se tenir à l'écart!
Une solution de nettoyage chaude haute pression
pourrait causer des blessures graves.

7. Before servicing the machine, refer to all safety
data sheets (SDS’s) on the material identified in
the waste stream. You must comply with all
warnings and wear all protective clothing stated on
the SDS.

WARNING: Slips and falls from wet surfaces could
cause serious injury.

AVERTISSEMENT:

Les chutes et les trébuchements
causés par des surfaces humides pourraient causer
des blessures graves.

8. Use caution when lifting items in and out of parts

basket to prevent back injuries.

6

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

9. When the machine is working, do not cover or
place in a closed space where ventilation is insuffi­cient. Avoid installing machines in small confined
areas.

10. In cold climates, this parts washer will freeze if not
in operation and must be located in a heated enclo­sure.

11. Maintain an unobstructed work area around the
machine and keep the floor free of water, oil,
grease or other foreign substances.

12. Always ensure that your parts washer is clean.
Pump and heating elements could be damaged by
continued build-up of sludge.

13. Check water level daily. Never allow water level to
drop below pump inlet screen or heating elements.

14. Before discarding the spent washing solution,
check with your local EPA or sewer district for
disposal regulations.

15. Do not operate the machine with the lid or door
open and do not override the safety switch.

Safety

16. After the machine stops, wait 10 seconds before
opening the lid or door.

This automatic parts washer is designed to operate
safely and efficiently. Before you begin to install and
use the machine, please familiarize yourself with the
major components.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

7

Operations

OPER

A

T

ING INST

RUCTIONS

MAINTENAN

CE INST

RUCTIONS

A

TTENTION

USE ON

L
Y

CU

D
A AP

P
R

O
V

E
D

DETERG

E
N

T
S

T
O

EXTEND

LABO

R
W

ARRANT

Y
TO

1-YEAR

!

MIX DE

TERGE

NTS 1

L

B (1/2 KG) P

ER

5-GALLON

S (15

LITERS) OF W

A

T
E
R

F
o

r
CUD

A Ap

p
r
o
ved Dete

r
g
ents

vis
i

t

http

:
//w
ww

.cud
au

sa.c

om or

c
all

888

-319-

088

2

9
.8

0
7-

513.
0

9
0

­D

A
Y
LABOR

W
A

R
RANT

Y

EX
T

E
N
DS

T
O
1

­Y
E

AR

W
ITH

E
XCLU

S
I
V
E
U

SE OF

C
U
DA

D

ETE
RG

E
N
TS

L
I

MIT

E
D

Side Spray

Arm Assembly

Turntable

Assembly

Detail Brush

(Optional)

Tank Drain

Debris Screen

Power Brush

(Optional)

Pump

Flow

Regulator

Chain
Guard

Top Spray

Arm

Assembly

Control

Panel

Component Identification - Front

8

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Component Identification - Rear

Exhaust Vent

Pump

Heating

Element

Assembly

Fresh

Water Inlet

Lid

Strut

Control Panel

Conduit

Autofill Valve

(optonal)

Operations

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

9

Operations

Power Brush

Connection

Flow

Regulator

To Detail Brush

Pump (Factory

Installed)

Installation
Before You Begin

To prepare to install the machine, choose an unob­structed, level site that allows convenient access for
operators and maintenance personnel. Sources for
water and electrical power should be located near the
installation site. If your machine is equipped with the
optional power brush and hand detail brush you must
also run a compressed air line to the installation site.

If you have any questions regarding the installation,
please contact your dealer

Step 1: Make Electrical Connections

NOTE: The machine can only operate on the type of
electrical power indicated on the machine
identification tag. Read and understand the machine
identification tag to determine the electrical power
requirements before installing the machine.

All machines require a suitable user-supplied power
cord and a fused disconnect.

WARNING: Electrical shock could cause serious
injury or death. For 230V and 460V machines, all
electrical installation tasks must be performed by a
licensed, professional electrician to ensure safe
and proper operation. The installation must comply
with the National Electric Code and all applicable
state and local codes.

Step 2: Connect A Compressed-air Line
And Accessories

2. Familiarize yourself with the three-way air flow
select valve, then install a fitting to accommodate a
connection to your compressed-air supply.

3. Connect the shop compressed-air line to the
machine.

4. Connect the hose from the power brush to the air
flow select valve.

5. Hang the power brush on the bracket mounted
along the right side of the machine.

Step 3: Connect A Water Line

This step is required for machines equipped with the
optional power brush and hand detail brush.

If your machine does not have these options, skip the
following procedure.

NOTE: To ensure proper operation and to minimize
the possibility of premature component failure, make
sure the compressed air is supplied at 75 to 90 psi.
We also recommends an in-line moisture trap and an
in-line lubricator on the main air supply line. Refer to
the documentation provided with the power brush for
more information.

1. Remove the power brush from the box, install the
wire brush in the chuck, and connect the air hose.

10

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

A dedicated water line simplifies the filling process and
allows you to maintain the appropriate water level much
more easily. If you do not wish to connect the
machine to a dedicated water line, skip this step.

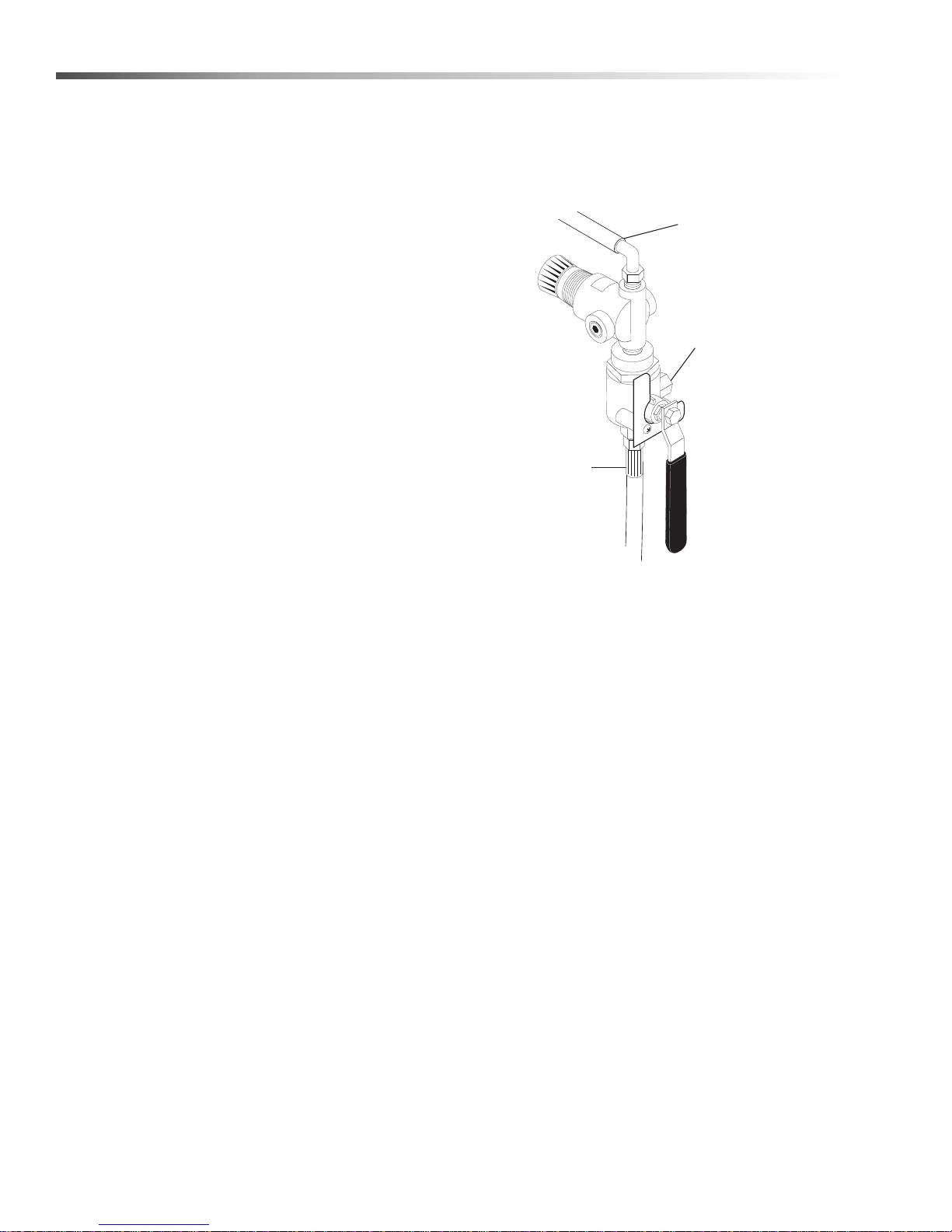

The APW is equipped with a water supply inlet valve
through which you can connect the machine to a
dedicated water line. The valve is located at the left rear
corner of the machine.

If you wish to connect the machine to a dedica ted water
line, keep in mind that the machine is designed for
portability and some maintenance tasks require that
you move the machine. DO NOT make a permanent
connection from your shop water supply to the
machine.

To connect the machine to your shop water supply,
install a 1/2"NPT (male) by 5/8" (female) connection to
the water supply inlet valve, then connect to a nearby
water spigot using a suitable burst-proof hose.

Operations

Turntable

Switch

Oil

Skimmer

Wash Cycle

Control

Low Water

Indicator

Heater

Control

Step 4: Fill The Machine With Water And
Add Detergent

1. Fill the sump with water until the water indicator
light on the control panel turns off. The sump
capacity is 30 gallons.

NOTE: Monitor the water level carefully.

2. 120V Machines: Flip the heater switch to the ON
position. The sump water will reach operating
temperature (160 – 180 °F) in approximately 2-3
hours.
230V and 460V Machines: Turn the heater timer
to the 2 Hour position. The sump water will reach
operating temperature (160 – 180 °F) in approxi­mately two hours.

3. While the sump water is heating, add the appro­priate quantity of factory approved detergent to the
wash chamber. We recommend mixing the
detergent with warm water in a separate bucket/
container and then pouring the disso lved detergent
into the sump.

NOTE: Factory approved detergent is the only
detergent approved for use with this automatic parts
washer. It is specially formulated with rust inhibitor s
and anti-foaming agents to optimize performa nce and
minimize maintenance. The use of any other
detergent during the warranty period will void the
warranty. In addition, using factory detergents will
extend your 90 day labor warranty to 1 year.

4. Close the lid.

5. Turn the wash cycle timer to 2 hours for the first
time, and allow the machine to complete the cycle
to dissolve the detergent into the water.

When the machine stops, and after the wash water
reaches operating temperature, it is ready for use.
Refer to Operation for complete operating instructions.

Main Operating Components

Familiarize yourself with the main operating compo­nents before operating the machine.

Control Panel

Heater Control

Single Phase Machines: The heater control is a

simple illuminated rocker switch. It controls the heating
element in the sump chamber. The heater control illu­minates when the heating system is on. The heating
system is thermostatically set at the factory to reach a
high temperature of 180 °F. The temperature is adjust­able using the thermostat (See Thermostat Section).

NOTE: 120V machines contain an internal power
relay that automatically disconnects power to the
heater when the pump turns on; the heater and pump
cannot run simultaneously. After long wash cycles it
may be necessary to let the machine sit idle for a
period of time to allow the wash solution to reheat to
operating temperature.

The illuminated heater control is also a low-water indi­cator; if the wash solution is low, the heater control will
not light up and the heating system will not operate.

Three Phase Machines: The heater control is a 12­hour timer switch. It controls the heating element in the
sump chamber. The heating system is thermostatically
set at the factory to reach a high temperature of 180°f.
The temperature is adjustable using the thermostat
(See Thermostat).

Control Panel

The control panel is located on the front center of the
lid. It contains the heater, wash cycle skimmer and
turntable controls.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Wash Cycle Control

The wash cycle control is a 15 minute (120V - no hold)
or 60-minute (220V -with hold) timer switch with a hold
feature. When set between 1 and 60 minutes, the timer
automatically shuts off the pump and turntable when
the wash cycle is complete. When set to Hold (220V
Only), the pump and turntable run continuously until
manually shut off.

11

Operations

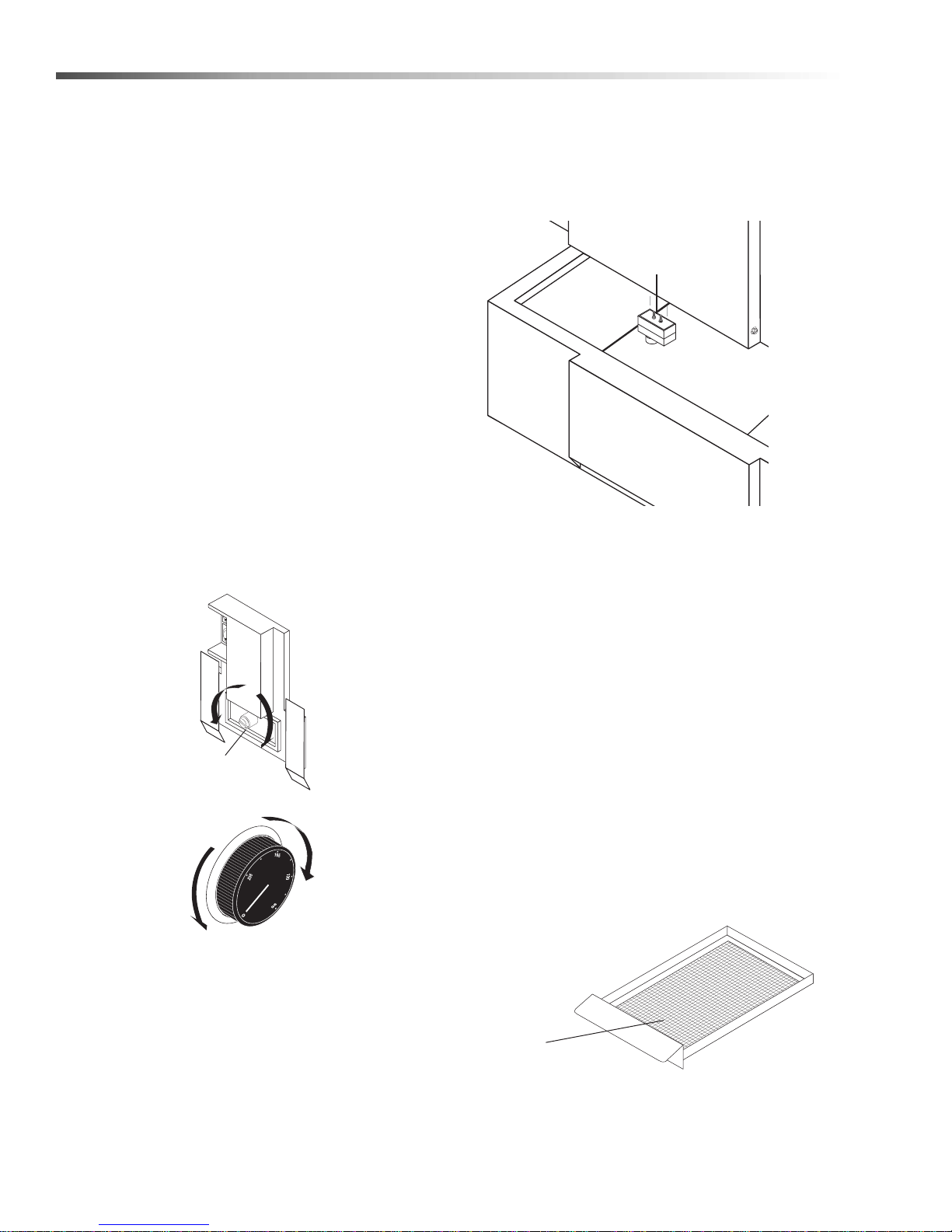

Debris

Screen

Standard Screen: 10 Mesh
Optional Screen: 60 Mesh

Single Phase

Increase

Temperature

Decrease

Temperatures

Adjustment

Screw

Increase

Temperature

Decrease

Temperatures

Three Phase

Lid Safety

Switch

Debris

Screen

Standard Screen: 10 Mesh
Optional Screen: 60 Mesh

Turntable Switch

The turntable switch is a simple rocker switch that
enables you to disconnect power to the turntable motor .
Set to ON, the turntable rotates during the wash cycle.
Set to OFF, the turntable does not rotate during the
wash cycle. The switch is useful for washing large parts
that would otherwise impede turntable rotation.

Low Water Indicator

The low water indicator light illuminates if the wash
solution in the sump is low.

Thermostat

The thermostat is located inside the heating element
and thermostat enclosure. The thermostat is factory-se t
to heat the wash solution to a maximum temperature of
180°f.

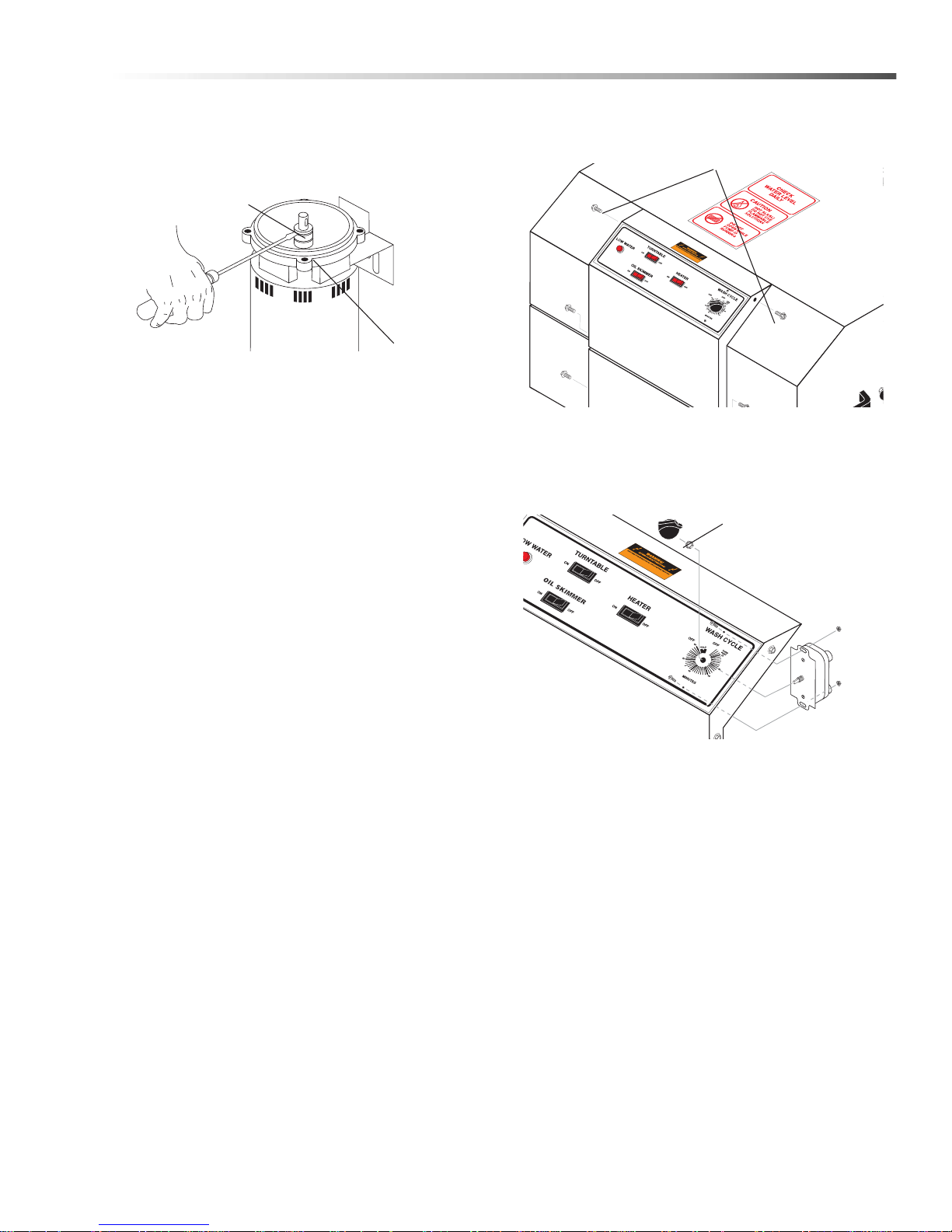

Adjusting the Thermostat

To adjust the thermostat, rotate the adjustment screw
or knob clockwise to increase the temperature, or
counter-clockwise to decrease the temperature.

Lid Safety Switch

The lid safety switch is located on the front edge of the
cleaning chamber. It ensures that the water pump and
turntable motor do not operate if the lid is open or unse­cured. The safety switch is adjustable.

Adjusting the Safety Switch

To adjust the safety switch, loosen the two screws to
the left of the lid latch, move the lid latch strike plate up
or down, then tighten the screws. When properly
adjusted, you should hear a slight “click" as the lid latch
closes and compresses the lid seal and the lid closure
safety switch. There is also a mercury switch in the
control panel that stops the machine from running in
case the lid switch is accidentally pushed.

Debris Screen

The debris screen is located just below the wash
chamber, and is accessible from the front of the
machine. The debris screen continuously filters debris
particles from the cleaning solution to ensure blockage­free spray nozzle operation, and also provides a
safeguard against small parts that might accidentally be
washed through from the cleaning chamber.

12

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Operations

WATER LEVEL OK:

Both Switches OPEN, Automatic

Water Fill Valve (if installed)

CLOSED, Heating Element ON.

LOW WATER LEVEL

Top Switch CLOSED, Bottom Switch

CLOSED, Automatic Water Fill Valve (if

installed) OPEN, Heating Element O.

SUMP FILLING:
Top Switch CLOSED, Bottom Switch
OPEN, Automatic Water Fill Valve (if

installed) OPEN, Heating Element OFF.

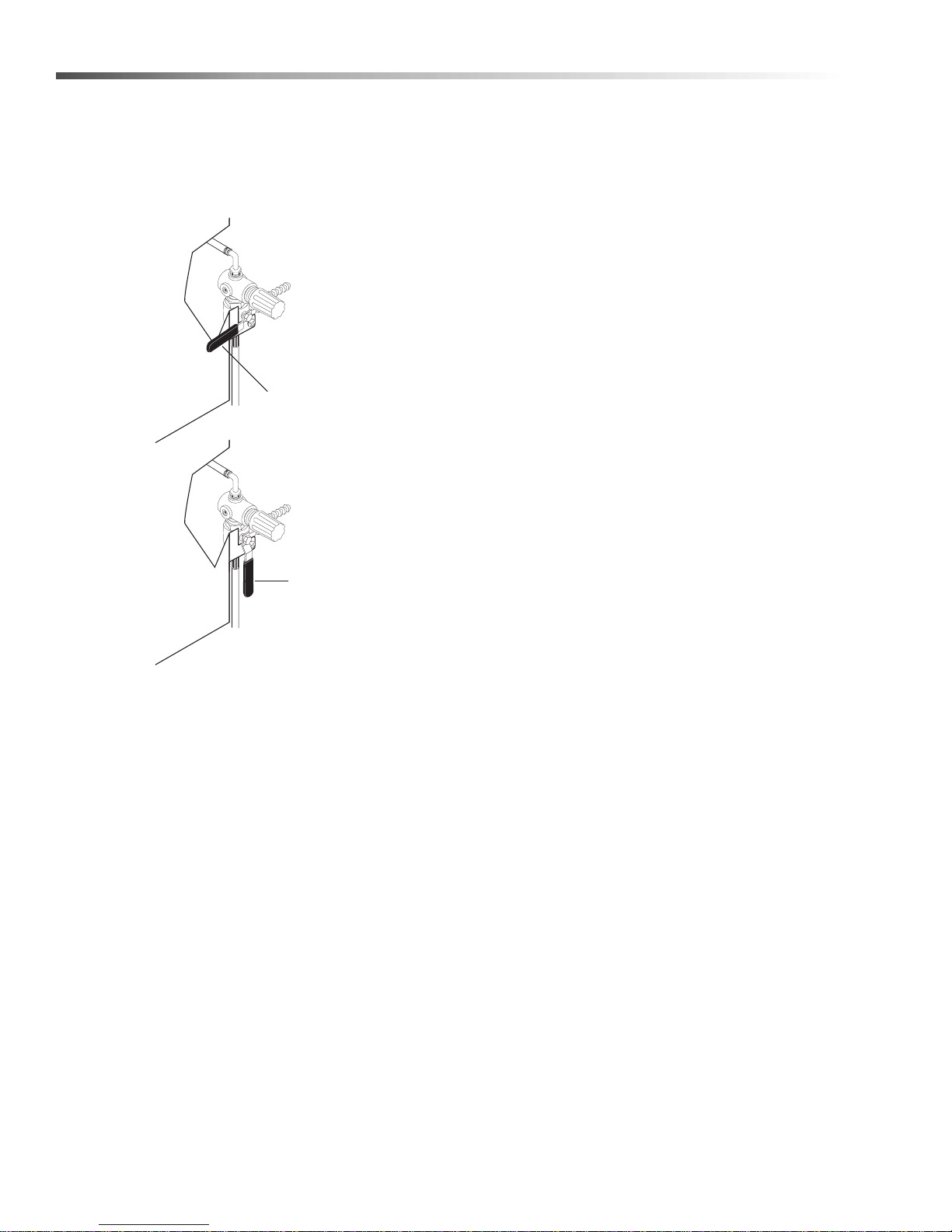

Automatic Water Fill Diagram:

Magnet Aligned
w/Lower Switch

Magnet Aligned
w/Upper Switch

The frequency at which you must clean the debris
screen depends on machine usage. In general, you
should clean the screen before operating the machine
each day.

NOTE: Never operate the machine without the debris
screen in place and never remove the screen while
the machine is operating.

The screen is specially sized to filter particles that could
clog the spray nozzles or damage the water pump.

Operating the machine without the debris screen in
place could cause spray nozzle clogging or water pump
failure.

Water Level

Under typical operating conditions the machine loses 3
to 5 gallons of water per day to evaporation. It is
important that you monitor and maintain the water level
daily to minimize the risk of burning out the heating
element or ruining the pump.

NOTE: Add detergent each time you add water. Add
detergent after you clean the sump chamber each
month, and more frequently if your cleaning cycle
maintenance period is more frequent, and if you
notice specific low-detergent indicators (See

Detergents and Additives).

Low Water Shut-off System

The low water shut-off system shuts down the machine
if the wash solution in the sump chamber drops be low
a safe level. The system uses two reed switches and a
float rod mounted on the right outer wall of the sump
chamber to control the water level. If the wash solution
drops below the lower reed switch, the low water
indicator light on the control panel turns on and the
system disconnects power to the heating element, the
pump, and the turntable motor. To reset the system,
add water to the sump until the low water indicator light
turns off.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

13

Operations

Position #1

for Power

Brush

P

osition #2

for Detail

Brush

Air Flow Valve (Optional)

The air flow valve is located on the right rear corner of
the machine. It is a three-way ball valve that controls
the flow of compressed air to the power brush and the

hand detail brush.

Using the Power Brush

WARNING: Particles dislodged by the power brush
could cause serious injury to your eyes. Always
wear approved eye protection when using the
power brush.

With stiff stainless steel bristles turning at 1800 RPM,
the power brush easily removes carbon depo sits, old
gasket material, or other tightly-adhered mater ials from
parts before washing.

To turn on the power brush, position the air flow select
valve appropriately, then push the power brush lever
lock forward with your thumb and squeeze the throttle
lever to control the speed of the brush.

Power Brush (Optional)

The power brush is located on the right front corner of
the machine.

Refer to Connect a Compressed-Air Line and
Accessories detailed installation information.

NOTE: The power brush is a standard component on
the Deluxe Edition. It is available as an option on the
base model. For ordering information, contact your
dealer.

14

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Operations

Oil

Skimmer

Assembly

Oil

Container

Flow

Regulator

Detail

Brush

Detail Brush and Flow Regulator
(Optional)

The detail brush is located on the front inside wall of the
wash chamber. The flow regulator is located on the
right rear corner of the machine. The detail brush uses
a continuous flow of hot cleaning solution through its
nylon bristles to help you clean delicate or lightly soiled
parts. The flow regulator controls the flow of cleaning
solution through the detail brush.

WARNING: Hot, high-pressured cleaning solution
could cause serious injury. Always wear rubber
gloves and approved eye protection when handlin g
hot cleaning solution.

Adjusting the Flow of Cleaning Solution

The flow of cleaning solution through the detail brush is
pre-set at the factory . If you ne ed to adjust the flow, pull
out the flow regulator knob, then rotate it clockwise to
decrease the flow or counterclockwise to increase the
flow. After adjusting, push the knob back in to lock it.

NOTE: The detail brush is a standard component on
the Deluxe Edition. It is available as an option on the
base model. For ordering information, contact your
dealer.

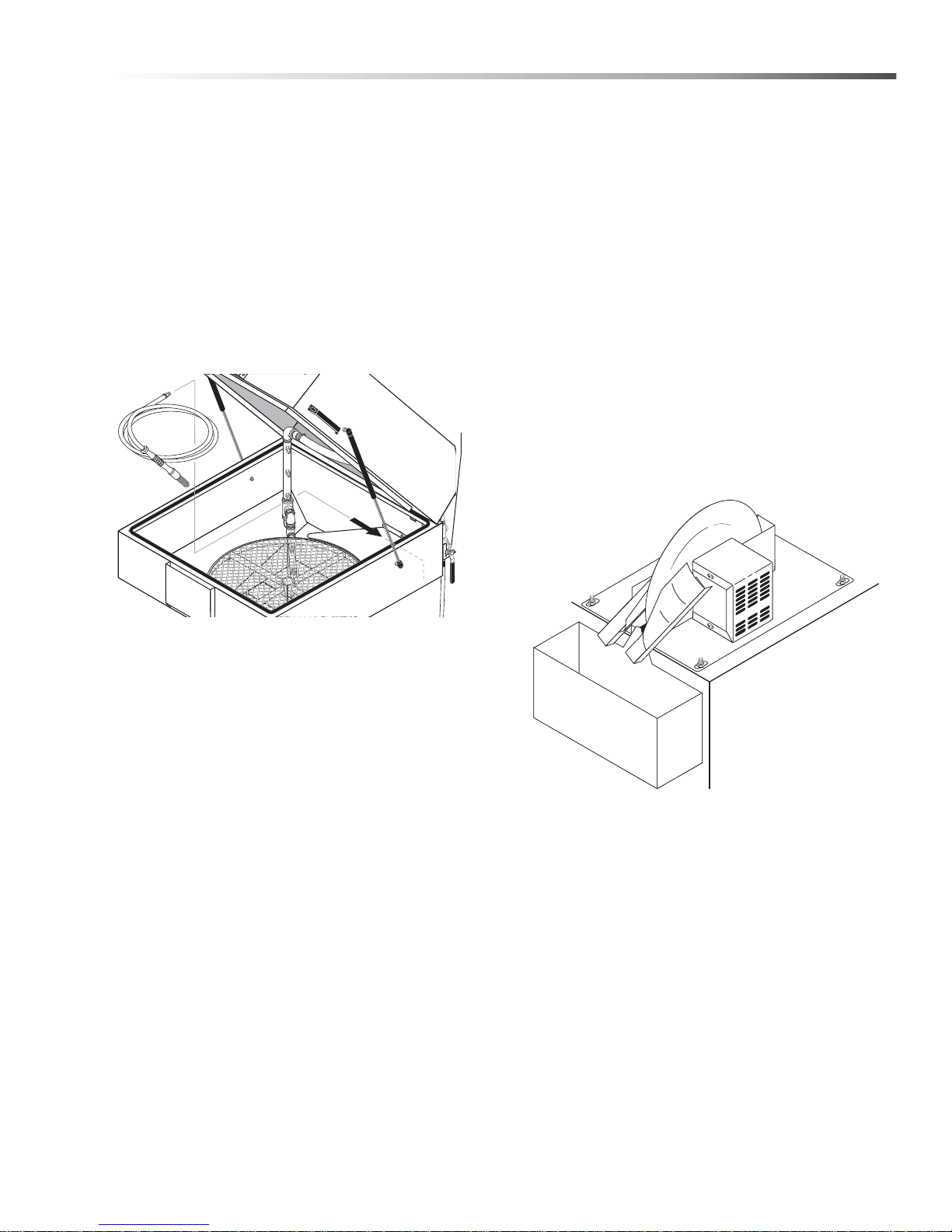

Automatic Oil Skimmer System (Standard)

The automatic oil skimmer system consists of a
skimmer assembly that includes an electric motor that
rotates a disk in the sump water. The oil adheres to the
disk and is wiped off by wiper bl ades and deposited in a
container. The gear motor is controlled by a rocker
switch on the control panel. See information in
Maintenance Section for detailed operati

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

15

Operations

Detergents And Additives
Detergents

Manufacturer's detergents are the only detergents
approved for use with our Automatic Parts washers.
They are specially formulated with rust inhibitors and
anti-foaming agents to optimize performance and
minimize maintenance. The use of any other deter gent
during the warranty period will void the warranty.

T o moni tor the relative concentration of the detergent in
the wash solution, periodically examine the was h
solution in the sump chamber for the following indica­tors:

• Rust inside the machine: not enough
detergent

• Excessive foaming: not enough detergent

• Thick, white residue on parts after washing:
too much detergent

To maintain proper detergent concentration under
typical operating conditions, add detergent each month
after cleaning the sump chamber. Follow recom­mended detergent quantities. Use pH kit to determine
the proper amount of detergent to use. If you n eed help
interpreting test results, contact customer service.

Rust Inhibitor Additive

Factory detergents protect the entire inside of your
machine against the degenerative effects of water
evaporation. A rust inhibitor additive actually evapo­rates with the water and continously coats and protects
metal surfaces, even while your machine is sitting idle.
For more information, contact your dealer or call
customer service.

Preparing The Machine For Use

Before you begin to wash parts, it is important that you
properly prepare the machine. Before you begin to use
the machine each day:

• check the water level and add water to the
sump tank if necessary;

• heat the water to operating temperature

• verify that none of the spray nozzles are
clogged; and

clean the debris screen.

16

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Operations

Washing Parts

The following procedure assumes that the heater is on
and the sump water is at operating temperature.

To wash parts, perform the following procedure.

WARNING: Hot, high-pressured cleaning solution
could cause serious injury. Always wear rubber
gloves and approved eye protection when loading
and unloading the machine.

1. Load large, heavy parts directly onto the turntable.
Load small, light parts in the small parts basket, if
available. Make sure none of the parts extend
beyond the edge of the turntable and make sure
large, light parts (valve covers, for examp le) are
secured to the turntable.

NOTE: For optimum cleaning performance, provide a
slight clearance between parts to allow adequate flow
of cleaning solution around and between them.

2. Close and latch the lid.

NOTE: If you are washing large parts that might
impede turntable rotation, flip the turntable switch
OFF.

3. Set the wash cycle timer to between 1 and 60
minutes for a timed wash cycle, or set it to Hold for
a continuous wash.

Shutting Down The Machine

To shut down the machine at the end of the day:

• set the wash cycle control to OFF;

• 120V machines: set the heater control to ON to
enable automatic turn-on the following day;
230V and 460V machines: set the heater
control to OFF to prevent unattended heater
operation;

• shut off the water at the supply spigot (if a
dedicated water supply is installed); and

• shut off the compressed air at the supply line
(if installed).

WARNING: For 230V and 460V machines, if the
heater is left on unattended the water could
evaporate and the oil and grease in the wash
chamber could catch fire.

• For periods of extended shut-down (weekends
and holidays, for example), disconnect power to
the machine.

• If your machine is equipped with an optional
programmable heater timer, periodically verify
the settings to prevent inadvertent unattended
operation.

4. When the machine automatically stops (or after
you manually stop the wash cycle), lift the lid and
wait a few moments to allow the parts to cool and
dry before removing them. Most parts flash-dry in
seconds.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

17

Maintenance

Align The Notch In
Each Spray Nozzle

With The Center Of

The Turntable

TOP & BOTTOM

NOZZLES

Turntable

SIDE NOZZLES

Rotate Each Nozzle

Approximately 3°

From The Center Line

Of The Pipe

3°

C

L

Turntable

Chain Guard

Maintaining The Machine

To ensure optimum performance and trouble-free oper­ation, observe the following maintenance schedule
consistently.

Daily Maintenance

• Check the water level; add water if necessary.

• Clean the debris screen.

Weekly Maintenance

• Detergent Concentration Level: Check
detergent level weekly to maintain concentra­tion level which decreases when water is
added. The pH level of this detergent must be in
accordance with the detergent manuf act ur er 's
recommendation.

• Remove oil and grease from the wash solution
by using the oil skimmer.

• For oily or extremely soiled parts, it is recom­mended the oil skimmer be operated on a more
frequent basis.

• Examine spray nozzles; clean and align if
necessary (See Cleaning and Aligning the
Spray Nozzles).

• Wipe down the exterior of the machine using
spray degreaser and a soft, damp cloth. TO
PREVENT ELECTRICAL COMPONENT
FAILURE, DO NOT SPRAY THE MACHINE
WITH WATER.

NOTE: Degreaser spray and a damp cloth will
usually remove all dirt and grime from the machine.
For particularly stubborn soap deposits, use a soft
cloth dampened with warm solution from the wash
chamber.

you replace them in the correct position on the
appropriate pipe. Spray nozzle specifications are
stamped on the face of each nozzle, as shown.

Cleaning out the Sump

1. Remove the turntable and the debris screen. To
remove the turntable:

a. Remove the turntable chain guard using a

5/16" wrench or socket

b. Disengage the chain from around the perimeter

of the turntable.

Monthly Maintenance

• Drain and clean out the sump chamber (See

Cleaning out the Sump).

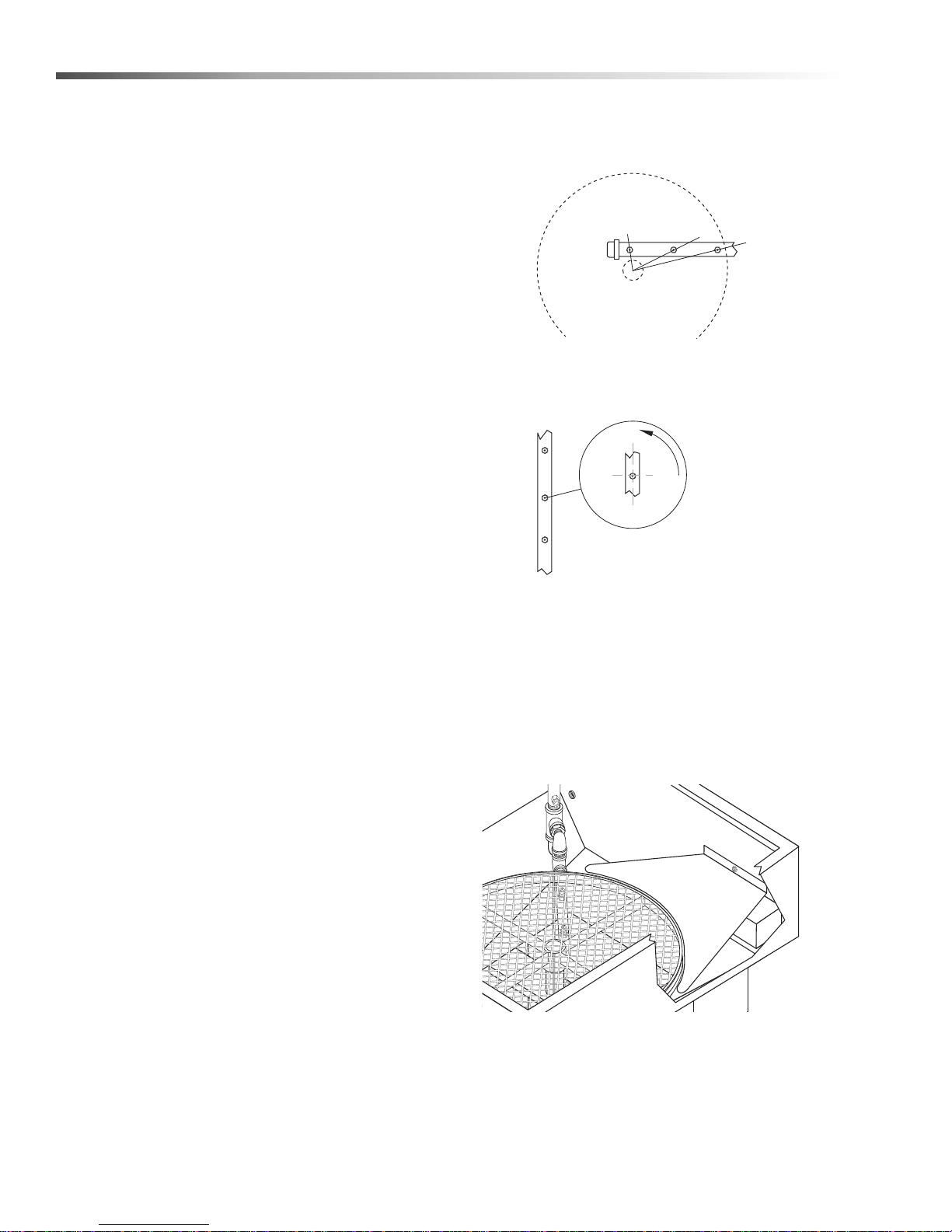

Cleaning and Aligning the Spray Nozzles

To ensure optimum cleaning performance, it is
important that you examine the spray nozzles periodi­cally and clean and align them if necessary.

To clean a plugged nozzle, remove it from the spray
pipe and use a small wire brush to free the nozzle of
any obstructions. When you replace the nozzle on the
spray pipe, make sure you align it according to the
figure to maintain a proper spray pattern.

NOTE: The spray nozzles are sized and positioned
to optimize the distribution of cleaning solution in the
wash chamber. If you remove the nozzles make sure

18

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

NOTE: When you disengage the chain from the
turntable, be sure to maintain some chain tension to
ensure that the chain does not disengage from the
drive pulley.

c. Pull up evenly on the turntable to remove it from

the center pin.

Maintenance

Rotate

Clo

ckwise

Rotate Turntable Clockwise Until Chain Reaches

Completely Around

Drive

Chain

Spray Arm

Arm

Arm

Description Part Number

F50 - 6.0 (Top) 500.265

F50 - 4.0 (Side) 500.001

F90 - 4.0 (Bottom) 500.127

Bottom

Side Spray

2. Drain the wash solution from the sump chamber.
To drain the solution either use the sump drain or a
small submersible pump.

3. Remove sand and other debris from the bottom of
the sump chamber. To remove the debris eithe r
flush it out through the sump drain, or vacuum it out
using a wet/dry Vac. Dispose of the debris in accor­dance with applicable local, state, and federal
regulations.

NOTE: Take special care to ensure that the heating
element and the low-water float are free of debris. A
build up of debris around the heating element will
decrease heating performance and may cause the
element to overheat and fail. A build up of debris
around the float may cause the low water shut-off
system to malfunction.

4. Refill the sump with fresh clean water.

5. Replace the debris screen and turntable. To
connect the drive chain to the turntable.

Top Spray

6. Heat the wash water to operating temperature,
then add detergent according to directions on
label.

7. Run the machine through a 30-minut e wash cycle.

Using the Oil Skimmer System

The oil skimmer system is most effective if used when
the cleaning solution in the sump is cool. The frequency
at which you must remove the oil from the wash
solution will depend on machine usage. Under typical
operating conditions you may need to remove the oil
every day. If the oil skimmer runs longer than 10-15
minutes, the detergent and vapor rust inhibitor content
in the sump should be checked. The detergent and
inhibitor can be removed with extensive use of the
skimmer, so be certain to check chemical levels after
running the skimmer to determine if you require a
higher frequency chemical maintenance cycle than
weekly.

IMPORTANT: The skimmer motor is equipped with a
thermal overload switch which protects the skimmer
from overheating. If you attempt to use the oil skimmer
system when the wash solution is hot, the thermal
overload will probably trip and the motor will shut off
until it cools. Under normal skimming conditions (when
the wash solution is cool) the thermal overload should
not trip.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

To remove oil from the cleaning solution, perform the
following procedure:

1. Allow the machine to sit idle for at least 30 minutes
to allow the oil to float to the surface of the wash
solution.

19

Maintenance

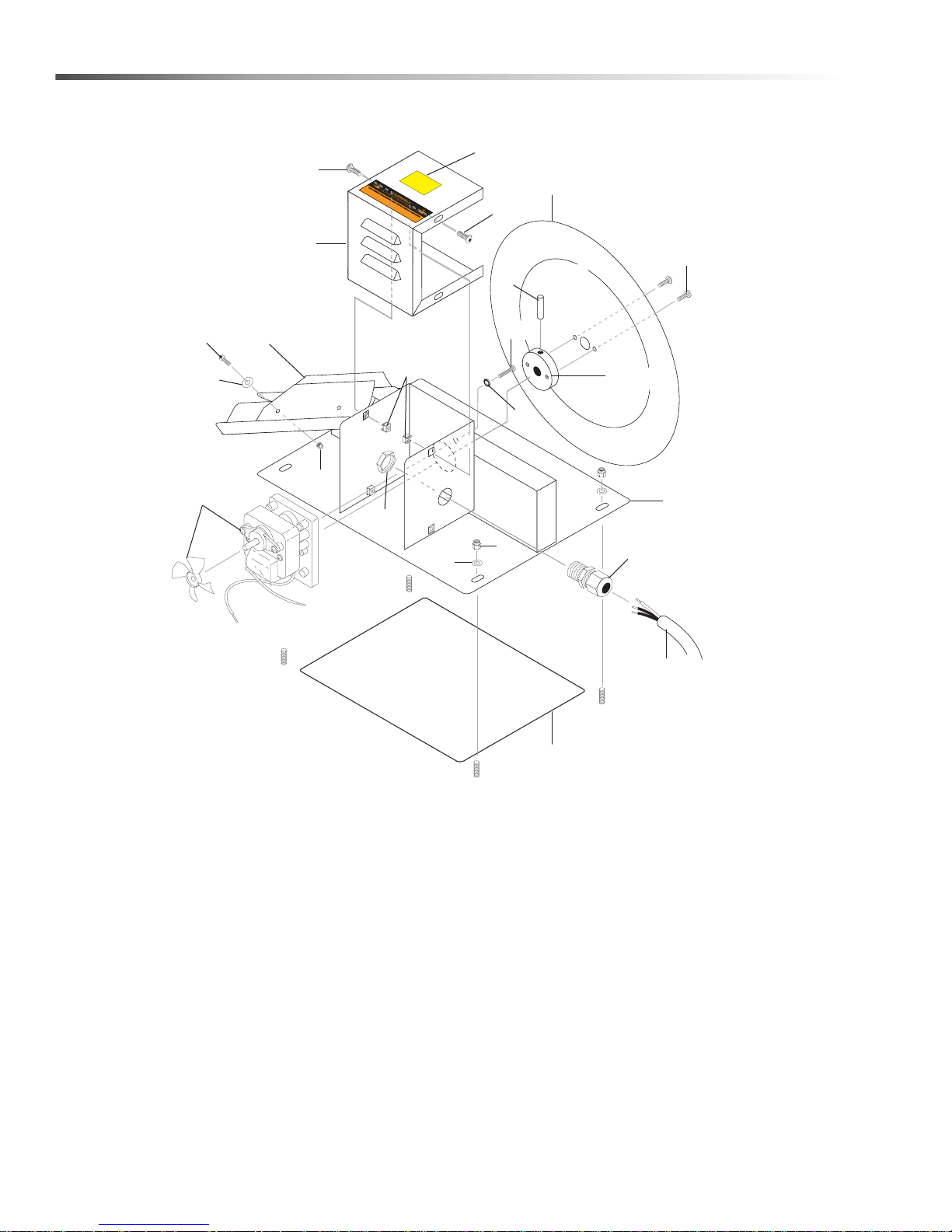

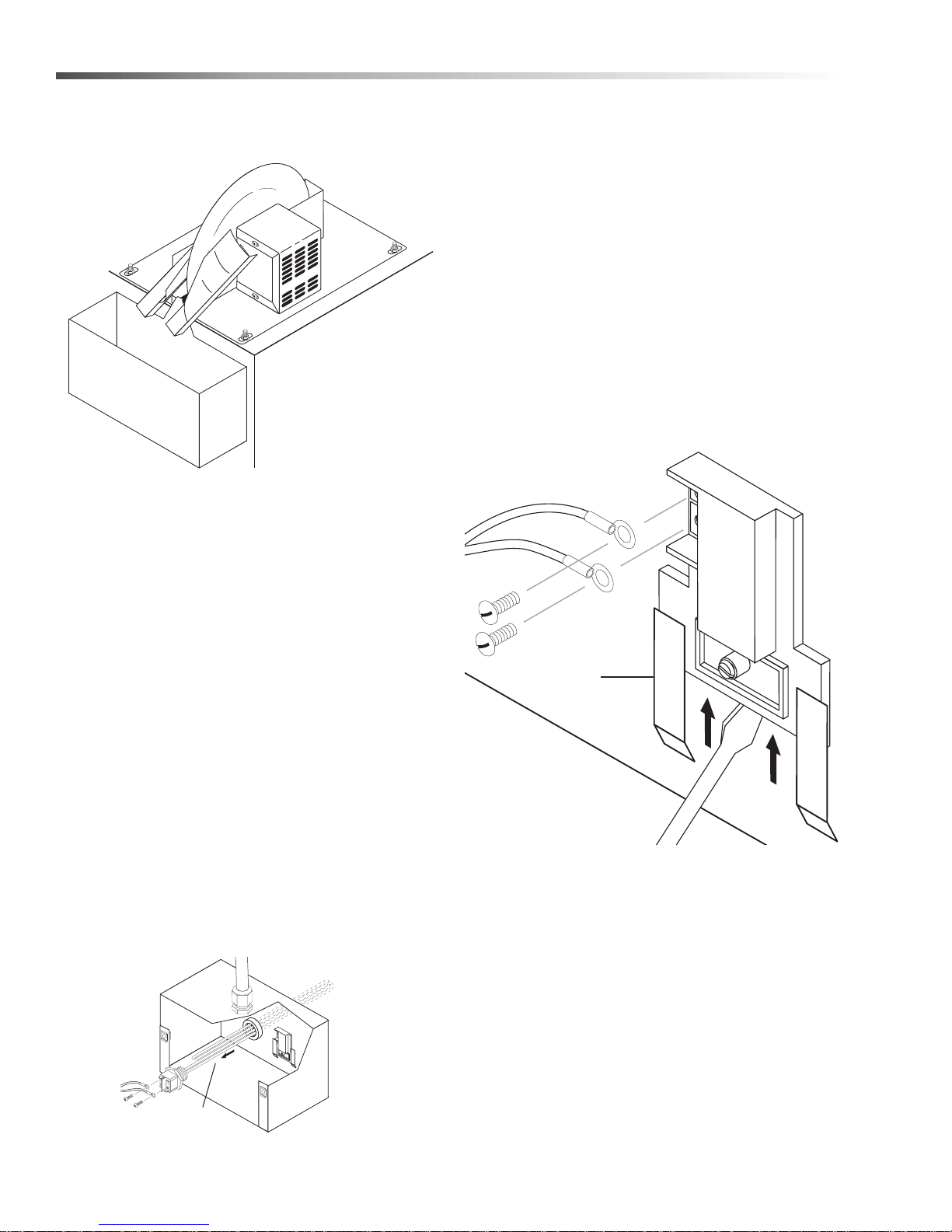

Oil Skimmer

Assembly

Oil Container

P

ower

Leads

Heating

Element

Power
Leads

Thermostat

Mounting

Bracket

2. Ensure that the oil collection container is in place,
then turn the skimmer switch to the “ON" position.

3. Allow the oil skimmer to operate until it is no longer
extracting oil from the cleaning solution.

Tip: While extracting oil from the cleaning solution,
oil will flow off the wiper blades in a fine continuous
stream. Water will flow off the blades in droplets.
Once droplets begin to flow off the wiper blades,
stop the skimmer motor.

4. Use an ohm meter to measure the resistance of
the heating element. The resistance should be
approximately 10 Ohm; if not, replace the heating
element (See Heating Element).

Three Phase Heating Element

A three phase heating element is a complex compo­nent. Please contact your dealer for testing instruc­tions.

Single Phase Thermostat:

1. Disconnect power to the machine.

2. Remove the cover from the heating element and
thermostat enclosure (Two 5/16" Screws).

3. Detach the power leads from the thermostat.

4. Dispose of the oil in the collection container in
accordance with local and state regulations, then
replace the container.

Repairing The Machine

The following procedures outline the steps necessary
to replace specific items on the machine that could
wear out or otherwise fail.

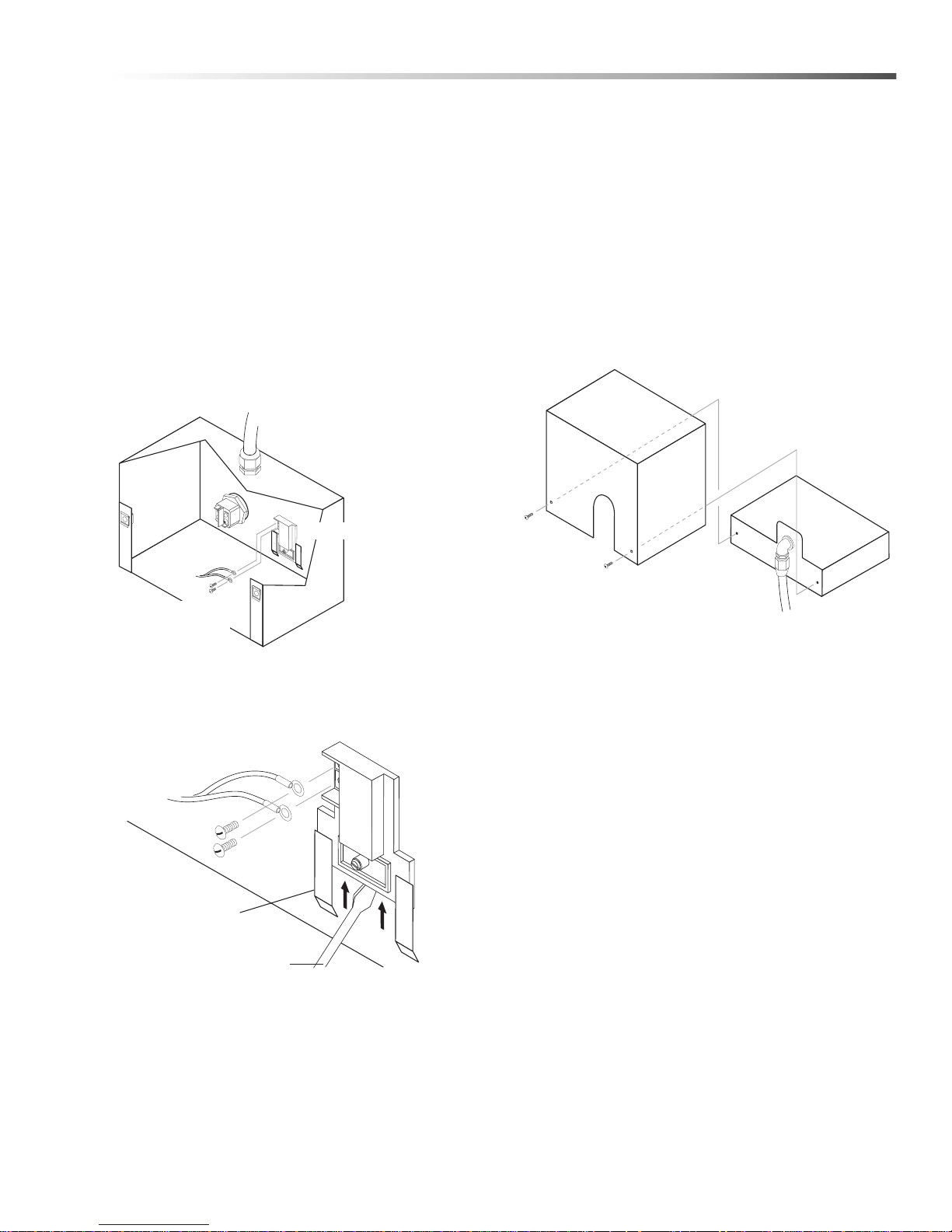

Single Phase Heating Element

1. Disconnect power to the machine.

2. Remove the cover from the heating element and
thermostat enclosure (Two 5/16" Screws).

3. Detach the power leads from the heating element.

4. Using a large flat-head screwdriver, pry the ther­mostat out of the mounting bracket, then remove it
from the machine.

5. Set the thermostat to 120 °F, warm it to just above
120°F, then test for continuity.

If there is continuity the thermostat is no longer
functional; replace the thermostat.

6. Allow the thermostat to cool to room temperature,
then test for continuity.

If there is not continuity the thermostat is no longer
functional; replace the thermostat.

20

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Maintenance

Motor
Cover

Screws

Three Phase Thermostat

A three phase thermostat is a complex component.
Please contact your dealer.

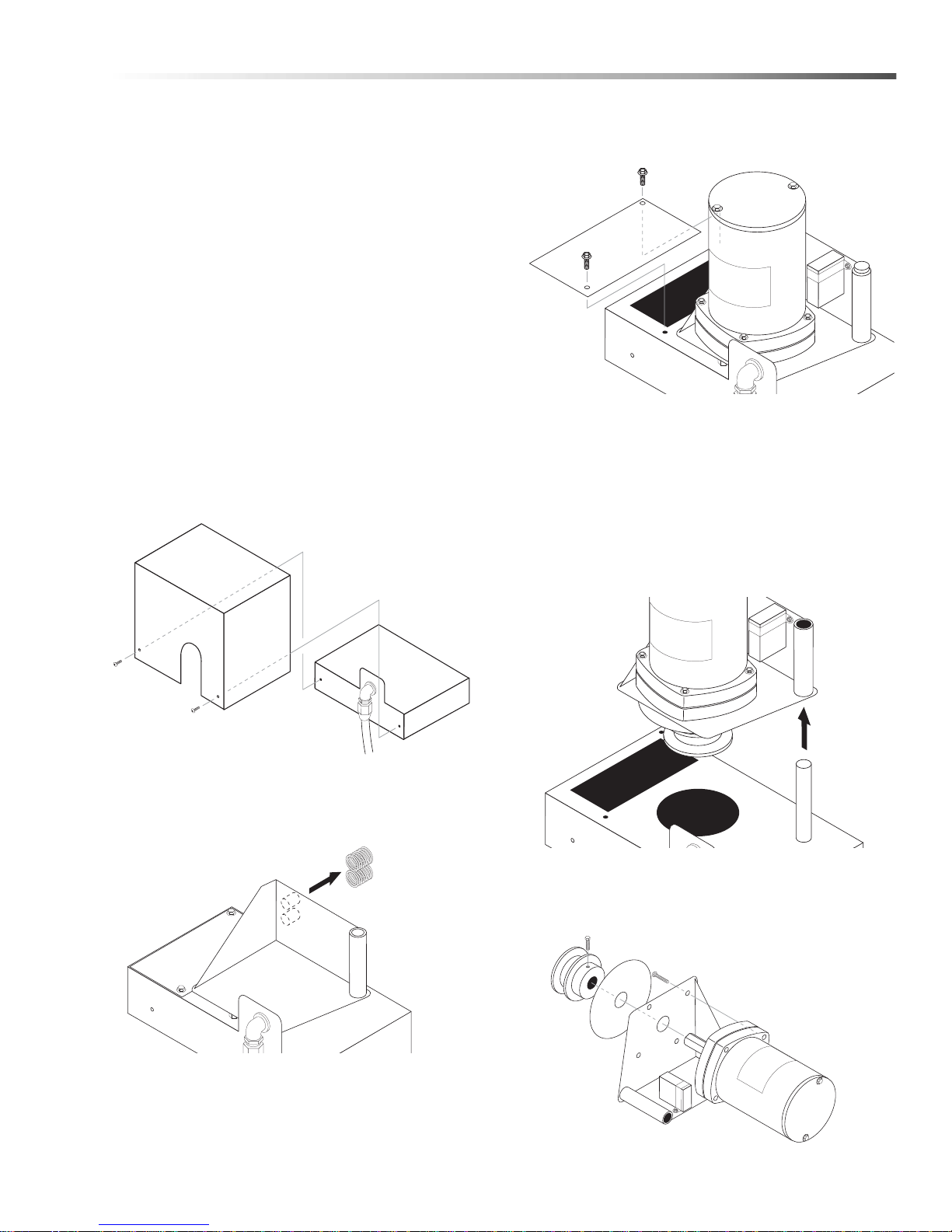

Turntable Motor
Required Tools and Equipment

• 5/16" wrench or socket

• 1/8" hex key

• medium phillips-head screwdriver

Replacement Procedure

1. Disconnect power to the machine.

2. Disengage the drive chain from the turntable.

3. Taking care not to kink or tangle the chain, place it
on the turntable and close the lid.

4. Remove the turntable motor cover (Two Screws;
Use a 5/16" Wrench or Socket.

6. Remove the drive pulley access plate (Two 5/16"
Screws).

7. Disconnect all power leads from the motor, taking
care to mark them for reassembly.

8. Raise the motor and bracket to remove the
assembly from the pivot pin.

NOTE: You may have to reach into the drive pulley
access hole with your fingers to free the chain from
the drive pulley.

5. Remove the compression spring between the
motor and the rear wall of the wash chamber.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

9. Use a 1/8" hex key to remove the pulley and steam
shield disk from the drive motor shaft, then remove
the four screws holding the motor to the mounting
bracket.

21

Maintenance

Upper

Connection

Motor
Cover

Mounting

Bolts

Power
Leads

Water Line

To Tank
Bottom

Water Line

To Upper

Tank Area

Motor
Cover

Impeller Shaft

Dust Cover

Electrical
Connection
Cover Plate

Electrical

Connections

Bottom Pump

Housing

Pump

Impeller

Impeller

Slots

Loosen

Tighten

10. Install the new motor. Installation is the reverse of
removal.

Pump Seal
Required Tools and Equipment

•1/2" wrench

• 9/16" wrench

• medium flat-head screwdriver

• large flat-head screwdriver

• small phillips-head screwdriver

• hammer or rubber mallet

Replacement Procedure

Before you disassemble the pump to replace the pump
seal, examine figure below to familiarize yourself with
the pump components.

Bleed Line

4. Remove the electrical connection cover plate,
disconnect the power leads from the pump, and
remove the impeller shaft dust cover.

5. Remove the two 9/16" mounting bolts to separate
the pump from the machine.

6. Separate the pump from the two water hoses.

7. Disconnect the bleed line at the upper connection.

8. Remove the bottom of the pump housing to expose
the impeller (Four 9/16" Bolts.

1. Disconnect power to the machine.

2. Drain the wash solution from the sump.

3. Remove the motor cover.

22

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

NOTE: Mark the bottom and top of the pump housing
before removing the bottom to ensure proper
alignment when you reassemble the pump.

9. Insert a large flat-head screwdriver in the slot on
the top of the impeller shaft to immobilize it.

10. Insert the tip of a small phillips-head screwdriver
into the slot on the edge of the impeller, and firmly
tap the screwdriver with hammer to loosen the
impeller.

11. Remove the impeller from the shaft.

12. Using a flat-head screwdriver, carefully remove first
the rotary seal head, then the ceramic stationary

Maintenance

Rotary

Seal Head

Ceramic

Stationary

Seat

Nut

Timer

Unit

seat from the shaft. Be careful not to scratch or
mark the shaft.

13. Carefully clean the stationary seat cavity and shaft.

14. Use the glycerine lubricant provided with the seal
kit to lubricate the new seal head and stationary
seat, then carefully slide them into position on the
shaft.

NOTE: The rotary seal head and ceramic stationary
seat are precision components and must be handled
accordingly. Be especially careful with the sealing
surface between the components so as not to
contaminate it with dirt or other debris.

3. Remove the control panel from the lid (Six Screws)
Use a 5/16" Wrench or Socket.

Screws

4. Remove the two screws, retaining nut, and o-ring
that hold the timer switch to the control panel.

Retaining

15. Install the impeller.

16. Reassemble the pump and replace it on the

Timers and Switches on the Control Panel
Required Tools and Equipment

Replacement Procedure

1. Disconnect power to the machine.

2. Loosen the compression fitting on the back of the

machine. Installation is the reverse of removal.

• 5/16" wrench or socket

• 1/2" wrench or deep socket

• small phillips-head screwdriver

• small flat-head screwdriver

lid to allow enough slack in the wires to access the
rear of the control panel when you remove it.

5. Pull the control panel away from the lid. From the
rear of the panel remove the component you wish
to replace.

6. Attach the power leads to the new component,
then reassemble the control panel and replace it on
the machine. Installation is the reverse of removal.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

23

Maintenance

DANGER

KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.

None

Power

ON

Measure Voltage Across
L1, and N Terminals on
Junction Box

Electrical Panel is OK, Check
Main Power Disconnect

Electrical Panel is
OK, Refer to Testing
Individual Components

110 to 120V

OK

Power

OFF

Power

OFF

Visibly Inspect Heater
Contacts

Heater Contacts is Blown;
Replace the Contacts

Visibly Inspect Pump
Contacts

Pump Contacts is Blown;
Replace the Contacts

OK

OK

Black
or
Deformed

Black
or
Deformed

Power

OFF

Power

OFF

Visibly Inspect Control
Fuse

Control Fuse is Blown; Replace
the Control Fuse

Visibly Inspect Low
Water Safety Relay

Low Water Safety Relay is Blown;
Replace the Relay

OK

Black
or
Deformed

Black
or
Deformed

Power

OFF

Check Blue and Grey
Terminal Blocks for
Loose Connections

Tighten Loose Connections

OK

Loose

Troubleshooting
T roubleshooting the Electrical System

To troubleshoot the electrical system first eliminate the
possibility of a blown fuse or a bad connection, then
refer to Testing Individual Components to determine
which component is causing the problem.

DANGER: Keep water away
from electric wiring or fatal
electric shock may result.

• Electrical troubleshooting should be performed
by qualified personnel only.

• Avoid contact with power leads, terminals, and
fuses when power is connected.

• Disconnect power to machine before removing
fuses or other electrical components.

Troubleshooting the 120V Electrical Panel

120V Machines

T o troubleshoot the electrical system on 120V machine,
use the exploded view on pages 34-35 to eliminate the
possibility of a blown relay or a bad connection, then
refer to Testing Ind ividu al Component s to determine
which component is causing the problem.

24

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

230V and 460V Machines

f

f

f

f

Power

ON

Power

OFF

Power

OFF

Power

OFF

Power

OFF

Measure Voltage Across
L1 and L2 Terminals on
Junction Box

Electrical Panel is OK,
Check Main Power
Disconnect

Remove Primary Fuses;
Measure the Resistance
of Each

One of the Primary
Fuses is Blown; Replace
the Blown Fuse

Remove Secondary
Fuse; Measure the
Resistance

Secondary Fuse is
Blown; Replace Fuse

Remove Pump Fuses;
Measure the Resistance
of Each

One of the Pump Fuses
is Blown; Replace the
Blown Fuse

Remove Heater Fuses;
Measure the Resistance
of Each

One of the Heater Fuses
is Blown; Replace the
Blown Fuse

Electrical Panel is
OK, Refer to Testing
Individual Components

approximately 0 Ohms

approximately 0 Ohms

approximately 0 Ohms

approximately 0 Ohms

None

To troubleshoot the electrical system on 230V and
460V machines, use the exploded view on pages 36-37
to eliminate the possibility of a blown fuse or a bad
connection, then refer to Testing Individual Compo-
nents to determine which component is causing the
problem.

Troubleshooting the 230V Electrical Panel

Maintenance

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

25

Maintenance

Lid Safety

Switch

Retaining

Nut

Timer

Unit

Testing Individual Components

NOTE: The following troubleshooting procedures
require the use of a volt/ohm meter. If you are not
familiar with using a volt/ohm meter do not attempt to
perform the following troubleshooting procedures. If
you need assistance please contact your de aler.

Wash Cycle and Heater Timers

1. Disconnect power to the machine.

2. Remove the timer from the control panel and
disconnect all wires (See Timers and Switches

on the Control Panel).

Lid Safety Switch

1. Disconnect power to the machine.

2. Remove the switch from the control panel and
disconnect all wires (See Timers and Switches
on the Control Panel).

3. With the switch fully open (not depressed), test for
continuity . If there is continuity the switch is no
longer functional; replace the switch.

3. With the timer in the OFF position, test for conti-
nuity using an ohm meter.

If there is continuity the timer is no longer func­tional; replace the timer.

4. With the timer in the ON position, test for continuity
using an ohm meter.

5. If there is not continuity the timer is no longer func­tional; replace the timer.

4. With the switch fully closed (depressed), test for
continuity.

If there is not continuity the switch is no longer
functional; replace the switch.

Heating Element (Single Phase)

1. Disconnect power to the machine.

2. Remove the cover from the heating element and
thermostat enclosure (Two Screws; Use a 5/16"
Wrench or Socket).

26

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Maintenance

Power
Leads

Thermostat

Power
Leads

Thermostat

Mounting

Bracket

Thermostat

Motor

Cover

Screws

3. Detach the two power leads from the heating
element.

4. Use an ohm meter to measure the resistance of
the heating element. The resistance should be
approximately 10 Ohms; if not, replace the heating
element (See Heating Element). For Three

Phase Element contact your dealer.

Thermostat

1. Disconnect power to the machine.

2. Remove the cover from the heating element and
thermostat enclosure (Two Screws; Use a 5/16"
Wrench or Socket).

3. Detach the two power leads from the thermostat.

6. Allow the thermostat to cool to room temperature,
then test for continuity.
If there is not continuity the thermostat is no longer
functional; replace the thermostat.

Start Capacitor

1. Disconnect power to the machine.

2. Remove the turntable motor cover (Two Screws;
Use a 5/16" Wrench or Socket).

3. Visually inspect the start capacitor. If it appears
swollen or deformed, it is failed; replace the start
capacitor.

4. Using a large flat-head screwdriver, pry the ther­mostat out of the mounting bracket, then remove it
from the machine.

5. Set the thermostat to 120 °F, warm it to just above
120 °F, then test for continuity.
If there is continuity the thermostat is no longer
functional; replace the thermostat.

4. If the start capacitor is not visibly failed, remove it
from the motor bracket, disconnect the wires, and
test it for shorts using an ohm meter.
If the ohm meter reads approximately 1 ohm, the
start capacitor is no longer functional; replace the
start capacitor.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

27

Maintenance

Troubleshooting

PROBLEM POSSIBLE CAUSE SOLUTION

POOR

CLEANING

PERFORMANCE

WASH

SOLUTION

NOT HEATING

Parts are obstructing each other

Low water level in sump Check sump water level; add water if necessary.
Clogged or improperly aligned spray

nozzles
Low detergent concentration 10-11

ph

Wash solution is not properly heated See wash solution is not heating.

Pump is not operating properly See pump does not operate properly.

Blown fuse Refer to Troubleshooting the Electrical System.
Wash solution in sump chamber is

low, or the low water shut-of f system
is not working properly

Thermostat is incorrectly set Check thermostat setting; set to 180°.
Excess debris is built up around

heating element
Line voltage is too low

Check the position of parts on turntable; position parts to
allow flow of cleaning solution around and between them.

Check spray nozzles for obstructions
and alignment; clean and align if necessary.

Add 1-2 scoops of detergent and observe cleaning perfor­mance; add 1-2 scoops more if necessary. Measure PH of
sump solution.

Check the level of the wash solution; add water if neces­sary. Check the low water shut-off float to ensure that it
operates smoothly.

Check for debris buildup around heating element; clean
out if necessary.

Contact a licensed electrician to verify that the incoming
line voltage meets requirements.

WASH

SOLUTION

TOO HOT

FOAMING

WHITE

POWDER

ON PARTS

Failed heater timer Test the heat timer; replace if necessary.

Failed thermostat Test the thermostat; replace if necessary

Failed heating element Test the heating element; replace if necessary.

Failed thermostat Replace the thermostat.

Thermostat is incorrectly installed

Machine operating with cold water Bring water up to correct temperature
Grease, high detergent motor oils,

transmission oil, gear lubes
Not enough detergent Add more detergent, check pH level. Use defoamer.

Solution is old
Water hardness and TDS (totally

dissolved solids)
Large parts can dry before solution

runs off, leaving powdery residue

Check the thermostat to ensure that it is correctly installed
into the mounting bracket.

Do not place oil or transmission pan into machine without
pouring oil out of it.

Change sump water and recharge with fresh detergent
and vapor corrosion inhibitor.

Use a water softener and/or change your sump water
more frequently.

Turn heat down to approximately 140°

28

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

PROBLEM POSSIBLE CAUSE SOLUTION

Maintenance

MACHINE FAILS TO

START WHEN

“WASHING PARTS"

PROCEDURE IS

FOLLOWED

TURNTABLE DOES

NOT OPERATE

PROPERLY

Main power disconnect is off

Failed lid closure safety switch

Failed washer cycle timer
Pump is not operating properly See Pump does not operate properly section.
Failed turntable motor
Parts are obstructing turntable

rotation
Drive chain is not on the drive

pulley
Turntable motor compression

springs are not installed

Blown fuse

Failed wash cycle timer

Failed start capacitor Test the start capacitor; replace if necessary.

Verify that no service is being performed on the
machine, then turn the main power disconnect on.

Test the lid closure safety switch; replace if
necessary (See Adjusting the Lid Safety Switch).

Test the wash cycle timer; replace if necessary (See
Lid Safety Switch).

Contact a licensed electrician to test the motor;
replace if necessary.

Check for parts obstructing rotation of the turntable;
rearrange if necessary.

Check drive chain; realign on drive pulley if necessary.
Check the turntable motor compression

springs; install if necessary
(See Turntable Motor Assembly).

Check electrical panel for blown fuse;
replace if necessary.

T est the electrical panel to eliminate the possibility of a
blown fuse then
contact a licensed electrician or a service
representative to test the turntable motor.

PUMP DOES

NOT OPERATE

PROPERLY

INTERIOR OF

MACHINE IS

RUSTING

PUMP

LEAKS

Low water level in sump Check sump water level; add water if necessary.

Pump Intake is plugged
Pump overload relay is tripped Reset the motor overload relay.

Blown fuse

Line voltage is too low

Pump is failed

Low detergent concentration
or improper detergent usage

Steam condensing on inside of
cabinet and lid

Failed pump seal Replace the pump seal, see Pump Seal.

Check pump intake for obstructions; clean out if
necessary.

Check electrical panel for a blown fuse; replace if
necessary.

Contact a licensed electrician to verify that the line
voltage meets requirements.

Contact a licensed electrician to test the pump,
replace if necessary.

Our detergents contain adequate rust inhibitors to
prevent rust. Verify that you are using manufacturer
detergents at the correct concentration.

Leave lid open during long idle periods.

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

29

Notes

30

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Parts

1.043-451.0, 1.043-454.0, 1.043-457.0, 1.043-530.0,

Parts

1.043-534.0, 1.043-452.0, 1.043-455.0, 1.043-528.0,

1.043-531.0, 1.043-539.0, 1.043-453.0, 1.043456.0,

1.043-529.0, 1.043-532.0

CUDA 2216

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

31

A

T

TE

NTIO

N

U
S
E

O
N

L
Y

C
U

D
A
A

P
P

R
O

V
E

D

D
E

T
E

R
GEN

T
S

T
O

E

XTE

N

D

L
A

B
O

R

W

A
R

R
A

N
T

Y
T

O 1

-Y
E
A

R
!

M
I
X

D
E
T

E
R

G
EN

T
S

1
L

B (1

/
2
KG

)

P
E
R

5

­G
A

L
L
O

NS

(
1

5
L
IT

E
R
S)

O
F

W
A

T
E

R

F
o

r
C
U

D
A
A

p
p

r
o
v

e
d

D
e
t

e
r
g

e
n
t
s

v
i
si

t

h
t
t
p

:/
/
w
w

w
.
c

u
d

a
u

s
a.
c

o
m

o
r

c

a
l
l
8

8
8

-3
19

-0
8

8
2

9
.

8
07

­5
1
3
.
0

9
0

­D

A
Y
L

A
B
O

R
W

A
R
R

A
N
TY

E
X
T

E
N
D

S
T
O

1

­Y

E
AR

W
I
T

H
E
X

C
L
U
S

I
V
E

U
S
E

O
F

C
U
D

A
D

E
T
E
R

G
E
N

T
S

L

I
M

I
T

E

D

34

11

12

18

17

18

12

15

13

8

16

15

7

16

9

46

14

6

10

2

31

32

29

28

44

45

40

3

5

39

38

44

1

26

25

37

22

23

35

36

47

45

19

21

51

52

48, 49, 50

20

30

32

31

42

24

27

4

24

41

TOP & BOTTOM NOZZLES

SIDE NOZZLES

Rotate Each Nozzle

Approximately 3°

From The Center Line

Of The Pipe

3°

C

L

Align

Turntable

The Notch In Each

Spray Nozzle With The

53

33

54

Cuda 2216 Front

32

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Front

REF PART NO. QTY DESCRIPTION NOTES

1 8.913-728.0 1 BASE, TOP LOAD

- 8.922-900.0 1 WLMT,BASE, SS

2 8.913-734.0 1 WELDMENT, LID

- 8.922-923.0 WLMT,LID, SS

3 8.913-740.0 1 TURNTABLE 22"

- 8.922-936.0 WLMT,TURNTABLE 22", SS

4 8.921-577.0 1 GUARD, CHAIN

- 8.922-947.0 GUARD, CHAIN, SS

5 8.712-858.0 1 CHAIN, W/CONNECTOR LINK

- 8.923-115.0 ASSY CHAIN, #25 84", SS

6 8.712-775.0 3 NOZZLE, 50° #4

- 9.804-424.0 3 NOZZLE, 50° #4 STAINLESS

7 8.712-870.0 2 NOZZLE, 95° #4

- 8.708-125.0 2 NOZZLE, 4 X 95 1/4' VEE JET

8 8.712-973.0 2 NOZZLE, 50° #6

- 8.749-638.0 2 NOZZLE, 50° #6, SS

9 8.913-707.0 1 PIPE, HORIZONTAL SPRAY

- 8.922-948.0 1 PIPE, HORIZONTAL SPRAY, SS

10 8.731-236.0 1 SPRAY MANIFOLD-VERTICAL

- 8.922-949.0 1 PIPE, SPRAY MANIFOLD, SS

11 9.802-028.0 1 ELBOW, 1" X 3/4" BLACK

- 8.754-346.0 1 ELBOW, 1" 150WP SS

12 8.706-340.0 2 PIPE-BARBED/MALE NPT 3/4" BLACK

- 9.804-210.0 2 PIPE-BARBED/MALE NPT 3/4" STAINLESS

13 9.802-027.0 1 ELBOW 3/4" 90° BLACK

- 8.754-077.0 1 ELBOW 3/4" 90°, 304 S/S

14 8.706-094.0 1 TEE, 1" BLACK

- 8.754-078.0 1 TEE, 1"FNPT, 304 S/S

15 8.706-184.0 3 ELBOW, 3/4" STREET, BLACK

- 8.706-187.0 3 ELBOW, 3/4" STREET, T304 SS

16 8.706-320.0 2 CAP, 3/4", BLACK PIPE

- 8.749-619.0 2 PIPE CAP, 3/4", STAINLESS
17 9.802-261.0 1 HOSE, 3/4", PUSH-ON, 24"
18 9.803-629.0 2 CLAMP, SCREW, #16
19 8.713-234.0 1 SPINDLE, TURNTABLE

- 8.753-685.0 1 SPINDLE, TURNTABLE CHAIN
20 8.712-855.0 1 BOLT, 3/4", 16 X 1-1/2"
21 8.712-909.0 1 WASHER-LOCK 3/4"

22 9.804-346.0 1
23 9.804-347.0 1 BEARING, BALL, LOWER TT

24 9.804-207.0 4 BALL, STUD, 5/16"
25 8.718-987.0 8 WASHER, 5/16" RUBBER BONDED

BEARING BALL UPPER TT 6206 DOUBLED SEALED,
6206RS

33Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Front

REF PART NO. QTY DESCRIPTION NOTES

26 9.802-776.0 8 NUT, 5/16", ESNA, NC
27 8.714-540.0 2 GAS SPRING, STRUT 70#
28 9.804-203.0 2 HANDLE, DOOR
29 8.713-246.0 4 SCREW, 5/16"-18" X 1" SOCKET HEAD
30 8.706-349.0 1 PIPE, CAP, 1-1/12" GALV

- 8.749-821.0 1 PIPE, CAP, 1-1/12" SS
31 9.802-773.0 5 NUT, 1/4", ESNA, NC
32 9.802-802.0 13 WASHER, 1/4", FLAT, SAE
33 8.924-172.0 1 BUCKET, OIL
34 8.711-920.0 1 CASTER, SWIVEL, 2-1/2" X 1-1/8" POLYOLEFIN
35 8.913-723.0 1 STOP, HANDLE, SWITCH
36 8.913-703.0 1 TRAY, DEBRIS

- 8.922-943.0 1 WLMT, TRAY, DEBRIS, SS
37 9.802-698.0 2 SCREW, 10-32" X 1/2" BH, SOC, SS
38 8.718-568.0 2 WASHER, 1/4" FLAT SS SEALING RUB
39 9.804-567.0 2 NUT, 10/32", ESNA
40 9.801-125.0 1 LABEL, CUDA 11 X 3
41 8.904-660.0 1 DECAL, KEEP HANDS CLEAR WHEN CLOSING LID

34

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Front

REF PART NO. QTY DESCRIPTION NOTES

42 8.706-328.0 1 PIPE PLUG 1/4", GALV
43 8.731-254.0 1 PARTS BASKET -SMALL 8 X 8 X 4 NOT SHOWN
44 9.802-791.0 6 NUT, CAGE, 10/32"
45 8.718-794.0 6 SCREW, 10/32" X 3/4" HEX SS
46 9.802-016.0 1 BUSHING 1" X 3/4"

- 8.706-286.0 1 BUSHING 1" X 3/4" 304 SS

47 8.712-861.0 2 4" EDGE TRIM, NEOPRENE
48 9.800-013.0 1
49 9.800-034.0 1 LABEL, CLEAR LEXAN NOT SHOWN

50 N/A 1 LABEL, UL/ETL
51 9.804-361.0 1 DECAL, PATENT NUMBER
52 9.807-512.0 1 LABEL, CUDA APPROVED DETERGENTS

53 8.706-286.0 1 BUSHING, 1" X 3/4" 304 SS
54 8.705-955.0 1 CONTAINMENT RING-22 INCH,MARKED GREEN

LABEL, ASSEMBLED USA,
INTENDED FOR INDOOR USE

(STAINLESS STEEL

MODELS ONLY)

35Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Rear

D

ANGER

HIGH VOL

T

AGE

WARNING

W

ARNIN

G

5

6

1

7

8

2

3

40

35

42

35

36

37

38

32

58

39

34

34

14

10

14

34

33

14

33

16

50

12

13

46

30

7

48

49

40

52

51

40

4

27

41

31

29

53

43

34

14

44

25

45

27

23, 26

10

28

15

11

21

20

61

62

22

17

18

12

13

54

55

9

56

46

59

16

60

57

63

64

36

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Rear

REF PART NO. QTY DESCRIPTION NOTES

1 8.913-737.0 1 ASSY., GEARMOTOR SWING ARM
2 8.752-174.0 1 WASHER, GEARMOTOR, STAINLESS
3 8.913-720.0 1 COVER, GEARMOTOR BOX

- 8.922-515.0 1 COVER, GEARMOTOR BOX, SS
4 8.913-739.0 1 ASSY, GEARMOTOR COVER
5 8.725-371.0 1 GEARMOTOR

6 8.712-903.0 2

7 8.713-646.0 2
8 8.714-008.0 1 TORQUE LIMITER, STD SIZE

9 8.713-723.0 1 HEATING ELEMENT, 2KW/120V/1PH (1.043-451.0)

- 8.712-813.0 1 HEATING ELEMENT, 4.5KW/230V/1PH

- 8.749-152.0 1 HEATING ELEMENT, 6KW/208V/3PH 15.5 IN (1.043-457.0)

- 8.713-919.0 1 HEATING ELEMENT, 6KW/230V/3PH 15 1/4 IN (1.043-454.0)

- 8.714-171.0 1 HEATING ELEMENT, 6KW/480V/3PH 15 1/4 IN (1.043-455.0)

- 8.714-454.0 1 HEATING ELEMENT, 6KW/575V/3PH 15 1/4 IN (1.043-456.0)

10 8.706-198.0 2 ELBOW, 1-1/4 FEMALE, 90 DEG GALV MILD STEEL MACHINES

- 8.754-074.0 2 ELBOW, 1-1/4" 90° 304 S/S

11 8.754-718.0 1 FLOAT 2"-1/2 BALL SS
12 9.802-773.0 4 NUT, 1/4" ESNA, NC
13 9.802-802.0 4 WASHER, 1/4" FLAT, SAE
14 8.706-341.0 4 PIPE, BARBED/MALE, NPT 1-1/4" GALV

- 9.804-198.0 4 PIPE, BARBED/MALE, NPT 1-1/4" SS

15 8.706-048.0 1 PIPE-BUSHING 1 1/4' TO 1' GALV

- 8.754-075.0 1 BUSHING, PIPE, 1-1/4 X 1, 304 SS 1

16 8.713-593.0 1 THERMOSTAT, SNAP DISC 180°F, 3 PHASE

- 8.713-030.0 1 THERMOSTAT BLUB, CAPILLARY 195° 3 PHASE

17 8.913-738.0 1 SUMP SIDE COVER

- 8.922-941.0 1 WLMT, SUMP SIDE COVER, SS

18 8.915-388.0 1 SEAL, BULB TYPE 48"
19 9.804-119.0 1 SWITCH, MAGNETIC REED SENSOR, NC
20 9.804-118.0 1 SWITCH, MAGNETIC REED SENSOR, NO
21 9.804-120.0 1 MAGNET, REED SENSOR TARGET
22 8.922-155.0 1 FLOAT, ROD, SS
23 8.930-331.0 1 COVER, HEAT ELEMENT BOX
24 8.913-738.0 1 ASSY, SUMP SIDE COVER
25 8.706-350.0 1 PIPE, CAP, 1/2" GALV

- 8.753.615.0 1 CAP, 1/2" THREADED, 304 SS, SCH

26 9.802-073.0 24" WEATHER STRIP, 1/8" X 1/2" X 75'
27 9.800-016.0 2 LABEL, DISCO POWER SUPPLY
28 9.804-297.0 1 LABEL, HOUR METER

SPRING, COMPRESSION .105 X 1.125 X 3.5,

10.3LB./IN.
BEARING, NYLONG 1/2" ID X 3/4" OD X 3/4" L STD,

TT PIVO

(1.043-452.0)
(1.043-453.0)

STAINLESS STEEL

MACHINES

37Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Rear

REF PART NO. QTY DESCRIPTION NOTES

29 9.804-352.0 1 DECAL, DANGER HIGH VOLTAGE
30 9.804-224.0 1 LABEL-CAUTION CHECK WTER LEVEL-ALL MODEL
31 9.804-372.0 1 DECAL, WARNING, YELLOW & BLACK (1.043-452.0)

(1.043-451.0)

32 8.715-395.0 1 PUMP, SCOT 1HP 115/230V 1PH SEALED

- 8.715-396.0 1 PUMP SCOT 1HP 208-230/460V 3PH

- 8.715-399.0 1 PUMP, SCOT 1HP 575V 3 PH (1.043-456.0)

33 8.706-199.0 2 ELBOW, 1-1/4", 90°, STREET, GALV

- 8.754-076.0 2 ELBOW, 1-1/4", 90°, STREET, SS
34 8.709-081.0 4 CLAMP, SCREW
35 9.802-517.0 2 CONNECTOR, 1/2" L/T, 90°, BLACK
36 9.802-779.0 4 NUT, 3/8", ESNA, NC
37 9.802-807.0 4 WASHER, 3/8", SAE, FLAT
38 8.714-013.0 1 HOSE, 1-1/4" X 18-1/2" (PRECUT)
39 8.714-827.0 1 HOSE, 1-1/4" X 4-3/4" PRECUT BLACK 200 PSI
40 8.718-936.0 4 SCREW, #8 X 1/2", PHILLIPS, ZINC PLATED
41 8.714-176.0 72" CORD, 16/9 SOOW BLK RBR
42 9.803-832.0 36" CONDUIT, WATER TIGHT, FLEX 3/4"
43 9.803-832.0 28" CONDUIT, WATER TIGHT, FLEX 3/4"
44 9.803-832.0 15" CONDUIT, WATER TIGHT, FLEX 3/4"

(1.043-452.0)
(1.043-453.0)

(1.043-457.0)

(1.043-454.0)

(1.043-455.0)

38

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Cuda 2216 Rear

REF PART NO. QTY DESCRIPTION NOTES

45 8.716-547.0 1 CONNECTOR, 1/2" L/T, STRAIGHT BLK
46 9.802-518.0 2 STRAIN RELIEF, STRT LQ TITE LRG
47 8.730-405.0 1 PIPE, ELL 45° 3/4" BLK

(1.043-451.0)

48 8.706-037.0 1 BUSHING, 2" X 1" BLK PIPE

49 8.711-919.0 2 CASTER FIXED, 2-1/2"
50 9.802-791.0 2 CAGE NUT, 10/32"
51 9.802-698.0 4 SCREW, 10/32" X 1/2" BH, SOC, SS
52 8.718-568.0 4 WASHER, 1/4" RUBBER
53 9.804-140.0 1 DECAL, WARNING
54 8.913-749.0 1 BRACKET, HINGE RETAINER
55 9.804-185.0 1 LATCH, VISE-ACTION SIDE ACC CVR
56 8.930-155.0 1 ELBOW, 3/4" NPT, 45° GALV
57 8.725-297.0 2 WASHER, HINGE BULLET 6 MM PIN BRASS
58 9.804-374.0 2 LABEL, KEEP DRY
59 8.718-794.0 2 SCREW , 10/32" X 3/4" HEX SS
60 8.725-296.0 2 WASHER, HINGE BULLET 8MM PIN BRASS
61 8-718-806.0 1 SCREW, 1/4-20 X 1/2" SHCS SS
62 8.921-274.0 1 SPACER, BRAKE LINK, 800
63 8.900-587.0 1 LABEL, APW WARNING/OPS INST
64 9.804-223.0 1 LABEL, MAINTENANCE INST, APW

(1.043-452.0)

(1.043-453.0)

39Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Auto Fill, Detail Brush & Power Brush

1

2

3

11

5

16

21

10

17

14

9

22

23

19

13

18

8

13

15

6

12

7

To Sump
Chamber

26

30

29

28

27

24

20

25

2

19

4

20

11

(34) Plug

Installed Here

When Power
Brush Is Not

Supplied

20

20

REF PART NO. QTY DESCRIPTION NOTES

DETAIL & POWER BRUSH KIT (8.725-244.0)

1 8.712-778.0 1 PUMP -AIR DIAPHRAGM
2 8.709-117.0 3 CLAMP, HOSE, UNI.62-.75 ST
3 8.712-810.0 1 REGULATOR -AIR 1/4" NPT
4 9.804-091.0 1 BRUSH -POLYFLOW (FLO-THRU)
5 8.712-815.0 1 CLIP -DETAIL BRUSH
6 8.712-834.0 1 DRILL -PNEUMATIC AIR R-ANGLE
7 8.712-835.0 1 BRUSH -WIRE CUP 2-3/4" DIA., 1/4" STEM

8 8.712-836.0 1
9 8.712-838.0 1 PIPE -BALL VALVE 1/4" 3-WAY

HOSE -ASSEMBLY 1/4" X 60", MPT EA END POWER
BRUSH

10 9.802-254.0 24" HOSE, 1/4", PUSH-ON, FUEL LINE/FT
11 9.802-698.0 5 SCREW, 10-32" X 1/2" BH, SOC, SS
12 8.711-785.0 18" HOSE, 3/8" PUSH ON, /FT
13 9.804-567.0 5 NUT, 10/32", ESNA
14 8.718-959.0 2 WASHER, #10 FLAT S/S
15 8.915-637.0 1 BRACKET, POWER BRUSH
16 8.714-007.0 40" HOSE -1/4" ID X 7/16" OD BUNA TUBING 60 DURO
17 9.802-143.0 1 HOSE BARB, 1/4" BARB X 1/4" PIPE, 90°
18 9.802-138.0 1 HOSE BARB, 1/4" BARB X 1/4" ML PIPE, BRASS
19 8.705-104.0 2 HOSE BARB, 3/8" BARB X 1/4" ML PIPE
20 9.802-210.0 4 CLAMP, HOSE, .46-.54 ST

40

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Auto Fill, Detail Brush & Power Brush

REF PART NO. QTY DESCRIPTION NOTES

21 8.714-255.0 2 SCREW-10-24 X 1/4"SS MS PHIL
22 8.705-204.0 1 NIPPLE, 1/4" CLOSE-P/N-3326-4

23 8.712-808.0 1
24 9.802-103.0 1 BUSHING, SNAP, 5/8"

25 8.711-785.0 20" HOSE, 3/8" PUSH-ON, /FT
26 8.718-568.0 3 WASHER, 1/4" FLAT SS SEALING RUB

1 8.712-778.0 1 PUMP -AIR DIAPHRAGM
2 8.709-117.0 3 CLAMP, HOSE, UNI .62-.75 ST
3 8.712-810.0 1 REGULATOR -AIR 1/4" NPT
4 9.804-091.0 1 BRUSH -POLYFLOW (FLO-THRU)
5 8.712-815.0 1 CLIP -DETAIL BRUSH

9 8.712-838.0 1 PIPE -BALL VALVE 1/4" 3-WAY
10 9.802-254.0 24" HOSE, 1/4", PUSH-ON, FUEL LINE/FT
11 9.802-269.0 5 SCREW, 10-32" X 1/2" BH, SOS, SS
12 8.711-785.0 18" HOSE, 3/8" PUSH ON, /FT
13 9.804-567.0 5 NUT, 10/32", ESNA
14 8.718-959.0 2 WASHER, #10 FLAT S/S
16 8.714-007.0 40" HOSE -1/4" ID X 7/16" OD BUNA TUBING 60 DURO
17 9.802-143.0 1 HOSE BARB, 1/4" BARB X 1/4" PIPE, 90°
18 9.802-138.0 1 HOSE BARB, 1/4" BARB X 1/4" ML PIPE, BRASS
19 8.705-104.0 2 HOSE BARB, 3/8" BARB X 1/4" ML PIPE
20 9.802-210.0 4 CLAMP, HOSE, .46-.54 ST
21 8.714-255.0 2 SCREW-10-24 X 1/4"SS MS PHIL
22 8.705-204.0 1 NIPPLE, 1/4" CLOSE-P/N-3326-4

23 8.712-808.0 1
24 9.802-103.0 1 BUSHING, SNAP, 5/8"

25 8.711-785.0 20" HOSE, 3/8" PUSH-ON, /FT
26 8.718-568.0 3 WASHER, 1/4" FLAT SS SEALING RUB
34 8.706-328.0 1 PLUG, PIPE 1/4" NPT GALV.

6 8.712-834.0 1 DRILL -PNEUMATIC AIR R-ANGLE

7 8.712-835.0 1 BRUSH -WIRE CUP 2-3/4" DIA., 1/4" STEM
11 9.802-698.0 3 SCREW, 10-32" X 1/2" BH, SOS, SS
13 9.804-567.0 3 NUT, 10/32", ESNA
15 8.915-637.0 1 BRACKET, POWER BRUSH
26 8.718-568.0 3 WASHER, 1/4" FLAT SS SEALING RUB

27 9.802-514.0 2 STRAIN RELIEF, STRT, LQ TITE 3231 SMALL
28 8.713-149.0 1 SOLENOID VALVE, 1/2" BRASS
29 9.802-146.0 1 SWIVEL, 1/2" MP X 3/4" GHF W/STRAINER
30 9.802-423.0 18" CORD, SERVICE, SEO, 16/3, /FT COLEMAN

31 9.802-525.0 1 LOCKNUT, 1/2" NOT SHOWN
32 8.713-656.0 1 CONNECTOR, ELECTRICAL 3 PIN FEMALE NOT SHOWN
33 8.713-768.0 3 CONNECTOR, ELECTRICAL PIN MALE NOT SHOWN

FILTER -INLET
(MESH BALL 1/4" NPT 20 X 20 MESH) DETAIL PUMP

DETAIL BRUSH KIT (200.007)

FILTER -INLET
(MESH BALL 1/4" NPT 20 X 20 MESH) DETAIL PUMP

POWER BRUSH OPTION (8.725-258.0)

AUTO FILL OPTION (8.725-262.0)

41Cuda 2216 Operator’s Manual 8.941-287.0 - AE

120 V Control Panel

HEATER

5

10

2

1

14

6

12

16

9

13

3

4

15

18

17

Angles

Match

8

12

7

11

1.043.451.0

REF PART NO. QTY DESCRIPTION NOTES

1 9.804-510.0 1 SWITCH, LID, 15 AMP
2 8.713-105.0 1 SWITCH, BOOT, THREADED
3 9.800-016.0 1 LABEL DISCONNECT POWER
4 8.713-328.0 3 SWITCH, LIGHTED ROCKER SKIMMER/TT, ON/OFF
5 8.716-408.0 1 LIGHT, INDICATOR AMBER 120V
6 8.756-487.0 1 TIMER, 15 MIN, SPRING WOUND
7 8.713-315.0 1 SWITCH, MERCURY TILT
8 8.713-316.0 1 CLIP, MOUNTING

9 9.801-134.0 1 LABEL, CONTROL PANEL,115V
10 8.913-726.0 1 PANEL, CONTROL,115V
11 9.802-748.0 1 SCREW, 6/32" X 1/4", PH TRH ZINC
12 9.802-784.0 3 NUT, 6-32 KEPS
13 8.718-733.0 2 SCREW, 6/32" X 5/8", RND HB MCH
14 8.718-794.0 4 SCREW, 10/32" X 3/4" HEX SS
15 8.712-861.0 48" EDGE TRIM, NEOPRENE CONTROL PANEL
16 8.713-699.0 1 CONNECTOR, ELECTRICAL 9 PIN MALE
17 8.713-604.0 8 CONNECTOR, ELECTRICAL PIN FEM.
18 8.756-586.0 1 KNOB, TIMER, SPRING WOUND

42

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

208V, 230V, 460V, 575V, Control Panel

5

4

10

16

19

13

7

13

6

8

13

9

12

18

17

15

1

2

11

14

3

Angles

Match

REF PART NO. QTY DESCRIPTION NOTES

1 9.804-510.0 1 SWITCH, LID, 15 AMP
2 8.713-105.0 1 SWITCH, BOOT, THREADED
3 9.800-016.0 1 LABEL, DISCONNECT POWER
4 8.713-328.0 2 SWITCH, LIGHTED ROCKER SKIMMER/ TT, ON/OFF
5 8.716-408.0 1 LIGHT, INDICATOR AMBER 120V
6 8.756-489.0 1 TIMER, 60 MIN, SPRING WOUND
7 8.756-490.0 1 TIMER, 12 HOUR, SPRING WOUND
8 8.713-315.0 1 SWITCH, MERCURY TILT

9 8.713-316.0 1 CLIP, MOUNTING
10 9.801-135.0 1 LABEL, CONTROL PANEL, 208-575V
11 8.913-742.0 1 PANEL, CONTROL 230V
12 9.802-748.0 1 SCREW, 6/32" X 1/4", PH TRH ZINC
13 9.802-784.0 5 NUT, 6-32 KEPS
14 8.718-733.0 4 SCREW, 6/32" X 5/8", RND HB MCH
15 8.718-794.0 4 SCREW, 10/32" X 3/4" HEX SS
16 8.712-861.0 1 EDGE TRIM, NEOPRENE CONTROL PANEL 48"
17 8.713-699.0 1 CONNECTOR, ELECTRICAL 9 PIN MALE
18 8.713-604.0 8 CONNECTOR, ELECTRICAL PIN FEM.
19 8.756-586.0 2 KNOB, TIMER, SPRING WOUND

43Cuda 2216 Operator’s Manual 8.941-287.0 - AE

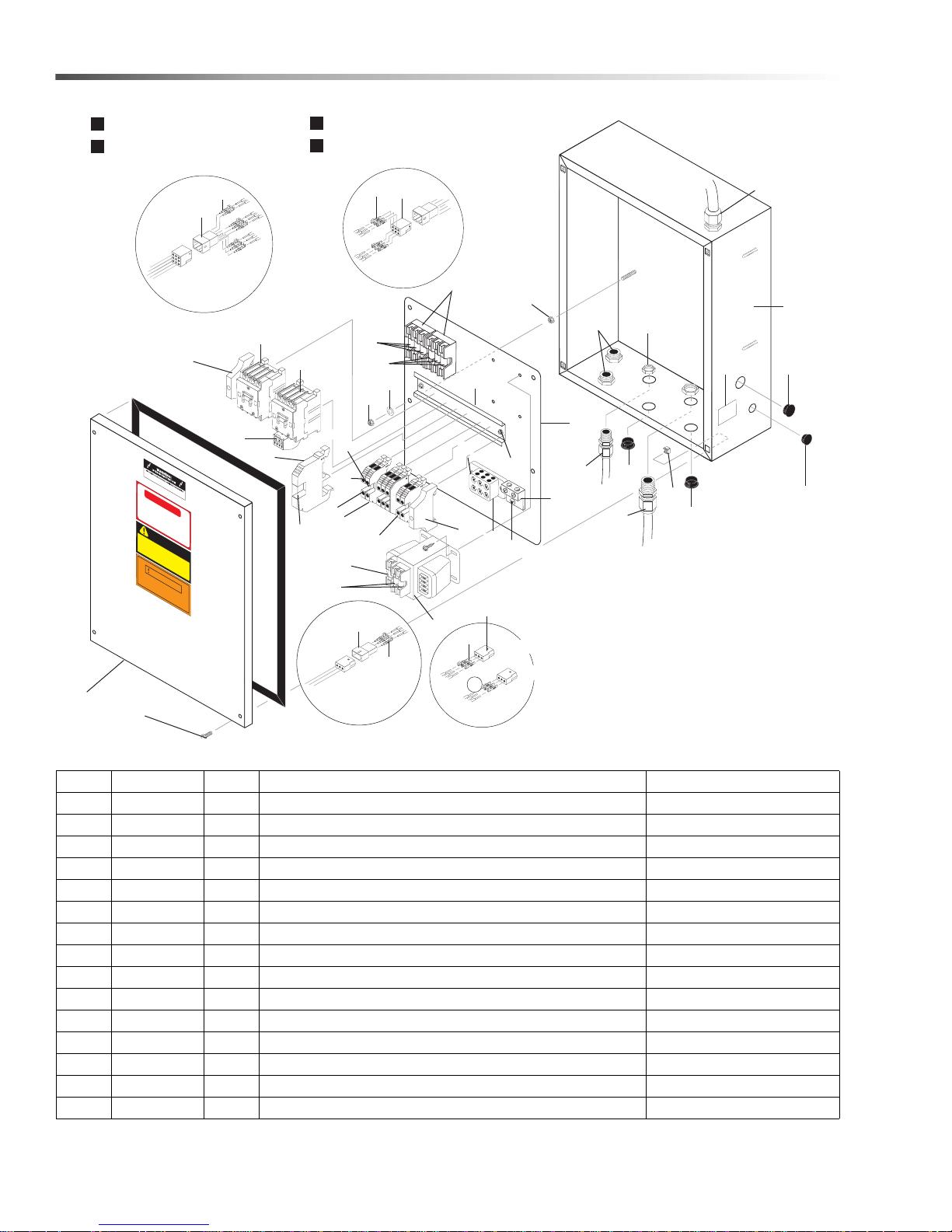

120V Electrical Panel

35

39

24

6

7

25

9

13

2

14

11

27

32

23

20

19

15

1

3

15

8

29

17

12

34

35

33

27

16

37

18

21

31

30

28

From Oil

Skimmer

Oil Skimmer

Auto Fill Option

To

Control

Panel

Timer

Option

10

5, 26

4

29

38

41

36

40

9

1.043.451.0

D

ANGER

HIGH

V

OLT

A

GE

WARNING

WARNING

REF PART NO. QTY DESCRIPTION NOTES

1 9.802-457.0 7.5" DIN RAIL, 35 MM
2 9.802-802.0 4 WASHER, 1/4 FLAT
3 8.713-086.0 1 GROUND, LUG 2 HOLE ALUM
4 8.716-398.0 4 TERMINAL BLOCK, BLUE
5 8.716-396.0 3 TERMINAL BLOCK, GRAY
6 8.753-367.0 1 RELAY, SPDT
7 8.753-368.0 1 RELAY, BASE
8 8.714-164.0 1 TERMINAL BLOCK, 2 POSITION

9 8.750-864.0 2 CONTACTOR, 3 POLE 16 AMP
10 8.716-599.0 2 TERMINAL, GROUNDING, GRN W/YEL.
11 9.802-775.0 4 NUT, 1/4" FLANGE, ZN
12 9.802-073.0 36" WEATHER STRIP, 1/8" X 1/2"
13 9.802-773.0 4 NUT, 1/4", ESNA, NC
14 8.913-709.0 1 PLATE, ELEC PANEL
15 8.718-936.0 3 SCREW, #8 X 1/2", PHIL., ZINC PLTD

44

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

120V Electrical Panel

REF PART NO. QTY DESCRIPTION NOTES

16 8.718-937.0 2 SCREW, #8 X 3/4", PHIL., ZINC PLTD
15 8.718-936.0 3 SCREW, #8 X 1/2", PHIL., ZINC PLTD
16 8.718-937.0 2 SCREW, #8 X 3/4", PHIL., ZINC PLTD
17 8.718-794.0 4 SCREW , 10/32" X 3/4" HEX SS
18 9.802-791.0 4 NUT, CAGE, 10/32"
19 9.802-517.0 2 CONNECTOR, 1/2" L/T, 90°, BLK
20 9.802-518.0 2 STRAIN RELIEF, STRT, LQ TITE LRG.
21 9.802-514.0 1 STRAIN RELIEF, STRT, LQ TITE SM.
22 9.802-526.0 2 LOCKNUT, 3/4" NOT SHOWN
23 8.913-710.0 1 BOX, ELECTRICAL
24 8.941-090.0 1 COVER, ELECTRICAL BOX
25 8.716-399.0 1 END COVER, ENTRELEC
26 8.755-017.0 1 TERMINAL BLOCK JUMPER, 3 POLE
27 8.713-604.0 12 CONNECTOR, ELEC PIN FEM.
28 8.735-008.0 1 PLUG, 1-1/4" HOLE
29 9.804-595.0 2 END BRACKET, ENTRELEC
30 8.716-116.0 1 FUSE 3 AMP
31 8.716-224.0 1 HOLDER, FUSE BLOCK, PANEL MT
32 8.713-697.0 1 CONNECTOR, ELEC 6 PIN MALE
33 8.713-603.0 2 CONNECTOR, ELEC 3 PIN MALE
34 8.713-656.0 1 CONNECTOR, ELEC 3 PIN FEM.
35 8.713-768.0 11 CONNECTOR, ELEC PIN MALE
36 9.802-515.0 1 STRAIN RELIEF, STRT, LQ TITE
37 9.802-105.0 2 PLUG, 7/8" HOLE
38 9.804-297.0 1 LABEL, HOUR METER
39 8.713-656.0 1 CONNECTOR, ELEC 9 PIN FEM.
40 8.716-547.0 1 CONNECTOR, 1/2" L/T STRT.BLK
41 9.802-525.0 2 LOCKNUT, 1/2"

45Cuda 2216 Operator’s Manual 8.941-287.0 - AE

208V, 1 PH Electrical Panel

9

2

7

6

8

16

18

1

12

3

40

20

11

19

21

20

26

31

38

41

29

30

10

25

4

39

5

24

23

39

22

20

37

33

45

36

From Oil

Skimmer

Oil Skimmer

Auto Fill Option

Control

Panel

Timer

Option

46

43

44

13

17

14

15

35

36

37

34

42

32

27

47

1.043.453.0

DANGER

HIGH VOLTAG

E

WARNING

WARNING

REF PART NO. QTY DESCRIPTION NOTES

1 8.913-709.0 1 PLATE, ELEC PANEL

2 8.716-895.0 1 TRANSFORMER, 200VA 230-460V/115V

3 8.713-290.0 2 FUSE BLOCK (H2PR) 2-POLE

4 8.714-290.0 1

5 8.750-866.0 1 CONTACTOR, 3-POLE 9 AMP

6 8.750-874.0 1 OVERLOAD, 8.0-12 AMP

7 8.753-368.0 1 RELAY, BASE

8 8.753-367.0 1 RELAY, SPDT

9 8.713-369.0 2 FUSE, 25 AMP
10 8.713-286.0 2 FUSE, CLASS R 2 AMP FNQ -R-2
11 8.713-078.0 1 FUSE, 2 AMP FNM-2
12 8.713-912.0 2 FUSE 10 AMP
13 8.716-599.0 2 TERMINAL, GROUNDING, GRN/YEL
14 8.716-398.0 3 TERMINAL, BLOCK, BLUE
15 8.716-396.0 3 TERMINAL BLOCK, GRAY

46

CONTACTOR, GENERAL PURPOSE
2-POLE 230V 30 AMP

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

208V, 1 PH Electrical Panel

REF PART NO. QTY DESCRIPTION NOTES

16 8.716-399.0 1 END COVER, ENTRELEC
17 8.755-017.0 1 TERMINAL BLOCK JUMPER, 3 POLE
18 8.714-164.0 1 TERMINAL BLOCK, 2-POSITION
19 8.713-086.0 1 GROUND, LUG 2 HOLE ALUM
20 8.718-936.0 15 SCREW, #8 X 1/2", PHIL, ZINC
21 8.718-937.0 2 SCREW, #8 X 3/4", ZINC,HEX TEK
22 9.802-775.0 4 NUT, 1/4", FLANGE, ZN
23 9.802-802.0 4 WASHER, 1/4", FLAT, SAE
24 9.802-773.0 4 NUT, ESNA, NC
25 8.718-794.0 4 SCREW, 10/32" X 3/4" HEX SS
26 9.802-518.0 1 STRAIN RELIEF, STRT, LQ TITE LG
27 9.802-515.0 1 STRAIN RELIEF, STRT, LQ TITE
28 9.802-526.0 2 LOCKNUT, 3/4 " NOT SHOWN
29 8.716-547.0 1 CONNECTOR, 1/2" L/T, BLK
30 9.802-791.0 4 NUT, CAGE, 10/32"
31 8.913-710.0 1 BOX, ELECTRICAL
32 8.941-090.0 1 COVER, ELECTRICAL BOX
33 8.713-697.0 1 CONNECTOR, ELEC 6 PIN MALE
34 8.713-603.0 2 CONNECTOR, ELEC 3 PIN MALE
35 8.713-656.0 1 CONNECTOR, ELEC 3 PIN FEM.
36 8.713-768.0 11 CONNECTOR, ELEC PIN MALE
37 8.713-604.0 12 CONNECTOR, ELEC PIN FEMALE
38 8.714-839.0 1 PLUG, PLASTIC BLACK 1/2" HOLE
39 9.804-595.0 2 END BRACKET, ENTRELEC
40 9.802-457.0 6" DIN RAIL 35 MM
41 9.804-297.0 1 LABEL, HOUR METER
42 9.802-073.0 52.5" WEATHERSTRIP 1/8" X 1/2" X 75"
43 9.802-105.0 2 PLUG, 7/8" HOLE
44 8.735-008.0 1 PLUG, 1 1/4" HOLE
45 8.713-656.0 1 CONNECTOR, ELEC 9 PIN FEM.
46 9.802-517.0 2 CONNECTOR, 1/2" L/T 90°, BLK
47 9.802-525.0 1 LOCKNUT, 1/2"

47Cuda 2216 Operator’s Manual 8.941-287.0 - AE

230V, 1 PH Electrical Panel

9

2

7

6

8

16

18

1

12

3

40

20

11

19

21

20

26

31

38

41

29

30

10

25

4

39

5

24

23

39

22

20

37

33

45

36

From Oil

Skimmer

Oil Skimmer

Auto Fill Option

Control

Panel

Timer

Option

46

43

44

13

17

14

15

35

36

37

34

42

32

27

47

1.043.452.0

DANGER

HIGH VOLTAG

E

WARNING

WARNING

REF PART NO. QTY DESCRIPTION NOTES

1 8.913-709.0 1 PLATE, ELEC PANEL

2 8.716-875.0 1 TRANSFORMER, 200VA 230-460V/115V-240V

3 8.713-290.0 2 FUSE BLOCK (H2PR) 2-POLE

CONT ACTOR, GENERAL PURPOSE 2-POLE 230V 30

48.714-290.01

AMP
5 8.750-866.0 1 CONTACTOR, 3-POLE 9 AMP
6 8.750-874.0 1 OVERLOAD, 8.0-12 AMP
7 8.753-368.0 1 RELAY, BASE
8 8.753-367.0 1 RELAY, SPDT
9 8.713-369.0 2 FUSE, 25 AMP

10 8.713-286.0 2 FUSE, CLASS R 2 AMP FNQ -R-2
11 8.713-078.0 1 FUSE, 2 AMP FNM-2
12 8.713-912.0 2 FUSE 10 AMP
13 8.716-599.0 2 TERMINAL, GROUNDING, GRN/YEL
14 8.716-398.0 3 TERMINAL, BLOCK, BLUE
15 8.716-396.0 3 TERMINAL BLOCK, GRAY

48

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

230V, 1 PH Electrical Panel

REF PART NO. QTY DESCRIPTION NOTES

16 8.716-399.0 1 END COVER, ENTRELEC
17 8.755-017.0 1 TERMINAL BLOCK JUMPER, 3 POLE
18 8.714-164.0 1 TERMINAL BLOCK, 2-POSITION
19 8.713-086.0 1 GROUND, LUG 2 HOLE ALUM
20 8.718-936.0 15 SCREW, #8 X 1/2", PHIL, ZINC
21 8.718-937.0 2 SCREW, #8 X 3/4", ZINC, HEX TEK
22 9.802-775.0 4 NUT, 1/4", FLANGE, ZN
23 9.802-802.0 4 WASHER, 1/4", FLAT, SAE
24 9.802-773.0 4 NUT, ESNA, NC
25 8.718-794.0 4 SCREW, 10/32" X 3/4" HEX SS
26 9.802-518.0 1 STRAIN RELIEF, STRT, LQ TITE LG
27 9.802-515.0 1 STRAIN RELIEF, STRT, LQ TITE
28 9.802-526.0 2 LOCKNUT, 3/4" NOT SHOWN
29 8.716-547.0 1 CONNECTOR, 1/2" L/T, BLK
30 9.802-791.0 4 NUT, CAGE, 10/32"
31 8.913-710.0 1 BOX, ELECTRICAL
32 8.941-090.0 1 COVER, ELECTRICAL BOX
33 8.713-697.0 1 CONNECTOR, ELEC 6 PIN MALE
34 8.713-603.0 2 CONNECTOR, ELEC 3 PIN MALE
35 8.713-656.0 1 CONNECTOR, ELEC 3 PIN FEM.
36 8.713-768.0 11 CONNECTOR, ELEC PIN MALE
37 8.713-604.0 12 CONNECTOR, ELEC PIN FEMALE
38 8.714-839.0 1 PLUG, PLASTIC BLACK 1/2" HOLE
39 9.804-595.0 2 END BRACKET, ENTRELEC
40 9.802-457.0 6" DIN RAIL 35 MM
41 9.804-297.0 1 LABEL, HOUR METER
42 9.802-073.0 52.5" WEATHERSTRIP 1/8" X 1/2" X 75"
43 9.802-105.0 2 PLUG, 7/8" HOLE
44 8.735-008.0 1 PLUG, 1-1/4" HOLE
45 8.713-656.0 1 CONNECTOR, ELEC 9 PIN FEM.
46 9.802-517.0 2 CONNECTOR, 1/2" L/T 90°, BLK
47 9.802-525.0 1 LOCKNUT, 1/2"

49Cuda 2216 Operator’s Manual 8.941-287.0 - AE

208V, 230V, 460V, 575V 3 PH Electrical Panel

D

ANGER

HIGH VOLTAGE

WARNING

WARNING

15

1

14

31

47

30

17

25

32

9

6

8

12

3

4

5

22

20

19

20

24

23

26

21

18

16

7

13

33

38

36

39

From Oil

Skimmer

Oil Skimmer

Auto Fill Option

Control

Panel

Timer

Option

37

39

35

33

27

29

43

44

46

11

10

2

42

48

42

41

41

45

1.043.457.0 (208V)

1.043.454.0 (230V)

1.043.455.0 (460V)

1.043.456.0 (575V)

REF PART NO. QTY DESCRIPTION NOTES

1 8.913-709.0 1 PLATE, ELEC PANEL
2 8.716-895.0 1 TRANSFORMER, 200V A, 208V

- 8.716-875.0 1 TRANSFORMER, 200VA, 230-460V/115V

- 8.713-907.0 1 TRANSFORMER, 575V/115V

3 8.713-282.0 2 FUSE BLOCK, 30A 3-POLE (208V, 230V)

- 8.713-061.0 1 FUSE BLOCK, (C3P) 3-POLE (460V, 575V)

4 8.750-863.0 1 CONTACTOR, 3-POLE, 30A (230V, 208V)

- 8.750-864.0 1 CONTACTOR, 3-POLE, 16A (460V, 575)
5 8.750-866.0 1 CONTACTOR, 3-POLE, 9 A
6 8.750-872.0 1 OVERLOAD, 4.0-6.3 AMP, (230V 208V)

- 8.750-871.0 - OVERLOAD, 2.5-4.1 AMP, (460V)

- 8.750-870.0 - OVERLOAD, 1.8-2.7 AMP, (575V)
7 8.753-368.0 1 RELAY, BASE
8 8.753-367.0 1 RELAY, SPDT
9 8.713-369.0 3 FUSE, 25 AMP (208V)

50

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

208V, 230V, 460V, 575V 3 Ph Electrical Panel

REF PART NO. QTY DESCRIPTION NOTES

- 8.713-288.0 - FUSE, 20 AMP, NON-20 (230V)

- 8.713-066.0 - FUSE, CLASS CC 10 AMP (460V)

- 8.713-529.0 - FUSE, CLASS CC 8 AMP (575V)
10 8.713-286.0 2 FUSE, CLASS R 2 AMP FNQ-R-2
11 8.713-078.0 1 FUSE, 2 AMP FNM-2
12 8.713-878.0 3 FUSE, CLASS R 8 AMP,(208V, 230V)

- 8.713-064.0 - FUSE, CLASS CC 3 1/2 AMP, (460V)

- 8.713-069.0 - FUSE, CLASS CC 3 AMP, (575V)
13 8.716-599.0 2 TERMINAL, GROUNDING, GRN/YLW
14 8.716-398.0 2 TERMINAL BLOCK, BLUE
15 8.716-396.0 3 TERMINAL BLOCK, GRAY
16 8.716-399.0 1 END COVER, ENTRELEC
17 8.755-016.0 1 TERMINAL BLOCK JUMPER, 2 POLE
18 8.714-512.0 1 TERMINAL BLOCK, 3 POSITION
19 8.713-086.0 1 GROUND, LUG 2 HOLE ALUM
20 8.718-936.0 11 SCREW, #8 X 1/2", PHIL, ZINC PLTD
21 8.718-937.0 6 SCREW, #8 X 3/4", PHIL, ZINC PLATED, HEX, TEK
22 9.802-775.0 4 NUT, 1/4" FLANGE, ZN
23 9.802-802.0 4 WASHER, 1/4", FLAT, SAE
24 9.802-773.0 4 NUT, 1/4" ESNA, NC
25 8.718-794.0 4 SCREW , 10/32" X 3/4" HEX SS
26 9.802-518.0 1 STRAIN RELIEF, STRT, LQ TITE LG.
27 9.802-515.0 1 STRAIN RELIEF, SRT LQ TITE
28 9.802-526.0 1 LOCKNUT, 3/4" NOT SHOWN
29 9.802-517.0 3 CONNECTOR, 1/2" L/T, 90°, BLK
30 9.802-793.0 4 NUT, CAGE, 1/4" X 16 GA
31 8.913-710.0 1 BOX, ELECTRICAL
32 8.941-090.0 1 COVER, ELECTRICAL BOX
33 8.713-604.0 7 CONNECTOR, ELECT PIN FEM.
34 8.713-697.0 1 CONNECTOR, ELECT 3 PIN MALE
35 8.713-603.0 2 CONNECTOR, ELECT. 3 PIN MALE
36 8.713-656.0 1 CONNECTOR, ELECT. 3 PIN FEM.
37 8.713-698.0 1 CONNECTOR, ELECT. 9 PIN FEM.
38 8.713-697.0 1 CONNECTOR, ELECT. 6 PIN MALE
39 8.713-768.0 11 CONNECTOR, ELECT. PIN MALE
40 8.714-839.0 1 PLUG, PLASTIC BLK 1/2" HOLE
41 9.804-595.0 2 END BRACKET, ENTRELEC
42 9.802-105.0 2 PLUG, 7/8" HOLE
43 8.714-839.0 1 PLUG, PLASTIC BLK 1/2" HOLE
44 9.804-297.0 1 LABEL, HOUR METER
45 9.802-457.0 7.5" DIN RAIL 35 MM
46 8.735-008.0 1 PLUG, 1-1/4" HOLE
47 8.716-547.0 1 CONNECTOR, 1/2" L/T BLK
48 9.802-525.0 1 LOCKNUT, 1/2"

51Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Oil Skimmer

14

10

5

1

4

2

1

7

20

1

8

11

12

18

6

15

17

13

16

1

19

9

3

DRY

KEEP

52

Cuda 2216 Operator’s Manual 8.941-287.0 - AE

Oil Skimmer

REF PART NO. QTY DESCRIPTION NOTES

1 8.718-810.0 11 SCREW, 10/32" X 1/2" WHIZ LOC FLANGE
2 8.913-733.0 1 COVER, MOTOR, DISC SKIMMER SS
3 8.718-968.0 4 WASHER #10 FLAT ZINC PLT
4 9.804-102.0 2 BLADE, WIPER, DISC SKIMMER SS
5 9.802-773.0 3 NUT, 5/16 ESNA
6 8.918-672.0 1 DISC, SKIMMER SS
7 9.802-791.0 4 NUT, CAGE, 10/32" X 16 GA.
8 9.802-514.0 1 STRAIN RELIEF, STRT LQ TITE SM

9 9.802-525.0 1 LOCKNUT, 1/ 2"
10 8.904-676.0 1 MOTOR, DISC SKIMMER
11 8.719-987.0 1 HUB, DISC MOUNT, DISC SKIMMER
12 8.719-068.0 1 PIN, ROLL 1/8" X 1" STEEL
13 9.804-137.0 1 GASKET, SKIMMER BASE
14 9.802-802.0 3 WASHER, 1/4" FLAT
15 8.913-732.0 1 OIL SKIMMER, SMALL

- 8.922-839.0 1 OIL SKIMMER, SMALL, SS
16 8.718-568.0 3 WASHER, 1/4" SEALING
17 9.804-567.0 4 NUT, 10/32 ESNA
18 9.804-564.0 2 SCREW, 6-22 X 12
19 9.802-423.0 36" CORD, SERVICE, SEO, 16/3 /FT
20 9.804-374.0 1 LABEL, KEEP DRY

53Cuda 2216 Operator’s Manual 8.941-287.0 - AE

8.941-287.0 • Printed in U.S.A.
