Cuckoo CRP-HV06 User Manual
CRP-HV06 Fuzzy Series
1.08L(1~6Persons) / 1.08L(1~6 )
Operating Instructions
NO.1 CUCKOO
Electric Pressure Rice cooker/warmer
Read the following instruction manual before use. Save this
instruction manual for future reference. This manual will be useful if
you have any questions or have problems operating the rice cooker.
Important safeguards
3
4
35~38
39
40~42
43
43
44
44
45
46
47
48~49
49
50~52
53~54
55
56~57
57
58~60
61
61
62~64
74~83
Important safeguards 3
Specifications
4
Safety precautions
5~8
Name of each part
9
How to clean
10~12
Function operating part
13
How to set current time 14
How to set or cancel voice guide function
14
Night voice volume reduction / Woman and man voice setting function
15
Before cooking rice
16
For the best taste of rice
17
How to cook
18~19
MY MODE (Cuckoo Customized Taste Function)
20~22
How to use “GABA RICE(Brown rice)”
23~24
How to cook the MULTI-COOK and NU RUNG JI
25
How to preset timer for cooking
26~27
How to use simple soft function
27
To keep cooked rice warm and tasty
28~30
How to use power saving function
31
How to lock buttons
31
Check before asking for service 32~34
Cooking Guide 65~73
CONTENTS
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do not immerse cord, plugs, or Pressure
Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children.
This appliance is not intended for use by young children without supervision.
5. Unplug from outlet when not in use and before cleaning.
Allow appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has
been damaged in any manner. Return the appliance to the nearest authorized service facility for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire,
electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or
set all control to off , then remove the plug from the wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a
risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, etc while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods.
These foods tend to foam, froth, and sputter, and may block the pressure releasing device.
20. Before use always check the pressure releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced.
See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.
23. Be sure that handles are assembled and fastened properly before each use.
Cracked, broken or charred handles should be repalced.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING : This appliance generates heat and releases steam during use. Use proper precaution to
prevent risk of burns, fires, other injuries, or damage to property.
1. Keep hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot nor any heating parts, immediately after use.
Allow the unit to cool down completely first.
ADDITIONAL IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
Note:
A. A short power-supply cord (or cord set) is provided to reduce the hazards from entanglement by a longer cord.
B. Extension cord should be used properly.
C. Extension cord usage for the rice cooker:
(1) The correct rated voltage should be used for the rice cooker.
(2) If the appliance is set on the ground, the extension cord should also be set on the ground.
(3) The cord wires and extension cord should always be arranged to prevent hazards to children.
This appliance has a polarized plug : (one blade is wider than the other).
As a safety feature, this plug will fit in a polarized outlet only one way.
If the plug does not properly fit in the outlet, turn the plug over.
If it still does not fit, contact a qualified electrician.
Please, keep this safety feature.
CRP-HV06 Fuzzy Series
AC
120V, 6
0Hz
1040W
0.18~1.08L (1~6cups)
0.18~0.27L (1~1.5cups)
1.0m
78.4KPa(0.8kgf/
cm
2
)
5.6kg
26.5
cm
36.2cm
25.4cm
HOW TO USE EXTENSION CORD
SPECIFICATIONS /
HOW SERVICE IS HANDLED
The East and the Central Districts
Tel. No. (718) 888-9144
The West and the Central Districts
Tel. No. (213) 687-9828
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004 / 604 523 1004
USA Canada
0.36~0.72L (2~4cups)
SAFETY PRECAUTIONS
www.cuckoo.co.kr
Do not alter, reassemble,
disassemble or repair.
It can cause fire, electric
shock or injury.
For repair, contact dealer
or the service center.
Do not use the cooker near
hot things such as stove,
gas stove or direct ray
of light.
It can cause an electric shock,
fire, deformation, malfunction or discoloration.
Please check the power cord and plug frequently.
Read the following product safety guide carefully to prevent any accidents and/or serious danger.
‘Warning’ and ‘Caution’ are different as follows.
Do not cover the automatic
steam outlet or pressure
weight with your hand or
face.
It can cause burns.
Especially be careful to keep
it out of children’s reach.
Do not let the cooker contact any water
by sprinkling water on the cooker.
It can cause an electric shock or fire.
If it contacts water, please separate power cord
and contact dealer and service center.
Do not use damaged
power cord, plug or
loose socket.
Please check the power cord frequently for damage.
Serious damage can cause electric shock or fire.
If the plug is damaged, contact the dealer or a service
center.
Use a single socket with
the rated current
above 15A.
Using several lines in one socket
can cause overheating or fire.
Please check the power cord and plug frequently.
Use an extension cord with the rated current
above 15A.
Please pay careful
attention against water
and chemicals.
It can cause an electric
shock or fire.
This sign is intended to remind and alert that something
may cause problems under the certain situation.
Please read and follow the instruction to avoid any harmful
situation.
Indicates a prohibition
This means that the action it describes may
result in death or severe injury.
This means that the action it describes may
result in injury or property damage.
Indicates an instruction
Warning
Caution
Warning Do not
SAFETY PRECAUTIONS
Do not insert metal objects
such as pins and wires or any
other external substances in
the automatic steam exhaust
outlet or any other slot.
It can cause an electric shock or fire.
Especially be careful to keep it out of reach of children.
Do not use pots that are not
designed for the cooker.
Do not use abnormal pot and
do not use without inner pot.
It can cause an electric shock or fire.
<Inner pot>
Do not cover the automatic
steam outlet or pressure
weight with a duster,
a towel, or apron, etc.
It can cause deformation or a breakdown.
It can cause an explosion by pressure.
Don’t spray or put any
insecticide and chemicals.
It can cause an electric shock or fire.
If cockroaches or any insects
get inside the cooker, please call a dealer
or a service center.
Damages by impact can cause an
electric shock or fire.
Please check the power cord and plug frequently.
Be careful that both the plug
and power cord are not to be
bit by animals, or shocked by
sharp metal materials.
Do not put any needle, cleaning pin etc in
the ventilator or any gap of the cooker.
Do not turn the Lock/Unlock Handle to
“Unlock” during cooking.
The hot steam or any hot content within the cooker
can cause burns.
After you finish the cooking do not try to open the
cooker by force until the steam is completely
exhausted.
Do not insert cleaning pins to other parts except to
the valve hole of the pressure weight.
It can cause an electric shock or fire.
Keep the cooker out of children’s reach.
It can cause burns, electric shock or injury.
Do not use it without the inner pot.
It can cause electric shock or malfunction.
Do not pour rice or water without the inner pot.
If rice or water gets in then do not turn the product over
or shake it please contact to dealer or service center.
Remove external substances on plug with
a clean cloth.
It can cause fire. Please check the power cord and plug frequently.
Do not place heavy things on the power cord.
It can cause an electric shock or fire.
It can cause an electric shock or short
circuit resulting in fire. Please check the power
cord and plug frequently.
Do not bend, tie or pull the
power cord by force.
Do not open the top cover during heating
and cooking.
It can cause burns.
If you need to open the lid while cooking, keep
pressing the cancel button for 2 seconds and confirm
internal steam is released, completely turning the
pressure weight over.
When separated, the steam control vent can be blocked.
Do not pull out the clean steam vent by force.
If you have any problem with assembly and
cleaning of the clean steam vent, please call
a dealer or service center.
Keep clean the product before and after use.
Please make sure you clean and check
the assembly condition of the clean
steam vent before and after use.
Steam plate
Metal
objects
Warning Do not
Don’t use the cooker near a
magnetic field.
It can cause burns or breakdown.
Use product on a flat surface.
Do not use on a cushion.
Please avoid using it on an
unstable location prone to
falling down.
It can cause malfunction or a fire. Please check the
power cord and plug frequently.
SAFETY PRECAUTIONS
www.cuckoo.co.kr
Caution Do not
When this unit is working, it can influence any electrical
medical equipment.
If you use cardiac pacemakers
or electrical medical
supporting equipment, consult
a doctor before using this unit.
Do not use on a rice chest
or a shelf.
Do not place the power cord
between furniture. It can cause
an electric shock resulting in fire.
Please check the power cord and plug frequently.
When using on furniture be cautious of steam release
As it can cause damage, fire or electric shock.
Please use the cooker for original
purposes.
Please surely pull out the
plug when not in use.
It can cause electric shocks or fire.
It can cause the malfunction or smell.
Do not touch the metallic surface of the inner
pot and pressure weight after cooking or warming.
It can cause burns.
Remaining hot steam can cause burns when you tilt
the pressure weight during and after the cooking.
It can cause overflow or breakdown.
Do not cook over the capacity stated for cooking of
chicken soup and congee.
First pull out the power cord.
Please contact dealer or service center
when strange smell or smoke has occurred.
Do not use over the maximum capacity.
Do not plug or pull the power cord with
wet hands.
It can cause an electric shock.
Clean any dust or external
substances off the
temperature sensor and
inner pot.
It can cause a system malfunction or fire.
Do not drop the cooker or impact.
It can cause malfunction.
Don’t use for various purposes for inner pot.
It can cause deformation of the inner pot.
It can cause to spill the inner coating.
Warning Remember
SAFETY PRECAUTIONS
Do not place on rough top
or tilted top.
It can cause burns or breakdowns.
Be careful to install the power cord
to pass without disruption.
Do not hold the cooker by the inner pot handle.
It can cause problems and danger. There are portable
handles on the bottom right and left side of the cooker.
Hold the handles with both hands and move it carefully.
Wipe off any excessive water on the cooker
after cooking.
It can cause odor and discoloration.
Wipe off water that is left behind from dew.
If power fails during rice cooking, automatic
vapor emission device may work,
leading to dispersion of contents.
Cook rice with specified amounts of rice and water.
In particular, water more than specified amount may
cause overflowing of contents.
Cook rice while soft steam cap is mounted.
Maintain more than 30cm of distance from
the product while using.
A magnetic field can be released from electronic goods.
Do not keep easily spoiled food warm in the
product such as red bean rice, mixed food,
croquette or gratin.(Except white rice)
Even if power plug is unplugged,
turn lid combining hand grip
always to (Lock) location.
When you pull out the power
plug, don’t pull the power
cord. Please, safely pull out
the power plug.
If you inflict impact on power cord,
it can cause an electric shock or fire.
Be cautious when steam is being released
Please clean the body and
other parts after cooking.
When the steam is released don’t be surprised.
Please keep the cooker out of reach of children.
After cooking chicken soup or, multi
cook dishes, etc., the smell may be absorbed.
Clean the oven packing, top heater plate and
inner pot every time you cook any of those.
It can cause alteration or smell.
Use dry kitchen cleaner or sponge to clean the inner pot,
since rough scrub or metallic ones are abrasive to the coating.
Depending on the using methods or user's circumstances
inner pot coating might rise.
Please call the customer service for those cases.
Please, do not pull out the clean steam vent by force.
After you finish cooking, do
not try to open the cooker
by force until the steam is
completely exhausted.
The hot steam or any hot content within
the cooker can cause burns.
Cautiously open the top cover after cooking is
done to avoid dangerous steam and burns.
Please call customer
service if the inner pot
coating peels off.
Oven coating may wear away
after long use.
When cleaning the inner pot, do not use tough scrubber,
metallic scrubber, brush, abrasive metallic etc.
When the exterior of inner pot is titanium ion plated.
The exterior of titanium inner pot can get darker when
used for a long time.
Use dry kitchen cleaner or sponge to clean the inner
pot since rough scrub or metallic ones might cause
scratch on the exterior of the plating.
The friction of the inner pot with sink or other
appliances can cause its plating’s to come off.
(No problem to use it)
In case My Cauldron is hot or hot cooked rice is
left after cooking is completed, close lid and turn lid
combining hand grip to (Lock) direction even after
unplugging power plug. Otherwise product deformation or
damage may occur by internal pressure.
Be sure to turn lid combining hand grip to (Lock) direction
during cooking and heat preservation before use.
Caution Remember
Caution Do not
Tough crubber
Abrasive
Material Brush
Metallic crubber
NAME OF EACH PART
www.cuckoo.co.kr
Name of each part
Plated inner pot with titanium ion (The outside)
Name of each part
Pressure Weight
Always keep it horizontal.It stabilizes steam
inside of the oven. Pressure weight is
twisted, it release steam.
Feature
1.By plating the surface with titanium the inner pot is more durable
2.Durable against corrosion
3.Exterior is plated with gold titanium
Soft Steam Cap
Automatic Steam Exhaust Outlet
(Solenoid valve)
When finished cooking or during warming ,
steam is automatically released.
Lock/Unlock Handle (Set the
handle to lock when cooking or
warming the rice)
The handle has to turn to ‘Lock’ for operation.
Clamp Knob
Turn handle to ‘Unlock’, and then press
Clamp knob to open.
Control Panel
Accessories
Manual&Cooking Guide
Rice Scoop
Rice Measuring Cup
Steam Plate
Cleaning Pin
(Attached on the
bottom of the unit)
(Refer to page12)
Dew Dish
Empty the water out of a
dew dish after cooking or
keepwarming. Leaving the
water in the dew dish results in bad smell.
Handle
Inner Pot(Oven)
Place the inner pot Into
the body property.
Clean Steam Vent
Power Cord
Power Plug
Temperature Sensor
Cover Packing
Rice Scoop holder
Pot Handle
Detachable Cover
Top Cover Assy
HOW TO CLEAN
Correct example
-Unless you clean the detachable cover, it can cause bad smell (After it cool down, unplug it, then clean it).
-Body and cover should be cleaned by a dry dish towel. Do not use bentol while using rice cooker, starch can If
there are white starch substances it is harzardous to your health.
-Do not put substances like screw into the hole of the detachable cover look at the back cover and front cover
carefully before inserting it.
Detachable cover & Pressure packing
After cleaning detachable cover thoroughly, put the lid back.
Do not put substances like screw into hole of detachable cover.
Look up back cover and front cover.
If you pull out the detachable cover
as the arrow point, it can be easily
separated.
Frequently, clean the cover with a
neutral detergent.
When cleaning the detachable
cover, hold and pull the both side
wing of the cover, then separate
the packing and the handle.
In case you fix packing into the
detachable cover. Hold it between
by turning the packing after putting
the pack at the edge of the
separate cover.
Detachable cover handle should be
inserted from the other side of the
cover then put the cover handle in
between
When putting the cover into the lid,
press the cover handle after fitting
the handle into the groove inside as
the arrow point.
the back side
the back side of
cover packing
the front
A cover of
the inner pot
A groove
the front of packing
the front of handle
no projection
the back side of packing
the back side of handle
projection
representing
the front
HOW TO CLEAN
www.cuckoo.co.kr
1. Handle must be located at “Lock” during Cooking.
The lamp turning on, means the top cover is closed
perfectly, so you can cook.
2. After cooking, the handle must be turned from
“Lock” to “Unlock”, and then push clamp knob to open.
It is hard to open when there is remained steam in the
Inner pot. At the time, twist pressure weight and let the
steam out. Do not open by force.
3. Handle must be located at “Unlock” when open and close.
If the lamp does not turn on, it would
not operate Cook and Preset buttons.
Make sure the handle must be
located at “Lock”.
How to use handle
2. To close the top cover, the handle must
be located at “Unlock” as the right
picture.
1. Check the inner pot correctly put in the
main body.
3. If there is hot things in the inner pot,
the top cover would not close.
At the time twist the pressure weight
and let the steam out and then close
the top cover.
Do not try to close the top cover by force. It can cause problems.
Cautions when top cover does not close perfectly
Wipe the inner upper and outer of the
inner pot of any alien substance.
Do not use tough scrubber, metallic
scrubber, brush, abrasive material etc.
INNER POT
Check if there is any rice or alien
substance on the oven packing.
OVEN PACKING
Wipe the top cover with a wet cloth
that has been squeezed out of all
the water. Be careful cleaning edge
of top heater.
TOP COVER
Wipe the main unit with a wet cloth that
has been squeezed out of all the water
MAIN UNIT
Make sure you clean the clean steam vent
before and after use. When cleaning it,
clean softly and do not pull out it by force.
Make sure the assembly condition of the
clean steam vent before and after use. If
the clean steam vent is not assembled
perfectly or come out, please call a dealer
or service center.
CLEAN STEAM VENT
Make sure to clean the steam
control vent before and after use.
INNER BODY
HOW TO CLEAN
Separate dew
dish.
Separate the drain
ditch cap by
pushing it down.
Clean the drain
ditch cap and dew
dish with a neutral
detergent.
Securely put in the
dew dish after
cleaning.
Insert the dew dish
firmly by pressing it
in direction of the
arrow.
How to clean dew dish

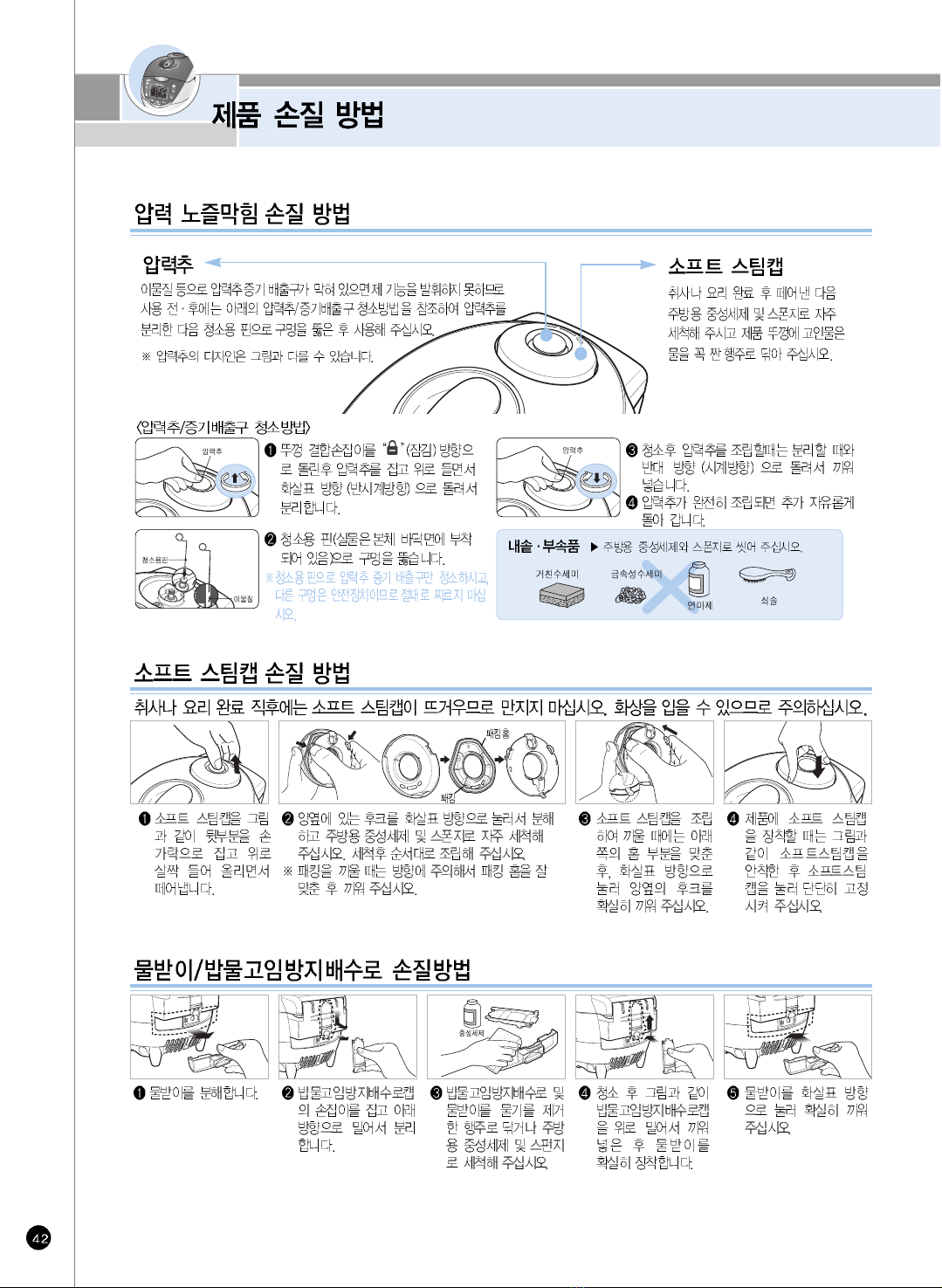

How to clean the soft steam cap
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft
steam cap like the
picture.
Press the hook in the back, and follow the
arrow to detach and clean. Make sure you clean
frequently with a sponge or a neutral detergent.
When fitting the rubber packing into the plate, please
make sure the packing is facing the correct direction.
Assemble the vent
so that it fits into
the groove
perfectly.
After you attach the
soft steam cap to fit
into the groove,
press ‘A’part firmly
to assemble the
soft steam cap into
the product.
Packing
Packing guide
neutral
detergent
The valve hole of the pressure weight allowing the escape of steam should be checked regularly to ensure
that it is not blocked.
If you use the valve hole of pressure weight as it is blocked, the hot steam or any hot content within the
cooker can cause injury.
Do not use a Cleaning Pin for other use except cleaning the valve hole of the pressure weight.
Soft steam cap
If the valve hole of the pressure weight part is clogged, punch it with the cleaning pin
How to
disassemble the
pressure weight
After the Lock/Unlock handle is locked(located on “Lock”) turn the pressure weight counterclockwise while pulling it up, and pull it out.
Punch the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.
When the pressure weight is properly assembled, it can freely be turned.
Alien
Substance
Pressure Weight
Attached on the
botton of the unit.
Cleaning Pin
FUNCTION OPERATING PART
www.cuckoo.co.kr
Problem on temperature sensor. (“ ”mark blink. )
This function is used to select from
among glutinous rice, sushi rice, mixed rice, GABA rice, Black bean, dried rice , nu rung ji, nutritious rice, nutritious porridge,
multi cook and Automatic Sterilization (Steam Cleaning), and to modify preset time. See page 19, 26.
For setting selected action with mode button and setting gaba time multi-cook time. See page 24, 25.
Keep Warm /
Reheat button
Used to warm or reheat.
(Refer to page 28~30)
Preset/Auto clean
button
Used to preset preferred
cooking time
(Refer to page 26~27)
When you use automatic
steam cleaning function.
(Refer to page 19)
Mode button
This function is used to
customize individual cooking
preference, time-setting,
voice volume setting,
keep warm temperature
setting, and power saving
movement.
Menu / Selection
button
Pressure
Cook/Turbo button
This function is used to start
cooking. (Refer to page 18)
Cancel button
This function is used to cancel a
selection or release remaining
steam in the inner pot.
(Refer to page 34)
When using Power saving
function
(Refer to page 31)
Set button
This function is used to select
a function or to button-lock
function. (Refer to page 31)
If the product has any problems or is used inappropriately, you can follow the marks below. If error persistently shows up, in
normal using conditions or after taking recommended measures, inquire with customer service.
Error Code and Possible Cause
Function Operating Part
When the inner pot is not placed into the unit.
When pressing the Pressure Cook/Turbo and Timer button, while the Lock/Unlock handle is on “Unlock”
Turn the Lock/Unlock handle “Lock”.
When boiling only water.
Problem on fan motor.
marks blink.
When setting preset time longer than 13 hours
Set the preset time within 13 hours. (Refer to page 26~27)
It is appears on the display when you press Start button again, or if the cooking has finished and you’ve never
ever turned the handle to ‘Unlock’. It can be solved by turning handle to ‘Unlock’ and then turn to ‘Lock’.
Problem on micom power.
Problem on environment sensor.
Problem on micom memory.
If no operation is done while power cord is plugged, the system while be on standby mode as shown in the figure.
(The menu on standby screen, time, voice and customized rice taste stage may differ depending on user configuration.)
If cancel button is pressed during cook, the rice cooker will go on standby mode.
Press the button until the buzzer sounds. Picture may vary depending on model.
<Standby condition screen>
Display
This code indicates the function of checking for abnormality of power or product.
When the inner pot is not placed into the unit but the micom mistook the detachable cover or any other foreign
substance for the inner pot while Keep Warm/Reheat mode.
HOW TO SET CURRENT TIME / HOW TO
SET OR CANCEL VOICE GUIDE FUNCTION
To enter this function, press Mode button 2 times. Mode button needs to be pressed for over 1 second at the first time.
Voice guide volume control (The function which can control volume and cancel)
Press mode button once.
Press mode button for more than 1sec
“Current time mode press yes button” after setting current time with
selection button
Menu/Selection button blinks and Mode, Set and Cancel buttons turn ON.
Colon mark (:) on the sec. screen is blinking once per second.
1
About Lithium battery
This product contains lithium battery for improving blackout
compensation and time. Lithium battery lasts for 3 years.
When current time is not displayed on the screen, it means the
battery is exhausted. It should be replaced.
What is blackout compensation
This product remembers and maintains previous condition and
processes. After finishing blackout, it operates immediately.
If blackout happens during cooking, the cooking time will
be delayed depending on blackout time.
If the rice became cold because of blackout, warming will
be cancelled.
How to set current time during keep
warming mode
1. Press Cancel button to cancel keep warm and
then press Mode button over 1 time to set
current time.
2. After setting time, press keep warm button to
re-start keep warm.
ex)8:25am now
How to set current time
When finishing to set time you want, press “Set”button.
Set button blinks and Mode, Menu/Selection and Cancel buttons turn ON.
If it is over 7sec without yes button, setting time will be canceled with
voice,"it is canceled due to overtime".
3
Set o'clock and minute as pressing menu/selection button.
2
Set button blinks and Mode, Menu/Selection and Cancel buttons turn ON.
Keep the button pressed, and the button will turn to Continuous.
Set to desired voice volume, and press Set button.
‘ ’ sign is displayed when entered volume control mode by
pressing Mode button 2 times.
If set value became ‘ ’ by pressing button, voice guide
function is off.
Press button to set ‘ ’, that is the maximum volume sound.
When finish setting desired volume, press Mode button to store.
1 min up “ ” button
1 min down “ ” button
10 min up or down “ ”, “ ” keep pressing.
Careful of setting am,pm.
In case of 12:00 it is 12:00 pm.
<Standby mode>
NIGHT VOICE VOLUME REDUCTION /
WOMAN AND MAN VOICE SETTING FUNCTION
www.cuckoo.co.kr
Night Voice Volume Reduction
1. Press mode button 9 times in standby status, and you will enter Night Voice Volume Reduction mode.
When pressing mode button initially, press the button for 1 second or longer to enter Night Voice Volume Reduction mode.
2. When you enter Night Voice Volume Reduction mode, a voice comes up saying “You have entered Night Voice Volume
Reduction. Select or inactivate Night Voice Volume Reduction mode with ‘Menu/Selection’ button and press ‘Set’ button.”
3. Press ‘Menu/Selection’ button, and as process progress bar changes, voice volume will change. Select desired voice volume,
and press ‘Set’ button.
4. Once process progress bar reach full condition through adjustment of ‘Menu/Selection’ button, a voice will come saying
“The function of Night Voice Volume Reduction is inactivate.” Inactivate the function by pressing ‘Set’ button.
5. If ‘Inactivate’ button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume Reduction mode, the
function will be inactivated along with voice “As set time is elapsed, the function is inactivated”, and the system will be back to
standby mode.
1. Press mode button 10 times in standby status, and you will enter Woman and Man Voice mode.
When pressing mode button initially, press the button for 1 second or longer to enter Woman and Man Voice mode.
2. When you enter Woman and Man Voice mode, a voice comes up saying “You have entered Night Woman and Man Voice.
Select or inactivate Woman and Man Voice mode with ‘Menu/Selection’ button and press ‘Set’ button.”
3. After setting Auto (woman and man) voice with ‘Menu/Selection’ button, man voice or woman voice, and press ‘Set’ button.
4. If ‘Inactivate’ button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume Reduction mode, the
function will be inactivated along with voice “As set time is elapsed, the function is inactivated”, and the system will be back to
standby mode.
Example) 60% of day time voice volume
Example) When set to woman voice Example) When set to man voice Example) When set to Auto(woman or man) voice
Night voice volumes by the setting of process progress
Set the function of night voice volume reduction, the function to reduce the volume of voice during
night time(10:00PM-05:59AM) on need-to-do basis. This function works only during night time.
How to set night voice volume reduction
Woman and Man Voice Setting Function
This function helps you select Auto voice for either a man or woman’s voice.
With this function, you can set to your desired voice.
How to set night voice volume reduction
Zero volume
20% of day time voice volume
40% of day time voice volume
60% of day time voice volume
80% of day time voice volume
BEFORE COOKING RICE
Clean the inner pot and wipe the water on the inner pot with dry cloth.
Use the soft cloth to wash the inner pot.
Tough scrubber can make the coating come off.
1
Measure the amount of rice you want to cook using the measuring cup.
Make the rice flat to the top of measuring cup and it is serving for
1 person.
(ex: for 3 servings 3 cups, for 6 servings 6 cups)
2
Wash the rice with another container until the water becomes clear.
3
Put rinsed rice into the inner pot.
4
Put the inner pot into the main body and close the topcover.
Please, check if detachable cover is attached
Put the inner pot correctly.
If there is any external substance on the temperature sensor or the bottom
of the inner pot, wipe it off before putting the pot into the main unit.
Top cover will not close if the inner pot is not placed correctly in the main
body (Place the inner pot to the corresponding parts of the main body)
6
Connect power plug and turn the handle to “Lock”
The lamp turning on means it’s closed perfectly.
If you press the cook button without setting the Lock/Unlock
handle to “Lock”, the cooker will not operate. You will hear
“beep beep beep” sound and “ ” is shown in the LCD.
If you want to select another function while cooking, push cancel button.
7
According to menu, adjust the water amount.
For measuring, place the inner pot on a leveled surface and adjust
the amount of water.
The marked line of the inner pot indicates water level when putting
the rice and water into inner pot together.
About water scale
Glutinous rice, turbo glutinous rice, nu rung ji, nutritious rice and black beans:
Adjust water level to the water scale for 'Glutinous'. Glutinous rice can be cooked to
max 6 servings, turbo glutinous rice to max 4 servings, nu rung ji to max 4 servings,
nutritious rice to max 4 servings, black beans to max 4 servings.
Mixed rice, turbo mixed rice, sushi rice, dried rice : Adjust water level to the water
scale for 'Mixed'. Mixed rice can be cooked to max 4 servings, turbo mixed rice to
max 4 servings, sushi rice to max 4 servings, dried rice to max 4 servings.
GABA rice : Adjust water level to the water scale for 'GABA'. GABA rice can be
cooked to max 4 servings
Nutritious porridge : Adjust water level to the water scale for 'Porridge'.
Nutritious porridge can be cooked to max 1.5 servings
5
Glutinous Rice for 4 persons
(4 cups) : Set the water to scale
4 of “GLUTINOUS”
For overcooked rice : pour less
water than the measured scale
When you want to cook the old
rice or want the soft rice : pour
more water than the measured
scale
If “ ”mark shows up in other instance, turn cover handle to “Open”
direction, and turn it toward "Lock". Then the cooker will work normally.
(The operation of cover lock sensing device can be checked.)
Note: This instruction is not applicable if cover handle is turned toward “Open”
direction once or more after cooking was completed in previous cooking.
Rice for 4 persons
(4cups)
FOR THE BEST TASTE OF RICE
www.cuckoo.co.kr
Use the measuring
cup!
Pour the water until
water level marking
in the inner pot!
How to keep the
rice
It’s better to set
the preset time
shorter.
It
s better to set
the Keep warming
time shorter.
Keep the product
clean.
When measuring the rice, Use the measuring cup.
(The amount of the rice may vary depending on the
quality of the rice.)
Place the inner pot on a flat surface and adjust the
water to water level in the inner pot.
If possible, buy a small amount of rice and keep
the rice some place where ventilates well and
avoid a direct ray of light. It can prevent
evaporation of rice moisture.
If the rice has been unsealed for long, rice can be
dry and stale. In this case, you should pour the half
of water more the inner pot water scale. It s tastier.
If possible, do not use the preset time function
when rice is too dry and pour the half of water
more, then the indicated water scale.
It s better to set the keep warming in 12 hours.
Clean the product often.
(Especially clean the top of the cover for external
substance.)
When the propotion between the
amount of rice is not proper, rice can
be crisp or hard.
When rice is too dry, it can be crips
even though measuring the amount
of rice is accurate.
If you set “Preset” over the 10 hours
or “Preset” dried rice, rice can be crisp
or half cooked. Even worse condition,
rice can be cooked different tastes
each level.
If the preset time is longer, the
melanoizing effect could be increased.
If rice is kept warm for a long period
of time, rice color will change, as
well as odor.
Wipe the top cover heating part well
for any rice or external substance.
For the best taste of rice, check the following points carefully.
Cook tasty rice with Cuckoo pressure rice cooker
HOW TO COOK
After cooking chicken soup and multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing
and lid part according to page 10.
Cooking time by menus may vary to some degree depending on the using environment of the product.
Glutinous
rice
Turbo
Glutinous rice
Sushi
rice
GABA
rice
Mixed
rice
Nutritious
porridge
Nutritious
rice
Nu Rung Ji
Dried
rice
Multi cook
Automatic
Sterilization
Cooking
Capacity
Cooking
Time
Cooking time for each menu
Menu
Class
Black
Bean
Choose menu with menu selection button
Start cooking by pressing Pressure
Cook button.
Select button.
Each time “Menu/Selection” button is pressed, the
selection switches in the sequential order, glutinous
rice turbo glutinous rice mixed turbo mixed
sushi GABA rice dried rice nutritious rice
nutritious porridge nu rung ji black bean
multi cook Automatic Sterilization(Steam Cleaning)
If the button is pressed repeatedly, the menu switches
continuously in sequential order.
In the cases of sushi, mixed rice, GABA and old rice,
the menu remains memorized once each cooking is
completed, so for continuous use of the same menu,
no selection of menu is required.
You must turn lid handle to lock before cooking.
Then press the pressure Cook/Turbo
Unless lid handle is not turned to close, you get
alarm with “ ” , and sound “turn lid handle
to lock”.
12
Completion of cooking
When cooking is finished, warming will start with
the voice "cuckoo completed glutinous".
When cooking ends immediately stir the rice.
If you don't stir rice at once and leave it the rice will
go bad and smell.
If the lid handle is not working well, take out the
steam completely out of inner pot by turning over
pressure weight.
While cooking, do not press cancel button.
4
ex) In case of selecting Sushi.
You can hear a voice, Sushi. when you cook Sushi,
automatic steam outlet operates while cooking.
ex) In case of cooking Glutinous.
Cooking thoroughly
The cooktime remaining on the display is shown
from cooking thoroughly. The cook time is
different depending on the menu.
Careful not to be burned in automatic steam
outlet.
3
ex)In case of 14minutes left.
Turbo Mixed
rice
HOW TO COOK
www.cuckoo.co.kr
Put water until water scale 2, make sure to close and lock the cover.
Method 1. After choosing automatic cleaning menu by pressing “Menu/Selection”
button, and then press “Pressure Cook/turbo” button.
Method 2. After choosing automatic cleaning function by pressing “Preset” button
twice in standby mode, press “Pressure Cook/turbo” button.
How to do Automatic Sterilization (Steam Cleaning)
- If you cook long stored rice or dried rice, they could be half-cooked. If using the dried rice menu, you can get better taste .
- The taste of rice will be different depending on storage of rice and water state.
you can add the soft time or sweet time (Refer to page20).
Dried rice cook function
1. Put salt into the black soy, wash clean and take out the water.
2. Put cleanly washed rice into My Cauldron, and after seasoning with sake and salt, pour water up to white rice water
graduation 2, add 1/2 measuring cup of it.
3. Place black soy on top of it, and after locking lid and selecting black soy with Menu/Selection button, press Pressure
Cook/Turbo Turbo.
Cook black soy only up to 4 servings.
When cooking black soy, adjust ‘White Rice’, ‘Assorted Grains’ water level graduation to standard, and add 1/2
measuring cup of it in case of 2 servings and 1 measuring cup of it in case of 4 servings.
Black Bean as follows
After white rice turbo and cooking small servings, discard the water within water gutter.
In case of white rice turbo and smaller servings cooking, more water may stay compared with other menu.
Please refer to the cooking guide (Refer to page 65~73)
The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve pleasant flavor
and taste. Especially, melanoizing is more serious at the “Preset cooking” than just “Cooking”.
It does not mean malfunction.
When mixing other rice with Glutinous, Melanoizing effect could increase more than “Glutinous cook”setting.
Melanoizing effect
Glutinous
When you want to have sticky and
nutritive white rice.
Sushi
When you want to have a little more sticky and
nutritive white rice than Glutinous rice.
How to use the cooking menu
Mixed
/Brown
This menu is used to cook by mixing
glutinous rice in cereals.
GABA
For cooking germinated brown rice.
Black
Bean
Use when cooking black soy rice.
Dried
For cooking dried rice
Nu Rung Ji
(Scorched rice)
Have scorched rice when cooking done.
Nutritious
Rice
This menu is used to cook nutritious rice.
Porridge
For cooking germinated brown rice.
Multi cook
For cooking Nutritious Rice.
Automatic
Sterilization
(Steam
Cleaning)
This menu is used to eliminate smell
soaked after cooking or warming.
Turbo
function
for
Glutinous
rice
Pressing twice “Pressure Cook/Turbo” twice will switch to quick cooking and shorten the cooking time.
(It takes about 14 minutes when you cook the Glutinous rice for 2 persons.)
Use this turbo cooking function only for cooking rice for less than 4 persons.
(The condition of the rice will not be good for more than 4 persons)
The turbo cooking function is allowed up to 6 persons.
If you soak the rice in water for about 20 minutes before cooking the rice and then cook the rice in turbo cooking
course, the rice will taste good.
Mixed rice
Turbo
If selected turbo mixed rice , total cooking time will be reduced.
(It takes about 26minutes for cooking mixed rice for two people.)
Turbo mixed rice cooking lessens the quality of food, so only use for less than six people.
For better taste, we recommend soaking mixed rice or boiling hard beans before cooking.
MY MODE (Cuckoo Customized Taste Function)
Cuckoo’s patented technology based on variable circuit design. User can select the degree of “softness” and “glutinosity
& tastiness” to meet a user’s desire.
What is “MY MODE”?
Longer “SOFT” Time : rice becomes soft and glutinous. (selectable in 4 steps)
Longer “SWEET” Time : rice becomes tasty (selectable in 4 steps) [melanoizing will occur]
The two functions above, can be selected both or individually.
MY MODE Function
“MENU”setting screen
To enter "Customized Rice Taste Setting Mode", select the menu in which Customized Rice Taste is supported such as glutinous rice, mixed rice, GABA rice,
dried rice and nu rung ji and press the mode button for 1 second or longer. Then, you are going to enter "Customized Rice Taste Setting Mode" while hearing
the voice saying "You've entered Customized Rice Taste Setting Mode. Select swelling and heating stage with Selection button, and press Set button."
How to use “MY MODE”
“MY MODE” setting screen
Soft time control mode
Sweet time control mode
Setting completed screen after
“MENU”setting screen
You can set the major cooked rice taste of customized cooked rice taste by entering Customized Cooked Rice Taste mode and pressing Mode button. At
each press of Mode button, the major cooked rice taste will show up in the sequential order ‘Sticky Cooked Rice Taste –> Soft Cooked Rice Taste -> Sweet
Cooked Rice Taste -> Soft and Sweet Cooked Rice Taste’.
How to Use Cuckoo Customized Cooked Rice Taste
“MY MODE” setting screen
Soft time control mode
Sweet time control mode
Setting completed screen after
Soft and Sweet time control mode
MY MODE (Cuckoo Customized Taste Function)
www.cuckoo.co.kr
The display of my mode
This is a graph the flavors of 16 types of cuckoo custom-made rice
If you press the mode button 5times, customized cooking function is setup. Select heating power by
selection button. You can see all means with cuckoo customized cooking function on the display.
*1. The rice becomes solid and glutinous.
*2. The rice becomes soft and well-raised rice.
*3. The rice becomes soft and glutinous.
Note: Rice taste number from 1 to 16 will be
displayed on the display window.
How to use Cuckoo Customized cooking function
1 . ‘Cuckoo customized cooking function’ applies to Glutinous rice, Turbo glutinous rice, Sushi rice, Mixed rice, GABA rice,
Nutritious rice, dried rice collectively.
2 . Set up the step of customized cooking function to taste. The scorch can occur when cooking in high step.
3 . Cook is subject to be set differently depending on the percentage of water content and the condition of rice.
Initialization is set up “ ” get step by step as the case may be.
- High step : for cooking cereals, old rice and soft-boiled rice.
- Low step : for cooking the year’s crop of rice.
While cooking you can control the heating temperature (both high and low) depending on, your prefenence.
Cuckoo customized cooking function
The display Cuckoo
customized cooking
function
Make the screen changed by
pressing menu/selection button.
push the menu/selection button, then the
screen will be changed as above picture.
High level mode
If you press the “set” button,
established menu will be set
up automatically.(If you press
cancel or do not press a
button within 7 seconds, the
function will deactivate and
return to the standby mode.)
If you push the mode button
5times, the display for
customized cooking function
will be set up. Initiation is
like the picture above.
Setting completed
screen after
Low level mode
Set button will blink, and Mode, Menu/Selection
and Cancel buttons will turn ON.
Keep pressing the button, and the menu will
switch continuously.
Set button will blink, and Mode, Menu/Selection
and Cancel buttons will turn ON.
Keep pressing the button, and the menu will switch
continuously.
Menu/Selection button will blink, and Mode,
Set and Cancel buttons will turn ON.
1. ‘MY MODE’ function may influence scorching or cooking quality. Ensure that cooking time is not
changed, by children.
Default settings are “SOFT” Time 0 min, “SWEET” Time 0 min.
2. ‘MY MODE” function may elongate cooking time according to set-up time.
3. Scorching of rice may occur by longet “SWEET” Time.
Cautions
The stage mark will show up as in the figure above on the display as much as the time set during setting swelling time and heating
maintenance time, and the mark will continue to show up during cooking, reservation, keeping warm and reheating as well.
Cuckoo customized taste function is applied to glutinous rice, mixed rice, GABA rice, dried rice, Nu Rung Ji.
Set-up time is stored untill the next reset. No need to set-up at every cooking.
During cooking, warming and preset time cooking modes, “soak” and “heat” time cannot be readjusted.
MY MODE (Cuckoo Customized Taste Function)
When cooking nu rung ji, please set it up for your taste with function which controls the level of burning nu rung ji.
How to set up the enhanced burning nu rung ji (for enhanced burning nu rung ji).
1. If you push mode button 7 times at the waiting state, enhanced burning nu rung ji mode will be set up
If nu rung ji mode is not shown keep on pressing the “mode” button until it is heard or displayed.
2. When enhanced burning nu rung ji mode is set up, it says "after removed or selection of enhanced
burning nu rung ji, push the yes button". At this time, Menu/Selection button will blink, and Mode,
Set and Cancel buttons will turn ON.
3. If you push the menu/selection button it says "enhanced burning nu rung ji chosen press the yes
button after choosing a mode you want. press the yes button".
4. Without any button within 7 seconds or cancel button, enhanced burning nu rung ji mode will be
canceled and on standby.
How to set up the function of burning nu rung ji
How to cancel the enhanced burning nu rung ji
1. If you push mode button 7 times at the waiting state, enhanced burning nu rung ji mode will be set up
If nu rung ji mode is not shown keep on pressing the “mode” button until it is heard or displayed.
2. When enhanced burning nu rung ji mode is set up, it says "after removed or selection of enhanced
burning nu rung ji, push the set button". At this time, Menu/Selection button will blink, and Mode,
Set and Cancel buttons will turn ON.
3. If you push the menu/selection button it says "enhanced burning nu rung ji chosen press the yes
button after choosing a mode you want. press the set button".
4. Without any button within 7 seconds or cancel button, enhanced burning nu rung ji mode will be
canceled and on standby.
Set up this function as the situation demands because this function is on the condition of cancel for
enriched scorch at the first use.
HOW TO USE GABA (Brown rice)
www.cuckoo.co.kr
Check the dates of harvest and pounding.
The dates should be within 1year from harvest, 3 months from pounding.
Inspect rice with your eyes.
Check that embryo is alive
Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable
for germination
Avoid fractured, not fully corned, or empty ear’s. Empty ear’s may generate odors during germination and bluish- nor
corned Brown rice cannot be germinated.
< Comparison of Germinated brown rice s nutrition
and Glutinous rice
s (6 hours) nutrition. >
Phytic acid 10.3Times
Ferulic acid 1.4Times
Gamma-orizanol 23.9Times
Gammma-aminobutyric 5Times
Inositol 10Times
Food fiber 4.3Times
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and harder to be digested.
By germination, the enzymes in the brown rice are activated, generating nutrients and become more digestible.
What is Germinated Brown rice?
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice.
Germinated Brown rice also improves digestion.
Taste will be greatly enhanced.
Digestive and rich in nutrients.
Diabetic hormone is generated improving digestion.
Good as a health food for children or students.
- Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Amino Butryc Acid)
- GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism
in brain cells - these effects have been proven by medical science.
Features of Germinated Brown rice
Tips to Buy Quality Brown Rice
(Regular brown rice)
(Poor brown rice
- Empty ear and nit fully corned brown rice)
HOW TO USE GABA RICE(Brown rice)
Using GABA rice Menu
Precautions for GABA rice Cooking
If smaller germ is preferred, omit pre-germination process. Select “GABA rice” menu, set-up appropriate germination
time, and start cooking (nutrient ingredients do not vary significantly by the size of germ).
During hot seasons, longer germination time may generate odor. Reduce germination time.
GABA rice cooking is allowed up to 6 persons.
City water can be used for germination. However, spring water is recommended. Germination may not be properly
performed in hot or boiled water even after cooling.
Germination rate, germ growth may differ by the Brown rice type, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice type.
The brown rice should be within 1 year from harvest, and not long since pounded.
In GABA rice mode, preset on 3H may not be possible. If you want to preset the GABA rice, set up ‘ ’. (See the page 26)
The taste of rice could be different as depending on a kind of brown rice. Use customized taste function or control the
amount of water for your taste. (Refer to page 20~22)
First setting time 0H(0 Hours)
In order to promote germination, soak brown rice for 16 hours in water.
Method of Pre-germination
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice.
Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using
GABA menu. Be careful that hard washing may take off embryos which generate the germination.
Unique smell may be generated according to the soaking time of pre-germination.
When pre-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated volume
of water, and use
GABA menu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean
when cooking.
1
Set the Lock/Unlock handle
at “Lock”, press
“Menu/Selction” button to
select “GABA rice”.
When the “GABA rice” is
selected, “0H” is indicated in
the display.
Set button will blink, and
Mode, Menu/Selection,
Cancel and Pressure Cook
buttons will turn ON.
2
Press “Set” and “Menu/
Selection” buttons to set time.
Menu/Selection button will
blink, and Mode, Cancel and
Pressure Cook/Turbo buttons
will turn ON.
1.Pressing “Menu/Selection”
button changes
germination time by 3hours.
2.Pressing “Menu/Selection”
button changes
germination time by 0hours.
3.“GABA rice” time can be set
up by 0,3 hours.
If GABA rice time is set
“0”hours, pressing “Pressure
Cook/Turbo” button will start
cooking immediately.
To cook without germination
or cooking germinated Brown
rice, set the time at “0”.
3
3 more hours for germination
Press “Pressure
Cook/Turbo
”
button.
Pressing “Pressure Cook/Turbo
”
button will begin the “GABA rice
”
process, after which. cooking will
begin immediately.
During “GABA rice” mode, “ ”
indicator will show the remaining
time and will be displayed in
minutes with the “3H”mark going
around clockwise.
4
HOW TO COOK THE MULTI-COOK AND NU RUNG JI
www.cuckoo.co.kr
How to make Nu rung ji
1. Turn the Lock/Unlock handle to “Lock” and press menu to select the ‘Nu Rung Ji.’ Refer to page 22
2. Press the “Pressure Cook/Turbo” button to start cooking.
3. When cooking is completed, scoop out the boiled rice. The “Nu Rung Ji” on the jar bottom can be
prepared for your taste (e.g. scorched rice tea)
Nu Rung Ji can be prepared for up to 4 people.
For Nu Rung Ji cooking, set the water volume at Glutinous level.
Not too much washing rice.
If you want enhanced burning nu rung ji, cook after soaking rice in water for 30minutes.
Press “Set”, “Menu/Selection” button to set up the time.
It says after setting cooking time with selection button press the cook button.
Menu/Selection button will blink, and Cancel and Pressure Cook/Turbo buttons will turn ON.
2
Use the preset time of Multi-cook as following instruction.
4
How to use the Multi-cook and preset time
Set button will blink, and Menu/Selection, Cancel and
Pressure Cook/Turbo buttons will turn ON.
When selecting Multi-cook, the display indicates cooking
time to be 20 minutes.
1
Press “Pressure Cook/Turbo” button.
Pressure Cook/Turbo button will blink, and Menu/Selection and Cancel buttons will
turn ON. Press the Pressure Cook/Turbo button and the Multi-cook will start.If the
Multi-cook starts, the display shows the
cooking mark and remaining minutes.
3
1. Check the
present time.
2. Turn the
Lock/Unlock
handle to
Lock and
press the
“Timer” button.
6. Press the
“Set” or
“Pressure
Cook/turbo”
button.
1.
Each time you press “Menu/Selection”
button, the time increases 5 minutes.
(After 90min, each 10min increase.)
Press Menu/Selection to
choose desired Menu.
3. Press the
Menu/Selection or
Min/Heat to preset
time. Then press
the set button.
4. Press menu
selection butt on to
select the Multicook.Then press
the set button.
5. Set up the cooking
time by pressing
selection to
increase, and
menu to decrease
the cooking time.
2. 3. Available setting time is
10 ~ 120 minutes.
(Please refer to cooking
guide for time setting of
each menu.)
If you press the set button
after choosing time you
want, then it says “Press
Pressure cook/Turbo button”
Each time you press “Menu/Selection”
button, the time decreases 5 minutes.
(After 90min, each 10min decrease.)
Press Menu/Selection to
choose desired Menu.
4.
HOW TO PRESET TIMER FOR COOKING
Check if the current time and the menu are correct.
Refer to page 14 for the time setting.
If the current time is not set correctly, the presetting time will
also be incorrect.
Make sure not to confuse AM and PM.
1
Press the “Preset/Auto clean” button.
The initial time set at 6:30 am is already programed.
“Lock/Unlock” handle should be locked.
f you push Preset/Auto clean button, timer screen will be blinked.
n GABA mode, preset on “ ”is possible.
If you want to preset “Timer” while keeping warm, cancel keep
warm and preset the “Timer”
2
Preset the time.
3
Press “Pressure Cook/turbo” button.
“Pressure Cook/turbo” button will blink, and “Menu/Selection”
and “Cancel” buttons will be turned ON.
It says that preset cook for glutinous is booked
Preset cook will be completed at the timer
Once cook is completed with preset time,
preset time is stored in the memory.
Don't need to set up time again.
If a small amount of rice is cooked, cook could be finished
earlier than time you set up.
5
Select menu with “Menu/Selection” button
If you select “Timer” menu with selection button, it says
“Please, press the “Pressure Cook/Turbo” button.
“Set”button will blink, and “Menu/Selection”, “Pressure
Cook/turbo” and “Cancel” buttons will turn ON.
In case of menu with “Customized Rice Taste” such as
glutinous rice, mixed rice, GABA rice, dried rice, nu rung ji and
“Mode” button will turn ON.
4
How to preset timer for cooking
How to use timer function
“Set” button will blink, and “Menu/Selection”, “Cancel” and
“Pressure Cook/turbo” buttons will turn ON.
In case of setting up timer while warming
10min increase by pressing “ ”button
Please set up timer after canceling warming
10min decrease when you press “ ”button
If you keep pressing, It can be changed continuously.
Please be careful not to change from AM to PM.
When preset time is set to AM07:40
Loading...
