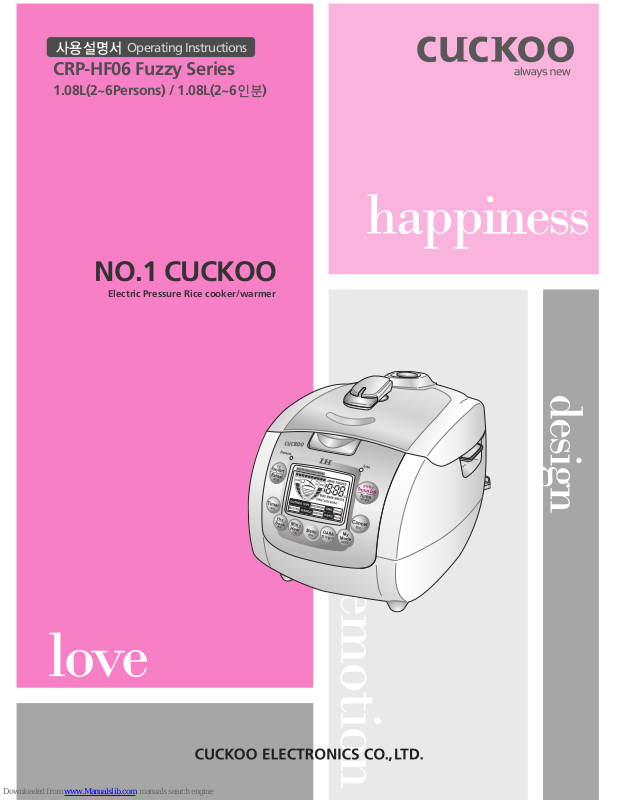

Cuckoo CRP-HF06 Fuzzy Series Operating Instructions Manual

CRP-HF06 Fuzzy Series
1.08L(2~6Persons) / 1.08L(2~6 )
Operating Instructions
NO.1 CUCKOO
Electric Pressure Rice cooker/warmer
Read all instructions before use. Save these instructions for future reference.
Important safeguards
Limited warranty
Important safeguards
.........................................................
3
Specifications
......................................................................
4
Caution for safety
................................................................
5
Caution for use
....................................................................
8
Name of each part
..............................................................
9
Function operating part
......................................................
10
Before cooking rice
.............................................................
11
Error Code and possible cause
.........................................
12
How to cook
........................................................................
13
MY MODE (Cuckoo Customized Taste Function)
...........
15
How to use
GABA (Brown rice)
.....................................
17
How to preset the time
.......................................................
20
To keep warm the cooked rice tasty
..................................
21
How to clean
.......................................................................
24
Check before asking for service
........................................
22
Limited warranty
..................................................................
52
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do not immerse cord, plugs, or Pressure Cooker Body in water or any other liquid.
4. Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any
control to off , then remove plug from wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted in the appliance as they
may involve a risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, and the like while in operation.
17. To reduce the risk of electric shock, cook only in removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Make certain unit is properly closed before operating. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, or other cereals macaroni or spaghetti.
These foods tend to foam, froth, and sputter, and may block the pressure release device.
20. Always check the pressure release device for clogging before use.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been
reduced. See “Operating Instructions.”
22. Do not use this pressure cooker for pressure frying with oil.
WARNING :This appliance generates heat and escaping steam during use. Use proper precaution to
prevent risk of burns, fires, or other injury to persons or damage to property.
1. Keep hands and face away from Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Serious burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot and any heating parts, immediately after using. Let the unit cool down completely first.
Note:
A. A short power-supply cord (or cord set) is to be provided to reduce the hazards resulting from
becoming entangled in or tripping over a longer cord.
B. Longer cord set or extension cords are available and may be used if care is exercised in their use. C. If a long cord set or extension cord is used.
(1) the marked electrical rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
(2) if the appliance is of the grounded type, the extension cord should be a grounding-type three-wire
cord, and
(3) the longer cord should be arranged so that it will not drape over the counter top or tabletop where
it can be pulled on by children or tripped over accidentally.
This appliance has a polarized plug : (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
CRP-HF06 Fuzzy Series
AC 120V, 60Hz
1040W
0.36~1.08L (2~6cups)
1.0m
78.4KPa(0.8kgf/cm2)
5.4kg
26.0cm
34.8cm
26.8cm
0.36~0.72L (2~4cups)
The East and the Central Districts
Tel. No. (718)888-9144
The West and the Central Districts
Tel. No. (213)687-9828
USA Canada
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004 / 604 523 1004
Do not use the cooker near hot things such as stove, gas stove or direct ray of light.
It can cause an electric shock, fire, transformation or discoloration.
It can cause an electric shock or fire. If it contact water, please separate power cord and contact dealer and service center.
Do not let the cooker contact any water by sprinkling water on the cooker.
Use a single socket with the rated current above 15A.
Using several lines in one socket can cause overheating resulting in fire. Use the extension cord with the rated current above 15A.
Do not turn the Lock/Unlock Handle to
Unlock" in cooking.
Do not cover the automatic steam outlet or pressure weight with your hand or face.
It can cause burns. Especially be careful to keep it out reach of children.
Do not plug or pull the power cord with wet hands.
It can cause an electric shock.
When you pull out the power plug, don’t pull the power cord. Please, surely pull out the power plug.
It can cause an electric shock.
The hot steam or any hot content within the cooker can cause burns. After you finish the cooking do not try to open the cooker by force until the steam is completely exhausted.
The following must be observed to use the product safely and correctly to prevent accident and dangerous situations.
Warning and Caution are different as follows.
This means that the action it describes may result in death or severe injury.
This means that the action it describes may result in injury or property damage.
This sign is for reminding something may cause problems under the certain situation.
Please read and follow the instruction to avoid any harmful situation.
Indicates a prohibition Indicates an instruction
Do not use on a rice chest or a shelf.
Do not press the power code between furniture. It can cause an electric shock resulting in fire. When use on furniture automatic steam releasing can cause damage, fire and an electric shock.
Do not put any needle, cleaning pin etc in the ventilator or any gap of the cooker.
Do not insert cleaning pin to other parts except to the valve hole of the pressure weight. It can cause an electric shock or fire. Especially be careful to keep it out of reach of children.
Do not use pots that are not designed for the cooker. Do not use abnormal pot and do not use without inner pot.
It can cause an electric shock or fire.
Do not open the top cover while in heating and cooking.
It can cause burns. If you need to open the lid while cooking, keep pressing the “cancel” button for 2 seconds and confirm internal steam released completely turning the pressure weight over.
Do not alter , reassemble, disassemble or repair.
It can cause fire, electric shock or injure.
For repair, contact dealer
or the service center.
Don t spray or put any insecticide and chemicals.
It can cause an electric shock or fire. In case cockroach or any insects get inside of the cooker please call a dealer or a service center.
Clean any dust or alien substance off the temperature sensor, heating plate and inner pot.
It can cause a system problem or fire.
Do not use damaged power cord, plug or loose socket.
It can cause an electric shock, short circuit or fire. If the plug were damaged, contact dealer or a service center.
Do not cover the automatic steam outlet or pressure weight with a duster, a towel or apron, etc.
It can cause a transformation or a breakdown. It can cause an explosion by pressure.
If you use cardiac pacemakers or electrical medical supporting equipment consult a doctor before using this unit.
When this unit is working, it can influence on any electrical medical equipment.
Please pay careful affention against water and chemicals.
It can cause an electric shock or fire.
Use product at the flat place. Do not use on the cushion. Please avoid using it on an unstable location easy to be fallen down
It can cause a transformation or a fire. It can cause burns or breakdowns. Be careful to install the power cord which does not disturb to pass.
Do not pull out the clean steam vent by force.
When separate it, the steam control vent can be blocked.
Please make sure you clean and check the assembly condition of the clean steam vent before and after use.
If you have any problem with assembly and cleaning of the clean steam vent, please call a dealer or service center. Keep clean the product before and after use.
Do not bend, tie or pull the power cord by force.
It can cause an electric shock or short circuit resulting in fire.
Remove an alien substance on plug with the clean cloth.
It can cause fire.
Keep the cooker out of reach of children.
It can cause burns, electric shock or injury.
Be careful both plug and power cord not to be shocked by animal attack or sharp metal materials.
Damages by impact can cause an electric shock or fire.
Don t use to be used for various purpose for inner pot.
It can cause the transformation of the inner pot It can cause to spill the inner coating.
Oven coating may wear away .
Oven coating may wear away after long use. When cleaning the inner pot, do not use tough scrubber, metallic scrubber, brush, abrasive metallic etc. (Refer to page 24)
Do not pull up the cooker by holding the inner pot handle.
If can cause problems and dangerous situations. There are portable handles on bottom right and left side of the cooker. Hold the handles with both hands and move it carefully.
After you finish the cooking, do not try to open the cooker by force until the steam is completely exhausted.
The hot steam or any hot content within the cooker can cause burns. Be careful with burn by the steam when you open the top cover after cooking is done.
Do not use over the maximum capacity.
It can cause overflow or breakdown. Do not cook over capacity stated for cooking of chicken soup and congee.
Please surely pull out the plug when not in use.
It can cause electric shocks or fire. Use AC 120V only.
Always turn the Lock/Unlock Handle to “Lock” when not in used.
It can cause the transformation by remaining pressure.
Be careful about the released steam of vent.
When the steam is released don’t be surprised. Please keep the cooker out of reach of children.
Don t use the cooker near the magnetic field. Do not drop the cooker or impact.
It can cause burns or breakdown. It can cause the safety problem.
Please contact dealer or service center when strange smell or smoke is occurred.
First pull out the power cord.
Please clean the body and other parts after cooking.
It can cause the transformation or smell.
Do not touch the metallic surface of the inner pot, and pressure weight after cooking or warming.
It can cause burns. Remaining hot steam can cause burns when you tilt the pressure weight while and right after the cooking.
Please use the cooker for an original purpose.
It can cause the transformation or smell.
Please, clean the body and other parts after cooking.
After cooking chicken soup or, multi cook dishes, etc., the smell may be absorbed.
Clean the oven packing, top heater plate and inner pot every time you cook any of those. Reference : pages 8
Please, do not pull out the clean steam vent by force. Use dry kitchen cleaner or sponge to clean the top heater plate,
since rough scrub or metallic ones might let the coating rise. Depending on the using methods or user’s circumstances
top heater plate might rise. Please contact the dealer or a service center for those cases.
When the cooker is not properly cleaned, it can cause smells. Clean the top cover frequently. If there are any rice or alien substances on the oven packing or on the inner side of the inner pot, it can cause the steam to leak. Therefore the rice may be under-cooked and crumbly.
Don t use to be used
for various
purpose for inner pot.
Check if there is any rice or alien substance on the oven packing.
Make sure you clean the steam control vent before and after use
Wipe the main unit with a wet cloth that has been squeezed out of all the water
It can cause the transformation of inner pot. It can cause to spill the inner coating
Wipe the top cover with a wet cloth that has been squeezed
out of all the water
If there is any alien substance
on the temperature sensor
carefully wipe it out without
damaging the metal plate
The valve hole of the pressure weight allowing the escape of steam should be checked regularly to ensure that it is not blocked. If you use the valve hole of pressure weight as it is blocked, the hot steam or any hot content within the cooker can cause injury. Do not use a Cleaning Pin for other use except cleaning for the valve hole of the pressure weight.
Do not try to close the top cover by force. It can cause problems.
When opening/closing the top cover.
1. Locate the handles of the inner pot on the slot of the main unit. (Refer to the following figure.)
2. Open and close the top cover with the Lock/Unlock handle located on
Unlock .
When cooking/warming the rice.
Cook and warm the rice with the Lock/Unlock handle located on “Lock”.
When steam is full inside the pan, the Lock/Unlock handle will not turn at this time twist the pressure weight and let the steam out.
How to disassemble the pressure
weight
If the valve hole of the pressure weight part is clogged, punch it with the cleaning pin.
Under the Lock/Unlock handle is locked (located on "Lock") turn the pressure weight counter-clockwise while pulling it up, and pull it out. Punch the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise. When the pressure weight is properly assembled, it can freely be turned.
Attached on the bottom of the unit.
Pressure Weight
Soft steam cap
Alien Substance
Cleaning Pin
Lock/Unlock Handle
(Set the handle to lock
when cooking or
warming the rice)
Top Cover Assy
Inner Pot(Oven)
Pot Handle Set the pot handle on the slot of the main unit.
Clamp Knob
Oven Packing
Top Heater
Plate
Power Plug
Power Cord
Control
Panel
Temperature Sensor
Main Body
Automatic Steam
Exhaust Outlet
(Solenoid valve)
Pressure Weight
Always keep it horizontal.
Soft Steam Cap
Dew Dish
Empty the water out of a dew dish after cooking or keep­warming. Remaining the water in the dew dish cause bad smell.
Steam PlateRice ScoopRice Measuring
Cup
Manual Cooking guide
ACCESSORIES
How to clean the soft steam cap
Menu seal
Rice Scoop
Holder
Cleaning Pin
Attached on the bottom of the unit.
Top Warning Sensor
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft steam cap like the picture.
Press the hook, in theback and follow the arrow to detach and clean. Make sure you clean frequently with a sponge or a neutral detergent.
Assemble the vent so that it fits into the groove perfectly.
After you attach the soft steam cap to fit into the pressure cookerm fit the top of soft steam cap and push ‘A’ to hold the soft steam cap.
Clean steam vent
Use for Warming or reheating the cooked rice right before eating. (Refer to page 21~23)
The red light will be on when it's ready to operate.
Use it for cooking the rice. (Refer to page 13, 14)
Use it for canceling the
selected function (Refer to page 26)
Use when you set up or cancel the voice function.
Use it to set “My mode” function.
(Refer to page 15, 16)
GABA button
(Refer to page 17, 18)
The red light will be on when it s ready to operate turbo fuction.
Use it by presetting the time when you desire specific time to eat
.
(Refer to page 20)
Use it for setting the current time and presetting time. (Refer to page 10)
Use it for selecting, the glutinous rice, normal rice, Mixed/Brown rice etc. (Refer to page 13)
Make provisions for any electrical failures and clock function, unit contains lithium battery. Battery life is about 3 years depending on using condition. Don't short circuit, place in fire or near heat source, disassemble, or recharge.
1. Connect the power plug. 2. Press the “Hrs/Soak”, “Min/Heat” button more than 2 second.
3. Set the current time using the “Hrs/Soak”, “Min/Heat” button. Press the button longer than 1 second.
4. It will automatically start in 7 seconds.
After you press the “Hrs/Soak”, “Min/Heat” button to set the time, pressing any buttons except “Hrs/Soak”, “Min/Heat” or “Cancel” buttons will also enter the set value.
If the current time is not correct, the rice will not finish cooking at desired time. During warming mode press the “Cancel” button to set the time.
After setting the time press “Keep warm” button: displays “
N
o
t
e
After you wash the rice thoroughly, put it in the inner pot, and adjust the water level according to the marked line.
Place the inner pot on a leveled surface and adjust the amount of water.
About water scale
Rice for 4 persons (4 cups)
Glutinous Rice for 4 persons (4 cups) : Set the water to scale of
GLUTINOUS
When you want to cook the OLD RICE or want the soft rice : pour more water than the measured scale
For overcooked rice : pour less water than the measured scale
Measure the amount of rice you want to cook using the measuring cup and wash it thoroughly.
1 cup applies to 1 person.
Correct method for using the measuring cup.
Wash the rice until the water becomes clear. This makes the rice taste better. (Wash at the other pot.)
Keep the rice where it is cool and shady. If the rice is kept dry it will not be good and even cause the cooked rice to smell.
Place to avoid : Hot places where boiler pipe passes by / Places under direct sunlight / Humid places. It is recommended that you buy rice in small packages because the quality can be degraded when stored for a long period of time.
Rice storing method
Glutinous rice, Mixed/Brown rice, Nu rung gi : Pour water to scale of “GLUTINOUS”. Max. capacity : Glutinous rice and Mixed Rice - 8 persons, Nu rung gi - 4 persons
: Pour water to scale of “SUSHI”. Max. capacity : 4 persons. GABA, Mixed/Brown, OLD RICE : Pour water to scale of “GABA” Max. capacity : 4 persons.
Presoak or boil the hard grain and then press the mixed rice button. Depending on the type of rice, the rice may only be half cooked.
When the product have any problems or use it inappropriately you can see the below marks.
When the inner pot is not placed into the unit.
When pressing the “Pressure Cook/Turbo” and “Timer” botton, while the Lock/Unlock handle is on “Unlock”.Turn the Lock/Unlock handle “Lock”.
When setting preset time longer than 13 hours Set the preset time within 13 hours(Refer to page 18.)
Temperature sensor problem. (Consult the service center and dealer.)
Wipe the water on the inner pot with a dry cloth and put it in the main unit. Then connect the power plug.
Top cover will not close if the inner pot is not placed correctly in the main body (Place the inner pot to the corresponding parts of the main body) If there is any alien substance on the temperature sensor or the bottom surface of the inner pot(oven), wipe it off before putting the pot into the main unit. Wipe the top cover heating part well before cooking the rice.
If the top cover heating part is not cleaned well it can cause smells and discoloration.
If there is any rice or alien substance on the oven packing or inside the upper part of the inner pot, the steam will leak. This will make the rice under-cooked and crumble.
If you press the cook button without setting the Lock/Unlock handle to “Lock” the cooker will not operate. You will hear “beep
beep beep” sound and is shown in the LCD. If it is hard to close the top cover due to internal pressure, tilt the
pressure weight. This will make it easy to close.
After setting the Lock/Unlock handle to “Lock”, check the pressure weight is horizontal and the pressure Lamp is on.
pressure
Temperature Sensor
Glutinous Rice Cooking Method
Check the Lock/Unlock handle is set to Lock and press the “Pressure Cook/Turbo” button.
It will start to cook with the “ ” mark going around clockwise.
When it comes near the finishing time, the remaining time will be displayed in minutes.
Every time you press the “Menu” button, the following menu will continuously repeat.
Check the pressure weight is horizontal before cooking
During the cooking process, the pressure is automatically controlled with the steam discharged through the pressure weight.
2~3 minutes before the cooking is completed you will hear the “beep ” sound and the steam will be automatically discharged. At “Normal rice” mode, the steam will be discharged during cooking. (Don't be surprised and be careful not to cause any burns.)
When the cooking is finished, the “beep” sound will go off 5 times and switch to warm. When it is switched to warm, open the top cover and mix the cooked rice well. In case of a power failure during the cooking process, it will be delayed
for the time the power is shut down. But if the power is shut down for a long time, the condition of the rice will not be good.
When the handle doesn't turn to “Unlock”, tilt the pressure weight a little to release the internal pressure and it will make you much easier to open it.
GLUTINOUS
SUSHI
MIXED/BROWN
GABA
OLD RICE
NUTRITIOUS
NU RUNG GI
MULTI COOK
After cooking Multi cook etc, the smell may permeate into the unit, use the Unit after cleaning the rubber packing and lid part according to page 27, 41.
Cooking time for each menu
Menu
Cooking Capacity
2~6
persons
2~4
persons
2~4
persons
2~4
persons
2~4
persons
2~4
persons
2~4
persons
2~4
persons
Refer to
the
cooking
guide
Cooking
Time
25~33
minutes
36~46
minutes
14~20
minutes
36~47
minutes
34~51
minutes
34~40
minutes
36~42
minutes
30~34
minutes
Glutinous
Sushi
Turbo Glutinous rice Mixed/Brown
GABA OLD RICE Nu Rung Gi Nutritious Multi Cook
Glutinous : When you want to have sticky and nutritive white rice. Sushi: When you want to have a little more sticky and nutritive
white rice than Glutinous rice.
Mixed : For cooking together with brown rice and some other kinds of grain. GABA: For cooking germinated brown rice. (Refer to page 17, 18) OLD RICE: For cooking OLD RICE.
- If cooked with old, or dried rice, the boiled rice may become crumbly or underdone.
- For OLD RICE which has been more than one year since its harvest or by being left in a dry place for a long time, cook in the "OLD RICE Cooking Process" for a better result.
(melanizing may occur according to the keeping conditions or moisture)
Wash rice sufficiently until wash water becomes clean. New rice gives a better taste. But in smaller quantity. OLD RICE may give out odor, as well as poor taste.
Multi cook : The unit cooks all kinds of stew by setting cooking time.
- Basic setting time is 20 minutes.
- Available setting time is 10-90 minutes.
- Each time you press “Hrs/Soak” the time increases 5 minutes.
- Each time you press “Min/Heat” the time decreases 5 minutes.
- The Multi cook function will start if you press “Pressure Cook/Turbo” button after setting the time.
- “Cook” mark is shown when “Multi Cook” is started. The remaining time will be displayed.
Nu Rung Gi(Scorched rice) : Have scorched rice when cooking done.
- When cooking is completed, take out boiled rice.
- The “Nu Rung Gi” on the jar bottom can be prepared for your taste. (e.g. scorched rice tea) “Nu Rung Gi” is allowed up to 4 persons. For “Nu Rung Gi” cooking, set the water volume at “GLUTINOUS” level.
Nutritious
- When cooking Nutrition rice, melanizing may occur depending on the volume of ingredients such as jujube and green ginseng or condition. Please, measure the amount of ingredients when you cook the Nutrition rice as your taste.
Please refer to the cooking guide
Turbo function for Glutinous rice
Press twice “Pressure Cook/Turbo” button after choosing the “Glutinous” and it will switch to quick cooking and shorten the cooking time.(It takes about 14 minutes when you cook the Glutinous rice for 2 persons.)
The preset time function is not for Glutinous rice turbo cooking.
The turbo cooking function is allowed up to 6 persons. (The condition of the rice will not be good for more than 6 persons.)
If you soak the rice in water for about 20 minutes before cooking the rice and then cook the rice in turbo cooking course, the rice will taste good.
Longer “SOAK” Time: rice becomes soft and glutinous. (selectable in 4 steps) Longer “HEAT” Time: rice becomes tasty (selectable in 4 steps) melanizing will occur
Above 2 functions can be selected both or individually.
Cuckoo’s patented technology based on variable circuit design. User can select the degree of “softness”and
“glutinosity & tastiness” to meet a user’s specific taste.
MY MODE’ function may influence scorching or cooking quality. Ensure that cooking time is not changed, by children.
Default settings are “SOAK” Time 0 min(“ ”), “HEAT” Time 0 min(“ ”). “MY MODE” function may elongate cooking time according to set-up time. Scorching of rice may occur by longer “HEAT” Time(“ ”).
Set-up time is stored until the next reset. No need to set-up at every cooking. During Cooking, Warming and preset time cooking modes, SOAK and HEAT Time cannot be readjusted.
(soak time control mode) is shown with a beep sound when you press the “My Mode” button after
selecting a desired menu to apply or start
MY MODE” function applies to “Glutinous, Mixed, GABA, OLD RICE, Nu Rung Gi” menu.
Unless one of “Glutions, Mixed, GABA, or OLD RICE” menu is selected, “Min/Heat” button cannot be
entered.
“SOAK” Time Control Mode
Press “Hrs/SOAK” button to change the display.
“HEAT” Time Control Mode
Setting completed screen after
Press the “My Mode” button and set­up time will be automatically entered with a buzzer.(If you press cancel or do not press a button within 7 seconds, the function will deactivate and return to the standby mode.)
“MY MODE” setting screen
Press the “menu” button to select the menu. Then selected munu will be blinked. (The following menu will continuously repeat. Glutinous
Mixed/Brown
GABA Old rice Nu rung gi)
Press “Min/Heat” button to change the display.
*
1. The rice becomes solid and glutinous.
*
2. The rice becomes soft and well-raised rice.
*
3. The rice becomes soft and glutinous.
1 . The Cuckoo customized cooking function applies to Glutinous, Turbo cooking, Sushi, Mixed rice/Brown rice, GABA, Nutrition rice,
OLD RICE collectively.
2 . On the basis of
, step up the step of Cuckoo customized cooking function depending on your preference. The high step of cooking
may cause melanizing.
While cooking, you can control the heating temperature (both high and low) depending on your preference. In the customized cooking function, press the “Pressure Cook/Turbo”
button. The mark will show ‘ ’ with a buzzer then enter the customized cooking function mode. Display will be shown on the on the entire menu of the Cuckoo customized cooking function instantly.
The display Cuckoo customized cooking function
In the custom-made rice taste function, press the “Pressure Cook/Turbo” button. The Cuckoo customized cooking function will activate. ‘ ’ displays the first mark.
Press “Hrs/SOAK” button to change the display as 0 1
2 -2 1 0.
Press “Min/HEAT” button to change the display as 0
1
2 2 1 0.
-2 -2nd step setting mode
Setting completed screen after
Press the “My Mode” button and set-up time will be automatically entered with a buzzer. (If you press cancel or do not press a button within 7 seconds, the function will deactivate and return to the standby mode.)
-1 2nd step setting mode
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and harder to be digested. By a least germination, the enzymes in the brown rice are activated, generating nutrients and more digestible.
Check the dates of harvest and pounding.
The dates should be within 1year from a harvest, 3 months from pounding.
Inspect rice with your eyes.
Check that embryo is alive Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable for a germination Avoid fractured, not fully corned, or empty ear. Empty ear may generate
odor during germination and bluish- nor corned Brown rice cannot be germinated.
0 5 10 15 20 25
30
(Times)
Phytic acid
Ferulic acid
Inositol
Food fiber
Gamma-orizanol
Gamma-aminobutyric
Germinated brown rice(22hours) Germinated brown rice(6hours) Glutionous rice
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice. Germinated Brown rice also improves digestibility.
Taste will be greatly enhanced. Digestive and rich in nutrients. Diatetic hormone is generated improving digestibility. Good as a health food for children or students.
Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Amino Butryc Acid)
GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism in brain cells - these effects have been proved by medical science.
<Comparison of Germinated
brown rice’s nutrition and Glutinous rice’s(6 hours) nutrition.>
Phytic acid 10.3Times Ferulic acid 1.4Times Gamma-orizanol
23.9Times Gammma-aminobutyric 5Times Inositol 10Times Food fiber 4.3Times
Based on japan food analysis center
If smaller germ is preferred, omit pre-germination process. Select “GABA” menu, set-up appropriate
germination time, and start cooking (nutrient ingredients do not vary significantly by the size of germ). During hot seasons, longer germination time may generate odor. Reduce germination time. GABA cooking is allowed up to 4 persons. City water can be used for germination. However, spring water is recommended. Germination may not be properly performed in hot or boiled water even after cooling. Germination rate, germ growth may differ by the Brown rice kind, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice kind.
The brown rice should be within 1 year from harvest, and not long since pounded.
In GABA mode, preset on 4H, 5H, 6H may not be possible. If you want to preset the GABA, set up OH . (See the page 20)
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice. Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using “GABA” menu. Be careful that too hard washing may take off embryos which generate the germination.
Unique smell may be generated according to the soaking time of pre-germination. When pro-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated volume of water, and use “GABA” menu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean when cooking.
When the “GABA” is selected, “4H” is indicated in the display.
Pressing “Hrs/Soak” button increases germination time by 1 hour. Pressing “Min/Heat” button decreases germination time by 1 hour.
GABA time can be set-up by
0, 4, 5, 6 hours.
If “GABA” time is set “0” hours, pressing “Pressure Cook/Turbo” button will start cooking immediately. To cook without germination or cooking germinated Brown rice, set the time at “0”.
Pressing “Pressure Cook/Turbo” button will begin the “GABA” process, after which. cooking will begin immediately. During “GABA” mode, “Cook” indicator will be lit together with the germination time left.
3 more hours for germination
Default setting: 4 Hours
Method of Pre-germination
Precautions for ‘GABA’ Cooking
1. Turn the Lock/Unlock handle to Lock and press menu to select the Nu Rung Gi.
2. Press the “Pressure Cook/Turbo” button to start cooking.
3. When cooking is completed, scoop out the boiled rice. The Nu Rung Gi on the jar bottom can be prepared for your taste (e.g. scorched rice tea)
Nu Rung Gi can be prepared for people up to 4.
For Nu Rung Gi cooking, set the water volume at Glutinous level.
Press “Hrs/Soak”, “Min/Heat” button to set up the time.
Please refer to the cooking guide for cooking time.
1. Each time you press “Hrs/Soak” button, the time increases 5 minutes.
2. Each time you press “Min/Heat” button, the time decreases 5 minutes.
3. Available setting time is 10 ~ 90 minutes.
2
Use the preset time of Multi -cook as following instruction.
1. Check the present time.
2. Turn the Lock/Unlock handle to
Lock and press the “Timer” button.
3. Press the Hrs/Soak or Min/Heat to preset time.
4. Press menu to select the Multi-cook.
5. Set up the cooking time for pressing “Hrs/Soak”, “Min/Heat” button.
6. Press the “Timer” or “Pressure Cook/Turbo”
Turn the top handle to Lock, press menu to select the Multi-cook.
When selecting Multi-cook, the display indicates cooking time to be 20 minutes.
1
Press “Pressure Cook/Turbo” button.
Press the “Pressure Cook/Turbo” button and the Multi-cook will start. If the Multi-cook starts, the display shows the
cooking mark and
remaining minutes.
3
4
Using
range of
preset
timer
From (33minutes + My mode)
to 13 hours
Glutinous
Menu
From 46minutes
to 13 hours
Sushi
From (47minutes + My mode)
to 13 hours
Mixed/Brown
From (51minutes + My mode)
to 13 hours
GABA
From
(setting time
+1minutes) to
13 hours
Multi Cook
From
(40minutes
+ My mode)
to 13 hours
Nu Rung Gi
From 34minutes
to 13 hours
Nutritious
From (42minutes + My mode)
to 13 hours
OLD RICE
Put it in the inner pot with the measured water after wash the rice and turn the Lock/Unlock handle to Lock . Presetting time is the time when the rice cooking is completed. (According to the amount of rice the finishing time may vary)
The Preset will be displayed. Press the “Cancel” button when you want to cancel the preset cooking. The preset time will be stored.If you want to cook the rice to the preset time already entered, press the “Timer” button and then press the “Pressure Cook/Turbo” button. If you want to check the current time during the Timer cooking, press the “Hrs/Soak” or “Min/Heat” button for 2 seconds.
If you press the “Timer” button, the “Timer” sign will be displayed with the preset time. After pressing “Timer” button, set the preset time within 7 seconds. The default for set time is 6:30 AM If you press the “Timer” button without setting the lock/unlock handle on the top cover to “Lock”, the sign will be on the display and don t operate.
In GABA mode, preset on “ ” is possible.
If the rice is old and very dry, the result of the cooking may not be good. If the rice is not well cooked increase the amount of water about half-scale.
Press “Cancel” button and restart to change the preset time. Set the presetting time to no more than 13 hours especially if the presetting time exceeds 7 to 8 hours during the summer time, the rice can smell bad.
Preset time will be changed automatically and displays “
when setup time exceeds 13 hours.
If the preset time is shorter than cooking time in the below table, the cooking starts immediately.
Precautions for preset cooking
Using range of Timer Cook for each menu
Refer to page 10 for the time setting method If the current time is not set correctly, the presetting time also be incorrect.(Make sure not to change A.M. and P.M.) If the menu is incorrect, press the “Menu” button and select the desired menu.
Caution : Press “Hrs/Soak”, “Min/Heat” button to set a cooking time, When use the Multi cook preset mode.
Set the presetting time with the “Hrs/Soak” and “Min/Heat” button. If the preset time is already correct, you do not need to set time again.
Example) When you want to eat the rice at 7:30AM.
Press the “Timer” button (The “Preset” sign will be displayed) and then press the “Hrs/Soak” button, set time at 7 hours. And press the “Min/Heat” button, set time at 30 minutes. (The unit for the “Hrs/Soak” button is 1 hour and the unit for the “Min/Heat” button is 1 minute.)
Using Keep Warm function for more than 12hours may cause discoloration or an objectionable odor in the rice. During keep warm and reheat mode, set the cover lid handle at “Lock” (Could impact on a keep warm function or a breakdown of the clamp knob)
How to keep warm
1
After the cooking process is finished it is automatically switched to warming function. Make sure to mix the cooked rice well as soon as the cooking process is completed with the rice scoop (within 5 minutes)
3
The mixed and brown rice cannot be in such good condition as white rice while in warm function due to their characteristics. Therefore do not keep mixed and brown rice in function for a long period of time.
2
Do not keep the scoop inside the pot while warming the rice. When using a wooden scoop it can cause serious bacteria and odors.
4
If the amount of rice inside the pot isn't that much, keep it at the center of the pot.
5
Do not warm the cold rice or do not mix the cold rice with the warm.
7
Because there will always be alien substances on the internal side of the top cover(heating part), always remember to clean the top cover before using.
8
During warm mode, the rice can turn white and rise. In this case, mix the rice.
6
Always keep the power connected while warming the rice. If you turn the lock/unlock handle to “Unlock”, the “Release” will be displayed. But the rice is still in warming function. The warming efficiency is better when the handle is kept at “Lock”.
Even after you clean and disinfect with boiling water, the rice still turns yellow and the rice smells bad or the rice feels cold, it usually means the warming temperature isn t proper. You have to adjust the warming temperature.
When you want to adjust the warming temperature during warm mode, Press the longer than 2 second .
1. When the color of the rice hasn t changed but the rice smells bad, or when the rice feels cold. (the warming temperature is lower than normal so raise the warming temperature about 1~2 c)
2. When the color of the rice turns yellowish and the rice smells bad. (the warming temperature is higher than normal so reduce the warming temperature about 1~2 c)
-2 Press “Min/Heat” button to change the display as
Press the “My Mode” button more than 2 seconds during warming. The display of mark will changed with buzzer sound. At this time, indicates the present temperature of warning.
The setting temperature when take the products out of warehouse can be different from an operating manual.
-1 Press “Hrs/SOAK” button to change the display as
Set up the desired temperature. Press “My Mode” button and set-up time will be entered with a buzzer sound.(If you press the cancel button or do not press the button within 7 seconds, the function will automatically return to normal.)
Controlling method of warming temperature
Reheating Function
(It reheats cooked rice like it has just been cooked.)
The reheating function only works while warming the rice.
The “ ” mark rotating clockwise. The reheating course will be completed in
9 minutes with the “beep” sound.
When the reheating is completed
Mix the reheating rice well. If you reheat the cooked rice several times, it will degrade the taste of the warmed rice. Use it once or twice a day.
Keep the surface flat keeps the temperature of the rice constant and also reduces the dryness.
During “keep warm” mode the current time is shown by pressing “Min/Heat” button and the warm processing time is shown by pressing “Hrs/Soak” button.
While warming......
When odors are rising during the warming mode
Clean the lid frequently. It could produce bacteria and odors.
Although it appears to be clean, the bacterias may cause odor during keep warm mode. So sterilize with a cloth has been boiled in hot water. Set the water to scale 4 of, “GLUTINOUS” and add 15cc of vinegar into the inner pot and boil pressing the “Cancel” button
for 20-30 minutes. After you cook soups and steamed dishes clean the
inner pot properly to prevent rice from smelling.
Wipe any rice or alien substance with a wet cloth
Especially, make sure you clean the steam control vent freguently
How to set up
1. In the custom-made rice taste function, press the “Warm/Reheat” button. The custom-made warming mode
will be entered. At the same time, press the preset button. The display will
indicate as below.
2. When entering the custom-made warming mode in bed, press the “Hrs/SOAK” button.
display will be corrected and press the My Mode function to set up.
3. After entering the custom-made warming mode, if you do not press the any other buttons within 7 seconds, the function will return to the previous cancelled function.
4. This function must be activated the buyer depending in necessity.
1. In the My Mode function, press the “Keep Warm/Reheat” button. The custom-made warming mode
will be entered. At the same time, press the preset button. The display will
be shown as below.
2. When entering the custom-made warming mode in bed, press the “Min/HEAT” button.
display will blink and then press the custom-made rice taste function to relase.
3. After entering the custom-made warming mode in bed, press the “Cancel” button or do not press any button for 7 seconds, then function will go back to the prior cancelled function.
If you need to keep the rice warm during sleeping, do not use this function. This function makes the rice cooler than normal. In summer, the rice can be spoiled and may smell because of high temperature. If possible, do not use the custom-made warming mode while sleeping.
Use it while opening the lid when there is much water or rice becomes too soft.
1. When opening the lid, if too much water is spilt : Press Hrs/SOAK button to raise the setting mode about 1~2 step.
2. If the edge of rice is too soft : Press button Min/Heat to reduce the setting mode about 1~2 step.
-2 Press “Min/HEAT” button to change the display as
Select the menu you want, then the press the “My Mode” button and set-up time will be automatically entered with a buzzer. (If you press the cancel button or do not press a button within 7 seconds, the function will be cancelled and return to standby mode.)
-1 Press “Hrs/SOAK” button to change the display as
Press “Warm/Reheat” button in my mode. (Refer to page 15) The display of mark will change with a buzzer mark is first mark.
How to operate the warm temperature to my mode.
How to keep warm during sleep
When keeping the rice warm for long time, set up the temperature low to prevent the following quality of rice: smell, dry, change of color; from PM10:00 ~ AM 04:00.
How to release
When cleaning the cooker always pull the power plug with dry hands and clean it after the cooker is fully cooled off.
Clean the main body
When cleaning the top cover of the main body, do not use benzen, thinner, detergent etc,
It can cause discoloration or transformation. Wipe it with a clean cloth. Do not wash the main body.
Clean the inner pot and inside the top cover
When cleaning the inner pot, do not use tough scrubber, metallic scrubber, brush, abrasive material etc.
The coating can come off. Clean it with kitchen cleaner and sponge.
Clean inside the top cover
Soak the cloth in hot water and squeeze out the water. Use this cloth to clean inside the top cover of any alien substance.
Clean the inside main body
After taking the inner pot out, clean the bottom surface (especially the surface temperature sensor and heating plate) of before using.
Incorrect temperature reading from the sensor can lead to or malfunction or even cause fire.
Clean the dew dish
Empty the water out of a dew dish after cooking or keep-warming. Remaining the water in the dew dish cause bad smell.
Clean the valve hole in the pressure weight
Wipe water with a damp cloth
Temperature sensor on the surface
Alien substance
Benzene
Thinaner
Detergent
Turn the pressure
weight counter-
clockwise to take
it out.
Cleaning Pin
Alien Substance
Do not use a cleaning pin for other use except cleaning for the valve hole of the pressure weight.
Wipe water with a damp cloth
Case Check points Do the following
When the rice is not cooked.
When the rice is not well cooked.
Bean (other grains) is half cooked.
Rice is too watery or stiff.
When the water overflow.
When you smell something while warming.
Did you use the measuring cup to measure your rice? Did you measure proper water? Did you clean the rice before cooking? Did you put rice in water too long time? Is the rice old or dry?
Is bean (other grains) is too dry?
Is it selected the menu correctly? Did you measure proper water? Did you open the top cover before cooking was finished?
Did you use the measuring cup? Did you measure proper water? Is it selected the menu correctly?
Did you close the top cover. Please check the power cord input to wall socket. Did it warm over 12 hours?
Is there any other substance such as rice scoop or cold rice.
Refer to page 11~12.
Insert some more water (about half of 1 level) Soaked or steam beans other grains
before cooking in the pressure cooker in order to avoid partially cooked beans or grains. Beans should be soaked for-to­minutes or steamed for-to-minutes prior to cooking, depending on your taste.
Select the correct menu. Measure the proper water. Open the top cover after cooking finished.
Refer to page 11.
Close the top cover perfectly. Always be keeping the power on while warming. As possible as warming time is within 12 hours. Don’t warm rice with other substance.
“Pressure Cook/Turbo” button is pressed?
Is there power cut while in cooking?
Press the “Pressure Cook/Turbo” button once. And check
sign on the display.
Re-press the “Pressure Cook/Turbo” button.
Clean all the alien substance on the temperature sensor, heating plate or the bottom surface of the inner pot.
Is there any rice or any other alien substance on the temperature sensor, heating plate or the bottom surface of the inner pot?
When the rice is badly sticky.
“ ”,“ ”, “ ”sign is appeared.
There is some problem on the temperature sensor.
Please contact to dealer or service center.
Please insert inner pot. 120V only.
Please turn the Lock/Unlock Handle to "Lock"
Is there inner pot? Check the rated voltage?
Did you turn the Lock/Unlock Handle to "Lock" Is “pressure” lamp on?
When the button cannot operate with “ ”
.
When the “Pressure Cook/Turbo”, Timer
button are not operate with “ ”
If there is a problem with your cooker, check the following details before requesting service to your dealer. Sometimes the cooker may not operate as desired if used incorrectly.
Case Check points Do the following
Because of pressure. Pull the pressure weight to aside once and exhaust the steam perfectly.
This is the sound of the fan motor to cool the internal partd. This is nomal.
The “Chi” sound during the warming process is the sound of IH cooker operating. This is normal.
Is there a wind blowing sound when cooking the rice?
Is there a “Chi” sound when warming the rice?
Clean the packing with duster. Keep to be clean near the packing.
If the steam is exhausted the top cover, please power off and contact the service center and dealer. Packing life cycle is 12 month, please replace the packing per 1 year.
Is there alien substance on the packing?
Is packing too old?
When the top cover cannot open although the Lock/Unlock handle to "Unlock".
When you hear weird noises during cooking and warming
When the steam exhausted between the top cover.
Keep pressing the “Cancel” button for 2 seconds for safety reason if you like to cancel while cooking.
Be carefully of hot steam emission or hot contents spattered from the automatic steam outlet when cancelation.
Is the inner pot hot?
When the Cancel button does not
operated while cooking.
Don’t open the top cover while cooking.
If you want to open top cover while cooking, press the “Cancel” button more than
2 seconds and exhaust
the steam. Pull the pressure weight to aside once and exhaust the steam perfectly.
Did you turn the Lock/Unlock handle while cooking?
Did you turn the Lock/Unlock handle before exhausting steam perfectly?
When cannot turn to "Unlock".
Set the current time. (Refer to page 10) Check the AM, PM. Maximum reservation time is 13 hours. (Refer to page 20)
Please put in the inner pot perfectly. The Lock/Unlock handle to "Unlock". Pull the pressure weight to aside once.
Is the current time correct? Is it right AM or PM? Did you set the reservation time over 13 hours?
Did you clean it after cooking?
Please clean it after cooking.
Is the inner pot correctly put in the main body?
Is the Lock/Unlock handle on the top cover set to “Lock”?
Is there hot thing in the inner pot?
When the time cannot be preset.
When you smell after and before cooking?
Does the quantity of rice exceed the specified maximum capacity? Is the Brown rice too old?
Put the specified maximum capacity of Brown rice. OLD RICE or contaminated rice may mot be germinated properly. (Refer to page 17)
Brown rice is not germinated properly
When the top cover cannot be closed.
Glutinous rice Mixed rice Nu rung gi
Sushi
GABA OLD RICE
pressure
GLUTINOUS
SUSHI
MIXED/BROWN
GABA
OLD RICE
NUTRITIOUS
NU RUNG GI
MULTI COOK
Glutinous Sushi Mixed/Brown GABA OLD RICE
Multi cook
Nu Rung Gi
Nutritious Rice
Glutinous
2
1
3
4
Glutinous Normal
Mixed/Brown
GABA Multi Cook Nu Rung Gi Nutritious OLD RICE
1 2
4
5 7 8
6
3
100% Recycled paper 383-798D Rev.0
CUCKOO ELECTRIC RICE COOKER/W ARMER
LIMITED W ARRANTY
KEY Company, P&K USA TRADING CORP and Cuckoo Trading Canada. will repair at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use, during the warranty period listed below from the data of original purchase. This warranty is good only to the original purchaser of the product during the warranty period. P&K USA TRADING CORP covers the east and the central districts, KEY Company covers the west and the central districts, Cuckoo Trading Canada covers the whole Canada.
WARRANTY PERIOD
MODEL# #LABOR PARTS HOW SERVICE IS HANDLED
HF06 Series 1YEAR 1YEAR The East and the Central Districts
Call : 718 888 9144 Address : 129-04 14th Avenue College Point, NY 11356, USA
The West and the Central Districts. Call : 213 687 9828 Toll Free : 877 481 9828 Address : 700 Jackson Street, L.A, CA 90012, USA
Canada (Toronto) Call : 416 878 4561 / 905 707 8224 Address : #D8-7398 Yonge Street Thornhill Ontario Canada L4J 8J2
Canada (Vancouver) Call : 604 540 1004 / 604 523 1004 Address : 945 Lougheed Hwy Coquitlam BC Canada V3K 3T4
No other express warranty is applicable to this product.
THE DURATION OF ANY INPLED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. CUCKOO ELECTRONICS CO.,LTD, SHALL NOT BE LIABLE FOR THE LOSS THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSE QUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some states do not allow the exclusion or limitations of incidental or consequential damages or limitations on how long an implied warranty lasts : so these limitations or exclusions may apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY IN THESE CASES:
To damages problems which result from delivery or improper installation. To damages problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage. To serve call which do not involve defective workmanship or material and explaining the operation of the unit.
Therefore, these costs are paid by the consumer. Customer assistance numbers : To Prove Warranty Coverage : Retain your Sales Receipt to prove data of purchase
Copy of your Sales Receipt must submitted at the time warranty service is provided.
To Obtain Product, Customer, or Service Assistance and Nearest Authorized service center, Parts Distributor or Sales Dealer:
The West and the Central Districts. Call : 213 687 9828 Toll Free : 877 481 9828 Address : 700 Jackson Street, L.A,
CA 90012, USA
Canada (TORONTO) Call : 416 878 4561 / 905 707 8224 Address : #D8-7398 Yonge Street
Thornhill Ontario Canada L4J 8J2
Canada (VANCOUVER) Call : 604 415 9858 / 604 524 8282 Address : 103-4501 North Road
Burnaby BC Canada V3R 4R7
The East and the Central Districts Call : 718 888 9144 Address :129-04 14th Avenue
College Point, NY 11356, USA
Loading...
