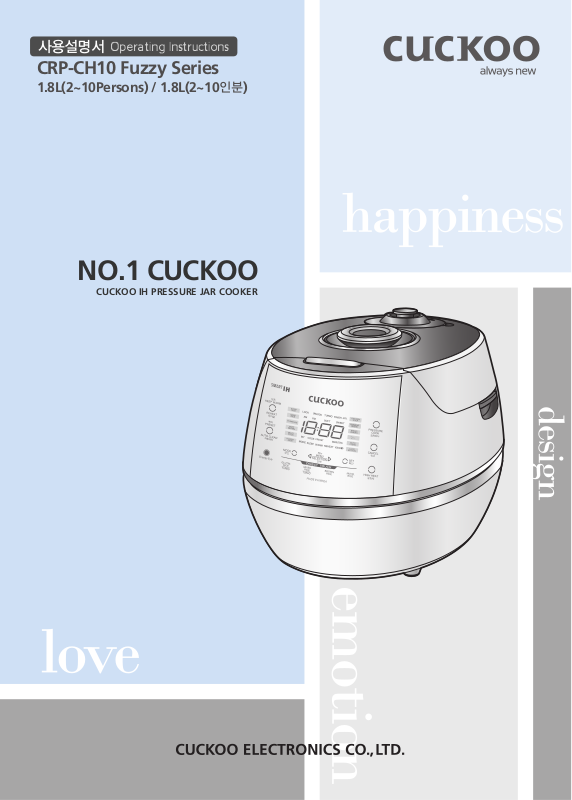

Cuckoo CRP-CH10 User Manual

CRP-CH10 Fuzzy Series
1.8L(2~10Persons) / 1.8L(2~10인분)
사용설명서
Operating Instructions
NO.1 CUCKOO
..
이 사용설명서는 잘 보관하여 주십시오. 사용 중에 모르는 사항이 있을 때나 기능이 제대로 발휘되지
않을 때 많은 도움이 될 것입니다 .
Thank you very much for purchasing “CUCKOO
Electric Rice cooker/warmer
Read the following instruction manual before use. Save this instruction manual for future reference. This manual will be useful if you have any questions or have problems operating the rice cooker.
목차
사용하기전에
Important safeguards
…………………………………
3
제품규격
…………………………………………………
4
안전상의 경고
………………………………………
44~47
각 부분의 이름
…………………………………………
48
제품 손질 방법
……………………………………
49~50
기능 조작부의 이름과 역할
……………………………
51
기능 표시부의 이상점검 기능
…………………………
51
사용할 때
현재시각의 설정
…………………………………………
52
음성안내 기능의 설정과 해제
…………………………
52
야간 음성볼륨 줄임 기능 / 음성 설정 기능
……………
53
취사 전 준비사항
………………………………………
54
맛있는 밥을 드시려면
……………………………………
55
취사는 이렇게 하십시오
……………………………
56~57
자동세척/간편 불림 기능은 이렇게 하십시오
…………
57
쿠쿠 맞춤밥맛 기능은 이렇게 하십시오
……………
58~59
현미발아는 이렇게 하십시오
………………………
60~61
멀티쿡은 이렇게 하십시오
………………………………
62
발효빵은 이렇게 하십시오
…………………………
63~64
예약 취사는 이렇게 하십시오
………………………
65~66
예약 재가열은 이렇게 하십시오
……………………
67~68
밥을 맛있게 보온하려면
……………………………
69~71
절전기능/에너지아이 기능은 이렇게 하십시오
…………
72
화면조명 절전기능/버튼 잠금기능/ 취사 잔여시간 표시기능은 이렇게 하십시오
……………
73
NFC
사용방법
………………………………………
74~79
고장 신고 전에
고장신고 전에 확인 하십시오
………………………
80~82
CONTENTS
BEFORE USING
Important safeguards
……………………………………
3
Specifications
……………………………………………
4
Safety precautions
……………………………………
5~8
Name of each part
………………………………………
9
How to clean
…………………………………………
10~11
Function operating part
…………………………………
12
Error code and possible cause
…………………………
12
WHEN USING
How to set current time
…………………………………
13
How to set or cancel voice guide function
…………………
13
Night voice volume reduction / voice setting function
……
14
Before cooking rice
………………………………………
15
For the best taste of rice
…………………………………
16
How to cook
…………………………………………
17~18
MY MODE (Cuckoo Customized Taste Function)
19~20
How to use “GABA Rice (Brown rice)”
………………
21~22
How to cook the MULTI-COOK
……………………………
23
How to cook using fermentation bread baking
………
24~25
How to preset timer for cooking
……………………
26~27
How to use Preset Reheating Function
……………
28~29
To keep cooked rice warm and tasty
………………
30~32
How to use power saving screen light mode
……………
33
Display Lighting power saving mode
……………………
34
How to lock buttons
……………………………………
34
How to use Remaining Cooking Time Display Mode
………
34
How to use the NFC Function
…………………………
35~40
BEFORE ASKING FOR SERVICE
Check before asking for service
……………………
41~43
CONTENTS
1. Read all instructions before using this appliance.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and / or injury to persons do net immerse cord, plugs, or Pressure
4. Close supervision is necessary when this appliance is used by or near children. This appliance is not intended for use by young children without supervision.
5. Unplug from outlet when not in use and before cleaning. Allow appliance to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. Return the Appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, and / or injury to persons.
8. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or your service agent.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas, electric burner, or in a heated oven.
12. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, or
set all control to “off”, then remove the plug from the wall outlet.
13. Do not use this appliance for other than its intended use.
14. Extreme caution must be used when moving an appliance containing hot oil or any hot liquids.
15. Oversized foods, metal foil packages, or utensils must not be inserted into the appliance as they are a
risk of fire or electric shock.
16. A fire may occur if the appliance is covered or touching flammable material, including curtains,
draperies, walls, etc while in operation.
17. To reduce the risk of electric shock, cook only in the provided removable container.
18. This appliance cooks under pressure. Improper use may result in scalding injury.
Before operating the unit, properly secure and close the unit. See “Operating Instructions.”
19. Do not cook foods such as applesauce, cranberries, cereals, macaroni, spaghetti, or other foods.
These foods tend to foam, froth, and sputter, and may block the pressure releasing device.
20. Before use always check the pressure releasing device for clogging.
21. Do not open the pressure cooker until the unit has cooled and internal pressure has been reduced.
See “Operating Instructions.”
22. Do not use this pressure cooker to fry in oil.
23. Be sure that handles are assembled and fastened properly before each use.
Cracked, broken or charred handles should be replaced.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING : This appliance generates heat and releases steam during use. Use proper precaution to
prevent risk of burns, fires, other injuries, or damage to property.
1. Keep hands and face away from the Pressure Release Valve when releasing pressure.
2. Take extreme caution when opening the Lid after cooking. Severe burns can result from steam inside.
3. Never open the Lid while the unit is in operation.
4. Do not use without the inner Pot in place.
5. Do not cover the Pressure Valve with anything as an explosion may occur.
6. Do not touch the inner pot nor any heating parts, immediately after use. Allow the unit to cool down completely first.
ADDITIONAL IMPORTANT SAFEGUARDS
IMPORTANT SAFEGUARDS
SPECIFICATIONS / 제품규격
CRP-CH10 Fuzzy Series
AC120V, 60Hz
1305W
GLUTIN. RICE
(백미)
HIGH
HEAT GLUTIN. RICE(백미고화력)
MIXED RICE
(잡곡)
HIGH
HEAT MIXED RICE(잡곡고화력)
SUSHI RICE
(김초밥)
SOFT GLUTIN.(SOFT
백미)
TURBO GLUTIN. RICE
(백미쾌속)
TURBO MIXED RICE
(잡곡쾌속)
GABA RICE
(현미발아)
BROWN RICE
(현미)
HIGH HEAT BROWN RICE(현미고화력)
NUTRI. RICE
(영양밥)
HIGH HEAT NUTRI. RICE
(
영양밥고화력
)
PORRIDGE(죽)
0.36~1.08L (2~6cups)
0.36~1.8L (2~10cups)
0.36~1.44L (2~8cups)
0.18~0.36L (1~2cups)
1.0m
88.2KPa(0.9kgf/cm2)
8.3kg
30.3cm
41.9cm
29.0cm
Model Name
(모델명)
Power Supply
(전원)
Power Consumption
(소비전력)
Power Cord Length
(전원코드길이)
Pressure
(사용압력)
Weight
(중량)
Width
(폭)
Length
(길이)
Height
(높이)
Cooking Capacity
(취사용량)
Dimension
(치수)
Note:
A. A short power-supply cord (or cord set) is provided to reduce the hazards from entanglement by a longer cord.
B. Extension cord should be used properly.
C. Extension cord usage for the rice cooker:
(1) The correct rated voltage should be used for the rice cooker. (2) If the appliance is set on the ground, the extension cord should also be set on the ground. (3) The cord wires and extension cord should always be arranged to prevent hazards to children.
This appliance has a polarized plug : (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not properly fit in the outlet, turn the plug over. If it still does not fit, contact a qualified electrician. Please, keep this safety feature.
HOW TO USE EXTENSION CORD
HOW SERVICE IS HANDLED
The East and the Central Districts
Tel. No. 718 888 9144
The West and the Central Districts
Tel. No. 323 780 8808
TORONTO
Tel. No. 905 707 8224 / 416 878 4561
VANCOUVER
Tel. No. 604 540 1004 / 604 523 1004
USA Canada
SAFETY PRECAUTIONS
5
www.cuckooworld.com
ENGLISH
Do not alter, reassemble, disassemble or repair.
󳢯It can cause fire, electric shock or injury. 󳢯For repair, contact dealer or the service center.
Do not use the cooker near hot things such as stove, gas stove or direct ray of light.
󳢯It can cause an electric shock, fire, deformation,
malfunction or discoloration.
󳢯Please check the power cord and plug frequently.
Warning Do not
Do not cover the automatic steam outlet or pressure weight with your hand or face.
󳢯It can cause burns. 󳢯Especially be careful to keep
it out of children's reach.
Do not let the cooker contact any water by sprinkling water on the cooker.
󳢯It can cause an electric shock or fire. 󳢯If it contacts water, please separate power cord and
contact dealer and service center.
Do not use damaged power cord, plug or loose socket.
󳢯Please check the power cord frequently for damage. 󳢯Serious damage can cause electric shock or fire. 󳢯If the plug is damaged, contact the dealer or a
service center.
Use a single socket with the rated current above 15A.
󳢯Using several lines in one socket can cause
overheating or fire. Please check the power cord and plug frequently
󳢯Use an extension cord with the rated current
above 15A.
Please pay careful attention against water and chemicals.
󳢯It can cause an electric
shock or fire.
Read the following product safety guide carefully to prevent any accidents and/or serious danger. ‘Warning’ and ‘Caution’ are different as follows.
󳥇
󳥇
󳢯This sign is intended to remind and alert that something
may cause problems under the certain situation.
󳢯Please read and follow the instruction to avoid any harmful
situation.
󳢯
Indicates a prohibition
This means that the action it describes may result in death or severe injury.
This means that the action it describes may result in injury or property damage.
󳢯
Indicates an instruction
Warning
Caution
SAFETY PRECAUTIONS
6
Do not insert metal objects such as pins and wires or any other external substances in the automatic steam exhaust outlet or any other slot.
󳢯It can cause an electric shock or fire. 󳢯Especially be careful to keep it out of
reach of children.
Do not use pots that are not designed for the cooker. Do not use abnormal pot and do not use without inner pot.
󳢯It can cause an electric shock or fire.
<Inner pot>
Do not cover the automatic steam outlet or pressure weight with a duster, a towel, or apron, etc.
󳢯It can cause deformation or a breakdown. 󳢯It can cause an explosion by pressure.
Don't spray or put any insecticide and chemicals.
󳢯It can cause an electric shock or fire. 󳢯If cockroaches or any insects get inside
the cooker, please call a dealer or a service center.
󳢯Damages by impact can cause an
electric shock or fire. Please check the power cord and plug frequently.
Be careful that both the plug and power cord are not to be bit by animals, or pierced by sharp metal materials.
Do not put any needle, cleaning pin etc in the ventilator or any gap of the cooker.
Do not turn the Lock/Unlock Handle to “Unlock” during cooking
󳢯The hot steam or any hot content within the cooker
can cause burns.
󳢯After you finish the cooking do not try to open the
cooker by force until the steam is completely exhausted.
󳢯Do not insert cleaning pins to other parts except to
the valve hole of the pressure weight.
󳢯It can cause an electric shock or fire.
Keep the cooker out of children's reach.
󳢯It can cause burns, electric shock or injury.
Do not use it without the inner pot
󳢯It can cause electric shock or malfunction. 󳢯Do not pour rice or water without the inner pot. 󳢯If rice or water gets in then do not turn the product
over or shark it please contact to dealer or service center.
Remove external substances on plug with a clean cloth.
󳢯It can cause fire.
Please check the power cord and plug frequently.
󳢯It can cause an electric shock or short
circuit resulting in fire. Please check the power cord and plug frequently.
Do not cover the automatic steam outle
Do not open the top cover during heating and cooking.
󳢯It can cause burns. 󳢯If you need to open the lid while cooking, keep
pressing the cancel button for 2 seconds and confirm internal steam is released, completely turning the pressure weight over.
Do not place heavy things on the power cord.
󳢯It can cause an electric shock or fire.
Warning Do not
ENGLISH
SAFETY PRECAUTIONS
7
www.cuckooworld.com
󳢯When this unit is working, it can influence any
electrical medical equipment.
If you use cardiac pacemakers or electrical medical supporting equipment, consult a doctor before using this unit.
Do not use on a rice chest or a shelf.
󳢯Do not place the power cord
between furniture. It can cause an electric shock resulting in fire. Please check the power cord and plug frequently.
󳢯When using on furniture be cautious of steam
release As it can cause damage, fire and and/or electric shock.
Don't use the cooker near a magnetic field.
󳢯It can cause burns or breakdown.
Please use the cooker for original purposes.
Don't use for various purposes for inner pot.
󳢯It can cause deformation of the inner pot. 󳢯It can cause to spill the inner coating.
󳢯It can cause the malfunction or smell.
Do not touch the metallic surface of the inner pot and pressure weight after cooking or warming.
󳢯It can cause overflow or breakdown. 󳢯Do not cook over capacity stated for cooking of
chicken soup and congee.
󳢯It can cause an electric shock.
Use product on a flat surface. Do not use on a cushion. Please avoid using it on an unstable location prone to falling down.
Please contact dealer or service center if a strange smell or smoke has occurred.
Do not use over the maximum capacity.
󳢯It can cause malfunction or a fire. Please check. 󳢯the power cord and plug frequently.
Please pull out the plug when not in use.
󳢯It can cause electric shocks or fire. 󳢯Use AC 120V only.
Do not drop the cooker or impact.
󳢯It can cause malfunction.
󳢯It can cause burns. 󳢯Remaining hot steam can cause burns when you
tilt the pressure weight during and after the cooking.
Caution Do not
Warning Remember
Do not plug or pull the power cord with wet hands.
󳢯It can cause an electric shock.
Clean any dust or external substances off the temperature sensor and inner pot.
󳢯It can cause a system malfunction or fire.
it out of children's reach.
SAFETY PRECAUTIONS
8
Maintain more than 30cm of distance from the product while using.
Do not place on rough top or tilted top.
󳢯It can cause burns or breakdowns. 󳢯Be careful to install the power cord
to pass without disruption.
Do not keep easily spoiled food warm in the product such as red bean rice, mixed food, croquette or gratin. (Except white rice)
If power fails during rice cooking, automatic steam release may work, leading to dispersion of contents.
󳢯Cook rice with specified amounts of rice and water. 󳢯In particular, water more than specified amount may
cause overflowing of contents.
󳢯Cook rice while soft steam cap is mounted.
Wipe off any excessive water on the cooker after cooking.
󳢯It can cause odor and discoloration. 󳢯Wipe off water that is left behind from dew.
Even if power plug is unplugged, turn lid combining hand grip always to (Lock) location.
When you pull out the power plug, don’t pull the power cord. Please, safely pull out the power plug.
󳢯If you inflict impact on power cord,
it can cause an electric shock or fire.
Be cautious when steam is being released
Please clean the body and other parts after cooking.
󳢯It can cause burns. 󳢯Especially be careful to keep it out of children's reach.
󳢯After cooking chicken soup or, multi
cook dishes, etc., the smell may be absorbed.
󳢯Clean the oven packing, top heater plate and inner pot
every time you cook any of those.
󳢯Use dry kitchen cleaner or sponge to clean the inner
pot, since rough scrub or metallic ones are abrasive to the coating. (Refer to page 10~11)
󳢯Depending on the using methods or user's
circumstances inner pot coating might rise.Please call the customer service for those cases.
After you finish cooking, do not try to open the cooker by force until the steam is completely exhausted.
󳢯The hot steam or any hot content within
the cooker can cause burns.
󳢯Cautiously open the top cover after
cooking is done to avoid dangerous steam and burns.
Please call customer service if the inner pot coating peels off.
󳢯Oven coating may wear away after long use. 󳢯When cleaning the inner pot, do not use tough
scrubber, metallic scrubber, brush, abrasive metallic etc.
When the exterior of inner pot is diamond shield plated.
󳢯Use dry kitchen cleaner or sponge to clean the inner
pot since rough scrub or metallic ones might cause scratch on the exterior of the plating.
󳢯The friction of the inner pot with sink or other
appliances can cause its plating's coming off. (No problem to use it)
Do not hold the cooker by the inner pot handle.
󳢯It can cause problems and danger. There are portable
handles on the bottom right and left side of the cooker. Hold the handles with both hands and move it carefully.
󳢯In case My Cauldron is hot or hot cooked
rice is left after cooking is completed, close lid and turn lid combining hand grip to (Lock) direction even after unplugging power plug. Otherwise product deformation or damage may occur by internal pressure.
󳢯Be sure to turn lid combining hand grip to (Lock)
direction during cooking and heat preservation before use.
󳢯A magnetic field can be released from electronic goods.
Caution Remember
Warning Do not
NAME OF EACH PART
9
www.cuckooworld.com
ENGLISH
Name of each part
Name of each part
Always keep it horizontal.It stabilizes steam inside of the oven. Pressure weight is twisted, it release steam.
Pressure Weight
Soft Steam Cap
When finished cooking or during warming, steam is automatically released.
Automatic Steam Exhaust Outlet (Solenoid valve)
Lock/Unlock Handle (Set the handle to lock when cooking or warming the rice)
The handle has to turn to ‘Lock’ for operation.
Lid Clamp
Turn handle to ‘Unlock’, and then press Clamp knob to open.
Control Panel
Accessories
Manual&Cooking
Guide
Rice Scoop
Rice Measuring Cup
Steam Plate
Cleaning Pin
(Attached on the
bottom of the unit)
Empty the water out of a dew dish after cooking or keep warming, Leaving the water in the dew dish results in bad smell.
Drain Dish
DET. cover Holder
Handle
Place the inner pot Into the body property.
Inner Pot(Oven)
Pressure Packing
Pressure Control Plate
Holder Guide
Power Cord
Power Plug
Temperature Sensor
Control Plate Packing Cover
Control Plate Packing
Pot Handle
DET. cover
Lid Assy
HOW TO CLEAN
10
- To prevent foul odor clean the lid assy after the rice cooker has cooled and the rice cooker is unplugged.
- Clean the body of rice cooker and the cover with a dry towel. Do not use benzene or thinner to clean the
rice cooker. The layer of starch, which is the residue from rice cooking, may appear on the detachable cover or inside of rice cooker. This layer does not cause any health risk.
- Do not put materials like screws into holes of detachable cover. Check the back cover and front cover.
1. Handle must be turned to “ ”(Lock) during Cooking.
When the lamp is turned on it means that it is ready to cook.
2. After cooking, turn the handle from “ ”(Lock) to “ ”(Unlock) turn the handle to open.
If there is unreleased steam in the Inner pot it might be hard to turn the handle. In this case twist the pressure weight and let the excess steam out. Do not open by force.
. Handle must be turned to “ ”(Unlock) when opening and closing.
Detachable cover & Pressure packing
Detachable cover & Pressure packing
After cleaning detachable cover, put it back on the lid
Unless detachable cover is mounted, preset cooking cannot be done. (Alarm may sound while keeping warm.)
When mounting the cover, grab separate cover handle, attach it to hole, and after adjusting holder on top of packing stop tab, fix it by turning it clockwise.
Make sure to clean the clean steam went after/before use. Do not try to pull out the clean steam went and safety packing, clean it with care. Make sure the clean steam went and safety packing are installed completely after/before use. If the steam vent is detached, or not attached completely, please contact customer service.
Wipe the water on the outside and bottom of the Inner Pot. A rough sponge, a brush or an abrasive can cause scratches on the coating. Use a dishwashing liquid and a soft cloth or a sponge.
Wipe the main unit with a wet cloth that has been extracted out of al water
Make sure to clean the steam control went before and after use.
Steam Vent Inner Pot
Pressure Packing
Inside of the Main body
Wash the cover with cooking purposeneutral detergent and sponge frequently, and wipe off moisture with handkerchief.
Please keep clean the edge of rubber packing, t hen the rice cooker last's longer.
Turn the holder counter
clock wise, and the cover will be easily separated from the cooker and can be washed.
It is easier to attach the cover holder when the power part of the detachable cover is pressed.
As depicted in the picture, please align holder with arrow mark to open and close.
Please fir a rubber packing into the cover plate completely after washing or replacing the rubber packing.
After fitting 6 projections to the holes, please press the rubber packing around the corner completely as shown in the picture.
To put back the rubber packing, please fit it to each of 6 projections and holes as shown in the picture.
Rubber packing guide Oven cover point
To separate the rubber packing,
please pull it out from the cover plate as shown in the picture.
Please check that the rubber packing fits into the cover plate completely. If not, steam may be released from the crack between the packing and the plate.
Keeping the contact area of the Inner Pot with the pressure packing always clean, increases the product's durability.
Rubber packing contact surface.
󳢯If the lamp does not turn on, it would not
operate the “PRESSURE COOK” and ‘PRESET/AUTO CLEAN’ buttons. Make sure the handle is located in
“ ”(Lock)
.
Inner pot contact surface.
HOLDER OPEN
HOLDER CLOSED
HOW TO CLEAN
11
www.cuckooworld.com
ENGLISH
2. To close the lid turn the handle to unlock, in shown in the picture on the right.
1. Check to make sure the inner pot is place correctly inside the main body.
3. If there is excess steam inside the inner pot it might be difficult to lock the handle. Twist the pressure weight and allow the excess steam to release. Then try to turn the handle again.
Do not try to close the lid by force. It can cause problems.
When lid does not close perfectly
Separate cover as
the arrow points.
Use brush kit. You can easily
clean a drain use the ditch cap and tough pat to clean.
When using cleaning
pin, pull out cleaning pin and make it meet at right angles.
Only use for the
vlave hole of the pressure weight.
Separate cleaning pin Attached
on the bottem of the unit from main body as shown in picture.
How to use cleaning pin and brush kit
Separate dew dish
Separate the drain ditch
cap by pushing it down.
Clean the drain ditch
cap and dew dish with a neutral detergent.
Clean the drain ditch
cap with brush kit.
Securely put in the dew
dish after cleaning.
How to clean dew dish
How to clean the soft steam cap
Do not touch the surface of the soft steam cap right after cooking. You can get burned.
Detach the soft
steam cap like the picture.
Press the hook in the back, and follow the
arrow to detach and clean. Make sure you clean frequently with a sponge or a neutral detergent.
Assemble the went so that it fits into
the groove perfectly.
After you attach the soft
steam cap to fit into the groove, press “A” part firmly to assemble the soft steam cap into the product.
How to clean the pressure weight nozzle.
󳢯The valve hole of the pressure weight allows steam to release. Check regularly to ensure that it not blocked.
If the valve hole of the pressure weight is blocked, the hot steam and hot content within the cooker can cause serious injury.
Do not use the cleaning pin for any other use except to clean the valve hole of the pressure weight.
Soft steam cap
Cleaning Pin
If the valve of the pressure part is clogged, puncture it with the cleaning pin
How to disassemble the pressure weight
Under the Lock/Unlock handle is locked(located on “Lock”) turn the pressure weight counter-
clockwise while pulling it up, and pull it out.
Puncture the clogged valve hole with the cleaning pin and reassemble it by turning it clockwise.When the pressure weight is properly assembled, it can freely be turned.
Pressure Weight
Attached on the
botton of the unit.
Alien Substance
packing
LOCK
LOCK
❶❷❸
FUNCTION OPERATING PART / ERROR CODE AND POSSIBLE CAUSE
12
This function is used to select from among SUSHI RICE, GABA RICE, PORRIDGE, SOFT GLUTIN., MULTI COOK, CHICKEN SOUP, FERMENT BREAD, BREAD BAKING, SMART MENU, AUTO CLEAN, GLUTIN. RICE, HIGH HEAT GLUTIN.RICE, MIXED RICE, HIGH HEAT MIXED RICE, BROWN RICE, HIGH HEAT BROWN RICE, NUTRI.RICE, and HIGH HEAT NUTRI. RICE and to modify preset time. For setting selected action with ‘MODE’ button and setting GABA RICE, MULTI COOK, FERMENT BREAD, and BREAD BAKING time.
KEEP WARM/ REHEAT Button
Used to warm or reheat. (Refer to page 30)
PRESET/AUTO CLEAN Button
Used to preset preferredcooking time (Refer to page 26~27) When you use automatic steam cleaning function (Refer to page 18)
MODE Button
This function is used to customize individua
l (Refer to page 19~20) cooking preference, time-setting (Refer to page 14), voice volume
setting (Refer to page 13),
keep
warm temperature setting
(Refer
to page 32), and power saving
mode (Refer to page 33).
MENU/SELECTION Button
PRESSURE COOK Button
This function is used to start cooking. (Refer to page 17)
CANCEL Button
This function is used to cancel a selection or release remaining steam in the inner pot. (Refer to page 41) When using Power saving function. (Refer to page 33)
Display
SET Button
This function is used to select a function or to button-lock function. (Refer to page 34)
HIGH HEAT Button
This function is used for to activate the High heat cooking mode of the cooking functions such as GLUTIN. RICE, MIXED RICE, BROWN RICE, or NUTRI. RICE. (Refer to page 17)
DIRECT TOUCH
This function is used when cooking GLUTIN. RICE/TURBO GLUTIN. RICE, MIXED RICE/TURBO MIXED RICE, BROWN RICE/NUTRI. RICE
When the product has any problems or used it inappropriately, you can follw the below marks. If error persistently shows up even in normal using conditions or after taking measure, inquire with customer service .
Error Code and Possible Cause
Function Operating Part
When the inner pot is not placed into the unit.
When pressing the ‘PRESSURE COOK’ and ‘PRESET/AUTO CLEAN’ button, while the lid handle is on “Unlock” Turn the lid handle “Lock”
When boiling only water.
Problem on fan motor. (“ “marks blink.)
When setting preset time longer than 13 hours Set the preset time within 13 hours. (Refer to page 26~27) It is appears on the display when you press ‘PRESSURE COOK’ or ‘PRESET/AUTO CLEAN’ button again, or if the cooking has finished and you've never ever turned the handle to “Unlock”, It can be solved by turning handle to “Unlock” and then turn to “Lock”.
Problem on micom power.
Problem on environment sensor.
Problem on micom memory.
This error messager shows up when ‘PRESSURE COOK’ or ‘KEEP WARM/REHEAT’ button is pressed while separate cover is not mounted. Mount separete cover. While keeping warm. alarm will sound and keeping warm and reheating do not work.
This code indicates the function of checking for abnormality of power of product.
Problem on temperature sensor. (“ ” mark, “ ” mark, “ ” mark blink.)
If no operation is done while power cord is plugged, the system while be on standby mode as shown in the figure. (The menu on standby screen, time, voice and customized rice taste stage may differ depending on used configuration.)
If cancel button is pressed during cook, the rice cooker will go in standby mode.
Press the button until the buzzer sounds, Picture may vary depending on model.
<Standby condition screen>
HOW TO SET CURRENT TIME/
HOW TO SET OR CANCEL VOICE GUIDE FUNCTION
13
www.cuckooworld.com
ENGLISH
To enter this function, press ‘MODE’ button 2 times. ‘MODE’ button needs to be pressed for over 1 second at the first time.
Voice guide volume control (The function which can control volume and cancel)
Press ‘MODE’ button once.
‘MODE’ button needs to be pressed for over 1 second at the first time.A voice comes up saying “Setting mode for current time. Set current time with
‘MENU/SELECTION’ button then press ‘SET’ button.”
‘MENU/SELECTION’ button blinks and ‘MODE’, ‘SET’ and ‘CANCEL’ buttons turn
ON.
1
About Lithium battery
󳢯This product contains lithium battery for improving blackout
compensation and time. Lithium battery lasts for 3 years.
󳢯When current time is not displayed on the screen, it means the
battery is exhausted. It should be replaced.
What is blackout compensation
󳢯
This product remembers and maintains previous condition and processes. After finishing blackout, it operates immediately.
󳢯If blackout happens during cooking, the cooking time will
be delayed depending on blackout time.
󳢯If the rice became cold because of blackout, warming will
be cancelled.
How to set current time during keep
warming mode
1. Press ‘CANCEL’ button to cancel ‘KEEP WARM/REHEAT’ and then press ‘MODE’ button over 1 time to set current time.
2. After setting time, press ‘KEEP WARM /REHEAT’ button to re-start keep warm.
ex)8:25am now
How to set current time
When finishing to set time you want, press ‘SET’ button.
‘SET’ button blinks and ‘MODE’, ‘MENU/SELECTION’ and ‘CANCEL’ buttons turn ON.
If it is over 7sec without ‘SET’ button, setting time will be canceled with “Function setting has been canceled with overtime.”, it is canceled due to overtime.
3
Set o'clock and minute as pressing ‘MENU/SELECTION’ button.
2
‘SET’ button blinks and ‘MODE’, ‘MENU/SELECTION’ and ‘CANCEL’ buttons
turn ON.
Keep the button pressed, and the button will turn to Continuous.Set to desired voice volume, and press ‘SET’ button.If it is over 7sec without ‘SET’ button, setting time will be cancelde with
voice, “Function setting has been canceled with overtime.”
“3” sign is displayed when entered volume control mode by pressing ‘MODE’ button 2 times. ▶’MENU/SELECTION’ button blinks and ‘MODE’, ‘SET’ and ‘CANCEL’
buttons turn ON.
If set value became “OFF” by pressing ‘MENU/SELECTION’ button, “ ” blink and voice guide function is off.
Press ‘MENU/SELECTION’ button to change the volume from “1” to “5”.
1 min up “ ” button 1 min down “ ” button
10 min up or down “ ”, “ ” keep pressing.
Careful of setting am,pm.
In case of 12:00 it is 12:00 pm.
󳦈
<Standby mode>
󳦈
NIGHT VOICE VOLUME REDUCTION/ VOICE SETTING FUNCTION
14
Night Voice Volume Reduction
1. Press ‘MODE’ button 10 times in standby status, and you will enter Night Voice Volume Reduction mode. When pressing ‘MODE’ button initially, press the button for 1 second or longer to enter Night Voice Volume Reduction mode.
2. When you enter Night Voice Volume Reduction mode, a voice comes up saying “Setting mode for night time volume. Select or cancel night time volume with ‘MENU/SELECTION’ button then press ‘SET’ button.”
3. Press ‘MENU/SELECTION’ button, and as process progress bar change, voice volume will change. Select desired voice volume, and press 'SET' button.
4. Once process progress bar reach full condition through adjustment of ‘MENU/SELECTION’ button, a voice will come saying “Night time volume has been canceled.” Inactivate the function by pressing 'SET' button.
5. If 'Set' button is pressed or no button is pressed for 7 seconds after you enter Night Voice Volume Reduction mode, the function will be inactivated along with voice “Function setting has been cancelled with overtime.”, and the system will be back to standby mode.
1. Press ‘MODE’ button 11 times in standby status, and you will enter Voice mode. When pressing ‘MODE’ button initially, press the button for 1 second or longer to enter Voice mode. ‘MODE’ button needs to be pressed for over 1 second at the first time.
2. When you enter voice setting mode, a voice comes up saying “Setting mode for voice guide. Set voice with ‘MENU/SELECTION’ button then press ‘SET’ button.” At this time ‘MENU/SELECTION’ button blinks and ‘MODE’, ‘SET’ and ‘CANCEL’ buttons turn ON.
3. After setting Auto voice with 'MENU/SELECTION' button, Korean or English or Chinese, and press 'SET' button.
4. If 'SET' button is pressed or no button is pressed for 7 seconds after you enter Volume, the function will be inactivated along with voice “Function setting has been cancelled with overtime.”, and the system will be back to standby mode.
Example) 60% of day time voice volume
Example) When set to Korean Example) When set to Chinese voice
Night voice volumes by the setting of process progress
Set the function of night voice volume reduction, the function to reduce the volume of voice during night time (10:00PM-05:59AM) on need-to-do basis. This function works only during night time.
How to set night voice volume reduction
Voice Setting Function
This function helps you select Auto voice for either Korean or English or Chinese's voice. With this function, you can set to your desired voice. The product’s default voice is set to Korean.
How to set voice function
Zero volume
20% of day time voice volume
40% of day time voice volume
60% of day time voice volume
80% of day time voice volume
Example) When set to English voice
BEFORE COOKING RICE
15
www.cuckooworld.com
ENGLISH
Glutinous Rice for 8 persons
(8 cups) : Set the water to scale
8 of ‘GLUTINOUS’
For overcooked rice : pour less
water than the measured scale
When you want to cook the old
rice or want the soft rice : pour more water than the measured scale
Rice for 8 persons (8 cups)
Clean the inner pot and wipe the water on the inner pot with dry cloth.
Use the soft cloth to wash the inner pot.Tough scrubber can make the coating come off.
1
Measure the amount of rice you want to cook using the measuring cup.
Make the rice flat to the top of measuring cup and it is serving for
1 person.
(ex: for 3 servings 3 cups, for 6 servings 6 cups)
2
Wash the rice with another container until the water becomes clear. (We recommand not to use inner pot for washing grains)
3
Put rinsed rice into the inner pot.
4
Put the inner pot into the main body and close the topcover.
Put the inner pot correctly. If there is any external substance on the temperature sensor or the bottom
of the inner pot, wipe it off before putting the pot into the main unit.
lid will not close if the inner pot is not placed correctly in the main body
(Place the inner pot to the corresponding parts of the main body)
6
According to menu, adjust the water amount.
For measuring, place the inner pot on a leveled surface and adjust
the amount of water.
The marked line of the inner pot indicates water level when putting
the rice and water into inner pot together.
About water scale
󳢯 GLUTIN. RICE, TURBO GLOTIN. RICE, HIGH HEAT GLUTIN. RICE, NUTRI. RICE,
HIGH HEAT NUTRI. RICE : Adjust waterlevel to the water scale for 'GLUTINOUS'. GLUTIN. RICE/HIGH HEAT GLUTIN.RICE can be cooked to max 10 servings, TURBO GLU. RICE/NUTRI.RICE/HIGH HEAT NUTRI. RICE to max 6 servings.
󳢯 MIXED RICE, TURBO MIXED RICE, HIGH HEAT MIXED RICE : Adjust water level to
the water scale for ‘MIXED RICE’. SUSHI RICE/MIXED RICE/HIGH HEAT MIXED RICE can be cooked to max 8 servings, TURBO MIXED RICE to max 6 servings.
󳢯 BROWN RICE, HIGH HEAT BROWN RICE, GABA RICE : Adjust water level to the
water scale for 'GABA RICE'. BROWN RICE/GABA RICE/HIGH HEAT BROWN RICE can be cooked to max 6 servings
󳢯 SOFT GLUTIN. : Adjust water level to the water scale for ‘SOFT GLUTINOUS'.
SOFT GLUTIN. can be cooked to max 6 servings.
󳢯 PORRIDGE: Adjust water level to the water scale for 'PORRIDGE'.
PORRIDGE can be cooked to max 2 servings
5
Cook in cereals menu, hard cereals like red-bean can be half-cooked depeding on the kind of cereal.
Close the topcover and Turn the lid handle to the “ ”(Lock) position.
The lid is completely locked as soon as the on “ ” the lid locking handle
and the “LOCK” on the front display panel are both lit up.
If you press the ‘PRESSURE COOK’ button without setting the lid handle
to “LOCK”, the cooker will not operate. You will hear “beep beep beep” sound and “ ” is shown in the LCD.
If you want to select another function while cooking, push ‘CANCEL’ button.
7
If ‘ ’ mark shows up in other instance, turn cover handle to “ ”(Unlock)
direction, and turn it toward “ ”(Lock). Then the cooker will work normally. (The operation of cover lock sensing device can be checked.)
This instruction is not applicable if cover handle is turned toward “ ”(Unlock) direction once or more after cooking was completed in previous cooking.
FOR THE BEST TASTE OF RICE
16
Use the measuring cup
Pour the water until water level marking in the inner pot
How to keep the rice
It’s better to set the preset time shortly.
It’s better to set the Keep warming time shortly.
Keep the product clean.
󳢯When measuring the rice, use the measuring cup.
(The amount of the rice may vary depending on the quality of the rice.)
󳢯 Place the inner pot on a flat surface and adjust the
water to water level in the inner pot.
󳢯 If possible, buy a small amount of rice and keep
the rice some place where ventilates well and avoid a direct ray of light. It can prevent evaporation of rice moisture.
󳢯 If the rice has been unsealed for long, rice can be
dry and stale. In this case, you should pour the half of water more. It’s tastier.
󳢯 If possible, do not use the preset time function if
rice is too dry and pour more water more.
It’s better to set the keep warming in 12 hours.
󳢯 Clean the product often.
(Especially clean the top of the cover for external substance.)
When the propotion between the amount of rice is not proper, rice can be crisp or hard.
When rice is too dry, it can be crips even though measuring the amount of rice is accurate.
󳢯If you set “Preset” over the 10 hours
or “Preset” dried rice, rice can be crisp or half cooked. Even worse condition, rice can be cooked different tastes each level.
󳢯If the preset time is longer, the
melanoizing effect could be increased.
If rice is kept warm for a long period of time, rice color will change, and can cause odor.
Wipe the lid heating part well for any rice or external substance.
For the best taste of rice, check the following points carefully.
Cook tasty rice with Cuckoo pressure rice cooker
HOW TO COOK
17
www.cuckooworld.com
ENGLISH
Choose menu with ‘MENU/SELECTION’ button.
·Please mount detachable cover.
·Please keep “Pressure weight” horizontal.
·Each time ‘MENU/SELECTION’ button is pressed, the selection
switchs in the sequential order, GLUTIN.RICEHIGH HEAT
GLUTIN.RICEMIXED RICEHIGH HEAT MIXED RICE BROWN RICEHIGH HEAT BROWN RICENUTRI.RICE HIGH HEAT NUTRI.RICESUSHI RICEGABA RICE PORRIDGESOFT GLUTIN.MULTI COOK→CHICKEN SOUP FERMENT BREADBREAD BAKINGSMART MENU AUTO CLEAN.
·If the button is pressed, repeatedly, the menu switches
continuously in sequential order.
·
The one of following cooking menu modes: GLUTIN. RICE, MIXED RICE, BROWN RICE, NUTRI. RICE will be immediately proceeded to start cooking by pressing the ‘DIRECT TOUCH’ button of each cooking menu mode.
·
Pressing the ‘HIGH HEAT’ button within 5 seconds after proceeding the one of following cooking menu modes: GLUTIN. RICE, MIXED RICE, BROWN RICE, NUTRI. RICE will initiate the high temperature cooking of each cooking menu mode.
·
In the cases of GLUTIN. RICE, HIGH HEAT GLUTIN. RICE, MIXED RICE, HIGH HEAT MIXED RICE, SOFT GLUTIN., BROWN RICE, HIGH HEAT BROWN RICE, GABA RICE, SUSHI RICE, NUTRI. RICE and HIGH HEAT NUTRI.RICE, the menu remains memorized once each cooking is completed, so for continuous use of the same menu, no selection of menu is required.
1
Steaming.
·
The cooktime remaining on the display is shown from cooking thoroughly.
·
The cook time is different according to the menu.
·
Be careful not to burn yourself from the automatic steam outlet.
3
ex) In case of 10minutes left.
ex) In case of selecting SUSHI RICE.
You can hear a voice, SUSHI RICE.
Start cooking by pressing ‘PRESSURE COOK’ button.
·
You must turn lid handle to lock before cooking. Then press the ‘PRESSURE COOK’ button, and sound “Starting the Glutionus Rice.”
·
Unless lid handle is not turned to close, you get alarm with “ ” , and sound “Close the lid then turn the handle to the lock position.”
2
ex) In case of cooking Glutinous.
The end of cooking
·When cooking is completed, warming will start with
the voice “Glutinous rice has been completed.”.
·If you want to stop warming, Push ‘CANCEL’ button
for more than 2 seconds.
·When cooking ends, stir rice equally and
immediately. If you don't stir rice at once and keep it stagnant, rice will go bad and smell bad.
·
If the lid handle is not working well, take out the steam completely out of inner pot by turning over pressure weight.
·While cooking, do not press cancel button.
4
After cooking SMART MENU, CHICKEN SOUP, MULTI COOK, FERMENT BREAD, BREAD BAKING etc, the smell may permeate into the unit,
use the Unit after cleaning the rubber packing and lid part according to page 10.
Cooking time by menus may vary to some degree depending on the using environment of the product.
FERMENT BREAD/
BREAD BAKING
See detailed guide to
cooking by the
menus.
AUTO CLEAN
(Steam Cleaning)
Up to water
scale 2
About 20
minutes
Cooking
Capacity
Cooking
Time
Cooking time for each menu
Menu
Class
GLUTIN.
RICE
2 servings~ 10 servings
About 28 min~
About 38 min
TURBO
GLUTIN. RICE
2 servings~
6 servings
About 13 min~ About 21 min
HIGH HEAT
GLUTIN. RICE
2 servings~ 10 servings
About 30 min~
About 39 min
MIXED
RICE
2 servings~ 8 servings
About 44 min~
About 54 min
TURBO
MIXED RICE
2 servings~
6 servings
About 26 min~ About 36 min
HIGH HEAT MIXED RICE
2 servings~
8 servings
About 46 min~ About 54 min
SOFT
GLUTIN.
2 servings~
6 servings
About 51 min~ About 59 min
SUSHI
RICE
2 servings~
8 servings
About 40 min~ About 51 min
BROWN
RICE
2 servings~ 6 servings
About 55 min~
About 61 min
HIGH HEAT
BROWN RICE
2 servings~
6 servings
About 56 min~
About 62 min
SMART
MENU
Please refer
to app.
NUTRI.
RICE
2 servings~
6 servings
About 29 min~ About 33 min
HIGH HEAT
NUTRI. RICE
2 servings~
6 servings
About 30 min~
About 35 min
PORRIDGE
1 servings~ 2 servings
About 61 min~
About 71 min
CHICKEN
SOUP
1 Chicken
(About 1kg)
About 70
min
HIGH HEAT
(GLUTIN.RICE/
MIXED RICE/
GABA RICE/ NUTRI.RICE)
HOW TO COOK
18
How to use AUTO CLEAN (Steam Cleaning)
After cooking in white rice turbo mode or cooking of small serving, discard water. In case of small servings white rice turbo cooking, more water may be required than other menu.
You can soak grains before stating cooking by setting a desired time with this function.
Setting Method
The cooked rice can be light yellow at the bottom of the oven, because this product is designed to improve pleasant flavor and taste. Especially, melanoizing is more serious at the “Preset cooking”than just “Cooking”.
It does not mean malfunction. When mixing other rice with Glutinous, Melanoizing phenomenon could increase more than
Glutinous cook”setting.
Melanoizing phenomenon
Put water until water scale 2, make sure to close and lock the cover. Method 1, After choosing automatic cleaning menu by pressing
‘MENU/SELECTION’ button, and then press ‘PRESSURE COOK’ button.
Method 2. After choosing automatic cleaning function by pressing
‘PRESET/AUTO CLEAN’ button twice in standby mode, press ‘PRESSURE COOK’ button.
1. To activate the Simple Soft Function, press ‘PRESET/AUTO CLEAN’ button within 5 seconds right after. CUCKOO started the menu for GLUTIN. RICE, HIGH HEAT GLUTIN. RICE, TURBO GLUTIN. RICE, MIXED RICE, HIGH HEAT MIXED RICE, TURBO MIXED RICE, SOFT GLURIN., SUSHI RICE, NUTRI. RICE, HIGH NUTRI. RICE.
2. To change the soaking time, press ‘PRESET/AUTO CLEAN’ button in simple Soft Function: the time setting can change from 10 to 30 minutes, 60 minutes, and No Soaking Time.
3. If you do not press any button for more than 5 seconds while setting the soaking time, it will be automatically set back to the current soaking time, After the soaking time is over, the cooking will start.
Soaking time is counted by 1 minute unit.If you unlock the lid Handle during the simple Soaking Function, the cooking will be canceled.The longer the soaking time, the melanoizing phenomenon.
Simple Soft Function
MIXED RICE
SUSHI RICE
GLUTIN. RICE
When you want to have sticky and nutritious white rice.
SOFT GLUTIN.
When you want to have a little more sticky and nutritive white rice than Glutinous rice.
How to use the cooking menu
When you want to have a little more sticky and nutritive white rice than Glutinous rice.
SMART
MENU
With the NFC (Near field communication) function of the Smart Phone,the rice cooker can cook the new recipes, which are not pre-stored in the cooker, by transmitting the new recipes from the Smart Phone to the “Smart Menu” of the rice cooker.
GABA RICE
Used to cook germinated brown rice.
This menu is used to cook a variation of mixed rice or brown rice.
CHICKEN SOUP
FERMENT BREAD/
BREAD BAKING
This menu cooks samgyetang automatically.
This menu is used to either ferment or bake the bread.
NUTRI. RICE
Used to cook nutritious rice.
PORRIDGE
For cooking porridge.
MULTI COOK
AUTO CLEAN
(Steam Cleaning)
BROWN RICE
The dish to the set temperature, the thermal and time manually.
This menu is used to eliminate small soaked after cooking or warming.
This menu is used to cook a variation of brown rice.
TURBO
MIXED RICE
󳢯
If selected turbo mixed rice, total cooking time will be reduced. (It takes about 26minutes for cooking mixed rice for 2 people.)
󳢯
Turbo mixed rice cooking lessens the quality of food, so only use for less than 6 people.
󳢯
For better taste of cooked rice, cook rice in white rice turbo mode after macerating rice for 20 minutes or so before cooking.
Use when cooking more sticky and soothing Cooked Rice. (Melanozing effect could be increased.)
TURBO
GLUTIN.
RICE
󳢯
Pressing ‘PRESSURE COOK’ button twice will switch to quick cooking ‘PRESSURE COOK’ button twice will switch to quick cooking and shorten the cooking time. (It takes about 13 minutes when you cook the Glutinous rice for 2 persons.)
󳢯
Use this turbo cooking function only for cooking rice for less than 6 persons. (The condition of the rice will not be good for more than 6 persons.)
󳢯
The turbo cooking function is allowed up to 6 persons.
󳢯
If you soak the rice in water for about 20minutes before cooking the rice and then cook the rice in turbo cooking course, the rice will taste good.
󳦈
󳦈
ENGLISH
19
www.cuckooworld.com
MY MODE (CUCKOO Customized Taste Function)
CUCKOO’s patented technology based on variable circuit design. User can select the degree of “softness” and
“glutinosity & tastiness” to meet a user’s desire.
What is “MY MODE”?
Longer “SOFT” Time : rice becomes soft and glutinous. (selectable in 4 steps)Longer “SWEET” Time : rice becomes tastier(selectable in 4 steps) [melanoizing will occur]Both functions above can be selected simultaneously or separatetly
MY MODE Function
“MENU”setting screen
To enter “Customized Rice Taste Setting Mode”, select the menu in which Customized Rice Taste is supported such as GLUTIN. RICE, HIGH HEAT GLUTIN. RICE, MIXED RICE, HIGH HEAT MIXED RICE, BROWN RICE, HIGH HEAT BROWN RICE, GABA RICE and press the ‘MODE’ button for 1 second or longer. Then, you are going to enter “Setting mode for my mode. After selecting the preferred rice with ‘MODE’ or ‘MENU/SELECTION’ button, then press the ‘SET’ button”.
The setting of figure below is based onglutinous rice menu.
How to Use “MY MODE”
Select desired heating extension time by pressing the button, and press
‘SET’
button.
‘SET’ botton will blink, and ‘MODE’, ‘CANCEL’ and ‘MENU/SELECTION’ button will turn ON.
For 16 customized rice tastes, refer to the graph for 16 rice tastes. (Refer to page 20.)
Select desired swelling time by pressing the button.
‘SET’ button will blink, and ‘MODE’, ‘CANCEL’ and ‘MENU/SELECTION’ button will turn ON.
❸-1
Soft time control mode
❸-2
Sweet time control mode
󳦈
󳦈
To enter Customized Rice Taste etting Mode, select desire menu and press ‘MODE’ button once for 1 second or longer
“MENU”setting screen
You can customize your preference for cooked rice by selecting Customized Cooked Rice Taste mode or ‘MODE’ button. Each time you press ‘MODE’ button, the major cooked rice taste will show up in the sequential order ‘Sticky Cooked Rice Taste –> Soft Cooked Rice Taste -> Soothing Cooked Rice Taste -> Soft and Soothing Cooked Rice Taste’. The setting in the figure below is based on GLUTIN. RICE menu.
How to Use “MY MODE” ll
“MY MODE” setting screen
Press ‘MODE’ button two times, and the display will change as in the figure. At this time, Soft Cooked Rice Taste 3th Step will be selected.
Set up desired customized rice taste. And press ‘PRESSURE COOK’. (If you press ‘CANCEL’ or do not press a button within 7 seconds, the function will deactivate and return to the standby mode.)
Press ‘MODE’ button once, and the display will change as shown in the figure. At this time, Soft Cooked Rice Taste 3th Step will be selected.
❸-1
Soft time control mode
Setting completed screen after
Press ‘MODE’ button three times, and the display will change as in the figure. At this time, Soft, Soothing Cooked Rice Taste will be selected.
❸-3
Soft and Sweet Rice Mode
❸-2
Sweet time control mode
󳦈
󳦈
“MY MODE” setting screen
To enter Customized Rice Taste Setting Mode, select desire menu and press ‘MODE’ button once for 1 second or longer.
Set up desired customized rice taste. And press ‘PRESSURE COOK’. (If you press ‘CANCEL’ or do not press a button within 7 seconds, the function will deactivate and return to the standby mode.)
Setting the completed screen after
20
MY MODE (Cuckoo Customized Taste Function)
The display for My Mode
This is a graph that shows the flavors of 16 types of cuckoo custom-made rice
If you press the
‘MODE’
button 5times, customized cooking function is setup. At this time, a voice comes up saying “Setting mode for My Cook. Select menu with ‘MENU/SELECTION’ button then press the ‘SET’ button”. You can see all means with cuckoo customized cooking function on the display.
*1. The rice becomes solid and glutinous. *2. The rice becomes soft and well-raised rice. *3. The rice becomes soft and glutinous.
Note: Rice taste number from 1 to 16 will be displayed on the display window.
How to use Cuckoo Customized cooking function
1. ‘CUCKOO customized cooking function’ applies to GLUTIN. RICE, HIGH HEAT GLUTIN. RICE, TURBO GLUTIN. RICE, MIXED RICE, HIGH HEAT MIXED RICE, TURBO MIXED RICE, SUSHI RICE, BROWN RICE, HIGH HEAT BROWN RICE, GABA RICE, NUTRI. RICE, HIGH HEAT NUTRI. RICE collectively.
2. Set up the step of customized cooking function to taste. The scorch can occur when cooking in high level mode.
3. Cook is subject to be set differently depending on the percentage of water content and the condition of rice.
The display Cuckoo customized cooking function
Make the screen changed by pressing
‘MENU/SELECTION’ button.
‘SET’ button will blink, and ‘MY’, ‘COOK’, ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons will turn ON.
Keep pressing the button, and the menu will switch continuously.
Push the
‘MENU/SELECTION’ button, then the screen
will be changed as above picture.
‘SET’ button will blink, and ‘MY’, ‘COOK’, ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons will turn ON.
Keep pressing the button, and the menu will switch continuously.
❷-1
High level mode
If you press the ‘SET’ button to complete your customized cooking. (If you press ‘CANCEL’ or do not press a button within 7 seconds, the function will deactivate and return to the standby mode.)
If the push the button 5 times, the display for customized cooking function will be set up. Initiation is like above picture.
‘MENU/SELECTION’ button will blink, and ‘MY’, ‘COOK’, ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will turn ON.
Setting completed screen after
❷-2
Low level mode
*
*
*
구수한밥
부드러운밥
Shown in the figure above, the stage mark will show up on the display during setting swelling time, heating, and maintenance time. The mark will continue to show up during cooking, reservation, keeping warm, and reheating as well.
Cuckoo customized taste function is applied to glutinous, mixed, GABA, old rice, Nu Rung ji.
Set-up times is stored until the next reset. No need to set-up at every cooking.
During cooking, warming and preset time cooking modes, “soak” and “heat” time cannot be readjusted.
SOAK : 1STEP, HEAT : 1STEP
SOAK : 4STEP, HEAT : 1STEP SOAK : 1STEP, HEAT : 4STEP
4step
~SOFT₩
3step 2step 1step
4step 3step 2step 1step
~SWEET₩
1. ‘MY MODE’ function may influence scorching or cooking quality. Ensure that cooking time is not changed, by children.
Default settings are “SOFT” 1 step, “SWEET” 1 step.
2. ‘MY MODE’ function may elongate cooking time according to the set-up time.
3. Scorching of rice may occur by longer “HEAT” Time.
Cautions
Initialization is set up “ ” get step by step as the case may be.
- High step : for cooking cereals, old rice and soft-boiled rice.
- Low step : for cooking the year’s crop of rice.
While cooking you can control the heating temperature (both high an low) depending on, your prefenence.
Cuckoo customized cooking function
*
1
*
3
*
2
HEAT 4step
3step 2step 1step
1step
2step
3step4step
SOAK
HOW TO USE “GABA RICE (Brown rice)”
21
www.cuckooworld.com
ENGLISH
원산지 : 경기 용인 품목: 추청 단 위 : 1.5kg 생산년도 : ×××× 년산 도정일자 : ×××× 년 ×× 월 ××일
󳠉 Check the dates of harvest and pounding.The dates should be within 1year from harvest, 3 months from pounding.
󳠊 Inspect rice with your eyes.
󳢯Check too see if the embryo is alive
󳢯Rice surface should be light yellow and glazing. Whitely stirred up surface, or darkish colored Brown rice is not suitable
for a germination
󳢯Avoid fractured, not fully corned, or empty ear’s. Empty ear’s may generate odors during germination and and be
bluish- nor corned Brown rice cannot be germinated.
(Regular brown rice)
< Comparison of Germinated brown rice’s nutrition
and Glutinous rice’s (6 hours) nutrition. >
Brown rice has richer nutrients than polished rice. However, brown rice is rather tough and hard to be digested.
By germination, the enzymes in the brown rice are activated, generating nutrients and become more digestible.
What is Germinated Brown rice?
Germinated Brown rice increases nutrients and enhances taste which is a weak point of brown rice. Germinated Brown rice also improves digestion.
Taste will be greatly enhanced.Digestive and rich in nutrients.
󳢯Diabetic hormone is generated improving digestion.
Good as a health food for children or adults.
- Rich with dietary fiber.
Germinated brown rice has rich GABA (Gamma Aminobutryc Acid)
- GABA promotes metabolism in liver and kidneys, suppresses neutral fat, lowers blood pressure, promotes metabolism in brain cells - these effects have been proven by medical science.
Features of Germinated Brown rice
Tips to Buy Quality Brown Rice
(Poor brown rice)
-Empty ear and nit fully comed brown rice)
Phytic acid 10.3TimesFerulic acid 1.4TimesGamma-orizanol 23.9TimesGammma-aminobutyric 5TimesInositol 10TimesFood fiber 4.3Times
HOW TO USE “GABA RICE (Brown rice)”
22
Method of Pre-germination
In order to promote germination, soak brown rice for 16 hours in water.
Put washed brown rice in an appropriate container, pour sufficient water to soak the rice.Pre-germination shall not exceed 16 hours. Make sure to wash rice clean with flowing water before using
GABAmenu. Be careful that hard washing may take off embryos which generate the germination.Unique smell may be generated according to the soaking time of pre-germination.When pre-germination has been completed, wash the rice and put in inner pot (Oven). Pour appropriated
volume of water, and use GABA RICEmenu.
In summer or hot temperature environment odor may be generated. Reduce germination time and wash clean
when cooking.
Precautions for “GABA RICE”Cooking
If smaller germ is preferred, omit pre-germination process. Select “GABA RICEmenu, set-up appropriate
germination time, and start cooking (nutrient ingredients do not vary significantly by the size of germ).
During hot seasons, longer germination time may generate odor. Reduce germination time.GABA RICE cooking is allowed up to 6 persons.City water can be used for germination. However, spring water is recommended. Germination may not be properly
performed in hot or boiled water even after cooling.
Germination rate, germ growth may differ by the Brown rice type, condition or period of storing, etc.
- Germinated brown rice is sprouted brown rice. Germination rate and growth may differ by the Brown rice type. The brown rice should be within 1 year from harvest, and not long since pounded.
The taste of rice could be different as depending on a kind of brown rice. Use customized taste function or control the
amount of water for your taste. (Refer to page 19~20)
Depending on the state of the surrounding environment or the condition/type of rice, the sprouts of rice may not be
visible or appeared.
The sprouts may be not seen due to the environmental conditions or condition of the rice.
HOW TO COOK THE MULTI COOK
23
www.cuckooworld.com
ENGLISH
Press ‘SET’ button, and set heating stage with ‘MENU/SELECTION’ button.
‘MENU/SELECTION’ button blinks and ‘SET’, ‘CANCEL’ and ‘PRESSURE
COOK’ buttons light. A voice comes up saying “Adjust cooking heating power by pressing the ‘SELECTION’ button. Then, press the ‘SET’ button”.
2
4
How to use the preset timer of ‘MULTI COOK’
Set the lid handle at " "(Lock) and press ‘MENU/SELECTION’ button to select ‘MULTI COOK’.
‘SET’ button blinks, and ‘MODE’, ‘MENU/SELECTION’, ‘CANCEL’,
and ‘PRESSURE COOK’ buttons light.
L:2 is indicated on the display when ‘MULTI COOK’ menu is selected.
(A voice comes up saying “‘MULTI COOK’, press the ‘SET’ button”.)
1
3
Press ‘SET’ button, and set cooking temperature with ‘MENU/SELECTION’ button.
‘MENU/SELECTION’ button blinks and ‘SET’, ‘CANCEL’ and ‘PRESSURE
COOK’ buttons light. A voice comes up saying “Adjust cooking heating temperature by pressing the ‘SELECTION’ button. Then, press the ‘SET’ button”.
Press ‘SET’ button, and set cooking time with ‘MENU/SELECTION’ button.
‘MENU/SELECTION’ button blinks and ‘SET’, ‘CANCEL’ and ‘PRESSURE
COOK’ buttons light. A voice comes up saying “Adjust cooking heating time by pressing the selection button. Then, press the ‘SET’ button”.
When you press the ‘SET’ button, a voice will come up saying “Press
‘COOK’ or ‘PRESET’ button”
5
Press PRESSURE COOK button.
‘PRESSURE COOK’ button blinks and ‘MODE’, ‘SET’, ‘WARM’, ‘PRESET’,
‘MENU/SELECTION’ and ‘CANCEL’ buttons light. Press ‘PRESSURE COOK’ button and Multi-Cook mode begins. Once the ‘MULTI COOK’ mode begins, the cooking icon is displayed along with the remaining time. A voice comes up saying “Starting the ‘MULTI COOK’.
HOW TO COOK USING FERMENT BREAD / BREAD BAKING
24
Turn the top handle to “ ”(Lock), press menu to select the FERMENT BREAD.
‘SET’ button will blink, and ‘MENU/SELECTION’, ‘CANCEL’, ‘PRESSURE
COOK’, and ‘MODE’ buttons will turn ON.
When the FERMENT BREAD Menu is selected, the display indicates
cooking time to be 40 minutes.
1
Press ‘PRESSURE COOK’ button.
3
When the first fermentation is complete, press softly dough for remove gas and repeat process
,,
for second ferment.
After second ferment, open the lid and make sure dough size is 1.5 to 2 times.
4
How to use the FERMENT BREAD Menu
Press ‘PRESSURE COOK’ button will begin the bread fermentation.A voice comes up saying “Fermenting Bread, the Fermenting Bread is
starting”.
During FERMENT BREAD mode, indicator will show the remaining time.
Press ‘SET’ button and ‘MENU/SELECTION’ button to set fermentation time.
▶‘MENU/SELECTION’ button will blink, and ‘CANCEL’ and ‘PRESSURE
COOK’ buttons will turn ON.
A voice comes up saying “Set the fermenting time with ‘MENU/SELECTION’
button then press the ‘COOK’ button”.
Available setting time is 5~120 minutes.
(From 90 minutes or more onward, the fermentation time increases or decreases by 10 minutes)
2
How to use the BREAD BAKING Menu
Press ‘MENU/SELECTION’ button to select the BREAD BAKING Menu.
A voice comes up saying “Baking Bread, press the ‘SET’ button”.‘SET’ button will blink, and ‘MENU/SELECTION’, ‘CANCEL’, ‘PRESSURE
COOK’, and ‘MODE’ buttons will turn ON.
When selecting BREAD BAKING, the display indicate cooking time to be 40
minutes.
1
Press ‘PRESSURE COOK’ button.
3
Press ‘PRESSURE COOK’ button will begin the Bread baking.A voice comes up saying “Baking Bread, The Baking Bread is starting”.During BREAD BAKING mode, indicator will show the remaining time.
Press ‘SET’ button and ‘MENU/SELECTION’ button to set baking time.
‘MENU/SELECTION’ button will blink, and ‘CANCEL’ and
‘PRESSURE COOK’ buttons will turn ON.
A voice comes up saying “Set the fermentation time by pressing the
‘SELECTION’ button then, press the Cook button.
Available setting time is 1~80 minutes.Set the baking time depending on the fermentation state and the
capacity of the dough.
2
When the BREAD BAKING process is complete. Immediately remove the bread from inner pot
After the BREAD BAKING is complete, the bread is hot and you should be careful.
HOW TO COOK USING FERMENT BREAD /
BREAD BAKING
25
www.cuckooworld.com
ENGLISH
확인사항
Case Chech point Do the following
When dough is not inflated
When bread is small and stiff.
When bread is rough and crunch.
When bread was undercooked.
When bread was overcooked.
When the baked color of the Underside of the bread is not appered.
When the bread is too sticky and wrinkled.
󳢯
Is capacity of the material accurate?
󳢯
Does fermentation time is long or short?
󳢯
Capacity of the material, the time set correctly?
󳢯
Fermentation time and kneading time set correctly?
󳢯
Did you set short fermentation time or baking time?
󳢯
Did you set long fermentation time or baking time?
󳢯
Did you put the dough in the middle of inner pot. Did you set short baking time?
󳢯
Did you remove baket bread immediately?
󳢯
When the second fermentation is complete, the dough should be left in the middle of the inner pot. Extend ther baking time.
󳢯
When the “Bread Baking” process is complete. Immediately remove the bread from inner pot
󳢯
follow the correct ingredient volumes and directions for fermentation and baking time.
󳢯
Check the volume of the incredients and knead the dough well.
D O U G H
B A K E D
B R E A D
If there is a problem of FERMENT BREAD/BREAD BAKING, check the following
details.
HOW TO PRESET TIMER FOR COOKING
26
Check if the current time and the menu are correct.
Refer to page 13 for the time setting.If the current time is not set correctly, the presetting time will
also be incorrect.
Make sure to select AM or PM correctly.
1
Turn the lid handle to the lock position and a lock icon will be displayed on the screen. Then press the ‘PRESET/AUTO CLEAN’ button.
MENU/SELECTION’ and ‘KEEP WARM/REHEAT’ button will blink, and
PRESET/AUTO CLEAN’, ‘SET’, ‘CANCEL’, and ‘PRESSURE COOK’
buttons will turn ON.
The preset time is set to 06:30 AM when the product is delivered from
the factory. If you want to preset reheating to this time, it is not required for you to set time.
If the lid handle is not in the locked position then you will not be able to
program or use the preset function.
GABA RICE menu, you have to select " " in order to use the preset
timer function.
When it is in keep warm mode, press cancel to exit keep warm mode, then select your desired preset time.
‘SET’ button will blink, and ‘KEEP WARM/REHEAT’, ‘MENU/
SELECTION’, ‘CANCEL’, and ‘PRESSURE COOK’ buttons will turn ON.
2
Select menu with ‘MENU/SELECTION’ button.
3
Press ‘PRESSURE COOK’ button.
PRESSURE COOK’ button will blink, and ‘KEEP WARM/REHEAT’,
PRESET/AUTO CLEAN’, ‘SET’, ‘MENU/SELECTION’, and ‘CANCEL’
buttons will turn ON.
A voice comes up saying “Glutinous rice has been reserved. Preset
cooking will be completed in today/tomorrow at 00, 00:00 AM/PM”
Once cook is completed with preset time, preset time is stored in
the memory.
Don't need to set up time again. If a small amount of rice is cooked, it could be finished earlier than
time you programmed it.
5
Preset the time.
MENU/SELECTION’ button will blink, and ‘KEEP WARM/REHEAT’, ‘PRESET/AUTO CLEAN’, ‘SET’, ‘CANCEL’, and ‘PRESSURE COOK’ buttons will turn ON.
The preset time is increased by 10 minutes each time you press the “ ” button.
The preset time is decreased by 10 minutes each time you press the “ ” button.
If you keep pressing the button and the time changes continuously. (repetition is allowed)
Please be careful no to change frome AM to PM.
4
How to preset timer for cooking
How to use timer function
HOW TO PRESET TIMER FOR COOKING
27
www.cuckooworld.com
ENGLISH
Precautions for preset cooking
In case of preset cooking
If the rice is old and dry, the result may not be good.If the rice is not well cooked, add more water by about half-scale.If the preset time is longer, melanization could be increased.Rinsed rice adds precipitated starch, Preset Cook may cause scorching.
To reduce scorching, cook washed rice by rinsing in running water or reduce cooking amount.
1
The change of preset time
Press ‘cancel’ button for more than 2 seconds and restart it to change the preset time.
2
If the preset time is shorter than cooking time, cooking will immediately begin.
If set time is shorter than preset time, cooking will immediately begin.
3
In case the preset time is over 13 hours.
“”
will be displayed and the preset time will be changed to 13 hours automatically.
ex)
If cooking is preset to AM07:00 of the following day at PM5:00 of the day, where preset time is 14 hours, “ ” will be displayed, and preset time automatically changes to AM06:00. (Preset time is 13 hours)
If the preset time is over 13 hours, it can cause bad smell. The limited preset time is set up less than 13 hours
because the rice spoils easily during the summer time.
When you want to finish presetting P.M 12:00, preset P.M 12:00.Use this function when you want to finish cooking between 1 hour to 13 hours based on the preset time.If you press the set button to check the present time during the preset cooking function, the preset time will be
displayed for 2 second.
4
GLUTIN.
RICE
SUSHI
RICE
MIXED
RICE
BROWN
RICE
HIGH HEAT
BROWN RICE
AUTO CLEAN
(Steam Cleaning)
From (43minutes + My mode)
to 13 hours
From (44minutes +My mode)
to 13hours
From
(59minutes
+My mode)
to 13hours
From (59minutes +My mode) to 13hours
From 56minutes to 13hours
SOFT
GLUTIN.
From 64minutes to 13hours
From (66minutes +My mode)
to 13hours
From (67minutes +My mode) to 13hours
From 38minutes to 13hours
From (40minutes +My mode) to 13hours
From
75minutes
to 13hours
From 76minutes to 13hours
From
(1minutes +My mode) to 13hours
From
(1minutes +My mode) to 13hours
From 25minutes to 13hours
HIGH HEAT
GLUTIN. RICE
HIGH HEAT
MIXED RICE
NUTRI.
RICE
HIGH HEAT
NUTRI. RICE
CHICKEN
SOUP
PORRIDGE
MULTI COOK
FERMENT
BREAD/
BREAD BAKING
Possible
time
Setting
Possible time setting for each menu
Menu
Class
28
HOW TO USE PRESET REHEATING FUNCTION
How to use Preset Reheating function
Make sure that the current time is correct
Refer to Page 13 for how to set the current time.Please make sure that the current time is correct so that the reheating
process ends on time.
Do not get confused between morning and afternoon.
1
Set the lid handle at " "(Lock) and press ‘PRESET/ AUTO CLEAN’ button when the Lock icon is displayed.
A voice will come up saying "Select ‘PRESET’ menu with
‘MENU/SELECTION’ button then press the SET button”.
”Preset, ‘MENU/SELECTION’, ‘KEEP WARM’ buttons blink and ‘PRESET/
AUTO CLEAN’, ‘SET’, ‘CANCEL’ and ‘PRESSURE COOK’” buttons light.
Please make sure that the lid handle is locked properly before using the
‘PRESET/AUTO CLEAN’ function.
2
Press the ‘KEEP WARM/REHEAT’ button and Preset Reheating mode begins.
A voice will come up saying “Reserve Reheating, set completion
time with Menu/selection select button then press Warm button”.
‘MENU/SELECTION’ button blinks and ‘KEEP WARM/REHEAT’,
‘SET’ and ‘CANCEL’ button light.
The Preset time is set to 06:30 AM when the product is delivered
from the factory. If you want to preset reheating to this time, it is not required for you to set the time.
3
Press the ‘MENU/SELECTION’ button to preset the completion time of reheating.
‘KEEP WARM/REHEAT’ button blinks and ‘MENU/SELECTION’,
‘SET’ and ‘CANCEL’ buttons light.
The completion time is increased by 10 minutes each time you
press the “ ” button.
The completion time is decreased by 10 minutes each time you
press the “ ” button. If you keep pressing the button and the time changes continuously (repetition is allowed).
Do not get confused between morning and afternoon.
4
Use this function when the cooked rice is not kept warm in the rice cooker but you still want to enjoy a hot meal at your convenience.
It takes three hours before it's fully warmed up: Please use the function at least three hours before you enjoy your meal.
For example, if it is nine o’clock in the evening and you want to have warm breakfast at six thirty the next morning:
Press the ‘SET’ button.
A voice will come up saying “Press Warm button”.KEEP WARM/REHEAT’ button blinks and ‘MENU/SELECTION’,
‘SET’ and ‘CANCEL’ buttons light.
5
Press the ‘KEEP WARM/REHEAT’ button.
A voice will come up saying “Reheating has been reserved.
Reserved reheating will be completed in today/tomorrow at 00, 00:00 AM/PM.
Reheating is completed as scheduled.The cooker memorizes the hour that you have preset: You may
press the ‘KEEP WARM/REHEAT’ button directly without having to preset the time again from the beginning.
6
“ ” will be displayed and the preset time will be changed to 13 hours automatically.
If cooking is preset to AM07:00 of the following day at PM5:00 of the day, where preset time is 14 hours, “ ” will be displayed, and preset time automatically changes to AM06:00. (Maximum preset time is 13 hours)
If the preset time is over 13 hours, it can cause bad smell. The limited preset time is set up less
than 13 hours because the rice spoils easily during the summer time.
When you want to finish presetting P.M 12:00, preset P.M 12:00.Use this function when you want to finish cooking between 1 hour to 13 hours based on the
preset time.
If you press the set button to check the present time during the preset cooking function, the
present time will be displayed for 2 seconds.
HOW TO USE PRESET REHEATING FUNCTION
29
www.cuckooworld.com
ENGLISH
Precautions for preset reheating
In case of preset reheating
When leaving cooked rice at ambient temperature for a prolonged period of time, moisture is
evaporated from cooked rice. In such a case, the reheating preset may cause dehumidifying or melanosis (slightly burnt) of cooked rice.
If there is an excessive amount of cooked rice in the pot, it may not sufficiently be reheated.
It is recommended to set reheating for no more than six people(approx. half of the inner pot).
Reheating of cold- or frozen-stored cooked rice may cause insufficient heating, dehumidifying
or melanosis (slightly burnt) after completion of reheating.
Put cold-stored cooked rice into the inner pot, beat rice with a scoop, and then reheat rice.Reheating of frozen-stored cooked rice shall be performed only after thawing the rice.
1
Changing preset time
Press ‘CANCEL’ button for more than 2 seconds and restart it to change the preset time.
2
If the preset time is beyond the available range
If the preset time is shorter than the available range(3hours), reheating will begin immediately.
3
In case the preset time is over 13 hours.
4
󳦈󳦈
TO KEEP COOKED RICE WARM AND TASTY
30
Having a meal
If you want to have warm rice, press the ‘KEEP WARM/REHEAT’ button. Then ‘Reheat’ function will be started
and you can eat fresh rice in 9 minutes.
To use reheaing in standby status after power is applied, turn lid combining hand grip to Locked location, press
‘KEEP WARM/REHEAT’ button, and the cooker will convert to Heat Preservation mode. Here press ‘KEEP WARM/REHEAT’ button once more.
It will be hard to open the lid during warming or right after it has finished cooking, So push the pressure weight to the side and allow the steam to release.
Make sure the handle is in the “Lock” position during warming or reheating.
It is recommended to evenly stir the cooked rice after cooking. The rice taste is improved. (For a small quantity of rice, pile up the rice on the center area of the inner pot to keep warm)
Do not keep the scoop inside the pot while warming the rice. When using a wooden scoop it can create serious bacteria and odors.
It would be better to warm the rice for less than 12 hours because of odors and color change. The cooked rice, which cooked by pressure cooker is more prone to changing color than the rice cooked by general cooker.
During warm mode, the rice can arise and turn white and rise. In this case, mix the rice.
Do not mix small amount of rice or leftovers with the rice under keeping warm. Doing so may cause an odor. (Use a microwave oven for the cold rice.)
Simple Soft Function
The mixed and brown rice cannot be in such good condition as white rice while in warm function due to their characteristics. Therefore do not keep mixed and brown rice in function for a long period of time.
If you change the current time during warming, refer to page 13.
The frequent use of the “Reheat” function may cause the cooked rice to be discolored or dried. Use it once or twice per day.
If a separate heating appliance or gas burner is used to cook rice, put the cooked rice into the cooker and press the ‘KEEP WARM/REHEAT’ button to keep the rice warm. At this time, “ ” is shown on the display. (Like this, transferring hot rice to a cold cooker may cause the rice to be discolored or develop an odor)
After 24 hours of heat preservation, the lamp of heat preservation time lapse blinks, indicating that long time has passed in heat preservation condition.
In case the lid combining hand grip is in open status during heat preservation, the cooker does not go for reheating. For reheating, lock the lid combining hand grip to (Locked) position, and then press ‘KEEP WARM/REHEAT’ button.
If the lid combining hand grip is turned to open status during reheating, function display will show “ ”. At this time, reheating will be cancelled, and heat preservation will proceed.
<Keep warming>
<Finishing reheat>
<Reheating>
indicates the time elapsed as
warming time.
When the reheat finishes with the beep sound, keep warming function will be operated and show the time elapsed.
The lamp blinks and “”indicator will show the reheat remaining time displayed in minutes with the mark going around clockwise.
TO KEEP COOKED RICE WARM AND TASTY
31
www.cuckooworld.com
ENGLISH
Press ‘MODE’ button over 1 time during warming. It displays as picture with buzzer. At the time,
means current warming
temperature.
‘MENU/SELECTION’ button will blink, and ‘SET’,
‘CANCEL’, and ‘MODE’ buttons will be turned ON.
-1 Press ‘MENU/SELECTION’ button to change the temperature as
‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’,
and ‘CANCEL’ buttons will be turned ON.
To switch the functions continuously, keep pressing the
button.
-2 Press ‘MENU/SELECTION’ button to
change the temperature as
‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’,
and ‘CANCEL’ buttons will be turned ON.
To switch the functions continuously, keep pressing the
button.
󳦈
1. If too much water is spilled out when you open the lid : Press ‘MENU/SELECTION’ button to raise the setting mode.
2. If the edge of rice is too soft : Press ‘MENU/SELECTION’ button to reduce the setting mode.
Controlling method of warming temperature
If the temperature in the oven is not proper, it will smell bad and the color of the rice will change so make sure to adjust the temperature.
-1 Press ‘MENU/SELECTION’ button to change as
the picture (up)
‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’, and
‘CANCEL’ buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
Select the menu you want, then the press the ‘MODE’
button and set-up time will be automatically entered with a buzzer. (If you press the ‘CANCEL’ button or do not press a button within 7 seconds, the function will be cancelled and returned to standby mode.)
After setting temperature, press ‘MODE’ select button. Preset temperature will be stored with buzzer sound. (If will be cancelled once press ‘CANCEL’ button or after 7 seconds without pressing any button)
-2 Press ‘MENU/SELECTION’ button as the picture
(down)
‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’, and
‘CANCEL’ buttons will be turned ON.
To switch the functions continuously, keep pressing the button.
How to operate My Mode function.
Use it while opening the lid when there is too much water or rice becomes too soft.
In standby mode, push the
‘MODE’ button 4times. The voice says that it is programmed warming mode, control the temperature you want.
The reference temperature programmed when the product
is shipped may differ from the Instruction.
󳦈
If you want to change cooking temperature in the standby mode, press ‘MODE’ button over
2 seconds,
and press it 2 more times. You can change cooking temperature.
Change of temperature
To raise temperature
To lower temperature
󳦈
󳦈
TO KEEP COOKED RICE WARM AND TASTY
32
1. Hold ‘MODE’ button for one second, then press the ‘MODE’ button 6times to set up sleeping mode. If sleeping mode is not shown, keep on pressing the ‘MODE’ button until it is heard or displayed.
2. When you are in sleeping mode, it says “Setting mode for Sleeping Keep Warm. Select or cancel Sleeping Keep Warm with ‘MENU/SELECTION’ button then press ‘SET’ button”. At this time, ‘MENU/SELECTION’ button will blink, and ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will be turnd ON.
3. Press the ‘MENU/SELECTION’ button, it says “Sleeping Keep Warm has been selected. Then press ‘SET’ button”. You will see nothing surrounding the rice cooker on the screen.
4. This function must be activated by the user depending on necessity
1. Hold ‘MODE’ button for one second, then press the ‘MODE’ button 6times to set up sleeping mode. If sleeping mode is not shown, Keep on pressing the ‘MODE’ button until it is heard or displayed.
2. When you are in sleeping mode, it says “Setting mode for Sleeping Keep Warm. Select or cancel Sleeping Keep Warm with ‘MENU/SELECTION’ button then press ‘SET’ button”. At this time, ‘MENU/SELECTION’ button will blink, and ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will be turnd ON.
3. Press the ‘MENU/SELECTION’ button, it says “Sleeping Keep Warm has been canceled. Then press ‘SET’ button”. You will see nothing surrounding the rice cooker on the screen.
4. In the SLEEP/KEEP WARM mode, if you press ‘CANCEL’ button, the Voice message will state: “Function setting has been cancelled with overtime”. If no button is pressed for more than 7 seconds, You'll return to the Standby mode.
How to activate “SLEEPING” mode.
When keeping rice warm for a long time, set up the temperature low to prevent the following quality of rice: smelly, dry, change of color; from PM10:00 ~ AM 04:00.
When odors are rising during the warming mode
Clean the lid frequently. It can cause bacteria and odors.Even though exterior looks clean, there might be germs and it can cause odor so please be sure to use automatic
sterilization (steam cleaning) menu for cleaning. Clean the inner pot completely after automatic cleaning function is done. (Refer to page 18)
After you cook soups and steamed dishes, clean the inner pot properly to prevent rice from smelling.
How to set up
If you need to keep the rice warm during sleeping, do not use this function. This function makes the rice
cooler than normal. In summer, the rice can be spoiled and may smell bad because of high temperature. If possible, do not use the “Custom-made warming” mode while sleeping.
This function is set up as cancel state.
How to release
󳦈
󳦈
󳦈
󳦈
HOW TO USE POWER SAVE /
ENERGY EYE FUNCTION
33
www.cuckooworld.com
ENGLISH
What is POWER SAVE mode?
If power cord is not unplugged, little bit of electricity will be still wasted. It is called standby electric power. The power SAVE mode is technology which minimizes this electricity consumption.
How to start power saving
When ‘CANCEL’ button is pushed for 2 seconds at waiting state, Saving power function is set up.
Automatic Method
If the standby time is chosen as number other than “0” at the automatic power saving mode, the automatic saving power function will be operative. If you move lid handle or push any button before passing waiting time, the waiting time which is reduced will go back to the setting.
Manual Method
How to end power saving
Method 1) Push any button then it will be returned
to waiting mode.
Method 2) If lid handle is turned to open or close,
power saving mode will be canceled and back to waiting Mode.
1. If you push ‘MODE’ button 7 times at the standby state, automatic power saving mode is set up. ‘MODE’ button needs to be pressed for over 1 second at the first time.
2. When automatic power saving mode is set up, it says “Setting mode for Automatic Power Save. Select stand by time with ‘MENU/SELECTION’ button then press ‘SET’ button”. ‘MENU/SELECTION’ button will blink, and ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will be turnd ON.
3. If you Select OFF with ‘MENU/SELCECTION’ button, Automatic saving will be canceled. After setting up waiting time you want, press the ‘SET’ button. At this time, ‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons will be turnd ON.
4. Without pressing any button within 7 seconds or pushing ‘CANCEL’ button, Automatic power saving function will be canceled and go back to waiting mode.
Energy Eye function
The luminance sensor automatically recognizes ambient brightness during standby, cooking, warming and preset timer for minimizing power consumption of the product. If you want the power saving mode to start when it's darker than the current level(Step 2), set the mode to Step 1. If you want the mode to start when it's brighter than the current level, set the mode to Step 3. (The power saving mode of CUCKOO is set to Step 2 at the factory.)
1. Press the ‘MODE’ button 12 times in standby status and you will enter the Energy Eye mode. ‘MODE’ button needs to be pressed for over 1 second at the first time.
2. When you enter the Energy Eye setting mode, a voice comes up saying "This is the Energy Eye Setting Mode. Set or unset the Energy-I Mode by pressing the Selection button. Then, press the OK button”. ‘MENU/SELECTION’ button will blink, and ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will be turnd ON. buttons light.
3. Each time you press the ‘MENU/SELECTION’, the Energy Eye shifts from OFF to Step 1 to Step 2 to Step 3. When OFF is displayed, a voice comes up saying “The Energy Eye function is canceled”. The ‘SET’ button blink and ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons light.
4. After selecting your preferred step, please press the ‘SET’ button. A voice will come up saying “The Energy Eye mode has been set”. and your step will be stored.
5. If will be cancelled if you press the ‘CANCEL’ button or after 7 seconds without pressing any button. In this case a voice will come up saying "Function setting has been cancelled with overtime".
(When selecting Energy Eye function) (When deactivating Energy Eye function)
How to original setting
󳦈
󳦈
󳦈
Remaining Cooking Time Display mode set on
Remaining Cooking Time Display mode set off
HOW TO USE POWER SAVE SCREEN LIGHT / LOCK BUTTON / REMAINING COOKING TIME DISPLAY MODE
34
Display POWER SAVE SCREEN LIGHT Mode
This mode adjusts the brightness of the display during cooking, warming or reservation cooking.
How to set and unset the mode
1. In the Standby mode, press the ‘MODE’ button 9times to activate the Display POWER SAVE SCREEN LIGHT mode. (‘MODE’ button needs to be pressed for over 1 second at the first time.)
2. When the Display POWER SAVE SCREEN LIGHT mode starts, a Voice message will state “Setting mode for power save screen light. Select or cancel power save screen light with ‘MENU/SELECTION’ button then press ‘SET’ button”. ‘MENU/SELECTION’ button will blink, and ‘MODE’, ‘SET’, and ‘CANCEL’ buttons will be turnd ON.
3. When you press the ‘MENU/SELECTION’ button, a Voice message will give one of these two statements : The Display the POWER SAVE SCREEN LIGHT Function is selected. Please, press the ‘SET’ button. “or” The Display POWER SAVE SCREEN LIGHT Function is canceled. Please press the ‘SET’ button. ‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons will be turnd ON.
4. Press the ‘SET’ button and the Display POWER SAVE SCREEN LIGHT Funding will start with a Voice message stating “Power save screen light has been set”.
5. In the Display Lighting/Power- Saving mode, press the ‘CANCEL’ button or do not press any button for more than 7 seconds. The setting will be canceled and you return to the Standby mode with a Voice message stating “Function setting has been cancelled with overtime”.
How to Set “LOCK BUTTON”
1. Button will be locked if ‘SET’ button is pressed for 3 seconds or longer during cooking, presetting, warming, reheating or in standby condition.
2. When button is locked, a voice will sound saying “Button lock has been selected”. At this time, button lock is displayed on the screen.
Lock can be set for touch button to prevent accidental touch during cleaning or by children.
Any button other than ‘SET’ button is pressed while button lock is set, buzzer will sound.
Setting Method
1. To ‘CANCEL’ button lock, press ‘SET’ button for 3 seconds or longer on locked the button.
2. “Lock” sign on the display disappears when button lock is cancelled, a voice will be saying “Button lock has been canceled”.
Desired function can be set after cancelling button lock is set, buzzer will sound.
Button lock function is cancelled automatically when the power is OFF even though the button lock function is already set.
Remaining Cooking Time Display Mode
This mode sets on or off the remaining cooking time display which appears periodically during the cooking. (The displayed remaining cooking time may vary from the actual one depending on the cooking volume and process.)
1. In the Standby mode, press the ‘MODE’ button 9 times to activate the Remaining Cooking Time Display mode. ‘MODE’ button needs to be pressed for over 1 second at the first time.
2. When the Remaining Cooking Time Display mode starts, a voice message will state “Setting Mode for remained cooking time. Select or deselect the remained cooking time with ‘MENU/SELECTION’ button than press the ‘SE’T button”.
3. When you press the ‘
MENU/SELECTION’
button, a voice message will give one of these two statements: “Remained cooking time has been selected. Then press ‘SET’ button” or “Remained cooking time has been deselected. Then press ‘SET’ button”. ‘SET’ button will blink, and ‘MODE’, ‘MENU/SELECTION’, and ‘CANCEL’ buttons will be turnd ON. After selecting either mode, press the ‘SET’ button.
4. In the Remaining Cooking Time Display mode, press the ‘CANCEL’ button or do not press any button for more than 7 seconds. The setting will be canceled and you return to the Standby mode with a voice message stating “Function setting has been cancelled with overtime.”
How to set and unset the mode
󳦈
HOW TO USE THE NFC FUNCTION
35
www.cuckooworld.com
ENGLISH
App installation and activation
How to touch
You can interface the product with your smart phone when you download and install CUCKOO Smart Rice Cooker application from Android Play Store.
How to use the NFC function
1. Please see the user’s manual of your smart phone if the phone supports the NFC function.
2. NFC function of smart phone is supported only by Android OS version 2.3.3 or higher only.
3.
If you are new to the NFC function, please refer to the NFC setting instruction below:
How to set NFC function (for Galaxy S3)
Setting method may slightly vary among smart phone models. See the user’s manual of your smart phone.
Settings
More Settings
NFC function ON
Read and Write/P2P, Android function NO
1. Hold the smart phone as shown below, and touch the antenna of your smart phone on NFC icon of your product for 2-3 seconds.
2. NFC functions only when the screen of the smart phone is displayed as shown below.
3.
It does not function properly when the screen of your smart phone is turned on, or locked.
4. Please make sure the antenna touches the NFC icon properly so that they
communicate without any problem.
5. Once they communicate properly, a message window is displayed to
indicate the transmission has succeeded.
6. Location of the NFC antenna varies among smart phone models. See the
user’s manual of your smart phone to check the location of the NFC antenna.
7. NFC transmission speed may vary among smart phone models.
1. You can simply touch your smart phone on the NFC icon of your product to install the application from the Google Store.
2. Search CUCKOO on Google Store, and download and install the application.
App installation
HOW TO USE THE NFC FUNCTION
36
How to select your product model after loading the application.
󳦈
󳦈
󳦈
󳦈
Automatic cooking
It is allowed to perform cooking function through interface of CUCKOO and the smart phone.
CUCKOO recipes
The NFC technology supports cooking based on the additional recipes transmitted to Smart Menu of your product. Transmitted recipes are stored in the Smart Menu of your product. (The Smart menu has Black bean as its default recipe.)
Favorite recipes
When Favorite button on the CUCKOO recipes is clicked, the recipe is saved as a favorite recipe.
Rice cooker menu
It allows to easily set various menus and settings of the rice cooker with the smart phone, and conveniently cook the menu through the NFC function.
My recipes
You can save your own recipes in your smart phone, and conveniently cook according to the recipe simply by touching it to your product.
Shopping cart
List of ingredients for recipes is stored in the shopping cart of CUCKOO recipes.
󳦈
Start the application.
Choose between Automatic and Manual selection.
-1 Automatic selection
-2 Manual selection
The app is executed.
HOW TO USE THE NFC FUNCTION
37
www.cuckooworld.com
ENGLISH
How to choose a recipe
1. Search recipe
Select search bar
Type in recipe and search
Confirm the recipe
󳦈󳦈󳦈
2. Search by the types of recipe
Select automatic cooking
Select cuckoo recipe
Select recipes
Select Steam dish
Select Multi-flavor glutinous rice
󳦈󳦈󳦈
󳦈
HOW TO USE THE NFC FUNCTION
38
How to choose a recipe
3. Search by the conditions
Select automatic cooking
Select cuckoo recipe
Select special day
Select treatment for seniors
Select Multi-flavor glutinous rice
How to start cooking after selecting your preferred recipe
(example: Cooking tteokbokki, Stir-Fried Rice Cake).
1. Select tteokbokki
2. Check out the recipe and prepare ingredients for cooking
3. Clean ingredients following each step
󳦈󳦈󳦈󳦈
4. Select Start Cooking button from the Introduction tab
6. Start cooking
5. Touch the smart phone to your product.
󳦈󳦈󳦈
󳦈
HOW TO USE THE NFC FUNCTION
39
www.cuckooworld.com
ENGLISH
Viewing dishes cooked by bloggers
Viewing dishes
It allows view recipes uploaded by other bloggers or myself.
Uploading your own dishes
You can upload your own recipes of the dishes to share them with other bloggers
Please login to our website. If you don’t have an ID, please sign up for your account before logging in to our website.
It is possible to view blogger's dishes, and directly upload recipes of the dishes
󳦈
Setting rice cooker
Clock setting
You can easily set the time on the product.
Language & Voice Volume setting
You may select your language among Korean, English and Chinese, and adjust the volume for your convenience.
Customized Rice Taste & Warming temperature setting
You may select your preferred taste and warming temperature.
Power Saving setting
You can minimize power consumption in standby mode.
You can set various functions of the rice cooker using the NFC technology. The function settings are configured with Clock setting, Language & Voice Volume setting, Customized Rice Taste & Warming temperature setting and Power Saving setting.
󳦈
HOW TO USE THE NFC FUNCTION
40
Troubleshooting
Other functions
The menu consists of Self-diagnosis, Checking trouble in advance, and Contacting our repair center
Self-diagnosis
You can diagnose the current conditions of the rice cooker, and identify cause of abnormal conditions, if any, through the NFC function of your smart phone.
Checking troubles in advance
If the product functions abnormally, you can identify the cause of trouble before you contact out repair center.
Contact our repair center
You may find and contact the nearest local repair center.
Other functions include timer and diet management.
Timer
You can use this function for conveniently measuring cooking time during cooking.
Diet management
You can count how often you have been cooking and have calorie information for each dish for a day or a certain period of time through the NFC function of the smart phone.
Product information
We will keep you updated on our new models and the list of replacements.
Product information
Please keep yourself updated on our new models and the list of replacements so that your CUCKOO products can have a longer life span.
󳦈
󳦈
󳦈
41
www.cuckooworld.com
CHECK BEFORE ASKING
FOR SERVICE
Case
When cannot turn to “Unlock”.
When the lid cannot open although the lid handle is turned to "Unlock".
When the steam exhausted between the lid.
When the ‘CANCEL’ button does not operate while cooking.
When you hear weird noises during cooking and warming
Brown rice is not germinated properly
Check points
󳢯Did you turn the “lid” handle while cooking?
󳢯Did you turn the “lid” handle before
exhausting steam perfectly?
󳢯Is there an external substance on the
packing?
󳢯Is packing too old?
󳢯Is the inner pot hot?
󳢯Is currently the setting to lock mode?
󳢯Is there a wind blowing sound when
cooking the rice?
󳢯Is there a “Chi” sound when warming
the rice?
󳢯Does the amount of rice exceed the
specified maximum capacity?
󳢯Is bean(other grains) too dry?
Do the following
󳢯Don’t open the lid while cooking. If you want to open
lid while cooking, press the ‘CANCEL’ button more
than 2 seconds and release the steam.
󳢯Pull the pressure handle to the side once and allow
the steam to release.
󳢯Because of the pressure. 󳢯Pull the pressure handle to aside once and exhaust
the steam perfectly.
󳢯Clean the packing with duster. 󳢯Keep the packing clean. 󳢯If the steam is exhausted through the lid, please
power off and contact the service center and dealer.
󳢯Packing life cycle is 12 month, please replace the
packing per 1 year.
󳢯Keep pressing the ‘CANCEL’ button for 2 seconds
for safety reason if you want to cancel while cooking.
󳢯Be careful of hot steam emission or hot contents
spattered from the automatic steam outlet during cancellation.
󳢯Please press ‘SET’ button for over 3 seconds to
release.
󳢯Is the inner pot inserted? 󳢯Check the rated voltage?
󳢯Put the specified maximum capacity of brown rice. 󳢯Old rice or contaminated rice may not be
germinated properly. (Refer to page 21)
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
ENGLISH
42
CHECK BEFORE ASKING FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
Case Check points Do the following
When the Pressure “Cook/Turbo” Timer button does not operate with “ ”
When the rice is badly sticky.
󳢯
Did you turn the lid Handle to “Lock”
󳢯Is “
Lock
” lamp on?
󳢯
Is there any rice or any other alien substance on the temperature sensor or the bottom surface of the inner pot?
When the button cannot operate with “ ”
󳢯
Is the inner pot inserted?
󳢯
Check the rated voltage?
󳢯
Clean all the alien substances on the temperature sensor or the bottom surface of the inner pot.
When “ ” is showed on the LCD.
When the time cannot be preset.
When you smell after and before cooking?
󳢯Check the rated Voltage?
󳢯Is the current time correct? 󳢯Is AM or PM set properly? 󳢯Did you set the reservation time over
13 hours?
󳢯Cut the power and contact customer service. 󳢯It is normal to get “ ” when putting only water. 󳢯This is only for 120V.
󳢯Is the inner pot correctly inserted in the
main body?
󳢯Is the lid handle on the top cover set to
“Lock”?
󳢯Is there hot food in the inner pot?
󳢯Micom memory is out.
󳢯Please cut the power and contact customer service
“ ” mark shows up during the product operation
󳢯Please insert inner pot. 󳢯This product is 120V only.
󳢯
Please turn the “lid” handle to “Lock”.
When “ ”, “ ” are shown on the LCD by turns
󳢯Micom power is out
󳢯Please cut the power and contact customer service
When “ ”, “ ” are shown on the LCD by turns
󳢯The sensor is broken
󳢯Please cut the power and contact customer service
When “ ”, “ ” are shown on the LCD by turns
󳢯Is there power cut while in cooking?
󳢯Set the current time(Refer to page 13). 󳢯Check the AM and PM. 󳢯Maximum reservation time is 13 hours.
(Refer to page 26~27)
󳢯Please put in the inner pot perfectly.
󳢯Please turn the “lid” handle to “Lock”
󳢯Pull the pressure handle to aside once.
43
www.cuckooworld.com
ENGLISH
CHECK BEFORE ASKING
FOR SERVICE
If there is a problem with your cooker, check the following details before requesting service to your dealer.
Sometimes the cooker may not operate as desired if used incorrectly.
Case
When the rice is not cooked.
When the rice is not well cooked.
Rice is too watery or stiff.
Check points
󳢯
‘PRESSURE COOK’ button is pressed?
󳢯
Is there power cut while in cooking?
󳢯
Did you use the measuring cup for the rice?
󳢯
Did you put proper amount of water?
󳢯
Did you rinse the rice before cooking?
󳢯
Did you put rice in water for a long time?
󳢯
Is the rice old or dry?
󳢯
Is the menu selected correctly?
󳢯
Did you properly measure water?
󳢯
Did you open the top cover before cooking was finished?
Do the following
󳢯
Press the ‘PRESSURE COOK’ button once. And check “ ”sign on the display.
󳢯
Re-press the ‘PRESSURE COOK’ button.
󳢯
Refer to page 13 for blackout compensation.
󳢯
Refer to page 15~16
󳢯
Add water about half the notch and then cook.
Bean (other grains)is half cooked.
󳢯
Is been (other grains) too dry?
󳢯
Soak or steam beans and other grains before cooking in the pressure cooker in order to avoid partially cooked beans or grains. Beans should be soaked for -2-minutes or steamed for-2­minutes prior to cooking, depending on your taste.
󳢯
Select the correct menu.
󳢯
Properly measure water.
󳢯
Open the top cover after cooking finished
When the water overflows.
󳢯
Did you use the measuring cup?
󳢯
Did you use proper amount of water?
󳢯
Is the menu selected correctly?
󳢯
Refer to page 15~16
When you smell odors while warming.
If “ ” sign is appears.
󳢯
Did you close the top cover?
󳢯
Please check it the power cord is plugged.
󳢯
Did it warm over 12 hours?
󳢯
Is there any other substance such as rice scoop or cold rice?
󳢯
Is been (other grains) too dry?
󳢯
Select the correct menu.
󳢯
Properly measure water.
󳢯
Open the top cover after cooking finished
󳢯
It shows on the display when pressing “Start” button again, or when the cooking has finished and you've never ever open turned the handle to “Unlock”
󳢯
It can be solved by turning handle to “Unlock” and then turn to “Lock”
Alarm sounds or reheating does not work while keeping warm
󳢯
Is been (other grains) too dry?
󳢯
Mount detachable cover(Refer to page 10)
When the NFC function is not operated
󳢯
Does “SMART” appear on the control panel of your rice cooker?
󳢯
Does your Smart Phone have the NFC (Near field communication) function?
󳢯
Please check your Smart Phone Manual to find out whether your phone has the NFC function or not.
󳢯
This NFC function only supports android 2.3.3 and above
“ ” Signs show up. “ ” Signs show up.
󳢯
Temperature sensor or fan motor does not work properly.
󳢯
Unplug the power cord and call the Service center.
Warming passed time mark blinks during keeping warm.
󳢯
24 hours has not passed yet after Keeping warm
󳢯
This function alarms if the rice remained warm for more than 24 hours.
Rice has gotten cold or a lot of water flow during Keeping warm
󳢯
Keeping warm was set in “Sleeping” mode
󳢯
Keep warm after cancelling or setting “Sleep Keeping Warm” mode depending on the necessity.
“ ” sign shows up
󳢯
Detachable cover is not mounted
󳢯
Mount detachable cover(Refer to page 10)
󳢯
If “ ” sign is displayed continuously even though you already installed detachable cover, please contact customer service.
www.cuckooworld.com
KOREAN
KOREAN
www.cuckooworld.com
www.cuckooworld.com
KOREAN
www.cuckooworld.com
KOREAN
1
2
3
www.cuckooworld.com
KOREAN
1
2
3
4
6
7
5
www.cuckooworld.com
KOREAN
12
43
www.cuckooworld.com
KOREAN
KOREAN
www.cuckooworld.com
www.cuckooworld.com
KOREAN
2
4
1
3
5
www.cuckooworld.com
KOREAN
1
3
4
2
1
3
2
www.cuckooworld.com
KOREAN
1
3
5
4
2
1
2
3
4
www.cuckooworld.com
KOREAN
1
2
3
4
5
6
1
2
3
4
KOREAN
www.cuckooworld.com
KOREAN
www.cuckooworld.com
KOREAN
www.cuckooworld.com
KOREAN
www.cuckooworld.com
www.cuckooworld.com
KOREAN
www.cuckooworld.com
KOREAN
KOREAN
www.cuckooworld.com
MEMO
www.cuckooworld.com
KOREAN
100% Recycled paper 383-902E Rev.0
Loading...
