NO.1 CUCKOO
Mechanical type Electric Rice Cooker/Warmer
CR-1021 Series
1.8L(2~10Persons) / 1.8L(2~10 )
Operating Instructions
Bedienung sanleitung
CONTENTS
www.cuckoo.co.kr
IMPORTANT SAFEGUARDS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
When using electrical appliances, basic safety precautions should
always be followed, including the following :
Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against electrical shock do not immerse cord, plugs in water or other liquid.
Close supervision is necessary when this appliance is used by or near children.
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or
taking off parts.
Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions,
or is dropped or damaged in any manner.
Return appliance to your nearest authorized service facility for examination, repair, or electrical or
mechanical adjustment.
If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
The use of accessary attachments not recommended by the appliance manufacturer may cause
injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, on in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
Always attach plug to appliance first, then plug cord into wall outlet.
To disconnect, turn any control to “off”, then remove plug from wall outlet.
Do not use appliance for other than intended use.
Do not obstruct the steam vent hole with any articles, e.g.a piece of cloth.
Do not place the inner pot directly over flame for cooking.
ADDITIONAL SAFEGUARDS
Avoid touching hot parts : outer lid, inner pot, inner lid and especially the steam vent hole.
Do not switch on when the main body is empty.
Make sure that heating plate and the magnetic switch are clean and dry whenever putting the
inner pot into the cooker.
Do not use sharp instruments to clean the inner pot as these will damage the non-stick coating.
A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled
in or tripping over a longer cord.
Longer detachable power-supply cords or extension cords are available and may be used if care
is exercised in their use.
This appliance is intended to be used in household and similar applications such as :
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
Note : A. A short power-supply cord (or cord set) is to be provided to reduce the hazards resulting from
becoming entangled in or tripping over a longer cord.
B. Longer cord set or extension cords are available and may be used if care is exercised in their
use.
C. If a long cord set or extension cord is used.
(1) the marked electrical rating of the cord set or extension cord should be at least as great as
the electrical rating of the appliance.
(2) if the appliance is of the grounded type, the extension cord should be a grounding-type
three-wire cord, and
(3) the longer cord should be arranged so that it will not drape over the counter top or tabletop
where it can be pulled on by children or tripped over accidentally.
CAUTION : During use, the internal parts of the rice cooker and the area around the steam vent are HOT.
Keep out of reach of children to avoid possible injury.
SHORT CORD INSTRUCTIONS/SPECIFICATIONS
www.cuckoo.co.kr
KOREAN
www.cuckoo.co.kr
KOREAN
www.cuckoo.co.kr
KOREAN
2
1
Ɒ⣽㡴G]⌼ↈᾀ㫴ⵥ㐴⣽O]䀩P
3
www.cuckoo.co.kr
KOREAN
㐴⣽]O䀩P
䖐㨴GⱰ⣽G]⌼Ἴ
4 5
6 7
www.cuckoo.co.kr
KOREAN
www.cuckoo.co.kr
CHINESE
1 3
2 4
5
Ⲭ
ⱑ㉇˄䞣ᵃ˅ ∈ԡࠏᑺ
6 8
7 9
CAUTION FOR SAFETY
www.cuckoo.co.kr
ENGLISH
Use a single socket with
the rated current
above 15A.
Using several lines in one socket can cause
overheating resulting in fire. Please check the
power cord or plug frequently.
Use an extension cord with a rated current
above 15A.
It can cause bums, electric
shock or injury.
Keep the cooker
out of children’s reach.
Do not over unplug and plug the power
cord over and over.
Please check the power cord
or plug frequently because it can
be damaged to circumstance or using
method. Also, the damaged one can cause
an electric shock or fire.
It can cause an electric shock,
short circuit or fire.
If the plug was damaged, contact dealer or
a service center.
Do not use damaged
power cord, plug or
loose socket.
It can cause fire. Please check the power cord
and plug frequently.
It can cause an electric shock, fire,
transformation or discoloration. Please check
the power cord or plug frequently.
Do not use the cooker
near hot things such
as stove, gas stove
or direct ray of light.
It can cause an electric
shock or fire.
Please pay careful attention
not to get any water or
chemicals on the cooker.
Remove external substances on the
plug with a clean cloth.
Do not sprinkle water
on the cooker.
It can cause an electric
shock or fire.
If it contacts water, please separate power
cord and contact dealer or service center.
Warning (Do not)
It can cause an electric shock or fire.
CAUTION FOR SAFETY
Do not alter, reassemble,
disassemble or repair.
It can cause fire, electric
shock or injury.
For repair, contact dealer or
the service center.
Do not place the product near dusty
places or near chemical substances.
Do not place the product near combustible
gas or near inflammables.
It can cause an explosion or fire.
Do not change, extend or connect
the power cord without the advice of
a technical expert.
It can cause an electric shock or fire.
Do not move the product by pulling or
using the power cord.
Electric short might cause fire.
It can cause deformation or a
fire. Please check the power cord
and plug frequently.
Use product on a flat surface.
Do not use on a cushion.
Please avoid using it on an
unstable location prone to
falling down.
Don’t spray or put any
insecticide or chemicals
on the cooker.
It can cause an electric
shock or fire.
In case cockroach or any insects get inside
of the cooker please call a dealer or a
service center.
It can cause an electric
shock or malfunction.
Do not pour rice or water
without the inner pot.
If rice or water gets in then do not turn the
product over or shake it please contact to
dealer or service center.
Do not use it without
the inner pot.
Do not bend, tie or
pull the power cord
by force.
It can cause an electric shock
or short circuit resulting in fire.
Please check the power cord and plug
frequently.
Do not open the top
cover while in heating
and cooking.
It can cause burns.
Damages by impact can cause
an electric shock or fire.
Please check the power cord or plug frequently.
Be careful that both the plug
and power cord are not to let
animal bite or to be shocked
by sharp metal materials.
Products such as
metal rods inside.
Do not insert alien
substance.
It can cause an electric shock or fire.
It can cause burns.
Especially keep it out of children’s reach.
Keep your hand or
face away from
the steam outlet.
Do not use pots that
are not designed for
the cooker.
Do not use abnormal
pot and do not use
without inner pot.
It can cause an electric shock or fire.
(Inner pot)
Warning (Do not)
CAUTION FOR SAFETY
www.cuckoo.co.kr
ENGLISH
Be careful not to harm
your hand when opening
the cover.
Do not leave the cover opened.
It might cause accident.
Do not cover the
steam outlet with
a duster, a towel or
a pron, etc.
It can cause an electric shock.
Do not plug or pull
out the power cord
with wet hands.
Clean any dust or alien
substance off the
temperature sensor,
heating plate and inner pot.
It can cause burns.
It can cause overflow or
breakdown.
Do not cook over capacity stated
for cooking of chicken soup and congee.
It can cause a system
problem or fire.
Do not touch the
metallic surface of the
inner pot and heating
plate after cooking or
warming.
It may cause rice discolor or/and rice to stink.
Take out the Rice shovel before warming.
It may cause rice discolor or/and rice to stink.
When warming, please close the cover and
turn on the power.
It can cause an electric shocks or fire.
Please pull out the plug when not in use.
If possible, only use warming function when
cooking white rice. Other foods are easily
discolored.
Do not use over the
maximum capacity.
It can cause an electric shock
or fire. Please check the power cord
and plug frequently.
Do not place heavy
things on the
power cord.
Do not use on a rice
chest or a shelf.
Do not press the power code
between furniture. It can cause
an electric shock resulting in fire.
Please check the power cord or plug frequently.
When using on furniture, automatically released
steam can cause damage, fire and an electric shock.
It can cause a transformation or a breakdown.
Warning (Remrmber)
Caution (Do not)
CAUTION FOR SAFETY
Please pull the plug
out when not in use.
Please contact dealer
or service center if there
is a smell or smoke
coming from the cooker.
Please use the
cooker for original
purpose.
It can cause the transformation or smell.
First pull out the power cord.
And contact dealer or the service center.
Do not place on rough
top or tilted top.
It can cause bums or malfunction.
Be careful to install the power cord which does
not disturb to pass.
Don’t use for various
purpose for inner
pot. and do not heat
up the inner pot on
the gas stove.
It can cause the deformation of the inner pot.
It can cause to spill the inner coating.
Do not drop or
impact the cooker.
It can cause the safety problem.
It can cause electric shock or fire.
Use AC 220~240V only.
When you pull out the
power plug, don’t pull the
power cord.
Please, safely pull out the
power plug.
If you inflict impact on power cord,
it can cause an electric shock or fire.
Please clean the body and
other parts after cooking.
It can cause the transformation or smell.
Caution (Do not)
Caution (Remrmber)
HOW TO USE
www.cuckoo.co.kr
ENGLISH
How to use
1 3
2 4
Measure the plain rice volume
Use the measuring cup provided.
Each cup of uncooked plain rice
normally can give about 2 cups of
cooked rice. Do not cook rice outside
the range indicated inside the pot.
The rice cooker cannot perform the
normal rice cooking function outside
the specified range.
Add water according to the
marking inside the pot
Pour the pre-washed rice into the
inner pot and add water according to
the marking indicated inside the pot,
then smooth the rice surface. The level
marked inside the pot is the fill line.
FILL LINE-Do Not Fill Past This Point
When adding more water the rice will
become softer, and less water will
result in dryer/harder rice.
Wash the rice gently and
thoroughly
Wash the rice gently and thoroughly.
We advise you to use a separate
container during washing to avoid
damaging the non-stick coating of the
inner pot.
Check to ensure the pot is in
good contact
Before connecting the power, ensure
the outside of the inner pot is dry and
clean and that no foreign object is on
the heating plate or the magnetic
switch. Close the lid firmly until it gives
a “click” sound to avoid improper rice
cooking.
5
Connect to the main power supply
Connect the unit to the outlet. The light of the “WARM”
mode will be on.
HOW TO USE
The inner pot and inner lid:
1. Before cleaning, unplug the unit from the outlet and let it cool down completely.
2. Remove and clean the inner lid and the inner pot after every use.
Soak them in lukewarm water.
3. Wash with a sponge or a soft cloth.
4. Do not use any abrasive cleansers, steel wool or metal utensils to
clean the non-stick inner pot as these will damage the non-stick coating.
The main body and outer lid:
1. Before cleaning, unplug the unit from the outlet and let it cool
down completely.
2. Use only a damp cloth to wipe the outside of the unit.
Do not immerse the main body in water.
How to use
HOW TO CLEAN
6 8
Press the control button to start
cooking
Press down the control button and
the light of the “COOK” mode will be
on to indicate that rice cooking is in
progress.
Stir the rice
For best results, open the lid after the
light of the “WARM” mode goes on
and stir the rice to allow excessive
steam and water to escape. Then
close the lid firmly to continue the
keep warm function.
7 9
Press the control button to start
cooking
Press down the control button and
the light of the “COOK” mode will
be on to indicate that rice
cooking is in progress.
Power off
To stop the keep warm function,
simply unplug the unit from the outlet.
BEDIENUNGSANLEITUNG
www.cuckoo.co.kr
DEUTSCH
BEDIENUNGSANLEITUNG

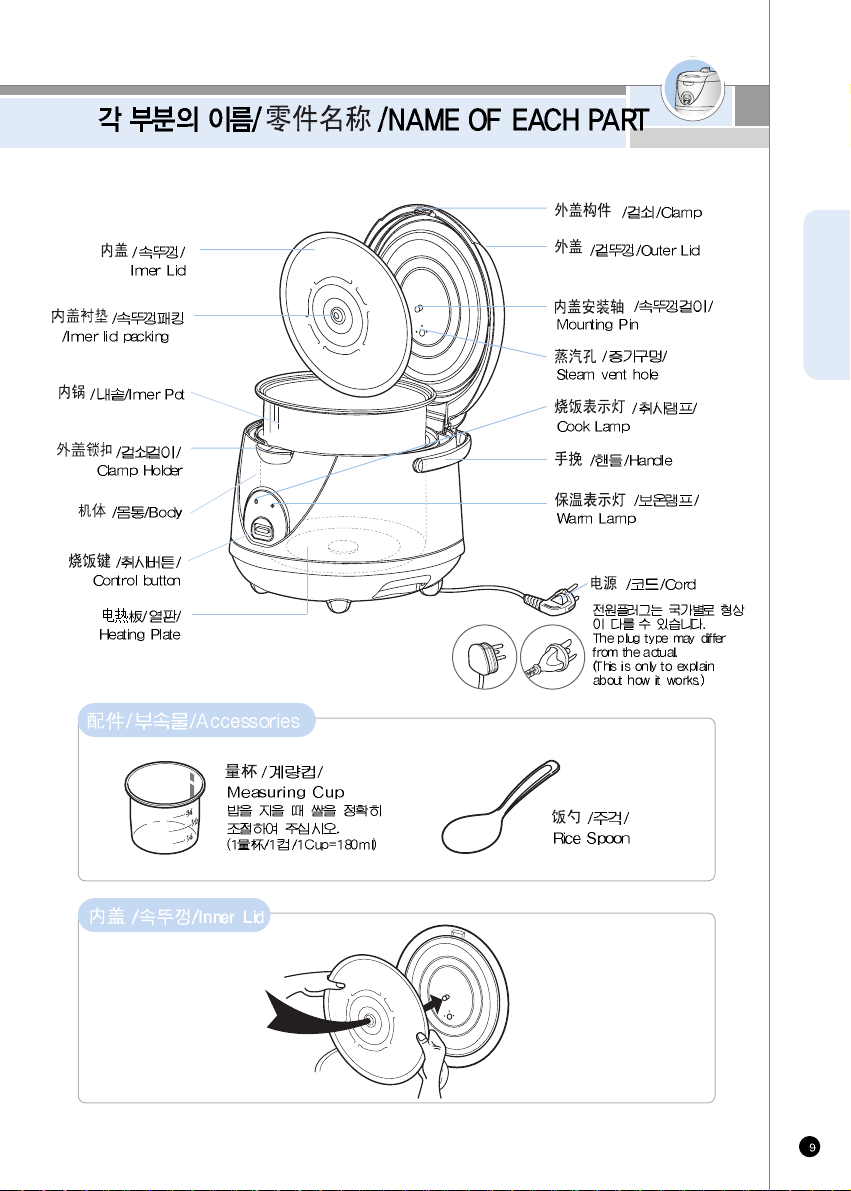

COOK lamp
Lampe zeigt an, das
der Reis gekocht wird.
WARM lamp Lampe
zeigt automatisch an,
das der Reis
warmgehalten wird.
Einschalt - Knopf für
das Warmhalten
oder Kochen
Heizplatte
Stecker
Innerer Deckel
lnnerer Deckelhalter
Reis - Topf
Innerer
Deckel-Teller
Druckschloß
Der Stecker kann sich von der
Abbildung unterscheiden.
(Diese dient lediglich zur
Veranschaulichung.)
Technische Beschreibung
Stromverbrauch (W)
beim kochen
beim warmhalten
2-10
Meßbecher
(0.36-1.8L)
Fassungsvermögen
(Kochkapazität)
AC 220~240V / 50Hz
Volt, Spannung
Plastik-Tasse
(ca.180ml)
Beschaedigte Netzkabei muessen
sofort durch den Hersteller oder
seme Servicestelle oder eine
aehnlich qualifizierte person ersetzt
werden, um elektrische Schlaege
zu vermeiden.
Zubehör
Reis-Löffel
BITTE BEACHTEN SIE DIE FOLGENDEN ANWEISUNGEN
BITTE BEACHTEN SIE DIE FOLGENDEN ANWEISUNGEN
Risiko Vermeidung
Wenn kein gekochter Reis oder etwas
anderes im Reis-Topf ist, ziehen Sie
bitte den Stecker aus der Steckdose,
um eine Überhitzung
und somit ein Risiko zu vermeiden
Aufbewahrung des Reiskochers
Bitte bewahren Sie den Reiskocher bei
Benutzung an einem sicheren Platz auf:
- der Reiskocher sollte an einem Platz aufgestellt
werden, der fallsicher und vor Erschütterungen
geschützt ist
- Zudem sollte das Gerät nicht neben einem
Herd oder auf einem Teppich aufstellt werden
um eine Überhitzung zu vermeiden
Bitte benutzen sie den Reiskocher sauber
Wenn fremde Materialien den lnnenraum des
Reistopfbehälters beschmutzen, säubern Sie
diese mit einem angefeuchteten Tuch, sonst
könnte der Reis beim nächsten kochen
anbrennen oder nicht richtig kochen
und funktionieren.
Bitte Vorsicht mit Wasser!
Bitte schütten Sie kein Wasser in den
lnnenraum und Außenraum des
Reistopfbehälters, da dies sonst einen
Kurzschluß verursachen könnte!
Mit Vorsicht Behandeln!
Schwere Erschütterungen wiez Bein Herunterfallen,
verursachen Defekte und Funktionsunfähigkeit.
BITTE BEACHTEN SIE DIE FOLGENDEN ANWEISUNGEN
www.cuckoo.co.kr
DEUTSCH
BITTE BEACHTEN SIE DIE FOLGENDEN ANWEISUNGEN
Wenn Reis warmgehalten wird, ist zu beachten:
- das der Reislöffel nicht im Reis-Topf
mitaufbewahrt wird und
- das kalter Reis nicht mit warmgehaltenen Reis
vermischt wird, da diese sonst
unangenehme Gerüche entwickeln
Wenn Sie einen Löffel aus Metall
verwenden sollten Sie aufpassen das die
Lackierung des Reiskocher nicht
zerkratzt
Benutzen sie den Reiskocher nicht für
andere Zwecke, wie Wasserkochen
Vorsicht heiß!
Wenn Reis gekocht wird, entströmt aus
dem dafür vorgesehenen Dampflüftung
heißer Dampf
Bitte bedecken Sie den Reiskocher nicht mit einem
Tuch oder etwas ähnlichem, da dies sonst eine
Farbveränderung oder eine Deformierung zur Folge
haben könnte Benutzen Sie den Reis-Topf nicht auf
dem Herd Bitte benutzen Sie den Reis-Topf
ausschließlich für den Reiskocher.

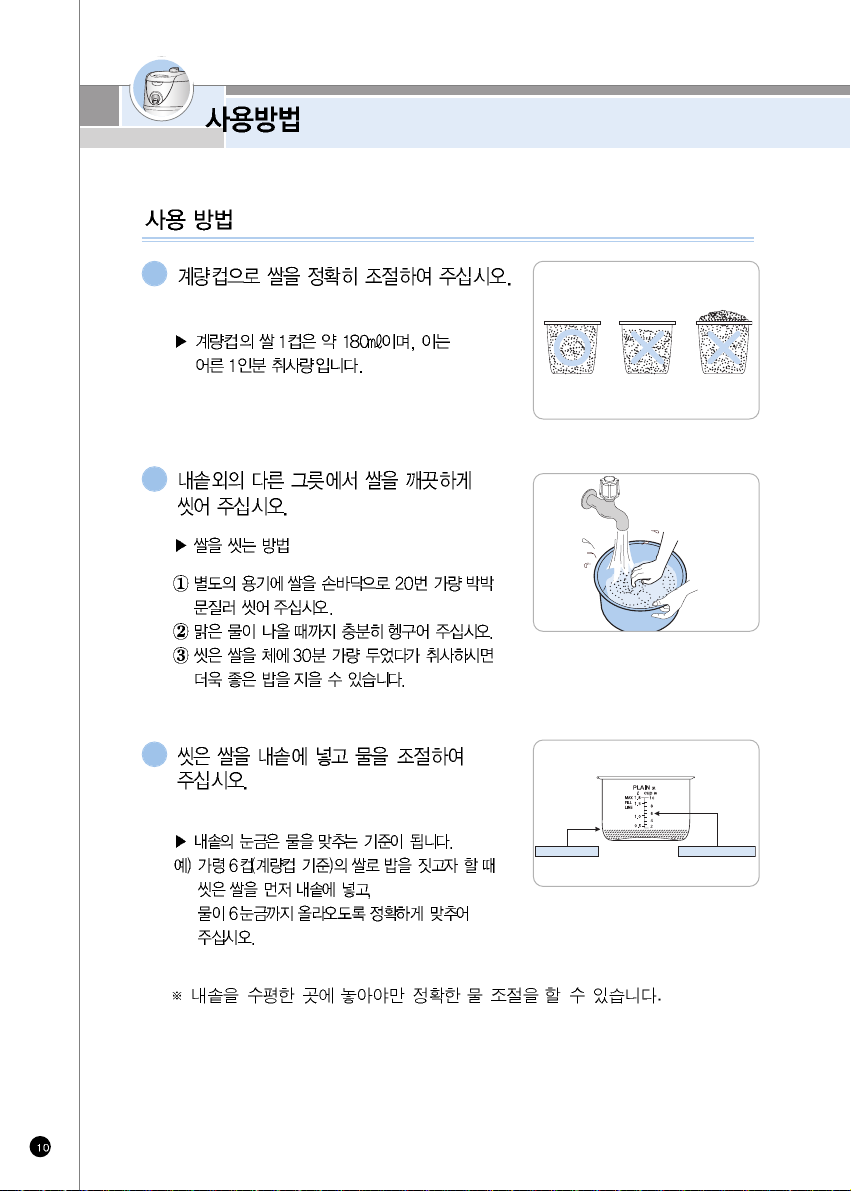

ANLEITUNG ZUM REIS KOCHEN
ANLEITUNG ZUM REIS KOCHEN
Mit dem Meßbecher geben Sie, wie
abgebildet die gewünschte
Reismenge in eine Schüssel jede
Tasse ca. 180ml reicht für 1
Erwachsenen.
Bevor der Reis in den Reiskocher
kommt, gründlich spülen und ca.30
Minuten im Wasser stehen lassen
Der Reis wird nun in den Reistopf
umgefüllt, wobei die
Standardmakierungen an der lnnenseite des Reistopfes beachtet
werden sollten Bei 6 Tassen Reis
sollte das Wasser bis zur Markierung
6 reichen
Beim Einsetzen des Reistopfes achten
Sie bitte darauf, das der Reistopf
außen trocken und sauber ist.
Schließen Sie den Deckel des
Reiskochers. Ist der Deckel richtig
zu, macht es Klick
Nun können Sie den Stecker in die
Steckdose stecken.
ANLEITUNG ZUM REIS KOCHEN /
BEDINUNGS ANLEITUNG
www.cuckoo.co.kr
ANLEITUNG ZUM REIS KOCHEN
Drücken Sie jetzt den Switch knob
=Einschalt-Knopf bis das Lämpchen
COOK (= Reis kocht) aufleuchtet.
Springt das Lämpchen auf WARM
(= Warmhaltefunktion) ist der Reis fertig!
Bevor Sie den fertigen Reis servieren
wird empfohlen den Reis
durchzurühren. Guten Appetit!
Der Rest des lnhalts läßt sich bei
geschlossenem Deckel 12 Stunden
warmhalten.
Säubern sie den Reiskocher = Reistopfbehälter mit
einem weichen angefeuchtetem Tuch oder
Schwamm, nur der Reistopf darf gespült werden.
Achten Sie bitte darauf das der Stecker aus
der Steckdose gezogen ist.!
BEDINUNGS ANLEITUNG
DEUTSCH
MEMO
MEMO
www.cuckoo.co.kr
MEMO
MEMO
www.cuckoo.co.kr
100% Recycled paper 00383-0516E0 Rev.3
Loading...
