OPERATOR’S MANUAL

Two-Stage Snow Thrower — Model SWE 528

IMPORTANT

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A.

FORM NO. 769-01791A

06/02/2006

This Operator’s Manual is an important part of your new snow thrower. It will help you assemble,

www.cubcadet.com

CUB CADET LLC P. O. BOX

361131

CLEVELAND, OH 44136

DEALER LOCATOR PHONE NUMBER:

877-282-8684

prepare and maintain the unit for best performance. Please read and understand what it says.

Table of Contents

Customer Support .............................................. 2

Safety Labels ...................................................... 3

Safe Operation Practices ................................... 4

Setting Up Your Snow Thrower .......................... 6

Operating Your Snow Thrower ........................... 8

Making Adjustments ........................................ 12

Maintaining Your Snow Thrower ...................... 14

Off-Season Storage .......................................... 20

Troubleshooting ................................................ 21

Illustrated Parts List ......................................... 22

Warranty ....................................................... 31-32

Finding and Recording Model Number

BEFORE ASSEMBLING YOUR NEW EQUIPMENT, please locate the model plate on the equipment and copy the information to the sample model plate provided to the right. You can locate the model plate by standing at the operating position and looking down at the rear of the snow thrower. This information will be necessary to use the manufacturer’s web site or when obtaining assistance from an authorized Cub Cadet dealer.

Customer Support

If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this unit, you can contact the dealer you purchased the unit from or choose from the options below:

• Visit

• To reach the Customer Dealer Referral Line, please call

• The

www.cubcadet.com. Click the Customer Service link.

1-877-282-8684.

engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifica-

tions, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more information.

#HUTE#LEANOUT4OOL

+%%0!7!9&2/-2/4!4).')-0%,,%2 !.$!5'%2#/.4!#47)4()-0%,,%2/2 !5'%2#!.!-054!4%(!.$3!.$&%%4

  53%#,%!./544//,4/5.#,/'

$)3#(!2'%#(54% $)3%.'!'%#,54#(,%6%2334/0%.').%

!.$2%-!)."%().$(!.$,%35.4),!,,



-/6).'0!243(!6%34/00%$"%&/2%

5.#,/'').'/23%26)#).'-!#().% 4/!6/)$4(2/7./"*%#43).*52)%3

 .%6%2$)2%#4$)3#(!2'%!4"934!.$%23 53%%842!#!54)/.7(%./0%2!4).'/. '2!6%,352&!#%3

2%!$/0%2!4/2g3-!.5!,











$!.'%2

#,%!. /54 4//,

$!.'%2

!6/)$).*529&2/2/4!4).'!5'%2



+%%0(!.$3&%%4



!.$#,/4().'!7!9

$!.'%2

.%6%2054(!.$).#(54%#/.4!#47)4( 2/4!4).'0!243#!.!-054!4%&).'%23



!.$(!.$3 3( 54/&&%.') .%!.$ 7!) 45.4) ,!,,

-/6).' 0!243(!6 %34/ 00%$"%&/2%



5.#,/'').' 53%#,%!./544//,/27//$%.

34)#+4/

5.#,/'$)3#(!2'%#(54%

Safety

Labels

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol.

HEED ITS WARNING!

A chute clean-out tool is fastened to the top of the auger housing with a mounting clip. The tool is designed to clear a chute assembly of ice and snow. This item is fastened with a cable tie at the factory. Cut the cable tie before operating the snow thrower.

WARNING: Never use your hands to clear a clogged chute assembly. Shut off engine and remain behind handles until all moving parts have stopped before using the clean-out tool to clear the chute assembly.

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

Safe

Operation

Practices

WARNING

HEED ITS WARNING!

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Training

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

3. Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

4. Never allow adults to operate this machine without proper instruction.

5. Thrown objects can cause serious personal injury. Plan your snow-throwing pattern to avoid discharge of material toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

7. Exercise caution to avoid slipping or falling, especially

when operating in reverse.

1. Thoroughly inspect the area where the equipment is to be

used. Remove all doormats, newspapers, sleds, boards,

wires and other foreign objects, which could be tripped over

or thrown by the auger/impeller.

2. Always wear safety glasses or eye shields during operation

and while performing an adjustment or repair to protect your

eyes. Thrown objects which ricochet can cause serious

injury to the eyes.

3. Do not operate without wearing adequate winter outer

garments. Do not wear jewelry, long scarves or other

loose clothing, which could become entangled in moving

parts. Wear footwear which will improve footing on slippery

surfaces.

4. Use a grounded three-wire extension cord and receptacle

for all units with electric start engines.

5. Adjust collector housing height to clear gravel or crushed

rock surfaces.

6. Disengage all control levers before starting the engine.

7. Never attempt to make any adjustments while engine is

running, except where specifically recommended in the

operator’s manual.

8. Let engine and machine adjust to outdoor temperature

before starting to clear snow.

9. To avoid personal injury or property damage use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive. Serious personal injury can

occur when gasoline is spilled on yourself or your clothes,

which can ignite. Wash your skin and change clothes

immediately.

a. Use only an approved gasoline container.

b. Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

c. Never fuel machine indoors.

d. Never remove gas cap or add fuel while the engine is hot

or running.

e. Allow engine to cool at least two minutes before refuel

ing.

f. Never over fill fuel tank. Fill tank to no more than ½ inch

below bottom of filler neck to provide space for fuel

expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it of f the engine and equip

ment. Move machine to another area. Wait 5 minutes

before starting the engine.

i. Never store the machine or fuel container inside where

there is an open flame, spark or pilot light (e.g. furnace,

water heater, space heater, clothes dr yer etc.).

j. Allow machine to cool at least 5 minutes before storing.

Preparation

Operation

1. Do not put hands or feet near rotating parts, in the

auger/impeller housing or chute assembly. Contact with the

rotating parts can amputate hands and feet.

2. The auger/ impeller control lever is a safety device. Never

bypass its operation. Doing so makes the machine unsafe

and may cause personal injury.

3. The control levers must operate easily in both directions

and automatically return to the disengaged position when

released.

4. Never operate with a missing or damaged chute assembly.

Keep all safety devices in place and working.

5. Never run an engine indoors or in a poorly ventilated area.

Engine exhaust contains carbon monoxide, an odorless and

deadly gas.

6. Do not operate machine while under the influence of alcohol

or drugs.

7. Muffler and engine become hot and can cause a burn. Do

not touch.

8. Exercise extreme caution when operating on or crossing

gravel surfaces. Stay alert for hidden hazards or traffic.

9. Exercise caution when changing direction and while operat

ing on slopes.

10. Plan your snow-throwing pattern to avoid discharge towards

windows, walls, cars etc. Thus, avoiding possible property

damage or personal injury caused by a ricochet.

11. Never direct discharge at children, bystanders and pets or

allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to clear

snow at too fast of a rate.

13. Never operate this machine without good visibility or light.

Always be sure of your footing and keep a firm hold on the

handles. Walk, never run.

14. Disengage power to the auger/impeller when transporting or

not in use.

15. Never operate machine at high transpor t speeds on slippery

surfaces. Look down and behind and use care when

backing up.

16. If the machine should start to vibrate abnormally, stop the

engine, disconnect the spark plug wire and ground it against

the engine. Inspect thoroughly for damage. Repair any

damage before starting and operating.

17. Disengage all control levers and stop engine before you

leave the operating position ( behind the handles). Wait

until the auger/impeller comes to a complete stop before

unclogging the chute assembly, making any adjustments, or

inspections.

18. Never put your hand in the discharge or collector openings.

Always use the clean-out tool provided to unclog the dis-

charge opening. Do not unclog chute assembly while engine

is running. Shut off engine and remain behind handles until

all moving parts have stopped before unclogging.

19. Use only attachments and accessories approved by the

manufacturer (e.g. wheel weights, tire chains, cabs etc.).

20. If situations occur which are not covered in this manual,

use care and good judgment. Contact your dealer for

assistance.

Maintenance & Storage

1. Never tamper with safety devices. Check their proper

operation regularly. Refer to the maintenance and adjust-

ment sections of this manual.

2. Before cleaning, repairing, or inspecting machine disen

gage all control levers and stop the engine. Wait until the

auger/impeller come to a complete stop. Disconnect the

spark plug wire and ground against the engine to prevent

unintended starting.

3. Check bolts and screws for proper tightness at frequent

intervals to keep the machine in safe working condition.

Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed

the engine. The governor controls the maximum safe

operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to

wear and damage. For your safety protection, frequently

check all components and replace with original equipment

manufacturer’s (OEM) par ts only. “Use of parts which do

not meet the original equipment specifications may lead to

improper per formance and compromise safety !”

6. Check controls periodically to verify they engage and

disengage properly and adjust, if necessary. Refer to the

adjustment section in this operator’s manual for instructions.

7. Maintain or replace safety and instruction labels, as neces

sary.

8. Observe proper disposal laws and regulations for gas, oil,

etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow

from machine and prevent freeze up of auger/impeller.

10. Never store the machine or fuel container inside where

there is an open flame, spark or pilot light such as a water

heater, furnace, clothes dryer etc.

11. Always refer to the operator’s manual for proper instructions

on off-season storage. onment.

Do not modify engine

To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor.

Notice regarding Emissions

Engines which are certiﬁed to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certiﬁed to operate on regular unleaded gasoline, and may include the following emission control systems: Engine Modiﬁcation (EM) and Three Way Catalyst (TWC) if so equipped.

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

Safe

Operation

Practices

WARNING

This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol.

HEED IT’S WARNING!

Your Responsibility

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

Setting Up

Your Snow

Thrower

All references in this manual to the left or right side of the snow thrower is from the operating position only. Exceptions, if any, will be specified.

IMPORTANT: This unit is shipped with the engine full of oil. After assembly, refer to the Tecumseh Engine manual packed separately with your snow thrower for fuel and oil fill-up details.

This Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and /or illustrated in this manual may not be applicable to all models.

Figure 1

Figure 2

This Operator’s Manual may cover a range of product specifications. Characteristics and features discussed and/or illustrated in this manual may not be applicable to all models.

IMPORTANT: Two replacement auger shear pins are included with this manual (or stowed in the plastic handle panel). Refer to “Augers” section in the Maintenance section for more information regarding shear pin replacement.

1. Remove the unit from the crate or carton.

2. Observe the lower area of the snow thrower to be sure both cables are aligned with roller guides before pivoting handle upward.

a. Pull up and back on upper handle as shown in

Figure 1. Align upper handle with the lower handle.

b. Tighten hand knobs securing upper handle to

lower handle.

3. Certain units may require assembly of the chute. If this is the case, follow steps 4-7 to install the chute. If the chute on the unit is attached, proceed to step 8.

4. Remove wing nut and hex screw from chute control assembly and clevis pin and cotter pin from chute support bracket. See Figure 2. Position the chute assembly (forward-facing) over the chute base.

5. Place the 4-way chute control in a centered position. See Figure 3.

6. Place chute assembly onto chute base and secure chute control assembly to chute support bracket with clevis pin and cotter pin removed earlier. See Figure 4.

7. Finish securing chute control assembly to chute support bracket with wing nut and hex screw removed earlier. See Figure 5.

8. Check that all cables are properly routed through the cable guide on top of the engine. See Figure 6.

9. The extension cord is fastened with a cable tie to the rear of the auger housing for shipping purposes. Cut the cable tie and remove it before operating the unit.

Figure 3

Figure 4

CAUTION: Prior to operating your

#HUTE#LEANOUT4OOL

snow thrower, refer to Auger Control Test in Operation section. Read and

follow all instructions carefully, and perform all adjustments to verify your snow thrower is operating safely and properly.

Shear Pin Storage

Holes are located in the plastic dash panel for convenient shear pin storage. See Figure 7.

IMPORTANT: This unit is shipped with

the engine full of oil. After assembly,

refer to engine manual for fuel and oil

fill-up details.

Chute Clean-Out Tool

The clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. See Figure 8.

1. Release both the auger control and the drive/auger

control lock.

2. Stop the engine by moving the throttle to the stop

position.

3. Remove the clean-out tool from the mounting clip.

4. Use the shovel-shaped end of the clean-out tool to

remove any snow and ice in the chute assembly.

5. Re-fasten the clean-out tool to the mounting clip on

the rear of the auger housing and restart engine.

6. While standing in the operator’s position (behind the

snow thrower), engage the auger control for a few seconds to clear any remaining snow or ice from the chute assembly before continuing to clear snow.

Setting Up

Your Snow

Thrower

Figure 5

WARNING

Prior to operating your snow thrower, refer to Auger Control Test in Operation section. Read and follow all instructions carefully and perform all adjustments to verify your unit is operating safely and properly.

Figure 6

Never use your hands to clean snow and ice from the chute assembly or auger housing.

WARNING: Never use your hands to

clean snow and ice from the chute

assembly or auger housing.

Tire Pressure

The tires are over-inflated for shipping purposes. Check the tire pressure before operating the snow thrower. Refer to the tire side wall for tire manufacturer’s recommended psi and deflate (or inflate) the tires as necessary. NOTE: If the tire pressure is not equal in both tires, the unit may not travel in a straight path and the shave plate may wear unevenly.

Under any circumstance do not exceed manufacturer’s recommended psi. Equal tire pressure should be maintained at all times. Excessive pressure when seating beads may cause tire /rim assembly to burst with force sufficient to cause serious injury. Refer to sidewall of tire for recommended pressure.

Figure 7

IMPORTANT: Under any circumstance do not exceed manufacturer’s recommended psi. Equal tire pressure should be maintained at all times. Excessive pressure when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury. Refer to sidewall of tire for recommended pressure.

Figure 8

34/0

Engine Controls

Recoil Starter

Handle

Electric Starter Outlet

Primer

Ignition

Key

Choke

Control

Throttle

Control

Drive Control

Headlight

Fuel Tank

Gas Cap

Oil Fill

Electric Start Button

Chute

Assembly

Clean-Out Tool

Auger Control

Shift Lever

Four-Way

Chute Control™

Wheel Steering Control

Skid Shoe

Operating

Your Snow

Thrower

WARNING

Know Your Snow Thrower

Read, understand, and follow all instructions and warnings on the machine and in this manual before operating.

Use extreme care when handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.

This Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and /or illustrated in this manual may not be applicable to all models.

Figure 12

Now that you have setup your snow thrower, it’s important to become acquainted with its controls and features.

NOTE: For detailed starting instructions and more information on all engine controls, refer to the Tecumseh Engine manual packed separately.

Shift Lever

The shift lever is located on the right side of the handle panel. Place the shift lever into any of eight positions to control the direction of travel and ground speed.

Forward

Your snow thrower has six forward (F) speeds, with position number one (1) being the slowest speed.

Reverse

Your snow thrower has two reverse (R) speeds, with position number one (1) being the slower speed.

Choke Control

The choke control is found on the rear of the engine and is activated by rotating the knob clockwise. Activating the choke control closes the choke plate on the carburetor and aids in starting the engine.

Throttle Control

The throttle control is located on the engine. It regulates the speed of the engine and will shut off the engine when pushed down completely.

Primer

Depressing the primer forces fuel directly into the engine’s carburetor to aid in cold-weather starting.

Oil Fill

Engine oil level can be checked and oil added through the oil fill.

Auger Control

!5'%2

#/.42/,

$2)6%

#/.42/,

#(54%$)2%#4)/.!,#/.42/,

#(54%4),4$/7.

#(54%4),450

053("544/. #(54%2/4!4%

,%&4

053("544/.

#(54%2/4!4%

2)'(4

Four-Way Chute Control™

Operating

Your Snow

The auger control is located on the left handle. Squeeze the control grip against the handle to engage the augers and start snow throwing action. Release to stop.

Drive Control/ Auger Control Lock

The drive control is located on the right handle. Squeeze the control grip against the handle to engage the wheel drive. Release to stop. The drive control also locks the auger control so you can operate the chute directional control without interrupting the snow throwing process. If the auger control is engaged simultaneously with the drive control, the operator can release the auger control (on the left handle) and the augers will remain engaged. Release both controls to stop the augers and wheel drive.

IMPORTANT: Always release the drive control before changing speeds.

The chute directional control is located on the left side of the dash panel.

• To change the direction in which snow is thrown, squeeze the button on the joy-stick and pivot the joy-stick to the right or to the left.

• To change the angle /distance which snow is thrown, pivot the joy-stick forward or backward.

Wheel Steering Controls

The left and right wheel steering controls are located on the underside of the handles. Squeeze the right control to turn right; squeeze the left control to turn left.

NOTE: Operate the snow thrower in open areas until you are familiar with these controls.

Ignition Key

The ignition key must be inserted and snapped in place in order for the engine to start. Remove the ignition key to prevent unauthorized use of equipment. Do NOT attempt to turn the key.

Clean-Out Tool

WARNING: Never use your hands to clear a clogged chute assembly. Shut off engine and remain behind handles until all moving parts have stopped before unclogging.

The clean-out tool is mounted to the rear of the auger housing and is designed to clear a clogged chute. Refer to the Setup section for instructions on how to properly use it.

NOTE: This item is fastened with a cable tie to the rear of the auger housing at the factory. Cut the cable tie before operating the snow thrower.

Skid Shoes

Position the skid shoes based on surface conditions. Adjust upward for hard-packed snow. Adjust downward when operating on gravel or crushed rock surfaces.

Thrower

WARNING

The operation of any snow thrower can result in foreign objects being thrown into the eyes, which can damage your eyes severely. Always wear safety glasses while operating the snow thrower, or while performing any adjustments or repairs on it.

Be sure no one other than the operator is standing near the snow thrower while starting engine or operating snow thrower. Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas. Keep hands, feet, hair and loose clothing away from any moving parts on engine and snow thrower.

Operating

Your Snow

Thrower

Gas & Oil Fill-Up

Service the engine with gasoline and oil as instructed in the Tecumseh Engine manual packed separately with your snow thrower. Read instructions carefully.

Starting The Engine

1. Attach spark plug wire to spark plug. Make certain the metal loop on the end of the spark plug wire (inside the rubber boot) is fastened securely over the metal tip on the spark plug.

2. Make certain both the auger control and drive control are in the disengaged (released) position.

3. Move throttle control up to FAST position. Insert ignition key into slot. Make sure it snaps into place. Do not attempt to turn the key.

NOTE: The engine cannot start unless the key is inserted into ignition switch.

6. As the engine warms, slowly rotate the choke control to the OFF position. If the engine falters, quickly rotate the choke control back to FULL and then slowly into the OFF position again.

7. When disconnecting the extension cord, always unplug the end at the three-prong wall outlet before unplugging the opposite end from the snow thrower.

Recoil Starter

1. Rotate choke control to FULL choke position (cold engine start).

NOTE: If the engine is already warm, place choke control in the OFF position instead of FULL.

2. Push the primer two or three times for cold engine start, making sure to cover vent hole in the center of the primer when pushing.

WARNING

Read, understand, and follow all instructions and warnings on the machine and in this manual before operating.

If your home’s wiring system is not a three-wire grounded system, do not use this electric starter under any conditions.

If your home electrical system is grounded, but a three-hole receptacle is not available, do not use your snow thrower’s electric starter.

Electric Starter

1. Determine that your home’s wiring is a three-wire grounded system. Ask a licensed electrician if you are not certain.

WARNING: The optional electric starter is equipped with a grounded

three-wire power cord and plug, and is designed to operate on 120 volt AC household current. It must be used with a properly grounded three-prong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.

If you have a grounded three-prong receptacle, proceed as follows:

1. Plug the extension cord into the outlet located on

the engine’s surface. Plug the other end of extension cord into a three-prong 120-volt, grounded, AC outlet in a well-ventilated area.

2. Rotate choke control to FULL choke position (for a

cold engine start).

NOTE: If the engine is already warm, place choke control in the OFF position instead of FULL.

3. Push the primer two or three times for cold engine

start, making sure to cover vent hole in the center of the primer when pushing.

NOTE: DO NOT use primer to restart a warm engine after a short shutdown.

4. Push starter button to start engine.

5. Once the engine starts, immediately release starter

button.

NOTE: DO NOT use primer to restart a warm engine after a short shutdown.

NOTE: Additional priming may be necessary if the temperature is below 15° Fahrenheit.

3. Grasp the recoil starter handle and slowly pull the rope out. At the point where it becomes slightly harder to pull the rope, slowly allow the rope to recoil.

4. Pull the starter handle with a firm, rapid stroke. release the handle and allow it to snap back. Keep a firm hold on the starter handle and allow it to slowly recoil.

5. As the engine warms, slowly rotate the choke control to the OFF position. If the engine falters, quickly rotate the choke control back to the FULL position and then slowly into the OFF position again.

NOTE: Allow the engine to warm up for a few minutes after starting. The engine will not develop full power until it reaches operating temperatures.

Do not

Stopping The Engine

Run engine for a few minutes before stopping to help dry off any moisture on the engine.

1. Move throttle control to STOP position.

2. Remove the ignition key and store in a safe place.

3. Wipe all snow and moisture from the area around the engine as well as the area in and around the drive control and auger control. Also, engage and release both controls several times.

To Engage Drive

1. With the engine running near top speed, move shift lever to one of six FORWARD positions or two REVERSE positions. Select a speed appropriate for the snow conditions that exist.

2. Squeeze drive control against the right handle and the snow thrower will move. Release it and the drive motion will stop.

3. To turn the unit left or right, squeeze the respective wheel steering control. See Figure 12.

To Engage Augers

1. To engage augers and start snow throwing, squeeze the left hand auger control against the left handle. Release to stop augers.

2. While the auger control is engaged, squeeze the drive control to move, release to stop. Do not shift speeds while the drive is engaged.

NOTE: This same lever also locks auger control so you can turn the chute control without interrupting the snow throwing process.

3. Release the auger control; the interlock mechanism should keep the auger control engaged until the drive control is released.

4. Release the drive control to stop both the augers and the wheel drive. To stop the auger, both levers must be released.

Auger Control Test

Perform the following test before operating your snow thrower for the first time and at the start of each winter. Check the adjustment of the auger control as follows:

1. When the auger control is released and in the disengaged “up” position, the cable should have very little slack. It should NOT be tight.

2. In a well-ventilated area, start the snow thrower engine as instructed on the previous page. Make sure the throttle is set in the FAST position.

3. While standing in the operator’s position (behind the snow thrower), engage the auger.

4. Allow the auger to remain engaged for approximately ten (10) seconds before releasing the auger control. Repeat this several times.

5. With the throttle control in the FAST (rabbit) position and the auger control in the disengaged “up” position, walk to the front of the machine.

6. Confirm that the auger has completely stopped rotating and shows NO signs of motion. If the auger shows ANY signs of rotating, immediately return to the operator’s position and shut off the engine. Wait for ALL moving parts to stop before re-adjusting the auger control.

7. To readjust the control cable, loosen the upper hex nut on the auger cable bracket.

8. Position the bracket upward to provide more slack (or downward to increase cable tension). See Figure 13.

9. Retighten the upper hex nut.

10. Repeat Auger Control Test to verify proper adjustment has been achieved.

Operating

Your Snow

Thrower

WARNING

The muffler, engine and surrounding areas become hot and can cause a burn. Do not touch.

Figure 13

When selecting a Drive Speed, use the slower speeds until you are comfortable and familiar with the operation of the snow thrower.

NEVER reposition the shift lever (change speeds or direction of travel) without first releasing the drive control and bringing the snow thrower to a complete stop. Doing so will result in premature wear to the snow thrower’s drive system.

Making

Adjustments

Shift Cable

If the full range of speeds (forward and reverse) cannot be achieved, refer to the figure to the left and adjust the shift cable as follows:

1. Place the shift lever in the fastest forward speed position.

2. Loosen the hex nut on the shift cable index bracket. See Figure 14.

3. Pivot the bracket downward to take up slack in the cable.

4. Retighten the hex nut.

5. Check for correct adjustment before operating the snow thrower.

WARNING

Read, understand, and follow all instructions and warnings on the machine and in this manual before operating.

Never attempt to make any adjustments while the engine is running, except where specified in operator’s manual.

This Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and /or illustrated in this manual may not be applicable to all models.

Figure 14

Figure 15

Chute Control

Once a season or every 25 hours of operation, whichever is earlier, check whether the four-way chute control™ cables have slackened. If the chute does not rotate fully or its pitch cannot be moved up or down, the chute control cables will have to be adjusted. To adjust these cables, proceed as follows:

1. To tighten cable, loosen the top nut and tighten the bottom nut on the cable.

2. Adjust equally on both sides by working on both cables. See Figure 15.

Drive Control &

Shift Lever

When the drive control is released and in the disengaged “up” position, the cable should have very little slack. It should NOT be tight. Check the adjustment of the drive control as follows:

1. With the drive control released, push the snow thrower gently forward. The unit should roll freely.

2. Engage the drive control and gently attempt to push the snow thrower forward. The wheels should not turn. The unit should not roll freely.

3. With the drive control released, move the shift lever back and forth between the R2 position and the F6 position several times. There should be no resistance in the shift lever.

4. If any of the above tests failed, the drive cable is in need of adjustment. Proceed as follows:

5. Loosen the lower hex nut on the drive cable bracket. See Figure 16.

6. Position the bracket upward to provide more slack (or downward to increase cable tension).

7. Retighten the lower hex nut.

Figure 16

You can also check the adjustment as follows:

1. With the snow thrower tipped forward (be certain to drain gasoline or place plastic film under the gas cap if the snow thrower has already been operated), remove the frame cover underneath the snow thrower by removing the self-tapping screws. Refer to Figure 22 in Maintenance section.

2. With the drive control released, there must be 1/8" clearance between the friction wheel and the drive pulley in all positions of the shift lever.

3. With the drive control engaged, the friction wheel must contact the drive pulley. Refer to Figure 24 in Maintenance section.

4. If adjustment is necessary, loosen the lower hex nut on the drive cable index bracket and pivot the bracket upward or downward as necessary. Refer to Figure

16. Tighten the lower hex nut to secure the bracket when correct adjustment is reached.

5. Reassemble the frame cover and turn the unit back to its operating position.

NOTE: If you placed plastic under the gas cap, be certain to remove it now.

Skid Shoes

The space between this shave plate and the ground can be adjusted. For close snow removal, place skid shoes in the low position. Use middle or high position when area to be cleared is uneven.

1. Adjust skid shoes by loosening the four hex nuts, washers, and carriage bolts and moving skid shoes to desired position. See Figure 17.

2. Make certain the entire bottom surface of skid shoes are against the ground to avoid uneven wear on the skid shoes.

3. Tighten nuts and bolts securely.

Figure 17

Making

Adjustments

IMPORTANT: It is not recommended that you operate this snow thrower on gravel as loose gravel can be easily picked up and thrown by the auger causing personal injury or damage to the snow thrower.

If for some reason, you have to operate the snow thrower on gravel, keep the skid shoe in the highest position for maximum clearance between the ground and the shave plate.

Auger Control

To adjust the auger control, refer to the section in this manual titled “Operating Your Snow Thrower”.

3HEAR0IN

"EARING

3PACERS

Maintaining

Your Snow

Thrower

WARNING

Always stop engine, disconnect spark plug, and ground against engine before performing any type of maintenance on your machine.

IMPORTANT: Avoid oil spillage on rubber friction wheel and aluminum drive plate. Do not overfill the gear case. Damage to the seals could result.

IMPORTANT: NEVER replace the auger shear pins with standard pins. Any damage to the auger gearbox or other components, as a result of doing so, will NOT be covered by your snow thrower’s warranty.

Figure 18

Figure 19

WARNING: Always stop engine and disconnect spark plug wire before performing any type of maintenance

or adjustment. Always wear safety glasses during operation or while performing any adjustments or repairs.

General

Recommendations

• Always observe safety rules when performing any

type of maintenance.

• The warranty on this snow thrower does not cover

items that have been subjected to operator abuse or negligence. To receive full value from warranty, operator must maintain the snow thrower as instructed here.

• Some adjustments will have to be made periodically to maintain your unit properly.

• Periodically check all fasteners and make sure these are tight.

Engine

Refer to the separate Tecumseh Engine manual packed with your unit for all engine maintenance.

Lubrication

1. Drive Mechanism: Once a season or after every 25 hours of operation, remove rear frame cover and lubricate any chains, sprockets, gears, bearings, and shafts with engine oil or lubricant spray.

Hex Gear Shaft: Once a season, lubricate the hex

2. shaft with a penetrating oil, but not grease.

Gear Case: The gear case is lubricated with grease at the factory and does not require regular lubrication. However, if disassembled for any reason, lubricate with 2 ounces of Shell Alvania™ grease (part # 737-0168). Before reassembling, remove old sealant and apply new sealant.

4. Wheels: Once a season, remove the bolt from each wheel and take the wheel off the axle. Apply a multipurpose automotive grease on the shaft before putting back the wheels.

5. Auger Shaft : At least once a season, remove the shear pins on auger shaft. Spray lubricant inside shaft, around the spacers. Also lubricate the flange bearings found at either end of the shaft. See Figure 18.

6. Drive/Auger Control Lock: The cam on the ends of the control rods which interlock the drive and auger controls must be lubricated at least once a season or every 25 hours of operation using a multi-purpose automotive grease. The cam can be accessed beneath handle panel.

7. Engine: Refer to the separate Tecumseh Engine manual packed with your unit for all engine lubrication instructions.

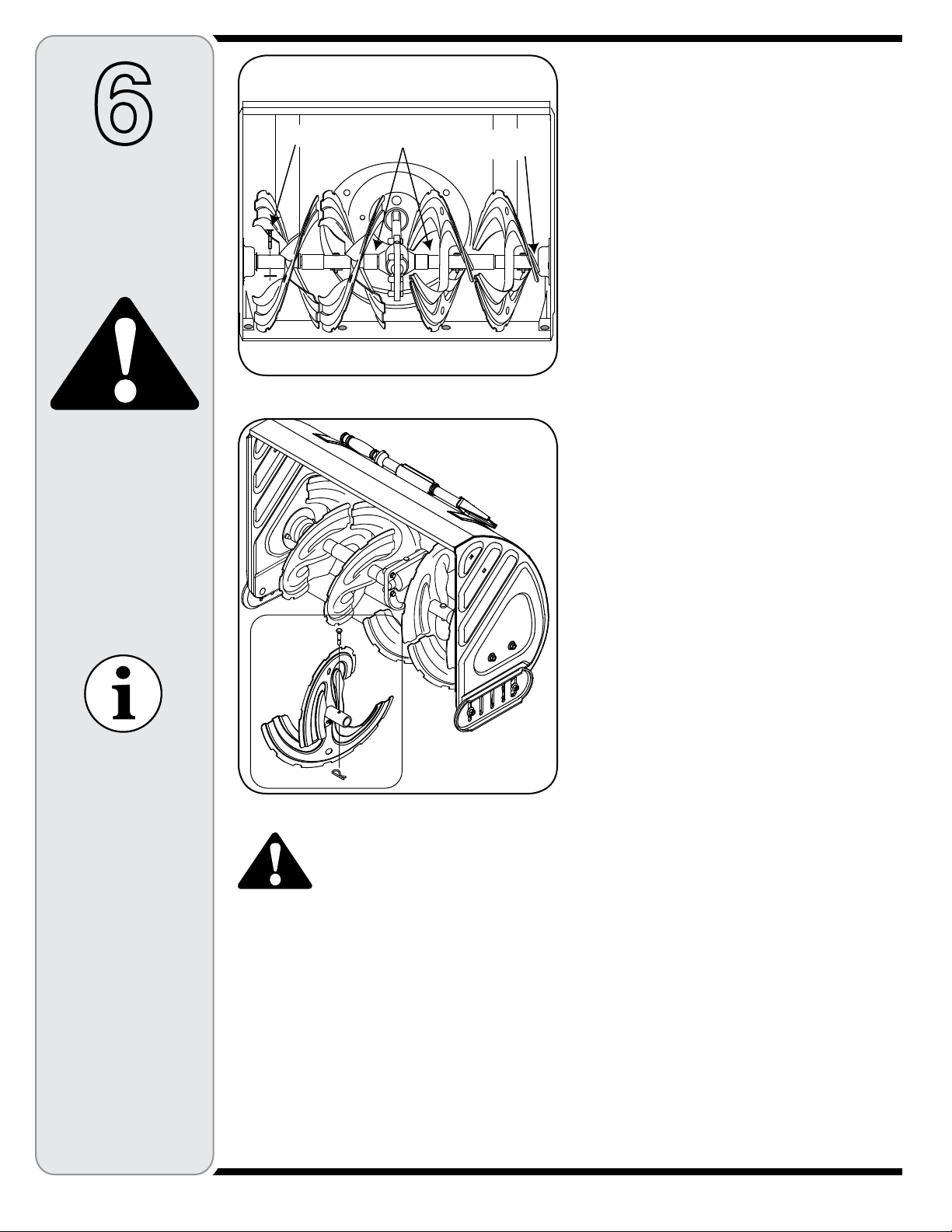

Augers

The augers are secured to the spiral shaft with two shear pins and cotter pins. See Figure 19. If you hit a foreign object or ice jam, the snow thrower is designed so that the pins will shear.

1. If augers do not turn, check to see if pins have sheared.

2. Replace the pins if needed. Two replacement shear pins and cotter pins have been provided with the snow thrower. Spray an oil lubricant into shaft before inserting new pins and securing with new cotter pins. See Figure 19.

Shave Plate and Skid

Shoes

The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. Check these periodically and replace as necessary.

Replacing Skid Shoe

1. Remove four carriage bolts, hex nuts, and washers which attach the two skid shoes to the snow thrower on each side of the housing. See Figure 20.

2. Reassemble new skid shoes with the same hardware. Make certain the skid shoes are adjusted to be level.

Replacing Shave Plate

1. After removing both skid shoes, remove the four carriage bolts, hex nuts, and washers which secure the shave plate to the snow thrower housing. See Figure

20.

2. Reassemble new shave plate, making sure heads of the carriage bolts are to the inside of the housing. Tighten securely. Re-install skid shoes.

Replacing Belt

Check the condition of both auger belt and drive belt every 25 hours of snow thrower operation. Replace if either shows signs of wear and tear. To remove and replace either the auger belt or the drive belt, follow the steps below and then proceed to the specific steps listed under respective sub-headings.

1. Remove belt cover by removing the two self-tapping screws that secure it to the snow thrower housing. See Figure 21.

2. Drain the gasoline from the snow thrower, or place a piece of plastic under the gas cap. Carefully tip the snow thrower up and forward, so that it rests on the housing. Remove the self-tapping screws from the frame cover underneath the snow thrower and move the frame cover away. See Figure 22.

Maintaining

Your Snow

Thrower

Figure 20

This Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and /or illustrated in this manual may not be applicable to all models.

Figure 21

Figure 22

Maintaining

Your Snow

Thrower

WARNING

Always stop engine, disconnect spark plug, and ground against engine before performing any type of maintenance on your machine.

Figure 23

Auger Belt

1. Roll auger belt off the pulley as shown in Figure 23.

2. a. Turn the shoulder screw a half a turn and slide it out of the mounting bracket. See Figure 24.

b. Unhook spring to release tension on the auger belt.

See Figure 24.

3. Remove old belt and replace with new belt wrapping it

around the auger pulley. See Figure 25.

4. Re-insert shoulder screw into the mounting bracket

and tighten to secure.

5. Wrap auger belt behind the idler. Reattach the spring

to the bolt where it was earlier secured.

6. Re-install frame cover and flip the snow thrower back

to the operating position.

7. Re-install auger belt around the engine pulley.

8. Re-install belt cover with the self-tapping screws

removed earlier.

Figure 24

Figure 25

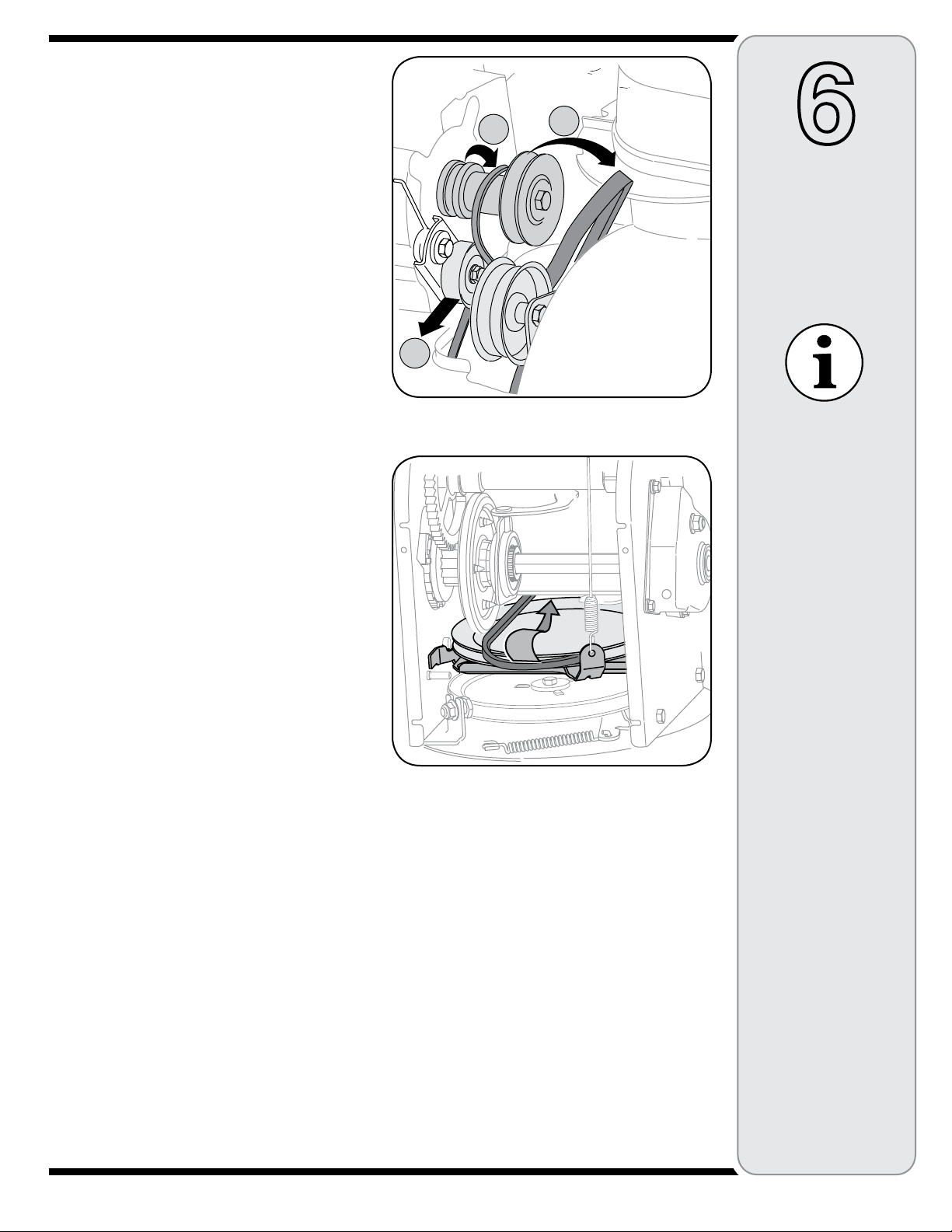

Drive Belt

1. a. Grasp the idler pulley and pivot it toward the right. See Figure 26. Insert a screw driver through aligning holes in both the idler bracket and the engine. This will release tension on drive belt.

b. Roll the auger belt off the engine pulley.

c. Lift the drive belt off engine pulley. See Figure 26.

2. Slip the drive belt off the pulley and between friction

wheel and friction wheel disc. See Figure 27.

3. Replace with new belt, first sliding it through the crank

shaft, then working it around the groove of the drive pulley and finally wrapping it around the engine pulley from where the old belt was removed. Once the belt is firmly placed on the pulleys, make sure to remove the screwdriver from the idler.

4. Re-install auger belt on the engine pulley.

5. Re-attach frame cover on the snow thrower housing

and put the equipment back to operating position. Re-attach belt cover with two self-tapping screws removed earlier.

Friction Wheel Rubber

NOTE: Several components must be removed and special tools are required in order to replace this snow thrower’s friction wheel rubber. See an authorized Cub Cadet Service Dealer if your friction wheel rubber needs to be replaced or phone Customer Support as instructed on page 2 for information on ordering a Cub Cadet Service Manual.

Figure 26

Maintaining

Your Snow

Thrower

This Operator’s Manual may cover a range of product specifications for various models. Characteristics and features discussed and /or illustrated in this manual may not be applicable to all models.

Also, refer to the Drive Control adjustment in the “Making Adjustments” section of this manual to adjust for wear on the friction wheel rubber.

Figure 27

If the snow thrower will not be used for 30 days or longer, or if it is the end of the snow season when the last possibility of snow is gone, the equipment needs to be stored properly. Follow storage instructions below to ensure top performance from the snow thrower for many more years.

Off-Season

Storage

WARNING

Never store snow thrower with fuel in tank indoors or in poorly ventilated areas, where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or gas appliance.

Fuel left in engine during warm weather deteriorates and will cause serious starting problems.

Preparing Engine

NOTE: Refer to the engine manual for more detailed information on preparing the snow thrower engine for storage.

Short-Term Storage

It is important to prevent gum deposits from forming in essential fuel system parts of the engine such as the carburetor, fuel filter, fuel hose, or tank during short-term storage (15-30 days). To prevent this, treat the fuel system using a fuel stabalizer.

Fuel stabilizer (such as STA-BIL™ or ULTRA-FRESH™) is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow mix ratio found on stabilizer container. Run engine at least 10 minutes after adding stabilizer to allow it to reach the carburetor.

WARNING: Never store snow thrower with fuel in tank indoors or in poorly ventilated areas, where fuel fumes may

reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or gas appliance.

CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

Preparing Snow Thrower

• When storing the snow thrower in an unventilated or metal storage shed, care should be taken to rustproof the equipment. Using a light oil or silicone, coat the equipment, especially any chains, springs, bearings and cables.

• Remove all dirt from exterior of engine and equipment.

• Follow lubrication recommendations.

• Store equipment in a clean, dry area.

Never use engine or carburetor cleaning products in the fuel tank or permanent damage may occur.

Long-Term Storage

To avoid engine problems, the fuel system should be emptied before storage for 30 days or longer.

WARNING: Fuel left in engine during warm weather deteriorates and will cause serious starting problems.

1. Run the engine until the fuel tank is empty and it stops due to lack of fuel. Do not attempt to pour fuel from the engine.

WARNING: Never use engine or carburetor cleaning products in the fuel tank or permanent damage may occur.

2. Remove the spark plug and pour one (1) ounce of engine oil through the spark plug hole into the cylinder. Cover spark plug hole with a rag and crank the engine several times to distribute the oil. Replace spark plug.

Problem

Engine fails to start

Cause

1. Choke not in ON position.

2. Spark plug wire disconnected.

3. Fuel tank empty or stale fuel.

4. Engine not primed.

5. Faulty spark plug.

6. Blocked fuel line.

7. Safety key not in ignition on engine.

Remedy

1. Move choke to ON position.

2. Connect wire to spark plug.

3. Fill tank with clean, fresh gasoline.

4. Prime engine as instructed in “Operating Your Snow Thrower”.

5. Clean, adjust gap, or replace.

6. Clean fuel line.

7. Insert key fully into the switch.

Trouble-

shooting

Engine runs erratic

Engine overheats

Excessive

Vibration

Loss of power

Unit fails

to propel itself

Unit fails

to discharge snow

1. Unit running on CHOKE.

2. Blocked fuel line or stale fuel.

3. Water or dirt in fuel system.

4. Carburetor out of adjustment.

1. Loose parts or damaged auger. 1. Stop engine immediately and discon-

1. Spark plug wire loose.

2. Gas cap vent hole plugged.

3. Exhaust port plugged.

1. Drive control cable in need of adjustment.

2. Drive belt loose or damaged.

1. Chute assembly clogged.

2. Foreign object lodged in auger.

3. Auger control cable in need of adjustment.

4. Auger belt loose or damaged.

5. Shear pin(s) sheared.

1. Move choke lever to OFF position.

2. Clean fuel line; fill tank with clean, fresh gasoline.

3. Drain fuel tank. Refill with fresh fuel.

4. Contact Cub Cadet Service Dealer.

1. Contact Cub Cadet Service Dealer.1. Carburetor not adjusted properly.

nect spark plug wire. Tighten all bolts and nuts. If vibration continues, have unit serviced by a Cub Cadet Service Dealer.

1. Connect and tighten spark plug wire.

2. Remove ice and snow from gas cap. Be certain vent hole is clear.

3. Contact Cub Cadet Service Dealer.

1. Adjust drive control cable. Refer to “Making Adjustments”.

2. Replace drive belt.

1. Stop engine immediately and disconnect spark plug wire. Clean chute assembly and inside of auger housing with clean-out tool or a stick.

2. Stop engine immediately and disconnect spark plug wire. Remove object from auger with clean-out tool or a stick.

3. Refer to “Auger Control Test” in Operation section.

4. Refer to Maintenance section.

5. Replace with new shear pin(s).

This section

addresses minor

service issues.

For further details,

contact your nearest

Cub Cadet service

dealer or call

1-877-282-8684.

2 8

1. 731-2643 Clean-Out Tool

2. 712-04065 Flange Lock Nut

3. 756-0981B Flat Idler Pulley

4. 710-0347 Hex Bolt, 3/8-16 x 1.75

5. 790-00080A Auger Idler Bracket

6. 736-0174 Wave Washer

7. 738-0281 Shoulder Screw

8. 738-0143 Shoulder Screw

9. 790-00075 Bearing Housing

10. 726-04012 Push Nut

11. 712-04063 Flange Lock Nut, 5 /16-18

12. 741-0309 Ball Bearing

13. 732-0611 Extension Spring

14. 710-0604A AB Screw, 5/16-18 x 0.625

15. 731-04705 Chute Adapter

16. 710-0703 Carriage Screw, 1/4-20 x 0.75

17. 731-2635 Clean-out Tool Mtg. Bracket

18. 684-04207 Auger Housing Assembly 28-inch

19. 712-04064 Flange Lock Nut, 1/4-20

20. 918-04193 Gearbox Assembly Complete

21. 790-00141 Slide Shoe, Stainless

22. 710-0451 Carriage Bolt

23. 790-00145 Shave Plate

24. 684-04057 Impeller Assembly

25. 717-04126 Worm Shaft

26. 721-0327 Oil Seal

27. 741-0662 Flange Bearing

28. 718-04071 Thrust Collar

29. 741-0663 Flange Bearing

30. 710-0642 TT Screw, 1/4-20 x 0.75

31. 790-00138A Bearing Housing

32. 721-0325 Plug

33. 736-3084 Flat Washer

34. 715-04021 Dowel Pin

35. 684-04108 Spiral Assembly- RH

36. 618-0123 Reducer Hsg.-RH (Incl Ref. 44-45)

37. 717-0528A Worm Gear, 20T

38. 725-0157 Cable Tie

39. 738-04124A Shear Pin

40. 714-0161 Key

41. 736-0351 Flat Washer

42. 721-0179 Oil Seal

43. 741-0661A Flange Bearing

44. 618-0418 Reducer Hsg.- LH (Incl Ref. 44-45)

45. 711-04283 Auger Axle 28-inch

46. 684-04107 Spiral Assembly- LH

47. 714-04040 Bow Tie Cotter Pin

48. 731-04870 Spacer

49. 741-0493A Flange Bushing

50. 736-0188 Flat Washer

51. 741-0245 Hex Flange Bearing

52. 736-0242 Bell Washer

53. 629-0071 Extension Cord

54. 746-04230 Auger Clutch Cable

55. 710-04525 Carriage Bolt, 5 /16-18 x .750

56. 712-04103 Hex Nut, 5/16-18

57. 736-04216 Bell Washer, .340 x .872 x .060

58. 737-3000 Drive Lube Fitting

59. 710-1260A AB Screw, 5/16-18 x 0.75

Parts List

To order replacement

parts, call the Customer

Dealer Referral Line at

1-877-282-8684

or visit

www.cubcadet.com to

find the nearest Cub

Cadet service dealer in

your area.









































































































































1. 684-04106B Handle Engagement Assembly RH

2. 738-04194 Flange Shoulder Screw

3. 731-04894B Lock Plate

4. 711-04287 Pivot Rod

5. 735-0199A Rubber Bumper

6. 710-04354 Screw, 1/4-20 x.375

7. 731-04896A Clutch Lock Cam

8. 712-04081A Shoulder Nut, 1/4-20

9. 725-04314 Wire Harness (Not Shown)

10. 725-1649 Light Socket

11. 720-0274 Handle Grip

12. 710-1233 Screw, #10-24 x 0.375

13. 738-04122 Shoulder Screw, 1/4-20 x 1.345

14. 710-04586 Screw, 1/4-20 x 1.625

15. 749-04190 Upper Handle RH

16. 710-0449 Carriage Screw, 5/16-18 x 2.25

17. 720-04039 Shift Knob

18. 931-05335 Handle Panel (Includes Ref. #19)

19. 731-05324 Lens

20. 725-04213 Lamp

21. 631-04134A Handle Clutch Lock RH Assy

22. 725-0157 Cable Tie

23. 712-04064 Flange Lock Nut, 1/4-20

24. 732-0193 Compression Spring

25. 790-00203 Shift Lever

26. 790-00248 Panel Bracket

27. 738-04125 Shoulder Screw

28. 746-0605 Cable Barrel Holder

29. 746-04227A Speed Selector Cable

30. 736-0463 Flat Washer, .25 x .630 x .0515

31. 710-0224 Screw, #10-16 x .500

32. 710-0606 Hex Screw, 1/4-20 x 1.50

33. 731-04427A Upper Chute

34. 790-00155 Joystick Bracket

35. 710-04187 Hi-Lo Screw, 1/4-15 x 0.5

36. 984-04116B 4-Way Chute Control™ Assembly

37. 749-04191 Upper Handle LH

38. 710-04326 Screw, #8-16 x 0.50

39. 732-04219A Clutch Lock Spring

40. 731-04954 Steering Control

41. 738-04126 Pin, 3/16

42. 716-04036 E Ring

43. 631-04133 Handle Clutch Lock LH Assy

44. 684-04105A Handle Engagement Assembly LH

45. 784-5594 Cable Bracket

46. 720-04072 Star Knob

47. 712-04063 Flange Lock Nut, 5/16-18

48. 731-1313C Chute Tilt Cable Guide

49. 711-04469A Clevis Pin

50. 710-1260A AB Screw, 5/16-18 x 0.75

51. 749-04138 Lower Handle

52. 732-04238 Torsion Spring

53. 736-0262 Flat Washer

54. 731-04890A Joystick Pulley Cover

55. 710-0262 Carriage Bolt, 5/16-18 x 1.50

56. 710-0895 Hi-Lo Screw, 1/4-15 x .75

57. 710-04071 Carriage Bolt, 5/16-18 x 1.0

58. 731-04861A Lower Chute

59. 710-0627 Hex Screw, 5/16-24 x .750

60. 684-04162 Chute Support Bracket

61. 712-3087 Wing Nut, 1/4-20

62. 714-04040 Bow Tie Cotter Pin

63. 726-0470 Cable Tie

Parts List

To order replacement

parts, call the Customer

Dealer Referral Line at

1-877-282-8684

or visit

www.cubcadet.com to

find the nearest Cub

Cadet service dealer in

your area.

38 1

1. 710-1652 AB Screw, 1/4-20 x 0.625

2. 731-05353 Belt Cover

3. 732-0705 Cable Guide

4. 711-1268B Actuator Shaft

5. 746-04229 Drive Clutch Cable

6. 732-04345 Extension Spring

7. 790-00207A Drive Clutch Cable Guide Bracket

8. 684-04156 Shift Rod Assembly

9. 750-04474 Axle Support Tube

10. 714-0126 Hi Pro Key

11. 710-0602 TT Screw, 5/16-18 x 1.00

12. 717-04210 Gear, 56T

13. 741-0245 Hex Flange Bearing

14. 790-00206A Auger Clutch Cable Guide Bracket

15. 756-0625 Cable Roller

16. 738-0924A C Screw, 1/4-28 x 0.375

17. 618-04288 Dogg Assembly - LH

— 618-04287 Dogg Assembly - RH

18. 726-04012 Push-on Nut

19. 750-04477 Spacer

20. 790-00156 Shift Bracket Spacer

21. 732-04311 Torsion Spring, .750ID x .968 Lg.

22. 731-05297 Spacer

23. 716-0104 E Ring

24. 736-0188 Flat Washer, .76 x 1.49 x .06

25. 736-0626 Flat Washer

26. 741-04076 Ball Bearing

27. 738-04180 Axle

28. 731-04873 Spacer

29. 710-0654A TT Sems Screw, 3/8-16 x 1.0

30. 710-0788 TT Screw, 1/4-20 x 1.0

31. 790-00185 Shaft Retainer - LH

32. 634-04136 Wheel Complete - LH

634-04137 Wheel Complete - RH

33. 736-0242 Bell Washer

34. 710-0627 Hex Bolt, 5 /16-24 x 0.75

35. 684-04154 Friction Wheel Support Brkt. Assy.

36. 790-00096 Auger Cable Guide Bracket

37. 748-0190 Spacer

38. 738-04184A Shoulder Screw

39. 790-00226 Frame Cover

40. 656-04025A Friction Wheel Disc Assembly

41. 918-04322 Drive Shaft Assembly

42. 684-04159 Friction Wheel Assembly

43. 716-0136 Retainer Ring

44. 726-0221 Speed Nut

45. 790-00183 Wheel Drive Frame

46. 756-04109 Auger Pulley

47. 736-0505 Flat Washer

48. 710-1245B Hex Bolt, 5/16-24 x 0.875

49. 736-0119 Lock Washer

50. 790-00230 Bearing Sleeve

51. 941-0919 Ball Bearing

52. 750-04571 Spacer

53. 732-04308A Torsion Spring

54. 710-0672 Hex Screw, 5/16-24 x 1.25

55. 756-04179 Pulley Half

56. 754-04088 V-Belt, 2L x 33

57. 710-0809 TT Screw, 1/4-20 x 1.25

58. 790-00208 Drive Clutch Idler Bracket

59. 748-04112 Shoulder Spacer

60. 732-0264 Extension Spring

61. 712-0413 Jam Lock Nut, 5/8-18

62. 750-04303 Spacer

63. 756-04113 Pulley Half

64. 736-0247 Flat Washer

65. 710-0191 Hex Bolt, 3 /8-24 x 1.25

66. 748-04053 Pulley Adapter

67. 746-0956A Steering Cable

68. 790-00186 Shaft Retainer - RH

69. 750-0767 Axle Spacer

70. 712-04065 Flange Lock Nut, 3/8-16

71. 754-04050 V-Belt,.500 x 35.00 Lg

72. 710-0751 Hex Screw, 1/4-20 x .620

73. 790-00217A Speed Selector Pivot Bracket

74. 790-00218A Speed Selector Shift Bracket

75. 712-04063 Flange Lock Nut, 5/16-18

76. 712-04064 Flange Lock Nut, 1/4-20

77. 738-04164A Friction Pin

78. 741-04098 Ball Bearing

79. 618-0063A Friction Wheel Bearing Assembly

80. 935-04054 Friction Wheel

81. 790-00174 Friction Plate

82. 710-0896 Screw, 1/4-14 x .625

Parts List

To order replacement

parts, call the Customer

Dealer Referral Line at

1-877-282-8684

or visit

www.cubcadet.com to

find the nearest Cub

Cadet service dealer in

your area.

NOTES

Use this page to make notes and write down important information.

MANUFACTURER’S LIMITED COMMERCIAL WARRANTY FOR:

The limited warranty set forth below is given by Cub Cadet LLC with respect to new merchandise used for commercial purposes and purchased and used in the United States and/or its territories and possessions, and by MTD Products Limited with respect to new merchandise purchased and used in Canada and /or its territories and possessions (either entity respectively, “Cub Cadet”).

“Cub Cadet” warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of one (1) year commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by Cub Cadet for use with the product(s) covered by this manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE : Warranty ser vice is avail ab le, WITH PROOF OF PURCHASE, through yo ur local authorized service dealer. To locate the dealer in your area:

In the U.S. A .

To locate the dealer in your area, check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-877-282-8684, or log on to our Web site at www.cubcadet.com.

In Ca nada

Contact MTD Produc ts Limited, Kitchener, ON N2G 4J1, or call 1-800- 668 -1238 or log on to our Web site at www.mtd canada.com.

This limited warranty does not provide coverage in the following cases:

a. The engine or component parts thereof. These items may

carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders have a separate

one- year warranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.

d. Service completed by someone other than an authorized service

dealer.

e. Cub Cadet does not extend any warranty for products sold or

exported outside of the United States and /or Canada, and their respective possessions and territories, except those sold

through Cub Cadet’s authorized channels of export distribution. f. Replacement parts that are not genuine Cub Cadet parts. g. Transportation charges and service calls.

No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind Cub Cadet. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. Cub Cadet shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.

HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary in different jurisdictions.

IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.

Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684

MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238

MANUFACTURER’S LIMITED WARRANTY FOR

The limited warranty set forth below is given by Cub Cadet LLC with respect to new merchandise purchased and used in the United States, its possessions and territories, and by MTD Products Limited with respect to new merchandise purchased and used in Canada and /or its territories and possessions.

“Cub Cadet” warrants this product against defects in material and workmanship for a period of three (3) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by Cub Cadet for use with the product(s) covered by this manual will void your warranty as to any resulting damage.

HOW TO OBTAIN SERVICE : Warranty ser vice is avail ab le, WITH PROOF OF PURCHASE, through yo ur local authorized service dealer. To locate the dealer in your area:

In the U.S. A .

In Ca nada

Contact MTD Produc ts Limited, Kitchener, ON N2G 4J1, or call 1-800- 668 -1238 or log on to our Web site at www.mtd canada.com.

This limited warranty does not provide coverage in the following cases:

a. The engine or component parts thereof. These items may

carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders have a separate one

year warranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments,

deck adjustments, and normal deterioration of the exterior finish

due to use or exposure. d. Cub Cadet does not extend any warranty for products sold or

exported outside of the United States and /or Canada, and

their respective possessions and territories, except those sold

through Cub Cadet’s authorized channels of export distribution. e. Replacement parts that are not genuine Cub Cadet parts. f. Service completed by someone other than an authorized service

dealer. g. Transportation charges and service calls.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary in different jurisdictions.

IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.

Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684

MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone 1-800-668-1238

Cub Cadet SWE 528 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
