Cub cadet ST228 User Manual

Quick Instructions to Replace Trimmer Line

For complete instructions, refer to Line Installation section of this manual.

Quick Instructions to Start Engine

or complete instructions, refer to

tarting/ Stopping Instructions section

of this manual.

Quick Instructions to Assemble Trimmers

For complete instructions, refer to the Assembly Instructions section of this m

anual.

Rotate the bump knob clockwise until all line is inside the cutting head.

Using a flat-head screwdriver, insert the tip into the line dimple, just under the exposed portion of the line, and pull all the line out.

Align the arrows on the bump knob with the spool cover eyelets.

Using 16 ft. of 0.095 in. line; push both ends through the holes in the bump knob until they protrude through the eyelets.

Hold the spool cover, turn the bump knob clockwise to wind the line around the spool until about 5 in. is protruding from each side of the cutting head.

Start the unit and bump the cutting head on the ground until the desired cutting length is achieved.

Pull the line until approximately 8 ft. is visible on each side.

IMPORTANT: READ OPERATOR’S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT.

Read and understand all instruction, warning and danger labels on the unit.

ix thoroughly in a separate fuel can:

– 2.6 fl. oz. of 2-cycle engine oil

– 1 gallon of unleaded gasoline Place the unit on a level surface. Fill fuel tank. NOTE: Do not mix directly in the

engine fuel tank.

emove the cap and spacer

rom the boom. Push the

ottom add-on into the coupler. Turn the knob clockwise to tighten.

1 Gallon 2.6 oz

50:1

Press primer bulb 10 times.

ove choke lever to

Position 1.

ontinue to squeeze throttle control and m

ove the choke

ever to Position 3.

Move choke lever to Position 2.

Pull the rope 5

times.

Continue squeezing the t

hrottle control and run engine

or additional 60 seconds to

omplete warm up.

Pull starter rope 3 to 5 times. Making sure to keep throttle squeezed, run engine for 3

0-60 seconds to warm up.

rouch in starting

osition.

DIDN’T START?

Repeat these instructions.

f engine still fails to start,

refer to the operator’s

anual for additional

starting and troubleshooting

information

5 X

Place the shield onto the mount bracket. S

ecurely screw the 4 shield screws through

he holes on the mount bracket and into the shield. Make sure the screws are tightened equally.

PRESS the lockout in; S

QUEEZE and HOLD throttle

ontrol for ALL further steps.

Remove the screws and bottom clamp. Place the D-handle over the shaft housing and onto t

he bottom clamp. Move it a minimum of 6 inches

(

15.24 cm) from the end of the shaft grip.

f pre-installed, loosen the screws just enough to move it. Tighten the clamp screws evenly until handle is secure.

Min. 6"

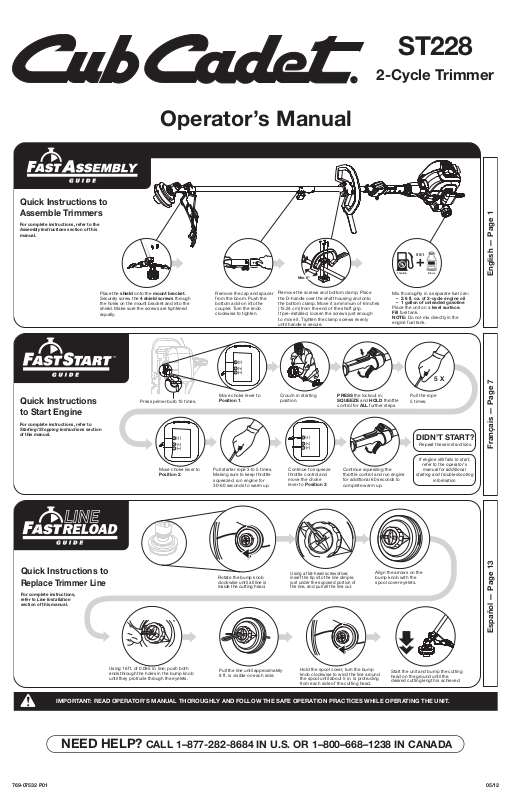

Operator’s Manual

ST228

2-Cycle Trimmer

English — Page 1

Français — Page 7

Español — Page 13

NEED HELP? CALL 1–877-282-8684 IN U.S. OR 1–800–668–1238 IN CANADA

769-07532 P01 05/12

SERVICE INFORMATION

TABLE OF CONTENTS

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Rules for Safe Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Oil and Fuel Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Starting/Stopping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Maintenance and Repair Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Optional Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

All information, illustrations, and specifications in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.

For assistance regarding the assembly, controls, operation or maintenance of the unit, please call the Customer Support Department at 1-877-282-8684 in the United States or 1-800-668-1238 in Canada. Additional information about the unit can be found on our website at www.cubcadet.com or www.cubcadet.ca.

For service, please call the Customer Support Department to obtain a list of authorized service dealers near you. Service on this unit, both within and after the warranty period, should only be performed by an authorized and approved service dealer. When servicing, use only identical replacement parts.

SPARK ARRESTOR NOTE NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and Washington.

All U.S. Forest Land and the state of California (Public Resources Codes 4442 and 4443), Oregon and Washington require, by law that certain internal combustion engines operated on forest brush and/or grasscovered areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed, equipped and maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor. If it requires replacement, ask your LOCAL SERVICE DEALER to install the Accessory Part #753-06349 Muffler Assembly.

ULES FOR SAFE OPERATION

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

SYMBOL MEANING

ARNING:

follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

Failure to obey a safety warning can result in injury to yourself and others. Always

RULES FOR SAFE OPERATION

WHILE OPERATING

• Wear safety glasses or goggles that are marked as meeting ANSI Z87.1-1989 standards. Also wear ear/hearing protection when operating this unit. Wear a face or dust mask if the operation is dusty. Long sleeve shirts are recommended.

• Wear heavy, long pants, boots and gloves. Do not wear loose clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.

• The cutting head shield must always be in place while operating the unit. Do not operate unit without both trimming lines extended, and the proper line installed. Do not extend the trimming line beyond the length of the shield.

• The cutting attachment may spin during idle speed adjustments. Wear protective clothing and observe all safety instructions to prevent serious personal injury.

• Adjust the D-handle to provide the best grip.

• Be sure the cutting head is not in contact with anything before starting the unit.

• Use the unit only in daylight or good artificial light.

• Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The operator and unit must be in a stable position while starting. See Starting/Stopping Instructions.

• Use the right tool. Only use this tool for the purpose intended.

• Do not overreach. Always keep proper footing and balance.

• Always hold the unit with both hands when operating. Keep a firm grip on both the front and rear handle or grips.

• Keep hands, face, and feet at a distance from all moving parts. Do not touch or try to stop the cutting head when it is rotating.

• Do not touch the engine or muffler. These parts get extremely hot from operation. They remain hot for a short time after turning off the unit.

• Do not operate the engine faster than the speed needed to cut, trim or edge. Do not run the engine at high speed when not cutting.

• Always stop the engine when cutting is delayed or when walking from one cutting location to another.

•

If the unit is struck or becomes entangled with a foreign object, stop the engine immediately and check for damage. Do not operate before repairing damage. Do not operate the unit with loose or damaged parts.

•

Stop and switch the engine to off for maintenance, repair, or for changing the cutting head or other Add-Ons.

• Use only original equipment manufacturer replacement parts and accessories for this unit. These are available from an authorized service dealer. The use of any unauthorized parts or accessories could lead to serious injury to the user, or damage to the unit, and void the warranty.

• Keep unit clean of vegetation and other materials. They may become lodged between the cutting head and shield.

• To reduce fire hazard, keep the engine and muffler free from grass, leaves, excessive grease or carbon build up.

OTHER SAFETY WARNINGS

•

Never store the unit, with fuel in the tank, inside a building where fumes may reach an open flame or spark.

• Allow the engine to cool before storing or transporting. Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up or up high to prevent unauthorized use or damage, out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use. See the Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If loaning someone this unit, also loan them these instructions.

SAVE THESE INSTRUCTIONS

CAUTION:

injury to yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

SAFETY ALERT:

avoid serious personal injury. May be used in conjunction with other symbols or pictographs.

DANGER:

others. Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.

NOTE:

READ THE OPERATOR’S MANUAL AND FOLLOW ALL WARNINGS AND SAFETY INSTRUCTIONS. FAILURE TO DO SO CAN RESULT IN SERIOUS INJURY TO THE OPERATOR AND/OR BYSTANDERS.

FOR QUESTIONS, CALL 1-877-282-8684 IN U.S. OR 1-800-668-1238 IN CANADA

READ ALL INSTRUCTIONS BEFORE OPERATING

Advises you of information or instructions vital to the operation or maintenance of the equipment.

WARNING:

instructions before operating the unit in order to ensure the safety of the operator and any bystanders. Please keep these instructions for later use.

Failure to obey a safety warning may result in property damage or personal

Indicates danger, warning or caution. Attention is required in order to

Failure to obey a safety warning will result in serious injury to yourself or to

• IMPORTANT SAFETY INSTRUCTIONS •

When using the unit, you must follow the safety rules. Please read these

CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust, some of its constituents and certain finished components

contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

• Read the instructions carefully. Be familiar with the controls and proper use of the unit.

• Do not operate this unit when tired, ill, or under the influence of alcohol, drugs, or medication.

• Children and teens under the age of 15 must not use the unit, except for teens guided by an adult.

• All guards and safety attachments must be installed properly before operating the unit.

• Inspect the unit before use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace parts that are cracked, chipped, or damaged in any way. Do not operate the unit with loose or damaged parts.

• Carefully inspect the area before starting the unit. Remove all debris and hard or sharp objects such as glass, wire, etc.

• Be aware of the risk of injury to the head, hands and feet.

• Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 feet (15 m) radius; there still may be a risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If approached, stop the unit immediately.

• Use only 0.095 inch (2.41 mm) diameter original equipment manufacturer replacement line. Never use metal-reinforced line, wire or rope. These can break off and become dangerous projectiles.

• Squeeze the throttle control and check that it returns automatically to the idle position. Make all adjustments or repairs before using unit.

SAFETY WARNINGS FOR GAS UNITS

WARNING:

following precautions:

Gasoline is highly flammable, and its vapors can explode if ignited. Take the

• SAFETY AND INTERNATIONAL SYMBOLS •

This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating, maintenance, and repair information.

SYMBOL MEANING

• SAFETY ALERT SYMBOL

Indicates danger, warning or caution. May be used in conjunction with other symbols or pictographs.

• READ OPERATOR'S MANUAL

WARNING: Read the operator’s manual(s) and follow all warnings and safety

instructions. Failure to do so can result in serious injury to the operator and/or bystanders.

• WEAR EYE AND HEARING PROTECTION

WARNING: Thrown objects and loud noise can cause severe eye injury and hearing

loss. Wear eye protection meeting ANSI Z87.1-1989 standards and ear protection when operating this unit. Use a full face shield when needed.

• UNLEADED FUEL

Always use clean, fresh unleaded fuel

• DO NOT USE E85 FUEL IN THIS UNIT

WARNING: It has been proven that fuel containing greater than 10% ethanol will

likely damage this engine and void the warranty.

• OIL

Refer to operator’s manual for the proper type of oil.

• ON/OFF STOP CONTROL

ON / START / RUN

• ON/OFF STOP CONTROL

OFF or STOP

• CHOKE CONTROL

1. • FULL choke position

2. • PARTIAL choke position

3. • RUN choke position

• THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY

WARNING: Small objects can be propelled at high speed, causing injury. Keep

away from the rotating rotor.

• KEEP BYSTANDERS AWAY

WARNING: Keep all bystanders, especially children and pets, at least 50 feet (15 m)

from the operating area.

• TRIMMER/ BRUSHCUTTER SAFETY

WARNING: Thrown objects and rotating cutter can cause severe injury. Keep

bystanders, especially children and pets, at least 50 feet (15 m) away from the cutting area. The cutting attachment shield must be used when using the trimmer cutting attachment.

• Store fuel only in containers specifically designed and approved for the storage of such materials.

• Always stop the engine and allow it to cool before filling the fuel tank. Never remove the fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly to relieve any pressure in the tank before fueling. Do not smoke.

• Always mix and add fuel in a clean, well-ventilated outdoor area where there are no sparks or flames. Do not smoke.

• Never operate the unit without the fuel cap securely in place.

• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit immediately before starting the unit. Move the unit at least 30 feet (9.1 m) from the fueling source and site before starting the engine. Do not smoke.

• Never start or run the unit inside a closed room or building. Breathing exhaust fumes can kill. Operate this unit only in a well-ventilated outdoor area.

• HOT SURFACE WARNING

Do not touch a hot muffler or cylinder. You may get burned. These parts get extremely hot from operation. When turned off they remain hot for a short time.

• SHARP BLADE

WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do

not touch the line cutting blade.

• BRUSHCUTTERS• REPLACE DULL BLADE

Do not sharpen the cutting blade. Sharpening the blade can cause the blade tip to break off while in use. This can result in severe personal injury.

APPLICATIONS

As a trimmer:

• Cutting grass and light weeds.

• Edging Decorative trimming around trees,

• fences, etc.

TOOLS REQUIRED:

• Flat head or T-20 screwdriver

• 3/8” socket

haft Housing

D-Handle

apid-Link™

KNOW YOUR UNIT

uffler

Throttle Lock-Out

n/Off Control

haft Grip

Throttle Control

Choke Control

Spark Plug

Lever

Starter Rope Grip

Fuel Cap

Primer Bulb

ir Filter Cover

ASSEMBLY INSTRUCTIONS

REMOVING THE CUTTING HEAD ATTACHMENT

WARNING: Before using the brush cutter attachment make sure that only the metal

blade guard is attached to the trimmer head. Always make sure to remove the plastic cutting guard shield when using the brush cutter attachment. Failure to do so may cause serious personal injury or damage to the unit.

If you want to trim or remove thicker, tougher and thornier brush you must use the metal brush cutter attachment. This is supplied with its own blade guard which must be securely attached to the trimmer head. In order to do this, both the cutting head attachment and cutting head shield must first be removed from the trimmer unit. To safely attach the brush cutter to the unit follow these instructions:

1. Remove the cutting head shield from the shaft housing (Fig. 1).

2. Position the cutting head attachment as shown (Fig. 7). Align the shaft bushing hole with the locking rod slot. Insert the locking rod into the shaft bushing hole.

3. Hold the locking rod in place by grasping it next to the boom of the shaft housing (Fig 7).

4. While holding the locking rod, remove the cutting head attachment by unscrewing it clockwise (Fig.

8). Store the cutting head attachment for future use.

INSTALLING THE BRUSH BLADE GUARD

1. Place the brush blade guard onto the trimmer head with the three holes aligned.

2. Attach the blade guard to the trimmer head with the three guard bolts and nuts using a 7/16 inch closed-end or socket wrench (Fig. 9).

haft

S ushing

ole

ocking

od Slot

Locking Rod

Fig. 7

Cutting Head

Attachment

haft

Housing

Cutting Head Shield

Cutting Head

Line Cutting Blade

ASSEMBLY INSTRUCTIONS

INSTALL THE CUTTING HEAD SHIELD

WARNING: To prevent serious personal injury, never operate the trimmer without the

cutting attachment shield in place.

1. Place the cutting head shield onto the guard mount bracket, making sure to align the holes on the shield with the ones in the guard mount bracket. (Fig. 1)

Cutting

ead Shield

2. Take the 4 shield screws and screw each one into the shield until finger tight.

3. Using a Flat Head or T-20 screw driver, tighten the screws until the shield is firmly in place.

INSTALL AND ADJUST THE D-HANDLE

1. Remove the screws and bottom clamp.

2. Place the D-handle over the shaft housing and onto the bottom clamp (Fig. 1). Move it a minimum of 6 inches (15.24 cm) from the end of the shaft grip.

3. Start the screws with an appropriate tool. Do not tighten

Screw (4)

D-Handle

Fig. 1

until making the handle adjustment.

4. If pre-installed, loosen the screws just enough to move it.

5. While holding the unit in the operating position (Fig. 23), move the D-handle to the location that provides the best grip.

inimum 6 in.

6. Tighten the clamp screws evenly until handle is secure.

NOTE: Make sure the barrier bar is on the operating side

(15.24 cm)

when the unit is held in the operating position.

Fig. 2

OPERATING THE RAPID-LINK™ SYSTEM

The Rapid-Link™ system enables the use of these optional Add-Ons.

Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AF720

Hedge Trimmer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AH720*

Brushcutter* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BC720*

Cultivator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GC720

Edger*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LE720*

Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PS720

Straight Shaft Trimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SS725

Turbo Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB720

* Do NOT use this Add-On with an electric powered unit.

REMOVING THE ADD-ON

Rapid-Link™

Coupler

1. Turn the knob counterclockwise to loosen (Fig. 5).

2. Press and hold the release button (Fig. 3).

3. While firmly holding the upper shaft housing, pull the lower shaft housing straight out of the Rapid-Link™ coupler (Fig. 4).

INSTALLING THE ADD-ON NOTE: To make installing or removing the

add-on easier, place the unit on the ground or on a work bench.

Primary Hole

90˚ Edging Hole

(Trimmer Only)

1. Turn knob counterclockwise to loosen (Fig. 5).

2. While firmly holding the add-on, push it straight into the Rapid-Link™ coupler (Fig. 4).

NOTE: Aligning the release button with the

guide recess will help installation (Fig. 3).

Upper Shaft

Housing

Fig. 4

Lower Shaft

Housing

3. Turn the knob clockwise to tighten (Fig. 5).

For decorative trimming/edging with the line cutting head, lock the release button into the 90° hole (Fig. 5).

Screw (4)

Guard Mount

Bracket

Barrier Bar

Guide Recess

Fig. 3

Fig. 5

Bottom

Clamp

Release

Button

Knob

nscrew

haft

S ushing

Hole

ocking

od Slot

Locking Rod

Fig. 8

lockwise

utting Head

Attachment

Shaft

Housing

uard

Bolts (3)

Brush Blade

uard

INSTALLING THE BRUSH CUTTER BLADE

WARNING: If the cutting blade is off-center, the unit will vibrate and the blade may fly

off, causing possible serious personal injury.

1. Place the cutting blade on the output shaft bushing (Fig. 10).

2. Make sure that the cutting blade is centered on the pilot step and sitting flat against the output shaft bushing (Fig. 12).

3. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 11).

4. Put the blade retainer and nut on the output shaft. Make sure that the blade is installed correctly.

5. Tighten nut counterclockwise against the blade while holding the locking rod:

• If using a torque wrench and an 1/2 inch socket tighten to: 325 - 335 in•lb, 27 - 28 ft.•lb, 37 - 38 N•m.

• Without a torque wrench, use a 1/2 inch closed-end or socket wrench, turning the nut until the blade retainer is snug against the shaft bushing. Make sure that the blade is installed correctly, then rotate the nut an additional 1/4 to 1/2 turn counterclockwise (Fig. 13).

WARNING: To avoid serious personal injury or

damage to the unit, do not start or operate this unit with the locking rod in the locking rod slot.

6. Remove the locking rod from the locking rod slot.

Pilot Step

Fig. 12

REMOVING THE BRUSH CUTTER BLADE

WARNING: Do not sharpen the cutting blade. Sharpening the blade can cause the blade

tip to break off while in use. This can result in severe personal injury. Replace the blade.

WARNING:

always wear gloves while handling or installing the blade.

1. Align the shaft bushing hole with the locking rod slot and insert the locking rod into the bushing hole (Fig. 11).

2. Hold the locking rod in place by grasping it next to the shaft housing (Fig. 14).

3. While holding the locking rod, loosen the nut on the blade by turning it clockwise with a 1/2 inch closed-end or socket wrench (Fig. 14).

4. Remove the nut, blade retainer and blade. Store the nut and blade together for future use in a secure place. Store out of children’s reach.

To avoid serious personal injury,

rimmer

ead

Nuts (3)

lade Retainer

ilot Hole

Output Shaft

Bushing

Shaft

ushing Hole

ocking

L Rod Slot

Locking Rod

1/4-1/2 turn

Counterclockwise

Clockwise

Fig. 9

ig. 10

Fig. 11

Fig. 13

Fig. 14

utput Shaft

Output

Shaft ushing

utting

Blade

REMOVING THE BRUSH BLADE GUARD

1. Loosen and remove the three guard bolts and nuts using a 7/16 inch closed-end or socket wrench (Fig. 9). Store with brush cutter blade for future use.

ASSEMBLY INSTRUCTIONS

INSTALLING THE CUTTING HEAD ATTACHMENT

1. Position the cutting head attachment as shown (Fig. 15). Align the shaft bushing hole with the locking rod slot. Insert the locking rod into the shaft bushing hole.

2. Hold the locking rod in place by grasping it next to the boom of the shaft housing (Fig 15).

3. While holding the locking rod, attach the cutting head to the output shaft by screwing it counterclockwise until it is fully seated (Fig. 16).

4. Attach the cutting head shield to the shaft housing with screws (4) (Fig. 1).

Screw on

Counter-

Shaft

Bushing

ole

ocking

od Slot

ocking Rod

ig. 15

clockwise

Output Shaft

utting Head

ttachment

Shaft

Housing

haft

S ushing

ole

ocking

od Slot

ocking Rod

ig. 16

Cutting Head

Attachment

haft

ousing

INSTALL THE HARNESS

WARNING: Always use the shoulder harness

when using the cutting blade to avoid serious personal injury.

1. Push the strap through the center of the buckle.

2. Pull the strap over the cross bar and down through the slot in the buckle (Fig. 17).

3. Put the harness on over head and onto shoulder. Snap it on to the support fitting (Fig. 18).

4. Adjust length to fit the operator’s size. Pull tab to lengthen, pull strap to shorten (Fig 19).

ig. 18

upport

itting

ig. 17

ig. 19

OIL AND FUEL INFORMATION

OIL AND FUEL MIXING INSTRUCTIONS

Old and/or improperly mixed fuel are the main reasons for the unit not running properly. Be sure to use fresh, clean unleaded fuel. Follow the instructions carefully for the proper fuel/oil mixture.

DEFINITION OF BLENDED FUELS

WARNING: DO NOT USE E85 FUEL IN THIS UNIT. It has been proven that fuel

containing greater than 10% ethanol will likely damage this engine and void the warranty.

Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol, or MTBE (ether). Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate. It forms acids when stored. When using alcohol-blended fuel, use fresh fuel (less than 30 days old).

USING BLENDED FUELS

If choosing to use a blended fuel, or its use is unavoidable, follow recommended precautions:

• Always use the fresh fuel mix explained in the operator's manual

• Use the fuel additive STA-BIL® or an equivalent

• Drain the tank and run the engine dry before storing the unit

USING FUEL ADDITIVES

CAUTION: For proper engine operation and maximum reliability, pay strict attention to

the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine.

The bottle of 2-cycle oil contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended to use our 2-cycle oil with this unit.

If unavailable, use a good 2-cycle oil designed for air-cooled engines along with a fuel additive, such as STA-BIL Gas Stabilizer or an equivalent. Add 0.8 oz. (23 ml) of fuel additive per gallon of fuel according to the instructions on the container. NEVER add fuel additives directly to the unit's fuel tank.

Thoroughly mix the proper ratio of 2-cycle engine oil with unleaded fuel in a separate fuel can. Use a 50:1 fuel/oil ratio. Do not mix them directly in the engine fuel tank. See the table for specific gas and oil

UNLEADED GAS 2 CYCLE OIL

1 GALLON US

(3.8 LITERS)

1 LITER 20 ml

MIXING RATIO - 50:1

2.6 FL. OZ. (77 ml)

mixing ratios.

NOTE:

One gallon (3.8 liters) of unleaded fuel mixed with one 2.6 oz. (77 ml) bottle of 2-cycle oil makes a 50:1

fuel/oil ratio.

NOTE: Dispose of the old fuel/oil mix in accordance with federal, state and local regulations. FUELING THE UNIT

WARNING: Gasoline is extremely flammable. Ignited vapors may explode. Always stop

the engine and allow it to cool before filling the fuel tank. Do not smoke while filling the tank. Keep sparks and open flames at a distance from the area.

1. Remove the fuel cap.

WARNING:Remove fuel cap slowly to avoid injury from fuel spray. Never operate the

unit without the fuel cap securely in place.

STARTING/STOPPING INSTRUCTIONS

WARNING: Operate this unit in a well-ventilated outdoor area. Carbon monoxide

exhaust fumes can be lethal in a confined area.

WARNING: Avoid accidental starting. Make sure you are in the starting position when

pulling the starter rope (Fig. 22). To avoid serious injury, the operator and unit must be in a stable position while starting.

STARTING INSTRUCTIONS

1. Mix fuel with oil. See Oil and Fuel Mixing Instructions.

2. Fill the fuel tank with fresh, clean fuel mix. Refer to Fueling the Unit. NOTE: There is no need to turn the unit on. The On/Off Control is in the

ON ( I ) position at all times (Fig. 20).

3. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb and fuel lines (Fig. 21). If fuel can not be seen in the bulb, press and release the bulb until fuel is visible.

4. Place the choke lever in Position 1 (Fig. 21).

5. Crouch in the starting position (Fig. 22). Press the throttle lock-out in and squeeze the throttle control lever. Pull the starter rope 5 times.

6. Place the choke lever in Position 2 (Fig. 21)

7. Press the throttle lock-out in and squeeze the throttle control. Pull the starter rope in a controlled motion 3 to 5 times to start engine.

8. Keep the throttle squeezed and allow the engine to warm up for 30 to 60 seconds.

9. Continue squeezing the throttle control, move the choke lever to Position 3 (Fig. 21) and continue warming the engine for an additional 60 seconds. The unit may be used during this time.

NOTE: Unit is properly warmed up when engine accelerates without

hesitation.

IF...the engine hesitates, return the choke lever to Position 2 (Fig. 21) and

continue warm-up.

IF...the engine does not start, go back to step 3. IF...the engine fails to start after a few attempts, place the choke lever in Position 3 and squeeze the

throttle control. Pull the starter rope out with a controlled and steady motion 3 to 8 times. The engine should start. If not, repeat.

IF WARM...If the engine is already warm, go back to step 6.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control switch in the OFF (O) position until the unit comes to a complete stop (Fig. 20).

F USING THE OPTIONAL ELECTRIC STARTER OR POWER START BIT™ ACCESSORY

HOW TO START THE UNIT USING THE ELECTRIC STARTER OR POWER START BIT ACCESSORY NOTE: This Unit Can Use an Electric Start or Power Start Bit™ Optional Accessory!

Please refer to the Electric Starter or Power Start Bit operator’s manual for proper use of this feature. (Items Sold Separately! Please refer to page 6 of this manual about purchasing these accessories.)

STARTING INSTRUCTIONS

1. Mix fuel with oil. See Oil and Fuel Mixing Instructions.

2. Fill the fuel tank with fresh, clean fuel mix. Refer to Fueling the Unit.

NOTE: There is no need to turn the unit on. The On/Off Control is in the ON ( I ) position at all times (Fig. 20).

3. Fully press and release the primer bulb 10 times, slowly. Some amount of fuel should be visible in the primer bulb (Fig. 15). If fuel cannot be seen in the bulb, press and release the bulb until fuel is visible.

4. Move the choke lever to Position 1 (Fig. 21).

5. Crouch in the starting position (Fig. 22). Place the electric starter or power start bit into the back of the unit. Refer to the Operation section of the Electric Starter or Power Start Bit operator’s manual.

6. Press the throttle lock-out in and squeeze the throttle control lever. Press and hold the electric starter or drill ON (I) button for 2 seconds.

7. Move the choke lever to Position 2 (Fig. 21).

8. Press the throttle lock-out in and squeeze the throttle control lever. Press and hold the electric starter or drill ON (I) button for 2-second intervals until the unit starts.

9. Continue to squeeze the throttle control, remove the electric starter or drill from the unit and allow the engine to warm up for 30 to 60 seconds.

10.Continue squeezing the throttle control, move the choke lever to Position 3 (Fig. 21) and run the unit for an additional 60 seconds. The unit may be used during this time.

NOTE: Unit is properly warmed up when engine accelerates without hesitation. IF...the engine hesitates, return the choke lever to Position 2 (Fig. 21) and continue warm-up. IF...the engine does not start, go back to step 3. IF...the engine fails to start after a few attempts, place the choke lever in Position 3 and squeeze the

throttle control. Press and hold the electric starter or drill ON (I) button for 2-second intervals until the unit starts.

IF WARM... If the engine is already warm, go back to step 7.

STOPPING INSTRUCTIONS

1. Release the throttle control and allow the engine to cool down by idling.

2. Press and hold the On/Off Control switch in the OFF (O) position until the unit comes to a complete stop (Fig. 20

tart/ On (I)

Throttle

Lockout

Choke Lever

Primer

Bulb

Starter

Rope

hrottle

T Control

Fig. 20

Fig. 21

ig. 22

top/ Off (O)

hrottle

ontrol

WARNING:

Add fuel in a clean, level and well ventilated outdoor area. Wipe up any spilled fuel immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine until fuel vapors dissipate.

2. Place the gas container’s spout into the fill hole on the fuel tank and fill the tank. NOTE: Do not overfill the tank.

3. Wipe up any gasoline that may have spilled.

4. Reinstall the fuel cap.

5. Move the unit at least 30 ft. (9.1 m) from the fueling source and site before starting the engine.

OPERATING INSTRUCTIONS

HOLDING THE UNIT

WARNING: Always wear eye, hearing, foot

and body protection to reduce the risk of injury when operating this unit.

Before operating the unit, stand in the operating position (Fig. 23). Check for the following:

• The operator is wearing eye protection and proper clothing

• With a slightly-bent right arm, the operator’s hand is holding the shaft grip

• The operator’s left arm is straight, the left hand holding the D-handle

• The unit is at waist level

ig. 23

• The cutting head is parallel to the ground and easily contacts the grass without the need to bend over

ADJUSTING TRIMMING LINE LENGTH

WARNING: Do not remove or alter the line cutting blade assembly. Excessive line length

will cause premature engine failure and / or unit damage.

The Bump Head™ cutting head allows the release of trimming line without stopping the engine. To release more line, lightly tap the cutting head on the ground (Fig. 24) while operating the unit at high speed.

NOTE:

Always keep the trimming line fully extended. Line release becomes

more difficult when the cutting line gets shorter.

Each time the head is bumped, about 1 inch (25.4 mm) of trimming line releases. A blade in the cutting head shield will cut the line to the proper length if any excess line is released.

For best results, tap the bump knob on bare ground or hard soil. If attempting a line release in tall grass, the engine may stall. Always keep the trimming line fully extended. Line release becomes more difficult when the cutting line gets shorter.

ig. 24

NOTE: Do not rest the Bump Head™ on the ground while the unit is running.

Some line breakage will occur from:

• Entanglement with foreign matter

• Normal line fatigue

• Attempting to cut thick, stalky weeds

• Forcing the line into objects such as walls or fence posts

TIPS FOR BEST TRIMMING RESULTS

• Keep the cutting head parallel to the ground.

• Do not force the cutting head. Allow the tip of the line to do the cutting, especially along walls. Cutting with more than the tip will reduce cutting efficiency and may overload the engine.

• Cut grass over 8 inches (200 mm) by working from top to bottom in small increments to avoid premature line wear or engine drag.

• Cut from right to left whenever possible. Cutting to the left improves the unit's cutting efficiency. Clippings are thrown away from the operator.

• Slowly move the unit into and out of the cutting area at the desired height. Move either in a forward-backward or side-to-side motion. Cutting shorter lengths produces the best results.

• Trim only when grass and weeds are dry.

• The life of the cutting line is dependent upon:

• Following the trimming techniques

• What vegetation is being cut

• Where vegetation is cut

For example, the line will wear faster when trimming against a foundation wall as opposed to trimming around a tree.

Fig. 25

DECORATIVE TRIMMING

Decorative trimming is accomplished by removing all vegetation around trees, posts, fences, etc.. Rotate the whole unit so that the cutting head is at a 30° angle to the ground (Fig. 25).

USING THE CUTTING BLADE

WARNING: Always wear eye, hearing, foot, body protection and the shoulder strap to reduce

the risk of injury when operating this unit.

WARNING: Do not use the cutting blade for edging or as an edger. Severe personal injury

to yourself or others can result.

Before operating the unit with the cutting blade, stand in the operating position (Fig. 26). Refer to Holding the Trimmer.

Cutting Blade Operating Tips

WARNING: Blade thrust may occur when the spinning blade contacts an object that it

does not immediately cut. Blade thrust can be violent enough to cause the unit and/or operator to be propelled in any direction, and possibly lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

To establish a rhythmic cutting procedure:

• Plant feet firmly, comfortably apart.

• Bring the engine to full throttle before entering the material to be cut. At full throttle the blade has maximum cutting power and is less likely to bind, stall or cause blade thrust (which can result in serious personal injury to the operator or others).

• Cut while swinging the upper part of your body from left to right.

• Always release the throttle trigger and allow the engine to return to idle speed when not cutting.

• When you are finished, always unsnap the unit from the

Fig. 26

harness before taking off the harness.

• Swing the unit in the opposite direction as the blade spins, which increases the cutting action.

• After the return swing, move forward to the next area to be cut and plant your feet again.

• The cutting blade is designed with a second cutting edge. You can use it by removing the blade, turning it upside down and reinstalling it.

To reduce the chance of material wrapping around the blade, follow these steps:

WARNING:

The blade continues to spin after the engine is turned off. The coasting blade

can seriously cut you if accidentally touched.

• Cut at full throttle.

• Swing the unit into material to be cut from your left to your right (Fig. 27).

• Avoid the material just cut as you make the return swing.

WARNING: Do not clear away any cut material

with the engine running or blade turning. To avoid serious personal injury, turn off the engine. Allow the blade to stop before removing materials wrapped around the blade shaft.

Fig. 27

MAINTENANCE AND REPAIR INSTRUCTIONS

MAINTENANCE SCHEDULE

o prevent serious injury, never perform maintenance or repairs with unit running. Always

ARNING:

service and repair a cool unit. Disconnect the spark plug wire to ensure that the unit cannot start.

Perform these required maintenance procedures at the frequency stated in the table. These procedures should also be a part of any seasonal tune-up.

NOTE: Some maintenance procedures may require special tools or skills. If you are unsure about these

procedures take your unit to any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Maintenance, replacement, or repair of the emission control devices and system may be

performed by any non-road engine repair establishment, individual or authorized service dealer.

NOTE: Please read the California/EPA statement that came with the unit for a complete listing of terms

and coverage for the emissions control devices, such as the spark arrestor, muffler, carburetor, etc.

FREQUENCY MAINTENANCE REQUIRED SEE

Before starting engine Fill fuel tank with fresh fuel p. 4

Every 10 hours Clean and re-oil air filter p. 5

Every 25 hours Check spark plug condition and gap p. 5

REMOVING THE LINE

WARNING: Never use metal-reinforced line, wire, chain or rope. These can break off and

become dangerous projectiles.

1. Rotate the bump knob clockwise until all line is inside the cutting head (Fig. 28).

2. Using a flat-head screwdriver, insert the tip into

he line dimple and just under the exposed

t portion of the line (Fig. 29)

3. Pull the line straight out until all line is removed

rom the cutting head.

LINE INSTALLATION

Always use original equipment manufacturer 0.095 in. (2.41 mm) replacement line.

Align the arrows on the bump knob with the spool cover eyelets, if they are not already (Fig. 30).

. Using 16 ft. (4.8 m) of 0.095 in. (2.41 mm)

replacement line push both ends of the line

hrough the holes in the bump knob until they

rotrude through the eyelets on both sides of the

p cutting head. Continue pulling the line until

pproximately 8 ft. (2.4 m) is visible from both

ides of the cutting head. (Fig. 31)

. Hold the spool cover, turn the bump knob

lockwise to wind the line around the spool

c until about 5 in. (12.7 cm) is protruding from

ach side of the cutting head. (Fig. 31)

. Start the unit and bump the cutting head on the ground until the desired cutting length is achieved. Excess line will

e trimmed off by the line blade.

OTE: If the cutting line ends are pulled into the cutting head or the line becomes twisted, refer to Removing the Line.

ump

nob

Arrows

ig. 28

ig. 30

yelet

imple

Fig. 29

lat-Head

Screw Driver

Trimmer

ine

r L

AIR FILTER MAINTENANCE

WARNING: To avoid serious personal injury, always turn the unit off and allow it to cool

before you clean or service it.

Cleaning the Air Filter

Failure to maintain your air filter properly can result in poor performance or can cause permanent damage to your engine.

1. Open the air filter cover. Push the locking tab on the top of the cover inward, then pull the air filter cover out and down. (Fig. 32).

2. Remove the air filter (Fig. 32).

3. Wash the filter in detergent and water. Rinse the filter thoroughly and allow it to dry.

4. Apply enough clean SAE 30 motor oil to lightly coat the filter.

5. Squeeze the filter to spread and remove excess oil.

Air

Filter

Fig. 32

Tab Lock

Air Filter

Cover

6. Replace the filter.

NOTE: If the unit is operated without the air filter, you will VOID the warranty.

7. Reinstall the air filter cover. Position the slots on the bottom of the air filter cover onto the tabs at the bottom of the back plate (Figs. 32).

8. Swing the cover up until the tab on the air filter backplate snaps into place in the slot on the air filter cover (Fig. 32).

IDLE SPEED ADJUSTMENT

The idle speed of the engine is adjustable. An idle adjustment screw is between the air filter cover and the engine starter housing (Fig. 33).

NOTE: Careless adjustments can seriously damage the unit. An authorized service dealer should make

carburetor adjustments.

WARNING:

The cutting attachment will spin during idle speed adjustments. Wear

protective clothing and observe all safety instructions to prevent serious personal injury.

If, after checking the fuel mixture and cleaning the air filter, the engine still will not idle, adjust the idle speed screw as follows:

1. Start the engine and run for one minute to warm up. Refer to

Idle Adjustment Screw

Starting/Stopping Instructions.

2. Release the throttle trigger and let the engine idle. If the engine stops, insert a small phillips screwdriver into the idle adjustment screw (Fig. 33). Turn the idle speed screw clockwise 1/8 of a turn at a time (as needed) until the engine idles smoothly.

3. If the engine appears to be idling too fast, turn the idle speed screw counterclockwise 1/8 of a turn at a time (as needed), to reduce idle speed.

Fig. 33

Checking the fuel mixture, cleaning the air filter and adjusting the idle speed should solve most engine problems. If not and all of the following are true:

• the engine will not idle

• the engine hesitates or stalls on acceleration

• there is a loss of engine power

Have the carburetor adjusted by an authorized service dealer.

REPLACING THE SPARK PLUG Use replacement #753-06193, a Champion® RDJ8J spark plug, or equivalent. The correct air gap is 0.025

inch (0.635 mm).

1. Stop the engine and allow it to cool. Grasp the plug wire firmly and pull it from the spark plug. Clean around the spark plug. Remove the spark plug from the cylinder head

2. by turning a 5/8-inch socket counterclockwise.

WARNING: Do not sand blast, scrape or clean electrodes.

Grit in the engine could damage the cylinder.

3. Replace a cracked, fouled or dirty spark plug. Set the air gap at 0.025 in. (0.635 mm) using a feeler gauge (Fig. 34).

4. Install a correctly-gapped spark plug in the cylinder head. Tighten by turning the 5/8-inch socket clockwise until snug.

If using a torque wrench torque to: 110-120 in.•lb. (12.3-13.5 N•m)

Do not over tighten.

0.025 in.

(0.635 mm.)

Fig. 34

CLEANING AND STORAGE

WARNING: To avoid serious personal injury, always turn the unit off and allow it to cool

before you clean or service it.

CLEANING

Use a small brush to clean off the outside of the unit. Do not use strong detergents. Household cleaners that contain aromatic oils such as pine and lemon, and solvents such as kerosene, can damage plastic housing or handle. Wipe off any moisture with a soft cloth.

STORAGE

• Never store a fueled unit where fumes may reach an open flame or spark.

• Allow the engine to cool before storing.

• Store the unit locked up to prevent unauthorized use or damage.

• Store the unit in a dry, well-ventilated area.

• Store the unit out of the reach of children.

Short Term Storage (1-2 weeks)

1. Store the unit in a horizontal position. If this is not possible, store the unit vertically with the engine at the top.

Long Term Storage

If planning on storing the unit for an extended time, use the following storage procedure:

1. Drain all fuel from the fuel tank into a container with the same 2-cycle fuel mixture. Do not use fuel that has been stored for more than 30 days. Dispose of the old fuel/oil mix in accordance with federal, state and local regulations.

2. Start the engine and allow it to run until it stalls. This ensures that all fuel has been drained from the carburetor.

3. Allow the engine to cool. Remove the spark plug and put 5 drops of high quality motor oil into the cylinder. Pull the starter rope slowly to distribute the oil. Reinstall the spark plug.

NOTE: Remove the spark plug and drain all of the oil from the cylinder before attempting to start the unit

after storage.

4. Thoroughly clean the unit and inspect it for any loose or damaged parts. Repair or replace damaged parts and tighten loose screws, nuts or bolts. The unit is ready for storage.

PTIONAL ACCESSORY

ELECTRIC STARTER AND POWER START BIT™ FEATURES

This unit is designed to be started with an optional electric starter or Power Start Bit™ that are sold separately. If choosing to start the unit using one of these features or have questions please contact your local retailer or call 1-877-282-8684 U.S, (1-800-668-1238 Canada), for more information and purchasing. You may also go to www.cubcadet.com or www.cubcadet.ca

lectric Start Feature

TROUBLESHOOTING

CAUSE ACTION

ENGINE WILL NOT START

mpty fuel tank

rimer bulb wasn't pressed enough

ngine is flooded

Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture Fouled spark plug Replace or clean the spark plug

NGINE WILL NOT IDLE

Air filter is plugged Replace or clean the air filter Old or improperly mixed fuel Drain fuel tank and add fresh fuel mixture Improper idle speed Adjust according to the Idle Speed Adjustment section

NGINE WILL NOT ACCELERATE

ld or improperly mixed fuel

O Cutting head bound with grass Stop the engine and clean the cutting head Dirty air filter Clean or replace the air filter

ENGINE LACKS POWER OR STALLS

ld or improperly mixed fuel

ouled spark plug

ENGINE STOPS WHILE IN USE

ngine overspeed protection engaged

CUTTING ATTACHMENT WILL NOT ADVANCE LINE

Cutting attachment bound with grass Stop the engine and clean cutting attachment Cutting attachment out of line Refill with new line

ine twisted when refilled

Not enough line is exposed

IF FURTHER ASSISTANCE IS REQUIRED, CONTACT AN AUTHORIZED SERVICE DEALER.

SPECIFICATIONS*

Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 2-Cycle

Stroke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10 in. (2.794 cm)

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 cc

Operating RPM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,500+ rpm

Idle Speed RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,200 - 3,400 rpm

Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in. (0.635 mm)

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuel/Oil Mixture

Fuel/Oil Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50:1

Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 fl.oz. (414 ml)

Total Approximate Unit Weight (without fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 13 lbs. (5 - 6 kg)

Cutting Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Proulx™

Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Included

Line Spool Diameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 in. (114.3 mm)

Trimming Line Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.095 in. (2.41 mm)

Cutting Path Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 in. (45.72 cm)

* All specifications are based on the latest product information available at the time of printing. We

reserve the right to make changes at any time without notice.

ill fuel tank with properly mixed fuel

ress primer bulb fully and slowly 10 times

P With choke lever in position 3, squeeze the trigger and

pull the starter rope

rain fuel tank and add fresh fuel mixture

eplace or clean the spark plug

Allow the engine to cool down for 10 minutes before restarting.

emove and rewind the line

ush the bump knob and pull out line until 4 inches (102 mm)

P of line is outside of the cutting attachment

Instructions rapides pour le montage des taille-bordures

Pour des instructions plus détaillées, veuillez consulter les Instructions de

ontage du manuel.

Instructions rapides pour le démarrage du moteur

Pour des instructions plus détaillées, v

euillez consulter les Instructions de

démarrage/arrêt du manuel.

Instructions rapides pour le remplacement du fil de coupe

Pour des instructions plus détaillées, veuillez consulter la section Installation du fil du manuel.

Tournez le bouton de butée dans le sens des aiguilles d’une montre pour faire rentrer l’intégralité du fil dans la tête de coupe.

Insérez la pointe d’un tournevis à tête plate dans la dépression située sous la partie apparente du fil, et tirez pour faire ressortir tout le fil.

Alignez les flèches sur le bouton de butée avec les œillets du couvercle de la bobine.

Utilisez 4,8 m (16 pieds) de fil de 2,4 mm (0.095 po) ; repoussez les deux extrémités du fil dans le bouton de butée jusqu’à ce qu’elles ressortent par les œillets.

Maintenez le couvercle de la bobine, tournez le bouton de butée dans le sens des aiguilles d’une montre pour enrouler le fil autour de la bobine jusqu’à ce qu’il en dépasse environ 15 cm (5 po.) de chaque côté de la tête de coupe.

Démarrez l’appareil et frappez la tête de coupe sur le sol jusqu’à obtention de la longueur de coupe souhaitée.

Tirez le fil jusqu’à en faire apparaître environ 2,4 m (8 pieds) de chaque côté.

IMPORTANT : LISEZ ATTENTIVEMENT LE MANUEL DE L’UTILISATEUR ET SUIVEZ LES INSTRUCTIONS POUR UNE UTILISATION EN TOUTE SÉCURITÉ AVANT D’UTILISER L’APPAREIL.

Placez l’écran de protection sur le support de montage. Vissez fermement les 4 vis de l’écran à travers les trous du support de

montage jusque dans l’écran. Assurez-vous que le degré de serrage soit le même pour toutes les vis.

Mélangez soigneusement dans un bidon séparé :

– 77 ml (2.6 fl. oz.) d’huile 2 temps

– 3,8 litres (1 gallon) d’essence sans plomb Placez l’appareil sur une surface plane. Remplissez le réservoir de carburant. REMARQUE : N’effectuez pas le mélange

directement dans le réservoir de carburant.

Retirez le capuchon et l’entretoise du manche. Insérez la tige d’extension inférieure dans le coupleur. Tournez le bouton dans l

e sens des aiguilles d’une montre

our resserrer.

Gallon 2.6 oz

50:1

Placez la poignée en forme de D sur l’arbre, face au système de serrage inférieur, à 15 cm (6 pouces) au moins d

e l’extrémité de la zone de prise de

’arbre. Resserrez les vis au moyen d’un outil approprié pour bien fixer la poignée.

15,24 cm

(

6 po) min.

Read and understand all instruction, warning and danger labels on the unit.

APPUYEZ sur le bouton de déverrouillage ; PRESSEZ la commande des gaz et maintenez cette pression pour TOUTES les étapes suivantes.

5 X

Appuyez 10 fois sur la p

oire d’amorçage.

Placez le levier d’étrangleur en Position 1.

Maintenez la pression sur la commande des gaz et placez le levier d’étrangleur en Position 3.

Placez le levier d

’étrangleur en

Position 2.

irez 5 fois sur

le cordon.

aintenez la pression sur la commande des gaz et faites tourner le moteur encore 60 s

econdes pour terminer le

réchauffage.

Tirez de 3 à 5 fois sur le cordon de d

émarrage. En maintenant la

ression sur la commande des gaz,

aites tourner le moteur pendant 30

à 60 secondes pour le préchauffer.

Vous devez être en position accroupie pour le démarrage.

S’IL NE

DÉMARRE PAS

Suivez à nouveau

ces instructions.

Si le moteur ne démarre

toujours pas,veuillez

consulter le manuel de

l’utilisateur pour plus

’informations de démarrage

et résolution des problèmes

Manuel de l’utilisateur

ST228

Taille-bordures

2 temps

English — Page 1

Français — Page 7

Español — Page 13

BESOIN D’AIDE ? POUR VOS QUESTIONS, APPELEZ LE 1-877-282-8684

769-07532 P01 05/12

AUX ÉTATS-UNIS OU LE 1–800–668–1238 AU CANADA

SERVICE TECHNIQUE

TABLE DES MATIÈRES

Service technique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Familiarisez-vous avec votre appareil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Instructions de montage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Informations sur l'huile et le carburant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Instructions de démarrage et arrêt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Instructions d’Utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Instructions d’entretien et réparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Nettoyage et entreposage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Accessoire en option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Tableau de dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Caractéristiques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Toutes les informations, illustrations et spécifications contenues dans ce manuel tiennent compte des dernières informations techniques disponibles au moment de mettre sous presse. Nous nous réservons le droit d'y apporter des modifications à tout moment, sans préavis.

SERVICE TECHNIQUE

NE RAMENEZ PAS CET APPAREIL CHEZ LE DÉTAILLANT. UNE PREUVE D’ACHAT SERA EXIGÉE POUR TOUTE PRISE EN CHARGE DANS LE CADRE DE LA GARANTIE.

Si vous éprouvez des difficultés à assembler ce produit ou si vous avez des questions sur les commandes, l'utilisation ou l'entretien de cet appareil, veuillez contacter le service à la clientèle à 1-877-282-8684 aux États-Unis ou le 1-800-668-1238 au Canada. Des informations supplémentaires sont disponibles sur notre site web à www.cubcadet.com ou www.cubcadet.ca.

Pour un entretien ou une réparation, veuillez appeler le service à la clientèle pour obtenir une liste complète des concessionnaires agrées près de chez vous. L’entretien de cet appareil doit être confié exclusivement à un concessionnaire agrée pendant et après la période de garantie. Lors de l’entretien, utilisez uniquement des pièces de rechange identiques.

PARE-ÉTINCELLES REMARQUE: à l'intention des utilisateurs opérant dans les terres forestières des États-Unis et dans les états

de Californie, du Maine, de l'Orégon et de Washington. Toutes les terres forestières des États-Unis et de l'état

de Californie (Codes sur les ressources publiques 4442 et 4443), de l'Orégon et de Washington exigent de par la loi que certains moteurs à combustion interne utilisés dans des zones couvertes de taillis ou d'herbe soient équipés d'un pare-étincelles en parfait état de fonctionnement, ou qu'ils soient conçus, équipés et entretenus pour la prévention des incendies. Renseignez-vous auprès des autorités de votre province ou de votre municipalité concernant la réglementation en vigueur. Vous pourriez être passible d'une amende ou être tenu responsable si vous ne respectez pas cette réglementation. Cet appareil est équipé d'un pare-étincelles en usine. Si l'écran pare-

étincelles, réf.

753-06349

, doit être remplacé, communiquez avec le service technique.

CONSIGNES DE SÉCURITÉ

Les symboles de sécurité attirent votre attention sur des dangers potentiels. Ces symboles et leurs détails explicatifs méritent que vous les lisiez et compreniez bien. Les avertissements de sécurité ne peuvent éviter les dangers de par eux-mêmes. Les consignes ou mises en garde qu'ils donnent ne remplacent pas des mesures préventives appropriées contre les accidents.

SYMBOLE SIGNIFICATION

AVERTISSEMENT:

matériels ou blessures graves pour tous. Respectez les consignes de sécurité afin de réduire les risques d'incendie, d'électrocution et de blessures.

MISE EN GARDE:

matériels ou blessures graves pour tous. Respectez toujours les consignes de sécurité afin de réduire les risques d'incendie, d'électrocution et de blessures.

ALERTE DE SÉCURITÉ:

Soyez vigilant afin d'éviter toute blessure grave. Ce symbole peut être combiné à d'autres symboles ou pictogrammes.

DANGER:

blessures graves pour tous. Respectez les consignes de sécurité afin de réduire les risques d'incendie, d'électrocution et de blessures.

REMARQUE: donne des informations ou des instructions vitales pour le fonctionnement ou

l'entretien de l'équipement.

Lisez le(s) manuel(s) de l'utilisateur et suivez tous les avertissements et consignes de sécurité. Vous pourriez à défaut entraîner des blessures graves pour vous ou d'autres personnes.

SI VOUS AVEZ DES QUESTIONS, APPELEZ LE 1-877-282-8684 AUX ÉTATS-UNIS, OU LE 1-800-668-1238 AU CANADA

LISEZ CETTE NOTICE INTEGRALEMENT AVANT D’UTILISER:

l e non-respect d’un avertissement peut causer dommages matériels ou

• IMPORTANTES CONSIGNES DE SÉCURITÉ •

le non-respect d’un avertissement peut causer dommages

indique un danger, un avertissement ou une mise en garde.

AVERTISSEMENT: Lorsque vous utilisez la machine, vous devez suivre les consignes

de sécurité. Veuillez lire ces instructions avant d’opérer la machine pour vous assurer de la sécurité de l’opérateur et de tout spectateur. Veuillez conserver ces instructions pour un usage ultérieur.

PROPOSITION DE LOI 65 DE CALIFORNIE AVERTISSEMENT : La fumée d’échappement du moteur, certains constituants et

composants finis contiennent ou émettent des produits chimiques connus de l’État de Californie comme étant à l’origine de cancers, de malformations congénitales ou autres anomalies de la reproduction. Lavez-vous les mains après manipulation.

• Lisez soigneusement cette notice. Familiarisez-vous avec les commandes et la marche à suivre pour une bonne utilisation de l'appareil.

• N’utilisez pas cet appareil lorsque vous êtes fatigué, malade, ou sous l’influence de l’alcool, de drogues, ou de médicaments.

• Tout enfant ou adolescent de moins de 15 ans ne doit pas utiliser cet appareil, à moins que l'adolescent soit sous la supervision d’un adulte.

• Toutes les protections et tous les dispositifs de sécurité doivent être installés correctement avant utilisation de l’appareil.

• Inspectez l’appareil avant utilisation. Remplacez les pièces endommagées. Détectez les fuites de carburant éventuelles. Assurez-vous que tous les accessoires sont bien en place. Remplacez les pièces susceptibles d’être fissurées, ébréchées, ou endommagées. N’utilisez pas cet appareil si des pièces ont du jeu ou sont endommagées.

• Inspectez la zone avec attention avant de démarrer cet appareil. Retirez tous les débris et objets durs ou tranchants tels que du verre, les câbles, etc.

• Soyez conscient des risques de blessures à la tête, aux mains et aux pieds.

• Eloignez les enfants, les personnes à proximité et les animaux familiers de la zone d’utilisation. Au minimum, faites reculer les enfants, les personnes à proximité et les animaux familiers de 15 m (50 pieds) ; il existe néanmoins un risque de projectiles pour les personnes à proximité. Encouragez-les à porter des lunettes de sécurité. Si quelqu’un s’approche de vous, arrêtez l’appareil immédiatement.

• Utilisez uniquement un fil de 2,41 mm (0,095 pouces) de diamètre provenant du fabricant. N’utilisez jamais de câbles, cordons ou pièces renforcées en métal, qui peuvent céder et devenir des projectiles dangereux.

• Appuyez sur la manette des gaz et vérifiez que le régime du moteur revienne automatiquement au ralenti. Effectuez tous les réglages et réparations avant d’utiliser l’appareil.

ALERTES DE SECURITE POUR LES APPAREILS A ESSENCE

AVERTISSEMENT :

exploser si on y met le feu. Veuillez prendre les précautions suivantes.

• Stockez uniquement le carburant dans des conteneurs prévus spécifiquement à cet effet et approuvés pour le stockage de telles substances.

• Coupez toujours le moteur et laissez-le refroidir avant de remplir le réservoir d’essence. Ne retirez jamais le bouchon du réservoir d’essence et ne remplissez jamais ce dernier lorsque le moteur est chaud. Dévissez lentement le bouchon du réservoir d’essence afin de réduire la pression avant de le remplir. Ne fumez pas.

• Toujours mélanger et ajoutez le carburant dans un endroit bien aéré et propre, en plein air, à l’abri des sources d’étincelles ou flammes vives. Ne fumez pas.

• Ne démarrez jamais l’appareil sans avoir bien revissé le bouchon du réservoir d’essence.

L'essence est extrêmement inflammable et ses vapeurs peuvent

CONSIGNES DE SÉCURITÉ

• Évitez tout ce qui pourrait enflammer le carburant renversé. L’essence s’étant échappée de l’appareil doit être essuyée immédiatement avant de démarrer l'appareil. Éloignez l’appareil d’au moins 9,1 m (30 pieds) du site et de la source du carburant avant de démarrer le moteur. Ne fumez pas.

• L'appareil ne doit pas être démarré ou utilisé à l'intérieur d'un espace ou d’un bâtiment clos. Inhaler les fumées du pot d’échappement peut provoquer la mort. Cet appareil doit fonctionner uniquement en extérieur, dans une zone bien aérée.

LORS DU FONCTIONNEMENT DE L'APPAREIL

• Portez des lunettes de sécurité conformes aux normes ANSI Z87.1–1989, lesquelles doivent être indiquées sur les lunettes mêmes. Portez des bouchons d’oreille et des casques antibruit lors de l’utilisation de cet appareil. Portez un masque si l'appareil émet de la poussière.

• Portez un pantalon long et épais, des bottes, des gants et une chemise à manches longues. Ne portez pas de vêtements amples, de bijoux, de pantalons courts, de sandales et ne soyez pas pieds nus. Veillez à ce que vos cheveux restent au-dessus du niveau des épaules.

• L’écran de l’accessoire de coupe doit toujours être utilisé lorsque vous vous servez de cet appareil comme débroussailleuse. N'utilisez jamais cet appareil sans une longueur suffisante des deux fils de coupe, ces derniers devant être ceux recommandés par le fabricant. La longueur des fils de coupe ne doit jamais aller au-delà de celle de l’écran.

• Il se peut que l'accessoire de coupe tourne pendant le réglage de la vitesse de ralenti. Portez des vêtements protecteurs et respectez toutes les consignes de sécurité pour éviter des blessures graves.

• Ajustez la poignée à votre taille afin d’assurer une prise optimale.

• Assurez-vous que l’accessoire de coupe n’est pas en contact avec tout autre élément avant de démarrer l’appareil.

• Utilisez cet appareil uniquement en plein jour ou si vous disposez d’un éclairage artificiel suffisant.

• Evitez les démarrages accidentels. Soyez en position de démarrage lorsque vous tirez sur le cordon du démarreur. L’utilisateur et l’appareil doivent être sur un sol ferme lors du démarrage. Référez-vous aux consignes relatives au démarrage/à l’arrêt de l’appareil.

• Utilisez le bon outil. N’utilisez pas un outil pour des fonctions pour lesquelles il n’a pas été prévu.

• N’étendez pas trop le bras. Restez toujours à distance et en équilibre.

• Tenez toujours l’appareil à deux mains lorsqu'il est en marche. Assurez une prise ferme sur les deux poignées ou grips.

• Gardez vos mains, votre visage et vos pieds à distance des parties en mouvement. Ne touchez pas et ne tentez pas d'arrêter l'accessoire de coupe lorsqu'il est en rotation.

• Ne touchez pas au moteur, à la transmission ou au pot d'échappement. Ces parties deviennent extrêmement chaudes lors du fonctionnement, même après l'arrêt de l'appareil.

• L'appareil ne doit pas fonctionner à un régime supérieur à celui adapté pour la coupe ou la tonte. Ne faites pas tourner le moteur à haut régime lorsque vous ne coupez rien.

• Arrêtez toujours le moteur lorsque la coupe est interrompue ou lorsque vous vous rendez à une autre aire de coupe.

• Si vous butez ou bloquez sur un objet, arrêtez le moteur immédiatement et vérifiez que l'appareil n'a pas été endommagé. Ne redémarrez pas l'appareil avant de l'avoir réparé. Ne faites pas fonctionner l’appareil si certaines pièces ont du jeu ou sont endommagées.

• Arrêtez l’appareil, coupez le moteur, et déconnectez la bougie avant de l’entretenir ou de le réparer.

• Pour cet appareil, utilisez uniquement les pièces et accessoires de rechange du fabricant. Ils sont disponibles auprès d’un fournisseur officiel. L’utilisation de pièces ou accessoires non agréés pourrait entraîner de graves blessures pour l'utilisateur, ou endommager l'appareil, et annuler votre garantie.

• Dégagez l’herbe et les autres substances nichées dans l’appareil. Elles peuvent se coincer entre l’accessoire de coupe et l’écran.

• Afin de réduire les risques d’incendie, nettoyez l’herbe, les feuilles, les couches de graisse excessives et les dépôts de carbone du moteur et du pot d’échappement.

APRES UTILISATION

• Nettoyez les lames de coupe à l’aide d’un produit d’entretien d’intérieur afin de retirer les dépôts. Graissez la lame à l'huile pour l’empêcher de rouiller.

• Laissez refroidir le moteur avant de le ranger ou de le déplacer. Lorsque vous déplacez l’appareil, assurez-vous qu’il ne pose aucun danger.

• Entreposez l’appareil dans une zone sèche, verrouillée ou hors de la portée des enfants.

• Ne mouillez ou ne pulvérisez jamais d’eau ou tout autre liquide, sur l’appareil. Veillez à ce que les poignées restent sèches, propres et dépourvues de tout dépôt. Nettoyez l’appareil après chaque utilisation, voir les consignes portant sur le nettoyage et le stockage.

• Conservez ces consignes. Consultez-les souvent et utilisez-les pour mettre en garde les autres utilisateurs. Si vous prêtez cet appareil à quelqu'un, donnez-lui ces consignes.

CONSERVEZ CES INSTRUCTIONS

SYMBOLE SIGNIFICATION

• SYMBOLE ALERTE DE SÉCURITÉ

Indique un danger, un avertissement ou une mise en garde. Ce symbole peut être combiné à d'autres symboles ou pictogrammes.

• LISEZ LE MANUEL DE L'UTILISATEUR

AVERTISSEMENT : Lisez le manuel de l'utilisateur et suivez tous les

avertissements et consignes de sécurité. Vous pourriez à défaut entraîner des blessures graves pour vous ou d'autres personnes.

• PORTEZ DES PROTECTIONS (YEUX ET OREILLES)

AVERTISSEMENT : les objets projetés et les bruits forts peuvent endommager la

vue et l’ouïe. Portez une visière de norme ANSI Z87.1-1989 et des protège-oreilles pendant l'utilisation.

• CARBURANT SANS PLOMB

Utilisez toujours du carburant sans plomb frais et propre.

• N’UTILISEZ PAS DE L’ESSENCE E85 DANS CET APPAREIL

AVERTISSEMENT : Il a été prouvé que l’utilisation de carburant contenant plus

de 10% d’éthanol est susceptible d’endommager ce moteur et annulera la garantie.

• NIVEAU D'HUILE

Voir le manuel de l'utilisateur pour le type d'huile approprié.

• COMMANDE MARCHE/ARRÊT

ALLUMAGE/DÉMARRAGE/MARCHE

• COMMANDE MARCHE/ARRÊT

ARRÊT ou STOP

• ETRANGLEUR

1 • Position d’étranglement MAXIMUM 2 • Position d’étranglement PARTIEL 3 • Position de MARCHE

• LES OBJETS PROJETÉS ET LA TÊTE ROTATIVE PEUVENT CAUSER DES BLESSURES GRAVES

AVERTISSEMENT : ne faites pas fonctionner sans protecteur de sécurité en

plastique. Tenez-vous à l'écart de le tête de coupe rotatif.

• ÉLOIGNEZ LES SPECTATEURS

AVERTISSEMENT : éloignez tout spectateur, les enfants et les animaux

domestiques en particulier, d'au moins 15 m (50 pi) de la zone de coupe.

• DÉSHERBEUSE/ DÉBROUISSAILLEUSE: SÉCURITÉ

AVERTISSEMENT : les objets projetés et la tête coupante rotative peuvent

causer des blessures graves. Éloignez les spectateurs, les enfants et les animaux domestiques en particulier, d'au moins 15m (50 pieds) de la zone de coupe. Vous devez utiliser le protecteur d'accessoire de coupe lorsque vous vous servez de l'accessoire de coupe de la désherbeuse.

• SURFACE CHAUDE

AVERTISSEMENT : Ne touchez pas un silencieux ou un cylindre chaud. Vous

pourriez vous brûler. Ces pièces deviennent très chaudes à l'utilisation. Elles restes chaudes brièvement après l'arrêt.

• LAME AIGUISÉE

AVERTISSEMENT: le protecteur d'accessoire de coupe comporte une lame

aiguisée. Ne touchez pas la lame pour éviter des blessures graves.

• DÉBROUISSAILLEUSES: REMPLACEZ LA LAME ÉMOUSSÉE

N'aiguisez pas la lame de coupe car son extrémité risquerait de casser à l'usage et causer des blessures graves.

+ 16 hidden pages

Cub cadet ST228 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
