Cub Cadet SERIES 1000 LT1042, SERIES 1000 LT1050, SERIES 1000 LT1046, SERIES 1000 LT1045, 1000 Series Operator's Manual

Operator's Manual

SERIES 1000

Hydrostatic Lawn Tractor

Models LT1042

LT1045
LT1046
LT1050

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should net be used on or near any unimproved forest-covered,

brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws
(if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is

required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.
A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio
44136-0019.

CUBCADETLLC,P.O.BOX361131CLEVELAND,OHIO44136-0019

PRINTED IN U.S.A. FORM NO. 769-01514

(10/28/2004)

TABLEOFCONTENTS

Content

Important Safe Operation Practices
Slope Guage
Tractor Set-up

Know Your Lawn Tractor
Operating Your Lawn Tractor

Making Adjustments
Maintaining Your Lawn Tractor

Page Content Page

3 Service 21
7 Off-season Storage 26

8 Maintenence Chart 26
9 Troubleshooting 27

12 Attachments & Accessories 28
17 Warranty Information 27

19

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new lawn tractor. It will help you assemble, prepare and
maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment

and copy the information from it in the space provided below. A sample model plate is also illustrated

below. You can locate the model plate by looking at the underside of the tractor's seat. This information

will be necessary to use the manufacturer's web site and/or help from your Cub Cadet dealer.

Copy the model number here:

Copy the serial number here:

www.cuboadet.com CLEVELAND, OH 44136
DEALER LOCATOR PHONE NUMBER: 877_282_8684

P. O. BOX 361 1 31

CUSTOMERSUPPORT

PleasedoNOTreturn theunit to theretailerfrom whichit waspurchased,withoutfirstcontactingCustomerSupport.

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

Visit www.cubcadet.com for many useful suggestions. Click on Customer Support button and
you will get the three options. Click on the appropriate button and help is immediately available.

by product, keyweJd, ol phlase.

_] lick here 1o sealch eui knowledge base. Sealch

I'1_!,',;/"sw<_?f I/o...._1"_;;'

Logili to _:he_k the _lalllS of yelil qlleSli_,iis, liledify

y,r_ul inqllilies, Ol Ilpdate yOlll Ilel_oiial plo|ile,

Ileed local assislance? (;lick lleie to filid
allthelized selvice 6elitelS ill yeul alea.

To reach the Customer Dealer Referral Line, please call [phone].

_n,_,;i[ 3ower-rating, specifications, warranty and service. Please refer to the engine manufacturer's

_l The engine manufacturer is responsible for all engine-related issues with regard to performance,

Owner's Manual, packed separately with your unit, for more information.

2

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could endanger

the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol--heed its warning.

DANGER: This machine was built to be operated according to the rules for safe operation in this man-

ual. As with any type of power equipment, carelessness or error on the part of the operator can result in
serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to
observe the following safety instructions could result in serious injury or death.

California Proposition 65 Warning:

,_ WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain

GENERALOPERATION

1. Read, understand, and follow all instructions on the

2. Be familiar with all controls and their proper

3. Never allow children under 14 years old to operate

4. Never allow adults to operate this machine without

5. To help avoid blade contact or a thrown object

6. Thoroughly inspect the area where the equipment

7. Plan your mowing pattern to avoid discharge of

8. Always wear safety glasses or safety goggles

9. Wear sturdy, rough-soled work shoes and close-

or emit chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm.

10. Be aware of the mower and attachment discharge
direction and do not point it at anyone. Do not

machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe
place for future and regular reference and for
ordering replacement parts.

operation. Know how to stop the machine and
disengage them quickly.

this machine. Children 14 years old and over
should read and understand the operation
instructions and safety rules in this manual and
should be trained and supervised by a parent.

proper instruction.

injury, keep bystanders, helpers, children and pets
at least 75 feet from the machine while it is in

operation. Stop machine if anyone enters the area.

is to be used. Remove all stones, sticks, wire,
bones, toys, and other foreign objects which could

be picked up and thrown by the blade(s). Thrown
objects can cause serious personal injury.

material toward roads, sidewalks, bystanders and
the like. Also, avoid discharging material against a
wall or obstruction which may cause discharged
material to ricochet back toward the operator.

during operation and while performing an
adjustment or repair to protect your eyes. Thrown
objects which ricochet can cause serious injury to
the eyes.

fitting slacks and shirts. Loose fitting clothes and

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

operate the mower without the discharge cover or

entire grass catcher in its proper place.

11. Do not put hands or feet near rotating parts or

under the cutting deck. Contact with the blade(s)

can amputate hands and feet.

12. A missing or damaged discharge cover can cause

blade contact or thrown object injuries.

13. Stop the blade(s) when crossing gravel drives,
walks, or roads and while not cutting grass.

14. Watch for traffic when operating near or crossing

roadways. This machine is not intended for use on

any public roadway.

15. Do not operate the machine while under the

influence of alcohol or drugs.

16. Mow only in daylight or good artificial light.

17. Never carry passengers.

18. Disengage blade(s) before shifting into reverse.

Back up slowly. Always look down and behind
before and while backing to avoid a back-over

accident.

19. Slow down before turning. Operate the machine

smoothly. Avoid erratic operation and excessive
speed.

20. Disengage blade(s), set parking brake, stop engine
and wait until the blade(s) come to a complete stop

before removing grass catcher, emptying grass,
unclogging chute, removing any grass or debris, or
making any adjustments.

21. Never leave a running machine unattended. Always
turn off blade(s), place transmission in neutral, set

parking brake, stop engine and remove key before

dismounting.

22. Use extra care when loading or unloading the

machine into a trailer or truck. This unit should not
be driven up or down ramp(s), because the unit

could tip over, causing serious personal injury. The

unit must be pushed manually on ramp(s) to load or
unload properly.

23.Mufflerandenginebecomehotandcancausea
burn.Donottouch.

24.Checkoverheadclearancescarefullybeforedriving
underlowhangingtreebranches,wires,door
openingsetc.,wheretheoperatormaybestruckor
pulledfromtheunit,whichcouldresultinserious
injury.

25.Disengageallattachmentclutches,depressthe
brakepedalcompletelyandshiftintoneutralbefore
attemptingtostartengine.

26.Yourmachineisdesignedtocutnormalresidential
grassofaheightnomorethan10".Donotattempt
tomowthroughunusuallytall,drygrass(e.g.,
pasture)orpilesofdryleaves.Drygrassorleaves
maycontacttheengineexhaustand/orbuildupon
themowerdeckpresentingapotentialfirehazard.

27.Useonlyaccessoriesandattachmentsapproved
forthismachinebythemachinemanufacturer.
Read,understandandfollowallinstructions
providedwiththeapprovedaccessoryor

attachment.

28.Dataindicatesthatoperators,age60yearsand
above,areinvolvedinalargepercentageofriding
mower-relatedinjuries.Theseoperatorsshould
evaluatetheirabilitytooperatetheridingmower
safelyenoughtoprotectthemselvesandothers
fromseriousinjury.

29.Ifsituationsoccurwhicharenotcoveredinthis
manual,usecareandgoodjudgment.Contactyour

Cub Cadet dealer for assistance.

SLOPE OPERATION

Slopes are a major factor related to loss of control and
tip-over accidents which can result in severe injury or
death. All slopes require extra caution. If you cannot
back up the slope or if you feel uneasy on it,do not mow

it.

For your safety, use the slope gauge included as part of
this manual to measure slopes before operating this
unit on a sloped or hilly area. If the slope is greater than

15 degrees as shown on the slope gauge, do not
operate this unit on that area or serious injury could

result.

DO:

1. Mow up and down slopes, not across. Exercise
extreme caution when changing direction on
slopes.

2. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.

3. Use slow speed. Choose a low enough speed
setting so that you will not have to stop or shift while
on the slope. Tires may lose traction on slopes
even though the brakes are functioning properly.
Always keep machine in gear when going down
slopes to take advantage of engine braking action.

4. Follow the manufacturer's recommendations for
wheel weights or counterweights to improve

stability.

5. Use extra care with grass catchers or other
attachments. These can change the stability of the

machine.

6. Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction.

Rapid engagement or braking could cause the front
of the machine to lift and rapidly flip over backwards
which could cause serious injury.

7. Avoid starting or stopping on a slope. If tires lose
traction, disengage the blade(s) and proceed
slowly straight down the slope.

DO NOT:

1. Do not turn on slopes unless necessary; then, turn
slowly and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or
embankments. The mower could suddenly turn
over if a wheel is over the edge of a cliff, ditch, or if
an edge caves in.

3. Do not try to stabilize the machine by putting your
foot on the ground.

4. Do not use a grass catcher on steep slopes.

5. Do not mow on wet grass. Reduced traction could
cause sliding.

6. Do not shift to neutral and coast downhill. Over-
speeding may cause the operator to lose control of

the machine resulting in serious injury or death.

7. Do not tow heavy pull behind attachments (e.g.
loaded dump cart, lawn roller, etc.) on slopes
greater than 5 degrees. When going down hill, the
extra weight tends to push the tractor and may
cause you to loose control. (e.g. tractor may speed
up, braking and steering ability are reduced,
attachment may jack-knife and cause tractor to
overturn).

CHILDREN

Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
They do not understand the dangers. Never
assume that children will remain where you last

saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other
than the operator.

b. Be alert and turn machine off if a child enters

the area.

c. Before and while backing, look behind and

down for small children.

d. Never carry children, even with the blade(s)

shut off. They may fall off and be seriously
injured or interfere with safe machine
operation.

e. Useextremecarewhenapproachingblind

corners,doorways,shrubs,treesorother
objectsthatmayblockyourvisionofachild
whomayrunintothemachine.

f. Toavoidback-overaccidents,always

disengage the cutting blade(s) before
shifting into reverse, The "Reverse

Caution Mode" should not be used when
children or others are around,

g. Keep children away from hot or running

engines. They can suffer burns from a hot
muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

9. Never allow children under 14 years old to operate
the machine. Children 14 years old and over should
read and understand the operation instructions and
safety rules in this manual and should be trained
and supervised by a parent.

TOWING

1. Tow only with a machine that has a hitch designed
for towing. Do not attach towed equipment except
at the hitch point.

2. Follow the manufacturers recommendation for
weight limits for towed equipment and towing on

slopes.

3. Never allow children or others in or on towed
equipment.

4. On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.

5. Travel slowly and allow extra distance to stop.

6. Do not shift to neutral and coast downhill.

SERVICE

SAFE HANDLING OF GASOLINE:

1. To avoid personal injury or property damage
use extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive.
Serious personal injury can occur when gasoline is
spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a

truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.

c. When practical, remove gas-powered

equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then

refuel such equipment on a trailer with a
portable container, rather than from a
gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the

fuel tank or container opening at all times
until fueling is complete. Do not use a nozzle

lock-open device.

e. Extinguish all cigarettes, cigars, pipes and

other sources of ignition.

f. Neverfuel machine indoors.
g. Never remove gas cap or add fuel while the

engine is hot or running. Allow engine to cool
at least two minutes before refueling.

h. Never over fill fuel tank. Fill tank to no more

than Y2inch below bottom of filler neck to
allow space for fuel expansion.

i. Replace gasoline cap and tighten securely.

j. Ifgasoline is spilled, wipe it off the engine

and equipment. Move unit to another area.
Wait 5 minutes before starting the engine.

k. To reduce fire hazards, keep machine free of

grass, leaves, or other debris build-up. Clean
up oil or fuel spillage and remove any fuel

soaked debris.

I. Never store the machine or fuel container

inside where there is an open flame, spark or
pilot light as on a water heater, space heater,
furnace, clothes dryer or other gas
appliances.

m. Allow a machine to cool at least 5 minutes

before storing.

GENERAL SERVICE:

1. Never run an engine indoors or in a poorly
ventilated area. Engine exhaust contains carbon
monoxide, an odorless, and deadly gas.

2. Before cleaning, repairing, or inspecting, make
certain the blade(s) and all moving parts have
stopped. Disconnect the spark plug wire and
ground against the engine to prevent unintended
starting.

3. Periodically check to make sure the blades come to
complete stop within approximately (5) five
seconds after operating the blade disengagement
control. If the blades do not stop within the this time
frame, your unit should be serviced professionally
by your Cub Cadet dealer.

4. Check brake operation frequently as it is subjected
to wear during normal operation. Adjust and service
as required.

5. Check the blade(s) and engine mounting bolts at
frequent intervals for proper tightness. Also,
visually inspect blade(s) for damage (e.g.,
excessive wear, bent, cracked).

Replace the blade(s) with the original equipment
manufacturer's (O.E.M.) blade(s) only, listed in this
manual. "Use of parts which do not meet the
original equipment specifications may lead to
improper performance and compromise safety["

6. Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.

8. Nevertamperwiththesafetyinterlocksystemorother
safetydevices.Checktheirproperoperationregularly.

9. Afterstrikingaforeignobject,stoptheengine,
disconnectthesparkplugwire(s)andgroundagainst
theengine.Thoroughlyinspectthemachineforany
damage.Repairthedamagebeforestartingand
operating.

10.Neverattempttomakeadjustmentsorrepairstothe
machinewhiletheengineisrunning.

11.Grasscatchercomponentsandthedischargecoverare
subjecttowearanddamagewhichcouldexpose
movingpartsorallowobjectstobethrown.
Forsafetyprotection,frequentlycheckcomponentsand

WARNING: YOUR RESPONSIBILITY Restrict the use of this power machine to persons who read, understand

and follow the warnings and instructions inthis manual and on the machine.

replaceimmediatelywithoriginalequipment
manufacturer's(O.E.M.)partsonly,listedinthis
manual."Useofpartswhichdonotmeettheoriginal
equipmentspecificationsmayleadtoimproper
performanceandcompromisesafety!"

12.

Donotchangetheenginegovernorsettingsorover-
speedtheengine.Thegovernorcontrolsthemaximum
safeoperatingspeedoftheengine.

13.

Maintainorreplacesafetyandinstructionlabels,as
necessary.

14.

Observeproperdisposallawsandregulationsforgas,

oil,etc.toprotecttheenvironment.

@

ILl

_L

..,.I

&i

Z

I--
I,l.I

Sight and hold this 1evenwith a verticantree...

or a corner of a building.,.

m_ or a fence post

|
|
1

a 15°

|

p..

SECTION3: TRACTORSET-UP

GasandOilFill-up

The gasoline tank is located under the fender and has a
capacity of three gallons. Unthread the fuel cap by ,_
turning it counterclockwise. Use only clean, fresh
(under 30 days old), unleaded gasoline. Fill tank to no
more than four inches below the top of the filler neck to
allow space for fuel expansion. Do not overfill. .

,_ WARNING: Use extreme care when .

IMPORTANT:Your tractor is shipped with oil in the
engine. However, you MUST check the oil level before
operating. Refer to Checkingthe0il Levelon page 19 for

detailed instructions. Be careful not to overfill.

handling gasoline. Gasoline is extremely
flammable and the vapors are explosive.

Never fuel machine indoors or while the
engine is hot or running. Extinguish
cigarettes, cigars, pipes, and other sources of _,

ignition.

ShippingBraceRemoval

WARNING: Make sure the riding mower's

engine is off, set the parking brake and
remove the ignition key before removing the
shipping brace.

Locate the shipping brace, if present, and warning
tag found on the right side of the cutting deck.
While holding the discharge chute with your left
hand, remove the shipping brace with your right
hand by grasping it between your thumb and index
finger and rotating it clockwise.

WARNING: The shipping brace, used for

packaging purposes only, must be removed

and discarded before operating your riding

mower.

WARNING: The mowing deck is capable of
throwing objects. Failure to operate the riding

mower without the discharge cover in the
proper operating position could result in
serious personal injury and/or property

damage.

SECTION4: KNOWYOURLAWNTRACTOR

A

B

C

H

A Systems Indicator Monitor/Hour Meter H PTO (Blade Engage) Knob

B Throttle Control Lever I Brake Pedal

C Choke Control J Drive Pedal

D Parking Brake Lever K Cruise Control Lever
E Fuel Tank Cap L Deck Lift Lever
F Seat Adjustment Lever M Cup Holder

G Ignition Switch Module

NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.

NOTE: Steering Wheel not shown for clarity.

Figure 1

ThrottleControlLever

The throttle control lever is
located on the left side of the

tractor's dash panel. This lever
controls the speed of the engine.
When set in a given position, the

throttle will maintain a uniform
engine speed. See.

IMPORTANT:When operating the
tractor with the cutting deck
engaged, be certain that the
throttle lever is always in the

FAST (rabbit) position.

ChokeControl

The choke control can be found
on the left side of the dash panel

and is activated by pulling the
knob outward. Activating the

choke control closes the choke
plate on the carburetor and aids

in starting the engine. Refer to
StartingTheEngineon page 13 of
this manual for detailed starting

instructions.

Fast

Position

Slow

Position

IgnitionSwitchModule

WARNING: Never leave a running machine

unattended. Always disengage PTO, move
shift lever into neutral position, set parking
brake, stop engine and remove key to prevent
unintended starting.

To start the engine, insert the key into the ignition
switch and turn clockwise to the START position.
Release the key into the NORMAL MOWING MODE
position once the engine has fired.

To stop the engine, turn the ignition key
counterclockwise to the OFF position. See Figure 2.

Normal

DrivingMode

Stop

Position

Stat

Position

BrakePedal

The brake pedal is located on the

right front side of the tractor

above the drive pedal along the

running board. The brake pedal
can be used for sudden stops or
setting the parking brake.

(o)

NOTE: The brake pedal must

be fully depressed to activate the
safety interlock switch when

starting the tractor.

SeatAdjustmentLever

To adjust the seat forward or backward, slide the seat
adjustment lever to the left and reposition the seat to
the desired position. Once a comfortable position is
found, release the seat adjustment lever to lock the seat
in place. Refer to SeatAdjustmenton page 18 of this

manual for more detailed instructions.

Figure 2

IMPORTANT: Prior to operating the tractor, refer to both
SafetyInterlockSwitcheson page 12 and StartingTheEngine
on page 13 of this manual for detailed instructions
regarding the Ignition Switch Module and operating the

tractor in REVERSE CAUTION MODE.

DrivePedal

The drive pedal is located on the
right side of the tractor, along the
running board. Depress the
upper portion of the drive pedal

forward to cause the tractor to
travel forward. Depress the lower

portion of the drive pedal with the
ball of your right foot (NOT your
heel) to cause the tractor to travel
in reverse. Ground speed is also
controlled with the drive pedal.

The further forward or rearward
that the pedal is pivoted, the

faster the tractor will travel. The
pedal will return to its original

position when it's not depressed.
IMPORTANT:Always set the

parking brake when leaving the
tractor unattended.

10

HourMeter

ElectricPTO/

Located in the center of the tractor's console, the hour
meter operates whenever the engine is running and

records the actual hours of tractor operation. See

Figure 3.

BATTERY

PTO / BLADE ENGAGE PARKING

234.5 o,-PRESSURE

HOURS 1/10

Figure 3

System IndicatorLights

Your tractor is equipped with four indicator lights in the
center of its dash panel. If the Brake light or PTO/Blade

Engage light illuminates when attempting to start the
unit, proceed as follows:

Brake-- Engage the parking brake.

PTO/Blade Engage --

Move the PTO/Blade Engage knob into the

disengaged (OFF) position.

It is normal for the Oil light and the Battery light to
illuminate while the engine is cranking, but if either
illuminates while the engine is running, proceed as

follows:
Oil-- Stop the tractor immediately and check the

crankcase oil level as instructed on page
19 of this manual. Add oil as required.

Battery-- If this light illuminate's while the engine is

running, it indicates that the battery is in
need of a charge OR that the engine's
charging system is not generatingsufficient
amperage. Refer to Batteryon page 22 of
this manual for the properbattery charging
procedure or have theengine's charging
system checked by aCub Cadet dealer.

BladeEngageKnob

To engage the power to the
cutting deck or other (separately
available) attachments, pull

outward on the PTO/Blade
Engage knob. Push the PTO/

Blade Engage knob inward to
disengage the power to the
cutting deck.

NOTE: The PTO/Blade Engage knob must be in the

disengaged (OFF) position when starting the engine.

l' J i.Z..I

,&, ,&,

!! 1t

CruiseControl

Lever

The cruise control
lever is located on
the tractor dash

panel, below the steering wheel. Push the cruise
control lever downward while traveling forward at a
desired speed. While holding the lever down, release
pressure from the drive pedal.

This will engage the cruise control and allow the tractor
to remain at that speed without applying pressure to the
drive pedal. Depress the brake pedal or the drive pedal
to deactivate cruise control. Refer to page 14 for
detailed instructions regarding the cruise control

featu re.

NOTE: Cruise control can NOT be engaged at the

tractor's fastest ground speed. If the operator should
attempt to do so, the tractor will automatically
decelerate to the fastest optimal mowing ground speed.

ParkingBrake
Lever

To set the parking
brake, fully depress
the brake pedal and
push the parking brake lever down. Hold the lever down
while taking your foot off the brake pedal. Both the
parking lever and the brake pedal will then stay
depressed. To release the parking brake, depress the
brake pedal slightly. The parking brake lever will then
return to its original position.

DeckLift Lever

Found on your tractor's right fender, the deck lift lever is
used to change the height of the cutting deck. To use,
move the lever to the left, then place in the notch best
suited for your application.

NOTE: The parking brake must be set if the operator

leaves the seat with the engine running or the engine

will automatically shut off.

IMPORTANT:Always set the parking brake when
leaving the tractor unattended.

11

SECTION5: OPERATINGYOURLAWNTRACTOR

WARNING: Use extreme caution while

WARNING

AVOIDSERIOUSINJURYORDEATH

• GO UP AND DOWN SLOPES, NOT ACROSS.

• AVOID SUDDEN TURNS.

• DO NOT OPERATE THE UNIT WHERE IT COULD SLIP OR TIR

• IF MACHINE STOPS GOING UPHILL, STOP BLADE(S) AND BACK
DOWNHILL SLOWLY.

• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.

• NEVER CARRY CHILDREN, EVEN WITH BLADES OFR

• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.

• KEEP SAFETY DEVICES (GUARDS, SHIELDS, AND SWITCHES) IN
PLACE AND WORKING.

• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE(S).

• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.

• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE PLAC-
ING HANDS OR FEET NEAR BLADE(S).

• BEFORE LEAVING OPERATOR'S POSITION, DISENGAGE
BLADE(S), PLACE THE SHIFT LEVER IN NEUTRAL, ENGAGE
BRAKE LOCK, SHUT ENGINE OFF AND REMOVE KEY.

READOPERATOR'SMANUAL

SafetyInterlockSwitches

This tractor is equipped with a safety interlock system
for the protection of the operator. If the interlock system
should ever malfunction, do not operate the tractor.
Contact your Cub Cadet dealer.

• The safety interlock system prevents the engine
from cranking or starting unless the parking brake is
engaged, and the PTO (Blade Engage) knob (or
lever) is in the disengaged (OFF) position.

• The engine will automatically shut off if the operator
leaves the seat before engaging the parking brake.

• The electric PTO (Blade Engage) clutch will
automatically shut off if the operator leaves the
tractor's seat with the PTO (Blade Engage) knob in
the engaged (ON) position, regardless of whether
the parking brake is engaged.

• With the ignition key in the NORMAL MOWING
position, the electric PTO (Blade Engage) clutch
will automatically shut off ifthe PTO (Blade
Engage) knob is moved into the engaged (ON)
position with the shift lever in Reverse.

,i_ WARNING: Do not operate the tractor if the

interlock system is malfunctioning. This
system was designed for your safety and
protection.

ReverseCautionMode

To use the REVERSE CAUTION MODE:

IMPORTANT:The operator MUST be seated in the
tractor seat.

1. Start the engine as previously instructed in this

2. Turn the key from the NORMAL MOWING

3. Depress the REVERSE PUSH BUTTON (Orange,

4. Once activated (indicator light ON), the tractor can

5. Always look down and behind before and while

6. After resuming forward motion, return the key to the

IMPORTANT:The REVERSE CAUTION MODE will
remain activated until:

Indicator

Position

operating the tractor in the REVERSE

CAUTION MODE. Always look down and

behind before and while backing. Do not
operate the tractor when children or others
are around. Stop the tractor immediately if

someone enters the area.

Operator's Manual.

(Green) position to the REVERSE CAUTION
MODE (Yellow) position of the key switch module.
See Figure 4.

Triangular Button) at the top, right corner of the key
switch module. The red indicator light at the top, left
corner of the key switch module will be ON while
activated. See Figure 4.

be driven in reverse with the cutting blades (PTO)
engaged.

backing to make sure no children are around.

NORMAL MOWING position.

a. The key is placed in either the NORMAL

MOWING position or STOP position.

b. The operator leaves the seat.

Light

Stop

REVERSEPUSH
BUTTON

Reverse

PushButton

Reverse

- CautionMode
Position

Start

Position

The REVERSE CAUTION MODE position of the key
switch module allows the tractor to be operated in

reverse with the blades (PTO) engaged.

IMPORTANT: Mowing in reverse is not recommended.

Figure 4

12

SettingtheGaugeWheels

Select the height position of the cutting deck by placing
the deck lift lever in any of the six different cutting height
notches on the right fender.

To adjust the deck wheels so that they are between 1__
inch and V2-inch above the ground as follows.

• Ifthe gauge wheels have excessive clearance with
the surface below, lower the wheels to the index

hole that provides the approximate 1/2" clearance
as described above.

Refer to Levelingthe Deckon page 17 of this manual for
more detailed instructions regarding various deck
adjustments.

,_ WARNING: Keep hands and feet away

Place the tractor on a firm and level surface, preferably
pavement, refer to Figure 5, and proceed as follows:

• Place the tractor's deck lift handle in the normally

from the discharge opening of the cutting
deck.

desired mowing height setting, then check the
gauge wheels for contact or excessive clearance

with the surface below.

ShoulderScrew

LockNut

ShoulderScrew

LockNut

StartingtheEngine

WARNING: Do not operate the tractor if the

interlock system is malfunctioning. This

system was designed for your safety and

protection.

NOTE: Refer to the TRACTORSET-UPon page 8 of this

manual for Gasoline and Oil fill-up instructions.

• Insert the tractor key into the ignition switch
module.

• Place the PTO (Blade Engage) knob in the
disengaged (OFF) position.

• Engage the tractor's parking brake.

• Activate the choke control.

• Turn the ignition key clockwise to the START
position. After the engine starts, release the key. It
will return to the NORMAL MOWING position.

IMPORTANT:Do NOT hold the key in the START
position for longer than ten seconds at a time. Doing so
may cause damage to your engine's electric starter.

• After the engine starts, deactivate the choke
control.

Figure 5

If the wheels contact the surface adjust as follows:

a. Raise the deck lift handle to its highest

setting.

b. Remove the rear gauge wheels by removing

the lock nuts and shoulder screws which
secure them to the deck.

c. Remove the lock nuts and shoulder screws

which secure the front gauge wheels to the
deck.

d. Place the deck lift handle in the desired

mowing height setting.

e. Insert the shoulder screw and flat washer

with the rear gauge wheel into the index hole
that leaves approximately 1/2" between the

bottom of the wheel and the pavement. •

f. Note the position of the index hole used; then

install the other rear gauge wheel and the
front ball wheels into the corresponding index
hole of the other gauge wheel brackets.

NOTE: Do NOT leave the choke control on while

operating the tractor. Doing so will result in a "rich" fuel
mixture and cause the engine to run poorly.

Stoppingthe Engine

WARNING: If you strike a foreign object,

stop the engine, disconnect the spark plug
wire(s) and ground against the engine.
Thoroughly inspect the machine for any
damage. Repair the damage before restarting
and operating

If the blades are engaged, place the PTO/Blade
Engage knob in the disengaged (OFF) position.

Place the throttle control near the FAST position
Turn the ignition key counterclockwise to the STOP
position.

Remove the key from the ignition switch to prevent
unintended starting.

13

EngagingtheParkingBrake

To engage the parking brake:

• Fully depress the brake pedal and hold it there
while gently pushing the parking brake lever

downward.

• Hold the parking brake lever down while removing
your foot from the brake pedal.

• Once engaged, the parking brake lever and the
brake pedal will lock in the "down" position.

To disengage the parking brake:

• Slightly depress the brake pedal.

NOTE: The parking brake must be engaged if the

operator leaves the seat with the engine running or the
engine will automatically shut off.

DrivingTheTractor

starts, ex-

,_ WARNING: Avoid sudden

cessive speed and sudden stops.

WARNING: Do not leave the seat of the

tractor without first placing the PTO/Blade
Engage knob in the disengaged (OFF)
position, depressing the brake pedal and
engaging the parking brake. If leaving the
tractor unattended, also turn the ignition key
off and remove the key.

Briefly depress the brake pedal to release the
parking brake. Move the throttle lever into the FAST

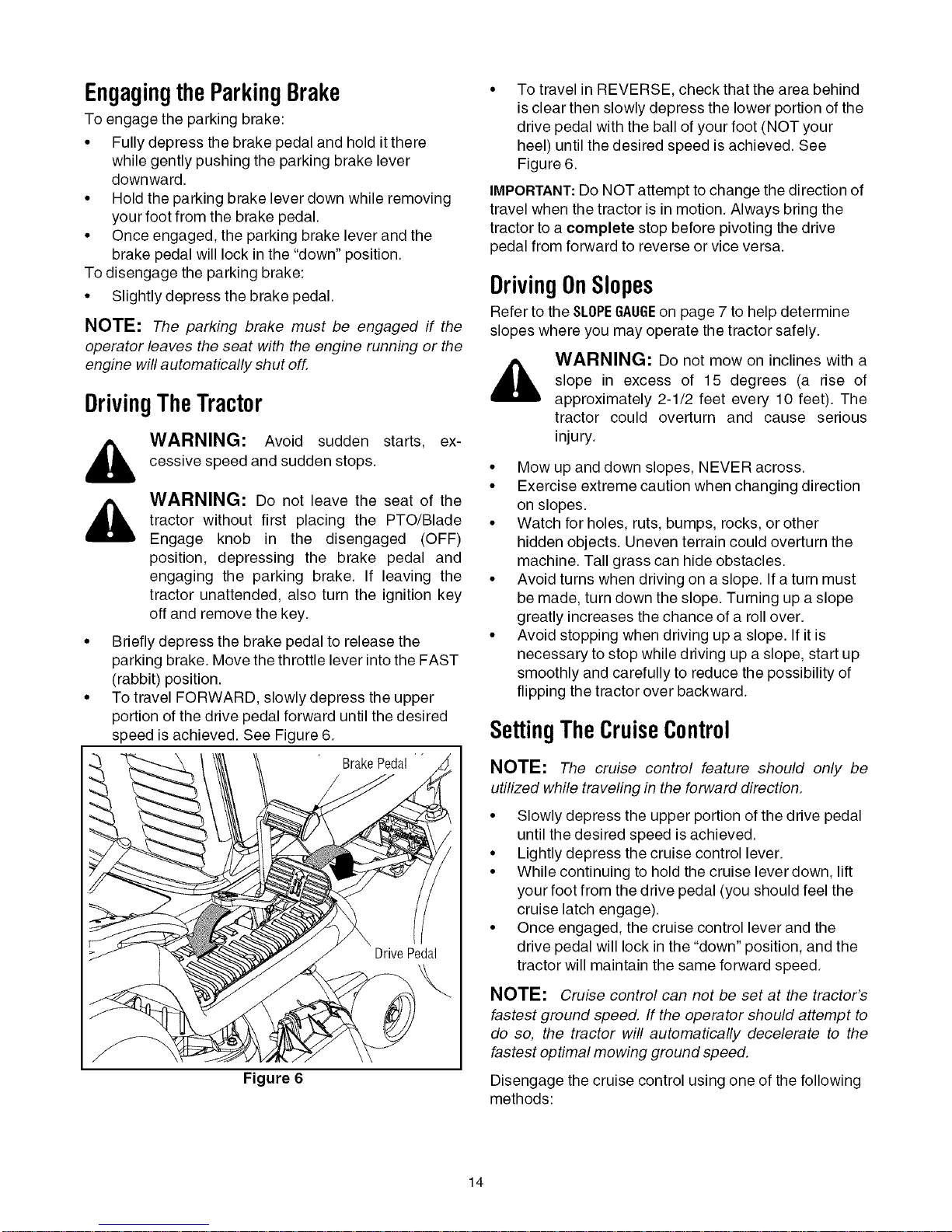

(rabbit) position.
To travel FORWARD, slowly depress the upper
portion of the drive pedal forward until the desired
speed is achieved. See Figure 6.

BrakePedal

• To travel in REVERSE, check that the area behind
is clear then slowly depress the lower portion of the
drive pedal with the ball of your foot (NOT your
heel) until the desired speed is achieved. See

Figure 6.

IMPORTANT:Do NOT attempt to change the direction of
travel when the tractor is in motion. Always bring the
tractor to a complete stop before pivoting the drive
pedal from forward to reverse or vice versa.

DrivingOnSlopes

Refer to the SLOPEGAUGEon page 7 to help determine
slopes where you may operate the tractor safely.

,_ WARNING: Do not mow on inclines with a

• Mow up and down slopes, NEVER across.

• Exercise extreme caution when changing direction

• Watch for holes, ruts, bumps, rocks, or other

• Avoid turns when driving on a slope. If a turn must

• Avoid stopping when driving up a slope. If it is

slope in excess of 15 degrees (a rise of

approximately 2-1/2 feet every 10 feet). The
tractor could overturn and cause serious

injury.

on slopes.

hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.

be made, turn down the slope. Turning up a slope
greatly increases the chance of a roll over.

necessary to stop while driving up a slope, start up
smoothly and carefully to reduce the possibility of
flipping the tractor over backward.

SettingTheCruiseControl

NOTE: The cruise control feature should only be

utilized while traveling in the forward direction.

Figure 6

DrivePedal

• Slowly depress the upper portion of the drive pedal
until the desired speed is achieved.

• Lightly depress the cruise control lever.

• While continuing to hold the cruise lever down, lift
your foot from the drive pedal (you should feel the
cruise latch engage).

• Once engaged, the cruise control lever and the
drive pedal will lock in the "down" position, and the
tractor will maintain the same forward speed.

NOTE: Cruise control can not be set at the tractor's

fastest ground speed. If the operator should attempt to
do so, the tractor will automatically decelerate to the
fastest optimal mowing ground speed.

Disengage the cruise control using one of the following
methods:

14

• Depress the brake pedal to disengage the cruise
control and stop the tractor.

• Lightly depress the drive pedal.

To change the direction of travel to reverse when
operating with cruise control, depress the brake pedal
to disengage the cruise control and bring the tractor to a
complete stop. Then slowly depress the rear portion of
the drive pedal with the ball of your foot to travel in

reverse.

UsingtheDeckLift Lever

To raise the cutting deck, move the deck lift lever to the
left, then place it in the notch best suited for your
application. Refer to SettingTheCuttingHeightearlier in

this section.

OperatingtheHeadlights

The lamps are ON whenever the ignition key is moved
out of the STOP position.

The lamps turn OFF when the ignition key is moved to
the STOP position.

MovingTheTractorManually

Your tractor's transmission is equipped with a
hydrostatic relief valve for occasions when it is
necessary to move the tractor manually. Opening this
valve permits the fluid in the transmission to bypass its
normal route, allowing the rear tires to "freewheel." To
open the hydrostatic relief valve, proceed as follows:

• Locate the hydrostatic bypass rod in the rear of the
tractor. See Figure 7.

IMPORTANT:Never attempt to move the tractor
manually without first opening the hydrostatic relief
valve. Doing so will result in serious damage to the

tractor's transmission.

Engagingthe PTO

Engaging the PTO transfers power to the cutting deck
or other (separately available) attachments. To engage
the PTO, proceed as follows:

• Move the throttle control lever to the FAST (rabbit)
position.

• Pull the PTO/Blade Engage knob outward into the
engaged (ON) position. See Figure 8.

• Keep the throttle lever in the FAST (rabbit) position
for the most efficient use of the cutting deck or other
(separately available) attachments

IMPORTANT:The electric PTO clutch will automatically
shut off if the PTO is engaged with the drive pedal in
position for reverse travel. Refer to SafetyInterlock
Switcheson page 12.

Front View

Figure 8

Top View

Hydrostatic

BypassRod

Figure 7

• Pull the hydrostatic bypass rod outward, then
down, to lock it in place.

NOTE: The transmission will NOT engage when the

hydrostatic bypass rod is puffed out. Return the rod to
its normal position prior to operating the tractor.

Mowing

a thrown object injury, keep bystanders,

WARNING: To help avoid blade contact or

helpers, children and pets at least 75 feet

from the machine while it is in operation. Stop

machine if anyone enters the area.

This tractor is equipped with one of Cub Cadet's quality
cutting decks. The following information will be helpful
when using the cutting deck with your tractor.

WARNING: Plan your mowing pattern to

avoid discharge of materials toward roads,

sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or
obstruction which may cause discharged

material to ricochet back toward the operator.

Do not mow at high ground speed, especially if a

mulch kit or grass collector is installed.

15

• For best results it is recommended that the first two
laps becut with the discharge thrown towards the

center. After the first two laps, reverse the direction
to throw the discharge to the outside for the
balance of cutting. This will give a better
appearance to the lawn.

• Do not cut the grass too short. Short grass invites
weed growth and yellows quickly in dry weather.

• Mowing should always be done with the engine at
full throttle.

• Under heavier conditions it may be necessary to go
back over the cut area a second time to get a clean

cut.

• Do NOT attempt to mow heavy brush and weeds
and extremely tall grass. Your tractor is designed to
mow lawns, NOT clear brush.

• Keep the blades sharp and replace the blades
when worn. Refer to CuttingBladeson page 21 of this
manual for proper blade sharpening instructions.

Mulching

Cub Cadet Series 1000 tractors are equipped with a
mulch kit which incorporates special blades, already
standard on your tractor, in a process of recirculating
grass clippings repeatedly beneath the cutting deck.
The ultra-fine clippings are then forced back into the
lawn where they act as a natural fertilizer. Observe the
following points for the best results when mulching.

• Never attempt to mulch if the lawn is damp. Wet
grass tends to stick to the underside of the cutting
deck preventing proper mulching of the clippings.

• Do NOT attempt to mulch more than 1/3 the total
height of the grass or approximately 1-1/2 inches.
Doing so will cause the clippings to clump up
beneath the deck and not be mulched effectively.

• Maintain a slow ground speed to allow the grass
clippings more time to effectively be mulched.

• Always position the throttle control lever in the
FAST (rabbit) position and allow it to remain there
while mowing. Failing to keep the engine at full
throttle places strain on the tractor's engine and
does not allow the blades to properly mulch grass.

NOTE: It is not necessary to remove the discharge

chute to operate the mower with the mulch kit installed.

42-inch Decks

On model LT1042, the mulch kit is installed at the
factory. To operate the cutting deck without mulching,

simply remove the mulch plug by unthreading the
plastic wing nut which fastens itto the cutting deck. This
will allow the clippings to discharge out the side. See
Figure 9.

CarriageScrew

@

PlasticWingNut MulchPlug

Figure 9
46- and 50-inch Decks
On models LT1045, LT1046 and LTI050, the mulch kit

is packed separately within the tractor's crate. Observe
the instructions included with the mulch kit for the best

results when mulching.

16

SECTION6: MAKINGADJUSTMENTS

,_ WARNING: Never attempt to make any

LevelingtheDeck

NOTE: Check the tractor's tire pressure before

performing any deck leveling adjustments. Refer to
Tires on page 21 for information regarding tire pressure.

FrontToRear

The front of the cutting deck is supported by a stabilizer
bar that can adjusted to level the deck from front to rear.

The front of the deck should be between 1/4-inch and
3/8-inch lower than the rear of the deck. Adjust if

necessary as follows:

• With the tractor parked on a firm, level surface,

• Measure the distance from the front of the blade tip

• The first measurement taken should be between

• Determine the approximate distance necessary for

• Loosen the two jam nuts on the rear side of the

adjustments while the engine is running,
except where specified in the operator's

manual.

place the deck lift lever in the top notch (highest
position) and rotate the blade nearest the discharge
chute so that it is parallel with the tractor.

to the ground and the rear of the blade tip to the
ground.

1/4" and 3/8" less than the second measurement.

proper adjustment and proceed, if necessary, to the
next step.

deck stabilizer bracket. See Figure 10

• Locate the two lock nuts on the opposite side of the

stabilizer bracket. See Figure 10. Tighten the lock
nuts to raise the front of the deck; loosen the lock

nuts to lower the front of the deck.

• Retighten the two jam nuts loosened earlier when

proper adjustment is achieved.

Sideto Side
If the cutting deck appears to be mowing unevenly, a

side to side adjustment can be performed. Adjust if
necessary as follows:

• With the tractor parked on a firm, level surface,

place the deck lift lever in the top notch (highest
position) and rotate both blades so that they are
perpendicular with the tractor.

• Measure the distance from the outside of the left

blade tip to the ground and the distance from the
outside of the right blade tip to the ground. Both
measurements taken should be equal. If they're
not, proceed to the next step.

• Loosen, but do NOT remove, the hex cap screw on

the left deck hanger bracket. See Figure 11.

NOTE: Models equipped with a 42-inch deck have

only one jam nut, washer and lock nut.

Loosen Tighten

to lowerdeck to raisedeck

Figure 10

//

/

AdiustmentGear

• Balance the deck by using a wrench to turn the

adjustment gear (found immediately behind the hex
cap screw just loosened) clockwise/up or

counterclockwise/down.

• The deck is properly balanced when both blade tip

measurements taken earlier are equal.

• Retighten the hex cap screw on the left deck

hanger bracket when proper adjustment is
achieved.

17

HexB01t

Figure 11

ParkingBrakeAdjustment

WARNING: Never attempt to adjust the

brakes while the engine is running. Always
disengage PTO, stop engine and remove key
to prevent unintended starting.

If the tractor does not come to a complete stop when
the brake pedal is completely depressed, or if the
tractor's rear wheels can roll with the parking brake
applied, the brake is in need of adjustment. The brake
disc can be found on the right side of the transmission
in the rear of the tractor. Adjust if necessary as

follows.

• Looking at the transmission from the right side of
the tractor, locate the compression spring and
brake disc. See Figure 12.

BrakeRod

CrownNut

/

HexNutand
LockWasher

PivotBar

J

JamNut

BallJoint

Figure 13

• Thread the ball joint toward the jam nut to shorten
the drag link. Thread the ball joint away from the
jam nut to lengthen the drag link.

• Replace hex nut and lock washer and retighten the
jam nut after proper adjustment is achieved.

NOTE: View shown from beneath tractor.

Figure 12

• Carefully remove the cotter pin from the crown nut
on the right side of the brake assembly.

• Using a feeler gauge, check the gap between the
brake disc and the brake puck. Proper gap is .011 ".

• Tighten the crown nut until the proper gap is
achieved.

• Insert a replacement cotter pin (part # 714-0111)
into the crown nut.

SteeringAdjustment

Ifthe tractor turns tighter in one direction than the other,
or if the ball joints are being replaced due to damage or
wear, the steering drag links may need to be adjusted.

Adjust the drag links so that equal lengths are threaded
into the ball joint on the left side and the ball joint on the

right side:

• Loosen the jam nut found on the drag link at the

rear of the ball joint. See Figure 13.

• Remove the hex nut and lock washer on the top of

ball joint. See Figure 13.

NOTE: Threading the ball joints too far onto the drag

links will cause the front tires to "toe-in" too far. Proper
toe-in is between 1/16" and 5/16".

Front tire toe-in can be measured as follows:

• Place the steering wheel in position for straight
ahead travel.

• In front of the axle, measure the distance
horizontally from the inside of the left rim to the

inside of the right rim. Note the distance.

• Behind the axle, measure the distance horizontally
from the inside of the left rim to the inside of the

right rim. Note the distance.

• The measurement taken in front of the axle should
be between 1/16" and 5/16" less than the
measurement taken behind the axle.

• Adjust if necessary.

SeatAdjustment

make sure the seat is engaged in the seat

WARNING: Before operating this machine,

stop, stand behind the machine and pull back

on seat until fully engaged into stop.

To adjust the position of the seat, move the seat
adjustment lever (Refer to Figure 1 on Page 9) to the

left and slide the seat forward or rearward. Make sure
seat is locked into position before operating the tractor.

18

SECTION7: MAINTAININGYOURLAWNTRACTOR

NOTE: Refer to MaintenanceCharton page 26 for a

reference of recommended maintenance intervals.

WARNING: Before performing any

maintenance or repairs, disengage PTO, set
parking brake, stop engine and remove key to
prevent unintended starting.

Engine

Refer to the Kohler Owner's Manualfor engine

maintenance instructions.

Check engine oil level before each use as instructed in
the Kohler Owner's Manual packed with your unit.
Follow the instructions carefully.

Maintenance, repair, or replacement of the emission
control devices and systems, which are being done at
the customer's expense, may be performed by any
repair establishment or individual. Warranty repairs
must be performed by your Cub Cadet Dealer.

ChangingEngine0il

• Gently raise the tractor's hood

• Unscrew the oil fill cap and remove the dipstick
from the oil fill tube. See Figure 14.

) \

0il FillCap/

Dipstick

• Service the oil filteras instructed in the separate
Kohler Owner's Manual packed with your unit.

Perform the above steps in the opposite order after oil
has finished draining.

• Refill the engine with new motor oil.

IMPORTANT:Refer to the Kohler Owner's Manual
packed with your unit for information regarding the

quantity and proper weight of motor oil.

Air Cleaner

Service the pre-cleaner and cartridge/air cleaner
element as instructed in the Kohler Owner's Manual

packed with your unit.
Spark Plug(s)

The spark plug(s) should be cleaned and the gap reset
once a season. Refer to the Kohler Owner's Manualfor

correct plug type and gap specifications.

Cleaningthe EngineAndDeck

Any fuel or oil spilled on the machine should be wiped
off promptly.
Do NOT allow debris to accumulate around the cooling
fins of the engine or on any other part of the machine,
especially the belts and pulleys.

SmartJetTM
Your tractor's deck is equipped with a water port on its

surface as part of its deck wash system.
Use the Smart JetTM to rinse grass clippings from the
deck's underside and prevent the buildup of corrosive
chemicals. Complete the following steps AFTER EACH

MOWING:

1. Drive the tractor to a level, clear spot on your lawn,

near enough to a water sillcock (spigot) for your
garden hose to reach.

IMPORTANT:Make certain the tractor's discharge chute
is directed AWAY from your house, garage, parked

cars, etc.

DrainPort DrainHose

Figure 14

• Pop open the protective cap on the end of the oil
drain valve to expose the drain port. See Figure 14.

• Push the oil drain hose (packed with this manual)
onto the oil drain port. Route the opposite end of
the hose into an appropriate oil collection container
with a capacity of no less than 64 oz.

• Push the oil drain valve in slightly, then rotate
counterclockwise and pull outward to begin
draining oil.

2. Disengage the PTO (Blade Engage), move the shift
lever into the neutral position, set the parking
brake, and stop the engine.

3. Thread the hose coupler (packaged with your
tractor's Operator's Manual) onto the end of your
garden hose.

4. Attach the hose coupler to the water port on your
decks surface. See Figure 15.

5. Turn the water on.

6. While sitting in the operator's position on the
tractor, re-start the engine and place the throttle
lever in the FAST (rabbit) position.

7. Move the tractor's PTO (Blade Engage) into the ON
position.

19

HoseCoupler

Water Port

Figure 15

8. Remain in the operator's position with the cutting
deck engaged for a minimum of two minutes,
allowing the underside of the cutting deck to
throughly rinse.

9. Move the tractor's PTO (Blade Engage) into the
OFF position.

10. Turn the ignition key to the STOP position to turn
the tractor's engine off.

11. Turn the water off and detach the hose coupler
from the water port on your decks surface.

12. Repeat step 4- step 11 on the opposite side of the
cutting deck.

Lubrication

WARNING: Before lubricating, repairing, or

inspecting, always disengage PTO, set
parking brake, stop engine and remove key to
prevent unintended starting.

Engine

Refer to Engineon page 19 for instruction regarding all
engine-related lubrication.

Pivot Points & Linkage
Lubricate all the pivot points on the drive system,

parking brake and lift linkage at least once a season
with light oil.

DeckWheels

Each of the tractor deck's front gauge wheels is
equipped with a grease fitting. Lubricate with agrease
gun after every 25 hours of tractor operation

DeckSpindles
Grease fittings can be found on the front of each deck

spindle shaft. Lubricate with 251H EP grease oran
equivalent No. 2 multi-purpose lithium grease. Using a
grease gun, apply two strokes (minimum) or sufficient
grease to the spindle shaft.

Front Wheels
Each of the front wheel axles and rims is equipped with

a grease fitting. See Figure 16. Lubricate with a grease
gun after every 25 hours of tractor operation.

RimGreaseFitting

\

Figure 16

2O

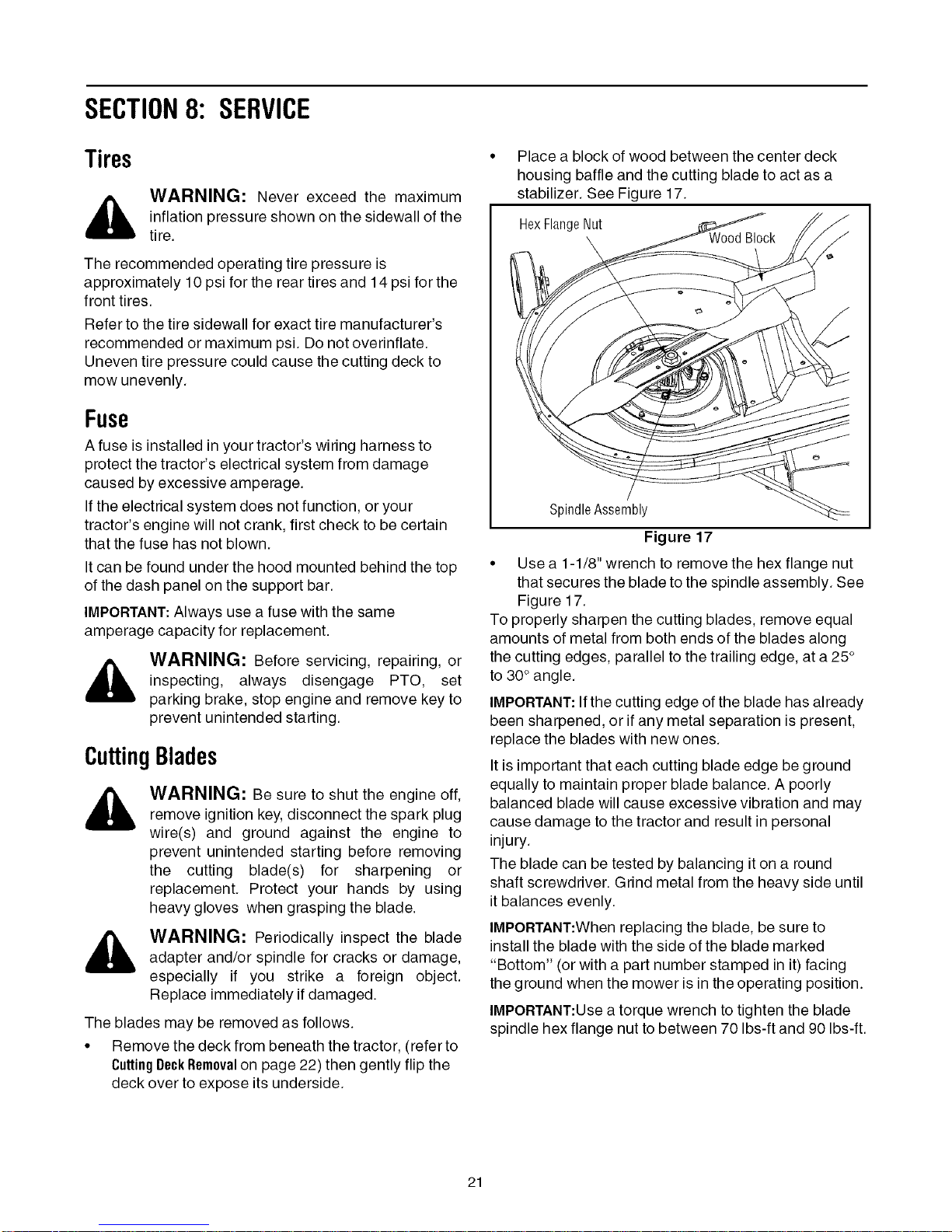

SECTION8: SERVICE

Tires

,_ WARNING: Never exceed the maximum

The recommended operating tire pressure is
approximately 10 psi for the rear tires and 14 psi for the

front tires.
Refer to the tire sidewall for exact tire manufacturer's

recommended or maximum psi. Do not overinflate.
Uneven tire pressure could cause the cutting deck to
mow unevenly.

inflation pressure shown on the sidewall of the
tire.

Fuse

A fuse is installed in your tractor's wiring harness to
protect the tractor's electrical system from damage
caused by excessive amperage.

If the electrical system does not function, or your

tractor's engine will not crank, first check to be certain
that the fuse has not blown.

It can be found under the hood mounted behind the top

of the dash panel on the support bar.
IMPORTANT:Always use a fuse with the same

amperage capacity for replacement.

,_ WARNING: Before servicing, repairing, or

inspecting, always disengage PTO, set
parking brake, stop engine and remove key to
prevent unintended starting.

CuttingBlades

WARNING: Be sure to shut the engine off,
remove ignition key, disconnect the spark plug

wire(s) and ground against the engine to
prevent unintended starting before removing
the cutting blade(s) for sharpening or
replacement. Protect your hands by using
heavy gloves when grasping the blade.

WARNING: Periodically inspect the blade

adapter and/or spindle for cracks or damage,
especially if you strike a foreign object.
Replace immediately if damaged•

The blades may be removed as follows.

• Remove the deck from beneath the tractor, (refer to
CuttingDeckRemovalon page 22) then gently flip the
deck over to expose its underside.

Place a block of wood between the center deck

housing baffle and the cutting blade to act as a
stabilizer. See Figure 17.

HexFlangeNut

SpindleAssembly

Figure 17

• Use a 1-1/8" wrench to remove the hex flange nut
that secures the blade to the spindle assembly. See

Figure 17.
To properly sharpen the cutting blades, remove equal
amounts of metal from both ends of the blades along
the cutting edges, parallel to the trailing edge, at a 25°
to 30° angle.

IMPORTANT:If the cutting edge of the blade has already
been sharpened, or if any metal separation is present,
replace the blades with new ones.

It is important that each cutting blade edge be ground
equally to maintain proper blade balance. A poorly
balanced blade will cause excessive vibration and may
cause damage to the tractor and result in personal
injury.

The blade can be tested by balancing it on a round
shaft screwdriver. Grind metal from the heavy side until
it balances evenly.

IMPORTANT:When replacing the blade, be sure to
install the blade with the side of the blade marked

"Bottom" (or with a part number stamped in it) facing
the ground when the mower is in the operating position.

IMPORTANT:Use a torque wrench to tighten the blade
spindle hex flange nut to between 70 Ibs-ft and 90 Ibs-ft.

21

Battery

The battery is sealed and is maintenance-free. Acid
levels cannot be checked and fluid can not be added.

• Always keep the battery cables and terminals clean
and free of corrosive build-up.

• After cleaning the battery and terminals, apply a
light coat of petroleum jelly or grease to both

terminals

• Always keep the rubber boot positioned over the
positive terminal to prevent shorting.

IMPORTANT:If removing the battery, disconnect the

NEGATIVE (Black) wire from it's terminal first, followed
by the POSITIVE (Red) wire. When re-installing the
battery, always connect the POSITIVE (Red) wire its
terminal first, followed by the NEGATIVE (Black) wire.

Be certain that the wires are connected to the correct
terminals; reversing them could change the polarity and

cause damage to your engine's alternating system.
JumpStarting

,_ WARNING: Never jump start a damaged orfrozen battery. Be certain the vehicles do not

touch, and ignitions are off. Do not allow cable
clamps to touch.

CuttingDeckRemoval

To remove the cutting deck, proceed as follows:

• Place the PTO/Blade Engage knob in the
disengaged (OFF) position and engage the parking

brake.

• Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.

• Remove the deck belt from around the tractor's
electric PTO clutch (refer to ChangingtheBeckBelt).

• Looking at the cutting deck from the left side of the
tractor, locate the deck support pin on the rear left

side of the deck.

• Rotate the pin slightly toward the rear of the tractor
and release the pin into the hole provided.

• Pull the deck support pin outward to release the
deck from the deck lift arm. See Figure 18.

• Connect positive (+) cable to positive post (+) of
your tractor's discharged battery.

• Connect the other end of the cable to the (positive
+) post of the jumper battery.

• Connect the second cable (negative -) to the other
post of the jumper battery.

• Make the final connection on the engine block of
the stalled tractor, away from the battery. Attach to
a unpainted part to assure a good connection.

IMPORTANT: If the jumper battery is installed on a
vehicle (i.e. car, truck), do NOT start the vehicle's
engine when jump starting your tractor.

• Start the tractor (as instructed on page 13).

• Set the tractor's parking brake before removing the

jumper cables, in reverse order of connection.

• Allow the tractor's engine to run for 15 minutes
before shutting it off to allow the alternating system
time to charge the discharged battery.

Charging

If the unit has not been put into use for an extended
period of time, charge the battery with an automotive-
type 12-volt charger for a minimum of one hour at six
amps.

SupportPin

Figure 18

• Repeat the above steps on the tractor's right side.

• Move the deck lift lever into the top notch to raise
the deck lift arms up and out of the way.

• Gently slide the cutting deck toward the front of the
tractor allowing the hooks on the deck to release

themselves from the deck stabilizer rod.

• Gently slide the cutting deck (from the right side)
out from underneath the tractor.

ChangingTheTransmissionDriveBelt

NOTE: Several components must be removed and

special tools (i.e. air/impact wrench) used in order to
change the tractor's transmission drive belt. See your
Cub Cadet dealer to have your drive belt replaced.

,_ WARNING: Batteries give off an explosive

gas while charging. Charge battery in a well
ventilated area and keep away from an open
flame or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas
appliances.

22

HydrostaticTransmission

Keep the area around the transmission cooling fan free
of grass and debris at all times. The hydrostatic ,_
transmission is sealed at the factory and is

maintenance free. The fluid level cannot be checked
and on most models, cannot be changed.

Ifyour tractor is equipped with a transmission drain plug
(see Figure 19), exposed to extreme conditions (hilly _1_

terrain, towing, etc.) and you choose to change the
hydrostatic fluid, do so after the tractor's initial 50 hours
of operation and every 100 hours of operation

thereafter.

NOTE: Several tractor components and parts (fender,

fuel tank, etc.) must be removed in order to refill the

transmission after draining it.

DrainPlug

NOTE: View shown from beneath tractor, i

Figure 19

After draining the oil, refill the transmission with 76 oz.
(to the top of the fill hole found on the transmission's
surface) with any SAE 20W50 motor oil.

Changingthe DeckBelt

All belts on your tractor are subject to wear and should
be replaced if any signs of wear are present.

IMPORTANT:The V-belts found on you r tractor are
specially designed to engage and disengage safely. A
substitute (non-OEM) V-belt can be dangerous by not
disengaging completely. For a proper working machine,
use factory approved belts.

To change or replace the deck belt on your tractor,
proceed as follows:

• Lower the deck by moving the deck lift lever into the

• Remove the belt guards by removing the self-

42-inch Decks

• Remove the belt keeper rod from around the

• Insert a 3/8"-drive ratchet wrench (set to loosen)

WARNING: Be sure to shut the engine off,

remove ignition key, disconnect the spark
plug wire(s) and ground against the engine to
prevent unintended starting before removing

the belt(s).

WARNING: Avoid the possibility of a

pinching injury. Do not place your fingers on

the idler spring or between the belt and a

pulley while removing the belt.

bottom notch on the right fender.

tapping screws that fasten them to the deck.

engine pulley.

into the square hole found in the idler bracket on
the left side of the deck's surface. See Figure 20.

Belt Guard

Idler Bracket

3/8"SquareH01e

1

J

Figure 20

Grasp the ratchet's handle and pivot it toward the
front of the tractor to relieve tension on the belt.

With belt tension relieved, carefully remove the
belt from around the left-hand spindle pulley.

23

46-inch Decks

• Insert a 3/8"-drive ratchet wrench (set to loosen)

into the square hole found in the idler bracket on
the left side of the deck's surface. See Figure 21.

50-inch Decks

• To ease in removing the belt in later steps, loosen,
but do not remove, the bolt which secures the
pivoting idler pulley to the idler bracket.
See Figure 22.

Idler

3/8" SquareHole

BeltGuard

Figure 21

Grasp the ratchet's handle and pivot it toward the
tractor's right side to relieve tension on the belt.
With belt tension relieved, carefully remove the
belt from around the left-hand spindle pulley.

BeltGuard

IdlerBracket

Pivotin_

i IdlerPulley

_" SquareHole

Spriog

Figure 22

• Insert a 3/8"-drive ratchet wrench (set to tighten)
into the square hole found in the idler bracket on
the left side of the deck's surface. See Figure 22.

• Grasp the ratchet's handle and pivot it toward the
tractor's right side to relieve tension on the belt.

• With belt tension relieved, carefully remove the
belt from around the left-hand spindle pulley.

All Models

IMPORTANT:Carefully allow the ratchet to pivot
rearward before removing it from the square hole.

• Remove the deck belt from around all pulleys,
including the deck idler pulley(s) and the electric

PTO clutch.

• Route the new belts (deck belt first) as shown on
the following page.

• Remount the belt guards removed earlier.

24

LT1842

LT1845& LT1846

LT1858

25

SECTION9: OFF-SEASONSTORAGE

Clean and lubricate the tractor as instructed in Section7:
MAINTAININGYOURLAWNTRACTORon page 19 of this

manual before storing for an extended period.

Engine

If the engine will be out of service for two months or

more, use the following storage procedure:

• Clean the exterior surfaces of the engine. .

• Change the oil and filter while the engine is still
warm from operation. Refer to Changingthe Engine011
on page 19.

• The fuel system must be completely emptied, or the
gasoline must be treated with a fuel stabilizer such

as STA-BIL®to prevent deterioration. If you choose
to use a stabilizer, follow the manufacturers

recommendations, and add the correct amount for
the capacity of the fuel system. Fill the fuel tank with
clean, fresh gasoline. Run the engine for 2-3
minutes to get stabilized fuel into the carburetor.

SECTION10: MAINTENANCECHART

To empty the system, run the engine until the tank
and system are empty.

WARNING: Drain fuel only into an

approved container outdoors, away from an
open flame. Allow engine to cool. Extinguish
cigarettes, cigars, pipes, and other sources of

ignition prior to draining fuel.

Remove the spark plug. Add one tablespoon of
engine oil into the spark plug hole. Install the plug,
but do not reconnect the plug wire. Crank the
engine two or three revolutions.
Store the engine in a clean, dry place.

WARNING: Never store the machine or

fuel container indoors where there is an open
flame, spark or pilot light such as on water

heater, furnace, clothes dryer or other gas

appliance.

Before After Initial Every Every Every Every Prior

Each Use 24 Hours 10 Hours 25 Hours 100 Hours Season to Storing

Clean Hood/Dash Louvers _
Check Engine Oil Level

Clean and Re-oil Air
Filter's Foam Precleaner _I'

Replace Air Filter Element _

Change Engine Oil & Filter ,_
Clean Battery Terminals J

,/

Clean Engine Cooling Fins
Lube Front Axles and Rims _ _P'

Lube Front Deck Wheels
Lube Deck Spindles
Lube Pedal Pivot Points _'

Check Spark Plug _' _'

¢

,/Change Transmission Oil*

*On models equipped with drain port

26

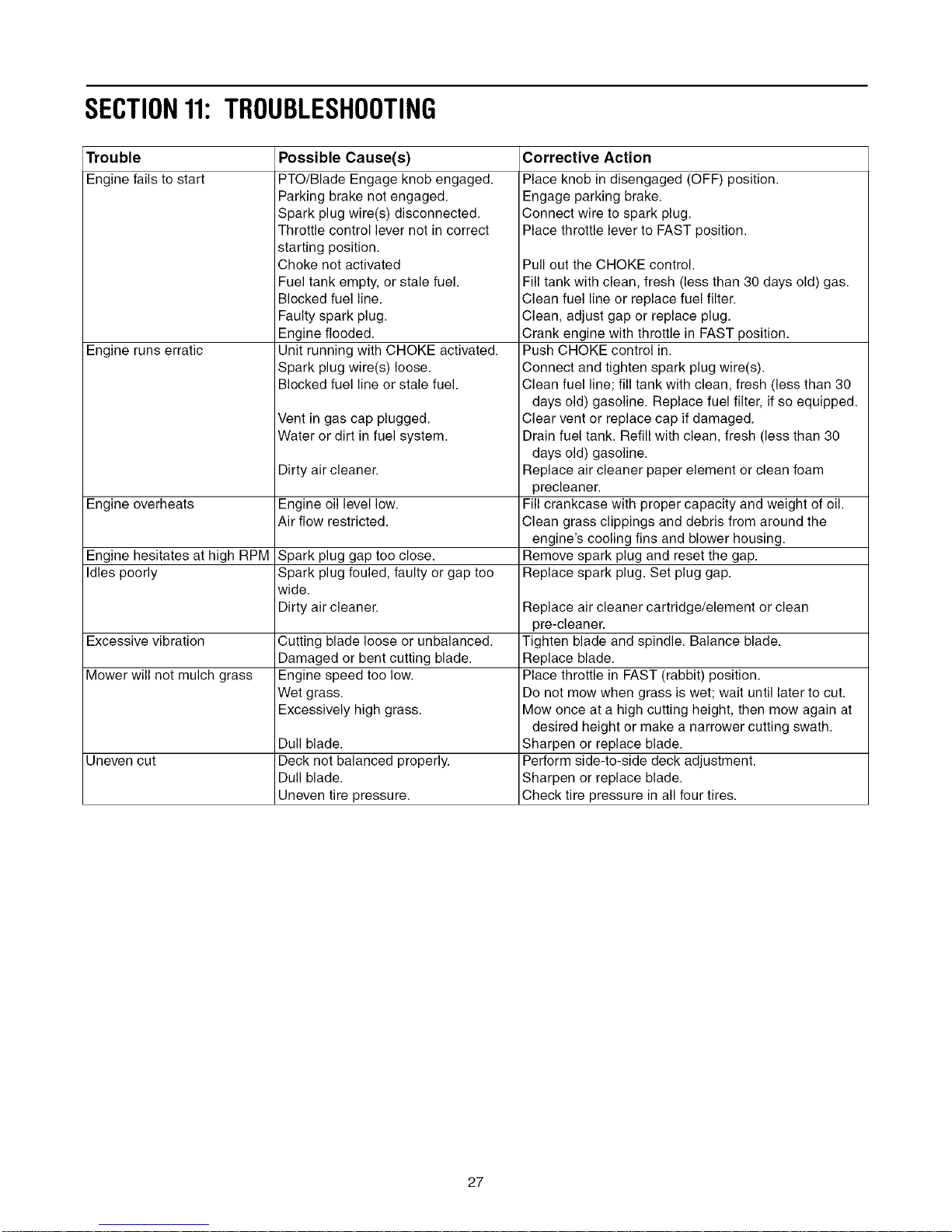

SECTION11:TROUBLESHOOTING

Trouble

Engine fails to start

Engine runs erratic

Engine overheats Engine oil level low.

Engine hesitates at high RPM Spark plug gap too close.
Idles poorly Spark plug fouled, faulty or gap too

Excessive vibration Cutting blade loose or unbalanced. Tighten blade and spindle. Balance blade.

Mower will not mulch grass Engine speed too low. Place throttle in FAST (rabbit) position.

Uneven cut Deck not balanced properly. Perform side-to-side deck adjustment.

Possible Cause(s)

PTO/Blade Engage knob engaged.
Parking brake not engaged.

Spark plug wire(s) disconnected.
Throttle control lever not in correct

starting position.
Choke not activated

Fuel tank empty, or stale fuel.
Blocked fuel line.

Faulty spark plug.
Engine flooded.
Unit running with CHOKE activated.

Spark plug wire(s) loose.

Blocked fuel line or stale fuel.

Vent in gas cap plugged.
Water or dirt in fuel system.

Dirty air cleaner.

Air flow restricted.

wide.

Dirty air cleaner. Replace air cleaner cartridge/element or clean

Damaged or bent cutting blade. Replace blade.

Wet grass. Do not mow when grass is wet; wait until later to cut.

Excessively high grass. Mow once at a high cutting height, then mow again at

Dull blade. Sharpen or replace blade.

Dull blade. Sharpen or replace blade.
Uneven tire pressure. Check tire pressure in all four tires.

Corrective Action

Place knob in disengaged (OFF) position.
Engage parking brake.

Connect wire to spark plug.

Place throttle lever to FAST position.

Pull out the CHOKE control.

Fill tank with clean, fresh (less than 30 days old) gas.
Clean fuel line or replace fuel filter.
Clean, adjust gap or replace plug.
Crank engine with throttle in FAST position.

Push CHOKE control in.
Connect and tighten spark plug wire(s).

Clean fuel line; fill tank with clean, fresh (less than 30

days old) gasoline. Replace fuel filter, if so equipped.

Clear vent or replace cap if damaged.

Drain fuel tank. Refill with clean, fresh (less than 30

days old) gasoline.

Replace air cleaner paper element or clean foam

precleaner.

Fill crankcase with proper capacity and weight of oil.
Clean grass clippings and debris from around the

engine's cooling fins and blower housing.
Remove spark plug and reset the gap.
Replace spark plug. Set plug gap.

pre-cleaner.

desired height or make a narrower cutting swath.

27

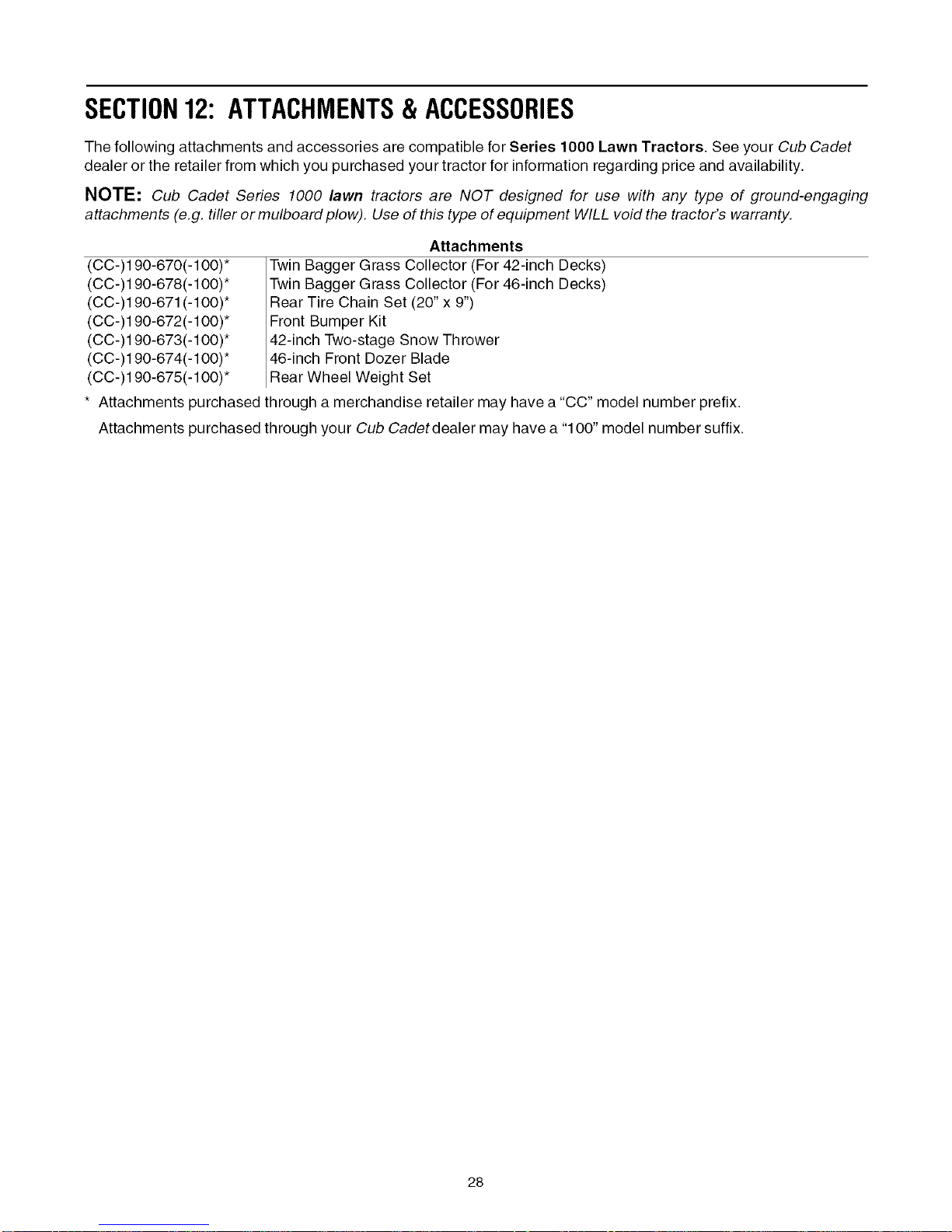

SECTION12: ATTACHMENTS& ACCESSORIES

The following attachments and accessories are compatible for Series 1000 Lawn Tractors. See your Cub Cadet
dealer or the retailer from which you purchased your tractor for information regarding price and availability,

NOTE: Cub Cadet Series 1000 lawn tractors are NOT designed for use with any type of ground-engaging

attachments (e,g, tiller or mulboard plow), Use of this type of equipment WILL void the tractor's warranty,

Attachments

(CC-)190-670(-100)*
(CC-)190-678(-100)*
(CC-)190-671 (-100)*
(CC-)190-672(-100)*
(CC-)190-673(-100)*
(CC-)190-674(-100)*
(CC-)190-675(-100)*

* Attachments purchased through a merchandise retailer may have a "CC" model number prefix.

Attachments purchased through your Cub Cadet dealer may have a "100" model number suffix.

Twin Bagger Grass Collector (For 42-inch Decks)
Twin Bagger Grass Collector (For 46-inch Decks)
Rear Tire Chain Set (20" x 9")
Front Bumper Kit
42-inch Two-stage Snow Thrower

46-inch Front Dozer Blade
Rear Wheel Weight Set

28

SECTION13: SPECIFICATIONS

Capacities

Fuel Tank

Engine Crankcase (w/filter)

Transmission

Hydrostatic Transmission

Make and Model
Gear Ratio

Forward Speed
Reverse Speed

Engine (Air-cooled, 4-cycle)

Make
Model

Cylinders
Bore

Stroke
Displacement

Power @3600 RPM
Maximum Torque

Compression Ratio
Engine Speed (governed)
Low Speed
High Speed (no load)
Spark Plug Gap

Electrical System

System Voltage
Battery

Alternator
Fuse (automotive type)

Headlights

Brakes
Turf Tires

Front (inches)
Rear (inches)

Dimensions

Cutting Width, Deck
Wheelbase

Length, over all
Width, over all

Height, over all
Ground Clearance

Turning Radius

Weight (approximate)

LT1042

13.2 liters (3.5 gallons)

1.5 liters (50.75 oz)

2.25 liters (76 oz)

Hydro-Gear311-0510

22.2:1
0 m.p.h. - 5.2 m.p.h.

0 m.p.h.- 2.3 m.p.h.

Kohler Courage

SV590-OO03

Single
94 mm (3.70 in.)
86 mm (3.38 in.)
597 cc (36.4 cubic in.)

14.1 kW (19 HP)

48.8 Nm (36 ft. lb.)
@ 2200 RPM

8.5:1

1500 RPM (_+75 RPM)

.030 in. (.76 mm)

12-volt Negative Ground
190 CCA (sealed)
16 Amp Regulated
20 Amp

Incandescent
Single Disc (Dry)

15x6x6

20xlOx8

42 in. (106.7 cm)
46in. (116.8 cm)
68 in. (172.7 cm)
45in. (114.3 cm)
43 in. (109.2 cm)

4.5 in. (11.4 cm)

18 in. (46 cm)
498 lb. (225.9 kg)

LT1045

13.2 liters (3.5 gallons)
.5 liters (50.75 oz)

2.25 liters (76 oz)

Hydro-Gear311-0510

22.2:1

0 m.p.h. - 5.2 m.p.h.
0 m.p.h. - 2.3 m.p.h.

Kohler Courage

SV600
Single

94 mm (3.70 in.)
86 mm (3.38 in.)
597 cc (36.4 cubic in.)

14.9 kW (20 HP)

60.0 Nm (36.9 ft. lb.)

@ 2200 RPM

8.5:1

1500 RPM (_+75 RPM)

.030 in. (.76 mm)

12-volt Negative Ground
190 CCA (sealed)
16 Amp Regulated
20 Amp

Incandescent
Single Disc (Dry)

15x6x6

20x10x8

46 in. (116.8 cm)
46in. (116.8 cm)
68 in. (172.7 cm)
49 in. (124.4 cm)

43 in. (109.2 cm)

4.5 in. (11.4 cm)
18 in. (46 cm)
498 lb. (225.9 kg)

LT1046

13.2 liters (3.5 gallons)

2.25 liters (76 oz)

Hydro-Gear 311-051 O

22.2:1
0 m.p.h. - 5.2 m.p.h.

0 m.p.h. - 2.3 m.p.h.

Kohler Command

PS-75593

Twin

.030 in. (.76 mm)

12-volt Negative Ground

235 CCA (sealed)

16 Amp Regulated

20 Amp

Incandescent
Single Disc (Dry)

15x6x6

20x10x8

46 in. (116.8 cm)
46in. (116.8 cm)
68 in. (172.7 cm)
49 in. (124.4 cm)
43 in. (109.2 cm)

4.5 in. (11.4 cm)
18 in. (46 cm)

601 lb. (227.26 kg.)

LT1050

13.2 liters (3.5 gallons)

2.0 liters (67.6 oz)

2.25 liters (76 oz)

Hydro-Gear 311-0510

22.2:1
0 m.p.h. - 5.2 m.p.h.

O m.p.h. - 2.3 m.p.h.

Kohler Command

PS-CV730-0040
Twin

83 mm (3.27 in.)
67 mm (2.64 in.)
725 cc (44.2 cubic in.)

19.4 kW (26 HP)

62 Nm (36 ft. lb.)

@ 2800 RPM

9:0:1

1200 RPM

.030 in. (.76 ram)

12-volt Negative Ground

235 CCA (sealed)

15 Amp Regulated

20 Amp
Incandescent

Single Disc (Dry)

15x6x6

20x10x8

50 in. (127.0 cm)
46 in. (116.8 cm)
68 in. (172.7 cm)
54 in. (137.2 cm)
43 in. (109.2 cm)

4.5 in. (11.4 cm)
18 in. (46 cm)

525 lb. (238 kg.)

29

FEDERAL AND CALIFORNIA EMISSION CONTROL SYSTEMS

UTILITY AND LAWN AND GARDEN ENGINES

The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Kohler Co. are pleased to explain the FederaI
and California Emission Control Systems Warranty on your small off-road equipment engine. For California, engines produced in 1995 and later must
be designed, built and equipped to meet the state's stringent anti-smog standards. In other states, 1997 and later model year engines must be
designed, built and equipped, to meet the U.S. EPA regulations for small non-road engines. The engine must be free from defects in materials and

workmanship which cause it to fail to conform with U.S. EPA standards for the first two years d engine use from the date of sale to the ultimate

purchaser. Kohler Co. must warrant the emission control system on the engine for the period of time listed above, provided there has been no abuse,
neglect or improper maintenance.

The emission control system may include parts such as the carburetor or fuel injection system, the ignition system, and catalytic converter. Also
included are the hoses, belts and connectors and other emission related assemblies.

Where a warrantable condition exists, Kohler Co. will repair the engine at no cost, including diagnosis (if the diagnostic work is performed at an

authorized dealer), parts and labor.
MANUFACTURER'S WARRANTY COVERAGE

Engines produced in !995 or later are warranted for two years in California. In other states, !997 and later model year engines are warranted for two
years, if any emission related part on the engine is defective, the part will be repaired or replaced by Kohler Co. free of charge.

OWNER'S WARRANTY RESPONSIBILITIES

The engine owner is responsible for the performance of the required maintenance listed in the owner's manual. Kohler Co. recommends that you
retain all receipts covering maintenance on the engine. But Kohler Co. cannot deny warranty solely for the lack of receipts or for your failure to assure
that all scheduled maintenance was performed.
(a) Be aware, however, that Kohler Co. may deny warranty coverage if the engine or a part has failed due to abuse, neglect, improper

maintenance or unapproved modifications.

(b) For warranty repairs, the engine must be presented to a Kohler Co. service center as soon as a problem exists. Call 1-800-544-2444,

or access our web site at: www.kohlerengines.com, for the names of the nearest service centers. The warranty repairs should be

completed in a reasonable amount of time, not to exceed 39 days.
If you have any questions regarding warranty rights and responsibilities, you should contact Kohler Co. at 1-920-457-444! and ask for an Engine
Service representative.

COVERAGE

Kohler Co. warrants to the ultimate purchaser and each subsequent purchaser that the engine will be designed, built and equipped, at the time of
sale, to meet all applicable regulations. Kohler Co. also warrants to the initial purchaser and each subsequent purchaser, that the engine is free from
defects in material and workmanship which cause the engine to fail to conform with applicable regulations for a period of two years.

Engines produced in 1995 or later are warranted for to years in California. For 1997 and later model years, EPA requires manufacturers to warrant
engines for two years in all other states. These warranty periods will be begin on the date the engine is purchased by the initial purchaser. If any
emission related part on the engine is defective, the part will be replaced by Kohler Co. at no cost to the owner. Kohler Co. is liable for damages to
other engine components caused by the failure of a warranted part still under warranty.

KohIer Co. shall remedy warranty defects at any authorized Kohler Co. engine dealer or warranty station. Warranty repair work done at an
authorized dealer or warranty station shall be free of charge to the owner if such work determines that a warranted part is defective.

Listed below are the parts covered by the Federal and California Emission Control Systems Warranty. Some parts listed below may require
scheduled maintenance and are warranted up to the first scheduled replacement point for that part. The warranted parts are:

Oxygen sensor (if equipped) Intake manifold (if equipped)
Exhaust manifold (if equipped) Catalytic muffler (if equipped)
Fuel meteringvalve (ifequipped) Spark advance module (if equipped)
Crankcase breather Ignition module(s)with high tension lead
Gaseousfuel regulator (ifequipped) Electronic control unit (ifequipped)
Carburetor or fuel injection system Fuel lines(if equipped)
Airfilter, fuel filter, and spark plugs (only to first scheduled replacement point)

LIMITATIONS

This Emission Control System Warranty shall not cover any of the following:
(a) repair or replacement required because of misuse or neglect, improper maintenance, repairs improperly performed or replacement

not conforming to Kohler Co. specifications that adversely affect performance and/or durability and alterations or modifications not

recommended or approved in writing by Kohler Co.,
(b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled

replacement point,
(c) consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc.,
(d) diagnosis and inspection fees that do not result in eligible warranty service being performed, and
(e) any add-on or modified part, or malfunction of authorized parts due to the use of add-on or modified parts.

MAINTENANCE AND REPAIRS REQUIREMENTS

The owner is responsible for the proper use and maintenance of the engine. KohIer Co. recommends that all receipts and records covering the
performance of regular maintenance be retained in case questions arise. If the engine is resold during the warranty period, the maintenance records
should be transferred to each subsequent owner. Kohler Co. reserves the right to deny warranty coverage if the engine has not been properly main-
tained; however, Kohler Co. may not deny warranty repairs solely because of the lack of repair maintenance or failure to keep maintenance records.

Normal maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual;
however, warranty repair must be performed by a Kohler authorized service center, Any replacement part or service that is equivalent in perfor-
mance and durability may be used in non-warranty maintenance or repairs, and shall not reduce the warranty obligations of the engine manufacturer.

KOHLER CO.

LIMITED WARRANTY

CUB CADET LLC

MANUFACTURER'S ONE YEAR LIMITED WARRANTY

(COMMERCIAL USE)

The limited warranty set forth below is given by CUB CADET
LLC ("CUB CADET") with respect to new merchandise pur-

chased and used in the United States, its possessions and
territories.

CUB CADET warrants this product against defects in mate-
rial and workmanship for a period of one (1) year for com-

mercial users, commencing on the date of original purchase
and will, at its option, repair or replace, free of charge, any
part found to be defective in material or workmanship. This

limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's
Manual furnished with the product, and has not been subject

to misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water or damage because of

other peril or natural disaster.
Batteries and belts are subject to separate terms as follows:

a. Batteries have a one-year prorated limited warranty with

100% replacement during the first three months. After three

months, the battery replacement credit is based on the
months remaining in the twelve (12) month period dating

back to the original date of sale. Any replacement battery will
be warranted only for the remainder of the original warranty

period.
b. All belts are covered by a one (1) year limited warranty

against defects in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE THROUGH YOUR LOCAL
AUTHORIZED CUB CADET DEALER. To locate the dealer
in your area, please check for a listing at www.cubcadet.com,
or in the Yellow Pages or contact CUB CADET by calling 1-

877-CUB TOUGH (1-877-282-8684) or writing to RO. Box
361131, Cleveland, Ohio 44136-0019.

This limited warranty does not provide coverage in
the following cases:

a. Routine maintenance items such as lubricants, filters,
blade sharpening and tune-ups, or adjustments such as

brake adjustments, clutch adjustments or deck adjustments;
and normal deterioration of the exterior finish due to use or

exposure.

b. Normal wear parts or components, including blades,
blade adapters, grass bags, rider deck wheels, seats, snow

thrower skid shoes, shave plates and tires.
CUB CADET does not extend any warranty for products sold

or exported outside of the United States of America, its pos-
sessions and territories, except those sold through CUB

CADET'S authorized channels of export distribution.

No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,

applies after the applicable period of express written
warranty above. No other express warranty or guaranty,
whether written or oral, except as mentioned above,
given by any person or entity, including the dealer, with

respect to any product shall bind CUB CADET. During

the period of the Warranty, the exclusive remedy is

repair or replacement of the product as set forth above.

(Some states do not allow limitations on how long an implied

warranty lasts, so the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sale. CUB
CADET shall not be liable for incidental or consequential

loss or damages including, without limitation, to any

claim for loss of profits, loss of savings or revenue, loss
of the use of the equipment or any associated equip-

ment, facilities or service, downtime, the claims or costs

of third parties including customers, and injury to prop-
erty, and further including expenses incurred for substi-
tute or replacement lawn care services, for
transportation or for related expenses, or for rental
expenses to temporarily replace a warranted product.

(Some states do not allow the exclusion or limitation of inci-
dental or consequential damages, so the above exclusion
may not apply to you.)

In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of the safety features of the product shall void this Warranty.
You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the use or misuse or inability to use the prod-

uct.
This limited warranty shall not extend to anyone other than

the original purchaser or original lessee.

How State Law Relates to this Warranty: This limited war-

ranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

CUB CADET LLC

MANUFACTURER'S LIMITED WARRANTY

(RESIDENTIAL USE)

The limited warranty set forth below is given by CUB CADET
LLC ("CUB CADET") with respect to new merchandise pur-
chased and used in the United States, its possessions and

territories.
CUB CADET warrants this product against defects in material

and workmanship for a period of two (2) years for residential
users, (one (1) year for commercial users), commencing on

the date of original purchase and will, at its option,

_, free of charge, any part found to be defective in

material or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the
product, and has not been subject to misuse, abuse, neglect,

accident, improper maintenance, alteration, vandalism, theft,
fire, water or damage because of other peril or natural disas-

ter.
Batteries and belts are subject to separate terms as follows:

a. Batteries have a one-year prorated limited warranty with

100% replacement during the first three months. After three

months, the battery replacement credit is based on the
months remaining in the twelve (12) month period dating

back to the original date of sale. Any replacement battery will
be warranted only for the remainder of the original warranty

period.
b. All belts are covered by a one (1) year limited warranty
against defects in material and workmanship.

3 Year Limited Warranty - PTO Clutch

CUB CADET warrants the power take off ("PTO') clutch and
mounting hardware against defects in material and workman-

ship for a period of three (3) years for Series 1000 products
manufactured after August 1, 1997 for residential users, com-

mencing on the date of original purchase or lease and CUB
CADET will, at its option, repair or replace, free of charge,

any PTO clutch or mounting hardware found to be defective in
material or workmanship provided this product has been

operated and maintained as set forth above.

5 Year/500 Hour Limited Warranty- Frame and

Front Axle

CUB CADET warrants the frame, and front cast iron pivot
axle on Series 1000 models against defects in material and

workmanship for a period of five (5) years or 500 hours
whichever occurs first, for residential users, commencing on

the date of original purchase or lease and CUB CADET will,
at its option, repair or replace, free of charge, any part found

to be defective in material or workmanship provided this prod-
uct has been operated and maintained as set forth above. In

addition to any other reason set forth herein, CUB CADET
may deny warranty coverage if the hour meter, or any part

thereof, is altered, modified, disconnected or otherwise tam-
pered with.

HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE. THROUGH YOUR LOCAL

AUTHORIZED CUB CADET DEALER. To locate the dealer in
your area, please check for a listing at www.cubcadet.com or

in the Yellow Pages or contact CUB CADET by calling 1-877-
CUB TOUGH (1-877-282-8684) or writing to P.O. Box
361131, Cleveland, Ohio 44136-0019.

This limited warranty does not provide coverage in the
following cases:

a. Routine maintenance items such as lubricants, filters,

blade sharpening and tune-ups, or adjustments such as
brake adjustments, clutch adjustments or deck adjust-

ments; and normal deterioration of the exterior finish due
to use or exposure.

b. CUB CADET does not extend any warranty for products

sold or exported outside of the United States of America,
its possessions and territories, except those sold through

CUB CADET's authorized channels of export distribu-
tion.

c. Normal wear parts or components, including blades, blade

adapters, grass bags, rider deck wheels, seats, snow
thrower skid shoes, rubber auger spirals, shave plates

and tires.

No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,

applies after the applicable period of express written
warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or

entity, including the dealer, with respect to any product
shall bind CUB CADET. During the period of the War-

ranty, the exclusive remedy is repair or replacement of
the product as set forth above. (Some states do not allow

limitations on how long an implied warranty lasts, so the
above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. CUB

CADET shall not be liable for incidental or consequential
loss or damages including, without limitation, expenses

incurred for substitute or replacement lawn care ser-
vices, for transportation or for related expenses, or for

rental expenses to temporarily replace a warranted prod-

uct. (Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above exclusion

or limitation may not apply to you.)
In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration
of the safety features of the product shall void this Warranty.

You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property
arising out of the use or misuse or inability to use the product.

This limited warranty shall not extend to anyone other than
the original purchaser or original lessee.

How State Law Relates to this Warranty: This

limited warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
