RZT-S54
User Manual
76 pgs6.84 Mb0
User Manual
80 pgs7.79 Mb2

Cub cadet Rzt-s 54, Rzt-s 50, Rzt-s 46, Rzt-s 42 User Manual

Download
Illustrated Parts Manual
Printed In USA
RZT-S 42, 46, 50 & 54-inch Cutting Decks
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Form No. 769-08744
December 19, 2012
To The Owner
Thank You
Thank you for purchasing a Cub Cadet Zero-Turn Tractor. It was carefully engineered to provide excellent performance when properly operated and maintained.
All information in this manual is relative to the most recent product information available at the time of printing. Please be aware that this Illustrated Part’s Manual may cover a range of product specifications for various models.
Table of Contents
Components listed and/or illustrated in this manual may not be applicable to all models. We reserve the right to change product specifications, designs and equipment without notice and without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH) are observed from the operating position.
Axles ........................................................................13
Battery ...................................................................... 6
Deck, 42-inch ..........................................................18
Deck, 46-inch ......................................................... 20
Deck, 50-inch ......................................................... 22
Deck, 54-inch ......................................................... 24
Deck Lift Handle/Linkage ....................................... 3
Drive System ............................................................ 4
Electrical Schematic .............................................. 26
Engine, Kohler SV715-3027 ..............................29-45
Engine, Kohler SV720-3050 .............................4 6 -61
Engine, Kohler SV730-3043 ............................. 62-77
Engine Accessories .................................................. 8
Frame ....................................................................... 6
Fuel Tank ............................................................10 -11
Record Product Information
To ease in ordering replacement parts, please locate the model plate on the equipment and record the information in the provided area to the right. You can locate the model plate by looking beneath the seat.

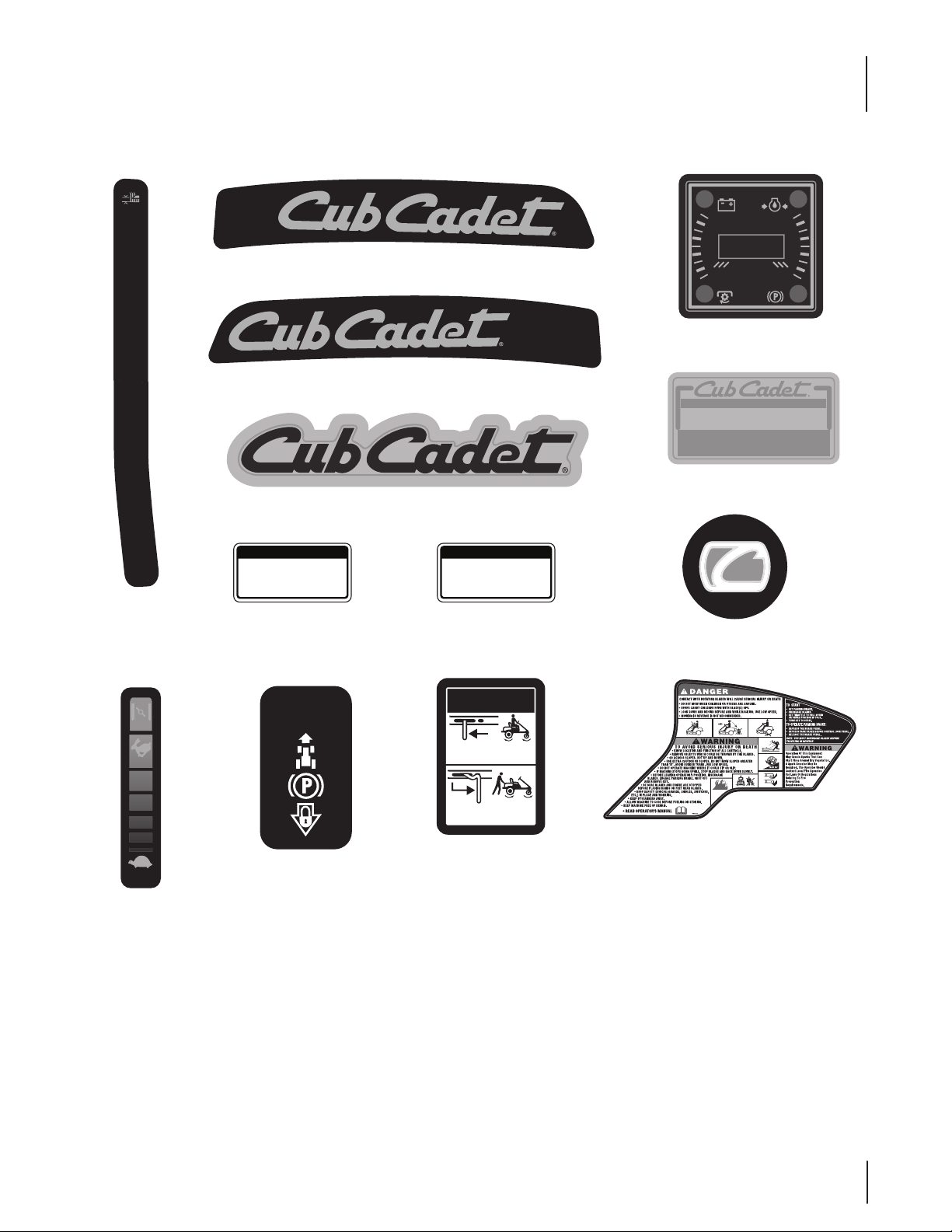

Labels ................................................................ 27-28
Meter, Systems Indicator ........................................ 6
Muer ...................................................................... 8
Operator’s Platform ................................................ 9
Pedal Controls ........................................................14
PTO Switch ............................................................... 6
Seat ..........................................................................12
Solenoid ................................................................... 6
Steering Linkage .....................................................16
Steering Wheel .......................................................14
Switches, Interlock .................................................. 6
Throttle Control ....................................................... 8
Transmission ............................................................ 4
Wheels, Front ..........................................................13
Wheels, Rear ............................................................ 4
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637). Please refer to the table below for current color codes:
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
2
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
19
8
Deck Lift
13
21
16
13
26
17
1
9
28
3
25
13
26
13
22
13
15
3
25
11
5
11
7
23
2
22
2
11
7
11
23
24 18
4
24
18
Ref Part Number Description
1 603-04907B Deck Lift Shift Assembly
2 603-0 4267 Brake Rod Assembly
3 703- 08591A Lift Link Plate
4 703- 08592 Deck Lift Plate, RH
5 703- 08593 Deck Lift Plate, LH
6 703-08644 Rod Support Mounting Bracket
7 710 -1315 Hex Washer Screw, ⁄-16 x 1.250
8 710 -316 8 Carriage Bolt, ⁄-16 x 1.00
9 911 - 08 32 Ferrule, ⁄-24 x .375
10 712-0229 Push Nut, 3/8
11 712-0406 5 Flange Lock Nut, ⁄-16
12 712- 04243 Flange Lock Nut, ⁄-13
13 714-04040 Bow-Tie Cotter Pin
14 714-04043 Bow-Tie Cotter Pin
15 916 -0231 E-Type Ring, .750
14
11
10
27
30
29
12
20
6
Ref Part Number Description
16 72 0 - 0 4139 B Grip, .50 ID
17 731- 05297 Spacer, .76 ID x .750 LG
18 731- 08782 Deck Lift Bracket
19 732-04587 Extension Spring, .63 Dia. x 4.95 LG
20 726-05009 End Cap
21 936-0314 Washer, .375 x .700 x .030
22 736-3078 Flat Washer, .344 x 1.00 x .063
23 738-04162C Shoulder Spacer, .884 x .190
24 738- 04278 Shoulder Screw, .500 x ⁄-20
25 938- 0507B Shoulder Screw, .500 Dia. x .434
26 741-30 8 4 Flange Bearing, .751 x 1.125 x .375
27 747-05552A Deck Lift Rod
28 747- 05592 Brake Rod
29 748-04 069 Deck Lift pivot Cup
30 750-05658 Nylon Sleeve, .55 ID x 4.50 LG
3
Drive System
10
17
18
31
5 13
1
22
26
11
12
A
9
37
13
18
A
2
32
19
10
33
3
18
18
20
7
13
23
6
34
14
25
15
17
5
13
1
11
8
31
35
4
30
29
36
4
22
20
17
28
27
36
4/35
21
24
16
Ref. Part Number Description
1 918 -0 4317 Wheel Hub Assembly
2 918-05053 Transmission Assembly, LH
3 918-05054 Transmission Assembly, RH
4 634-0 4293 Complete Wheel, 18 x 8.5-8 (42” & 46)
5 703-08570 Transmission Mounting Bracket
6 703-08605 Idler Bracket
7 703- 08613 Spring Mounting Bracket
8 703 -08614A Transmission Bracket
9 703 -08615A Transmission Bracket
10 710-0176 Hex Screw, ⁄-18 x 2.75
11 710-0395 Hex Screw, ⁄-18 x 2.25
12 710 -04092 Hex Screw, ⁄-20 x 1.75
13 710 -04 484 Hex Washer Screw, ⁄-18 x .750
14 710-1315 Hex Washer Screw, ⁄-16 x 1.250
15 710 - 0514 Hex Screw, ⁄-16 x 1.00
16 710 -3119 Hex Screw, ⁄-16 x .75
17 712- 04 063 Flange Lock Nut, ⁄-18
18 711- 06112 Keeper Rod, .25 x 1.535
19 712 - 0 4065 Flange Lock Nut, ⁄-16
20 712-0459 Flange Lock Nut, ⁄-20
21 712-3 050 Lug Nut, ⁄-14
22 714-04040 Bow-Tie Cotter Pin
23 732-04229 Extension Spring, .75 Dia. x 6.02
24 936-0227 Flat Washer, .390 x 1.50 x .134
25 738-04162C Shoulder Spacer, .884 x .190
26 738 - 04192B Rod, .405 Dia. x 14.0 LG
27 603-04173-0499 Rim Only, (42” & 26”)
28 734-04246-0901 Tire Only, 18 x 8.5-8 (42” & 46”)
29 603-04175-0499 Rim Only, (50” & 54”)
30 73 4-17 29- 0901 Tire Only, 18 x 9.5-8 (50” & 54”)
31 747- 056 57 Bypass Rod
32 75 0-04561 Tube, .51 ID x .75 OD x 10.2
33 954-04317 Belt, A-Type x 67.0
34 756 -0 4129B Idler Pulley, 4.25 Dia.
35 634-04128-0911 Complete Wheel, 18 x 9.5-8 (50” & 54”)
36 934-0255 Valv e Tub ele ss
37 747-05 653 Engine Keeper Rod (42”)
747- 0604 4 Engine Keeper Rod (46”, 50” & 54”)
Drive System
5
Frame & Electrical
18
24
20
23
21
27
9
4
9
9
25
13 10
9
19
27
21
22
10
17
3
9
26
9
10
12
5
10
9
10
7
1
2
15
8
14
9
9
16
11
4
10
6
6
Ref Part Number Description
1 683-04549 Muer Shield Assembly
2 703-05383B Retainer Plate
3 703-08884B Frame Assembly
4 703- 08555 Transmission Mounting Bracket
5 703- 08558 Rear Bumper
6 703- 08671 Muer Mounting Shield Bracket, RH
7 703-08695 Muer Mounting Shield Bracket, LH
8 703-09083 Muer Shield
9 710-0448 4 Hex Washer Screw, ⁄-18 x .750
10 710 -1652 Hex Washer Screw, ⁄-20 x .625
11 710-30 05 Hex Screw, ⁄-16 x 1.25
12 703-09195 Lower Heat Shield
13 747-05685 Battery Rod
14 712- 04065 Flange Lock Nut, ⁄-16
15 726- 04072A Clip, .250 Dia. x .500 LG
16 738-04058 Shoulder Spacer, .38 x 1.0 x .70
17 712- 04 064 Flange Lock Nut, ⁄-20
18 925-04022B Hour Meter/Service Minder
19 925-3233 Electric PTO Switch
20 925-04228 Key Switch
21 725- 04363 Interlock Switch
22 725- 04439 Solenoid
23 925-05013 Seat Switch
24 625-05000 Key, Assembly
25 925-1707D Battery
26 736 -0607 Lock Washer, 5/16
27 738 -0 42 37A Shoulder Screw, #10-32 x .500
— 925-06037 Harness Assembly
Frame & Electrical
7
Engine Accessories
10
3
11
5
7
12
15
9
8
6
9
4
16
1
13
2
2
2
17
2
Ref. Part Number Description
1 710- 0227 Hex Washer Screw, #8-18 x .500
2 710- 04683A Hex Washer Screw, ⁄-16 x 1.00
3 710- 05070 Screw, ⁄-20 x .50
4 710 -1314 A Socket Head Screw, ⁄-18 x .750
5 710 -3217 Screw, #8-32 x .375
6 712- 0142 Hex Nut, #8-32
7 712- 04 064 Flange Lock Nut, ⁄-20
8 710-1652 Hex Washer Screw, ⁄-20 x .625
9 726-0205 Hose Clamp, .490 Dia.
14
Ref. Part Number Description
10 7 31-19 99 Choke Plug
11 731- 04914 Throttle Control Knob
12 946-04830A Throttle/Choke Control Cable
13 751-0564B Muer Deector
14 751-10291A Oil Drain Hose
15 751-10349-28 Fuel Hose, 1/4
16 751-10528A Twin Muer
17 756 -04494 Engine Pulley
8
15
Operator’s Platform
12
15
1
15
7
1
10
7
2
7
7
8
8
15
13
7
7
Ref. Part Number Description
1 703-08720A Rear Tank Bracket
2 703-08722 Rear Seatbox Brace
3 703- 08762B Height Index Bracket
4 7 03-09175 Seat Frame
5 703-09186 Seatbox Plate
6 710- 0376 Hex Cap Screw, ⁄-18 x 1.00
7 710- 044 84 Hex Washer Screw, ⁄-18 x .750
8 710- 05109 Hex Washer Screw, ⁄-14 x 1.00
9 710- 05424 Self Tapping Screw, ⁄-18 x .750
10 710- 0607 Hex Washer Screw, ⁄-18 x .50
11 728-05012 Nut, 5/16-18
12 931-08687A LJ Console
13 931-08771A RH Console
14 731- 09477 Plastic Plug
15 738-04549A Shoulder Screw, 1/4-20
8
15
10
6
7
9
7
5
7
4
11
9
14
7
3
9
9
Fuel Tank
6
7
5
3
1
4
2
10
Ref. Part Number Description
1 951-04395 Fuel Tank
2 935-0149 Fuel Tank Bushing
3 735- 04081 Rubber Grommet
4 751-10442 Fuel Pickup Fitting
5 7 51-12118 Rollover Valve
6 9 51-12428 Fuel Cap
7 751-12089-51 Vent Hose
— 751-10749 -30 Vent Hose, Carb
13
15
Fuel Tank (CA Models)
14
16
1
12
3
2
5
9
6
4
7
11
10
8
Ref. Part Number Description
1 9 51- 0 4174 B Fuel Tank
2 703- 08769 Carbon Canister Bracket
3 710- 044 84 Hex Washer Screw, ⁄-18 x .750
4 710-3008 Hex Screw, ⁄-18 x .75
5 712- 04 063 Flange Lock Nut, ⁄-18
6 936-3008 Flat Washer, .344 x .750 x .120
7 951-10589 Carbon Canister
8 951-10590 Cannister Filter Vent
9 951-10610 Cannister Adapter Bracket
10 751-10750 Low Perm Fuel Hose 7/32 Yellow
11 751-10749 Vent Hose, Carb
12 935- 0149 Fuel Tank Bushing
13 735-04081 Rubber Grommet
14 751-104 42 Fuel Pickup Fitting
15 75 1-12118 Rollover Valve
16 951-12429 Fuel Cap
11
Seat Adjustment
7
5
10
9
8
8
2
11
3
3
6
6
3
1
4
4
Ref. Part Number Description
1 703-08734 Seat Bracket
2 710-04482 Hex Flange Bolt, ⁄-16 x .875
3 710-0448 4 Hex Washer Screw, ⁄-18 x .750
4 712-0406 3 Flange Lock Nut, 5/16-18
5 732-04563 Compression Spring, .68 x 1.065 x .055
6 732-04849 Compression Spring, 1.50 x 3.90 x .200
7 757-04131 Seat
8 938- 0296 Shoulder Screw, ⁄-18 x .437 x .268
9 783-06049 Seat Mount Bracket
10 783-06050 Seat Adjustment Lever
11 783- 06448 Clip
12
24
Front Axle
25
17
11
2
11
3
22
20
5
7
10
8
14
7
13
20
16
9
19
18
6
15
12
1
4
Ref. Part Number Description
1 603-05059A Caster Wheel Bracket
2 903-05063 Front Axle
3 710-0216 Hex Cap Screw, ⁄-16 x .75
4 710-04652 Bolt, ⁄-20 x 7.25
5 710-04656 Screw, ⁄-16 x 2.75
6 710-05398 Socket Head Screw, ⁄-18 x 1.00
7 710 -06041 Hex Cap Screw, ⁄-18 x .75
8 710-06045 Hex Flange Screw, ⁄-16 x 2.25
9 71 0 -3119 Hex Screw, ⁄-16 x .75
10 711 - 06 08 1 Pivot Gear Steering Shaft
11 712 - 0 4065 Flange Lock Nut, ⁄-16
12 912-30 09 Hex Lock Nut, ⁄-18
13 912-3058 Hex Lock Nut, ⁄-20
23
21
22
Ref. Part Number Description
14 717- 0 4952 12-Tooth Variable Gear
15 717- 05133 13-Tooth Variable Spur Gear
16 731-0 9291 Axle Cover, RH
17 731-09320 Axle Cover, LH
18 736-05033 Wave Washer, 1.25 x 1.00 x .300
19 736-3040 Flat Washer, .406 x 1.92 x .060
20 738-04549A Shoulder Screw, 1/4-20
21 750-04775A Spacer, .51 ID x .75 OD x 5.825
22 750-04792 Hub, .76 x 1.23 x .92 LG
23 634-04711-0931 Wheel Assembly, 13 x 5-6
24 710 -04 483 Self Tapping Screw, ⁄-20 x .50
25 703- 08642A Floor Board
13
Steering Column & Pedal Controls
21
26
60
42
52
41
21
12
47
40
24
47
43
25
45
61
58
3
37
58
46
35
21
36
55 48
33
20
A
21
54
21
28
21
1
22
32
9
23
23
46
11
10
C
B
21
30
30
21
A
21
13
54
2
7
62
34
22
6
2
C
18
17
50
33
39
15
32
59
44
53
33
38
B
29
32
5
51
19
51
56
8
30
16
57
4
31
7
49
49
30
21
14
33
14
Steering Column & Pedal Controls
Ref. Part Number Description
1 603 - 04931A Support Bracket Assembly, RH
2 603-05040 Brake Pedal Assembly
3 603-04938 Steering Column Assembly
4 647-04269 Brake Pedal Assembly
5 647-04270A Drive Pedal Assembly
6 703-09147 Tilt Steering Pedal
7 703-08604 Speed Bracket, LH
8 703-08606 Speed Bracket, RH
9 703-08620A Steering Support Bracket
10 703 -08621A Lower Steering Wheel Column
11 703-08622 Lower Column Cover
12 703-08646A Drive Pedal
13 703-08656 Support Bracket, LH
14 703-08675 Brake Pedal
15 703- 08678A Return to Neutral Link
16 703-08690 Reverse Pedal Bracket
17 703-08694A Reverse Pedal
18 703-08754A Forward pedal Bracket
19 710-010 6 Hex Head Screw, 1/4-20 x 1.25
20 710- 0433 Hex Head Screw, 1/4-20 x .625
21 710- 044 84 Hex Washer Screw, ⁄-18 x .750
22 710 -05070 Screw, ⁄-20 x .5
23 710 -0538 Hex Screw, ⁄-18 x .625
24 914 -0 474 Cotter Pin, .125 x .75
25 710 -1245B Hex Screw, ⁄-24 x .875
26 710-30 05 Hex Screw, ⁄-16 x 1.25
27 710 -3008 Hex Screw, ⁄-18 x .75
28 711-05068A Clevis Pin, 5/16 x 4.135
29 7 11- 05670 Clevis Pin, .224 Dia. x .625
30 712- 04 063 Flange Lock Nut, 5/16-18
31 712- 04 064 Flange Lock Nut, ⁄-20
Ref. Part Number Description
32 712 - 0 4065 Flange Lock Nut, 3/8-16
33 714-04040 Bow-Tie Cotter Pin, 72
34 916 -0231 E-Ring, .750
35 717- 0495 4 Steering Shaft
36 717-04960 14-Tooth Spur Gear
37 731-07358B Column Cover
38 732-04580 Extension Spring, .500 Dia. x 2.733 LG
39 732- 0474 8 Extension Spring, .70 OD x 3.035 LG
40 732-04949 Torsion Spring, 1.00 ID x .22
41 73 5- 04117 Reverse Pedal Pad
42 7 35- 04118 A Forward Pedal Pad
43 735-04136 Brake Pedal Pad
44 936-0192 Flat Washer, .535 x .930 x .090
45 736 -0242 Bell Washer, .340 x .872 x .060
46 936-0264 Flat Washer, .330 x .630 x .064
47 936 - 0314 Thrust Washer, .375 x .700 x .030
48 736-3092 Flat Washer, .265 x 1.00 x .030
49 938- 0296 Shoulder Screw, ⁄-18 x .437 x .268
50 938-0380 Shoulder Bolt, ⁄-16 x .500 x .270
51 738-04483 Shoulder Spacer, .375 x .625 x .20
52 738 -04552A Shoulder Spacer, 1.50 x .38 x .38
53 738-0929 Shoulder Screw, ⁄-16 x .496 x 1.445
54 941- 0225 Hex Flange Bearing
55 741- 04543 Hex Flange Bearing, 7/16
56 741-0495 Flange Bearing, .63 ID x .695 OD x .06
57 747-05654A Front Brake Rod
58 948-0209 Flange Bearing, .63 ID x 1.50
59 748-0420 3 Cruise Latch
60 750 -05635 Spacer, .385 ID x .875 OD x .458
61 631- 040 08A Steering Wheel Assembly
62 731- 04039 Steering Wheel Cover
15
Steering Linkage
10
16
18
17
18
30
17
23
31
18
15
17
10
15
18
31
25
13
22
20
21
18
8
16
4
11
21
22
27
19
17
9
12
10
17
29
28
22
21
20
25
3
25
30
21
11
21
22
27
14
5
5
17
20
10
18
23 15
20
21
12
6
16
15
1
15
26
24
15
26
7
24
2
27
21
11
27
21
11
Ref. Part Number Description
1 603-04976A Steering Plate Assembly, RH
2 603-04980A Steering Plate Assembly, LH
3 617-05000AP Steering Gear Assembly, RH
4 617- 05001AP Steering Gear Assembly, LH
5 703-08600 Control Link
6 703-08882 Speed Cam Plate, LH
7 703-08883 Speed Cam Plate, RH
8 710-0276 Carriage Screw, ⁄-18 x 1.00
9 710-0448 4 Hex Washer Screw, ⁄-18 x .750
10 710-0520 Hex Screw, ⁄-16 x 1.50
11 710 -3220 Hex Screw, ⁄-20 x 1.00
12 712-0266A Nut, Jamlock, ⁄-16
13 712- 04063 Flange Lock Nut, 5/16-18
14 712 - 0 4064 Flange Lock Nut, ⁄-20
15 712- 04065 Flange Lock Nut, 3/8-16
16 712-04339 Nut, 5/16-18, Centerlock
17 712-0711 Jam Nut, ⁄-24
18 723-04080 Female Ball-Joint
19 726- 0201 Speed Nut, .3125 ID
20 726-0233 Push Nut, .25 ID x .50 OD
21 736 - 04 511 Flat Washer, .255 x 1.00 x .060
22 736-04639 Washer, .355 x 1.25 x .048
23 736-3010 Flat Washer, .407 x .812 x .135
24 937-3000 Grease Fitting, 3/16
25 738- 04518 Shoulder Screw, ⁄-16 x .500 x .875
26 738-1014 Shoulder Screw, .500 x 1.25 x ⁄-16
27 741-04 425 Ball Bearing, .25 x .625
28 747-05591A Hydro Link, RH
29 747- 056 06A Hydro Link, LH
30 747- 06130 Drag Link, .375 Dia.
31 950 -0535 Spacer, .380 ID x .625 OD x .21
Steering Linkage
17
42” Deck
9
22
20
28
12
39
3
47
49
48
23
37
18
18
11
38
15
41
24
8
19
11
27
40
5
2
36
21
30
41
10
31
6
35
23
4
2
16
46
45
44
45
9
42
44
43
15
14
35
29
34
26 17
9
15
25
13
32
15
15
7
1
33
16
18
42” Deck
Ref. Part Number Description
1 903- 04927A 42” Deck Assembly
2 918-04822A Spindle Assembly
3 631- 0428 8 Discharge Chute Assembly
4 683- 05031 Deck Lift Bracket
5 703-08336C Pivot Idler Bracket
6 703-08705 Bracket, Belt Guard
7 710-0448 4 Hex Washer Head Screw, ⁄-18 x .750
8 710-0573 Hex Cap Screw, ⁄-18 x 1.25
9 710 -1652 Hex Washer Screw, ⁄-20 x .625
10 710-30 05 Hex Cap Screw, ⁄-16 x 1.25
11 710 -3144 Hex Cap Screw, ⁄-16 x 2.00
12 710 -3157A Screw, 7/16-20 x 3.25
13 710 -3178 Carriage Screw, ⁄-16 x .75
14 712 - 0229 Push Nut, 3/8
15 712- 04065 Flange Lock Nut, ⁄-16
16 712 - 0417A Hex Flange Nut, ⁄-18
17 710- 0376 Hex Cap Screw, ⁄-18 x 1.00
18 714-04040 Bow-Tie Cotter Pin, 72
19 917-0 4074 Deck Adjustment Gear
20 917-05121 Electric PTO Clutch
21 921-04041 Water Nozzle Adapter
22 731- 08698 Belt Cover
23 732-04652 Compression Spring, .535 x 1.751
24 732-04960 Extension Spring, .94 Dia. x 7.57
25 73 4- 04155 Deck Ball Wheel, 5.0
Ref. Part Number Description
26 712 - 04063 Flange Lock Nut, 5/16-18
27 736-0262 Flat Washer, .385 x .870 x .092
28 736-0322 Flat Washer, .450 x 1.25 x .164
29 720-05010 Cap, .290 x .500
30 731-07487 Deck Wash Nozzle
31 738-04162C Shoulder Spacer, .884 x .190
32 938-3056 Shoulder Screw, .5 x 2.5 x ⁄-16
33 9 42- 04312 Blade, 2 in 1, 21.23
34 747-05 608 Deck Spring Rod
35 747-06 082 Deck Hanger Rod
36 738-04278 Shoulder Screw, .500 x ⁄-20
37 954- 04033A V-Belt
38 756- 04129B Idler Pulley, 4.25 Dia.
39 756 - 04 511A Idler Pulley, 5.00 Dia.
40 783-06368A Bracket Belt Guard
41 783-07236 Pulley Cap
42 936-0351 Washer, .760 x 1.50 x .030
43 738-1186A Spindle Shaft
44 941- 0919A Ball Bearing
45 750 -04936 Spacer, .792 x 1.060 x 1.860
46 956 -1227 Deck Pulley
47 7 11- 04 84 7B Hinge Pin
48 732-04372 Torsion Spring
49 78 3-06074A Chute Bracket
19
46” Deck
10
21
31
24
19
36
27
2
15
14
40
14
11
20
35 30
34
9
18
4
14
37
26
5
8
22
17
1
39
40
38
23
50
33
2
13
29
25
16
12
45
43
44
41
42
43
46
14
49
48
20
32
15
28
47
7
6
3
46” Deck
Ref. Part Number Description
1 903-04898A 46”Deck Assembly
2 918-05078 Spindle Assembly
3 631- 0428 8 Chute Deector Assembly
4 683- 05031 Deck Lift Bracket
5 703-08612 A Idler Bracket
6 710-0448 4 Hex Washer Screw, ⁄-18 x .750
7 710-30 85 Hex Cap Screw, ⁄-16 x 3.50
8 710-05376 Carriage Screw, ⁄-16 x 1.75
9 710-0573 Hex Cap Screw, ⁄-18 x 1.25
10 710 -1652 Hex Washer Screw, ⁄-20 x .625
11 710-3157A Screw, 7/16-20 x 3.25
12 710 -3178 Carriage Screw, ⁄-16 x .75
13 712- 0229 Push Nut, 3/8
14 712 - 0 4065 Flange Lock Nut, ⁄-16
15 712- 0417A Hex Flange Nut, ⁄-18
16 710-0376 Hex Cap Screw, ⁄-18 x 1.00
17 714-04040 Bow-Tie Cotter Pin, 72
18 917-04074 Deck Adjustment Gear
19 917-05122 Electric PTO Clutch
20 921-04041 Water Nozzle Adapter
21 731- 08698 Belt Cover
22 732-04652 Compression Spring, .535 x 1.751
23 732-04927 Extension Spring, 1.25 OD x 1.751
24 734 -0 4155 Deck Ball Wheel, 5.0
25 712-040 63 Flange Lock Nut, 5/16-18
Ref. Part Number Description
26 736-0262 Flat Washer, .385 x .870 x .092
27 736-0322 Flat Washer, .450 x 1.25 x .164
28 736-3052 Flat Washer, .406 x 1.00 x .105
29 720-05010 Cap, .290 x .500
30 731-07487 Deck Wash Nozzle
31 938-3056 Shoulder Screw, .5 x 2.5 x ⁄-16
32 942-04244A Blade, 2 in 1, 23.25
33 747-05608 Deck Spring Rod
34 747-060 82 Deck Hanger Rod
35 738-04278 Shoulder Screw, .500 x ⁄-20
36 954-04325 V-Belt
37 756 -0 4129B Idler Pulley, 4.25 Dia.
38 75 6- 0 4 511 Idler Pulley, 5.00 Dia.
39 783- 06368A Bracket Belt Guard
40 783-07236 Pulley Cap
41 936-0351 Washer, .760 x 1.50 x .030
42 9 3 8 -1128 Spindle Shaft
43 941- 0919A Ball Bearing
44 750-04936 Spacer, .792 x 1.060 x 1.860
45 75 0 -1343 Spacer, .8 x 1.1 x 2.26
46 756-04356 Deck Pulley
47 7 11- 04 84 7B Hinge Pin
48 732-04372 Torsion Spring
49 78 3-06074A Chute Bracket
50 73 8- 05013A Shoulder Spacer
21
50” Deck
4
20 54
41
24
33
15
43
26
4
21
18
11
1
25
36
14
45
42
7
13
35
10
28
22
5
19
39
45
19
45
32
44
23
19
42
6
40
12
10
57
56
58
58
56
59
55
29
2
60
30
3
27
19
51
52
19
17
53
46
11
48
16
9
37
19
8
16
31
4
47
19
34
19
50
47
49
38
20
22
50” Deck
Ref. Part Number Description
1 603-04947 Belt Cover, RH
2 603-04948 Belt Cover, LH
3 903-05037 50” Deck Assembly
4 918 -0 4125B Spindle Assembly
5 683- 05031 Deck Lift Bracket
6 703-05825C Idler Arm
7 703-08705 Bracket, Belt Guard
8 703-3279 Stop Bracket
9 703-3511B Finger Guard
10 710-0347 Hex Cap Screw, ⁄-16 x 1.75
11 710 -04484 Hex Washer Screw, ⁄-18 x .750
12 710 -0573 Hex Cap Screw, ⁄-18 x 1.25
13 710 -3005 Hex Cap Screw, ⁄-16 x 1.25
14 710 -3144 Hex Cap Screw, ⁄-16 x 2.00
15 710-3157A Screw, 7/16-20 x 3.25
16 710 -3168 Carriage Screw, ⁄-16 x 1.00
17 710 -3178 Carriage Screw, ⁄-16 x .75
18 711- 06092 J-Hook
19 712- 0 4065 Flange Lock Nut, ⁄-16
20 712 - 0 417A Hex Flange Nut, ⁄-18
21 714 - 0162 Cotter Pin, 5.32 x 1.25
22 714-04040 Bow-Tie Cotter Pin, 72
23 917-04074 Deck Adjustment Gear
24 917-05122 Electric PTO Clutch
25 921-04041 Water Nozzle Adapter
26 731-05679 Front Roller
27 731- 07487 Deck Wash Nozzle
28 732-04652 Compression Spring, .535 x 1.751
29 732-04927 Extension Spring, 1.25 OD x 1.751
30 732- 04947A Torsion Spring, 1.323 ID x 2.83 LG
Ref. Part Number Description
31 734 -04155 Deck Ball Wheel, 5.0
32 736 -0262 Flat Washer, .385 x .870 x .092
33 736-0322 Flat Washer, .450 x 1.25 x .164
34 736- 0407 Bell Washer, .45 x 1.0 x .062
35 738 - 04162 C Shoulder Spacer, .884 x .190
36 738-04278 Shoulder Screw, .500 x ⁄-20
37 938-3056 Shoulder Screw, .5 x 2.5 x ⁄-16
38 942- 04053C Blade, 2 in 1, 17.9
39 747-0560 8 Deck Spring Rod
40 747-060 82 Deck Hanger Rod
41 954-05008 V-Belt
42 756 -0 4129B Idler Pulley, 4.25 Dia
43 756 - 04 511A Idler Pulley, 5.00 Dia.
44 783-06368A Bracket, Belt Guard
45 783-07236 Pulley Cap
46 631-05058 Discharge Chute Assembly
47 710-1652 Hex Washer Screw, ⁄-20 x .625
48 712- 0229 Push Nut, 3/8
49 78 3-04 414A Center Skirt
50 783-04 415 RH Skirt
51 711 - 045 65 Hinge Pin
52 732-04372 Torsion Spring
53 703-09219 Chute Bracket
54 7 36-0315 Flat Washer, .76 x 1.50 x .12
55 738-1010A Spindle Shaft, 5.75
56 941-0919A Ball Bearing
57 748-0160A Spacer, .79 x 1.25 x .175
58 750-1000 Spacer, .80 x 1.10 x 1.32
59 750 -1349A Spacer, .79 x 1.82 x .55
60 756- 04216 V-Type Pulley, 5.39
23
54” Deck
4
24
12
30
38
11
23
51
49
23
51
48
23
51
2
4
63
61
60
62
46
47
52
17
39
6
21
34
32
44
16
26
3
10
23
57
53
20
9
58
A
27
19
A
54
23
8
10
56
18
5
23
35
43
1
55
25
13
29
12
12
48
45
50
18
12
4
28
31
40
12
33
12
15
42
24
62
60
59
36
37
23
12
32
41
22
24
7
20
14
54” Deck
Ref. Part Number Description
1 603-05004 Belt Cover, RH
2 603-05005 Belt Cover, LH
3 903-05048 54” Deck Assembly
4 918 - 05137 Spindle Assembly
5 683- 05031 Deck Lift Bracket
6 703-05825C Idler Arm
7 703-2093C Inner Bae
8 703-3279 Stop Bracket
9 703-3511B Finger Guard
10 710-04095 Hex Cap Screw, ⁄-16, 1.00
11 710 -04379A Hex Cap Screw, ⁄-20 x 3.50
12 710 -04484 Hex Washer Screw, ⁄-18 x .750
13 710 -0573 Hex Cap Screw, ⁄-18 x 1.25
14 710 -0623 Hex Washer Screw, ⁄-16 x .75
15 710 -0650 Self Tapping Screw, ⁄-18 x .875
16 710 -1652 Hex Washer Screw, ⁄-20 x .625
17 710-3005 Hex Cap Screw, ⁄-16 x 1.25
18 710 -3 011 Hex Cap Screw, ⁄-16, 2.25
19 710 -3144 Hex Cap Screw, ⁄-16 x 2.00
20 710 -3168 Carriage Screw, ⁄-16 x 1.00
21 711- 06092 J-Hook
22 911 -3314 Roller Pin, 1/2” x 7.31 Lg
23 712-040 65 Flange Lock Nut, ⁄-16
24 712- 0417A Hex Flange Nut, ⁄-18
25 712- 04217 Flange Lock Nut, ⁄-16
26 714 -0162 Cotter Pin, 5.32 x 1.25
27 714-04040 Bow-Tie Cotter Pin, 72
28 714-04043 Bow-Tie Cotter Pin
29 917-04074 Deck Adjustment Gear
30 917-05123 Electric PTO Clutch
31 921-04041 Water Nozzle Adapter
32 731-05679 Front Roller
Ref. Part Number Description
33 731- 07487 Deck Wash Nozzle
34 732-04652 Compression Spring, .535 x 1.751
35 732- 04927 Extension Spring, 1.25 OD x 1.751
36 732- 04947A Torsion Spring, 1.323 ID x 2.83 LG
37 734-04155 Deck Ball Wheel, 5.0
38 736-0322 Flat Washer, .450 x 1.25 x .164
39 738 - 04162C Shoulder Spacer, .884 x .190
40 738- 04278 Shoulder Screw, .500 x ⁄-20
41 938-3056 Shoulder Screw, .5 x 2.5 x ⁄-16
42 942-0677B B lade, 18.5
43 747-0560 8 Deck Spring Rod
44 747- 06082 Deck Hanger Rod
45 750 -05635 Spacer, .385 ID x .875 OD x .458
46 750 - 3119 Spacer, .406 ID x 1.00 OD x .380
47 954-04329 V-Belt
48 756 -0 4129B Idler Pulley, 4.25 Dia
49 756 - 04 511A Idler Pulley, 5.00 Dia.
50 783-04726 Bracket, Idler, Stationary
51 783- 07236 Pulley Cap
52 783-08027 Belt Guard Bracket
53 631-05058 Discharge Chute Assembly
54 712- 022 9 Push Nut, 3/8
55 783-04690B Deck Skirt
56 703- 09219 Chute Bracket
57 711- 04565 Hinge Pin
58 732- 04372 Torsion Spring
59 738-1186A Spindle Shaft, 6.11 Long
60 9 41- 0919A Ball Bearing
61 748-04302 Spacer, .82 x 1.15 x .69
62 750 -06055 Spacer, .792 x 1.06 x 1.52
63 756-04216 V-Type Pulley, 5.39
25
Electrical Schematic
26
Labels
777I23745
LO
1
2
3
4
5
6
7
8
HI
DECK
HEIGHT
777X45529
EMISSION CONTROL INFORMATION
MTD CONSUMER GROUP INC.
This equipment meets U.S. EPA EVP regulations for 2011 model year .
EVP Family: BMTDPNHEQNC1
777D17108
777D17110
777D13929
777X45530
EMISSION CONTROL INFORMATION
MTD CONSUMER GROUP INC.
This equipment meets U.S. EPA EVP regulations for 2011 model year .
EVP Family: BMTDPNHEQCC1
777I22885
OIL
.
T
AT
B
HOURS 1/10
PARK
O /
T
BLAD
P
BRAKE
E
777X42179
CONTACT THE CUB CADET CARE NETW ORK
FOR ALL YO UR
SERVICE NEED S
1-800-965-4CUB
4282
777D16533
777I23747
CHOKE
FAST
SLOW
777I23746
PARK BRAKE/ CRUISE CTRL. LOCK PEDAL
I23746
777I23744
Release Both Transmission
Release Levers Before
Moving Vehicle
To Drive (Transmission Engage), Release Rod By Moving Rod To The Left And Release.
To Push (Transmission Disengage), Pull Out Towards The Right And Release, (Both Sides).
I23744
777S34208
27
Labels
777S32599 (42”)
K
E
E
P
H
A
N
D
S
A
N
D
F
E
E
T
A
S
L
O
P
E
S
G
R
E
A
T
E
R
T
U
P
H
A
N
D
D
O
W
N
.
A
V
O
I
D
S
U
777D17033
R
F
W
Y
A
A
5
N
1
D
T
D
N
E
S
T
R
A
P
G
N
I
T
A
T
O
R
M
O
T
O
N
S
S
O
R
C
A
W
O
M
.
R
U
.
D
E
E
P
S
W
O
L
E
S
U
.
S
N
977I22281 (42”)
777D17127
RZT S
E L E C T R I C Z E R O - T U RN R I D E R
Z E R O - T U R N R I D E R
777S30018 (46”)
777D15397
INCH
UT SYSTEM
DECK
42
CYCLO-C
777I23092 (46”)
777S33184 (50”)
AVOID SERIOUS INJURY OR DEATH
•KEEP HANDS AND FEET AWAY FROM ROTATING PARTS.
•REMOVE OBJECTS THAT CAN BE THROWN BY THE BLADE IN ANY
DIRECTION. WEAR SAFETY GLASSES.
•DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND. NEVER CARRY CHILDREN EVEN WITH BLADES OFF.
•USE EXTRA CAUTION ON SLOPES. DO NOT MOW SLOPES GREATER THAN 15 MOW ACROSS NOT UP AND DOWN. AVOID SUDDEN TURNS, USE LOW SPEED.
READ OPERATOR'S MANUAL. KEEP SAFETY DEVICES IN PLACE AND WORKING.
977I22282 (50”)
777D15399
INCH
46
CYCLO-CUT SYST EM
DECK
777S33896 (42” & 46”)
KEEP HANDS AND FEET
AWAY. DO NOT OPERATE
MOWER UNLESS CHUTE
DEFLECTOR OR ENTIRE
GRASS CATCHER IS IN
ITS PROPER PLACE.
S33896
ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.
777S30503 (50”)
DANGER
KEEP HANDS AND FEET AWAY. DO NOT OPERATE MOWER UNLESS CHUTE DEFLECTOR OR ENTIRE GRASS CATCHER IS IN ITS PROPER PLACE.
ASSEMBLE CHUTE DEFLECTOR TO THIS UNIT BEFORE OPERATING.
S30503
777D15400
50
CYCLO-CUT SYSTEM
INCH
DECK
28

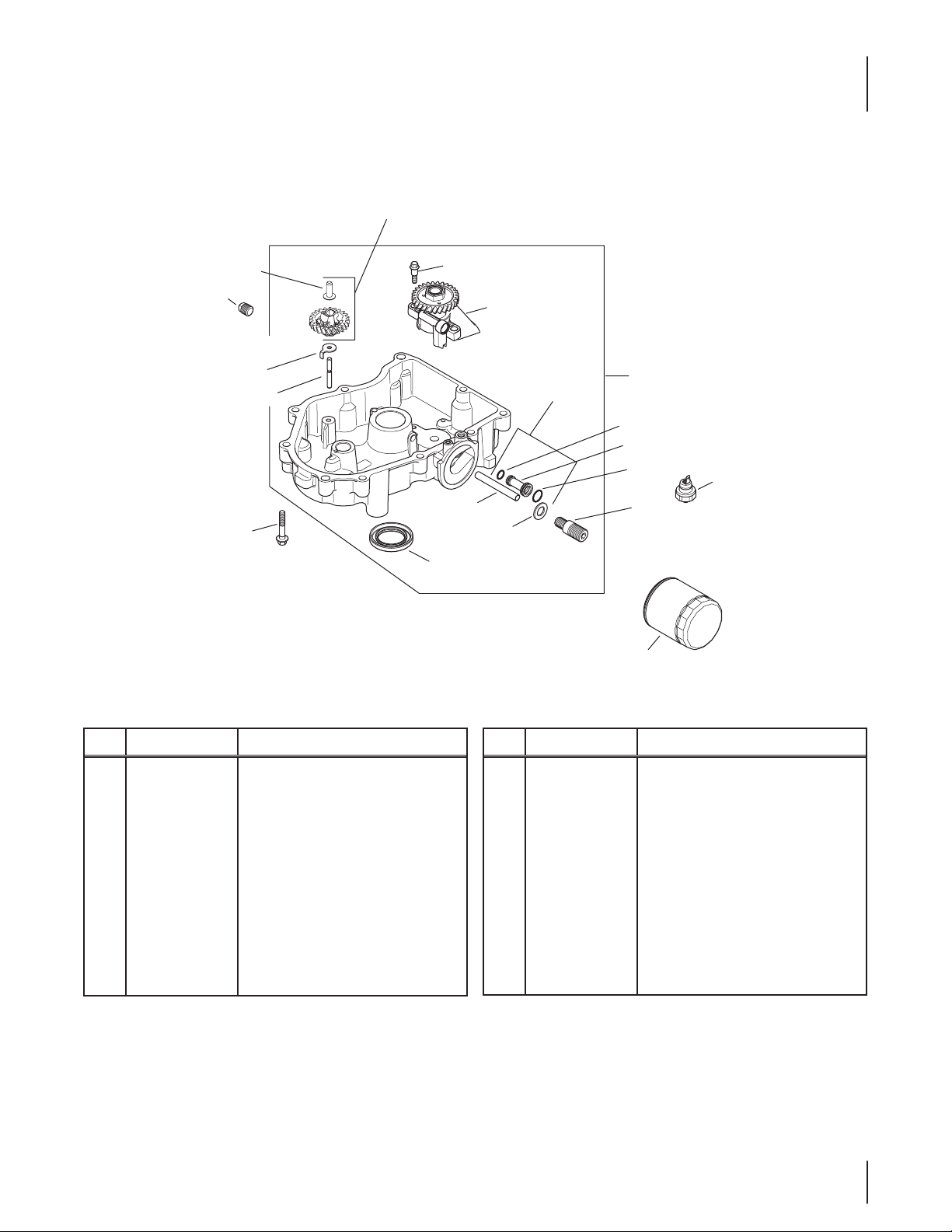

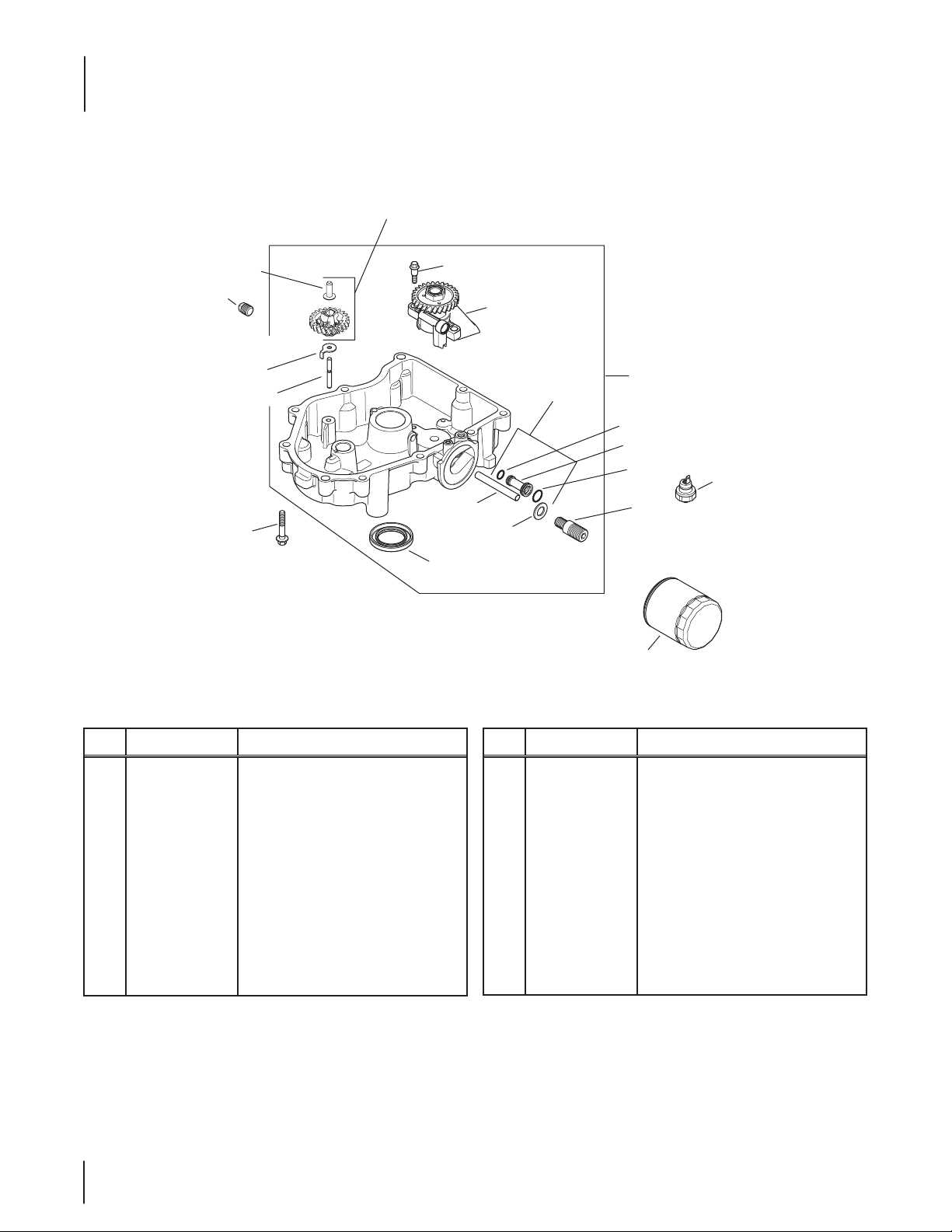

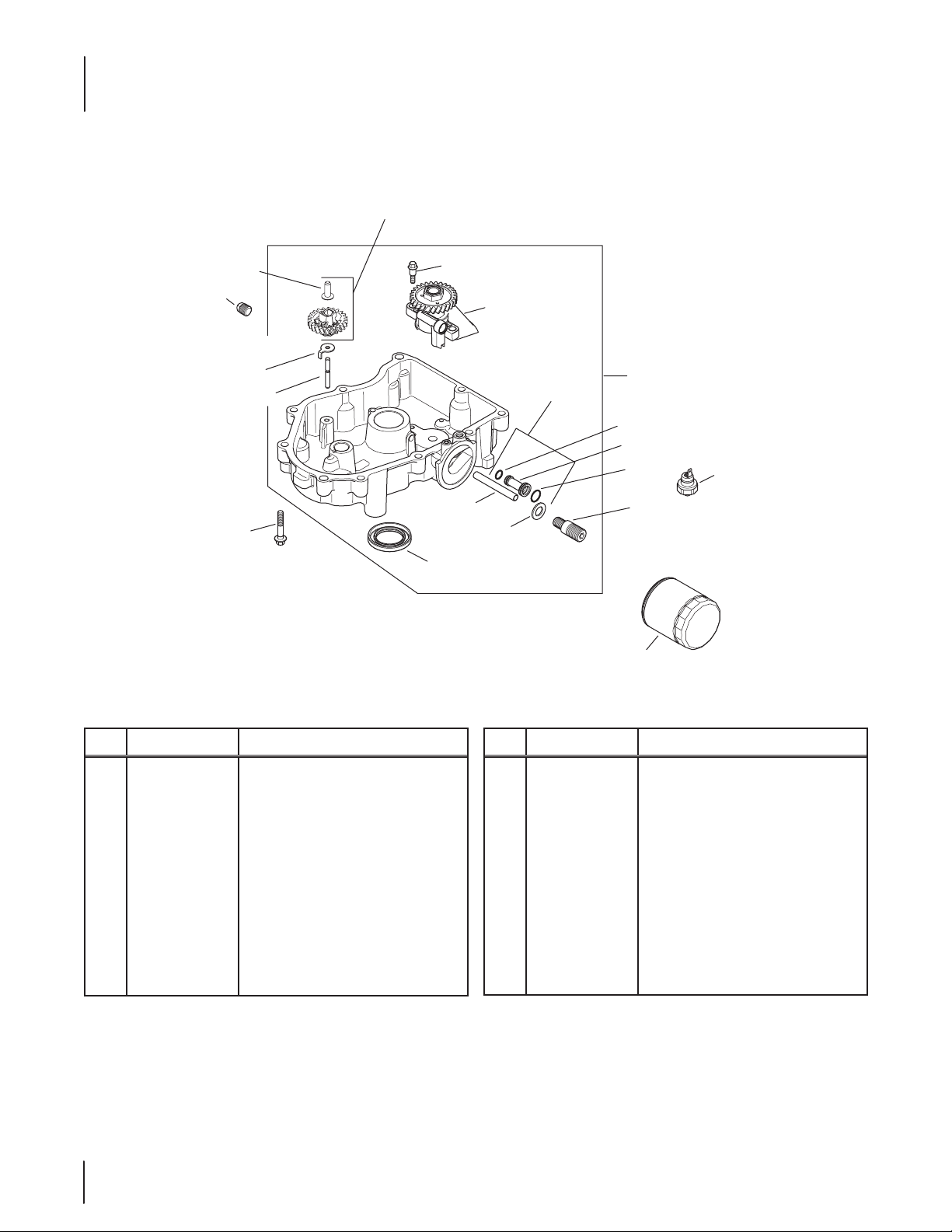

Kohler SV715-3027 Oil Pan Lubrication
8
6
3
7
5
10
11
4
13
9
18
19
12
1
16
15
17
2
14
Ref. Part Number Description
1 K H-24 - 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 K H-25-139 -57-S Square Head Pipe Plug, ⁄
4 K H-32-199-14-S Oil Pan Assembly
5 K H-12-14 4 - 02 Governor Gear Shaft
6 K H-12-3 80- 01 Governor Regulating Pin
7 K H-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 K H-24-153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 K H-32-123 - 01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-12 3-09-S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136-05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-0 99-27-S Oil Pressure Switch
18 KH-32-123-06-S Oil Feed Tube
19 KH-32-153 - 05-S O-Ring
29

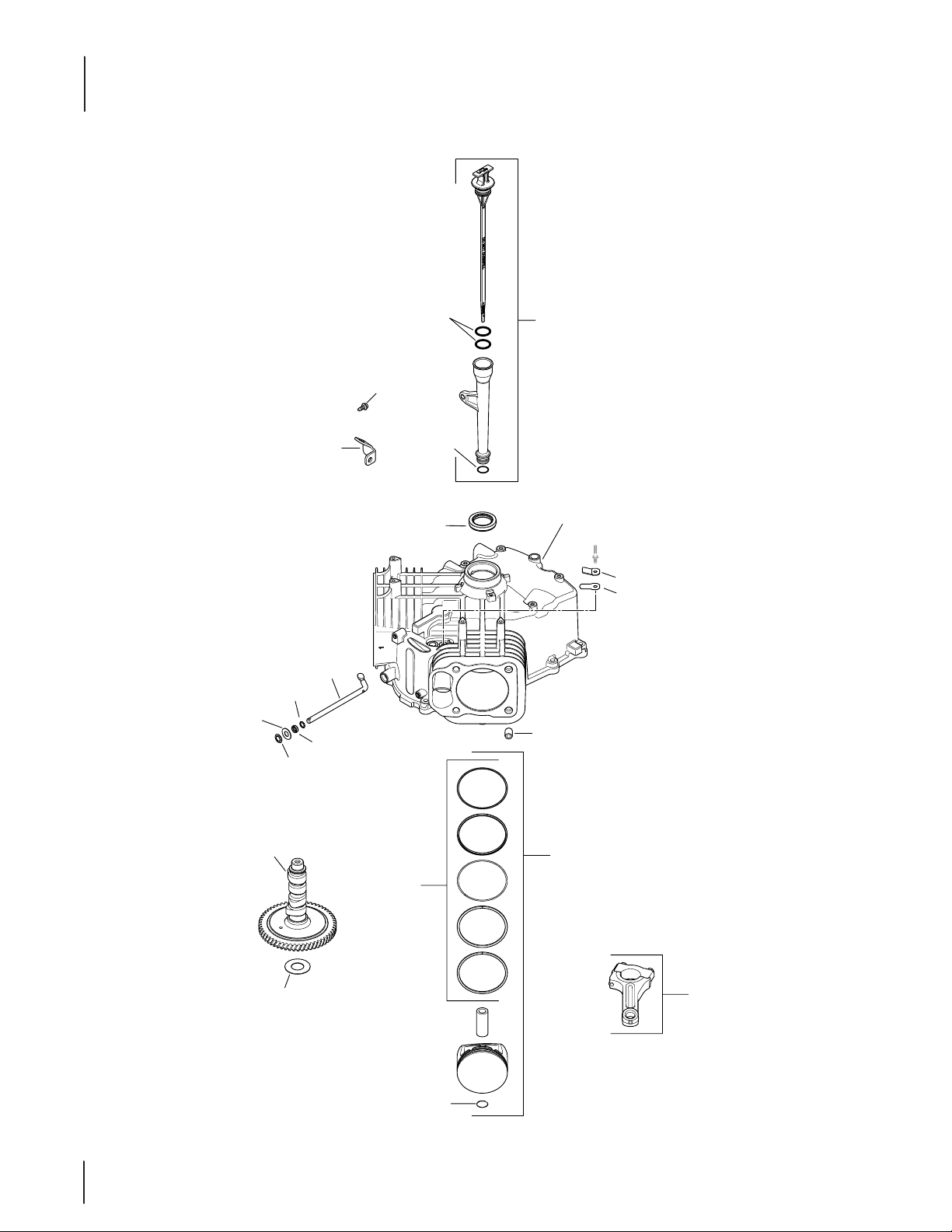

Kohler SV715-3027 Crankcase
12
13
16
4
15
17
21
14
18
2
1
11
9
10
8
20
3
19
7
30
5
6
Kohler SV715-3027 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 K H-24 -380-16-S Locating Pin
4 K H-24 -032-19 -S Oil Seal, 1.78 x 1.26
5 KH-12-422-07-S Camshaft Shim (White, .028)
— KH-12-422-08-S Camshaft Shim (Blue, .03)
— KH-12-422-09-S Camshaft Shim (Red, .032)
— KH-12-422-10 -S Camshaft Shim (Yellow, .034)
— KH-12-422-11-S Camshaft Shim (Green, .036)
— KH-12-422-12-S Camshaft Shim (Gray, .038)
— KH-12-422-13-S Camshaft Shim (Black, .04)
6 K H-24- 018-01-S Piston Pin Retainer
7 K H-24-067-30 -S Connecting Rod (STD)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, ⁄
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24 -126 -19 Oil Fill Tube Bracket
13 KH-M- 545013-S Flange Screw, M5 x .8 x 13
14 KH -M-931010-S Flat Washer, 9mm
15 KH-32-755- 04-S Dipstick & Tube Kit
— KH-32-038-08-S Dipstick Only
— KH-32-123-11-S Tube Only
16 KH -25-153 - 09-S O-Ring
17 K H-12-153 - 01-S Lower Oil Fill Tube O-Ring
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston W/ Ring Kit (STD)
— KH-25 - 874 -02-S Piston W/ Ring Kit (0.08)
— KH-25 - 874 -03-S Piston W/ Ring Kit (0.25)
20 KH -24-108 -14-S Ring Set (STD)
— KH-24-108-15 -S Ring Set (.08)
— KH-24-108-16-S Ring Set (.25)
21 N /A Crankcase (Use Short Block)
31

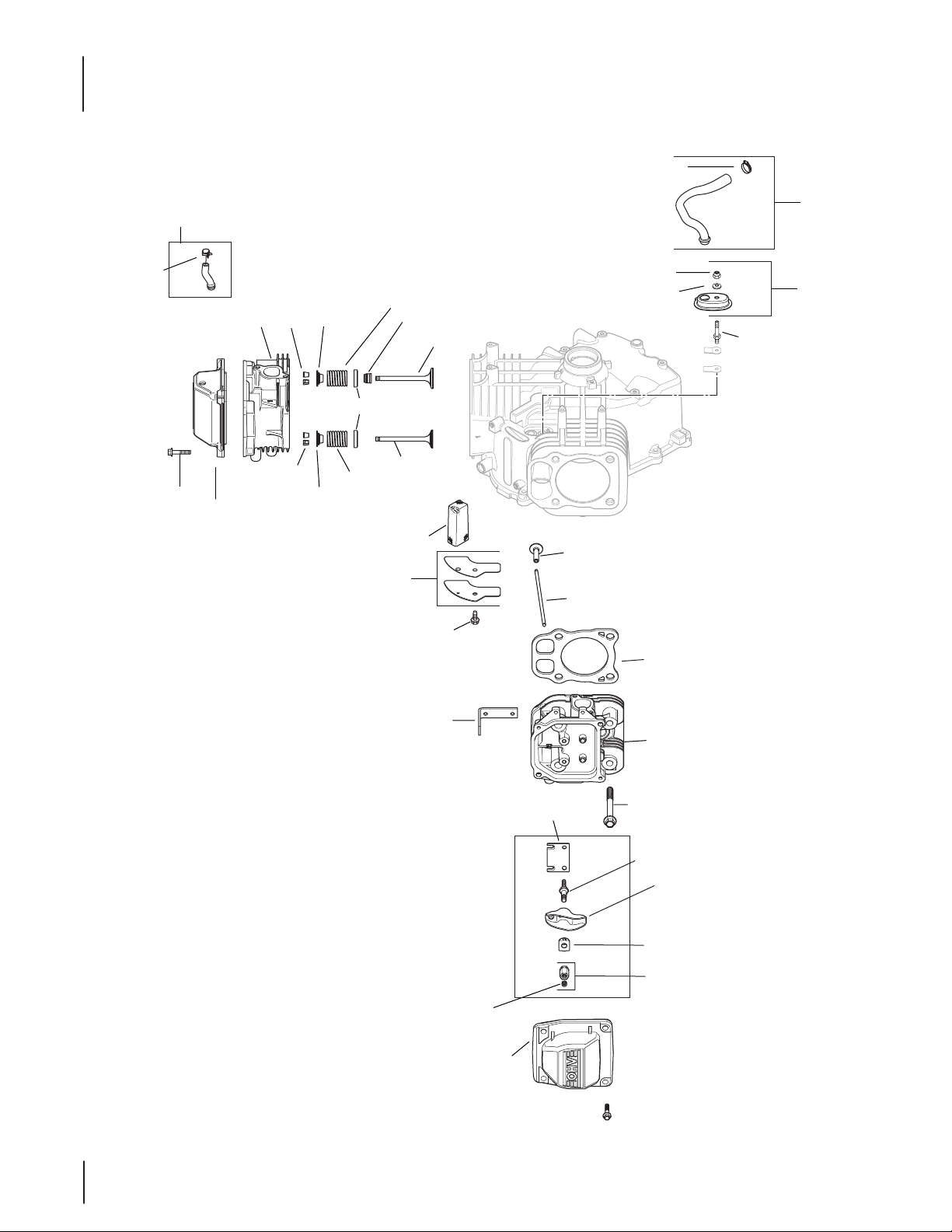

Kohler SV715-3027 Head/Valve/Breather
25
7
6
29
28
30
17
9
27
1
33
2
1
27
33
3
5
4
26
12
16
24
15
34
10
11
13
18
8
32
32
31
19
14
20
21
23
22
Kohler SV715-3027 Head/Valve/Breather
Ref. Part Number Description
1 K H-12-755-03 Retainer Kit
2 K H-2 35011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 K H-24- 016-01 Exhaust Valve (STD)
5 K H-24- 017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 K H-25-237-31-S Hose Clamp, ⁄
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 K H-M-547050 -S Lock Nut, M5 x 8
10 K H-32- 468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tapp et
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
18 KH-32-318-14-S
19 KH-32-146 -09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 K H-32-186-03-S Rocker Arm
22 KH -32-10 0 - 05-S Hex Nut Assembly (Inc. #32)
23 KH-25-59 9-01-S Rocker Arm Pivot
24 K H- 32- 411 - 04 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH -25-086 -374-S Pan Head Screw
29 KH -25 -237-01-S Hose Clamp
30 KH -25-0 96-10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-086-168-S Set Screw
33 KH-25-173-28 -S Valve Spring Cap
34 KH-25-445-03-S Lifting Strap
NS KH-32-755-03-S Cylinder Head Hardware Kit
Cylinder Head Assembly Kit, #1 (Inc. Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc. Exhaust Mounting Hardware)
33

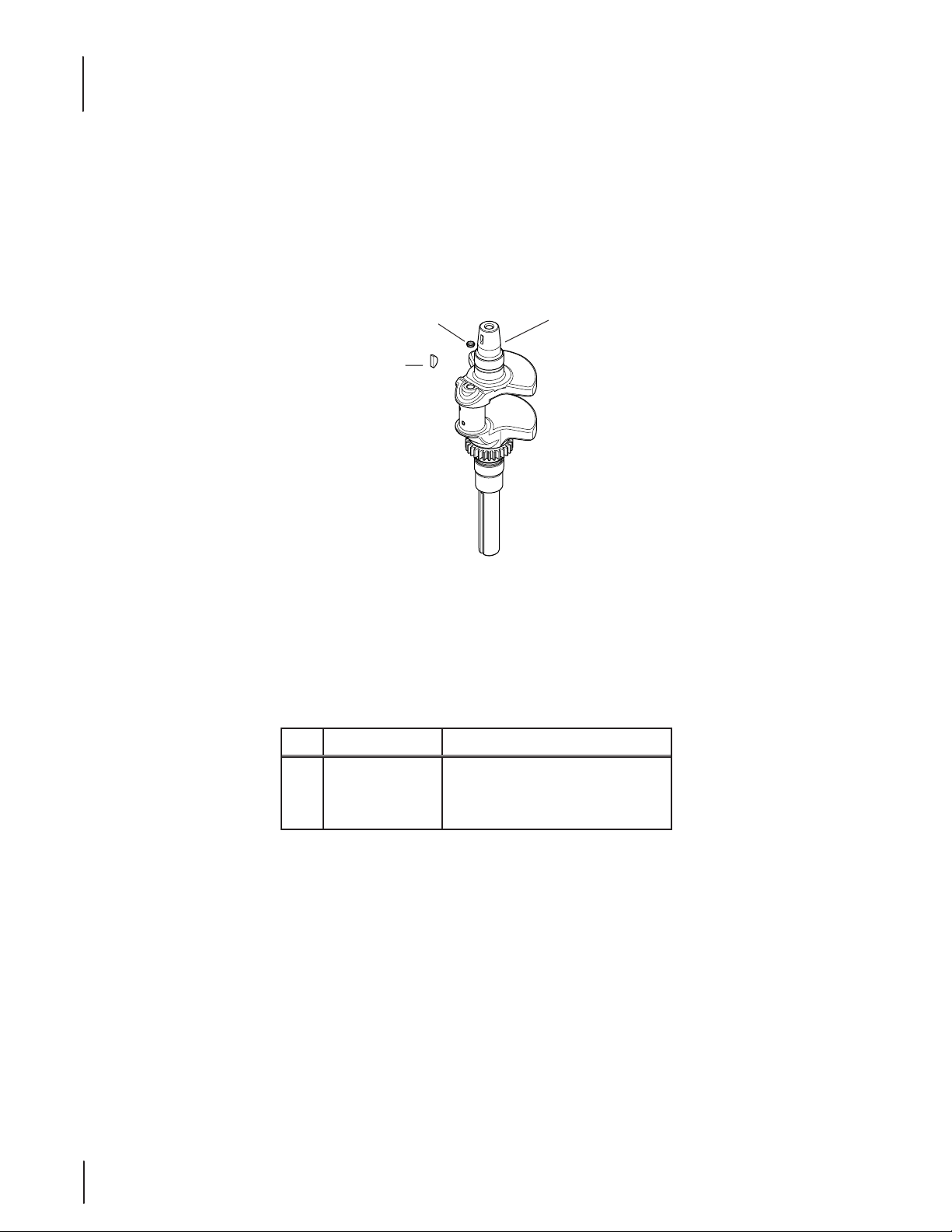

Kohler SV715-3027 Crankshaft
1
3
Ref. Part Number Description
2
34
1 KH-52-139-09-S Cup Plug
2 KH-32-014-313-S Crankshaft
3 K H-X-43-1-S Key, 1/8” x 1/2”

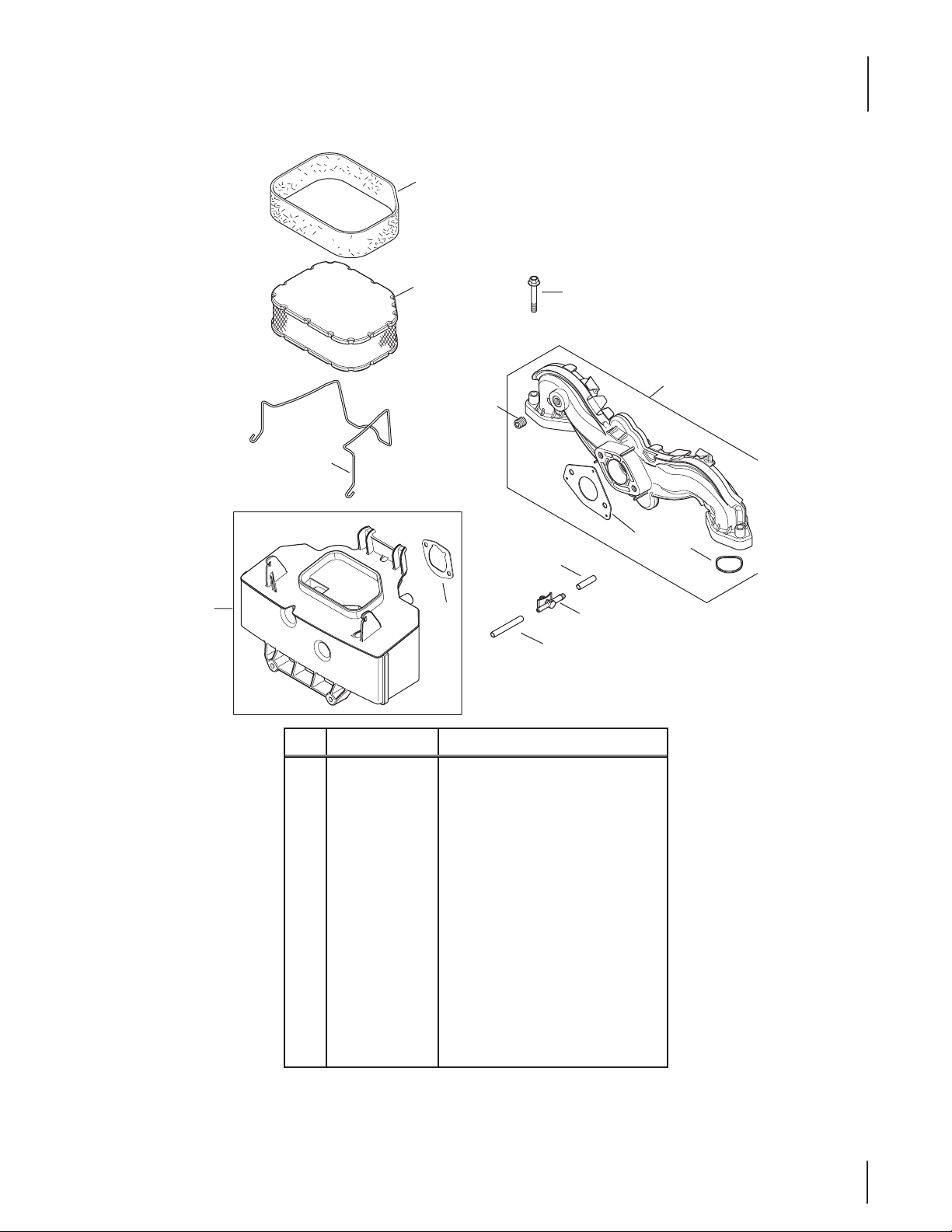

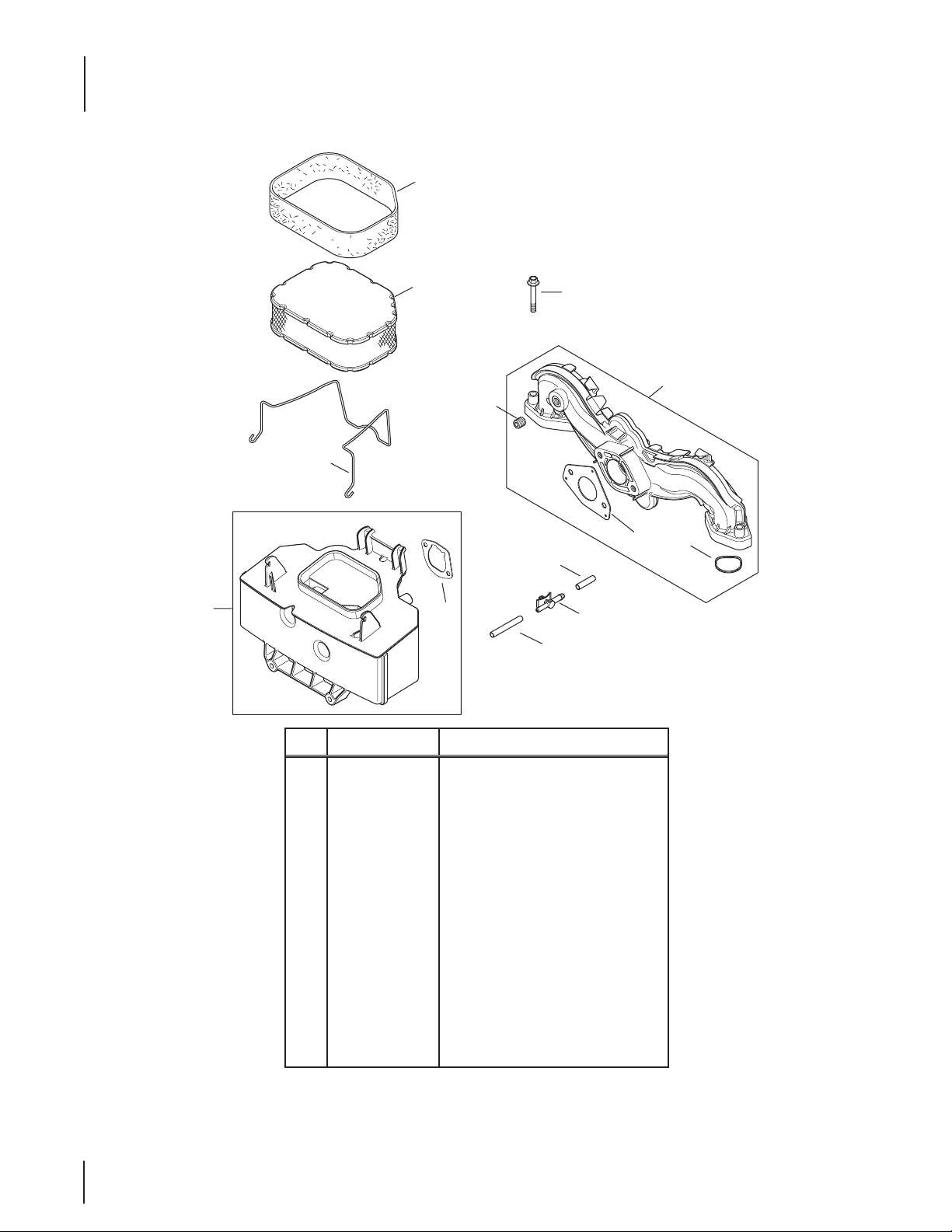

Kohler SV715-3027 Air Intake/Filtration
2
4
6
5
11
3
13
12
8
0
1
7
9
Ref. Part Number Description
1 KH-24- 041-14 Air Cleaner Base Gasket
2 KH-32-883-03-S1 Pre-Cleaner Element
3 KH-32-344-02-S Air Cleaner Element Latch
4 KH-32-883-03-S1 Air Filter Element
KH-24-164-91-S
5
6 KH-M- 6510 40-S Flange Screw, M6 x 1.0 x 40
7 KH-25-155-51-S Evaporative Connector
8 KH-25-173-33-S Evaporative Mask
9 K H-25-326- 08-S Evaporative Hose, 20”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-139 -6 0 -S Pipe Plug, ⁄
12 KH-24-041-52-S Carburetor Gasket
13 KH-24-153-27-S Intake Port O-Ring
Intake Manifold Kit
35

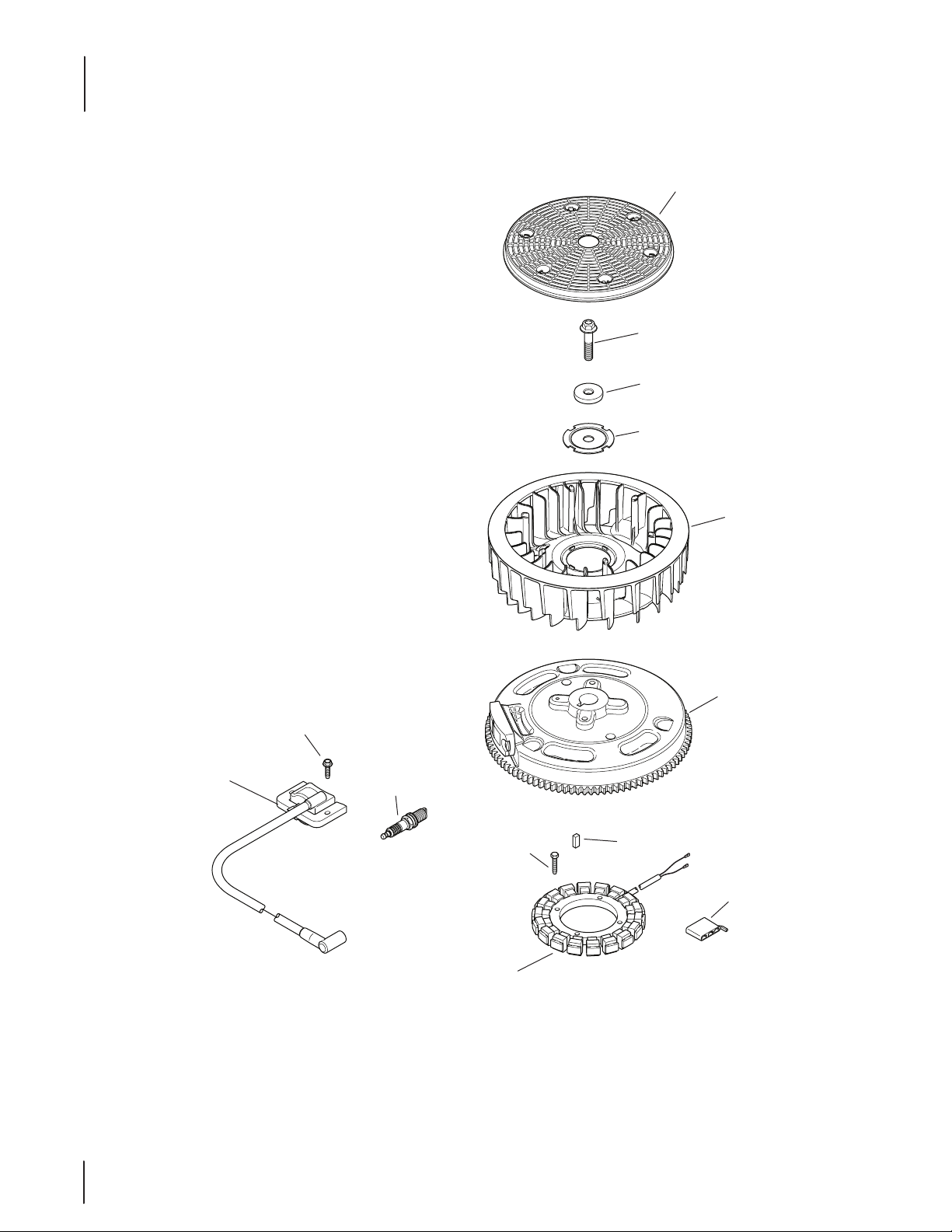

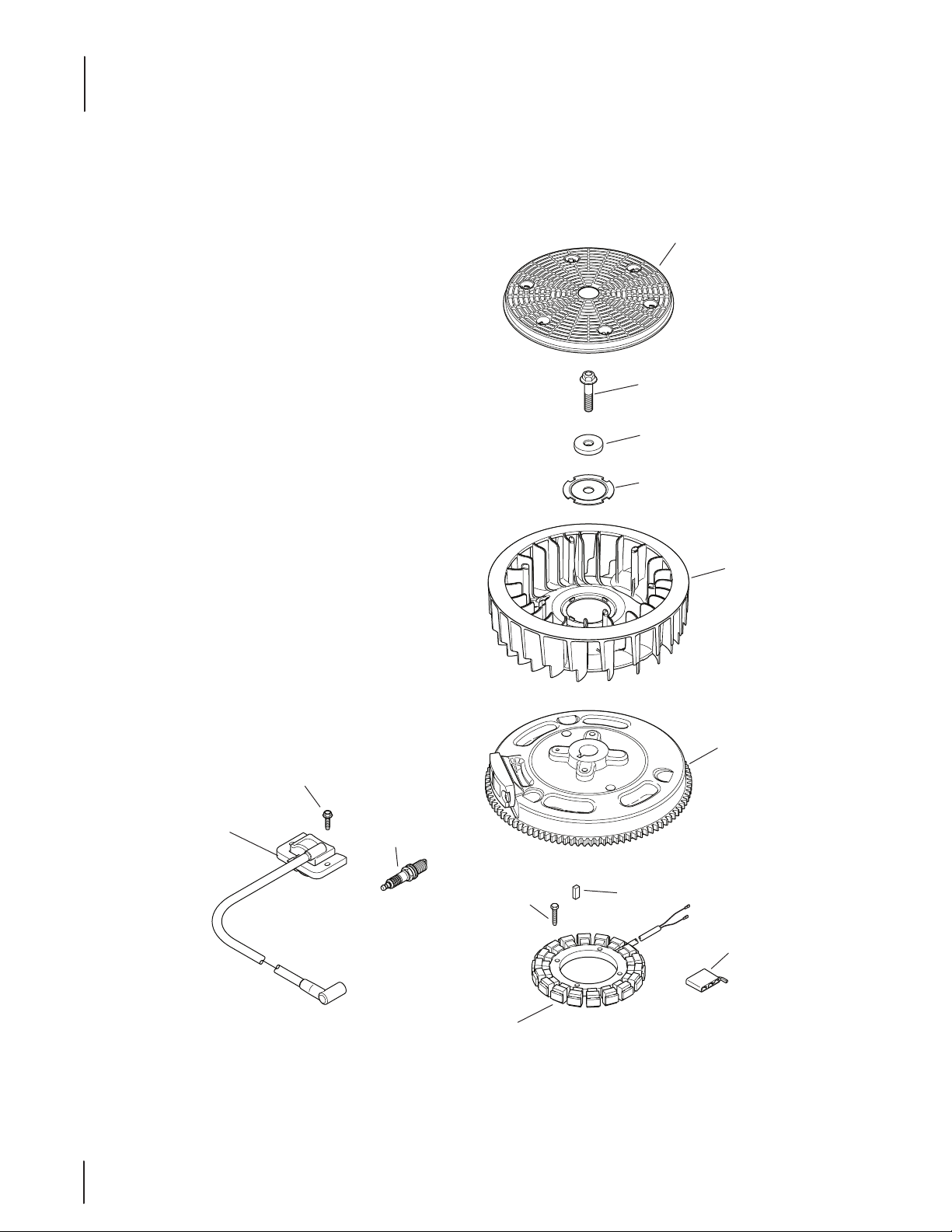

Kohler SV715-3027 Ignition/Electrical
10
4
6
8
9
11
12
7
1
3
2
5
13
36
Kohler SV715-3027 Ignition/Electrical
Ref. Part Number Description
1 759 -3336 Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 K H-25 -086 -361-S Hex Flange Screw
5 K H-25-340 -04 -S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 K H-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25 -454- 03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
37

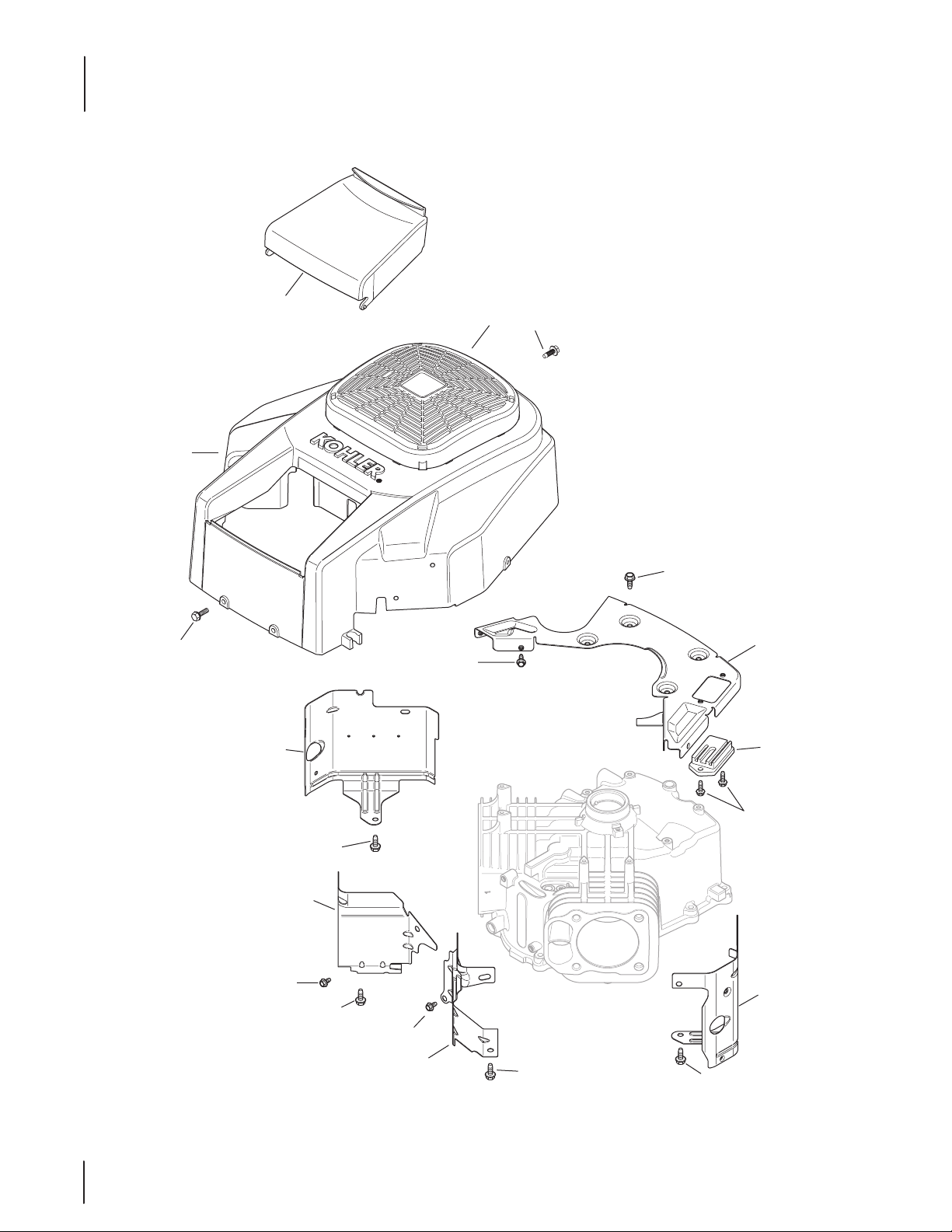

Kohler SV715-3027 Blower Housing & Baffles
11
2
1
10
12
4
7
5
4
14
38
4
13
9
3
7
3
8
7
13
6
Kohler SV715-3027 Blower Housing & Baffles
Ref. Part Number Description
1 KH-32-027-08-S Blower Housing Kit
2 KH-32-096-08-S Air Cleaner Cover
3 K H-M -0545010 Flange Screw, M5 x .8 x 10
4 K H-M -545016-S Flange Screw, M5 x .8 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 K H-32- 063-10 -S Cylinder Barrel Bae, #1 Side
11 KH-24 -0 86-12 Screw, M6 x 1.7 x 18
12 KH-32-314-05-S Fixed Guard
13 KH-25- 086-158 -S Flange Screw, M6 x 1.0 x 10
14 KH-41-403-10-S Regulator/Rectier
NS K H- 32-113 -11- S Fixed Guard Decal
KH -41- 037-10 -S
NS
Nameplate Service
39

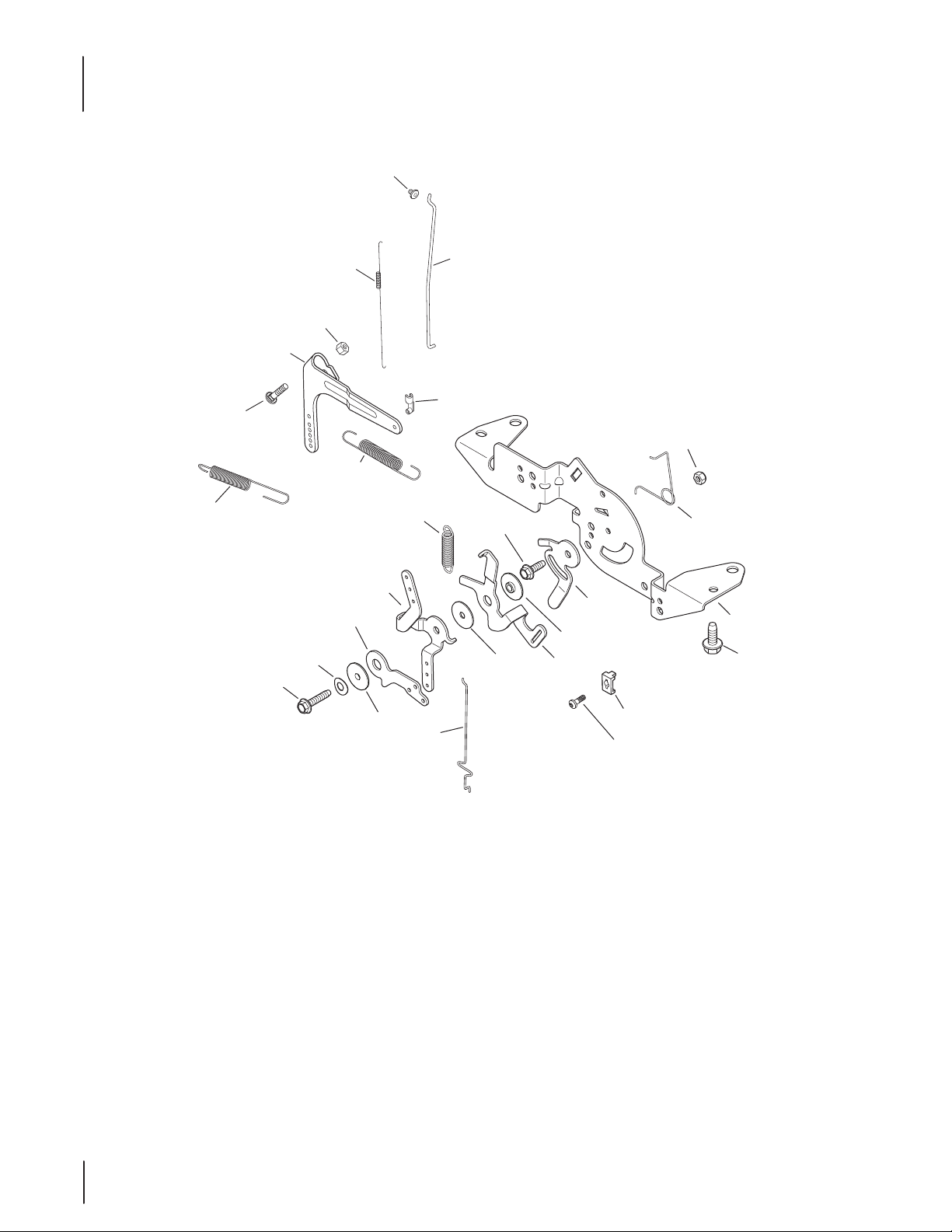

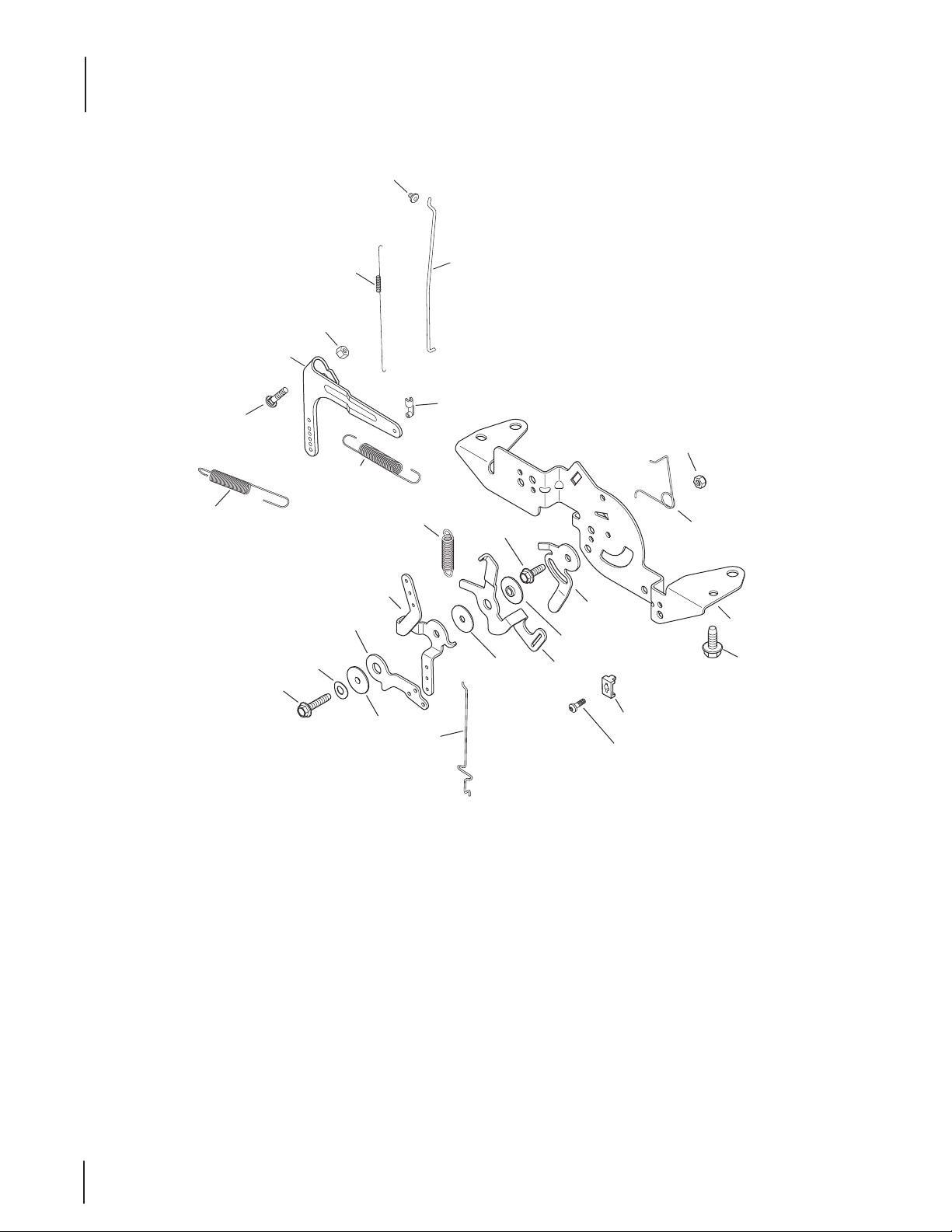

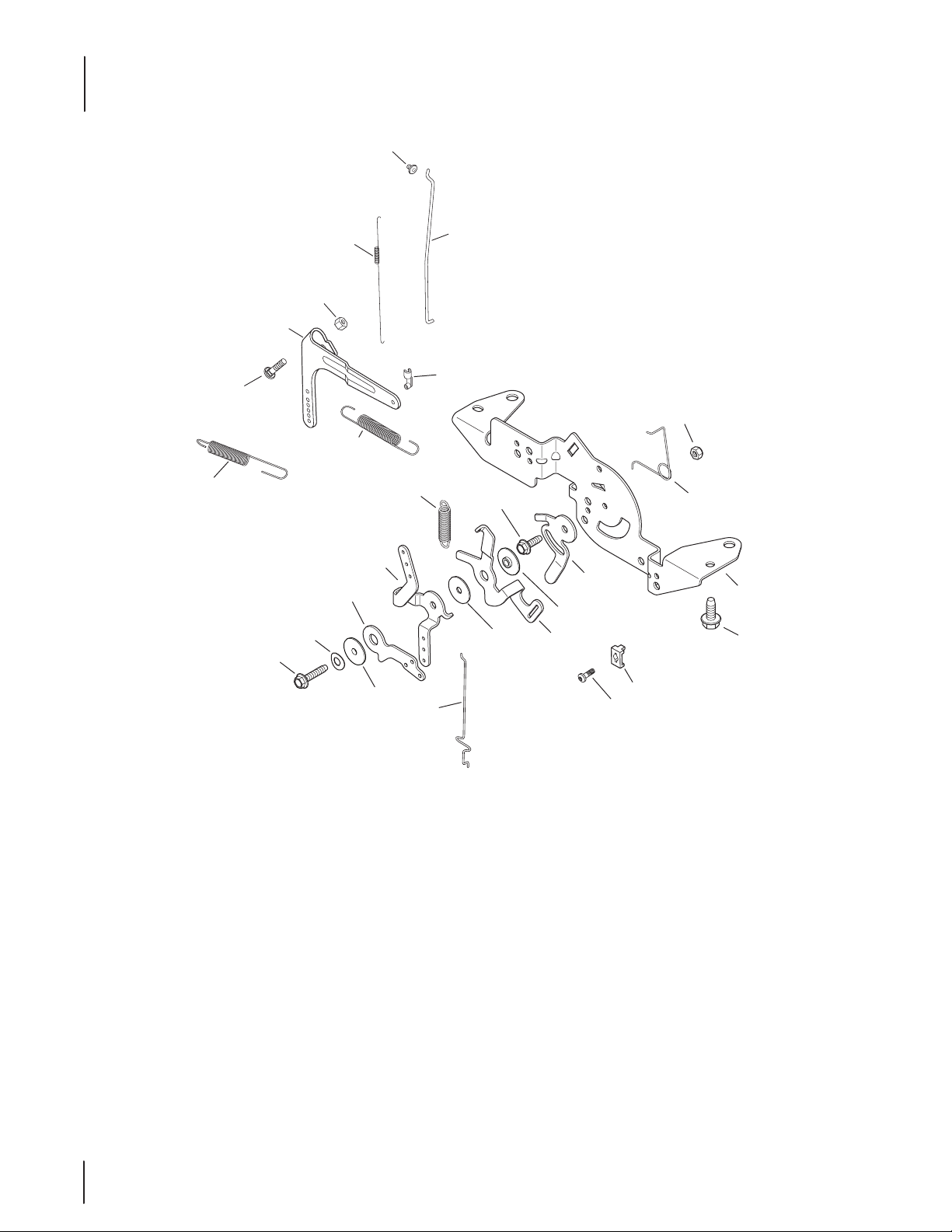

Kohler SV715-3027 Engine Controls
5
26
4
3
2
1
25
22
21
20
19
18
6
7
8
9
10
11
17
24
15
16
23
40
16
14
12
13
Kohler SV715-3027 Engine Controls
Ref. Part-Number Description
1 K H-24-211-03-S Bolt, M6 x 1.0 x 25
2 KH-24-090-51-S Governor Lever
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 K H-25-158 -08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 K H-25-158-11 Throttle Linkage Bushing
8 K H-M-547050 -S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04 -S Control Bracket
11 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
12 K H-12-237- 01 Cable Clamp
13 KH-24-086-43-S Screw, M5 x .8 x 16
14 KH -24 - 079 -22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH -24 -112-27-S Control Assembly Spacer
17 KH-24-4 68- 01 Flat Washer, 5.5mm
18 KH-25 - 086-151-S Screw, M5 x .8 x 25mm
19 KH-41-468-03 Spring Washer, ⁄
20 KH-32-090 -12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH- M-545016-S Flange Screw, M5 x .8 x 16
25 KH-24-089-55-S Governor Spring
26 KH-24-08 9 -18 Governor Spring
41

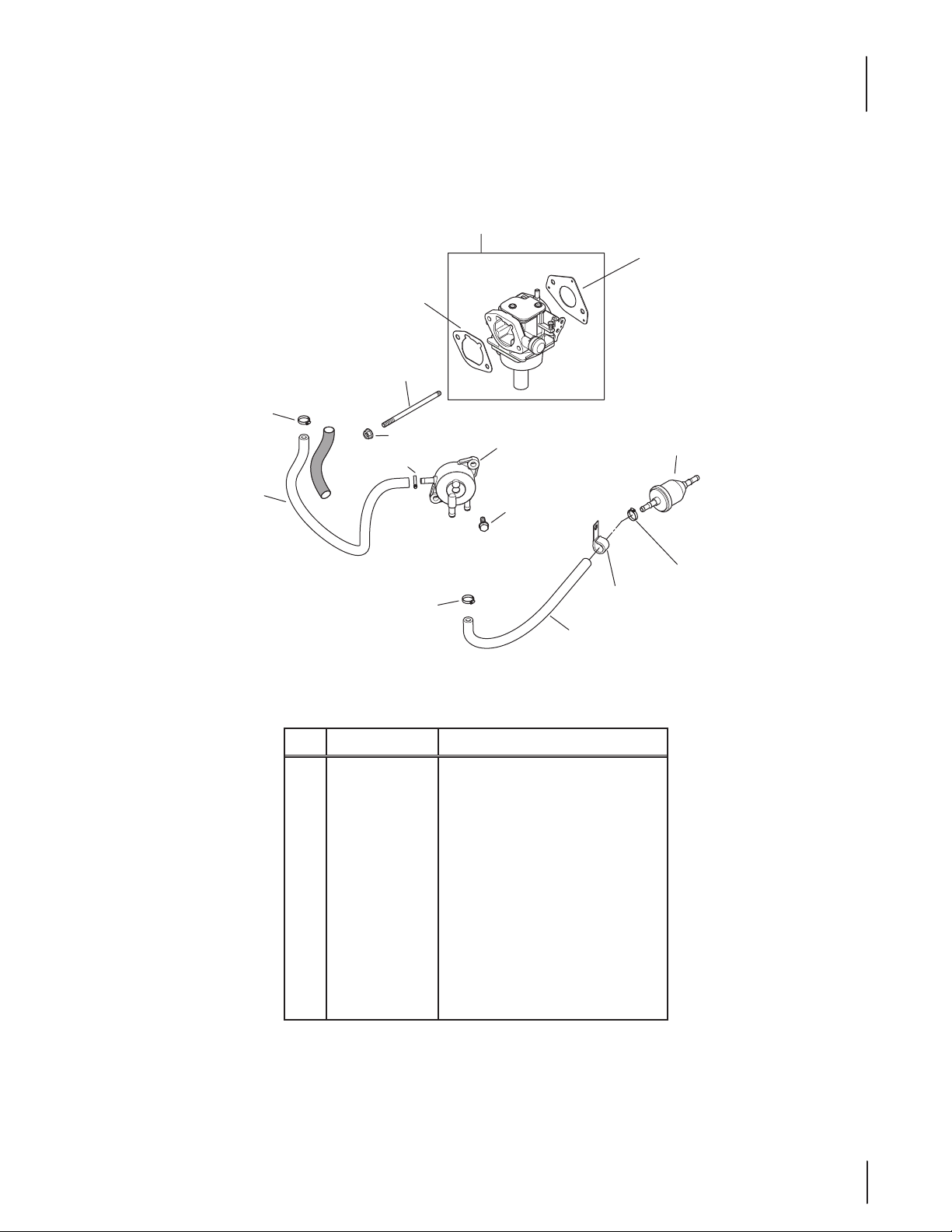

Kohler SV715-3027 Fuel System
7
1
10
9
2
3
5
8
7
6
7
Ref. Part-Number Description
1 KH-32-853-22-S Carburetor Kit
2 K H-M -629105-S Stud, M6 x 1.0 x 106
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 K H-24-086 -12 Tap Screw, M6 x 1.7 x 18
5 K H-24 -393 -16 Fuel Pump
6 K H-2 5-111- 81-S Fuel Line
7 K H-25-237-31-S Hose Clamp, ⁄
8 K H-25-050 -22-S1 Fuel Filter
9 K H-24 -0 41-14 Air Cleaner Base Gasket
10 K H-24 -041-52-S Carburetor Gasket
11 KH-47-154-01-S Cable Clip
4
7
11
6
42

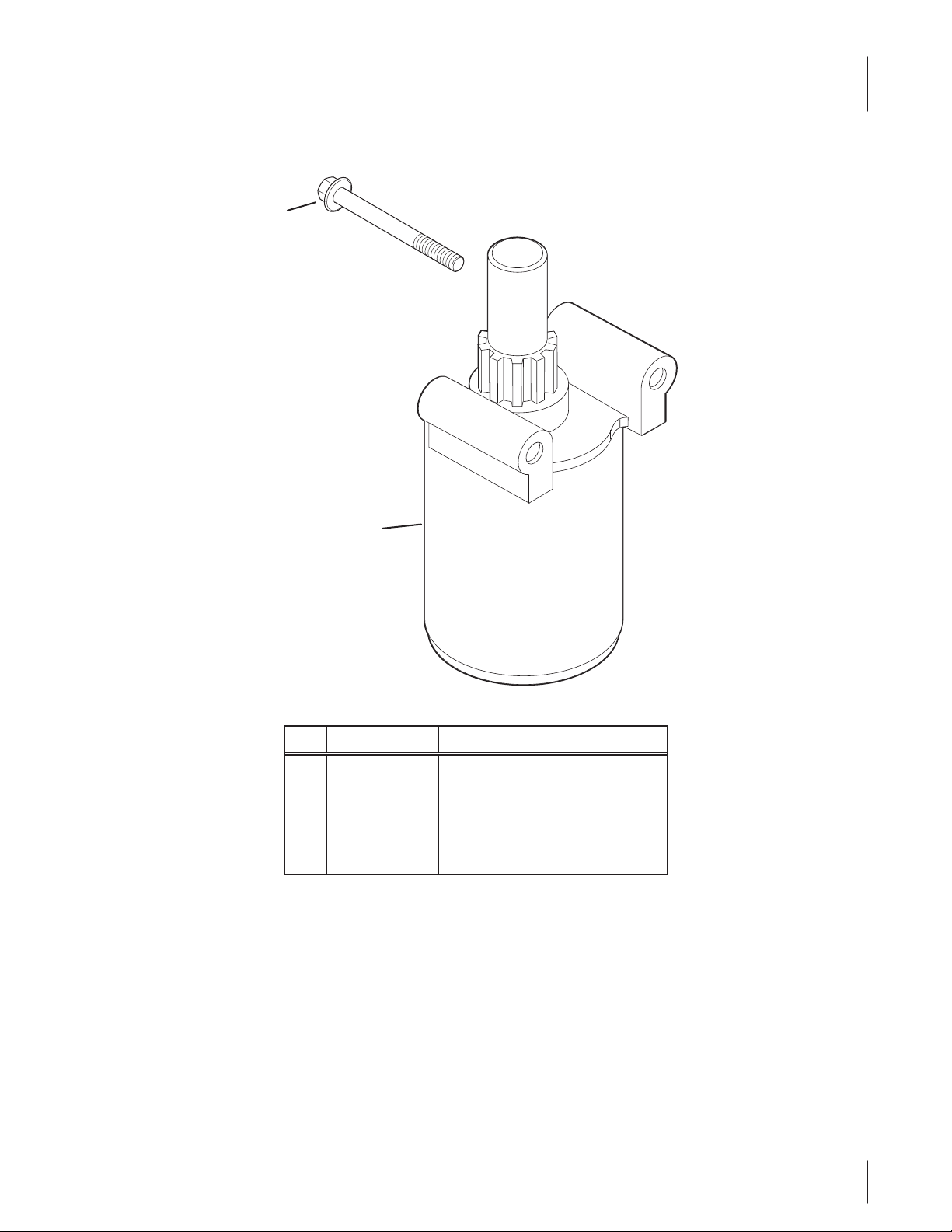

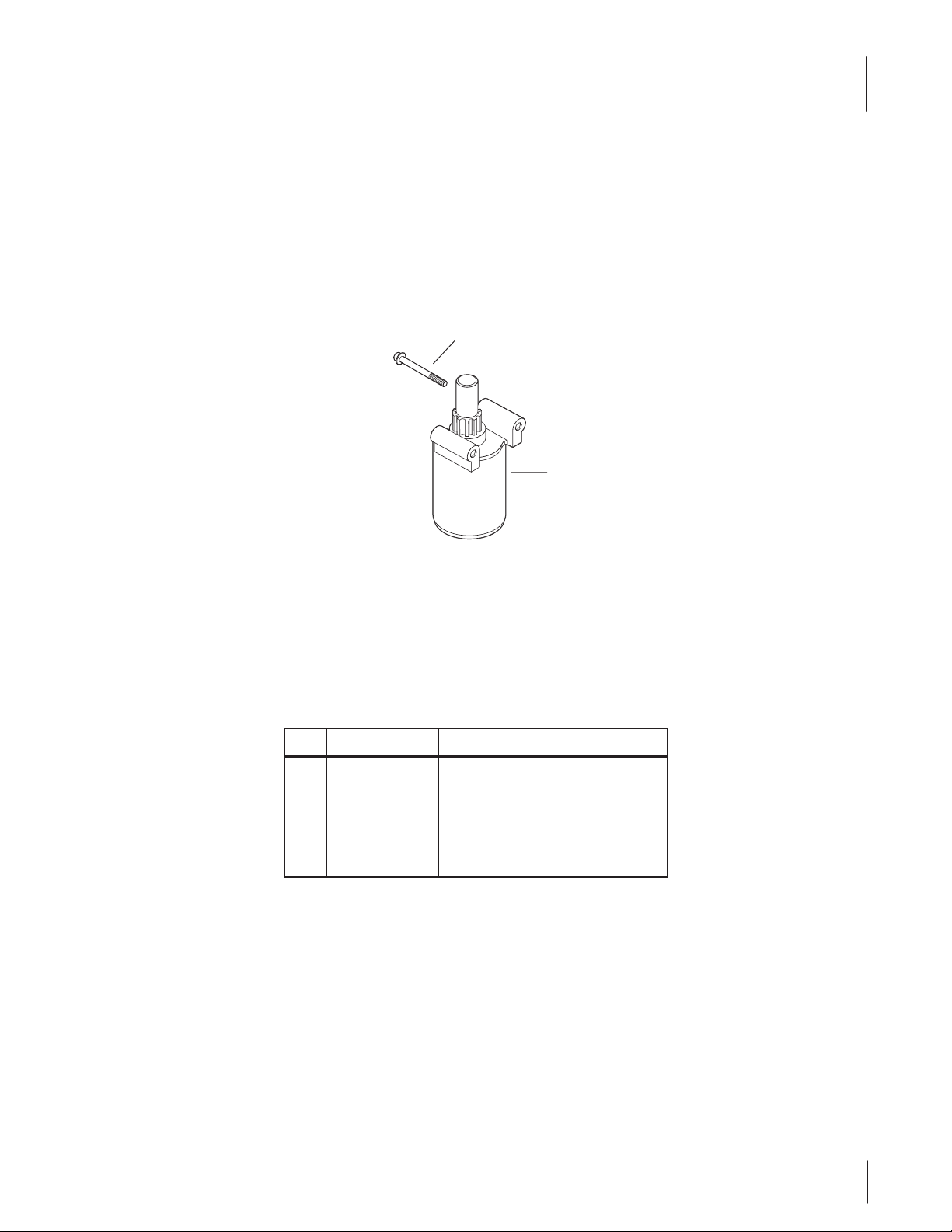

Kohler SV715-3027 Starting System
2
1
Ref. Part Number Description
1 KH-32-098-04-S Starter Assembly
2 K H-M -851080 -S Flange Screw, M8 x 1.25 x 80
— KH-12-243 -0 4 -S Brush Assembly
— KH -32-211-01-S Thru Bolt
— KH -32-227-01-S End Cap
43
Kohler SV715-3027 Labels
2
1
Artwork is representative.
Actual labels may differ depending on model and specification number.
Ref. Part Number Description
1 K H-2 5-113 -39 -S Clear Laminate Decal
2 K H-32 -113-7 6 -S Decal, 22 HP
44
This page left intentionally blank.
45
Kohler SV720-3050 Crankcase
12
13
16
17
4
15
21
14
18
2 1
11
9
10
8
20
3
19
7
46
5
6
Kohler SV720-3050 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 K H-24 -380-16-S Locating Pin
4 K H-24 -032-19 -S Oil Seal, 1.78 x 1.26
5 KH-12-422-07-S Camshaft Shim (White, .028)
— KH-12-422-08-S Camshaft Shim (Blue, .03)
— KH-12-422-09-S Camshaft Shim (Red, .032)
— KH-12-422-10 -S Camshaft Shim (Yellow, .034)
— KH-12-422-11-S Camshaft Shim (Green, .036)
— KH-12-422-12-S Camshaft Shim (Gray, .038)
— KH-12-422-13-S Camshaft Shim (Black, .04)
6 K H-24- 018-01-S Piston Pin Retainer
7 K H-24-067-30 -S Connecting Rod (STD)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, ⁄
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24 -126 -19 Oil Fill Tube Bracket
13 KH-M- 545013-S Flange Screw, M5 x .8 x 13
14 KH -M-931010-S Flat Washer, 9mm
15 KH-32-755- 04-S Dipstick & Tube Kit
— KH-32-038-08-S Dipstick Only
— KH-32-123-11-S Tube Only
16 KH -25-153 - 09-S O-Ring
17 K H-12-153 - 01-S Lower Oil Fill Tube O-Ring
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston W/ Ring Kit (STD)
— KH-25 - 874 -02-S Piston W/ Ring Kit (0.08)
— KH-25 - 874 -03-S Piston W/ Ring Kit (0.25)
20 KH -24-108 -14-S Ring Set (STD)
— KH-24-108-15 -S Ring Set (.08)
— KH-24-108-16-S Ring Set (.25)
21 N /A Crankcase (Use Short Block)
47

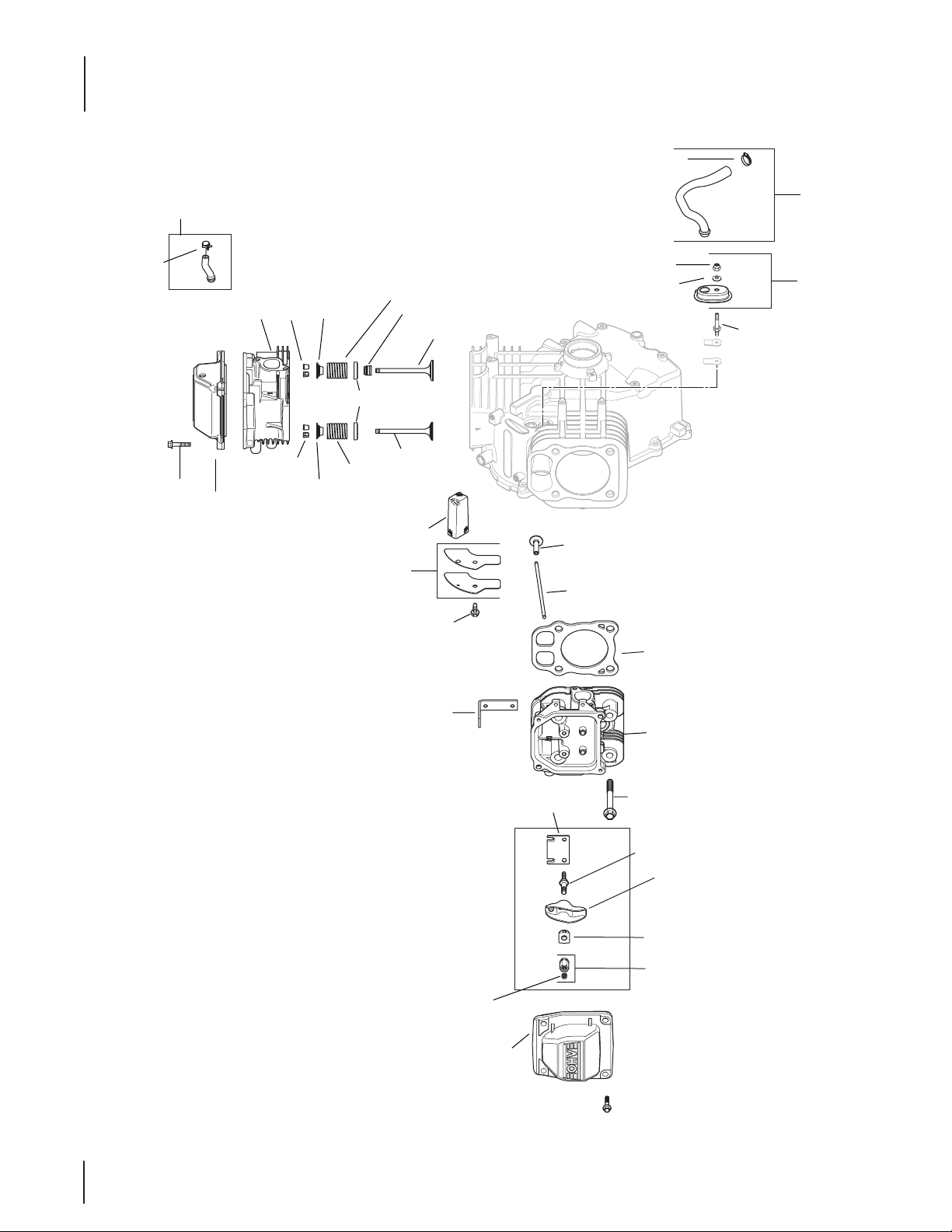

Kohler SV720-3050 Head/Valve/Breather
25
7
6
29
28
30
17
9
27
1
33
1
27
33
3
5
2
4
26
12
16
24
15
32
10
11
13
18
8
48
31
19
14
20
21
23
22
Kohler SV720-3050 Head/Valve/Breather
Ref. Part Number Description
1 K H-12-755-03 Retainer Kit
2 K H-2 35011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 K H-24- 016-01 Exhaust Valve (STD)
5 K H-24- 017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 K H-25-237-31-S Hose Clamp, ⁄
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 K H-M-547050 -S Lock Nut, M5 x 8
10 K H-32- 468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tapp et
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
18 KH-32-318-14-S
19 KH-32-146 -09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 K H-32-186-03-S Rocker Arm
22 KH -32-10 0 - 05-S Hex Nut Assembly (Inc. #32)
23 KH-25-59 9-01-S Rocker Arm Pivot
24 K H- 32- 411 - 04 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH -25-086 -374-S Pan Head Screw
29 KH -25 -237-01-S Hose Clamp
30 KH -25-0 96-10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-445-03-S Lifting Strap
33 KH-25-173-28 -S Valve Spring Cap
NS KH-32-755-03-S Cylinder Head Hardware Kit
Cylinder Head Assembly Kit, #1 (Inc. Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc. Exhaust Mounting Hardware)
49
Kohler SV720-3050 Oil Pan/Lubrication
8
6
3
7
5
10
11
4
13
9
18
19
12
1
16
15
17
2
14
Ref. Part Number Description
1 K H-24 - 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 K H-25-139 -57-S Square Head Pipe Plug, ⁄
4 K H-32-199-14-S Oil Pan Assembly
5 K H-12-14 4 - 02 Governor Gear Shaft
6 K H-12-3 80- 01 Governor Regulating Pin
7 K H-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 K H-24-153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
50
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 K H-32-123 - 01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-12 3-09-S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136-05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-0 99-27-S Oil Pressure Switch
18 KH-32-123-06-S Oil Feed Tube
19 KH-32-153 - 05-S O-Ring
Kohler SV720-3050 Starting System
1
2
Ref. Part Number Description
1 K H-M -851080 -S Flg. Screw, M8 X 1.25 X 80
2 KH-32-098-04-S Starter Assembly
— KH-12-243 -0 4 -S Brush Assembly
— KH -32-211-01-S Thru Bolt
— KH -32-227-01-S End Cap
51
Kohler SV720-3050 Ignition/Electrical
10
4
6
8
11
12
9
7
1
3
5
13
52
2
Kohler SV720-3050 Ignition/Electrical
Ref. Part Number Description
1 759 -3336 Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 K H-25 -086 -361-S Hex Flange Screw
5 K H-25-340 -04 -S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 K H-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25 -454- 03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
53
Kohler SV720-3050 Blower Housing & Baffles
11
2
1
10
12
4
7
5
4
14
54
4
13
9
3
7
3
8
7
13
6
Kohler SV720-3050 Blower Housing & Baffles
Ref. Part Number Description
1 KH-32-027-08-S Blower Housing Kit
2 KH-32-096-08-S Air Cleaner Cover
3 K H-M -0545010 Flange Screw, M5 x .8 x 10
4 K H-M -545016-S Flange Screw, M5 x .8 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 K H-32- 063-10 -S Cylinder Barrel Bae, #1 Side
11 KH-24 -0 86-12 Screw, M6 x 1.7 x 18
12 KH-32-314-05-S Fixed Guard
13 KH-25- 086-158 -S Flange Screw, M6 x 1.0 x 10
14 KH-41-403-10-S Regulator/Rectier
NS K H- 32-113 -11- S Fixed Guard Decal
KH -41- 037-10 -S
NS
Nameplate Service
55
Kohler SV720-3050 Engine Controls
5
26
4
3
2
1
25
22
21
20
19
18
6
7
8
9
10
11
17
24
15
16
23
56
16
14
12
13
Kohler SV720-3050 Engine Controls
Ref. Part-Number Description
1 K H-24-211-03-S Bolt, M6 x 1.0 x 25
2 KH-24-090-57-S Governor Lever
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 K H-25-158 -08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 K H-25-158-11 Throttle Linkage Bushing
8 K H-M-547050 -S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04 -S Control Bracket
11 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
12 K H-12-237- 01 Cable Clamp
13 KH-24-086-43-S Screw, M5 x .8 x 16
14 KH -24 - 079 -22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH -24 -112-27-S Control Assembly Spacer
17 KH-24-4 68- 01 Flat Washer, 5.5mm
18 KH-25 - 086-151-S Screw, M5 x .8 x 25mm
19 KH-41-468-03 Spring Washer, ⁄
20 KH-32-090 -12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH- M-545016-S Flange Screw, M5 x .8 x 16
25 KH-24-089-55-S Governor Spring
26 KH-24-08 9 -18 Governor Spring
57
Kohler SV720-3050 Air Intake/Filtration
2
10
4
6
5
11
3
13
12
8
1
7
9
58
Ref. Part Number Description
1 KH-24- 041-14 Air Cleaner Base Gasket
2 KH-32-883-03-S1 Pre-Cleaner Element
3 KH-32-344-02-S Air Cleaner Element Latch
4 KH-32-883-03-S1 Air Filter Element
KH-24-164-91-S
5
6 KH-M- 6510 40-S Flange Screw, M6 x 1.0 x 40
7 KH-25-155-51-S Evaporative Connector
8 KH-25-173-33-S Evaporative Mask
9 K H-25-326- 08-S Evaporative Hose, 20”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-139 -6 0 -S Pipe Plug, ⁄
12 KH-24-041-52-S Carburetor Gasket
13 KH-24-153-27-S Intake Port O-Ring
Intake Manifold Kit
Kohler SV720-3050 Fuel System
1
10
9
2
7
3
7
5
8
6
7
Ref. Part-Number Description
1 KH-32-853-22-S Carburetor Kit
2 K H-M -629105-S Stud, M6 x 1.0 x 106
3 KH-M-641060-S Flange Nut, M6 x 1.0
4 K H-24-086 -12 Tap Screw, M6 x 1.7 x 18
5 K H-24 -393 -16 Fuel Pump
6 K H-2 5-111- 81-S Fuel Line
7 K H-25-237-31-S Hose Clamp, ⁄
8 K H-25-050 -22-S1 Fuel Filter
9 K H-24 -0 41-14 Air Cleaner Base Gasket
10 K H-24 -041-52-S Carburetor Gasket
11 KH-47-154-01-S Cable Clip
4
7
11
6
59
Kohler SV720-3050 Crankshaft
1
3
Ref. Part Number Description
2
60
1 KH-52-139-09-S Cup Plug
2 KH-32-014-312-S Crankshaft
3 K H-X-43-1-S Key, 1/8” x 1/2”
Kohler SV720-3050 Miscellaneous
1
2
Artwork is representative.
Actual labels may differ depending on model and specification number.
Ref. Part Number Description
1 K H-2 5-113 -39 -S Clear Laminate Decal
2 K H-32 -113- 07- S Decal, 23 HP
61
Kohler SV730-3043 Crankcase
14
16
13
12
11
9
10
8
17
4
15
CRANKCASE (USE: SHORT BLOCK)
2
1
3
62
18
19
20
5
6
7
Kohler SV730-3043 Crankcase
Ref. Part Number Description
1 KH-12-402-02 Breather Reed
2 KH-24-018-04-S Breather Reed Retainer
3 K H-24 -380-16-S Pin
4 K H-24 -032-19 -S Oil Seal (Helix Lip)
5 KH-12-422-07-S Camshaft Shim (White .028")
— KH-12-422-08-S Camshaft Shim (Blue .03")
— KH-12-422-09-S Camshaft Shim (Red .032")
— KH-12-422-10 -S Camshaft Shim (Yellow .034")
— KH-12-422-11-S Camshaft Shim (Green .036")
— KH-12-422-12-S Camshaft Shim (Gray .038")
— KH-12-422-13-S Camshaft Shim (Black .04")
6 K H-24- 018-01-S Piston Pin Retainer
7 K H-24-067-30 -S Connecting Rod (Std)
8 KH-24-018-09-S Ring Retainer
9 KH-24-468-15-S Flat Washer, ⁄
10 KH-28-032-09-S Governor Cross Shaft Seal
11 KH-24-144-38-S Governor Cross Shaft
12 KH-24 -126 -19 Oil Fill Tube Bracket
13 KH-M- 545013-S Flg. Thd. Frm. Screw, M5 x 0.8 x 13
14 KH -M-931010-S Flat Washer, 9mm
15 KH-32-755- 04-S Dipstick And Tube Kit
— KH-32-038-08-S Dipstick Only
— KH-32-123-11-S Tube Only
16 KH -25-153 - 09-S Dipstick O-Ring
17 K H-12-153 - 01-S O-Ring, Lower Oil Fill Tube
18 KH-32-010-05-S Camshaft Assembly
19 KH-25-874-05-S Piston w/ Ring Kit
— KH-25 - 874 -02-S Piston W/ Ring Kit (0.08)
— KH-25 - 874 -03-S Piston W/ Ring Kit (0.25)
20 KH -24-108 -14-S Piston Ring Set, (Std)
— KH-24-108-15 -S Ring Set (.08)
— KH-24-108-16-S Ring Set (.25)
63
Kohler SV730-3043 Head/Valve/Breather65Kohler SV730-3043 Head/Valve/Breather
7
6
25
29
28
30
17
9
27
1
33
2
1
27
33
3
5
4
26
12
16
24
15
34
10
11
13
18
8
64
32
31
19
14
20
21
23
22
Ref. Part Number Description
1 K H-12-755-03 Retainer Kit
2 K H-2 35011-S Spring Retainer
3 KH-66-032-05-S Valve Stem Seal
4 K H-24- 016-01 Exhaust Valve (STD)
5 K H-24- 017-01 Intake Valve (STD)
6 KH-32-326-06-S Breather Hose Kit (Inc. #7)
7 K H-25-237-31-S Hose Clamp, ⁄
8 KH-32-081-02-S Housing Breather Kit (Inc. #9 & 10)
9 K H-M-547050 -S Lock Nut, M5 x 8
10 K H-32- 468-01-S Sealing Washer
11 KH-32-072-03-S Breather Cover Stud
12 KH-32-019-02-S Tapp et
13 KH-32-841-02-S Cylinder Head Gasket Kit
14 KH-62-086-08-S Flange Screw, M10 x 1.5 x 90
15 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
16 KH-32-096-04-S Breather Cover
17 KH-32-318-13-S
18 KH-32-318-14-S
19 KH-32-146 -09-S Guide Plate
20 KH-32-072-04-S Rocker Stud
21 K H-32-186-03-S Rocker Arm
22 KH -32-10 0 - 05-S Hex Nut Assembly (Inc. #32)
23 KH-25-59 9-01-S Rocker Arm Pivot
24 K H- 32- 411 - 04 -S Push Rod
25 KH-32-326-07-S Fuel Pump Hose Kit (Inc. #29)
26 KH-32-050-05-S Breather Filter
27 KH-32-089-05-S Valve Spring
28 KH -25-086 -374-S Pan Head Screw
29 KH -25 -237-01-S Hose Clamp
30 KH -25-0 96-10-S Rocker Cover
31 KH-25-096-09-S Rocker Cover
32 KH-25-086-168-S Set Screw
33 KH-25-173-28 -S Valve Spring Cap
34 KH-25-445-03-S Lifting Strap
NS KH-32-755-03-S Cylinder Head Hardware Kit
Cylinder Head Assembly Kit, #1 (Inc. Exhaust Mounting Hardware)
Cylinder Head Assembly Kit, #2 (Inc. Exhaust Mounting Hardware)
Kohler SV730-3043 Oil Pan/Lubrication
8
6
3
7
5
10
11
4
13
9
18
19
12
1
16
15
17
2
14
Ref. Part Number Description
1 K H-24 - 086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 K H-25-139 -57-S Square Head Pipe Plug, ⁄
4 K H-32-199-14-S Oil Pan Assembly
5 K H-12-14 4 - 02 Governor Gear Shaft
6 K H-12-3 80- 01 Governor Regulating Pin
7 K H-24-448-02-S Locking Tab
8 KH-32-310-02-S Governor Gear Kit
9 K H-24-153-01 Oil Pick-Up O-Ring
10 KH-32-086-01-S Screw
66
Ref. Part Number Description
11 KH-32-393-16-S Oil Pump Assembly
12 K H-32-123 - 01-S Oil Feed Tube (Filter to Oil Pan)
13 KH-32-12 3-09-S Oil Feed Tube Assembly
14 KH-12-050-01-S Oil Filter
15 KH-32-136-05-S Oil Filter Nipple
16 KH-32-468-02-S Flat Washer
17 KH-25-0 99-27-S Oil Pressure Switch
18 KH-32-123-06-S Oil Feed Tube
19 KH-32-153 - 05-S O-Ring
Kohler SV730-3043 Starting System
1
2
Ref. Part Number Description
1 K H-M -851080 -S Flg. Screw, M8 X 1.25 X 80
2 KH-32-098-04-S Starter Assembly
— KH-12-243 -0 4 -S Brush Assembly
— KH -32-211-01-S Thru Bolt
— KH -32-227-01-S End Cap
67
Kohler SV730-3043 Ignition/Electrical
10
4
6
8
9
11
12
7
1
3
2
5
13
68
Kohler SV730-3043 Ignition/Electrical
Ref. Part Number Description
1 759 -3336 Spark Plug
2 KH-237878 15 Amp Stator Kit
3 KH-M-548025-S Screw, M5 x 0.8 x 25
4 K H-25 -086 -361-S Hex Flange Screw
5 K H-25-340 -04 -S Square Key
6 KH-25-468-09-S Flat Washer
7 KH-32-025-22-S Flywheel Assembly
8 KH-20-146-05-S Fan Mounting Plate
9 K H-32-157- 01-S Fan
10 KH-32-162-03-S Grass Screen
11 KH-24-584-45-S Module Ignition Kit
12 KH-M-545020-S Screw, M5 x .8 x 20
13 KH-25-155-41-S Connector
N/A KH-25 -454- 03-S Wire Tie
N/A KH-32-176-24-S Wiring Harness
69
Kohler SV730-3043 Blower Housing & Baffles
11
2
1
10
12
4
7
5
4
14
70
4
13
9
3
7
3
8
7
13
6
Kohler SV730-3043 Blower Housing & Baffles
Ref. Part Number Description
1 KH-32-027-08-S Blower Housing Kit
2 KH-32-096-08-S Air Cleaner Cover
3 K H-M -0545010 Flange Screw, M5 x .8 x 10
4 K H-M -545016-S Flange Screw, M5 x .8 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
8 KH-24-063-94-S Valley Bae, #2 Cylinder
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 K H-32- 063-10 -S Cylinder Barrel Bae, #1 Side
11 KH-24 -0 86-12 Screw, M6 x 1.7 x 18
12 KH-32-314-05-S Fixed Guard
13 KH-25- 086-158 -S Flange Screw, M6 x 1.0 x 10
14 KH-41-403-10-S Regulator/Rectier
NS K H- 32-113 -11- S Fixed Guard Decal
KH -41- 037-10 -S
NS
Nameplate Service
71
Kohler SV730-3043 Engine Controls
5
26
4
3
2
1
25
22
21
20
19
18
6
7
8
24
17
15
16
23
9
10
11
16
14
12
13
72
Kohler SV730-3043 Engine Controls
Ref. Part-Number Description
1 K H-24-211-03-S Rd. Hd. Sq. Neck Bolt, M6 x 1.0 x 25
2 KH-24-090-51-S Governor Lever
3 KH-M-641060-S Flg. Nut, M6 x 1.0
4 KH-24-089-01 Linkage Spring
5 K H-25-158 -08 Linkage Retaining Bushing
6 KH-24-079-04 Throttle Linkage
7 K H-25-158-11 Throttle Linkage Bushing
8 K H-M-547050 -S Lock Nut, M5 x .8
9 KH-24-089-03 Choke Return Spring
10 KH-32-126-04 -S Control Bracket
11 KH-M-645016-S Flg. Thd. Frm. Screw, M6 x 1.0 x 16
12 K H-12-237- 01 Cable Clamp
13 KH-24-086-43-S Lbd. Thd. Frm. Screw, M5 x 0.8 x 16
14 KH -24 - 079 -22-S Choke Linkage
15 KH-32-090-09-S Speed Setting Lever
16 KH -24 -112-27-S Control Assembly Spacer
17 KH-24-4 68- 01 Flat Washer, 5.5MM
18 KH-25 - 086-151-S Thd. Frm. Screw, M5 x 0.8 x 25MM
19 KH-41-468-03 Spring Washer, 1/4”
20 KH-32-090 -12-S Choke Lever
21 KH-32-090-08-S Speed Control Lever
22 KH-32-089-03-S Speed Control Spring
23 KH-32-090-07-S Governor Spring Lever
24 KH- M-545016-S Flg. Thd. Frm. Screw, M5 x 0.8 x 16
25 KH-24-089-55-S Governor Spring
26 KH -24-089-25-S Governor Spring
73
Kohler SV730-3043 Air Intake/Filtration
2
10
4
6
5
11
3
13
12
8
1
7
9
74
Ref. Part Number Description
1 KH-24- 041-14 Air Cleaner Base Gasket
2 KH-32-883-03-S1 Pre-Cleaner Element
3 KH-32-344-02-S Air Cleaner Element Latch
4 KH-32-883-03-S1 Air Filter Element
KH-24-164-91-S
5
6 KH-M- 6510 40-S Flange Screw, M6 x 1.0 x 40
7 KH-25-155-51-S Evaporative Connector
8 KH-25-173-33-S Evaporative Mask
9 K H-25-326- 08-S Evaporative Hose, 20”
10 KH-32-094-08-S Air Cleaner Base
11 KH-25-139 -6 0 -S Pipe Plug, ⁄
12 KH-24-041-52-S Carburetor Gasket
13 KH-24-153-27-S Intake Port O-Ring
Intake Manifold Kit
Kohler SV730-3043 Fuel System
15
2
3
4
6
5
12
7
6
9
10
11
14
6
7
Ref. Part Number Description
2 K H-24 -0 41-52-S Carburetor Gasket
3 K H-24 -0 41-14 Air Cleaner Base Gasket
4 K H-M -629105-S Stud, M6 X 1.0 X 106
5 KH-M-641060-S Flg. Nut, M6 X 1.0
6 K H-25-237-31-S Hose Clamp, 1⁄ 2
7 K H-2 5-111- 81-S Fuel Line
11 KH-24 -0 86-12 Tap Screw, M6 X 1.7 X 18
12 KH-24 -393 -16 Fuel Pump
13 KH-25- 050-22-S1 Fuel Filter
14 KH-47-154-01-S Cable Clip
15 KH-32-853-28 -S Carburetor Kit, 19mm (Inc. 2 & 3)
13
6
75
Kohler SV730-3043 Crankshaft
1
3
Ref. Part Number Description
2
76
1 KH-52-139-09-S Cup Plug
2 KH-32-014-313-S Crankshaft
3 K H-X-43-1-S Key, 1/8” x 1/2”
Kohler SV730-3043 Decals
1
2
Artwork is representative.
Actual labels may differ depending on model and specification number.
Ref. Part Number Description
1 K H-2 5-113 -39 -S Clear Laminate Decal
2 K H-32 -113- 08 -S 25 HP Decal
77
Notes
78
79Notes
U
I
N
N
E
G
F
A
C
T
O
R
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
E
S
T
R
A
P
Y
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
