cub cadet RB600 PARTS LIST

RB600
21" Walk-Behind Commercial
Rotary Mowers
Professional T urf Equipment
ILLUSTRATED PARTS LIST
- Figure 1
23
10
26
1
13
20
20 23
4
19
6
2
25
14
11
23
1
20
5
3
27
9
24
21
22
17
7
8
15
16
12
18
2
21" Cutter Deck
- Parts List for Figure 1
Ref. No. Part No. Description Qty.
1 01000338 HHCS, 1/4-20, .620, G R5, St andard 6 2 01000443 Screw Button HD, 1/4-20 x .5 4 3 01000812 Screw, TTSems, 3/8-16, 1.250, HXLWS 3 4 01000880 Screw, B, 10-16, 0.500, TRUSTRX1 1 5 01000882 Screw, HL, 12-16:0.750, TRUSTRX1 2 6 01000884 U-Nut, 10-16 1 7 01000885 Baffle, RR, 21" Commercial 1 8 01000886 Cover, 21" Commercial 1
9 01002786 Deck, 21" Commercial 1 10 01001669 Bracket, Handle, RH Commercial 1 11 01001671 Bracket, Handle, LH C om m ercial 1 12 01002791 Baffle Front Commercial 10.81 R 1 13 01002796 Cover Plate 1 14 01002801 Guard, Deck Side Fl an ge 2 15 01002803 Bracket, Su pport Baffle 1 16 01000925 Screw, TT, 1/4- 20, 0.375, Hex Indicator
Washer 17 01002833 Rod, Pivot, Chute Door, .375 D1 1 18 01002793 Door, Grassbag, 21” RB 1 19 01002766 Nut, 1/4-20, Hex Fl an ge, Lock Group F 6 20 01002770 Screw, HL, 12-16, 1.000, TRUST R XI 5 21 01002771 Cotter Pin, INT .072 x 1.12 LG 2 22 01002772 Spacer, .375 x .50 x 1.02 LG 2 23 01002775 Screw, AB, 1/4-14, 0.625, Hex Indicator
Washer 24 01002782 Spacer, Torsi on , LH 0.120 x 15C 1 25 01000446 Hex Nut, 1/4-20 4 26 01000600 Flat Washer, 1/4 x .630 x x .0515 6 27 01004521 Label 21” Commercial 1
3
6
3
21" Cutter Deck with Shifter
- Figure 2
23
23
20
10
28
1
20
23
13
5
19
7
2
25
11
1
23
20
6
4
26
3
14
29
24
21
22
17
8
12
18
9
15
16
27
4
21" Cutter Deck with Shifter
Ref. No. Part No. Description Qty.
1 01000338 HHCS, 1/4-20, .620, G R5, St andard 6 2 01000443 Screw Button HD, 1/4-20 x .5 4 3 01000446 Hex, Lock Nut, 1/4-20 4 4 01000812 Screw, TTSems, 3/8-16, 1.250, HXLWS 3 5 01000880 Screw, B, 10-16, 0.500, TRUSTRX1 1 6 01000882 Screw, HL, 12-16:0.750, TRUSTRX1 2 7 01000884 U-Nut, 10-16 1 8 01000885 Baffle, RR, 21" Commercial 1
9 01000886 Cover, 21" Commercial 1 10 01001669 Bracket, Handle, RH Commercial 1 11 01001671 Bracket, Handle, LH C om m ercial 1 12 01002792 Baffle Front Commercial 10.81 R 1 13 01002796 Cover Plate, Transmisssion 1 14 01002801 Guard, Deck Side Fl an ge 2 15 01002803 Bracket, Su pport Baffle 1 16 01000925 Screw, TT, 1/4- 20, 0.375, Hex Indicator
Washer 17 01002524 Rod, Pivot, Chute Door, .375 D1 1 18 01002793 Door, Grassbag, 21” RB 1 19 01002766 Nut, 1/4-20, Hex Fl an ge, Lock Group F 6 20 01002770 Screw, HL, 12-16, 1.000, TRUST R XI 5 21 01002771 Cotter Pin, INT .072 x 1.12 LG 2 22 01002772 Spacer, .375 x .50 x 1.02 LG 2 23 01002775 Screw, AB, 1/4-14, 0.625, Hex Indicator
Washer 24 01002782 Spacer, Torsi on , LH 0.120 x 15C 1 25 01003957 Shaft, Selector, Bracket 2 26 01003962 21” Commercial , R ound Deck 1 27 01004104 Vinyl, Cap Spring 1 28 01000600 Flat Washer, 1/4 x .630 x .0515 6 29 01004521 Label, 21” Co mmercial 1
- Parts List for Figure 2
3
8
5
Front Axle -
Figure 3
14
9
5
11
10
1
4
6
2
15
13
7
3
8
2
12
6
Front Axle
- Parts List for Figure 3
Ref. No. Part No. Description Qty.
1 00012173 L-Nut, 3/8-16, NYL INS. GR A. Z 2 2 01000338 HHCS, 1/4-20, .620, G R5, St andard 6 3 01000861 Pivot Wheel Bracket Assembly, 2 POS 2 4 01000865 Screw, TT, 1/4-20 , 0.625, PANTRXI 2 5 01000871 Plate, Spring Height Adjuster 2 6 01000872 Flat Washer, .411 x 1 .25 x .100 2 7 01000873 Flat Washer, .536 ID x .930 OD x .05 2 8 01000874 Wave Washer, .531 IDX .781 ODX .01 2
9 01002829 Height Adjustment H andle 2 10 01002832 Spring Lever Sup por t Bra cket 2 11 01000925 Screw, TT, 1/4-20, 0.375, H ex I nd ic at or
Washer 12 01002837 Front Axle, .5 00 O D 1 13 01002838 Height Adjustm ent Br acket, Right Front 1 14 01002839 Height Adjustm ent Br acket, Left Front 1 15 01002766 Nut, 1/4-20, Hex Fl an ge, Lock, Group F 6
2
7
Rear Axle Self Propelled
- Figure 4
16
17
11
19
128
24
13
5
1
3
12
9
23
14
10
8
6
15
2
4
24
27
20
25
7
24
18
22
21
26
14
12
8
Rear Axle Self Propelled
Ref. No. Part No. Description Qty.
1 01000338 Hex, Cap Screw, 1/4-20, .620 8 2 01000861 Pivot, Wheel , Bracket Assembly, 2 Pos 2 3 01000865 Screw, TT, 1/4-20 , .625 4 4 01000871 Height Adjuster, Spring Plate 2 5 01002829 Height Adjuster, Handle 2 6 01002830 Height Adjuster, Bracket, Right Rear 1 7 01002831 Height Aduster, Bracket, Left Rear 1 8 01002832 Spring Lever, Support, Bracket 2
9 01000920 Drive Wheel, Dust, Cover 2 10 01000925 Screw, 1/4-20, .375, Index Washer 2 11 01000927 Dowel Pin, 3/16 x 3/4 2 12 01000928 Retainer Ring, .5 00 Dia Heavy Duty 4 13 01000929 Trailshield, 6.12 x 17.91 Long 1 14 01000930 Flat Washer, .508 ID x 1.00 OD x .020 4 15 01000931 Grease Fit ting 2 16 01001864 Screw, #10-24-24, 0.500, H ex I ndex
Washer 17 01002033 Pinion Gear, 15T, With Ratchet, R 1 18 01002034 Pinion Gear, 15T, With Ratchet, L 1 19 01002526 Extension Spring, .75 OD x 2.37 1 20 01002688 Belt, Pin, Keeper 1 21 01004290 Transmission, Spring Bracket, Tuff
Torque 22 01002700 Belt, V Type, 3/8 x 32.92 Long 1 23 01002759 Thrust Washer, .510 x 1.562 x .03 2 24 01002766 Nut, 1/4-20, Hex Fl an ge, Lock 9 25 01003822 Shift Spring 1 26 01003162 21” Deck 1 27 01002035 Transmission Assembly, 3-Speed 1 28 01004433 Label, Shift, 21 1
- Parts List for Figure 4
2
1
9
Transmission Assembly Cable Shift
5
9
2
8
- Figure 5
1
2
6
7
3
4
10
Transmission Assembly Cable Shift
Ref.
No. Part No. Description Qty.
1 01000523 Nylon Lock Nut, #10-2 4 1 2 01000628 Screw, TT, Hex Index Washer, 1/4-20,
0.500 3 01000880 Screw, B, #10-16, 0.500, Trustrxi 1 4 01002035 Complete Transmission, 3-Speed 1 5 01002036 Transmission Pulley, 3/8V x 3.50 OD 1 6 01002798 Spring Bracket Transmission, Tuff Toro 1 7 01002762 Cable Clamp, 3/16 1 8 01003139 Transmission Clutch Brack et , Tuff Toro 1 9 01003133 Socket Screw, 10-24 x 1.25 1
- Parts List for Figure 5
4
11

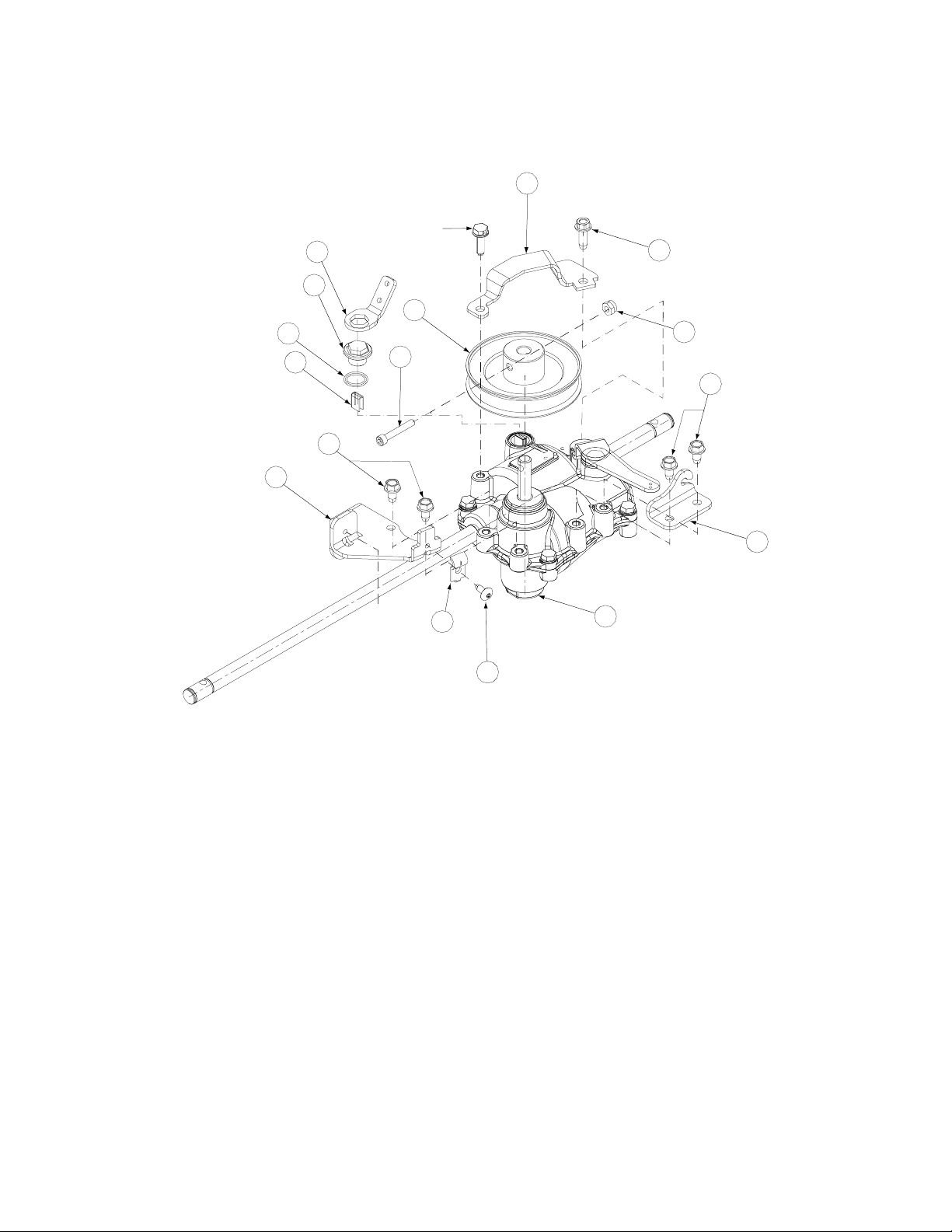

Transmission Assembly
Supplied on
11
15
14
13
9
transmission
10
2
- Figure 6
12
3
6
1
2
7
8
4
5
12
Transmission Assembly
Ref. No. Part No. Description Qty.
1 01000523 Nylon Lock Nut, #10- 24 1 2 01000628 Screw, TT, Hex Index Washer, 1/4-20,
0.500 3 01000629 Screw, TT, Hex Index Washer, 1/4-20,
0.750 4 01000880 Screw, B, #10-16, 0.500, Trustrxi 1 5 01002035 Complete Transmission, 3-Sp eed 1 6 01002036 Transmission Pulley, 3/8V x 3.50 OD 1 7 01002798 Spring Bracket Transmission, Tuff Toro 1 8 01002762 Cable Clamp, 3/16 1 9 01003139 Transmission Clutch Bracket, Tuff Toro 1
10 01003133 Socket Screw, 10-24 x 1.25 1 11 01003958 Shift Bracket 1 12 01003959 Shift Bracket Retainer 1 13 01003965 Self Propelled, Shim, 21” 1 14 01004088 3-Speed, O-Ri ng , Seal 1 15 01004089 3-Speed, C lu tc h, C ap 1
- Parts List for Figure 6
4
1
13
Blade
- Figure 7
11
6
1
8
2
3
4
5
7
14
Blade
- Parts List for Figure 7
1
Part No. Description Qty.
1 01002812 Engine Mount Support Plat e, W /O BBC 1 2 01000941 Blade Adapter, 6 x 2.15 W/Star 1 3 01000942 Bell Washer, .396 x 1.140 x .095 2 4 01000943 HHCS: 3/8-24, 2.50, G r oup 8, Spec 1 5 01000944 HHCS, 1/4-20, 1.00, G r oup 5, Spec 2 6 01002710 Flat Washer, 3/8X.738X .063 3 7 01002810 Blade:21" Mulching W/Star 1 8 01002925 Hex Nut, 1/4-20, GRC , Loc k 2 9 01000951 6.5 hp Briggs (not shown ) 1
10 00051829 Air Filter 1 11 01002721 Mulch Plug 1
15
Blade Self Propell ed
- Figure 8
7
2
1
3
4
5
6
8
16
Blade Self Propelled
Ref. No. Part No. Description Qty.
1 01000446 Hex Nut, 1/4-20 2 2 01002812 Support Plate, Engine Mount 1 3 01000941 Blade Adapter, 6 x 2.15 W/Star 1 4 01000942 Bell Washer, .396 x 1.140 x .095 2 5 01000943 HHCS: 3/8-24, 2.50, 1 6 01000944 HHCS, 1/4-20, 1.00, 2 7 01002710 Flat Washer, 3/8X.738X .063 3 8 01002810 Blade 21" Mulching w/Star 1 9 01000951 6.5 hp Briggs (not shown ) 1
- Parts List for Figure 8
17
Blade w/BBC
- Figure 9
8
6
2
3
5
4
7
1
18
Blade w/BBC
- Parts List for Figure 9
Ref. No. Part No. Description Qty.
1 01000933 Hex Cap Screw, M10 x 1.5, 50mm 2 2 01000934 Clutch, BBC 1 3 01000935 Extension Spring, 1.1 00 O D x 2 .7 95 1 4 01002824 Blade 21” Mulching w/Star 1 5 01000937 Spacer, .412 x 1.125 x .44 2 6 01000938 Engine Mount, Support Plat e 1 7 01000942 Bell Washer, .396 x 1.140 x .095 2 8 01002710 Flat Washer, 3/8 x .738 x.063 3 9 01002728 Support Plate Assem bl y, Engine w/BBC 1
10 01002754 Pin Bracket, BBC 1 11 01002891 Weld Pin, .500 dia x 1.25 1
19
Engine Pulley Briggs w/BBC
2
- Figure 10
1
3
20
Engine Pulley Briggs w/BBC
Ref. No. Part No. Description Qty.
1 01001943 Key, Hi-Pro 5/32 x 5/8 1 2 01002528 Pulley Engine, 3/8V x 2.25 O D 1 3 01002779 Wash, Wave 1.38 OD x .88 ID x .02 1
- Parts List for Figure 10
21
Wheel Complete Gear
1
- Figure 11
5
2
3
1
5
4
2
22
Wheel Complete Gear
Ref. No. Part No. Description Qty.
1 01012577 Flat Washer, 5951D x .945 x .09 4 2 01000922 Shoulder Screw, 58 x 1.48, 1/2-20 4 3 01003227 Wheel, 9 x 2 .125 With driv e G ea r 4 4 01004183 Wheel, 9 x 2 .125 Withou t dri ve Ge ar 2 5 01004454 Washer, Shim, .625 x .875 x .0314 4
- Parts List for Figure 11
23
Wheel Complete With Gear
- Figure 12
4
9
7
2
5
6
1
3
8
24
Wheel Complete With Gear
Ref. No. Part No. Description Qty.
1 01001249 Internal Gear, 63T w/ Hub 1 2 01002540 Socket Screw, 1/4-20 x 1.25 6 3 01002818 Rim Wheel, Inner Half 1 4 01002815 R im Wheel, Outer Half 1 5 01000917 Spacer, .635 ID x .86 Long 1 6 01000916 Ball Bearing, 15mm x 28m m x 7m m 2 7 01000915 Tire, 9 x 2.125 1 8 01000446 Hex, Lock Nut, 1/4-20 6 9 01003227 Wheel Assembly 1
- Parts List for Figure 12
25

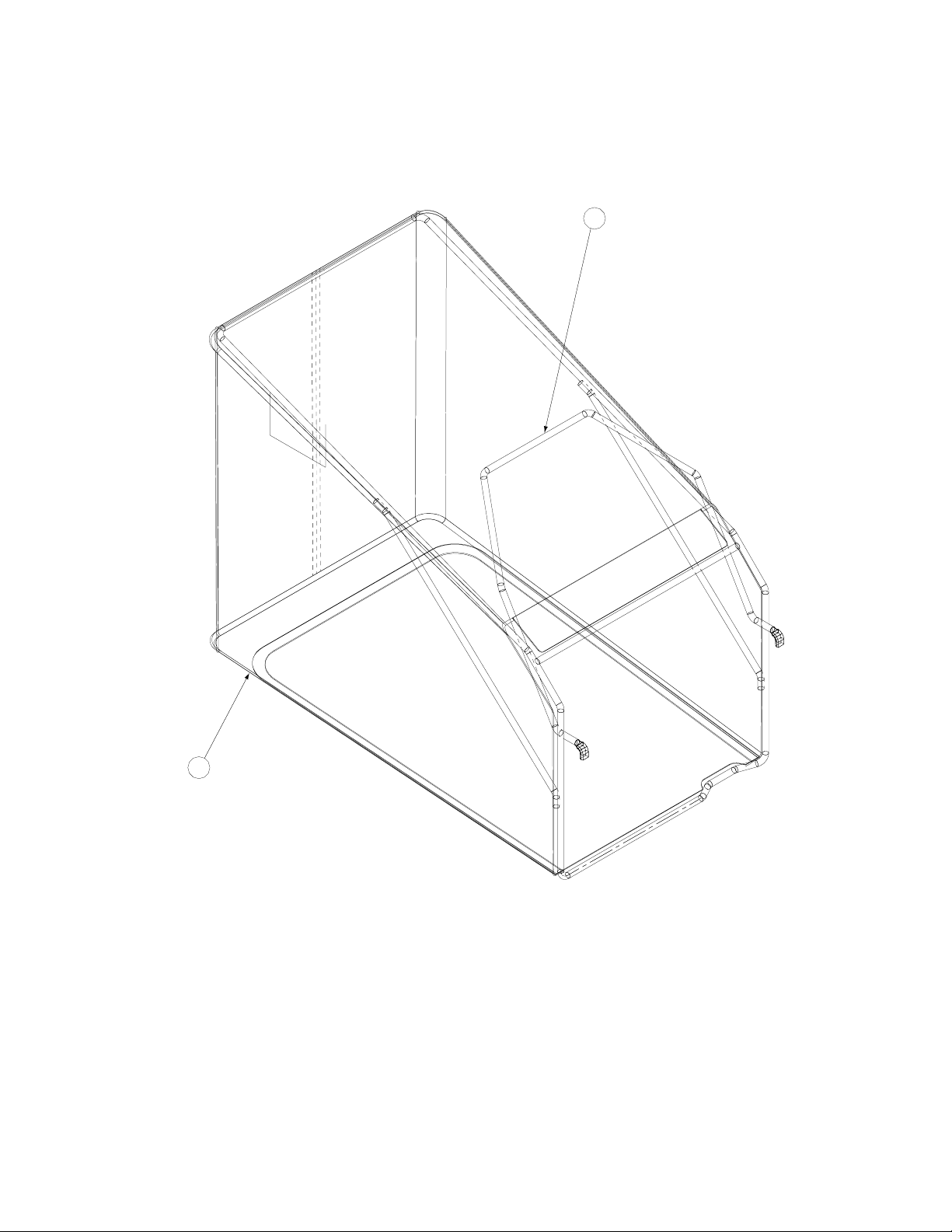

Catcher
- Figure 13
2
1
26
Catcher
- Parts List for Figure 13
Ref. No. Part No. Description Qty.
1 01000910 Grassbag 1 2 01002822 Grassbag Frame 1
27
21" Chute
- Figure 14
1
2
3
4
4
28
21" Chute
- Parts List for Figure 14
Ref.
No. Part No. Description Qty.
1 01002683 Machine Screw, 1/4-20, .750, PANTRXI 2 2 01002685 21" Side Chute Mounting Rod 1 3 01002781 21" Side Chute Spiral Deck 1 4 01000446 Hex Nut 1/4-20 2
29

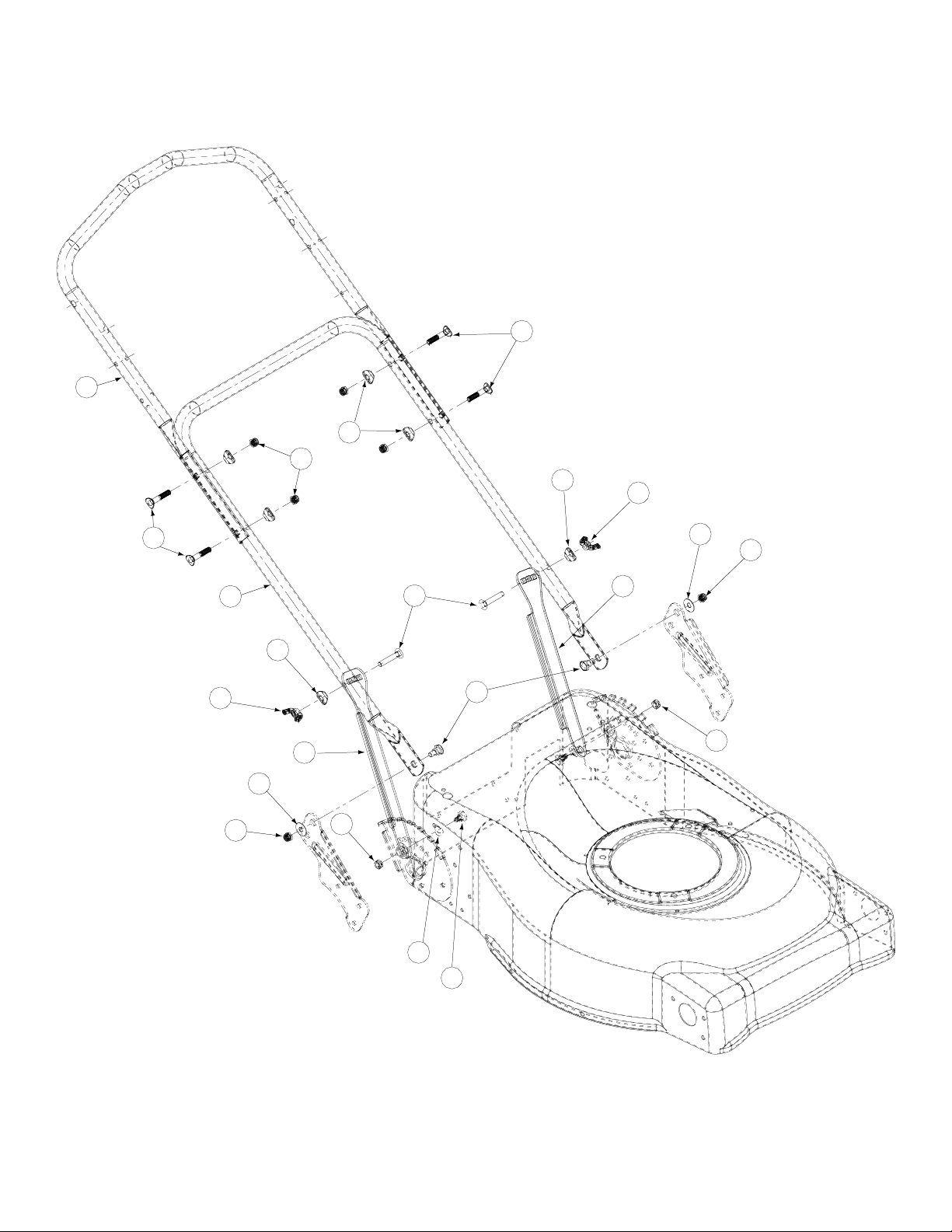

3 Position Handle Self Propelled - Figure 15
14
13
7
4
7
5
14
10
7
5
11
6
4
2
3
8
1
9
12
6
4
2
3 Position Handle Self Propelled
Ref.
No. Part No. Description Qty.
1 00012577 Thrust Washer 2 2 00022547 Nut, Lock, 5/16-18, 2 3 01000956 Bolt Carriage, 5/16-18, 1.75 2 4 01000957 Hex Nut, 5/16-18 6 5 01000958 Wing Nut, 5/16-18 2 6 01000960 Belle Washer, .325 x .930 x .045 2 7 01000961 Shoulder Washer, .320 ID x .93 OD 6 8 01000962 Shoulder Screw, .435 x .350, 5/16-18 2 9 01000963 Shoulder Screw, .437 x 1.62 LG 2
10 01002805 Handle, Lower, 1.0" 1 11 01003111 Strut, 3 Position Handle, Right hand 1 12 01003112 Strut, 3 Position Handle, Lef t hand 1 13 01003203 Upper Handle, 1.0", Sel f Propelled 1 14 01003208 Carrige Bolt, 5/16-18 X 2.0 CRVD 4
- Parts List for Figure 15
31
Control Self Propelled w/Cable Shift - Figure 16
5
11
13
13
2
17
7
14
6
10
8
9
12
16
13
15
2
3
1
4
1
Control Self Propelled w/Cable Shift
Ref.
No. Part No. Description Qty.
1 00012470 Cable Tie, 3/16 X .05 X 7.4 4 2 01000600 Flatwasher 1/4 X .630 X .0515 2 3 01000629 Screw, TT, 1/4-20, 0.750, Hex Index
Washer 4 01000859 Control Cable 43" Long 1 5 01002842 Control Lever 1 6 01000897 Screw, TT, 1/4-20, 1.000, 1 7 01002774 HHCS, 1/4-20, 3.75 1 8 01000900 Spacer, 7/8 Dia x 2.875 1 9 01000902 Control Shift, 3 Speed w/Cabl e 1
10 01000903 Cable, Clutch Speed Adjuster 1 11 01002859 Clutch Bail, Transmission, Commutator 1 12 01000908 Control Throttle w/C abl e Briggs 1 13 01002527 Bushing, .3125 Dia Snap 3 14 01002924 Bolt, Eye, 1/4-20, Bent Rope Guide 1 15 01000446 Hex Nut; 1/4-20 1 16 01002925 Handle Knob, 1/4-20 1 17 01000961 Washer, Saddle, 320 ID x .93 OD 1
- P a rts L ist for F ig ure 1 6
1
33
Control Self Propelled w/Shift Lever
5
- Figure 17
9
11
10
11
2
7
12
6
8
13
2
14
11
3
1
4
1
34
Control Self Propelled w/Shift Lever
Ref.
No. Part No. Description Qty.
1 00012470 Cable Tie, 3/16 X .05 X 7.4 4 2 01000600 Flatwasher 1/4 X .630 X .0515 2 3 01000629 Screw, TT, 1/4-20, 0.750, Hex Index
Washer 4 01000859 Control Cable 43" Long 1 5 01002842 Control Lever 1 6 01000897 Screw, TT, 1/4-20, 1.000, 1 7 01002774 HHCS, 1/4-20, 3.75 1 8 01000903 Cable, Clutch Speed Adjuster 1 9 01002859 Clutch Bail, Transmission, Commu ta to r 1
10 01000908 Control Throttle, W/Cable, Briggs 1 11 01002527 Bushing, .3125 Dia Snap 3 12 01002924 Bolt, Eye, 1/4-20, Bent Rope Guide 1 13 01000448 Hex Nut; 1/4-20 1 14 01002925 Handle Knob, 1/4-20 1
- P a rts L ist for F ig ure 1 7
1
35
Form No. 01001495 Rev. 99-4
Cadet Corporation
P.O. Box 360930
Cleveland, OH 44136
