Parts Manual
S
ERIES
7000
COMPACT TRACTOR
MODEL 7264
CUB CADET LLC P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 [www.cubcadet.com]
PRINTED IN U.S.A. FORM NO. 769-00092B
ECO 12842
(2/03)
-2-
TABLE OF CONTENTS
DESCRIPTION PAGE
Frame ............................................................... 3
Pedestal ............................................................ 4
Front Axle 4WD ............................................... 5
4WD Axle Assembly ......................................... 6
Hydraulics ......................................................... 10
Lift Valve and Position Control ......................... 11
Dash Panel and Steering Wheel ...................... 12
Controls ............................................................ 14
Battery and Electrical ........................................ 16
Transmission Connections ............................... 17
Transmission
4WD Transmission ........................................
Differential and Final Drive ............................
4WD Traction Drive .......................................
PTO Drive ......................................................
Engine and Drive Shaft ..................................... 26
18
20
22
24
Engine
Cylinder Assembly .........................................

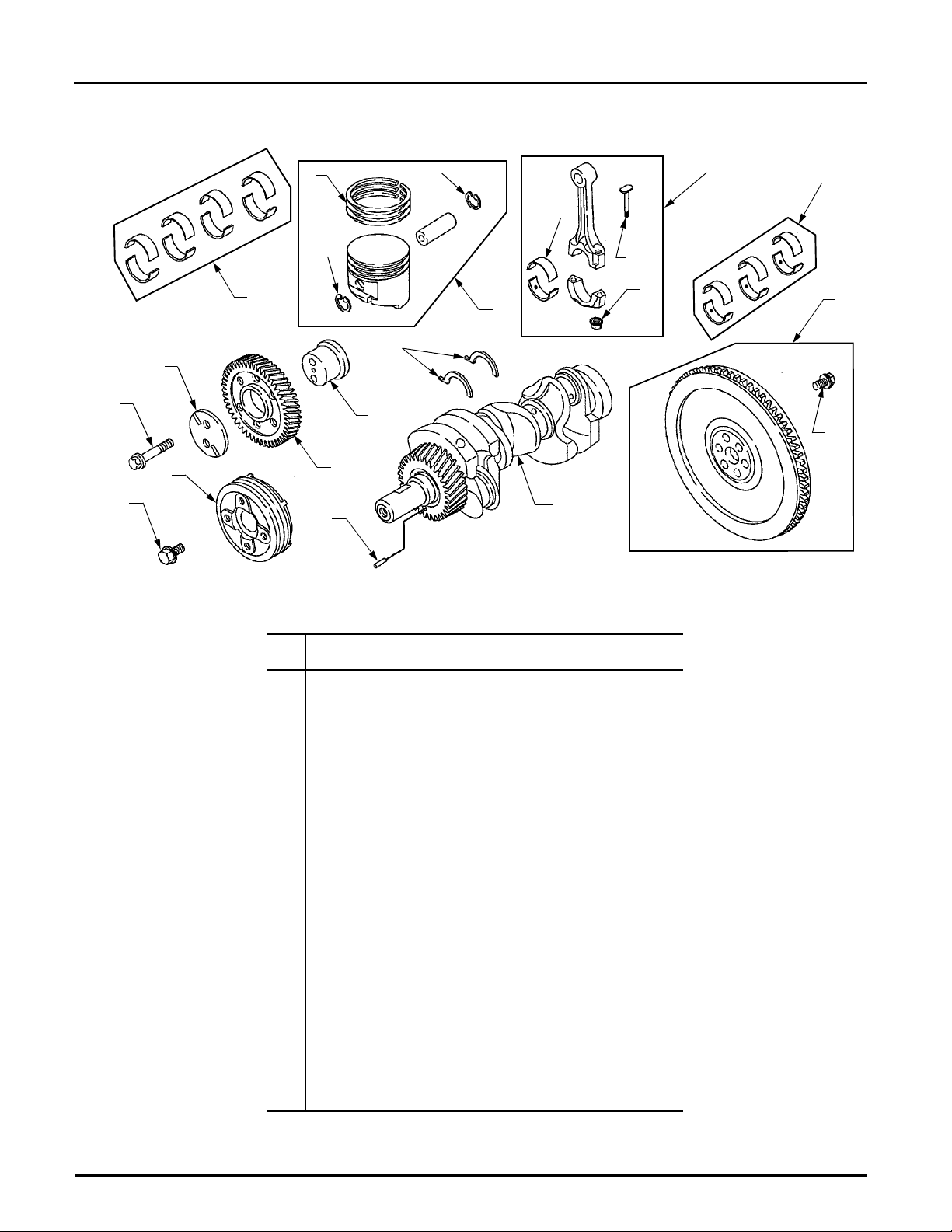

Crankshaft, Pistons and Flywheel .................
Cylinder Head and Manifolds ........................
Fuel Injection System ....................................
Camshaft and Valves ....................................
Lubrication .....................................................
Crankcase Cover ...........................................
Gear Housing ................................................
Cooling ..........................................................
Starter ............................................................
Alternator .......................................................
Gasket Sets ......................................... ...... ....
Hood, Grill and Side Panels ............................. 40
Fender and Running Board .............................. 42

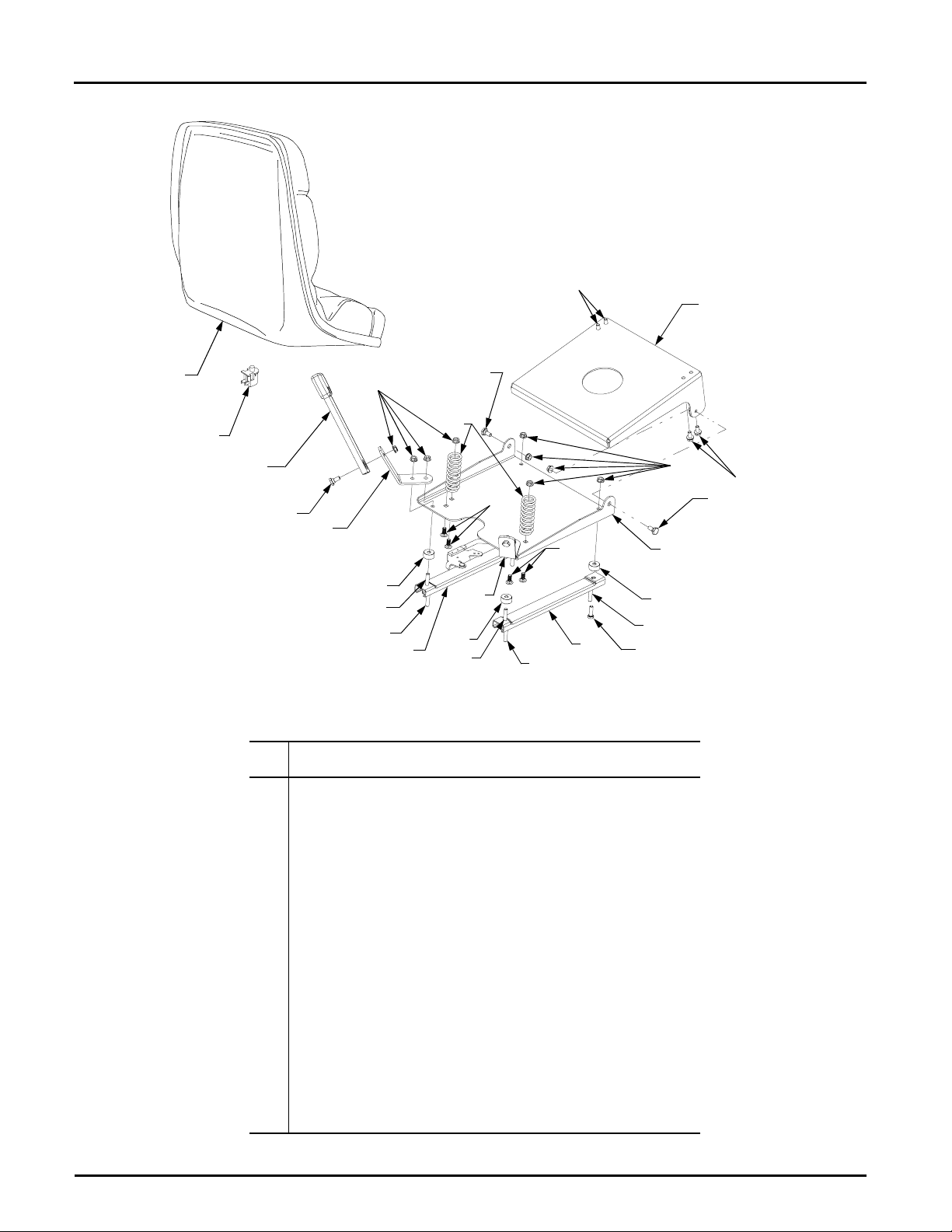

Seat Assembly .............................................. .... 4 4
Fuel Tank .......................................................... 45
Foldable ROPS ................................................. 46

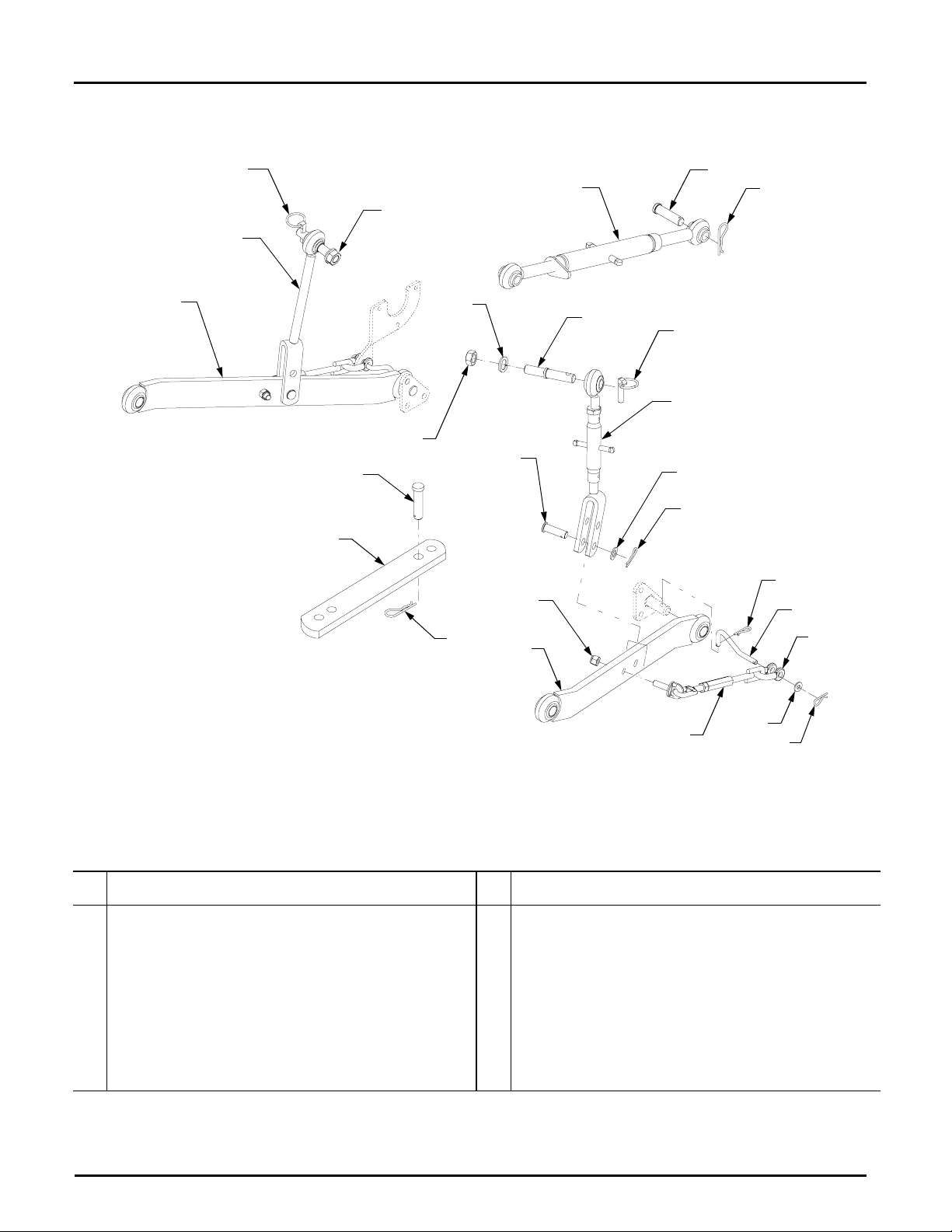

Three Point Hitch .............................................. 47
Auxiliary Hydraulic Loader Valve (If Equipped) 48
Wheels 50
28
29
30
31
32
33
34
35
36
37
38
39
-3-
FRAME
5
9
1
8
3
4
7
10
9
9
6
2
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0666 Frame ............................................. 1
2 703-3503A Lever, Hood Latch .......................... 1
3 703-3497A Bracket, Running Board Mtg. LH .... 1
4 703-3379A Bracket, Running Board Mtg. RH ... 1
5 703-05137 Bracket, Hood Latch Mtg. ............... 1
6 710-3083 Screw, Hex Cap, .............................
7 710-0451 Screw, Carriage, .............................
8 710-1260A Screw, Hex Wash. Hd. ...................
9 712-3004A Nut, Hex Flange Lock, 5/16-18 ....... 5
10 726-0455 Latch, Hood .................................... 1
5/16-18 x 1.375 GR5
5/16-18 x .75
5/16-18 x .75
8
3
2
6
-4-
PEDESTAL
11
16
23
1
3
12
13
9
9
4
22
14
6
7
17
21
8
16
5
20
15
2
13
7
9
16
19
16
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 703-3383A Pedestal .................................... 1
2 703-3717 Bracket, Dash Mtg. RH ............. 1
3 703-3721 Bracket, Dash Mtg. LH .............. 1
4 703-3725 Bracket, Steering Column ......... 1
5 703-3895 Bracket, Brake Lever ................. 1
6 703-4064 Bracket, Pump Mtg. ................... 1
7 710-0623 Screw, Hex Wash, Hd Tapp ......
8 710-0642 Screw, Hex Wash, Hd Tapp ......
9 710-0653 Screw, Hex Wash, Hd Tapp ......
10 710-1260A Screw, Hex Wash, Hd Tapp ......
3/8-16 x .75
1/4-20 x .75
1/4-20 x .375
5/16-18 x .75
10
18
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
11 710-3008 Screw, Hex Cap ........................
12 711-1361 Shaft, Steering ........................... 1
13 712-0292 Nut, Speed, 1/4-20 .................... 2
14 712-0411 Nut, Hex Nylon Insert Lock, ......
15 712-3004A Nut, Hex Flange Lock, 5/16-18 2
4
16 714-0104 Pin, Internal Cotter .................... 4
17 716-0101 Ring, Snap, .75 ID ..................... 1
4
18 718-3129 Pump, Hydraulic Steering .......... 1
19 731-3359 Lever, Parking Brake ................. 1
4
20 736-0343 Washer, Flat, .33 x 1.25 x .12 ... 2
21 741-0245 Bearing, Hex Flange, .75 ID ...... 1
3
22 747-3454 Pin, Parking Brake Pivot ............ 1
23 747-3543A Rod, Parking Brake ................... 1
5/16-18 x .75 GR5
5/16-24 GR8
2
4
-5-
FRONT AXLE 4WD
5
5
5
12
9
8
11
6
4
7
10
3
8
3
1
5
12
8
2
8
7
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0735 0637 Plate, Steering Cylinder Mtg. ......... 1
2 618-3207 Axle Assembly, Front 4WD ............ 1
3 710-1843 Screw, Hex Cap, M 12-1.75 x 25.GR8 4
4 710-3006 Screw, Set, 5/16-18 x 3/8 .............. 1
5 710-3067 Screw, Hex Cap, 1/2-13 x 1.75 GR5 12
6 711-1410 Stud, Cylinder Mtg. ........................ 1
7 712-3016 Nut, Hex Nylon Insert Lock ............
8 712-3083 Nut, Hex Nylon Insert Lock ............
9 712-3107 Nut, Hex Lock, 3/4-10 .................... 1
10 717-350 2 Cylinder, Stee ring .......................... 1
11 717-3513A Shaft, Drive 4WD ........................... 1
12 719-3158 Bracket, Axle Mtg. ......................... 2
5/8-11 GR5
1/2-13 GR8
2
12
-6-
4WD AXLE ASSEMBLY
32
23
25
22
34
27
28
15
17
24
31
14
5
18
16
29
9
8
4247,
47
49
41
6
26
38
40
52
53
7
12
10
51
2
37
21
32
11
21
36
39
1
2
50
44
45
46
48
42
4
30
33
20
19
3
35
13
4WD AXLE ASSEMBLY
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 IM-326021860 Housing Assembly, Axle ..............
2 IM-030500820 Pin, Dowel ................................... 4
3 IM-326345040 Housing, Axle LH ........................ 1
4 IM-398400440 Gauge, Oil Level .......................... 1
5 IM-322013110 Housing Assembly, Pinion Gear ..
6 IM-052300400 O-Ring ......................................... 2
7 IM-040136204 Bearing, Ball ............................ .... 2
8 IM-040106303 Bearing, Ball ............................ .... 2
9 IM-036500047 Ring, Snap ................................... 2
10 IM-326240290 Gear, Final Pinion Idler ................ 4
11 IM-322511091 Shaft, Idler Drive .......................... 2
12 IM-052300650 O-Ring ......................................... 2
13 IM-322117840 Housing, Final Drive LH .............. 1
14 IM-322117850 Housing, Final Drive RH .............. 1
15 IM-326240280 Gear, Final Drive Pinion .............. 2
16 IM-042532006 Bearing, Tapered ......................... 2
17 IM-040106006 Bearing, Ball ................................ 2
18 IM-050600038 Seal, Oil ....................................... 2
19 IM-064600016 Plug ............................................. 2
20 IM-025100016 Washer, Seal ........................... .... 2
21 IM-025100012 Washer, Seal ........................... .... 3
22 IM-322212311 Housing, Final Drive .................... 2
23 IM-326312330 Wheel Hub/Shaft ......................... 2
24 IM-326370450 Gear, Final Drive ......................... 2
25 IM-050609043 Seal, Oil, 35mm x 55mm x 15mm 2
26 IM-040106205 Bearing, Ball ................................ 2
Includes Ref. No. 2
Includes Ref. No. 2
-7-
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1
27 IM-040106206 Bearing, Ball ................................ 2
28 IM-036100030 Ring, Snap ................................... 2
29 IM-330310712 Kingpin ........................................ 2
30 IM-334525190 Arm, Steering LH ......................... 1
31 IM-334525200 Arm, Steering RH ........................ 1
32 IM-011511025 Bolt, M10 x 25 ............................. 12
2
33 IM-011511030 Bolt, M10 x 30 ............................. 4
34 IM-011510820 Bolt, M8 x 20 ............................... 12
35 IM-011510825 Bolt, M8 x 25 ............................... 8
36 IM-010311035 Bolt, M10 x 35 ............................. 2
37 IM-010301212 Bolt, M12 x 12 ............................. 3
38 IM-020900008 Nut, M8 ........................................ 2
39 IM-399234470 Collar ........................................... 2
40 IM-010310825 Bolt, M8 x 25 ............................... 2
41 IM-334712010 Rod, Tie ....................................... 1
42 IM-334801170 Tie Rod End, LH ..........................
44 IM-334810207 Cover, Dust ................................. 2
45 IM-334810209 Nut, Castle, M12 x 1.25 ............... 2
46 IM-030103025 Pin,Cotter .................................... 2
47 IM-334801150 Tie Rod End, RH .........................
48 IM-020109029 Nut, Jam, LH Thrd ....................... 1
49 IM-020800014 Nut, Jam, M14 RH Thrd .............. 1
50 IM-025100020 Washer, Seal ............................... 1
51 IM-040106304 Bearing, Ball ................................ 2
52 IM-199280540 Shim, 0.2T ................................... AR
53 IM-199280550 Shim, 0.5T ................................... AR
Includes Ref. Nos. 44 thru 46
Includes Ref. Nos. 44 thru 46
1
1
-8-
4WD AXLE ASSEMBLY
27
3
4
7
12
41
37
39
13
11
40
38
9
36
2
10
1
9
15
6
8
5
34
35
33
31
30
28
29
32
27
29
28
30
25
26
22
21
20
19
17
14
23
24
16
18
-9-
4WD AXLE ASSEMBLY
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 IM-322017890 Mtg. Bracket, Axle Front .................
2 IM-398510090 Bushing .......................................... 1
3 IM-322017900 Mtg. Bracket, Axle Rear .................
4 IM-398510450 Bushing .......................................... 1
5 IM-050301140 Seal, Oil .......................................... 1
6 IM-399261550 Washer, Thrust ............................... 1
7 IM-050309056 Seal, Oil .......................................... 1
8 IM-399261580 Washer, Thrust ............................... 1
9 IM-060620000 Fitting, Grease ................................ 2
10 IM-395910030 Shim Kit, Service Only .................... 1
11 IM-399234160 Collar .............................................. 1
12 IM-052100210 O-Ring ............................................ 1
13 IM-020109079 Nut .................................................. 1
14 IM-326211011 Shaft, Differential LH ...................... 1
15 IM-326211021 Shaft, Differential RH ...................... 1
16 IM-199280630 Shim, 0.1T ...................................... AR
17 IM-199280640 Shim, 0.2T ...................................... AR
18 IM-199280650 Shim, 0.5T ...................................... AR
19 IM-040106305 Bearing, Ball ................................... 1
20 IM-399211140 Spacer ............................................ 1
21 IM-040156305 Bearing, Ball ................................... 1
22 IM-326110490 Housing, Differential ....................... 1
23 IM-399310150 Plate, Locking ................................. 3
24 IM-010110816 Bolt, M8 x 16 .................................. 6
25 IM-326130160 Shaft, Pinion ................................... 1
26 IM-030300540 Pin, Spring ...................................... 1
27 IM-322050621 Gear Set, Ring and Pinion .............. 1
28 IM-326160060 Gear, Pinion ................................... 2
29 IM-399261070 Washer, Thrust ............................... 2
30 IM-326140200 Gear, Differential ............................ 2
31 IM-040106304 Bearing, Ball ................................... 2
32 IM-399211130 Spacer ............................................ 1
33 IM-199281030 Shim, 0.1T ...................................... AR
34 IM-199281040 Shim, 0.2T ...................................... AR
35 IM-199281050 Shim, 0.5T ...................................... AR
36 IM-399260530 Washer, Thrust ............................... 1
37 IM-199281240 Shim, 0.1T ...................................... AR
38 IM-199281250 Shim, 0.2T ...................................... AR
39 IM-199280430 Shim, 0.5T ...................................... AR
40 IM-042530205 Bearing, Tapered Roller ................. 2
41 IM-050209004 Seal, Oil .......................................... 1
Includes Ref. No. 2
Includes Ref. No. 4
1
1
-10-
HYDRAULICS
11
9
4
16
6
10
6
17
15
5
12
4
13
4
7
5
4
2
4
727-3168
Cylinder
Piston End
727-3188A
727-3185A
5
1
14
727-3168
Cylinder
Base End
727-3187A
5
8
9
5
3
6
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 710-0607 Screw, Hex Wash Hd. Tapp ......
2 712-3004A Nut, Hex Flange Lock, ...............
3 726-0132 Clamp, Adjustable Hose 2
4 726-04004 Clamp, Hose ............................. 5
5 726-0475 Clamp, Hose ............................. 5
6 727-3012 Fitting, 90 Degree ...................... 3
7 727-3168 Hose, Steering .......................... 2
8 727-3177 Tube, Oil Cooler Return ............ 1
5/16-18 x .5
5/161-18 GR5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
9
9 727-3178 Hose, Oil Return ........................ 1
10 727-3182 Tube, Lift Return Line ................ 1
2
11 727-3184 Hose, Lift Cylinder ..................... 1
12 727-3185A Hose, Lift Inlet ........................... 1
13 727-3187A Hose, Steering Pressure ........... 1
14 727-3188A Hose, Steering Tank .................. 1
15 727-3199 Manifold, Return ........................ 1
16 727-3209 Tube, Cylinder Return ............... 1
17 737-3127 Fitting, 90 Degree ...................... 1
-11-
LIFT VALVE AND POSITION CONTROL
22
31
16
13
17
24
5
28
29
33
10
30
11
13
17
27
33
28
9
6
11
23
1
16
16
2
15
11
14
4
8
12
3
25
26
21
20
16
19
12
18
22
7
11
32
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0663 Link Assembly, Feedback ......... 1
2 603-04091 Link Assembly, Input ................. 1
3 603-04085 Link, HI-LO Shifter ..................... 1
4 703-3360 Link, Feedback .......................... 1
5 703-3610 Bracket, Lift Brace ..................... 1
6 703-04084 Bracket, Valve Mtg. ................... 1
7 703-3698A Handle, HI-LO Shifter ................ 1
8 703-3762 Bracket, Lift Mtg. ....................... 1
9 703-3763A Handle, Lift ................................ 1
10 710-0564 Screw, Hex Cap, .......................
11 710-0607 Screw, Hex Wash Hd. Tapp ......
12 710-3008 Screw, Hex Cap, .......................
13 711-1316 Ferrule, Feedback Adjustment .. 2
14 711-1612 Pin, .25 x 1.0 ............................. 1
15 711-1614 Link, Valve ................................. 1
16 712-0324 Nut, Hex Nylon Insert Lock .......
1/4-20 x 2.75 GR5
5/16-18 x .5
5/16-18 x .75 GR5
14-20 GR8
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
17 712-3004A Nut, Hex Flange Loc k, ...............
18 712-3029 Nut, Hex Jam, 1/2-20 GR5 ........ 2
19 715-0120 Pin, Spirol, 3/16 x 1.0 ................ 1
20 718-3130 Valve, Hydaulic Lift .................... 1
21 723-3013 Washer, Friction, .515 x 1.5 x .12 1
22 731-3321 Grip, Handle .............................. 2
23 732-0330 Spring, Compression ................. 1
24 732-0499 Spring, Compression ................. 1
3
25 736-3019 Washer, Flat, .531 x 1.062 x .134 1
26 736-3022 Washer, Belleville, .....................
7
27 719-3013 Clevis, Adjustment .................... 1
2
28 741- 3084 Bearing, Nylon Flange .75 ID .... 2
29 747-3394 Rod, Feedback .......................... 1
30 747-04131 Rod, Hi-LO Connecting ............. 1
31 603-04086 Shaft, Hi-Lo Shifter .................... 1
32 712-3058 Nut, Hex Nylon Lock, 1/2-20 ..... 1
7
33 714-0104 Pin, Internal Cotter .................... 2
5/16-18 GR5
.53 x 1.375 x .06
2
2
20
9
23
-12-
DASH PANEL AND STEERING WHEEL
THROTTLE ASSEMBLY
HARDWARE POSITIONS
12
19
26
3
1
5
25
11
18
15
10
13
16
21
7
4
7
28
17
2
8
14
8
1
27
24
12
6
7
22
5
24
8
24
26
8
25
11
-13-
DASH PANEL AND STEERING WHEEL
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0711 Tab Assembly, Throttle .................. 1
2 629-3061 Wire Harness, Dash ....................... 1
3 631-0076 Boot, Steering Shaft ....................... 1
4 631-04007A Dash .............................................. 1
5 703-05132 Plate, Throttle Mtg. ........................ 1
6 710-0604A Screw, Hex Wash. Hd. Tapp ..........
7 710-0924 Screw, Pan Hd., 1/4-20 x .75 ......... 4
8 710-3013 Screw, Hex Cap, 1/4-20 x .5 GR5 .. 6
9 712-0237 Nut, Hex Lock, 5/16-24 .................. 1
10 712-0292 Nut, Speed, 1/4-20 ......................... 2
11 712-0116 Nut, Hex Insert Jam Lock, 3/8-24 1
12 723-3013 Washer, Friction, .515 x 1.5 x .12 .. 1
13 725-2017 Plug ................................................ 1
14 725-3265
725-3285
735-0688
15 725-3274 Switch, Headlight ........................... 1
16 725-3276 Switch, PTO ................................... 1
17 725-3277 Switch, Ignition ............................... 1
18 725-3279 Switch, Hazard ............................... 1
19 731-3209 Steering Wheel, Soft Grip .............. 1
20 731-3210 Cover, Steering Wheel ................... 1
21 731-3298 Handle, Throttle ............................. 1
22 731-3344 Panel, Dash Insert ......................... 1
23 736-0242 Washer, Belleville, .34 x .872 x .06 1
24 736-0329 Washer, Lock, 1/4 .......................... 3
25 736-0112 Washer, Belleville, .531 x 1.62 x .04 5 2
26 736-3052 Washer, Flat, .406 x 1.0 x .105 ...... 1
27 746-3086A Cable, Throttle ............................... 1
28 759-3950 Key Set, Ingition ............................. 1
5/16-18 x .625
Panel, Instrument ...........................
Bulb .............................................
Plug .............................................
2
1
12
12
40
47
28
41
31
22
-14-
CONTROLS
A
21
37
61
B
19
38
3
50
24
27
52
18
49
21
18
51
31
55
12
55
63
50
24
22
11
6
53
47
28
2
29
23
44
60
36
29
39
31
48
9
57
18
57
48
54
18
8
58
33
31
64
13
14
34
46
31
5
31
32
35
45
56
1
16
59
56
16
42
26
20
43
17
15
A
31
18
10
17
32
31
18
59
4
21
7
B
50
24
30
25
28
31
47
62
22
41
CONTROLS
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0671 Shaft Assembly, Brake .............. 1
2 603-0672 Shaft Assembly, Forward .......... 1
3 603-0673A Link Assembly, Pedal ................ 1
4 603-0674A Plate, Bearing ............................ 1
5 603-0678 Link Assembly, Brake LH .......... 1
6 603-0679A Link Assembly, Parking Brake .. 1
7 603-0680 Link Assembly, Brake RH ......... 1
8 603-0749 Shaft Assembly, Differential ...... 1
9 603-0770 Link, PTO Select ....................... 1
10 703-3152 Bracket, Reverse Switch ........... 1
11 703-3541 Bracket, Differential Pivot .......... 1
12 703-3571 Handle, PTO ............................. 1
13 703-3575 Link, Differential Pivot ............... 1
14 703-3582 Bracket, Diff. Actuator Mtg. ....... 1
15 703-4099 Bracket, Reverse Switch ........... 1
16 710-0599 Screw, Hex Wash Hd Tapp .......
17 710-0642 Screw, Hex Wash Hd Tapp .......
18 710-1260A Screw, Hex Wash Hd Tapp .......
19 710-0654A Screw, Hex Wash Hd Tapp .......
20 711-0415 Pin, Clevis, 3/8 x 1.75 ............... 1
21 711-0723A Ferrule, 3/8-24 x .375 Dia. Hdn 3
22 711-1362 Ferrule, Brake ........................... 3
23 711-3397 Ferrule, 3/8-24 x .37 .................. 1
24 712-0239 Nut, Hex Lock, 1/2-20 ............... 3
25 712-0379 Nut, Hex Flange Lock, 3/8-24 ... 1
26 712-0431 Nut, Hex Flange Lock, 3/8-16 ... 1
27 712-0711 Nut, Hex Jam, 3/8-24 ................ 1
28 712-3027 Nut, Hex Flange Lock, 1/4-20 ... 3
29 712-3077 Nut, Hex, M8 x 1.25 GR8.8 ....... 2
30 713-3000 Link, Chain ................................ 1
31 714-0104 Pin, Internal Cotter .................... 11
32 714-0147 Pin, Internal Cotter .................... 2
1/4-20 x .5
1/4-20 x .75
5/16-18 x .75
3/8-16 x 1.0
-15-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
33 714-3020 Pin, Internal Cotter .................... 1
34 725-3164A Switch, Plunger ......................... 1
35 725-3191A Switch, Plunger ......................... 1
36 727-04033 Cylinder, Damper ...................... 1
37 731-3296 Pedal, Brake .............................. 1
38 731-3299A Pedal, Forward/Reverse ........... 1
39 731-3320 Pedal, Differential ...................... 1
40 731-3321 Grip, Handle .............................. 1
41 732-0324 Spring, Compression ................. 2
42 732-0756A Spring, Torsion .......................... 1
43 732-0859 Spring, Rev/No Cut ................... 1
44 732-3065 Spring, Compression ................. 1
45 732-3117 Spring, Switch Actuator ............. 1
46 732-3118 Spring, Extension ...................... 1
47 736-0173 Washer, Flat, .28 x .74 x .063 ... 3
2
48 736- 0185 Washer, Flat, .375 x .738 x .063 2
49 736- 0232 Washer, Wave, .53 x .78 x .013 1
4
50 736- 3019 Washer, F lat, .53 x .1.06 x .134 3
51 736-3069 Washer, Flat, .53 x .875 x .15 ... 1
12
52 738-0509 Screw, Shoulder, .50 x 1.825 .... 1
53 738-0533 Screw, Shoulder, .498 x 1.635 1
2
54 738-0689 Screw, Shoulder ........................
55 741-0491 Bearing, Nylon. .50 ID x .341 .... 2
56 741-0598 Bearing, Hex Flange, .752 ID .... 2
57 741-3073 Bearing, Flange, .375 x .58 x .25 2
58 741-3074 Bearing, Flange..........................
59 741-3084 Bearing, Flange..........................
60 747-3396 Rod, Hydro Control ................... 1
61 747-3399 Rod, Brake, LH .......................... 1
62 747-3400 Rod, Brake, RH ......................... 1
63 747-3414 Rod, PTO Control ...................... 1
64 747-3428 Rod, Diff. Lock Control .............. 1
1/2 x .180: 3/8-24
.626 x .938 x .344
.751 x 1.125 x .375
1
2
2
-16-
BATTERY AND ELECTRICAL
3
7
2
8
5
6
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
† 629-3060 Harness, Main Wire ....................... 1
2 703-4104 0637 Strap, Battery Holddown ................ 1
3 703-4131 Bracket, Fuse Center ..................... 1
4 710-0206 Screw, Hex Cap, 1/4-10 x .875 GR5 2
5 710-0599 Screw, Hex Wash Hd. Tapp ..........
6 712-0324 Nut, Hex Nylon Insert Lock, 1/4-20 2
7 712-0421 Nut, Wing w/Bell Washer, 5/16-18 2
8 725-3174 Battery, 500 cca Dry ...................... 1
9 725-3273 Switch, PTO Reverse Override ...... 1
10 747-3433 Rod, Battery Holddown .................. 2
1/4-20 x .5
10
4
9
2
† Not Shown
-17-
TRANSMISSION CONNECTIONS
21
14
8
15
6
12
15
9
16
2
5
19
20
22
3
18
1
10
17
10
4
11
15
13
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0748 0637 Bracket, Lower Hitch RH ........... 1
2 603-0751 0637 Bracket, Lower Hitch LH ........... 1
3 603-0753 0637 Bracket, Top Link ...................... 1
4 603-0754A 0637 Bracket, Cylinder ....................... 1
5 603-0758 0637 Bracket, Drawbar ...................... 1
6 703-3542A
777S30634
7 703-3548A Bracket, Chain LH ..................... 1
8 703-3549A Bracket, Chain RH .................... 1
9 710-0505 Screw, Hex Cap ........................
10 710-0964A Screw, Hex Cap ........................
11 710-1515 Screw, Hex Cap ........................
Shield, PTO ...............................
Graphic, Warning ...................11
7/16-14 x 1/0 GR5
5/8-18 x 1.31 GR5
5/8-11 x 1.5 GR5
14
7
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
12 710-3039 Sc rew, Hex Cap ........................
13 710-3067 Sc rew, Hex Cap ........................
14 710-3119 Sc rew, Hex Cap ........................
15 710-3131 Sc rew, Hex Cap ........................
16 711-1503 Pin, Lift, .75 x 2.125 .................. 1
17 712-3063 Nut, Hex Lock, 5/8-18 ............... 8
4
18 716-0101 Ring, Snap, 75 Dia .................... 1
19 717-3504 Cylinder, Lift .............................. 1
8
20 736- 0192 Washer, F lat, .531 x .93 x .09 2
21 703-05133 Bracket, Hitch Clip .................... 1
1
22 747-04109 Rod, Top Link Retainer ............ 1
5/16-18 x .5 GR5
1/2-13 x 1.75 GR5
3/8-16 x .75 GR5
1/2-13 x 1.0 GR5
4
2
6
10
-18-
4WD TRANSMISSION
26
22
48
16
19
14
36
51
28
49
39
6
25
15
34
24
15
32
49
28
33
51
44
17
50
5
33
4
10
30
18
23
11
20
47
7
37
42
31
9
3
16
52
48
40
43
27
45
35
12
45
16
41
13
46
38
1
21
8
29
2
38
20
16
48
48
4WD TRANSMISSION
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
† 618-04059
737-3025
737-3062
737-3035
759-3958
1 603-0688A Arm, Hydro Control ................... 1
2 603-0712A Bracket, Transmission Mtg . RH 1
3 603-0713A Bracket, Transmission Mtg . RH 1
4 619-3059 Cover, Transmission Housing .. 1
5 703-3577 Plate, Feedback ....................... 1
6 703-3715 Baffle, Oil .................................. 1
7 703-05041 Arm, Neutral RH ....................... 1
8 703-05042 Arm, Neutral LH ........................ 1
9 710-0294 Screw, Hex Cap, ......................
10 710-0591 Screw, Hex Cap Lock, ..............
11 710-0833 Screw, Hex Cap, ......................
12 710-1633 Screw, Plu g, M14 x 1.5 x .827 .. 1
13 710-1853 Screw, Hex Special Set, ...........
14 710-3005 Screw, Hex Cap, ......................
15 710-3013 Screw, Hex Cap, ......................
16 710-3032 Screw, Hex Cap, ......................
17 710-3120 Screw, Hex Cap Lock , .............
18 710-3262 Screw, Low Hd. Cap, ................
19 711-1355 Shaft, Rock ............................... 1
20 712- 0431 Nut, Hex F lange Lock, 3/8-16 ... 2
Service Transmission Ass ’y . —
See Note below.
Transmissi on Oil, 1 Qt.
Transmissi on Oil, 1 Gal.
Transmissi on Oil, 5 Gal.
Sealant, Loctite® Black, 5.3 oz.
1/4-20 x .375 GR5
3.8-24 x 1.0 GR5
5/16-18 x 5.25 GR5
5/16-18 x .625
3/8-16 x 1.25 GR5
1/4-20 x .5 G R5
1/2-13 x 1.25 GR5
3/8-16 x 1.5 GR5
3/8-16 x .75
-19-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1
21 716-0111 Ring, Retaining ......................... 1
22 716-0195 Ring, Retaining ......................... 1
6.5 gl.
23 717-3507 Pump, Hydrostatic Transmission 1
24 718-3131 Pump, Auxiliary Hydraulic ......... 1
25 719-3166 Arm, Upper Hitch RH ................ 1
AR
26 719-3167 Arm, Upper Hitch LH ................ 1
27 721-0501 O-Ring, 2.987 ID x .103 Dia ..... 1
28 721-0510 Seal, Oil, 1.5 x 2.0 x .25 ........... 2
29 723-0405 Filter, Oil ................................... 1
30 723-3014 Filter, Oil ................................... 1
31 723-3021 Breather, Transmission ............ 1
32 725-3272 Sensor, RPM ............................ 1
33 727-3012 Fitting, 90° ................................ 2
34 727-3176 Tube, Auxiliary Pump Suction .. 1
4
35 727-3181 Tube, Hydro Suction ................. 1
36 731-04018 Grommet ................................... 1
1
37 732-1162 Spring, Extension ..................... 1
38 736-3052 Washer, Flat, .406 x 1.0 x .105 . 2
4
39 737-0146 Fitting, Grease .......................... 1
40 737-0349 Plug, Fitting ............................... 2
41 737-3105 Fitting, Filter Nipple ................... 1
1
42 737-3108 Fitting, 90° ................................ 1
43 737-3111 Fitting, 90° ................................ 1
4
44 737-3112 Fitting, Straight ......................... 1
45 737-3113 Fitting, Straight ......................... 2
2
46 738-0108 Screw, Shoulder, . 498 Dia x 1.45 1
47 738-0430 Screw, Shoulder, .50 Dia x .685 1
6
48 738-04001 Screw, Shoulder, ......................
9
49 741-1110 Bearing, Sleeve, .......................
2
50 750-1208 Spacer, .40 x 1.0 x 3.9 .............. 4
51 750-1239 Spacer, 1.52 x 2.25 x .188 ........ 2
52 737-04018 Dipstick ..................................... 1
.625 x .18: 1/2-13
1.52 x 1.75 x 1.0
4
2
DOES NOT include the following components and their associated mounting hardware: Brake Assemblies; Hydro Pump w/Filter
†
and Linkage; Transmission Mounting Brackets; 3 Point Hitch Rock Shaft and Arms; and RPM Sensor. Also DOES NOT include
the hydraulic tubes and fittings.
10
27
14
-20-
DIFFERENTIAL AND FINAL DRIVE
9
37
41
37
35
36
19
33
37
41
37
14
26
4
24
39
22
17
42
7
38
25
17
20
17
40
21
23
15
25
32
22
17
30
28
39
29
43
6
13
34
44
16
12
3
18
31
5
2
11
20
11
1
8
-21-
DIFFERENTIAL AND FINAL DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 619-3060 Housing, Axle ....................................... 2
2 661-3014 Brake Assembly, Drum ........................ 2
3 710-0538 Screw, Hex Cap Lock, .........................
4 710-1695 Screw, Socket Hd. Cap, 3/8-16 x 1.0 ... 4
5 710-3119 Screw, Hex Cap Lock, 3/8-16 x .75 GR5 4
6 710-3238 Screw, Hex Cap Lock, .........................
7 711-1326 Shaft, Axle Stub RH ............................. 1
8 711-1327 Shaft, Axle ............................................ 2
9 711-1358 Shaft, Axle Stub LH .............................. 1
10 711-1389A Shaft, Differential Lock Actuator .......... 1
11 715-0226 Pin, Dowel, .3752 x .75 ........................ 8
12 715-3010 Pin, Dowel, .25 x .75 ............................ 4
13 716-0180 Ring, Retaining .................................... 2
14 716-0195 Rjng, Retaining .................................... 2
15 716-0196 Ring, Retaining .................................... 2
16 716-0390 Ring, Retaining .................................... 2
17 716-0391 Ring, Retaining .................................... 4
18 716-0396 Clip, Rotor ............................................ 1
19 716-0397 Ring, Retaining .................................... 1
20 717-1120 Gear, Differential, 10T .......................... 4
21 717-1173 Shaft, Cross ......................................... 1
22 717-1178 Shaft, Cross ......................................... 2
23 717-1180 Block, Differential Pinion ...................... 1
24 717-3316 Gear, Bevel, 65T .................................. 1
25 717-3317 Gear, Miter, 14T ................................... 2
26 717-3471 Gear, Drop Axle, 42T RH ..................... 1
27 717-3478 Gear, Drop Axle, 42T LH ..................... 1
28 718-0666 Carrier, Differential ............................... 1
29 718-3104 Collar, Differential Lock ........................ 1
30 718-3105 Yoke, Differential Lock ......................... 1
31 718-3112 Cover, Bearing ..................................... 1
32 721-0495 Seal, Oil, 50mm x 75 mm x 10mm ....... 2
33 721-0496 Seal, Oil ............................................... 1
34 721-3020A Seal, Oil, 1.181 x 2.453 x .276 ............. 2
35 732-0187 Spring, Compression ........................... 1
36 736-0355 Washer, Flat, .56 x 1.0 x .04 ................ 1
37 736-0715 Washer, Thrust, 1.12 x 1.75 x .03 ........ 4
38 741-0721 Bearing, Ball ......................................... 2
39 741-1104 Bearing, Ball ......................................... 2
40 741-1107 Bearing, Ball ......................................... 2
41 741-1112 Bearing, Thrust .................................... 2
42 741-3033A Bearing, Ball ......................................... 2
43 741-3080 Bearing, Needle ................................... 1
44 761-3071 Drum, Brake ......................................... 2
5/16-18 x .625 GR5
7/16-14 x 1.75 GR5
10
24
-22-
4WD TRACTION DRIVE
2
30
6
16
17
28
9
11
29
5
33
20
4
19
14
25
34
27
22
32
18
23
10
12
31
33
15
13
24
8
21
1
26
3
7
-23-
4WD TRACTION DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0906 Pin Assembly, 2 Speed .................. 1
2 710-0573 Screw, Hex Cap Lock, ....................
3 710-3006 Screw, Cup Set, 5/16-18 x 3/8 ....... 1
4 711-1339 Shaft, Motor ................................... . 1
5 711-1344 Shaft, Pinion, 16T ........................... 1
6 711-1372 Shaft, 4WD ..................................... 1
7 711-1397 Shaft, 2 Speed Actuator ................. 1
8 715-0159 Pin, Spirol, 3/16 x .875 ................... 1
9 716-0185 Ring, Retaining ............................... 1
10 716-0384 Ring, Retaining ............................... 1
11 716-0387 Ring, Retaining ............................... 1
12 716-0393 Ring, Retaining ............................... 1
13 716-0396 Clip, Rotor ...................................... 1
14 717-3472 Gear, Drive Pinion, LO 24T:17T .... 1
15 717-3473 Gear, Drive Pinion, HI 33T: 17T ..... 1
16 717-3480 Gear, Drive, LO:59T; HI 50T .......... 1
17 717-3484 Clutch, Overrunning ....................... 1
18 718-0674 Cover, Front ................................... 1
19 718-0678 Spacer, Drive .................................. 1
20 718-3116 Collar, 2 Speed ............................... 1
21 721-0496 Seal, Oil .......................................... 1
22 721-0501 O-Ring ............................................ 1
23 721-0507 Seal, Oil .......................................... 1
24 732-0863 Spring, Detent ................................ 1
25 736-0715 W asher, Thrust ............................... 1
26 741-0862 Ball, Detent ..................................... 1
27 741-1106 Bearing, Ball ................................... 1
28 741-1107 Bearing, Ball ................................... 1
29 741-1109 Bearing, Angular Contact Ball ........ 1
30 741-1112 Bearing, Thrust ............................... 1
31 741-3037 Bearing, Ball ................................... 1
32 741-3057 Bearing, Ball ................................... 1
33 741-3118 Bearing, Sleeve .............................. 2
34 748-3096 Yoke, 2 Speed ................................ 1
5/16-18 x 1.25 GR5
4
-24-
PTO DRIVE
51
14
16
24
22
15
36
53
20
37
4
39
14
32
45
50
1
8
54
6
44
A
55
42
3
40
51
43
10
25
19
34
17
7
58
13
27
53
59
56
48
29
26
31
33
46
41
28
30
38
52
47
52
5
53
12
18
14
51
11
A
57
51
14
23
9
49
35
2
21
PTO DRIVE
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 618-3189 Clutch Assembly, PTO .............. 1
2 619-3076A Housing, Rear ........................... 1
3 710-0538 Screw, Hex Cap Lock, ...............
4 710-1238 Screw, Hex Wash Hd, ...............
5 710-3006 Screw, Cup Set, 5/16-18 x 3/8 .. 1
6 710-3013 Screw, Hex Cap, 1/4-2 0 x .5 GR5 1
7 710-3118 Screw, Hex Cap Lock, ...............
8 710-04003 Screw, Round Hd, 6mm x 40mm 6
9 711-1325 Shaft, 540 PTO ......................... 1
10 711-1337 Shaft, Input ................................ 1
11 711-1345 Shaft, 2000 PTO ....................... 1
12 711-1371 Shaft, PTO Back ....................... 1
13 711-1373 Shaft, PTO Actuator .................. 1
14 716-0180 Ring, Retaining .......................... 4
15 716-0200 Ring, Retaining .......................... 1
16 716-0201 Ring, Retaining .......................... 1
17 716-0384 Ring, Retaining .......................... 1
18 716-0393 Ring, Retaining .......................... 1
19 716-0397 Ring, Retaining .......................... 1
20 716-3001 Ring, Retaining .......................... 1
21 717-3469 Gear, 540 PTO: 81T .................. 1
22 717-3479 Gear, Auxiliary Drive Idler: 28T . 1
23 717-3487 Gear, 2000 PTO: 61T ................ 1
24 717-3490 Gear, Auxiliary Drive Pinion: 28T 1
25 717-3491 Gear, Auxiliary Drive: 32T ......... 1
26 717-3492 Gear, 540 PTO Pinion: 14T ....... 1
27 717-3494B Gear, 2000 PTO Pinion: 54T ..... 1
28 717-3500 Gear, 2000 PTO Pinion: 34T ..... 1
29 718-0668 Gear, Spline Coupling ............... 1
30 718-0681 Cover, 2000 PTO ...................... 1
5/16-18 x .625 GR5
5/16-18 x .875 GR5
3/8-16 x 1.0 GR5
-25-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
31 718-3116 Collar, 2 Speed ......................... 1
32 718-3134 Coupling, PTO ........................... 1
6
33 719-0551A Actuator, PTO ........................... 1
34 721-0496 Seal, Oil ..................................... 1
2
35 721- 0497 Seal, Oil ..................................... 1
36 721-0500 O-Ring ....................................... 1
37 721-0504 Plug, Oil ..................................... 1
38 721-0509 Seal, Oil ..................................... 1
9
39 721-3020A Seal, Oil ..................................... 1
40 732-0187 Spring, Compression ................. 1
41 732-0863 Spring, Detent ........................... 1
42 732-0980 Spring, Compression ................. 1
43 736-0355 Washer, Flat, .56 x 1.0 x .040 ... 1
44 736-0463 Washer, Flat, .............................
45 736-0615 Washer, Thrust, .........................
46 741-0724 Bearing, Sleeve, ........................
47 741-0862 Ball, Detent ................................ 1
48 741-0991 Bearing, Sleeve, ........................
49 741-1100 Bearing, Ball .............................. 1
50 741-1118 Bearing, Needle ........................ 1
51 741-3033A Bearing, Ball .............................. 5
52 741-3037 Bearing, Ball .............................. 2
53 741-3057 Bearing, Ball .............................. 3
54 741-3083 Bearing, Needle Thrust ............. 1
55 748-3094 Arm, PTO Select ....................... 1
56 750- 1223 Spacer, 13mm x 20mm x 14mm 1
57 750-1228 Spacer, .80 x 1.85 x .855 .......... 1
58 736-0570 Washer, Flat, .865 x 1.145 x .03 1
59 750-0532 Spacer, .980 x 1.25 x .420 ........ 1
.25 x .630 x .0515
1.007 x 1.542 x .03
20mm x 23mm x 20mm
13mm x 15mm x 10mm
1
2
1
2
-26-
ENGINE AND DRIVE SHAFT
48
14
59
27
55
49
56
61
42
39
45
66
63
32
6
48
26
44
30
15
60
38
24
43
41
22
7
62
28
19
57
16
10
58
4
23
11
17
23
18
9
23
ENGINE
12
46
24
1
29
20
40
2
25
65
64
24
25
26
37
27
48
26
54
8
37
53
51
39
18
5
33
16
13
34
37
36
50
31
22
27
37
35
47
27
54
18
37
21
3
52
ENGINE AND DRIVE SHAFT
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
† 629-3062 Harness, Engine Wire ............... 1
1 603-0744 0637 Bracket, Engine LH ................... 1
2 603-0745 0637 Bracket, Engine RH ................... 1
3 651-0007
759-04009
4 703-3483
777S30631
777S30633
5 703-3484
777S30632
6 703-3485
777S30632
7 703-3486 Bracket, Muffler Mtg. ................. 1
8 703-3603A Bracket, Fuel Filter Mtg. ............ 1
9 703-05140 Plate, Baffle RH ......................... 1
10 703-05141 Plate, Baffle, LH ........................ 1
11 703-3741 Bracket, Radiator Mtg. .............. 1
12 710-0224 Screw, Hex Wash Hd Tapp .......
13 710-0347 Screw, Hex Cap ........................
14 710-0597 Screw, Hex Cap ........................
15 710-0599 Screw, Hex Wash Hd Tapp .......
16 710-0607 Screw, Hex Wash Hd Tapp .......
17 710-0623 Screw, Hex Wash Hd Tapp .......
18 710-1260A Screw, Hex Wash Hd Tapp .......
19 710-1376 Screw, Hex Cap, M8-1.25 x 16 3
20 710-1681 Screw, Hex Cap, M8-1.25 x 20 5
21 710-3005 Screw, Hex Cap, .......................
22 710-3008 Screw, Hex Cap ........................
23 710-3015 Screw, Hex Cap ........................
24 710-3138 Screw, Hex Cap,l M8-1.25 x 16 17
25 710-3144 Screw, Hex Cap ........................
Filter Assembly, Fuel .................
Filter Element .........................11
Plate, Radiator Baffle ................
Graphic, Fan Warning ............
Graphic, Warning ...................
Bracket, Radiator Mtg. RH ........
Graphic, Warning ...................11
Bracket, Radiator Mtg. LH .........
Graphic, Warning ...................11
10-16 x .5
3/8-16 x 1.75 GR5
1/4-20 x 1.0 GR5
1/4-20 x .5
5/16-18 x .5
3/8-16 x .75
5/16-18 x .75
3/8-16 x 1/25 GR5
5/16-18 x .75 GR5
1/4-20 x .75 GR5
3/8-16 x 2/0 GR5
-27-
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
26 712-0324 Nut, Hex Insert Lock, 1/4-20 ...... 4
27 712-0431 N ut, Hex Flange Lock, 3/8-16 .... 8
28 712-3004A Nut, Hex Flange Lock, 5/16-18 .. 10
29 717-3524 Shaft, Drive ................................ 1
30 720-0425 Plug, Cap ................................... 1
31 722-0262 M ount, Neoprene Engine .......... 4
1
1
32 722-3022 Tape, Foam, .625 wide .............. 42in.
1
33 723-3061 Seal, Heat Baffle .......................96in.
34 725-3281 Wire, Battery Pos. ..................... 1
35 725-3283 Wire, Ground ............................. 1
36 725-3287 Wire, Battery Neg. ..................... 1
37 726-0205 Clamp, Hose .............................. 7
38 726-0476 Clamp, Adjustable Hose ............ 3
39 726-0480 Clamp, Hose .............................. 2
40 731-04018 Grommet, Hose Guard .............. 2
41 731-3304A Hose, Radiator to Engine .......... 1
42 731-3348 Hose, Air Filter ........................... 1
43 731-3349 Hose, Air Inlet ............................ 1
1
44 731-3350 Hose, Engine to Radiator .......... 1
45 731-3363 Shroud, Fan ............................... 1
2
46 735-0226 Grommet, Rubber ...................... 1
47 736-0148 Washer, External Lock, 3/8 ....... 1
2
48 736-0173 Washer, Flat, .28 x .74 x .063 ... 7
49 736-0607 Washer, External Lock, 5/16 ..... 2
1
50 751-0535 Hose, Fuel Line ......................... 92in.
51 751-0822 Fitting, 90 Degree Hose ............ 1
6
52 751-0823 Fitting, Straight Hose ................. 1
53 751-3001 Plug, Drain ................................. 2
4
54 751-3130 Fuel Line, 5/16 ID ...................... 92in.
55 751-3163 Muffler, Engine .......................... 1
10
56 751-3165
722-0268
57 751-3192 Cap, Radiator, 13psi ................ .. 1
58 751-3193 Screen, Debris ........................... 1
2
59 718-3132 Cooler, Oil ................................. 1
60 751-3194 Element, Air Cleaner ................. 1
10
61 751-3195 Cap, Air Cleaner ........................ 1
62 751-3196 Cannister, Air Cleaner ............... 1
7
63 751-3197 Nozzle, Air Cleaner ................... 1
64 BS-825462 Bottle, Overflow ......................... 1
65 710-3206A Screw, Hx Cap, M8-1.25:25 GR8 1
4
66 726-0132 Clamp, Hose .............................. 2
Radiator .....................................
Grommet, Rubber Mtg. ..........12
† Not Shown
15
-28-
CYLINDER ASSEMBLY
10
12
1
8
12
9
18
8
13
8
4
19
3
17
16
13
5
8
12
2
7
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-825341 Cylinder Assembly (Includes 2,6 & 8) 1
2 BS-820129 Bushing ............................................ 1
3 BS-820056 Seal, Oil ........................................... 1
4 BS-820031 Screw, Hex, 6mm ............................ 6
5 BS-820176 Screw, Hex, 10mm .......................... 5
6 BS-820042 Screw, Hex, 10mm .......................... 8
7 BS-820016 Stud, Metric ..................................... 1
8 BS-820004 Plug, Welch ..................................... 7
9 BS-820151 Plug, Welch Camshaft ..................... 1
10 BS-820375 Plug, Cylinder Block ........................ 1
11 BS-820147 Bracket, Mounting ............................ 1
12 BS-820063 Pin, Locating .................................... 4
13 BS-820062 Pin, Locating .................................... 3
14 BS-820061 Pin, Locating .................................... 2
15 BS-820314 Filter, Oil .......................................... 1
16 BS-820851 Adapter, Oil Filter ............................. 1
17 BS-820102 Nozzle, Oil ....................................... 1
18 BS-820145 Gasket, Retainer .............................. 1
19 BS-820146 Seal, Retainer .................................. 1
14
6
11
-29-
CRANKSHAFT, PISTONS & FLYWHEEL
9
10
16
17
20
4
5
15
14
13
5
18
7
11
3
12
1
6
19
2
8
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-825552 Crankshaft ....................................... 1
2 BS-825303 Flywheel ........................................... 1
3 BS-825354
BS-825355
4 BS-825187
BS-825188
5 BS-820402 Lock Ring, Piston Pin ....................... 6
6 BS-825171 Rod, Connecting .............................. 3
7 BS-820128 Screw, Connecting Rod ................... 6
8 BS-820080 Screw, Hex, 10mm .......................... 6
9 BS-820081 Screw, Hex, 8mm ............................ 2
10 BS-820079 Screw, Hex ...................................... 1
11 BS-820073 Nut, Hex ........................................... 6
12 BS-820140
BS-820139
13 BS-820059 Pin, Locating .................................... 1
14 BS-820611 Gear, Drive ...................................... 1
15 BS-820116 Shaft, Gear ...................................... 1
16 BS-820117 Plate, Idler Gear ............................... 1
17 BS-820236 Pulley, Crankshaft ............................ 1
18 BS-820142 Bearing, Rod Standard .................... 3
19 BS-825019
BS-825060
20 BS-825040
BS-825039
Piston Assembly, Standard ..............
Piston Assembly, .010 Oversize ...33
Ring Set, Standard ..........................
Ring Set, .010 Oversize ................33
Washer, Thrust, Standard ................
Washer, Thrust, .005 Oversize .....11
Bearing Set, Rod Standard ..............
Bearing Set, Rod, .010 Undersize 33
Bearing Set, Main Standard .............
Bearing Set, Main, .010 Undersize11
-30-
CYLINDER HEAD AND MANIFOLDS
12
19
24
24
20
17
14
5
4
16
10
11
2
3
21
22
6
13
18
15
1
8
9
28
27
23
7
11
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-825347 Head, Cylinder ................................. 1
2 BS-820660 Gasket, Cylinder Head .................... 1
3 BS-821003 Tube, Breather ................................. 1
4 BS-820623 Screw, Metric ................................... 14
5 BS-825024 Cap, Oil Fill ...................................... 1
6 BS-820015 Stud, Metric ..................................... 2
7 BS-820078 Stud, Metric ..................................... 2
8 BS-820014 Stud, Metric ..................................... 5
9 BS-820466 Stud, Metric ..................................... 1
10 BS-820004 Plug, Welch ..................................... 2
11 BS-820005 Plug, Welch ..................................... 2
12 BS-820071 Nut, Hex Metric ................................ 3
13 BS-820064 Washer, Sealing .............................. 3
14 BS-820130 Ring, Retainer .................................. 6
15 BS-820076 Stud, Rocker Arm ............................ 3
29
25
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
16 BS-825030 Bushing, Guide ................................ 6
17 BS-820150 Gasket, Rocker Cover ..................... 1
18 BS-825088 Cover, Rocker .................................. 1
19 BS-820031 Screw, Hex, 6mm ............................ 1
20 BS-820408 Screw, Hex, 6mm ............................ 3
21 BS-825175 Manifold, Intake ............................... 1
22 BS-820407 Gasket, Intake Manifold ................... 1
23 BS-820584 Stud, Exhaust Manifold .................... 4
24 BS-820069 Nut, Hex Metric ................................ 2
25 BS-820010 Nut, Hex Metric ................................ 6
26 BS-820178 Nut, Hex Metric ................................ 4
27 BS-825055 Manifold, Exhaust ............................ 1
28 BS-820817 Gasket, Exhaust Manifold ................ 1
29 BS-820670 Gasket, Muffler ................................ 1
26
-31-
FUEL INJECTION SYSTEM
20
27
28
21
26
19
18
16
22
23
30
29
25
3
10
24
1
14
7
6
5
15
2
9
12
11
13
8
17
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820031 Screw, Hex, 6mm ............................ 2
2 BS-820414 Seal, O-Ring .................................... 1
3 BS-820417 Nut, Hex Metric ................................ 2
4 BS-820419 Nut, Hex Metric ................................ 1
5 BS-820634 Bracket, Casing Clamp .................... 1
6 BS-820225 Clamp, Casing ................................. 1
7 BS-820012 Screw, Casing Clamp ...................... 1
8 BS-820592 Screw, Support Bracket ................... 1
9 BS-820272 Screw, Support Bracket ................... 4
10 BS-820619 Gear, Drive ...................................... 1
11 BS-825197 Clamp .............................................. 1
12 BS-820415 Bracket, Support .............................. 1
13 BS-820479 Bracket, Support .............................. 1
14 BS-820640 Screw, Casing Clamp Bracket ......... 1
15 BS-820467 Clamp, Swivel .................................. 1
4
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
16 BS-825179 Hose/Clamp Ass’y., Fuel Return ..... 1
17 BS-825266 Connector, Injection Pump .............. 1
18 BS-825176 Plug, Glow ....................................... 3
19 BS-820409 Strap, Glow Plug .............................. 1
20 BS-825178 Nozzle, Injector ................................ 3
21 BS-820411 Seat, Injector ................................... 3
22 BS-825194 Pipe, Injector #1 ............................... 1
23 BS-825195 Pipe, Injector #2 ............................... 1
24 BS-825196 Pipe, Injector #3 ............................... 1
25 BS-825180 Pump, Injection ......................... ....... 1
26 BS-820412 Pipe, Fuel Return ............................. 1
27 BS-820829 Nut, Hex Injector Nozzle .................. 3
28 BS-820831 Washer, Injector Nozzle .................. 3
29 BS-820373 Module, Pre Heat ............................. 1
30 BS-820455 Relay ............................................... 1
19
-32-
CAMSHAFT AND VALVES
12
16
26
5
10
15
22
25
11
1
13
21
8
23
18
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820177 Washer, Flat .................................... 3
2 BS-820404 Valve, Exhaust ................................ 3
3 BS-820403 Valve, Intake ................................... 3
4 BS-820406 Spring, Valve ................................... 6
5 BS-820032 Screw, Hex, 6mm ............................‘ 3
6 BS-820111 Retainer, Valve ............................... 6
7 BS-825042 Keeper, Valve, Set of 2 ................... 6
8 BS-820075 Screw, Metric .................................. 1
9 BS-820110 Tappet, Valve .................................. 6
10 BS-820388 Camshaft ......................................... 1
11 BS-820070 Nut, Hex Metric ............................... 3
12 BS-825041 Adjuster, Rocker Arm ...................... 6
13 BS-820065 Washer, Spacer .............................. 3
22
25
24
13
22
14
7
22
24
13
22
REF.
NO.
14 BS-820113 Cap, Valve ....................................... 6
15 BS-820105 Screw, Metric .................................. 1
16 BS-691639 Key, Timing ..................................... 1
17 BS-820112 Seat, Valve Spring .......................... 6
18 BS-820003 Retainer ........................................... 2
19 BS-820613 Gear, Cam ....................................... 1
20 BS-820405 Seal, Valve ...................................... 6
21 BS-820422 Rod, Push ....................................... 6
22 BS-820387 Arm, Rocker .................................... 6
23 BS-825093 Shaft, Rocker Arm ........................... 1
24 BS-820106 Support, Rocker Arm ....................... 3
25 BS-820044 Spring, Rocker Shaft ....................... 2
26 BS-820118 Retainer, Camshaft ......................... 1
2
PART
NUMBER DESCRIPTION QTY.
24
6
4
20
17
3
9
-33-
LUBRICATION
16
13
17
9
11
12
1
6
2
4
14
3
7
15
10
5
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-825278 Plug, Oil Drain 16mm ...................... 2
2 BS-825000 Switch, Oil Pressure ........................ 1
3 BS-820582 Washer, Sealing .............................. 2
4 BS-820034 Screw, Oil Pump Screen ................. 1
5 BS-820144 Tube, Dipstick .................................. 1
6 BS-820069 Nut, Oil Pump Screen ...................... 2
7 BS-820017 Stud, Oil Pan ................................... 2
8 BS-820068 Nut, Oil Pan ..................................... 2
9 BS-825089 Oil Pump Screen ............................. 1
10 BS-820034 Screw, Oil Pan ................................. 17
11 BS-820104 Gasket, Oil Pump Screen ................ 1
12 BS-820137 Gasket, Oil Pan ............................... 1
13 BS-820572 Dipstick ............................................ 1
14 BS-825154 Connector, Oil Pressure Switch ....... 1
15 BS-825285 Pan, Oil ............................................ 1
16 BS-820238 Bracket, Support .............................. 1
17 BS-820662 Collar, Dipstick Tube ....................... 1
8
-34-
CRANKCASE COVER
5
6
2
7
3
1
4
2
7
4
3
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820055 Seal, Oil ........................................... 1
2 BS-820425 Screw, Hex, 6mm ............................ 2
3 BS-820029 Screw, Hex, 6mm ............................ 9
4 BS-820027 Screw, Hex, 6mm ............................ 3
5 BS-825185 Cover Assembly, Gear ..................... 1
6 BS-820377 Gasket, Gear Cover ......................... 1
7 BS-820069 Nut, Hex Metric ................................ 2
8 BS-820061 Pin, Locating .................................... 2
4
8
-35-
GEAR HOUSING
8
7
9
4
11
1
12
10
5
3
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820033 Screw, Hex, 6mm ............................ 1
2 BS-820030 Screw, Hex, 6mm ............................ 4
3 BS-820180 Screw, Hex, 8mm ............................ 1
4 BS-820377 Gasket, Gear Cover ......................... 1
5 BS-820155 Gasket, Gear Cover ......................... 1
6 BS-820016 Stud, Metric ...................................... 1
7 BS-820156 Stud, Metric ...................................... 2
8 BS-820426 Stud, Metric ...................................... 2
9 BS-825186 Housing, Gear .................................. 1
10 BS-825032 Valve, Oil Relief ............................... 1
11 BS-820615 Gear, Oil Pump Drive ....................... 1
12 N/A Pump. Oil - Sold ONLY in G ear Hous-
6
2
ing (Ref. 9)
-36-
COOLING
1
9
12
18
8
3
11
5
14
10
19
17
12
16
15
24
4
6
1
20
12
15
23
7
25
2
13
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820031 Screw, Hex, 6mm ........................ .... 4
2 BS-820034 Screw, Hex, ..................................... 4
3 BS-820022 Screw, Hex, 8mm ........................ .... 2
4 BS-820185 Screw, Metric .................................. 1
5 BS-820181 Nut, Hex Metric ............................... 1
6 BS-825064 Thermostat ...................................... 1
7 BS-820271 Belt, V ............................................. 1
8 BS-820208 Switch, Coolant Temperature ......... 1
9 BS-820052 Plug ................................................. 1
10 BS-820182 Plug ................................................. 1
11 BS-825454 Fan, Radiator .................................. 1
12 BS-820093 Gasket, Outlet ................................. 1
13 BS-820095 Pulley, Pump ................................... 1
21
22
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
14 BS-825267 Housing, Outlet ............................... 1
15 BS-820098 Gasket, Inlet Housing ...................... 1
16 BS-825051 Housing, Inlet .................................. 1
17 BS-820100 Gasket, Water Pump ....................... 1
18 BS-825160 Connector, Coolant Temp. Switch .. 1
19 BS-825265 Pump, Water ................................... 1
20 BS-825462 Tank, Reserve ................................. 1
21 BS-825461 Cap, Reserve Tank ......................... 1
22 BS-820257 Clamp, Hose ................................... 2
23 BS-825314 Bracket, Reserve Tank Mtg. ........... 1
24 BS-820034 Screw, Mtg. Bracket ........................ 1
25 BS-820011 Nut, Mtg. Bracket ............................ 1
-37-
STARTER
2
21
10
16
20
19
11
7
4
14
12
13
6
9
15
11
17
24
23
3
8
5
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820767 Gear, Starter Drive .......................... 1
2 BS-825222 Motor, Starter ................................... 1
3 BS-820773 Screw, Starter Motor ........................ 2
4 BS-825437 Terminal Kit, Solenoid ..................... 1
5 BS-820067 Nut, Starter Motor Terminal ............. 1
6 BS-820719 Gasket, Solenoid Cover ................... 1
7 BS-820725 Boot, Terminal ................................. 1
8 BS-820763 Screw, Solenoid Cover .................... 1
9 BS-825406 Drive, Starter ................................... 1
10 BS-825404 Armature .......................................... 1
11 BS-820769 Seal, O-Ring .................................... 2
12 BS-820723 Nut, Solenoid Terminal .................... 1
18
22
1
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
13 BS-820721 Nut, Solenoid Terminal .................... 1
14 BS-825422 Cover, Solenoid ............................... 1
15 BS-825402 Spring, Detent .................................. 1
16 BS-820777 Screw, Drive Cap ............................. 1
17 BS-825401 Clutch Roller .................................... 1
18 BS-825408 Cap, Drive ........................................ 1
19 BS-820771 Cap, End .......................................... 1
20 BS-825423 Housing, Starter (Includes 2 Brushes) 1
21 BS-825410 Solenoid, Starter .............................. 1
22 BS-820019 Screw, Starter Motor ........................ 1
23 BS-820779 Plug, Vent ........................................ 1
24 BS-820775 Screw, End Cap ............................... 1
-38-
ALTERNATOR
4
8
2
26
14
11
15
25
1
12
22
3
6
5
28
7
17
23
24
27
21
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820692 Housing, Brush End ........................ 1
2 BS-820711 Pulley, Alternator ............................. 1
3 BS-820703 Cover, Brush ................................... 1
4 BS-825084 Alternator ......................................... 1
5 BS-825385 Rectifier ........................................... 1
6 BS-825388 Regulator ......................................... 1
7 BS-820702 Screw, Rectifier ............................... 1
8 BS-825383 Housing, Drive End ......................... 1
9 BS-820819 Strap, Adjusting ............................... 1
10 BS-820275 Screw, Support Bracket ................... 1
11 BS-820713 Spacer, Support Bracket ................. 1
12 BS-825390 Rotor ................................................ 1
13 BS-820213 Bracket, Support .............................. 1
14 BS-820690 Stud, Alternator ............................... 1
13
19
10
20
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
15 BS-825384 Retainer, Bearing ............................. 1
16 BS-825157 Connector, Terminal ........................‘ 1
17 BS-825387 Retainer, Brush ................................ 1
18 BS-820343 Screw, Alternator ............................. 1
19 BS-820270 Screw, Alternator ............................. 1
20 BS-820023 Screw, Adjusting Strap .................... 1
21 BS-820069 Nut, Alternator ................................. 1
22 BS-820715 Screw, Brush Cover ......................... 1
23 BS-820701 Screw, Brush Retainer ..................... 1
24 BS-820702 Screw, Brush Retainer ..................... 1
25 BS-820702 Screw, Ground Terminal .................. 1
26 BS-820705 Nut, Alternator Pulley ....................... 1
27 BS-820707 Screw, Brush End Housing .............. 1
28 BS-820709 Nut, Brush End Housing .................. 1
18
9
16
-39-
GASKET SETS
9
14
1
2
6
3
4
2
5
4
7
8
10
10
12
13
11
15
16
17
13
11
18
19
20
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 BS-820056 Seal, Oil .......................................... 1
2 BS-820660 Gasket, Cylinder Head .................... 1
3 BS-820055 Seal, Oil .......................................... 1
4 BS-820407 Gasket, Intake ................................. 1
5 BS-820377 Gasket, Gear Cover ........................ 1
6 BS-820155 Gasket, Gear Cover ........................ 1
7 BS-820582 Washer, Sealing ............................. 2
8 BS-820064 Washer, Sealing ............................. 3
9 BS-825380 Gasket Set ...................................... 1
10 BS-820405 Seal, Valve ...................................... 1
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
11 BS-820817 Gasket, Exhaust .............................. 1
12 BS-820670 Gasket, Exhaust .............................. 1
13 BS-820150 Gasket, Rocker Cover ..................... 1
14 BS-825381 Kit, Valve Overhaul ......................... 1
15 BS-820104 Gasket, Oil Pump Screen ............... 1
16 BS-820093 Gasket, Outlet ................................. 1
17 BS-820098 Gasket, Inlet Housing ...................... 1
18 BS-820100 Gasket, Water Pump ....................... 1
19 BS-820137 Gasket, Oil Pan ............................... 1
20 BS-820145 Gasket, Retainer ............................. 1
-40-
HOOD, GRILL AND SIDE PANELS
6
27
10
12
13
11
7
15
28
24
25
2
19
21
23
3
5
12
26
27
12
20
14
18
19
12
9
18
25
14
17
18
14
24
16
1
8
26
20
14
19
12
9
12
22
4
12
-41-
HOOD, GRILL AND SIDE PANELS
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0719 0637 Hinge Assembly, Hood .................. 1
2 603-0784 0637 Bracket, Side Panel Mtg. RH ......... 1
3 603-0785 0637 Bracket, Side Panel Mtg. LH .......... 1
4 603-0924 0637 Bracket, Side Panel Mtg. RH Rear 1
5 603-0925 0637 Bracket, Side Panel Mtg. LH Rear 1
6 625-0052
725-3161A
7 703-3394 Screen, Intake ................................ 1
8 703-3712 Shield, Upper Heat ........................ 1
9 703-3764 Bracket, Panel Mtg. ....................... 1
10 703-3765 Shield, Lower Heat ........................ 1
11 710-0473 Screw, Truss Hd, 10-24 x .5 .......... 6
12 710-0599 Screw, Hex Wash Hd Tapp ...........
13 710-0751 Screw, Hex Cap, 1/4-20 x .62 GR5 4
14 710-3170 Stud, Cylinder, 5/16-18 Thrd .......... 4
15 712-0272 Nut, Hex Sems, 10-24 ................... 6
16 712-0324 Nut, Hex Nylon Insert Lock, 1/4-20 4
17 712-0431 Nut, Hex Flange Lock, 3/8-16 ........ 2
18 712-3004A Nut, Hex Flange Lock, 5/16-18 ...... 4
19 726-3056 Latch, 1/4 Turn Panel .................... 4
20 727-3194 Cylinder, Gas Spring ...................... 2
21 731-3277
777D05419
777D05420
777D06176
777D06177
22 731-3278 Panel, Side RH .............................. 1
23 731-3279 Panel, Side LH ............................... 1
24 732-0936 Clip, Spring .................................... 4
25 732-0937 Spring, Compression ..................... 4
26 736-0272 Washer, Flat, .510 x ..93 x .060 ..... 2
27 738-0380 Screw, Shoulder, .5 x .27 Lg 3/8-16 2
28 726-04010 Clip, Retaining ............................... 1
Headlight Assembly .......................
Bulb, Headlight ...........................14
1/4-20 x .5
Hood ..............................................
Graphic, Hood RH ......................
Graphic, Hood LH .......................
Graphic, Model 7264 PosiTrak LH
Graphic, Model 7264 PosiTrak RH
14
1
1
1
1
1
-42-
FENDER AND RUNNING BOARD
13
20
17
19
7
8
14
2
24
24
7
6
16
6
15
15
22
6
7
24
16
6
21
26
16
23
25
10
12
11
23
25
3
10
5
16
23
25
16
23
25
11
4
26
14
18
8
9
8
14
26
1
11
-43-
FENDER AND RUNNING BOARD
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 625-0023B
725-3262
725-3263
629-3059
2 625-0024B
725-3262
725-3263
629-3059
3 703-3451 Bracket, Seat Mtg. LH .................... 1
4 703-3572 Bracket, Seat Mtg. RH ................... 1
5 703-3754 Bracket, Rear Seat Support ........... 1
6 710-0604A Screw, Hex Wash Hd. Tapp ..........
7 710-3038 Screw, Hex Cap .............................
8 710-0206 Screw, Hex Cap .............................
9 710-3021 Screw, Hex Wash Hd. Tapp ..........
10 710-3008 Screw, Hex Cap .............................
11 710-1242 Screw, Truss Phillips Hd. ...............
12 710-1260A Screw, Hex Wash Hd. Tapp ..........
13 710-0971 Screw, Pan Hd. 5/16-18 x 1.0 ........ 2
Light Assembly, Rear RH ..............
Bulb Only, Tail Light ...................
Bulb Only, Reverse Indicator Light
Harness, Tail Light ......................
Light Assembly, Rear RH ..............
Bulb Only, Tail Light ...................
Bulb Only, Reverse Indicator Light
Harness, Tail Light ......................
5/16-18 x .625
5/16-18 x .875 GR5
1/4-20 x .875 GR5
5/16-18 x .625
5/16-18 x .75 GR5
5/16-14 x .75
5/16-18 x .75
1
1
1
1
1
1
1
1
8
4
4
3
2
8
3
14 726-3057 Clip, Tail Light ................................ 4
15 726-3046 Clip, Ratchet Fastener ................... 12
16 726-0211 Speed Nut, ‘U’ Type, 5/16-18 ........ 6
17 731-3324
777S30630
18 731-3289
777S30635
777D06181
19 631-04005 Cover, Fender, RH ......................... 1
20 631-04006 Cover, Fender, LH ......................... 1
21 735-0669 Pad, Floor, RH ............................... 1
22 735-0670 Pad, Floor, LH ................................‘ 1
23 735-0690 Grommet, .4375 ID x .75 ............... 4
24 736-3089 Washer, Flat, .345 x 1.0 x .100 ...... 4
25 750-3310 Spacer, Flange, .3125 x .437 5 x .625 4
26 750-04143 Spacer, .258 x .5 x .5 ..................... 4
Cover, Fender ........................ ...... ..
Graphic, Warning ........................11
Fender ...........................................
Graphic, Warning ........................
Graphic, Series 7000 ..................
1
1
1
-44-
SEAT ASSEMBLY
9
1
16
12
11
17
14
5
15
8
10
2
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0860 0637 Support, Seat - Upper ..................... 1
2 603-0866 Track Ass’y., Seat w/Latch .............. 1
3 703-3208 Track Ass’y., Seat w/o Latch ........... 1
4 703-3681A Tray, Lower Seat ............................. 1
5 703-3711 Bracket, Seat Belt ........................... 2
6 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 GR5 2
7 710-0451 Screw, Carriage, 5/16-18 x .75 4
8 710-0528 Screw, Hex Cap, 5/16-18 x 1.25 GR5 2
9 710-0759 Screw, Hex Flange, .........................
10 710-3250 Screw, Socket Hd Cap, 5/16-18 x 1.5 4
11 712-3004A Nut, Hex Flange Lock, 5/16-18 ........ 12
12 725-3167 Switch, Snap Mount (N.O.) .............. 1
13 732-3080A Spring, Compression, 1.28 x 3.5 ..... 2
14 738-0140 Screw, Shoulder, .435 x .178-5/16-18 4
15 750-0258 Spacer, .315 x .750 x .375 .............. 4
16 757-04006
777D04541
777D01782
17 757-3013 Belt Assembly, Seat ........................ 1
Seat, High Back ..............................
14
13
7
7
5
15
8
5/16-18 x .625 GR5
Graphic, Cub Cadet .....................
Graphic, USA ............................. ..
10
3
15
10
6
11
9
14
4
4
1
1
1
-45-
FUEL TANK
9
2
2
5
5
8
7
4
6
1
3
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 703-3563 Bracket, Front Tank Mtg. ............... 1
2 710-0817 Screw, Hex Wash Hd Tapp ...........
3 710-1260A Screw, Hex Wash Hd Tapp ...........
4 735-0149 Bushing, Rubber ............................ 1
5 736-0231 Washer, Flat, .344 x 1.125 x .12 .... 4
6 751-3169A Tank, Fuel ...................................... 1
7 751-3174 Fitting, Fuel Return ........................ 1
8 751-3175 Sensor, Fuel Level ......................... 1
9 751-3188 Cap, Fuel - Diesel........................... 1
5/16-18 x 1.25
5/16-18 x .75
4
3
16
-46-
FOLDABLE ROPS
9
13
14
4
5
6
10
11
15
12
6
7
7
7
8
8
2
3
10
5
13
9
16
11
14
1
8
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0716 ROPS Assembly, Lower ................. 1
2 603-0717 ROPS Assembly, Upper ................. 1
3 603-0858 Mounting Assembly, ROPS RH ..... 1
4 603-0861 Mounting Assembly, ROPS LH ...... 1
5 710-0376 Screw, Hex Cap, 5/16-18 x 1.0 GR5 2
6 710-0515 Screw, Hex Cap, 1/2-20 x 3.5 GR5 2
7 710-3032 Screw, Hex Cap, 1/2-13 x 1.25 GR5 8
8 710-3131 Screw, Hex Cap, 1/2-13 x 1.0 GR5 8
9 711-1610 Pin, Clevis, .5 x 3.5 ........................ 2
10 712-3046 Nut, Hex Jam, 5/16-18 ................... 2
11 712-3058 Nut, Hex Nylon Insert Lock, 1/2-20 2
12 712-3066 Nut, Hex, 1/2-20 GR5 ..................... 2
13 714-3003 Pin, Internal Cotter ......................... 2
14 725-3280
725-3286
15 736-0921 Washer, Lock, 1/2 .......................... 2
16 731-0757-16 Conduit ........................................... 16in.
Light Assembly, Hazard .................
Bulb, Light ...................................22
-47-
THREE POINT HITCH
7
4
11
2
1
11
10
19
18
8
6
12
10
13
7
3
16
14
15
20
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 603-0750 Link, Lower Hitch ...................... 2
2 603-0756 Link, Lift - Fixed ......................... 1
3 603-0757 Link, Lift - Adjustable ................. 1
4 603-0765 Link, Upper Center .................... 1
5 603-0933 Chain Assembly, Check ............ 2
6 711-0174 Pin, Clevis, .624 Dia. ................. 2
7 711-1105 Pin, Klik, 1.75 Lg. ...................... 2
8 711-1432 Pin, Upper Lift Arm .................... 2
9 711-1622 ‘U’ Clevis, Check Chain ............ 2
10 711-1648 Pin, Clevis, .75 x 2.75 ............... 2
13
1
5
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
11 712-0301 Nut, Hex, 3/4-10 GR5 ............... 2
12 712-3058 Nut, Hex Insert Lock, 1/2-20 ..... 2
13 714-0117 Pin, Internal Cotter, .148 x 3.0 .. 2
14 714-0147 Pin, Internal Cotter, .125 x 1.75 2
15 714-0149B Pin, Internal Cotter .................... 4
16 736-0156 Washer, Flat, .635 x 1.12 x .09 2
17 736-0262 Washer, Flat, .385 x .87 x .09 2
18 736-0364 Washer, Lock, 3/4 ..................... 2
19 703-3553 Bar, Draw .................................. 1
20 747-04014 Pin, Double Clevis ..................... 2
17
15
9
Primary Pump on
Transmission
(For Reference Only)
-48-
AUXILIARY HYDRAULIC LOADER VALVE
(IF EQUIPPE D)
30
42
33
19
47
41
36
44
5
B
A
9
6
44
26
25
14
24
21
14
15
22
23
12
18
13
35
35
7
28
29
39
34
28
10
24
11
48
3
25
A
16
1
9
8
37
20
38
46
4
26
27
B
40
2
18
17
45
15
43
32
31
-49-
AUXILIARY HYDRAULIC LOADER VALVE
(IF EQUIPPED)
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 603-0813 Pivot Bracket Assembly ............... 1
2 603-0862 Valve Handle Assembly .............. 1
3 703-3598-0637 Loader Valve Mount Bracket ....... 1
4 703-3972-0637 Fitting Mount Plate ...................... 1
5 703-3973-0637 Rear Fitting Mount Plate ............. 1
6 710-0501 Hex Screw, 1/4-20, 2.00, Gr5 ..... 2
7 710-0599 Hex Wash. Hd. Tapp Screw ........
8 710-0604A Hex Wash. Hd. Tapp Screw ........
9 710-1260A Hex Wash. Hd. Tapp Screw ........
10 711-1611 Valve Pivot Shaft ........................ 1
11 711-1624 Valve Spool Link ......................... 1
12 711-1637 Ball Joint Pivot Stud .................... 1
13 711-1642 Clevis Pin, .199 x .8125 .............. 1
14 712-0256 Jam Nut, 5/16-24, Gr2 ................ 2
15 712-0324 Hex Lock Nut, 1/4-20, Gr8, Nylon 2
16 713-3000 Chain Link ................................... 1
17 714-0104 Internal Cotter Pin ....................... 1
18 716-0865 Snap Ring, .5 .............................. 2
19 718-3138
759-3964
759-3965
759-3966
20 718-3140 Loader Control Valve .................. 1
21 723-0488 Ball Joint, .3125 Id x 5/16-24 ...... 1
22 727-3012 Fitting, 90° 6-6 Orb ..................... 2
23 727-3206 Tube, Tandum Pump Suction ..... 1
24 727-3210 Tube, Hydraulic - Bucket Rollback 1
25 727-3211 Tube, Hydraulic - Bucket Dump .. 1
26 727-3212 Tube, Hydraulic - Boom Lift ........ 1
27 727-3213 Tube, Hydraulic - Boom Lower ... 1
28 727-3224 Coupling, Male Hydraulic, 3/8-18 2
29 727-3225 Coupling, Female Hydr. 3/8-18 ... 2
30 727-3226 Tube, Auxiliary Pump Pressure .. 1
31 727-3227 Tube, Valve Pressure ................. 1
32 727-3228 Tube, Valve Return ..................... 1
33 727-3229 Tube, Valve Return ..................... 1
34 727-3261 Plug, Hydraulic Coupler - Male ... 2
35 727-3262 Plug, Hydraulic Coupler - Female 2
36 731-3353 Knob, 1.625 Dia x 3/8-16 Thd 1
37 731-3374 Washer, Indicator - Red .............. 1
38 731-3375 Washer, Indicator - Yellow .......... 1
39 731-3376 Washer, Indicator - Green ........... 1
40 731-3377 Washer, Indicator - Blue ............. 1
41 735-0696 Joystick Boot ............................... 1
42 737-3111 Fitting, 90° -8 Orb ...................... 1
43 737-3112 Fitting, Straight -8 Orb ................. 2
44 737-3113 Fitting, Straight ............................ 2
45 737-3125 Fitting, Straight - 6 Orb ................ 2
46 737-3129 Fitting, Bulkhead 3/4-16 x 3/8-18 4
47 737-3130 Fitting, Bulkhead 3/4-16 x 3/4-16 2
48 750-0845 Spacer, .34 ID x .5 OD x .31 ....... 1
1/4-20 x .50
5/16-18 x .625
5/16-18 x .75
Auxiliary Hydraulic Pump ............
Pin, Dowel ................................
Bolt, Mounting ..........................
Coupler, Splined ......................
2
2
4
1
2
4
1
-50-
WHEELS
5
6
4
4
3
3
2
2
5
1
1
6
REF.
PART
NO.
NUMBER CODE DESCRIPTION QTY.
1 634-3045
634-04018
734-0255
2 734-3122
734-04020
3 634-3046
634-04017
734-0255
4 734-3124
734-04013
5 710-1808 Screw, Lug, M12 ............................ 10
6 710-3294 Bolt, Lug, M14 x 1.5 x 20 ............... 12
Rim, TURF Tire - Front ..................
Rim, INDUSTRIAL Tire - Front ......
Valve Stem .................................
Tire, Turf ........................................
Tire, Industrial ................................22
Rim, TURF Tire - Rear ...................
Rim, INDUSTRIAL Tire - Rear .......
Valve Stem .................................
Tire, Turf ........................................
Tire, Industrial ................................22
2
2
2
2
2
2
-51-
NOTES
Loading...
