Operator’s
Manual
60" Mid Mount Mower Deck
Model 59A40009727
Cub Cadet Yanmar LLC
P.O. Box 361052
Cleveland, Ohio 44136-1052
PRINTED IN U.S.A.
769-03187
(7/07)
TABLE OF CONTENTS
Important Safe Operation Practices ............................................................................................................... 2
To the Dealer and Owner ............................................................................................................................... 4
Safety Labels .................................................................................................................................................. 5
Contents ......................................................................................................................................................... 6
Installlation and Removal ............................................................................................................................... 7
Adjustments ................................................................................................................................................... 14
Deck Maintenance .......................................................................................................................................... 17
Deck & Subframe Parts List ........................................................................................................................... 20
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or
property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine.
Failure to comply with these instructions may result in personal injury. When you see this symbol—HEED ITS WARNING.
This mower deck was built to be operated according to the rules for safe operation in this manual. As with any type of power
equipment, carelessness or error on the part of the operator can result in injury. This mower deck is capable of amputating
hands and feet or throwing objects. Failure to observe the following safety instructions could result in serious injury or death.
Turn off blades when not mowing.
GENERAL OPERATION
1.
Read, understand and follow all instructions in the manual
and on the machine before starting. Keep this manual in a
safe place for future and regular reference and for ordering
replacement parts
Only allow responsible individuals familiar with the instructions
2.
to operate the machine. Know the controls and how to stop the
machine quickly.
Do not put hands or feet under the cutting deck or near
3.
rotating parts.
Clear the area of objects such as rocks, toys, wire, etc. which
4.
could be picked up and thrown by the blades. A small object
may have been overlooked and could be accidentally thrown
by the mower in any direction and cause injury to you or a
bystander. To help avoid a thrown objects injury, keep children,
animals, bystanders and helpers at least 75 feet from the
mower while it is in operation. Always wear safety glasses
with side shields or safety goggles during operation or while
performing an adjustment or repair, to protect eyes from
foreign objects. Stop the blades when crossing gravel drives,
walks or roads.
Be sure the area is clear of other people before mowing. Stop
5.
machine if anyone enters the area.
Never carry passengers.
6.
Disengage the blades before shifting into reverse and backing
7.
up. Always look down and behind before and while backing.
Be aware of the mower and attachment discharge direction
8.
and do not point it at anyone. Do not operate the mower
without either the entire grass catcher or the chute guard in
place.
Slow down before turning. Operate the machine smoothly.
9.
Avoid erratic operation and excessive speed.
Never leave a running machine unattended. Always turn off
10.
the blades, place the transmission in neutral, set the parking
brake, stop the engine and remove key before leaving the
area.
11.
Stop the engine and wait until the blades come to a complete
12.
stop before (a) removing the grass catcher or unclogging
chute, or (b) making any repairs, adjusting or removing any
grass or debris.
Mow only in daylight or good artificial light.
13.
Do not operate the machine while under the influence of
14.
alcohol or drugs.
Watch for traffic when operating near or crossing roadways.
15.
Use extra care when loading or unloading the machine onto
16.
a trailer or truck. Be sure truck is wide enough and on a firm,
level surface. Use loading ramps and attach them properly to
the truck bed. Use a heavy-duty trailer to transport the tractor.
Never make a cutting height adjustment while the engine is
17.
running if the operator must dismount to do so.
Wear sturdy, rough-soled work shoes and close-fitting slacks
18.
and shirts. Do not wear loose fitting clothes or jewelry. They
can be caught in moving parts. Never operate a unit in bare
feet, sandals or sneakers.
Check overhead clearance carefully before driving under
19.
power lines, wires, bridges or low hanging tree branches,
before entering or leaving buildings, or in any other situation
where the operator and /or roll bar may be struck, which could
result in serious injury.
Disengage the power take-off, set the parking brake and shift
20.
into neutral before attempting to start the engine.
Your mower is designed to cut normal residential grass. Do not
21.
attempt to mow through unusually tall, dry grass (e.g. pasture)
or piles of dry leaves. Debris may build up on the mower deck,
presenting a potential fire hazard.
Use only accessories approved for the machine by Cub Cadet
22.
Yanmar. Read, understand and follow all instructions provided
with approved accessories.
2
SLOPE OPERATION
1.
Slopes are a major factor related to loss of control and tip-over
accidents, which can result in severe injury or death. All slopes
require extra caution. If you cannot back up the slope or if
you feel uneasy on it, do not mow it.
2.
For your safety, use the slope gauge (provided in tractor
Operator’s Manual) to measure slopes before operating the
unit on a sloped or hilly area. If the slope is greater than 15
degrees, as shown by the slope gauge, do not operate the unit
on that area or serious injury could result.
DO:
Mow up and down slopes, not across.
Remove obstacles such as rocks, limbs, etc.
Watch for holes, ruts or bumps. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
Use slow speeds. Choose a low enough gear so that you will not
have to stop or shift while on the slope. Always keep the machine
in gear when going down slopes to take advantage of engine
braking action.
Follow the manufacturer’s recommendations for wheel weights or
counterweights to improve stability.
Use extra care with grass catchers or other attachments. These
can change the stability of the machine.
Keep all movement on the slopes slow and gradual. Do not make
sudden changes in speed or direction. Rapid engagement or
braking could cause the front of the machine to lift and rapidly flip
over backwards which could cause serious injury.
Avoid starting or stopping on a slope. If the tires lose traction,
disengage the blades and proceed slowly straight down the slope.
DO NOT:
Do not turn on slopes unless absolutely necessary. If necessary,
turn slowly and gradually across and down slope, if possible.
Do not mow near drop-offs, ditches or embankments. The mower
could suddenly turn over if a wheel is over the edge of a cliff or
ditch, or if an edge caves in.
Do not mow on wet grass. Reduced traction could cause sliding.
Do not try to stabilize the machine by putting your foot on the
ground.
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the machine
and the mowing activity. Never assume that children will remain
where you last saw them.
Keep children out of the mowing area and in watchful care of
1.
an adult other than the operator.
Be alert and turn the machine off if children enter the area.
2.
Before and when backing up, look behind and down for small
3.
children.
Never carry children, even with the blades off. They may fall
4.
off and be seriously injured or may interfere with safe machine
operation.
Never allow children under 14 years old to operate the
5.
machine. Children 14 years and older should only operate
the machine under close parental supervision and proper
instruction.
Use extra care when approaching blind corners, shrubs, trees
6.
or other objects that may obscure your vision of a child or
other hazard.
Remove the key when the machine is left unattended to
7.
prevent unauthorized operation.
SERVICE
Use extreme care in handling gasoline and other fuels. They
1.
are extremely flammable and the vapors are explosive.
Use only an approved container.
a.
Never remove fuel cap or add fuel with the engine hot
b.
or running. Allow the engine to cool at least two minutes
before refueling.
Replace the fuel cap securely and wipe off any spilled
c.
fuel before starting the engine as it may cause a fire or
explosion.
Extinguish all cigarettes, cigars, pipes and other sources
d.
of ignition.
Never refuel the machine indoors because fuel vapors
e.
will accumulate in the area.
Never store the fuel container or machine inside where
f.
there is an open flame or spark, such as a gas hot water
heater, space heater or furnace.
Never run a machine inside a closed area. Engine exhaust
2.
fumes can be lethal.
To reduce fire hazard, keep the machine free of grass, leaves
3.
or other debris build-up. Clean up oil or fuel spillage. Allow the
machine to cool at least 5 minutes before storing.
Before cleaning, repairing or inspecting, stop the engine and
4.
remove key. Make certain the blades and all moving parts
have stopped.
Frequently check all nuts, bolts and screws for proper
5.
tightness to ensure the equipment is in safe working condition,
especially the blade nuts. Also visually inspect blades for
damage (e.g., excessive wear, bent, cracked). Replace only
with blades that meet original equipment specifications.
Never tamper with safety devices. Check their proper opera-
6.
tion regularly. Use all guards as instructed in this manual.
After striking a foreign object, stop the engine and thoroughly
7.
inspect the mower for any damage. Repair the damage before
restarting and operating the mower.
Mower blades are sharp and can cut. Wrap the blades or wear
8.
gloves, and use extra caution when servicing blades.
Check brake operation frequently. Adjust and service as
9.
required.
Muffler and engine become hot during operation and can
10.
cause a burn. Allow to cool down before touching.
Do not change the engine governor settings or overspeed the
11.
engine. Excessive engine speeds are extremely dangerous.
3
If the machine should begin to vibrate abnormally, stop the
Cub Cadet/YanmarLLC
CLEVELAND, OHIO 44136
Copy the model number here:
Copy the serial number here:
Model Number
Serial Number
xxxxxxxxxxxxx
xxxxxxxxxxxxx
P.O. Box 361052
www.cubcadetyanmar.com
Dealer Locator Phone Number: 877-282-5055
12.
engine and check immediately for the cause. Abnormal
vibration is a warning of trouble.
Observe proper disposal laws and regulations. Improper
13.
disposal of fluids and materials can harm the environment and
the ecology.
Prior to disposal, contact your local Environmental
a.
Protection Agency to determine the proper method
for disposing of the waste. Recycling centers are
established to properly dispose of materials in an
environmentally safe fashion.
Use proper containers when draining fluids. Do not use
b.
food or beverage containers that may mislead someone
WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who read, understand and follow
the warnings and instructions in this manual and on the machine.
14.
into drinking from them. Properly dispose of the containers immediately following the draining of fluids.
DO NOT pour oil or other fluids into the ground, down a
c.
drain or into a stream, pond, lake, or other body of water.
Observe Environmental Protection Agency regulations
when disposing of oil, fuel, coolant, brake fluid, filters,
batteries, tires and other harmful waste.
We do not recommend the use of a pressure washer or garden
hose to clean your unit. They may cause damage to electrical
components; spindles; pulleys; bearings; or the engine. The
use of water will result in shortened life and reduce serviceability.
SECTION 2: TO THE DEALER
The initial assembly and proper installation of this attachment is the responsibility of the Cub Cadet Yanmar dealer. Read the instructions
and safety precautions found in this manual carefully.
SECTION 3: TO THE OWNER
This Operator’s Manual is an important part of your new Mid Mount 60" Mower Deck. Contained in this manual are instructions covering
installation, safe operation, and maintenance of the Model 59A40009727 60 inch mower deck. Please read and understand what it says.
The Model 59A40009727 Mid Mount 60" Mower Deck is designed for use ONLY with certain Cub Cadet Yanmar tractor models. It will
NOT fit nor operate safely or properly on or with any other tractor.
References to LEFT and RIGHT indicate the left and right sides of the tractor when facing forward in the operator’s position. Reference to
the FRONT indicates the grille end; to the REAR the drawbar end.
Finding Model Number
• You can locate the model number by looking on the top surface of the deck assembly. A sample model plate is shown below. For
future reference, please copy the model number and the serial number of the equipment in the space below.
Calling Customer Support
If you have difficulty with this mower deck; have any questions regarding the controls, operation or maintenance of this equipment; or
desire additional information not found in this manual, contact your nearest authorized Cub Cadet Yanmar dealer. If you need assistance
in locating a dealer in your area, contact the Customer Dealer Referral Line.
Referral Line. Please have your tractor’s model number and serial number, and the mower deck model number, ready when you call. See
your tractor operator’s manual to locate this information.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information
from it in the space provided below. The information on the model plate is very important if you need help from our Customer
Support Department or an authorized dealer.
For more details about your unit, visit our website at www.cubcadetyanmar.com.
Call
Call 1-(877) 282-5055
to reach the Customer Dealer
4
DANGER
KEEP HANDS AND FEET AWAY.
DO NOT OP ERA
TE MOWE
R
UNLESS CHUTE DEFLECTOR
OR ENTIRE GRASS CA
TCHER IS
IN ITS PROPER PLACE.
ASSEMBLE CHUTE DEF LECTOR TO THIS UNI T BEFORE OPER
ATING.
S30503
777S30503
•
KEEP HANDS AND FEET AW
AY
FROM ROTA
TING
PAR
TS.
• R EMOVE O BJECT S THA
T CA N BE THROW N BY THE
BLADE IN ANY DIRECTIO N. WEAR SAFE TY GLASS ES.
• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND
.
NEVER CARRY CHILDREN EVEN WITH BLADES OFF
.
• USE EXTRA CAUTIONON SLOPES. DO NOT MOW SLOPES
GREA
TER THAN 15°. MOW UP AND DOWN, NOT ACROSS.
AVOID SUDDEN TURNS, USE LOW SPEED.
READ OPERA
TOR'S MANUAL. KEEP SAFETY DEVICES IN PLACE AND WORKING.
S30015
777S30015
777D11275
777S30145
TO REDUCE T HE RISK O F INJURY, DO NOT
OPERATE U NLESS DISCHARGE COVER OR
GRASSC ATCHER I S IN ITS P ROPER P LACE.
IF DAMAGE D, REP LACE I MMEDIAT ELY.
WARNING
SHIELD MISSI NG
DO NOT OPERATE.
(QTY 2) 777S32328
Under Each Belt Guard
60
C U T
777D10728
777D11371
SECTION 4: SAFETY LABELS
5
SECTION 5: CONTENTS
The mower deck attachment components are listed below along with their part numbers. Assemblies are made up of more than one part
and do not have a part number. Before beginning installation, lay all components out on a flat surface to assure everything is present.
Throughout the manual the parts in the hardware pack will be identified by name, followed by their callout number in parenthesis, to aid in
installation.
3
2
20
If not Factory
Installed
19
18
1
1
3
14
11
12
1. RH Subframe Assembly .................. N/A 1 pc
2. LH Subframe Assembly ...................... N/A 1 pc
3. Rear Lift Rod Assembly ...................... N/A 2 pc
(May have been factory installed)
4. Hex Cap Screw M16-20 x 35 ............... 710-04697 2 pc
5. Hex Cap Screw, M16-2.0 x 60 ............ 710-04700 2 pc
6. Hex Cap Screw, 5/8-11 x 2.5 .............. 710-04129 2 pc
7. Flat Washer, .64 x 1.12 x .125 .............. 736-0366 4 pc
8. Hex Lock Nut, 5/8-11 .......................... 712-3016 2 pc
9. Spacer 1.25 OD x .625 ....................... 750-04877 2 pc
10. Spacer 1.25 OD x 1.25 ........................ 750-04878A 2 pc
11. RH Loader Adapter Bracket ................. 603-04441 2 pc
13
15
9
10
16
4
6
17
7
5
8
Figure 1
12. LH Loader Adapter Bracket ................. 603-04440 2 pc
13. RH Lift Bracket Assembly ................... N/A 1 pc
14. LH Lift Bracket Assembly .................... N /A 1 pc
15. Spacer .625 ID x 4.95 Lg ..................... 750-04858 2 pc
16. Nozzle Adapter ................................... 721-04041 1 pc
17. Mid PTO Cover ................................... 703-06201 1 pc
18. Hx Cp Scrw - May be factory installed .. 710-04706 2 pc
19. Flat Washer - May be factory installed ..736-0290 2 pc
20. Hx Lck Nut - May be factory installed ...712-0261 2 pc
Not Shown - Complete Deck Assembly ...... 1 pc
6
SECTION 6: INSTALLATION MOWING AND REMOVAL
Rear Lift Rod
Subframe Rear
Lift Arm
Hex Screw
Flat Washer
Lock Nut
Rod Flats
RH Threaded
Ball Joint
Hex Screw
LH Subframe
Front Lift Arm
LH Subframe
Mtg. Bracket
Hex Screw
LH Loader
Adapter Bracket
Flange Lock Nut
LH Subframe Shown
Subframe
Pivot Shaft
Unpacking the Mower Deck
Move the tractor and mower deck to a firm flat area large enough
to accommodate both. Allow enough room to slide the deck
underneath the tractor from the right side.
To uncrate the mower deck and all components, refer to Figure 1
and proceed as follows:
• Carefully remove the top of the shipping crate. Cut the ties
and remove the subframe assemblies from the packaging
shelf. Set the subframe assemblies aside.
• Support the subframe shelf and carefully remove the sides of
the crate. Cut or fold down the plastic bag.
• Remove the hardware pack from the shipping pallet. Check
the contents of the hardware pack against the list on page 6.
NOTE: Some hardware pack components may have been stored
in their mating parts for shipping purposes, and may not be in the
hardware pack.
• Carefully remove and discard any banding wire, strapping, or
tie straps securing the components to the shipping pallet.
• Carefully roll the deck off of the shipping pallet and remove
any ties and padding material.
PREPARING SUBFRAME ASSEMBLY
Install Rear Lift Rods (if not already assembled)
NOTE: The rear lift rod may have been connected to the rear lift
arm of the each subframe assembly at the factory. If the rods are
connected, disregard the following instructions and skip to the
next subsection.
• Insert the hex screw (18) through the hole at the top of the
subframe rear lift arm on either the RH or LH subframe
assemblies (1 or 2, Figure 1). Slide the flat washer (19) onto
the screw.
• Looking at either of the rear lift rod assemblies, locate the flattened areas on the rod near the RH threaded end of the rod.
Position the rear lift rod assembly (3, See inset box of Figure
1) so that the flats of the rod, and RH threaded ball joint, are
toward the rear of the subframe assembly. Refer to Figure 2.
• Position the LH threaded ball joint at the other end of the rear
lift rod assembly between the top of the subframe rear lift arm
and the subframe rail. See Figure 2.
Figure 2
• insert the hex screw through the ball joint and fasten with the
hex lock nut (20 ). Tighten the hex lock nut until almost snug
against the ball joint. Do not overtighten. Refer to Figure 2.
Repeat the above procedure to install the other rear lift rod
assembly on the other subframe assembly.
Changing the Subframe Mounting Brackets
If a front loader is installed, or to be installed, on the tractor, the
subframe mounting brackets must be removed from the subframe
and replaced with the loader adapter brackets. If no front loader is
installed, or to be installed, skip to the following sub section.
• Remove the hex screw fastening the LH front subframe link
on the subframe pivot shaft, and slide the subframe link off of
the shaft. Refer to Figure 3.
• Withdraw the pivot shaft from the bearings in the subframe
rail. See Figure 3.
Figure 3
• Remove the four hex flange lock nuts and screws securing the
LH subframe mounting bracket to the subframe rail to remove
the mounting bracket. See Figure 3.
• Position the LH loader adapter bracket (12) to align its four
holes with the four holes in the plate on the subframe rail.
Refer to Figure 3. Insert the four hex screws and thread the
hex flange lock nuts onto the screws. Tighten the flange lock
nuts until almost snug. Do not fully tighten the fasteners.
• Insert the subframe pivot shaft through the subframe rail and
slide the LH front subframe link onto the end of the shaft.
Align the holes in the subframe link with the hole in the pivot
shaft and insert the hex screw removed earlier. Fully tighten
the hex screw. Refer to Figure 3.
• Repeat the above procedure to install the RH loader adapter
bracket (11) onto the RH subframe assembly (16).
• If not already installed, install the RH and LH loader mounts
on the tractor now by following the instructions in the front
loader operator’s manual.
7
PREPARING THE TRACTOR
RH Lower
Hitch Link
Klik Pin
Sway Chain
Clevis Link
Hitch Link Pin
Support Brkt.
Hex Screws
Lower Hitch
Link Pin
Spacer
Hex Cap
Screw
Clutch
Housing
RH Subframe
Mounting Brkt.
Loosen
Fasteners
Rear Subframe Mtg./
Link Pin Support Brkt.
Hex Screw
Spacer
WARNING!: Engage the tractor parking brake,
stop the tractor engine and remove the key to
safely install the mower deck.
Installing Subframe and Lift Bracket Assemblies
NOTE: The RH and LH subframe assemblies can be installed
without removing the rear wheels. But limited space to remove
and reinstall fasteners makes it more difficult and increases the
possibility of an improper installation. It is recommended that the
respective rear wheel be removed from that side of the tractor
when installing the RH or LH subframe assembly.
WARNING!: When raising any part of the tractor
from the ground, use appropriate jack stands to
support the tractor. Do not work on the tractor
when supported only by a lifting jack.
Installing RH Subframe and RH Lift Bracket Assemblies
• Use a jack to raise the right rear of the tractor so that the tire
is off of the ground. Position a jack stand to support the tractor. Remove the right rear tire from the tractor and roll aside.

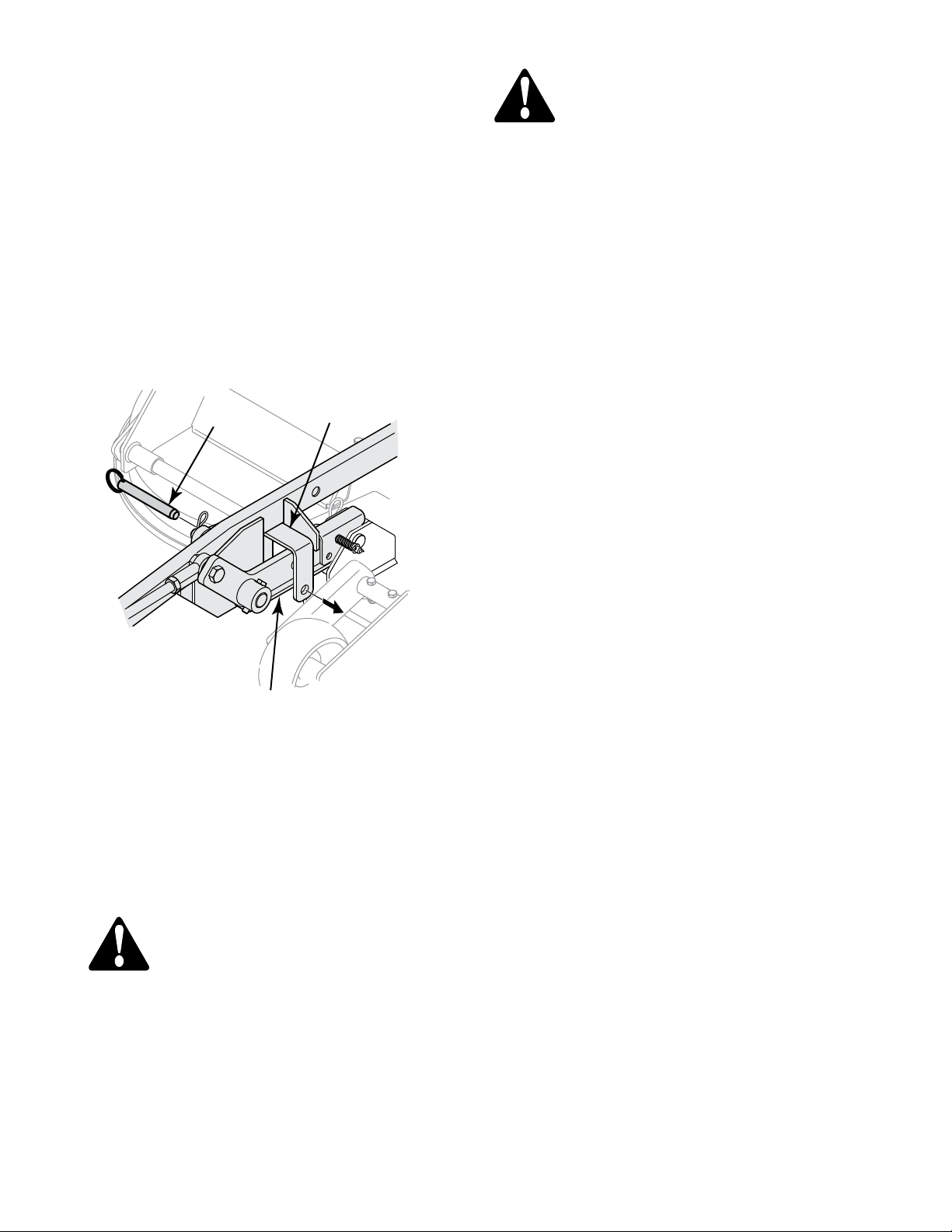

• If a lower hitch link sway spring is installed between the two
lift links of the 3-point hitch, unhook the chain from the links.
• Remove the klik pin from the end of lower hitch link pin.
While supporting the sway chain clevis links, slide the link pin
inward (to the left) to disengage the pin from the two clevis
links and the hitch link pin suppor t bracket. See Figure 4.
• Locate the three holes in a triangular pattern on the tractor’s
clutch housing. Remove the protective plugs from the lower
two holes. Refer to Figure 5.
• Raise the front of the RH subframe assembly and align its two
upper holes with the two lower holes of the clutch housing.
Insert the two hex cap screws(4) and thread into the clutch
housing. Do not fully tighten now. Refer to Figure 5.
• ONLY If the RH Loader Mount is installed. Remove the two
lower screws fastening the rear of the loader mount to the
tractor clutch housing. Align the upper holes of the RH loader
adapter bracket (installed on RH subframe assembly earlier)
with the loader mount holes. Insert the longer hex screws( 5)
and thread into the clutch housing. Do not fully tighten now.
Scrap (or store for possible future use) the screws removed
from the loader mount.
Figure 4
• Continue to slide the hitch link pin to the left to remove the
spacers and disengage the RH lower hitch link. See Figure 4.
• Remove the four screws (3 short and 1 long) securing the
hitch link pin support bracket to the tractor’s RH rear axle
housing and remove the suppor t bracket. Retain the four
screws and discard (or store) the bracket and spacers.
• Position the RH subframe assembly (1) along the right side of
the tractor.
• Loosen, but do not remove the four hex flange lock nuts and
screws securing the subframe mounting bracket to the plate
on the front of the subframe rail. Refer to Figure 5.
Figure 5
• Lift the rear of the RH subframe assembly and align the three
holes in the rear subframe mtg./link pin support bracket with
the three holes in the RH rear axle housing. Insert the shorter
hex screws removed earlier and thread partially into the axle
housing holes. Do not tighten the screws now. See Figure 6
Figure 6
8
Loading...
