Hydrostatic Zero-Turn
Commercial Riding Mower
Professional Turf Equipment
60” & 72" Fabricated Deck
InDirect Injection Diesel
ILLUSTRATED PARTS LIST
This Page Intentionally Left Blank
2
TABLE OF CONTENTS
60" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
72" Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
60" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . . . 6 and 7
60" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 8 and 9
72" Fabricated Cutter Deck. . . . . . . . . . . . . . . . . . . 10 and 11
72" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . 12 and 13
Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 and 15
Hydro Hose and Pump Assembly. . . . . . . . . . . . . .16 and 17
Fuel Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . 18 and 19
60" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 20
72" Front Caster Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Seat/Floor Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . 23
Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 24 and 25

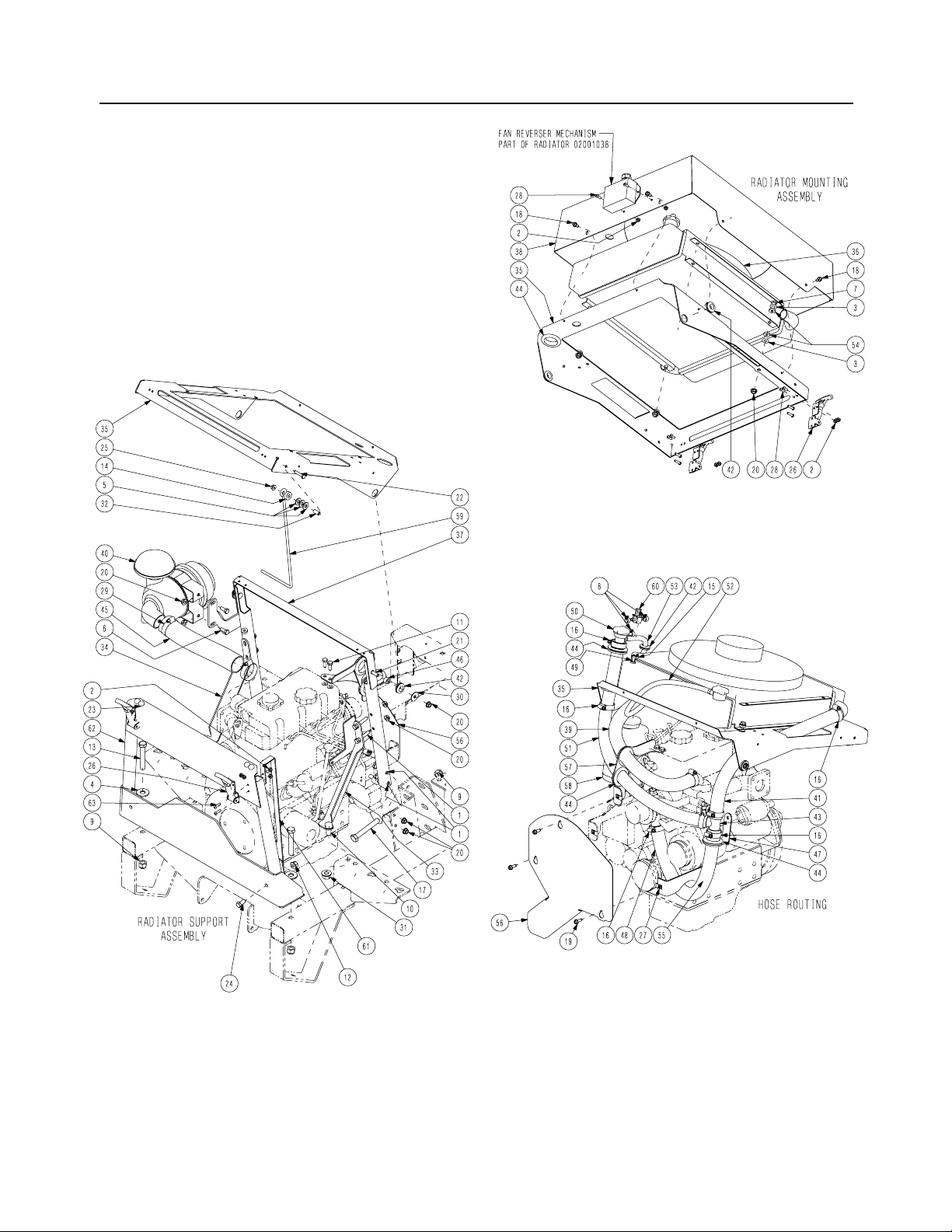

Radiator Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 26 and 27
28.2 HP Caterpillar Engine Assembly . . . . . . . . . . 28 and 29
60" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 30 and 31
72" Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 32 and 33
Electrical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Decal Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MODELS LISTED IN THIS MANUAL
28HP Tank, 28HP Tank, 28HP Tank,
53AB5JEX750 53AB5JEZ750 53AB5JEZ630
3
60" Frame Assembly
- Figure 1 and Parts List
GD: 02003081-04/30/07
Ref.
No.
Part No. Description Qty.
1 01005810 Hex Cap Screw 3/8-16 x 2.00 1 18 01010119 Nut, 1/2-13, Flangelock 1
2 00012152
3 00012158
4 00014270 Carriage Bolt, 3/8-16 x 2.00 2 21 02002426 Bar Weight 2
5 00022560 Hex Nut, 3/8-16 Flange Lock 18 22 02002536 Hitch 1
6 00083192 Idler Washer 6 23 02002655 Spacer, .51 ID x .75 OD x 1.40 1
7 01000372 Carriage Bolt, 3/8-16 x .75 Long 5 24 02003055 Lift Index Bracket 1
8 01000643 Carriage Bolt, 3/8-16 x 1 7 25 02003087 Frame Assembly 1
9 01001170 Rubber Bumper, .62 OD x .22 Thick 6 26 02003074 HitchPin, .120 Dia. x 3.0 1
10 01001776 Clevis Pin, .500 Dia. x 2.50 Lg. 1 27 02003749 Wear Plate, 1.125 x 5.00 1
11 01002511
12 01003282
13 01003993 Linch Pin, 3/16 Dia. 2 30 02003563 Carriage Bolt, 1/2-13 x 3.00 1
14 01005160 Plug, Square Tube 2 31 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1
15 01008049 Carriage Bolt, 3/8-16 x 4.0 2 32 750-3119 Spacer .406 ID x 1.0 OD 6
16 01008225 Push Retainer, 3/8"-Thread Stud 6 33 756-3045 Idler Pulley, 5.06 Dia. 2
17 01009604 Spacer, .385 ID x .625 OD x 4.89 1
Lock Nut w/Nylon Insert
Flat Washer, 3/8
Nut, 3/8-16, Jam
Clevis Pin, .625 Dia x 4.375 Long
2 19 02004037 Skid Plate 1
1 20 02002281 Guard Bracket 1
1 28 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
2 29 02003524 Front Frame Bracket Assembly 1
Ref.
No.
Part No. Description Qty.
4
72" Frame Assembly
- Figure 2 and Parts List
GD: 02003520-04/30/07
Ref.
Part No. Description Qty.
No.
1 01005810 Hex Cap Screw 3/8-16 x 2.00 1 16 01009604 Spacer, .385 ID x .625 OD x 4.89 1
2 00012152
3 00012158
4 00014270 Carriage Bolt, 3/8-16 x 2.00 2 19 02002281 Guard Bracket 1
5 00022560 Hex Nut, 3/8-16 Flange Lock 18 20 02002536 Hitch 1
6 01000372 Carriage Bolt, 3/8-16 x .75 Long 7 21 02002655 Spacer, .51 ID x .75 OD x 1.40 1
7 01000643 Carriage Bolt, 3/8-16 x 1 7 22 02003055 Lift Index Bracket 1
8 01001170 Rubber Bumper, .62 OD x .22 Thick 6 23 02003087 Frame Assembly 1
9 01001776 Clevis Pin, .500 Dia. x 2.50 Lg. 1 24 02003074 HitchPin, .120 Dia. x 3.0 1
10 01002511
11 01003282
12 01003993 Linch Pin, 3/16 Dia. 2 27 02003563 Carriage Bolt, 1/2-13 x 3.00 1
13 01005160 Plug, Square Tube 2 28 710-3248 Hex Head Cap Screw, 3/8-16 x 8.50 1
14 01007779 Bracket Assembly, Frame, Front 1 29 750-3119 Spacer .406 ID x 1.0 OD 6
15 01008225 Push Retainer, 3/8"-Thread Stud 4 30 756-3045 Idler Pulley, 5.06 Dia. 2
Lock Nut w/Nylon Insert
Flat Washer, 3/8
Nut, 3/8-16, Jam
Clevis Pin, .625 Dia x 4.375 Long
2 17 01010119 Nut, 1/2-13, Flangelock 1
1 18 02004037 Skid Plate 1
1 25 02003749 Wear Plate, 1.125 x 5.00 1
2 26 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
Ref.
Part No. Description Qty.
No.
5
60" Fabricated Cutter Deck - Figure 3
GD: 02002835-03/15/07
6
60" Fabricated Cutter Deck - Parts List for Figure 3
Ref.
Part No. Description Qty.
No.
1 00011925 Hex Cap Screw, 3/8-16, 3.75 4
2 00012158
3 00012428 Lock Nut, Nylon Insert, 1/2-13 5
4 00013406 Hex Cap Screw, 5/16-18 x .75 1
5 00014608
6 00017778
7 00022560 Flange Lock Hex Nut, 3/8-16 50
8 00083192 Idler Washer 1
9 01000343
10 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 35
11 01000385 Front Roller 5
12 01000398 Wheel Spacer 2
13 01000635
14 01000643 Carriage Bolt, 3/8-16 x 1 7
15 01001169
16 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4
17 01002010
18 01003253 Torsion Spring, 0.4ID x 2.16Lg 1
19 01003254 Chute Deflector Rod 1
20 01004109
21 01004304 Hex Index Washer Screw, 3/8-16, .5 8
22 01004685 Belt Cover Support 2
23 01005364 Deck Roller Mount Bracket 3
24 01005260
25
01005256 Left Hand Front Roller Mount Bracket
26 01005258
27 01005437 Outer Belt Cover Support Assembly 2
28 01005869
29 01006693 Chute Deflector 1
30 01008226
31 01008633 Left Hand Mount Deck Bracket Assembly 1
32
01008635 Right Hand Deck Bracket Assembly 1
33 01008644 Finger Guard 1
34 01009300 Chute Bracket 1
35 01009808 Spacer, .385 x .50 x 3.045 2
36 02000109
37 01006961 Hex Cap Screw, 1/2-20 x 7.50 1
38 02002299 Lock Nut, Nylon Insert, 1/2-20 1
39 02002531 60 Deck Assembly 1
40 02002800 J-Hook w/ Threaded Roller 1
41 02002831
42 02002832
43 712-0641 Hex Nut, M16-1.5 2
44 721-04041 Water Nozzle Adaptor 1
45 736-0760 Lock Washer, 17 x 23.8 x 1.95 2
46 737-04003B Deck Water Nozzle 2
Flat Washer, 3/8
Lock Nut, Nylon Insert, 10-32
Phillips Head Screw, 10-32
Complete Wheel, 5.00 Dia.
Nut, 5/16-18, Hex Flange Lock
Grass Catcher Roller
Carriage Screw, 3/8-16 x 1.25
Stop Bracket
Anti-Scalp Wheel Front Mount Bracket
Right Hand Front Roller Mount Bracket
T-Handle Latch Draw
Chute Deflector Bracket
Pillow Block
Right Hand Deck Belt Cover
Left Hand Deck Belt Cover
4
16
16
2
1
4
4
1
2
1
1
4
2
2
1
1
7
60" Fabricated Deck Spindle Assembly - Figure 4
GD: 02003627-10/30/06
8
60" Fabricated Deck Spindle Assembly
Ref.
Part No. Description Qty.
No.
1 00005763 Hex Nut, 7/16-14 1
2 00008495 Hex Cap Screw, 3/8-16 x 1-3/4 2
3 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 12
4 00011925
5 00012158
6 00022560 Flange Lock Hex Nut, 3/8-16 18
7 00060078 Grease Fitting, 1/4-28 x 3/16 2
8 00083192 Idler Washer 1
9 01000302 Shoulder Screw, 7/16-14 1
10 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
11 01000380 Flange Hex Nut, 3/4-16 3
12 01000387
13 01000389 Lock Washer, 7/16 1
14 01000392 Flat Washer, .781 ID 2.00 OD, .105 3
15 01000393 Flat Washer, .469 ID, .875 OD, .105 1
16 01000643
17 01000723
18 01003123 Spacer .812 ID x .268 LG 2
19 01003245
20 01005737
01000308
21 01003532 Aluminum Spindle Assembly 3
22 01004081 Flat Pulley 1
23 01004101
24 01004118 Shoulder Screw, .50 x .27 Lg., 3/8-16 1
25 01004415 Spacer, .760 ID x 2.00 OD x 1.1 4
26 01005434
27 01005213 Hex Cap Screw, 3/4-16, 7.00 2
28 01005338 Hi-Lift Blade, 21.0, 0.756 ID 3
29 01005376 V-Belt, A Section x 122.3 1
30 01005388
31 01005616
32 01005690
33 01008081 V-Pulley, Cast, 6.360 OD 1
34 01009583 V-Belt, B Section x 147.4 1
35 02003489 Idler Arm Assembly includes: 1
01000308 Bearing 2
36 02003712 Extension Spring, .94 x OD x 7.57 1
37 756-3045 Idler Pulley, 5.06 Dia. 1
Hex Cap Screw, 3/8-16, 4.00
Flat Washer, 3/8
Torsion Idler Spring
Carriage Bolt, 3/8-16 x 1
Flat Washer, .406 ID, 1.0 OD, .105
Spacer, .39 ID x .625 OD x 2.75
Idler Arm Assembly, Deck Spindle includes:
Bearing
Idler Pulley, 4.06 OD
Aluminum Spindle Support Plate
Hex Cap Screw, 3/4-16, 9.00
V-Pulley, 5.00 OD
Spring Tension Rod Assembly
- Parts List for Figure 4
1
12
1
1
6
1
1
2
1
3
1
3
1
9
72" Fabricated Cutter Deck - Figure 5
10
GD: 02002933-01/24/07
72" Fabricated Cutter Deck - Parts List for Figure 5
Ref.
Part No. Description Qty.
No.
1 00011925 Hex Cap Screw, 3/8-16, 3.75 6
2 00012158
3 00012428 Lock Nut, Nylon Insert, 1/2-13 4
4 00014608 Lock Nut, Nylon Insert, #10-32 16
5 00017778
6 00022560 Flange Lock Hex Nut, 3/8-16 61
7 01000343
8 01000372 Carriage Bolt, 3/8-16 x .75 Lg. 44
9 01000385 Front Roller 4
10 01000398 Wheel Spacer 6
11 01000643 Carriage Bolt, 3/8-16 x 1 2
12 01001169 Grass Catcher Roller 2
13 01001745 Pin, 5/8 Dia. x 1.2 Lg. 4
14 01002010
15 01003253 Torsion Spring, 0.4ID x 2.16Lg 1
16 01004304 Hex Index Washer Screw, 3/8-16, .5 8
17 01004685 Belt Cover Support 2
18 01005364 Deck Roller Mount Bracket 3
19 01005260
20 01005437 Outer Belt Cover Support Assembly 2
21 01005869
22 01008514
23 01008526
24 01009102 Pin, .375 x 14.06 1
25 01009300 Chute Bracket 1
26 01009705 Chute Deflector 1
27 01009843
28 01010119 Nut, 1/2-13, Flangelock 1
29 02000109
30 02000110
31 02002534 72 Deck Assembly 1
32
02002800 J-Hook w/ Threaded Roller 1
33 02002831 Right Hand Deck Belt Cover 1
34 02002832 Left Hand Deck Belt Cover 1
35 02002919
36 02002918
37 712-0641 Hex Nut, M16-1.5 2
38 721-04041 Water Nozzle Adaptor 1
39 736-0760 Lock Washer, 17 x 23.8 x 1.95 2
40 737-04003B Deck Water Nozzle 2
Flat Washer, 3/8
Phillips Head Screw, #10-32 x 1/2
Complete Wheel, 5.00 Dia.
Carriage Screw, 3/8-16 x 1.25
Anti-Scalp Wheel Front Mount Bracket
T-Handle Latch Draw
Chute Bracket
Finger Guard
Discharge Baffle Weldment
Pillow Block, Steel
Pillow Block, Bronze
Right Hand Deck Weldment Bracket
Left Hand Deck Weldment Bracket
6
16
6
7
4
4
1
1
1
3
1
1
1
11

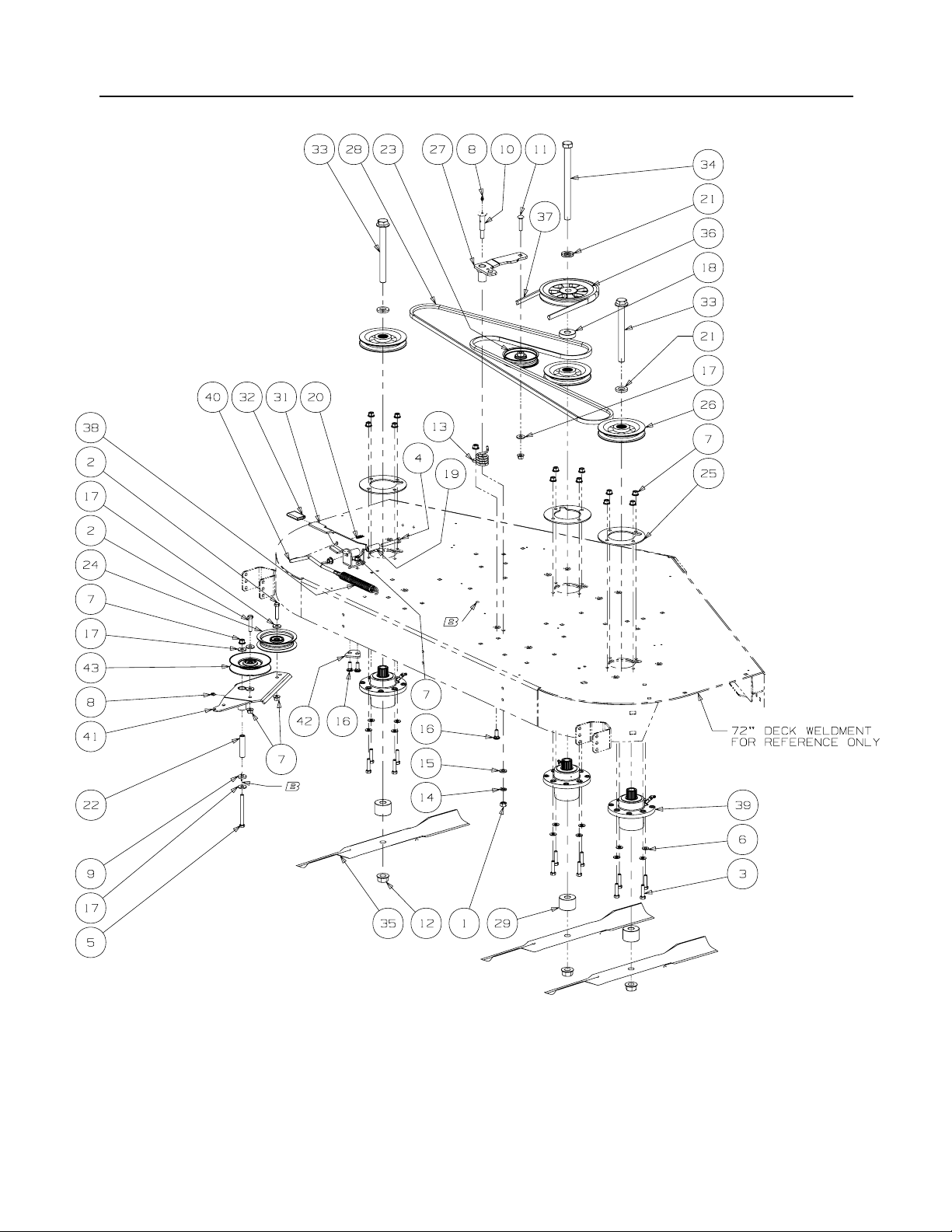

72" Fabricated Deck Spindle Assembly - Figure 6
12
GD: 02003626-04/04/07
72" Fabricated Deck Spindle Assembly
Ref.
Part No. Description Qty.
No.
1 00005763 Hex Nut, 7/16-14 1
2 00008495 Hex Cap Screw, 3/8-16 x 1-3/4 2
3 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 12
4 00011861 Hex Cap Screw, 3/8-16 x 2-1/2 1
5 00011925
6 00012158
7 00022560 Flange Lock Hex Nut, 3/8-16 20
8 00060078 Grease Fitting, 1/4-28 x 3/16 2
9 00083192 Idler Washer 1
10 01000302 Shoulder Screw, 7/16-14 1
11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1
12 01000380 Flange Hex Nut, 3/4-16 3
13 01000387
14 01000389 Lock Washer, 7/16 1
15 01000393 Flat Washer, .469 ID, .875 OD, .105 1
16 01000643
17 01000723
18 01002564 Spacer, .76 ID x 2.0 OD x .477 1
19 01002751
20 01002771 Cotter Pin, .072 x 1.12 Long 2
21 01003123 Spacer .812 ID x .268 LG 3
22 01003245
23 01004081 Flat Pulley 1
24 01004101
25 01005434
26 01007499 V-Pulley, 5.75 OD 3
27 01007786
01000308
28 01007937
29 01008018
30 01008618
31 01008252
32 01008270
33 01008542 Hex Cap Screw, 3/4-16, 7.50 2
34 01008543
35 02000568 Bahia Blade, 25.0, .756 ID 3
36 02000583
37 02000611
38 02000726 Extension Spring, 1.0 x OD x 5.00 1
39 02000920 Aluminum Spindle Assembly 3
40 02001574
41 02003489 Idler Arm Assembly includes: 1
01000308 Bearing Sleeve 2
42 02004064 Adaptor Plate 1
43 756-3045 Idler Pulley, 5.06 Dia. 1
Hex Cap Screw, 3/8-16, 4.00
Flat Washer, 3/8
Torsion Idler Spring
Carriage Bolt, 3/8-16 x 1
Flat Washer, .406 ID, 1.0 OD, .105
Spacer, .39 ID x .63 OD x 1.75
Spacer, .39 ID x .625 OD x 2.75
Idler Pulley, 4.06 OD
Aluminum Spindle Support Plate
Idler Arm Assembly, Deck
Bearing Sleeve
V-Belt, B Section x 124.0 LG
Spacer, .760 ID x 2.00 OD x .330
Tension Idler U-Bracket
Handle Tension Weldment
Tension Idler Handle Grip
Hex Cap Screw, 3/4-16, 9.50
V-Pulley, 6.95 OD x .750 Bore, Cast
V-Belt, B Section x 155 LG
Spring Tension Rod
- Parts List for Figure 6
1
12
1
3
6
1
1
1
3
1
2
1
3
1
1
1
1
1
1
1
13
Brake Assembly
- Figure 7
14
GD: 02002926-03/22/07
Brake Assembly
Ref.
No.
1 00012577 Washer, 1/2 Zinc 1
2 01000643 Carriage Bolt, 3/8-16, 1.00 1
3 00011450 Shoulder Bolt, 1/2 x 1/2 1
4 00014608 Lock Nut, Nylon Insert, 10-32 3
5 00022560 Flange Lock Hex Nut, 3/8-16 6
6 00030906
7 01000372 Carriage Bolt, 3/8-16 x .75 2
8 01000443
9 01000628
10 01000930 Washer, .508 ID x 1.0 OD x .020 4
11 02003841 Centering Bracket 1
12 01008198 Left Hand Brake Cable 1
13 01008225 Push Retainer, 3/8 2
14 01008531 Screw, #10-32 x 0.500 2
15 01008539 U-Nut, 1/4-20 18
16 02000362 Bag, Debris Storage 1
17 02002797 Lower Panel, LH 1
18 02002796 Lower Panel, RH 1
19 02002823 Control Panel Cover, LH 1
20 02002889 Control Panel Cover, RH 1
21 02002864 Brake Cable Mounting Bracket 2
22 02002874 Cup Holder 1
23 02002971 Control Panel, LH 1
24 02002972 Control Panel, RH 1
25 02003010 Parking Brake Grip 1
26 02003603 Shoulder Bolt, 1/2 x 1.00, 3/8-16 2
27 02003725 Washer, 3/16 2
28 02003770 Brake Cable, LH 1
29 02003774 Brake Cable, RH 1
30 02003776 Brake Cable Bracket 1
31 02003782 Brake Lever 1
32 00013131
33 01002766 Lock Nut, 1/4-20 1
- Parts List for Figure 7
Part No. Description Qty.
Phillips Head Machine Screw, 10-32 x 5/8
Screw Button Head, 1/4-20 x .5
Screw, TT, 1/4-20, 0.5, Hex Index Washer
Screw, Hex, Cap, 1/4-20 x .75
3
18
10
1
15
Hydro Hose and Pump Assembly
- Figure 8
16
GD: 02003033-02/19/07
Hydro Hose and Pump Assembly- Parts List for Figure 8
Ref.
Part No. Description Qty.
No.
1 00083192 Idler Washer 2
2 00012158 Flat Washer, 3/8 2
3 00012428 Washer lock 3/8 zinc 8
4 00020628 Key, 3/16" x 7/8" 2
5 00022560
6 00030261 Cap, Hydro Oil Tank 1
7 00034167 Hex Cap Screw, 3/8-16 x 5.00 4
8 01000369 Hex Cap Screw, 3/8 -16 x 1.25 2
9 01000372 Carriage Bolt, 3/8-16 x .75 LG. 6
10 01000642 Carriage Bolt, 3/8-16 x 5.50 2
11 01000643 Carriage Bolt, 3/8-16 x 1 4
12 01002010 Carriage Screw, 3/8-16 x 1.25 4
13 01001618
14 01004040
15 01004192 Oil Pan Drain Plug w/ Seal 1
16 01006799
17 01007309
18 01008449
19 02000296 Grommet Fitting, .54 ID x .78 OD 1
20 02000401 Spring Extension, .740 OD x 2.656 2
21 02000841
22 02001088
23 02001100
01009631
24 02001101
01009631
25 02001102
26 02001103
27 02001106
02001175
28 02001107
02001175
29 02001151
30 02001160
31 02001492
32 02001715
33 02001975
34 02002257
02002258
35 02002557
36 02002703
37 02002899
38 02002967
39 02002968
NOTE: Lubricant, 02002058 Quarts, 2.00
Flange Lock Hex Nut, 3/8-16
Strut Frame
Grommet, .75 ID
Hydro Pump Pulley
Hex Nut, 3/8-24
Socket Head Capscrew, 1/2-13; 6-1/2
Socket Low Head Cap Screw, 1/4-20 x 0.75
Hydro Pump Mounting Bracket
Hydro Pump, BDP-12, LH
Kit, Fan
Hydro Pump, BDP-12, RH
Kit, Fan
Hose Assembly
Hose Assembly
Hose Assembly, Pilot includes:
Tee Fitting
Hose Clamp
--
Hose, .50 ID x .75 OD
Hose Assembly, Drain includes:
Tee Fitting
Hose Clamp
--
Hose, .50 ID x .75 OD
Fitting Elbow Spur, 5/8 x 1/2
Fitting Elbow, 9/16 x 1/2
Hydro Motor Frame Assembly
Adaptor Fitting, 8 x 10
Adaptor Fitting, 8 x 8
Hydraulic In-Tank Filter includes:
Replacement Filter Element
Fitting, 3/4 ORB x 1/2 Tube
Hydraulic Tank Assembly
Rear Cable Mounting Bracket
Hydro Motor, Left Hand Assembly w/ Brake & Drum
Hydro Motor, Right Hand Assembly w/ Brake & Drum
22
2
2
2
2
8
2
1
1
1
1
1
2
2
1
1
1
4
1
4
4
1
1
1
1
2
1
1
17
Fuel Tank Assembly
- Figure 9
18
GD: 02001008-05/03/07
Fuel Tank Assembly
Ref.
Part No. Description Qty.
No.
1 00012133 Hex Cap Screw, 1/4-20 x 1/2 1
2 00012157 Lock Washer, 3/8 8
3 00012235 Clamp, Union 9
4 00012470 Cable Tie 6
5 00013198
6 00022560 Hex Nut, 3/8-16, Lock Flange 3
7 01000215
8 01000368
9 01000635 Nut, Lock, HexFlange, 5/16-18 1
10 01000723
11 01000872
12 01002010
13 01002766 Lock Nut, 1/4-20 1
14 02003843
15 01009809 Fuel Fitting, Return 2
16 01009812 Shut Off Fuel Valve 1
17 01009821 Fuel Fitting, Pickup 2
18 02001081
19 02001061 Fuel Filter Mounting Bracket 1
20 -- 1/4" Hose, Carb BioDiesel (in inches) 162.50
21 -- 5/16" Hose, Carb BioDiesel (in inches) 93.00
22 -- Fuel Strainer (purchase through caterpillar) 1
23 -- Water Filter (purchase through caterpillar) 1
24 02002253
25 02002601
26 02002602
27 01004340
- Parts List for Figure 9
Hex Cap Screw, 5/16-18 x 2.00
Hose Clamp
Hex, Cap Screw, 3/8-16, .88
Flat Washer, .406 ID, 1.0 OD, .105
Washer, 1.25 x .411 x .100
Carriage Screw, 3/8-16 x 1.25
Fuel Tank
Fuel Cap
Fuel Tank Grommet
Adaptor, M14 x 1.5 ORB x 4JIC MA
Adaptor, 4JIC FE x 1/4 Barb
Lock Washer
1
9
9
8
1
2
2
2
4
2
2
1
19
60" Front Caster Assembly
- Figure 10 and Parts List
GD: 02002820-10/04/06
Ref.
Part No. Description Qty.
No.
1 00012577 Washer, 1/2 x 1 Shim 2 14 01006347 Grease Cap, 1.986 OD 2
2 00023287 Nut, 1/2-20, Center Lock 2 15 01006912 Wheel Spacer 2
3 00060078
4 01000678
5 01002620 Cup Bearing 4 18 01009997 Retainer Extension, Self Locking 1
6 01002621 Bearing Cone 4 19 02000439 Front Axle Assembly 1
7 01002622 Seal 2 20 02000588 Flat Washer, 1.00 ID 2
8 01002624 Ring Seal 4 21 02000589
9 01002626 Slotted Nut, 3/4-16 2 22 02002821 Wheel, 13 x 6.50 x 6.0, Beige, includes 2
10 01002627 Cotter Pin, 5/32, 1.25 2 02002108 Tire 1
11 01003123 Spacer, .812 ID x .218LG 4 02002106 Roller Bearings 2
12 01006294
13 01006309 Hex Cap Screw, 1-14 x 5.0 1
Grease Fitting, 1/4-28 x 3/16
Nut, Jam, 1.0-14, Insert Lock
Bell Washer, 1.25 ID x 2.5 x .157
Ref.
Part No. Description Qty.
No.
3 16 01006961 HHCS, 1/2-20, 7.50 2
1 17 01007407 Yoke, Caster Wheel 2
Spacer, 1.005 ID x 1.25 OD x 3.6
2 02002107 Retainer Bushings 2
20
1
72" Front Caster Assembly
- Figure 11 and Parts List
GD: 02002925-10/04/06
Ref.
Part No. Description Qty.
No.
1 00012577 Washer, 1/2 x 1 Shim 2 14 01006347 Grease Cap, 1.986 OD 2
2 00023287 Nut, 1/2-20, Center Lock 2 15 01006912 Wheel Spacer 2
3 00060078
4 01000678
5 01002620 Cup Bearing 4 18 01007760 Front Axle Assembly 1
6 01002621 Bearing Cone 4 19 01009997 Retainer Extension, Self Locking 1
7 01002622 Seal 2 20 02000588 Flat Washer, 1.00 ID x 2.00 OD x .075 2
8 01002624 Ring Seal 4 21 02000589
9 01002626 Slotted Nut, 3/4-16 2 22 02002821 Wheel, 13 x 6.50 x 6.0, Beige, includes 2
10 01002627 Cotter Pin, 5/32, 1.25 2 02002108 Tire 1
11 01003123 Spacer, .812 ID x .218LG 4 02002106 Roller Bearings 2
12 01006294
13 01006309 Hex Cap Screw, 1-14 x 5.0 1
Grease Fitting
Nut, Jam, 1.0-14, Insert Lock
Bell Washer, 1.25 ID x 2.5 OD x .180
Ref.
Part No. Description Qty.
No.
3 16 01006961 HHCS, 1/2-20, 7.50 2
1 17 01007407 Yoke, Caster Wheel 2
Spacer, 1.005 ID x 1.25 OD x 3.6
2 02002107 Retainer Bushings 2
21
1
Wheel Assembly
2
1
- Figure 12 and Parts List
Ref.
Part No. Description Qty.
No.
1 00012187 Lug Nut, 1/2-20 8
2 02002668
00073975
01002182
01004473
Wheel Assembly, 24 x 12.00-12, Beige
Includes:
Tire, 24 x 12.00-12,Turf Master
Rim, 12 Dia x 8.50 width
OPTIONAL TIRES
Wheel Assembly, 24 x 12.00-12, Turf Saver
Tire, 24 x 12.00-12, Turf Saver
GD: 02002669-10/04/06
2
22
Seat/Floor Panel Assembly
- Figure 13 and Parts List
GD: 02002559-03/22/07
Ref.
No.
Part No. Description Qty.
1 00002528 Hex Cap Screw 3/8-16 x 2.00 1 17 01002766 Lock Nut, 1/4-20 2
2 00006131
3 00012158 Washer AR 19 01009459
4 712-04063 Nylock Nut, 5/16-18 2 20 02002091 Shoulder Bolt, 1/2 x 3/4, 3/8-16 1
5 00012168 Lock Washer, 5/16 4 21 02002335 Floor Panel Assembly 1
6 00012178 Hex Cap Screw, 5/16-18 x 1/2 4 22 02002714 Foldable Rops Assembly 1
7 00012428 Nut, 1/2-13, Nylon Insert 4 23 02002942 Seat w/ Seat Belt & Suspension 1
8 00013131
9 00021956 Hair Pin, 3/8-1/2 2 25 02002964
10 00022560 Flange Lock, Hex Nut, 3/8-16 4 26 02002344
11 01000226
12 01000372 Carriage Bolt, 3/8-16 x .75 Long 2 28 02003732
13 01000523
14 01000628
15 01000873 Washer, .536 ID x .930 OD x .05 8 31 01000723
16 01001170 Rubber Bumper, .62 OD x .22 Thick 2 32 02004062 Cable Support 1
Hex Nut, 3/8-16
Screw, Hex, Cap, 1/4-20 x .75
Hex Cap Screw, 1/2-13 x 3.50
Nut, #10-24, Nylon Lock
Screw, TT, 1/4-20, 0.5, Hex Index Washer
Ref.
No.
Part No. Description Qty.
2 18 01008140
2 24 02002963
4 27 02003748
4 29 02003739
2 30 02003745 Adjustable Stud 1
Deck Lift Spring, Left Hand
Shoulder Bolt, .375 x 1.50
Rubber Stop with Washer
Standard Cap Screw, #10-24 x .75
Seat Plate Assembly
Seat Latch Bracket
Latch Lever Bracket
Latch Bracket
Flat Washer, .406 ID, 1.0 OD, .105
23
1
2
4
4
1
1
1
1
2

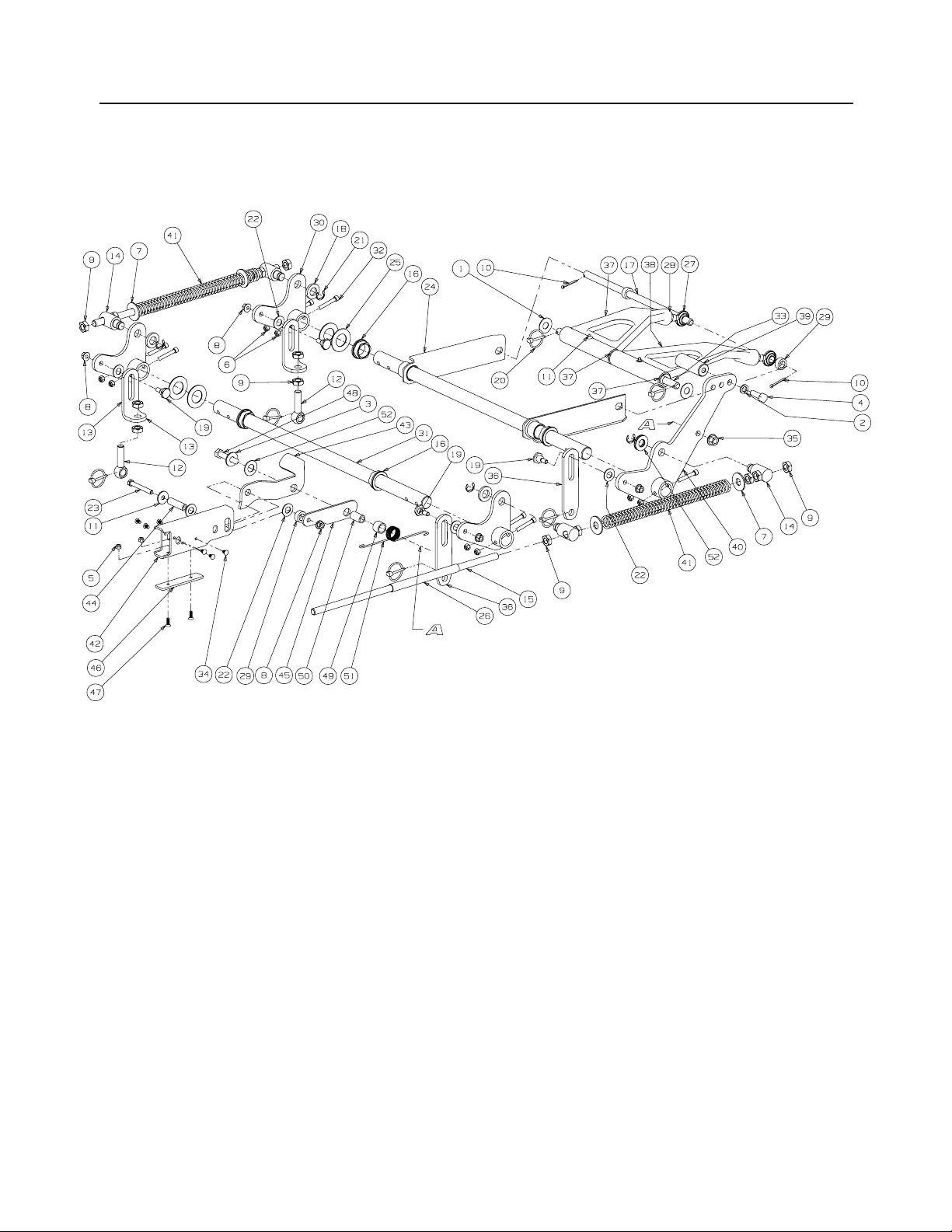

Control Assembly
- Figure 14
24
GD: 02003535-02/09/07
Control Assembly -
Parts List for Figure 14
Ref.
Part No. Description Qty.
No.
1 00002528 Hex Cap Screw, 3/8-16 x 2.00 2 28 01007734 Tu r nb u ck l e 2
2 00012186 Hex Nut, 1/4-20 1
3 00013131 Hex Cap Screw, 1/4-20, .75 1 30 01008367 B/Joint, 3/8-24, Left Hand Female 2
4 00013198 Hex Cap Screw, 5/16-18 x 2.00 2 31 01009322
5 00013416 HHCS, 1/4-20 x 1.00 1 32 01009377
6 00021958 Grease Fitting, 1/4-28, 45 degree 2 33 02000069
7 00022560 Hex Nut, 3/8-16, Lock Flange 12 34 02002931 Lapbar Control Assembly, LH 1
8 00061053 Washer, 3/8, SS 2 01004265 Bearings 2
9 01000369 Hex Cap Screw, 3/8 -16 x 1.25 2 35 02002542 Brake/Control Rod 2
10 02003666 Hex Cap Screw, 3/8-16 x 3.50 2 36 02002543 Lapbar Control Arm 1
11 01000372 Carriage Bolt, 3/8-16 x .75 8 37 02002545 Lapbar Pivot Bracket 2
12 01000450 Hex Jam Nut, 3/8-24 4 38 02002555
13 01000451 B/Joint, 3/8-24, Right Hand Female 2 39 02002657
14 01000600 Flat Washer, 1.4 x .630 x .0515 2 40 02002932 Lapbar Control Assembly, RH 1
15 01000628
16 01000635 Nut, Lock, HexFlange, 5/16-18 9 41 02003024 Lapbar Assembly includes: 2
17 01000960 Belle Washer, .325 x .930 x .045 2 02002549
18 01001170 Rubber Bumper, .62 OD x .22 Thick 2 02002662
19 010
20 01002766 Hex Flange Lock Nut, 1/4-20 2 43 02003531
21 01002986
22 01003561
23 01003947 U-Nut, 3/8-16, .75 2 46 02003885
24 01004003
25 01005851
26 01006350 Shaft Collar 2 49 732-0470A
27 01003468
Screw, TT, 1/4-20, 0.5, Hex Index Washer
02511 Nut, 3/8-16, Jam
Nut, 3/8-24, Jam, LH Third
Nut, Hex, Center Lock, M8
Flat Washer, 5/8 Nylon
External Washer, 3/8
Spacer, .500 OD x .375 ID x 1/2
Ref.
Part No. Description Qty.
No.
29
02002605
3 01004265
4 42 02003419
2 44 02003653
4 45 02003664
4 47 02003880
2 48 710-0262 Carriage Bolt, 5/16-18 x 1.50 4
2
Shoulder Bolt, 3/8 x 1.25, SS
Shoulder Bolt, 1/4 x 1/4
Nut w/ Star Washer, 10-24
Screw, Shoulder Control Rod
Lapbar Control Shaft Assembly
Lapbar/Brake Control Mounting Bracket
Bearing
Control Handle Pivot Tube
Grip, 1.0
Bushing, .310 x .172 x .688 x .06
Control Rod, 3/8-24 x 19.008
Cylinder Return to Neutral
Spacer, .405 ID x 1.0 OD x .72
Side Panel, Control, Left
Side Panel, Control, Right
Extension Spring, .53 OD x 4.75
2
2
2
1
1
1
2
2
2
4
2
2
1
1
1
1
25
Radiator Assembly - Figure 15
26
GD: 02001007-05/03/07
Radiator Assembly
- Parts List for Figure 15
Ref.
Part No. Description Qty.
No.
1 00006129
2 00006194 Nut, 10-24, Nylon Insert 10 36 02001038
3 00009812
4 00011459
5 00012158
6 00012179 Hex Cap Screw, 5/16-18 x 3/4 2 37 02001043 Radiator Mounting Assembly 1
7 00012180
8 00012235
9 00012428
10 00013851
11 00014517 Hex Cap Screw, M8-1.25 x 18mm 2 41 02001110 Radiator Hose 1.12 x 22.5" Long 1
12 00022560 Hex Nut, 3/8-16 Flange Lock 1 42 02001127 Gromment, .62 ID x 1.13 OD 3
13 00030046 Hex Head Cap Screw, 1/2-13 x 3.00 2 43 02001128 Tee Adaptor 1
14 00071691
15 01000215
16 01000217 Hose Clamp,, 7/8:1-1/4 9 46 02001142 Spacer, .625 OD x .407 ID x .375 2
17 01000226 Hex Cap Screw, 1/2-13 x 3.50 2 47 02001147 Radiator Hose Bracket 1
18 01000628
19 01000629
20 01000635 Hexflange Lock Nut, 5/16-18 16 50 02002445 Neck Filler Adaptor 1
21 01000641 Carriage Bolt, 5/16-18 x 1.00 2 51 02002448 Radiator Hose, 1" ID x 28.5" Long 1
22 01000913
23
01001170 Rubber Bumper, .62 OD x .22 Thick
24 01002601 Hex Cap Screw, 3/8-16 x .750 1 54 02002577 Flat Rubber Washer, 1/4 8
25 01002766 Lock Nut, 1/4-20 1 55 02002772 Belt Shield Bracket 1
26 01005869
27 01008539 U-Nut, 1/4-20 3 57 02002776 Radiator Hose Bracket 1
28 01009363 Hex Cap Screw, 10-24 x 1/2 6 58 02002810 Over Flow Coolant Container 1
29 01009895 Hose Clamp 2 59 02002847 Radiator Stand 1
30 01009937 Washer, 5/16 x 1.06 2 60 02002850 Valve 1
31 01010119 Nut, 1/2-13, FlangeLock 2 61 02003919 Radiator Support Bracket 1
32 02000697 Spacer, .259 x .375 x .707 1 62 02003918 Radiator Mounting Assembly 1
33 02001029 Radiator Support Gusset, RH 1 63 02003920 Hex Cap Screw, 10-24 x 3/4 4
34 02001030 Radiator Support Gusset, LH 1
Hex Cap Screw, 5/16-18 x 1.75
Flat Washer, 5/16
Flat Washer, 1/2
Flat Washer, 3/8
Hex Head Cap Screw, 5/16-18 x 1.00
Hose Clamp
Nut, 1/2-13, Nylon Insert
Hex Cap Screw, 1/2-13 x 1.00
Spacer, Control Rod
Hose Clamp, 1/4-5/8
Screw, TT, 1/4-20, 0.5, Hex Index Washer
Screw, TT, 1/4-20, 0.75, Hex Index Washer
Hex Cap Screw, 1/4-20 x 1.25
T-Handle Latch Draw
Ref.
Part No. Description Qty.
No.
8 35 02001051
8 02002896
2 02002923
3 02003811
4 38 02001124 Radiator Shroud Assembly 1
3 39 02001090 Radiator Hose, 1.12 ID x 36" Long 1
4 40 02001097 Air Filter includes: 1
2 751-3194 Replacement Filter Element, Outer
1 44 02001134 Gromment, 1.5 ID x 2.13 OD 5
2 45 02001138 Air Hose, 1.75 ID 1
5 48 02002442 Radiator Hose, 1.12 ID x 18" Long 1
3 49 02002443 Elbow Adaptor, 1/8 NPT x 1/4 1
1 52 02002567 Radiator Hose, 1/4" x 27" 1
4 53 02002568 Radiator Hose, 1/4" x 9" 1
2 56 02002774 Belt Shield 1
Radiator Mounting Bracket
Radiator includes:
Fan Reverser Switch
Radiator Screen
Fan Assembly
1
1
1
1
1
27
28.2HP Caterpillar Engine Assembly - Figure 16
28
GD: 02003528-04/25/07
28.2HP Caterpillar Engine Assembly
- Parts List for Figure 16
Ref
Part No. Description Qty.
No
1 00006131
2 00010734 Lock Washer, 1/2 16 34 01007088 Nut, M6 x 1, Lock 1
3 00011861 HHCS, 3/8-16, 2.25 1 35 01008531
4 00012133 Hex Cap Screw, 1/4-20 x 1/2 9 36 01010119 Nut, 1/2-13, FlangeLock 4
5 00012168
6 00012226
7 00012609
8 00013406 Hex Cap Screw, 5/16-18 x .75 2 39 02000932 Drive Shaft 1
9 00013669
10 00014608
11 00021517 Key, 1/4 x 1/4 x 2.0 1 42 02001035 Engine Isolator 4
12 00022560 Flange Lock, Hex Nut, 3/8-16 3 43 02001037 Transmission Drive Pulley 1
13 00027279 Nylock Nut, 7/16-14 1 44 02001069
14 00060056
15 00083192 Idler Washer 2 46 02001076 Muffler Cover Assembly, Rear 1
16 01000199
17 01000389 Lock Washer, 7/16 4 48 02001080 HHCS, M12-1.25 x 25MM 16
18 01000393
19 01000505
20 01000512 Hex Cap Screw, 3/8-16 x 1.75 1 51 02001113 Clutch Brake, GT3.5-CT06D, Diesel 1
21 01000635 Hexflange Lock Nut, 5/16-18 2 52 02001116 V-Be lt 1
22 01000720 Hex Cap Screw, M8-1.25 x 25MM 6 53 02002158 Engine Spacer, 1.125 x 1.75 x .438 1
23 01000721 Machine Screw, 8-32, .375 1 54 02002402 Hex Cap Screw, M8-1.25 x 30MM 3
24 01000925 Self Tapping Screw, 1/4-20 x 0.375 2 55 02002407 Idler Spring 1
25 01001042 Screw, M6-1.0 x 12MM 2 56 02002411 Hex Cap Screw, M8-1.25 x 12MM 1
26 01001082 Hex Cap Screw, 7/16-20 x 2.00 1 57 02002413 Hex Cap Screw, M10-1.25 x 25MM 3
27 01002070 Throttle Clamp 1 58 02002425 Worm Clamp, 4.125 - 7.00 2
28 01002766 Lock Nut, 1/4-20 18 59 02002479 Exhaust Manifold Shroud Assembly 1
29 01002771 Cotter Pin, .072 x 1.12 Long 1 60 02002778 Throttle Cable Mounting Bracket 1
30 01003113 Hex Cap Screw, 1/2-13 x 3.25 4 61 02003000 Throttle Control Cable, 35.0 1
31 01003561 Hex Nut, M8 x 1.2, Nylon Top Lock 1 62 751-10059 Thermostat Housing 1
32 01004004 Control Throttle Knob 1 63 01005851 Washer, 3/8 ID, External Tooth 1
Note: Engine Oil 15W40 02002058
Hex Nut, 3/8-16
Lock Washer, 5/16
Grease Fitting, 90°
Clevis Pin, 1/4 x 3/4
Screw, Hex Washer, 10-32 x 1/2
Lock Nut, Nylon Insert, 10-32
Nut Washer, W/Star, 8-32
Extension Spring, 1.0 OD x 5.00
Washer, .469 ID x .875 OD x .105
Shoulder Bolt
1 33 01005314 Flat Washer, 7/16 ID x 1.75 OD x .25 1
5 37 02000302 Idler Pulley, 3.5 OD 1
1 38 02000305
1 01000308 Bearing 2
2 40 02001010 Engine, 28.2HP Cat Diesel 1
2 41 02001021
1 45 02001073 Muffler, 28.2HP Cat Diesel 1
1 47 02001079
3 49 02001098 Washer, .53 ID x 2.13 OD x .134 4
1 50 02001105
Ref
No Part No. Description Qty.
Self Tapping Screw, #10-32 x .500
Idler Arm Assembly includes:
Engine Mounting Assembly
CLutch Retainer Assembly
Muffler Cover Assembly, Front
Muffler Mounting Bracket
1
1
2
1
1
1
29
60" Lift Assembly - Figure 17
30
GD: 02002660-03/16/07
60" Lift Assembly
Ref.
Part No. Description Qty.
No.
1 00002766 Washer, 1.5 x .655 x .055 2
2 00010734 Lock Washer, 1/2 1
3 00011459 Flat Washer, 1/2 1
4 00011951 Hex Cap Screw, 1/2-13 x 1.50 1
5 00012152
6 00012165 Nut, 5/16-18, Nylock 8
7 00013432
8 00022560 Hex Nut, Flange Lock, 3/8-16 5
9 00035632
10 00060018 Cotter Pin, 3/16 x 1-1 2
11 01000872 Flat Washer, 1.25 x .411 x .100 1
12 01001744
13 01007255 Eye Bolt Mount Link, 5/8 ID 2
14 01001855 Ferule Lift 4
15 01001857 Lift Connector Rod 2
16 01001930 Hex Flange Bearing, 1.25 ID 4
17 01002586 Front Lift Link, Rod Mount 1
18 01003123 Spacer, .812 ID x .268 Lg. 3
19 01003535
20 01003993 Linch Pin, 3/16 Dia. 6
21 01003994 E Clip, 3/4 Dia. 4
22 01004003 Nylon Flat Washer, 5/8 6
23 01004127
24 01005569 Front Frame Strut Assembly 2
25 01006408 Flat Washer, 1.25 ID 4
26 01006823
27 01007487
28 01007526
29 01007527 Spacer, .630 ID x 1.06 OD x .440 3
30 01008206
31 01007681 Deck Lift Shaft 2
32 01007962
33 01008453 Lift Link Rod 1
34 01008801 Rivet, 1/4 x 5/8 6
35 01010119 Nut, 1/2-13, FlangeLock 1
36 02003566 Deck Link 2
37 02002708 Bearing Lift Brace Assembly, Left Hand includes: 1
00060078 Grease Fitting 1
02002384 Bearing 2
38 02002709
00060078
02002384
39 02002596 Deck Lift Foot Pedal 1
40 02002595 Deck Lift Foot Pedal Weldment 1
41 02002959 Lift Compression Spring 2
42 02003050
43 02003042 Lift Link Bracket 1
44 02003043
45 02003511
46 02003749
47 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
48 02003585 HHCS, 1/2-13 x 2.50 1
49 02003586 Spacer, .76 ID x 1.0 OD x .75 1
50 02003587 Spacer, .50 ID x .75 OD x 1.313 1
51 02003588 Torsion Spring, .120 Wire x 1.32 OD 1
52 736-0188 Washer, .76 x 1.49 x .06 3
- Parts List for Figure 17
Lock Nut w/Nylon Insert
Flat Washer, 5/8
Jam Nut, 5/8-11
Eye Bolt, 5/8ID
Shoulder Screw, 0.625 OD x .437 Lg.
HHCS, 3/8-16, 3.00
Hose, 5/8 ID 13/16 OD, 8" LG
Rod End, Male
Jam Nut, 5/8-18
Bellecrank Weldment Assembly
Socket Head CapScrew, 5/16-18 x 2
Bearing Lift Brace Assembly, Right Hand includes:
Grease Fitting
Bearing
Lift Tube, 3.0 x 1.5
Spacer, .375 ID x .625 OD x 1.53
Yo k e P la te
Lift Wear Plate
2
4
14
2
4
1
2
2
2
3
8
1
1
2
1
1
1
1
31
72" Lift Assembly - Figure 18
32
GD: 02003030-03/16/07
72" Lift Assembly
- Parts List for Figure 18
Ref.
Part No. Description Qty.
No.
1 00002766 Washer, 1.5 x .655 x .055 4
2 00010734 Lock Washer, 1/2 1
3 00011459 Flat Washer, 1/2 1
4 00011951 Hex Cap Screw, 1/2-13 x 1.50 1
5 00012152
6 00012165 Nut, 5/16-18, Nylock
7 00013432
8 00022560 Hex Nut, Flange Lock, 3/8-16 5
9 00035632
10 00060018 Cotter Pin, 3/16 x 1-1 2
11 01000872 Flat Washer, 1.25 x .411 x .100 1
12 01001744
13 01007255 Eye Bolt Mount Link, 5/8 ID 2
14 01001855 Ferule Lift 4
15 01001857 Lift Connector Rod 2
16 01001930 Hex Flange Bearing, 1.25 ID 4
17 01002586 Front Lift Link, Rod Mount 1
18 01003123 Spacer, .812 ID x .268 Lg. 3
19 01003535
20 01003993 Linch Pin, 3/16 Dia. 8
21 01003994 E Clip, 3/4 Dia. 4
22 01004003 Nylon Flat Washer, 5/8 6
23 01004127
24 01006408 Flat Washer, 1.25 ID 4
25 01006823
26 01007487
27 01007526
28 01007527 Spacer, .630 ID x 1.06 OD x .440 3
29 01007544 Deck Lift Link Rod 2
30 01008206
31 01007681 Deck Lift Shaft 2
32 01008209
33 01007962
34 01008801 Rivet, 1/4 x 5/8 7
35 01010119 Nut, 1/2-13, FlangeLock 1
36 02003566 Deck Link 2
37 02002708 Bearing Lift Brace Assembly, Left Hand 1
00060078 Grease Fitting 1
02002384 Bearing 2
38 02002709
00060078
02002384
39 02002596 Deck Lift Foot Pedal 1
40 02002595 Deck Lift Foot Pedal Weldment 1
41 02002959 Lift Compression Spring 2
42 02003050
43 02003042 Lift Link Bracket 1
44 02003043
45 02003511
46 02003749
47 02003505 Flat Head Cap Screw, 1/4-20 x .75 2
48 02003585 HHCS, 1/2-13 x 2.50 1
49 02003586 Spacer, .76 ID x 1.0 OD x .75 1
50 02003587 Spacer, .50 ID x .75 OD x 1.313 1
51 02003588 Torsion Spring, .120 Wire x 1.32 OD 1
52 736-0188 Washer, .76 x 1.49 x .06 3
Lock Nut w/Nylon Insert
Flat Washer, 5/8
Jam Nut, 5/8-11
Eye Bolt, 5/8ID
Shoulder Screw, 0.625 OD x .437 Lg.
HHCS, 3/8-16, 3.00
Hose, 5/8 ID 13/16 OD, 8" LG
Rod End, Male
Jam Nut, 5/8-18
Bellecrank Weldment Assembly
Front Frame Strut Assembly
Socket Head CapScrew, 5/16-18 x 2
Bearing Lift Brace Assembly, Right Hand
Grease Fitting
Bearing
Lift Tube, 3.0 x 1.5
Spacer, .375 ID x .625 OD x 1.53
Yo k e P l a t e
Lift Wear Plate
2
8
4
14
2
4
1
2
2
2
3
2
8
1
1
2
1
1
1
1
33
Electrical Assembly
4" Hose Length
- Figure 19 and Parts List
Fasten relay (01002251) with Button Head Screw
(01000443) on LH control panel shown in Fig. 14.
GD: 02003020-03/27/07
Ref.
No.
Part No. Description Qty.
1 00012470
2 00013131
3 00013258
4 00014602
5 00014608
6 00022560 Flange Lock, Hex Nut, 3/8-16 4 22 -- Fuel Hose, 1/4" (in inches) 4
7 00032097
8 01000372 Carriage Bolt, 3/8-16 x .75 Long 4 24 02002059 Cable, Battery Red, 42" 1
9 01002111 Switch, Electric, PTO 1 25 02002346 Cover, Alternator 1
10 01002251 Relay, 12V 40A 3 26 02002552 Battery Bracket 1
11 01002766 Lock Nut, 1/4-20 2 27 02002588 Alarm, High Temperature 1
12 01003561
13 01003581 Switch, Ignition, 6 Pin 1 29 02003026
14 01007597
15 01008571 Switch, Plunger 1 31 723-3064 Strap, Battery 1
16 01009623 Cable, Battery Black, 34" 1 32 725-04218 Timer Relay 1
Tie, Cable, 3/16 x .05 x 7.4"
Screw, Hex, Cap, 1/4-20 x .75
Boot, 1" OD Rubber Battery-PST, Red
Round Hd. Machine Screw, 10-32 x 3/4
Lock Nut, Nylon Insert
Nut, W/Cap, 5/8-32 Ignition
Nut, Hex, Center Lock, M8
Meter, Hour
Ref.
No.
Part No. Description Qty.
4 17 01009816 Light Indicator, 12V 3
2 18 01009905
2 19 02000907 Interlock Time Delay Shutdown 1
2 20 02000987
2 21 02001114 Battery, 320CCA 1
1 23 02001350 Light Indicator, 12V 1
1 28 02002592 Control/Brake Panel Switch 1
1 30 02003038
Bracket, PTO Switch Retainer
Wire, Alternator Charge
Harness Assembly (not shown)
Electrical Conduit Clip, 3/8
1
1
1
1
34
Decal Map
01006086 00030633
777D10678 for M60
777D10677 for M72
777D10678 for M60
777D10677 for M72
01002166
Near deck wash out
under belt cover
Top of deck
00030635
777D10679
02003753
(Beside S/N Label)
On top of front rail
on main frame
01007756
Aligned near fuse mounting holes
on inner side control panel
02003616
02003514
777S32798
Near deck wash out
777D10679
Foot Platform
777D09015
On bottom of
02003676
Hydraulic Tank
02002041
On top of
Both sides of unit
777D09752
On Fuel Tank Selector Valve
01009824
Centered on rear bumper
02003753
Centered top of Tow Hitch
02002693
777S32797
35
Form No. 02003435 Rev. 07-3 05/10/2007
Cub Cadet Commercial
P.O. Box 368023
Cleveland, OH 44136
Loading...
