Cub Cadet 521E User Manual

Operator’s Manual

Single Stage

Snow Thrower

Model 521E

IMPORTANT: Read safety rules and instructions carefully

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722.

CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722

PRINTED IN U.S.A.

ECO No. 1413

FORM NO.

770-10050B.fm

(5/2000)

TABLE OF CONTENTS

Content Page

Important Safe Operation Practices .................................................................. 3

Assembling Your Snow Thrower ....................................................................... 5

Know Your Snow Thrower................................................................................. 7

Operating Your Snow Thrower .......................................................................... 8

Making Adjustments.......................................................................................... 9

Maintaining Your Snow Thrower ....................................................................... 10

Off-Season Storage .......................................................................................... 11

Troubleshooting ................................................................................................ 12

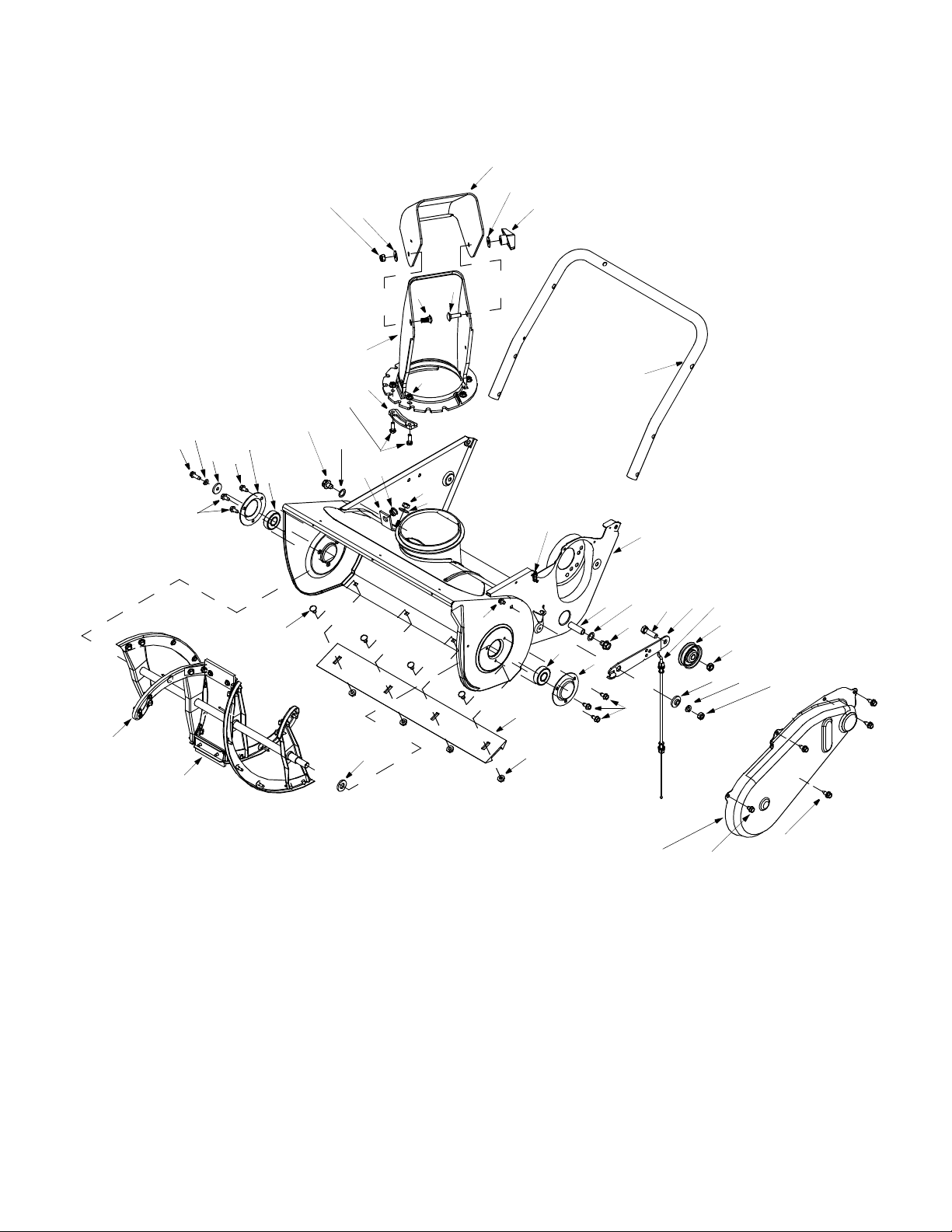

Parts List ........................................................................................................... 13

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new snow thrower. It will help you to assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new snow thrower, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from our Customer Support Department or an authorized dealer.

• You can locate the model number by standing behind the unit in the operating position and looking down at the dash panel . A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below.

(Model Number)

(Serial Number)

Copy the model number here:

Copy the serial number here:

CUB CADET CORP.

P.O. BOX 368023

CLEVELAND, OHIO 44136

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Cub Cadet Customer Dealer Referral Line at 1-(800)-528-

1009. Please have your unit’s model number and serial number ready when you call. See previous section to locate this information. By having the model and serial numbers ready, you help your Cub Cadet dealer give you faster service.

For more details about your machine, visit our website at www.cubcadet.com

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could endanger the

personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol—heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals

known to State of California to cause cancer and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with

any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Training

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with proper operation of all controls. Know

how to stop the machine and disengage them quickly.

3. Never allow children under 14 years old to operate this

machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. Thrown objects can cause serious personal injury. Plan

your snow throwing pattern to avoid discharge of material toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at least 75

feet from the machine while it is in operation. Stop machine if anyone enters the area.

7. Exercise caution to avoid slipping or falling, especially

when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to

be used. Remove all door mats, newspapers, sleds, boards, wires and other foreign objects which could be tripped over or thrown by the auger/impeller.

2. Always wear safety glasses or eye shields during

operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

3. Do not operate without wearing adequate winter outer

garments. Do not wear jewelry, long scarves or other loose clothing which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.

4. Use a grounded three wire extension cord and receptacle

for all units with electric start engines.

5. Adjust collector housing height to clear gravel or crushed

rock surfaces.

6. Disengage all clutch levers before starting the engine.

7. Never attempt to make any adjustments while engine is

running, except where specifically recommended in the operator’s manual.

8. Let engine and machine adjust to outdoor temperature before starting to clear snow.

9. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container. b. Extinguish all cigarettes, cigars, pipes and other

sources of ignition. c. Never fuel machine indoors. d. Never remove gas cap or add fuel while the

engine is hot or running. e. Allow engine to cool at least two minutes before

refueling. f. Never over fill fuel tank. Fill tank to no more than

½ inch below bottom of filler neck to provide space

for fuel expansion. g. Replace gasoline cap and tighten securely. h. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine. i. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

(e.g. furnace, water heater, space heater, clothes

dryer etc.). j. Allow machine to cool at least 5 minutes before

storing.

Operation

1. Do not put hands or feet near rotating parts, in the auger/ impeller housing or discharge chute. Contact with the rotating parts can amputate hands and feet.

2. The auger/impeller clutch lever is a safety device. Never bypass its operation. Doing so, makes the machine unsafe and may cause personal injury.

3. The clutch levers must operate easily in both directions and automatically return to the disengaged position when released.

4. Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working.

5. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

6. Do not operate machine while under the influence of alcohol or drugs.

7. Muffler and engine become hot and can cause a burn. Do not touch.

8. Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.

9. Exercise caution when changing direction and while operating on slopes.

10. Plan your snow throwing pattern to avoid discharge towards windows, walls, cars etc. To avoid property damage or personal injury caused by a ricochet.

11. Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to clear snow at too fast of a rate.

13. Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.

14. Disengage power to the auger/impeller when transporting or not in use.

15. Never operate machine at high transport speeds on slippery surfaces. Look down and behind and use care when in reverse.

16. If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.

17. Disengage all clutch levers and stop engine before you leave the operating position (behind the handles). Wait until the auger/impeller comes to a complete stop before unclogging the discharge chute, making any adjustments, or inspections.

18. Never put your hand in the discharge or collector openings. Always use a clearing tool to unclog the discharge opening.

19. Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs etc.).

20. If situations occur which are not covered in this manual, use care and good judgment. Contact your dealer or telephone 1-800-528-1009 for assistance and the name of your nearest servicing dealer.

Maintenance & Storage

1. Never tamper with safety devices. Check their proper operation regularly.

2. Disengage all clutch levers and stop engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting before cleaning, repairing, or inspecting.

3. Check bolts, and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer’s (O.E.M.) parts only. “Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!”

6. Check clutch controls periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator’s manual for instructions.

7. Maintain or replace safety and instruction labels, as necessary.

8. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger/impeller.

10. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace ,clothes dryer etc.

11. Always refer to the operator’s manual for proper instructions on off-season storage.

Your Responsibility:

• Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.

SECTION 2: ASSEMBLING YOUR SNOW THROWER

Unpacking From Carton

• Cut along corners of the carton and lay it down flat. See Figure 1. Remove packing material.

• Remove any loose parts included with unit (i.e., operator’s manual, etc.).

• Roll unit out of carton. Check carton thoroughly for any remaining loose part.

Remove loose parts

Roll unit out

Figure 1

Hardware Pack

1. Ignition Keys* (2)

*One key may be in the switch on snow thrower.

(Items 2 to 5 are illustrated in Figure 2.)

2. Eyebolt

3. Saddle Washer 5/16" I.D.

4. Hex Nuts 5/16-18 Thread (2)

5. Cotter Pin

Eye Bolt

Saddle Washer

Hex Nut

Cotter Pin

Before Assembly

WARNING: Disconnect the spark plug wire

and ground it against the engine to prevent unintended starting.

Raising Upper Handle

• Loosen the hand knob on each side of the handle. Remove packing material, if any.

Raise handle to here

Hand Knob

Figure 3

• Raise the upper handle in the direction shown in Figure 3 till it clicks into the operating position. Make sure not to pinch or crimp the cable.

• Tighten the hand knobs.

Attaching Control Cable

The control cable may already be attached to the control handle. If not attached, complete the following steps to attach it to the snow thrower housing.

• Route the control cable over the lower handle. Insert the end of the cable into the hole in the control housing as shown in Figure 4. Push the plastic fitting until it locks into the control housing.

Figure 2: Hardware Pack

Items Required For Assembly

1. Pair of pliers (not necessary, but helpful)

2. Two cycle engine oil (included)

3. Fresh gasoline

NOTE: All references to left or right side of the snow thrower is from the operating position only.

Bottom Hole In Control Handle

Control Housing

“Z” End of Cable

Figure 4

Plastic Fitting

• Lift the control handle up, and hook the “Z” end of the control cable into the bottom hole in the control handle, from the outside to the inside . If necessary, pull up on the end of the cable with a pair of pliers to obtain slack in order to hook it into the control handle. Hold the “Z” fitting with the pliers, not the cable, to avoid damaging the cable.

NOTE: The upper hole in the control handle provides for adjustment in belt tension. Refer to page 9 of this manual for instructions.

Installing Chute Crank

• Thread one 5/16” hex nut half way onto the eyebolt. See Figure 5. All necessary hardware is included in the hardware pack shipped with your unit. See Figure 2 for more details.

• Slide the eyebolt onto the chute crank. Insert eyebolt into the hole in the lower handle.

Chute Crank

Eye Bolt

• Secure eyebolt with 5/16” saddle washer and hex nut. The cupped side of washer goes against the handle. Adjust lower hex nut until the eyebolt is positioned so that the chute crank turns freely (does not bind).

• Move upper hex nut down against the lower handle. Tighten lower hex nut securely.

Assembling Discharge Chute

The snow thrower has been shipped with the upper chute pivoted all the way down. Assemble as follows:

• Turn the chute crank until the chute faces straight to the front. See Figure 7 .

Flat

Hand Knob

Front

Washer

Carriage

Bolt

Hex

Nuts

Saddle

Washer

Figure 5

• Insert the chute crank into the coupler at the top right side of the snow thrower. See Figure 6.

• Rotate the crank to align holes, and insert the cotter pin. Bend ends of cotter pin in opposite directions to secure. See Figure 6.

Cotter Pin

Chute Crank

Coupler

Upper Chute

Figure 7

• Remove the hand knob, flat washer and carriage bolt from the upper chute. See Figure 7.

• Pivot the upper chute up so that there is no gap between the upper and the lower chute. See Figure

8. Secure with hardware just removed.

Gap

Pivot the upper

chute

Figure 6

Figure 8

SECTION 3: KNOW YOUR SNOW THROWER

Be familiar with all the controls and their proper operation. Know how to stop the machine and disengage them quickly.

Auger Control Handle

Chute Crank

Discharge Chute

Upper Handle

Spark

Plug

Cover

Primer Button

Ignition Key

Electric Starter

Shave Plate

Auger

• Compare Figure 9 with the controls on your snow thrower before starting the machine or trying to operate it.

Choke Lever

Place choke lever in “ON” position to start a cold engine.

Primer Button

Used to inject fuel directly into the carburetor to insure fast starts in cold weather. Follow engine manual to prime engine.

Ignition Key

Used to start engine. Put key in “ON” position to start.

Starter Handle

Used to manually start the engine.

Electric Starter

Used to start engine with a 120V power source.

Plug for Electric Start

Requires use of a two-prong outdoor electric cord

and a 120V power source.

Spark Plug Cover

Spark plug located under the cover.

Choke Lever Off

Electric Cord

Starter Handle

Plug for Electric Cord

Figure 9

Auger Control Handle

Located on the upper handle, the auger control handle is used to engage and disengage the augers. The snow thrower is designed to be propelled by the rotation of the augers. Pull the control handle back against the upper handle to engage the augers; release to disengage.

Chute Crank

Located on right side of dash panel, the chute crank determines the direction that snow will be discharged. Turn clockwise to discharge snow to the left; turn counterclockwise to discharge to the right.

Discharge Chute

The angle of the discharge chute controls the distance that the snow is thrown. Tilt the discharge chute up for greater distance; tilt down for less distance. Loosen the hand knob on the side of the discharge chute to adjust. Tilt the chute to the desired position, and tighten the knob.

Stopping Engine

• Turn ignition key to OFF position and remove it from the snow thrower.

SECTION 4: OPERATING YOUR SNOW THROWER

Before Starting

WARNING: Read, understand, and follow

all instructions and warnings on the machine and in this manual before operating.

• The spark plug wire was disconnected for safety purposes during assembly. Attach spark plug wire to spark plug before starting.

Fuel & Oil Mixture

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.

Your snow thrower uses a two cycle engine that requires a mixture of gasoline and two cycle engine oil. Refer to the engine operator’s manual for proper oil and fuel recommendations.

• A plastic cup was provided inside the fuel fill opening on the fuel tank. Remove and discard this cup before filling up the tank. Use the seperate fuel tank cap to close after fill-up.

Starting Engine

Recoil Starter

• To start the engine of your snow thrower, follow the engine manual.

Electric Starter

WARNING: The electric starter is

equipped with a grounded three-wire power cord and plug, and is designed to operate on 120 volt AC household current. It must be used with a properly grounded three-prong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.

• If you have a grounded three-prong receptacle, proceed as instructed in the engine manual.

Operating Snow Thrower

Hand Knob

Figure 10

• Adjust the upper discharge chute up or down as shown in Figure 10. Then use the chute crank to position the discharge chute in order to discharge snow with the wind.

• After making sure no bystanders or obstacles are in front of the unit, engage the auger control handle. See Figure 11. As the snow thrower starts to move, maintain a firm hold on the handle, and guide the snow thrower along the path to be cleared.

• Release the auger control handle to stop the snow throwing action and the forward motion.

Turn handle to change discharge direction

Upper Discharge Chute

Press auger control handle to engage auger

• Determine that your house wiring is a three-wire grounded system. Ask a licensed electrician if you are not certain.

• If your house wiring system is not a three-wire grounded system, do not use this electric starter

under any conditions.

• If your home electrical system is grounded, but a three-hole receptacle is not available, one should be installed by a licensed electrician before using the electric starter.

Figure 11

Stopping Engine

• Run the engine for a few minutes before stopping to help dry any moisture on the engine.

• To stop engine: Turn ignition key to OFF position and remove it from the snow thrower.

IMPORTANT:

Engine will not start without it.

Keep the ignition key in a safe place.

• Wipe all snow and moisture from the unit. Move the choke lever back and forth several times and leave it in the ON position.

Operating Tips

• Discharge snow downwind whenever possible. Slightly overlap each previously cleared path.

• Lifting up on the handle will allow the rubber on the augers to propel the snow thrower forward. Pushing downward on the handle will raise the augers off the ground and stop the forward motion.

SECTION 5: MAKING ADJUSTMENTS

WARNING: NEVER attempt to make any

adjustments while the engine is running, except where specified in the operator’s manual.

Shave Plate

• To check the adjustment of the shave plate, place the unit on a level surface. See Figure 12. The wheels, shave plate and augers should all contact level surface. Note that if the shave plate is adjusted too high, snow may blow under the housing. If the shave plate wears out excessively, or the unit will not self-propel, the shave plate may be adjusted too low.

NOTE: On new units or units with a new shave plate installed, the augers may be slightly off the ground.

NOTE: Excessive upward pressure on the handle will result in premature wear on the rubber auger blades which would not be covered by warranty.

• Run the engine for a few minutes before stopping to help dry any moisture on the engine.

• Clean the snow thrower thoroughly after each use.

WARNING: Muffler, engine and surrounding

areas become hot and can cause a burn. Do not touch.

Nuts & Bolts

Figure 13

Augers

• To adjust, tip the snow thrower back so that it rests on the handle. Loosen the lock nuts and bolts which secure the shave plate to the housing. See Figure

13. Move the shave plate to desired position and retighten the nuts and bolts. Make certain all nuts and bolts are tightened securely

Shave Plate

Figure 12

Wheels

Belt Tension

Periodic adjustment of the belt tension may be required due to normal stretch and wear on the belt. If augers hesitate while turning although engine maintains same speed, adjust tension following instructions below.

• The upper hole in the control handle provides adjustment for belt tension. To adjust, disconnect the “Z” end of control cable from the bottom hole in the control handle. See Figure 14 . Hook the cable into the upper hole in control handle as shown.

Upper

Hole

Clutch Cable

Control Housing

Figure 14

If additional adjustment is required, follow steps below.

• Remove the belt cover by removing five hex screws that hold it in place. For location of the belt cover, see Figure 16.

• To adjust, move the extension spring on the end of the clutch cable to the next higher adjustment position on the idler bracket assembly. Reassemble belt cover.

• There are three adjustment holes provided in the idler bracket assembly. For location of these holes,

Carburetor

see Figure 15.

High Position

Idler

Bracket

Middle Position

WARNING: If any adjustments need to be

made to the engine while the engine is running (e.g. carburetor), keep clear of all moving parts. Be careful of muffler, engine and other surrounding heated surfaces.

Low Position

Spring on End of Clutch Cable

Auger

Pulley

• Refer to the separate engine manual, packed with your unit, for carburetor adjustment information.

Figure 15

SECTION 6: MAINTAINING YOUR SNOW THROWER

General Recommendations

• Always observe safety rules when performing any maintenance.

• The warranty on this snow thrower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain the snow thrower as instructed in this manual.

• Changing of engine governed speed will void engine warranty.

Customer Responsibilities

MAINTENANCE SCHEDULE

Lubricate pivot points

T C

Clean snow thrower

U D O

Check shave plate adjustment

R P

Check belt

• Some adjustments will have to be made periodically to maintain your unit properly. All adjustments in the Making Adjustments section of this manual should be checked at least once each season.

• Periodically check all fasteners and make sure these are tight

• Follow the maintenance schedule given below to get quality performance from your snow thrower for a long time.

SERVICE DATES

E N

Clean engine

G N E

Check spark plug

WARNING: Before servicing, repairing, or

inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting.

Replacing Shave Plate

The shave plate is subject to wear. It should be checked periodically. There are two wearing edges and the shave plate can be reversed. See Figure 13 .

• Remove the four carriage bolts and hex lock nuts which attach it to the snow thrower housing.

• Install new shave plate, making sure the heads of the carriage bolts are on the inside of the housing.

• Adjust the shave plate according to procedure in the “Making Adjustments” section of this manual.

• Tighten securely.

• Pull up on the idler pulley and slip the belt off the

engine pulley.

• Push down on the idler pulley and slip the belt off the auger pulley.

• Reassemble new belt. See Figure 17.

• Reinstall the belt cover.

Idler Pulley

Engine Auger Pulley

Belt

Pulley

Replacing Belt

• Remove the belt cover by removing five hex screws. See Figure 16.

Belt Cover

Figure 16

Hex

Screws

SECTION 7: OFF-SEASON STORAGE

WARNING: Never store engine with fuel in

tank indoors or in enclosed, poorly ventilated areas where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer, or other gas appliance.

• Clean snow thrower thoroughly.

• Lubricate as instructed above with a light oil.

Figure 17

Engine

• Refer to the separate engine operator’s manual packed with your snow thrower for all engine maintenance procedures.

• Check engine and snow thrower frequently for loose hardware, and tighten as needed.

Lubrication

• Lubricate pivot points on the control handle and the extension spring at the end of the clutch cable with a light oil once every season and before storage of the snow thrower at the end of the season.

• Follow “Storage” instructions in the Engine Manual.

• Store in a clean, dry area. Block the snow thrower

up so it is not resting on the rubber auger blades.

NOTE: When storing any type of power equipment in an poorly ventilated or metal storage shed, care should be taken to rustproof the equipment, especially springs, cables and all moving parts.

SECTION 8: TROUBLESHOOTING GUIDE

Problem Cause Remedy

Engine fails to start 1. Fuel tank empty, or stale fuel

2. Blocked fuel line

3. Key not in ON position

4. Spark plug wire disconnected

5. Faulty spark plug

6. Gasoline and oil not mixed correctly

Engine runs erratic 1. Unit running on choke

2. Fuel line blocked, or stale fuel

3. Water or dirt in fuel system

4. Carburetor out of adjustment

Engine overheats 1. Gasoline and oil not mixed correctly

2. Carburetor out of adjustment

Loss of power 1. Spark plug wire loose

2. Vent in gas cap plugged

3. Exhaust port plugged.

Excessive vibration 1. Loose parts or damaged auger 1. Stop engine immediately and disconnect

Unit fails to self-propel 1. Drive cable out of adjustment

2. Drive belt loose or damaged

Unit fails to discharge snow

1. Discharge chute clogged

2. Foreign object lodged in auger

3. Drive cable not adjusted properly

4. Drive belt loose or damaged

1. Fill tank with clean fresh gasoline/oil mixture as specified in the engine manual.

2. Clean fuel line

3. Insert key and turn to ON position

4. Connect wire to spark plug.

5. Clean spark plug, readjust gap, or replace.

6. Refer to engine manual

1. Move choke lever to off position.

2. Clean fuel line and fill tank with fresh, clean gasoline.

3. Refer to engine manual on remedy.

4. Refer to engine manual.

1. Drain fuel tank and refill with proper fuel mixture.

2. Refer to engine manual.

1. Connect and tighten spark plug wire.

2. Clear vent.

3. Clean port.

spark plug wire. Check for possible damage. Tighten all bolts and nuts. Repair as needed. If the problem persists, take unit to an authorized service dealer.

1. Adjust drive cable following instructions on snow thrower.

2. Replace drive cable following instructions on snow thrower.

1. Stop engine immediately and disconnect spark plug wire. Clean discharge chute and the auger housing.

2. Stop engine immediately and disconnect spark plug wire. Remove object .

3. Adjust drive cable following instructions on snow thrower.

4. Replace drive belt following instructions on snow thrower.

NOTE: For repairs beyond the minor adjustments listed above, call the Customer Dealer Line at 1-800-528-1009 for the dealer nearest you. Refer to separate engine manual, packed with your snow thrower, for engine information.

SECTION 9: PARTS LIST FOR MODEL 521E

Ref. No. Part No. Description

710-0487 Carriage Screw

710-1270 Oval C-Sunk Machine Screw

712-0324 Hex Lock Nut

720-0284 Wing Nut

720-0295 Foam Grip: Handle

725-0157 Cable Tie

736-0451 Saddle Washer

746-0883 Cable Housing w/o Throttle

747-0956 Auger Bail: Gull Wing

749-0711A Upper Handle: Gull Wing

10.

NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

Model 521E

4542

Model 521E

Ref. No. Part No. Part Description

10.

11.

12.

13.

15.

16.

17.

18.

19.

20.

21.

22.

23.

710-0167 Carriage Bolt 710-0276 Carriage Bolt 710-0323 Pan Head Screw 710-0451 Carriage Bolt 710-0642 Hex Washer Screw 710-1005 Hex Washer Screw 710-0773 Hex Washer Screw 710-0896 Hex Washer Screw 710-3015 Hex Cap Screw

711-0848A Axle

712-0429 Hex Center Lock Nut 712-3010 Hex Nut 712-0116 Hex Lock Nut 712-3027 Hex Lock Flanged Nut

720-0284 Knob 731-0851A Chute Keeper 731-0915B Lower Chute

731-0921 Upper Chute

731-1033 Shave Plate 732-0357A Extension Spring

736-0108 Flat Washer

736-0119 Lock Washer

Ref. No. Part No. Part Description

25.

26.

27.

28.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

45.

46.

736-0176 Flat Washer 736-0159 Washer 736-0326 Flat Washer 736-0329 Lock Washer 741-0600 Ball Bearing

746-0910A Cable—Clutch

748-0234 Spacer 749-0796 Handle—Lower 756-0313 Flat Idler 784-5174 Bearing Cup 784-5176 Cover—Belt

784-5175B Idler/Brake Bracket

684-0114 Blower Housing 784-5485 Auger Ass’y. Comp. 753-0613 Auger Rubber Replacement 710-0352 Hex Washer Screw 784-5720 Crank Bracket 710-0451 Cap Screw 736-0242 Bell Washer 741-0475 Bushing 710-0191 Hex Screw

Ref. No. Part No. Description

1 734-1811 Wheel Assembly: 7 x 1.7”

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

Model 521E

Ref. No. Part No. Part Description

684-0054A Dash Assembly

684-0126 Chute Crank Assembly

710-1003 Special Screw: 310-16 x 0.375”

710-1090 Hex Flange Screw 5/16-18 x 1.25”

710-1268 Special screw

710-1652 Self-Tapping Screw 1/4-20 x .625”

712-3010 Hex Nut 5/16-18

714-0104 Hairpin Clip

714-0507 Cotter Pin

715-0138 Roll Pin

10.

720-0201A Chute Crank Knob

11.

725-0201 Ignition Key

12.

725-1341B Ignition Key w/o Logo

13.

725-1346 Ignition Switch Nut

14.

725-1347 Ignition Switch Cap

15.

725-1425 Switch: Key, Recoil Start

16.

726-0100 Push Cap

17.

731-1089A Choke Cover

18.

731-1133B Spilling Cup

19.

731-2109 Shroud: 21” Beige

20.

735-0234 Rubber Grommet

21.

736-0119 Lock Washer

22.

736-0185 Flat Washer

23.

736-0225 Internal Lock Washer

24.

736-0451 Saddle Washer

25.

747-0697 Eyebolt

26.

747-0737 Upper Chute Crank

27.

750-0785 Spacer

28.

7510009636 Mitten Grip Handle

29.

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

Model 521E

15**

NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

Ref. No. Part No. Part Description

629-0236 Extension Cord

705-5139A Support Bracket: Gas Tank

710-0157 Hex Screw 5/16-24 x .75”

710-1003 Special Screw

710-1652 Self-Tapping Screw

710-3013 Hex Screw 1/4-20 x .50”

710-3025 Hex Screw 5/16-24 x .625

726-0152 Mounting Clamp

726-0205 Hose Clamp

731-2113A Cup

10.

736-0119 Lock Washer

11.

736-0242 Beleville Washer

12.

736-0329 Lock Washer

13.

741-0475 Plastic Bushing

14.

15.

16.

17.

18.

19.

20.

21.

— Recoil Handle

**Obtain from engine manufacturer 751-0535 Fuel Line Hose 751-0540A Fuel Tank: 2 Quart 751-0800 Fuel Cap

754-0101A V-Belt 756-0416B V-Pulley Half 756-0475 Pulley

Model 521E

MANUFACTURER’S LIMITED WARRANTY FOR:

TWO-YEAR RESIDENTIAL ONE-YEAR COMMERCIAL

Proper maintenance of your Cub Cadet equipment is the owner’s responsibility. Follow the instructions in your operator’s manual for correct lubricants and maintenance schedule. Your Cub Cadet dealer carries a complete line of quality lubricants and filters for your equipment’s engine, transmission, chassis and attachments.

Riding mowers, lawn tractors, garden tractors, Cub Cadet

attachments and home maintenance products

This limited warranty for residential users, covers any defect in materials or workmanship in your Cub Cadet equipment for two years from the date of purchase for the first user purchaser. We will replace or repair any part or parts without charge through your authorized Cub Cadet dealer.

Batteries have a one-year prorated limited warranty with 100% replacement during the first three months.

V-belts for either the traction drive or any attachments are covered for one year only.

Cub Cadet equipment used commercially is warranted for one year only.

(Commercial use is defined as either having hired operators or used for income producing purposes.)

Items not covered

The warranty does not cover routine maintenance items such as lubricants, filters (oil, fuel, air and hydraulic), cleaning, tune-ups, brake and/or clutch inspection, adjustments made as part of normal maintenance, blade sharpening, set-up, abuse, accidents and normal wear. It does not cover incidental costs such as transporting your equipment to and from the dealer, telephone charges or renting a product temporarily to replace a warranted product.

There is no other express warranty.

How to obtain service

Contact your authorized Cub Cadet servicing dealer who sold you your Cub Cadet equipment. If this dealer is not available, see the Consumer Yellow Pages under “lawn mowers” for the name of a dealer near you.

If you need further assistance in finding an authorized Cub Cadet servicing dealer, contact:

Cub Cadet Corporation Post Office Box 368023

Cleveland, Ohio 44136

How does state law apply?

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cub Cadet 521E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
