OPERATOR’S MANUAL
4x2 Utility Vehicle — Models 430 & 431
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 769-00665H
01/11/2007
PRINTED IN U.S.A.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
This Operator’s Manual is an important part of your new utility vehicle. It will help you operate
and maintain the unit for best performance. Please read and understand what it says.
Table of Contents
Safe Operation Practices ................................... 4
Know Your Utility Vehicle ................................... 6
Operating Your Utility Vehicle ............................ 9
Servicing Your Utility Vehicle ........................... 12
Service Chart .................................................... 16
Finding and Recording Model Number
BEFORE YOU START OPERATING YOUR NEW EQUIPMENT...
please locate the model plate on the equipment and copy the
information to the sample model plate provided to the right.
You can locate the model plate on the vehicle under the
operator’s seat. Flip the seat forward to view model plate. This
information will be necessary to use the manufacturer’s web
site and/or help from the Customer Support Department or an
authorized service dealer.
Accessories ...................................................... 16
Specifications ................................................... 17
Shift Fault Codes .............................................. 18
Troubleshooting ................................................ 20
Warranty ............................................................ 22
Model Number:_________________________
Serial Number:_________________________
CUB CADET LLC
www.cubcadet.com
DEALER LOCATOR PHONE NUMBER: 877-282-8684
P. O. BOX
CLEVELAND, OH 44136
361131
Customer Support
For Customer Support please contact the retailer from which the unit was purchased,
or use one of the methods below to find a service dealer nearest you.
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this
unit, contact the retailer from which you purchased this vehicle. To find a Cub Cadet Dealer nearest you choose from the
options below:
1. Visit
2. Phone our dealer locator number toll free at 1-877-282-8684.
3. The
www.cubcadet.com to search for a service dealer nearest you using your zip code. You will also find many
useful suggestions and tips.
engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately
with your unit, for more information.
2
1
To Avoid An Accident And Injury
• Do not tow more than 900 Lb. rolling
weight (i.e., trailer plus cargo).
• Spread load evenly. Never exceed 100 lb.
tongue weight.
• Go slow and use extra care when towing.
Allow for increased braking distance.
• Do not tow heavy loads on slopes over
a 5º incline.
S32162
WARNIN G
CARGO BOX LOAD CAPACITY:
MAX 800 Lb.
• Spread load evenly. Secure load to prevent movement.
• Go slow. Avoid sudden starts and stops which could
cause load to shift.
• Do not load above height of this panel. Load could shift
forward injuring driver or passenger.
• No riders in cargo box
or anywhere other than
seats.
WARNI N G
WA R N I N G
MAX 15º
• This is an off-road utility vehicle. Do not operate
on public highways. It handles and maneuvers
differently than a normal passenger car. Sharp,
high speed turns or abrupt maneuvers can
cause vehicle to roll over or go out of control.
• Handling and maneuvering characteristics
of vehicle change depending upon cargo load.
Heavy loads will affect steering, braking,
stability and overall handling of vehicle.
• Read and understand operator's manual
before operating vehicle.
• Only one person in each seat.
• No other riders permitted.
• Keep hands and feet inside vehicle during
operation.
• Do not operate on slopes greater than 15º.
• Drive slowly when turning, on rough ground,
or carrying a cargo load.
• Spread load evenly in cargo box. Do not exceed
load capacity specified on cargo box label.
• Secure load to prevent movement.
FALLING OFF OR ROLLOVER MAY
CAUSE SERIOUS INJURY OR DEATH
• Always re-latch cargo box
latch upon manually lowering
cargo box.
• Do not operate or load vehicle
with cargo box latch
unlatched.
AVOID INJURY WHEN USING CARGO BOX LIFT
CARGO BOX
• Read and understand operator's manual for
lifting, loading and unloading instructions.
• Stop vehicle on level ground and set parking
brake before operating lift.
• When using optional electric lift stay in seat
and keep hands away from cargo box.
S32 515 AC
• Pull lever down to release latch.
• Lift bed up.
• Always check to see bed is latched before operation of vehicle.
• When lowering bed keep fingers clear of latch and bed.
TO OPERATE BED LATCH
RIDERS CAN
F
ALL OFF AND BE
SERIOUSLY
INJURED OR KILLED
•
O
nly one person in each seat.
•
N
o riders in the ca
rg
o box or anyw
he
re
other than seats.
W
ARNING
Safety
Labels
3
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before attempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
2
Safe
Operation
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and
birth defects or other reproductive harm.
DANGER: This vehicle is designed to be operated according to the rules for safe operation in this
manual. As with any type of vehicle, carelessness or error on the part of the operator can result in
serious injury. Failure to observe the following safety instructions could result in serious injury or
death.
Practices
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instruc-
tions in this manual
before attempting to
operate or service
this vehicle. When
you see this symbol
- heed its warning.
Your
Responsibility
Restrict the use
of this power machine
to persons who read,
understand and
follow the warnings
and instructions
in this manual
General Operation
1. Read, understand, and follow all instructions on the vehicle
and in the manual before attempting to operate or service.
Keep this manual in a safe place for future and regular
reference and for ordering replacement parts.
2. This is an off-road utility vehicle and it should not be oper
ated on public highways. Know and comply with all laws
and regulations governing the use of off-highway vehicles in
your area.
3. This vehicle handles and maneuvers differently than a
normal passenger car. Sharp high speed turns and abrupt
maneuvers can cause vehicle to roll over or go out of control. Slow down when turning and avoid abrupt maneuvers.
4. Handling and maneuvering characteristics of vehicle
change depending upon cargo load. Heavy loads affect
steering, braking, stability, and overall handling of vehicle.
5. Be familiar with all instructions and controls and their proper
operation before starting vehicle.
6. Never allow adults to operate this vehicle without proper
instruction.
7. Never allow children under 16 years old to operate this
vehicle. Children 16 years old and over should read and
understand the operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
8. Watch for traffic when operating near or crossing roadways.
This vehicle is not intended for use on any public roadway.
9. Do not operate this vehicle while under the influence of
alcohol or drugs.
10. Never carry more than one passenger. This vehicle is
designed to carry the driver and one passenger only. No
riders are allowed in cargo box or anywhere else on vehicle.
11. Keep all body parts (i.e. head, arms, hands, legs, feet)
inside vehicle when vehicle is in motion.
12. Always remain seated and keep both hands on the steering
wheel when driving the vehicle.
13. Sit on the center of the seat and keep both feet within the foot
platform perimeter. Clean foot platform if dirty and remove
any debris from around foot controls, e.g. brake pedal.
14. Do not misuse the utility vehicle. It is an utility vehicle, not
a recreation vehicle or toy. Recreational riding can lead to
accidents, severe bodily injury or death.
15. Inspect area around vehicle before moving, especially in
reverse. Back up slowly. Always look down and behind
before and while backing to avoid a back-over accident.
Keep bystanders out of area.
16. Avoid driving through water, since loss of control may occur.
Drive belt may slip if exposed to water thus reducing vehicle
pulling power and stopping vehicle entirely.
17. Always use vehicle lights while operating in low light
situations.
18. Do not mount or leave vehicle while it is in motion or in
actual operation.
19. Avoid sudden starts, stops, or turns and always use a level
turn-around area.
-
20. Never leave vehicle unattended with the key in the ignition.
Always turn key to the “Stop” position, set the parking brake
and remove key.
21. Check overhead clearances carefully before driving under low
hanging tree branches, wires, etc., where the operator may
be struck or pulled from the unit, which could result in serious
injury.
22. Improper use of the vehicle or failure to properly maintain it
could result in decreased vehicle performance or personal
injury.
23. Engine must be stopped when cleaning, servicing, adjusting,
repairing, or installing attachments on utility vehicle.
24. After striking foreign objects, stop the unit and shut off the
engine. Inspect for damage and repair the damage before
restarting and operating equipment.
25. Do not start or operate vehicle in an inside area, unless it
is adequately ventilated. Engine exhaust contains carbon
monoxide fumes, which are very poisonous and can be
deadly.
26. Do not change engine governor setting or over speed the
engine. The governor is set at the factory for safe operating
speed.
27. Assure safety interlock switch is adjusted correctly so engine
cannot be started unless gearshift is in the neutral position.
28. Do not touch engine or muffler while engine is running or soon
after it is stopped. They will be hot and can cause a burn.
29. Always inspect your vehicle each time you use it to make sure
it is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in this
manual.
30. If situations occur which are not covered in this manual, use
care and good judgement. Contact your local service center
or call toll free 1-877-282-8684 for the name of your nearest
service center.
Slope Operation
Slopes are a major factor related to loss of control and rollover
accidents, which can result in severe injury or death. If a slope is
steeper than a 15° incline, do not operate this unit on that area.
Exercise extreme caution while operating on slopes.
DO:
1. Travel straight up and down slopes, not across. Exercise
extreme caution when changing direction on slopes.
2. Travel slowly while on a slope. Always keep the forward
speed limited when going down slopes to take advantage of
the motor braking action.
3. Keep all movement on the slopes slow and gradual. Avoid
starting or stopping on a slope.
4. Avoid slopes with slippery, loose, or bumpy surfaces as they
are especially hazardous.
5. Use extra care while carrying cargo. It may affect the stability
of the vehicle. Spread the load evenly or tie down.
4
Do Not:
1. Do not travel near drop-offs, ditches or embankments. The
vehicle could suddenly turn over if a wheel is over the edge of
a cliff, ditch, or if an edge caves in.
2. Do not stop or start suddenly when going uphill or downhill.
Be especially cautious when changing direction on slopes.
3. Do not turn sideways to the hill. The vehicle may roll over. If
you must turn, go slow and do so carefully and gradually.
4. Do not carry cargo on steep slopes or tow loads.
Children
1. Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
vehicle. They do not understand the dangers. Never assume
that children will remain where you last saw them. Avoid run
over accidents.
a. Keep children out of the immediate area of the vehicle
and in watchful care of a responsible adult other than the
operator.
b. Be alert and turn the vehicle off if a child enters the area.
c. Before and while backing, look behind and down for small
children.
d. Never carry small children, they may fall off and be
seriously injured or interfere with safe vehicle operation.
e. Use extreme care while approaching blind corners,
doorways, shrubs, trees or other objects that may block your
vision of a child who may run into the path of the vehicle.
f. Remove key when vehicle is unattended to prevent
unauthorized operation.
2. Never allow children under 16 years old to operate this
vehicle. Children 16 years old and over should read and
understand the operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
3. Do not let children ride in the cargo box, in the driver’s or
passenger’s lap or anywhere other than the passenger seat.
Never give small children a ride; not even in the passenger
seat. They may fall off.
Cargo Box Loading/Operation
1. Do not exceed vehicle’s Total Load Capacity rating of 1,200
lb. This includes operator, passenger, accessories, and
cargo.
2. Do not exceed 800 lb. load in cargo box.
3. Spread load evenly and secure to prevent movement.
4. Do not load above height of cargo box front panel. Load could
shift forward and injure driver or passenger.
5. Avoid loads which exceed the physical dimensions of cargo
box.
6. Go slow. Heavy loads will affect steering, braking, stability,
and overall handling of the vehicle. Limit loads to those that
can be safely controlled.
7. Avoid sudden starts, stops, and turns which could cause load
to shift.
Cargo Box Lift
1. Stop vehicle on level ground and set Parking Brake before
raising cargo box.
2. On manual lift units, unload cargo box before raising cargo
box.
3. Do not operate vehicle with cargo box in raised position.
4. Do not operate vehicle with cargo box latch unlatched.
Always re-latch upon manually lowering cargo box.
When using optional electric lift:
a. Stay in driver’s seat.
b. Keep body parts away from cargo box and keep all
bystanders away.
c. Do not allow rear wheels to hang over the edge of a
drop-off when raising cargo box. The load in the cargo
box may shift causing the vehicle to tip over backwards.
Towing
1. Always use an approved hitch and hitch point provided on
the utility vehicle.
2. Do not tow more than 900 lb. (454 kg) rolling weight (i.e.
trailer plus cargo).
3. Never load more than 100 lb. (45.5 kg) tongue weight on
tow bracket provided.
4. Go slow and use extra care when towing a trailer. Allow for
increased braking distance. Load trailer properly.
5. Do not tow heavy loads on slopes greater than 5° incline.
When going downhill or turning, the extra weight tends to
push the tow vehicle and may cause you to loose control
(i.e. braking and steering ability are reduced, towed equipment may jack-knife and cause utility vehicle to overturn).
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes
which can ignite. Wash your skin and change clothes
immediately.
a. Use only an approved gasoline container.
b. Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers
on the ground away from your vehicle before filling.
c. When practical, remove gas-powered equipment
from the truck or trailer and refuel it on the ground. If
this is not possible, then refuel such equipment on
a trailer with a portable container, rather than from a
gasoline dispenser nozzle.
d. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
e. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
f. Never fuel machine indoors.
g. Never remove gas cap or add fuel while the engine is
hot or running. Allow engine to cool at least two minutes
before refueling.
h. Never over fill fuel tank. Fill tank to no more than ½
inch below bottom of filler neck to allow space for fuel
expansion.
i. Replace gasoline cap and tighten securely.
j. If gasoline is spilled, wipe it off the engine and equip
ment. Move unit to another area. Wait 5 minutes before
starting the engine.
k. To reduce fire hazards, keep machine free of grass,
leaves, or other debris build-up. Clean up oil or fuel
spillage and remove any fuel soaked debris.
l. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light as on a water
heater, space heater, furnace, clothes dryer or other gas
appliances.
-
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instruc-
tions in this manual
before attempting to
operate or service
this vehicle. When
you see this symbol
- heed its warning.
Your
Responsibility
Restrict the use
of this power machine
to persons who read,
understand and follow
the warnings
and instructions
in this manual
5
3
Know Your Utility Vehicle
NOTE: Reference to right or left hand side of the utility vehicle is observed from the operating position.
Know Your
Utility Vehicle
WARNING
Never leave a running
machine unattended.
Always set parking
brake, stop engine
and remove key to
prevent unintended
starting.
P
Choke
Knob
Read this operator’s manual, safety labels, and
operating instructions on the vehicle before operating.
Compare the illustrations in this manual with your unit to
familiarize yourself with the location of various controls
and adjustments. Reference to the right or left hand side
of unit is observed from the operating position. Save this
manual for future reference.
IMPORTANT: Read the Kohler Engine operator’s
manual before operating this vehicle to familiarize
yourself with the engine controls and adjustments.
NOTE: Before operating your vehicle, follow the starting
instructions in the Operating Section and check tire pressure per the recommendations in the Servicing section.
Differential
Lock Knob
Figure 1
Accelerator Pedal
The accelerator pedal is located on the right side of the
floor beneath the dash panel. Depressing the accelerator
pedal will move the vehicle in the direction selected
on the gearshift. As the pedal is depressed, speed will
increase to the maximum selected range. Releasing the
pedal reduces the speed, but does not stop the vehicle.
The brake must be applied to stop vehicle. See Figure 2.
Accelerator
Pedal
Brake
Pedal
Figure 2
Parking Brake
Latch
Brake Pedal
The brake pedal is located on the left side of the floor
beneath the dash panel. Remove foot from accelerator
pedal apply pressure to the brake pedal evenly until
vehicle slows down and stops. See Figure 2.
Parking Brake Latch
The parking brake latch is located on the dash panel to
the right of the steering wheel. It holds the brake in the
engaged position for parking. See Figure 1.
To engage the parking brake, push brake pedal down
firmly, pull out on the parking brake latch, and release foot
from brake pedal. Brake pedal will stay down and parking
brake light on dash will come on to indicate parking brake
is engaged.
To release parking brake, push down on brake pedal and
parking brake latch will release.
Ignition Switch
WARNING: Never leave a running
machine unattended. Always set parking brake, stop engine and remove key
to prevent unintended starting.
The ignition switch is located on the right side of the dash
panel. To start the engine, insert the key into the ignition
switch and turn clockwise to the START position. Release
the key into the Run position once engine has fired. See
Figure 3.
NOTE: The shift controller will return the transmission to
neutral when the key is turned off. If the lever under the
cargo box is not in neutral it must be manually returned
to neutral to start engine. See Page 9 for instructions on
checking and resetting the lever on the transmission.
Refer to Starting The Engine in the Operation Section of
this manual for detailed starting instructions
6
Rear Power Outlet Switch (Optional)
Hour Meter
3
P
Cargo Box Electric
Lift Switch (Optional)
Key Switch
Figure 3
Gear
Lights
12-Volt Power
Outlet
Horn Switch (Optional)
The horn switch is located on the right side of the dash
panel. Push button to activate horn.
12V Power Outlet
The 12V power outlet is located on the right side of the
dash panel. It is used for the convenience of plugging in
accessories that require a power source with a maximum
load of 5 amps at 12 volts. See Figure 3.
Cargo Box Electric
Lift Switch (Optional)
If equipped, the cargo box electric lift switch is located
on the right side of the dash panel. It activates lift to raise
and lower cargo box. See Figure 3.
Rear Power Outlet Switch (Optional)
If equipped, the rear power outlet switch is located on the
right side of the dash panel. It turns power on and off for
the rear outlet. See Figure 3.
Warning Light Cluster
The warning light cluster is located in the middle of
the dash panel. See Figure 4. There are four warning
lights: alternator discharge light (Bat tery), parking
brake light, engine oil pressure light, and low fuel light.
The engine oil pressure light activates when engine
has low oil pressure. The alternator discharge light will
indicate that the alternator is not charging. The low fuel
light activates when fuel is low in tank. The parking light
indicates that the parking brake is engaged.
Gearshift Switches
The gearshift switches are located on the right side of
the dash panel next to the gear lights. When pushing the
appropriate switch for forward, neutral, or reverse, the
brake pedal must be depressed. See Figure 2 for Brake
Pedal location.
P
Figure 4
Gear Lights
The gear lights are located on the right side of the dash
panel. See Figure 3. Once a gear is selected, a gear
light, or a combination of gear lights, will illuminate. If
the vehicle has not shifted properly, or there is a shifting
issue, the lights will flash for 5 seconds and an audible
tone will sound. During this time a shift will not be
allowed, however, once the lights stop flashing, shifting
will be allowed. Refer to SECTION 9: Electric Shift
Fault Codes and/or SECTION 10: Troubleshooting to
determine the failure mode.
Hour Meter
The hour meter is located in the center of the warning
light cluster. It reads the elapsed time engine has run.
See Figure 4.
NOTE: Every 50 hours a “change oil” message will flash
on the display for 2 minutes every time the tractor is
started. This message will repeat for the first two after
each 50 hour interval. The oil pressure indicator light will
also flash when this display is active. Before the interval
expires, change the crankcase oil level as instructed in
the Engine Manual.
Choke Knob
The choke knob is located on the left side of the dash
panel. The choke is used when starting a cold engine.
It enrichens the fuel mixture for cold weather starting.
See Figure 1.
Differential Lock Knob
The differential lock knob is located on the left side
of the dash panel. When pulled, the switch locks the
differential so both drive wheels will pull equally when
rear wheels start to slip. Push in the knob to disengage
the deferential locking system. See Figure 1.
Cup Holders
The cup holders are located between the seats. They
are designed for the use of non-alcoholic beverages.
WARNING: Never operate this
vehicle while under the influence of
alcohol or drugs. Doing so can result
in serious personal injury or death.
Know Your
Utility Vehicle
WARNING
Never leave a running
machine unattended.
Always set parking
brake, stop engine
and remove key to
prevent unintended
starting.
Never operate
this vehicle while
under the influence
of alcohol or drugs.
Doing so can result
in serious personal
injury or death.
NOTE:
The shift controller will
return the transmission
to neutral when the key
is turned off. If the lever
under the cargo box is
not in neutral it must be
manually returned to
neutral to start engine.
7
3
Know Your
Utility Vehicle
Fuel Shut Off Valve
The fuel shut off valve is located under the seat and
it is strapped onto the fuel tank. It controls fuel to the
engine. To turn fuel off, turn knob so indicator is down.
To turn fuel on, turn knob to the up position. See
Figure 5.
Cargo Box
The cargo box is raised by a gas spring. Manually remove
the contents of the cargo box before lifting the cargo box.
Push the release latch down and lift up the cargo box.
Once the cargo box is in the raised position, access to
the engine is possible. If equipped with a electrical lift, the
cargo box can be raised to dump cargo. See Figure 7.
IMPORTANT: Do not exceed the vehicle’s Total Load
Capacity of 1,200 lb., which includes driver, passenger,
accessories, and cargo. Do not exceed 800 lbs. in the
cargo box.
WARNING
Make sure seat is
in locked position
prior to operation
and do not try
to adjust the
seat position
while operating
the vehicle.
IMPORTANT:
Do not exceed the
vehicle’s Total Load
Capacity of 1,200
lb., which includes
driver, passenger,
accessories, and
cargo. Do not
exceed 800 lb. in
the cargo box.
Fuel Shut-off Valve
Figure 5
Adjustable Seat Lever
The adjustable seat lever is located beneath the driver’s
seat on the front side and it is used to move the seat
forward and backward. See Figure 6.
Figure 7
Tailgate
The tailgate can be hinged at the top or the bottom
depending on how you release the holding pins. If you
pull inward on the two top pins, the tailgate will swing
down. If you pull inward the two bottom pins, you can
pivot the tailgate upwards. See Figure 8.
Figure 6
Slide the lever to the left and push the seat forward or
back to the desired position. Release the lever so that it
locks the seat in place.
WARNING: Make sure seat is in
locked position prior to operation
and do not try to adjust the seat
position while operating the vehicle.
Figure 8
8
Operating Your Utility Vehicle
WARNING: This is an off-road utility vehicle and it should not be operated on public
highways. Know and comply with all laws and regulations governing the use of off-highway
vehicles in your area.
IMPORTANT: Before starting the engine read this manual and the Kohler Engine manual thoroughly
to understand all instructions.
WARNING: Do not run an engine in an enclosed area. Move the vehicle to an outside area
before running the engine.
IMPORTANT: Tires are shipped over-inflated. Reduce inflation pressure in all tires to approximately
5 -6 psi.
4
Operation
Check Neutral Safety Switch
1. Sit in the operator’s seat and place key switch in
STOP position.
2. Engage the parking brake, raise and secure cargo box,
and move lever to the forward position. See Figure 12.
Figure 12
3. Sit back down in operator’s seat and move key switch
to START position. The engine should NOT crank.
4. Turn key switch to STOP and move lever to the
reverse position.
5. Sit back down in operator’s seat and move key switch
to START position. The engine should NOT crank.
6. Turn key switch to STOP.
7. Lower and re-latch the cargo box.
8. Keep engine compartment clean and be sure fan or
flywheel screens remains installed and clean.
Starting Engine
1. Sit in the operator’s seat and place key switch in
STOP position.
2. Lock parking brake.
3. Put into neutral.
4. Pull out the choke knob if engine is cold.
5. Turn key to the START position.
6. Release key to the RUN position when engine starts.
7. If engine does not start, wait a few seconds and
repeat procedures.
8. After engine starts, push in choke knob.
9. Release parking brake.
IMPORTANT: DO NOT run the starter continuously
for more than 5 seconds, otherwise the battery may
discharge quickly.
NOTE: If engine surges after starting while idling or
driving at a low speed, apply choke as needed until
engine has warmed up.
IMPORTANT: Do not operate the engine under full load
until engine has warmed up.
Stopping Engine
1. To stop utility vehicle, release accelerator pedal and depress brake pedal until vehicle comes to a complete
stop.
2. Put unit back into neutral.
3. Lock parking brake and turn key switch to STOP
position.
4. Remove the key when not in use.
WARNING: The vehicle will roll if the
parking brake is not engaged and
locked.
Driving Utility Vehicle
1. Make sure front wheels are turned to the desired
direction.
2. Depress brake pedal to release parking brake.
3. To avoid damaging transmission, depress brake
pedal fully and make sure vehicle is completely
stopped before shifting into Forward or Reverse.
WARNING: Do not stop or start
suddenly when going uphill or
downhill. Be especially cautious
when changing direction on slopes.
WARNING
This is an off-road
utility vehicle and
it should not be
operated on public
highways. Know
and comply with all
laws and regulations
governing the use of
off-highway vehicles
in your area.
Do not run an engine
in an enclosed area.
Move the vehicle to an
outside area before
running the engine.
Do not stop or start
suddenly when going
uphill or downhill. Be
especially cautious
when changing
direction on slopes.
Apply brakes when
going down slopes
to maintain control of
vehicle.
9
4

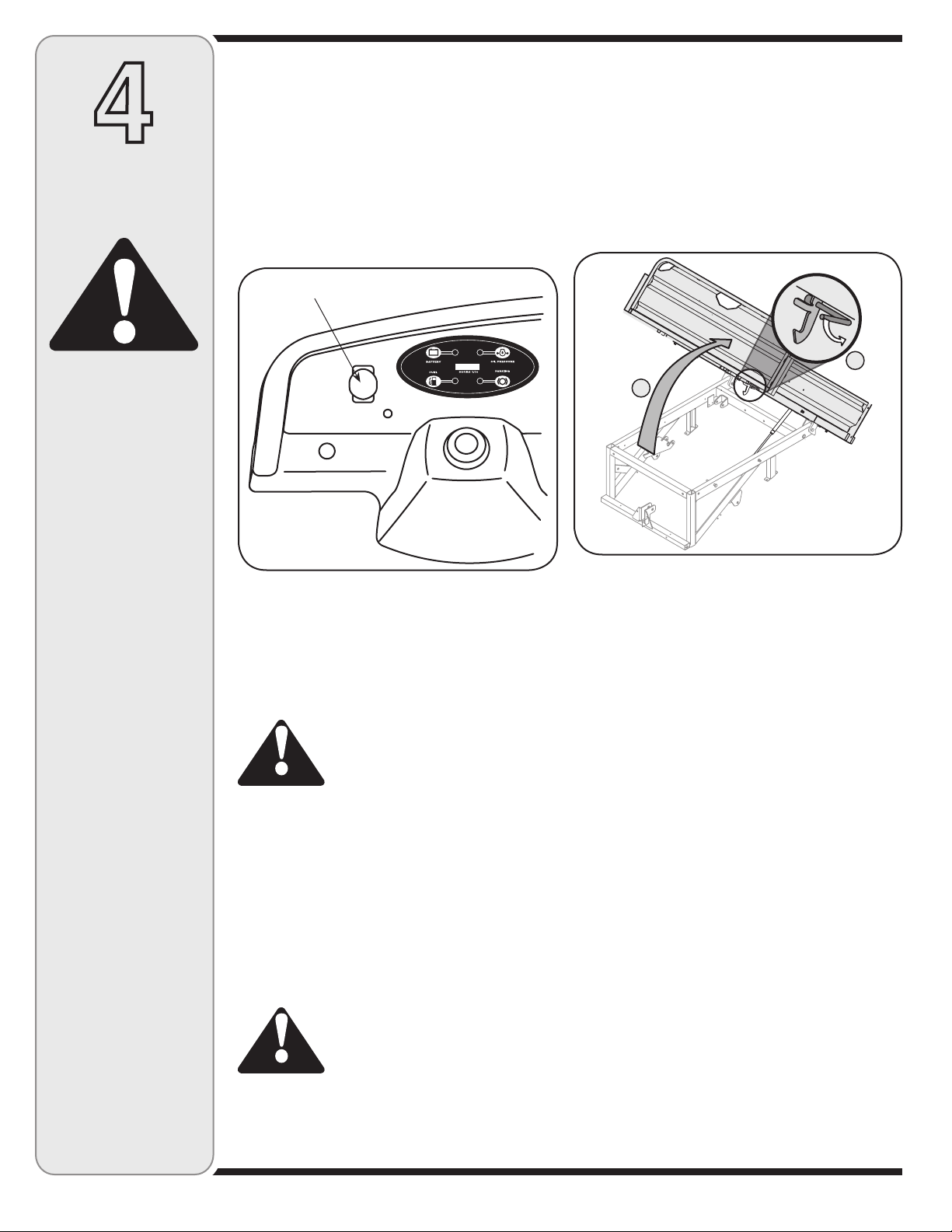

Operation
WARNING
To avoid transaxle
damage, injury, or
turf damage, go
slow when operating
vehicle with differen-
tial lock engaged as
steering response is
noticeably reduced.
To prevent the
possibility of bodily
injury from uninten-
tional lowering of the
cargo box, be sure
vehicle is on a level
and stable surface
and parking brake is
locked before raising
cargo box.
Apply brakes when going down slopes to maintain
control of vehicle.
4. Release brake pedal and apply pressure to the
accelerator pedal.
5. Release accelerator and apply brake pedal evenly
and firmly to slow down or stop.
Engaging Differential Lock
The Differential Lock Switch is located on the left side of
the dash panel. See Figure 13.
Differential Lock Switch
Figure 13
1. To engage, stop or slow vehicle speed and pull
knob. The differential will then lock giving continuous
power to both rear wheels.
IMPORTANT: Engage the differential when the left and
right side wheels are turning at slightly different speeds.
WARNING: To avoid transaxle
damage, injury, or turf damage, go
slow when operating vehicle with
differential lock engaged as steering
response is noticeably reduced.
Disengaging Differential Lock
1. To disengage the differential lock, simply push the
knob again.
Torque must be equal on both axles for differential lock
to release. It is best to slow down and drive straight
ahead at a constant speed when disengaging the
differential.
Manual Lift
1. Park the vehicle safely on level ground and set parking
brake.
2. Empty cargo by hand and unlatch cargo box by
pushing down on the cargo latch. See (A) Figure 14.
3. While holding the latch down, lift the cargo box (B).
4. Lower and allow bed to re-latch cargo box before
operating unit.
A
B
Figure 14
Electric Lift (Optional)
1. Park the vehicle safely and turn key to the RUN
position.
2. Raise cargo box by pressing and holding top of electric lift switch. Release switch when box is at desired
dump height or when maximum height is reached.
NOTE: A ratcheting noise will indicate cargo box is at full
extension. The same noise will also be heard when cargo
box is at the full down position. If lift capacity of the power
lift is exceeded, a ratcheting will also be heard.
3. To lower cargo box, push on bottom of electric lift
switch. Turn ignition switch to the STOP position.
Raising & Lowering Cargo Box
WARNING: To prevent the possibility of bodily injury from unintentional
lowering of the cargo box, be sure
vehicle is on a level and stable
surface and parking brake is locked before raising
cargo box.
10
Dumping Load
From Cargo Box
1. Back up the vehicle to the dump site and apply
parking brake.
2. Unhook the tailgate from cargo box.
3. If using an electric lift, raise cargo box to dump load
and lower box when empty.
WARNING: The center of gravity
changes as a loaded cargo box is
raised. Do not allow rear wheel to
hang over the edge of a loading dock
or ravine. The cargo box weight may shift over center
and vehicle could tip over backwards.
WARNING: A loaded cargo box
can be very heavy. Do not attempt
to dump a loaded cargo box unless
vehicle is equipped with an electric lift
option.
IMPORTANT: If dumping by electric lift, stop imme-
diately if actuator clutch slippage occurs. Lower cargo
box completely and remove excess load by hand before
dumping.
4. Reconnect the tailgate to the cargo box. Do not drive
the vehicle with cargo box in the raised position.
Loading the Cargo Box
WARNING: The utility vehicle may
become unstable if the cargo box is
loaded incorrectly. Avoid loose and
shifting loads or uneven loading of
material.
1. Verify cargo box is latched before loading.
2. Securely anchor all loads in cargo box and do not load
beyond maximum capacity.
3. The maximum box capacity is 800 lbs. (362.9 kg).
4. When loading objects into vehicle, be sure load is
securely anchored and evenly distributed in cargo box.
5. Do not load above height of cargo box front panel.
Load could shift forward striking driver or passenger or
cause driver to loose control of vehicle.
6. Avoid loads which exceed physical dimensions of
cargo box.
7. Avoid concentrated loads at rear or side of cargo box.
Be sure load is distributed evenly.
8. Reduce load and ground speed when operating over
rough or hilly terrain. DO NOT overload vehicle. Limit
loads to those that can be safely controlled.
Towing Loads
WARNING: To help prevent personal injury due to loss of control
or tipping, always tow a load slowly
enough to maintain control.
1. Do not tow a load that exceeds 900 lbs.(454.5 kg)
rolling weight (i.e. trailer plus cargo) and never
exceed 100 lbs. (45.5kg) tongue weight.
2. Go slow when towing a heavy load. Allow for
increased braking distance. Tow load at a speed
slow enough to maintain control.
3. Do not tow on slopes greater than 5°.
4. Be particularly cautious when towing down even
a gradual slope or turning. The extra weight tends
to push the tow vehicle and may cause you to lose
control (braking and steering ability are reduced;
towed equipment may jack-knife).
IMPORTANT: Extreme angles such as high railroad
crossings can place high bending loads on hitch
connection. If traversing terrain where these conditions
exist, use of a ball or pintle type hitch is recommended.
5. Always use approved hitch and hitch point provided
for the utility vehicle. Do not modify the hitch in any
way.
Transporting Vehicle
IMPORTANT: Never tow the vehicle. Transaxle damage
will occur if vehicle is towed. Haul the vehicle on a
heavy-duty trailer or on a full-size truck.
1. Once the utility vehicle is loaded onto the trailer or
truck, leave transaxle gearshift lever in forward or
reverse.
2. Apply parking brake and turn fuel shut-off valve to
OFF position during transport.
3. Fasten vehicle to trailer or truck with straps, chains,
or cables.
4
Operation
WARNING
The center of gravity
changes as a loaded
cargo box is raised.
Do not allow rear
wheel to hang over
the edge of a loading
dock or ravine. The
cargo box weight
may shift over center
and vehicle could tip
over backwards.
A loaded cargo box
can be very heavy.
Do not attempt to
dump a loaded cargo
box unless vehicle
is equipped with an
electric lift option.
The utility vehicle
may become
unstable if the
cargo box is loaded
incorrectly. Avoid
loose and shifting
loads or uneven
loading of material.
To help prevent
personal injury due
to loss of control or
tipping, always tow a
load slowly enough
to maintain control.
11
5

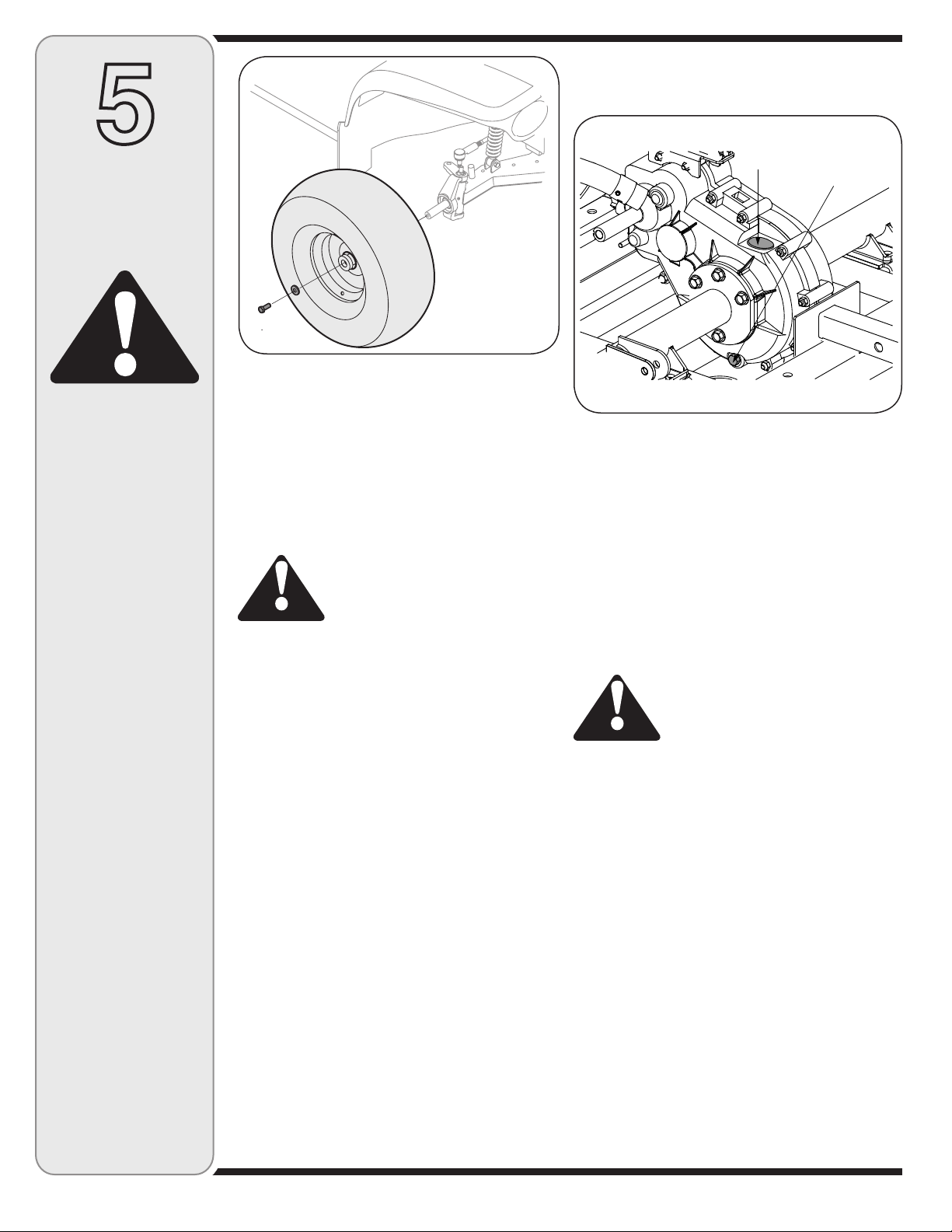

Servicing Your
Utility Vehicle
WARNING
The battery produces
a flammable and
explosive gas. Do not
smoke near battery.
Wear eye protection
and gloves when
handling the battery.
Do not allow direct
metal contact across
battery posts.
Lubrication
Front Axle Lubrication
1. Lubricate one grease fitting on each axle with 2 or 3
shots of grease every 50 hours.
Engine
Read the engine operator’s manual for any service or
maintenance information pertaining to the engine.
Filling Fuel Tank
1. Stop vehicle on a level surface and apply parking brake.
2. Turn the ignition key to the STOP position and
remove the key.
3. Allow engine to cool several minutes before you add fuel.
4. Clean area around fuel cap and remove cap.
See Figure 14.
Clean Battery and Terminals
1. Remove battery from vehicle. Always remove negative
cable first when disconnecting.
2. Wash battery with solution of four tablespoons of
baking soda to one gallon of water.
3. Rinse the battery with plain water and dry.
4. Clean terminals and battery cable ends with wire
brush until bright.
5. Apply petroleum jelly or silicone spray to terminals to
prevent corrosion.
6. Install battery. Always install negative cable last when
connecting.
Jumping a Battery
WARNING: Do not attempt to jump
start a frozen battery. Warm to 60 degrees F (16 degrees C) . Do not smoke
near battery and wear eye protection
and gloves when handling battery.
1. Connect positive (+) jumper cable to booster battery
positive (+) post (A). See Figure 15.
2. Connect the other end of positive (+) jumper cable to
the disabled vehicle battery positive (+) post (B).
Jumper Cables
D
The battery is sealed
and is maintenance-
free. Acid levels
cannot be checked
and fluid can not
be added.
Do not attempt to
jump start a frozen
battery. Warm to
60 degrees F (16
degrees C) . Do
not smoke near
battery and wear eye
protection and
gloves when
handling battery.
Charge battery in a
well ventilated area
and keep away from
an open flame or pilot
light as on a water
heater, space heater,
furnace, clothes
dryer or other gas
appliances.
Figure 14
5. Fill tank with fresh, unleaded, regular grade fuel only
to bottom of filler neck. Use a minimum of 87 octane.
6. After refueling, make sure tank cap is closed securely.
Battery
WARNING: The battery produces
a flammable and explosive gas. Do
not smoke near battery. Wear eye
protection and gloves when handling
the battery. Do not allow direct metal
contact across battery posts.
The battery is sealed and is maintenance-free.
Acid levels cannot be checked and fluid can not be
added.
IMPORTANT: If removing the battery for any reason,
disconnect the NEGATIVE (Black) wire from it’s
terminal first, followed by the POSITIVE (Red) wire.
When re-installing the battery, always connect the
POSITIVE (Red) wire to its terminal first, followed by the
NEGATIVE (Black) wire. Be certain that the wires are
connected to the correct terminals; reversing them could
change the polarity and cause damage to your engine’s
alternating system.
B
Disabled Battery
Figure 15
3. Connect negative (-) jumper cable to booster battery
negative (-) post (C).
4. Connect the other end (D) of negative (-) jumper cable
to a metal part of the disabled machine frame away
from battery.
5. Start the engine of the disabled machine and run
machine for several minutes.
6. Carefully disconnect the jumper cables in the exact
reverse order: negative cable first and then the
positive cable.
C
Booster Battery
A
Charging
WARNING: Charge battery in a well
ventilated area and keep away from an
open flame or pilot light as on a water
heater, space heater, furnace, clothes
dryer or other gas appliances.
12
If the vehicle has not been put into use for an extended
period of time, charge the battery with an automotive type
12-volt charger for a minimum of one hour at six amps.
Replacing Headlights
The headlights are held in place by a rubber seal around
the perimeter of the headlight which creates a snug fit
onto the fender. See Figure 16.
Figure 16
1. Remove the headlight by pulling it out of the fender.
2. Disconnect headlight from wire connector.
3. Reattach the wire connector to new headlight and
push the headlight into opening in fender.
Replacing Warning Lights
1. Raise hood to get access to under the dash panel.
2. Remove the appropriate bulb socket and replace bulb.
3. Reattach socket and lower hood. Secure hood to fender.
Fuses
1. Unlatch and lift hood forward to get access to under
the dash panel.
2. Remove the appropriate electrical fuse and replace
with proper amperage fuse. (See schematic under
hood)
3. Reattach socket and lower hood. Secure hood to
dash.
Tire Pressure
WARNING: Explosive separation of
tire and rim parts is possible when
they are serviced incorrectly. Do not
stand in front or over tire assembly
when inflating.
The recommended operating tire pressure is approximately 5-7 psi for all tires. Overinflating above
recommended tire pressure can reduce the life of the tire.
Check tire pressure before driving the vehicle.
NOTE: For high loads 8-10 psi is recommended for all
tires. The recommended tire pressure while using the
snow plow option is 8-12 psi in the front tires.
Wheel Replacement
WARNING: Using an unstable lifting
device and vehicle support may
result in bodily injury. Use a safe
lifting device and supports to work
on raised vehicle.
Rear Wheels
1. Stop the vehicle on a level surface and apply parking
brake.
2. Turn the ignition key to the STOP position and
remove the key.
Figure 17
3. Loosen but do not remove the five lug nuts from the
axle hub. See Figure 17.
4. Raise rear of vehicle with a safe lifting device and
place support stands under vehicle.
5. Remove the five lug nuts and rear wheel. Place new
wheel on the axle hub and secure with nuts.
6. Tighten nuts diagonally until snug.
7. Remove support stands and lower vehicle.
8. Finish tightening the nuts to 55-60 lb-ft using a
torque wrench.
Front Wheels
1. Stop the vehicle on a level surface and apply parking
brake.
2. Turn the ignition key to the STOP position and
remove the key.
3. Remove plastic dust cap.
4. Loosen 3/4” hex head screw.
5. Raise front of vehicle with a safe lifting device and
place support stands under vehicle.
5
Servicing Your
Utility Vehicle
WARNING
Explosive separation
of tire and rim parts
is possible when
they are serviced
incorrectly. Do not
stand in front or
over tire assembly
when inflating.
Using an unstable
lifting device and
vehicle support may
result in bodily
injury. Use a safe
lifting device and
supports to work on
raised vehicle.
13
5
Oil Cap
Drain
Plug
Servicing Your
Utility Vehicle
3. Raise and secure cargo box, if manual lift.
4. Access drain plug through slot on underside of
machine and remove plug. See Figure 19.
WARNING
The fluid for your
transmission has been
specially formulated
to ensure the safe
and proper operation
of your vehicle.
When changing the
transmission fluid
replace it with 80-90
Weight Oil. Failure to
use 80-90 Weight Oil
may result in a failure
of the drive system
which could result in
property damage or
personal injury. Do
not substitute.
Fingers or loose
clothing can get
caught in rotating
parts. Stop engine
and wait for all
moving parts to stop
before servicing.
6. Remove screw and front wheel. Place new wheel on
front axle hub and secure with screw and Loctite 242.
7. Remove support stands and lower vehicle.
8. Finish tightening the screw to 80-85 lb-ft using a
torque wrench.
IMPORTANT: Overtightening front wheel can result in
bearing damage.
Figure 18
Changing Transaxle Oil
WARNING: The fluid for your
transmission has been specially
formulated to ensure the safe and
proper operation of your vehicle.
When changing the transmission
fluid replace it with 80-90 Weight Oil. Failure to use
80-90 Weight Oil may result in a failure of the drive
system which could result in property damage or
personal injury. Do not substitute.
1. Park vehicle on level surface and apply parking brake.
2. Allow transmission sufficient time to cool before
attempting any maintenance or repairs.
Figure 19
5. Check O-ring on drain plug and replace if missing or
in poor condition.
6. Install and tighten drain plug.
IMPORTANT: Dirt and debris in oil may cause damage
to transaxle. Clean area around opening before removing
oil cap.
7. Remove oil cap and add approximately 22 oz of 80-90
Weight Oil.
8. Install oil cap, and lower and latch cargo box.
Drive Belt
WARNING: Fingers or loose clothing
can get caught in rotating parts. Stop
engine and wait for all moving parts to
stop before servicing.
1. Park vehicle on level surface and apply parking brake.
2. Raise and secure cargo box, if manual lift.
3. Rotate and inspect belt for wear or damage.
4. Measure width of belt on top surface. The width
should be a minimum of 1.1” (27 mm).
5. See your Cub Cadet Dealer to have belt replaced if
worn beyond limit.
14
Adjusting Brake
To adjust the brakes:
1. Stop the vehicle on a level surface.
2. Turn the ignition key to the STOP position and remove
the key.
3. Make sure the parking brake is released and the
vehicle is in neutral.
4. Unlatch and move hood forward.
5. Check to see if the equalizer bracket is in a horizontal
position. If not, loosen the jam nut and tighten or
loosen brake adjustment nut until satisfactory brake
performance is obtained and equalizer is level. See
Figure 20.
5
Brake Switch
Actuator Bolts
Servicing Your
Utility Vehicle
Brake Switch
Actuator
Equalizer
Bracket
Brake
Adjustment Nut
Jam Nut
Figure 20
6. Tighten jam nut up against brake adjustment nut.
WARNING: Failure to tighten jam nut
against brake adjustment nut may
cause complete loss of brakes.
IMPORTANT: If gear selector buttons fail to work after
making brake adjustment, adjust brake switch actuator
upwards. If it is found that the gear selector buttons operate before the vehicle comes to a complete stop, adjust
brake switch actuator downwards. To adjust, loosen brake
switch actuator bolts, then move the actuator up or down
accordingly. See Figure 21.
7. Cautiously complete the testing on level ground by
operating the machine and applying brakes in a
normal manner.
8. Repeat the adjustment procedure if necessary.
Brake
Cable Nuts
Jam Nuts
Figure 21
Adjusting Throttle Pedal
The throttle pedal assembly can be adjusted for comfort
slightly higher or lower by lining up the holes of the
lower pedal assembly with either the upper two or lower
two holes of the upper pedal assembly. See Figure 22.
Figure 22
Cleaning
The body panels are scratch and impact resistant
automotive quality ABS plastic. The use of standard car
wash soap and non-abrasive car wax is acceptable for
cleaning the body panels. Avoid any abrasive cleaner
or rubbing compounds for these will damage the body
panels. Dry thoroughly to avoid water spots.
WARNING: DO NOT use a pressure washer. Damage may occur if
direct hose spray comes in contact
with intake openings, or any other
electrical components, i.e. at instrument cluster or
under dash.
WARNING
Failure to tighten jam
nut against brake
adjustment nut may
cause complete loss
of brakes.
DO NOT use a
pressure washer.
Damage may occur
if direct hose spray
comes in contact with
intake openings, or
any other electrical
components, i.e. at
instrument cluster or
under dash.
15
6
Before
Each
Use
First
10 Hours
Every
50 Hours
Every
100 Hours
Every
500 Hrs
or 2 years
Service Chart
For information
regarding engine
service, see the
separate Engine
Owner’s Manual
included with
your unit.
Check Transaxle Oil
Change Transaxle Oil
Tighten Wheel Bolts
Check Drive Belt
Grease Front Steering Spindle
Check Interlock Switch System
Replace Interlock Switch
* Change at the first 50 hours then again at 500 hours.
DESCRIPTION MODEL NO.
Horn 39A-101-100
Rear Electric Outlet 39A-102-100
*
7
Accessories
INFORMATION
For parts or
accessories, contact
your local Cub Cadet
dealer. To locate the
dealer nearest you
call 877-282-8684
or log onto
www.cubcadet.com
Front/Rear Hitch 39A-103-100
Front Brush Guard 39A-104-100
Floor Mat 39A-105-100
Front Receiver (Requires Hitch) 39A-106-100
Canopy W/ 4 Post Frame 39A-108-100
72” Snow Blade (Requires 115 Bracket)
225 Lb. Spreader (Requires 130 Bracket)
Cart (20 Cubic Ft.) (Requires 103 Hitch) 39A-112-100
Rubber Scraper For 72” Snow Blade 39A-113-100
Cab Enclosure (Requires 108 Canopy) 39B-114-100
Snow Blade Mounting Bracket 39A-115-100
Heavy Duty Alternator 39A-116-100
Windshield 39A-125-100
Electric Bed Lift (Requires 127 Kit) 39A-126-100
Bed Lift Adapter Kit 39A-127-100
Universal Spreader Mounting Bracket 39A-130-100
NOTE: Some of these accessories may come already equipped on your vehicle. If they are not equipped, they may
be ordered through your local Cub Cadet service dealer.
39A-109-100
39A-110-100
16
Engine/Electrical
Dimensions
Make
Type\Cylinders
Displacement
Maximum Torque
Ignition
Lubrication
Speed (No Load)
Cooling System
Air Cleaner
Battery
Alternator
Headlights
Wiring
Suspension
Transmission
18HP*** Kohler Command® Pro
V-Twin OHV
4 Cycle Gas/2 Cylinders
38.0 cu. in. (624cc)
32.8 lb/ft @ 2200 RPM
Transistor Controlled
Full Pressure
1,300 RPM (idle) / 3,950 RPM (fast)
Air
Replaceable, dual element
30 Amp/Hr,
365 Cold Cranking Amps
12 Volt-15 Amp Regulated
Two, 37.5 Watt Halogen
Automotive-Style Fused Control System
Front - Fully Independent A-Arms
with Coil Over Shocks
Rear - Semi Independent Leaf
Springs w/ Hydraulic Shocks
Length /Width
Tread Center
Height (Overall)
Wheelbase
Weight
(Incl. Fuel & Fluids)
Ground Clearance
(Under Transaxle**)
Ground Clearance
(Under Foot Platform)
Turn Clearance Circle
Bed
Operation
Brake Type
Parking Brake
Steering
Fuel System
Capacity
Low Fuel Indicator
7” Self-Adjusting Drum (Rear Only)
Foot Operated
Rack & Pinion
109.5”/62.0”
50.25”
41.0”
77.0”
1,076 lb.
6.5”
10.5”
21.0 ft.
51-3/4” x 39-3/4” x 9-1/2”
5.7 Gallons
Dash-mounted Indicator Lights
8
Specifications
INFORMATION
For parts or
accessories, contact
your local Cub Cadet
dealer. To locate the
dealer nearest you
call 877-282-8684
or log onto
www.cubcadet.com
Type
Differential Lock
Drive Chain
Ground Speed
Trans axle
Gear Selection
Overall Reduction Ratio
Rear Axle Housing
Features
Rear Hitch
Dual Cup Holders
Additional Storage
Power Port
Front Bumper
Front Brush Guard
Electric Bed Lift
Rubber Floor Mats
Horn
*Includes 200 lb. operator, 200 lb. passenger, and maximum bed capacity.
** Clearance may vary with tire selection.
***As rated by engine manufacturer.
Continuously Variable (CVT)
Engage/ Disengage Knob
on dash
N/A
0-21 mph
Fully Enclosed, Oil Bath
Push Button on Dash
Low 56.98:1 / High 12.72:1
Welded Steel
Optional
Standard
Glove Box and
Under Seat Toolbox
12V, Dash Mounted
Standard
Optional- (Front bumper req.)
Optional
Optional
Optional
Capacity
Volume - Cargo Box
Cargo Box Capacity
Seating-Capacity/Type
Towing Capacity
Payload Capacity*
Ground Pressure (Max.)
w/ 200 lb. Operator Only
Fully Loaded Vehicle
Cargo Box
Material
Attachment
Tires
Optional Turf or Trail
11.3 cu. ft.
800 lbs.
2 / Professional High Back
900 lbs.
1,200 lbs.
8.4 psi
10.3 psi
14-Gauge Steel
Rubber Isolated
Turf Front 22.5” x 10” x 8”
Turf Rear 25” x 12” x 9”
Trail Front 22” x 11” x 10”
Trail Rear 25” x 11” x 10”
17
9
ELECTRONIC
SHIFT MODULE
Fault Code List
WARNING
If the vehicle is shut
off under a fault
condition, before
the vehicle will start
again the Neutral
Sensor must function
properly AND the
vehicle will have to be
manually shifted into
“NEUTRAL”.
ELECTRONIC SHIFT MODULE – FAULT CODE LIST
If your unit does not shift properly, the ESM will let you know there is a problem using the following table of fault
codes. Once you select a gear, the instrument panel will illuminate a gear light, or a combination of gear lights.
These lights can be used to determine if the vehicle shifted properly, or if there is a shifting issue. The letter on the
far left represents the gear the vehicle was in prior to shifting:
To determine the failure mode, it is necessary to remember the original state of the transmission gear, the gear that
was selected, and the state of the indicator lights.
Gear Selected N F
R Light Code N FN* FNR* F RF*
Fault Code None 2 4 None 3
Gear Selected N F
F Light Code N RN* FNR* R RF*
Fault Code None 1 4 None 3
Gear Selected R F
N Light Code R RN* F FN*
Fault Code None 1 None 2
* - Indicates the lights will flash for 5 seconds and an audible tone will sound. During that time a shift will not be
allowed by the ESM. Once the lights stop flashing the ESM will allow for shifting.
Example – The vehicle was in reverse (look at row starting with “R”). The gear selected was forward (look at “F”
in “Gear Selected” row). The “Light Code” flashed on the instrument panel is “RF”, which corresponds with “Fault
code 3”. Looking up “code 3” in the “Fault Codes Defined” section will list the potential problems. If the solution is not
obvious, contact your dealer for service.
Terms and Definitions
ESM – Electronic Shift Module
• Neutral Sensor – in the neutral position the sensor is normally closed (NC).
• Shifting Wedge – this is a wedge shaped mechanical part that actuates the Neutral Sensor depending on
the gear selected. The void portion of the wedge is neutral.
• Closed Circuit Failure – the Neutral Sensor will stay in the NC, neutral state when engaged in forward/re
verse. This will occur if the shifting wedge is not contacting the Neutral Sensor properly.
• Open Circuit Failure – the Neutral Sensor will stay in the NO, non-neutral state even when it passes
through the void in the shifting wedge. This will occur if the ball actuator of the sensor is stuck inside the
sensor housing or if the wires leading to the sensor are cut /disconnected.
18
FAULT CODES DEFINED
Code 1: “REVERSE” and “NEUTRAL” lights flash
Action A - Vehicle is in “FORWARD” and operator attempts a shift to “NEUTRAL”
• This lets the operator know the vehicle was supposed to go to neutral, but probably ended up in reverse.
The vacuum actuator probably shifted the transmission into reverse because the signal to stop at neutral
was not present. However, it may not have shifted out of forward if there was mechanical binding, or loss of
vacuum.
Action B – Vehicle is in “NEUTRAL” and operator attempts a shift to “REVERSE”
• This lets the operator know the vehicle was supposed to go to reverse and it probably did, but it was not
verified because the Neutral Sensor never opened (due to mechanical binding or a damaged sensor).
Code 2: “FORWARD” and “NEUTRAL” lights flash
Action C - Vehicle is in “REVERSE” and operator shifts to “NEUTRAL”
• This lets the operator know the vehicle was supposed to go to neutral, but probably ended up in forward.
The vacuum actuator probably shifted the transmission into forward because the signal to stop at neutral
was not present. However, it may not have shifted out of reverse if there was mechanical binding, or loss of
vacuum.
Action D – Vehicle is in “NEUTRAL” and operator attempts a shift to “FORWARD”
• This lets the operator know the vehicle was supposed to go to forward and it probably did, but it was not
verified because the Neutral Sensor never opened (due to mechanical binding or a damaged sensor).
Code 3: “FORWARD” and “REVERSE” lights flash
Action E - Vehicle is in “FWD” or “REV” and the operator shifts to the opposite direction
• This lets the operator know the vehicle was supposed to shift to the opposite direction and it probably
did, but the module was not able to verify. This may have occurred because the neutral sensor is dam
aged, there is mechanical binding, or a loss of vacuum.
Code 4: “FORWARD” and “NEUTRAL” and “REVERSE” lights flash
Action F - Vehicle is in “FWD/NEU” or “REV/NEU” and the operator shifts to “NEUTRAL”
• If the operator experiences a fault relative to not finding neutral (“fwd /neu” or “rev/neu”) and then tries a
second time to shift to neutral, all lights will flash. This is a warning to shut off the vehicle, manually shift to
neutral, and restart the vehicle in a known gear (neutral).
WARNING: If the vehicle is shut off under a fault condition, before the vehicle will start again the
Neutral Sensor must function properly AND
the vehicle will have to be manually shifted
into “NEUTRAL”.
To manually shift the vehicle into “NEUTRAL”, proceed as
follows:
• With the vehicle shut off, apply the parking brake.
• Raise and secure cargo box, if manual lift.
• Place shift lever into the neutral position. See
Figure 18.
• Lower and latch cargo box.
9
ELECTRONIC
SHIFT MODULE
Fault Code List
WARNING
If the vehicle is shut
off under a fault
condition, before
the vehicle will start
again the Neutral
Sensor must function
properly AND the
vehicle will have to be
manually shifted into
“NEUTRAL”.
19
Figure 18
Problem
Possible Cause(s)
10
Trouble
Shooting
For repairs beyond
minor adjustments
or corrections,
contact your nearest
Cub Cadet service
dealer or call
1-877-282-8684.
If you would like
to order a Service
Manual, please
call the Publications
Department at
800-800-7310,
and order
Form# 770-0909G.
Engine will not start
Engine is hard
to start
Engine misses
under load
Engine vapor locks
Engine runs unevenly
Battery has low voltage.
Loose or corroded battery connections.
Fuse is blown.
Spark plug wire is loose or disconnected.
Faulty spark plug or coil.
Fuel shut-off valve turned off.
No Fuel or improper fuel.
Plugged fuel filter.
Defective starter solenoid.
Open-circuit in wiring.
Engine is cold.
Plugged fuel filter.
Carburetor not adjusted properly or dirty.
Engine oil viscosity too heavy.
Spark plug is fouled.
Faulty spark plug or wire.
Loose or corroded electrical connections.
Stale or improper fuel.
Choke not being used or adjusted incorrectly.
Faulty spark plug.
Stale or dirty fuel.
Plugged fuel filter.
Faulty coil or wire.
Poor quality fuel or methanol.
Very hot weather conditions.
Fuel tank vent plugged.
Dirt in fuel filter.
Loose electrical connections.
Choke or throttle cable sticking.
Fuel line or fuel filter plugged.
Stale or dirty fuel.
Improper fuel.
Air cleaner element plugged.
Carburetor not adjusted correctly.
Spark plug is fouled.
Engine overheats
Uneven cut
Engine knocks
Air cleaner element missing or plugged.
Carburetor air intake tube plugged.
Engine oil low.
Engine operated too long at slow engine speed.
Air cleaner element missing or plugged.
Carburetor air intake tube plugged.
Engine oil low.
Engine operated too long at slow engine speed.
Low engine speed.
Stale or low octane fuel.
Engine overloaded.
20
Problem
Possible Cause(s)
Engine loses power
Starter does not work
Starter crank slowly
Entire electrical system
does not work
Dead Battery
Battery light comes on
when engine is running
Engine overheating
Too much oil in engine
Faulty spark plug
Fuel supply being restricted
Fuel filter plugged
Fuel line pinched or kinked
Fuel pump output not adjusted to specification.
Improper fuel
Air cleaner element plugged
Loose or corroded connections.
Low battery output
Sulfate or worn-out batter y.
Faulty starter.
Low battery output.
Sulfated or worn-out battery.
Engine oil too heavy.
Loose or corroded connections.
Blown fuse.
Loose or corroded connections.
Sulfated or worn-out battery.
Shorted starter solenoid.
Key switch not turned to STOP position.
Sulfated or worn-out battery.
Low engine speed.
Faulty voltage regulator.
Faulty batter y.
Faulty alternator
Grounded wire in circuit.
10
Trouble
Shooting
For repairs beyond
minor adjustments
or corrections,
contact your nearest
Cub Cadet service
dealer or call
1-877-282-8684.
If you would like
to order a Service
Manual, please
call the Publications
Department at
800-800-7310,
and order
Form# 770-0909G.
Indicator lights do not
come on when key
switch is in START
position
Battery will not take a
charge
Faulty bulb.
Faulty wiring.
Faulty sensor.
Dead battery.
Loose or corroded connections.
Sulfated or worn-out battery.
Fluid level low.
21
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and MTD Consumer Group Inc are pleased to explain the evaporative emission control system warranty on your 2006 utility
vehicle. In California, new utility vehicle must be designed, built and equipped to meet the State’s stringent anti-smog standards. MTD Consumer Group Inc must
warrant the EECS on your utility vehicle for the period of time listed below provided there has been no abuse, neglect or improper maintenance of your utility
vehicle.
Your EECS may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter, fuel tanks, fuel lines, fuel caps, valves,
canisters, filters, vapor hoses, clamps, connectors, and other associated emission-related components.
Where a warrantable condition exists, MTD Consumer Group Inc will repair your utility vehicle at no cost to you including diagnosis, par ts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This evaporative emission control system is warranted for two years. If any evaporative emission-related part on your equipment is defective, the part will be
repaired or replaced by MTD Consumer Group Inc.
OWNER’S WARRANTY RESPONSIBILITIES:
As the utility vehicle owner, you are responsible for performance of the required maintenance listed in your owner’s manual. MTD Consumer Group Inc recommends that you retain all receipts covering maintenance on your utility vehicle, but MTD Consumer Group Inc cannot deny warranty solely for the lack of receipts.
As the utility vehicle owner, you should however be aware that MTD Consumer Group Inc may deny you warranty coverage if your utility vehicle or a part has failed
due to abuse, neglect, or improper maintenance or unapproved modifications.
You are responsible for presenting your utility vehicle to MTD Consumer Group Inc’s distribution center or service center as soon as the problem exists. The
warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have a question regarding your warranty coverage, you should
contact the MTD Consumer Group Inc Service Depar tment at 1-800-800-7310.
GENERAL EMISSIONS WARRANTY COVERAGE:
MTD Consumer Group Inc warrants to the ultimate purchaser and each subsequent purchaser that the utility vehicle is: Designed, built and equipped so as to
conform with all applicable regulations; and free from defects in materials and workmanship that cause the failure of a warranted par t to be identical in all material
respects to that part as described in MTD Consumer Group Inc’s application for certification.
The warranty period begins on the date the utility vehicle is delivered to an ultimate purchaser or first placed into ser vice. The warranty period is two years.
Subject to certain conditions and exclusions as stated below, the warranty on emission-related parts is as follows:
1. Any warranted part that is not scheduled for replacement as required maintenance in the written instructions supplied, is warranted for the warranty period
stated above. If the par t fails during the period of warranty coverage, the part will be repaired or replaced by MTD Consumer Group Inc according to subsection
(4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
2. Any warranted part that is scheduled only for regular inspection in the written instructions supplied is warranted for the warranty period stated above. Any such
part repaired or replaced under warranty will be warranted for the remaining warranty period.
3. Any warranted part that is scheduled for replacement as required maintenance in the written instructions supplied is warranted for the period of time before the
first scheduled replacement date for that part. If the part fails before the first scheduled replacement, the part will be repaired or replaced by MTD Consumer
Group Inc according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the
first scheduled replacement point for the part.
4. Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner.
5. Notwithstanding the provisions herein, warranty services or repairs will be provided at all of our distribution centers that are franchised to ser vice the subject
engines or equipment.
6. The utility vehicle owner will not be charged for diagnostic labor that is directly associated with diagnosis of a defective, emission-related warranted part,
provided that such diagnostic work is per formed at a warranty station.
7. MTD Consumer Group Inc is liable for damages to other engine or equipment components proximately caused by a failure under warrant y of any warranted
part.
8. Throughout the utility vehicle warranty period stated above, MTD Consumer Group Inc will maintain a supply of warranted parts sufficient to meet the expected
demand for such parts.
9. Any replacement part may be used in the per formance of any warranty maintenance or repairs and must be provided without charge to the owner. Such use will
not reduce the warranty obligations of MTD Consumer Group Inc.
10. Add-on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non-exempted add-on or modified parts by the
ultimate purchaser will be grounds for disallowing a warranty claims. MTD Consumer Group Inc will not be liable to warrant failures of warranted par ts caused
by the use of a non-exempted add-on or modified part.
WARRANTED PARTS:
The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if MTD Consumer Group
Inc demonstrates that the utility vehicle has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the
direct cause of the need for repair or replacement of the part. That notwithstanding, any adjustment of a component that has a factory installed, and properly
operating, adjustment limiting device is still eligible for warranty coverage. The following emission warranty par ts list are covered: Fuel Line, Fuel Line Clamps
CUB CADET LLC
MANUFACTURER’S ONE YEAR LIMITED WARRANTY
(COMMERCIAL USE)
The limited warranty set forth below is given by CUB CADET LLC
(“CUB CADET”) with respect to new merchandise purchased and
used in the United States, its possessions and territories.
CUB CADET warrants this product against defects in material and
workmanship for a period of one (1) year for commercial users,
commencing on the date of original purchase and will, at its option,
repair or replace, free of charge, any part found to be defective in
material or workmanship. This limited warranty shall only apply if
this product has been operated and maintained in accordance with
the Operator’s Manual furnished with the product, and has not been
subject to misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water or damage because of other
peril or natural disaster. Damage resulting from the installation or
use of any part, accessory or attachment not approved by Cub Cadet
for use with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Batteries and belts are subject to separate terms as follows:
Batteries have a one-year prorated limited warranty with 100 %
replacement during the first three months. After three months, the
battery replacement credit is based on the months remaining in the
twelve (12) month period dating back to the original date of sale. Any
replacement battery will be warranted only for the remainder of the
original warranty period.
All belts are covered by a one (1) year limited warranty against
defects in material and workmanship.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, THROUGH YOUR LOCAL AUTHORIZED CUB
CADET DEALER. To locate the dealer in your area, please check for
a listing in the Yellow Pages or contact Cub Cadet LLC at P.O. Box
361131, Cleveland, Ohio 44136-0019, or call 1-877-282-8684, or log on
to our Web site at www.cubcadet.com.
This limited warranty does not provide coverage in the following
cases:
The engine or component parts thereof. These items may carry a
separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms and conditions.
Routine maintenance items such as lubricants, filters, tune-ups, or
adjustments such as brake adjustments, or clutch adjustments; and
normal deterioration of the exterior finish due to use or exposure.
Normal wear parts or components, including batteries, belts, seats
and tires.
CUB CADET does not extend any warranty for products sold or
exported outside of the United States of America, its possessions
and territories, except those sold through CUB CADET’S authorized
channels of export distribution.
Replacement parts that are not genuine Cub Cadet parts.
Service completed by someone other than an authorized service
dealer.
No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose, applies after the applicable
period of express written warranty above. No other express warranty
or guaranty, whether written or oral, except as mentioned above,
given by any person or entity, including the dealer, with respect to
any product shall bind CUB CADET. During the period of the Warranty, the exclusive remedy is repair or replacement of the product
as set forth above. (Some states do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to
you.)
The provisions as set forth in this Warranty provide the sole and
exclusive remedy arising from the sale. CUB CADET shall not be
liable for incidental or consequential loss or damages including,
without limitation, to any claim for loss of profits, loss of savings
or revenue, loss of the use of the equipment or any associated
equipment, facilities or service, downtime, the claims or costs of
third parties including customers, and injury to property, and further
including expenses incurred for substitute or replacement lawn care
services, for transportation or for related expenses, or for rental
expenses to temporarily replace a warranted product. (Some states
do not allow the exclusion or limitation of incidental or consequential
damages, so the above exclusion may not apply to you.)
In no event shall recovery of any kind be greater than the amount
of the purchase price of the product sold. Alteration of the safety
features of the product shall void this Warranty. You assume the
risk and liability for loss, damage, or injury to you and your property
and/or to others and their property arising out of the use or misuse
or inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or original lessee.
How State Law Relates to this Warranty: This limited warranty gives
you specific legal rights, and you may also have other rights which
vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND,OHIO 44136-0019; Phone : 1-877-282-8684
MANUFACTURER’S LIMITED WARRANTY FOR
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased and used in the United States, its
possessions and territories.
“Cub Cadet” warrants this product against defects in material and
workmanship for a period of two (2) years commencing on the date of
original purchase and will, at its option, repair or replace, free of charge,
any part found to be defective in materials or workmanship. This limited
warranty shall only apply if this product has been operated and maintained
in accordance with the Operator’s Manual furnished with the product, and
has not been subject to misuse, abuse, commercial use, neglect, accident,
improper maintenance, alteration, vandalism, theft, fire, water, or damage
because of other peril or natural disaster. Damage resulting from the
installation or use of any part, accessory or attachment not approved by
Cub Cadet for use with the product(s) covered by this manual will void
your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of purchase.
Normal wear parts include, but are not limited to items such as: batteries,
belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow
thrower skid shoes, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF
OF PURCHASE, through your local authorized service dealer. To locate
the dealer in your area, check your Yellow Pages, or contact Cub Cadet
LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-877-2828684, or log on to our Web site at www.cubcadet.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a
separate manufacturer’s warranty. Refer to applicable manufacturer’s
warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one year
warranty.
c. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to use
or exposure.
d. Cub Cadet does not extend any warranty for products sold or exported
outside of the United States, its possessions and territories, except
those sold through Cub Cadet’s authorized channels of export distribution
e. Replacement parts that are not genuine Cub Cadet parts.
f. Service completed by someone other than an authorized service
dealer.
g. Transportation charges and service calls.
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable
period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as
mentioned above, given by any person or entity, including a dealer
or retailer, with respect to any product, shall bind Cub Cadet. During
the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. Cub Cadet shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a warranted
product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and/or to others and their
property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to obtain
warranty coverage.
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-877-282-8684
Loading...
