Cub Cadet 1525 User Manual

Parts Manual

Series 1500

Hydrostatic Lawn Tractor

Models 1525

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO. 769-00578

(11/02)

-2-

MODELS 1525

TABLE OF CONTENTS

DESCRIPTION PAGE

Axle, Front ...................................................... . 6

Battery ............................................................. 16

Brake Pedal ..................................................... 12

Head Lamp ...................................................... 18

Mower Deck, 38-inch........................................ 22

Pedal Controls ................................................. 12

Dash Panel ...................................................... 16

Drive System ................................................... 4

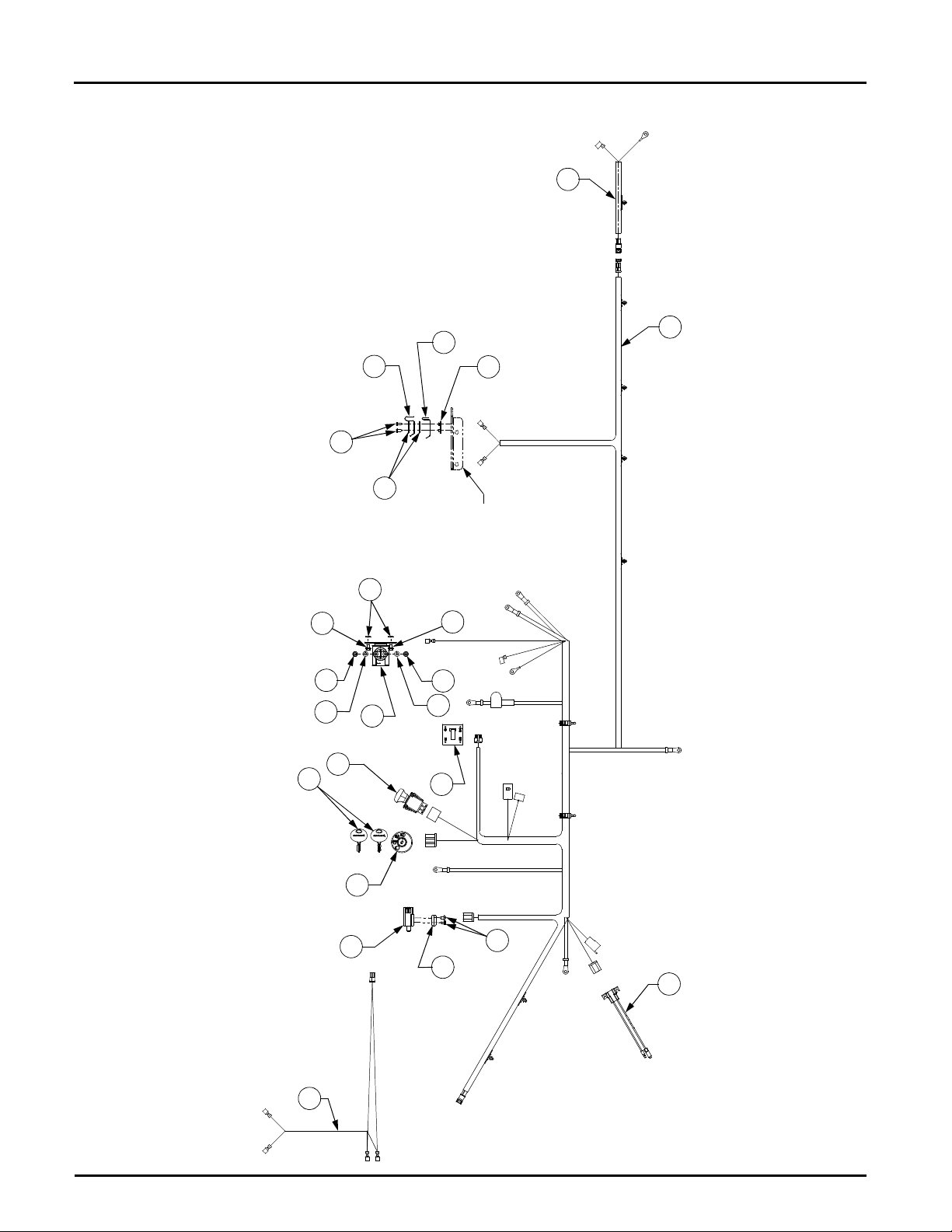

Electrical Sysytem ........................................... 26

Engine

Air Filter/ Muffler Gasket ...............................

Cooling .........................................................

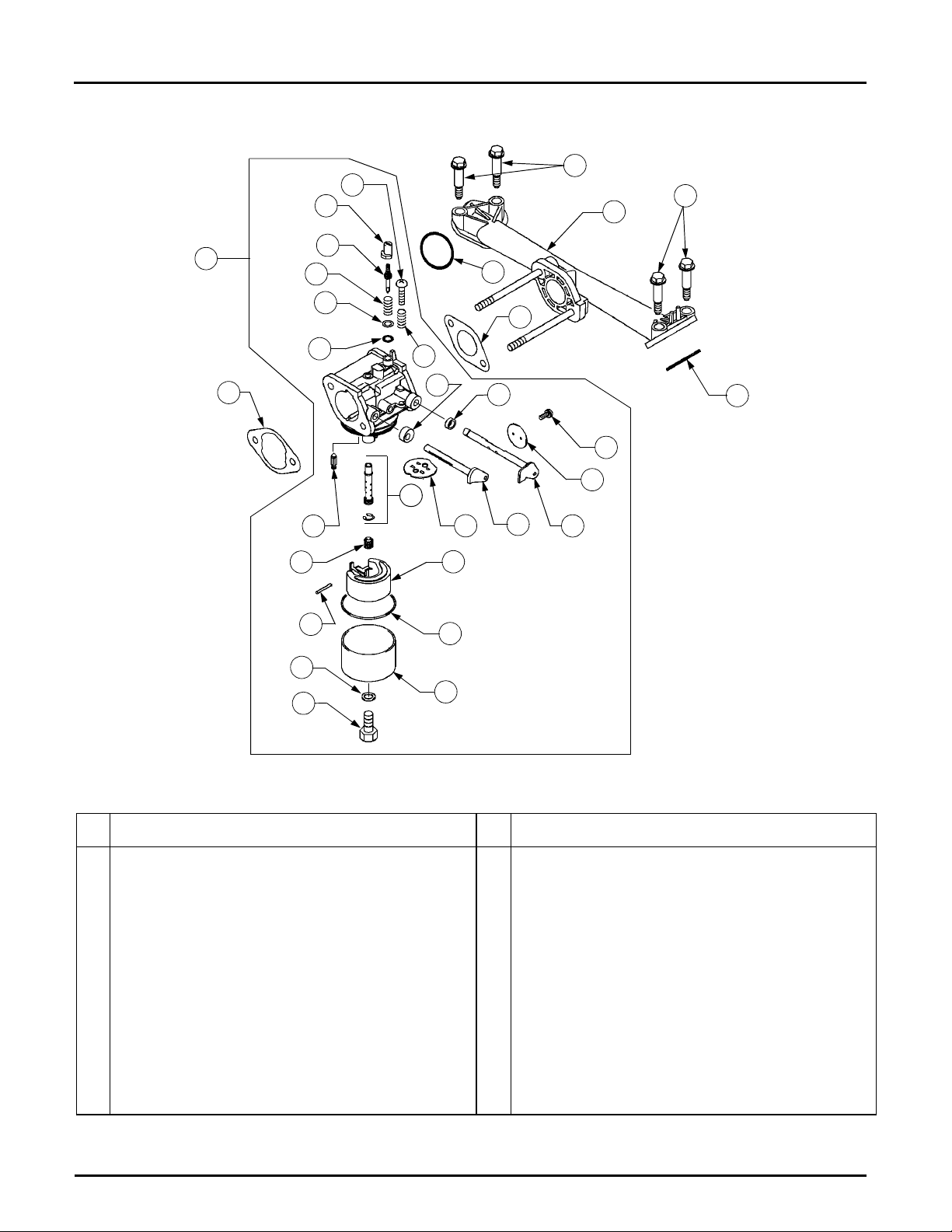

Carburetor/Intake Manifold ..........................

Engine Control ..............................................

Cylinder/Crankcase ......................................

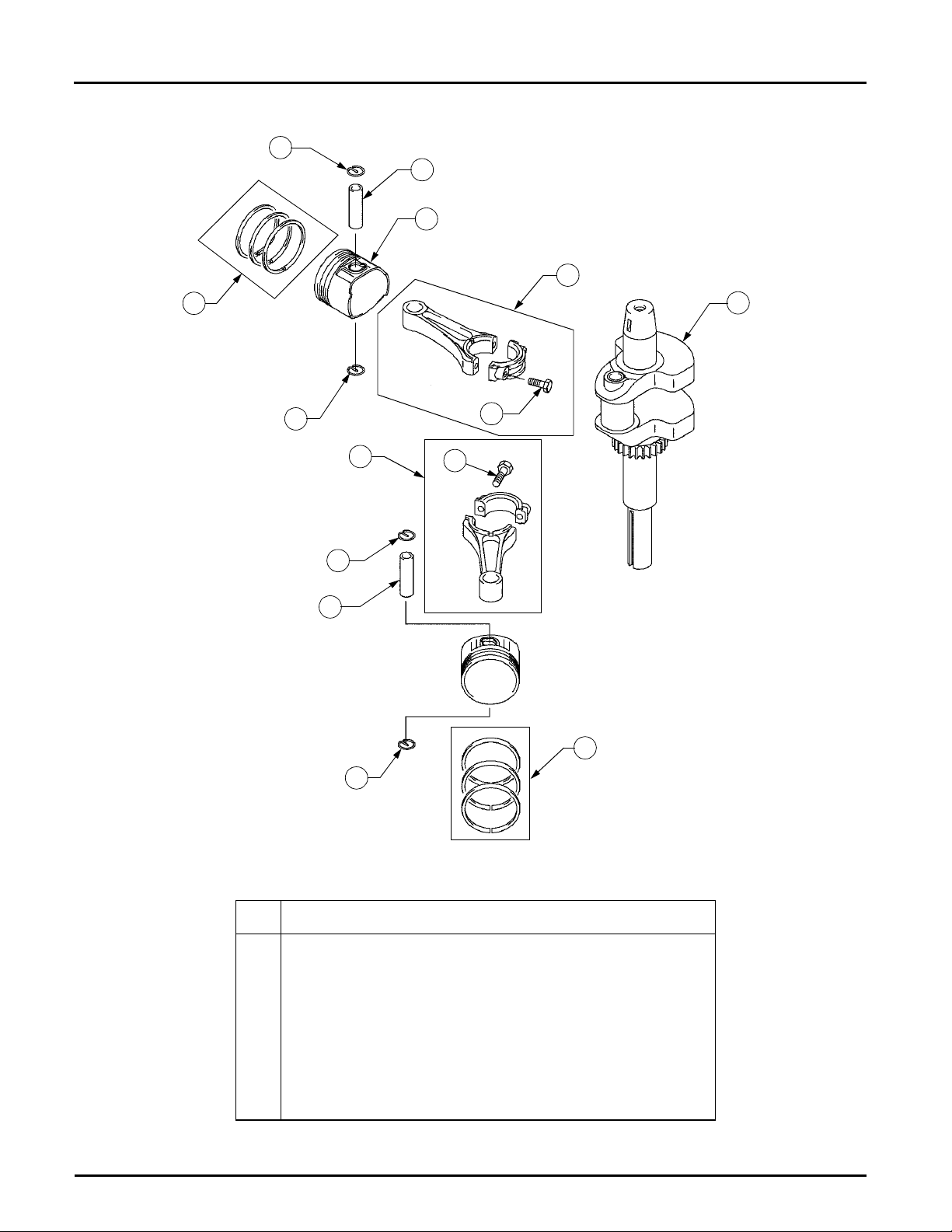

Piston/Crankshaft .........................................

Engine Electrical/Ignition ..............................

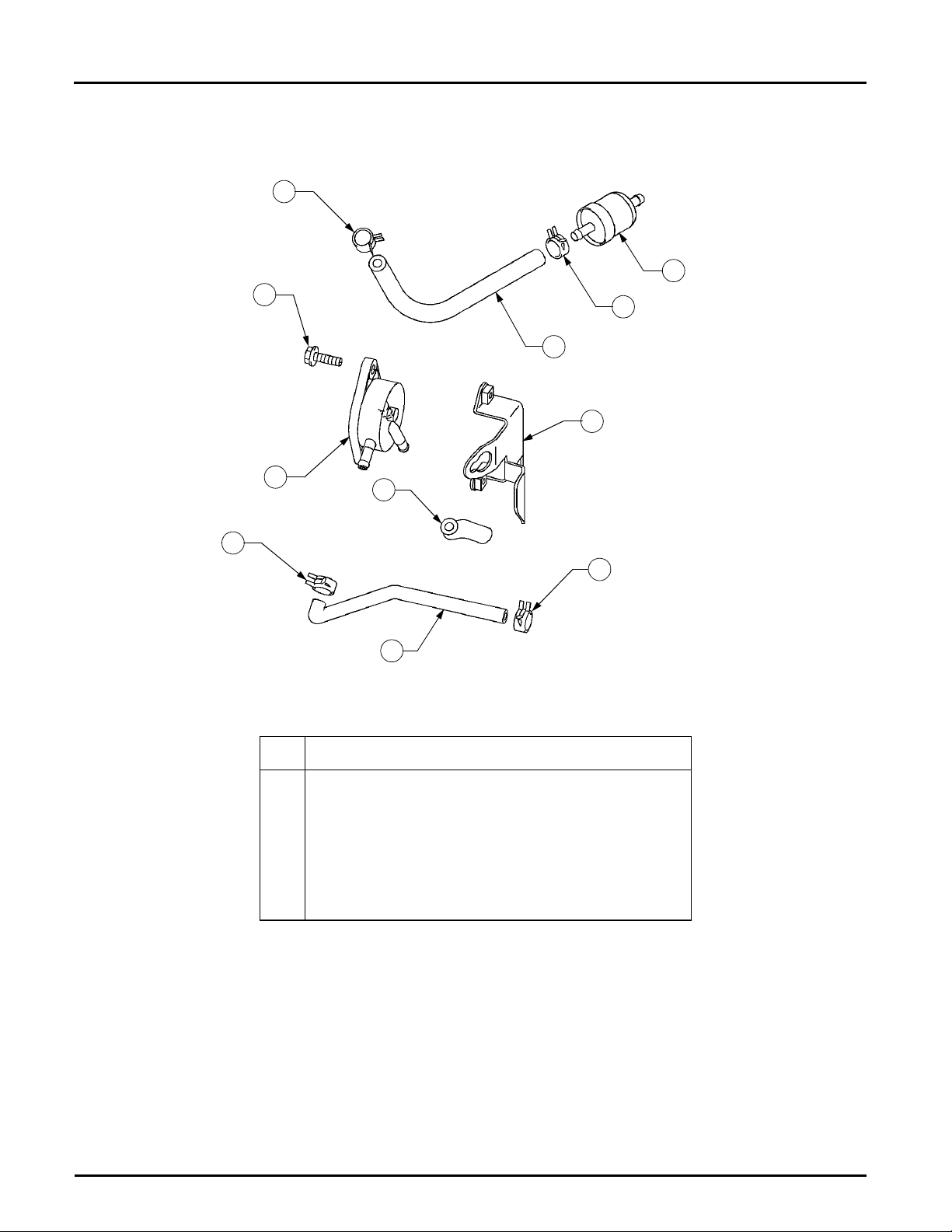

Fuel Pump/Filter ...........................................

Lubrication ....................................................

Electric Starter ..............................................

Valve/Camshaft ............................................

37
33
36
35
28
30
34
38
32
39
31

DESCRIPTION PAGE

Engine Accessories ......................................... 15

Fender ............................................................. 10

Frame .............................................................. 8

Fuel Tank ......................................................... 10

Grille ................................................................ 18

Hood ................................................................ 18

Deck Lift Handle/Linkage ................................. 11

Muffler .............................................................. 15

PTO Clutch ............................. ..... ...... .............. 20

Seat ................................................................. 14

Side Panels ..................................................... 18

Steering ........................................................... 6

Transmission, Hydrostatic ............................... 24

Wheels, Front & Rear ...................................... 3

NOTE, For painted parts, please ref er
to the list of color codes below. Please
add the appli c able co lor co de , where ve r
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted Cub
Yellow, the part number to o rder would
be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Powder Black: 0637

-3-

WHEELS

1

2

3

4

REF.

NO.

1 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2
2 634-0246A Rim Assembly, 8.0 x 6.19 (4-Lug) 2
3 712-3050 Lug Nut, 7/16-14 8
4 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4
5 634-3015 Rim Assembly, Bead Lock, 6 x 4.5 2
6 731-3020 Hub Cap 2

7 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2
— 737-0224 Gease Fitting 2
— 734-0255 Valve, Tubeless Air 4

PART

NUMBER DESCRIPTION QTY.

4

7

5

6

-4-

19

27

20

DRIVE SYSTEM

A

18

18

1

A

42

3

2

28

21

13

B

34

B

B

33

36

B

23

29

49

35

39

17

11

22

31

18

8

45

47

12

5

40

41

48

46

52

37

8

50

25

44

26

6

36

4

16

10

36

7

32

30

51

23

35

36

Attach Spring (732-1716) Here

9

44

9

24

43

38

14

15

36

23

-5-

DRIVE SYSTEM

REF.

PART

NO.

NUMBER DESCRIPTION QTY.

1 17840 Bracket, Mounting, Transaxle 2
2 618-0365 Hub Assembly, Wheel 2
3 618-0667 Transmission, Hydrost atic 1
4 629-0949A Harness Assembly, Ground & Rev erse 1
5 683-0251 Bra cket Assembly, Idler, Center Dbl 1
6 710-0176 Hex Cap S crew, 5/16-18, 2.75, Gr 5 4
7 710-0227 Screw, #8-18, 0.500 2
8 710-0344 Hex Cap Sc rew, 3/8-16, 1.50, Gr5 3

9 710-0726 Screw, 5/16-12, 0.75 6
10 710-0599 Screw, 1/4-20, 0.5 1
11 710-3007 Screw, #12-24, 0.375 3
12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1
13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1
14 711-0677 Ferrule, 5/16-18 x .312 Dia 1
15 711-0832 Ferrule, 3/8-24 x .375 Dia 1
16 712-0291 Nut, Hex Lock, 1/4-20 1
17 712-0333 Nut, Hex, 1/2-20, Gr2 1
18 712-0431 Nut, Flange Lock, 3/8-16 4
19 712-1329 Nut, 3/4-16, Grb, Hx 2
20 712-3004A Nut, Flange Lock, 5/16-18, Gr5 5
21 712-3010 Nut, Hex, 5/16-18, Gr5 1
22 712-3017 Nut, Hex, 3/8-16, Gr8 3
23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
24 714-0111 Pin, Cotter, 3/32, 1.0 1
25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
26 725-1644 Switch, Spring, Short 1
27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1
28 726-0320 Plate, Insulator Nut 1
29 731-1449A Fan, Blade, 10” 1
30 732-0209 Spring, .48 OD x 2.03 Extension 1
31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1
32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1
33 732-0729 Ring, Wire 1
34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1
35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1
36 736-0140 Washer, Flat, .385 x .62 x .063 3
37 736-0169 Washer, Lock, 3/8 , Regular Duty 1
38 736-0275 Washer, Flat, .344 x .688 x .065 1
39 736-0921 Washer, Lock, 1/2 , Regular Duty 1
40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1
41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1
42 747-1149 Rod, Hydro Bypass 1
43 747-1150 Rod, Brake, Hydro 1
44 747-1151 Rod, Control, Hydro 1
45 750-0535 Spacer, .376 ID x .625 OD x .2 2 1
46 754-0640 Belt, V Type, Poly 1
47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2
48 756-0981A Pulley, Idler, Flat 2.75 OD 1
49 756-1166 Pulley, Input, 5.0 Dia 1
50 783-0810 Bracket, Transmission, Torque Hydro 1
51 783-1019 Bracket, Actuator, Switch 1
52 756-0978A Pulley, Engine, 3.56 Dia. 1

29

14

18

-6-

STEERING

4

30

28

23

1

25

19

20

11

7

15

8

10

17

22

3

7

9

2

19

9

13

5

27

6

12

21

26

24

-7-

STEERING

REF.

NO.

1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2
2 711-1408 Link, Drag, RH 1
3 711-1409A Link, Drag, LH 1
4 712-0237 Nut, Hex Lock, 5/16-24 1
5 712-0240 Nut, Jam, 7/16-20, Gr2 2
6 712-0241 Nut, Hex, 3/8-24, Gr5 2
7 712-0431 Nut, Flange Lock, 3/8-16 4
8 712-0459 Nut, Flange Lock, 7/16-20 1

9 712-3004A Nut, Flange Lock, 5/16-18 2
10 717-1550D Gear, Steering, 11/90 Ratio 1
11 717-1554 Gear, Pinion , Steering 1
12 723-0610 Ball Joint, 7/16-20 2
13 736-0169 Washer, Lock, 3/8 , Regular Duty 2
14 736-0242 Washer, Bell, .340 x .872 x .060 1
15 736-3084 Washer, Flat, .510 x 1.120 x .060 1
16 737-3007 Grease, Alvania Ep 2 1
17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2
18 738-1194 Shaft, Steering, .625 OD x 25.00 Lg 1
19 741-0475 Bushing, Plastic, .380 ID 2
20 741-0656 Bearing, Hex Flange, 5/8 1
21 683-0605 Axle Assembly, LH .750 Dia 1
22 683-0606 Axle Assembly, RH .750 Dia 1
23 712-0417A Nut, Hex, Flange, 5/8-18 2
24 714-0162 Pin, Cot, 5/32, 1.25 2
25 719-05 83 Axle, Pivot, Cast .750 Dia 1
26 736-0866 Washer, Flat, .755 x 1.92 x.060 2
27 738-10 11 Spacer, Shoulder, .500 x 2.230, 3/8-16 2
28 731-3209 Wheel, Steering, Soft Grip, Three Spoke 1
29 731-32 10 Cover, Steering Wheel 1
30 736-04062 Washer, Flat , .344 x 1.5 x .10 1

PART

NUMBER DESCRIPTION QTY.

-8-

FRAME

5

18

5

13

5

16

5

5

10

13

23

12

18

16

22

10

7

14

6

21

2

725-04039

REF. ONLY

5

1

19

4

17

6

20

15

8

5

17

18

9

11

3

-9-

FRAME

REF.

NO.

1 17962 Plate, Switch 1

2 683-0304A Frame Assembly, Lower 1

3 683-0612 Bumper Assem bly 1

4 710-0224 Screw, Hex Wa sh. Hd. Tapp, 10-16 x .5 2

5 710-0604A Screw, Self-tapping, 5/16-18, 0.625 20

6 710-1260A Screw, 5/16-18, 0.750 2

7 710-1652 Screw, Hex Wash. Hd. Tapp, 1/4-20 x 0.625 1

8 711-0332 Pin, Clevis, .50 D ia x .78 Lg 2

9 712-0431 Nut, Flange Lock, 3/8-16 2
10 712-0459 Nu t, Flange Lock, 7/16-20 2
11 714-0145 Pin, Cl ick, .092 x 1.64 Lg 2
12 722-30 22 Foam Tape, .625 x .25 18
13 732-04035 Spring, Compression, 1.28 OD x 3.125 Lg 2
14 736-0222 Washer, Lock, Ext 1/4 2
15 736-0331 Washer, Bell, .390 x 1.13 x .062 2
16 736-0407 Washer, Bell .45 x 1.00 x .062 2
17 738-0143 Sh oulder Screw, 3/8-16 2
18 738-1020 Shoulder Screw .625 x .500, 7/16-20 2
19 783-0726B Bracket, Pivot, Support RH 1
20 783-0727A Bracket, Pivot, Support LH 1
21 783-0728 Bracket, Pivot, Bar 1
22 783-1462 Frame, Upper, Cub 1500 1
23 783-14 63 Bracket, Frame, Seat 1

PART

NUMBER DESCRIPTION QTY.

-10-

FENDER & FUEL TANK

5

2

9

14

6

2

10

3

13

15

12

1

8

REF.

NO.

1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2
2 710-0726 Screw, 5/16-12, 0.75 8
3 710-0895 Screw, 1/4-15, 0.750 9
4 712-3004A Nut, Flange Lock, 5/16-18 2
5 731-2616 Cover, Fender, RH 1
6 731-2617 Cover, Fender, LH 1
7 736-3078 Washer, Flat, .349 x 1.00 x .063 2
8 783-0677 Bracket, Lift, Adjustment 1

9 783-0715B Bracket, Seat, Mount 2
10 783-1461 Fender 1
11 726-3046 Clip, Ratchet, .250 Dia 12
12 735-0697 Pad, Foot, LH 1
13 735-0698A Pad, Foot, RH 1
14 751-0819A Tank, Fuel 1
15 751-3124B Cap, Fuel 1

PART

NUMBER DESCRIPTION QTY.

11

1

7

4

7
4

-11-

LIFT ASSEMBLY

1

17

9

21

10

20

22

REF.

NO.

1 683-0197B Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3 712-0206 Nut, Hex, 1/2-13, Gr5 2
4 712-0431 Nut, Flange Lock, 3/8-16 2
5 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
6 712-3083
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2

9 714-0145 Pin, Click, .092 x 1.64 Lg 2
10 716-0106 E-ring, .625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
13 736-0160 Washer, Flat, .53 x .93 x .050 2
14 736-0275 Washer, Flat, .344 x .688 x .065 2
15 736-0921 Washer, Lock, 1/2 , Regular Duty 2
16 736-3019 Washer, Flat, .531 x 1.062 x .134 2
17 736-3084 Washer, Flat, .510 x 1.120 x .060 3
18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
19 738-0143 Shoulder Screw, 3/8-16 2
20 741-0225
21 741-0715
22 746-0968 Cable, Lift, 16.16 Lg 2
23 747-1111A Handle, Lift 1
24 747-1130B Rod, Deck, Front Adjustment .5" Dia 1
25 756-1154 Pulley, Roller 2
26 783-0678A Lift, Arm 2
27 783-0720A Bracket, Adjustment, Front Deck Rod 1
28 736-0204 Washer, Flat, .344 x .62 2

PART

NUMBER DESCRIPTION QTY.

25

5

28

8

10

14

21

12

B

Nut, Hex

Bearing, Hex
Bearing,

7

20

25

11

18

B

26

Lock

, 1/2-13, Gr8, Nylon

Flange 2

Flange

, Snap .500 ID

23

13

4

22

18

A

19

24

5

28

A

2

2

8

26

4

19

3

15

17

13

2

3

15

16

9

27

6

12

-12-

PEDAL ASSEMBLY

10

6

6

11

23

19

17

26

REF. ONLY

25

8

7

10

2

10

29

27

22

5

24

9

13

21

10

15

24

16

18

30

20

4

14

3

28

Hook to Flange

In Frame (783-065 0)

11

1

9

23

19

-13-

PEDAL ASSEMBLY

REF.

NO.

1 647-0031B Control Assembly, Brake 1
2 647-0049 Control Assembly, H y dro 1
3 710-0726 Screw, Self-tapping, 5/16-12, 0.75 4
4 710-0650 Screw, Self-tapping, 5/16-18, 0.875 1
5 710-1260A Screw, 5/16-18, 0.750 2
6 711-0736 Adjustment Ferrule 1/4-20 x 1.0 2
7 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 1
8 712-0431 Nut, Flange Lock, 3/8-16 2

9 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
10 714-01 04 Pin, Cotter, .072 Dia. x 1.13 Lg 5
11 714-01 11 Pin, Cotter, 3/32, 1.0 2
12 719-0584 Pedal, Contr ol 1
13 732-0335 Spring, Compression, .405 x 1.17 1
14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1
15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1
16 735-30 49 Pad, Brake, Contro l 1
17 736-0133 Washer, Flat, .411 x 1. 25 x .100 2
18 710-1611B Scr ew, To rx Hd. Tapp. 5/16-18 x .75 1
19 736-0187 Washer, Flat .64 ID x 1.24 x .06 2
20 736-3008 Washer, Flat, .344 x .750 x .120 1
21 738-0155 Shoulder, Screw .437 x 1.62 Lg 1
22 738-0507B Screw, Shoulder, .500 D ia x .434 1
23 741-0225 Bearing, Hex Flange 2
24 741-3065B Bearing, Hex Flange, .628 ID, Split 2
25 747-11 37 Rod, Co ntrol, Cru ise 1
26 747-11 38 Rod, Co ntrol, Brake Lock 1
27 748-04 13 Latch, Cruise 1
28 783-0653F Bracket, Support, Stearing 1
29 783-0663C Bracket, Lockout, H ydro 1
30 783-1469A Pedal, Brake 1

PART

NUMBER DESCRIPTION QTY.

ADJUSTABLE SEAT

15

12

-14-

23

7

20

13

6

11

4

22

17

REF.

NO.

1 17239A Bracket, Seat Lift
2 710-1268 Screw, #10-16, 0.375 2
3 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
4 712-3027 Nut, Flange Lock, 1/4-20 1
5 720-0433 Grip, Seat, Adjustment (Yellow) 1
6 726-0201 Nut, Speed, .3125 ID 2
7 731-1989 Spacer, Seat, Adjustment 4
8 732-0499 Spring, Compression .41 OD x 1.50 1

9 732-1027 Spring, Extension, .80 Dia x 4.2 Lg. 1
10 732-1175 Spring, Extension, .815 Dia x 4.4 Lg. 1
11 736-0175 Washer, Spring, .265 x .562 x.025 1
12 736-0204 Washer, Flat, .344 ID x .62 OD 1

PART

NUMBER DESCRIPTION QTY.

13

6

19

10

PART

14

15

9

16

18

1

8

2

21

5

3

REF.

NO.

NUMBER DESCRIPTION QTY.

13 736-0275 Washer, Flat, .344 x .688 x .065 2
14 736-3019 Washer, Flat, .531 x 1.062 x .134 2
15 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
16 738-0296 Shoulder, Screw .437 x .286 Lg 2
17 738-1198 Screw, Shoulder, .50 x.50, 5/16-18 4
18 783-0209A Bracket, Seat Lift 1
19 783-0611 Stop, Seat, Adjustment 1
20 783-0738A Bracket, Pivot, Seat 1
21 783-0739 Lever, Seat, Adjustment 1
22 783-0753 Selector, Seat, Adjustment 1
23 757-04004 Seat, Mid-back, V-1480 1

3

-15-

ENGINE ACCESSORIES

9

11

7

Fits Over Fuel Line Routed Behind The Engine.

8

7

For Choke

9

10

5

18

16

17

3

4

REF.

NO.

1 710-0227 Screw, #8-18, 0.500 4
2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 4
3 710-0726 Screw, Hx. Wash. Hd. Tapp 5/16-12 x .75 4
4 710-1315 Screw, Hx. Wash. Hd. Tapp 3/8-16 x 4
5 712-3017 Nut, Hex, 3/8-16, Gr8 1
6 712-3086 Nut, M8, 1.25-6h, Flange 2
7 722-0263 Foam, .625 x 1.50 x 10.0 Lg 2
8 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2

9 726-0205 Clamp, Hose, .490 Dia. 2
10 736-0300 Washer, Flat, .406 x .875 x .059 1
11 751-0535 Hose, Fuel Line 61in
12 751-0564 Deflector, Muffler 1
13 751-0805 Muffler, Dual Inlet 1
14 751-2100 Pipe, Exhaust, LH 1
15 751-2101 Pipe, Exhaust, RH 1
16 751-3140 Drain, Oil 1
17 751-3141 Hose, Extension, Oil Drain 12in
18 751-3142 Cap, Oil, Drain 1
19 783-0615B Shield, Heat, Muffler 1
20 KM-11060-7021 Gasket, Exhaust 2

PART

NUMBER DESCRIPTION QTY.

20

19

2

20

14

6

6

15

13

12

1

-16-

DASH PANEL

20

10

11

17

24

30

2

1

4

29

25

7

9

21

32

12

13

15

18

14

7

12

35

23

26

34

3

31

6

5

19

8

7

13

27

33

3

28

22

5

16

3

-17-

DASH PANEL

REF.

NO.

1 710-0136 Screw, 1/4-20, 1.75, Gr5 1
2 710-0192 Screw, #10-24 X .375 2
3 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6
4 710-0642 Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75 2
5 710-0650 Screw, Hx. Wash. Hd, Tapp, 5/16-18, .875 4
6 710-0703 Screw , Ca rriage , 1/4-2 0, .75, 1
7 710-0726 Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75 6
8 710-0895 Screw, 1/4-15, 0.750 1

9 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 2
10 710-3217 Screw , M ac hi ne , #8 -32, 0.375, Trus Phillips 1
11 712-0142 Nut, 8-32 1
12 712-02 71 Nut, Hex, 1/4-20, Sems 2
13 712-0397 Nut, Wing, 1/4-20 w/ Bell Washer 2
14 712-3087 Nut, Wing, 1/4-20 1
15 714-0104 Internal Cotter P in, .072 x 1.13 1
16 725-14 26 Solenoid, 12V, 100 Amp 1
17 731-2615 Dash 1
18 731-2620 Lever, Dash, Cruise 1
19 731-2621 Lever, Dash, Brake 1
20 731-3161 Knob, Throttle Control 1
21 731-3232 Roller, Latch, Hood 1
22 736-0222 Washer, External Lock, 1/4 2
23 738-1132 Screw, Shoulder, 1/4-20, .25 x .15 1
24 746-1100 Cable, Throttle, 38.0 Lg 1
25 746-04 057 Cable, Choke, 45.5 Lg. 1
26 747-1323A Rod, .250 Dia x 4.25 Lg. 1
27 747-21 30 Rod, Support, Side Panel RH 1
28 747-21 31 Rod, Support, Side Panel LH 1
29 749-04000A Tube, Dash, Support 1
30 783-0462 Bracket, PTO Switch Retainer 1
31 783-1447 Bracket, Support, Battery 1
32 783-1448 Bracket, Support, Hood Latch 1
33 783-1449 Bracket, Battery, Hold Down 1
34 783-14 99 Bracket, Rod, Dash 1
35 925-1707C Battery, 275 CCA, Dry 1

PART

NUMBER DESCRIPTION QTY.

-18-

HOOD & GRILLE

24

32

21

10

19

28

23

22

6

1

29

9

25

25

12

4

15

17

27

3

25

16

8

2

18

8

9

25

14

17

15

7

30

13

12

26

18

19

12

28

23

29

31

26

13

5

11

-19-

HOOD & GRILLE

REF.

NO.

1 603-0211A Bracket Assembly, Grille LH 1

2 603-0212A Bracket Assembly, Grille RH 1

3 603-04063 Bracket Assembly, Hood 1

4 625-04001

5 703-2396

6 703-2397

7 703-2398

8 703-2465 Link, Hood Front 2

9 703-2466A Link, Hood, Rear 2
10 703-2495 Screen, LH Side Panel 1
11 703-2496 Screen, RH Side Panel 1
12 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6
13 710-1260A Scr ew, Hx Wash. Hd Tapp, 5/16-18 x .75 2
14 710-04 36 Screw, Hx Tapp, 10-16 x .625 2
15 710-0456 Screw, Hx Wash. Hd Tapp, 10-16 x .5 2
16 710-07 26 Screw, Hx Wash. Hd Tapp, 5/16-12 x .75 2
17 710-0779A Screw, Truss Phillips Tapp, 10-16 x .5 4
18 712-3027 Nu t, Flange Lock, 1/4-20 8
19 712-3087 Nut, Wing, 1/4-20 2
21 726-0139 Nut, Speed, 10z U-type 2
22 731-04237 Plenum, Hood 1
23 732-0334 Spring, Compression, .50 OD x .5 Lg 4
24 732-08 55A Spring, Latch, Hood 1
25 736-0175 Washer, Spring, .265 x.562 x.025 8
26 736-0258 Washer, Flat, .385 x 1.0 x .135 2
27 736-0400 Washer, Flat, .194 x .62 OD x .063 2
28 738-3141 Screw, Shoulder, .31x .75, 1/4-20 2
29 748-3055 Bushing, Tapered, .32 ID x .69 OD 4
30 783-1467 Bracket, Mounting, Grill e LH 1
31 783-1468 Bracket, Mounting, Grill e RH 1
32 959-3747B

PART

NUMBER DESCRIPTION QTY.

725-0963
725-1649

777D06895
777X40079

777D06895
777X40079

777I20314

777D03263
777D03264

Headlight Assembly, Front

Lamp, 12V
Socket

,

Lamp

Side Panel, RH

Graphic, 1525
Strip, Protective

Side Panel, LH

Graphic, 1525
Strip, Protective

Grille

Graphic, Warning HOT

Hood Assembly

Graphic, Hood RH
Graphic, Hood LH

1
2
2

1
1
1

1
1
1

1
1

1
1
1

-20-

POWER TAKE-OFF (PTO) SYSTEM

5

3

2

10

1

6

13

12

6

5

11

7

9

8

4

-21-

POWER TAKE-OFF (PTO) SYSTEM

REF.

NO.

1 710-0859 Screw, 3/8-16 x 2.5 GR5 1
2 710-1238 Screw, 5/16-18, .875 GR5 1
3 710-3025 Screw, 5/16-18, .625 GR5 2
4 710-3157 Screw, Hex Cap, 7/16-20 x 3.25 GR5 1
5 712-0431 Nut, Flange Lock, 3/8-16 2
6 712-3004A Nut, Flange Lock, 5/16-18 3
7 717-1773 Clutch, Electric PTO, 6” (Model 1515) 1
8 736-0171 Washer, Lock, 7/16, Regular Duty 1

9 738-0785 Spacer, Shoulder, 1.38 x .445 x .36 1
10 748-0415A Spacer, 3/8 x 1.54 1
11 756-0978A Pulley, Engine 1
12 783-0891B Deck Stop 1
13 783-1003 Bracket, Clutch 1

PART

NUMBER DESCRIPTION QTY.

-22-

38 INCH MOWER DECK

44

46

45

51

37

7

14

45

13

47

43

38

9

33

50

16

35

25

8

16

42

52

42

52

11

29

53

54

55

56

55

54

53

39

31

26

36

36

18

5

12

28

41

23

32

27

2

1

12

11

19

20

15

48

21

10

8

17

30

48

34

3

40

4

16

24

49

22

21

6

-23-

38 INCH MOWER DECK

REF.

NO.

1 16606 Bracket, Hook, Retainer 1
2 683-0254 Bracket, Deck Hanger LH 1
3 683-0611 Deck Assembly, 38 inch 1
4 703-1890

5 710-0134 Screw, Carriage, 1/4-20 x .62 1
6 710-0599 Screw, Hx. Wash, Hd,Tapp 1/4-20 x .5 6
7 710-0502A Screw, Hx. Wash, Hd, Sems Tapp

8 710-0528 Screw, 5/16-18, 1.25, Gr5 2

9 710-0602 Screw, Hx. Wash, Hd,Tapp,
10 710-0650 Screw, Hx. Wash, Hd,Tapp,
11 710-0726 Screw, Hx. Wash, Hd,Tapp,
12 710-0751 Screw, 1/4-20, .620, Gr5 3

13 710-1889 Bolt, Spindle, 3/4-16, 5.85 2
14 710-3144 Screw, Hx. Cap, 3/8-16, 2.00, Gr5 1
15 711-3314 Roller Pin 1/2" x 7.31 Lg 1
16 712-0431 Nut, Hx. Flange Lock, 3/8-16 5
17 712-3004A Nut, Hx. Flange Lock, 5/16-18, Gr5 1
18 712-3006 Nut, Hex, 1/4-20, Gr5 2
19 712-3010 Nut, Hex, 5/16-18, Gr5 1
20 712-3027 Nut, Hx. Flange Lock, 1/4-20 1
21 712-3078 Nut, Hx. Flange, 3/4-16 2
22 712-3087 Nut, Wing, 1/4-20 1
23 714-0470 Pin, Cotter, 1/8 x 1.25 2
24 714-3004 Pin, Cotter, 3/32 x 1.25 1
25 717-1553B Adjustment Gear, Deck 1
26 726-0233 Nut, Push, .25 ID x .50 OD 2
27 731-2231B Cover, Belt, Deck 1
28 731-2363 Plug, Mulch 1

PART

NUMBER DESCRIPTION QTY.

741-0108
737-0280

Wheel, Deck, 5.0 OD w/ Fitting

Bearing, Flange
Fitting, Lube

3/8-16 x 1.25

5/16-18 x 1.0
5/16-18, 0.875
5/61-12 x .75

REF.

NO.

29 731-26 09A Cover, Belt, De ck, LH 1
30 731-30 05 Front Roller 1
31 731-1032B

2
4
2

32 732-0306 Spri ng, Compression, .406 x .531 x 2

2

33 732-0556 Spring, Extension .94 x 7.57 1
34 734-09 73 Wheel Deck 5.0 x 1.38 2
35 736-0119 Washer, Lock, 5/16, Regular Duty 1

1

36 736-0270 Washer, Belleville, .265 x .75 x .062 3
37 737-3000 Fitting, 3/16 Drive Lube 2

8

38 738-0372A Spacer, Shoulder, 1.00 x .38 x .38 1
39 738-0373 Shoulder Screw 2

6

40 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2
41 747-1116 Rod, Handle, Deck Release .375 Dia 2
42 748-3065 Spacer, Spindle, Deck 4
43 750-1000 Spacer, .80 x 1.10 x 1.330 2
44 754-0641 Belt, V-Type 1
45 756-06 27B Pulley, I dler, 3.50 Dia. 2
46 756-1229 Pulley, Idler, 4.06 Dia. w/ Flange 1
47 756-3106 Pulley, Spindle 2
48 759-38 29 Blade, 19.38 Lg, 3-in-1 2
49 783-1297 Deck Skirt, Mulching 1
50 783-14 17A Bracket, I dler, Arm 1
51 783-14 18 Bracket, Idle r 1
52 618-3129A Spindle Housing Assembly —

53 721-3018A Seal, Oil, Single Lip 4
54 741-3028 Bearing, Cone 4
55 741-30 29 Cup, Bearing 4
56 750-3190A Spacer, Bearing, .780 x 1.000 x 2

PART

NUMBER DESCRIPTION QTY.

Chute Assembly, Side Discharge —

703-1693A
711-0792
726-0106
732-0602A

Includes the following parts:
Bracket, Mounting
Pin, Hinge
Cap, Push
Spring, Torsion

Includes Ref. Nos. 53 thru 56

1
1

1
1
1

2

-24-

HYDROSTATIC TRANSMISSION

-25-

HYDROSTATIC TRANSMISSION

REF.

NO.

1 HG-70721 Main Housing, Assembly, Black 1
2 HG-70720 Side Housing, Assembly, Black 1
3 HG-70724 Center Section, Assembly 1
4 HG-51048 Swashplate, Trunnion Machined 1
5 HG-70331 Block - Assembly 1
6 HG-50928 Sealant 10.5
7 HG-51190 Hex Flange Screw 1/4-20 x 1.25 14
9 HG-51062 Shaft, Input 1

10 HG-2000022 Ring - Retaining 1
11 HG-50951 Spacer 1
12 HG-50329 Ring - Retaining 3
13 HG-51161 Seal, Lip .67 x 1.58 x .276 1
14 HG-50315 Ball Bearing 17mm x 40mm x 12mm 1
16 HG-51064 Hex Flange Hd. Screw 5/16-24 x 0.75 1
17 HG-51140 Lip Seal 18 x 32 x 7 1
18 HG-51119 Arm, Control 1
19 HG-50551 Bearing, 30x52x13 Thrust 2
23 HG-51084 Check Plug Ass’y, .027, Washer 2
24 HG-50966 Shaft, Motor 1
27 HG-51130 Gear - Pinnion, 13t 1
28 HG-51129 10t / 48t Gear 1
29 HG-51043 Gear, 10t Jackshaft 1
30 HG-51044 60t Bull Gear 1
31 HG-51088 Sleeve Bearing .75 x 1.750 x .625 2
32 HG-51517 Sleeve Bearing 1.00 x 1.575 x .625 2
33 HG-44875 Washer, 3/4 ID x 1-1/2 OD x .13 2
34 HG-51518 Lip Seal Axle Seal 2
35 HG-51520 Shaft, Axle 1.00 x 11.99 Flange 1
36 HG-51521 Shaft, Axle 1.00 x 17.59 Flange 1
37 HG-44096 Miter Gear (Splined) 2
38 HG-44097 Miter Gear 15t (0.5 ID) 2
39 HG-50146 Shaft 1
40 HG-44871 Ring, Spiral Retaining 2
41 HG-51083 Pin, Jackshaft 1
42 HG-51100 Magnet, Ring 1
43 HG-51136 Spring, Bypass 1
44 HG-50016 Hydro Mounting Screw 3/8-2 4 x 2.5 Lg 2
45 HG-51132 Filter 1
46 HG-51133 Base, Filter 1
47 HG-51091 Actuator, Bypass 1
48 HG-51098 Rod, Bypass Actuator 1
49 HG-51135 Arm, Bypass 1
50 HG-51116 Retaining Ring 0.250 External 1
51 HG-51081 Seal, Lip .741 x .250 x .250 Tc 1
52 HG-44371 Flat Washer, 5/8 ID x 1.0 OD x .05 1
53 HG-44145 Retaining Ring 1
54 HG-51071 Bearing, Center Block 1
55 HG-2003014 Spring - Helical Compression 1

PART

NUMBER DESCRIPTION QTY.

REF.

NO.

56 HG-2003017 Washer 1
57 737-3121 20W-50 Oil (Gal) 78.8
58 HG-44092 Brake Yoke 1
59 HG-51072 Rotor, Brake 1
60 HG-44132 Brake Puck 2
61 HG-44134 Puck Plate 1
62 HG-44127 Brake Actuating Pin 2
63 HG-51146 Bolt, Special Flange,1/4-20 x 2 w/patch 2
65 HG-23711 Spacer 1
66 HG-51345 Spring, Brake Arm Bias 1
67 HG-44138 Square Head Bolt 5/16-24- Ribbed 1
68 HG-44094 Arm, Brake 1
69 HG-44142 Slotted Hex Nut 5/16-24 1
70 HG-44101 Cotter Pin 3/32 x 3/4 1
71 HG-50919 Compression Spring Brake Anti-drag 1
72 HG-50132 Washer, Ht .5 ID x 1 OD x .032 3
73 HG-44130 Flat - Washer 11/32 ID x 7/8 OD 2
74 HG-44761 Oil Seal .625 x 1.0 x.25 1
83 HG-9004800-

84 HG-51143 Fitting, 5/16 Sae 5/32 Tube 1
85 HG-51147 Hose, Expansion Tank 1
87 HG-51251 Cap, Vent 1
88 HG-50653 Bolt, Self Tapping 10-32 x 1/2 1
94 HG-44147 Ball Bearing .62 ID x 1.38 x .44 1
95 HG-50837 Socket Head Screw, 5/16-24 x 1-1/2 1
96 HG-51200 Spacer, Locating 1
97 HG-50870 Screw 1
98 HG-51120 Arm, Return 1

99 HG-51097 Puck, Adjusting 1
100 HG-51122 Washer, .325 OD x 1.60 ID x .150 1
101 HG-51131 Spring, Extension 1
102 HG-51123 Spacer .560 OD x .260 ID x .870 1
103 HG-51223 Bracket, Torque 1
107 HG-51134 Deflector 1
108 HG-51069 Washer, Shaft .71 x 1.15 x .030 1
109 HG-9005110-

110 HG-50868 Torx Head Screw, 5/16-18 1
111 HG-51144 O-ring .07 x .301 ID 1
113 HG-51179 Bracket,support Expansion Tank 1
114 HG-51184 Spring Guide 1
116 HG-51196 Silicon Sponge 1
120 HG-70725 Center Section-Filter -Bypass Ass’y 1
121 HG-70466 Filter Assembly 1
122 HG-70722 Seal - O-ring Kit 1
128 HG-70503 Kit, Expansion Tank 1
129 HG-51252 Cap, Expansion Tank Shipping 1
135 HG-70723 Block, Assembly 7 Piston 1

PART

NUMBER DESCRIPTION QTY.

Pin, Standard Headless 2

2506

Plug, SAE #6 1

5600

-26-

ELECTRICAL SYSTEM

5

16

8

21

14

12

7

19

20

9

13

17

21

18

783-0715A REF ONLY

8

9

10

4

15

11

1

3

6

2

-27-

ELECTRICAL SYSTEM

REF.

NO.

1 17962 Plate, Switch 1
2 629-04019 Harness Assembly, Kawasaki 1
3 629-0469B Harness Assembly, Headlight 1
4 629-1105 Harness Assembly 1
5 629-1106 Harness Assembly, Safety, Reverse 1
6 710-0224 Screw, Hx. Wash. Hd. Tapp, 10-16 x .5 2
7 710-0227 Screw, Hx. Wash. Hd. Tapp, 8-18 x .5 2
8 710-0599 Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.5 2

9 712-3006 Nut, Hex, 1/4-20, Gr5 2
10 725-04022 Indicator/ Meter Hour 1
11 725-04039 Switch, Interlock 1
12 725-1303 Switch, Outer Seat Spring 1
13 725-14 26 Solenoid, Starter, 12V 1
14 725-14 39 Switch, Inner Seat Spring 1
15 725-17 41 Switch, Key, 4-Position 1
16 725-20 54 Key, Switch, Plas tic 2
17 725-32 33 Switch, Electric PTO, Yellow Knob 1
18 726-0278 Plate, Insulator Boss 1
19 726-0279 Plate, Insulator 2
20 736-0222 Washer, Lock, Ext 1/4 2
21 736-0329 Washer, Lock, 1/4 2

PART

NUMBER DESCRIPTION QTY.

-28-

CYLINDER/CRANKCASE

18

19

7

4

8

21

5

13

14

17

20

2

12

A

1

22

10

A

16

12

11

6

12

1

9

3

21

20

13

5

4

19

20

15

-29-

CYLINDER/CRANKCASE

REF.

NO.

1 KM-11004-7008 Gasket, Head 2
2 KM-11008-7010 Head, Cylinder #1 Complete 1
3 KM-11008-7011 Head, Cylinder #2 Complete 1
4 KM-11022-7003 Case, Rocker 2
5 KM-11060-7001 Gasket, Rocker Case 2
6 KM-11061-7007 Gasket, Crankcase Cover 1
7 KM-11061-7008 Gasket, Breather 1
8 KM-14091-7007 Cover 1

9 KM-49015-7009 Cover, Crankcase 1
10 KM-49120-7015 Crankcase, Complete 1
11 KM-59071-2079 Joint 1
12 KM-92043-7001 Pin 6
13 KM-92049-7001 Seal, Oil rvc2 6x11x10.2 4
14 KM-92049-7002 Seal, Oil 35-48-8 Tc 1
15 KM-92049-7004 Seal, Oil 35-62-8 Tc 1
16 KM-92049-7005 Seal, Oil 8x14x5 Hs 1
17 KM-92139-7002 Bushing 1
18 KM-130B0612 Bolt, Flanged 4
19 KM-130B0640 Bolt, Flanged 4
20 KM-130T0850 Bolt, Flanged 17
21 KM-130T0875 Bolt, Flanged 2
22 KM-172G0818 Bolt, Stud 4

PART

NUMBER DESCRIPTION QTY.

-30-

PISTON/CRANKSHAFT

6

2

1

5

3

6

5

6

2

7

7

3

4

6

REF.

NO.

1 KM-13001-7009

2 KM-13002-7001 Pin, Piston 2
3 KM-13008-7001

4 KM-13031-7033 Crankshaft, Comp 1
5 KM-13251-7007

6 KM-92033-7005 Ring, Snap 4
7 KM-130G0630 Bolt, Flanged 4

PART

NUMBER DESCRIPTION QTY.

KM-13029-7005

KM-13025-7003

KM-13251-7008

Piston, Engine

Piston, Engine L,0.50

Ring Set, Piston

Ring Set, Piston L,0.50

Rod Assy, Connecting

Rod Assy, Connecting,U/S=0.50

2

AR

2

AR

2
2

-31-

VALVE/CAMSHAFT

15

5

7

16

5

4

20

9

6

20

4

13

3

1

13

20

3

13
1

3

2

9

6

17

19

14

11

8

18

2

5

9

7

REF.

NO.

1 KM-12004-7003 Valve, Intake 2
2 KM-12005-7003 Valve, Exhaust 2
3 KM-12009-7001 Retainer, Valve Spring 4
4 KM-12011-2056 C ollet 8
5 KM-12016-7001 Arm, Rocker 4
6 KM-12032-7001 Tappet 4
7 KM-13070-7001 G uide 2
8 KM-13070-7004 G uide 1

9 KM-13116-2057 Rod, Push 4
10 KM-13270-7002 Plate 1
11 KM-13271-7007 Plate 1

PART

NUMBER DESCRIPTION QTY.

16

15

20

15

13

3

4

5

16

REF.

NO.

12 KM-42036-7001 Sleeve 1
13 KM-49078-7001 Spring, Engine Valve 4
14 KM-49118-7009 Camshaft, Comp 1
15 KM-92009-2341 Screw 4
16 KM-92015-2253 Nut 4
17 KM-92033-7001 Ring, Snap 2
18 KM-92140-7002 Ball 6
19 KM-92145-7001 Spring 1
20 KM-92151-7019 Bolt 4
21 KM-92200-7001 Washer 1

PART

NUMBER DESCRIPTION QTY.

10

12

17

21

-32-

LUBRICATION

8

15

15

3

2

11

14

1

13

4

5

16

16

7

6

10

9

12

REF.

NO.

1 KM-13107-7009 Shaft 1
2 KM-13271-7017 Plate 1
3 KM-14075-7001 Cap Assy 1
4 KM-16154-2053 Rotor, Pump - In 1
5 KM-16154-2054 Rotor, Pump - Out 1
6 KM-49065-2078 Filter, Oil 1
7 KM-49065-7004 Filter, Oil 1
8 KM-59051-7011 Gear, Spur 1

9 KM-59071-7004 Joint 1
10 KM-59231-7003 Filler 1
11 KM-92043-7003 Pin 2
12 KM-92066-7003 Plug 1
13 KM-92140-7003 Ball 1
14 KM-92145-7002 Spring 1
15 KM-130B0612 Bolt, Flanged 3
16 KM-670D2016 O Ring,16mm 3

PART

NUMBER DESCRIPTION QTY.

-33-

COOLING

15

20

18

17

2

11

19

4

14

3

9

10

13

1

11

8

12

11

14

14

REF.

NO.

1 KM-13270-7007 Plate 1
2 KM-14037-7010 Screen 1
3 KM-14091-7008 Cover 1
4 KM-23062-7008 Bracket, Comp 1
5 KM-49089-7023 Shroud, Engine, #2 Cylinder 1
6 KM-49089-7025 Shroud, Engine 1
7 KM-59041-7001 Fan 1
8 KM-59066-7008 Housing, Fan 1
9 KM-92009-7008 Screw, 6x10 3

10 KM-92026-7007 Spacer 1

PART

NUMBER DESCRIPTION QTY.

6

7

REF.

NO.

16

14

PART

NUMBER DESCRIPTION QTY.

11 KM-92153-7007 Bolt 3
12 KM-92153-7008 Bolt 1
13 KM-92171-7005 Clamp 1
14 KM-130 B0612 Bolt, Flanged 6
15 KM-130 B0616 Bolt, Flanged 2
16 KM-130 B0816 Bolt, Flanged 1
17 KM-23062-7004-9H Bracket 1
18 KM-56033-7001 Label, Manual 1
19 KM-56070-7001 Label, Warning 1
20 KM-56080-7016 Label, Brand 1

5

-34-

ENGINE ELECTRICAL/IGNITION

11

14

1

8

13

12

2

10

4

7

6

12

5

REF.

NO.

1 KM-21066-7001 Regulator, Voltage 1
2 KM-21171-7007 Coil Assy, Ignition 1
3 KM-21171-7008 Coil Assy, Ignition 1
4 KM-21193-7016 Flywheel Assy 1
5 KM-26030-7001 Harness 1
6 KM-27010 -7002 Switch, Oil Pressure 1
7 KM-59031-7001 Coil, Charging 1

PART

NUMBER DESCRIPTION QTY.

3

9

9

REF.

NO.

8 KM-92009-2308 Screw 2

9 759-3331 Plug, Spark - RCJ8Y 2
10 KM-92151-2097 Bolt, 12x30 1
11 KM-92200-7002 Washer 1
12 KM-130B0620 Bolt, Flanged 4
13 KM-22 4B0520 Screw, Pan Hd. Cross 4
14 KM-510A5100 Key, Woodruff 1

PART

NUMBER DESCRIPTION QTY.

-35-

ENGINE CONTROL

7

17

15

10

12

14

16

2

5

1

11

8

4

3

18

6

REF.

NO.

1 KM-13107-7010 SHaft 1
2 KM-13271-7018 Plate 1
3 KM-16169-7009 Link, Choke 1
4 KM-16171-7007 Link 1
5 KM-39129-7003 Spring, Governor 1
6 KM-49103-7004 Arm, Governor 1
7 KM-49113-7022 Panel, Control Comp 1
8 KM-92009-7007 Screw, 4x35 1
9 KM-92145-7003 Spring 1

PART

NUMBER DESCRIPTION QTY.

9
13

REF.

NO.

10 KM-92145-7004 Spring 1
11 KM-92145-7005 Spring 1
12 KM-92150-2182 Screw, Hx, 5x16 2
13 KM-92153-7005 Bolt, 6x35 1
14 KM-92170-7001 Clamp 2
15 KM-130B0612 Bolt, Flanged 2
16 KM-214B0408 Screw, Pan 2
17 KM-311B0600 Nut, Hex 1
18 KM-411B0600 Washer, Plain 1

PART

NUMBER DESCRIPTION QTY.

-36-

CARBURETOR/INTAKE MANIFOLD

27

19

15

17

27

22

28

7

8

11

3

14

21

24

12

1

21

18

9

13

26

29

20

10

5

4

23

25

16

6

2

REF.

NO.

1 KM-11061-7004 Gasket, Manifold - Carb 1
2 KM-11061-7005 Gasket, Carb 1
3 KM-11061-7009 Gasket, Chamber 1
4 KM-11061-7010 Gasket 1
5 KM-13107-7018 Shaft 1
6 KM-15003-7047 Carburetor Assy 1
7 KM-16014-7001 Screw, Pilot Air 1
8 KM-16020-7003 Chamber, Float 1

9 KM-16025-7006 Valve, Throttle 1
10 KM-16030-7003 Valve, Float 1
11 KM-16031-7002 Float 1
12 KM-16041-7016 Shaft, Car buretor Choke 1
13 KM-16041-7018 Shaft, Carburetor Throttle 1
14 KM-16186-7002 Valve Assy, Choke 1
15 KM-39076-7001 Limiter 1

PART

NUMBER DESCRIPTION QTY.

REF.

NO.

16 KM-49121-7001 Nozzle, Main 1
17 KM-59076-7005 Manifold, Intake 1
18 KM-92009-2083 Screw 2
19 KM-92009-2349 Screw 1
20 KM-92055-2174 O-Ring 1
21 KM-92055-7007 O-Ring, Id=31 2
22 KM-92063-7026 Jet, Main, #88 1
23 KM-92081-2234 Spring 1
24 KM-92093-2100 Seal 1
25 KM-92093-7003 Seal 1
26 KM-92145-7015 Spring 1
27 KM-92153-7009 Bolt 4
28 KM-92172-7001 Screw 1
29 KM-92200-7014 Washer 1

PART

NUMBER DESCRIPTION QTY.

-37-

AIR FILTER/MUFFLER GASKET

7

3

2

1

4

8

5

9

6

9

REF.

NO.

1 KM-11011-7009 Case, Air Filter Upper 1
2 KM-11013-7016 Element, Air Filter 1
3 KM-11013-7017 Element, Air Filter 1
4 KM-11038-7004 Case Assy, Air Filter Lower 1
5 KM-11060-7021 Gasket, Muffler 2
6 KM-32153-7007 Pipe, Breather 1
7 KM-92015-1193 Nut 2
8 KM-92153-7007 Bolt 2
9 KM-670B2010 O-Ring,10mm 2

PART

NUMBER DESCRIPTION QTY.

-38-

FUEL PUMP/FILTER

4

2

8

5

4

1

3

4

REF.

NO.

1 KM-23062-7004-9H Bracket, Comp 1
2 KM-49019-7001 Filter, Fuel 1
3 KM-49040-7001 Pump, Fuel 1
4 KM-92170-2088 Clamp 4
5 KM-92191-7003 Tube, 6.35x12.7x 160 1
6 KM-92191-7002 Tube 1
7 KM-92191-7004 Tube 1
8 KM-130B0620 Bolt, Flanged 2

6

4

7

PART

NUMBER DESCRIPTION QTY.

-39-

ELECTRIC STARTER

4

1

5

2

3

REF.

NO.

1 KM-13101-7002 Gear Assy 1
2 KM-21039-7002 Brush 1
3 KM-21080-7003 Armature 1
4 KM-21163-7007 Starter, Electric 1
5 KM-130B0816 Bolt, Flanged 2

PART

NUMBER DESCRIPTION QTY.
