Parts Manual
Series 1500
Hydrostatic Lawn Tractor
Models 1515
1517
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A. FORM NO. 770-10604A
(01/2002)
-1-
MODELS 1515 & 1517
TABLE OF CONTENTS
DESCRIPTION PAGE
Axle, Front ....................................................... 5, 6
Battery ............................................................. 15, 16
Brake Pedal ..................................................... 11, 12
Bulkhead .......................................................... 17, 18

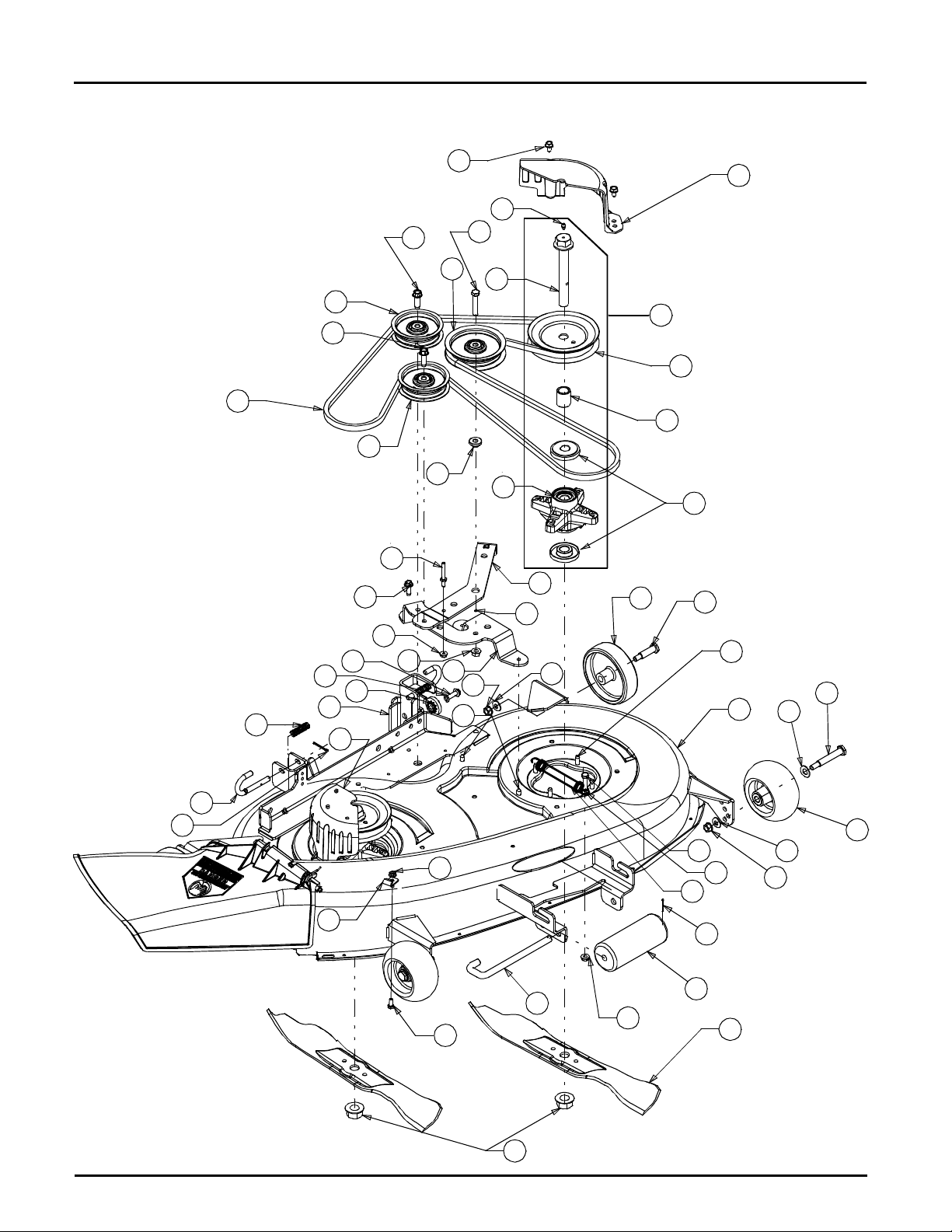

Mower Deck, 38-inch ........................................ 21, 22
Mower Deck, 42-inch ........................................ 23, 24
Dash Panel ...................................................... 15, 16
Drive System ................................................... 3, 4
Electrical Sysytem ........................................... 27, 28
Engine
Air Filter ........................................................
Blower Housing ............................................
Breather ........................................................
Carburetor ....................................................
Controls ........................................................
Crankcase ....................................................
Crankshaft ....................................................

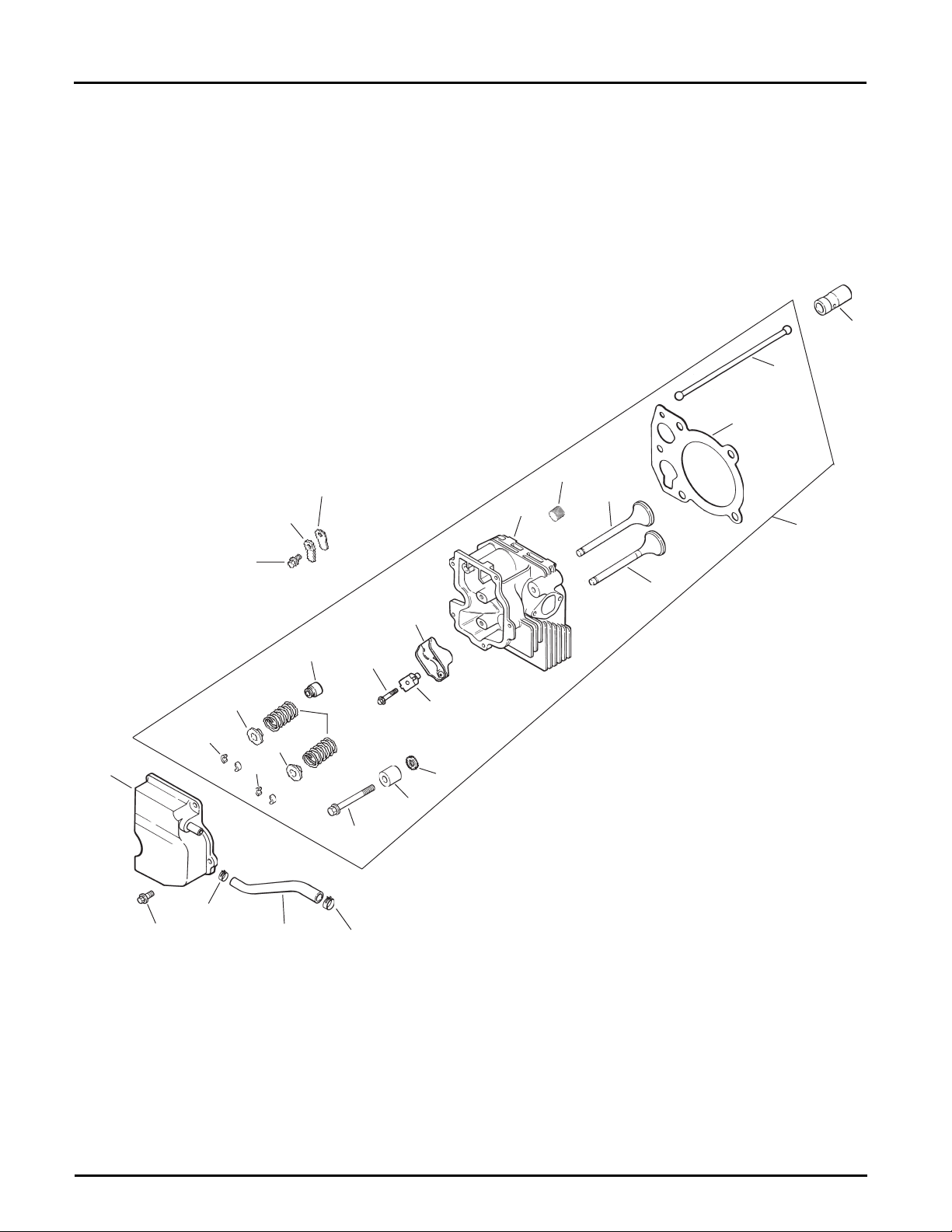

Cylinder Head ...............................................

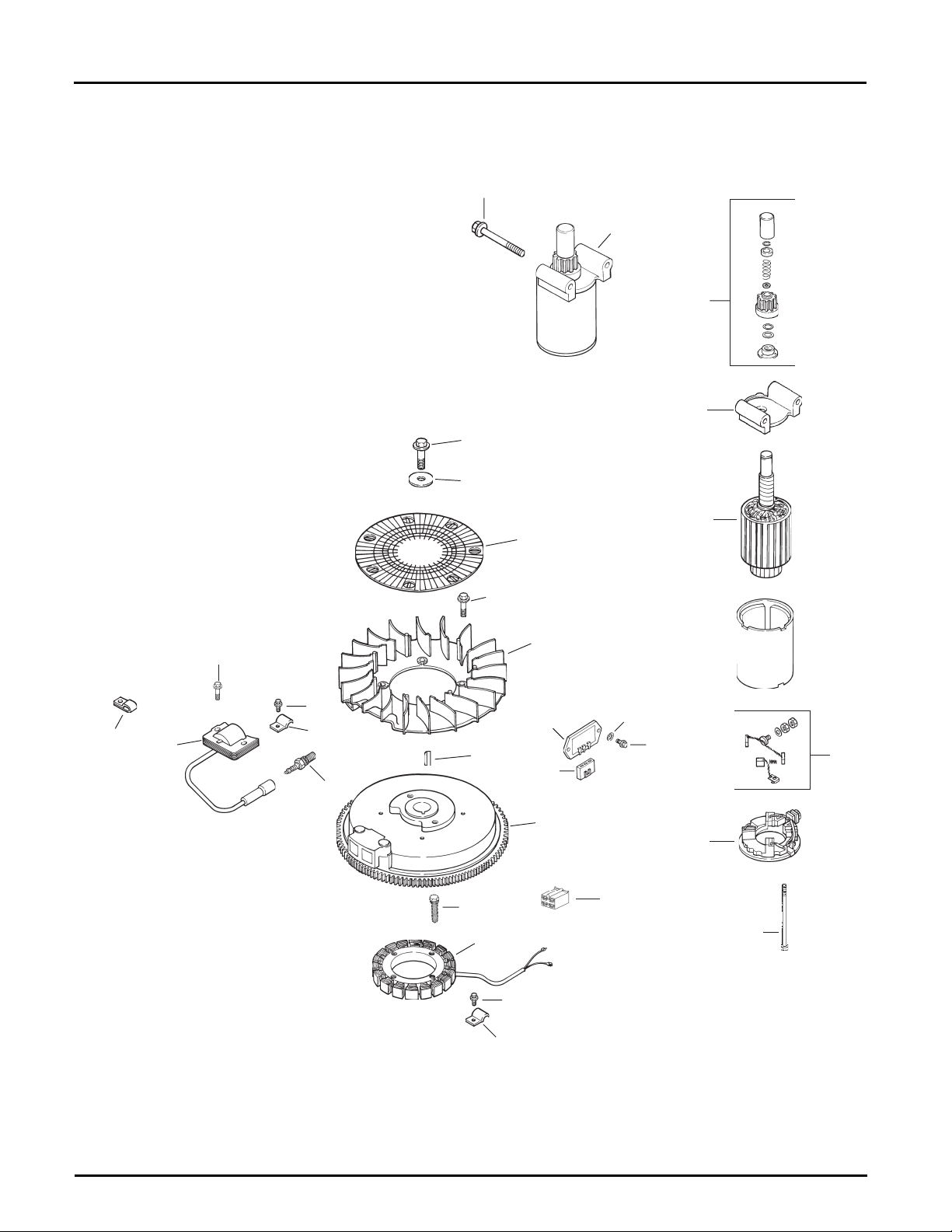

Electrical .......................................................
Exhaust..........................................................
Fuel System ..................................................

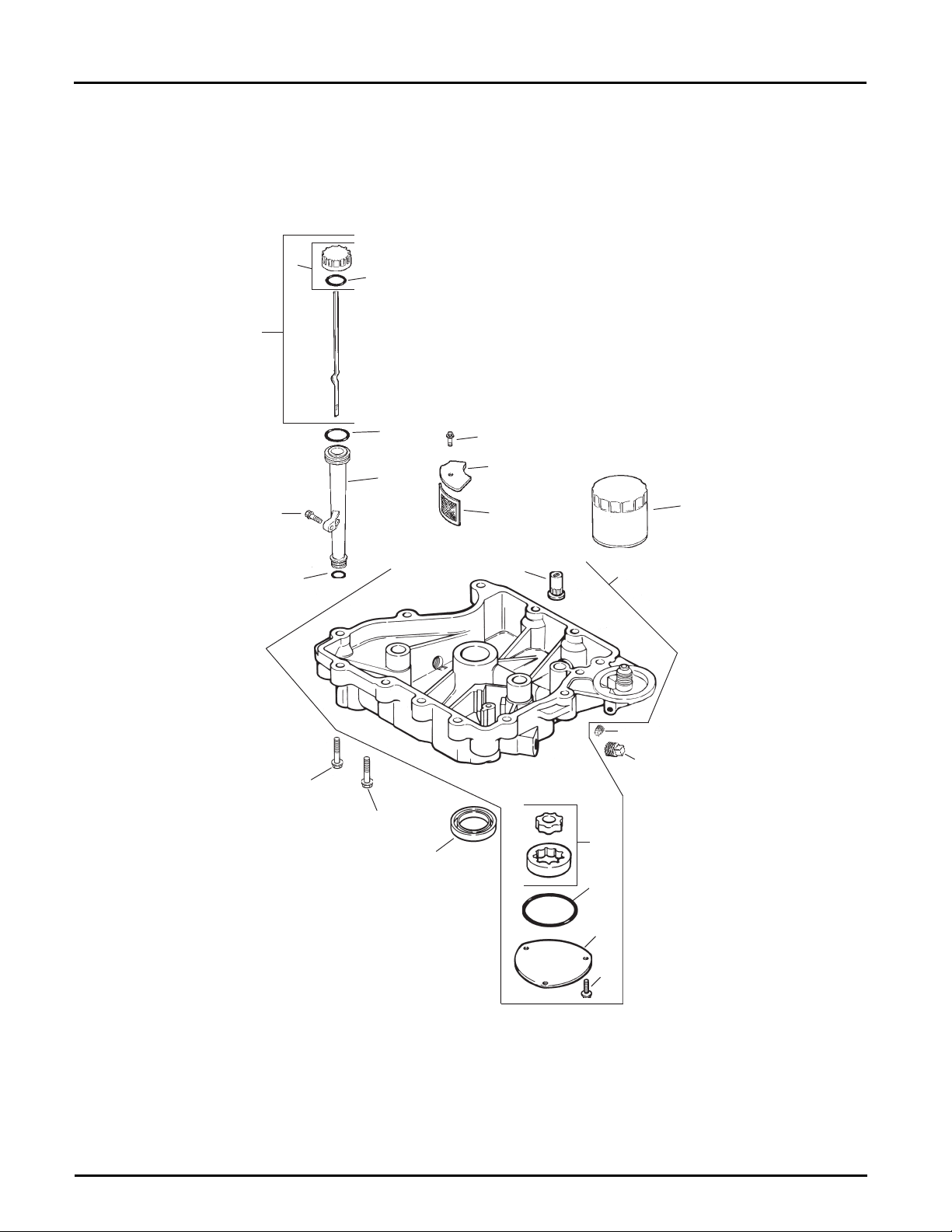

Oil Pan ..........................................................
Starter ...........................................................
Valves ...........................................................
41
37
33, 34
39, 40
38
29, 30
29, 30
33, 34
35, 36
41
39, 40
31, 32
35, 36
33, 34
DESCRIPTION PAGE
Engine Mounting .............................................. 14
Fender ............................................................. 9
Frame .............................................................. 7, 8
Fuel Tank ......................................................... 9
Grille ................................................................ 17, 18
Hood ................................................................ 17, 18
Deck Lift Handle/Linkage ................................. 10
Muffler .............................................................. 14

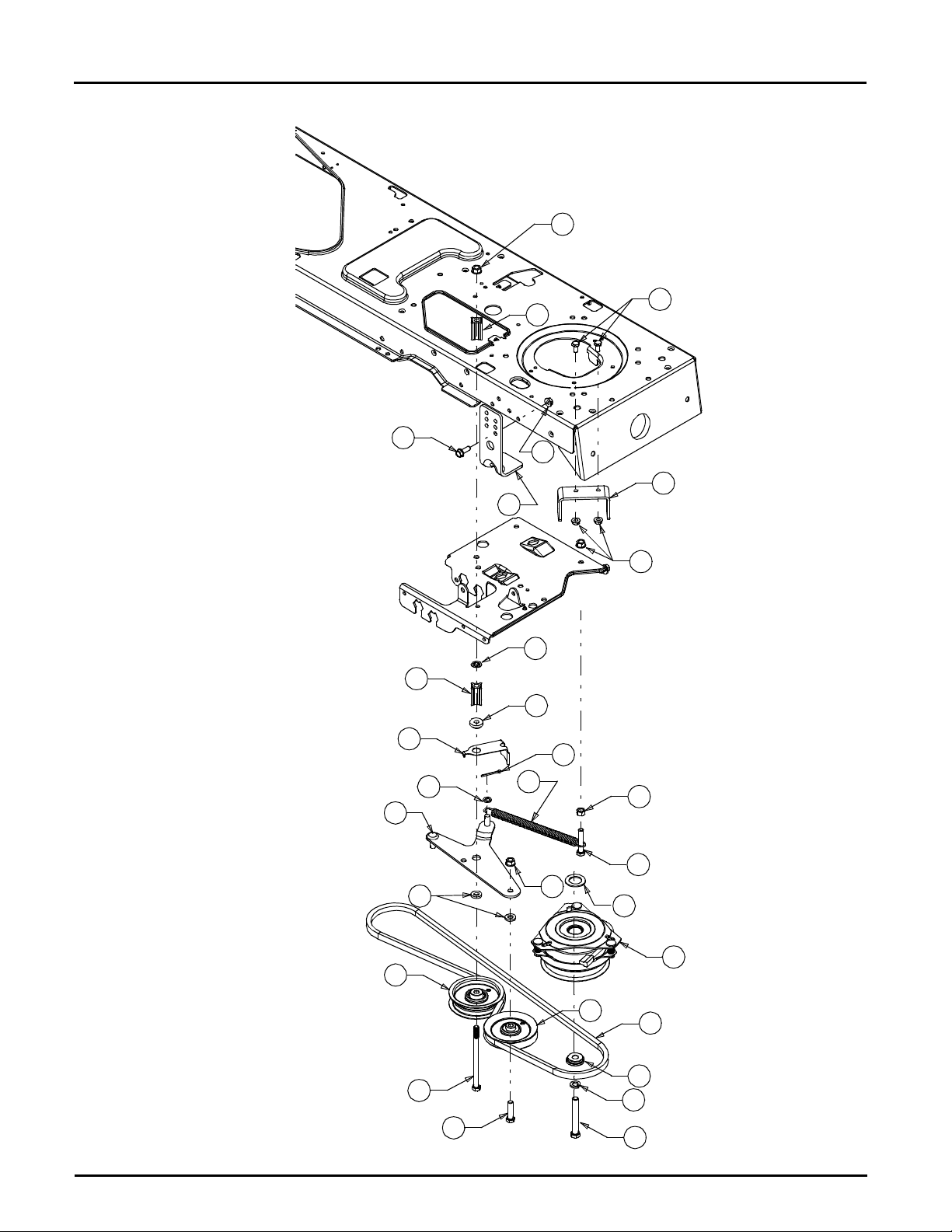

PTO Clutch ...................................................... 19, 20
Seat ................................................................. 13
Side Panels ..................................................... 17, 18
Steering ........................................................... 5, 6
Transmission, Hydrostatic ............................... 25, 26
Wheels, Front & Rear ...................................... 2
NOTE, For painted parts, please refer
to the list of color codes below. Please
add the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted Cub
Yellow, the part number to order would
be 700-xxxx-0498.
Cub Yellow: 0498
Cub Beige: 0499
Powder Black: 0637
-2-
WHEELS
1
2
3
4
5
6
REF.
NO.
1 634-0245 Rim/Wheel Assembly, 20 x 9 x 8 (4-Lug) 2
2 634-3012A Wheel, Complete, 15 x 6 x 6 2
3 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2
4 634-0246 Rim Assembly, 8.0 x 6.19 (4-Lug) 2
5 712-3050 Lug Nut, 7/16-14 8
6 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4
7 634-3015 Rim Assembly, Bead Lock, 6 x 4.5 2
8 731-3020 Hub Cap 2
9 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2
— 737-0224 Gease Fitting 2
— 734-0255 Valve, Tubeless Air 4
PART
NUMBER DESCRIPTION QTY.
6
9
7
8
-3-
42
20
A
1
A
21
33
B
34
B
B
29
49
23
35
B
DRIVE SYSTEM
27
13
17
36
8
39
22
11
31
22
37
37
18
22
18
8
5
41
40
45
47
48
46
19
25
2
28
51
3
44
10
26
6
36
16
18
12
50
7
32
36
4
30
Attach Spring (732-1716) Here
9
23
35
36
43
44
15
23
9
24
38
14
36
52
-4-
DRIVE SYSTEM
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 17840 Bracket, Mounting, Transaxle 2
2 618-0365 Hub Assembly, Wheel 2
3 618-0667 Transmission, Hydrostatic 1
4 629-0949A Harness Assembly, Ground & Reverse 1
5 683-0251 Bracket Assembly, Idler, Center Dbl 1
6 710-0176 Hex Cap Screw, 5/16-18, 2.75, Gr5 4
7 710-0227 Screw, #8-18, 0.500 2
8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3
9 710-0604A Screw, 5/16-18, 0.625 6
10 710-0653 Screw, 1/4-20, 0.375 1
11 710-3007 Screw, #12-24, 0.375 3
12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1
13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1
14 711-0677 Ferrule, 5/16-18 x .312 Dia 1
15 711-0832 Ferrule, 3/8-24 x .375 Dia 1
16 712-0291 Nut, Hex Lock, 1/4-20 1
17 712-0333 Nut, Hex, 1/2-20, Gr2 1
18 712-0431 Nut, Flange Lock, 3/8-16 3
19 712-1329 Nut, 3/4-16, Grb, Hx 2
20 712-3004A Nut, Flange Lock, 5/16-18, Gr5 5
21 712-3010 Nut, Hex, 5/16-18, Gr5 1
22 712-3017 Nut, Hex, 3/8-16, Gr8 4
23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
24 714-0111 Pin, Cotter, 3/32, 1.0 1
25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
26 725-1644 Switch, Spring, Short 1
27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1
28 726-0320 Plate, Insulator Nut 1
29 731-1449A Fan, Blade, 10” 1
30 732-0209 Spring, .48 OD x 2.03 Extension 1
31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1
32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1
33 732-0729 Ring, Wire 1
34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1
35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1
36 736-0140 Washer, Flat, .385 x .62 x .063 3
37 736-0169 Washer, Lock, 3/8 , Regular Duty 2
38 736-0275 Washer, Flat, .344 x .688 x .065 1
39 736-0921 Washer, Lock, 1/2 , Regular Duty 1
40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1
41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1
42 747-1149 Rod, Hydro Bypass 1
43 747-1150 Rod, Brake, Hydro 1
44 747-1151 Rod, Control, Hydro 1
45 750-0535 Spacer, .376 ID x .625 OD x .22 1
46 754-0640 Belt, V Type, Poly 1
47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2
48 756-0981A Pulley, Idler, Flat 2.75 OD 1
49 756-1166 Pulley, Input, 5.0 Dia 1
50 783-0810 Bracket, Transmission, Torque Hydro 1
51 783-1019 Bracket, Actuator, Switch 1
52 756-0639 Pulley, Engine, 3.56 Dia
29
-5-
STEERING
4
14
28
18
20
19
9
15
11
1
20
10
3
19
9
7
8
17
2
7
27
25
6
13
5
23
26
21
24
22
12
-6-
STEERING
REF.
NO.
1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2
2 711-1408 Link, Drag, RH 1
3 711-1409A Link, Drag, LH 1
4 712-0237 Nut, Hex Lock, 5/16-24 1
5 712-0240 Nut, Jam, 7/16-20, Gr2 2
6 712-0241 Nut, Hex, 3/8-24, Gr5 2
7 712-0431 Nut, Flange Lock, 3/8-16 4
8 712-0459 Nut, Flange Lock, 7/16-20 1
9 712-3004A Nut, Flange Lock, 5/16-18 2
10 717-1550D Gear, Steering, 11/90 Ratio 1
11 717-1554 Gear, Pinion, Steering 1
12 723-0610 Ball Joint, 7/16-20 2
13 736-0169 Washer, Lock, 3/8 , Regular Duty 2
14 736-0242 Washer, Bell, .340 x .872 x .060 1
15 736-3084 Washer, Flat, .510 x 1.120 x .060 1
16 737-3007 Grease, Alvania Ep 2 1
17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2
18 738-1194 Shaft, Steering, .625 OD x 25.00 Lg 1
19 741-0475 Bushing, Plastic, .380 ID 2
20 741-0656 Bearing, Hex Flange, 5/8 1
21 683-0605 Axle Assembly, LH .750 Dia 1
22 683-0606 Axle Assembly, RH .750 Dia 1
23 712-0417A Nut, Hex, Flange, 5/8-18 2
24 714-0162 Pin, Cot, 5/32, 1.25 2
25 719-0583 Axle, Pivot, Cast .750 Dia 1
26 736-0866 Washer, Flat, .755 x 1.92 x.060 2
27 738-1011 Spacer, Shoulder, .500 x 2.230, 3/8-16 2
28 731-3209 Wheel, Steering, Soft Grip, Three Spoke 1
29 731-3210 Cover, Steering Wheel 1
PART
NUMBER DESCRIPTION QTY.
-7-
FRAME
3
20
3
17
13
3
10
3
10
13
20
17
710-0607 Used
4
At This Location Only
5
26
3
7
1
14
15
11
6
23
21
19
16
23
6
16
7
22
19
9
12
8
2
-8-
FRAME
REF.
NO.
1 683-0304A Frame Assembly, Lower 1
2 683-0612 Bumper Assembly 1
3 710-0604A Screw, Self-tapping, 5/16-18, 0.625 19
4 710-0607 Screw, Self-tapping, 5/16-18, 0.500 1
5 710-0642 Screw, Self-tapping, 1/4-20, 0.750 1
6 710-1238 Screw, 5/16-18, .875, Gr5 2
7 710-1260A Screw, 5/16-18, 0.750 2
8 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
9 712-0431 Nut, Flange Lock, 3/8-16 2
10 712-0459 Nut, Flange Lock, 7/16-20 2
11 712-3006 Nut, Hex, 1/4-20, Gr5 1
12 714-0145 Pin, Click, .092 x 1.64 Lg 2
13 732-3080A Spring, Compression, 1.28 OD x 3.50 Lg 2
14 736-0222 Washer, Lock, Ext 1/4 2
15 736-0329 Washer, Lock, 1/4, Regular Duty 1
16 736-0331 Washer, Bell, .390 x 1.13 x .062 2
17 736-0407 Washer, Bell .45 x 1.00 x .062 2
18 737-3007 Grease, Alvania Ep 2 1
19 738-0143 Shoulder Screw, 3/8-16 2
20 738-1020 Shoulder Screw .625 x .500, 7/16-20 2
21 783-0726B Bracket, Pivot, Support RH 1
22 783-0727A Bracket, Pivot, Support LH 1
23 783-0728 Bracket, Pivot, Bar 1
24 783-1462 Frame, Upper, Cub 1500 1
25 783-1463 Bracket, Frame, Seat 1
26 722-3022 Foam Tape, .625 x .25 18
PART
NUMBER DESCRIPTION QTY.
-9-
FENDER & FUEL TANK
6
2
11
15
7
2
3
14
2
12
13
16
10
1
9
REF.
NO.
1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2
2 710-0604A Screw, 5/16-18, 0.625 8
3 710-0895 Screw, 1/4-15, 0.750 9
4 712-3004A Nut, Flange Lock, 5/16-18 2
5 731-0511 Strip, Trim 1.5
6 731-2616 Cover, Fender, RH 1
7 731-2617 Cover, Fender, LH 1
8 736-3078 Washer, Flat, .349 x 1.00 x .063 2
9 783-0677 Bracket, Lift, Adjustment 1
10 783-1461 Fender 1
11 783-1489 Bracket, Seat, Mount 2
12 726-3046 Clip, Ratchet, .250 Dia 12
13 735-0697 Pad, Foot, LH 1
14 735-0698A Pad, Foot, RH 1
15 751-0819 Tank, Fuel 1
16 751-3124B Cap, Fuel 1
PART
NUMBER DESCRIPTION QTY.
1
5
8
4
8
4
-10-
LIFT ASSEMBLY
1
10
17
9
21
10
20
22
5
14
7
20
25
11
21
12
25
B
14
8
B
18
23
19
22
18
A
14
A
5
8
26
4
19
13
26 13
4
24
REF.
NO.
1
2
3
4 712-0431 Nut, Flange Lock, 3/8-16 2
5 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
6
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
PART
NUMBER DESCRIPTION QTY.
683-0197B Shaft Assembly, Lift 1
711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
712-0206 Nut, Hex, 1/2-13, Gr5 2
712-3083 Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
714-0145A Pin, Click, .092 x 1.64 Lg 2
716-0106 E-ring, .625 Dia. Shaft 2
731-2111A Knob 1
732-0874 Spring, Torsion 1
736-0160 Washer, Flat, .53 x .93 x .050 2
736-0275 Washer, Flat, .344 x .688 x .065 4
736-0921 Washer, Lock, 1/2 , Regular Duty 2
736-3019 Washer, Flat, .531 x 1.062 x .134 2
736-3084 Washer, Flat, .510 x 1.120 x .060 3
738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
738-0143 Shoulder Screw, 3/8-16 2
741-0225 Bearing, Hex Flange 2
741-0715 Bearing, Flange, Snap .500 ID 2
746-0968 Cable, Lift, 16.16 Lg 2
747-1111A Handle, Lift 1
747-1130B Rod, Deck, Front Adjustment .5" Dia 1
756-1154 Pulley, Roller 2
783-0678A Lift, Arm 2
783-0720A Bracket, Adjustment, Front Deck Rod 1
3
15
17
2
3
15
16
9
27
6
12
-11-
PEDAL ASSEMBLY
10
6
20
20
6
11
25
19
28
27
8
7
10
10
2
17
32
29
18
30
31
5
24
10
10
21
8
23
13
9
Hook to Flange
In Frame (78 3-0650)
25
19
26
18
15
11
1
9
16
33
14
3
22
5
26
4
-12-
PEDAL ASSEMBLY
REF.
NO.
1 647-0031 Control Assembly, Brake 1
2 647-0049 Control Assembly, Hydro 1
3 710-0604A Screw, Self-tapping, 5/16-18, 0.625 4
4 710-0650 Screw, Self-tapping, 5/16-18, 0.875 1
5 710-1260A Screw, 5/16-18, 0.750 3
6 711-0736 Adjustment Ferrule 1/4-20 x 1.0 2
7 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 1
8 712-0431 Nut, Flange Lock, 3/8-16 2
9 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
10 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 6
11 714-0111 Pin, Cotter, 3/32, 1.0 2
12 719-0584 Pedal, Control 1
13 732-0335 Spring, Compression, .405 x 1.17 1
14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1
15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1
16 735-3049 Pad, Brake, Control 1
17 736-0133 Washer, Flat, .411 x 1.25 x .100 1
18 736-0142 Washer, Flat, .281 x .50 x .063 2
19 736-0187 Washer, Flat .64 ID x 1.24 x .06 2
20 736-0204 Washer, Flat, .344 ID x .62 OD 2
21 736-3004 Washer, Flat, .406 ID x .875 OD x .105 1
22 736-3008 Washer, Flat, .344 x .750 x .120 1
23 738-0155 Shoulder, Screw .437 x 1.62 Lg 1
24 738-0507B Screw, Shoulder, .500 Dia x .434 1
25 741-0225 Bearing, Hex Flange 2
26 741-3065B Bearing, Hex Flange, .628 ID, Split 2
27 747-1137 Rod, Control, Cruise 1
28 747-1138 Rod, Control, Brake Lock 1
29 748-0413 Latch, Cruise 1
30 748-0415B Spacer, .385 ID x .635 OD x 1.54 1
31 783-0653F Bracket, Support, Stearing 1
32 783-0663C Bracket, Lockout, Hydro 1
33 783-1469 Pedal, Brake 1
PART
NUMBER DESCRIPTION QTY.
ADJUSTABLE SEAT
13
10
-13-
21
6
18
11
9
3
20
19
15
REF.
NO.
1 710-1268 Screw, #10-16, 0.375 2
2 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
3 712-3027 Nut, Flange Lock, 1/4-20 1
4 720-0433 Grip, Seat, Adjustment (Yellow) 1
5 726-0201 Nut, Speed, .3125 ID 2
6 731-1989 Spacer, Seat, Adjustment 4
7 732-0499 Spring, Compression .41 OD x 1.50 1
8 732-1184 Spring, Extension, .84 Dia x 4.6 Lg. 1
9 736-0175 Washer, Spring, .265 x .562 x.025 1
10 736-0204 Washer, Flat, .344 ID x .62 OD 1
11 736-0275 Washer, Flat, .344 x .688 x .065 2
12 736-3019 Washer, Flat, .531 x 1.062 x .134 2
13 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
14 738-0296 Shoulder, Screw .437 x .286 Lg 2
15 738-1198 Screw, Shoulder, .50 x.50, 5/16-18 4
16 783-0209A Bracket, Lift, Seat 1
17 783-0611 Stop, Seat, Adjustment 1
18 783-0738 Bracket, Pivot, Seat 1
19 783-0739 Lever, Seat, Adjustment 1
20 783-0753 Selector, Seat, Adjustment 1
21 757-3003 Seat, Mid-back, V-1480 1
PART
NUMBER DESCRIPTION QTY.
5
17
12
15
4
14
8
16
7
1
2
2
9
Fits Over Fuel Line Routed Behind The Engine.
-14-
ENGINE ACCESSORIES
13
For Choke
5
20
7
12
20
16
11
10
14
4
Secures The Headlight Harness Slack To The Hood Hinge.
3
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0227 Screw, #8-18, 0.500 4
2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 4
3 710-0604A Screw, 5/16-18, 0.625 4
4 710-3206A Screw, M8-1.25, 25.0, Gr8.8 4
5 712-3017 Nut, Hex, 3/8-16, Gr8 1
6 712-3086 Nut, M8, 1.25-6h, Flange 2
7 783-0615B Shield, Heat, Muffler 1
8 721-0375 Gasket, Exhaust, Kohl er Single 1
9 722-0263 Foam, .625 x 1.50 x 10.0 Lg 2
10 725-0157 Cable, Tie, 3/16 x .05 x 7.4 1
11 726-0205 Clamp, Hose, .490 Dia. 2
12 751-3142 Cap, Oil, Drain 1
13 736-0300 Washer, Flat, .406 x .875 x .059 1
14 736-0607 Washer, External Lock, 5/16 4
15 746-1087 Cable, Throttle, 27.4 Lg 1
16 751-0535 Hose, Fuel Line 60
17 751-0564 Deflector, Muffler 1
18 751-0617 Muffler, Single Inlet 1
19 751-0824 Pipe, Exhaust, Kohler Single 1
20 751-3140 Drain, Oil 1
21 751-3141 Hose, Extension, Oil Drain 12
15
7
2
8
19
18
6
17
1
-15-

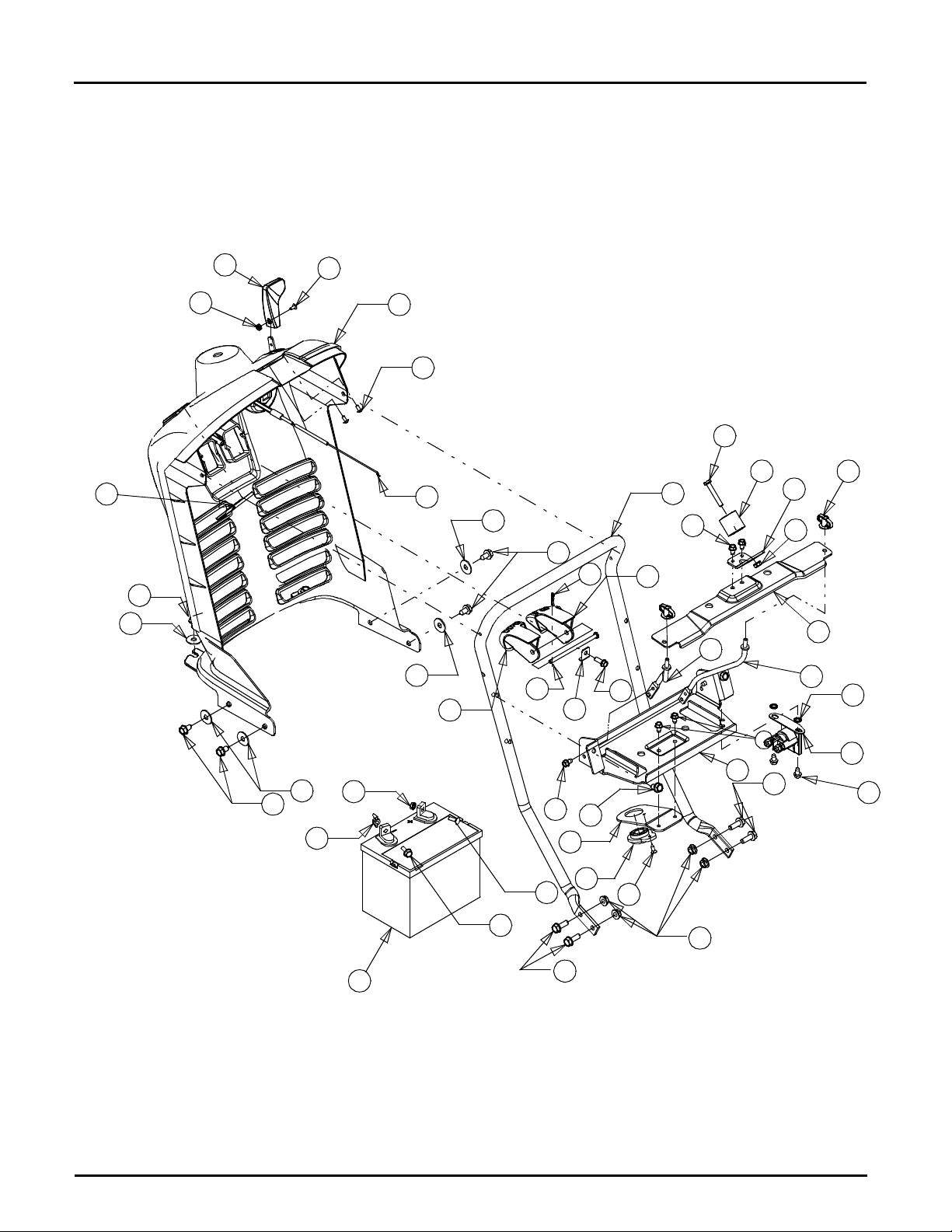

DASH PANEL
21
16
14
7
3
6
11
33
1
16
26
12
16
17
15
20
2
3
34
25
13
18
4
23
8
9
24
19
27
3
22
16
3
30
8
29
31
32
2
3
37
36
35
10
5
5
28
2
-16-
DASH PANEL
REF.
NO.
1 710-0136 Screw, 1/4-20, 1.75, Gr5 1
2 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6
3 710-0604A Screw, 5/16-18, 0.625 8
4 710-0895 Screw, 1/4-15, 0.750 1
5 710-1238 Screw, 5/16-18, .875, Gr5 4
6 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 1
7 712-0142 Nut, 8-32 1
8 712-0271 Nut, Hex, 1/4-20, Sems 2
9 712-0397 Nut, Wing, 1/4-20 w/ Bell Washer 2
10 712-3004A Nut, Flange Lock, 5/16-18, Gr5 4
11 731-2615 Dash 1
12 731-2620 Lever, Dash, Cruise 1
13 731-2621 Lever, Dash, Brake 1
14 731-3161 Knob, Throttle Control 1
15 731-3232 Roller, Latch, Hood 1
16 736-3078 Washer, Flat, .349 x 1.00 x .063 6
17 747-1323A Rod, .250 Dia x 4.25 Lg. 1
18 747-2130 Rod, Support, Side Panel RH 1
19 747-2131 Rod, Support, Side Panel LH 1
20 749-04000 Tube, Dash, Support 1
21 783-0462 Bracket, PTO Switch Retainer 1
22 783-1447 Bracket, Support, Battery 1
23 783-1448 Bracket, Support, Hood Latch 1
24 783-1449 Bracket, Battery, Hold Down 1
25 783-1499 Bracket, Rod, Dash 1
26 746-1149 Control, Choke, 23 Lg. 1
27 736-0222 Washer, External Lock, 1/4 2
28 725-1426 Solenoid, 12V, 100 Amp 1
29 725-1706 Battery, 270 CCA, Wet 1
30 712-3087 Nut, Wing, 1/4-20 1
31 738-1132 Screw, Shoulder, 1/4-20, .25 x .15 1
32 710-0751 Screw, 1/4-20, .620, Gr5 1
33 710-0192 Screw, #10-24 X .375 2
34 714-0104 Internal Cotter Pin, .072 x 1.13 1
35 710-0837 Screw, Oval Countersunk, #10-16 X .625 1
36 741-0501 Bearing, Steering Column, .634 ID x 1.36 1
37 783-04003 Steering Bracket 1
PART
NUMBER DESCRIPTION QTY.
5
-17-
HOOD & GRILLE
19
30
12
11
13
18
7
23
21
6
14
22
27
17
22
26
27
15
14
10
16
24
29
2
3
20
25
4
1
31
28
8
-18-
HOOD & GRILLE
REF.
NO.
1 603-0211 Bracket Assembly, Grille LH 1
2 603-0212 Bracket Assembly, Grille RH 1
3 603-0583A Bracket Assembly, Hood 1
4 625-0053 Headlight Assembly, Front 1
5 703-05000 Hood 1
6 703-2396 Side Panel, RH 1
7 703-2397 Side Panel, LH 1
8 703-2398 Grille 1
9 703-2465 Link, Hood Upper 6.06 2
10 703-2466A Link, Hood, Rear 2
11 703-2495 Screen, LH Side Panel 1
12 703-2496 Screen, RH Side Panel 1
13 703-2563A Bulkhead, Hood, Upper 1
14 710-0351 Screw, #10-16, 0.500, Pan Phillips 6
15 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6
16 712-3027 Nut, Flange Lock, 1/4-20 8
17 712-3087 Nut, Wing, 1/4-20 2
18 722-3021 Tape, Two-sided Adhesive Foam 9
19 723-3061 Seal, Heat Baffle 19
20 726-0139 Nut, Speed, 10z U-type 2
21 728-0117 Rivet, Pop, .125 OD, #42 4
22 732-0334 Spring, Compression, .50 OD x .5 Lg 4
23 732-0855A Spring, Latch, Hood 1
24 736-0175 Washer, Spring, .265 x.562 x.025 8
25 736-0400 Washer, Flat, .194 x .62 OD x .063 2
26 738-3141 Screw, Shoulder, .31x .75, 1/4-20 2
27 748-3055 Bushing, Tapered, .32 ID x .69 OD 4
28 783-1467A Bracket, Mounting, Grille LH 1
29 783-1468A Bracket, Mounting, Grille RH 1
30 731-04009 Plenum, Hood 1
31 710-0436 Hex Screw, #10-16 x 0.625 2
PART
NUMBER DESCRIPTION QTY.
725-0963 Miniature Lamp, 12V Socket-type 2
725-1649 Socket
731-3138A Lens 1
731-3295 Leflector, Headlight 1
, Lamp, Nylon 1/4-Turn 2
-19-
POWER TAKE-OFF (PTO) SYSTEM
7
4
16
25
7
26
19
8
6
16
15
12
10
1
17
14
13
3
2
11
9
5
7
21
20
18
27
22
23
24
-20-
POWER TAKE-OFF (PTO) SYSTEM
REF.
NO.
1 683-0450 Plate Assembly, Engagement (Model 1517) 1
2 710-0520 Screw, 3/8-16, 1.5 (Model 1517) 1
3 710-0831 Screw, 3/8-16, 5.5 (Model 1517) 1
4 710-1238 Screw, 5/16-18, .875 2
5 710-3144 Screw, 3/8-16, 2.0 (Model 1517) 1
6 712-0229 Push Nut, 3/8 (Model 1517) 1
7 712-0431 Nut, Flange Lock, 3/8-16 4
8 712-3004A Nut, Flange Lock, 5/16-18 3
9 712-3017 Nut, 3/8-16 (Model 1517) 1
10 714-0470 Cotter Pin, 1/8 x 1.25 (Model 1517) 1
11 732-0384 Spring, Extension .62 x 6.12 (Model 1517) 1
12 732-0991A Belt Guard (Model 1517) 1
13 736-0140 Washer, Flat .385 x .62 x .063 (Model 1517) 1
14 736-3010 Washer, Flat .407 x .812 x .135 (Model 1517) 2
15 738-0372 Shoulder Spacer, .380 1
16 748-0415A Spacer, 3/8 x 1.54 2
17 756-0627B Pulley, Idler, 3.5 (Model 1517) 1
18 756-1208 Pulley, Idler, 4.0 (Model 1517) 1
19 783-0891B Deck Stop 1
20 717-1773 Clutch, Electric PTO, 6” (Model 1515) 1
21 736-0277 Washer, Flat, 1.031 x 1.620 x .095 1
22 738-0785 Spacer, Shoulder, 1.38 x .445 x .36 1
23 736-0171 Washer, Lock, 7/16, Regular Duty 1
24 710-3157 Screw, 7/16-20, 3.25, Gr5 1
25 710-3025 Screw, 5/16-18, .625, Gr5 2
26 783-1003 Bracket, Clutch 1
27 754-0644 Belt, V-type (Model 1517) 1
PART
NUMBER DESCRIPTION QTY.
717-1708 Clutch, Electric PTO (Model 1517) 1
-21-

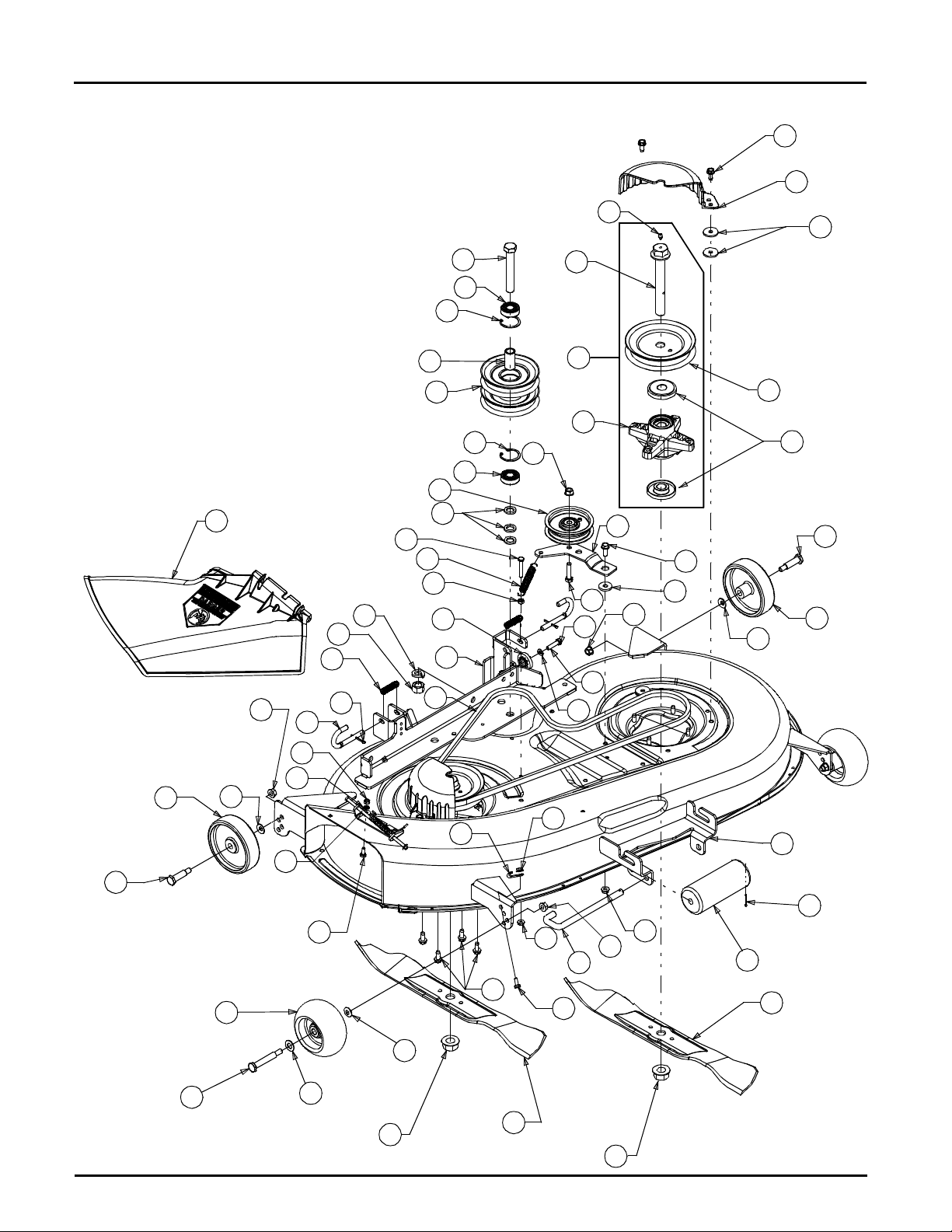

38-INCH CUTTING DECK
40
28
32
11
47
41
25
10
22
41
6
19
13
15
11
35
42
46
7
43
12
44
2
48
49
51
45
34
15
7
31
30
50
36
8
26
37
3
33
20
39
4
5
19
1
14
16
9
52
18
29
21
27
38
31
15
-22-
38-INCH CUTTING DECK
REF.
NO.
1 16606 Bracket, Hook, Retainer 1
2 618-0676 Spindle Assembly, 38" 2
3 683-0611 Deck Assembly, 38" 1
4 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 2
5 710-0528 Screw, 5/16-18, 1.25, Gr5 1
6 710-0602 Screw, Self-tapping, 5/16-18, 1.000 1
7 710-0604A Screw, 5/16-18, 0.625 6
8 710-0650 Screw, Self-tapping, 5/16-18, 0.875 8
9 710-0751 Screw, 1/4-20, .620, Gr5 3
10 710-0817 Screw, Self-tapping, 5/16-18, 1.250 1
11 710-1315 Screw, Self-tapping, 3/8-16, 1.250 2
12 710-3144 Screw, 3/8-16, 2.00, Gr5 1
13 711-0747 Pin, Guide, .250 Dia x 1.68 Lg 1
14 711-3314 Roller Pin 1/2" x 7.31 Lg 1
15 712-0431 Nut, Flange Lock, 3/8-16 5
16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 1
17 712-3006 Nut, Hex, 1/4-20, Gr5 2
18 712-3010 Nut, Hex, 5/16-18, Gr5 1
19 712-3027 Nut, Flange Lock, 1/4-20 2
20 714-0470 Pin, Cotter, 1/8 x 1.25 2
21 714-3004 Pin, Cotter, 3/32 x 1.25 1
22 717-1553B Adjustment Gear, Deck 1
23 726-0233 Nut, Push, .25 ID x .50 OD 2
24 731-1032B Chute Assembly, Side Discharge 1
25 731-2231B Cover, Belt, Deck 1
26 731-2609A Cover, Belt, Deck, LH 1
27 731-3005 Front Roller 1
28 732-0306 Spring, Compression, .406 x .531 x 1.75 Lg 2
29 732-0556 Spring, Extension .94 x 7.57 1
30 734-0973 Wheel Deck 5.0 x 1.38 2
31 736-0105 Washer, Bell, .375 x .870 x .063 4
32 736-0119 Washer, Lock, 5/16, Regular Duty 1
33 736-0272 Washer, Flat, .510 x 1.00 x .060 2
34 737-3007 Grease, Alvania Ep 2 1
35 738-0372A Spacer, Shoulder, 1.00 x .38 x .38 1
36 738-0373 Shoulder Screw 2
37 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2
38 742-3032 Blade, 19.38 Lg, 3-in-1 2
39 747-1116 Rod, Handle, Deck Release .375 Dia 2
40 754-0641 Belt, V-Type 1
41 756-0627B Pulley, Idler, 3.50 Dia. 2
42 756-1229 Pulley, Idler, 4.06 Dia. w/ Flange 1
43 737-3000 Fitting, 3/16 Drive Lube 2
44 710-1889 Bolt, Spindle, 3/4-16, 5.85 2
45 783-1417 Bracket, Idler, Arm 1
46 783-1418 Bracket, Idler 1
47 783-1433 Bracket, Deck, Hanger Adjustment 1
48 756-3106 Pulley 2
49 750-1000 Spacer, .80 x 1.10 x 1.330 2
50 748-3065 Spacer, Spindle, Deck 4
51 618-3129A Spindle Housing Assembly 2
52 712-3078 Nut, Flange, 3/4-16 2
PART
NUMBER DESCRIPTION QTY.
750-3190A Spacer, Bearing, .780 x 1.000 x 1.0425 2
721-3018A Seal, Oil, Single Lip 4
741-3029 Cup, Bearing 4
741-3028 Bearing, Cone 4
719-3118A Housing, Spindle, Deck 2
-23-
42-INCH CUTTING DECK
11
25
24
15
41
27
14
19
32
48
12
39
21
43
47
21
39
46
33
6
28
17
22
3
45
15
49
31
2
53
52
50
10
7
8
8
42
15
30
36
51
37
29
37
29
38
30
5
34
23
17
35
40
18
18
4
20
16
15
13
9
44
26
40
1
9
11
30
44
-24-
42-INCH CUTTING DECK
REF.
NO.
1 16606 Bracket, Hook, Retainer 1
2 618-0677 Spindle Assembly, 42" 2
3 683-0254 Bracket Assembly, Deck, Hanger LH 1
4 683-0607 Deck Assembly, 42" 1
5 703-1890 Wheel, Deck, 5.0 OD w/ Fitting 2
6 710-0136 Screw, 1/4-20, 1.75, Gr5 1
7 710-0520 Screw, 3/8-16, 1.50, Gr5 1
8 710-0528 Screw, 5/16-18, 1.25, Gr5 1
9 710-0751 Screw, 1/4-20, .620, Gr5 3
10 710-1238 Screw, 5/16-18, .875, Gr5 1
11 710-1260A Screw, 5/16-18, .750 12
12 710-3151 Screw, 5/8-18, 4.25, Gr5 1
13 711-3314 Roller Pin, 1/2" x 7.31 Lg 1
14 712-0337 Nut, Hex, 5/8-18, Gr5 1
15 712-0431 Nut, Flange Lock, 3/8-16 5
16 712-3004A Nut, Flange Lock, 5/16-18, Gr5 1
17 712-3006 Nut, Hex, 1/4-20, Gr5 3
18 712-3027 Nut, Flange Lock, 1/4-20 2
19 714-0470 Pin, Cotter, 1/8 x 1.25 2
20 714-3004 Pin, Cotter, 3/32 x 1.25 1
21 716-3020 Snap Ring, Internal 2
22 717-1553B Adjustment Gear, Deck 1
23 726-0233 Nut, Push, .25 ID x .50 OD 2
24 731-1032B Chute Assembly, Side Discharge 1
25 731-2486A Cover, Belt, 42" Deck 2
26 731-3005 Front Roller 1
27 732-0306 Spring, Compression, .406 x .531 x 1.75 Lg 2
28 732-0470A Spring, Extension .530 OD x 4.74 Lg 1
29 734-0973 Wheel Deck 5.0 x 1.38 2
30 736-0105 Washer, Bell, .375 x .870 x .063 4
31 736-0119 Washer, Lock, 5/16, Regular Duty 1
32 736-0158 Washer, Lock, 5/8, Regular Duty 1
33 736-0162 Washer, Flat .64 ID x 1.00 OD x .12 3
34 736-0270 Washer, Bell, .265 x .75 x .062 2
35 736-0272 Washer, Flat, .510 x 1.00 x .060 2
36 736-0343 Washer, Flat, .330 x 1.25 x .120 8
37 738-0373 Shoulder Screw 2
38 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2
39 741-0524 Bearing, .625 ID x 1.574 OD x .470 2
40 742-3033 Blade, 21.20 Lg, 3-in-1 2
41 747-1116 Rod, Handle, Deck Release .375 Dia 2
42 748-0331 Spacer, Shoulder .625 Dia x .324 Dia 1
43 750-0932A Spacer, .635 ID x .88 x 1.72 1
44 712-3078 Nut, Flange, 3/4-16 2
45 754-0645 Belt, V-Type 1
46 756-0627B Pulley, Idler, 3.50 Dia. 1
47 756-1202 Pulley, Double, 5.0 x 5.0 1
48 737-3000 Fitting, 3/16 Drive Lube 2
49 710-1889 Bolt, Spindle, 3/4-16, 5.85 2
50 783-1291 Bracket, Idler 1
51 748-3065 Spacer, Spindle, Deck 4
52 756-3106 Pulley 2
53 618-3129A Spindle Housing Assembly 2
PART
NUMBER DESCRIPTION QTY.
750-3190A Spacer, Bearing, .780 x 1.000 x 1.0425 2
721-3018A Seal, Oil, Single Lip 4
741-3029 Cup, Bearing 4
741-3028 Bearing, Cone 4
719-3118A Housing, Spindle, Deck 2
-25-
HYDROSTATIC TRANSMISSION
-26-
HYDROSTATIC TRANSMISSION
REF.
NO.
1 HG-70721 Main Housing, Assembly, Black 1
2 HG-70720 Side Housing, Assembly, Black 1
3 HG-70724 Center Section, Assembly 1
4 HG-51048 Swashplate, Trunnion Machined 1
5 HG-70331 Block - Assembly 1
6 HG-50928 Sealant 10.5
7 HG-51190 Hex Flange Screw 1/4-20 x 1.25 14
9 HG-51062 Shaft, Input 1
10 HG-2000022 Ring - Retaining 1
11 HG-50951 Spacer 1
12 HG-50329 Ring - Retaining 3
13 HG-51161 Seal, Lip .67 x 1.58 x .276 1
14 HG-50315 Ball Bearing 17mm x 40mm x 12mm 1
16 HG-51064 Hex Flange Head Screw 5/16-24 x 0.75 1
17 HG-51140 Lip Seal 18 x 32 x 7 1
18 HG-51119 Arm, Control 1
19 HG-50551 Bearing, 30x52x13 Thrust 2
23 HG-51084 Check Plug Assembly, .027, Washer 2
24 HG-50966 Shaft, Motor 1
27 HG-51130 Gear - Pinnion, 13t 1
28 HG-51129 10t / 48t Gear 1
29 HG-51043 Gear, 10t Jackshaft 1
30 HG-51044 60t Bull Gear 1
31 HG-51088 Sleeve Bearing .75 x 1.750 x .625 2
32 HG-51517 Sleeve Bearing 1.00 x 1.575 x .625 2
33 HG-44875 Washer, 3/4 ID x 1-1/2 OD x .13 2
34 HG-51518 Lip Seal Axle Seal 2
35 HG-51520 Shaft, Black, Axle 1.00 x 11.99 Flange 1
36 HG-51521 Shaft, Black, Axle 1.00 x 17.59 Flange 1
37 HG-44096 Miter Gear (Splined) 2
38 HG-44097 Miter Gear 15t (0.5 ID) 2
39 HG-50146 Shaft 1
40 HG-44871 Ring, Spiral Retaining 2
41 HG-51083 Pin, Jackshaft 1
42 HG-51100 Magnet, Ring 1
43 HG-51136 Spring, Bypass 1
44 HG-50016 Hydro Mounting Screw 3/8-24 x 2.5 Lg 2
45 HG-51132 Filter 1
46 HG-51133 Base, Filter 1
47 HG-51091 Actuator, Bypass 1
48 HG-51098 Rod, Bypass Actuator 1
49 HG-51135 Arm, Bypass 1
50 HG-51116 Retaining Ring 0.250 External 1
51 HG-51081 Seal, Lip .741 x .250 x .250 Tc 1
52 HG-44371 Flat Washer, 5/8 ID x 1.0 OD x .05 1
53 HG-44145 Retaining Ring 1
54 HG-51071 Bearing, Center Block 1
55 HG-2003014 Spring - Helical Compression 1
PART
NUMBER DESCRIPTION QTY.
REF.
NO.
56 HG-2003017 Washer 1
57 737-3121 20W-50 Oil (Gal) 78.8
58 HG-44092 Brake Yoke 1
59 HG-51072 Rotor, Brake 1
60 HG-44132 Brake Puck 2
61 HG-44134 Puck Plate 1
62 HG-44127 Brake Actuating Pin 2
63 HG-51146 Bolt, 1/4-20 x 2 w/patch, Special Flange 2
65 HG-23711 Spacer 1
66 HG-51345 Spring, Brake Arm Bias 1
67 HG-44138 Square Head Bolt 5/16-24- Ribbed 1
68 HG-44094 Ar m, Brake 1
69 HG-44142 Slotted Hex Nut 5/16- 24 1
70 HG-44101 Cotter Pin 3/32 x 3/4 1
71 HG-50919 Compression Spring Brake Anti-drag 1
72 HG-50132 Washer, Ht .5 ID x 1 OD x .032 3
73 HG-44130 Flat - Washer 11/32 ID x 7/8 OD 2
74 HG-44761 Oil Seal .625 x 1.0 x.25 1
83 HG-9004800-
84 HG-51143 Fitting, 5/16 S ae 5/32 Tube 1
85 HG-51147 Hose, Expansion Tank 1
87 HG-51251 Cap, Vent 1
88 HG-50653 Bolt, Self Tapping 10-32 x 1/2 1
94 HG-44147 Ball Bearing .62 ID x 1.38 x .44 1
95 HG-50837 Socket Head Screw, 5/16-24 x 1-1/2 1
96 HG-51200 Spacer, Locating 1
97 HG-50870 Screw 1
98 HG-51120 Ar m, Return 1
99 HG-51097 Puck, Adjusting 1
100 HG-51122 Washer, .325 OD x 1.60 ID x .150 1
101 HG-51131 Spring, Extension 1
102 HG-51123 Spacer .560 OD x .260 ID x .870 1
103 HG-51223 Bracket, Torque 1
107 HG-51134 Deflector 1
108 HG-51069 Washer, Shaft .71 ID x 1.15 OD x .030 1
109 HG-9005110-
110 HG-50868 Torx Head Screw, 5/16-18 1
111 HG-51144 O-ring .07 x .301 ID 1
113 HG-51179 Bracket,support Expansion Tank 1
114 HG-51184 Spring Guide 1
116 HG-51196 Silicon Sponge 1
120 HG-70725 Center Section - Filter - Bypass Ass’y1
121 HG-70466 Filter Assembly 1
122 HG-70722 Seal - O-ring Kit 1
128 HG-70503 Kit, Expansion Tank 1
129 HG-51252 Cap, Expansion Tank Shipping 1
135 HG-70723 Block, Assembly 7 Piston 1
PART
NUMBER DESCRIPTION QTY.
2506
5600
Pin, Standard Headless 2
Plug, SAE #6 1
-27-
ELECTRICAL SYSTEM
4
8
10
5
16
17
18
6
9
19
7
15
13
783-0715A REF ONLY
3
1
4
5
3
2
14
12
D
11
1
B
E
C
A
2
-28-
ELECTRICAL SYSTEM
REF.
NO.
1 629-0469A Harness Assembly, Headlight 1
2 629-0889 Harness Assembly, Kohler OHV Alternator 1
3 629-1105 Harness Assembly, Kohler, 1
4 629-1106 Harness Assembly, Safety, Reverse 1
5 710-0227 Screw, Ab, #8-18, 0.500 2
6 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2
7 712-3006 Nut, Hex, 1/4-20, Gr5 2
8 725-1303 Switch, Outer Seat Spring 1
9 725-1426 Solenoid, 12V, 100amp 1
10 725-1439 Switch, Inner Seat Spring 1
11 725-1657A Switch, Snap Mount 1
12 725-1741 Switch, Key, 4-Position 1
13 725-1976 Indicator, Monitor, Hour Meter 1
14 725-2054 Key, Switch, Plastic 2
15 725-3233 Switch, Electric PTO, Yellow Knob 1
16 726-0278 Plate, Insulator Boss 1
17 726-0279 Plate, Insulator 2
18 736-0222 Washer, Lock, Ext 1/4 2
19 736-0329 Washer, Lock, 1/4, Regular Duty 2
PART
NUMBER DESCRIPTION QTY.
-29-
ENGINE CRANKSHAFT & CRANKCASE
19
23
21
5
22
5
20
1
2
3
4
5
5
16
15
17
14
18
25
13
24
11
12
9
10
7
6
8
-30-
ENGINE CRANKSHAFT & CRANKCASE
REF.
NO.
1 KH-12 032 03-S Seal, Crankshaft 1
2 KH-12 522 51 Crankcase (Short Block) 1
3 KH-12 445 02-S Strap, Lifting 1
4 KH-M-839025-S Screw, Hex. Flange M8 X 1.25 X 25 1
5 KH-24 380 13-S Pin, Locating 1
6 KH-12 755 49-S Kit, Camshaft (Includes 7, 8) 1
7 KH-12 089 31-S Spring, Actuating 1
8 KH-12 422 08-S Shim, Camshaft - Blue AR
9 KH-12 144 27-S Shaft, Balance (Model 1515) 1
10 KH-12 874 07-S Piston w/ Ring Set (Std.) (Includes 11, 12) 1
11 KH-12 018 02-S Retainer, Piston Pin 1
12 KH-12 108 07-S Ring Set (Std. & .08) 1
13 KH-12 067 05-S Connecting Rod (Std.) (Model 1515) 1
14 KH-12 380 01-S Pin, Governor Regulating 1
15 KH-12 043 05-S Gear, Governor 1
16 KH-M-631005-S Washer, Plain 6 Mm 1
17 KH-12 144 02-S Shaft, Governor Gear 1
18 KH-52 139 09-S Plug, Cup 1
19 KH-12 755 64-S Kit, Governor Cross Shaft w/clip (Incl. 23) 1
20 KH-X-25-102-S Washer, Plain 1/4” 1
21 KH-12 032 01-S Seal, Governor Cross Shaft 1
22 KH-M-631015-S Washer, Plain 6 Mm 1
23 KH-12 154 05-S Clip, Hitch Pin 1
24 KH-12 041 37-S Crankshaft (Includes 25) (Model 1515) 1
25 KH-12 139 01-S Plug, Cup (Model 1515) 1
PART
NUMBER DESCRIPTION QTY.
KH-12 422 09-S Shim, Camshaft - Red AR
KH-12 422 10-S Shim, Camshaft - Yellow 1
KH-12 422 11-S Shim, Camshaft - Green AR
KH-12 422 12-S Shim, Camshaft - Gray AR
KH-12 422 13-S Shim, Camshaft - Black AR
KH-12 422 07-S Shim, Camshaft - White AR
KH-12 144 28-S Shaft, Balance (Model 1517) 1
KH-12 874 08-S Piston w/ Ring Set (.25) 1
KH-12 874 09-S Piston w/ Ring Set (.50) 1
KH-12 874 11-S Piston w/ Ring Set (.08) 1
KH-12 108 08-S Ring Set (.25) 1
KH-12 108 09-S Ring Set (.50) 1
KH-12 067 11-S Connecting Rod (Std.) (Model 1517) 1
KH-12 067 06-S Connecting Rod (.25)(Model 1515) 1
KH-12 067 12-S Connecting Rod (Std.) (Model 1517) 1
KH-12 041 57-S Crankshaft (Includes 25) (Model 1517) 1
KH-12 139 27-S Plug, Cup (Model 1517) 1
-31-
ENGINE OIL PAN & LUBRICATION
2
1
6
7
3
4
5
10
9
8
13
12
11
22
14
15
21
16
20
17
18
19
-32-
ENGINE OIL PAN & LUBRICATION
REF.
NO.
1 KH-12 038 01-S Dipstick (Includes 2, 3) 1
2 KH-24 755 46-S Kit, Oil Fill Cap (Includes 3) 1
3 KH-12 153 03-S O-ring 1
4 KH-12 153 02-S O-ring, Upper Oil Fill Tube 1
5 KH-12 123 04-S Tube, Oil Fill 1
6 KH-M-645025-S Screw, Hex. Flange M6 x 1.0 x 25 1
7 KH-12 153 01-S O-ring, Lower Oil Fill Tube 1
8 KH-25 162 07-S Screen, Oil Pickup 1
9 KH-12 096 03-S Cover, Oil Pickup Screen 1
10 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 1
11 KH-12 050 08-S Filter, Oil 1
12 KH-12 199 50-S Pan, Oil (Includes 13, 16-19) 1
13 KH-25 462 09-S Valve, Oil Pressure Relief 1
14 KH-25 139 52-S Plug, Sq. Hd. 1/8” 1
15 KH-25 139 57-S Plug, Sq. Hd. Solid 3/8” 2
16 KH-12 393 01-S Pump Assembly, Oil 1
17 KH-12 153 06-S O-ring, Oil Pump Cover 1
18 KH-12 096 34-S Cover, Oil Pump 1
19 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 3
20 KH-12 032 03-S Seal, Oil (P.T.O. End) 1
21 KH-24 086 16-S Screw, Hex. Flange M8 x 1.25 x 45 11
22 KH-24 086 17-S Screw, Hex. Flange M8 x 1.25 x 45 1
PART
NUMBER DESCRIPTION QTY.
-33-
ENGINE CYLINDER HEAD & VALVES
1
3
4
22
21
15
19
14
23
15
24
14
20
12
25
13
7
5
8
2
6
9
11
10
16
17
18
19
-34-
ENGINE CYLINDER HEAD & VALVES
REF.
NO.
1 KH-25 351 01-S Lifter, Valve 2
2 KH-12 755 81-S Kit, Cylinder Head (Model 1515) (Incl. 3-17, 1
3 KH-12 411 01-S Rod, Push (Model 1515) 2
4 KH-12 041 10-S Gasket, Cylinder Head 1
5 KH-12 017 01-S Valve, Intake (Std.) 1
6 KH-12 016 01-S Valve, Exhaust (Std.) 1
7 KH-25 139 60-S Plug, Allen Hd. 1/8” Pipe 1
8 KH-12 318 19-S Cylinder Head (Model 1515) 2
9 KH-25 186 01-S Arm, Rocker 2
10 KH-12 599 03-S Pivot, Rocker Arm 2
11 KH-M-640034-S Screw, Hex. Flange M6 x 1.0 x 34 2
12 KH-66 032 05-S Seal, Valve Stem 2
13 KH-12 089 34-S Spring, Valve 2
14 KH-12 173 01-S Cap, Valve Spring 2
15 KH-12 755 03-S Kit, Retainer 2
16 KH-12 468 05-S Washer, Plain 13/32” 1
17 KH-12 112 13-S Spacer, Head Bolt Exhaust Port 1
18 KH-12 086 15-S Screw, Hex. Flange M10 x 1.5 x 81 5
19 KH-25 237 14-S Clamp, Hose 2
20 KH-12 326 03-S Hose, Breather 1
21 KH-M-645020-S Screw, Hex. Flange M6 x 1.0 x 20 5
22 KH-12 096 07-S Cover, Valve W/nipple 1
23 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 1
24 KH-12 018 01-S Retainer, Breather Reed 1
25 KH-12 402 02-S Reed, Breather 1
— KH-12 017 02-S Valve, Intake (.25) 1
— KH-12 016 02-S Valve, Exhaust (.25) 1
— KH-12 041 01-S Gasket, Carburetor 2
— KH-12 041 02-S Gasket, Air Cleaner Base 1
— KH-12 041 03-S Gasket, Exhaust Manifold 1
PART
NUMBER DESCRIPTION QTY.
Carburetor Gasket (2), Air Cleaner Base
Gasket, Exhaust Manifold Gasket)
KH-12 755 94-S Kit, Cylinder Head (Model 1517) (Incl. 3-17, 1
Carburetor Gasket (2), Air Cleaner Base
Gasket, Exhaust Manifold Gasket)
KH-12 411 03-S Rod, Push (Model 1517) 2
KH-12 318 36-S Cylinder Head (Model 1517) 2
-35-
ENGINE IGNITION & ELECTRIC STARTER
21
22
1
2
23
24
20
19
18
15
16
17
13
6
14
25
3
4
5
12
9
10
27
28
26
8
11
7
16
15
-36-
ENGINE IGNITION & ELECTRIC STARTER
REF.
NO.
1 KH-12 086 14-S Screw, Hex. Flange M10 x 1.5 x 46 1
2 KH-12 468 03-S Washer, Plain 3/8” 1
3 KH-24 162 03-S Screen, Grass 1
4 KH-25 086 47-S Bolt, Shoulder M6 x 1.0 x 16 4
5 KH-12 157 06-S Fan 1
6 KH-X-42-15-S Key 1
7 KH-12 025 15-S Flywheel 1
8 KH-41 403 09-S Rectifier-regulator 1
9 KH-X-22-11-S Washer, Lock 1/4 2
10 KH-M-639016-S Screw, Hex. Flange M6 x 1.0 x 16 2
11 KH-236602-S Connector, Rectifier-regulator (3 Contact) 1
12 KH-41 155 02-S Connector (4 Contact) 1
13 KH-M-548025-S Screw, Hex. Cap M5 x 0.8 x 25 2
14 KH-237878-S Kit, Stator (Includes Terminal 25 452 01-S) 1
15 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 2
16 KH-X-728-1-S Clip 2
17 KH-12 132 02-S Spark Plug 1
18 KH-M-545020-S Screw, Hex. Flange M5 x 0.8 x 20 2
19 KH-12 584 04-S Module, Ignition 1
20 KH-12 154 06-S Clip 2
21 KH-M-839070-S Screw, Hex. Flange M8 x 1.25 x 70 2
22 KH-12 098 22-S Starter Assembly (Includes 3-8) 1
23 KH-12 755 53-S Kit, Drive 1
24 KH-12 227 19-S Cap, Drive End 1
25 KH-12 070 05-S Armature 1
26 KH-12 221 01-S Brush Assembly 1
27 KH-12 227 13-S Commutator, End Cap 1
28 KH-12 211 01-S Bolt, Thru 2
— KH-25 452 01-S Terminal 2
— KH-X-25-5-S Washer, Plain 1
— KH-12 176 38-S Harness, Wiring 1
— KH-12 518 01-S Lead, White (19” - 18 Guage Fully Insulated 1
— KH-24 518 12-S Lead, Black (6” - 12 Guage - Insulated 1
— KH-25 518 05-S Lead, Black (5” - 14 Guage -uninsulated 1
PART
NUMBER DESCRIPTION QTY.
Push On Tab And Uninsulated Push On
Terminals)
Grip Barrel Eyelet Terminals)
Push On Tab Terminals)
-37-
ENGINE BLOWER HOUSING
12
1
13
11
10
1
3
4
5
2
6
9
8
REF.
NO.
1 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 5
2 KH-24 468 10-S Washer, Plain 1/4” 1
3 KH-12 146 07-S Plate, Blower Housing 1
4 KH-M-550010-S Screw, Hex. Flange M5 x 0.8 x 10 2
5 KH-24 096 05-S Cover, Pinion 1
6 KH-12 027 55-S Housing, Blower 1
7 KH-12 063 18-S Baffle, Intake Side 1
8 KH-M-541050-S Nut, Hex. Flange M5 x 0.8 (Model 1517) 3
9 KH-25 154 02-S Clip, Mounting 2
10 KH-M-645016-S Screw, Hex. Flange M6 x 1.0 x 16 1
11 KH-12 063 20-S Baffle, Cylinder Head 3
12 KH-12 086 37-S Screw, Captive Washer M5 x 0.8 x 20 1
13 KH-12 063 19-S Baffle, Cylinder 2
— KH-24 086 18-S Screw, Phillips Hd. 11-16 x 7/8” 2
— KH-X-25-92-S Screw, Phillips Hd. 11-16 x 7/8” 2
PART
NUMBER DESCRIPTION QTY.
7
-38-

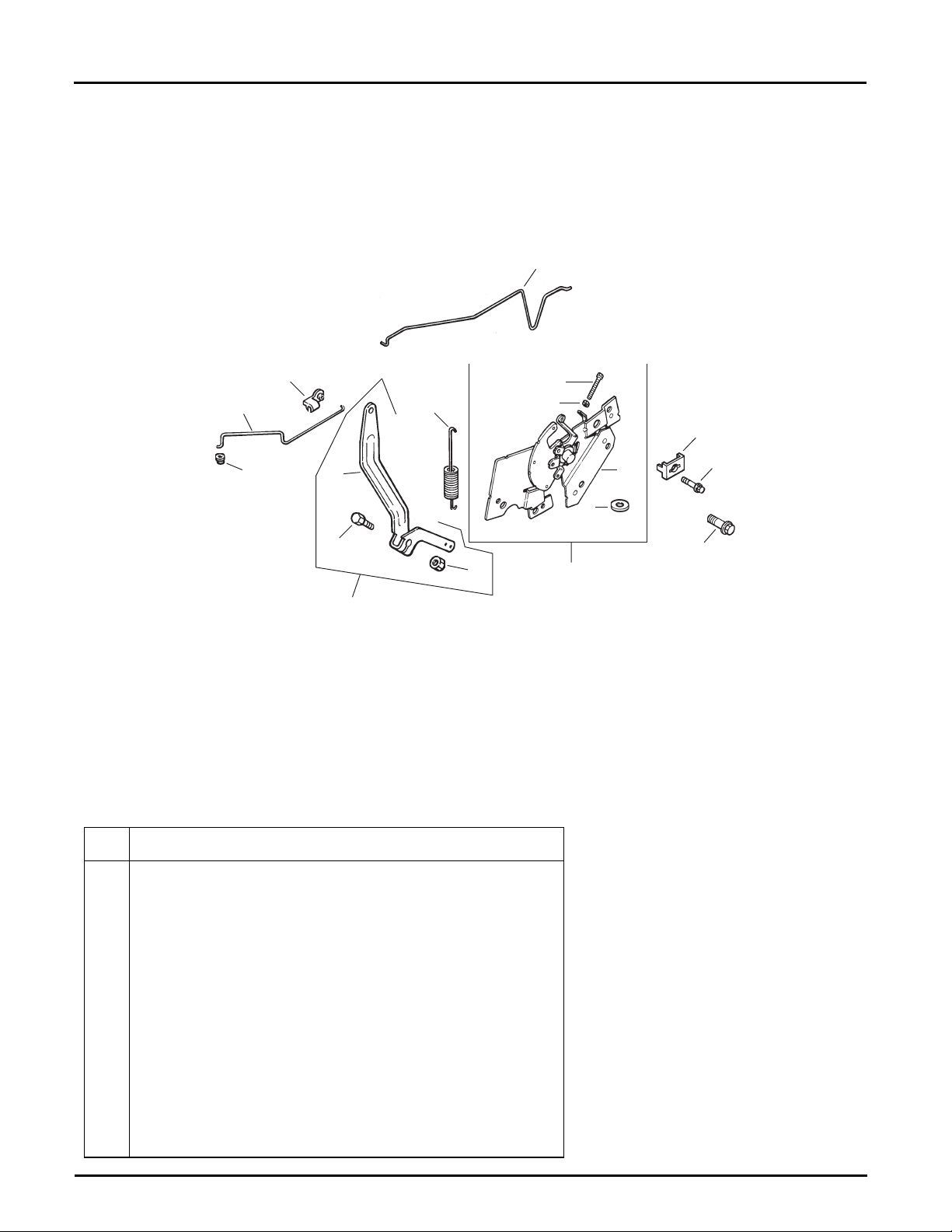

ENGINE CONTROLS
1
16
15
17
14
13
11
10
12
8
9
2
7
3
6
4
5
REF.
NO.
1 KH-12 079 11-S Linkage, Choke 1
2 KH-12 237 01-S Clamp, Cable 2
3 KH-M-545016-S Screw, Hex. Flange M5 x 0.8 x 16 2
4 KH-M-664020-S Screw, Lobed Socket M6 x 1.0 x 20 2
5 KH-12 536 02-S Control, Speed Assembly (Incl. 6-9) 1
6 KH-230293-S Spacer, Shim .005 1
7 KH-12 126 75-S Bracket, Control (Model 1517) 1
8 KH-M-401030-S Screw, Hex. Flange M4 x 0.7 x 30 1
9 KH-M-446030-S Nut, Hex. M4 x 0.7 1
10 KH-52 089 07-S Spring, Governor 1
11 KH-12 755 83-S Kit, Governor Lever (Includes 12-14) 1
12 KH-12 100 07-S Nut, Hex. Flange M6 x 1.0 1
13 KH-52 211 04-S Screw, Hex. Flange M6 x 1.0 x 25 1
14 KH-12 090 28-S Lever, Governor 1
15 KH-25 158 08-S Bushing, Linkage Retaining 1
16 KH-12 079 10-S Linkage, Throttle 1
17 KH-25 158 11-S Bushing, Linkage Retaining 1
PART
NUMBER DESCRIPTION QTY.
-39-
ENGINE CARBURETOR & FUEL PUMP
19
20
12
18
9
21
9
9
17
9
16
13
14
15
11
9
8
6
7
6
3
9
10
5
4
2
1
-40-
ENGINE CARBURETOR & FUEL PUMP
REF.
NO.
1 KH-M-641060-S Nut, Hex. Flange M6 x 1.0 2
2 KH-M-629116-S Stud M6 x 1.0 x 116 (2) 2
3 KH-12 853 117-S Kit, Carburetor W/ Gaskets (Includes 4, 5, 6 1
4 KH-12 041 02-S Gasket, Air Cleaner 1
5 KH-12 053 117 Carburetor Assembly 1
6 KH-12 041 01-S Gasket, Carburetor 2
7 KH-12 265 06-S Deflector, Heat 1
8 KH-25 155 02-S Connector, 90× Hose 1
9 KH-25 237 14-S Clamp, Fuel Line 6
10 KH-25 050 07-S Filter, Fuel 1
11 KH-25 353 02-S Line, Fuel 3" 1
12 KH-12 559 01-S Kit, Fuel Pump (Includes 13-15) 1
13 KH-M-645020-S Screw, Hex. Flange M6 x 1.0 x 20 2
14 KH-25 041 09-S Gasket, Fuel Pump 2
15 KH-12 112 05-S Spacer, Fuel Pump 1
16 KH-25 326 03-S Connector, Straight Hose 1
17 KH-12 353 01-S Line, Fuel 1-1/4" 1
18 KH-12 123 19-S Line, Fuel - Metal 1
19 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 1
20 KH-12 154 01-S Clamp, Fuel Line 1
21 KH-41 353 18-S Line Fuel 2-1/2" 1
— KH-12 757 02-S Kit, Float 1
— KH-12 757 03-S Kit, Carburetor Repair 1
— KH-12 757 33-S Kit, Solenoid Repair 1
— KH-12 518 24-S Lead, Red (20” - 18 Guage - Insulated 1
— KH-12 454 03-S Tie, Wire 3
— KH-M-561010-S *Screw, Thread Forming M5 x 0.8 x 10 1
— KH-X-22-11-S *Washer, Lock 1/4” 1
PART
NUMBER DESCRIPTION QTY.
[Qty. 1], Tie KH-12 454 03-S, & Terminal
KH-25 452 20-S)
Socket And Uninsulated Push On Tab
Terminals)
* Used to attach carburetor ground lead to carburetor baffle
-41-
ENGINE AIR INTAKE AND EXHAUST
18
16
17
13
15
14
1
2
3
4
5
6
7
8
10
11
9
12
REF.
NO.
1 KH-25 341 03-S Knob, Air Cleaner Cover 1
2 KH-12 281 01-S Duct, Air (Model 1517) 1
3 KH-12 096 24-S Cover, Air Cleaner 1
4 KH-12 083 12-S Precleaner 1
5 KH-12 100 08-S Wing Nut 1
6 KH-12 083 10-S Element, Air Cleaner (Includes 5, 7, 8) 1
7 KH-12 743 12-S Kit, Air Cleaner Seal (Includes 5, 8) 1
8 KH-12 032 11-S Seal 1
9 KH-12 094 07-S Base, Air Cleaner (Includes 10, 11) 1
10 KH-12 072 04-S Stud M6 x 1.0 x 79 1
11 KH-12 086 01-S Screw, #10 Hi-Lo Thread Forming 1
12 KH-12 041 02-S Gasket, Air Cleaner 2
13 KH-25 072 05-S Stud M8 x 1.25 x 39 1
14 KH-12 041 03-S Gasket, Exhaust Manifold 1
15 KH-M-841080-S Nut, Hex. Flange M8 x 1.25 1
16 KH-M-645025-S Screw, Hex. Flange M6 x 1.0 x 25 1
17 KH-12 445 06-S Strap, Lifting 1
18 KH-12 382 05-S Pipe, Inlet 1
— KH-12 755 93-S Gasket Set 1
PART
NUMBER DESCRIPTION QTY.
NOTES
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Loading...
