OPERATOR’S MANUAL

45” Snow Thrower

Model 1345 SWE

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning:

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 368023 Cleveland, Ohio 44136-9722.

This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

CUB CADET CORP. P.O. BOX 368023 CLEVELAND, OHIO 44136-9722

PRINTED IN U.S.A.

ECO No. 1481

FORM NO.

770-10300A

(8/2000)

TABLE OF CONTENTS

Content Page

Important Safe Operation Practices................................................................... 3

Assembling Your Snow Thrower ....................................................................... 5

Knowing Your Snow Thrower ............................................................................ 8

Operating Your Snow Thrower .......................................................................... 9

Making Adjustments .......................................................................................... 11

Maintaining Your Snow Thrower........................................................................ 12

Servicing Your Snow Thrower ........................................................................... 14

Off-Season Storage........................................................................................... 17

Trouble Shooting Guide..................................................................................... 18

Parts List............................................................................................................ 19

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start to prepare your snow thrower for its first use, please locate the model plate and copy the information from it in this Operator’s Manual. The information on the model plate is very important if you need help from your dealer or the Customer Support Department.

You can locate the model number by looking at the lower frame cover on the rear of your snow thrower. A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below.

(Model Number) (Serial Number)

Copy the model number here:

Copy the serial number here:

CUB CADET CORP.

P.O. BOX 368023

CLEVELAND, OHIO 44136

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Dealer Referral Line.

Call 1- (800)-528-1009 to reach the Customer Dealer Referral Line. Please have your unit’s model number and serial number ready when you call. See previous section to locate this information.

For more details about your unit, visit our web site at www.cubcadet.com

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol—heed its warning.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components contain or emit

chemicals known to State of California to cause cancer and birth defects or other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

Tra in ing

1. Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

2. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.

3. Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.

4. Never allow adults to operate this machine without proper instruction.

5. Thrown objects can cause serious personal injury. Plan your snow throwing pattern to avoid discharge of material toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.

7. Exercise caution to avoid slipping or falling, especially when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to be used. Remove all door mats, newspapers, sleds, boards, wires and other foreign objects which could be tripped over or thrown by the auger/impeller.

2. Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

3. Do not operate without wearing adequate winter outer garments. Do not wear jewelry, long scarves or other loose clothing which could become entangled in moving parts. Wear footwear which will improve footing on slippery surfaces.

4. Use a grounded three wire extension cord and receptacle for all units with electric start engines.

5. Adjust collector housing height to clear gravel or crushed rock surfaces.

6. Disengage all clutch levers before starting the engine.

7. Never attempt to make any adjustments while engine is running, except where specifically recommended in the operator’s manual.

8. Let engine and machine adjust to outdoor temperature before starting to clear snow.

9. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.

a. Use only an approved gasoline container. b. Extinguish all cigarettes, cigars, pipes and other

sources of ignition. c. Never fuel machine indoors. d. Never remove gas cap or add fuel while the

engine is hot or running. e. Allow engine to cool at least two minutes before

refueling. f. Never over fill fuel tank. Fill tank to no more than

½ inch below bottom of filler neck to provide space

for fuel expansion. g. Replace gasoline cap and tighten securely. h. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine. i. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

(e.g. furnace, water heater, space heater, clothes

dryer etc.). j. Allow machine to cool 5 minutes before storing.

Operation

1. Do not put hands or feet near rotating parts, in the auger/ impeller housing or discharge chute. Contact with the rotating parts can amputate hands and feet.

2. The auger/impeller clutch lever is a safety device. Never bypass its operation. Doing so, makes the machine unsafe and may cause personal injury.

3. The clutch levers must operate easily in both directions and automatically return to the disengaged position when released.

4. Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working.

5. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

6. Do not operate machine while under the influence of alcohol or drugs.

7. Muffler and engine become hot and can cause a burn. Do not touch.

8. Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.

9. Exercise caution when changing direction and while operating on slopes.

10. Plan your snow throwing pattern to avoid discharge towards windows, walls, cars etc. To avoid property damage or personal injury caused by a ricochet.

11. Never direct discharge at children, bystanders and pets or allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to clear snow at too fast of a rate.

13. Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.

14. Disengage power to the auger/impeller when transporting or not in use.

15. Never operate machine at high transport speeds on slippery surfaces. Look down and behind and use care when in reverse.

16. If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.

17. Disengage all clutch levers and stop engine before you leave the operating position (behind the handles). Wait until the auger/impeller comes to a complete stop before unclogging the discharge chute, making any adjustments, or inspections.

18. Never put your hand in the discharge or collector openings. Always use a clearing tool to unclog the discharge opening.

19. Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs etc.).

20. If situations occur which are not covered in this manual, use care and good judgment. Contact your dealer or telephone 1-800-528-1009 for assistance and the name of your nearest servicing dealer.

Maintenance And Storage

1. Never tamper with safety devices. Check their proper operation regularly.

2. Disengage all clutch levers and stop engine. Wait until the auger/impeller come to a complete stop. Disconnect the spark plug wire and ground against the engine to prevent unintended starting before cleaning, repairing, or inspecting.

3. Check bolts, and screws for proper tightness at frequent intervals to keep the machine in safe working condition. Also, visually inspect machine for any damage.

4. Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.

5. Snow thrower shave plates and skid shoes are subject to wear and damage. For your safety protection, frequently check all components and replace with original equipment manufacturer’s (O.E.M.) parts only. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety.

6. Check clutch controls periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator’s manual for instructions.

7. Maintain or replace safety and instruction labels, as necessary.

8. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear snow from machine and prevent freeze up of auger/impeller.

10. Never store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace ,clothes dryer etc.

11. Always refer to the operator’s manual for proper instructions on off-season storage.

Your Responsibility:

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine. The safety labels are given below for your reference.

SECTION 2: ASSEMBLING YOUR SNOW THROWER

Unpacking

• Remove staples from the top, sides, and ends of the shipping crate.

• Set panels aside to avoid tire punctures or personal injury.

• Remove and discard plastic bag that covers unit.

• Roll the unit out of the crate.

• Check the crate thoroughly for loose parts before

discarding.

Upper Handle

Steering Cable

Tighten these

Wing Nuts

Loose Parts

• The snow thrower is shipped with the following loose parts in the carton. Refer to Figure 1 for illustration, description of item, and part number. Please remove all loose parts from the carton before discarding it.

Shear Bolts (710-0891)

Hex Lock Nuts (712-0429)

Figure 1

• Note that these shear bolts and hex lock nuts are not meant for initial assembly of the equipment. If the snow thrower hits a foreign object or ice jam, the bolts securing the auger shaft may shear. Use these two shear bolts and nuts as replacement parts only. Store these in a safe place until needed.

IMPORTANT:

standard hex bolts. Any damage to the auger gearbox or other components from standard hex bolts will not be covered by your snow thrower’s warranty.

NEVER replace the auger shear bolts with

Lower Handle

Cable Tie

Upper Shift Rod

Clutch Rod

Connector

Carriage Bolt

Cupped Washer

Wing Nut

Upper Shift Rod

(Support Tubes Omitted for Clarity)

Figure 2

• Raise the upper handle assembly in the direction shown in Figure 3. Make sure that the upper handle locks into position over the lower handle.

Handle Panel

Wing Nuts

Assembling Handle

NOTE: Reference to the left or right side of the snow thrower in this manual is observed from the operator’s position.

IMPORTANT:

later on in this section, before operating your snow thrower. Failure to follow these instructions may cause damage to the snow thrower.

• Remove the lower plastic wing nut, cupped washer and carriage bolt from each side of the lower handle. Refer to Figure 2.

Make any final adjustments, as instructed

Upper Handle

Lower Handle

Support Tube

Figure 3

• Look at the lower rear of the snow thrower frame to be sure all the cables are aligned with the cable roller guides.

• Secure the upper handle and lower handle with the two plastic wing nuts, cupped washers and carriage bolts previously removed. Attach these hardware on the lower hole in the handles. See Figure 3.

• Tighten the two wing nuts already in place on the upper holes and secure the handles firmly. Refer to Figure 2.

• Slide the shift rod connector down over the end of the lower shift rod as shown in Figure 2. Tap the connector until it locks on the lower shift rod.

NOTE: If the connector is not properly assembled, the shift rod will pivot and you will not be able to change direction or speed of the snow thrower.

• Remove the hairpin clip from the upper chute crank and slide the upper chute crank through the upper chute crank bracket and into the lower chute crank. Align the two holes on both chute cranks and insert the hairpin clip removed earlier, through these holes. Refer to Figure 4.

• Plug the wire from the headlight into the alternator lead coming from the right side of the engine, underneath the fuel tank as shown in Figure 6 inset.

Alternator Lead

Lamp Wire

(Wheels left out for clarity)

Figure 6

Upper Chute Crank

Upper Chute

Crank Bracket

Hairpin Clip

Lower Chute Crank

Figure 4

• If not already attached, slip the cables that run from the handle panel to the discharge chute into the cable guide located on top of the engine as shown in Figure 5.

Discharge Chute

Cable Guide

Figure 5

• Unwrap the headlight wire which is attached to the headlight, beneath the handle panel. Wind the headlight wire around the lower right handle until excess slack is removed. Refer to Figure 6.

Final Adjustments

NOTE: It is helpful to read Section 3, Knowing Your Snow Thrower, to help identify certain areas of the snow thrower before performing adjustments.

Traction Control and Shift Lever

To check the adjustment of the traction control and shift lever, proceed as follows:

• Move the shift lever into sixth (6) position.

• With the traction control released, push the snow

thrower forward, then pull it back. The machine should move freely.

• Engage the traction control and attempt to move the machine both forward and back, resistance should be felt.

• Move the shift lever into the fast reverse (R2) position and repeat the previous two steps.

If you experienced resistance rolling the unit, either when repositioning the shift lever from 6 to R2 or when attempting to move the machine with the traction control released, adjust the traction control immediately. To adjust, proceed as follows:

• Loosen the jam nut on the traction control cable and UNTHREAD the cable one full turn.

• Recheck adjustment.

• Retighten the jam nut to secure the cable when

correct adjustment is reached.

NOTE: For more details, refer to Traction Control Adjustment on page 11.

Auger Control

Check the adjustment of the auger control as follows:

• Push down on the auger control until the small rubber bumper contacts the upper handle. There should be a small amount of slack in the auger control cable.

• Release the auger control. The cable should be straight. Make certain you can depress the auger control against the left handle completely.

If adjustment is necessary, proceed as follows:

• Loosen the jam nut and thread the cable in (for less slack) or out (for more slack) as necessary. See Figure 7.

• Repeat on the other side of the snow thrower.

Shave Plate

“Z” End

Jam Nut

Auger Control

Cable

Figure 7

• Recheck adjustment; readjust as necessary and tighten the jam nut.

Skid Shoes

The space between the shave plate and the ground can be adjusted by repositioning the skid shoes. For close snow removal, as when using on a smooth concrete or asphalt driveway, place the skid shoes in the low position. Use the middle or high position when the area to be cleared is uneven. Refer to Figure 8. When operating on gravel, always put skid shoes in the high position.

Adjust skid shoes as follows:

• Loosen, but do not remove, the three hex nuts which fasten the skid shoe to the auger housing.

• Raise or lower the skid shoe to desired position.

• Retighten the hex nuts loosened earlier.

Carriage Bolts

High

Skid

Shoes

Low

Hex Nuts

Figure 8

NOTE: Make certain the entire bottom surface of skid

shoe is against the ground to avoid uneven wear on the skid shoes.

Tire Pressure (Pneumatic Tires)

The tires are overinflated for shipping purposes.

• Check tire pressure. Maintain pressure between 10 and 14 psi.

NOTE: If the tire pressure is not equal in all tires, the unit may pull to one side or the other.

WARNING: Maximum tire pressure under

any circumstance is 30 psi. Equal tire pressure should be maintained at all times. Excessive pressure (over 30 psi) when seating beads may cause tire/rim assembly to burst with force sufficient to cause serious injury.

SECTION 3: KNOWING YOUR SNOW THROWER

WARNING: Be familiar with all the controls and their proper operation. Know how to stop the machine

and disengage them quickly.

Discharge

Chute

Auger

Fuel Tank

Skid Shoe

Figure 9

Auger

Control

Left Wheel

Steering Control

Headlight

Chute Crank

Chute

Tilt

Control

Traction Control /

Auger Control Lock

Shift

Lever

Right Wheel

Steering Control

Traction Control / Auger Control Lock

The traction control is located on the right handle. Refer to Figure 9. Squeeze the traction control to engage the wheel drive. Release to stop.

This same lever also locks the auger control so you can operate the chute crank without interrupting the snow throwing process. If the auger control is engaged simultaneously with the traction control, the operator can release the auger control (on the left handle) and the augers will remain engaged. Release the traction control to stop the augers and wheel drive (the auger control must also be released).

IMPORTANT:

Always release the traction control before

changing speeds.

Auger Control

The auger control is located on the left handle. Squeeze the auger control to engage the augers. Release to stop the snow throwing action. The traction control must also be released in order to stop the auger.

Shift Lever

The shift lever is located in the center of the handle panel and is used to determine ground speed. It can be moved into any of eight positions for speed and direction variations as described below. Always release traction the control before changing speeds.

Forward: Your snow thrower has six forward (F) speeds. Position one (1) is the slowest and position six (6) is the fastest.

Reverse: Your snow thrower has two reverse (R) speeds. R1 is the slower, while R2 is faster.

Chute Crank

The chute crank is located on the left hand side of the snow thrower as shown in Figure 9. To change the direction in which snow is thrown, turn the chute crank as follows:

• Turn clockwise to discharge to the left;

• Turn counterclockwise to discharge to the right.

Wheel Steering Controls

The left and right wheel steering controls are located on the underside of the handles and are used to assist in steering the snow thrower.

• Squeeze the right wheel steering control when turning right; squeeze the left control when turning left.

• Operate the snow thrower in open areas until becoming familiar with these controls.

Chute Tilt Control

The distance snow is thrown can be changed by adjusting the angle of the chute assembly. Move the chute tilt control forward to decrease the distance, toward the rear to increase.

Discharge Chute

The angle of the discharge chute controls the distance that the snow is thrown. Tilt the discharge chute up for greater distance; tilt down for less distance.

Skid Shoe

The position of the skid shoe is determined by the condition of the ground from where snow has to be removed. Refer to page 7 for details.

Headlight

The headlight is on whenever the engine is running.

Throttle Control

The throttle control is located on the engine. It regulates the speed of the engine. Refer to Figure 10.

Safety Ignition Key

The safety ignition key must be fully inserted in the switch before the unit will start. Remove key when snow thrower is not in use. Do not attempt to turn the key. See Figure 10.

Recoil

Primer

Choke

Safety

Ignition

Key

Throttle Control

Starter Handle

Starter Button

Figure 10

Switch Box

Power

Cord

Plug

SECTION 4: OPERATING YOUR SNOW THROWER

Before Starting

WARNING: Read, understand, and follow

all instructions and warnings on the machine and in this manual before operating.

• The spark plug wire was disconnected for safety. Attach spark plug wire to spark plug before starting.

• Make certain the auger and traction control levers are in the disengaged (released) position.

• Check the oil and fuel levels and add if necessary. Follow related instructions in the separate engine manual packed with your snow thrower.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Never fuel the machine indoors or while the engine is hot or running. Extinguish cigarettes, cigars, pipes and other sources of ignition.

To Start Engine

• Move throttle control up to FAST position. Insert ignition key into slot. Make sure it snaps into place.

Do not turn key

NOTE: Engine will not start unless the safety ignition

key is inserted into ignition slot in the carburetor cover.

Electric Starter

WARNING: The electric starter is equipped

with a grounded three-wire power cord and plug, and is designed to operate on 120 volt AC household current. It must be used with a properly grounded three-prong receptacle at all times to avoid the possibility of electric shock. Follow all instructions carefully prior to operating the electric starter.

• Determine that your house wiring is a three-wire grounded system. Ask a licensed electrician if you are not certain.

• If your house wiring system is not a three-wire grounded system, do not use this electric starter

under any conditions.

• If your home electrical system is grounded, but a three-hole receptacle is not available, one should be installed by a licensed electrician before using the electric starter.

• If you have a grounded three-prong receptacle, proceed as follows.

• Rotate choke knob to FULL position.

• Push primer two or three times for cold engine start.

• Connect power cord to switch box located on the

side of engine. Plug the other end of power cord into a three-prong 120-volt, grounded, AC receptacle.

• Push starter button on the switch box to crank engine. As you crank the engine, move choke knob to FULL choke position.

• When engine starts, release starter button, and move choke gradually to OFF. If engine falters, move choke immediately to FULL and then gradually to OFF again.

• When disconnecting the power cord, always unplug from the three-prong receptacle first, and then from the snow thrower.

Recoil Starter

• Rotate choke knob to FULL choke position (cold engine start).

• If engine is warm, place choke in OFF position instead of FULL.

• Push primer button two or three times for cold engine start.

• If engine is warm, push primer button only once.

NOTE: Always cover vent hole in primer button when pushing. Additional priming may be necessary for first start if temperature is below 15 degrees Fahrenheit.

• Grasp starter handle and pull rope out slowly, until it pulls slightly harder.

• Pull starter handle rapidly. Do not allow handle to snap back. Allow it to rewind slowly while keeping a firm hold on the starter handle.

• As the engine warms up and begins to operate evenly, rotate choke knob slowly to OFF position. If engine falters, return to FULL choke, then slowly move to OFF position.

To Stop Engine

• To stop engine, remove the ignition key. Do not turn key. Disconnect the spark plug wire from the spark plug to prevent accidental starting while equipment is unattended.

To help prevent possible freeze-up of starter, proceed as follows:

• Run engine for a few minutes before stopping to help dry off any moisture on the engine.

• Electric Starter: Connect power cord to switch box on engine, then to 120 volt AC receptacle. With the engine running, push the starter button and spin the starter for several seconds. The unusual sound made by spinning the starter will not harm the engine or starter. Disconnect the power cord from receptacle first, and then from switch box.

• Recoil Starter: With engine running, pull starter rope with a rapid, continuous full arm stroke three or four times. Pulling the starter rope will produce a loud clattering sound, which is not harmful to the engine or starter.

• Wipe all snow and moisture from the carburetor cover in the area of the control levers. Also, move control levers back and forth several times. Leave throttle control lever in the STOP or OFF position. Rotate the choke control in the FULL choke position.

• Remove the safety ignition key and disconnect the spark plug wire. Do not turn key.

IMPORTANT:

in a safe place. The engine will not start without it.

Do not lose the safety ignition key. Keep it

To Engage Wheel Drive

• With the engine running near top speed, move the shift lever into one of the six forward positions or two reverse positions. Select a speed appropriate for the snow conditions that exist.

NOTE: Use the slower speeds until you are familiar with the operation of the snow thrower.

• Squeeze the traction control against the right handle and the snow thrower will move. Release it and the drive motion will stop.

IMPORTANT:

releasing the traction control. Doing so will cause premature wear to drive system’s friction wheel rubber.

Never move the shift lever without first

To Engage Augers

To engage the augers and start snow throwing, squeeze the auger control against the left handle.

To disengage augers, release both the auger control and the traction control, if engaged.

NOTE: The auger control can also be locked so that you can turn the chute directional control without interrupting snow throwing. Refer to page 8 for details.

Operating Tips

NOTE: Allow the engine to warm up for a few minutes. The engine will not develop full power until it reaches operating temperature.

WARNING: The temperature of the muffler

and the surrounding areas may exceed

F. Avoid these areas.

150

• For the most efficient snow removal, remove snow immediately after it falls.

• Discharge snow downwind whenever possible.

• Slightly overlap each previous cleaning path.

SECTION 5: MAKING ADJUSTMENTS

• Set the skid shoes 1/4" below the shave plate for normal usage. The skid shoes may be adjusted upward (to lower the shave plate) for hard-packed snow. Adjust downward (to raise the shave plate) when using on gravel or crushed rock.

• Prevent possible freeze-up of the starter by following the steps described earlier on page 10.

• Clean the snow thrower thoroughly after each use.

WARNING: NEVER attempt to clean

chute or make any adjustments while engine is running.

Traction Control

Refer to Final Adjustments on page 6 to adjust traction control. If it is necessary to check further for correct adjustment, proceed as follows:

WARNING: Drain the gasoline out of your

snow thrower’s engine, and place a piece of plastic film under the gas cap to avoid spillage before beginning the job.

• Tip the snow thrower forward, allowing it to rest on the auger housing.

• Remove the frame cover underneath the snow thrower by removing six self-tapping screws.

• With the traction control released, make sure there is clearance between the friction wheel and the drive plate in all positions of the shift lever.

• With the traction control lever engaged, make sure the friction wheel solidly contacts the drive plate. Refer to Figure 11.

Trigg e r C a bles

Shift Arm

Auger Actuator

Bracket

Drive Actuator

Bracket

If adjustment is necessary, adjust traction control as instructed below:

• Loosen the jam nut on the traction drive cable and thread the cable in or out as necessary. Refer to Figure 7.

• Retighten the jam nut to secure the cable when correct adjustment is reached.

• Reassemble the frame cover.

NOTE: If you placed plastic film under the gas cap, be certain to remove it before operating the snow thrower.

Shift Rod

To adjust the shift rod, proceed as follows.

• Remove the hairpin clip and flat washer from the shift handle under the handle panel.

Shift Lever

Hairpin Clip

Flat Washer

Ferrule

Hex Nut

and Cupped

Washer

Figure 11

Hex Gear Shaft

Rubber

Friction

Wheel

Drive Plate

Shift Arm

Lower Shift Rod

Figure 12

• Place shift lever in sixth (6) position or fastest forward speed.

• Push shift arm assembly down as far as it will go.

Upper Shift Rod

Clutch Rod

Connector

• Rotate the ferrule up or down on the shift rod as necessary until the ferrule lines up with the upper hole in the shift lever. Refer to Figure 12.

• Insert ferrule from the left side of the snow thrower into the upper hole.

• Reinstall the hairpin clip and the washer.

IMPORTANT:

adjustment before operating the snow thrower. Check for correct adjustment of the shift rod as instructed on page 6, before operating the snow thrower.

Make certain to check for correct

Chute Assembly

The distance snow is thrown can be adjusted by adjusting the angle of the chute assembly. Refer to the “Know Your Snow Thrower” section on page 7.

The remote chute control cables have been preadjusted at the factory. Move the remote chute lever on the control panel back and forward to adjust angle of the chute assembly.

Skid Shoe

Auger Control

Refer to details on page 6 to adjust the auger control.

The space between shave plate and ground can be adjusted by raising or lowering the skid shoes. Refer to Skid Shoe Adjustment on page 7.

SECTION 6: MAINTAINING YOUR SNOW THROWER

WARNING: Before lubricating, repairing, or

inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect the spark plug wire and ground it against the engine to prevent unintended starting.

General Recommendations

• Always observe safety rules when performing any maintenance.

• The warranty on this snow thrower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain the snow thrower as instructed in this manual.

• Some adjustments will have to be made periodically to maintain your unit properly.

• All adjustments in the service and adjustments sections of this manual should be checked at least once each season.

• Follow the maintenance schedule given below.

• Periodically check all fasteners and hardware to

make sure these are tight.

Lubrication

Gear Shaft

Lubricate the gear shaft with 6-in-1 grease (part number 737-0170) at least once a season, or after every 25 hours of operation. Refer to Figure 11.

IMPORTANT:

friction wheel and drive plate.

Engine

Refer to the separate engine manual packed with your unit for all engine lubrication instructions.

Auger Shaft

• At least once a season, remove the shear bolts from the auger shaft and spray lubricant inside the shaft. Refer to Figure 13.

Vent Plug

Keep all grease and oil off the rubber

Grease Fittings

Shear Bolts

Carburetor

WARNING: If any adjustments are made

to the engine while the engine is running (e.g. carburetor), keep clear of all moving parts. Be careful of heated surfaces and mufflers.

Minor carburetor adjustments may be required to compensate for differences in fuel temperature, altitude and load. Refer to the engine manual for instructions.

Bearings

Figure 13

• Remove the shear bolts on the auger shaft.

• Oil or spray lubricant inside shaft.

• Carefully spin the auger around by hand to

disperse the lubricant.

• Reinstall the shear bolts.

Traction Control / Auger Control Lock

The cams on the ends of the control rods which interlock the traction drive and auger drive clutches must be lubricated at least once a season or every 25 hours of operation using a multi-purpose automotive grease. The cams can be accessed beneath the handle panel as shown in Figure 15.

Lube Under Chute Base

Figure 14

Chute Crank Spirals

Discharge Chute

The base of the discharge chute and the spirals on the chute crank should be lubricated at least every 25 hours of use. When applying the lubrication, apply the lubricant as shown in Figure 14 to the point under the base of the chute and where the spirals contact the discharge chute.

Drive and Shifting Mechanism

At least once a season or after every 25 hours of operation, remove rear cover. Lubricate any chains, sprockets, gears, bearings, shafts, and the shifting mechanism at least once a season. Refer to Figure 11. Use engine oil or a spray lubricant. Avoid getting oil on rubber friction wheel and aluminum drive plate.

Gear Case

The gear case is lubricated with grease at the factory and does not require initial checking. If disassembled for any reason, lubricate with two ounces of Shell Alvania™ grease EPR00, part number 737-0168. Before reassembling, remove old sealant and apply Loctite™ 5699 or equivalent.

To check the level of grease in the gear case, remove the vent plug as shown in Figure 13. If necessary, add grease using a grease gun and the grease fitting on the side of the gear case.

IMPORTANT:

vent plug is free of grease in order to relieve pressure.

Do not overfill the gear case. Be sure the

Auger Bearings and Shaft

Every season lubricate the auger bearings and the bearings on the side of the frame with light oil. Refer to Figure 13.

Use oil or spray lubricant into the bearings at the wheels at least once a season. Remove the wheels, one side at a time, and clean and coat axles with multipurpose automotive grease.

Lubricate the auger shaft at least once a season. To do this:

Handle Panel

Control Rods

Lube Cams Here

Figure 15

Check V-Belts

Follow the instructions below to check the condition of the drive belts every 50 hours of operation.

• Remove the plastic belt cover on the front of the engine by removing the three self-tapping screws.

• Visually inspect for frayed, cracked, or excessively worn out belts.

• Replace belts as necessary as outlined in Section

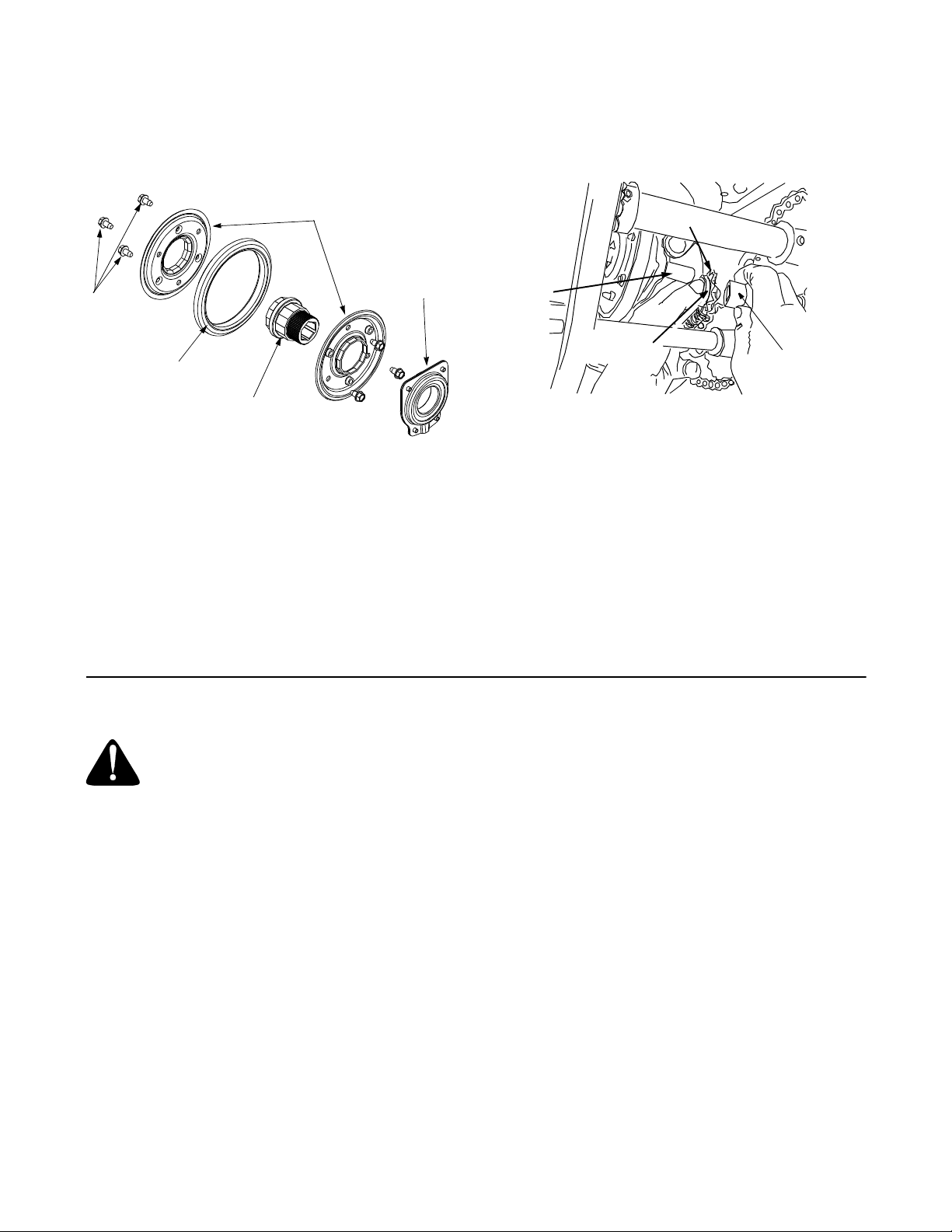

Check Friction Wheel Rubber

Follow the instructions below to check the condition of the friction wheel rubber every 25 hours of operation.

• Remove the six self-tapping screws from the frame cover underneath the snow thrower.

• Visually inspect the friction wheel rubber for excessive wear, cracks, or loose fit on the friction wheel drive hub.

• Also engage the traction control and check if the friction wheel is making contact with the friction plate.

• If it does not make contact, adjust the traction drive cable following instructions and recheck the friction wheel.

• Replace friction wheel rubber if necessary. Refer to instructions in Section 7.

SECTION 7: SERVICING YOUR SNOW THROWER

WARNING: Before servicing, repairing, or

inspecting, disengage all clutch levers and stop engine. Wait until all moving parts have come to a complete stop. Disconnect spark plug wire and ground it against the engine to prevent unintended starting.

Augers

The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. See Figure 16. If you hit a foreign object or ice jam, the snow thrower is designed so that the bolts may shear.

Shear Bolts

• Remove the six carriage bolts (three per side), belleville washers and hex nuts which attach slide shoes to the snow thrower on two sides. See Figure 8 on page 7.

• Reassemble new slide shoes with the hardware removed earlier (cupped side of belleville washer against the slide shoes). Make certain the slide shoes are adjusted to be level.

• To remove the shave plate, remove slide shoe as well as the carriage bolts, belleville washers and hex nuts which attach shave plate to the snow thrower housing. For location of shave plate and carriage bolts, see Figure 16.

• Reassemble the new shave plate, making sure heads of carriage bolts are to the inside of the housing.

• Reinstall the skid shoes and tighten securely.

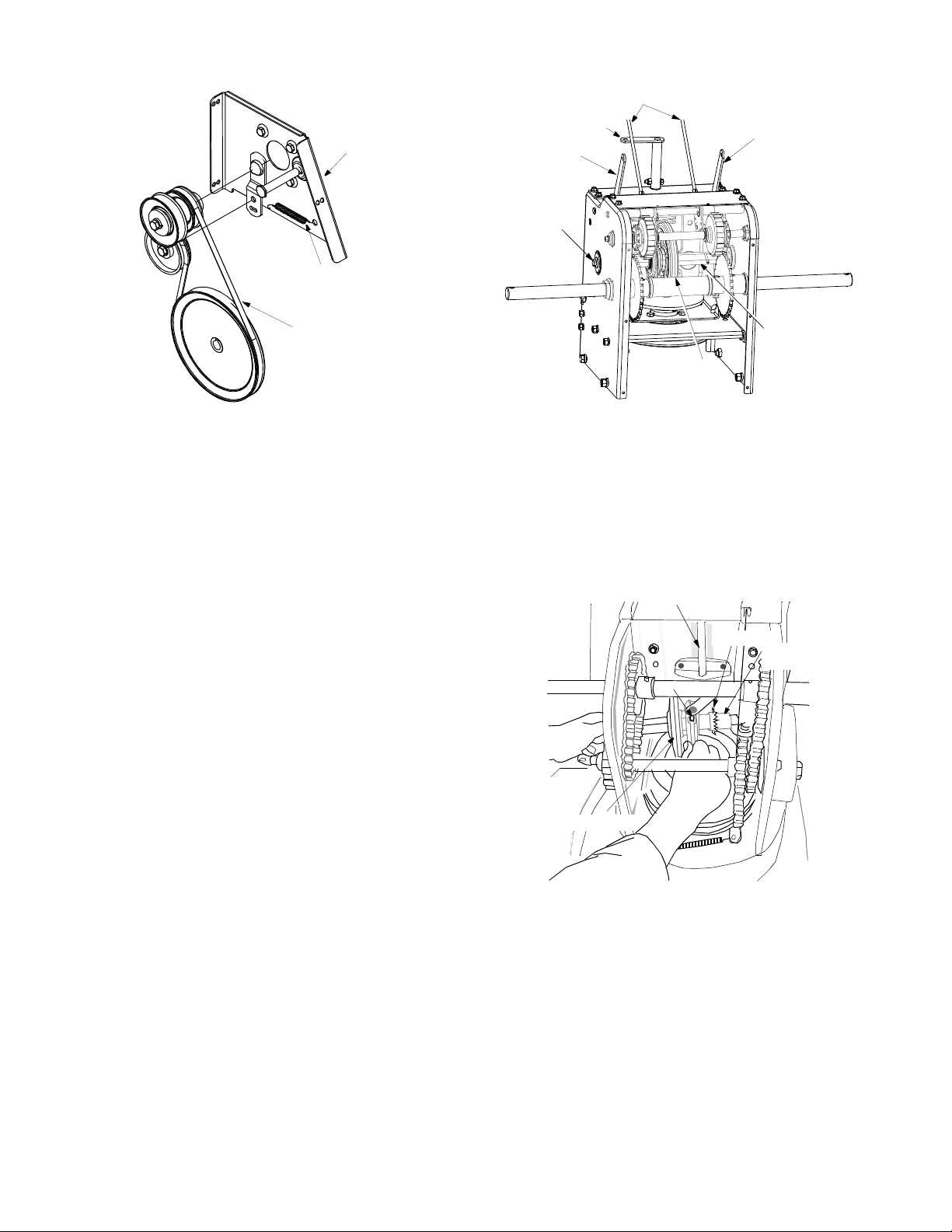

Replacing Belts

To remove and replace either the auger belt or the drive belt, follow the steps below and then proceed to the specific steps listed under respective sub-headings.

Hairpin

Clip

Flat

Washers

Belt Cover Bolts(3)

Belt Cover

Washer

Hex Nut

If the augers do not turn, check if the bolts have sheared. Two replacement shear bolts and hex lock nuts have been provided with the snow thrower. Refer to Loose Parts on page 5. For future use, order the parts numbers listed in Figure 1.

IMPORTANT:

standard hex bolts. Any damage to the auger gearbox or other components, as a result of doing so, will NOT be covered by your snow thrower’s warranty.

NEVER replace the auger shear bolts with

Carriage Bolt

Shave Plate

Figure 16

Shave Plate and Skid Shoes

The shave plate and skid shoes on the bottom of the snow thrower are subject to wear. They should be checked periodically and replaced when necessary.

NOTE: The skid shoes on this machine have two wear edges. When one side wears out, they can be rotated 180° to use the other edge.

Upper Bolt

Support Tube Bolt

• Disconnect the chute crank assembly at the discharge chute end by removing the hairpin clip and the two flat washers.

• Remove the plastic belt cover, located near the engine, by removing the three self-tapping screws and flat washers that secure it. Refer to Figure 17.

• Remove the large shoulder bolt and washer on the left hand side of the engine pulley. Refer to Figure

18.

Shoulder Bolt

(do not remove)

Figure 17

(remove)

Engine Pulley

Shoulder Bolt

Figure 18

Auger Belt

• Remove the cotter pin and washer from the ferrule in order to disconnect the auger idler rod from the brake bracket assembly as shown in Figure 19.

• Slip the auger control belt (the front belt) off the engine pulley. See Figure 19 .

• Pull the brake bracket assembly towards the cable guide roller and unhook the auger cable “Z” fitting.

• Remove the upper bolts and lock washers which attach the auger housing assembly to the frame assembly using a 9/16” wrench. Refer to Figure 17.

• Using a 1/2” wrench, remove the hex screw and belleville washer from the center of the pulley on the auger housing. Lift the brake bracket assembly out of the pulley groove and remove the pulley. See Figure 20. Be careful not to lose the key.

• Remove and replace auger belt inside belt keepers.

• Reassemble pulley to auger housing with hex

screw and belleville washer (cupped side toward the pulley). Make sure key is in place on shaft and brake puck is seated in the pulley groove.

• Reassemble the belt cover and chute directional control.

Proper Adjustment: With the auger clutch lever in the disengaged position the top surface of the new belt should be even with the outside diameter of the pulley.

• To adjust, disconnect ferrule from brake bracket assembly and thread ferrule in (towards idler) to increase tension on belt, and out to decrease tension.

NOTE: The brake puck must always be firmly seated in the pulley groove when the auger control is in the disengaged position.

Brake Bracket Assembly

Auger Belt

Idler Pulley

Auger Pulley

Engine

Pulley

Auger

Idler

Auger

Control

Belt

Rod

Ferrule

Brake

Bracket

Assembly

Cable Roller

“Z”

Guide

Fitting

Figure 19

• Separate the auger housing from the frame assembly by tilting the housing forward and pulling up the handles.

Belt Keepers

Hex Screw

Belleville Washer

Figure 20

Drive Belt

• Unhook the extension spring from the belt cover plate. See Figure 21.

• Remove drive belt from the engine pulley and bottom drive pulley. Refer to Figure 21.

• Replace belt and reassemble in reverse order.

• Reassemble the two halves of the unit hooking the

lower portion of the auger housing over the stationary shoulder bolts in the frame assembly.

• Secure the two halves with the two bolts and lock washers removed earlier. Refer to Figure 17.

Extension Spring

Belt Cover

Shift Arm

Auger Actuator Bracket

Hex Nut and Cupped Washer

Trigg e r C a bles

Drive Actuator Bracket

Drive Belt

Figure 21

• Attach the “Z” fitting of the cable into the brake bracket assembly. Refer to Figure 19.

• Slip the auger control belt over engine pulley.

• Insert ferrule on auger idler rod into bracket

assembly and secure with flat washer and cotter pin. Reassemble the large shoulder bolt and lock washer as shown in Figure 18.

• Reassemble belt cover and chute crank.Changing Friction Wheel Rubber

The rubber on the friction wheel is subject to wear and should be checked after the first 25 hours of operation, and periodically thereafter. Replace the friction wheel rubber if any signs of wear or cracking are found.

• Drain the gasoline from the snow thrower, or place a piece of plastic under the gas cap.

• Tip the snow thrower up and forward, so that it rests on the housing.

• Remove six screws from the frame cover underneath the snow thrower. Refer to Figure 22.

• Remove the left wheel from the axle.

• Using a 7/8” wrench, hold the hex shaft and remove

the hex bolt, cupped washer and bearing from left side of the frame. Refer to Figure 23.

Hex Shaft

Friction Wheel

Figure 22

• Holding the friction wheel assembly as shown in Figure 23, slide the hex shaft out of the left side of the unit. The spacer on the right side of the hex shaft will fall and the sprocket should remain hanging lose in the chain.

• Lift the friction wheel assembly out between the axle shaft and the drive shaft assemblies.

Shift Arm Assembly

Shift Arm

Assembly

Friction Wheel

Drive Cover

Friction Wheel

Sprocket

Spacer

Sprocket

Spacer

Figure 23

• Remove the six screws from both sides of the friction wheel assembly. Remove friction wheel rubber from between the friction wheel plate as shown in Figure 24.

• Reassemble the new friction wheel rubber to the friction wheel assembly, tightening the six screws in rotation and with equal force. It is important to assemble the rubber on the friction wheel symmetrically for proper functioning.

NOTE: If the sprocket fell from the snow thrower while removing the hex shaft, place the sprocket on the hex shaft. Position the hex hub of the sprocket toward the friction wheel when sliding the sprocket on to the hex shaft as shown in Figure 25.

Friction Wheel Plates

Bearing

Screws

Friction Wheel

Rubber

Hub

Figure 24

• Insert the pin from the shift arm assembly into the friction wheel assembly and hold assembly in position. Refer to Figure 23.

• Slide the hex shaft through the left side of the housing and through the friction wheel assembly.

• Insert the hex shaft through the sprocket and the spacer. Make certain that the chain engages both the large and the small sprocket.

Shift Arm

Assembly

Hex

Shaft

Hex Hub

of Sprocket

Friction Wheel

Sprocket

Spacer

Figure 25

• Secure with the bell washer and hex bolt removed earlier.

• Secure the frame cover with six self-tapping screws. Put the snow thrower down to its normal operating position.

NOTE: If you placed plastic film under the gas cap, be certain to remove it.

Engine

Refer to separate engine manual for all engine maintenance procedures.

SECTION 8: OFF-SEASON STORAGE

WARNING: Never store engine with fuel in

tank indoors or in poorly ventilated areas, where fuel fumes may reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliance.

• If unit is to be stored over 30 days, prepare engine for storage as instructed in the engine manual.

• Remove all debris from the exterior of equipment.

• Follow lubrication recommendations on page 12.

• Always store the snow thrower in a clean, dry area.

NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be taken to rust proof the equipment. Using a light oil or silicone, coat the equipment, especially any chains, springs, bearings and cables.

SECTION 9: TROUBLESHOOTING

Problem Cause Remedy

Engine fails to start. 1. Fuel tank empty, or stale fuel.

2. Blocked fuel line.

3. Choke not in ON position

4. Faulty spark plug.

5. Safety key not in ignition switch on engine.

6. Spark plug wire disconnected.

7. Primer button not being used properly.

Engine runs erratic. 1. Unit running on CHOKE.

2. Blocked fuel line or stale fuel.

3. Water or dirt in fuel system.

4. Carburetor out of adjustment.

Loss of power. 1. Spark plug wire loose.

2. Gas cap vent hole plugged.

3. Exhaust port plugged.

Engine overheats. 1. Carburetor not adjusted properly. 1. Refer to the engine manual or have the

Excessive vibration. 1. Loose parts or damaged auger. 1. Stop engine immediately and disconnect

Unit fails to propel itself.

Unit fails to discharge snow.

1. Traction control cable in need of adjustment.

2. Drive belt loose or damaged.

1. Discharge chute clogged.

2. Foreign object lodged in auger.

3. Auger control cable in need of adjustment.

4. Auger belt loose or damaged.

5. Shear bolt(s) sheared.

1. Fill tank with fresh gasoline.

2. Clean the fuel line.

3. Move switch to ON position

4. Clean, adjust gap or replace.

5. Insert the key fully into the switch.

6. Connect spark plug wire.

7. Refer to the engine manual.

1. Move choke lever to OFF position.

2. Clean fuel line and fill tank with clean, fresh gasoline.

3. Drain fuel tank and carburetor. Refill with fresh fuel.

4. Refer to the engine manual.

1. Connect and tighten spark plug wire.

2. Remove ice and snow from gas cap. Be certain vent hole is clear.

3. Refer to the engine manual.

carburetor adjusted by an authorized engine service dealer.

spark plug wire. Tighten all bolts and nuts. If vibration continues, have unit serviced by an authorized service dealer.

1. Adjust traction control cable. Refer to pages 6 and 11.

2. Replace drive belt. Refer to page 14.

1. Stop engine immediately and disconnect spark plug wire. Clean discharge chute and inside of auger housing.

2. Stop engine immediately and disconnect spark plug wire. Remove object from auger.

3. Refer to page 6 for adjustment instructions.

4. Refer to page 14.

5. Replace shear bolt(s).

NOTE: For repairs beyond the minor adjustments listed above, contact the local Cub Cadet dealer.

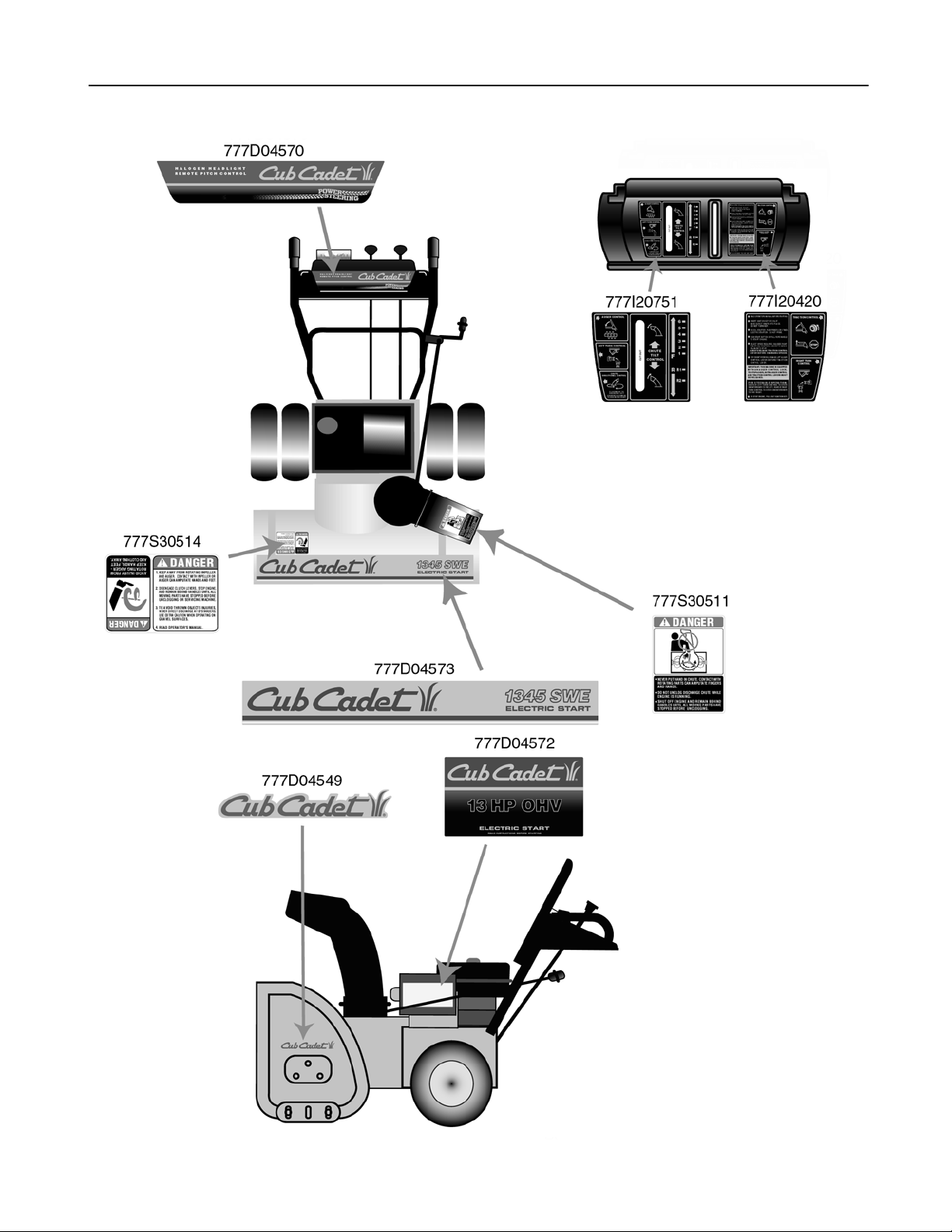

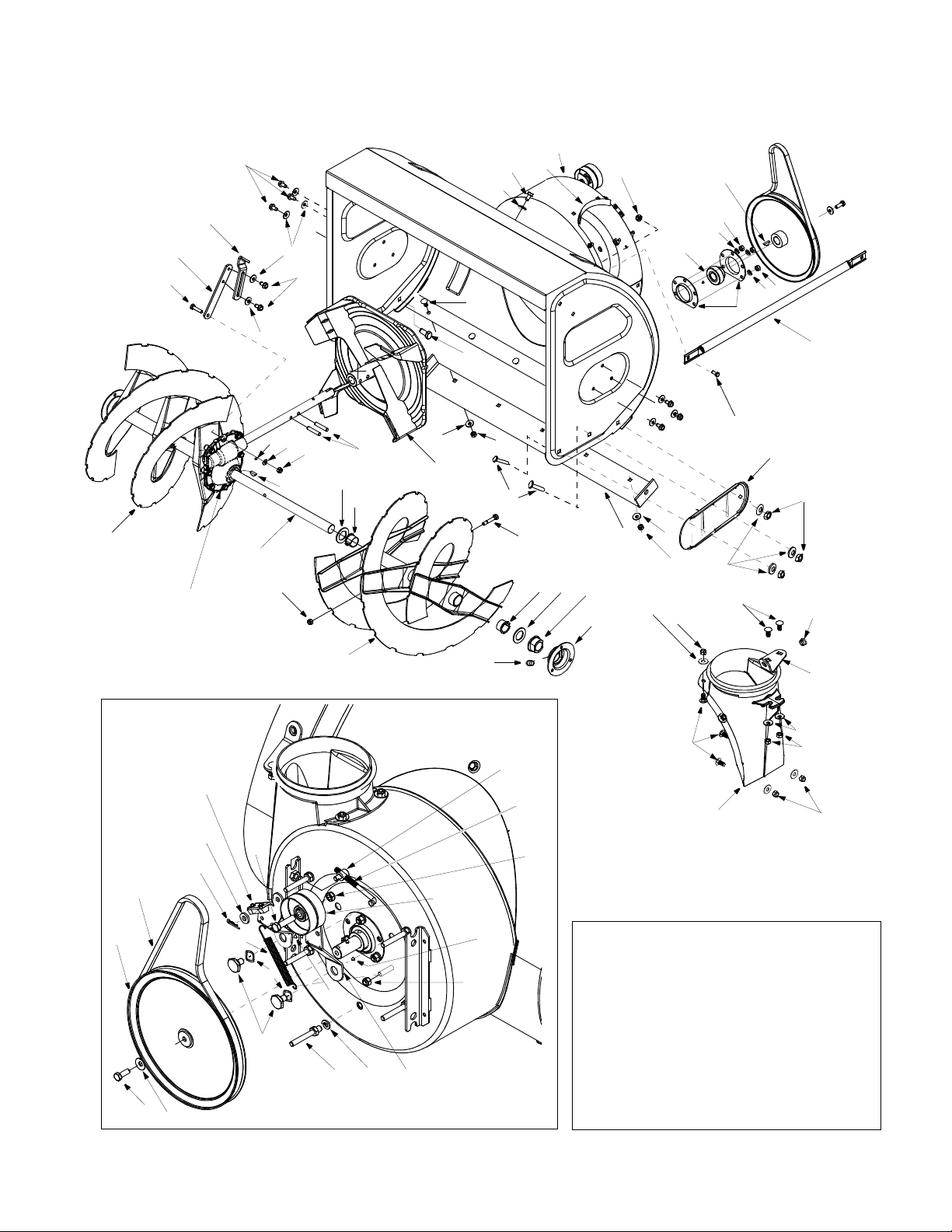

SECTION 10: PARTS LIST FOR MODEL 1345 SWE

MODEL 1345 SWE

NOTE: For painted parts, please refer to

the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-xxxx, is painted Cub Yellow, the part number to order would be 700-xxxx-0716.

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

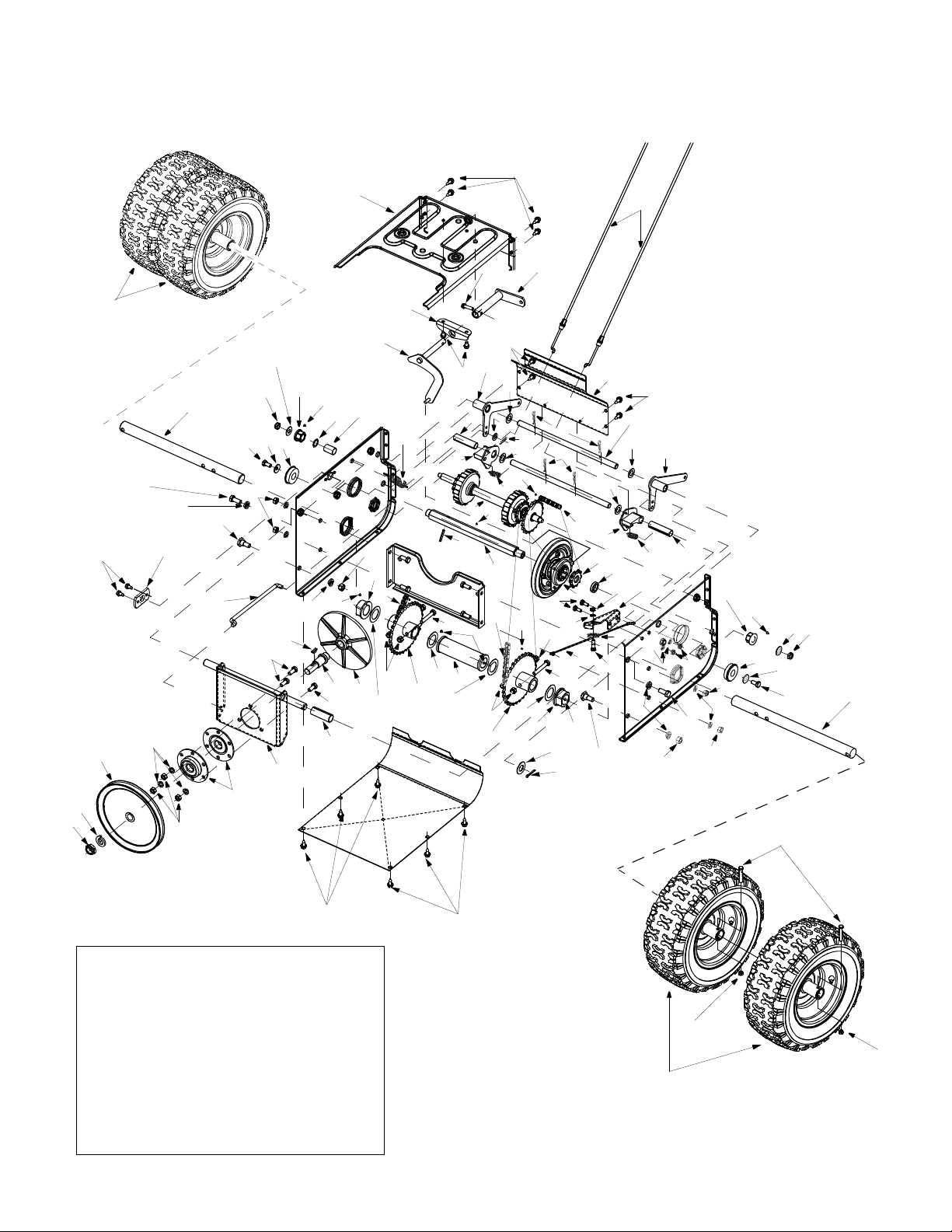

MODEL 1345 SWE

Ref. No. Part No. Part Description

05244A Bearing Housing

618-0281A Bracket Assembly: Auger Break

684-0090A Impeller Assembly: 16”

710-0371 Hex Lock Bolt 5/16-18 x .875”

710-0451 Carriage Bolt 5/16-18 x .750”

710-0459A Hex Screw, Special 3/8-24 x 1.5”

710-0528 Hex Screw 5/16-18 x 1.25”

710-0604 Self-Tapp. Screw 5/16-18 x .625”

710-0891 Shear Bolt 5/16-18 x 1.75”

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

711-0640 Stud 711-0677 Ferrule 712-0116 Jam Nut 3/8-24 712-0429 Hex Lock Nut 5/16-18 712-3010 Hex Nut 5/16-18 714-0104 Hairpin Clip 714-0126 Key 714-0135 Key 715-0118 Spiral Pin 731-1696 Chute Adapter 732-0858 Extension Spring 736-0119 Lock Washer 736-0159 5/16 Washer 736-0169 Lock Washer 736-0174 Wave Washer 736-0242 Beleville Washer 736-0250 Flat Washer 736-0271 Spring Washer 736-3008 Flat Washer 737-3007 Grease 738-0281 Shoulder Screw

Ref. No. Part No. Part Description

741-0185 Self-Aligning Bearing

31.

741-0192 Flange Bearing w/ Flats

32.

741-0475 Plastic Bushing

33.

741-0494 Flange Bushing

34.

747-0980 Idler Rod: Auger

35.

754-0222 V-Belt

36.

756-0178 Flat Idler

37.

756-0243 Pulley

38.

784-0385A Idler Bracket: Auger

39.

784-5076 Support Bracket

40.

784-5123 Chute Crank Bracket

41.

784-5710 Support Plate

42.

784-5711 Chute Bracket

43.

618-0436 Gear Assembly: Auger w/

44.

Grease Fitting

684-0072 Spiral Assembly RH

45.

684-0073 Spiral Assembly LH

46.

684-0155 Auger Housing Assembly

47.

710-3008 Hex Screw 5/16-18 x .75”

48.

737-3000 Lube Fitting

49.

738-0492 Spiral Axle

50.

749-1117 Support Tube

51.

784-0315 Bearing Housing

52.

784-5696 Shave Plate

53.

710-0389 Carriage Screw

54.

710-3168 Carriage Bolt

55.

712-0798 Hex Nut 3/8-16

56.

736-0105 Bell Washer

57.

784-5697 Slide Shoe

58.

MODEL 1345 SWE

36 45

57 20

53 69

29 13

NOTE: For painted parts, please refer to

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

MODEL 1345 SWE

Ref. No. Part No. Part Description

05523 Support Bracket: Pivot

618-0278 Bush Assembly

618-0279 Dogg Assembly LH

618-0280 Dogg Assembly RH

618-0282B Shift Assembly

618-0296 Wheel Bearing Assembly

684-0115 Support Bracket Assembly

684-0116 Shift Arm Assembly

684-0117 Shift Rod Assembly

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

684-0118 Auger Actuator Bracket Assy. 684-0119 Drive Actuator Bracket Assy. 684-0120 Frame Assembly 684-0122 Sprocket Assembly 710-0195 Hex Screw1/4-28 x .625” 710-0538 Hex Screw5/16-18 x .625” 710-0599 TT Screw 1/4-20 x .5” 710-0788 TT Screw 1/4-20 x 1” 710-1652 TT Screw1/4-20 x .625” 710-3001 Hex Screw 3/8-16 x .880” 710-3008 Hex Screw 5/16-18 x .75” 710-3103 Hex Screw 5/16-18 x 2” 710-3180 Hex Screw 5/16-18 x 1.75” 711-1191 Hex Shaft: Drive 711-1193 Actuator Shaft 711-1194 Actuator Drive Shaft 712-0116 Lock Nut 712-0138 Hex Nut 1/4-28 712-0221 Jam Lock Nut 712-0429 Hex Lock Nut 712-0798 Hex Nut 3/8-16 712-3010 Hex Nut 5/16-18 713-0284 Chain 713-0286 Chain 713-0413 Sprocket 714-0101 Hairpin Clip 714-0104 Hairpin Clip 714-0115 Cotter Pin 714-0388 Key 715-0249 Roll Pin 717-0302 Drive Plate

Ref. No. Part No. Part Description

732-0121 Extension Spring

41.

732-0209 Extension Spring

42.

736-0119 Lock Washer 5/16

43.

736-0158 Lock Washer 5/8

44.

736-0160 Flat Washer

45.

736-0163 Flat Washer

46.

736-0217 Lock Washer

47.

736-0242 Beleville Washer

48.

736-0275 Flat Washer

49.

736-0300 Flat Washer

50.

736-0329 Lock Washer

51.

736-0623 Flat Washer

52.

736-0639 Flat Washer

53.

737-0170 Lubricant

54.

737-3007 Grease

55.

738-0143 Shoulder Screw

56.

738-0279 Spindle: Drive Plate

57.

738-0924 Shoulder Screw 1/4-28 x .375”

58.

741-0163A Bearing Housing Assembly

59.

741-0192 Flange Bearing

60.

741-0563 Ball Bearing

61.

741-1111 Hex Flange Bearing

62.

746-0949 Steer Cable

63.

746-0951 Idler Cable: Auger

64.

747-0973 Clutch Rod: Drive

65.

750-0903 Split Spacer

66.

750-0997 Spacer

67.

750-1097 Split Spacer

68.

750-1196 Spacer

69.

756-0344 Drive Pulley

70.

756-0625 Roller Cable

71.

784-0377 Frame Support Bracket

72.

784-0379 Frame Cover: Upper

73.

784-0380 Frame Cover: Lower

74.

784-0384 Auger Cable Bracket

75.

784-5590 Bracket: Shift — Frame

76.

710-3103 Hex Screw 5/16-18 x 2”

77.

712-0429 Lock Nut

78.

734-1593 Wheel

79.

738-1137 Axle: Wheel

80.

MODEL 1345 SWE

NOTE: For painted parts, please refer to

Cub Yellow: 0716

Cub Beige: 0499

Cub Blue: 0685

Powder Black: 0637

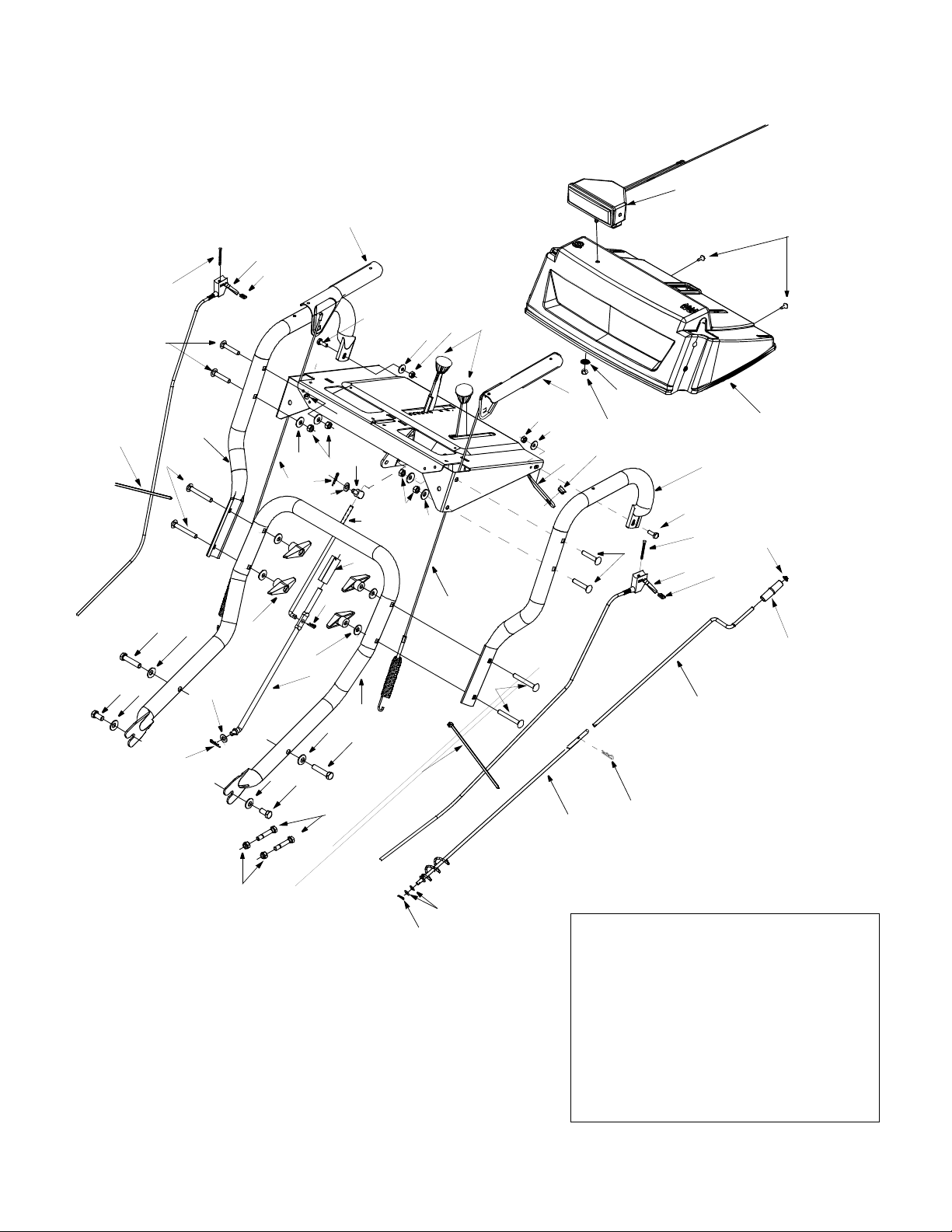

MODEL 1345 SWE

Ref.

No.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

Part No. Part Description

646-0012 Cable Assembly: Auger/Drive

Engagement

684-0053A Chute Crank Assembly 705-5266 Chute Crank Bracket 710-0216 Hex Screw 3/8-16 x .75” 710-0347 Hex Screw3/8-16 x 1.75” 710-0458 Carriage Bolt 5/16-18 x 1.75” 710-0572 Carriage Bolt 5/16-18 x 2.5” 710-0891 Shear Bolt 5/16-18 x 1.75” 710-3015 Hex Screw 1/4-20 x .75” 711-0677 Ferrule 712-0287 Hex Nut 1/4-20 712-0429 Hex Lock Nut 712-3010 Hex Nut 714-0101 Hairpin Clip 714-0104 Hairpin Clip 720-0201A Chute Crank Knob 720-0284 Knob 726-0100 Push Cap 736-0105 Bell Washer 736-0185 Flat Washer 736-0242 Beleville Washer 736-0270 Bell Washer 736-0275 Flat Washer

Ref.

No.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

39.

40.

41.

42.

43.

44.

Part No. Part Description

741-0475 Plastic Bushing 747-0624 Chute Crank 747-0983 Lower Shift Rod 747-0997 Upper Shift Rod 749-0989A Upper Handle LH 749-0990A Upper Handle RH 749-0991 Lower Handle 750-0963 Clutch Rod Connector 710-1625 Oval C-Sunk Screw 712-0127 Flat Weld Nut 725-0157 Cable Tie 746-0950 Trigger Control 625-0007 Light Assembly 725-1658 Halogen Lamp 725-1672 Lens Assembly 705-5218 Handle Engagement RH 705-5219 Handle Engagement LH 710-1003 Special B Screw 712-0271 Hex Sems Nut 712-0429 Hex Lock Nut 720-0232 Shift Knob 731-0061 Handle Panel 736-0159 5/16 Washer

MODEL 1345 SWE

Ref. No. Part No. Description

1. 07386 Washer

2. 684-0123A Belt Cover Bracket Assembly

3. 710-0191 Hex Screw 3/8-24 x 1.25”

4. 710-0237 Hex Screw 5/16-24 x .625”

5. 710-0502A TT Sems Screw

6. 710-0607 TT Screw 5/16-18 x 0.5”

7. 710-1245 Hex Lock Screw 5/16-24 x .875”

8. 712-0116 Jam Nut

9. 714-0118 Key

10. 731-0321 Belt Cover

11. 732-0303 Extension Spring

12. 736-0159 5/16 Washer

13. 736-0217 Lock Washer

14. 736-0242 Beleville Washer

15. 736-0264 Flat Washer

16. 737-3007 Grease

17. 738-0215A Shoulder Screw

18. 748-0234 Shoulder Spacer

19. 754-0131 V-Belt

20. 756-0240 Flat Idler

21. 756-0241B Double Pulley

22. 784-5726 Idler Bracket

23. 712-0324 Hex Lock Nut: 1/4-20

24. 732-0705 Cable Guide

25. 736-0173 Flat Washer

26. 629-0071 Extension Cord: 110V, 3-prong

MODEL 1345 SWE

27 37

Ref. No. Part No. Description

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

710-0276 Carriage Screw

710-0458 Carriage Bolt 5/16-18 x 1.75”

710-0805 Hex Bolt 5/16-18 x 1.5”

710-0896 Hex AB Screw 1/4-14 x .625”

710-3015 Hex Screw 1/4-20 x .75”

712-0429 Hex Lock Nut

712-3027 Hex Flange Lock Nut

731-0846C Upper Chute

731-0851A Chute Flange Keeper

731-1313C Cable Guide: Chute Tilt

731-0903D Lower Chute

784-5680 Handle Suppt. Bracket 5/8 RH

736-0159 5/16 Washer

736-0231 Flat Washer

736-0506 Special Washer

746-0902 Chute Control Cable

746-0903 Chute Cable w/Clip

784-5594 Cable Bracket

784-5604 Chute Tilt Handle

684-0102 Handle Panel Assembly w/ Tilt

710-0459A Hex Bolt 3/8-24 x 1.5”

710-0599 TT Screw 1/4-20 x 0.5”

711-0653 Clevis Pin

712-0116 Jam Nut

784-5682 Handle Suppt. Bracket 3/8 RH

714-0507 Cotter Pin

732-0145 Spring

732-0193 Spring

732-0746 Torsion Spring

735-0199A Rubber Bumper

736-0105 Bell Washer

784-5681 Handle Suppt. Bracket 3/8 LH

736-0509 Special Washer

747-0877 Cam Rod

748-0362 Cam: Handle Lock

748-0363 Pawl: Handle Lock

784-5619A Shift Handle

784-5679 Handle Suppt. Bracket 5/8 LH

MANUFACTURER’S LIMITED WARRANTY FOR:

TWO-YEAR RESIDENTIAL ONE-YEAR COMMERCIAL

Proper maintenance of your Cub Cadet equipment is the owner’s responsibility. Follow the instructions in your operator’s manual for correct lubricants and maintenance schedule. Your Cub Cadet dealer carries a complete line of quality lubricants and filters for your equipment’s engine, transmission, chassis and attachments.

Riding mowers, lawn tractors, garden tractors, Cub Cadet

attachments and home maintenance products

This limited warranty for residential users, covers any defect in materials or workmanship in your Cub Cadet equipment for two years from the date of purchase for the first user purchaser. We will replace or repair any part or parts without charge through your authorized Cub Cadet dealer.

Batteries have a one-year prorated limited warranty with 100% replacement during the first three months.

V-belts for either the traction drive or any attachments are covered for one year only.

Cub Cadet equipment used commercially is warranted for one year only.

(Commercial use is defined as either having hired operators or used for income producing purposes.)

Items not covered

The warranty does not cover routine maintenance items such as lubricants, filters (oil, fuel, air and hydraulic), cleaning, tune-ups, brake and/or clutch inspection, adjustments made as part of normal maintenance, blade sharpening, set-up, abuse, accidents and normal wear. It does not cover incidental costs such as transporting your equipment to and from the dealer, telephone charges or renting a product temporarily to replace a warranted product.

There is no other express warranty.

How to obtain service

Contact your authorized Cub Cadet servicing dealer who sold you your Cub Cadet equipment. If this dealer is not available, see the Consumer Yellow Pages under “lawn mowers” for the name of a dealer near you.

If you need further assistance in finding an authorized Cub Cadet servicing dealer, contact:

Cub Cadet Corporation Post Office Box 368023

Cleveland, Ohio 44136

How does state law apply?

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Cub Cadet 1345 SWE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
