VL1300 User’s Manual
User’s Manual
User’s Manual
User’s ManualUser’s Manual
VL1300
VL1300
VL1300VL1300
1
VL1300 User’s Manual
Table of Contents
1. Safety Instructions 3
2. Recommendation for Optimum Performance 7
3. Introduction 8
4. Installation 9
5. Controls and Adjustments 11
6. Trouble Shooting 23
7. Energy Declaration 25
8. Specification 26
9. Reference Information 28
2
Safety Instructions
FCC Statement
T
his equipment has been tested to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
VL1300 User’s Manual
encouraged to try to correct the interference by one or more of the following
measures:
•
•
•
•
Warning:
If a shielded-type power cord is supplied with this monitor, it is required in
order to meet FCC emission limits and to prevent interference with nearby
radio and television reception. Only shielded cables should be used to
connect I/O devices to this equipment. You are cautioned that changes or
modifications not expressly approved by the party responsible for compliance
could void your authority to operate the equipment.
Relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
3
VL1300 User’s Manual
CE Statement
T
his device complies with the requirements of EMC (Electromagnetic
Compatibility), and with Low Voltage directive.
Safety Precautions
1. Please read carefully all of these instructions below and keep the manual
for later use.
2. Please install the swivel base below this product before using it.
3. The voltage ratings and the rated frequency are on the overlay centered at
rear side of this product. Do not connect with any other sources of voltage or
frequency, and please follow all warnings and instructions marked on the
product.
4. Unplug this product from the wall outlet before cleaning and use a damp
cloth to clean it. Do not use liquid cleaners or aerosol cleaners.
5. Do not expose this product to rain or moisture.
6. Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
7. Do not block or cover ventilating openings with cloth or other material.
Neither should this product be placed near or over a radiator or a heat register,
nor should the product be placed in a built-in installation unless proper
ventilation is provided.
8. This product is equipped with a 3-wire grounding model plug. This plug will
only fit into a grounding-model power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the grounding-model plug.
Choose a Tandem Blade attachment plug configuration power cord for 230V
AC input.
4
VL1300 User’s Manual
Due to the safety requirements of different areas, please
select a suitable power cord according to the following rules,
in addition to the electric rating:
A. Northern America area: Please select a UL listed and CSA
certified power cord.
B. Germany: Please select a VDE certified power cord.
C. Nordic countries: Please select a power cord certified by
SEMKO, NEMKO, DEMKO or FIMKO.
D. The other areas: Please select a power cord suitable to the
local power system and power outlet.
Usually, when this product is sold, the manufacturer provides
a suitable power cord. However, this product is sometimes
resold or transported to another area, with different power
system and safety requirements. Please pay attention to the
selection of a suitable power cord. The plug on the power
cord is intended to serve as the disconnect device, the
socket-outlet shall be installed near the equipment and shall
be easily accessible.
9. Do not allow anything to rest on the power cord. Do not locate this product
where persons can walk on the cord.
10. Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could result in
the risk of fire or electric shock. Never spill liquid of any kind on the product.
11. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to service personnel.
12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions.
5
VL1300 User’s Manual
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If when the operating instructions are followed, the product
has been exposed to rain or water.
D. If the product does not operate normally, adjust only those
controls that are covered by the operating instructions since
improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician
to restore the product to normal operation.
E. If the product has been dropped or the cabinet has been
damaged.
F. If the product exhibits a distinct change in performance,
indicating a need for service.
Notice : Actual safety specifications please refer to the label on the back
of monitor.
6
Recommendation for Optimum Performance
W
hen setting up and using the monitor, pay special attention to the following
for optimum performance:
•
Do not use your monitor against a bright background or where
VL1300 User’s Manual
sunlight or other light sources will shine directly on the screen.
•
The monitor should be placed just below eye level (10°~15° ) for
optimum viewing.
•
Set the monitor's brightness to match the ambient room light.
•
For optimum focus, the contrast control should not be set to the
maximum level unless the input signal level is extremely low. Also, the
brightness control should be set to a point where the overall
background area just begins to disappear.
•
Allow adequate ventilation around the monitor so that the heat from
the monitor can properly dissipate.
•
Neither the monitor itself, nor any other heavy objects, should rest on
the power cord. Damage to the power cord can cause fire or electrical
shock.
•
Keep the monitor away from high-capacity transformers, electrical
motors, or other strong magnetic fields.
•
Your monitor should not be used in damp, dusty, or dirty areas.
•
Handle your monitor with care when transporting it.
•
Clean the CRT surface with a lint-free, non-abrasive cloth and a
non-alco-hol, neutral, non-abrasive cleaning solution or glass cleaner.
CAUTION
•
Do not scrap or knock the surface of CRT with a pen, a screwdriver
and so on.
•
Clean the CRT surface with a lint-free, nonabrasive, soft cloth, and
should not use the solution or glass cleaner containing corpuscles like
an abrasive, alcohol and an alkaline solution.
7
Introduction
T
he monitor is a multiple frequency high-resolution color monitor for IBM
compatible PC's or Macintosh and workstation systems. The monitor is
equipped with microprocessor-based intelligence and multiple frequency
scanning capability, allowing it to provide maximum compatibility for various
VL1300 User’s Manual
system platforms.
T
he monitor uses the latest screen technology including a CRT to display
crisp text and vivid color graphics. The full-function digital control and
On-Screen Display (OSD) system provides easy adjustment of image
geometry and color settings for different display modes with the precision of a
fixed frequency monitor.
T
he design of the monitor is also ergonomics concerned. In addition to the
friendly controls and user comfort features, the emission level of the electric
and magnetic field is kept low to meet the Sw edish MPR II or TCO standards.
T
he monitor is also equipped with energy saving functions; it is compatible
with the VESA power saving standards.
8
Installation
Unpacking
T
he following lists all of the items included in the monitor package box.
Please save the original box and packing materials for future transportation or
VL1300 User’s Manual
shipment of the monitor.
Color monitor with tilt/swivel base
(with Signal cable)
Power cord
User's Guide / Driver CD
System Setup
1. Turn off the system and all attached peripherals.
2. Carefully turn the monitor upside down.
Remove the Tilt/Swivel Base
1. Squeeze and hold the latches.
2. Pull the tilt/swivel base to the rear of the monitor and lift to remove the base.
9
Installing the Tilt/Swivel Base
VL1300 User’s Manual
1. Align the base with the slots on the bottom of the monitor and insert the
tilt/swivel base into the slots.
2. Push the tilt/swivel base firmly toward the front of the monitor until the
latches click into the locked position.
Please save the original box and its packing materials for future transportation
or shipment of the monitor.
10
Control and Adjustments
O
nce you have installed the monitor for your system, please read the
instructions of this section which give you some guidelines on how to use the
monitor more efficiently. It leads you through the various function of the user
controls and explains how to adjust the monitor to your personal preference.
Front Panel Controls
VL1300 User’s Manual
1. Main Power Switch (Rear)
To turn off the main power switch.
2. Standby-by Switch
To turn the monitor on or off.
3. Power LED Indicator
As long as the monitor is powered, this indicator is lit. In
normal operation, it lights green. While in power saving mode,
the indicator will turn to amber.
4. Degauss Switch
To manually degauss the monitor.
11
VL1300 User’s Manual
5. Input Select/Exit Switch
To select input signals from BNC or D-SUB 15 pin connector.
6. Control Keys
To adjust the parameter of the selected function.
To adjust the contrast level or brightness of the screen.
7. Status Key
To display and select the "Mode", "Off time", "Power save",
"Recall", "Language" and "Location" functions.
Mode" shows horizontal/vertical frequency and polarity.
"Off time" sets OSD window display time.
"Power save" enables or disable the power saving function.
"Recall" recalls the factory settings of the "Picture", "Color"
and "Converge" parameters.
"Language" selects the OSD menu language.
"Location" moves the position of the OSD window.
8. Color Key
To display and select the color mode.(four different color
modes can be chosen)
9. Picture Key
To display and select the "Position", "Size", "Pincushion",
"Geometry", "Rotation" and "Others" functions.
Power Saving Note:
This monitor is equipped with a automatic power-saving circuitry design that
will work with any computer which meets the VESA DPMS standard. It meets
the ENERGY STAR low power state definition.
12
CONTROLS AND ADJUSTMENTS
VL1300 User’s Manual

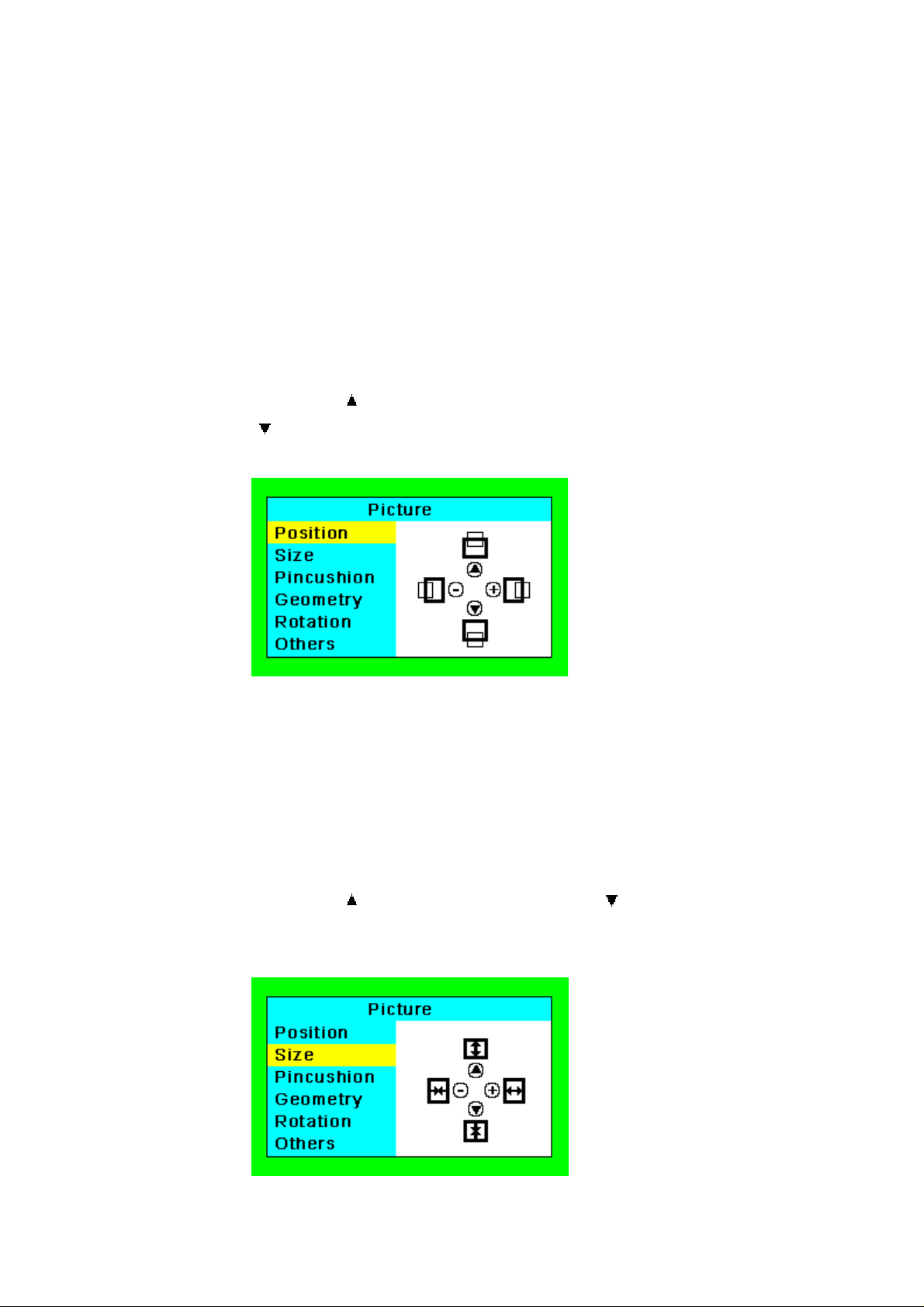

"Picture" Menu
A. Position
a.
Press the "+" or "-" key to reposition the display to the right
or left.
b.
"
Press the "
" to move it downwards.
" key to move the entire picture upwards and
B. Size
a.
width.
b.
reduce it.
Press the "+" or "-" key to enlarge or reduce the horizontal
Press the "
" key to enlarge the vertical size or " " to
13
VL1300 User’s Manual
C. Pincushion
a.
Press the "
b.
Press the "+" or "-" key to adjust the picture according to
your preferences.
" or " " key to select "Sidepin" or "Balance".
D. Geometry
a.
Press the "
"Parallel".
b.
Press the "+" or "-" key to adjust the picture according to
your preferences.
" or " " key to select "Keystone" and
14
VL1300 User’s Manual
E. Rotation
Press the "+" or "-" key to rotate the picture.
F. Others
a.
Press the "
Convergence.
" or " " key to select the Moire or
b.
Press the "+" key to proceed.
c.
Select the Moire, press the "
Moire or V. Moire .
d.
Press the "+" or "-" key for prefered adjustment.
e.
Select the Converge, press the "
the H. Convergence or V. Convergence.
f.
Press the "+" or "-" key for prefered adjustment.
g.
Press "Picture" key to picture control.
" or " " key to select the H.
" or " " key to select
15
VL1300 User’s Manual
Caution:
1. If moire reduction is overdone, picture quality, for example,
focus and vertical line stability will be effected sametimes.
2. Proper adjustment is recommanded for not effecting
picture perfermance.
"Status" Menu
A. Mode
Todisplaytiminginformation fortheresolution, frequency and
polarity of the current mode.
16
VL1300 User’s Manual
B. Off time
Press the "+" or "-" key to specify an Off time between 5 and
255 seconds.
C. Power save
Press the "+" key to enable or the "-" key to disable the power
saving function. Mode Off time VESA DPMS
17
VL1300 User’s Manual
D. Recall
a.
Press the "
"Converge".
b.
Confirm the Recall action and proceed by pressing the "+"
key or cancel the action by pressing the "-" key.
" or " " key to select "Picture", "Color" or
18
VL1300 User’s Manual
E. Language
Press the " " or " " key to select between English, German,
French, Spanish or Italian language for the OSD menu.
F. Location
a.
Press the "+" key to shift the OSD window to the right or
the "-" key to shift it to the left.
b.
Press the "
"
" to move it downwards.
" key to move the OSD window upwards or
19
VL1300 User’s Manual
"Color" Menu
a.
By pressing the "Color" key you can select between mode
1, 2, 3 or 4 to store your user defined color settings.
b.
Press the "
press the "+" key to increase or press the "-" key to decrease
the respective color intensity.
" or " " key to select the R/G/B gain, then
Mode 1
Mode 2
Mode 3
20
VL1300 User’s Manual
Mode 4
Contrast and Brightness Control
When the OSD menu is switched off, proceed as follows to
adjust the contrast or brightness:
a.
Press the "+" or "-" key to increase or decrease the contrast
level of the screen.
b.
Press the "
brightness level.
" or " " key to increase or decrease the
21
VL1300 User’s Manual
Input Select/Exit Switch
a. BNC/D15 selection
•
While the OSD window is not displayed.
•
Select the BNC/D15 by pressing the key.
b. Exit Switch
•
To turn off the OSD window by pressing the key.
Key Lock/Unclock
a. Lock
1.
Press the "
simultaneously before turning on the monitor.
" and " " keys
2.
release the "
displays as follows.
3.
the "Key Panel" OSD display off, there is a
"LOCKED" OSD block displayed on the
lower-right corner of the screen.
b. Unlock
1.
above.
2.
After turning on the monitor, and then
" and " " keys. The OSD
Press the "+" key to lock the keys. After
Repeat the step 1 and 2 of the Lock
Press the "-" key to unlock all the keys.
22
VL1300 User’s Manual
Trouble Shooting
B
efore calling an authorized service center, please check that the items below are
properly connected or set.
I
n case of using a non-standard signal, please check the pin assignments and the
signal timing of your adapter with the specifications outlined in sections "Pin
Assignment Table" and "Preset Timing Chart".
Problem Items to check
No picture
"No Signal Input" is
displayed on the screen
Power Switch should be in the ON position, and
the power cord should be properly connected.
Check the color of the power LED indicator; if it is
orange, then the monitor is in a power saving
mode.
Maximize the Brightness and Contrast controls.
The video card should be completely seated in its
slot.
Computer power switch should be in the ON
Display image is not
centered, too small, or
too large
Image is scrolling or
unstable
position.
The signal cable should be completely connected
to the video card/computer.
Adjust Size and Position Controls to adjust the
image.
Signal cable should be completely attached the
computer.
Check the pin assignments and signal timings of
the monitor and your video card.
23
VL1300 User’s Manual
Picture is fuzzy
Picture bounces or a
wave pattern is present in
the picture
Edges of the display
Adjust the Contrast and Brightness Controls.
Push the Degauss Button once.
CAUTION:
A minimum interval of 20 minutes should exist
before the degauss button is pressed a second
time when not switching between modes. Do not
hold the button down continuously.
Move electrical devices that may be causing
electrical interference away from the monitor.
See the inside front cover of this manual for FCC
information.
Adjust the Side PinCushion control.
image are curved either
inward or outward
Color looks blotchy
No Plug & Play
Press the Degauss Button once.
Check if hosting system is Plug Play compatible.
Check if VGA card is DDC 1/DDC 2B compatible.
Check if Window '95 is installed, and the software
key for DDC function is enabled.
Check if original maker's detachable signal cable is
being used(D-15 pin only). BNC cable does not
support Plug & Play function as it does not convey
the SCL (Signal Clock) and SDA (Signal Data)
signals.
24
Energy Declaration
T
his monitor is equipped with a function for saving energy which supports the
VESA Display Power Management Signaling (DPMS) standard. This means
that the monitor must be connected to a computer which also supports the
VESA DPMS standard to fulfill the requirements of the NUTEK specification
803299/94/96. The time settings for switching to a power saving mode are
adjusted from the sy stem unit by software. From the first indication of inactivity
to power saving position A2 the total time must not be set to more than 70
minutes.
1. VESA Power-Management Proposal
VESA DPMS Standard
VL1300 User’s Manual
H. sync
Off
On
Off
V. sync
On
Off
Off
Video
Blank
Blank
Blank
2. Power Consumption (120/230 Vac)
NUTEK
Normal operation
Power Saving
Position A1
VESA
state
On
Suspend
LED
indicator
Green
Amber
State
Off
Stand-by
Suspend
Power
Consumption
< 120W
< 15W
Power Saving
Position A2
Off
Amber
< 5W
25
Specification
VL1300 User’s Manual
Color Picture Tube
Dot Pitch
Input Signal
51 cm / 21" (20" viewable screen size) diagonal
measurement, 90 degree deflection, dot type black
matrix anti-glare, anti-reflection, anti-static,
medium short persistence phosphor
0.25 mm
Video:
0.7 Vp-p/75 ohm, analog positive
Sync:
Separate Sync.: TTL Level
Horizontal Sync.: positive/negative
Vertical Sync.: positive/negative
Composite Sync.: TTL Level, positive/negative :
Composite Sync, on green video 0.3V-pp Negative
Scan Frequency
Display Area
Max. Resolution
Display Colors
Dot Frequence
Misconvergence
Power Supply
Power Consumption
Horizontal: 30 to 115 kHz automatically
Vertical: 50 to 130 Hz automatically
Horizontal 390 mm (adjustable)
Vertical 290 mm (adjustable)
1600 x 1200 pixel, non-interlaced
Analog input, unlimited colors
250 MHz
DDC 1 / DDC 2B
100-120/200-240 VAC, 50/60 Hz (automatically)
120W max.
Dimensions
510(W) x 506.2(H) x 544.7(D) mm
26
VL1300 User’s Manual
Weight
Environment Consideration
Note: Specifications are subject to change without notice.
35 kgs(G.W.), 30kgs(N.W.)
Operating
Temperature: 0°C to 35°C
Humidity: 20% to 80%
Storage
Temperature: -20°C to 60°C
Humidity: 10% to 90%
27
Reference Information
T
his color monitor supports multiple operating platforms such as IBM
compatible and Macintosh family computers. This section provides you with
detailed information on pin assignment of the D-Sub connector and the preset
VL1300 User’s Manual
timing chart of the prevailing video standards.

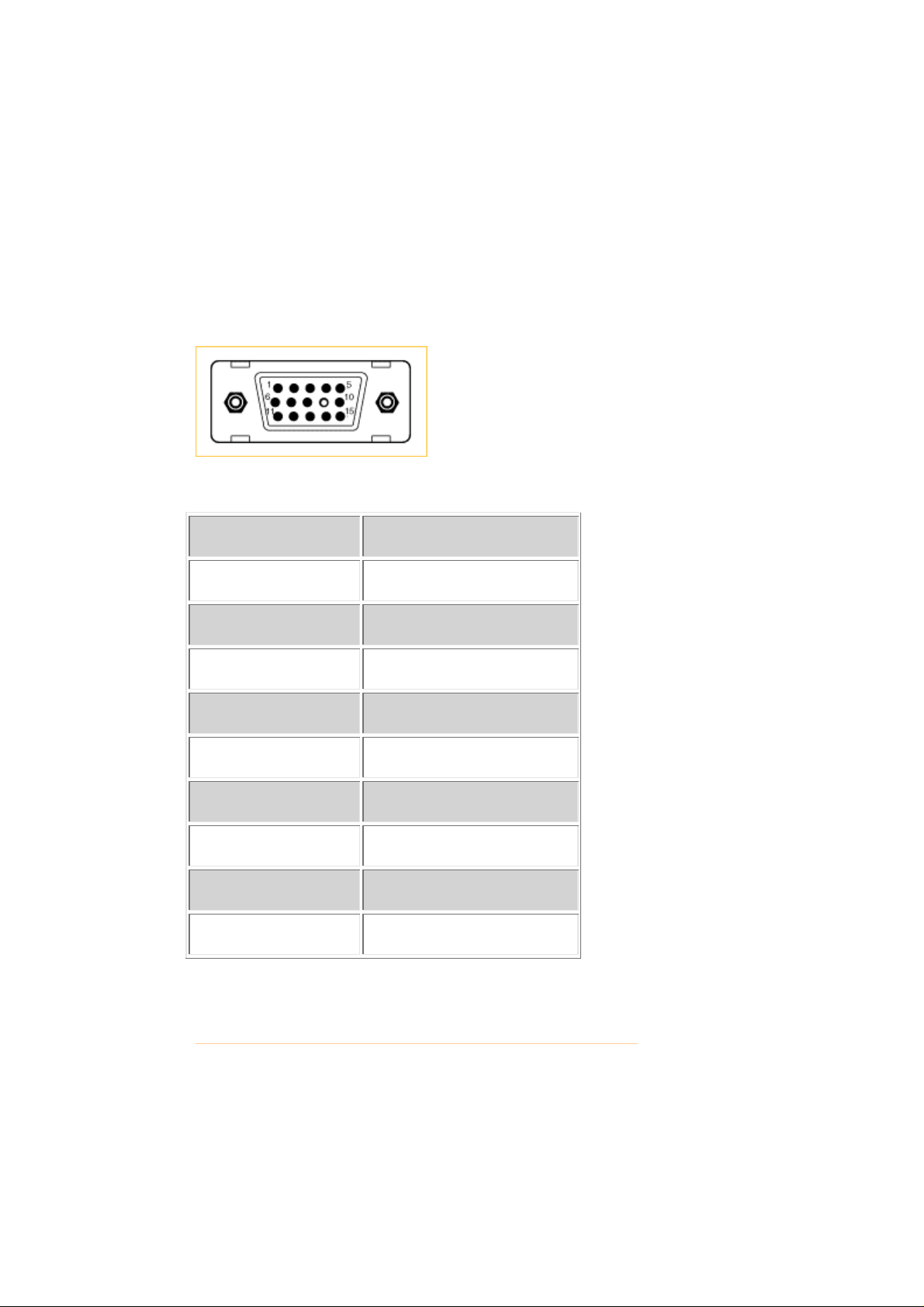

Connector Pin Assignments
Male Mini D-15 Connector
Signal
Red Video
Green Video
Blue Video
15 Pin Mini D-Sub
1
2
3
Horizontal Sync
Vertical Sync
Ground
No Connection
SDA (DDC)
SCL (DDC)
4,5,6,7,8,10,11
13
14
9
12
15
28
Assignments of the BNC Connectors
VL1300 User’s Manual
Notice:
capability (VESA DDC 1/2B). To utilize this capability,
your graphic card and hosting system have to be Plug &
Play compatible as well. When properly plugged (Plug),
the graphic card and hosting system will automatically (Play) identify,
configure, and most importantly, optimize this monitor's capabilities, providing
you with simple and easy installation and setup.
This monitor is equipped with Plug & Play
Preset Timing Chart
Note: This monitor is equipped with a microprocessor which allows the user to
set his own preferred mode(s) beyond those standard mode listed below.
To reduce visual tiredness and eye strain, it is recommended to choose the
highest refresh modes available.
29
VL1300 User’s Manual
Resolution
640x480@60Hz
640x480@85Hz
640x480@120Hz
720x400@70Hz
800x600@85Hz
800x600@120Hz
1024x768@75Hz
1024x768@85Hz
1024x768@100Hz
Format
VGA
VESA
VGA
VESA
VESA
VESA
Horizontal
Frequency (KHz)
31.5
43.3
63.5
31.5
53.7
76
60
68.7
80.5
Refresh Rate (Hz)
60
85
120
70
85
120
75
85
100
1280x1024@75Hz
1280x1024@85Hz
1600x1200@85Hz
VESA
VESA
VESA
80
91.1
107
75
85
85
30
Loading...
