Usage Notice
Precautions ................................................................................... 2
Introduction
About the Product ......................................................................... 3
Package Overview ....................................................................... 4
Installation
Product Overview ......................................................................... 5
Start Your Installation.................................................................... 7
User Controls
Front Bezel Controls ..................................................................... 10
How to Use the OSD Menus ........................................................ 12
On-Screen Display Menus ........................................................... 13
Appendices
Troubleshooting ............................................................................ 16
Product Dimensions..................................................................... 17
Compatibility Modes ..................................................................... 18
Pivot Function (Optional) .............................................................. 19
Table of Contents
Page 2
2
English
Usage Notice
Warning- To prevent the risk of fire or shock hazards, do not
expose this product to rain or moisture.
Warning- Please do not open or disassemble the product as this
may cause electric shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit.
Do:
q Turn off the product before cleaning.
q Use only a dry soft cloth or clean room wiper when cleaning the
LCD panel surface.
q Use a soft cloth moistened with mild detergent to clean the
display housing.
q Use only high quality and safety approved AC/DC power
adapter.
q Disconnect the power plug from AC outlet if the product is not
used for a long period of time.
Don’t:
q Do not touch the LCD panel surface with sharp or hard objects.
q Do not use abrasive cleaners, waxes or solvents for your
cleaning.
q Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
Page 3
English
3
Introduction
About the Product
Having a 15.1” inch flat panel screen with an active, thin-film
transistor (TFT) liquid crystal display (LCD) , this product also demonstrates following outstanding features.
q Direct analog RGB input
q 15.1” diagonal screen size
q 16.7 million displayable colors
q 1024 x 768 resolution
q XGA/ SVGA/ VGA/ VESA/ Mac/ NEC PC-98 compatible
q 24~60kHz horizontal scan
q 56~75Hz high refresh rate
q Auto adjustment capability
q High quality full screen re-scaling
q Multilingual OSD menus in five languages: English, French,
German, Spanish, and Italian
q USB hub with 1 upstream and 4 downstream ports on the
stand base
q VESA DDC 1/2B data communication
q VESA DPMS power saving
q Stand with tilt and swivel functions
- Cable management device
q Pivot function: landscape and portrait display mode (optional,
need pivot software)
Page 4
4
English

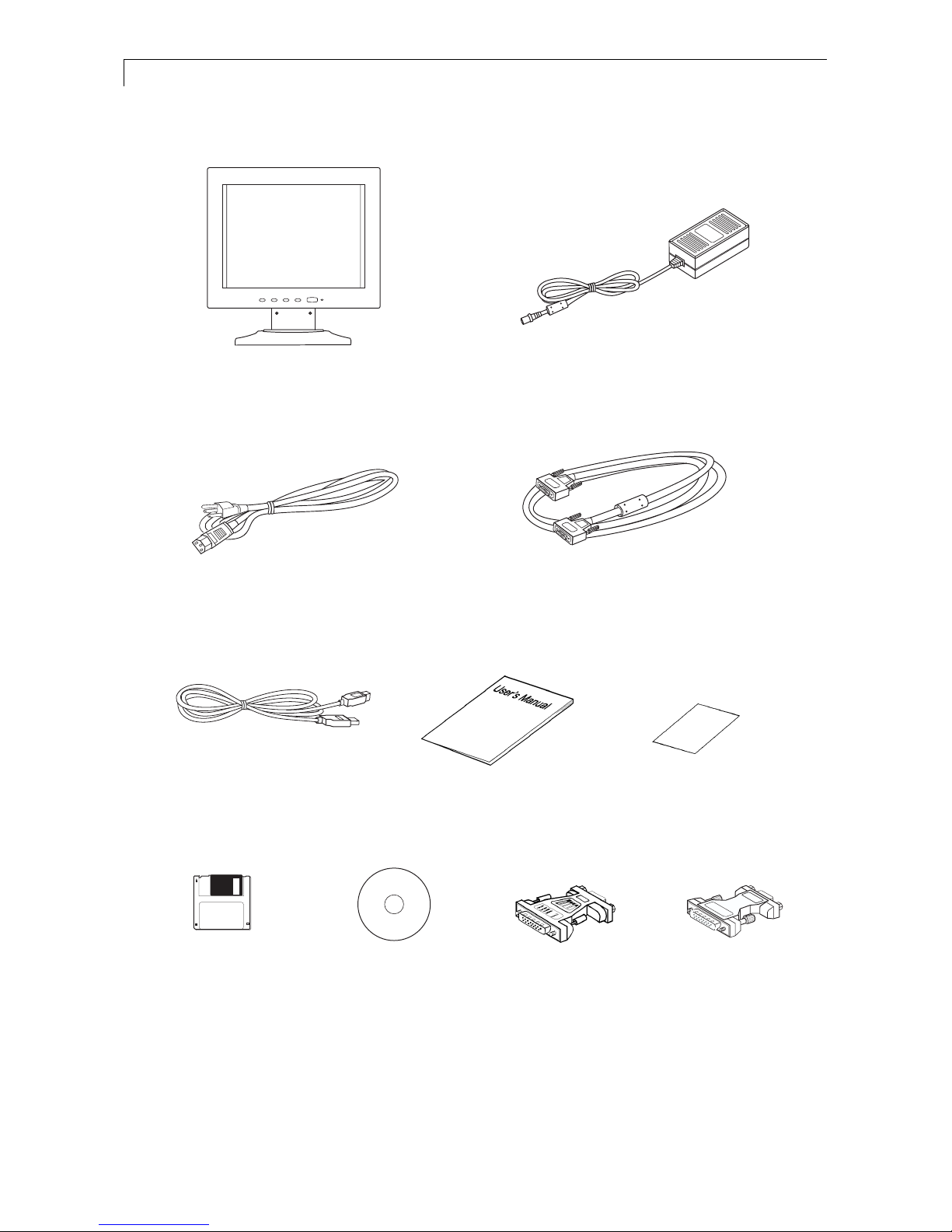

Package Overview
LCD Display
VGA Signal Cable
USB Upstream Cable
Installation Diskette
( for DDC1/2B)
Pivot® Software
(optional)
NEC PC-98
Adapter (optional)
Power Adapter
Power Cord
User’s Manual
Warranty Card
Mac Mutliform
Adapter (optional)
Page 5
English
5
Power
Installation

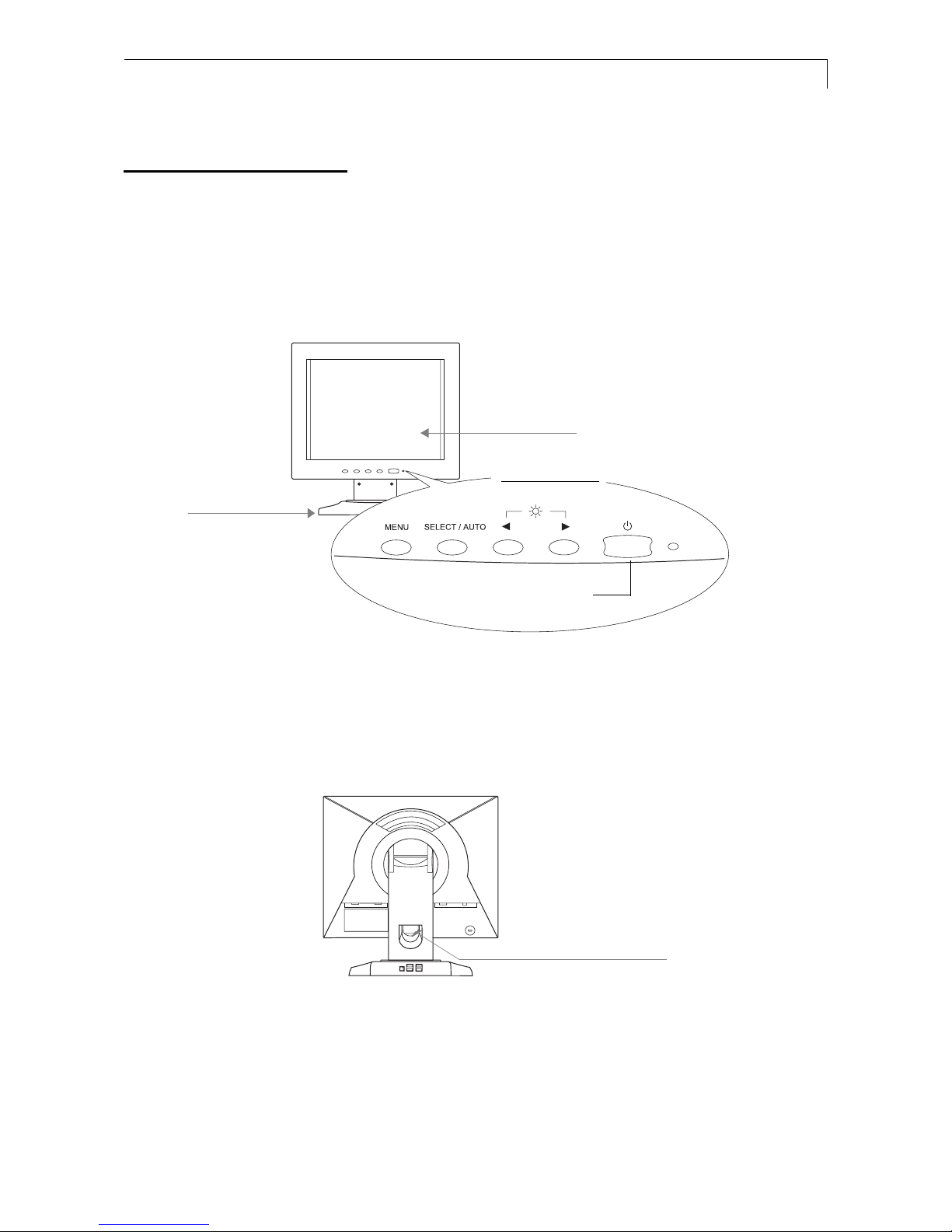

Product Overview
u
Main Unit
u
Rear View
LCD Display
Stand
User Controls
Cable Management
Device
Page 6
6
English
u
Connection Ports
Display Rear Connectors
Display Stand Back USB Hub Ports
USB Upstream Port
4 USB Downstream
Ports
Display Input-B
DC Power-In
Display Input-A
Page 7
English
7
Start Y our Installation
Notice: To ensure the LCD display can work well with your computer,
please configure the display mode of your graphic card to make it
less than or equal to 1024 x 768 resolution and make sure timing
of the display mode is compatible with the LCD display. We have
listed the “Compatibility Modes” of this LCD display in appendices
for your reference.
*
For Macintosh, use the Mac adapter.
VGA Cable
Power Adapter
Power Cord
Mac Adapter *
u
Connecting the Display
To setup this display, please refer to the following figure and procedures.
1. Be sure all equipment is off.
2. Connect the VGA signal cable from display input-A or display input-B
connector to the 15-pin connector of your host computer and tighten the
screws.
3. Connect the power adapter to the power connector; plug one end of the
power cord into the power adapter, and then the other end into an electrical outlet.
Page 8
8
English
u
USB Hub Port Descriptions
USB Downstream Ports
These four USB ports are available for connecting USB type peripheral
devices such as keyboard, mouse, printer and so on.
USB Upstream Port
This Port is for connecting the USB Upstream cable to computer ’s or
other hub’s USB port.
Page 9
English
9
u
Cable Management
1. Route the cables through the cable management device.
2. Connect the cables to their respective connectors on the back panel of
the display .
Cable Management
Device
Page 10
10
English
User Controls
Front Bezel Controls
No./ Icon Control Function
MENU Menu button To pop up the OSD menus.
SELECT/AUTO Select/Auto
Select
- To select the adjust-
ment items from OSD menus.
Auto
- To activate the “Auto
Adjustment” function to obtain
an optimum image.
3
Brightness Minus/Minus 1. Decreases the brightness of
the display image.
2. Decreases value of the
adjustment items.
4
Brightness Plus/Plus 1. Increases the brightness of
the display image.
2. Increases value of the
adjustment items.
Page 11
English
11
Power Switch Switches on/off the power of the
LCD display.
Power LED 1. Green indicates the display is
turned on.
2. Amber indicates the display in
power-saving mode.
Page 12
12
English
How to Use the OSD Menus
1. Press the “Menu” button to pop up the on-screen menu and to select between three Main Menus.
2. Choose the adjustment items by pressing the “Select/Auto” button.
3. Adjust the value of the adjustment items by pressing the “3” or “4”
button.
4. Once you don’t operate the OSD menus after a pre-set time, the OSD
menus will automatically disappear .
Page 13
English
13
On-Screen Display Menus
4
Contrast
Adjusts the contrast of the display image.
4
Re-Scaling
When the input resolution is less than 1024 x 768, the “re-scaling” allows
user to choose the “original resolution”, “1:1 re-scaling” or “full screen”
image.
4
Source
Selects between different computer sources when both display input-A
and input-B ports are connected.
First OSD Menu:
Contrast
Re-Scaling
Source
Main Menu
Page 1
43
++
++
+
100
−−
−−
−
Page 14
14
English
Second OSD Menu:
4
Horizontal Position
Changes the horizontal position of the image.
4
Vertical Position
Changes the vertical position of the image.
4
Frequency
Changes the display data frequency to match the frequency of your
graphic card. When you are experiencing vertical flickering bar, use
this function to make an adjustment.
4
Tracking
Synchronizes the signal timing of the display to that of the graphic card.
When you are experiencing unstable to flickering image, use this function
to make an adjustment.
4
Reset
Returns the display parameters of the current mode to its factory default
settings.
Horizontal Position
Vertical Position
Frequency
Tracking
Reset
Main Menu
Page 2
43
R
0
L
Page 15
English
15
Third OSD Menu:
4
Display Mode
Shows the display resolution, vertical refresh, and horizontal scan of the
current mode.
4
OSD Off-Time
Adjusts the time period for the OSD menus to disappear.
4
Language
Chooses the language you need. There are English, French, German,
Spanish, and Italian for your choices.
4
Text-Graphic
Toggles between VGA text mode (mode M03H) and graphic mode (mode
M13H).
1024 * 768
FH: 60.02 kHz (
−−
−−
−)
FV: 75.03 Hz (
++
++
+)
Display Mode
OSD Off-Time
Language
Text-Graphic
Main Menu
Page 3
Page 16
16
English
Troubleshooting
If you are experiencing trouble with the LCD display, refer to the
follows. If the problem persists, please contact your local dealer or
our service center.
Problem: No image appears on screen.
4
Check that all the I/O and power connectors are correctly and
well connected as described in the “ Installation ” section.
4
Make sure the pins of the connectors are not crooked or broken.
Problem: Partial image or incorrectly displayed the image.
4
Check to see if the resolution of your computer is higher than that
of the LCD display .
4
Reconfigure the resolution of your computer to make it less than
or equal to 1024 x 768.
Problem: Image has vertical flickering line bars.
4
Use “ Frequency ” to make an adjustment.
4
Check and reconfigure the display mode of the vertical refresh
rate of your graphic card to make it compatible with the LCD
display .
Problem: Image is unstable and flickering
4
Use “ Tracking ” to make an adjustment.
Problem: Image is scrolling
4
Check and make sure the VGA signal cable (or adapter) is well
connected.
4
Check and reconfigure the display mode of the vertical refresh
rate of your graphic card to make it compatible with the LCD
display .
Appendices
Page 17
English
17

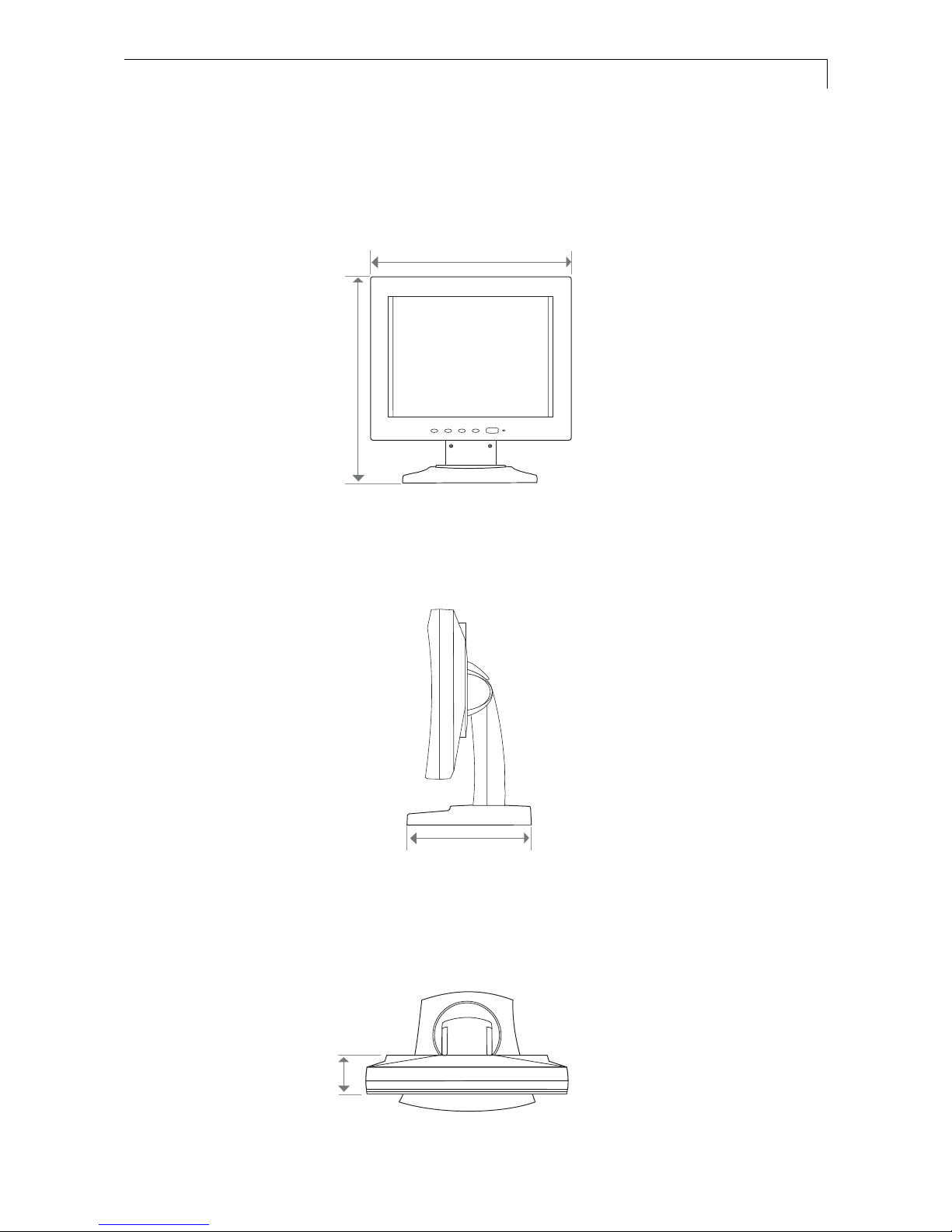

Product Dimensions
395mm/15.5”
235mm/9.2”
77mm/3”
Front View
Side View
T op View
407.7mm/16”
Page 18
18
English
Compatibility Modes
IBM & VESA VG A 640 x 350 31.47 70.09
IBM & VESA VG A 640 x 400 31.47 70.09
IBM & VESA VG A 720 x 400 31.47 70.09
IBM & VESA VG A 640 x 480 31.47 59.94
IBM & VESA VG A 640 x 480 37.86 72.81
IBM & VESA VG A 640 x 480 37.50 75.00
VES A SV G A 80 0 x 60 0 35 .1 6 56 .2 5
VES A SV G A 80 0 x 60 0 37 .8 8 60 .3 2
VES A SV G A 80 0 x 60 0 48.0 8 72 .1 9
VES A SV G A 80 0 x 60 0 46.8 8 75 .0 0
VES A XG A 1 02 4 x 76 8 48 .3 6 60 .0 0
VES A XG A 1 02 4 x 76 8 56 .4 8 70 .07
VES A XG A 1 02 4 x 76 8 60 .0 2 75 .03
A pple M ac intos h LC 13 " 64 0 x 48 0 34 .9 7 66 .6 1
Ap ple Ma cintosh II 13 " 64 0 x 48 0 35 .0 0 66 .6 7
App le Ma cintosh 16 " 83 2 x 62 4 49 .7 3 74 .5 5
App le Ma cintosh 19 " 1 02 4 x 76 8 60 .2 4 75 .0 2
N EC P C- 9 8 series 64 0 x 40 0 24 .83 56 .4 2
N EC P C- 9 8 series 64 0 x 40 0 31 .47 70 .0 1
N EC P C- 9 8 series 64 0 x 48 0 31 .47 59 .9 4
Mode
Resolution
V . Fr equency
(Hz)
H. Frequency
(kHz)
Page 19
English
19
Pivot Function (Optional)
To Use the Pivot Function:
1. Install the pivot
®
software first (refer to the pivot® software manual).
2. T ilt the display to 45
°
.
3. Place your hand on the side of the display and turn the display
clockwise.
Mechanically, the monitor can be rotated 90 degrees from a landscape state
to a portrait state. You need to buy a pivot software to enable your display
image to also have 90 degrees rotation.
