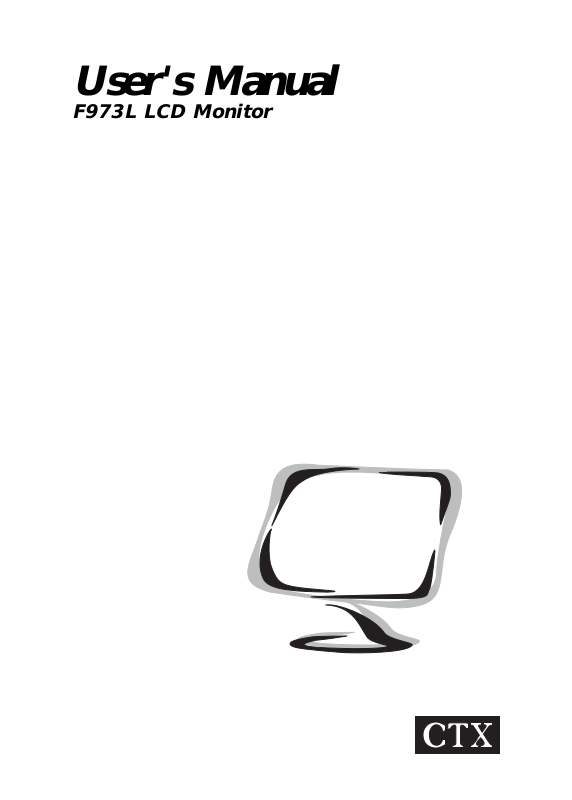

User's Manual
F973L LCD Monitor
Federal Communications Commission (F.C.C.) Statement
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use only shielded cables or connect I/O devices to this equipment.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Copyright
This publication including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual nor any of the
material contained herein may be reproduced without the express written consent of the
manufacturer.
Disclaimer
The information in this document is subject to change without notice. The manufacturer
makes no representations or warranties with respect to the contents here of merchantability
or fitness for any particular purpose. Further, the manufacturer reserves the right to revise
this publication ad to make changes from time to time in the content hereof without
obligation of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corp. Intel,
Pentium, and Pentium II are register trademarks of Intel Corporation. IBM, PC/AT, VGA,
OS/2, and PS/2 are registered trademarks of international Business Machines. Macintosh
II Family, LC, LCII, Quandra, and Power Macintosh are registered trademarks of Apply
Computer, Inc. VESA is a registered trademark of the Video Electronics Standards
Association. DPMS and DDC are trademarks of VESA. The ENERGY STAR name is a
registered mark of the U.S. EnvironmentalProtection Agency. Other product names used
in this manual are the properties of their respective owners and acknowledged.
♦♦♦
i
Congratulations!
You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with
a product developed for professional use. Your purchase has also contributed to reducing the burden on
the environment and also to the further development of environmentally adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and other
electronics equipment are concerned, is that environmentally harmful substances are used both in the
products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority
of electronics equipment, most of these potentially damaging substances sooner or later enter nautre.
There are also other characteristics of a computer, such as energy consumption levels, that are important
from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of
electricity generation have a nagative effect on the environment (e.g. acidic and climate-influencing
emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running
continuously and thereby consumes a lot of energy.
What does labelling involve?
This product meets the requirements for the TCO'99 scheme which provides for international and
environmental labelling of personal computers. The labelling scheme was developed as a joint effort by
the TCO (The Swedish Confederation of Professional Employees), Savenska Naturskyddsforeningen (The
Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy
Administration).
Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electric and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands impose restrictions on the presence and use of heavy metals, brominated and
chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things.The product
must be prepared for recycling and the manufacturer is obliged to have an environmental policy which
must be adhered to in each country where the company implements its operational policy.
The energy requirements include a demand that the computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time
to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of
electric and magnetic fields, physical and visual ergonomics and good usability.
On the Back page of this folder, you will find a brief summary of the environmental requirements met by
this product. The complete environmental criteria document may be ordered from:
ii
♦♦♦
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): development@tco.se
Current information regarding TCO'99 approved and labelled products may also be obtained via the
Internet, using the address: http:/www.tco-info.com/
Environmental Requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose
is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist
of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame
retardants are chemically related to another group of environmental toxins, PCBs. Both the flame
retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health
effects, including reproductive damage in fish-eating birds and mammals, due to the bioaccumulative*
processes. Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not
contain flame tetardants with organically bound bromine or chlorine. Flame retardants are allowed in the
printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99
requirement states that batteries, the colour-generating layers of display screens and the electrical or
electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic
in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also
demands that mercury is not present in any of the electrical or electronics components associated with
the labelled unit.
CFCs (freons)
The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture
and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs
break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception
on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a
consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the
inclusion of lead since no replacement has yet been developed.
* Bio-accumulative is defined as substances which accumulate within living organisms
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
iii
♦♦♦
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .............................................................. 2
INTRODUCTION ............................................................................................... 3
Product Description ................................................................................... 3
Package Overview ...................................................................................... 3
Installation of the Monitor Arm.................................................................. 4
Recommended Use of the Monitor............................................................. 5
LCD Monitor Base Installation Guide ......................................................... 6
Guidelines for Operating the Viewing Angle of LCD Monitor .................... 7
CONTROLS AND ADJUSTMENTS...................................................................... 8
Front User Controls. ................................................................................... 8
OSD Directly Adjustment........................................................................... 9
Brightness............................................................................................ 9
Contrast............................................................................................... 9
Audio .................................................................................................. 9
OSD Main menu ......................................................................................... 9
Volume ............................................................................................... 9
Color................................................................................................. 10
Auto-Tune ......................................................................................... 11
Image ............ Clock/Phase/Image Position/Smooth.......................... 12
Language........................................................................................... 13
OSD Position .................................................................................... 13
Reset ................................................................................................. 13
Energy Declaration ................................................................................... 14
TROUBLESHOOTING ...................................................................................... 15
TECHNICAL INFORMATION ........................................................................... 16
Compatibility ............................................................................................ 16
Pin Assignment.................................................................................. 16
Preset Modes..................................................................................... 16
Other Modes ..................................................................................... 16
Specification ............................................................................................. 17
English
1
♦♦♦
IMPORTANT SAFETY INSTRUCTIONS
Please read the following instructions carefully. This manual should be retained
English
for future reference.
1. To clean the LCD Monitor screen make sure the Monitor is in the power off
mode. Unplug the Monitor from its power source before cleaning it. Stand
away from the LCD Monitor and spray cleaning solution onto a rag. Without
applying excessive pressure clean the screen with the slightly dampened rag.
2. Do not place your LCD Monitor near a window. Exposing the Monitor to
rain, water, moisture or sunlight can severely damage it.
3. Do not place anything on top of the Monitor/PC signal cord. Make sure the
cord is placed in an area where it will not be stepped on.
4. Do not apply pressure to the LCD screen. Excessive pressure may cause
permanent damage to the display.
5. Do not remove the cover or attempt to service this unit by yourself. You may
void the warranty. Servicing of any nature should be performed only by an
authorized technician.
6. Safe storage of the LCD Monitor is in a range of minus 20 to plus 60 degrees
Celsius. Storing your LCD Monitor outside this range could result in permanent
damage.
7. If any of the following occurs immediately unplug your Monitor and call an
authorized technician.
• The power or Monitor-to-PC signal cord is frayed or damaged.
• Liquid has been spilled into the Monitor, or it has been exposed to rain.
• The Monitor has been dropped or the case has been damaged.
Notice :
Actual safety specifications please refer to the label on the back of monitor.
2
♦♦♦
INTRODUCTION
Product Description
Congratulations on purchasing this new generation monitor. Your LCD monitor
incorporates high quality display into a small light-weight module. It has power-saving
capabilities and emits no X-ray radiation.
The features are:
• 19" TFT Liquid Crystal Display
• Compatible with IBM VGA, VESA
• Direct RGB input
• SXGA 1280x1024 resolution, up to 16M colors
• Lightweight compact design, weighting less than 5.5 Kgs
• DPMS (power saving) Compatible
• Built in universal power supply
• Anti-glare display
• On-Screen Display (OSD) controls and adjustments
• 1W x2 Audio function inside the monitor
• Audio volume adjustment by OSD
Package Overview
Your monitor package contains:
English
Audio CableRGB Cable
LCD Monitor
Power Cord
CAUTION
Keep the shipping carton in case the need arises to store or transport the unit. Let the
LCD lie on its face when you put it into the carton.
User's Manual
3
♦♦♦
INTRODUCTION
Installation of the Monitor Arm
English
CAUTION
1. The Monitor Arm is an optional item.
2. The Arm Mounting Device must be VESA Flat Physical Mounting Interface
Standard.
3. Please fix LCD monitor to monitor arm with 4x12mm screw.
4
♦♦♦
INTRODUCTION
Recommended Use of the Monitor
• Power
– Use the type of power indicated on the marking label.
• Plugs
– Do not remove any of the prongs of the monitor's three-pronged power plug.
– Disconnect the power plug from the AC outlet if you are not going to use it for an
indefinite period of time.
• Power cords
– Use the proper power cord with correct attachment plug type. If the power source
is 120 VC, use a power cord that has UL and CSA approvals. If the power source
is a 240 VAC supply, use the tandem (T blade) type attachment plug with ground
conductor power cord that meets the respective European country's safety
regulations, such as VDE for Germany.
– We recommend using the power cord supplied with the product. However, if
another type of power cord is required power cord H05VV-F or VW-1, 18AWG x
3G should be used.
– Do not overload wall outlets or power cords. Ensure that the total of all units
plugged into the wall outlet does not exceed 7 amperes.
– Ensure that the total ampere ratings on all units plugged into the extension cord is
not above the cord's rating.
– If the power supply cord which came with your monitor is to be connected to the
PC instead of the wall outlet, this equipment should be used with UL/TUV approved
computers with receptacle rated 100~240V AC, 50/60Hz, 1.1A (minimum).
– Do not allow anything to rest on the power cord. Do not locate this product
where persons will walk on the cord.
• Environment
– Place the monitor on a flat level surface.
– Place the monitor in a well-ventilated place.
– Keep the monitor away from:
rain or water
overly hot, cold or humid places
sunlight
dusty surroundings
equipment that generates strong magnetic fields
English
5
♦♦♦
INTRODUCTION
LCD Monitor Base Installation Guide
English
1. First attach the back cover to the
monitor. Carefully match up the three
hinges at the top of the cover with the
three corresponding slots; slide and
lock into place.
2. Once the back cover is attached, you
can rotate it down to a fully closed
position.
3. Using a flathead screwdriver, insert
the screws and tighten in the direction
indicated.
6
♦♦♦
INTRODUCTION
Guidelines for Operating the Viewing Angle of LCD Monitor
1. With Base Attached
The vertical angle of the monitor can be adjusted 3 degrees forward and 20 degrees
backward by holding the monitor support at the top and moving the monitor
screen forward or backward from the bottom.
2. Without Base Attached
With a detachable base, the monitor can also be setup using the folding support.
The greatest range of angle adjustment is indicated in the figure.
English
7
♦♦♦
CONTROLS AND ADJUSTMENTS
Once you have installed this monitor with your system, please read the instructions
English
in this section, they give you some guidelines on how to use the monitor more
efficiently. And lead you through the various functions of the user controls and
explain how to adjust the monitor to your personal preference.
Front User Controls
(1) Enter "
↵ ↵
↵ " button
↵ ↵
To display the OSD manual and select functions.
(2) Down "
∇∇
∇" button
∇∇
To adjust the selected OSD function or the brightness directly.
(3) Up "
∆∆
∆" button
∆∆
To adjust the selected OSD function or the contrast directly.
(4) "ESC" button
To close the OSD manual and to escape function or audio mute.
(5) Power LED Indicator
As long as the monitor is powered, this indicator is lit. In normal operation, it
lights blue. While in power saving mode, the indicator will turn to amber.
(6) Power Switch
To turn the monitor On or Off.
8
♦♦♦
CONTROLS AND ADJUSTMENTS
OSD Directly Adjustment
BRIGHTNESS
Press the "∇" button to enter the brightness, and press the "∇"
or "∆" button to increase or decrease the brightness level, then
press " ESC" button to exit.
CONTRAST
Press the "∆" button to enter the contrast, and press the "∇" or
"∆" button to increase or decrease the contrast level, then press
" ESC" button to exit.
AUDIO
• Normal Mode
a.Press the " ESC " button to enter sound playing mode in
mute mode
b.Press the " ESC " button to enter mute mode in sound playing
mode.
c. Press the "
↵ ↵
↵ " to turn on the OSD main menu.
↵ ↵
• Power Saving Mode (when power indication lights amber)
a. Mute Hot Key (When playing music)
Press "ESC" to enter Mute Mode, and press "ESC" again to
return to sound playing mode.
b. Control the volume
In Power Saving Mode, press "∇" or "∆" to enter the volume
tuning window, and press "∆" or "∇" key to adjust the volume.
After 6 seconds, the volume tuning window will close
automatically.
On Screen Display (OSD) Main menu
1. Press "
2. Use the "∇" and " ∆ " buttons to move through the displayed functions.
3. Press "
1. Volume
↵ ↵
↵ " to open the OSD main menu.
↵ ↵
↵ ↵
↵ " to confirm your selected function.
↵ ↵
Press "
↵ ↵
↵ " to adjust volume and enter sound playing mode.
↵ ↵
English
a. Press "∇" or "∆" to adjust volume .
b.Press " ESC " to leave this function.
9
♦♦♦
2. Color
English
CONTROLS AND ADJUSTMENTS
Here are some items which can be adjusted as below, please
press " ↵ " to enter the item menu.
• Natural
• Sport
• Cinema
• Text
10
♦♦♦
• Graphic
• Customer
CONTROLS AND ADJUSTMENTS
3. Auto-Tune
Here are some items which can be adjusted as below, please
press " ↵ " to enter the item menu.
Auto Geometry
Press
• Auto Geometry
Press " ↵ " button, the system will automatically adjust the
clock, phase, H-position and V-position values for optimal
settings.
ADVANCED AUTO TUNE PATTERN PROGRAM USAGE GUIDE
• AUTO_TUNE.exe is used for Windows the display mode adjustment. It
will adjust the VGA input level and video quality to optimum.
• DOS_TUNE.exe is used for 720x400 70Hz & 640x 350 70Hz under DOS
mode adjustment. It will adjust the video quality to optimum.
• For the adjustment, please execute the program, then select the "Auto
Tune" function in the OSD menu, to get the optimum picture.
• Auto Color
Auto Color
Press
Press " ↵ " button, the system will automatically adjust color
balance for optimal setting.
ADVANCED AUTO TUNE PATTERN PROGRAM USAGE GUIDE
• As some VGA Cards do not match the VESA standard they cannot output
0.7 V p-p VESA standard. Therefore, you need the "ADVANCED AUTO
TUNE PATTERN PROGRAM" to modify the parameters of the monitor to
match the different output level of the VGA card.
• AUTO_TUNE.exe is used for Windows the display mode adjustment. It
will adjust the VGA input level and video quality to optimum.
• For the adjustment, please execute the program, then select the "Auto
Color" function in the OSD menu, to get the optimum picture.
English
11
♦♦♦
4. Image
English
CONTROLS AND ADJUSTMENTS
Here are some items which can be adjusted as below, please
press " ↵ " to enter the item menu.
• Clock:
Press the "∇" or "∆" button to adjust the width of the screen.
• Phase:
Press the "∇" or "∆" button to reduce the noise on the screen.
• Image Position
a. H - Position:
Press the "∇" or "∆" button to reposition the Image to the
right or left.
b.V - Position:
Press the"∇" button to move the Image downwards and "∆"
to move it upwards.
12
♦♦♦
• Smooth:
Press the "∇" or "∆" button to adjust smooth. The "Smooth"
function key will perform only under the resolution range
1280 x 1024.
CONTROLS AND ADJUSTMENTS
5. Language
6. OSD Setting
0
90
270
7. Reset
Press the "∇" or "∆" button to select between English, German,
French, Spanish, Italian or Russian languages.
To adjust the OSD position.
• H - Position:
Press the "∇" or "∆" button to reposition the OSD window to
the right or left.
• V - Position:
Press the"∇" button to move the OSD window downwards
and "∆" to move it upwards.
• Center:
The OSD window will be adjusted automatically to the center
of the screen.
• Rotation:
The on-screen display will be re-oriented when the monitor
is pivoted.
• Press the "∇" or "∆" button to select "Yes" or "No".
• Choose Reset to call-back all the settings for the current Input
Signal mode to factory preset.
English
13
♦♦♦
CONTROLS AND ADJUSTMENTS
Energy Declaration
English
This monitor is equipped with a function for saving energy, which supports the
VESA Display Power Management Signaling (DPMS) standard. This means that
the monitor must be connected to a computer. The time settings for switching to
a power saving mode are adjusted from the system unit by software. From the first
indication of inactivity to power saving position the total time must not be set to
more than 70 minutes.
Power Consumption (120/230 Vac)
KETUNetatsASEVrotacidniDELnoitpmusnoCrewoP
lamroN
noitarepo
gnivaSrewoPffOrebmA
hctiwSrewoP
ffO
* Audio mute mode
nOeulB
ffOffO
≤ W54
≤ *W2
≤ W1
14
♦♦♦
TROUBLESHOOTING
Troubleshooting
If you are experiencing trouble with the LCD display refer to the following. If the
problem persists please contact your local dealer or our service center.
The monitor does not respond after you turn on the system.
• Check if the monitor is turned on.
• Turn off the power and check the monitor power cord and signal cable are properly
connected.
The characters on the screen are dim.
• Refer to the Controls and Adjustments section to adjust the brightness
(BRIGHTNESS on the OSD sub-menu.)
The screen is blank.
• During use the monitor screen may automatically turn off as a result of the Power
Saving feature. Press any key to see if the screen comes back.
• Refer to the Controls and Adjustments section to adjust the brightness
(BRIGHTNESS on the OSD sub-menu.)
The screen flashes when it initializes.
• Turn off the monitor and turn it on again.
• Refer to the Controls and Adjustments section to reload the default setting (RESET
on the OSD main-menu.)
Partial image or incorrectly displayed image
• Check to see if the resolution of your computer is higher than that of the LCD
display
• Reconfigure the resolution of your computer to make it less than or equal
to1280x1024 or to make sure reflesh rate is under 75Hz.
Image has vertical flickering line bars
• Use "Clock" to make an adjustment
• Check and reconfigure the display mode of the vertical refresh rate of your graphic
card to make it compatible with the LCD display
Image is unstable and flickering
• Use "Phase" to make an adjustment.
Signal out of Range:
• When the input signal is outside the normal specifications the screen will display
a "Signal out of Range" message.
No Signal Input:
• The "No Signal Input" message indicates that the cable may not be plugged
properly into the host system.
WARNING
Do not disassemble the monitor. Contact your dealer if needed.
English
15
♦♦♦
TECHNICAL INFORMATION
English
Compatibility
This LCD monitor supports multiple operating platforms such as IBM compatible
computers. This section provides you with detailed information on pin assignment
of the D-Sub connector and the preset timing chart of the prevailing video
standards.
Pin Assignment
Male Mini D-15 Connector
Preset Modes
1
6
11
5
10
16
noituloseR)zHM(KLCV
004*027223.82964.13000.07AGVMBI
084*046571.52964.13049.95AGVMBI
084*046005.13168.73000.27ASEV
084*046005.13005.73000.57ASEV
006*008000.04978.73713.06ASEV
006*008000.05770.84881.27ASEV
006*008005.94578.64000.57ASEV
867*4201000.56363.84000.06ASEV
867*4201000.57647.65960.07ASEV
867*4201057.87320.06920.57ASEV
468*2511000.801005.76000.57ASEV
4201*0821000.801189.36000.06ASEV
4201*0821000.531679.97000.57ASEV
langiSbuS-DiniMniP51
oediVdeR1
oediVneerG2
oediVeulB3
cnySlatnoziroH31
cnySlacitreV41
dnuorG11,01,8,7,6,5
noitcennoCoN4
)CDD(ADS21
)CDD(LCS51
)CDD(V5+9
latnoziroH
)zHK(ycneuqerF
lacitreV
)zH(ycneuqerF
dradnatS
Other Modes
16
♦♦♦
053*046zH07@
084*046zH07@
006*008zH07@
867*4201zH27@
468*2511zH27,zH07,zH06@
027*0821zH06@
069*0821zH57,zH27,zH07,zH06@
4201*0821zH27@
4201*0821zH07@
TECHNICAL INFORMATION
Specifications
LCD Panel 19" TFT LCD module with wide-viewing angle, 0.294
(H)x0.294(V)mm pixel
[Monitor]
Effective display size 19" (48.0cm diagonal)
Resolution (max.) SXGA 1280x1024
Displayable colors 16M True color
Brightness 400 cd/m2 (typical)
Contrast ratio 500:1
Response time 12ms
Scan Frequency Horizontal: 30 to 80kHz
Vertical: 59 to 75 Hz
Audio Input 1V(RMS). typical
Audio Output 1W x 2
User controls Power/Enter/Up/Down/Escape/Volume
Power Consumption ≤45W
≤2W Power Saving (Audio mute mode)
≤1W Power switch off
Input signal Analog 0.7V peak to peak separate
TTL Positive or Negative
Power Supply 100~240V,50/60Hz (automatically)
Plug & Play DDC 2B
[Dimension & Weight]
Size (WxDxH) 425.5x204x408.5mm
Weight (net) 5.5 Kgs
[Operating Environment]
Temperature 5°C~35°C
Humidity 20%~80% (non-condensing)
[Storage Environment]
Temperature -20°C~60°C
Humidity 10% ~ 90% (non-condensing)
+
English
Note : Specifications are subject to change without notice
17
♦♦♦
Loading...
