CTX EX1200 User Manual

English8188

♦♦♦

1

English

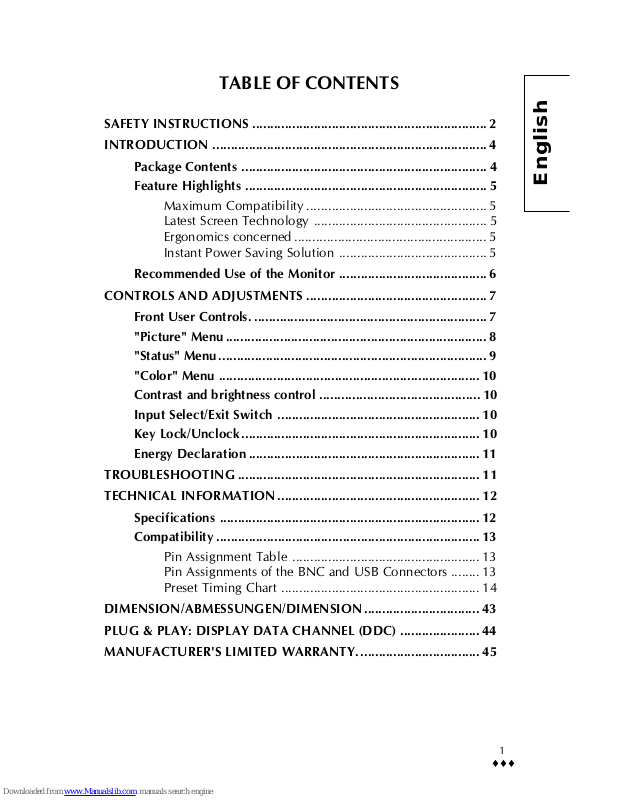

TABLE OF CONTENTS

SAFETY INSTRUCTIONS ................................................................. 2

INTRODUCTION ............................................................................ 4

Package Contents .................................................................... 4

Feature Highlights ................................................................... 5

Maximum Compatibility .................................................. 5

Latest Screen Technology ................................................ 5

Ergonomics concerned ..................................................... 5

Instant Power Saving Solution ......................................... 5

Recommended Use of the Monitor ......................................... 6

CONTROLS AND ADJUSTMENTS .................................................. 7

Front User Controls. ................................................................ 7

"Picture" Menu ........................................................................ 8

"Status" Menu .......................................................................... 9

"Color" Menu ........................................................................ 10

Contrast and brightness control ............................................ 10

Input Select/Exit Switch ........................................................ 10

Key Lock/Unclock.................................................................. 10

Energy Declaration ................................................................ 11

TROUBLESHOOTING ................................................................... 11

TECHNICAL INFORMATION........................................................ 12

Specifications ........................................................................ 12

Compatibility ......................................................................... 13

Pin Assignment Table .................................................... 13

Pin Assignments of the BNC and USB Connectors ........ 13

Preset Timing Chart ....................................................... 14

DIMENSION/ABMESSUNGEN/DIMENSION................................ 43

PLUG & PLAY: DISPLAY DATA CHANNEL (DDC) ...................... 44

MANUFACTURER'S LIMITED WARRANTY.................................. 45

♦♦♦

2

English

1. Please read carefully all of these instructions below and keep the

manual for later use.

2. Please install the swivel base below this product before it comes into

use.

3. The voltage ratings and the rated frequency are on the overlay centered

at rear side of this product. Do not connect with any source of other
voltage or frequency and please follow all warnings and instructions
marked on the product.

4. Unplug this product from the wall outlet before cleaning and use a

damp cloth to clean it. Do not use liquid cleaners or aerosol cleaners.

5. Do not expose this product to rain or moisture.

6. Do not place this product on an unstable cart, stand, or table. The

product may fall, causing serious damage to the product.

7. Do not block or cover ventilating openings with cloth or other material.

Neither should this product be placed near or over a radiator or a
heat register, nor should the product be placed in a built-in installation
unless proper ventilation is provided.

8. This product is equipped with a 3-wire grounding type plug. This

plug will only fit into a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug. Choose a Tandem Blade
attachment plug configuration power cord for 230V AC input.

Due to the safety requirements of different areas, please select a
suitable power cord according to the following rules, in addition to
the electric rating:

A. Northern America area: Please select a UL listed and CSA certified

power cord.
B. Germany: Please select a VDE certified power cord.
C. Nordic countries: Please select a power cord certified by SEMKO,

NEMKO, DEMKO or FIMKO.
D. The other areas: Please select a power cord suitable to the local

power system and power outlet.

SAFETY INSTRUCTIONS

English8388

♦♦♦

3

English

Usually a suitable power cord is provided by the manufacturer, while
this product is sold. However, this product is sometimes, resold or
transported to another area of different power system and safety
requirements, please pay attention to the selection of a suitable power
cord.

The plug on the power cord is intended to serve as the disconnect
device, the scoket-outlet shall be installed near the equipment and

shall be easily accessible.

9. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.

10. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electric shock. Never spill liquid of
any kind on the product.

11. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risk.
Refer all servicing to service personnel.

12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions.

A. When the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally, when the operating

instructions are followed, adjust only those controls that are covered
by the operating instructions since improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the product to normal
operation.

E. If the product has been dropped or the cabinet has been damaged.

F. If the product exhibits a distinct change in performance, indicating

a need for service.

SAFETY INSTRUCTIONS

♦♦♦

4

English

Introduction

The monitor is a multiple frequency high-resolution color monitor for IBM
compatible PC's or Macintosh and workstation systems. The monitor is
equipped with microprocessor based intelligence and multiple frequency
scanning capability, allowing it to provide maximum compatibility for various
system platforms.

The monitor uses the latest screen technology including a 0.26mm fine
pitch flat square CRT to display crisp text and vivid color graphics with a
max. resolution up to 1600 x 1200/75Hz pixels. Furthermore, it supports
VESA 85Hz modes to provide a flicker free display. The full-function digital
control and On-Screen Display (OSD) system provides easy adjustment of
image geometry and color settings for different display modes with the
precision of a fixed frequency monitor.

The design of the monitor is also ergonomics concerned. In addition to the
friendly controls and user comfort features, the emission level of the elec­tric and magnetic field is kept low to meet the Swedish MPR II and TCO
standards.

The monitor is also equipped with energy saving functions; it is compatible
with the VESA power saving standards. The lowest power consumption is
less than 8 W.

Furthermore, the monitor is built-in the USB (Universal Series Bus) hub. Please
refer to the "USB Kit Content" for the implementation of USB hub.

INTRODUCTION

Package Contents

The following lists all of the items included in the monitor package box.
Please save the original box and packing materials for future transportation
or shipment of the monitor.

Rear View

User's Manual

Front view

USER'S MANUAL

BENUTZERHANDBUCH

Manuel de l'utlisateur

EX1200

Signal Cable

Power Cord

USB Cable

Diskette

English8588

♦♦♦

5

English

INTRODUCTION

Feature Highlights

Maximum Compatibility

 Automatically scans all horizontal frequencies between 30kHz and 95kHz,

and all vertical frequencies between 50 Hz and 160 Hz.

 Supports multiple operating platforms such as IBM compatible PC's or

Macintosh computers (with optional adapter).

 Multiple graphic standards with high refresh rates:

640 x 480/160Hz, 800 x 600/150Hz, 1024 x 768/117Hz, 1280 x 1024/
85Hz, 1600 x 1200/75Hz.

 Supports wide range of graphics standards including VGA, Super VGA,

8514/A, XGA, Mac II 13" (640 x 480), Mac 16" (832 x 624), Mac 21"
(1152 x 870), as well as all VESA standards.

Latest Screen Technology

 0.26 mm fine pitch flat square CRT increased the clarity and displays

greater detail.

 Special anti-reflection, anti-glare and anti-static coating of the screen face

provides better focus, contrast and color performance.
 Flat and square screen reduces image distortion and glare.
 Full feature digital control and multi-lingual OSD system allows easy

adjustment of geometry and color. Furthermore the monitor provides

even advanced adjustments like trapezoid, parallelogram, side-pin, pin-

balance, convergence and rotation which allow the user to fine-tune the

screen image.

Ergonomics Concerned

 Electric and magnetic field emissions are kept low to meet the Swedish

MPR II and TCO standard.

 Front user controls allow easy access and comfort to adjust the screen

image to your personal preferences.

 Horizontal and vertical full-scan capabilities allow you to use the entire

screen area in most resolutions.

 A tilt/swivel base for horizontal and vertical adjustments always provides

the optimum viewing angle.

 The BNC/D-15 selection allows user to connect two systems to the moni-

tor and easily select between the two from the front panel switch.

Instant Power Saving Solution

 The monitor is compatible with VESA DPMS (Display Power Management

Signalings) standard which provides four power saving modes by detecting

horizontal and vertical sync signals.

 The monitor consumes 65 W to 120 W depending on the screen contents

in normal operation; when a power saving mode is activated, it con-

sumes less than 15 W in Stand-by mode, less than 15 W in Suspend

mode and less than 8 W in Off mode.

♦♦♦

6

English

Recommended Use of the Monitor

When setting up and using the monitor, pay special attention to the follow­ing for optimum performance:

 Do not use your monitor against a bright background or where sunlight

or other light sources will shine directly on the screen.

 The monitor should be placed just below eye level (10°~15°) for

optimum viewing.

 Set the monitor's brightness to match the ambient room light.

 For optimum focus, the contrast control should not be set to the maxi-

mum level unless the input signal level is extremely low. Also, the bright-

ness control should be set to a point where the overall background area

just begins to disappear.

 Allow adequate ventilation around the monitor so that the heat from the

monitor can properly dissipate.

 Neither the monitor itself, nor any other heavy objects, should rest on the

power cord. Damage to the power cord can cause fire or electrical shock.

 Keep the monitor away from high-capacity transformers, electrical motors,

or other strong magnetic fields.

 Your monitor should not be used in damp, dusty, or dirty areas.

 Handle your monitor with care when transporting it.

INTRODUCTION

!

CAUTION

 Do not scrape or knock the surface of the CRT with a pen,

a screwdriver and so on.

 Clean the CRT surface with a lint-free, nonabrasive, soft

cloth, do not use a solution or glass cleaner containing
corpuscels like an abrasive, alcohol and an alkaline
solution.

English8788

♦♦♦

7

English

CONTROLS AND ADJUSTMENTS

Controls and Adjustments

Once you have installed the monitor for your system, please read the
instructions of this section which give you some guidelines on how to use
the monitor more efficiently. It leads you through the various function of
the user controls and explains how to adjust the monitor to your personal
preference.

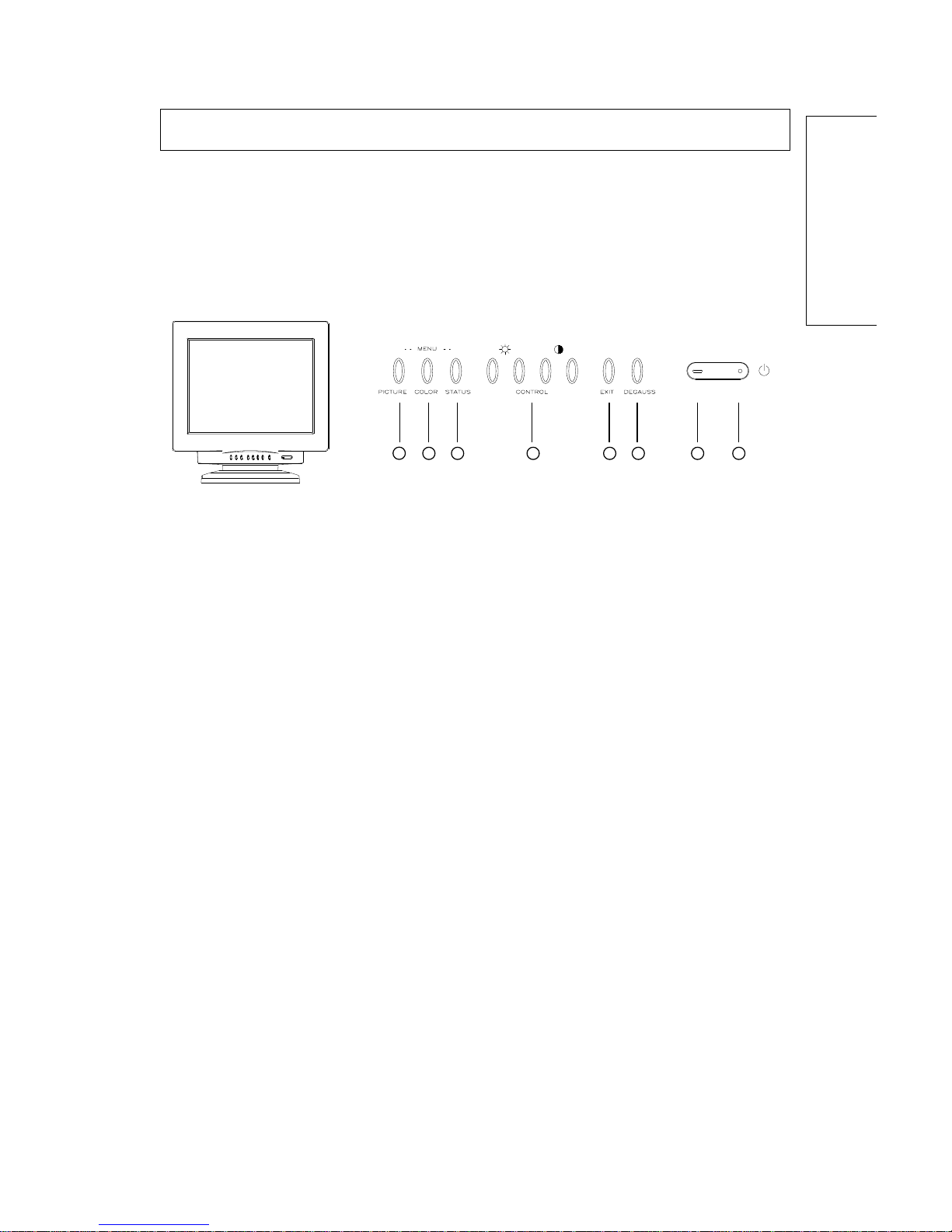

Front User Controls

1. Main Power Switch (Rear)

To turn off the main power switch.

2. Standby-by Switch

To turn the monitor on or off.

3. Power LED Indicator

As long as the monitor is powered, this indicator is lit. In normal operation,
it lights green. While in power saving mode, the indicator will turn to
amber.

4. Degauss Switch

To manually degauss the monitor.

5. Input Select/Exit Switch

To select input signals from BNC or D-SUB 15 pin connector

6. Control Keys

To adjust the parameter of the selected function.
To adjust the contrast level or brightness of the screen.

7. Status Key

To display and select the "Mode", "Off time", "Power save", "Recall",
"Language" and "Location" functions.

"Mode" shows horizontal/vertical frequency and polarity
"Off time" sets OSD window display time.
"Power save" enables or disable the power saving function.
"Recall" recalls the factory settings of the "Picture", "Color" and

"Converge" parameters.
"Language" selects the OSD menu language.
"Location" moves the position of the OSD window.

8. Color Key

To display and select the color mode.(four different color modes can be
chosen)

9. Picture Key

To display and select the "Position", "Size", "Pincushion", "Geometry",
"Rotation" and "Others" functions.

Power Saving Note:

This monitor is equipped with a automatic power-saving circuitry design that
will work with any computer which meets the VESA DPMS standard. It meets
the ENERGY STAR low power state definition.

BNC/D15

–

+

324698

7

5

▲▲

▲▲

▲

▼▼

▼▼

▼

♦♦♦

8

English

CONTROLS AND ADJUSTMENTS

A.Position:

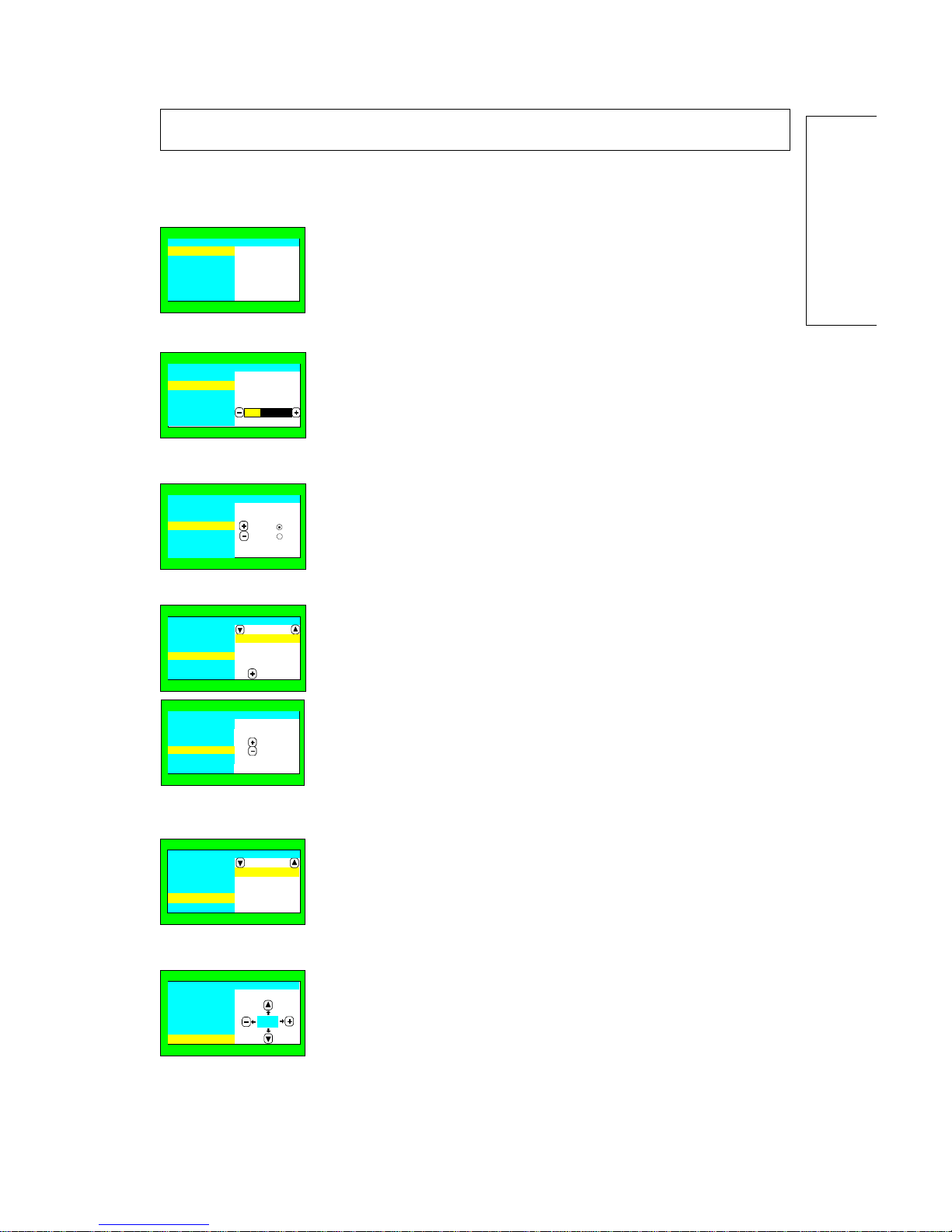

"Picture" Menu

a. Press the "▼" or "▲" key to select the Moire or

Convergence.

b. Press the " + " key to proceed.
c. Select the Moire, press the "▼ " or "▲" key to select

the H.Moire or V.Moire .

d. Press the " + " or "  " key for prefered adjustment.
e. Select the Converge, press the "▼" or "▲ " key to

select the H.Convergence or V.Convergence .
f. Press the " + " or "  " key for prefered adjustment.
g. Press " Picture " key to picture control.

Position


Size

Pincushion
Geometry

Rotation

Others

Position


Size

Pincushion
Geometry

Rotation

Others

Position


Size
Pincushion
Geometry
Rotation

Others

Sidepin

59

Position


Size

Pincushion
Geometry

Rotation

Others

Keystone

78

46

R

B

R

B

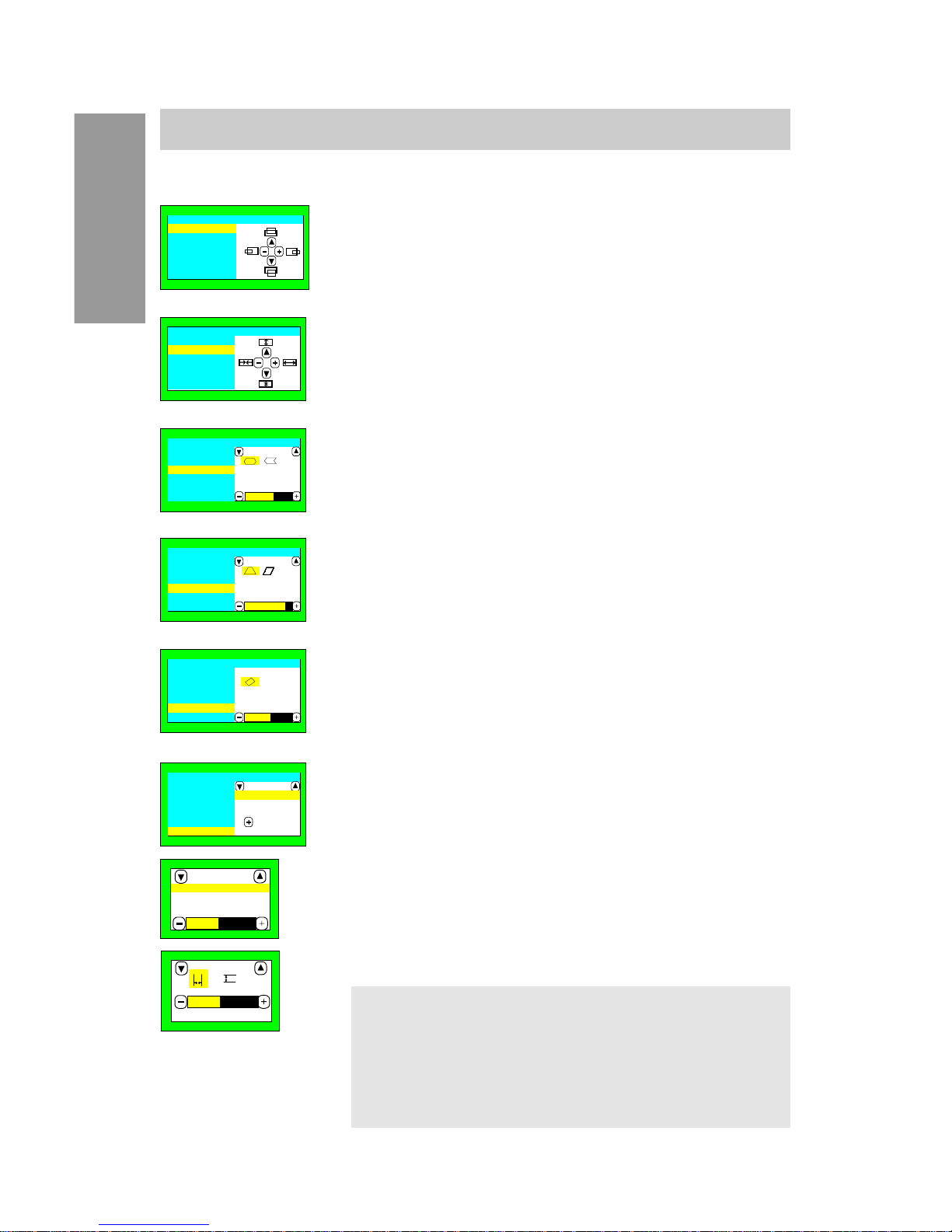

D. Geometry:

C. Pincushion:

B. Size:

E. Rotation:

F. Others:

a. Press the "▼" or "▲" key to select "Keystone" and

"Parallel".
b. Press the "+" or "" key to adjust the picture according

to your preferences.

a. Press the "▼" or "▲" key to select "Sidepin" or

"Balance".
b. Press the "+" or "" key to adjust the picture according

to your preferences.

Press the "+" or "" key to rotate the picture.

a. Press the "+" or "" key to enlarge or reduce the

horizontal width.
b. Press the "▲" key to enlarge the vertical size or "▼"

to reduce it.

a. Press the "+" or ""key to reposition the display to

the right or left.

b. Press the "▲" key to move the entire picture upwards

and "▼" to move it downwards.

46

V. Moire

H. Moire

Position


Size

Pincushion
Geometry

Rotation

Others

Raster

51

Position


Size

Pincushion
Geometry

Rotation

Others

Converge

:Proceed

Moire

Caution:

1. If moire reduction is overdone, picture quality, for
example, focus and vertical line stability will be
effected sametimes.

2. Proper adjustment is recommanded for not effecting
picture perfermance.

English8988

♦♦♦

9

English

Mode

Status

Off time
Power save
Recall

H: 63.8 KHz

V. SYNC: -

H. SYNC: +

V: 59.8 Hz

1280 x1024

Language
Location

Mode

Status

Off time
Power save
Recall
Language
Location

Converge

:Proceed

Color


C. Power save:

D. Recall:

E. Language:

F. Location:

CONTROLS AND ADJUSTMENTS

"Status" Menu

Press the "+" or "" key to specify an Off time between
5 and 255 seconds.

To display timing information for the resolution,
frequency and polarity of the current mode.

Press the "+" key to enable or the "" key to disable
the power saving function.

a. Press the "▼" or "▲" key to select "Picture", "Color"

or "Converge".

b. Confirm the Recall action and proceed by pressing

the "+" key or cancel the action by pressing the "
" key.

Press the "▼" or "▲" key to select between English,
German, French, Spanish or Italian language for the
OSD menu.

a. Press the "+" key to shift the OSD window to the

right or the "" key to shift it to the left.

b. Press the "▲" key to move the OSD window

upwards or "▼" to move it downwards.

B. Off time:

A. Mode:

Mode

Status

Off time
Power save
Recall
Language
Location

OSD OFF
After

60

Sec

Mode

Status

Off time
Power save
Recall
Language
Location

VESA

: ON

DPMS

: OF F

Mode

Status

Off time
Power save

Recall

Language
Location

Confirm

: YES

: NO

Mode

Status

Off time
Power save
Recall
Language
Location

English

Français

Español

Deutsch

Italiano

Mode

Status

Off time
Power save
Recall
Language
Location

OSD

♦♦♦

10

English

Mode 1

Color

5000

°K

90

64

41

Mode 2
Mode 3
Mode 4

Mode 1

Color

6500

°K

90

75

61

Mode 2
Mode 3
Mode 4

Mode 1

Color

7500

°K

90

75

70

Mode 2
Mode 3
Mode 4

Mode 1

Color

9300

°K

78

78

72

Mode 2
Mode 3
Mode 4

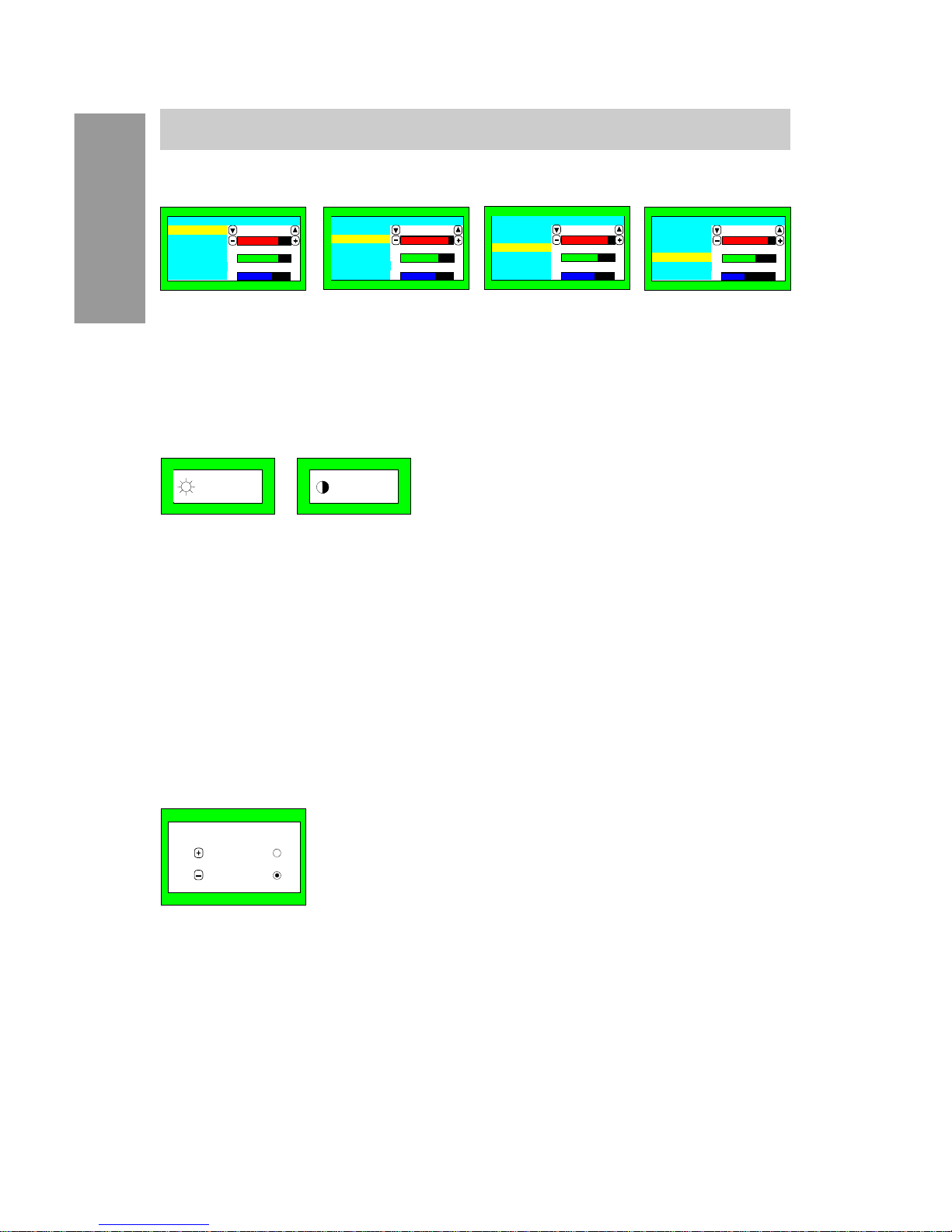

"Color" Menu

Contrast and Brightness Control

Input Select/Exit Switch

CONTROLS AND ADJUSTMENTS

Mode 4

a. By pressing the "Color" key you can select between mode 1, 2, 3 or 4 to store

your user defined color settings.

b. Press the "▼" or "▲" key to select the R/G/B gain, then press the "+" key to

increase or press the "" key to decrease the respective color intensity.

When the OSD menu is switched off, proceed as follows to adjust the contrast
or brightness:
a. Press the "+" or "" key to increase or decrease the contrast level of the

screen.

b. Press the "▲" or "▼" key to increase or decrease the brightness level.

:50

:100

Mode 2

Mode 1

Mode 3

: Unlock

: Lock

Key Panel

a. BNC/D15 selection

 While the OSD window is not displayed.
 Select the BNC/D15 by pressing the key.

b. Exit Switch

 To turn off the OSD window by pressing the key.

a. Lock

1. Press the "▲" and "▼" keys simultaneously before turning on the monitor.

2. After turning on the monitor, and then release the "▲" and "▼" keys. The

OSD displays as follows.

3. Press the " + " key to lock the keys. After the "Key Panel" OSD display off,
there is a "LOCKED" OSD block displayed on the lower-right corner of the
screen.

b. Unlock

1. Repeat the step 1 and 2 of the Lock above.

2. Press the "  " key to unlock all the keys.

Key Lock/Unclock

English81188

♦♦♦

11

English

Troubleshooting

Before calling an authorized service center, please check that the items below
are properly connected or set.

In case of using a non-standard signal, please check the pin assignments and
the signal timing of your adapter with the specifications outlined in sections
"Pin Assignment Table" and "Preset Timing Chart" in chapter 4.

TROUBLESHOOTING

Problem Items to check

No picture



Power Switc h should be in the ON position and the power cord should be connected.



Check the color of the power LED indicator, if it is orange, then the monitor is in the power saving mode.



Maximize the Brightness and Con trast controls.

"No Signal Input" is displayed on
screen



The video card should be completely seated in its slot.



Computer power switc h should be in the ON position.



The signal cable should be completely connecte d to the video ca rd/computer.

Display image is not centered,
too small, or too large



Adjust Size and Position Controls to adjust the image.

Image is scrolling or unstable



Signal cable should be completely attached the computer.



Check the pin assignments and signal timings of the monitor and your video card.

Picture is fuzzy



Adjust the Contrast and Brightness Controls.



Push the Degauss Button once.
CAUTION: A minimum interval of 20 minutes should exist before the Degauss Button is used a second time
when not switching between modes.
Do not hold the button down continuously.

Picture bounces or a wave
pattern is present in the picture



Move electrical devices that may be causing electrical interference away from the monitor



See the inside front cover of this manual for FCC information.

Edges of the display image ar e
curved either inward or outward



Adjust the Side PinCushion control.

Color loo ks blotchy



Press the Degauss Button once.

No Plug & Pla y



Check if hosting system is Plug Play compatible.



Check if VGA card is DDC 1/DDC 2B compatible.



Check if Window '95 is installed, and the software key for DDC function is enabled.



Check if original maker's detachable signal cable is being used(D-15 pin only). BNC cable does
not support Plug & Play function as it does not convey th e SCL (Signal Clock) and S DA (Signal Data) signals.

Energy Declaration

This monitor is equipped with a function for saving energy which supports
the VESA Display Power Management Signaling (DPMS) standard. This means
that the monitor must be connected to a computer which also supports the
VESA DPMS standard to fulfill the requirements of the NUTEK specification
803299/94/96. The time settings for switching to a power saving mode are
adjusted from the system unit by software. From the first indication of inac­tivity to power saving position A2 the total time must not be set to more than
70 minutes.

1. VESA Power-Management Proposal

2. Power Consumption (120/230 Vac)

VESA DPMS Standard

H. sync V. sync Video State

Off On Blank Stand-by
On Off Blank Suspend
Off Off Blank Off

CONTROLS AND ADJUSTMENTS

NUTEK VESA state LED indicator Power Consumption

Normal operation On Green

<120W

Power Saving

Position A1

Suspen d Amber

≤15W

Power Saving

Position A2

Off Amber

≤8W

♦♦♦

12

English

Specifications

Note: Specifications are subject to change without notice.

Color Picture Tube 51 cm / 21" (20" viewable screen size) diagonal

measurement, 90 degree deflection, dot type black
matrix anti-glare, anti-reflection, anti-static, medium
short persistence phosphor

Dot Pitch 0.26 mm
Input Signal Video: 0.7 Vp-p/75 ohm, analog positive

Sync: Separate Sync.: TTL Level

Horizontal Sync.: positive/negative
Vertical Sync.: positive/negative
Composite Sync.: TTL Level, positive/negative

: Composite Sync, on green video

0.3V-pp Negative

Scan Frequency Horizontal: 30 to 95 kHz automatically

Vertical: 50 to 160 Hz automatically

Display Area Horizontal 390 mm (adjustable)

Vertical 290 mm (adjustable)

Max. Resolution Horizontal 1600dots,

Vertical 1200 lines, non-interlaced

Display Colors Analog input, unlimited colors
Dot Frequence 202.5 MHz
Misconvergence Center 0.3 mm, Corner 0.4 mm maximum
Plug & Play DDC 1 / DDC 2B

USB Down stream port x 4

Per down stream port support current 500mA (Max.)

Power Supply 100-120 VAC/200-240 VAC, 50/60 Hz

(automatically)

Power Consumption 120W max.
Dimensions 510(W) x 506.2(H) x 544.7(D) mm
Weight 35 kgs(G.W.), 30kgs(N.W.)
Environment Operating Temperature: 0°C to 35°C

Consideration Humidity 20% to 80%

Storage Temperature:20°C to 60°C

Humidity 10% to 90%

TECHNICAL INFORMATION

English81388

♦♦♦

13

English

1

11

5

10

16

6

Compatibility

This color monitor supports multiple operating platforms such as IBM
compatible and Macintosh family computers. This section provides you with
detailed information on pin assignment of the D-Sub connector and the
preset timing chart of the prevailing video standards.

Pin Assignment

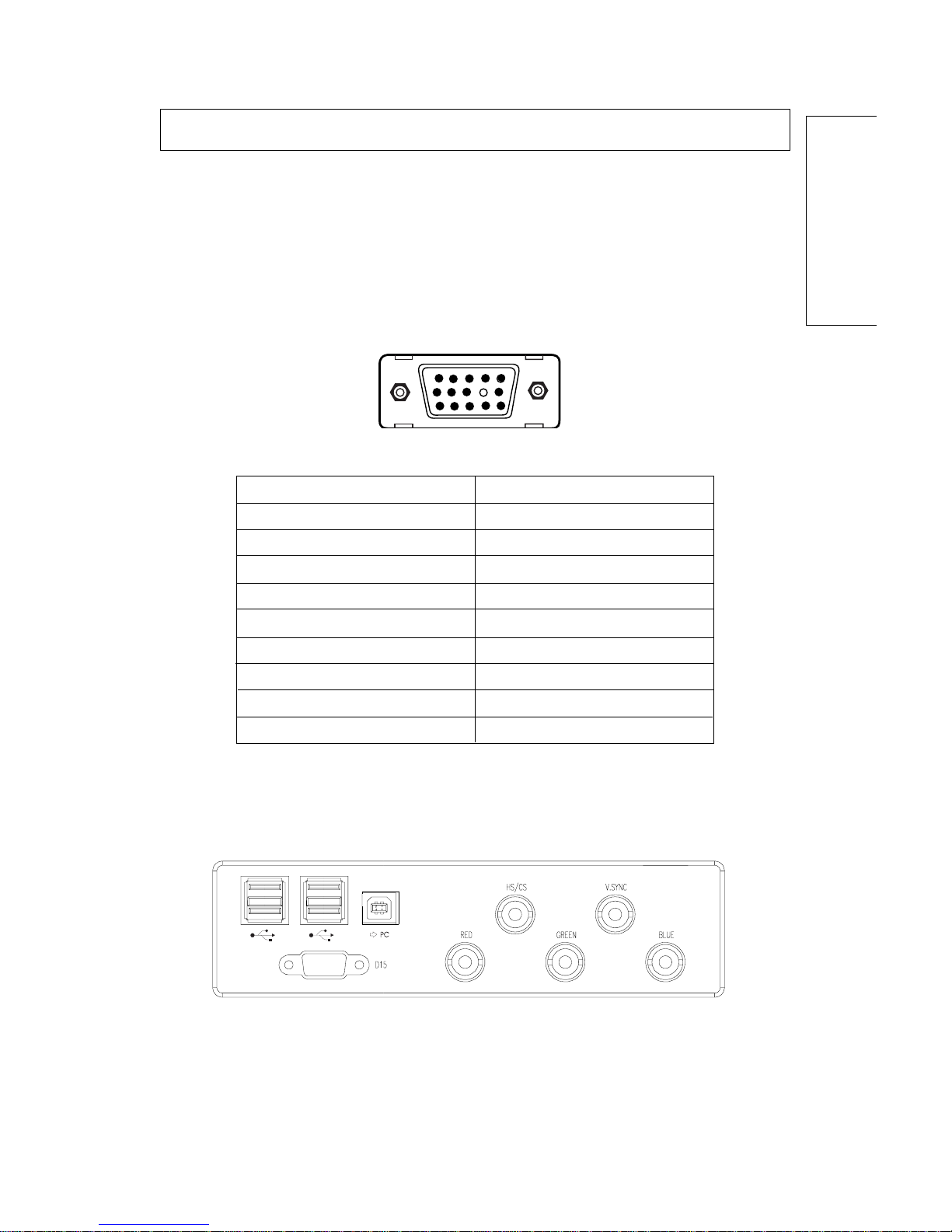

Male Mini D-15 Connector

TECHNICAL INFORMATION

Signal 15 Pin Mini D-Sub
Red Video 1
Green Video 2
Blue Video 3
Horizontal Sync 13
Vertical Sync 14
Ground 4,5,6,7,8,10,11
No Connection 9
SDA (DDC) 12
SCL (DDC) 15

Pin Assignments of the BNC and USB Connectors

3
4

1
2

♦♦♦

14

English

Display Format VGA

VESA
640x 480
at 85 Hz

640x 480

at 120 Hz

VESA
800x 600
at 85 Hz

800x 600

at 120 Hz

VESA

1024x76 8

at 75 Hz

VESA

1024x76 8

at 85 Hz

1024x76 8
at 100 Hz

VESA

1280x 1024

at 75 Hz

VESA

1280x 102 4

at 85 Hz

VESA

1600x 120 0

at 75 Hz

Hor izo nt al Do ts

640 720 640 640 800 800 1024 1024 102 4 1280 1280 160 0

Vertical Lines

480 400 480 480 600 600 768 768 768 1024 102 4 1200

H. Frequency(kHz)

31.469 43.269 63.530 53.674 75.985 60.024 68.677 80.468 79.976 91.146 93.750

H. Sync. Polar ity

 + ++ +++

A µs (Period)

31.778 23.111 15 .741 18.631 13.160 16.660 14 .561 12.427 12.504 10.971 10.667

*B µs (Pul se Wi dth)

3.813 1.556 1.749 1.138 1.074 1.219 1.016 1.073 1.067 1.016 0.948

C µs (Back P orch)

1.907 2.222 1.731 2.702 1.951 2.235 2.201 1.945 1.837 1.422 1.501

D µs (Active Area)

25.42 2 17.778 11 .660 14 .222 9.827 13.003 10.836 9.309 9.481 8.127 7.901

E µs (Front Porch)

0.636 1.555 0.601 0.569 0.308 0.203 0.508 0.100 0.119 0.406 0.316

V. Frequency(Hz)

59.940 70 .087 85.008 119.868 85.062 120.039 75.03 0 84 .997 99.836 75 .024 85.02 4 75 .000

V. Sync. Polarity

+ + ++ +++

O ms (Period)

16.683 14.268 11.763 8.343 11.756 8.330 13.328 11.765 10.016 13.329 11.761 13.333

P ms ( Pulse Wid th)

0.064 0.069 0.094 0.056 0.039 0.050 0.044 0.037 0.038 0.033 0.032

Q ms (Back P orch)

1.049 1.112 0.578 0.567 0.503 0.382 0.466 0.524 0.423 0.475 0.483 0.491

R ms (Active Area)

15.25 3 12.71 1 11 .093 7.555 11.179 7.896 12.79 5 11.183 9.544 12.804 11 .234 12 .800

S ms (Front Porch)

0.318 0.381 0.023 0.127 0.018 0.013 0.017 0.015 0.012 0.012 0.011 0.011

Pix el Rat e(M H)

25.17 5 28 .322 36.000 54.890 56 .250 81.00 0 78.751 94.500 110.00 0 135.000 157.500 202.500

TECHNICAL INFORMATION

HORIZONTAL

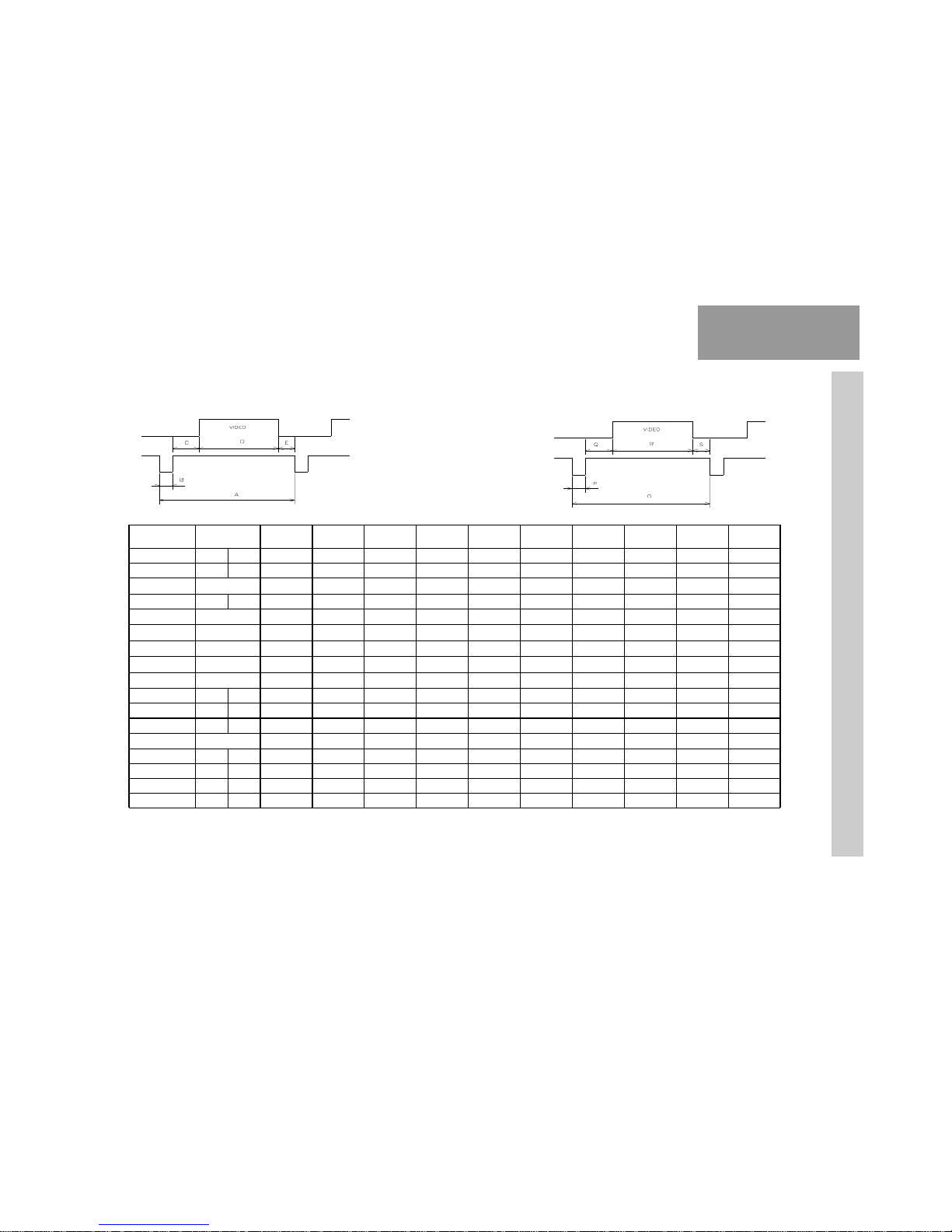

Preset Timing Chart

Note:This monitor is equipped with a micro-processor which allows the

user to set his own preferred mode(s) beyond those standard mode
listed below.

VERTICAL

* Bµs (Pulse Width) should be more than 0.5 µs.

To reduce visual tiredness and eye strain, it is recommended to choose the highest refresh modes available.
