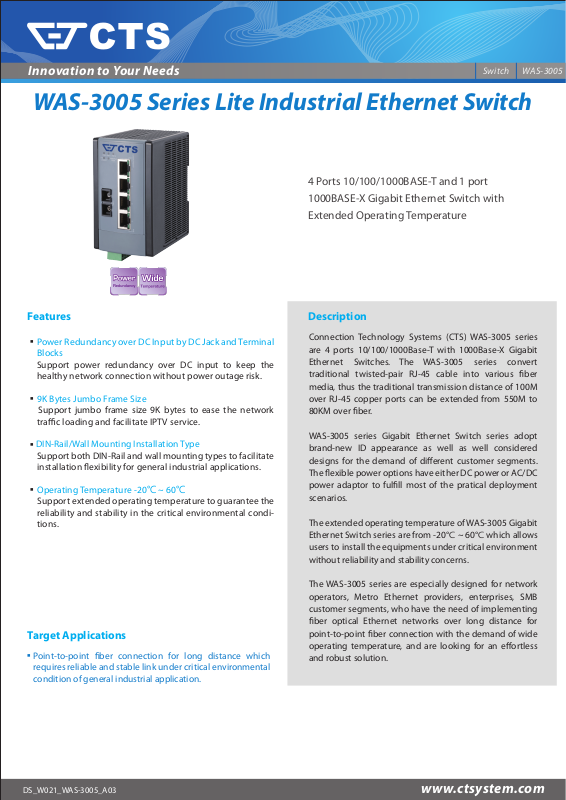

Innovation to Your Needs
WAS-3005 Series Lite Industrial Ethernet Switch
4 Ports 10/100/1000BASE-T and 1 port
1000BASE-X Gigabit Ethernet Switch with
Extended Operating Temperature
WAS-3005Switch
Features
▪
Power Redundancy over DC Input by DC Jack and Terminal
Blocks
Support power redundancy over DC input to keep the
healthy network connection without power outage risk.
▪9K Bytes Jumbo Frame Size
Support jumbo frame size 9K bytes to ease the network
trac loading and facilitate IPTV service.
DIN-Rail/Wall Mounting Installation Type
▪
Support both DIN-Rail and wall mounting types to facilitate
installation exibility for general industrial applications.
▪Operating Temperature -20℃ ~ 60℃
Support extended operating temperature to guarantee the
reliability and stability in the critical environmental conditions.
Target Applications
▪Point-to-point ber connection for long distance which
requires reliable and stable link under critical environmental
condition of general industrial application.
Description
Connection Technology Systems (CTS) WAS-3005 series
are 4 ports 10/100/1000Base-T with 1000Base-X Gigabit
Ethernet Switches. The WAS-3005 series convert
traditional twisted-pair RJ-45 cable into various ber
media, thus the traditional transmission distance of 100M
over RJ-45 copper ports can be extended from 550M to
80KM over ber.
WAS-3005 series Gigabit Ethernet Switch series adopt
brand-new ID appearance as well as well considered
designs for the demand of dierent customer segments.
The exible power options have either DC power or AC/DC
power adaptor to fulll most of the pratical deployment
scenarios.
The extended operating temperature of WAS-3005 Gigabit
Ethernet Switch series are from -20
users to install the equipments under critical environment
without reliability and stability concerns.
The WAS-3005 series are especially designed for network
operators, Metro Ethernet providers, enterprises, SMB
customer segments, who have the need of implementing
ber optical Ethernet networks over long distance for
point-to-point ber connection with the demand of wide
operating temperature, and are looking for an eortless
and robust solution.
℃
~ 60℃ which allows
DS_W021_WAS-3005_A03
www.ctsystem.com
Innovation to Your Needs
Application Diagram
WAS-3005Switch
Specication
Interface
LAN :
-4 x Shielded 10/100/1000Mbps RJ-45
WAN :
-1 x 1000Mbps FC/W2X/SFP
Standards
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x Flow Control
H/W Specication
Auto Negotiation in TP Ports
Auto Crossover for MDI/MDI-X in TP Ports
Half/Full Duplex Mode Operation
MAC Address Table : 2K
Non-Blocking Switching Fabric : 10Gbps
Memory Buer : 128K Bytes
LED
PWR, PWT1, PWT2, F/O Link/ACT,
PWR/Port
Status, Link/ACT/Speed
Ethernet Features
9K Bytes Jumbo Frames
Flow Control
Store-and-Forward Switching Mechanism
Installation Type
Wall Mounting
DIN-Rail Mounting
Power Requirement
DC Input :
-DC Power Jack x 1
-Terminal Block x 2
Input Voltage :
-DC : 12VDC~48VDC
Power Consumption :
-DC : 4.2W (Max)
Environmental Condition
Operation: -20
Storage Temperature: -20℃ ~ 70
Humidity: 5% ~ 90%, Non-Condensing
Dimension & Weight
Size: 61 x 93 x 105 mm (WxDxH)
Weight: 0.45KG
EMC/Safety
FCC Class A, CE
℃
~ 60
℃
℃
DS_W021_WAS-3005_A03
www.ctsystem.com
Innovation to Your Needs
Speed Fiber Type Connector Distance Ports Speed Ports
WAS-3005FC 1000Mbps MM SC
550M
1
10/100/1000Mbps
4
WAS-3005FC(SM-10/20/30/50/80) 1000Mbps SM SC 10/20/30/50/80KM 1
10/100/1000Mbps
4
WAS-3005W2A(SM-10/20/40) 1000Mbps WDM SC 10/20/40KM 1
10/100/1000Mbps
4
WAS-3005W2B(SM-10/20/40) 1000Mbps WDM SC 10/20/40KM 1
10/100/1000Mbps
4
10/100/1000Mbps
WAS-3005
FIBER PORT
TP PORT
Power Supply
Speed Type Connector Distance Temperature
SFP-30TP 1000Mbps - RJ-45 100M
0℃ to 70℃
Speed Type Connector Distance Wavelength Temperature
SFP-31FC 1000Mbps MM LC
550M
850nm
0℃ to 70℃
TX:1 310nm/1310nm/1310nm/1510nm
RX:1550nm/1550nm/1550nm/1570 nm
TX:1 550nm/1550nm/1550nm/1570nm
RX:1310nm/1310nm/1310nm/1510 nm
SFP-31FC-C11 1000Mbps CWDM LC
80KM 1470nm 0℃ to 70℃
SFP-31FC-C12 1000Mbps CWDM LC
80KM 1490nm 0℃ to 70℃
SFP-31FC-C13 1000Mbps CWDM LC
80KM 1510nm 0℃ to 70℃
SFP-31FC-C14 1000Mbps CWDM LC
80KM 1530nm 0℃ to 70℃
80KM 1550nm 0℃ to 70
80KM 1570nm 0℃ to 70
80KM 1590nm 0℃ to 70
80KM 1610nm 0℃ to 70
SFP-31
FIBER PORT
SFP-30
COPPER PORT
Order Information
MODEL
WAS-3005Switch
WAS-3005SFP 1000Mbps SFP - - 1
4
WAP-POWER-12J18 12V/18W AC to DC Power Adaptor Working Temperature : 0℃ ~50℃, 18W
WAP-POWER-48J90 48V/90W AC to DC Power Adaptor Working Temperature : 0℃ ~50℃, 90W
WAP-POWER-48D75/DR-75-48 48V/75W DIN-Rail Power Supply
SDR-75-48 48V/75W DIN-Rail Power Supply
WAP-POWER-48D240/SDR-240-48 48V/240W DIN-Rail Power Supply
MODEL
MODEL
SFP-31FC(SM-10/20/40/50/80
/100/120)
SFP-31W2A(SM-10/20/40/80) 1000Mbps WDM LC 10/20/40/8 0KM 0℃ to 70℃
1000Mbps SM LC
10/20/40/50/80
Working Temperature : -10℃ ~50℃, 75W
50℃ ~60℃, output derating 4.0% per degree (45W at 60℃ )
Working Temperature : -25℃ ~60℃, 75W
60℃ ~70℃, output derating 2
.5% per degree (56W at 70℃ )
Working Temperature : -25℃ ~60℃, 240W
60℃ ~70℃, output derating 2.5% per degree (180W at 70℃ )
1310nm/1310nm/131 0nm/1550nm/1550nm
/100/120KM
1550nm/1550nm
0℃ to 70℃
SFP-31W2B(SM-10/20/40/80) 1000Mbps WDM LC 10/20/40/8 0KM 0℃ to 70℃
SFP-31FC-C15 1000Mbps CWDM LC
SFP-31FC-C16 1000Mbps CWDM LC
SFP-31FC-C17 1000Mbps CWDM LC
SFP-31FC-C18 1000Mbps CWDM LC
℃
℃
℃
℃
DS_W021_WAS-3005_A03
www.ctsystem.com
