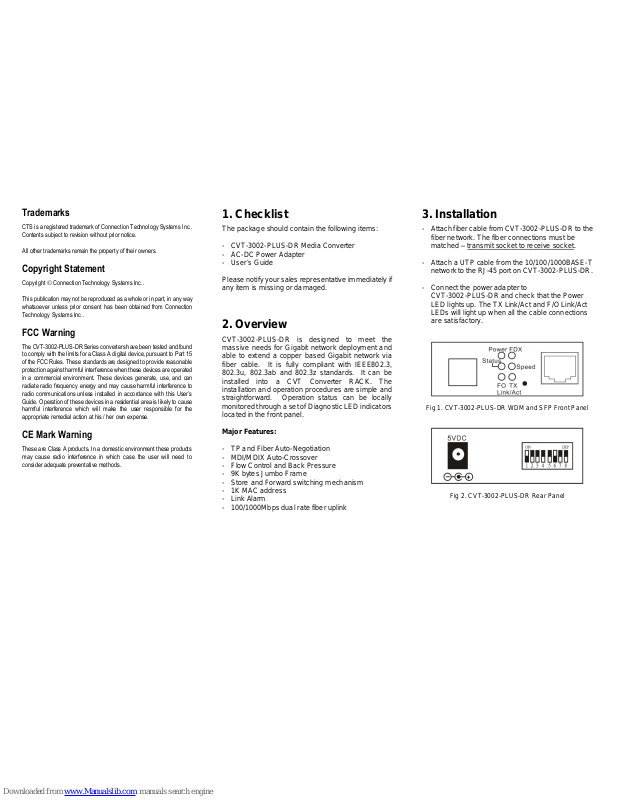

Trademarks
CTS is a registered trademark of Connection Technology Systems Inc..
Contents subject to revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright Connection Technology Systems Inc..
This publication may not be reproduced as a whole or in part, in any way
whatsoever unless prior consent has been obtained from Connection
Technology Systems Inc..
FCC Warning
The CVT-3002-PLUS-DR Series converters have been tested and found
to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These standards are designed to provide reasonable
protection against harmful interference when these devices are operated
in a commercial environment. These devices generate, use, and can
radiate radio frequency energy and may cause harmful interference to
radio communications unless installed in accordance with this User’s
Guide. Operation of these devices in a residential area is likely to cause
harmful interference which will make the user responsible for the
appropriate remedial action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products
may cause radio interference in which case the user will need to
consider adequate preventative methods.
1. Checklist
The package should contain the following items:
-
CVT-3002-PLUS-DR Media Converter
-
AC-DC Power Adapter
-
User’s Guide
Please notify your sales representative immediately if
any item is missing or damaged.
2. Overview
CVT-3002-PLUS-DR is designed to meet the
massive needs for Gigabit network deployment and
able to extend a copper based Gigabit network via
fiber cable. It is fully compliant with IEEE802.3,
802.3u, 802.3ab and 802.3z standards. It can be
installed into a CVT Converter RACK. The
installation and operation procedures are simple and
straightforward. Operation status can be locally
monitored through a set of Diagnostic LED indicators
located in the front panel.
Major Features:
-
TP and Fiber Auto-Negotiation
-
MDI/MDIX Auto-Crossover
-
Flow Control and Back Pressure
-
9K bytes Jumbo Frame
-
Store and Forward switching mechanism
-
1K MAC address
-
Link Alarm
-
100/1000Mbps dual rate fiber uplink
3. Installation
-
Attach fiber cable from CVT-3002-PLUS-DR to the
fiber network. The fiber connections must be
matched – transmit socket to receive socket.
-
Attach a UTP cable from the 10/100/1000BASE-T
network to the RJ-45 port on CVT-3002-PLUS-DR.
-
Connect the power adapter to
CVT-3002-PLUS-DR and check that the Power
LED lights up. The TX Link/Act and F/O Link/Act
LEDs will light up when all the cable connections
are satisfactory.
Fig 1. CVT-3002-PLUS-DR WDM and SFP Front Panel
Fig 2. CVT-3002-PLUS-DR Rear Panel
4. DIP SWITCH Setting
The default setting for PIN 1 and 6 is ON. The rest
pins are OFF.
Pin NO.
Function
OFF
ON
1
TP Auto-Negotiation
Disable
Enable
2
Manual TP speed
10M
100M
3
Manual TP speed
N/A
1000M
4
Duplex mode
Half
Full 5 Flow Control
Disable
Enable 6 F/O mode
Force
Auto 7 Link Alarm
Disable
Enable 8 Reserved
-
-
NOTE:
Before changing TP speed, duplex mode and flow
control setting, please make sure PIN 1 is set to OFF.
When TP speed is set to 10M or 100M manually, PIN 3
needs to be turned OFF.
Under 1000Mbps, it supports full-duplex mode only.
5. LED Description
6. Technical Specifications
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3z
Interface
1 X 10/100/1000 RJ-45 connector
1 X 100/1000 F/O port or SFP slot
LED
Power, FDX, Status, Speed,
FO Link/ACT, TX Link/ACT
Power
I/P: AC100-240V; O/P: DC5V, 2A
Power Consumption
2.2W
Shipping Weight
0.6KG
Dimensions
71mm(W)X94mm(D)X26mm(H)
Temperature
Operating: 0o~50oC; Storage: -20o~60oC
Humidity
5%~90% RH
Certification
FCC/CE Class A
Media
TP:
EIA/TIA-568 CAT 5e, 1000M
Fiber:
9/125, 10/125um single-mode fiber
*Please contact us for further reports and updates.
Fiber Transceiver Information
100M/1000M Dual Speed
Wave-Length WDM
TYPE
W2A(SM-10)
W2B(SM-10)
Connector Type
SC
SC
TX Wavelength
1550nm
1310nm
RX Wavelength
1310nm
1550nm
Typical Distance
10 Km
10 Km
Min TX PWR
-9.0dBm
-9.0dBm
Max TX PWR
-3.0dBm
-3.0dBm
Sensitivity
-20.0dBm
-20.0dBm
Link Budget
11.0 dB
11.0 dB
NOTE: Specifications may change without prior notice.
Contact Information
Connection Technology Systems INC (CTS)
18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist.,
New Taipei City 221, TAIWAN, R.O.C.
TEL: +886 2 26989661 FAX: +886 2 26989662
E-Mail: info@ctsystem.com
CVT-3002-PLUS-DR
SERIES
10/100/1000BASE-T to
100/1000BASE-X Standalone
Gigabit Media Converter
User’s Guide
Version 1.1
LED
Color
Function
Power
Green
Power is available.
TX
Link/Act
Green
TX cable connection with remote
device is good.
Blinking
TX traffic is present.
FO
Link/Act
Green
F/O works in 100M.
Orange
F/O works in 1000M.
Blinking
F/O traffic is present.
FDX
OFF
TX works in Half-Duplex.
Green
TX works in Full-Duplex.
Speed
OFF
TX works in 10M.
Green
TX works in 100M.
Orange
TX works in 1000M.
Status
Green
TX and F/O link is up.
Orange
TX or F/O link is down.
