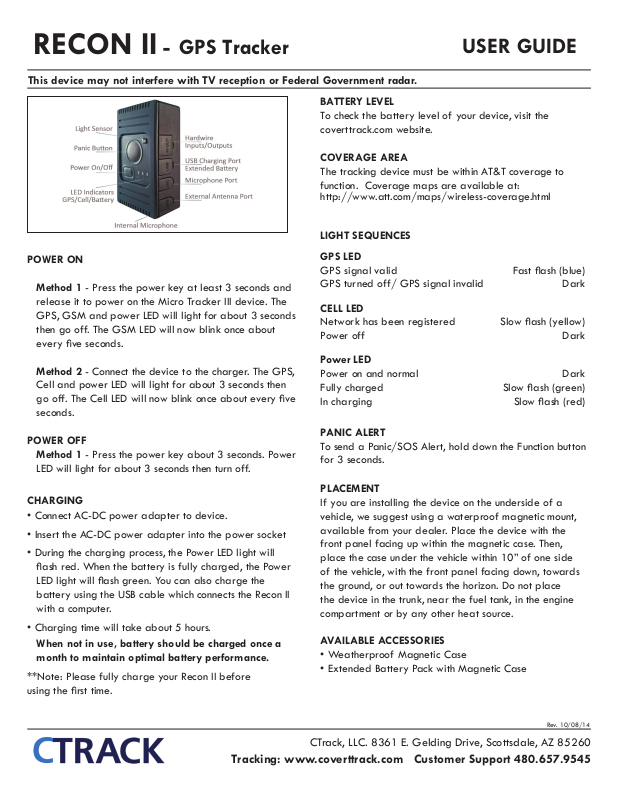

Ctrack RECONII User Manual
RECON II - GPS Tracker
This device may not interfere with TV reception or Federal Government radar.
BATTERY LEVEL
To check the battery level of your device, visit the
coverttrack.com website.
COVERAGE AREA
The tracking device must be within AT&T coverage to
function. Coverage maps are available at:
http://www.att.com/maps/wireless-coverage.html
LIGHT SEQUENCES
USER GUIDE
POWER ON
Method 1 - Press the power key at least 3 seconds and
release it to power on the Micro Tracker III device. The
GPS, GSM and power LED will light for about 3 seconds
then go off. The GSM LED will now blink once about
every ve seconds.
Method 2 - Connect the device to the charger. The GPS,
Cell and power LED will light for about 3 seconds then
go off. The Cell LED will now blink once about every ve
seconds.
POWER OFF
Method 1 - Press the power key about 3 seconds. Power
LED will light for about 3 seconds then turn off.
CHARGING
• Connect AC-DC power adapter to device.
• Insert the AC-DC power adapter into the power socket
• During the charging process, the Power LED light will
ash red. When the battery is fully charged, the Power
LED light will ash green. You can also charge the
battery using the USB cable which connects the Recon II
with a computer.
• Charging time will take about 5 hours.
When not in use, battery should be charged once a
month to maintain optimal battery performance.
**Note: Please fully charge your Recon II before
using the rst time.
GPS LED
GPS signal valid Fast ash (blue)
GPS turned off/ GPS signal invalid Dark
CELL LED
Network has been registered Slow ash (yellow)
Power off Dark
Power LED
Power on and normal Dark
Fully charged Slow ash (green)
In charging Slow ash (red)
PANIC ALERT
To send a Panic/SOS Alert, hold down the Function button
for 3 seconds.
PLACEMENT
If you are installing the device on the underside of a
vehicle, we suggest using a waterproof magnetic mount,
available from your dealer. Place the device with the
front panel facing up within the magnetic case. Then,
place the case under the vehicle within 10” of one side
of the vehicle, with the front panel facing down, towards
the ground, or out towards the horizon. Do not place
the device in the trunk, near the fuel tank, in the engine
compartment or by any other heat source.
AVAILABLE ACCESSORIES
• Weatherproof Magnetic Case
• Extended Battery Pack with Magnetic Case
Rev. 10/08/14
CTrack, LLC. 8361 E. Gelding Drive, Scottsdale, AZ 85260
Tracking: www.coverttrack.com Customer Support 480.657.9545
Part 95 Transmitter Technical Specications
Power Output ...................................................................................................... .0 1W ma x im u m
Operating Frequency ........................................... 216.025 – 216.975 MHz - Power 1.2 mW
Operating Channels/Modes ........................................................20 channels, 50 kHz spacing
Data Rates ............................................................................................................................N / A
Tuning Range ........................................................................................ 216.025 – 216.975 MHz
Intended Use .................................................................................. Tracking by Law Enforcement
Antenna Connector/Gain Information ........................ Internal Antenna, 0 dBi maximum gain
Note:
This equipment should be installed and operated
with a minimum distance of 20 cm between the
radiator and the body of the user or nearby persons.
FCC Regulations:
105(b) This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
(15.19(a)(3)) This device complies with part 15 of
the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation
RF Note:
This product complies with FCC OET Bulletin 65
radiation exposure limits set forth for an uncontrolled
environment.
A shielded USB cable must be used with this device.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an output on a circuit
different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
(15.21) Pursuant to FCC 15.21 of the FCC rules,
changes not expressly approved by CTRACK
might cause harmful interference and void the FCC
authorization to operate this product.
Tracking: www.coverttrack.com Customer Support 480.657.9545
Rev. 10/08/14
CTrack, LLC. 8361 E. Gelding Drive, Scottsdale, AZ 85260
