MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER
M4DBDA8
USER’S MANUAL
REVISION 1
SUBMITTED BY:
CANAM TECHNOLOGY, INC.
May, 2015
Page 2 of 13
Rev1 May/2015
Part 90 Signal Boosters THIS IS A 90.219 CLASS A DEVICE
WARNING. This is NOT a CONSUMER device. It is designed for installation by
FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE
or express consent of an FCC Licensee to operate this device. You MUST
register Class A signal boosters (as defined in 47 CFR 90.219) online
at www.fcc.gov/signal-boosters/registration. Unauthorized use may result in
significant forfeiture penalties, including penalties in excess of $100,000 for
each continuing violation.”
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Page 3 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
TABLE OF CONTENTS
Section A. INTRODUCTION ..................................................................................... 4
Section B. SYSTEM DESCRIPTION ........................................................................... 6
Section C. PHYSICAL OVERWIEW .......................................................................... 7
Section D. START - UP .............................................................................................. 9
D.1 ACCESSING D.U.T. WEB SERVER ................................................................... 9
D.1.1 Connect D.U.T to P.C computer using a crossover cable ................... 9
D.1.2 Connect D.U.T to local area network ................................................... 10
D.2 USING AND SETTING UP D.U.T...................................................................... 11
Section E. RF CONNECTIONS .............................................................................. 12
Page 4 of 13
Rev1 May/2015
Canam Technology, Inc provide this document “as is” without any
warranty of any kind. Canam Technology may make changes to the
equipment, software or specifications in this document at any time
without notice to the user. These changes will be notified to the
party responsible for FCC compliance and they will be incorporated
in future releases of this document.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment”
This document may contain typographical errors and technical
inaccuracies. Canam Technology will not accept any liability from
the use and misuse of this manual, the information contained within,
or the consequences of any actions resulting from the use of this
information.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Section A. INTRODUCTION
The MARK-IVD 800MHz Narrowband Signal Booster (M4DBDA8) is a Class “A”
Industrial Signal Booster for FCC Part 90 PLMRS Public Safety Agencies used to
operate within range 806-817 MHz (UL path), 851-862 MHz (DL path) for Land
Mobile Radio.
This document is the M4DBDA8 User’s Maintenance Manual, intended for the
Radio Technical Personnel.
This manual is intended to be used with the M4DBDA8 Equipment only. It is
not to be used with any other equipment unless it is authorized by Canam
Technology, Inc.
Page 5 of 13
Rev1 May/2015
Signal boosters such as the M4DBDA8 generate radio signals and,
therefore, electromagnetic fields. The technical personnel should
have a complete understanding of FCC CFR Title 47 sections 1.1307
and 1.1310. Recommendations are included in this Manual, but
they do not substitute the FCC guidelines.
M4DBDA8 Key Features:
Narrowband Class A Signal Booster, per FCC Part 90.
Maximum Output Power at the antenna port +37 dBm per
carrier.
AGC circuit provides a constant output power, regardless of
the input power.
This device may require the use of antennas for proper functioning,
depending on the application. The installation of the antennas
should be performed by qualified technical personnel. All antennas
should be fixed mounted and physically secured to one location
The people must be away from the antennas at least 1.0 meters to
comply with the RF Human Maximum Permissible Exposure limits, as
long as the antenna system gain is lower than 11.3 dBi. If greater
gain is used the separation should be increased, please refer to the
FCC Rules.
If service should be performed on the antenna, please shut down
the transmitter or lower its power in order to comply with the
maximum permissible exposure.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Page 6 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Section B. SYSTEM DESCRIPTION
The MARK-IVD 800MHz Narrowband Signal Booster (M4DBDA8) is a Class “A”
Industrial Signal Booster for FCC Part90 PLMRS Public Safety Agencies used to
operate within range 806-817 MHz (UL path), 851-862 MHz (DL path) for Land
Mobile Radio.
The system features eight or more programmable frequency narrowband
filters. The desired operation frequencies must be configured using built-in
Web Server.
Programmable Individual Rx Threshold level (Squelch) per filter allows
transmission if the probe signal is greater than configured Squelch.
Individual Automatic Gain Control (AGC) per filter delivers constant output
power level per channel (+/- 1 dB) regardless of their input level variations.
The maximum output level per filter can be changed with option “Maximum
Desired Output Level per filter” in Main Settings page from Web Server
The built-in Web Server provides a Graphical User Interface (GUI) to ease in
remote monitoring & control. Access is obtained via a PC’s Web Browser
and a TCP/IP connection to the Unit. The system can be connected directly
to a PC computer or can be plugged into the local area network.
Some pages shown by the Web Server are the following:
“Main Status”: depicts status alarm indicators and meters.
“Main Settings”: is used to configure system-level macro settings.
“Filter Settings” contains the settings that can be configured for each
filter window.
Never operate the system without adequate Load/Termination on the
Donor/Base and Service/Side T/R port. The 800 MHz Signal Booster will amplify
until 120dB gain any input stimulus greater than Rx Threshold level (Squelch).
The Web Server allows to Mute/Un-mute Power Amplifiers in “Main Settings”
page. Make sure the power amplifiers are un-muted before start with the
test.
Page 7 of 13
Rev1 May/2015
1
3
2
Item
Description
1
Intake fan 1
2
LCD Display/Keypad
3
Intake fan 2
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Section C. PHYSICAL OVERWIEW
Figure 1 shows the visual status that the D.U.T. front panel. Table 1 contains a
brief explanation.
Figure 1 - Front Panel details
Table 1 – Front Panel details
Page 8 of 13
Rev1 May/2015
1
5
3
2
4
7
6
8
109
11
12
13
14
14
Item
Description
1
DONOR/BASE T/R PORT
2
FAN 1 DE-01
3
AUX I/O DE-02
4
FAN 1 DE-03
5
SERVICE/SIDE T/R PORT
6
(ECM) ETHERNET 10/100 NETWORK PORT
7
(ECM) GREEN LEDS STATUS INDICATORS
8
(ECM) RED LEDS (RELAY CONTACTS)
9
(ECM) DB-25 I/O CONNECTOR
10
PLUGGABLE EMBEDDED CONTROL MODULE (ECM)
11
(ECM) FACTORY USB DEBUG PORT
12
AC POWER "IEC" INLET
13
AC MAINS ON/OFF POWER SWITCH
14
AIR EXHAUST REAR FANS
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL

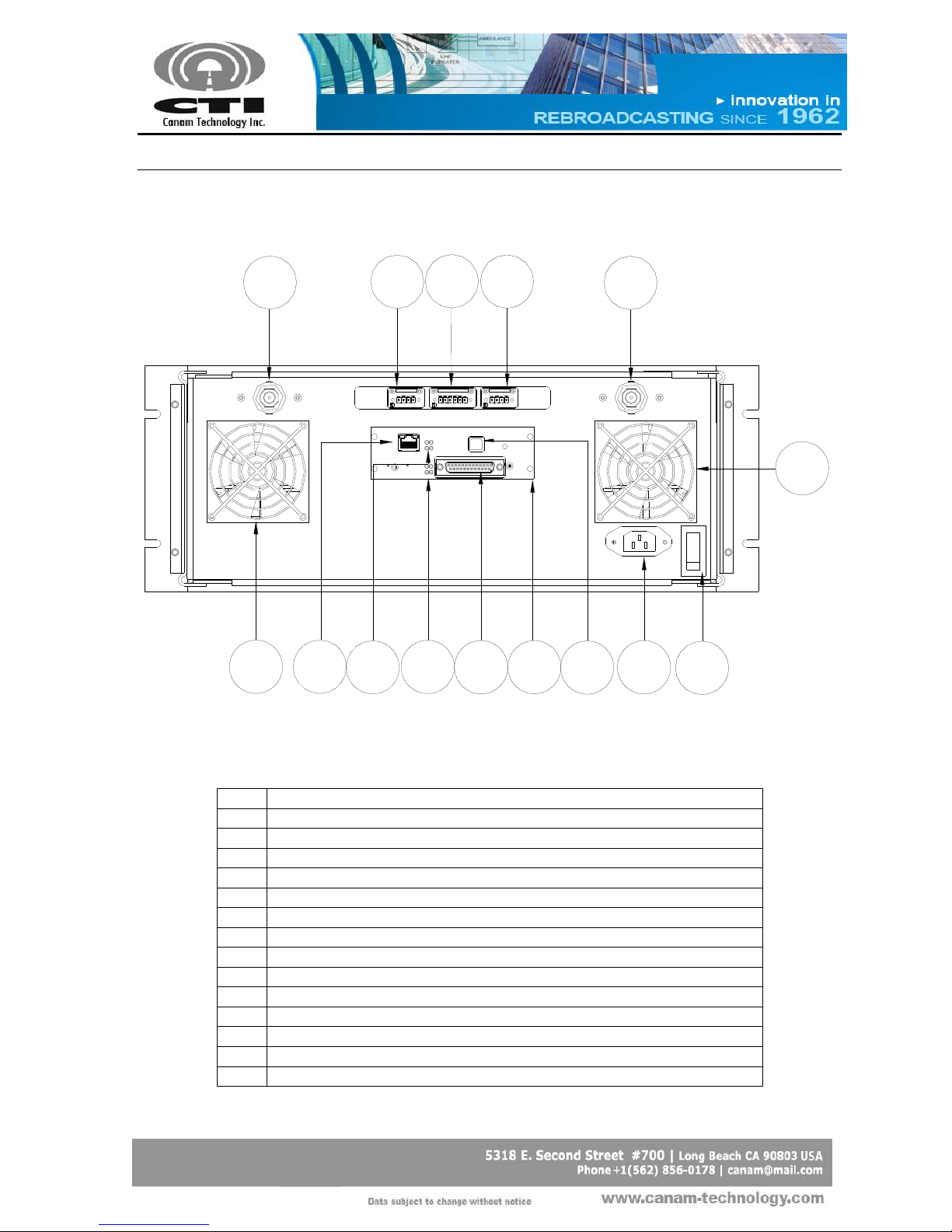

Figure 2 shows the connectors and visual status that the D.U.T rear panel has.
Table 2 contains a brief explanation.
Figure 2 - Rear Panel details.
Table 2 – Rear Panel details.
Page 9 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Section D. START - UP
D.1 ACCESSING D.U.T. WEB SERVER
The system can be connected to a PC computer using an Ethernet crossover
cable or to LAN using an Ethernet straight cable.
D.1.1 Connect D.U.T to P.C computer using a crossover cable
Figure 3 – D.U.T. connected directly to PC computer.
1. Use an Ethernet crossover cable for connect equipment directly to a
PC computer LAN port (refer to Item #8 in Figure 2).
2. The IP address of the equipment is shown in the LCD display. By default
it is 192.168.100.75 with Network Mask = 255.255.255.0.
o To verify IP address press the Down key in LCD Display and
Keypad assembly until get IP ADDRESS value.
3. Configure the local computer IP address to allow access to the
controller, within the same sub-net.
o Go to “Star >> Control Panel >>Network Settings”.
o Right-Click on the “Local Area Connection” and choose
“Properties”.
o Look for “Internet Protocol” and click “Properties”.
o Select “Use the following IP Address”.
Configure PC computer IP address as 192.168.100.X (X is a
value between 0-255) with Network Mask = 255.255.255.0.
Page 10 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Default gateway can be same value as IP address.
o Select “Obtain DNS server address automatically”.
4. Open a web browser and access the equipment by typing, in the
address bar, the IP address of the equipment (http://192.168.100.75).
o Login with username = technician, password = technician.
D.1.2 Connect D.U.T to local area network
Figure 4 - D.U.T. connected into local area network.
Page 11 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
D.2 USING AND SETTING UP D.U.T
1. Open a web browser and access the equipment by typing, in the
address bar, the IP address (http://192.168.100.75) assigned to the
equipment.
o Login with username = technician, password = technician.
o The Main Status page will be displayed if connection available.
2. Go to Calibration page for:
o Changing meters calibration, settings such as “Local Oscillator”,
minimum readable for some meters.
3. Go to Filter Settings page for:
o Configuring the center desired frequencies.
o Enable/disable filter windows.
o Setting other filters attributes as Fine-Tune, Rx Threshold,
Enable/disable AGC.
4. Go to Main Settings page for:
o Changing “Maximum Desired Output Level per Filter”.
o Enabling/disabling MCPA output per path.
o Enabling/disabling Pilot Test Carrier.
o Configuring input attenuator.
Page 12 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
Section E. RF CONNECTIONS
1. Use a coaxial cable to connect the test instrument input to D.U.T.
Donor/Base or Service/Mobile when corresponds (refer to Items #2 and
#8 in Figure 2).
2. Use a coaxial cable to connect the RF generator output to D.U.T.
Donor/Base or Service/Mobile when corresponds (refer to Items #2 and
#8 in Figure 2).
Page 13 of 13
Rev1 May/2015
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 800MHZ NARROWBAND SIGNAL BOOSTER M4DBDA8 USER’S MANUAL
(This Page was intentionally left blank)
