Page 1
S -Ve
Sig -Ve
NEGATIVE
SIGNAL
Call
RESET
S -V
Call
STND CALL POINT
RESET POINT
CEILING
PULL
CEILING
PULL
S -Ve
▲
▲
INDICATOR
PANEL
Emergency Call Points & Reset Points with
Sounders also require a +Ve connection

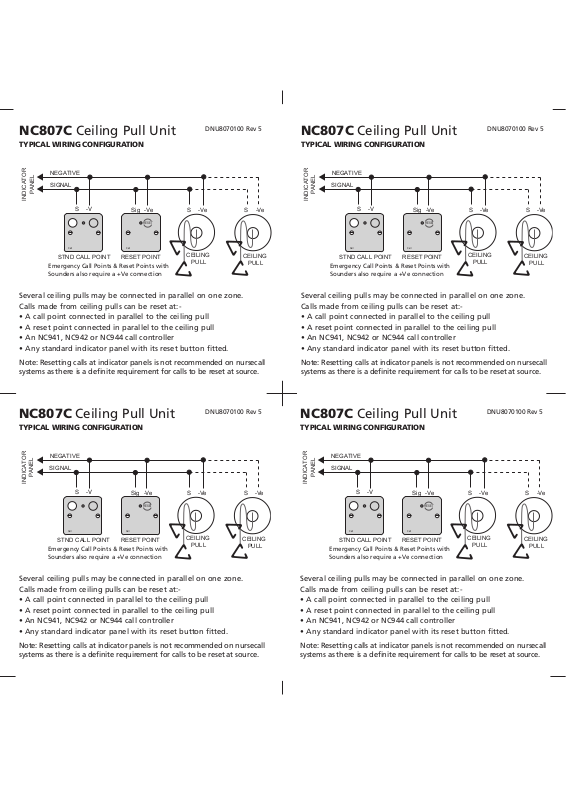

NC807C Ceiling Pull Unit
S -Ve
Sig -Ve
NEGATIVE
SIGNAL
Call
RESET
S -V
Call
STND CALL POINT
RESET POINT
CEILING
PULL
CEILING
PULL
S -Ve
▲
▲
INDICATOR
PANEL
Emergency Call Points & Reset Points with
Sounders also require a +Ve connection
DNU8070100 Rev 5

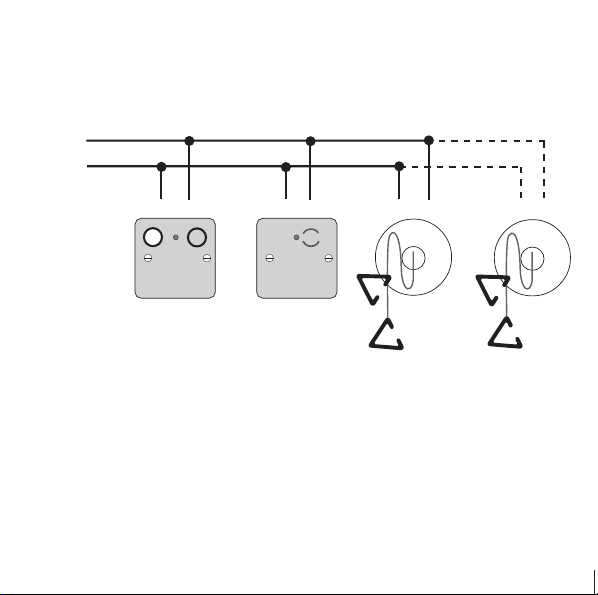

TYPICAL WIRING CONFIGURATION
Several ceiling pulls may be connected in parallel on one zone.
Calls made from ceiling pulls can be reset at:-
• A call point connected in parallel to the ceiling pull
• A reset point connected in parallel to the ceiling pull
• An NC941, NC942 or NC944 call controller
• Any standard indicator panel with its reset button fitted.
Note: Resetting calls at indicator panels is not recommended on nursecall
systems as there is a definite requirement for calls to be reset at source.
Page 2
INSTALLATION GUIDELINES, HINTS AND TIPS
Assess the condition of the mounting surface prior to installation and
•
fix the ceiling pull to the ceiling using a suitable screw fixing arrangement.

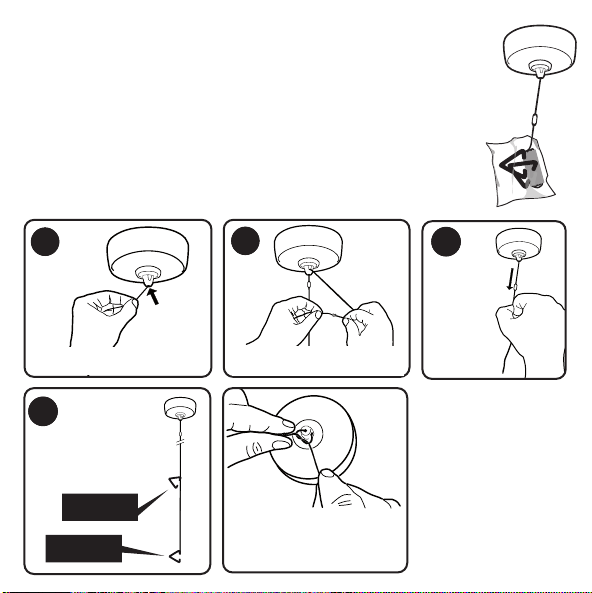

• Tie the pull cord and its bangles to the ceiling pull as detailed on the
ull cord’s packaging.
p
• Keep the cord and bangles clean and tidy by cutting the right
hand corner of the bag they are supplied in, threading through
30cm of cord and following steps 1 to 3 below. The cord and bangles
an now be left dangling until the bangles are ready to be fitted
c
and the system commissioned.
1
Thread the cord through the
ceiling pull’s centre eye
4
Set the triangles by
knotting the cord.
Trim off any excess.
800-1000mm
above floor
100mm
above floor
2
Tie a secure stop knot and
trim off any excess cord
TIP: you can further secure the
cord by tying an additional
knot around the ceiling pull’s
centre eye as shown
3
Pull the
cord tight
to secure
the knot
nside the
i
entre eye
c
Ceiling pulls are not
recommended for
applications where
there is a risk of ligature
prisons, mental health
(
acilities, etc). In such
f
applications we
recommend alternative
devices such as tamperresistant call points.
