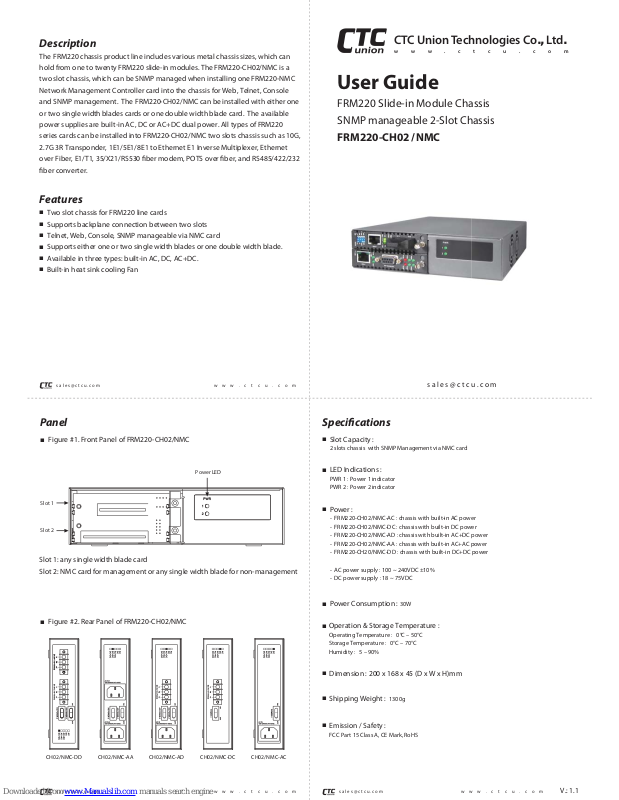

FRM220 Slide-in Module Chassis
SNMP manageable 2-Slot Chassis
FRM220-CH02 / NMC
User Guide
Panel
■

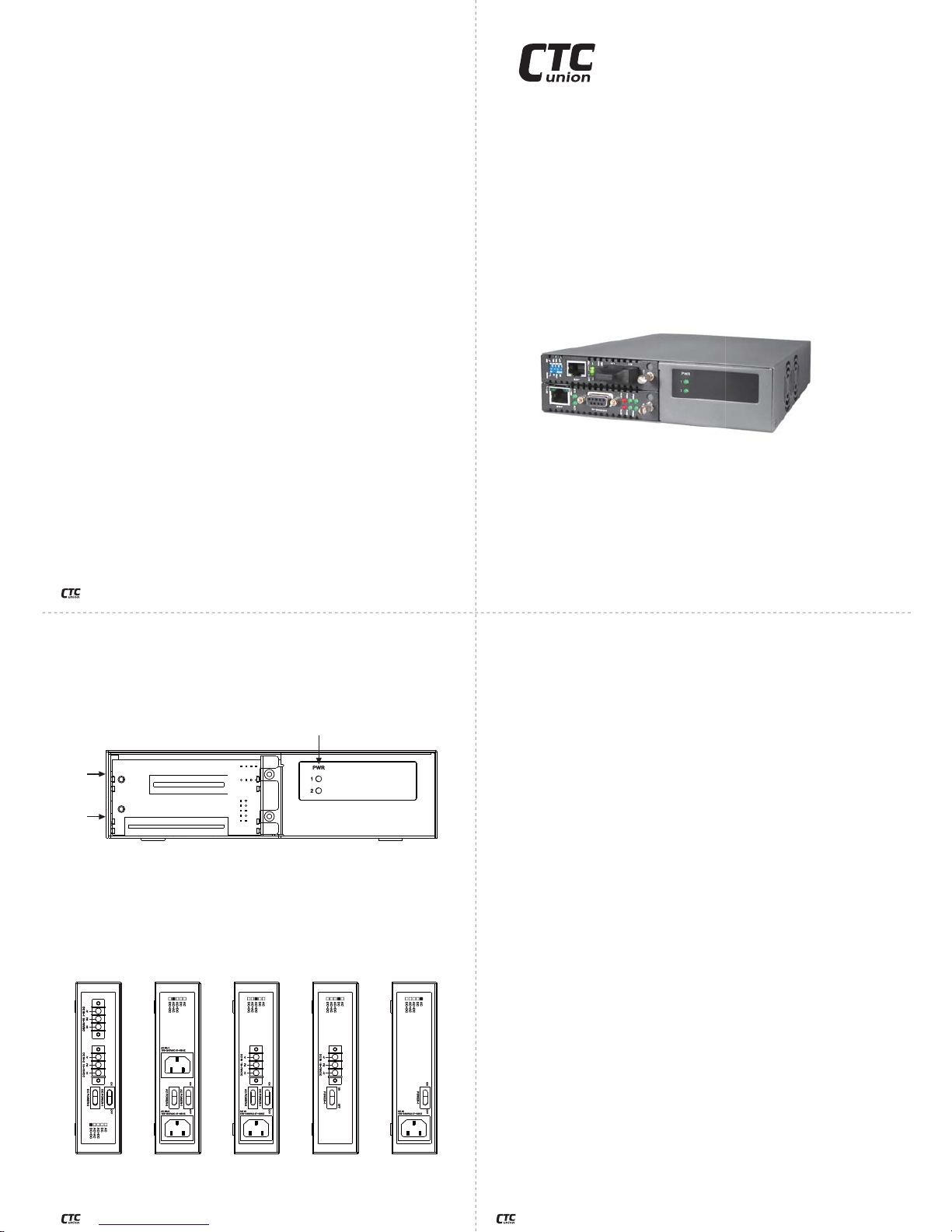

Figure #2. Rear Panel of FRM220-CH02/NMC
Figure #1. Front Panel of FRM220-CH02/NMC
CTC Union Technologies Co., Ltd.
www.ctcu.com
Description
The FRM220 chassis product line includes various metal chassis sizes, which can
hold from one to twenty FRM220 slide-in modules. The FRM220-CH02/NMC is a
two slot chassis, which can be SNMP managed when installing one FRM220-NMC
Network Management Controller card into the chassis for Web, Telnet, Console
and SNMP management. The FRM220-CH02/NMC can be installed with either one
or two single width blades cards or one double width blade card. The available
power supplies are built-in AC, DC or AC+DC dual power. All types of FRM220
series cards can be installed into FRM220-CH02/NMC two slots chassis such as 10G,
2.7G 3R Transponder, 1E1/5E1/8E1 to Ethernet E1 Inverse Multiplexer, Ethernet
over Fiber, E1/T1, 35/X21/RS530 ber modem, POTS over ber, and RS485/422/232
ber converter.
Features
■
Two slot chassis for FRM220 line cards
■
Supports backplane connection between two slots
■
Telnet, Web, Console, SNMP manageable via NMC card
■
Supports either one or two single width blades or one double width blade.
■
Available in three types: built-in AC, DC, AC+DC.
■
Built-in heat sink cooling Fan
Slot 1: any single width blade card
Slot 2: NMC card for management or any single width blade for non-management
Slot 1
Slot 2
Power LED
CH02/NMC-DD CH02/NMC-AA CH02/NMC-AD CH02/NMC-DC CH02/NMC-AC
[email protected] www.ctcu.com
V.: 1.1
■
Slot Capacity :
2 slots chassis with SNMP Management via NMC card
■
LED Indications :
PWR 1 : Power 1 indicator
PWR 2 : Power 2 indicator
Specications
■
Power :
- FRM220-CH02/NMC-AC : chassis with built-in AC power
- FRM220-CH02/NMC-DC : chassis with built-in DC power
- FRM220-CH02/NMC-AD : chassis with built-in AC+DC power
- FRM220-CH02/NMC-AA : chassis with built-in AC+AC power
- FRM220-CH20/NMC-DD : chassis with built-in DC+DC power
- AC power supply : 100 ~ 240VDC ±10%
- DC power supply : 18 ~ 75VDC
■
Operation & Storage Temperature :
Operating Temperature : 0°C – 50°C
Storage Temperature : 0°C – 70°C
Humidity : 5 – 90%
■
Dimension : 200 x 168 x 45 (D x W x H)mm
■
Shipping Weight :
1300g
■
Emission / Safety :
FCC Part 15 Class A, CE Mark, RoHS
■
Power Consumption :
30W
Page 2
www.ctcu.com[email protected]
www.ctcu.com
www.ctcu.com

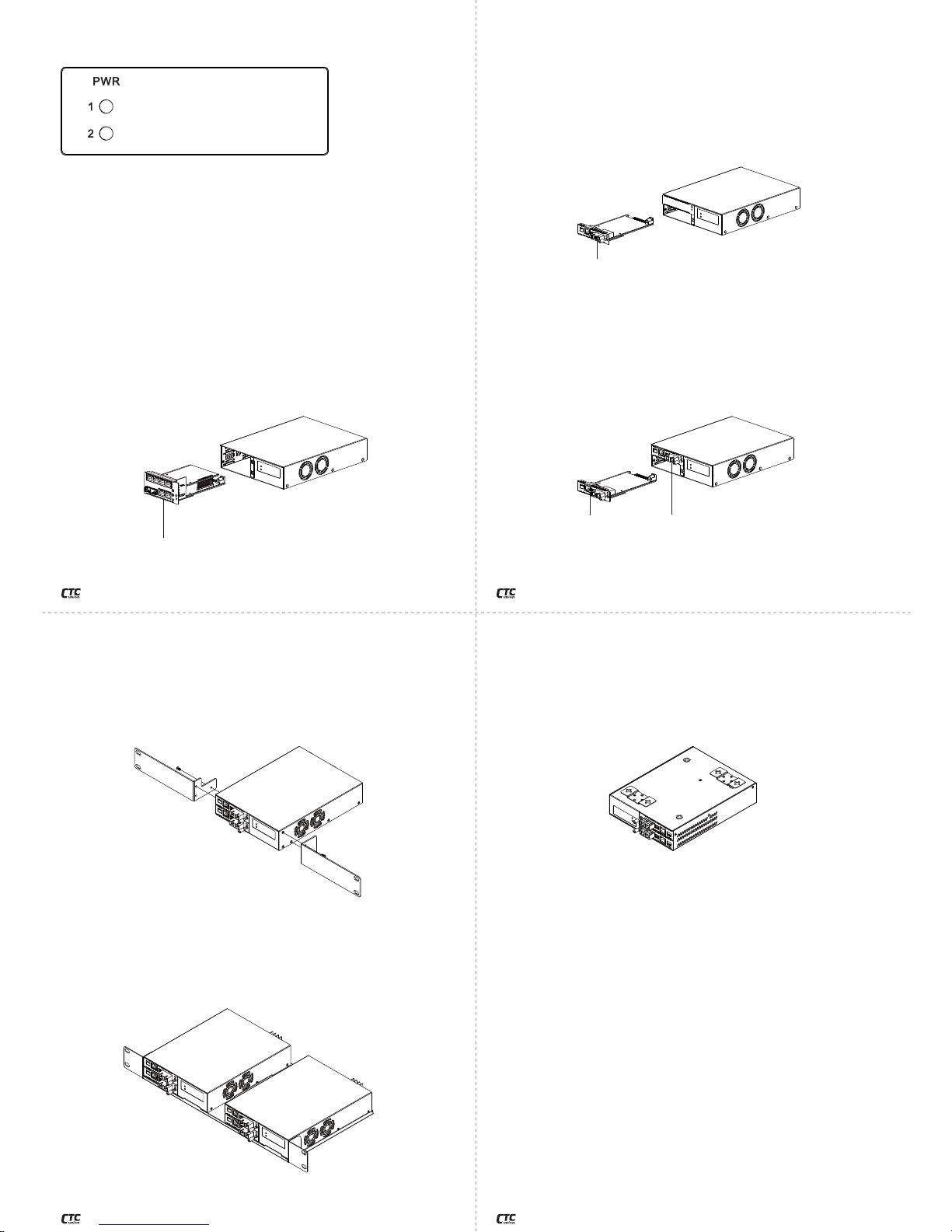

Installation II
The FRM220-CH02/NMC, a two blade chassis, can be installed with
one single
width blade line card
into the chassis. All types of FRM220 series one module
line card can be installed in FRM220-CH02/NMC chassis, which included 10G
3R Transponder, 2.7G 3R Transponder, E1/5E1/8E1 Inverse multiplexer,
Ethernet over ber, E1/T1, 35/X21/RS530 ber modem, POTS over ber, and
RS485/422/232 ber converter. The FRM220-CH02/NMC slide-in chassis may be
applied in point to point applications or may be linked to a centrally located
FRM220 CH20 rack.
Installation II
FRM220-CH02/NMC standalone chassis have the option of adding wall mount
capability. Two
wall mount kits
are required for installing a single
standalone chassis on the wall. Each wall mount kit provides all the necessary
hardware for a complete installation.
Installation I
The FRM220-CH02/NMC, a two blade chassis, can be installed with one
double
width blade line card
into the chassis. All types of FRM220 series two modules
line card can be installed in FRM220-CH02/NMC chassis, which included
16E1/ET100 E1Inverse Multiplexer or FOM04 4ch E1/T1 Fiber Optical Multiplexer.
The FRM220-CH02/NMC slide-in chassis may be applied in point to point
applications or may be linked to a centrally located FRM220 CH20 rack.
LED Indicators
1-module Line Card
■
LED Indications :
PWR 1 : LED on/of f Power 1 is on / Power 1 is of f
PWR 2 : LED on/of f Power 2 is on / Power 2 is of f
NMC card for Web, Telnet,
SNMP Standalone management
NMC Card
NIC
2-module Line Card
[email protected] www.ctcu.com
V.: 1.1
Rack Mounting Option I
FRM220-CH02/NMC standalone chassis have the option of adding standard
EIA 19" rack mount capability.
The rack mount ear
provides for mounting a
single standalone chassis in a rack. Each rack mount ear kit provides all the
necessary hardware for a complete installation
Rack Mounting Option II
FRM220-CH02/NMC standalone chassis have the option of adding standard
EIA 19" rack mount capability.
The rack mount tray
provide for mounting
two standalone chassis in a rack. Each rack mount tray kit provides all the
necessary hardware for a complete installation.
Wall Mounting Option
FRM220-CH02/NMC standalone chassis have the option of adding wall
mount capability. Two
wall mount kits
are required for installing a single
standalone chassis on the wall. Each wall mount kit provides all the necessary
hardware for a complete installation.
Figure #3. Rack Mount Ear. Figure #5. Wall Mount Kit Installation, CH02/NMC
Figure #4. Rack Mount Tray.
•
