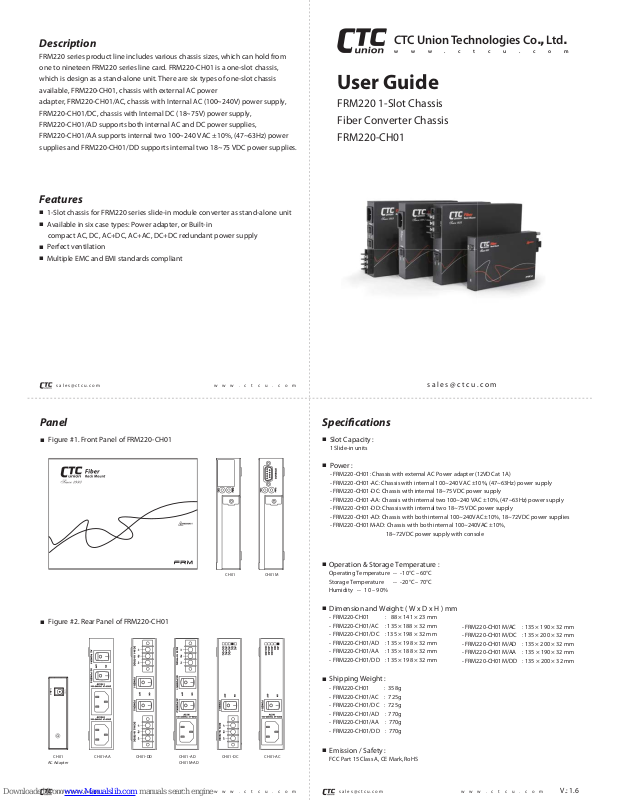

CTC Union FRM220-CH01, FRM220-CH01/AC, FRM220-CH01/AD, FRM220-CH01/DC, FRM220-CH01/AA User Manual
...Page 1
■
Slot Capacity :
1 Slide-in units
■
■
■
■
■
www.ctcu.com
www.ctcu.com
FRM220 1-Slot Chassis
Fiber Converter Chassis
FRM220-CH01
User Guide
Panel Specications
■
Figure #2. Rear Panel of FRM220-CH01
■
Power :
- FRM220-CH01: Chassis with external AC Power adapter (12VDC at 1A)
- FRM220-CH01-AC: Chassis with internal 100~240 VAC ±10%, (47~63Hz) power supply
- FRM220-CH01-DC: Chassis with internal 18~75 VDC power supply
- FRM220-CH01-AA: Chassis with internal two 100~240 VAC ±10%, (47~63Hz) power supply
- FRM220-CH01-DD: Chassis with internal two 18~75 VDC power supply
- FRM220-CH01-AD: Chassis with both internal 100~240VAC ±10%, 18~72VDC power supplies
- FRM220-CH01M-AD: Chassis with both internal 100~240VAC ±10%,
18~72VDC power supply with console
Operation & Storage Temperature :
Operating Temperature -- -10°C – 60°C
Storage Temperature -- -20°C – 70°C
Humidity -- 10 – 90%
Dimension and Weight: ( W x D x H ) mm
- FRM220-CH01 : 88 × 141 × 23 mm
- FRM220-CH01/AC : 135 × 188 × 32 mm
- FRM220-CH01/DC : 135 × 198 × 32 mm
- FRM220-CH01/AD : 135 × 198 × 32 mm
- FRM220-CH01/AA : 135 × 188 × 32 mm
- FRM220-CH01/DD : 135 × 198 × 32 mm
- FRM220-CH01M/AC : 135 × 190 × 32 mm
- FRM220-CH01M/DC : 135 × 200 × 32 mm
- FRM220-CH01M/AD : 135 × 200 × 32 mm
- FRM220-CH01M/AA : 135 × 190 × 32 mm
- FRM220-CH01M/DD : 135 × 200 × 32 mm
Shipping Weight :
- FRM220-CH01 : 358g
- FRM220-CH01/AC : 725g
- FRM220-CH01/DC : 725g
- FRM220-CH01/AD : 770g
- FRM220-CH01/AA : 770g
- FRM220-CH01/DD : 770g
Emission / Safety :
FCC Part 15 Class A, CEMark, RoHS

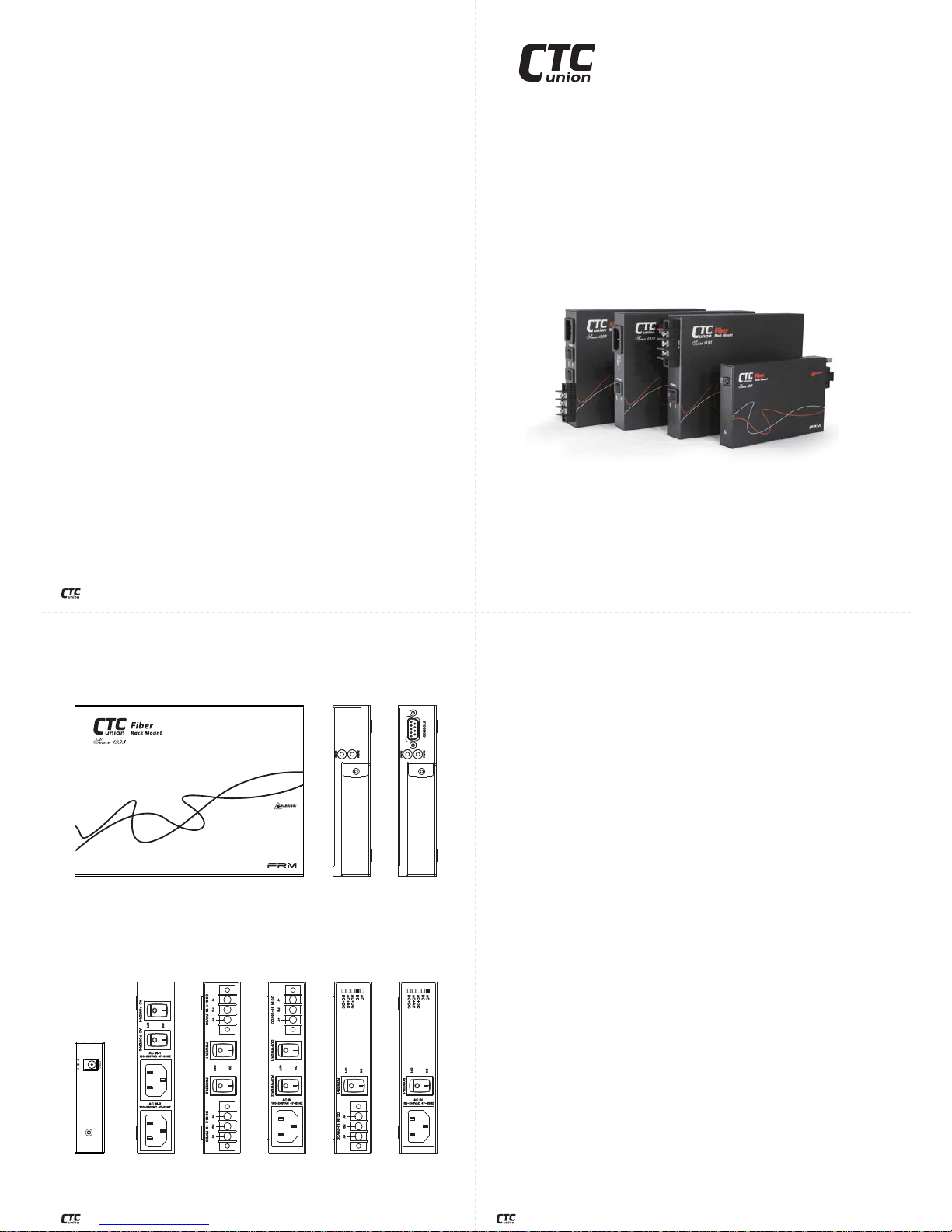

Figure #1. Front Panel of FRM220-CH01
CH01 CH01M
CH01-DCCH01-DDCH01-AACH01
AC Adapter
CH01-AD
CH01M-AD
CH01-AC
CTC Union Technologies Co., Ltd.
www.ctcu.com[email protected]
Description
FRM220 series product line includes various chassis sizes, which can hold from
one to nineteen FRM220 series line card. FRM220-CH01 is a one-slot chassis,
which is design as a stand-alone unit. There are six types of one-slot chassis
available, FRM220-CH01, chassis with external AC power
adapter, FRM220-CH01/AC, chassis with Internal AC (100~240V) power supply,
FRM220-CH01/DC, chassis with Internal DC (18~75V) power supply,
FRM220-CH01/AD supports both internal AC and DC power supplies,
FRM220-CH01/AA supports internal two 100~240 VAC ±10%, (47~63Hz) power
supplies and FRM220-CH01/DD supports internal two 18~75 VDC power supplies.
Features
■
1-Slot chassis for FRM220 series slide-in module converter as stand-alone unit
■
Available in six case types: Power adapter, or Built-in
compact AC, DC, AC+DC, AC+AC, DC+DC redundant power supply
■
Perfect ventilation
■
Multiple EMC and EMI standards compliant
[email protected] www.ctcu.com
V.: 1.6
Page 2
Rack Mounting Option I
www.ctcu.com[email protected]
www.ctcu.com[email protected]www.ctcu.com[email protected]
FRM220-CH01 (M) AC/DC/AD standalone chassis have the option of adding
standard EIA 19" rack mount capability. The rack mount ear provides for
mounting a single standalone chassis in a rack. Each rack mount ear kit
provides all the necessary hardware for a complete installation
Rack Mounting Option II
FRM220-CH01 (M) AC/DC/AD standalone chassis have the option of adding
standard EIA 19" rack mount capability. The rack mount tray provide for
mounting three standalone chassis in a rack. Each rack mount tray kit
provides all the necessary hardware for a complete installation.
Installation III
The FRM220-CH01M-AC and FRM220-CH01M-DC are designed for tabletop or
bench installation. Cards slide into the chassis for a completely assembled
stand-alone unit. AC power is supplied to FRM220-CH01M-AC through a
standard 3-prong IEC type plug. The FRM220-CH01M-AC should always be
grounded through the protective earth lead of the power cable. DC power is
supplied to FRM220-CH01M-DC through DC input terminal. Be careful to
observe the proper polarity when connecting DC power to this unit.
Installation II
The FRM220-CH01-AC and FRM220-CH01-DC are designed for tabletop or
bench installation. Cards slide into the chassis for a completely assembled
stand-alone unit. AC power is supplied to FRM220-CH01-AC through a
standard 3-prong IEC type plug. The FRM220-CH01-AC should always be
grounded through the protective earth lead of the power cable. DC power is
supplied to FRM220-CH01/DC through DC input terminal. Be careful to
observe the proper polarity when connecting DC power to this unit.
Installation I
The FRM220-CH01 is designed for tabletop or bench installation. Cards slide into
the chassis for a completely assembled stand-alone unit. AC power is supplied
to FRM220-CH01 through the external switching AC adapter. (12VDC at 1A)
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
CE NOTICE
Marking by the symbol CE indicates compliance of this equipment to the EMC directive of the European Community. Such
marking is indicative that this equipment meets or exceeds the following technical standards:
EN 55022:1994/A1:1995/A2:1997 Class A and EN61000-3-2:1995, EN61000-3-3:1995 and EN50082-1:1997
Console

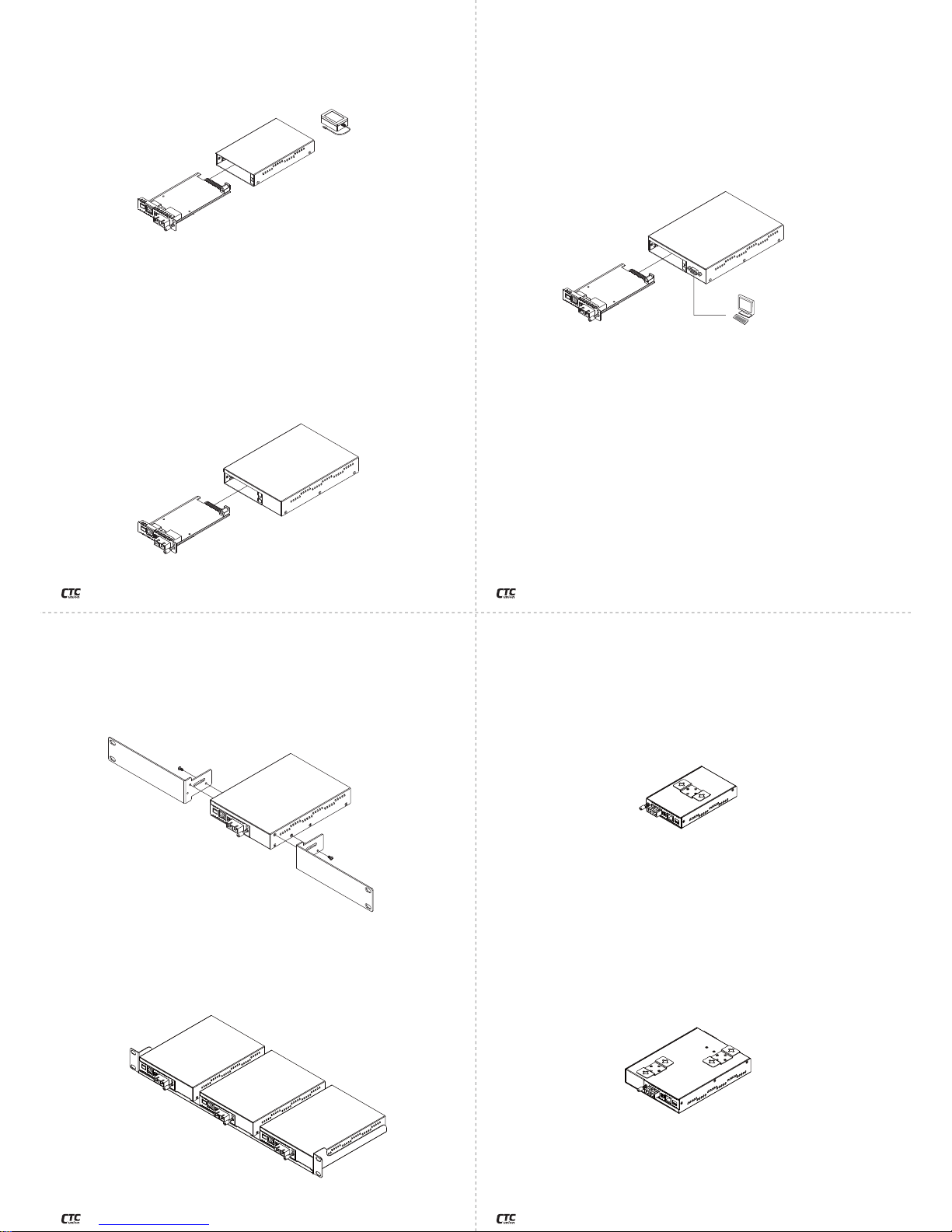

Figure #3. CH01 Installation.
Figure #5. CH01M Installation.
Figure #4. CH01/AC/DC Installation.
Figure #6. Rack Mount Ear.
Figure #7. Rack Mount Tray.
Wall Mounting Option
FRM220-CH01 standalone chassis have the option of adding wall mount
capability. One wall mount kit is required for installing a single standalone
chassis on the wall. Each wall mount kit provides all the necessary hardware
for a complete installation.
FRM220-CH01/AC/DC/AD and FRM220-CH01M standalone chassis have the
option of adding wall mount capability. Two wall mount kits are required
for installing a single standalone unit on the wall. Each wall mount kit
provides all the necessary hardware for a complete installation.
Figure #8. Wall Mount Kit Installation, CH01.
Figure #9. Wall Mount Kit Installation, CH01/AC/DC/AD, CH01M
[email protected] www.ctcu.com
V.: 1.6
