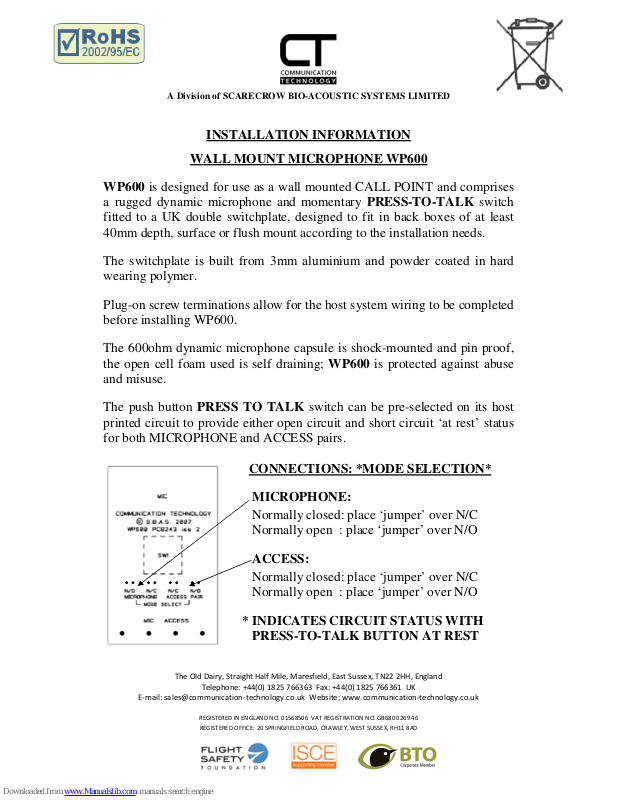

INSTALLATION INFORMATION
WALL MOUNT MICROPHONE WP600
WP600 is designed for use as a wall mounted CALL POINT and comprises
a rugged dynamic microphone and momentary PRESS-TO-TALK switch
fitted to a UK double switchplate, designed to fit in back boxes of at least
40mm depth, surface or flush mount according to the installation needs.
The switchplate is built from 3mm aluminium and powder coated in hard
wearing polymer.
Plug-on screw terminations allow for the host system wiring to be completed
before installing WP600.
The 600ohm dynamic microphone capsule is shock-mounted and pin proof,
the open cell foam used is self draining; WP600 is protected against abuse
and misuse.
The push button PRESS TO TALK switch can be pre-selected on its host
printed circuit to provide either open circuit and short circuit ‘at rest’ status
for both MICROPHONE and ACCESS pairs.

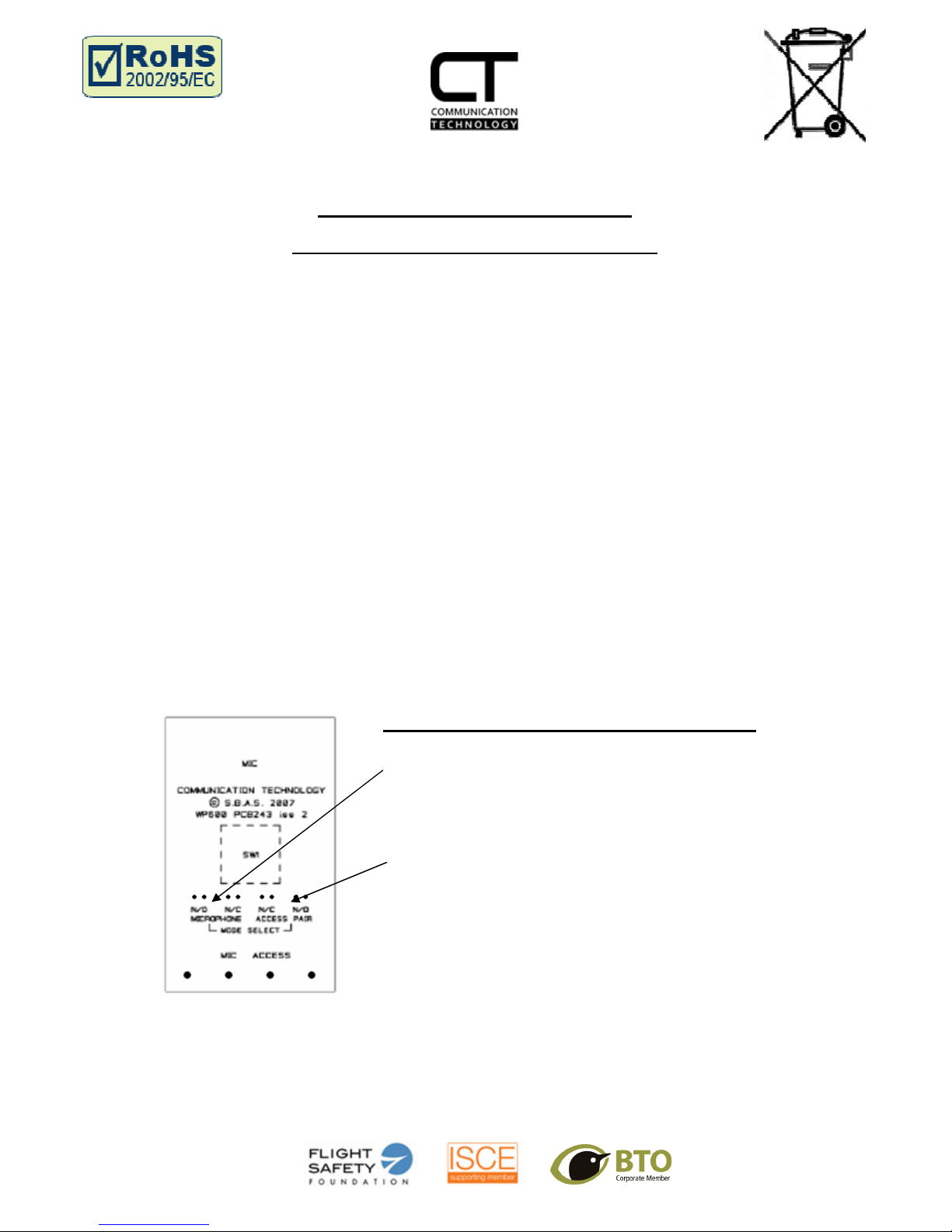

CONNECTIONS: *MODE SELECTION*
MICROPHONE:
Normally closed: place ‘jumper’ over N/C
Normally open : place ‘jumper’ over N/O
ACCESS:
Normally closed: place ‘jumper’ over N/C
Normally open : place ‘jumper’ over N/O
* INDICATES CIRCUIT STATUS WITH
PRESS-TO-TALK BUTTON AT REST
Page 2
TECHNICAL SPECIFICATION
Product IP Rating: IP62
Microphone Capsule: DYNAMIC
Frequency response: ± 6dB 300 to 3500Hz
Impedance: 600R (2400R to special Order)
Output level: -57dB @ 1KHz
Panel size: 150mm x 90mm
Panel finish: Basalt Grey, Power coat
Recommended back box depth: 40mm
Fixing screws supplied: 3.5mm, Security head
Product Order code: WP600

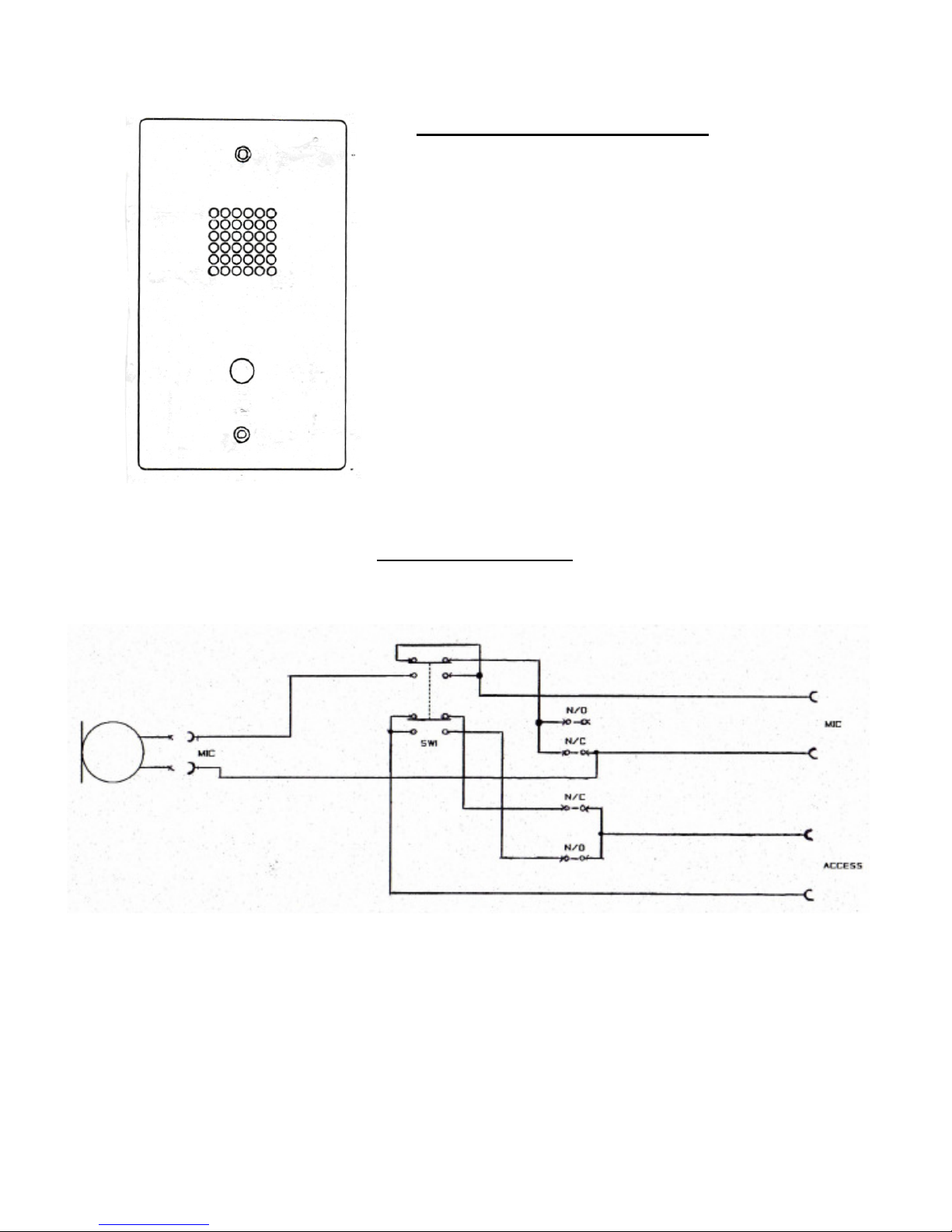

CIRCUIT DIAGRAM
