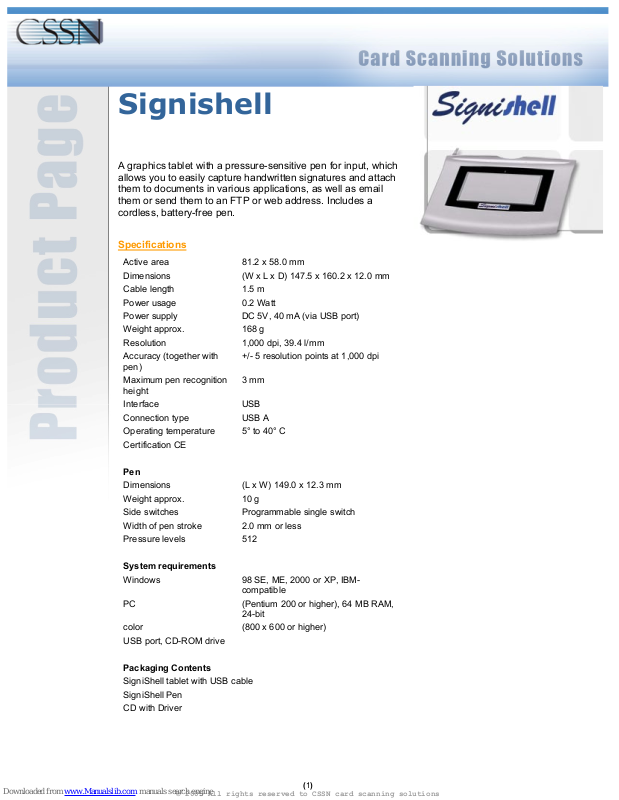

Signishell
A graphics tablet with a pressure-sensitive pen for input, which
allows you to easily capture handwritten signatures and attach
them to documents in various applications, as well as email
them or send them to an FTP or web address. Includes a
cordless, battery-free pen.
Specifications
Active area 81.2 x 58.0 mm
Dimensions (W x L x D) 147.5 x 160.2 x 12.0 mm
Cable length 1.5 m
Power usage 0.2 Watt
Power supply DC 5V, 40 mA (via USB port)
Weight approx. 168 g
Resolution 1,000 dpi, 39.4 l/mm
Accuracy (together with
pen)
Maximum pen recognition
height
Interface USB
Connection type USB A
Operating temperature 5° to 40° C
Certification CE
Pen
Dimensions (L x W) 149.0 x 12.3 mm
Weight approx. 10 g
Side switches Programmable single switch
Width of pen stroke 2.0 mm or less
Pressure levels
System requirements
Windows 98 SE, ME, 2000 or XP, IBM-
PC (Pentium 200 or higher), 64 MB RAM,
color (800 x 600 or higher)
USB port, CD-ROM drive
+/- 5 resolution points at 1,000 dpi
3 mm
512
compatible
24-bit
Packaging Contents
SigniShell tablet with USB cable
SigniShell Pen
CD with Driver
© 2005 All rights reserved to CSSN card scanning solutions
