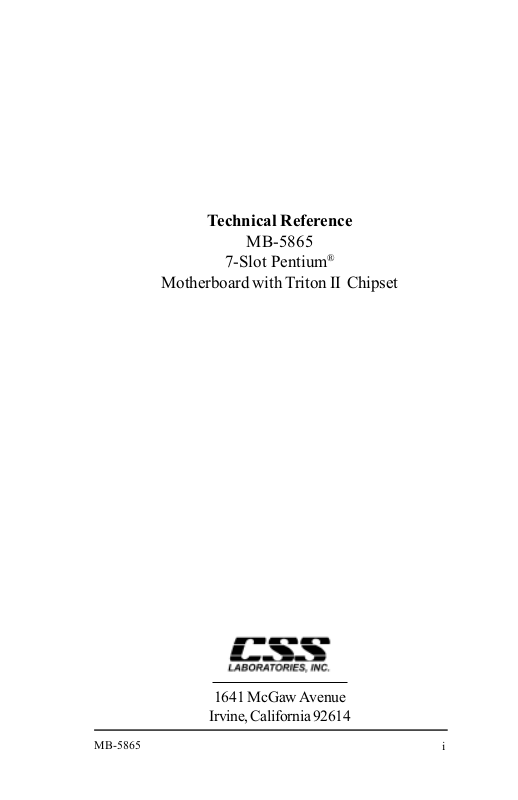

Technical Reference
MB-5865
7-Slot Pentium
®
Motherboard with Triton II Chipset
MB-5865
1641 McGaw Avenue
Irvine, California 92614
i
Page 2
ii MB-5865
Page 3
CSS Preferred Features
INTEL Pentium Processor, upgradeable through 75
MHz, 90 MHz, 100 MHz, 120 MHz, 133 MHz, 150 MHz,
166 MHz and 200 MHz
INTEL Triton II chipset
System memory upgradeable to 384 MB using 64Mbit
DRAM (x32SIMM)
Optional ECC Memory
ISA/PCI Bus Architecture. PCI 2.1 compliant
3 ISA Slots and 4 PCI Slots
On-board IDE and floppy controller with separate
master/slave IDE mode support for up to 4 IDE drives
On-board I/O supporting 2 serial ports and 1 parallel port.
On-board Universal Serial Bus controller (USB) and 2
USB ports
16 KB Level 1 Cache
256 KB or 512 KB level 2 pipelined cache
MB-5865
iii
Page 4
FCC Standards
The FCC (Federal Communications Commission) restricts
the amount of radiation and radio frequency emissions
coming from computing equipment.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radioor television reception, which can be determined by turning
the equipment off and on, the use is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
CSS Labs is not responsible for any radio or television
interference caused by unauthorized modifications to this
equipment. Operation with non-certified peripherals is likely
to result in interference to radio and TV reception.
iv MB-5865
Page 5
To ensure compliance to FCC non-interference regulations,
peripherals attached to this device require shielded I/O
cables.
NOTICE: The use of a non-shielded I/O cable with this
device is in violation of U.S. Federal law and will not allow
the device to meet the maximum emission limits.
CAUTION: Any changes or modifications not expressly
approved by the grantee of this device could void the users
authority to operate the equipment.
Note: If you have purchased the miniature tower system,
please note the following...
WARNING: The system is to be installed on desk or table
tops only. The unit will become unstable if operated as a floor
standing unit and unintentional force is applied to the top of
the unit.
Turn the unit off and unplug the power cord before you
open the cover to install any cards or peripheral devices.
MB-5865
v
Page 6
WARNING
CAUTION: THERE IS A DANGER OF EXPLOSION IF
THE BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT
TYPE RECOMMENDED BY THE MANUFACTURER.
DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURERS INSTRUCTIONS.
ATTENTION:IL Y A DANGER DEXPLOSION SIL Y A
REMPLACEMENT INCORRECT DE LA BATTERRIE.
REMPLACER UNIQUEMENT AVEC UNE BATTERI
DU MEME TYPE OU DUN TYPE RECOMMENDE
PAR LE CONSTRUCTEUR. ETTERAU REBUT LES
BATTERRIES USAGEES CONFORMEMANT AUX
INSTRUCTIONS DU FABRICATANT.
vi MB-5865
Page 7
NOTICE
The information within this manual is subject to change
without notice.
CSS Laboratories Incorporated shall not be held liable for
technical or editorial errors or omissions contained herein; nor
for incidental or consequential damages resulting from the
furnishing, performance or use of this material.
No part of this publication may be reproduced, stored in a
retrieval system, or transmitted, in any form or by any means,
mechanical, photocopying, recording or otherwise, without
the prior written permission of CSS Laboratories, Inc.
Product names mentioned herein are for identification
purposes only, and may be trademarks and/or registered
trademarks of their respective companies.
© 1997 CSS Laboratories, Inc. All rights reserved.
P/N MB-TR2-7-DOC Revision 3 September, 1997
MB-5865
vii
Page 8
Table of Contents
Overview .............................................................................. 1
The Microprocessor.............................................................. 2
The Motherboard .................................................................. 3
Cache Memory ................................................................. 4
Expansion Slots ................................................................. 4
3.3 Volt/5 Volt Power Regulators...................................... 4
Motherboard Connectors ...................................................... 5
CMOS Battery Connector J15 ......................................... 5
Speaker J33....................................................................... 6
Reset/Turbo LED J32 ....................................................... 6
IDE Hard Drive LED J31 ................................................ 6
Front Panel Connector J30 .............................................. 7
Keyboard Connector J2 .................................................... 7
PS/2 Mouse/Keyboard Connector J4 .............................. 7
Power LED/Keylock LED Connector J34 ....................... 7
Primary IDE J27 .............................................................. 8
Secondary IDE J20.......................................................... 8
Parallel Port J9.................................................................. 8
Serial Port 1 J5.................................................................. 8
Serial Port 2 J6.................................................................. 8
Floppy Drive Connector J10 ............................................. 8
5 Volt Power Supply Connector J8 ................................... 9
3.3 Volt Power Supply Connector J19 ............................. 9
Internal Temperature Sensor Headers SEN1, SEN2........ 9
Voltage Regulator Module (VRM) J29 ............................10
Universal Serial Bus Connectors J1, J3 (optional) ........... 10
viii MB-5865
Page 9
Motherboard Jumpers .......................................................... 11
Flash BIOS Settings JP1, JP8, JP9 .................................. 12
Next Address JP16 .......................................................... 12
CPU Speed JP7, JP6, JP18, JP17 ...................................13
DRAM Refresh Rate J28 ................................................ 14
ISA System Clock JP10 .................................................. 14
Turbo LED/Green PC Indicator Select JP15 ...................14
System Memory ...................................................................15
System Memory Configuration ........................................ 15
Installing and Removing SIMM .......................................18
System Memory Map ..........................................................19
Timers .............................................................................. 19
The I/O Address Map .........................................................20
System Interrupts .................................................................21
Direct Memory Access .......................................................22
Configuration Utilities ..........................................................23
Overview .........................................................................23
Standard Setup .................................................................24
Advanced Setup ...............................................................25
Chipset Setup ...................................................................26
Power Management Setup ..............................................28
PCI/PnP Setup .................................................................29
Peripheral Setup..............................................................30
MB-5865
ix
Page 10
Page 11
This document describes the technical features of the
motherboard. The topics include:
The Microprocessor - description of the features of
the Pentium Pro microprocessor
Motherboard - illustration and brief description of the
motherboard and the dual purpose expansion slot
Connectors - description of connector locations and
functions on the motherboard
Jumpers - detailed description of the jumpers used to
configure the motherboard
System Memory - detailed description of system
memory and how to add memory
System Memory Map - listing of traditional address
assignments for system memory
Configuration Utilities - description and instructions
for using the utility to configure the boards BIOS
Page 12
compatible with 8086/88, 80286, and 80386 DX and SX
microprocessors. In addition, the Pentium features:
64-bit Data Bus
Superscalar Architecture
Capability for executing two instructions in parallel.
Pipelined Floating-Point Unit
Separate 8 KB Code and Data Caches (total 16 KB
cache)
Bus Cycle Pipelining
Writeback MESI Protocol in the Data Cache
Internal Parity Checking
IEEE 1149.1 Boundary Scan
It is available in a variety of speeds, from 75 MHz through
200 MHz.
For additional information, contact your authorized CSS
Laboratories representative.
Page 13
Page 14
standard asychronous or pipeline burst external cache.
Expansion Slots
There are a total of seven expansion slots on the
motherboard. Three slots provide 16-bit wide ISA busses.
Four of the slots are PCI bus connectors. One PCI slot is
shared with an ISA connector, so that only one of them can
be used.
3.3 Volt/5 Volt Power Regulators
Both 3.3 volt and 5 volt power connectors are provided for
motherboard compatibility with the full line of Pentium
processors.
Page 15
IR Header J7 (optional)
CMOS Battery J15
Speaker J33
Reset/Turbo LED J32
IDE Drive LED J31
Front Panel J30
VRM Connector J29 (optional)
Keyboard Connector J2
PS/2 Mouse/Aux. Keyboard J4
Connector
Power LED/Keylock J34
Primary IDE Connector J27
Secondary IDE Connector J20
Parallel Port J9
Serial Port 1 J5
Serial Port 2 J6
Floppy Disk Connector J10
5V Power Connector J8
3.3V Power Connector J19
Temperature Sensor Output SEN 1, SEN 2
Hard drive LED Connector J35
Universal Serial Bus Connectors J1, J3
CMOS Battery Connector J15
Page 16
Pin Assignment Pin Assignment
1 Speaker 3 Gnd
2 Not used 4 VCC
Reset/Turbo LED J32
The reset button on the front panel lets you perform a warm
boot, without turning the system off. The turbo LED shows
thesystem is running at the higher clock speed.
Pin Assignment Pin Assignment
1 Ground 3 Ground
2 Reset 4 Turbo LED
IDE Hard Drive LED J31
J31 connects a hard drive access LED to the front panel. It
lights when the drive is accessed.
Front Panel Connector J30
This 10-pin connector is the interface between the system
board and the control panel on the front of the system case.
Pin Assignment
1 VCC
Page 17
Pin Assignment Pin Assignment
1 Clock 4 Ground
2 Data 5 +5 Vdc
3 Not used
PS/2 Mouse/Keyboard Connector J4
This 10-pin connector may is for a PS/2 mouse or PS/2
keyboard.
Pin Assignment Pin Assignment
1 Mouse clock 6 VCC
3 Aux KBD clock 8 Mouse data
5 Aux KBD data 10 Ground
9 Ground Others Ground
Power LED/Keylock LED Connector J34
J34 is a 5-pin connector used to attach the motherboard to
the front panels keylock LED and power indicator LED.
Page 18
one of the cable ribbon with pin 1 of J27
Secondary IDE J20
J20 is the connector for the secondary on-board PCI-IDE
hard drive controller, with pin 1 clearly marked. Note: be
sure to orient pin one of the cable ribbon with pin 1 of J20.
Parallel Port J9
J9 connects the motherboards parallel port.
Serial Port 1 J5
J5 provides the connection for the motherboards serial port 1
(COM 1).
Serial Port 2 J6
J6 provides the connection for the motherboards serial port 2
(COM2)
Floppy DriveConnector J10
J10 connects the floppy drivve to the controller provided on
Page 19
connecting the power supply, always orient the plugs so that
the black wires on each sit side-by-side.
Pin Assignment Pin Assignment
1 Power good 7 Ground
2 +5 Vdc 8 Ground
3 +12 Vdc 9 -5 Vdc
4 -12 Vdc 10 +5 Vdc
5 Ground 11 +5 Vdc
6 Ground 12 +5 Vdc
3.3 Volt Power Supply Connector J19
Pin Assignment Pin Assignment
1 Ground 4 +3.3 Vdc
2 Ground 5 +3.3 Vdc
3 Ground 6 +3.3 Vdc
Internal Temperature Sensor Headers SEN1, SEN2
The motherboard can be connected to devices that measure
temperature. This feature, available in some CSS systems,
detects and reports excessive heat.
Page 20
motherboard. If you are upgrading your motherboard to
one of these processors, you will also need a VRM.
Universal Serial Bus Connectors J1, J3 (optional)
The motherboard provides two 4-pin universal serial bus
(USB) connectors. This feature is enabled by Intels P11X3
chip, scheduled, by Intel, to ship by the end of June, 1996.
Pin Assignment
1 VCC
2 Data -
3 Data +
4 Ground
Page 21
configuring your system.
The motherboard has the following jumpers:
Description Jumper
Clear CMOS Password JP5 (not implemented)
Clear CMOS JP4 (not implemented)
Flash BIOS JP1, JP8, JP9
Processor Speed JP7, JP6, JP18, JP17
Next Address JP16
DRAM Refresh Rate J28
ISA System Clock JP10
Turbo LED/Green PC JP15
Indicator Select
Auxiliary Keyboard Enable JP2, JP3
Page 22
Cache Size JP14 JP13
512 KB 2-3 1-2
256 KB 1-2 2-3
0 KB 1-2 1-2
Note: Cached type and size can be determined
automatically by the BIOS. Therefore, it is not necessary to
set these jumpers.
Flash BIOS Settings JP1, JP8, JP9
These jumpers indicate whether the flash EPROM is in
boot block programmable mode or can only be partially
updated.
Flash BIOS Settings JP1 JP8 JP9
Normal 1-2 1-2 1-2
Program All 1-2 2-3 1-2
Next Address JP16
Next Address JP16
Normal IN
(default)
Page 23
Bus Clock Speed JP7 JP6 JP18 JP17
75 MHz 2-3 2-3 OUT OUT
90 MHz 1-2 1-2 OUT OUT
100MHz 2-3 1-2 OUT OUT
120 MHz 1-2 2-3 IN OUT
133 MHz 2-3 1-2 IN OUT
150 MHz 1-2 2-3 IN IN
166 MHz 2-3 1-2 IN IN
200 MHz 2-3 1-2 OUT IN
Important Note: Your overdrive or P55C processor
requires a voltage regulator module (VRM). The VRM plugs
into a socket located on the motherboard. For more
information, contact your sales representative.
The following table represents jumper settings specific to the
Pentium MMX processor.
Bus Clock Speed JP7 JP6 JP18 JP17
166 MHz 2-3 1-2 IN IN
200 MHz 2-3 1-2 OUT IN
233 MHz 2-3 1-2 OUT OUT
Page 24
is determined by the speed of the processor installed on the
motherboard.
Refresh Rate JP28
60 MHz IN
66 MHz OUT
ISA System Clock JP10
JP10 lets you synchronize the ISA bus clock with the clock
driving the processor. The setting is determined by the
speed of the processor installed on the motherboard.
ISA Clock JP10
Divide by 3 (75 MHz processor) 1-2
Divide by 4 (all other processors) 2-3
Turbo LED/Green PC Indicator Select JP15
The Turbo LED is used for the low power mode indicator
when the system is configured as a Green PC.
The LED flashes when the system has downshifted to the
lowest power consumption mode associated with the energy
savings feature. When in standby mode, the indicator dims,
but remains lit.
Page 25
same kind form one bank. The motherboard supports these
DRAM SIMM in the following combinations:
512K x 32 + 512K x 32 = 4 MB/bank
(not recommended)
1M x 32 + 1M x 32 = 8 MB/bank
2M x 32 + 2M x 32 = 16 MB/bank
4M x 32 + 4M x 32 = 32 MB/bank
8M x 32 + 8M x 32 = 64 MB/bank
16M x 32 + 16M x 32 = 128 MB per bank
Any combination of the three banks provide a large
number of possible RAM size.
System Memory Configuration
RAM Bank 0 Bank 1 Bank 2
8 MB 1M x 32 (2)
16 MB 1M x 32 (2) 1M x 32 (2)
16 MB 2M x 32 (2)
20 MB 1M x 32 (2) 1M x 32 (2) 512K x 32*(2)
20 MB 2M x 32 (2) 512K x 32* (2)
24 MB 2M x 32 (2) 1M x 32 (2)
24 MB 1M x 32 (2) 1M x 32 (2) 1M x 32 (2)
24 MB 2M x 32 (2) 2M x 32 (2) 512K x 32*(2)
28 MB 2M x 32 (2) 1M x 32 (2) 512K x 32*(2)
Page 26
40 MB 4M x 32 (2) 512K x 32*(2) 512K x 32*(2)
44 MB 4M x 32 (2) 1M x 32 (2) 512K x 32*(2)
48 MB 4M x 32 (2) 2M x 32 (2)
48 MB 4M x 32 (2) 1M x 32 (2) 1M x 32 (2)
52 MB 4M x 32 (2) 2M x 32 (2) 512K x 32*(2)
56 MB 4M x 32 (2) 2M x 32 (2) 1M x 32 (2)
64 MB 8M x 32 (2)
64 MB 4M x 32 (2) 4M x 32 (2)
68 MB 8M x 32 (2) 512K x 32*(2)
68 MB 4M x 32 (2) 4M x 32 (2) 512K x 32*(2)
72 MB 8M x 32 (2) 512K x 32*(2) 512K x 32*(2)
76 MB 8M x 32 (2) 512K x 32*(2) 1M x 32 (2)
80 MB 8M x 32 (2) 2M x 32 (2)
80 MB 8M x 32 (2) 1M x 32 (2) 1M x 32 (2)
84 MB 8M x 32 (2) 2M x 32 (2) 512K x 32*(2)
88 MB 8M x 32 (2) 2M x 32 (2) 1M x 32 (2)
96 MB 8M x 32 (2) 4M x 32 (2)
96 MB 4M x 32 (2) 4M x 32 (2) 4M x 32 (2)
96 MB 8M x 32 (2) 2M x 32 (2) 2M x 32 (2)
100 MB 8M x 32 (2) 4M x 32 (2) 512K x 32*(2)
104 MB 8M x 32 (2) 4M x 32 (2) 1M x 32 (2)
112 MB 8M x 32 (2) 4M x 32 (2) 2M x 32 (2)
128 MB 8M x 32 (2) 4M x 32 (2) 4M x 32 (2)
128 MB 16M x 32 (2)
128 MB 8M x 32 (2) 8M x 32 (2)
132 MB 8M x 32 (2) 8M x 32 (2) 512K x 32*(2)
134 MB 16M x 32 (2) 512K x 32*(2)
Page 27
144 MB 16M x 32 (2) 2M x 32 (2)
144 MB 16M x 32 (2) 1M x 32 (2) 1M x 32 (2)
148 MB 16M x 32 (2) 2M x 32 (2) 512K x 32*(2)
152 MB 16M x 32 (2) 2M x 32 (2) 1M x 32 (2)
160 MB 16M x 32 (2) 4M x 32 (2)
160 MB 16M x 32 (2) 2M x 32 (2) 2M x 32 (2)
164 MB 16M x 32 (2) 4M x 32 (2) 512K x 32*(2)
168 MB 16M x 32 (2) 4M x 32 (2) 1M x 32 (2)
176 MB 16M x 32 (2) 4M x 32 (2) 2M x 32 (2)
192 MB 16M x 32 (2) 8M x 32 (2)
192 MB 16M x 32 (2) 4M x 32 (2) 4M x 32 (2)
196 MB 16M x 32 (2) 8M x 32 (2) 512K x 32*(2)
200 MB 16M x 32 (2) 8M x 32 (2) 1M x 32 (2)
208 MB 16M x 32 (2) 8M x 32 (2) 2M x 32 (2)
224 MB 16M x 32 (2) 8M x 32 (2) 4M x 32 (2)
256 MB 16M x 32 (2) 16M x 32 (2)
256 MB 16M x 32 (2) 8M x 32 (2) 8M x 32 (2)
260 MB 16M x 32 (2) 16M x 32 (2) 512K x 32*(2)
264 MB 16M x 32 (2) 16M x 32 (2) 1M x 32 (2)
272 MB 16M x 32 (2) 16M x 32 (2) 2M x 32 (2)
288 MB 16M x 32 (2) 16M x 32 (2) 4M x 32 (2)
320 MB 16M x 32 (2) 16M x 32 (2) 8M x 32 (2)
384 MB 16M x 32 (2) 16M x 32 (2) 16M x 32 (2)
*512K x 32 and 512K x 36 SIMM are not recommended
Page 28
The SIMM is held by plastic press-clips on both sides of the
slot.
Installing SIMM
1) Hold the SIMM so that the gold tab is pointingtoward the
slot and the SIMMs notched side is on the right.
2) Gently press the SIMM into the slot.
3) Rotate the SIMM until it clicks into place.
Removing SIMM
1) While squeezing the clips and rotate the SIMM.
2) Pull the SIMM from the slot.
Page 29
ADDRESS NAME FUNCTION
(hex)
000000 to 640 KB system memory
9FFFFF motherboard
0A0000 to 128 KB video reserved for graphics
0BFFFF display ROM
0C0000 to 128 KB I/O reserved for ROM on
0DFFFF expansion ROM I/O
0E0000 to 64 KB reserved duplicate code
0EFFFF on motherboard assignment at FE0000
0F0000 to 64 KB ROM on duplicate code
0FFFFF motherboard assignment at FF0000
100000 to maximum I/O channel memory
FDFFFF memory is 15MB
FE0000 to 64 KB reserved duplicate code
FEFFFF on motherboard assignment at 0E0000
FF0000 to 64 KB reserved duplicate code
FFFFFF on motherboard assignment at 0F0000
Timers
The system has three programmable timers/counters
controlled by timer/counter chips and defined as channels 0
through 2 as follows:
Channel 0: System Timer
Page 30
000-01F DMA #1
020-03F INTR #1
040-05F Timer
060-06F Keyboard
070-07F NMI mask register
080-09F DMA page register
0A0-OBF INTR #2
0C0-ODF DMA #2
0F0-0F1 Clr/rst math coprocessor
0F8-0FF Math coprocessor
1F0-1F8 Fixed disk
200-207 Joystick
278-27F Secondary parallel port
2F8-2FF Secondary serial port
300-31F Prototype card
378-37F Primary parallel port
380-38F SDLC (secondary bisynchronous)
3A0-3AF Primary bisynchronous
3B0-3BF Monochrome display/printer adapter
3D0-3DF Color/graphics monitor adapter
3F0-3F7 Diskette controller
3F8-3FF Primary serial port
Page 31
IRQs. Below are assignments in decreasing priority.
LEVEL FUNCTION
Microprocessor NMI Parity or I/O Channel Check
Interrupt Controllers
Ctlr 1 Ctlr 2
IRQ0
IRQ1 Keyboard
IRQ2
*Interrupts IRQ8 - IRQ15 redirected to IRQ2*
IRQ8 Real-Time clock interrupt
IRQ9 Software re-directed to INT + AH (IRQ2)
IRQ10 Reserved
IRQ11 Reserved
IRQ12 Reserved
IRQ13 Coprocessor
IRQ14 Fixed disk controller
IRQ15 Reserved
IRQ3 Serial port 2
IRQ4 Serial port 1
IRQ5 Parallel port2
IRQ6 Diskette controller
IRQ7 Parallel port 1
Page 32
Controller 1 Controller 2
Channel 0 - Spare Channel 4 - Cascade
for Controller 1
Channel 1 - SDLC Channel 5 - Spare
Channel 2 - Diskette Channel 6 - Spare
Channel 3 - Spare Channel 7 - Spare
The first DMA controller holds channels 0 through 3. These
channels support 8-bit data transfers between 8-bit I/O
adapters and 8- or 16-bit system memory. Each channel can
transfer data in 64 KB blocks.
The second DMA controller holds channels 4 through 7.
Channel 4 cascades channels 0 through 3 to the
microprocessor.
Channel 5, 6 and 7 support 16-bit data transfers between 16-
bit I/O adapters and 16-bit system memory. These DMA
channels can transfer data throughout the 16 MB system-
address space in 128 KB blocks.
Channel 5, 6 and 7 cannot transfer data on odd byte
boundaries.
Page 33
BIOS Setup is a utility that stores your computers
configuration. When your system boots, its configuration
is read into main memory. Hard drives, floppy drives, video
adapter, memory and keyboard are described to the system.
The BIOS is pre-configured for you at the factory. This
document provides an overview of the BIOS, which you can
use when reconfiguring your system.

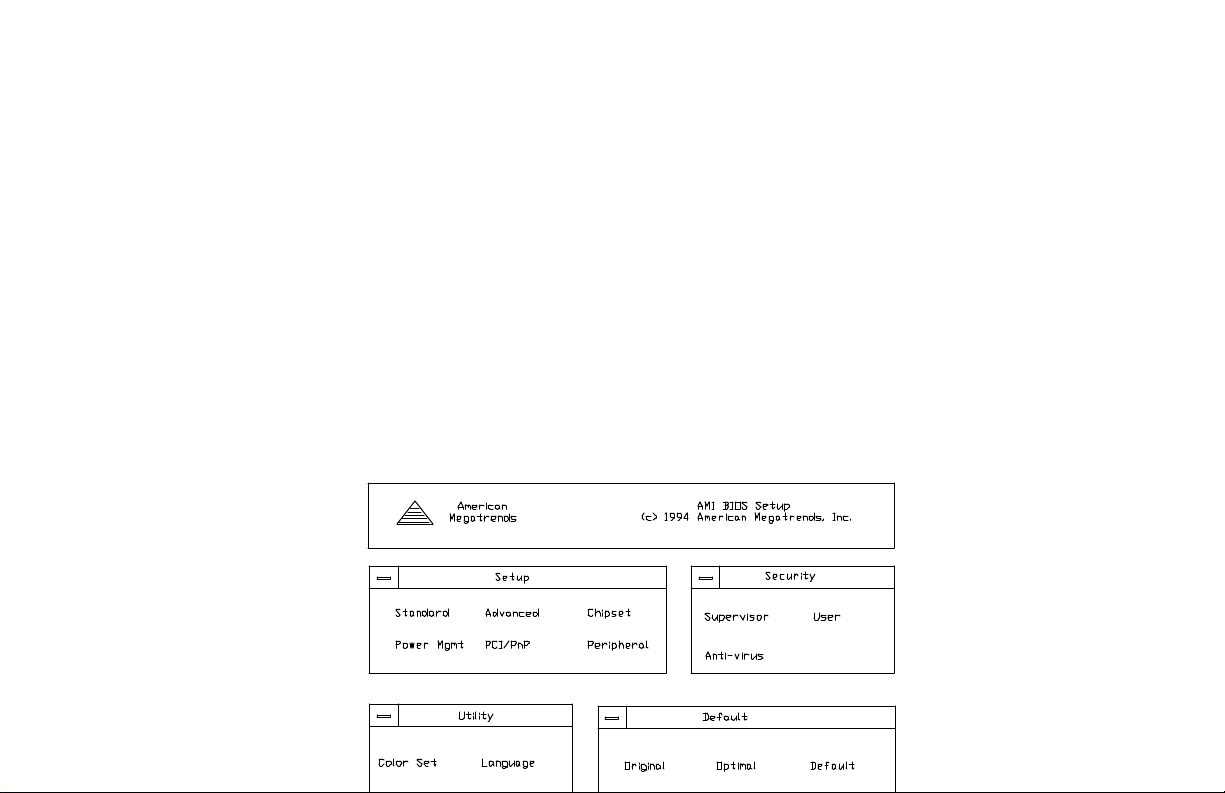

The BIOS Setup Utilities program is built into the CMOS
on your system board. To start the program, press the
<Delete> key while the system is booting. The Utilities
menu screen will display:
Page 34
The Security option allow you to define a password. Enable
the password option through Advanced Setup.
The Default option allows you to change all of your Setup
values to Optimal or Fail-Safe settings. Or you can return
the system to its original settings.
The most commonly used option is Standard Setup.
Standard Setup
This utility allows you to record your system setup.
- Standard Setup
Pri Master Pri Slave Sec Master Sec Slavd
Date/Time Floppy A Floppy B
To start SETUP, Double-click on the Standard Setup icon
on the Main Menu. Alter only the items that need to be
changed or reset. If a selected option is correct, skip the
corresponding step.
Pri Master Primary master IDE/PCI hard drive. Define
the parameters of your hard disk and modes. The default
setting is Auto, to auto-detect drive type.
Page 35
Sec Slave Secondary slave IDE/PCI hard drive, if installed.
Define the parameters of your hard disk and modes. The
default setting is Not Installed.
Note: You may also manually enter the hard disk
parameters. Two helpful tables appear at the end of this
section. One describes drive parameters, and the other is
lists various hard drive parameters.
Floppy Drive A:/Floppy Drive B: Double-click the floppy
drive icon and select the type installed. Scroll through the
fields using the up/down arrows. Select from the following:
5.25 - 360 KB 3.5 - 720 KB
- 1.2 MB - 1.44 MB
- 2.44 MB
Date/Time Double-click the Date/Time icon and enter
new values through the keyboard.
Advanced Setup
Advanced Setup allows you to fine tune some of the special
features. These features are pre-set for you at the factory.
To use this feature, double-click on the Advanced Setup
icon on the Main Menu.
Use the arrow keys to toggle between items. Press
Page 36
was pre-configured at the factory and need not be altered.
To use this feature, double-click on the Chipset Setup icon
on the Main Menu.
- Chipset Setup
82439 HX Global Features : Enable
Memory Hole : Disable
8 bit I/O Recovery Time (Sysclk) : 1
16 bit I/O Recovery Time (Sysclk) : 1
DRAM Timings : 70ns
DRAM Refresh Rates : 66 MHz
ISA Clock Divisor : PCICLK/4
Turbo Read Lead Off : Disable
DRAM Read Burst Timing : x333
DRAM Write Burst Timing : x333
Fast RAS to CAS Delay (Clocks) : 3
DRAM Lead Off Timing (DLT) : 7/6/3/4
Turbo Read Pipelining : Disable
Speculative Lead Off : Disable
Turnaround Insertion : Disable
Memory Address Drive Strength : Auto
NA Disable (NAD) for External Cache : Disable
Extended Cacheability : 64 MB
Peer Concurrency : Enable
DRAM Error Checking : Disable
Serr # Output Type : Normal
Serr # Duration : Pulse Mode
Serr # Enable : Disable
Single Bit Correction Error : Disable
Multiple Bit Uncorrectable Error : Disable
Bad Parity On Uncorrectable Error : Disable
Page 37
DRAM Refresh Rate specifies the processors internal
clock, used to refresh the DRAM.
ISA Clock Divisor is the factor used to divide the clock
signal used for the PCI bus to provide the ISA bus signal.
For a 75 MHz processor, select PCICLK/3. For all other
speeds, select PCICLK/4.
Turbo Read Lead Off when enabled, results in a 1 host
clock pull-in of all read lead off timings.
Serr # Output Type system error output signal type for
the system.
Serr # Enable enables system to report memory errors.
Memory Address Drive Strength select 8 mA or 12 mA
output for memory address signal strength.
NA Disable (NAD) for External Cache next address
disable affects system performance.
Extended Cacheability selects memory cacheable space.
Use the arrow keys to toggle between items. Press
<Enter> to access the drop down selection menu.
Use the arrow keys to toggle between options. Press
<Enter> to make a selection.
Page 38
To use this feature, double-click on the Power Management
Setup icon on the Main Menu. You may select to make
changes to the following features:
- Power Management Setup
Power Management APM : Disable
Instant-On Timer (Minute) : Disable
Green PC Monitor Power State : Standby
Video Power Down Mode : Standby
Hard Disk Power Down Mode : Suspend
Hard Disk Time Out (Minute) : 8
Standby Time Out (Minute) : 1
Standby Time Out (Minute) : 1
Slow Clock Ratio : 1:8
IRQ3 : Ignore
IRQ4 : Monitore
IRQ5 : Ignore
IRQ7 : Ignore
IRQ8 : Monitor
IRQ9 : Ignore
Instant On Timer is a type of green mode timer lets you
wake up the system at the same time that you trigger it.
IRQ3, 4, 5, 7, 8, 9 can either be ignored or monitored.
When monitored, activity on the IRQ is used to wake the
system up.
Use the arrow keys to toggle between items. Press
Page 39
- PCI/PNP Setup
Plug and Play Aware O/S : No
PCI Latency Timer (PCI Clocks) : 32
PCI VGA Palette Snoop : Disable
PCI IDE Bus Master : Disable
Offboard PCI IDE card : Auto
Offboard PCI IDE Primary IRQ : Disable
Offboard PCI IDE Secondary IRQ : Disable
PCI Slot 1 IRQ Priority : Auto
PCI Slot 2 IRQ Priority : Auto
PCI Slot 3 IRQ Priority : Auto
PCI Slot 4 IRQ Priority : Auto
DMA Channel 0 : PnP
DMA Channel 1 : PnP
DMA Channel 3 : PnP
DMA Channel 5 : PnP
DMA Channel 6 : PnP
DMA Channel 7 : PnP
IRQ3 : ISA/EISA
IRQ4 : ISA/EISA
IRQ5 : ISA/EISA
IRQ7 : ISA/EISA
IRQ9 : PCI/PnP
IRQ10 : PCI/PnP
IRQ11 : PCI/PnP
IRQ14 : PCI/PnP
IRQ15 : PCI/PnP
Reserved Memory Size : Disable
Reserved Memory Address : C8000
PCI Peer-to-Peer Traffic : Disable
Use the arrow keys to toggle between items. Press
Page 40
- Peripheral Setup
On-Board FDC : Auto
On-Board Serial Port 1 : Auto
On-Board Serial Port 2 : Auto
On-Board Parallel Port : Auto
Parallel Port Mode : Normal
Parallel Port IRQ : Auto
Parallel Port DMA Channel : None
On-Board IDE : Both
Slow IDE drive delay (seconds) : Disable
On-board IDE enables the on-board chipset E-IDE
function.
Slow IDE Drive Delay when enabled, lengthens the boot
time, so that all IDE drives installed have ample time to spin
up. Different drive brands may have slightly different boot up
times.
Use the arrow keys to toggle between items. Press
<Enter> to access the drop down selection menu.
Use the arrow keys to toggle between options. Press
<Enter> to make a selection.
Loading...
