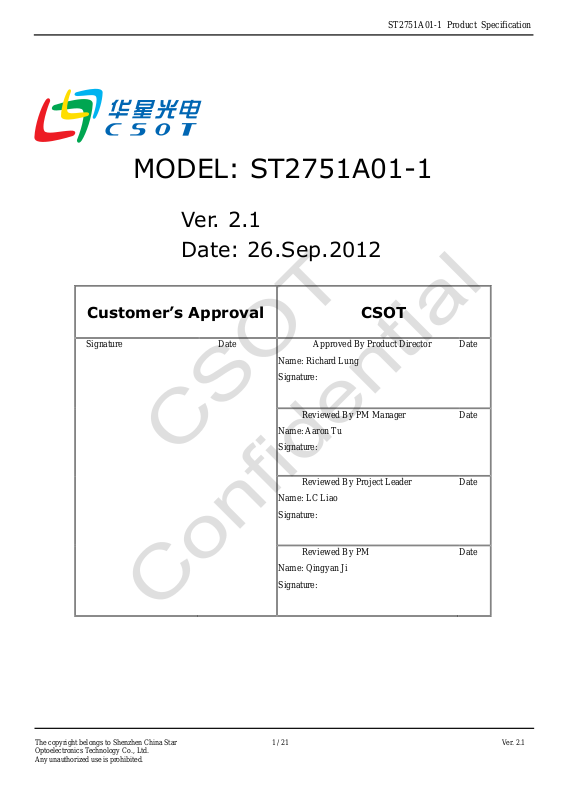

CSOT ST2751A01-1 Specification

ST2751A01-1 Product Specification

Customer’s Approval

CSOT

Signature

Date

Approved By Product Director Name: Richard Lung Signature:

Date

Reviewed By PM Manager Name: Aaron Tu Signature:

Date

Reviewed By Project Leader Name: LC Liao Signature:

Date

Reviewed By PM Name: Qingyan Ji Signature:

Date

MODEL: ST2751A01-1

Ver. 2.1 Date: 26.Sep.2012

The copyright belongs to Shenzhen China Star 1 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

ST2751A01-1 Product Specification

Contents

1. General Description ........................................................................................................................................................................ 4

1.1 Product Features .................................................................................................................................................................. 4

1.2 Overview ............................................................................................................................................................................. 4

1.3 General Information ............................................................................................................................................................ 4

2. Absolute Maximum Ratings ........................................................................................................................................................... 5

2.1 Absolute Maximum Ratings (TA = 25 ± 2 °C) .................................................................................................................... 5

2.2 Environment Requirement (Based on CSOT Module MT2751A01-1) ............................................................................... 5

2.3 Absolute ratings of Environment (Open Cell) ..................................................................................................................... 5

3. Electrical Specification ................................................................................................................................................................... 6

3.1 Open cell Power Consumption (TA = 25 ± 2 °C) ................................................................................................................ 6

3.2 LVDS Characteristics .......................................................................................................................................................... 7

4. Input Terminal Pin Assignment....................................................................................................................................................... 8

4.1 Interface pin assignment ...................................................................................................................................................... 8

4.2 Block Diagram of Interface ................................................................................................................................................. 9

4.3 LVDS Interface.................................................................................................................................................................. 10

4.3.1 VESA Format (SELLVDS = L or Open)............................................................................................................... 10

4.3.2 JEIDA Format (SELLVDS = H) ........................................................................................................................... 10

4.4 Pattern FOR Vcom Adjustment ......................................................................................................................................... 10

5. Interface Timing ............................................................................................................................................................................ 11

5.1 Timing Table (DE Only Mode) ......................................................................................................................................... 11

5.2 Power On/Off Sequence .................................................................................................................................................... 12

6. Optical Characteristics .................................................................................................................................................................. 13

6.1 Measurement Conditions ................................................................................................................................................... 13

6.2 Optical Specifications ....................................................................................................................................................... 14

7. Mechanical Characteristics ........................................................................................................................................................... 17

7.1 Mechanical Specification .................................................................................................................................................. 17

7.2 Packing ................................................................................................ ................................................................ .............. 18

7.2.1 Packing Specifications .......................................................................................................................................... 18

7.2.2 Packing Method .................................................................................................................................................... 18

8. Definition of Labels ...................................................................................................................................................................... 19

8.1 Open Cell Label ................................................................................................................................................................ 19

8.2 Carton Label ................................................................................................................................ ...................................... 19

8.3 Pallet Label ........................................................................................................................................................................ 20

9. Precautions .................................................................................................................................................................................... 21

9.1 Assembly and Handling Precautions ................................................................................................................................. 21

9.2 Safety Precautions ............................................................................................................................................................. 21

The copyright belongs to Shenzhen China Star 2 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

ST2751A01-1 Product Specification

Version

Date

Page (New)

Section

Description

Revision by

Ver. 0.1

20.Jul.2012

All

Tentative specification was first issued.

Qingyan Ji

Ver. 1.1

24.Sep.2012

All

Preliminary specification was first issued.

Qingyan Ji

Ver. 2.1

25.Sep.2012

All

Approval specification was first issued.

Qingyan Ji

Revision History

The copyright belongs to Shenzhen China Star 3 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

ST2751A01-1 Product Specification

Item

Specification

Unit

Note

Active Area

607.5285 (H) x 345.0240 (V)

Cell Size

620.4675 (H) x 359.4850 (V) x 1.9438 (D)

Driving Scheme

a-Si TFT Active Matrix

Number of Pixels

1366 x 768

pixel

Pixel Pitch (Sub Pixel)

0.44475 (H) x 0.14975 (V)

Pixel Arrangement

RGB Horizontal Stripe

Display Colors

16.7 M

color

8-bit

Display Mode

Transmissive Mode, Normally Black

Glass thickness (Array / CF)

0.7 / 0.7

Color Chromaticity

R = 0.610, 0.334 G = 0.341, 0.608 B = 0.158, 0.065 W = 0.280, 0.290

Typical value measured at CSOT’s

module: MT2751A01-1

Contrast Ratio

3000:1 (Typ.)

Cell Transmittance

7.2% (Typ.)

View Angle (CR>10)

+ 89 / - 89 (H), + 89 / - 89 (V) (Typ.)

Polarizer (CF side)

Low Haze 2%

Polarizer (TFT side)

Hard Coating (3H)

1. General Description

1.1 Product Features

- HD Resolution (1366 x 768)

- High Contrast Ratio: 3000:1

- Fast Response Time

- Ultra Wide Viewing Angle: 178° (H)/178° (V) (CR  10)

- DE (Data Enable) Mode

- LVDS (Low Voltage Differential Signaling) Interface

1.2 Overview

ST2751A01-1 is a diagonal 27.5” color active matrix LCD open cell with 1ch-LVDS interface. This open cell is a

transmissive type display operating in the normally black mode. It supports 1366 x 768 HD resolution and can display up to

16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in horizontal stripe. There is no backlight built-in.

This open cell dedicates for LCD TV products and provides excellent performance which includes high transmittance,

ultra wide viewing angle and high color depth. CSOT open cell comply with ROHS for identification.

1.3 General Information

The copyright belongs to Shenzhen China Star 4 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

ST2751A01-1 Product Specification

Item

Symbol

Value

Unit

Min.

Max.

Power Supply Voltage

VCC

- 0.3

13.5

Input Signal Voltage

VIN

- 0.3

3.6

-20

-40

100

Relative Humidity (%RH)

Temperature (ºC)

Operating Range

Storage Range

39 ºC , 90%

2. Absolute Maximum Ratings

2.1 Absolute Maximum Ratings (TA = 25 ± 2 °C)

The followings are maximum values which, if exceeded, may cause damage to the unit.

2.2 Environment Requirement (Based on CSOT Module MT2751A01-1)

(1) Temperature and relative humidity range are shown as below.

Fig. 2.1 Operating and storage environment

(a) 90%RH maximum (TA < 39 ºC). (b) Wet-bulb temperature should be 39 ºC maximum (TA > 39 ºC). (c) No condensation.

(2) The storage temperature is between - 20 ºC to 60 ºC, and the operating ambient temperature is between 0 ºC to 50 ºC.

The maximum operating temperature is based on the test condition that the surface temperature of display area is less than

or equal to 65 ºC with LCD module in a temperature controlled chamber alone. Thermal management should be considered in final product design to prevent the surface temperature of display area from being over 65 ºC. The range of operating temperature may degrade in case of improper thermal management in the end product design.

(3) The rating of environment is based on LCD module. Leave LCD cell alone, this environment condition can’t be guaranteed.

Except LCD cell, the customer has to consider the ability of other parts of LCD module and LCD module process.

2.3 Absolute ratings of Environment (Open Cell)

When storing open cell as spares for a long time, please follow the precaution instructions: (1) Do not store the module in high temperature and high humidity for a long time. It is highly recommended to store the

module with temperature from 20 ºC to 30 ºC in normal humidity (50 ± 10%RH) with shipping package.

(2) The open cell should be keep within one month shelf life

The copyright belongs to Shenzhen China Star 5 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

3. Electrical Specification

Parameter

Symbol

Value

Unit

Note Min.

Typ.

Max.

Power Supply Voltage

VCC

10.8

12.0

13.2 V (1)

Rush Current

RUSH

- - 3 A

(2)

Power Supply Current

White Pattern

ICC - 0.17

0.22

(3)

Vertical Stripe

ICC - 0.24

0.31

Black Pattern

ICC - 0.15

0.19

GND

VCC

VCC x 0.1

VCC x 0.9

470 μs

3.1 Open cell Power Consumption (TA = 25 ± 2 °C)

Note: (1) The ripple voltage should be controlled less than 10% of VCC. (2) Measurement condition: VCC rising time = 470 μs.

ST2751A01-1 Product Specification

Fig. 3.1 VCC rising time condition

(3) Measurement condition: VCC = 12 V, Ta = 25 ± 2 ºC, F = 60 Hz. The test patterns are shown as below.

A. White Pattern B. Vertical Stripe Pattern

C. Black Pattern

Fig. 3.2 Test patterns

The copyright belongs to Shenzhen China Star 6 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.

3.2 LVDS Characteristics

Parameter

Symbol

Value

Unit

Note

Min.

Typ.

Max.

LVDS Interface

Differential Input High Threshold Voltage

VTH

+ 100 - -

(1)

Differential Input Low Threshold Voltage

VTL - -

- 100

Common Input Voltage

VCM

1.0

1.2

1.4

Differential Input Voltage

|VID|

100 - 600

Terminating Resistor

RT - 100

ohm

CMOS Interface

Input High Threshold Voltage

VIH

2.7 - 3.3 V

Input Low Threshold Voltage

VIL 0 -

0.6 V

VTH

VTL

|VID|

GND

Note:

ST2751A01-1 Product Specification

(1) The LVDS input signal has been defined as follows:

Fig. 3.3 LVDS input signal

The copyright belongs to Shenzhen China Star 7 / 21 Ver. 2.1 Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited.
