HDMI WiFi
Dongle
This HDMI DONGLE is small and beautifully designed, with popular
Linux intelligent operating system. You can switch the mode between
MIRACAST and DLNA system by press-key as it without display
screen and touch screen. It can play the digital media program on
smar tphones or tablets to HDT V with 1080p resolution by WIFI.
1. PRODUCT DESCRIPTION
2. PRODUCT PERFORMANCE
3. FEATURE
Suppor t Miracast wireless display, Android 4.2 above systems,
Suppor t online movies, online T V channels, online webcasts, web
browsing
Picture and sound are synchronized transmission, without affecting
the normal phone WIFI Internet
Products can support two modes: Miracast DLNA
Specification
Operating system
C P U
Memory
Memory
Wireless transmission
Transmission delay
Interface Devices
Video Format
Power supply
Mechanical Dimensions
Packing Accessories
Parameter
Linux smartphone operating system
Single-core ARM Cortex-A9, clocked at 1.2 GHZ
DDR3, frequency 400MHZ, memory capacity is 2Gb (256M)
32MB
Wireless transmission 2.4G, transmission speed is 150MBit,
transmission distance of 5M-10M
8nS
Gold-plated HDMI
WMV AVI 3GP RMVB MP4 MVC
USB 5V/500mA
75mmx30mmx11mm
Host, USB power cable, manual, certificate
4.INSTRUCTIONS FOR USE
Products connected to the power system enters Miracast page
Use the button to switch to the Miracast page:
Vir si on :0 .9 8
Mir acast
Dvice Name:
Status:
Local IPO:
AP SSID:
Local IP1:
C-SMARTLINK-15482E
Disconnected from AP

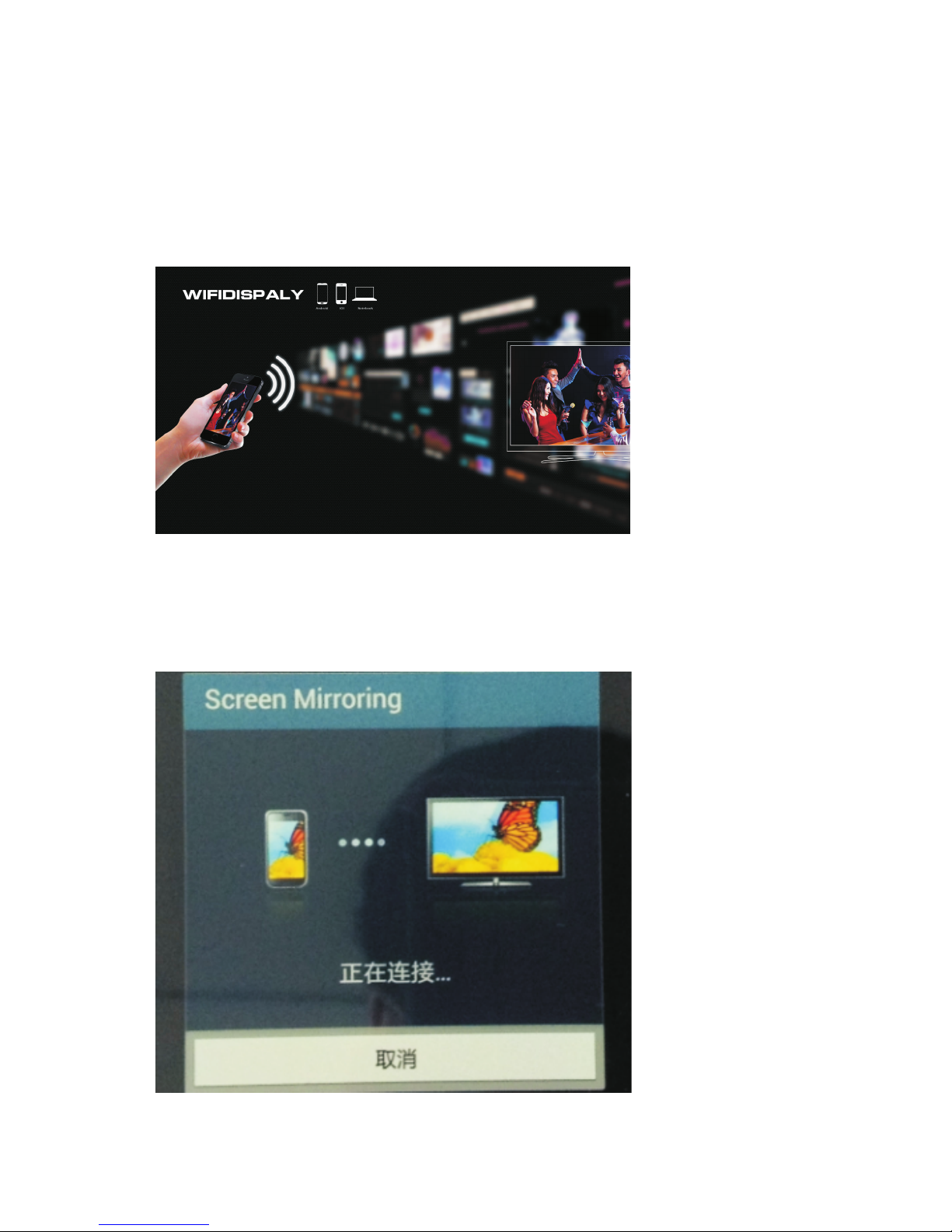

Open SCREEN MIRRORING function of the phone:
Connect the device to a WIFI network , such as Dongle-7ACC13 T V display
shown above Said that it has successfully connected phone model
