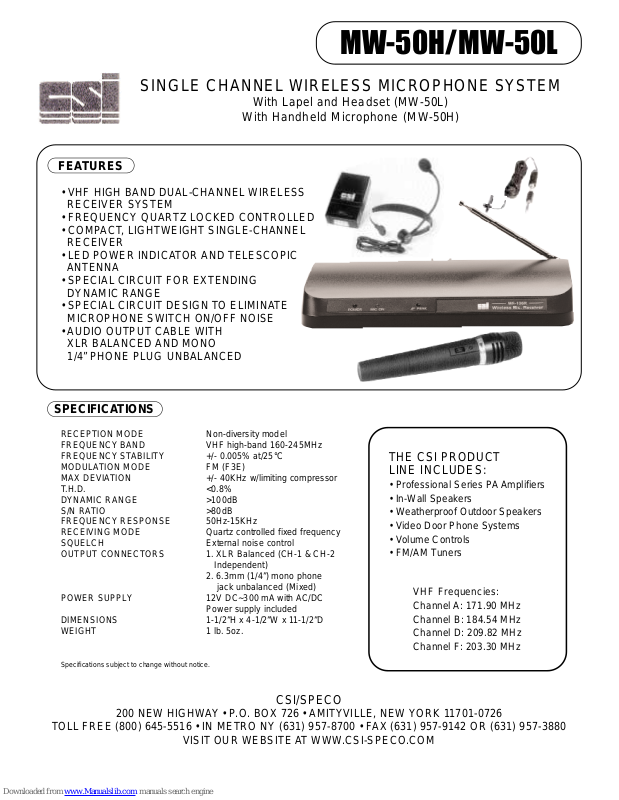

CSI MW-50H, MW-50L Specifications

SINGLE CHANNEL WIRELESS MICROPHONE SYSTEM

With Lapel and Headset (MW-50L)

With Handheld Microphone (MW-50H)

• VHF HIGH BAND DUAL-CHANNEL WIRELESS
RECEIVER SYSTEM

• FREQUENCY QUARTZ LOCKED CONTROLLED

• COMPACT, LIGHTWEIGHT SINGLE-CHANNEL
RECEIVER

• LED POWER INDICATOR AND TELESCOPIC
ANTENNA

• SPECIAL CIRCUIT FOR EXTENDING
DYNAMIC RANGE

• SPECIAL CIRCUIT DESIGN TO ELIMINATE
MICROPHONE SWITCH ON/OFF NOISE

• AUDIO OUTPUT CABLE WITH
XLR BALANCED AND MONO
1/4” PHONE PLUG UNBALANCED

RECEPTION MODE Non-diversity model
FREQUENCY BAND VHF high-band 160-245MHz
FREQUENCY STABILITY +/- 0.005% at/25°C
MODULATION MODE FM (F3E)
MAX DEVIATION +/- 40KHz w/limiting compressor
T.H.D. <0.8%
DYNAMIC RANGE >100dB
S/N RATIO >80dB
FREQUENCY RESPONSE 50Hz-15KHz
RECEIVING MODE Quartz controlled fixed frequency
SQUELCH External noise control
OUTPUT CONNECTORS 1. XLR Balanced (CH-1 & CH-2

Independent)

2. 6.3mm (1/4”) mono phone
jack unbalanced (Mixed)

POWER SUPPLY 12V DC~300 mA with AC/DC

Power supply included
DIMENSIONS 1-1/2”H x 4-1/2”W x 11-1/2”D
WEIGHT 1 lb. 5oz.

Specifications subject to change without notice.

MW-50H/MW-50L

CSI/SPECO

200 NEW HIGHWAY • P.O. BOX 726 • AMITYVILLE, NEW YORK 11701-0726

TOLL FREE [phone] • IN METRO NY [phone] • FAX [phone] OR [phone]

VISIT OUR WEBSITE AT WWW.CSI-SPECO.COM

VHF Frequencies:
Channel A: 171.90 MHz
Channel B: 184.54 MHz
Channel D: 209.82 MHz
Channel F: 203.30 MHz
