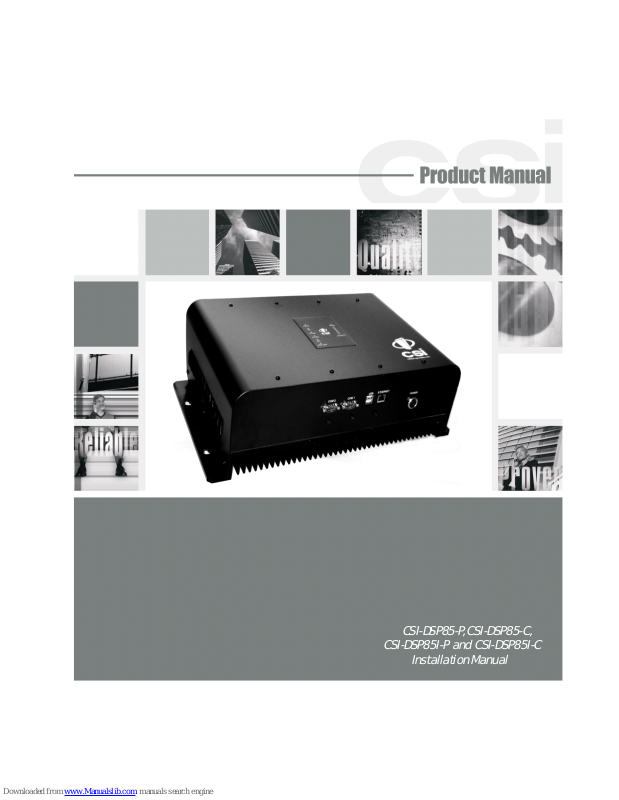

CSI CSI-DSP85-P, CSI-DSP85-C, CSI-DSP85I-P, CSI-DSP85I-C Installation Manual

CSI-DSP85-P, CSI-DSP85-C,
CSI-DSP85I-P and CSI-DSP85I-C
Installation Manual

Table Of Contents

Product Registration Information ........................................4

Document Purpose/Intended Users ....................................4

Application ......................................................................4

Safety Guidelines .............................................................4

Important Safety Information ............................................. 5

Terms Used in This Manual ...............................................5

Product Introduction ..........................................................5

DSP Filter Naming Convention ...............................6-7

Functional Overview ..............................................8

LED Indicators .....................................................8-9

Local Communications Interface Ports ......................10

Pin-out Chart ......................................................10

USB Interface ......................................................10

Ethernet ..............................................................10

Monitoring & Alarms .............................................10

System Set-Up Considerations .............................11-12

Mounting the repeater...........................................13

Optional Accessories .......................................................14

Important Installation Notes ..............................................14

Circuit Operational Description ....................................... 14

Function Block Diagram ......................................15

Mechanical Specifications ...................................16

AC Power Specifications .....................................16

Operating Power Parameters ..............................17

Environmental Requirements ...............................17

Mechanical Drawing .......................................................18

Web Based GUI Session ................................................19-25

Text Menu Interface (Local Access,) .................................26-30

T elnet Session (Remote Access, Login Required) .............30-32

Modem Interface (Remote Access with Login) ..................32

Additional Tips ................................................................32-35

Product Warranty ...........................................................36

FCC Information .............................................................36

Index .............................................................................37

Product Registration Information

The serial number may be found on the label on the bottom panel near the power
connectors. Note this number below. Retain this manual, along with proof of pur­chase, to serve as a permanent record of your purchase.

MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE

POINT OF SALE COMPANY

DISCLAIMER: All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties,
Inc. (CSI), but Cellular Specialties makes no warranty with respect thereto, including without limitation any results that
may be obtained from the products described herein or the infringement by such products of any proprietary rights of
any persons. Use or application of such information or statements is at the users sole risk, without any liability on the
part of Cellular Specialties, Inc. Nothing herein shall be construed as licence or recommendation for use, which infringes
upon any proprietary rights of any person. Product material and specifications are subject to change without notice.
Cellular Specialties’ standard terms of sale and the specific terms of any particular sale apply.

Document Purpose / Intended Users

The purpose of this document is to provide a step-by-step procedure to help the experienced
technician/engineer install and commission an in-building wireless enhancement repeater
system using CSI’s DSP85 or DSP85I Digital Repeater. Following the procedures outlined will
minimize risks associated with modifying a live system and prevent service interruptions. This
document assumes the technician/engineer understands the basic principles and functionality
involved with Repeater and in-building systems. It is geared to the practical concerns of the
installer.

Application

This guide should be applied whenever a need exists to add Digital Repeater capability to an
existing system or when this capability is being included with a new installation.

Safety Guidelines

The general safety information in this guideline applies to both operating and service personnel.
Specific warnings and cautions will be found in other parts of this manual where they apply, but
may not appear in this summary. Failure to comply with these precautions or specific warnings
elsewhere in the manual violates safety standards of design, manufacture, and intended use of
equipment. Cellular Specialties, Inc. assumes no liability for the customer’s failure to comply with
these requirements:

Grounding

This Digital Repeater system is designed to operate from 100-240 VAC and should always
be operated with the ground wire properly connected. Do not remove or otherwise alter the
grounding lug on the power cord.

Explosive Atmospheres

To avoid explosion or fire, do not operate this product in the presence of flammable
gases or fumes.

Lightning Danger

Do not install or make adjustments to this unit during an electrical storm. Use of a suitable

lightning arrester, such as CSI’s model number CSI-CAP, is very strongly recommended.

No User Serviceable Parts Inside

HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the

chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or
the Cellular Specialties Support Line at: [phone], Toll Free (USA) 1-877-844-4274.

- 4 -

Important Safety Information

Antennas used for the purpose of radiating signals indoors are limited to a maximum gain of 3 dBi. The outdoor antenna used for the
purpose of communicating to the wireless infrastructure is limited to 14dBi gain, or any combination of gain and loss that equates to
14dB at input. Each antenna must be positioned to observe minimum separation requirements from all users and bystanders. The
following guidelines should be used when considering separation distances.

INDOOR antennas must be placed such that, under normal conditions, personnel cannot come within 20 cm (~8.0 in.) from any inside
antenna. Adhering to this minimum separation will ensure that the employee or bystander cannot exceed RF exposures beyond the
maximum permissible limit as defined by section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.

OUTDOOR antenna must be positioned such that, under normal conditions, personnel cannot approach closer than 120 cm. (~4 ft.). A
directional antenna having a maximum gain of 14 dBi is used, precautions should be taken to prevent personnel from routinely passing
through the main radiation beam at a distance closer than specified.

T erms used in this manual

AGC= Automatic Gain Control ERP= Effective Radiated Power
APC= Automatic Power Control FCS= Feedback Cancellation System
AUI= Attachment Unit Interface FPGA= Field Programmable Gate Array

CPU= Central Processing Unit LED= Light Emitting Diode
CSI= Cellular Specialties, Inc. OIP3= Third-Order Intercept Point

DAS= Distributed Antenna System RF= Radio Frequency

DHCP= Dynamic Host Configuration SBC= Single Board Computer
Protocol SNMP= Simple Network Management Protocol

DSP= Digital Signal Processing TMI= Text Menu Interface
EEPROM= Electrically Erasable USB = Universal Serial Bus

Programmable read- UHCI = Universal Host Controller Interface
only Memory

Product Introduction

Cellular Specialties, Inc. (CSI) developed the DSP85 and dsp85I digital repeater for use within enclosed
structures where sufficient signal from local cell sites to operate cell phones is unavailable. Adequate
signal must be available outside the structure as a prerequisite to achieving in-building coverage. The
Digital Repeater is connected to an external antenna, usually on the roof, and to one or more internal
antennas placed strategically throughout the area where wireless service is desired.

The external antenna typically is directional, such as a “yagi”. Internal antennas are typically omnidirec­tional, although various other types may be used depending on the coverage application. The CSI DSP85
Repeater amplifies both the “uplink”(phone to tower) & “downlink”(tower to phone) signals thus
facilitating communications to and from the intended wireless infrastructure.

With a maximum total of +85dB nominal gain on both the up and down links, gain can be adjusted over a
range from +53.5dB to +85dB in 0.5dB steps. Control of the repeater is achieved utilizing a computer
connected to comm. port 1 or 2 or via a Crossover Ethernet cable connected to the Ethernet port. There
are also LED indicators near the display to indicate ALARM status, AGC st atus, UL PWR, DL PWR, OSC,
SHUT DWN and a D/L SIGNAL STRENGTH bargraph.

A specific filtering process modifies each amplification chain. This process digitally converts the assigned
spectrum and then applies digital signal processing (DSP) techniques. DSP is used to create passbands
that selects the RF energy passing through either the uplink or downlink paths. After the digital processing
is complete, the information is converted back to an analog signal that is applied to the remaining stages
of amplification. The resulting signals emitted by the repeater are specific to the network service providers’
requirements. If these requirements change, only the DSP configuration parameters need change in order
to adapt. Configuration parameters are created at the factory and supplied as files that may be down­loaded to the repeater. The filter set configurations stored in memory determine the unit’s adaptability to
various field applications. The following pages describe the PCS band plan as well as the convention CSI
uses to identify and store the files that make up the filter set. All DSP85-P, DSP85-C, DSP85I-P and
DSP85I-C repeaters are shipped with an active filter set that is programmed according to the ordering
parties’ specifications. In most cases, the installer will not have to program a filter.

- 5 -

Cellular Frequency Band Plan

Uplink
(MHz)

Downlink

(MHz)

Uplink (MHz)

794

764

1850

806

776

Public
Safety

UL 794-806
DL 764-776

806

851

SMR 800

iDEN

UL 806-821
DL 851-866

824

SM800

UL 821-824
DL 866-869

821

866

UL 824-825
DL 869-870

825

870

869

AA”

UL 825-835
DL 870-880

880

B

UL 835-845
DL 880-890

835

UL 845-846.5
DL 890-891.5

845

846.5

890

891.5

B’A’

UL 846.5-849
DL 891.5-894

849

896 901

894

935 940

SMR 900

UL 896-901
DL 935-940

PCS Frequency Band Plan

1865 1870 1885 1890 1895 1910

Downlink (MHz)

1930

UL 1850-1857. 5
DL 1930-1937. 5

A3

UL 1850-1855
DL 1930-1935

A7 A9

A6

UL 1850-1852.5
DL 1930-1932.5

UL 1852.5-185 5
DL 1932.5-193 5

UL 1855-1857.5
DL 1935-1937.5

A Full

UL 1850-1865
DL 1930-1945

A2

A4

UL 1855-1860
DL 1935-1940

A8 A11A10

A1

UL 1857.5-1865
DL 1937.5-1945

A5

UL 1860-1865
DL 1940-1945

UL 1857.5-1860
DL 1935-1937. 5

UL 1860-1862.5
DL 1940-1942. 5

UL 1862.5-1865
DL 1942.5-1945

1945 1950 1965 1970 1975 1990

C Full

UL 1895-1910
DL 1975-1990

C3

UL 1900-1905
DL 1980-1985

C7 C9

C8

UL 1902.5-1910
DL 1982.5-1990

C4

UL 1902.5-190 5
DL 1982.5-1985

UL 1905-1907.5
DL 1985-1987.5

UL 1907.5-191 0
DL 1987.5-1990

C1C2

C5

UL 1905-1910
DL 1985-1990

C11C10

D Full

UL 1865-18 70
DL 1945-1950

D1

D2

UL 1870-18 72.5
DL 1950-19 52.5

UL 1872.5- 1875
DL 1952.5- 1955

UL 1870-18 77.5
DL 1950-19 57.5

B3

UL 1870-1875
DL 1950-1955

B7 B9

B6

UL 1870-1872.5
DL 1950-1952.5

UL 1872.5-1875
DL 1952.5-1955

UL 1875-1877.5
DL 1955-1957.5

B Full

UL 1870-1885
DL 1950-1965

B4

UL 1875-1880
DL 1955-1960

B8

UL 1877.5-1880
DL 1957.5-1960

UL 1880-1882.5
DL 1960-1962.5

UL 1882.5-1885
DL 1962.5-1965

B1B2

UL 1877.5-1885
DL 1957.5-1965

B5

UL 1880-1885
DL 1960-1965

B11B10

E Full

UL 1885-1890
DL 1965-1970

E1E2 F1F2

UL 1885-1887.5
DL 1965-1967.5

UL 1887.5-1890
DL 1967.5-1970

F Full

UL 1890-1895
DL 1970-1975

UL 1890-1892.5
DL 1970-1972.5

UL 1892.5-1895

DL 1972.5-197 5

UL 1895-1902. 5
DL 1975-1982. 5

UL 1895-1900
DL 1975-1980

C6

UL 1895-1897.5
DL 1975-1977.5

UL 1897.5-1900
DL 1977.5-1980

UL 1900-1902.5
DL 1980-1982.5

Note: All frequencies are shown in MHz

- 6-

Note: Filter file names will be from six to twelve characters long. Each character position in the filter file name is
used to define the characteristics of the filter as shown above. All frequencies are shown in MHz

- 7 -

Functional Overview

The CSI-DSP85-P, CSI-DSP85I-P, CSI-DSP85-C and CSI-DSP85I-C repeaters incorporates the
following features for convenient operation, access, protection, and control.

• Network Configuration and Control using either a webpage style GUI through
any standard browser or a menu driven user interface using the serial port.
(Note: GUI does not require Internet access.)

• User Gain Control (affects all passbands)

• Automatic Gain Control

• Automatic Power Control

• Oscillation Protection

• Over Drive Protection (P.A. limiting)

• Under/Over Voltage Protection

• Fault Protection

• Alarm Notification - Local/Remote

• Upgrade Support - Local/Remote

• External Interfaces - USB/Ethernet/Serial

• Re-loadable filters - Local/Remote

• Web-based monitoring and control - Local/Remote

• Persistent Status and Error information

LED Indicators

Automatic safety precautions are built into the amplifier system. In the case of a catastrophic system
event, a shutdown circuit is incorporated that will disable all emissions should the uplink input or downlink
input be overdriven or should an oscillation or output overpower event occur . The amplifier will periodically
attempt to recover from the detected condition automatically. Warning light indicators are as follows:

- 8-

Alarm: Indicated by a red LED. The unit has sensed an alarm condition. This LED may

light alone or in conjunction with one of the other indicator LEDs. In both cases the
cause(s) can be reviewed by going to the System Health menu.

AGC: When Illuminated, this yellow LED indicates that automatic gain control is active

and has reduced the gain of the unit in order to prevent very strong input
signals from overloading the amplifier. The amplifier will periodically evaluate
input signal and attempt to recover from this condition.

UL PWR: Indicated by a red LED. Uplink power has been affected by a system event and

DL PWR: Indicated by a red LED. Downlink power has been affected by a system event

OSC: Indicated by a red LED. An oscillation event has occurred or is occurring. The

SHUT DWN: Indicated by a red LED. The RF stages of the unit are disabled due to an

D/L SIGNAL
STRENGTH: Indicated by a green LED bargraph. This indicates the relative signal strength

will need to be addressed by either the system software or a technician to
be reset to original system settings, using the GUI or text menu interface.
See the event log to determine the nature of the fault.

or condition, such as insufficient antenna isolation, and will need to be
addressed by either the system software or a technician to be reset to original
system settings, using the GUI or menu driven user interface. See the event log
to determine the nature of the fault.

system has been affected by the event and the problem will need to be
addressed by the system software or a technician to be reset to original system
settings. This is an indication of a major fault.

unresolved system event such as oscillation, effectively taking the unit off the
air. The problem will need to be addressed by a technician before the on air
operation can be restarted. The repeater is not equipped with an ON/OFF
power switch. Hard power down will require that the unit be unplugged.

being received from the cell site. Note: the last bar of the bargraph will turn
red in the event of very strong adjacent channel interference.

Approximate Signal Strengths of Bargraph Display

The minimum measurable input level is -81 dBm at 85 dB gain, -71 dBm at 75 dB gain,

-61 dBm at 65 dB gain, and -51 dBm at 55 dB gain.

ILLUMINATED
BARS

10

9
8
7
6
5

SIGNAL AT INPUT
CONNECTOR

Adjacent Channel
Interference

-54dBm to -51dBm

-58dBm to -55dBm

-62dBm to -59dBm

-66dBm to -63dBm

-70dBm to -67dBm

4
3

2
1

0*

*Note: During Power up, the repeater will require a approximately three minutes for

the internal computer to boot up. During this time the LEDs on the front panel will light
and go out several times. When boot is complete and no alarm conditions exist, none

of the LED indicators will be illuminated. The CSI logo is illuminated when ever the
repeater is powered. One or more bars on the LED bargraph may also be lit,
depending on the strength of the signal being received from the donor site. Signals
weaker than -81dBM will not illuminate any bars.

Do not unplug the unit while it is in the boot up process!

-74dBm to -71dBm

-78dBm to -75dBm

-81dBm to -79dBm
< -81 dBm

- 9 -

Local Communication Interface Ports

To allow monitoring and control, the repeater is equipped with four ports that provide external
communication access (1 Ethernet CAT-5, 2 DB-9 serial, and 1 USB). The Ethernet, CAT-5 port
is provided as a primary communications port to the PC. One serial interface provides commu­nications to local PC and the second to an external modem when provided. The USB interface
provides a means to download files from a memory device and may also be used by an
external modem. The DB-9 pin assignments conform to the standard Electronic Industries
Association (EIA232) specification. A diagram of the pin descriptions is provided on this page
for reference.

Connecting a null modem cable to one of the COM ports and using a terminal emulation
program with a PC will allow communication to the control processor’s Text Menu Interface
(TMI). See command line interface section for further detail.

EIA232 Pin Specifications

The diagram above is for reference only, it’s intended to provide a quick source for pinout
information in the event it should be necessary to adapt your serial cable because of an
unusual connector configuration. In the vast majority of cases this information will not be
needed.

USB Interface

The Universal Serial Bus (USB) interface conforms to Intel’s Universal Host Controller
Interface (UHCI) version 1.1 dated March 21, 1996. This interface will support data
transfer rates up to 12 Mbps and can be used for software updates and filter file
uploads.

Ethernet

The Ethernet AUI conforms to IEEE 802.3 and is capable of supporting 10/100 Mbps
communications speeds. This port is used to provide access to the GUI.

Monitoring & Alarms

There are no physical connections provided to specifically communicate system or alarm
status. This information is embedded in the information accessible via the communication
ports described earlier.

-10-

System Set-Up Considerations

All cables should be checked for shorts and opens. Also verify that there are no cables with loose or poor
connections. RF leakage could cause oscillation to occur under some conditions.

The rooftop antenna (Donor Antenna), if directional, should be checked for proper alignment along the calculated
compass heading. Typically, the directional antenna would be aimed at the same site that your handset uses, but it
may not always be so.

It is critical the installer contact the service provider for information on, and

approval of, the cell site he or she has selected before the system is turned on.

If cables and alignment are acceptable and a problem persists, it may be necessary to use a spectrum analyzer to
examine the signal environment in which the repeater is operating. The existence of strong adjacent channel
signals within the frequency band(s) can cause the AGC to reduce the amplifier’s gain or cause alarms. In some
cases additional filtering or attenuation might be required to reject these unwanted signals. In some instances, the
donor antenna can be reoriented horizontally, to place the interference source in an antenna pattern “null”. There
also may be some cases where the interference from outside signals is so great that they cannot be filtered or
otherwise reduced or eliminated without expensive and possibly prohibitive measures. In these cases it may not
be practical to use the repeater for providing coverage to these sites.

Selection of external attenuators to be used in line with the CSI-DSP85 Antenna
Port(s):

TO INSIDE ANTENNA

TO OUTSI DE ANTENNA

1:1 PORT CONFIGURATION

Input: One dual band duplex port, from the dual band donor.
Output: One dual band duplex por t to the DAS.

DONOR PORT

If a unit is installed in an area with very strong desired and/or undesired signals, it is important to ensure that the
overall signal levels are optimized to be within the best operating range of the repeater. Additionally, de-sensing of a
nearby base station site must be avoided. These goals can be accomplished by properly attenuating the antenna
port(s) in the path of the donor antenna(s). In effect, one can imagine that the particular repeater deployment is
electrically moved farther from the base station using attenuators that are equivalent to increasing the path loss from
the donor antenna to the base station. The following potential outcomes result from the use of attenuators on the
donor port(s) of the repeater: Uplink output power, as reported by the unit, is reduced by the value of the attenua­tion, protecting nearby base stations. Downlink signal to noise ratio is high at the point of the attenuator, resulting in
slight but negligible reduction in downlink performance. Other performance is essentially unchanged.

SERVER PORT

Server port attenuation may also be necessary, particularly where a powered DAS is present. The selection guide­lines below apply to both server and donor ports. In order to properly measure uplink signal strength, a signal
generator should be used. If a signal generator is not available, placing a test call while under the server antenna
with the least path loss to the repeater should provide reasonable data.
The following potential outcomes result from the use of attenuators on the server port(s) of the repeater: Downlink
output power, as reported by the unit, is reduced by the value of the attenuation. Uplink incoming power from the
DAS is reduced, along with potentially strong and/or harmful out-of-band signals (including noise) that are generated
by the DAS.

-11 -

Attenuator Selection Guidelines:

Accurate attenuator values need to be chosen to ensure that the maximum total power (higher of Composite or In­Band Input) applied to the donor and server port(s) does not exceed the following thresholds:

Input Signal Max Gain Input Signal Max Gain

-54 dBm 84 dB -38 dBm 68 dB

-53 dBm 83 dB -37 dBm 67 dB

-52 dBm 82 dB -36 dBm 66 dB

-51 dBm 81 dB -35 dBm 65 dB

-50 dBm 80 dB -34 dBm 64 dB

-49 dBm 79 dB -33 dBm 63 dB

-48 dBm 78 dB -32 dBm 62 dB

-47 dBm 77 dB -31 dBm 61 dB

-46 dBm 76 dB -30 dBm 60 dB

-45 dBm 75 dB -29 dBm 59 dB*

-44 dBm 74 dB -28 dBm 58 dB*

-43 dBm 73 dB -27 dBm 57 dB*

-42 dBm 72 dB -26 dBm 56 dB*

-41 dBm 71 dB -25 dBm < 55 dB*

-40 dBm 70 dB

-25 dBm is the maximum input signal level that should be applied to the repeater, even if the gain is lower than 55 dB.
Input signals exceeding these thresholds will result in composite input attenuation, called “ADC Protect” (Analog to Digital
Converter Protection). Output power is reduced whenever the above thresholds are exceeded by reducing the gain by 1dB for
each 1 dB that the threshold is exceeded. ADC Protect should not be confused with AGC (Automatic Gain Control), which
reduces gain to prevent In-Band (measured) output power from exceeding the specified maximum output level.
To determine the total power applied to the donor and server ports, please reference the “Composite Input” values as reported in
the Web (“System Status”) or Menu (“Link Status”) interfaces (depicted and explained later in this manual).

<-55 dBm 85 dB -39 dBm 69 dB

*We recommend padding this level due to potential for fluctuating signal.

Large delta’s between in-band and composite input signals:

Care should be taken to isolate the best donor site to ensure the least possible delta between in-band and composite downlink
signals.

If the (downlink) composite input exceeds the in-band input by more than 3 dB Cellular, or more than 5 dB PCS, the maximum
output power will be reduced. Example:
Band 1 (Cellular)
In-Band Input -45 dBm
Composite Input -38 dBm
Max Gain = 68 dB
Max Output = 23 dBm

-12 -

Wall Mounting the Digit al Repeater

The following diagram illustrates the best method for mounting the repeater to a wall in an typical installation.
Note: for optimal cooling the unit should be mounted vertically on a wall with the antenna ports up.

ITEM # QTY PART # DESCRIPTION

1 1EA CS10-XXX-X XX* DIGITAL REPEATER
2 1EA 453-1010-002 5V/24V POWER SUPP LY
3 1EA 780-0510-001 LINE CORD (AC POW ER)
4 1EA 750-2171-001 M O U N TING P LATE (OPTIONAL)
5 1EA 750-2172-002 P/S M O UN TING B RA CK E T

CS10-400-400 = CSI-DSP85I-C
CS10-381-401 = CSI-DSP85-P
CS10-401-401 = CSI-DSP85I-P

*CS10-380-400 = CSI-DSP85-C

Warning: Power supply cable connectors are keyed for proper orientation, but

if forced can be inserted incorrectly. Great care should be taken to
avoid this as it may damage the connectors and/or the repeater.

Keyed for proper
alignment, do not
force connector
into place.

- 13 -

Optional Accessories

A complete line of accessories is available from Cellular Specialties, Inc. Check with your CSI distributor
for any additional items needed. Below are just a few examples suitable for most in-building needs.

•Outside Donor Antenna •UPS
PCS - model number: CSI-AY/1.85-1.99/10 Battery backup, 2 hr Single band
Cellular - model number: CSI-AY/806-960/14 1 hour dual band - model number: CS48-985-600

•Inside Omnidirectional Antenna

Quad-band - model number: CSI-AO/700/2.5K/3 Battery backup, 4 hr Single band

•Power Dividers 2 hour dual band - model number: CS48-985-601
2:1 - model number: CSI-SPD2/700-2.5K/N
3:1 - model number: CSI-SPD3/700-2.5K/N •Mounting Kit
4:1 - model number: CSI-SPD4/700-2.5K/N 19” rack or wall mountable -

•Grounding Kit - model number: CSI-GKIT model number: CSI-RWM-DSP85

•Lightning Arrestor - model number: CSI-CAP

•Directional Couplers

6dB - model number: CSI-DC6/700-2K/N
10dB - model number: CSI-DC10/700-2K/N
15dB - model number: CSI-DC15/700-2K/N
20dB - model number: CSI-DC20/700-2K/N
30dB - model number: CSI-DC30/700-2K/N

Important Installation Notes

• Inadequate isolation between the outside and inside antennas may cause regenerative
feedback in the system. This feedback can cause the amplifier to emit a continuous signal at
maximum amplitude and, in some cases, interfere with normal operation of the cell site. Careful
consideration of the layout and placement of the system is imperative.

• The installer should refer to the Safety Guidelines section on page 4 and the Important Safety
Information section on page 5 for proper antenna selection and installation. To avoid serious injury
or death and damage to the repeater, do not install donor or server antennas near overhead
power lines or high power components. Allow enough distance so that if antennas should fall
they will not come in contact with those components.

••

• Close proximity to the donor or server antennas with the repeater in operation may expose

••

the user or installer to RF fields that exceed FCC limits for human exposure.

W ARNING! AMPLIFIER OR HANDSET DAMAGE MA Y OCCUR IF A HANDSET IS CONNECTED

DIRECTL Y TO THE REPEATER OR THE COAX THAT LEADS TO THE REPEATER.

Circuit Operational Description

The repeater uses a single down-conversion/up-conversion scheme. There are multiple RF amplifier
stages prior to each down-converting mixer. The down-converting mixers are followed by a single IF
amplifier. A Digital Signal Processor block then processes the resultant digitized IF signal that was
previously generated by an Analog-to-Digital Converter. The processed (filtered) digital signal is fed to a
Digital-to-Analog converter and then up-converted to RF. A driver amplifier and a final power amplifier
make up the final gain stages before application to the diplexer. The maximum total system gain (diplexer
input to diplexer output) is nominally 85 dB for either the downlink or the uplink paths with both links
having independent manual and automatic gain controls (AGC).

AGC reacts to analog power detection on both the input and output of the uplink and downlink RF
chains. A control algorithm continuously monitors these detected values and dynamically adjusts
various gain stages such that the net system gain value, entered manually, is maintained without
either exceeding FCC parameters or overdriving the A/D converters.

LEDs on the front panel display provide immediate visual indications of the unit’s primary power and
major or minor alarm status. The repeater features automatic shutdown protection, as a safety
measure, should excessive drive be applied to the input or an oscillation condition occur. When in a
protected mode, a control algorithm determines the appropriate method of recovery to a normal,
previously defined state, or maintains the protection until manually reset. If recovery has been
established, the associated LED(s) will either be extinguished or available to be reset. The events
that trigger the error will be saved in the event log.

-14 -

Functional Block Diagram

- 15 -

Mechanical Specifications

Parameter Specification Notes

Repeater Size

Height 4.69 in.
Width 18.62 in.
Depth 11.25 in.

Box Weight 27.5 / 12.47 lbs/kg
Box Thermal Management Convection cooled Large heatsink

Surface Coating Powder Coat

Color Satin Black

Parameter Specification Notes

AC Voltage 100 - 240 VAC External Power Supply
AC Current 1.7 Amps @ 120 VAC

AC Power Frequency 47 - 63 Hz

Heat Output 500 BTU/Hr

AC Power Specifications

0.9 Amps @ 230 VAC

-16 -

Operating Power Parameters

Parameter Specification Notes

Maximum RF input Power +10 dBm
without damage

Linear Gain 85 dB Factory Calibrated Gain
Pass Band Ripple +/-1.5 dB
Automatic Gain Control (AGC) 30 dB max In 0.5 dB steps

Manual Gain Control 53.5-85 dB max In 0.5 dB steps
Linear Output Power +27 dBm max Uplink and Downlink

CELL +26 dBm **
PCS +25 dBm** ** AGC Set Point

range

OIP3 Measured with 2 CW tones at 14

+ 43 dBm

dBm/tone

Noise Figure (Avg) 5.0 dB At Maximum Gain

1dB Compression Uplink and Downlink

+ 33 dBm

Input VSWR (Typ) <1.5:1
Propagation Delay <2.5 usec

RMS Vector Error (EVM) 3% max TDMA, EDGE, W-CDMA, CDMA2000

CDMA RHO 0.98 min CDMA2000, 1x-EVD0

Connectors N-Female (2)

Spurious Emissions &
Applicable Documents

FCC -13 dBm max Per FCC part 2, 22 and/or 24
Industry Canada -13 dBm max

Parameter Specification Notes

Temperature Range -30 to +48 C
(-22 to +118 F)

Relative Humidity 5% to 95% Non-condensing

Industrial Dust <15mg/m3 T elcordia GR-63-CORE

Environmental Requirements

0

0

00

-17 -

Mechanical Drawing

TO OUTSIDE ANTENNATO INSIDE ANTENNA

ALARM

UL PWR

DL PWR

POWER

ETHERNETUSB

COM 1

COM 2

- 18 -

Web based GUI Session

Primary access to the repeater is gained using a LAN connection and a web browser program
such as Firefox by Mozilla, or Internet Explorer from Microsoft. The repeater ships with the
default IP address of 192.168.1.100, but it can be changed later if required.

If connecting directly to the repeater from a laptop or PC with a crossover CAT-5E cable or
over a LAN the user types the IP address of the repeater into the browser address line to
connect. (Note: Most users will need to update the TCP/IP settings on their computer to enable

connection to a host that has a static IP. Select “Use the following IP Address” and enter the IP
Address as follows: 192.168.1.x, where “x” = any number from 2 to 254 inclusive other than 100.
The subnet mask is 255.255.255.0. Questions pertaining to these settings should be referred to
the user’s IT department or you may refer to the Additional Tips section at the end of this
manual.) When connection is made the user will be prompted for a user name and password.

For the purpose of the GUI session, the default user name is dualband and the password is
csi1234. This can also be changed as required. Internet access is not required to use the
GUI. (Note: If you are connecting using a laptop, verify that your Ethernet port is powered.

Some laptops will not allow Ethernet connection when on battery power. If this is the case
with the laptop you are using you will need to plug it in or update the power settings.)

System Status:

When login is complete the user is brought to the system status page. The links on the page are
activated by clicking on them.

- 19 -

Note: The System Status screen above is that of a Cellular model.
PCS models will show PCS data.

Local Network:

If the user selects Local Network from the System Status page, the following screen is displayed
and from here network configuration can be modified as required. The default is set to Static. Check
with your IT department for explanation and approval of the DHCP and DHCP Server options you
plan to use before you select them. *NOTE: In units with software version 2.2.4 or prior, only
letters, numbers and underscores are acceptable nomenclature. In units with software version

2.3.0 and up, Underscores are not acceptable; however, hyphens are acceptable.

After any changes are made press the refresh button to review the fields and ensure
the change made is correct. Note: changing network settings will cause the current TCP/IP
connection to fail because the change will take effect immediately. From here the user may return
to the System Status screen or click on the other options.

- 20 -

RF Configuration:

If the user would like to modify RF configuration click on the words RF Configuration in the
navigation box and the screen below is displayed.

Note:The RFConfiguration screen above is that of a PCS model.
Cellular models will show Cellular data.

To change gain settings the user will select the Uplink only or Uplink and Downlink radio buttons.
The user then inputs the gain value desired. Gain values from 53.5 dB to 85.0 dB may be selected.
The repeater will not allow the user to set values outside this range. By pressing the Change
Settings button the gain change is implemented. When a new filter set is required, it may be
selected by clicking Program a Filter in the navigation box.

Program a Filter:

The user may select the desired filter by pressing the band/sub-band and modulation selection
buttons. Undesired bands/sub-bands if lit will require the user to manually “deselect” them before
programming. Pressing the Program button will complete the selection and load the desired filter.
The time required to complete this process will take just a few moments. Note: If the filter desired
is not currently in the unit, additional filters along with instructions on how to load them are
available by contacting CSI.

Note: The screen above is that of a PCS model.
Cellular models will show Cellular data.

- 21 -

Remote Network:

If the repeater includes a modem kit, click on Remote Network in the navigation box and the screen
below is displayed.

Highlight the carrier on whose network the repeater and modem will be configured and click the
Change Settings button. Refer to the documentation included with the modem kit for addtional
information on configuring the modem.

SNMP Configuration:

To change SNMP settings click SNMP Configuration in the navigation box, the screen below will be
displayed. If the user is not well versed in Simple Network Management Protocol he or she should
check with their IT professional for proper setting requirements.

- 22 -

System Health:

By clicking System Health the current state of the repeater can be reviewed.

Note:The System Health screen
to the left is that of a Cellular
model. PCS models will
show PCS data.

***

***The user may clear LED indicators, alarms and the Event Log by clicking the Clear Log button.

**** If required in your market, visit the “System Health” screen and click on “Trigger Test Alarm”

and wait for confirmation that the Wireless Service Provider representative that is responsible
for monitoring the repeater has been notified of the alarm. Be sure to “Clear All Logs” prior to

logging out of the Web Interface.

****

Install & Upload:

Should a software install or upgrade be needed it can be done from the Install & Upload screen
shown below. As with the other screens it can be reached by clicking the words in the
navigation box. Contact CSI for updates and instructions.

-23 -

Reboot:

If a reboot of the repeater becomes necessary click on the Reboot option in the navigation box
and the Reboot page is displayed.

Alarm Configuration:

The Alarm Configuration page allows the user to specify what events will trigger an alarm. The
add Email Address window allows the user to enter up to five E-mail addresses to which the
repeater can send specified alarm messages when Email Alarm Notification and Remote
Networking are enabled, and the repeater is equipped with an active wireless modem. Email
Alarm Notification is currently restricted to CSI Beta Testing, however, future iterations of
operating software will permit broadened use of this feature. *NOTE: Letters, numbers &

hyphens are the only acceptable nomenclature for the Location field.

- 24-

Log Configuration:

The Log Configuration page provides the user with the means to modify three aspects of how
log files are created and stored as shown below.

To end the session: exit the browser, the user will be automatically logged out.

-25 -

T ext Menu Interface (Local Access)

Local access to the repeater TMI, also known as the console interface, is made by connecting a
serial cable (optional), as shown in figure 1, from the serial connector of the laptop to either of
the serial ports on the bottom end panel of the repeater. These connectors are labeled COM 1 and
COM 2. In some cases, if the gender of the connector is not the same as shown in figure 1, a null
modem adapter (optional) as shown in figure 2 may also be required.

Figure 1

Many terminal emulation programs will work if properly configured. In the following description,
“TeraTerm” is used to establish the TMI session. This program is readily available via the Internet
and is free from Ayera Technologies at:

Figure 2

http://www.ayera.com/teraterm/

TeraTerm Pro Web works on Windows 95/98, 2000, XP. Here is the latest TeraTerm Pro Web
release:

When the program is started, the following screen is displayed.

Version 3.1.3, October 8, 2002. ttpro313.zip

-26 -

Select the Serial radio button and press OK as shown below.

Note: It may be necessary, in the System Properties section of the control panel; using Device
Manager to determine what COM port your computer uses for the communications port. In this case
it is COM 1. This is not to be confused with the serial port on the bottom panel of the repeater
labeled COM 1.

Pressing “OK” will open up a blank dialog screen. Go to the setup dropdown menu and
select Serial port to make changes to the serial port setup.

Configure the terminal program for the correct COM port, in this case COM 1 and 115200

baud rate as shown below.

- 27 -

After completing the serial port changes (pressing the enter key will be required to complete
the action) the user will be prompted for a user name and password. To make changes to
cellular band units, the default user name is “cellband”. The user name for changing PCS
band units is “pcsband”. The password for both bands is “csi1234”. After entering the
password and pressing return the TMI main menu will appear. Note: by default the Set
Parameters option is disabled. To re-enable the user will press 1 and will be prompted for a
username and password. The default user name is csi and the password is csi1234.

The actions displayed
are self-explanatory.
Pressing “1” will
continue to expand this
session screen and
allow the following
parameters to be set.

- 28 -

Each “Set Parameter” selection, when chosen will be expanded to allow changing or setting of that
parameter. For example from the Link Configuration menu on the previous page, selecting 1 - Adjust
Gain will display the menu shown below.

After selecting option 1, downlink, the current user gain is displayed and the option to change it
is accomplished by typing the desired gain at the prompt. The user is then returned to the
previous menu.

- 29 -

All the other options operate in much the same way. Some of the options will offer the user
additional selections and will be self-explanatory. Below is one example of these additional options,
the one shown below is the result of selecting (3) Filter Programming.

Note: Graceful session termination is important. Use Disconnect under the file dropdown menu
to terminate a session, otherwise the port may become disabled and force the system to be
rebooted.

T elnet Session (Remote Access)

Remote access to the repeater may be gained through a LAN connection and a terminal emula­tion program for TCP/IP. As with the serial connection, many terminal emulation programs will
work, if properly configured. In the following description, again, “Teraterm” is used to establish the
Telnet session. Also, it will be required that the network configuration of the computer and the
repeater being controlled be set up with the same Sub Net and Sub Net Mask in order to establish
a link. In other words, the IP addresses of both the computer used and of the repeater must be
the same group of IP address number sets. For example, the repeater ships with the default IP
address of 192.168.1.100 and a Sub Net Mask of 255.255.255.0. In order to connect, the
computer to be used for the link would normally need an IP address of something like

192.168.1.12 with a Sub Net Mask of 255.255.255.0, the same Sub Net Mask as the repeater. In
this example, note: the last digit of the IP address may be any number except 1,100 and 255,
Configuring your PC is normally fairly straight forward but it does vary somewhat with the
operating system involved. If you require assistance, contact your IT department and they will
be able to set up your PC for you or you may review the Additional Tips Section at the end of the
manual.

When the Tera Term program is started, the following screen is displayed. Change the default host
IP address to the IP address of the repeater to be controlled. In the case of a new install, the
default address is 192.168.1.100 and has been assigned at the factory. Select the service Telnet.
The TCP Port must be 23.

- 30 -

Pressing the “OK” button will bring the user to the following screen, which will require the user
to log in. In the PCS band units, the user name is “pcsband”. The user name for the Cellular
units is “cellband”

In the field after the prompt “DSP85-PCS-X login;” type the user name. The default password is
“csi1234”. After typing the password press the enter key and the main menu will be displayed as
shown next.

- 31 -

Telnet and serial sessions both provide access to the same Text Menu Interface. We
have already shown many of the options available and all are self explanatory, so they
will not be repeated.

Modem Interface (Remote Access with login)

A modem can also be used to gain remote access to the unit provided the repeater has been
properly equipped. A selection of modems is available as an option. If the modem requires a SIM
card for activation, special requirements must be met for the SIM card to become fully functional,
contact the service provider. In addition, an IP address must be obtained and entered into the CSI­DSP85-P .

Once the modem has been installed and activated, it can be accessed from any terminal emulation
program just as in the serial and Telnet examples provided earlier. Access response time will
depend on many factors, some of which are:

• Quality of the connection (RF signal in the case of wireless modems)

• Technology (CDMA, EDGE, GPRS, etc.)

• Network congestion (Throughput)

When a connection has been established, the same login screen shown in both the serial and
Telnet examples is presented.

- 32 -

Additional Tips

Instructions to change TCP/IP settings on your Windows computer.

Click in the Network Connections Icon in the Control Panel. See below.

Right click on Local Area Connection - and select “Properties”.

Scroll down to “Internet Protocol (TCP/IP) and click on the “Properties” button.

- 33-

If you are set up to use DHCP, the window shown below will be displayed.

Select “Use the following IP address:” and enter “192.168.1.2.” The subnet mask
should automatically populate to “255.255.255.0”.

Nothing else will need to be chosen or entered. Click “OK”, then “OK again and
retry connection.

A crossover Ethernet cable (supplied) must be used for Web Interface access. As
a reminder, you must verify the Ethernet port on your laptop is powered. If your
laptop is on battery power, the Ethernet port may be inactive by default. If this is
the case simply plug in the laptop to a 110vac source or change the power settings
to enable the Ethernet port when the laptop is using battery power.

- 34 -

Suggested spectrum analyzer setting:

When troubleshooting RF issues, and when surveying challenging RF environ­ments, it’s important to have a spectrum analyzer capable of measuring the
frequency that you are working with.

input, when connected to a source of RF power such as the repeater or a
powered DAS.

Both Uplink and Downlink should be measured. Downlink should be measured
on the donor cable and at the output (server) port of the powered up repeater,
and Uplink at the lead from the DAS (on fiber/powered DAS’s, where the lead
would connect to the server port on the repeater) and at the donor port with the
repeater powered up. Measurements may also be necessary at server
antenna locations. Your spectrum analyzer will need to be equipped with a
whip antenna for this.

Resolution Bandwidth (RBW) should be set at 200 kHz for GSM and 1 MHz for
CDMA. If you cannot select these values, the closest available values should
be used. Video filter should be about one tenth of RBW. Other settings like
span are whatever is appropriate. One should also make sure that there are
no signals above the top of the screen.

If you cannot see an adjacent out of band signal when using the 1 MHz RBW
filter, you can decrease the RBW, to see the close-in-frequency signals. Be
sure to set the RBW back when you want to measure the power level.

An attenuator should be used to protect the

RF Notes:

To prevent overload of the DSP input stages, the maximum measured level of
in-band or out of band signals should be less than -50 dBm when the DSP gain
is set to 85 dB, -40 dBm when set to 75 dB, etc. This applies when there is
one dominant signal and applies TO BOTH THE DOWNLINK AND UPLINK. If
there are two dominant signals, and the gain is set to 85 dB, then the level of
each signal should be kept to less than -53 dBm. With three signals, each
should be less than -55 dBm. With ten signals each should be less than -60
dBm. This latter reduction prevents the composite power of the multiple
signals from exceeding an acceptable level. Add fixed attenuators in line with
the donor antenna line/DAS feed to keep signals below the levels indicated

above.

- 35 -

One Y ear Limited W arranty

Seller warrants that its products are transferred rightfully and with good title;
that its products are free from any lawful security interest or other lien or
encumbrance unknown to Buyer; and that for a period of one year from the
date of installation or fifteen months from the date of original shipment, which­ever period expires first, such products will be free from defects in material and
workmanship which arise under proper and normal use and service. Buyer’s
exclusive remedy hereunder is limited to Seller’s correction (either at its plant
or at such other place as may be agreed upon between Seller and Buyer) of
such defects by repair or replacement at no cost to Buyer. Transportation costs
in connection with the return of products to Seller’s plant or designated facility
shall be paid by Buyer. The provisions of this warranty shall be applicable with
respect to any product which Seller replaces pursuant to it. SELLER MAKES
NO WARRANTY, EXPRESS OR IMPLIED, OTHER THAN AS SPECIFICALLY
STATED ABOVE. EXPRESSLY EXCLUDED ARE THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR PURPOSE. THE FOREGOING
SHALL CONSTITUTE ALL OF SELLER’S LIABILITY (EXCEPT AS TO PATENT
INFRINGEMENT) WITH RESPECT TO THE PRODUCTS. IN NO EVENT
SHALL SELLER BE LIABLE FOR SPECIAL, CONSEQUENTIAL OR INCIDEN­TAL DAMAGES, INSTALLATION COSTS, LOST REVENUE OR PROFITS, OR
ANY OTHER COSTS OF ANY NATURE AS A RESULT OF THE USE OF
PRODUCTS MANUFACTURED BY THE SELLER, WHETHER USED IN
ACCORDANCE WITH INSTRUCTIONS OR NOT. UNDER NO CIRCUM­STANCES SHALL SELLER’S LIABILITY TO BUYER EXCEED THE ACTUAL
SALES PRICE OF THE PRODUCTS PROVIDED HEREUNDER. No represen­tative is authorized to assume for Seller any other liability in connection with
the products.

Industry Certifications/Registration Numbers:
FCC: NVRCSI-DSP85-C/P IC: 4307A-DSP85-C/P

- 36 -

Index

A

AC Current 16
AC Power Frequency 16
AC Power Specifications 16
AC Voltage 16
Additional Tips 33
AGC 5
AGC: 9
Alarm 9
APC 5
Application 4
Approximate Signal Strengths 9
AUI 5

B

Bargraph Display 9
Box Thermal Management 16
Box W eight 16

C

CDMA RHO 17
Circuit Operational Description

14, 19, 20, 21, 22, 23, 24
Color 16
Connectors 17
CPU 5
CSI 5

D

D/L SIGNALSTRENGTH: 9
DAS 5
Depth 16
DHCP 5
DL PWR 9
Document Purpose 4
DSP 5

E

EEPROM 5
ERP 5
Ethernet 10
Event Log 23
Explosive Atmospheres 4

F

FPGA 5
Functional Block Diagram 15
Functional Overview 8

G

Grounding 4

H

Height 16

I

ILLUMINA TED BARS 9
Important Installation Notes 14
Important Safety Information 5
Inadequate isolation 14
Industry Certifications/Registration

Numbers 36
Input VSWR 17
Install Software 23
Intended Users 4
IP address 34

L

LED 5
LED Indicators 8
Lightning Danger 4
Linear Gain 17
Liner Output Power 17
Local Area Connection 33
Local Communication Interface Ports

10
Local Network 20

M

Manual Gain Control 17
Maximum RF input 17
Mechanical Drawing 18
Mechanical Specifications 16
Modem Interface 32
Monitoring & Alarms 10

N

No User Serviceable Parts Inside 4
Noise Figure 17

O

OIP3 17
Operating Power Parameters 17
Optional Accessories 14
OSC 9

P

Pass Band Ripple 17
Power supply cable connectors 13
Product Introduction 5
Product Registration Information 4
Program a Filter 21

- 37 -

Propagation Delay 17

R

Reboot 24
Remote Network 22
RF Configuration 21
RF Notes 35
RMS V ector Error 17

S

Safety Guidelines 4
SBC 5
SHUT DWN 9
SNMP 5
SNMP Configuration 22
Spurious Emissions 17
Suggested spectrum analyzer setting

35
Surface Coating 16
System Health 23
System Set-Up Considerations 11
System Status 20
system status page 19

T

TCP/IP settings 33
Telnet Session 30
TeraT erm 26
Terms used in this manual 5
Text Menu Interface 26
TMI 5

U

UHCI 5
UL PWR 9
USB 5
USB Interface 10

W

W all Mounting 13
W arranty 36
W eb based GUI Session 19
Width 16

Notes

- 38 -

Notes

- 39 -

960-1041-002 revD ECO 2151
