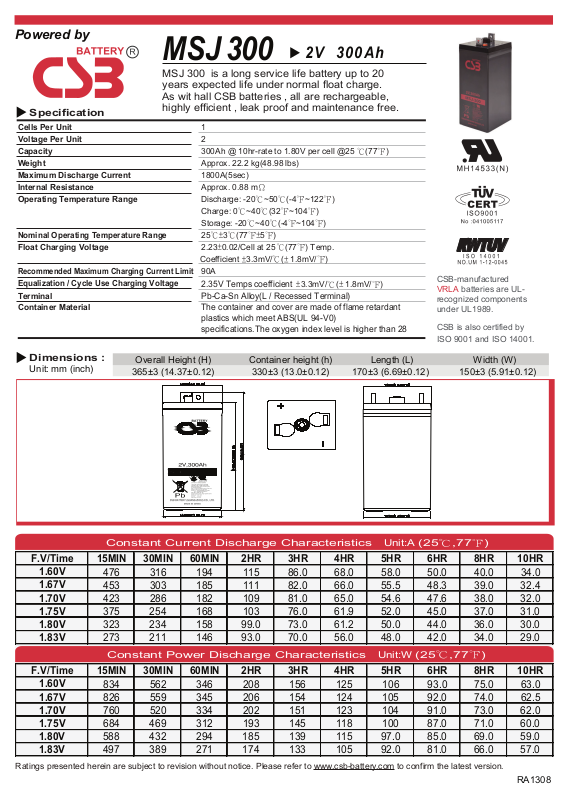

CSB Battery MSJ300 User Manual

Powered by

MSJ 300

MSJ 300

is a long service life battery up to 20

2V 300Ah

years expected life under normal float charge.
As wit hall CSB batteries , all are rechargeable,

Specification

Cells Per Unit 1
Voltage Per Unit 2
Capacity 300Ah @ 10hr-rate to 1.80V per cell @25
Weight Approx. 22.2 kg(48.98 lbs)
Maximum Discharge Current 1800A(5sec)
Internal Resistance Approx. 0.88 m
Operating Temperature Range Discharge: -20 ~50 (-4 ~122 )

Nominal Operating Temperature Range
Float Charging Voltage

Recommended Maximum Charging Current Limit
Equalization / Cycle Use Charging Voltage

Terminal
Container Material

highly efficient , leak proof and maintenance free.

Charge: 0
Storage: -20
25 3 (77 5 )

2.23 0.02/Cell at 25 (77 ) Temp.

Coefficient 3.3mV/

90A

2.35V Temps coefficient
Pb-Ca-Sn Alloy(L / Recessed Terminal)
The container and cover are made of flame retardant

plastics which meet ABS(UL 94-V0)
specifications.The oxygen index level is higher than 28

~40 (32 ~104 )

~40 (-4 ~104 )

( 1.8mV/ )

3.3mV/ ( 1.8mV/ )

(77 )

CSB-manufactured

VRLA batteries are UL-

recognized components
under UL1989.

CSB is also certified by
ISO 9001 and ISO 14001.

Dimensions :

Unit: mm (inch)

Overall Height (H) Container height (h) Length (L)

The system of manufacturer was certified
by URS according to ISO 9001,ISO 14001.

(http://www.csb-battery.com)

Constant Current Discharge Characteristics

Unit:A

(25

,77

Width (W)

)21.0±19.5( 3±051)21.0±0.31( 3±033)21.0±73.41( 3±563 170±3 (6.69±0.12)

)

F.V/Time 15MIN 30MIN 60MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.83V

476 316 194 115 86.0 68.0 58.0 50.0 40.0 34.0
453 303 185 111 82.0 66.0 55.5 48.3 39.0 32.4
423 286 182 109 81.0 65.0 54.6 47.6 38.0 32.0
375 254 168 103 76.0 61.9 52.0 45.0 37.0 31.0
323 234 158 99.0 73.0 61.2 50.0 44.0 36.0 30.0
273 211 146 93.0 70.0 56.0 48.0 42.0 34.0 29.0

Constant Power Discharge Characteristics

Unit:W

(25

,77

)

F.V/Time 15MIN 30MIN 60MIN 2HR 3HR 4HR 5HR 6HR 8HR 10HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.83V

Ratings presented herein are subject to revision without notice. Please refer to www.csb-battery.com to confirm the latest version.

834 562 346 208 156 125 106 93.0 75.0 63.0
826 559 345 206 154 124 105 92.0 74.0 62.5
760 520 334 202 151 123 104 91.0 73.0 62.0
684 469 312 193 145 118 100 87.0 71.0 60.0
588 432 294 185 139 115 97.0 85.0 69.0 59.0
497 389 271 174 133 105 92.0 81.0 66.0 57.0

RA1308

MSJ 300

2V 300Ah

t

i

Gas recombination efficiency
