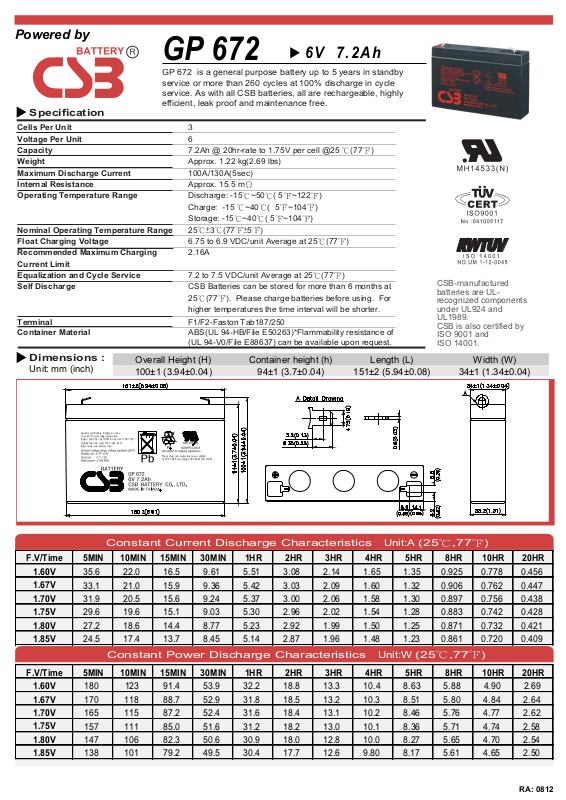

GP 672

GP 672 is a general purpose battery up to 5 years in standby
service or more than 260 cycles at 100% discharge in cycle
service. As with all CSB batteries, all are rechargeable, highly
efficient, leak proof and maintenance free.

6V 7.2Ah

Specification

Cells Per Unit 3
Voltage Per Unit 6
Capacity 7.2Ah @ 20hr-rate to 1.75V per cell @25
Weight Approx. 1.22 kg(2.69 lbs)
Maximum Discharge Current 100A/130A(5sec)
Internal Resistance Approx. 15.5 m
Operating Temperature Range

Nominal Operating Temperature Range 25
Float Charging Voltage 6.75 to 6.9 VDC/unit Average at 25
Recommended Maximum Charging 2.16A
Current Limit
Equalization and Cycle Service 7.2 to 7.5 VDC/unit Average at 25
Self Discharge CSB Batteries can be stored for more than 6 months at

Terminal F1/F2-Faston Tab187/250
Container Material ABS(UL 94-HB/File E50263)*Flammability resistance of

Dimensions :

Unit: mm (inch)

Overall Height (H) Container height (h) Length (L)

100±1 (3.94±0.04) 94±1 (3.7±0.04) 151±2 (5.94±0.08) 34±1 (1.34±0.04)

Discharge: -15 ~50 ( 5 ~122 )
Charge: -15
Storage: -15

3 (77 5 )

(77 ). Please charge batteries before using. For

25
higher temperatures the time interval will be shorter.

(UL 94-V0/File E88637) can be available upon request.

~40 ( 5 ~104 )

~40 ( 5 ~104 )

(77 )

(77 )

(77 )

CSB-manufactured
batteries are UL­recognized components
under UL924 and
UL1989.
CSB is also certified by
ISO 9001 and
ISO 14001.

Width (W)

TfbmfeMfbe Cbuufsz/Cbuufszn vtucf
sfdzdmfe/Gpssfdzdmjoh jogpsn bujpo
Jotjef uifVTB dbmm )911*Sf.Vtf.Qc )849.8483*
Pvutjef uif VTB dbmm2 )928*355.5526
)iuuq;00xxx/dtc.cbuufsz/dpn *

Uiftztufn pgn bovgbduvsfsx bt dfsujgjfe
cz UVW DFS U bddpsejoh upJTP :112-JTP 25112/

Constant Current Discharge Characteristics

Unit:A

(25

,77

)

F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.85V

35.6 22.0 16.5 9.61 5.51 3.08 2.14 1.65 1.35 0.925 0.778 0.456

33.1 21.0 15.9 9.36 5.42 3.03 2.09 1.60 1.32 0.906 0.762 0.447

31.9 20.5 15.6 9.24 5.37 3.00 2.06 1.58 1.30 0.897 0.756 0.438

29.6 19.6 15.1 9.03 5.30 2.96 2.02 1.54 1.28 0.883 0.742 0.428

27.2 18.6 14.4 8.77 5.23 2.92 1.99 1.50 1.25 0.871 0.732 0.421

24.5 17.4 13.7 8.45 5.14 2.87 1.96 1.48 1.23 0.861 0.720 0.409

Constant Power Discharge Characteristics

Unit:W

(25

,77

)

F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.85V

180 123 91.4 53.9 32.2 18.8 13.3 10.4 8.63 5.88 4.90 2.69
170 118 88.7 52.9 31.8 18.5 13.2 10.3 8.51 5.80 4.84 2.64
165 115 87.2 52.4 31.6 18.4 13.1 10.2 8.46 5.76 4.77 2.62
157 111 85.0 51.6 31.2 18.2 13.0 10.1 8.36 5.71 4.74 2.58
147 106 82.3 50.6 30.9 18.0 12.8 10.0 8.27 5.65 4.70 2.54
138 101 79.2 49.5 30.4 17.7 12.6 9.80 8.17 5.61 4.65 2.50

RA: 0812

GP672

140

0.20

120

0.17

100

0.14

80

0.11

60

0.08

40

0.05

20

0.02

2.60

2.40

2.20

2.00

1.80

1.60

1.40

(2.275V/Cell)

6V 7.2Ah

)Ratio

13.65V

140

120

100

80

60

40

20

A pp li cat i o n

C y cl e U se

Sta n db y

4 0 8 1 2 1 6 2 0 24

0.20

2.60

2.40

0.17

2.20

0.14

2.00

0.11

1.80

0.08

1.60

0.05

1.40

0.02

4 0 8 1 2 1 6 2 0 24

Cha r g e Volta g e ( V /Cel l )

T e m p e r atu r e Se t P o i n t A llo w a b l e R an g e

( 7 7 )

2 5

2 5

( 7 7 )

2.4 5 2.40 ~ 2 . 5 0

2.2 7 5 2 .25 ~ 2 . 3 0

)Ratio

M a x .Cha r g e Cu rr e n t

0.3 C

F i na l Di scha r g e

Vo l t a g e V / C e l l

Di scha r g e

C u rr en t ( A )

68

1.7 5 1.7 0 1.6 0 1.3 0

0 . 2 C>( A ) 0 . 2 C<( A )< 0 . 5 C 0 . 5 C<( A )< 1 . 0 C ( A )> 1 . 0 C
