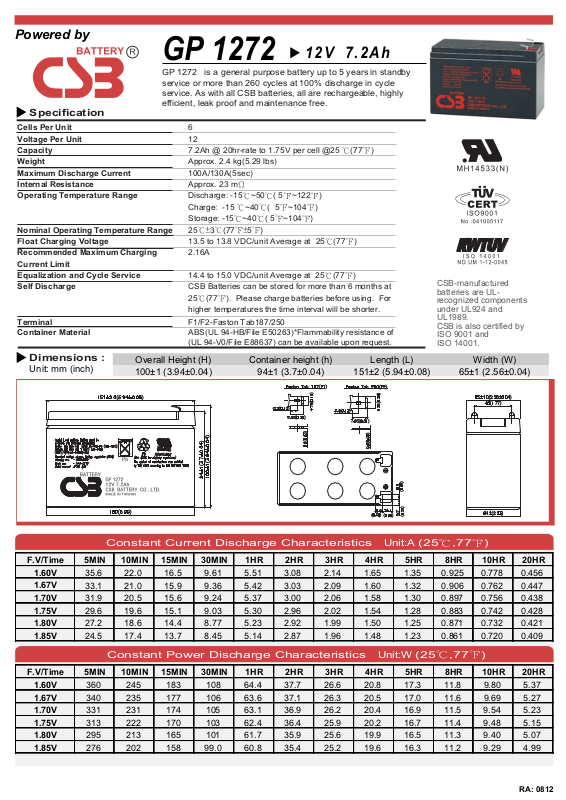

Page 1
Powered by
GP 1272
GP 1272 is a general purpose battery up to 5 years in standby
service or more than 260 cycles at 100% discharge in cycle
service. As with all CSB batteries, all are rechargeable, highly
efficient, leak proof and maintenance free.
12V 7.2Ah
Specification
Cells Per Unit 6
Voltage Per Unit 12
Capacity 7.2Ah @ 20hr-rate to 1.75V per cell @25
Weight Approx. 2.4 kg(5.29 lbs)
Maximum Discharge Current 100A/130A(5sec)
Internal Resistance Approx. 23 m
Operating Temperature Range
Nominal Operating Temperature Range 25
Float Charging Voltage
Recommended Maximum Charging 2.16A
Current Limit
Equalization and Cycle Service
Self Discharge CSB Batteries can be stored for more than 6 months at
Terminal F1/F2-Faston Tab187/250
Container Material ABS(UL 94-HB/File E50263)*Flammability resistance of
Dimensions :
Unit: mm (inch)
Overall Height (H) Container height (h) Length (L)
100±1 (3.94±0.04) 94±1 (3.7±0.04) 151±2 (5.94±0.08) 65±1 (2.56±0.04)
Discharge: -15 ~50 ( 5 ~122 )
Charge: -15
Storage: -15
3 (77 5 )
13.5 to 13.8 VDC/unit Average at 25 (77 )
14.4 to 15.0 VDC/unit Average at 25
(77 ). Please charge batteries before using. For
25
higher temperatures the time interval will be shorter.
(UL 94-V0/File E88637) can be available upon request.
~40 ( 5 ~104 )
~40 ( 5 ~104 )
(77 )
(77 )
CSB-manufactured
batteries are ULrecognized components
under UL924 and
UL1989.
CSB is also certified by
ISO 9001 and
ISO 14001.
Width (W)
Constant Current Discharge Characteristics
F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
35.6 22.0 16.5 9.61 5.51 3.08 2.14 1.65 1.35 0.925 0.778 0.456
33.1 21.0 15.9 9.36 5.42 3.03 2.09 1.60 1.32 0.906 0.762 0.447
31.9 20.5 15.6 9.24 5.37 3.00 2.06 1.58 1.30 0.897 0.756 0.438
29.6 19.6 15.1 9.03 5.30 2.96 2.02 1.54 1.28 0.883 0.742 0.428
27.2 18.6 14.4 8.77 5.23 2.92 1.99 1.50 1.25 0.871 0.732 0.421
24.5 17.4 13.7 8.45 5.14 2.87 1.96 1.48 1.23 0.861 0.720 0.409
Constant Power Discharge Characteristics
F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V
1.67V
1.70V
1.75V
1.80V
1.85V
360 245 183 108 64.4 37.7 26.6 20.8 17.3 11.8 9.80 5.37
340 235 177 106 63.6 37.1 26.3 20.5 17.0 11.6 9.69 5.27
331 231 174 105 63.1 36.9 26.2 20.4 16.9 11.5 9.54 5.23
313 222 170 103 62.4 36.4 25.9 20.2 16.7 11.4 9.48 5.15
295 213 165 101 61.7 35.9 25.6 19.9 16.5 11.3 9.40 5.07
276 202 158 99.0 60.8 35.4 25.2 19.6 16.3 11.2 9.29 4.99
Unit:A
Unit:W
(25
(25
,77
,77
)
)
RA: 0812
Page 2
GP1272
140
0.20
2.60
120
0.17
2.40
100
0.14
2.20
80
0.11
2.00
60
0.08
1.80
40
0.05
1.60
20
0.02
1.40
(2.275V/Cell)
12V 7.2Ah
)Ratio
13.65V
140
120
100
80
60
40
20
Application
Cycle Use
Standby
40 8 12 16 20 24
0.20
2.60
2.40
0.17
2.20
0.14
2.00
0.11
1.80
0.08
1.60
0.05
1.40
0.02
40 8 12 16 20 24
Charge Voltage(V/Cell)
Temperature Set Point Allowable Range
(77 )
25
25
(77 )
2.45 2.40~2.50
2.275 2.25~2.30
)Ratio
Max.Charge Current
0.3C
Final Discharge
Voltage V/Cell
Discharge
Current(A)
68
1.75 1.70 1.60 1.30
0.2C>(A) 0.2C<(A)<0.5C 0.5C<(A)<1.0C (A)>1.0C
