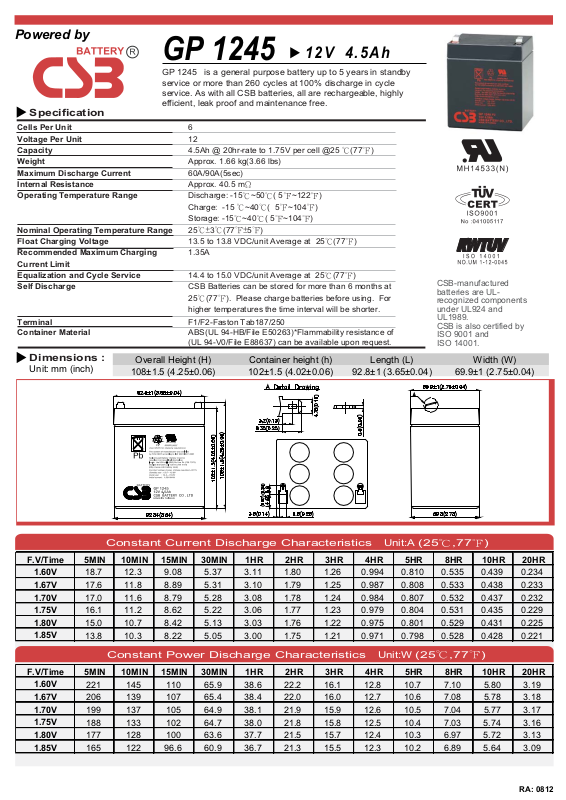

GP 1245

GP 1245 is a general purpose battery up to 5 years in standby
service or more than 260 cycles at 100% discharge in cycle
service. As with all CSB batteries, all are rechargeable, highly
efficient, leak proof and maintenance free.

12V 4.5Ah

Specification

Cells Per Unit 6
Voltage Per Unit 12
Capacity 4.5Ah @ 20hr-rate to 1.75V per cell @25
Weight Approx. 1.66 kg(3.66 lbs)
Maximum Discharge Current 60A/90A(5sec)
Internal Resistance Approx. 40.5 m
Operating Temperature Range

Nominal Operating Temperature Range 25
Float Charging Voltage
Recommended Maximum Charging 1.35A
Current Limit
Equalization and Cycle Service
Self Discharge CSB Batteries can be stored for more than 6 months at

Terminal F1/F2-Faston Tab187/250
Container Material ABS(UL 94-HB/File E50263)*Flammability resistance of

Dimensions :

Unit: mm (inch)

Overall Height (H) Container height (h) Length (L)

108±1.5 (4.25±0.06) 102±1.5 (4.02±0.06) 92.8±1 (3.65±0.04) 69.9±1 (2.75±0.04)

Discharge: -15 ~50 ( 5 ~122 )
Charge: -15
Storage: -15

3 (77 5 )

13.5 to 13.8 VDC/unit Average at 25 (77 )

14.4 to 15.0 VDC/unit Average at 25

(77 ). Please charge batteries before using. For

25
higher temperatures the time interval will be shorter.

(UL 94-V0/File E88637) can be available upon request.

~40 ( 5 ~104 )

~40 ( 5 ~104 )

(77 )

(77 )

CSB-manufactured
batteries are UL­recognized components
under UL924 and
UL1989.
CSB is also certified by
ISO 9001 and
ISO 14001.

Width (W)

Constant Current Discharge Characteristics

F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.85V

18.7 12.3 9.08 5.37 3.11 1.80 1.26 0.994 0.810 0.535 0.439 0.234

17.6 11.8 8.89 5.31 3.10 1.79 1.25 0.987 0.808 0.533 0.438 0.233

17.0 11.6 8.79 5.28 3.08 1.78 1.24 0.984 0.807 0.532 0.437 0.232

16.1 11.2 8.62 5.22 3.06 1.77 1.23 0.979 0.804 0.531 0.435 0.229

15.0 10.7 8.42 5.13 3.03 1.76 1.22 0.975 0.801 0.529 0.431 0.225

13.8 10.3 8.22 5.05 3.00 1.75 1.21 0.971 0.798 0.528 0.428 0.22

Constant Power Discharge Characteristics

F.V/Time 5MIN 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR

1.60V

1.67V

1.70V

1.75V

1.80V

1.85V

221 145 110 65.9 38.6 22.2 16.1 12.8 10.7 7.10 5.80 3.19
206 139 107 65.4 38.4 22.0 16.0 12.7 10.6 7.08 5.78 3.18
199 137 105 64.9 38.1 21.9 15.9 12.6 10.5 7.04 5.77 3.17
188 133 102 64.7 38.0 21.8 15.8 12.5 10.4 7.03 5.74 3.16
177 128 100 63.6 37.7 21.5 15.7 12.4 10.3 6.97 5.72 3.13
165 122 96.6 60.9 36.7 21.3 15.5 12.3 10.2 6.89 5.64 3.09

Unit:A

Unit:W

(25

(25

,77

,77

)

)

RA: 0812

1

GP1245

140

0.20

2.60

120

0.17

2.40

100

0.14

2.20

80

0.11

2.00

60

0.08

1.80

40

0.05

1.60

20

0.02

1.40

(2.275V/Cell)

12V 4.5Ah

)Ratio

13.65V

140

120

100

80

60

40

20

Application

Cycle Use

Standby

40 8 12 16 20 24

0.20

2.60

2.40

0.17

2.20

0.14

2.00

0.11

1.80

0.08

1.60

0.05

1.40

0.02

40 8 12 16 20 24

Charge Voltage(V/Cell)

Temperature Set Point Allowable Range

(77 )

25

25

(77 )

2.45 2.40~2.50

2.275 2.25~2.30

)Ratio

Max.Charge Current

0.3C

Final Discharge

Voltage V/Cell

Discharge

Current(A)

68

1.75 1.70 1.60 1.30

0.2C>(A) 0.2C<(A)<0.5C 0.5C<(A)<1.0C (A)>1.0C
