Maintenance-Free Sealed Lead Acid Battery with Hybrid Gel technology.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications at Extreme Temperatures
【Design Life】 【 Float Charging Voltage】
Up to 12 Years in Standby Service at 25℃
13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)
Eurobat (20℃) : 10/12 YEARS LONG LIFE 【Equalization Charging Voltage 】
【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
【 Self Discharge】
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Design according with IEC 61056-1/2:2012
Nominal Capacity
305A
2.16A
-ABS Flame Retardant (94-V0)
Length (L) 150.9±2.0 mm 5.94±0.08 inch
Width (W) 64.8±1.0 mm 2.55±0.04 inch
Container Height (h) 94.3±1.0 mm 3.71±0.04 inch
Overall Height (H) 98.6±1.0 mm 3.88±0.04 inch
F.V/Time 5 MIN 10MIN 15MIN 30MIN 60MIN 90MIN 2HR 3HR 5HR 8HR 10HR 20HR
1.60V 27.7 17.7 13.4 7.94 4.60 3.35 2.67 1.93 1.25 0.88 0.72 0.40
1.67V 26.8 17.4 13.3 7.87 4.47 3.28 2.63 1.89 1.24 0.87 0.71 0.39
1.70V 25.8 17.1 13.2 7.81 4.41 3.24 2.61 1.89 1.23 0.86 0.70 0.38
1.75V 24.6 16.4 12.9 7.74 4.31 3.21 2.60 1.88 1.22 0.84 0.69 0.37
1.80V 21.8 15.4 12.3 7.52 4.22 3.16 2.57 1.86 1.21 0.82 0.68 0.36
1.85V 18.3 13.9 11.2 7.10 4.10 3.06 2.48 1.79 1.19 0.80 0.66 0.35
F.V/Time 5 MIN 10MIN 15MIN 30MIN 60MIN 90MIN 2HR 3HR 5HR 8HR 10HR 20HR
1.60V 299 193 149 89.8 54.8 40.0 32.1 23.1 15.2 10.3 8.64 4.68
1.67V 290 190 148 89.3 54.7 39.9 31.9 23.0 15.1 10.2 8.62 4.62
1.70V 282 188 147 88.8 54.5 39.8 31.8 22.9 15.0 10.1 8.59 4.60
1.75V 264 182 145 88.1 53.8 39.5 31.7 22.8 14.9 10.0 8.55 4.55
1.80V 239 173 138 86.3 53.2 39.1 31.4 22.7 14.8 9.92 8.50 4.50
1.85V 206 160 128 82.3 51.8 37.8 30.2 21.9 14.7 9.84 8.26 4.44
Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com
Issued: 200929
Tel: +31(0)180-418-140 Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-10-6597-8065/8165/8265
Fax: +86-10-6597-8565
Fax: +86-755-8831-6548
Fax: +86-21-5046-1046
Recognized under UL 1989,
and certified by ISO 9001, 14001, 45001, 50001.
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
BEIJING OFFICE (CHINA)
Tel: +86-755-8831-6488/6775/6075
Tel: +86-21-5046-1622/0833/0094
BUSINESS HEADQUARTERS
Tel: +886-2-2880-5600
Fax: +886-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
TAIPEI OFFICE
Dimensions
Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
Sales Offices
Short Circuit Current
Maximum Charge Current
Terminal types
F2 terminal -Faston Tab 250
Terminal tightening torque
Container Material
Weight
Approx. 2.57 Kg (5.66 lbs)
Maximum Discharge Current
130A (5sec)
Internal Resistance
Approx. 20.40 mΩ
Discharge : -20℃ ~ 50℃ (-4℉~122℉)
Charge: -20℃ ~ 50℃ (-4℉~122℉)
Specification
Nominal Voltage
12V (6 cells per unit)
7.2Ah @20hr-rate to 1.75V per cell @25℃ (77℉)
XTV series

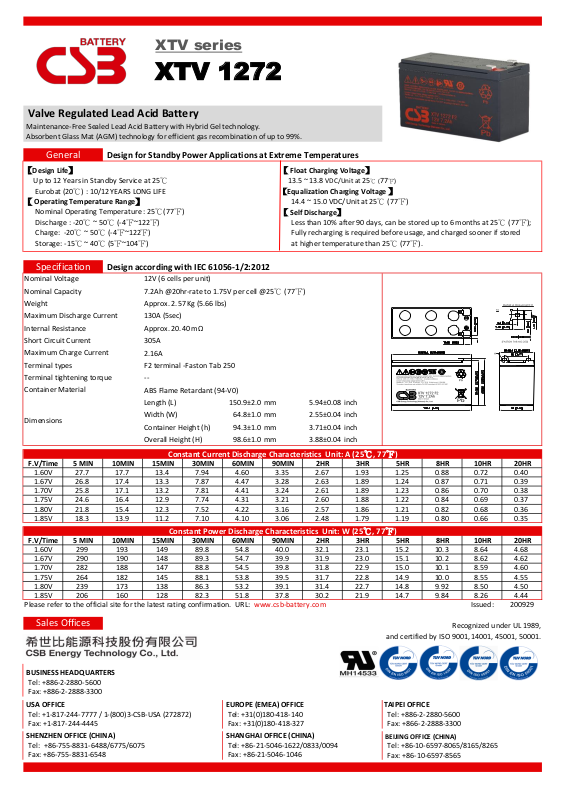

XTV 1272
Valve Regulated Lead Acid Battery
General
Nominal Operating Temperature : 25℃(77℉)
