F.V/Time
5 MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
80.2
50.9
38.5
23.4
13.8
10.1
8.03
5.72
3.63
2.37
1.93
1.00
1.67V
71.2
47.5
36.5
22.9
13.7
10.0
7.99
5.69
3.61
2.35
1.90
0.95
1.70V
67.4
45.8
35.6
22.7
13.6
9.99
7.97
5.67
3.60
2.34
1.89
0.94
1.75V
61.0
43.1
34.1
22.3
13.4
9.86
7.92
5.64
3.59
2.32
1.86
0.91
1.80V
54.5
40.2
32.7
21.8
13.3
9.79
7.87
5.61
3.58
2.30
1.83
0.88
1.85V
48.0
37.3
31.0
21.2
13.1
9.68
7.80
5.56
3.56
2.27
1.80
0.85
F.V/Time
5MIN
10MIN
15MIN
30MIN
60MIN
90MIN
2HR
3HR
5HR
8HR
10HR
20HR
1.60V
890
583
449
281
166
121
96.4
68.6
43.6
28.4
23.1
12.0
1.67V
790
544
423
275
164
120
96.0
68.5
43.4
28.3
22.8
11.5
1.70V
748
527
413
272
163
119
95.8
68.4
43.3
28.2
22.7
11.3
1.75V
677
493
395
267
161
119
95.3
67.9
43.2
27.9
22.4
10.9
1.80V
605
460
377
261
160
118
94.6
67.3
43.0
27.6
22.0
10.5
1.85V
533
427
361
254
158
116
93.8
66.8
42.9
27.3
21.7
10.1
Please refer to the official site for the lstest rating confirmation. URL:
www.csb-battery.com
Issued:
180205
Tel: +31(0)180-418-140
Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-10-5820-5336, 5820-5338
Fax: +86-10-5820-3053

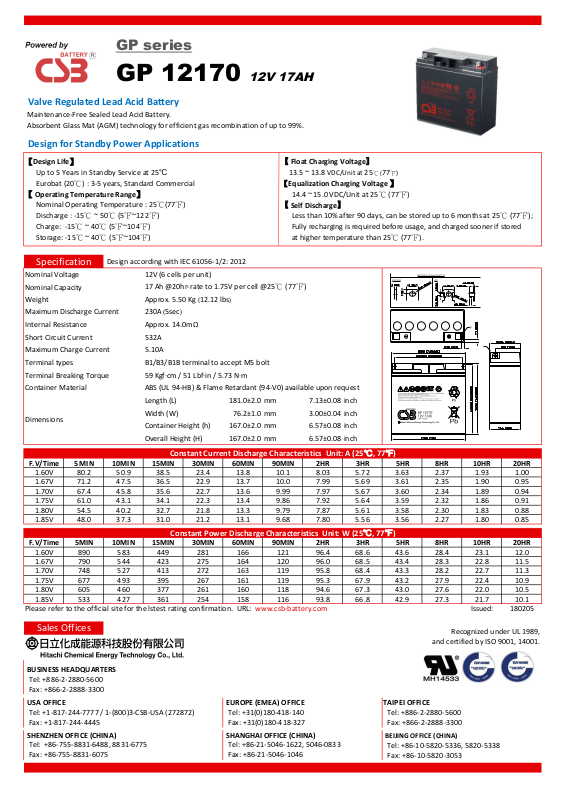

GP series
GP 12170
12V 17AH
Specification
TAIPEI OFFICE
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
Constant Current Discharge Characteristics Unit: A (25
℃
, 77℉)
Tel: +86-21-5046-1622, 5046-0833
Tel: +886-2-2880-5600
Fax: +866-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
Fax: +86-755-8831-6075
Fax: +86-21-5046-1046
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
Constant Power Discharge Characteristics Unit: W (25
℃
, 77℉)
Sales Offices
Tel: +86-755-8831-6488, 8831-6775
Valve Regulated Lead Acid Battery
Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications
【Design Life】
Up to 5 Years in Standby Service at 25
Eurobat (20℃) : 3-5 years, Standard Commercial 【Equalization Charging Voltage 】
【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
Nominal Operating Temperature : 25℃(77℉)
Discharge : -15℃ ~ 50℃ (5℉~122℉)
Charge: -15℃ ~ 40℃ (5℉~104℉)
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Design according with IEC 61056-1/2: 2012
Nominal Voltage 12V (6 cells per unit)
Nominal Capacity
Weight Approx. 5.50 Kg (12.12 lbs)
Maximum Discharge Current 230A (5sec)
Internal Resistance Approx. 14.0mΩ
Short Circuit Current 532A
Maximum Charge Current 5.10A
Terminal types B1/B3/B1B terminal to accept M5 bolt
Terminal Breaking Torque 59 Kgf·cm / 51 Lbf·in / 5.73 N·m
Container Material ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Dimensions
17 Ah @20hr-rate to 1.75V per cell @25℃ (77℉)
Length (L) 181.0±2.0 mm 7.13±0.08 inch
Width (W) 76.2±1.0 mm 3.00±0.04 inch
Container Height (h) 167.0±2.0 mm 6.57±0.08 inch
Overall Height (H) 167.0±2.0 mm 6.57±0.08 inch
【 Float Charging Voltage
13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)
【 Self Discharge
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
BUSINESS HEADQUARTERS
Recognized under UL 1989,
and certified by ISO 9001, 14001.
BEIJING OFFICE (CHINA)
