F.V/Time
2MIN
4MIN
5MIN
6MIN
8MIN
10MIN
15MIN
20MIN
30MIN
45MIN
60MIN
90MIN
1.60V
60.4
47.4
41.7
37.6
30.9
26.6
18.7
14.4
10.3
7.39
5.84
4.66
1.67V
56.5
44.4
39.2
35.4
29.3
25.2
18.6
14.3
10.2
7.33
5.80
4.63
1.70V
54.9
43.1
37.9
34.2
28.6
24.6
18.5
14.2
10.1
7.29
5.78
4.62
1.75V
51.9
40.7
35.8
32.3
27.0
23.8
18.3
14.1
10.0
7.23
5.74
4.57
1.80V
48.9
37.9
33.7
30.6
25.8
23.0
18.1
13.9
9.94
7.17
5.69
4.52
1.85V
45.4
35.1
31.4
28.6
24.6
22.0
17.9
13.8
9.84
7.11
5.65
4.47
F.V/Time
2MIN
4MIN
5MIN
6MIN
8MIN
10MIN
15MIN
20MIN
30MIN
45MIN
60MIN
90MIN
1.60V
327
260
231
209
175
150
110
84.0
60.7
43.7
34.6
27.7
1.67V
312
246
218
197
167
143
109
82.6
60.3
43.5
34.5
27.6
1.70V
305
240
212
192
163
140
108
82.0
59.7
43.2
34.4
27.5
1.75V
292
228
202
183
155
135
104
81.0
59.3
43.0
34.2
27.3
1.80V
278
215
191
173
147
129
100
80.0
58.9
42.6
33.9
27.1
1.85V
265
203
181
164
139
123
96.0
79.0
58.1
42.2
33.7
26.9
Please refer to the official site for the latest rating confirmation. URL:
www.csb-battery.com
Issued:
180205
Tel: +31(0)180-418-140
Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-10-5820-5336, 5820-5338
Fax: +86-10-5820-3053
Fax: +86-755-8831-6075
Fax: +86-21-5046-1046
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
Tel: +86-755-8831-6488, 8831-6775
Tel: +86-21-5046-1622, 5046-0833
Tel: +886-2-2880-5600
Fax: +866-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
TAIPEI OFFICE
Constant Current Discharge Characteristics Unit: A (25
℃
, 77℉)
Constant Power Discharge Characteristics Unit: W (25
℃
, 77℉)
Sales Offices

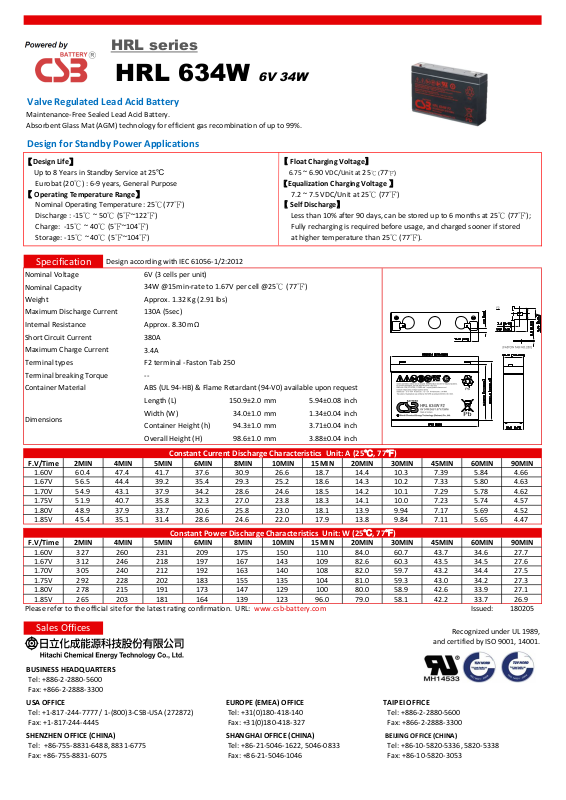

HRL series
HRL 634W
6V 34W
Specification
Valve Regulated Lead Acid Battery
Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications
【Design Life】 【 Float Charging Voltage
Up to 8 Years in Standby Service at 25
Eurobat (20℃) : 6-9 years, General Purpose 【Equalization Charging Voltage 】
【 Operating Temperature Range】 7.2 ~ 7.5 VDC/Unit at 25℃ (77℉)
Nominal Operating Temperature : 25℃(77℉)
Discharge : -15℃ ~ 50℃ (5℉~122℉)
Charge: -15℃ ~ 40℃ (5℉~104℉)
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Design according with IEC 61056-1/2:2012
Nominal Voltage 6V (3 cells per unit)
Nominal Capacity
Weight Approx. 1.32 Kg (2.91 lbs)
Maximum Discharge Current 130A (5sec)
Internal Resistance Approx. 8.30 mΩ
Short Circuit Current
Maximum Charge Current
Terminal types F2 terminal -Faston Tab 250
Terminal breaking Torque --
Container Material
Dimensions
34W @15min-rate to 1.67V per cell @25℃ (77℉)
380A
3.4A
ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Length (L) 150.9±2.0 mm 5.94±0.08 inch
Width (W) 34.0±1.0 mm 1.34±0.04 inch
Container Height (h) 94.3±1.0 mm 3.71±0.04 inch
Overall Height (H) 98.6±1.0 mm 3.88±0.04 inch
6.75 ~ 6.90 VDC/Unit at 25℃ (77℉)
【 Self Discharge
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
BUSINESS HEADQUARTERS
Recognized under UL 1989,
and certified by ISO 9001, 14001.
