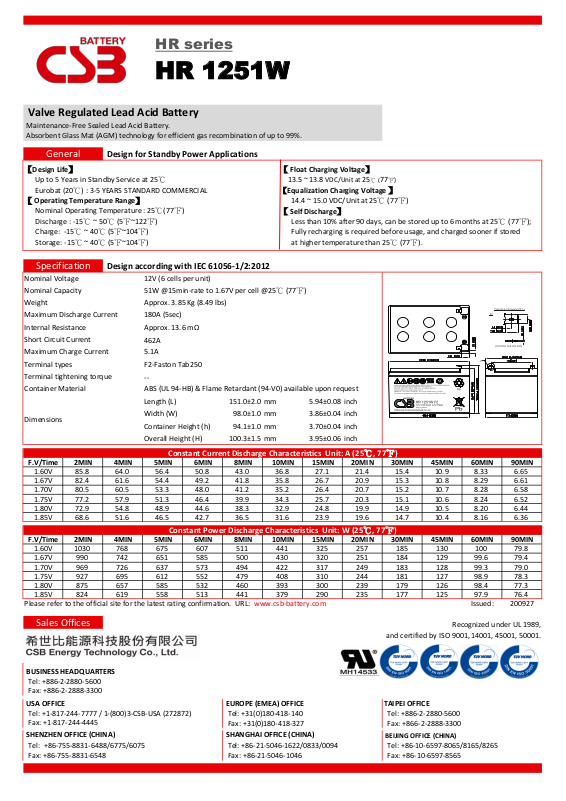

Maintenance-Free Sealed Lead Acid Battery.
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.
Design for Standby Power Applications
【Design Life】 【 Float Charging Voltage】
Up to 5 Years in Standby Service at 25℃
13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)
Eurobat (20℃) : 3-5 YEARS STANDARD COMMERCIAL 【Equalization Charging Voltage 】
【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)
【 Self Discharge】
Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);
Fully recharging is required before usage, and charged sooner if stored
Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).
Design according with IEC 61056-1/2:2012
Nominal Capacity
462A
--
Length (L) 151.0±2.0 mm 5.94±0.08 inch
Width (W) 98.0±1.0 mm 3.86±0.04 inch
Container Height (h) 94.1±1.0 mm 3.70±0.04 inch
Overall Height (H) 100.3±1.5 mm 3.95±0.06 inch
F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN
1.60V 85.8 64.0 56.4 50.8 43.0 36.8 27.1 21.4 15.4 10.9 8.33 6.65
1.67V 82.4 61.6 54.4 49.2 41.8 35.8 26.7 20.9 15.3 10.8 8.29 6.61
1.70V 80.5 60.5 53.3 48.0 41.2 35.2 26.4 20.7 15.2 10.7 8.28 6.58
1.75V 77.2 57.9 51.3 46.4 39.9 34.3 25.7 20.3 15.1 10.6 8.24 6.52
1.80V 72.9 54.8 48.9 44.6 38.3 32.9 24.8 19.9 14.9 10.5 8.20 6.44
1.85V 68.6 51.6 46.5 42.7 36.5 31.6 23.9 19.6 14.7 10.4 8.16 6.36
F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN
1.60V 1030 768 675 607 511 441 325 257 185 130 100 79.8
1.67V 990 742 651 585 500 430 320 251 184 129 99.6 79.4
1.70V 969 726 637 573 494 422 317 249 183 128 99.3 79.0
1.75V 927 695 612 552 479 408 310 244 181 127 98.9 78.3
1.80V 875 657 585 532 460 393 300 239 179 126 98.4 77.3
1.85V 824 619 558 513 441 379 290 235 177 125 97.9 76.4
Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com
Issued: 200927
Tel: +31(0)180-418-140 Tel: +886-2-2880-5600
Fax: +31(0)180-418-327
Fax: +866-2-2888-3300
Tel: +86-10-6597-8065/8165/8265
Fax: +86-10-6597-8565
Fax: +86-755-8831-6548
Fax: +86-21-5046-1046
Fax: +1-817-244-4445
SHENZHEN OFFICE (CHINA)
SHANGHAI OFFICE (CHINA)
BEIJING OFFICE (CHINA)
Tel: +86-755-8831-6488/6775/6075
Tel: +86-21-5046-1622/0833/0094
Tel: +886-2-2880-5600
Fax: +886-2-2888-3300
USA OFFICE
EUROPE (EMEA) OFFICE
TAIPEI OFFICE
Tel: +1-817-244-7777 / 1-(800)3-CSB-USA (272872)
BUSINESS HEADQUARTERS
Container Material
ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request
Dimensions
Constant Power Discharge Characteristics Unit: W (25℃, 77℉)
Sales Offices
Constant Current Discharge Characteristics Unit: A (25℃, 77℉)
Recognized under UL 1989,
and certified by ISO 9001, 14001, 45001, 50001.
Terminal tightening torque
Weight
Approx. 3.85 Kg (8.49 lbs)
Maximum Discharge Current
180A (5sec)
Internal Resistance
Approx. 13.6 mΩ
Short Circuit Current
Maximum Charge Current
5.1A
Terminal types
F2-Faston Tab250
51W @15min-rate to 1.67V per cell @25℃ (77℉)
HR series
HR 1251W
Valve Regulated Lead Acid Battery
General
Nominal Operating Temperature : 25℃(77℉)
Discharge : -15℃ ~ 50℃ (5℉~122℉)
Charge: -15℃ ~ 40℃ (5℉~104℉)
Specification
Nominal Voltage
12V (6 cells per unit)
