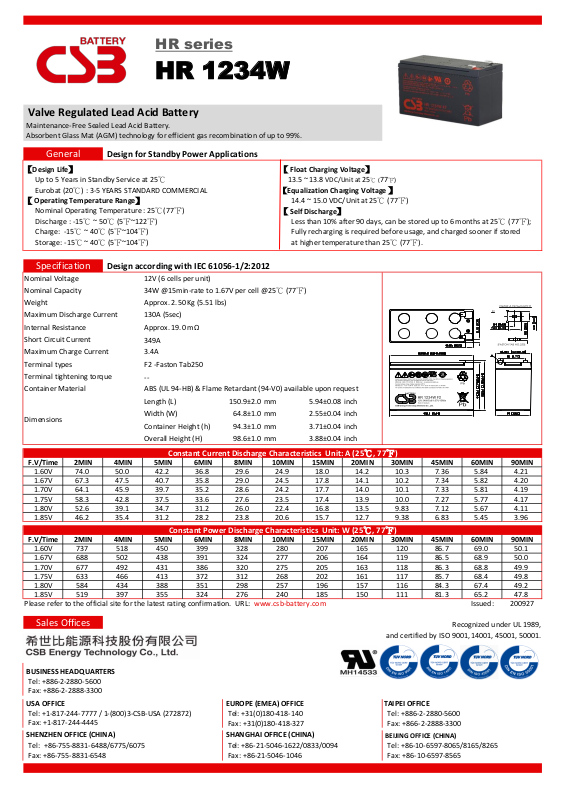

CSB CSB HR1234WF2 Datasheet

Maintenance-Free Sealed Lead Acid Battery.

Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%.

Design for Standby Power Applications

【Design Life】 【 Float Charging Voltage】

Up to 5 Years in Standby Service at 25℃

13.5 ~ 13.8 VDC/Unit at 25℃ (77℉)

Eurobat (20℃) : 3-5 YEARS STANDARD COMMERCIAL 【Equalization Charging Voltage 】

【 Operating Temperature Range】 14.4 ~ 15.0 VDC/Unit at 25℃ (77℉)

【 Self Discharge】

Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉);

Fully recharging is required before usage, and charged sooner if stored

Storage: -15℃ ~ 40℃ (5℉~104℉) at higher temperature than 25℃ (77℉).

Design according with IEC 61056-1/2:2012

Nominal Capacity

349A

--

Length (L) 150.9±2.0 mm 5.94±0.08 inch
Width (W) 64.8±1.0 mm 2.55±0.04 inch
Container Height (h) 94.3±1.0 mm 3.71±0.04 inch
Overall Height (H) 98.6±1.0 mm 3.88±0.04 inch

F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN

1.60V 74.0 50.0 42.2 36.8 29.6 24.9 18.0 14.2 10.3 7.36 5.84 4.21

1.67V 67.3 47.5 40.7 35.8 29.0 24.5 17.8 14.1 10.2 7.34 5.82 4.20

1.70V 64.1 45.9 39.7 35.2 28.6 24.2 17.7 14.0 10.1 7.33 5.81 4.19

1.75V 58.3 42.8 37.5 33.6 27.6 23.5 17.4 13.9 10.0 7.27 5.77 4.17

1.80V 52.6 39.1 34.7 31.2 26.0 22.4 16.8 13.5 9.83 7.12 5.67 4.11

1.85V 46.2 35.4 31.2 28.2 23.8 20.6 15.7 12.7 9.38 6.83 5.45 3.96

F.V/Time 2MIN 4MIN 5MIN 6MIN 8MIN 10MIN 15MIN 20MIN 30MIN 45MIN 60MIN 90MIN

1.60V 737 518 450 399 328 280 207 165 120 86.7 69.0 50.1

1.67V 688 502 438 391 324 277 206 164 119 86.5 68.9 50.0

1.70V 677 492 431 386 320 275 205 163 118 86.3 68.8 49.9

1.75V 633 466 413 372 312 268 202 161 117 85.7 68.4 49.8

1.80V 584 434 388 351 298 257 196 157 116 84.3 67.4 49.2

1.85V 519 397 355 324 276 240 185 150 111 81.3 65.2 47.8

Please refer to the official site for the latest rating confirmation. URL: www.csb-battery.com

Issued: 200927

Tel: [phone] Tel: [phone]

Fax: [phone]

Fax: [phone]

Tel: [phone]

Fax: [phone]

34W @15min-rate to 1.67V per cell @25℃ (77℉)

HR series

HR 1234W

Valve Regulated Lead Acid Battery

General

Nominal Operating Temperature : 25℃(77℉)

Discharge : -15℃ ~ 50℃ (5℉~122℉)

Charge: -15℃ ~ 40℃ (5℉~104℉)

Specification

Nominal Voltage

12V (6 cells per unit)

Terminal tightening torque

Weight

Approx. 2.50 Kg (5.51 lbs)

Maximum Discharge Current

130A (5sec)

Internal Resistance

Approx. 19.0 mΩ

Short Circuit Current

Maximum Charge Current

3.4A

Terminal types

F2 -Faston Tab250

BUSINESS HEADQUARTERS

Container Material

ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request

Dimensions

Constant Power Discharge Characteristics Unit: W (25℃, 77℉)

Sales Offices

Constant Current Discharge Characteristics Unit: A (25℃, 77℉)

Recognized under UL 1989,

and certified by ISO 9001, 14001, 45001, 50001.
